Enhanced Resolution Methods for Improving Image

Analysis and Pattern Recognition in Scanning Probe

Microscopy

Mario D’Acunto

, Gabriele Pieri

, Marco Righi

and Ovidio Salvetti

Institute of Structure of Matter, National Research Council, ISM-CNR,

via Fosso del Cavaliere 100, I-00133, Rome, Italy

Institute of Information Science and Technology, National Research Council, ISTI-CNR,

via Moruzzi 1, I-56124, Pisa, Italy

Abstract. Image acquisition systems integrated with laboratory automation

produces multi-dimensional datasets. An effective computational approach to

objectively analyzing image datasets is pattern recognition (PR), i.e. a machine-

learning approach where the machine finds relevant patterns that distinguish

groups of objects after being trained on examples (supervised machine

learning). In contrast, the other approach to machine learning and artificial

intelligence is unsupervised learning, where the intelligent process finds

relevant patterns without relying on prior training examples, usually by using a

set of pre-defined rules. In this paper we apply a method derived by usual PR

techniques for the recognition of artifacts and noise on images recorded with

Atomic Force Microscopy (AFM). The advantage of automatic artifacts

recognition could be the implementation of machine learning languages for

AFM investigations.

1 Introduction

It's important for machine image understanding to have high resolution images and to

recognize the semantic of the image (in other word what are the represented object

and which is their sense). In our work, we study super resolution (SR) algorithms in

order to have a high information density from our data and we apply PR algorithms

on high resolution images in order recognize the features of the analyzed images

[1,11,13].

Within the field of image analysis applied to screening device, this paper will focus

on the direct correlation between SR methods and PR methods. In particular, SR

algorithms will be used to recognize patterns of device recorded images and provide

an accurate feedback for checking real time device operability, i.e. using machine

learning algorithms.

SR algorithms generate a denoised hyperesoluted image (or a set of images) from

low resolution ones. The knowledge of the class of images to analyze helps during the

computation of the high resolution image. The higher information contained in the

generated image provide a better sample in order that can be easily use by pattern

recognition algorithms. The results provided from the PR algorithm supply a data

D’Acunto M., Pieri G., Righi M. and Salvetti O..

Enhanced Resolution Methods for Improving Image Analysis and Pattern Recognition in Scanning Probe Microscopy.

DOI: 10.5220/0004392400220028

In Proceedings of the 4th International Workshop on Image Mining. Theory and Applications (IMTA-4-2013), pages 22-28

ISBN: 978-989-8565-50-1

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

input for the machine learning algorithms that gives the possibility to change the

device regulation in order to obtain better images.

This operative procedure can be applied to a big set of devices used for automated

data acquisition. In fact the environments with a high grade of automation produces a

huge image dataset that can be hardly hand checked so it is necessary provide an

automated control system that can provide an intelligent feedback to the devices in

order to maintain the devices to the highest efficiency.

A particular and innovative application field is the Scanning Probe Microscopy

(SPM). In fact the advent of SPM family instruments since the 80 decade of the last

century opened the possibility to observe and manipulate matter at atomic scale

making possible to improve the knowledge and technology on nanoscale (commonly

claimed Nanotechnology). Nevertheless, today the application of SPM techniques is

limited by the fact that the experimental scanning best conditions can be found only

manually.

After a theoretical study of the pipeline composed by SR algorithms, PR

algorithms and device control by the mean of artificial intelligent algorithms we

focused our work in a possible application on a SPM device.

2 An Overview on PR Features

Observing an image a human can notice some particular pattern or characteristics that

are unique for a certain type of material. This inference process is useful in order to

observe phenomenon and so on. For example, in computer vision a computer can only

analyze a set of matrix (one or more matrix) for each image in which the colors are

coded using a particular color code. The data extraction performed by a computer and

its interpretation is a task that permits to a machine to recognize patterns, regularity

and provide an interpretation.

The main approach to patter recognition can be classified as follow:

 statistical learning

 classification

The statistical learning is extremely important as show in numerous examples [11]

such as predict the price of a stock six mounts from now, estimate if the received e-

mail is or is not spam, recognize handwritten characters and digit and understand if an

image contains archaeological handmade objects [12]. A first kind of classification

can divide learning problems into two sets: supervised and unsupervised. In

supervised learning an algorithm provide a predicable output based on a set of input

measures, in unsupervised learning the algorithm objective is “understand” the

relation between a set of input (i.e. analyzing recurrent pattern).

The classification works on predictors  which takes value in a discrete set .

Usually the input space is divided into some labeled regions according to the S-

classification. The boundaries between the regions can be of roughed or smoothed.

For each 



given as input, the classifier provide a 



as output, where 



∈. There

are some methods to determine 



: prototype, K-means clustering, learning vector

quantization, K-nearest neighbors, neural networks, kernel methods and support

vector machines [13].

3 SR Methods for Improving PR

The resolution of an image is determined by many factor depending on the acquisition

system. The equation 1 describes the imaging model we use.





, 







, 



∗





, 



,.

(1)

In details, ,  is the point spread function (PSF), ,  is the ideal image,

,  is the original image and ,  is the noise.

The problem of the resolution in AFM images depends on tip control and feedback.

The main factor that determine the resolution of an image is the number of pixels that

describes an area in the real image [1-5]. The increasing of pixel size is not only a

pleasure but can reveals important particulars. The SR techniques that can be

classified into two classes: single-frame image restoration algorithms or multi-frame

image restoration algorithms.

The classic algorithms get a single image in input and produce a single output image.

The introduction of digital video, i.e. by the means of surveillance camera, led to the

analysis of multi-frame images. Even if in a video each frame represent different

images, consequentially frames are quite similar so that it is possible using them in

order to process the data.

The video analysis conduct to study techniques of motion estimation. Following this

research field, it was recognized the potential of image restoration in order to increase

the spatial resolution using similar images. The application of motion compensations

and image restoration algorithms in order to produce high-quality and high-resolution

still images conduct to the so called super-resolution reconstruction (SRR).

The SRR algorithms transform low resolution images into a high resolution image. In

order to produce the high resolution image it is necessary to remove the effects of

possible blurring and noise from the low resolution images. In other words, the SRR

algorithm computes low resolution images by blur, noise and aliasing [1-3],[6-7].

The SRR algorithms are applied to a large number of problems such as satellite

imaging, astronomical imaging, video enhancement [8-9] and restoration, microscopy

[10] and other.

The algorithm we study comes from an idea suggested by Zou [14]. This SR

algorithm uses a training set in order to get a high resolution image of a face. For

example, it is able to transform a low 16x12 pixel image into a high 64x48 pixel

image. During the training, the algorithm get in input one set of low resolution images

and one set of high resolution images (for each low resolution image there is a high

resolution image). By the computation of this training set the algorithm generate a set

of rules in order to transform new low resolution images into high resolution images.

We test the algorithm using Yale and Feret archives performing two sets of

independent tests. In figure 1 we show the result of our test, the picture A shows the

source image, the picture B shows the output of our algorithm that we can compare

with the picture C that is obtained with a bi-cubic interpolation, finally, the picture D

shows the original high resolution images.

Fig. 1. A face is used during the algorithm test. The picture A shows the source image, the

picture B shows the output of our algorithm that we can compare with the picture C that is

obtained with a bi-cubic interpolation, finally, the picture D shows the original high resolution

images.

4 AFM Imaging Improved by PR Methods Combined with SR:

Numerical Results

Among the SPM family, AFM operating mechanism based on sensing the specimen

through the force between its surface and a sharp probe. A cantilever oscillates and

touches the biological sample only intermittently at the end of its downward

movement, which reduces the contact time and minimizes friction and destructive

forces. This is why AFM produces high-resolution topographic and force

measurements in aqueous and physiologically relevant environments without the need

to stain or pre-treat the specimens.

The most important advantage of applying AFM in biological research related to

the fact that AFM is essentially a single-molecular technique, providing insight into

the geometry, elasticity and dynamic behavior at

the level of single molecular or

single

cell. As many biological processes, such as protein amyloid self-assembly,

involve

multiple pathways and are characterized by inherent heterogeneity of species,

the application of single molecule studies is of critical significance.

Preliminary results following the algorithm described in the preview section.

During our first experiments we take in input the picture A of the figure 2 (picture B

shows the 3D aspect of the surface). As a result of data process, we have a well

characterized profile of the surface as showed in picture C (picture D shows the 3D

aspect of the surface).

The great advantage of AFM is that the screening procedure over large number of

potential partners can be carried out in their natural environment without their

pretreatment or fixation. This non-invasive procedure can be applied for identification

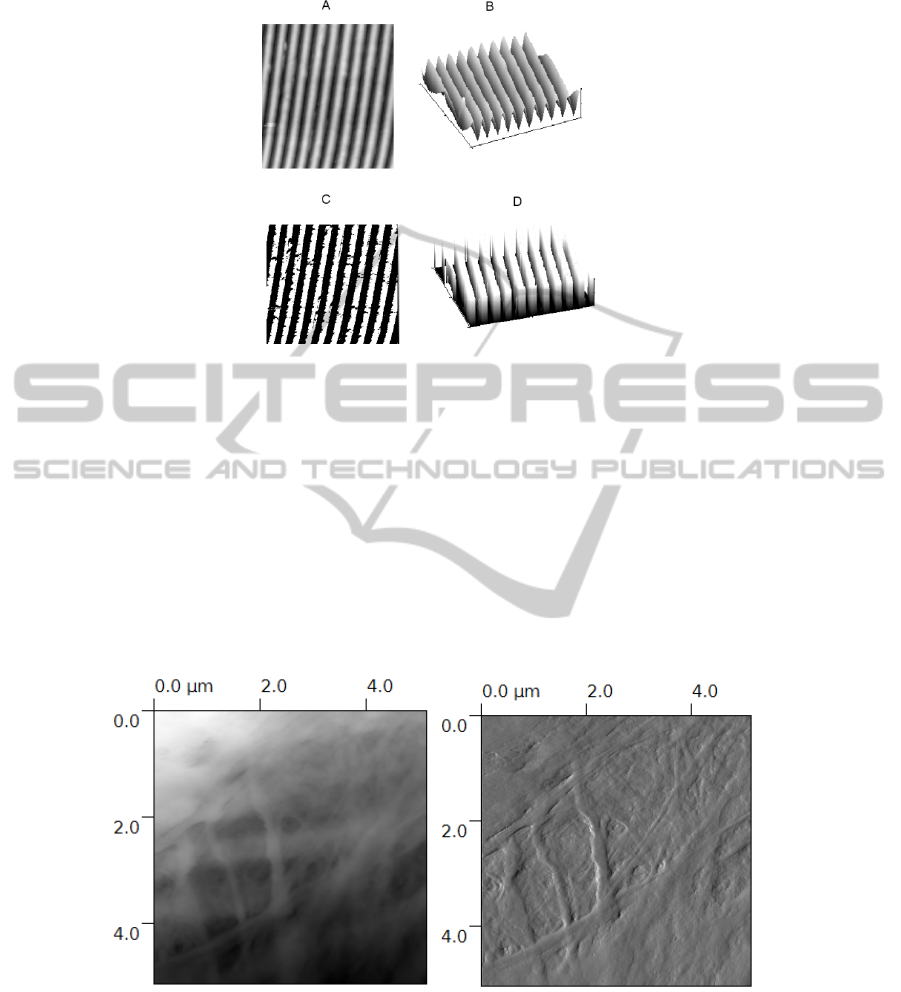

Fig. 2. From A to B: The input image and its 3D rendering. From C to D: the output after our

data processing.

of the promising lead compounds among the large library of biological active species,

which would display the largest attractive forces towards their target molecules.

Our approach for improving single image PR on biological samples is based on the

following steps, first a standard PR method is applied to an image in order to define

the image features. The second step regards the increasing of pixel density on the

image using SRR approach and finally, the third step is devoted to pattern matching

between the first image and the enhanced image.

An example of the application of our approach to biological sample is shown in

figure 3. The image of a fibroblast cell is processed following the above described

sequence. The pattern to be recognized are inherent the specific intra-cell organs

included subsurface actins and filaments.

Fig. 3. On the left we have a low resolution image 5m5m of a fibroblast cell as recorder by

an AFM and processed with commercial software (Park Scientific Instruments) and free

available software (Gwyddion). On the right, we have the correspondent SRR image. Now, on

the right image it is possible to estimate the different cytoskeleton components, as actin and

filaments (dimensions approximately 100nm).

Figure 3 summarizes the effective advantage by using our algorithms. On the left, we

have a low resolution image 5m5m of a fibroblast cell as recorder by an AFM and

processed with commercial software (Park Scientific Instruments) and free available

software (Gwyddion). On the right, we have the correspondent SRR image. From the

initial image (on the left) it is possible to have an idea of the various cytoskeleton cell

organs, but the low quality image makes difficult to estimate the plot of such organs

and their real dimensions. On the contrary, improving the pixel density in a

reasonable way using SR methods, it is possible estimate the cytoskeleton plot and to

identify the organs with their real dimension, approximately 100nm

(1nm=1nanometer=10

-9

meter).

5 Conclusions and Future Perspectives

In this paper, we focused the attention on an effective computational approach to

increase the resolution of Scanning probe Microscopy image for improving the pattern

recognition. The results obtained can be considered as a first step of a more general

framework for applying machine learning and artificial intelligence to nanoscale

imaging, where the intelligent process finds relevant patterns without relying on prior

training examples, usually by using a set of pre-defined rules. In details, we apply a

method derived by usual pattern recognition techniques for the recognition of artifacts

and noise on images recorded with Atomic Force Microscopy. First immediate

advantage of such automatic artifacts recognition could be the implementation of

machine learning languages for AFM investigations.

Acknowledgements

The authors wish to thank the NanoICT Project for useful support.

References

1. Image Process. 6: 774-8. Kang, M. G.; and Chaudhuri, S. 2003. Super-resolution image

reconstruction. IEEE Signal Process. Mag. 20: 19-20.

2. Ng, M. K.; and Bose, N. K. 2003. Mathematical analysis of super-resolution methodology.

IEEE Signal Processing Magazine 20(3):62-74.

3. Park, S. C.; Park, M. K.; and Kang, M. G. 2003. Super-resolution image reconstruction: a

technical overview. IEEE Signal Processing Magazine 20(3): 21-36.

4. Rajan, D.; Chaudhuri, S.; and Joshi, M. V. 2003. Multi-objective super resolution concepts

and examples. IEEE Signal Processing Magazine 20(3): 49-61.

5. Rajan, D.; and Chaudhuri, S. 2003. Simultaneous estimation of super-resolution scene and

depth map from low resolution defocuses observations. IEEE Trans. On Pattern Analysis

and Machine Intelligence 25(9): 1102-17.

6. Processing 5(6): 996-1011. Segall, C. A.; Molina, R.; and Katsaggelos, A. K. 2003. High-

resolution images from low-resolution compressed video. IEEE Signal Processing

Magazine 20(3): 37-48.

7. Callicó, G. M.; Núñez, A.; Llopis, R. P.; and Sethuraman, R. 2003. Low-cost and real-time

super-resolution over a video encoder thIP. Proc. 4 IEEE Int. Symp. on Quality Electronic

Design (ISQED'03), San Jose, CA, USA, 24-26 March 2003, pp. 79-84. IEEE Computer

Society, Washington, DC, USA.

8. Jiang, Z.; Wong, Tien-Tsin; and Bao, H. 2003. Practical super-resolution from dynamic

video sequences. Proc. IEEE Computer Society Conference on Computer Vision and

Pattern Recognition (CVPR'03), Madison, WI, USA, 16-22 June 2003, vol. 2, pp. 549-54.

IEEE Computer Society, Washington, DC, USA.

9. Zibetti, M. V. W.; and Mayer, J. 2005. Simultaneous super-resolution for video sequences.

Proc. IEEE Int. Conf. on Image Processing (ICIP'05), Genoa, Italy, 11-14 September 2005,

vol. 1, pp. 877-80. IEEE Signal Processing Society, Piscataway, NJ,USA.

10. Karthik Kumar1, Huigao Duan1, Ravi S. Hegde, Samuel C. W. Koh1, Jennifer N. Wei and

Joel K. W. Yang; Printing colour at the optical diffraction limit; august 2012, pp. 557-561,

Nature Nanotecnology.

11. T. Hastie, R. Tibshirani, and J. Friedman. The elements of Statistical Learning - Data

Mining, Inference and Prediction. Springer, 2001.

12. Benedetto Allotta, S. Bargagliotti, L. Botarelli, Andrea Caiti, Vincenzo Calabro, G. Casa,

M. Cocco, Sara Colantonio, Carlo Colombo, S. Costa, M. Fanfani, L. Franchi, P. Gambogi,

L. Gualdesi, D. La Monica, Massimo Magrini, Massimo Martinelli, Davide Moroni,

Andrea Munafò, Gordon J. Pace, C. Papa, M. A. Pascali, Gabriele Pieri, M. Reggiannini,

M. Righi, Ovidio Salvetti, Marco Tampucci: Thesaurus Project: Design of New

Autonomous Underwater Vehicles for Documentation and Protection of Underwater

Archaeological Sites. EuroMed 2012: 486-493.

13. J. Shawe-Taylor and N. Cristianini. Kernel methods for pattern analysis. Cambridge

University Press, Cambridge, 2004.

14. W. W. W. Zou and P. C. Yuen; “Very Low Resolution Face Recognition Problem”;

Transactions on Image Processing, vol. 12, N. 1, January 2012
