Deontic Database Constraints

From UML to SQL

Pedro Nogueira Ramos

ADETTI /ISCTE-IUL, Computer Science Department, Lisbon, Portugal

Keywords: UML, SQL, Case, Relational Model, Deontic Constraints.

Abstract: Deontic constraints (obligations, forbiddances, violations) can be easily and explicitly represented in UML

Class Diagrams. They deal with formal representation of requirements, which ideally should always be

fulfilled, but can be violated, in atypical situations. In this paper we adopt and extend previous work on

deontic constraints. Our contribution is the development of a tool that fully generates code based on UML

Class Diagrams representation of those constraints. We overcome some limitations of previous work, and

consequently we only adopt standard UML notations. Our tool (a Sybase PowerDesigner plugin) generates

OCL constraints, a standard relational model, and SQL code to hold the deontic requirements. SQL is coded

in views and triggers. Since we adopt a commercial tool, these enrichments will benefit any non-

professional users.

1 INTRODUCTION

The paper addresses the automatic generation of

database constraints. Our approach is based on the

formal representation of constraints, using OCL

(Object Constraint Language) and UML (Unified

Modeling Language) Class Diagrams. The

advantages of CASE (Computer-Aided Software

Engineering) Tools are well known, and a wide

range of commercial tools are largely adopted by

companies. Code generation usually ensures a well-

documented, accurate and efficient code. Software

maintenance costs can be highly reduced as a

consequence of CASE tools adoption. Our main

contribution is the development of a tool that fully

generates code based on UML (Boock et. al., 1998)

constraints represented in a diagrammatic notation.

Within the wide scope on software constraints, we

have focused our work in database constraints, more

specifically, the paper deals with a relational model

enrichment that allows a flexible notion of the

mandatory property in foreign key fields. The paper

considers the distinction between the so called Soft

and Hard constrains (Elliman, 1995). This

distinction is explicitly represented in the graphical

notation.

In the database domain, the boolean mandatory

attribute is adequate for requirements that must hold

unavoidably, but is not adequate to deal with

requirements that ideally should always be fulfilled,

but can be violated in atypical situations. If those

violable requirements are explicitly represented it is

possible to maintain both the requirement and its

violation and, consequently, recur to monitoring

procedures for violation warnings. Without that

explicit representation, the designer must always

choose a non-mandatory value if there is a chance,

even if a small one, that in an atypical situation the

field will not be filled in.

Consider the following real example - taken from

(Ramos, 2008) - concerning the overtime hours

control in an organization where sometimes the

employees work for several days outside the

organization (at the client’s organization facilities).

An organizational rule states that all overtime hours

must be authorized by the employee hierarchic

superior. Using a workflow system the employee

fills in a requirement form that, if authorized by his

superior, will be stored in a table record in which the

ID of the superior must be filled in. However,

sometimes the need for overtime hours is only

detected when the employee is working outside the

organization. A problem may arise if the employee

is outside during a change of month (the problem is

related with technical issues regarding the total

102

Nogueira Ramos P..

Deontic Database Constraints - From UML to SQL.

DOI: 10.5220/0004415801020109

In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 102-109

ISBN: 978-989-8565-60-0

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

amount of monthly overtime hours). When the

employee is working outside with his superior the

usual procedure consists of the employee sending a

fax or an email (and then someone fills in the

requirement form for them) and their superior

making a phone call or sending a fax authorizing the

overtime hours. Due to organizational security

procedures no one can electronically authorize

overtime hours without a proper password. When

the superior is outside and cannot access the system,

the system cannot accept overtime hours. The

solution adopted by the organization was to remove

the requirement, which stated that all records of the

overtime hours’ authorization table should always

have the superior’s ID.

The important aspect of the previous example is

that, because of one atypical situation (which

nevertheless happens several times) an important

requirement was abandoned (the overtime

authorization control is now made manually, where

previously it was validated by the database). That

happened because the requirement was inflexible.

The paper is organized as follows: in section 2

we present some relevant related work; in section 3

we analyze the related work presented in (Ramos,

2008), and in section 3 we introduce its limitations,

our counterproposal and the plugin we developed for

the automatic generation of OCL, Views and

Triggers. Some concluding remarks are presented in

the last section

2 RELATED WORK

There are already some tools that generate code

based on OCL constraints (Loecher and Ocke,

2010), (Briand, 2005). These tools haven’t yet

reached a final stage, some limitations were found

during their testing. Also, they do not support

graphical notation. Graphical notation is critical

when we want to support the daily work of database

designers in organizations. OCL(Warmer and

Kleppe, 2003) hasn’t yet become a common

language, even in the database community. Its use

requires a deeper knowledge than UML Class

Diagrams.

We follow the work presented in (Ramos, 2008)

where the author, based on deontic notions, already

proposes a flexible notion of the mandatory

property. However, the author does not support his

approach on a computational implementation.

Furthermore, we have detected that the solution

presented in (Ramos, 2008) has some serious

limitations, which can be avoided. Moreover, in

(Ramos, 2008) the role of OCL seems useless since

the author does not present any guidelines regarding

the automatic generation of OCL expressions based

on the UML Class Diagram. In this paper we present

an integrated solution that generates OCL

expressions and SQL scripts based only on the Class

Diagram. Unlike the approach proposed in (Ramos,

2008), we don’t need to extend the relational model

with odd tables. In our approach the relational model

is generated based only on standard rules. Additional

knowledge is stored in triggers and views. In the

next section this work is analyzed with more detail.

Borgida, in his work with exceptions in

information systems (originally in (Borgida, 1985)

with further extensions, e.g., (Borgida et. al., 1999))

considers that exceptional situations arise when

some constraints are violated, and that exceptions

are considered as violations. In his proposal, the

occurrence of a violation is signaled by the creation

of an object in a class called ANY_VIOLATION.

The author proposes an exception handling

mechanism to specify failure actions. Again, this

author also recurs to an odd class (more precisely, he

uses two classes: one for the violations as such and

another for the violation constraints). Borgida

proposes a much more general mechanism to deal

with exceptions handling in object oriented

programming languages. Our approach, apart from

being only oriented on one particular constraint (not

considered in Borgidas work), is focused on the

database generation. Borgida, contrary to us,

explicitly rejects triggers approach, because he

wants to maintain the control in a middleware

software level. What we call Contrary-To-Duties

constraints isn’t addressed in Borgidas work.

The distinction between violable requirements and

mandatory ones is similar to the so called Soft and

Hard constraints. The Semantics of Business

Vocabulary and Business Rules (SBVR), an adopted

standard of the Object Management Group (OMG)

for a formal declarative description of business

rules, considers the deontic modal operators

obligation and necessity (www.omg.org/). Those

operators also intend to deal with the distinction on

hard and soft constraints. The idea is to use them in

computer systems in the context of the

OMG’s Model Driven Architecture (MDA).

3 DEONTIC CONSTRAINTS

In (Ramos, 2008) the author addresses a specific

subject: the mandatory property in relational models

tables attributes. The proposed approach is inspired

DeonticDatabaseConstraints-FromUMLtoSQL

103

in deontic logic, namely in the notions of Deontic

Obligation, Deontic Prohibition and Deontic

Necessity (Wieringa and Meyer, J., 1991). The main

idea is to maintain in the system both the

requirements (ideal situations) and their violations,

and, additionally, the emerging consequences of

those violations. In deontic terminology, we are

talking about Obligations (requirements), their

Violations and Contrary-To-Duties (new emerging

Obligations or Prohibitions).

In the paper the author presents the following

example to motivate the need for a deontic approach.

“All students must have a zip code address”. That

requirement exists due to the fact that the university

regularly needs to send correspondence to the

student. However, is that a requirement that intends

to capture an ideal situation or a requirement that the

database should always fulfill? What will be the

procedure if one student tries to register in the

school and has forgotten his zip code? If we want to

conditionally accept his registration (telling him that

he must supply the zip code as soon as possible)

then the requirement is about an ideal situation that

sometimes doesn’t happen (neither in the real world

nor in the database). Blocking the registration could

be a wrong choice because, apart from the fact that

all data already inserted in the application form

would be lost, the school would convey an

unpleasant image of unnecessary bureaucracy. The

zip code will be indispensable in the future, but

during a short period of time the zip code is

dispensable.

In (Ramos, 2008) the author distinguishes

between two kinds of requirements:

 requirements that ideally should always be

fulfilled, but can be violated in atypical

situations and;

 requirements that must hold unavoidably.

Furthermore, the author, inspired by the deontic

logic approach, considers the so-called Contrary-To-

Duties scenarios (Carmo and Jones, 1996), i.e., new

constraints that emerge as a consequence of the

violations of the Violable Requirements. Those sub-

ideal states represent situations where deontic

obligations are violated and consequently new

obligations or prohibitions arise to deal with that

undesired but tolerated situation. In the paper the

author considers different emerging scenarios, but

since that distinction is not very clear, in this paper

we would rather adopt a different classification (very

similar to the OMG standard for the semantics of

Business Vocabulary and Business Rules). In the

presence of an unfulfilled obligation three different

kinds of constraints may arise:

 New obligations;

 Forbiddance constraints (explicit

representation of undesired situations);

 Necessary constraints (the same as hard

constraints: requirements that must hold

unavoidably).

Notice that those three situations can be expressed as

soft and hard constraints, but from a user

perspective, we agree that the deontic semantics of

Obligation, Forbiddance and Necessity (also adopted

by OMG) are more intuitive.

In Figure 1 we present an example taken from

the author’s paper that illustrates the proposed

graphical notation.

Figure 1: Graphical notation for deontic constraints.

The example refers to an application that supports

the budget control of a building company. The

example will also be used in the next section. Every

building project has its own budget. The budget is

disaggregated into several items. When the project

leader adjudicates a new work to a supplier, he fills

in a Purchase Order (PO) (to be delivered to the

supplier) and also fills in a Withhold Request (WR)

(to ensure that the money will be available when the

payment takes place). The Withhold Request (WR) is

only allowed by the application if there is enough

money in the corresponding budget item (a PO for a

specific item). In order to control the budget the

following rule is implemented in the application:

every PO must be associated to a WR.

Consequently, POs are only allowed if there is

enough money available in the budget item.

However there are situations where adjudications

must take place (the PO must be created) even if

there is no budget (for example, unpredictable

<<Obligation>>

<<Necessity>>

0..*

0..1

0..*

0..1

0..*

1..1

0..1

Purchase Order

Withhold Request

Violation

Minute Meeting

Budget Rearrabgement Request

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

104

works). In such situations the standard procedure is

to request a budget rearrangement (for example, to

exchange values between items). That request takes

some time (even days) to be analyzed and sometimes

the urgency of the work forces the project leader to

violate the control rule (for example, an imminent

land falling that requires a sustentation wall). In

order to allow the violation of the rule, the

application must accept that sometimes a PO is not

associated to a WR. Given that flexible

interpretation, what the rule really states is that

ideally every PO must be associated to a WR. In

order to ensure a rigorous budget, when the rule is

violated (a PO is not associated to a WR), apart

from the Budget Rearrangement Request (BRR), the

project leader must organize a work meeting to

elaborate a formal minute that justifies the decision

to adjudicate the new work (in this kind of meeting a

third party entity – surveillance company - is always

present). Notice that ‘new obligation’ (to have a

minute signed by the three entities: the project

leader, the supplier and the third party company)

also represents an ideal situation. Sometimes (rare

situations) the adjudication must occur before the

meeting takes place.

The obligation to have an association between

the PO and the WR is represented with a special

class: Violation. The disjunction (XOR) means that

if the PO does not have a WR then a violation will

be associated with the PO. In the paper the author

adopts the approach first presented in (Tan and

Torre, 1994). Deontic rules are represented with

violation constants: the previous expression

Ideally(



) (or Obligation(



)) is represented as

V





, in which V

represents a violation constant.

The author considers a finite set of violation

constants, each of them associated to one deontic

rule. The semantics is intuitive: V





means that

if rule i isn’t violated then



is a fact (in other

words, rule i states that there is an obligation to

ensure



). The author considers that the Class

Violation corresponds to the finite violation

constants V (

 V).

In the example there are two contrary-to-duties

situations. When a PO is not associated to a WR two

new situations arise that can be expressed with two

new rules:

 If a PO is not associated with a WR then a BRR

is necessary;

 If a PO is not associated with a WR then the PO

must be associated with a Minute Meeting

(MM).

The author proposes the use of the UML

Dependency Relation to capture the contrary-to-

duties requirements. The stereotypes must be read as

follows: “the Budget Rearrangement Necessity and

the Minute Meeting Obligation depend on the

Purchase Order violation”. The notion of

Forbiddance is also considered (not illustrated in the

example) and also represented with a dependency

relation.

The author presents an OCL representation for

the deontic requirements (based on the Violation

Class) but he does not link the OCL expressions to

SQL code. The relational model implementation is

based on the built-in table called Violation (with

seven columns), and the SQL code depends on that

table. We do not present any further details, because

our approach does not take that odd table into

account. We do not need to create any tables apart

from the ones that are generated by standard

transposition rules. We also generated complete

SQL code that covers all requirements. Our

approach is presented in the next section.

4 DEONTIC CONSTRAINTS:

FROM UML TO SQL

We follow the deontic approach described in the last

section because we believe that it is intuitive and

also because OMG has adopted it has well. We

consider the three contrary-to-duties scenarios that

may arise when obligations are violated:

 New Obligations;

 Forbiddance;

 Necessity.

We represent all requirements only with

stereotyped dependency relations: <<Obligation>>,

<<Necessity>>, <<Forbiddance>>. For each

stereotype we generate the OCL expression, and

afterwards, the SQL code (triggers and views).

In Figure 2 we present the previous example

with a new requirement and minor changes. We

tested the diagram in the plugin. We adopt the

Sybase PowerDesigner tool (www.sybase.com)

because we think it is one of the best UML-To-

Relational tools and it allows the development of

plugins without any restriction. Since we adopt a

commercial tool, any non-professional user can use

our approach in their projects.

We create a new association between

Collaborator and Zip Code to illustrate the

Forbiddance requirement. If the system does not

know the collaborator zip code, he cannot place

DeonticDatabaseConstraints-FromUMLtoSQL

105

orders. We choose a “many to many” association

between the Collaborator and the Zip Code just to

enhance the potentialities of the plugin. It will be

more realistic to consider that one collaborator is

only associated with a zip code, but this situation

(more than one zip code) is more complex in what

regards the obligation and the consequent

forbiddance. As we will see we only use standard

Class Diagram and we do not make use of the

Violation Class. The corresponding OCL constraints

are the following:

Table 1: OCL constraints for deontic constraints.

Stereotype OCL Expression

Obligation

Context:

Colaborator

ZC-> notEmpty()

Context: source

class. Requirement:

there must be an

object in the target

class.

Obligation

Context: Purchase

Order

WR->notEmpty()

CTD

Obligation

Context: Purchase

Order

WR -> Empty()

implies

MM ->

notEmpty();

Context: source

class. of the primary

obligation.

Requirement: there

must be an object in

the target class.

CTD

Necessity

Context: Purchase

Order

WR -> Empty()

implies

no_role_ctd

-> notEmpty();

Context: source

class. of the primary

obligation.

Requirement: there

must be an object in

the target class.

CTD

Forbiddan

Context:

Colaborator

ZC->Empty()

implies PO ->

isEmpty();

Context: source

class. of the primary

obligation.

Requirement: there

should not be an

object in the target

class

Since we want to keep the deontic constraints in the

database, triggers are the best choice to implement

them. Using Before and After action triggers it is

possible to ensure that all constraints are fulfilled.

The procedure for monitoring the obligations

fulfillment can be easily achieved using relational

views. For each constraint (OCL invariant) we can

generate a SQL view, which retrieves the records

that don’t satisfy it. That’s, for example, what the

Dresden Toolkit does, one of the few OCL-SQL

generators (Loecher and Ocke, 2010), (dresden-

ocl.sourceforge.net/). In what regards the SQL

generated code, our plugin automatically generates

the code explained in Table 2

. Notice that in the

current version we haven´t yet implemented the

after/before update and delete triggers, however, the

process is very similar to the after/before insert

triggers:

Table 2: SQL code for deontic constraints.

Stereotype SQL Code

Obligation

Generates a view that retrieves

violations (null foreign keys or missing

records)

CTD

Obligation

Generates a view that retrieves

violations (null foreign keys or missing

records).

CTD

Necessity

Generates a trigger that cancels an

insert operation (an obligation not

fulfilled) if it finds a null foreign key or

doesn’t find a joined record (a

mandatory association not instantiated).

CTD

Forbiddance

Generates a trigger that cancels an

insert operation if it finds a null foreign

key or doesn’t find a joined record (an

obligation not fulfilled).

Figure 2: Deontic constraints, Order Example.

<<Obligation>>

0..*

COL

1..1

COL

0..*

<<Obligation>>

0..*

0..1

0..*

0..1

0..*

<<Forbiddance >>

<<Obligation>>

<<Necessity>>

Colaborator

Colaborator Name

Colaborator Address

: varchar(100)

: varchar(200)

Zip Code

Zip Code ID

Location

: int

: varchar(100)

Purchase Order

PO Number

mount

Date

: int

: decimal(8,2)

: date

Withhold Request

Date

mount

: date

: decimal(8,2)

Budget Reaagement Request

Date

mount

: date

: decimal(8,2)

Minute Meeting

Minute ID

Data

Text

: int

: date

: text

Col a bo rato r Zi p Co de

Purchase Order Withhold Request

Purchase Order Budget Request

Purchase Order Minute Meeting

Colaborator Purchase Order

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

106

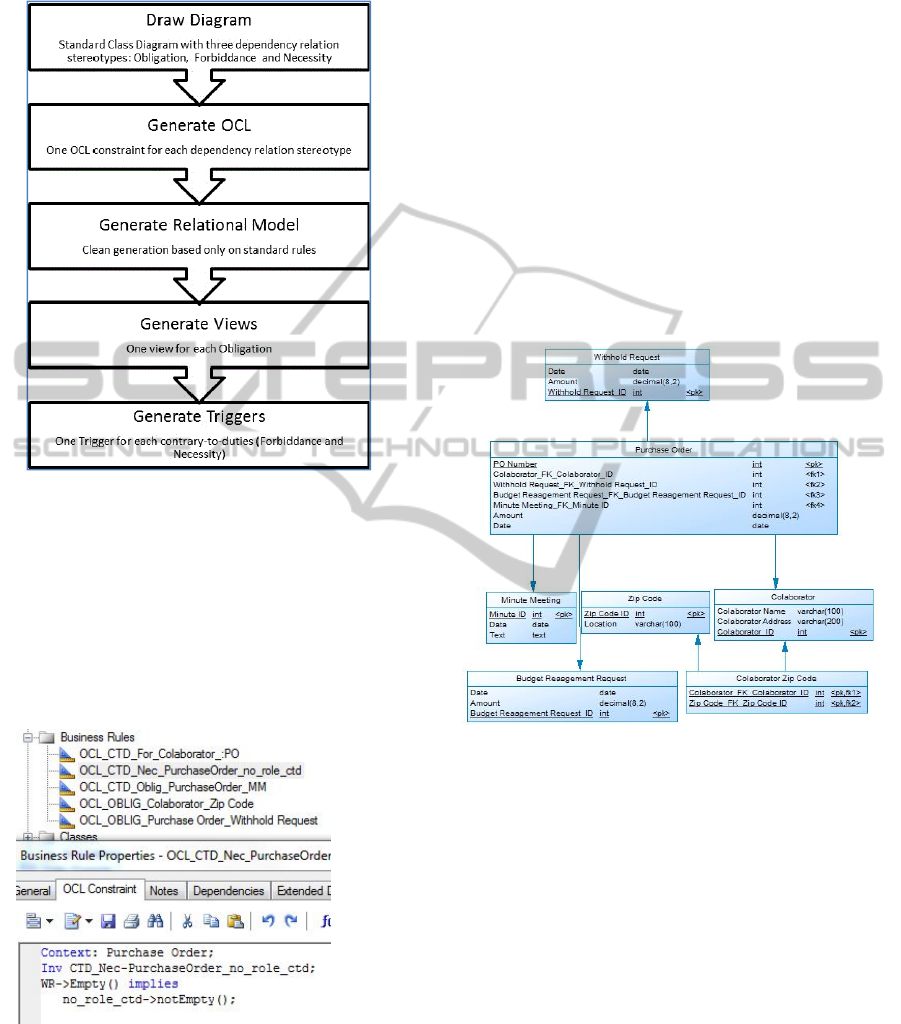

In Figure 3 we present the plugin steps to generate

the desired code.

Figure 3: Steps to generate the SQL Code.

OCL constraints are generated based only on the

Class Diagram. The association role names are used

to name the constraints, but they aren’t mandatory,

as it can be noticed in the

CTD_Nec_Purchase_Order_PO_Withhold_Request

_no_role_ctd constraint (we haven’t named the

Purchase_Order_ Budget_Request roles, that’s the

reason for the no_role expression).

Figure 4: An example of an OCL constraint.

Primary obligations’ names start with

OCL_OBLIG_, and contrary-to-duties constraints

start with OCL_CTD_. Contrary-to-duties can be

new obligations (OCL_CTD_Oblig_), prohibitions

(OCL_CTF_For_) or hard constraints

(OCL_CTF_NEC_). The remainder of the name for

the primary obligations is the conjunction of both

classes names. For the contrary-to-duties constraints

the remainder is the conjunction with the context

class name and the role associated to the opposite

class. An OCL code example can be checked in

Figure 4 (the remainder are presented in Table 1).

The relational model depicted in Figure 5 results

essentially from the application of standard

transformation rules (Scott Ambler, 2013). We

haven’t followed exactly PowerDesigner rules

because it has some limitations regarding one to one

relations, foreign keys integrity constraints, primary

keys, etc. The adaptations we made do not in any

aspect relate to our extension. The adaptations only

concern relational model optimizations and do not

affect the plugin code covered by this paper.

Figure 5: Relational Model, Order Example.

Each Obligation generates one view as presented in

Figure 6, Figure 7 and Figure 8. Our criterion was

not to generate the most efficient SELECT

commands. Our goal was to find a generic

algorithm, which copes with any obligation, that’s

the reason why we always recur to the EXISTS

operator.

Considering the second example regarding the

obligation, which stands that all collaborators must

have a zip code. The view retrieves collaborators

that do not exist in the colaborator_Zip_Code table,

the table that holds the collaborators zip codes.

One trigger is generated for each Forbiddance

and Necessity dependency relation. The

corresponding code is presented in Figure 9 and

Figure 10. Again, our criterion was not to generate

the most efficient SQL code. We are aware that

sometimes it is possible to generate a more simple

DeonticDatabaseConstraints-FromUMLtoSQL

107

code, and in future versions we will address that

subject. The current version generates an effective

code.

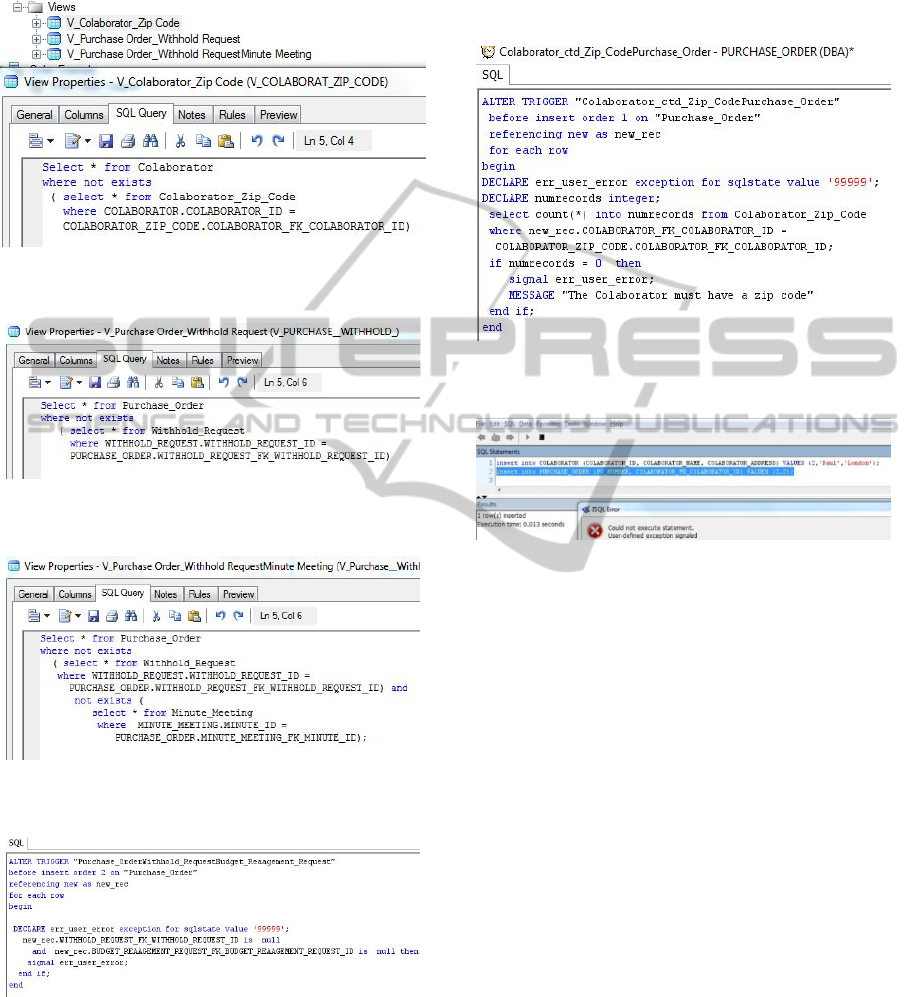

Figure 6: View for monitoring the fulfilment of the

primary obligation of having a zip code.

Figure 7: View for monitoring the fulfilment of the

primary obligation of having a withhold request.

Figure 8: View for monitoring the fulfilment of the sub-

ideal obligation of having a minute meeting.

Figure 9: Trigger for cancelling and insertion that violates

a forbiddance requirement.

In Figure 11 we can see an example of one

trigger avoiding one insertion that will violate a

Forbiddance requirement. When generating the

Relational Model we can choose the database engine

that will hold the database. In our example we

choose Sybase Adaptive Server. We tried to use

only standard SQL code in order to cope with the

most known database engines.

Figure 10: Trigger for cancelling and insertion that

violates a necessity requirement.

Figure 11: Cancelling and insertion that violates a

forbiddance requirement.

5 FINAL REMARKS

AND FUTURE WORK

In this paper we have extended existing work in

order to provide us with a tool that fully supports an

automatic generation of the extended relational

(deontic) model. With the tool, a database designer

can explicitly represent in standard UML class

diagram deontic constrains and automatically obtain

the final SQL code.

The reason for focusing our attention on the

relational model is the fact that Object Databases

Management Systems aren’t yet an efficient solution

for demanding applications. The object-oriented

paradigm is becoming the main background for

system modeling, but unfortunately the object-

oriented databases don’t progress at the same speed,

making relational databases the standard for data

storing. The reason for choosing UML is the fact

that it has become a standard language for design

and conception of systems.

Our tool needs to be tested with complex

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

108

scenarios (diagrams) in order to correct any bugs

that there may be. For that reason we delivered the

tool to information system course students (master

degree).

Furthermore, in the near future it will be

necessary to cover more complex situations like

relations with more than two arguments and

composite obligations. For example, how to

represent that: all courses should be associated to a

degree and all courses should be associated to a

coordinator; but if obligation to be assigned to a

coordinator disappears if the course isn’t assigned to

a degree (the two obligations must only be processed

as a whole and not separately).

REFERENCES

Boock, G., Rumbaugh, J., Jacobson, I., 1998. The Unified

Modeling Language Reference Manual. In Addison-

Wesley object technology series.

Warmer, J., Kleppe, A., 2003. The Object Constraint

Language: Getting Your Models Ready for MDA (2nd

Edition). Ed The Addison-Wesley Object Technology

Series .

Ramos, P. 2008.. Contrary-to-duties Constraints: From

UML to Relational Model. In ACM/IEEE 11th

International Conference on Model Driven

Engineering Languages and Systems,Toulouse

Wieringa, R. J., Meyer, J., 1991. Applications of Deontic

Logics in Computer Science: a concise overview In J.

Meyer and R. J. Wieringa, , editors, Procs. First Int.

Workshop on Deontic Logic in Computer Science.

Elliman, D. G., Burke, E., Weare, R. F., 1995. The

automation of the timetabling process in higher

education. Journal Educational Technol Systems, 257-

266.

Scott Ambler. Mapping Objects to Relational Databases:

O/R Mapping In Detail,

http://www.agiledata.org/essays/mappingObjects.html

(visited 10/01/2013)

Carmo, J., Jones, A., 1996. A New Approach to Contrary-

To-Duty Obligations. In, Defeseasible Deontic Logic,

I, Donald Dute (ed.), Synthese Library

Tan, Y., T. L., 1994. Representing Deontic Reasoning in a

Diagnostic Framework, in ILCP’94 Workshop on

Legal Applications of Logic Programming, Genova,

Italy.

Loecher, S., Ocke, S., 2010. A metamodel-based OCL-

compiler for UML and MOF.In Elsevier, editor,

Proceedings of the 6th International Conference on the

Unified Modelling. San Francisco.

Borgida, A., 1985. Language features for flexible handling

of exceptions, in ACM Transactions on Database

Systems (TODS).

Borgida, A., Murata, T., 1999. Tolerating Exceptions in

Workflows: A unified framework for Data and

Process. in Proc. International Joint Conference on

Work Activities Coordination and Collaboration

(WACC), USA.

Briand, L. C., Dzidek, W., Labiche, Y., 2005. Using

aspect-oriented programming to instrument OCL

contracts in Java. Proc. of IEEE International

Conference on Software Maintenance (ICSM), pp.

687-690, Budapest, Hungary

dresden-ocl.sourceforge.net/ (Dresden OCL Toolkit.)

(visited in11/01/2010)

www.omg.org/ spec/SBVR/1.0/, Semantics Of Business

Vocabulary And Business Rules (SBVR), Version

(visited 10/01/2013)

www.sybase.com/products/modelingdevelopment/powerd

esigner Sybase PowerDesigner. (visited 10/01/2013)

DeonticDatabaseConstraints-FromUMLtoSQL

109
