ETL Standard Processes Modelling

A Novel BPMN Approach

Bruno Oliveira and Orlando Belo

ALGORITMI R&D Centre, University of Minho, Campus de Gualtar, 4710-057, Braga, Portugal

Keywords: Data Warehousing Systems, ETL Conceptual Modelling, Specification, Validation, Analysis and Testing of

ETL Systems, BPMN Meta-model Extensions.

Abstract: ETL systems modelling have been a topic quite explored by researchers in Data Warehousing. However, we

believe that there isn’t yet a convinced and simply approach that provides the necessary bridges to validate

conceptual and logical models and testing them before its real implementation. In this work we explore the

use of BPMN for ETL conceptual modelling, presenting an extension to the BPMN 2.0 meta-model and

notation to support modelling and visualization of ETL activities. We intend to provide a set of BPMN

meta-models especially designed to map standard ETL processes, providing the necessary bridges to

translate conceptual models into their correspondent implementation testing correctness and effectiveness of

its execution. For this particular work, we specially designed a standard ETL process – Change Data

Capture based on log files – to demonstrate the viability and effectiveness of the approach presented.

1 INTRODUCTION

Today, the development of an information system is

a challenge and often a complexity work engaging

personnel with knowledge and expertize in different

areas (Scacchi, 2001). Software engineers use to

make some initial drafts in order to get a first system

overview and a set of preliminary requirements,

which need to be validated with all project

development team’s members and future users.

Basically, such drafts (and models) describe the

system that we want to implement, regardless of the

methodology (or technology) used in its

implementation, revealing the most elementary

project needs in a very clear and precise way

(Losavio et al., 2001). Typically, models are

implemented with the use of well-defined languages,

with specific syntax, meaning and notation, which

are very suitable for computer interpretation (Kleppe

et al., 2003).

The design and implementation of an ETL

(Extract-Transform-Load) process (Kimball and

Caserta, 2004) usually involve the development of

very complex tasks imposing high levels of

interaction with a vast majority of components of a

data warehouse (DW) system architecture.

Reusability it’s hard to accomplish when developing

ETL systems, because each one of them populates

differently a DW, following as expected, a specific

set of decision-making requirements and a specific

target user community. It’s easy to see that different

ways of thinking produce also different dimensional

models, which implies frequently to change ETL

systems design during its life (Weske et al., 2004).

Considering this features, as well as the importance

and adequacy of an ETL system in the success of a

DW, we design and developed a set of meta-models

using Business process Model Notation (BPMN)

(OMG, 2011) specifications for some of the most

commonly ETL processes used in real word

applications - we use to refer to them as ETL

standard processes. In a previous work (Oliveira and

Belo, 2012), we already specified conceptually an

ETL standard process: the surrogate key pipelining.

We started by developing a conceptual definition of

the case through the use of BPMN notation, mainly

due to its clarity and simplicity, validating it

posteriorly by running the model with semantics and

constructs provided by BPMN 2.0 specification.

However, in this paper, our goal is a little bit

different. We intend to provide a set of meta models

that can be defined as ETL containers of operations

specifying the most current standard ETL tasks

(change data capture, surrogate key pipelining,

slowly changing dimensions, and others), which can

be used to create a conceptual model for an ETL

120

Oliveira B. and Belo O..

ETL Standard Processes Modelling - A Novel BPMN Approach.

DOI: 10.5220/0004418301200127

In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 120-127

ISBN: 978-989-8565-59-4

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

system. For that, we extended BPMN 2.0 standard

meta-model and notation in order to represent an

extended family of BPMN patterns that allow us to

receive standard tasks and to build a complete ETL

system more easily.

After a brief presentation of some related work

(section 2) about ETL conceptual modelling, we

present our proposal extending BPMN 2.0 meta-

model in order to represent standard ETL patterns

(section 3). Latter, in section 4, we discuss a visual

extension to BPMN diagrams, with a concrete

example, and their application in a typical ETL

process, discussing their features and describing one

of the most relevant standard ETL processes (change

data capture, based on log files), in order to

demonstrate the use and utility of the ETL modelling

approach designed and developed (section 5).

Finally, we finish the paper presenting results

evaluation (section 6), conclusions and future work

(section 7).

2 RELATED WORK

The use of models or meta-models (models that

specify other models) enables the formalization of

concepts, minimizing misinterpretations and

ambiguous aspects, enhancing readability and

efficiency in the entire implementation cycle of a

particular system. Considering ETL system

implementation as a very critical task in the success

of a DW, several authors proposed different kind of

methodologies to support process conceptualization.

ETL process specification has been done mainly

using proprietary notations imposed by current ETL

design and implementation tools.

Vassiliadis and Simitsis (Vassiliadis et al.,

2002a); (Simitsis and Vassiliadis 2003); (Vassiliadis

et al., 2002b); (Vassiliadis et al. 2003) proposed a

new set of elements particularly designed to specify

the natural characteristics of an ETL process. In that

work, the authors proposed a conceptual, logic and

physical modelling for ETL processes that reduces

system complexity, decreases implementation time,

and increases its reliability. In turn, Trujillo and

Luján-Mora (Trujillo and Luján-Mora, 2003)

adapted the UML language to fit ETL conceptual

modelling requirements. They raised interesting

aspects that should be taken into consideration when

developing conceptual and logical models for ETL

processes. Nevertheless, we consider that still exists

a lack of a complete proposal that lets ETL

conceptual modelling to be produced easily and

generate automatically executable models, providing

source code that could be executed in some

platform.

As the basis of this paper, it is the work of

Akkaoui and Zimanyi (Akkaoui and Zimanyi, 2009),

which proposed an ETL conceptual design using

BPMN, and shown how such model could be

implemented through the use of Business Process

Execution Language (BPEL). These authors

considered an ETL system as a special type of

process model, and provided a specific set of BPMN

components to represent a typical ETL process to

correspondent BPMN model process, thought the

use of a model-driven framework (Akkaoui et al.,

2011). More recently, Akkaoui (Akkaoui et al.,

2012) extended his previous works, proposing a

BPMN a ETL classification (control and data)

objects and a BPMN-based meta-model extension

based on a set of components related to the ETL

design, such Core meta-model for data process

model representation. Other authors explored also

the BPMN conceptualization idea for modelling

ETL systems. Wilkinson (Wilkinson et al. 2010), for

instance, presented a method to guide BPMN

specifications in the definition of conceptual models

of ETL systems.

Despite the many contributions done so far, we

still view a lot of research work to do if we think

about validation and operationally of practical

implementations of abstract models. We recognize

that conceptual specifications and its validation

would be essential, in order produce an effective

executable instance of the model, providing its

conceptualization to non-technical users and its

validation by technical users.

3 META-MODEL EXTENSIONS

In this paper it is proposed a BPMN 2.0 extension to

define a set of BPMN patterns especially oriented to

build, from scratch, a complete ETL system. Each

pattern has the ability to represent a specific ETL

process that we recognize as standard. We believe

that the specification of a conceptual model for ETL

standard processes in BPMN is quite appropriate,

once it simplifies the implementation process as well

increase its own quality of construction, reducing

errors, and consequently the ETL project costs. In

these cases, the use of the BPMN notation is, in fact,

very interesting, showing that it is possible to

construct properly conceptual models, which are

easy to read and to understand. BPMN also provides

the necessary bridges to translate conceptual models

to more detailed ones using BPEL or BPMN 2.0

ETLStandardProcessesModelling-ANovelBPMNApproach

121

execution semantics. Thus, we can avoid the major

drawback that usually exists between modelling

abstract models and their consequent

implementation, providing conceptual validation

through executable process instances.

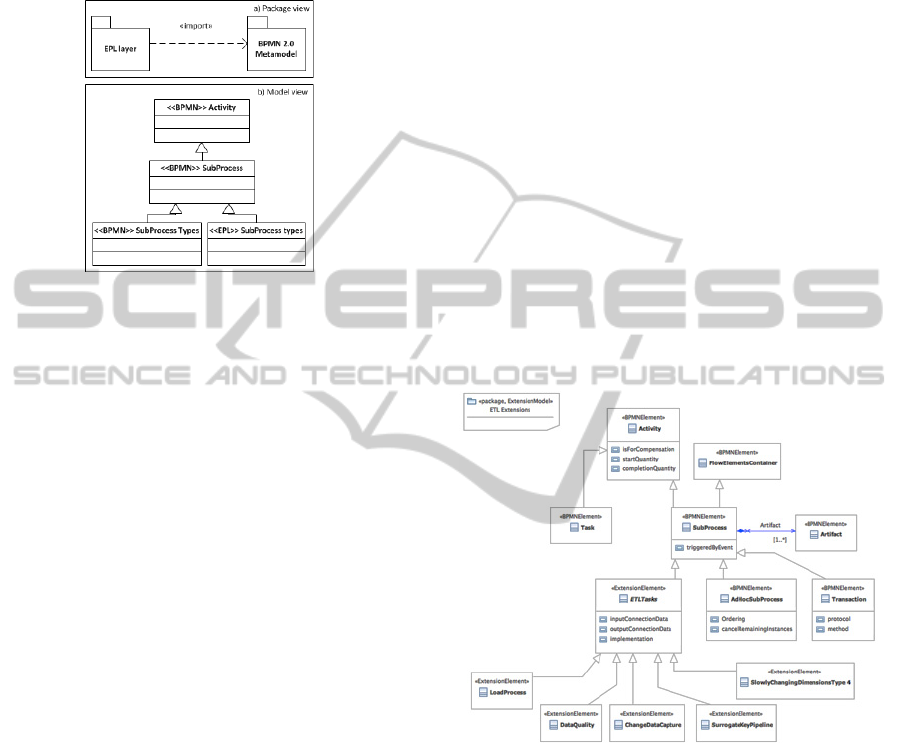

Figure 1: a) A package diagram, and b) The relationship

between BPMN standard elements and EPL elements.

Through the extension mechanism of BPMN 2.0

meta-model, it is possible to represent specific

concepts related to planning and implementation of

an ETL process, and extend these concepts to pre-

defined elements of BPMN notation (OMG, 2011).

This turns possible to represent specific tasks that

enable the construction of ETL processes, by the

addition of new elements of a new application

domain in the original meta-model. Using UML, it is

possible to represent pre-defined elements of the

BPMN notation and the elements that characterize

the proposed extension, using a simple package

diagram (Figure 1a). The package that contains the

definition of the extension - ETL Pattern Layer

(EPL) - depends on the package that represents the

BPMN meta-model since it inherits the elements of

the original notation. Therefore, through the use of

stereotype <<import>>, the basic elements of the

BPMN meta-model are used for the representation

of the concepts EPL package.

The definition of meta-models representing

standard ETL operations comes as an addition to a

layer that allows extending the original element: sub

process BPMN notation. Using the stereotype <<

BPMN>> to identify unique elements in the BPMN

notation, and the stereotype <<EPL>> to identify

elements in the proposed extension, we present in

Figure 1b) an excerpt of the meta-model produced to

represent the ratio of standard BPMN elements with

the elements proposed in the extension. The

extension proposed extends the class SubProcess,

once the meta-models that we intend to define in the

ETL process are composed of several operations that

given a particular set of input parameters produce an

output data set using a pre-defined set of tasks.

Stroppi (Stroppi et al., 2011) have identified two

factors that limit the development of extensions to

BPMN 2.0 meta-model notation, namely the lack of:

a) methodologies that support the creation of

extensions based approach provided by the

language; and b) a graphical notation that allows the

representation of extensions. To reduce such lacks,

Stroppi presented an approach based on a Model-

Driven Architecture (MDA), enabling the graphical

representation of extensions using the UML

language, being its structure based on the principles

defined by the extension mechanisms of BPMN 2.0

notation, using a specific model to do that: the

BPMN-X. Once setting the template extension is

possible to transform it into XSD documents

allowing their interpretation for the tools that

support the BPMN specification. In Figure 2, we can

see the conceptual model representation of the

extension domain, previously presented in Figure 1,

using BPMN+X model construction rules.

Figure 2: The meta-model extension for ETL conceptual

modelling.

The syntax and semantic elements of BPMN+X used

are based on the specification of the BPMN

extension mechanism. In Figure 2 we see two of

them identifying original elements of the BPMN

notation: <<BPMNElement>> and <<Extension

Element>>. Through the stereotype <<BPMN

Element>> we represent the original classes of the

BPMN meta-model that are extended, or that

contextualize the extended elements (Figure 2). Each

ETL standard process activities is regarded as a new

type of SubProcess, which given a set of input data

produces a result accordingly with a specific

predefined set of atomic activities (Task). The

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

122

SubProcess class inherits from Activity and

FlowElementsContainer super-class, the attributes

and associations with other classes (model

associations) allowing for the definition of the

elements in a diagram, which may be refined in

specific processes such as AdHocProcesses. Using

the stereotype <<ExtensionDefinition>>, we defined

a new subclass in the model extension for the

SubProcess class: the ETLTasks. In this subclass

were included attributes that let to set all the input

parameters related to the access of the data source

where the sub process will be applied

(InputConnectionData), as well as the output

parameters where the result of the sub process will

be materialized (OutputConnectionData). The

attribute specifies the technology to be used in the

execution of the sub process. In a similar way as

OMG done for the class Service Task, defined in the

original meta-model, we propose web service

architecture as the technology to implement it. The

ETLTasks class is the abstract superclass of the

classes that represents only one example of a set of

standard sub processes, namely: LoadProcess,

DataQuality, ChangeDataCapture, and Slowly

ChangingDimensionsType4.

Each of these

subclasses represents a standard ETL model

integrating a specific set of elements that is required

for the specification of a given task. This set will be

available through an inheritance mechanism of the

superclass ETLTasks.

Figure 3: The star-schema Sales.

4 EXTENDING BPMN

Each designed meta-model integrates a set of

specific activities representing a standard process

that appears usually in most of DW populating

processes. Using the BPMN notation for ETL

conceptual modelling combined with the meta-

model already presented, a user can "drag" a set of

specific notation elements as a simple and unique

task, which simplifies a lot ETL modelling activities.

In order to demonstrate the usefulness of this

approach, we show in Figure 3 an example of a star

schema (Kimball and Ross, 2002) modelled

conceptually using the notation proposed by

Golfarelli (Golfarelli and Rizzi, 2009). This

dimensional model has three distinct dimensions

tables and a fact table including two measures:

quantity and selling price of a product - a very

simple schema indeed, but even so it allows us to

analyse the sales of products in a particular set of

stores over time. Once specified the DW’s storage

structure it’s necessary to define the initial ETL

process, adjusting it in order to keep the repository

updated properly. An incorrect or incomplete

specification of ETL activities will affect seriously

the quality of data stored in the DW, influencing

negatively the quality of subsequently decisions.

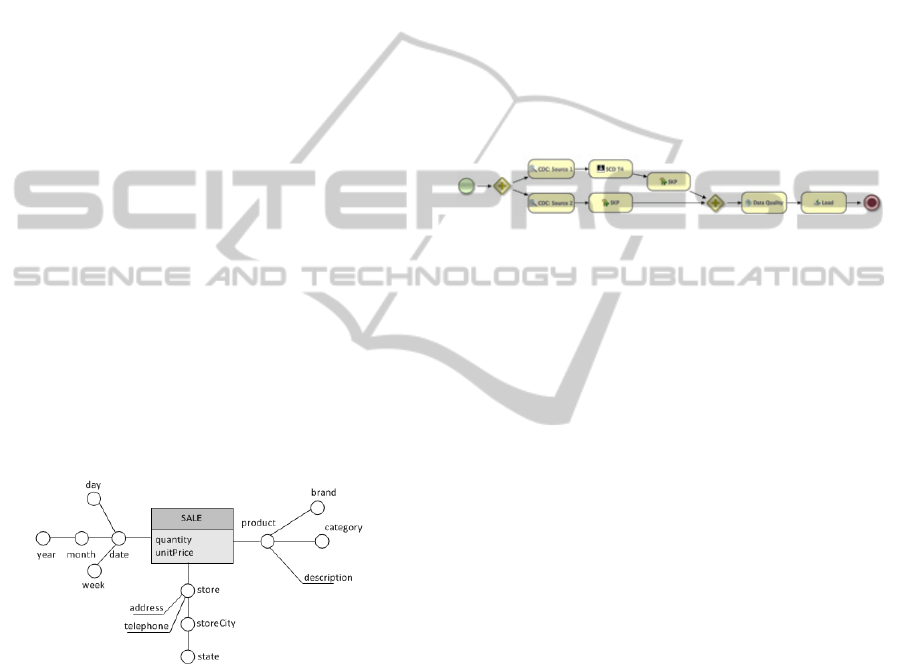

Figure 4: Sample population process for Sales schema.

Considering a high level view of the ETL process,

it’s possible to specify the entire process simply

instantiating classes that represent sub processes

constituted by atomic tasks. Using the notation

presented in Table 1, which represents the

instantiation of each subclass of the class ETLTasks

of the BPMN meta-model, we present in Figure 4 a

regular ETL process that can be applied for

populating the star-schema of Figure 3. After

starting the process, is used a divergence parallel

gateway that initializes (in parallel) the change data

capture tasks for each of the data sources, analysing

available log files, identifying new records, updated

records, or deleted records. Next, in our case, for

source 1, we also specified the procedure for history

preservation, related to the dimensional attributes of

dimension tables classified as slowly changing

dimensions with history maintenance. The sub

process: slowly changing dimensions type 4 (SCD

T4) stores current data in two different tables: a

dimension table, which have the most up-to-date

information, and a history table that keeps track of

all the changes occurred in the dimension table. In

our example, we consider that SCD T4 process also

applies surrogate key assignments in order to obtain

dimensional keys for each dimension. In both

sources is necessary to identify common records

extracted from sources and generate surrogate keys

in order to maintain the independence of the data

used. The surrogate key pipeline sub process assigns

surrogate keys (unique identifiers) in order to

identify data extracted from a specific source, using

ETLStandardProcessesModelling-ANovelBPMNApproach

123

as support several mapping tables. Once concluded

the surrogate keys assignment process, it is defined a

convergence gateway that starts the Data Quality

analysis process upon completion of the two

source’s streams. The Data Quality sub process is

responsible for insure data integrity and consistency

through the use of specific procedures. Finally, the

load process loads data to the target repository,

establishing the necessary correspondences between

temporary storage structures and destination storage

structures.

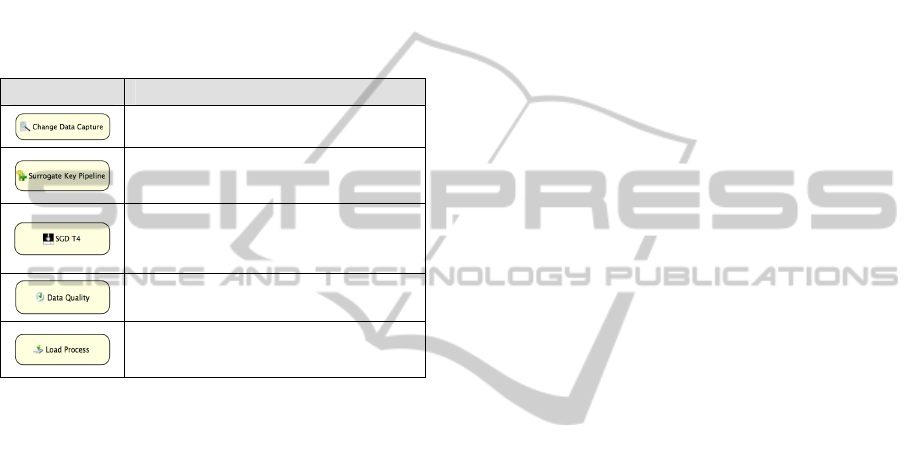

Table 1: The new BPMN extension’s elements.

Element Description

This sub process identifies the changes made in a given

structures that is responsible to feed a specific dimension

of analysis.

The surrogate key pipeline sub process assigns surrogate

keys (unique identifiers) to identify the data that comes

from a specific source, using appropriated mapping

tables.

The slowly changing dimensions type 4 sub process stores

current data in two different tables: a dimension table,

which have the most updated information, and a history

table for keeping a track of all the changes occurred in the

dimension table.

This sub process applies a set of procedures, which are

responsible to check integrity and consistency of data

before being loaded to the DW.

The sub process: load process loads data to target

repository, establishing the necessary correspondences

between temporary storage structures and destination

storage structures.

Although the ETL process presented being limited to

the set of standard processes considered in the

generated meta-model (mainly for simplicity), we

can verify that ETL process modelling provides a

more abstract level for users, encapsulating a wide

range of elementary operations that are integrated in

model activities (Figure 4). Thus, the construction of

the ETL workflows simplifies process

implementation, and reduces implementation errors,

because we used pre-established mapping

procedures for model conversion into to execution

primitives. Following the general guideline of

Oliveira and Belo (2012), we describe in the next

section the process of specification of capturing data

in data sources, a process that is commonly known

as change data capture (CDC).

5 THE CDC SUB PROCESS

A DW must be a subject, non-volatile and time-

variant repository Inmon (2005), i.e., once entered in

the DW data shouldn’t change in any form and

sources’ data should be maintained as when gathered

in order to capture business requirements changes

and discover business trends. Thus, an ETL process

must be capable to detect changes in the sources

during the occurrence of business operations. CDC

methods are used to detect changes on sources’ data

that occurred since the last extraction, capturing

those changes to reflect latter in the DW. CDC

techniques are one of the most difficult tasks to

reflect and represent in ETL design. However, there

are several possible methods to implement a CDC

process. From using intensive comparison data

processes between sources’ and DW’s data to the

use of triggering mechanisms over source tables,

controlling insert, update and delete events, there are

a lot od different ways to capture data changes. One

of the most used currently, provably due to its non-

intrusive aspects, it’s the use of DBMS systems’

transaction logs, which keep records about all

modifications made on operational systems. Thus, if

we scan and process the contents of a transaction

log, it is possible to identify changes that occurred

during some period in an operational system

database.

This way of doing does not affect transactional

data and does not imply the implementation of

additional mechanisms to transactional systems –

it’s a non-intrusive CDC technique. Nevertheless,

additional efforts need to be made in order to

develop an application that analyses the log file and

identify data modifications occurred. Furthermore,

each DBMS implements a specific transaction log

structure, which increases complexity of

implementation. In this work, we used a transaction

log (Table 2) of a Microsoft SQL Server 2008 to

demonstrate the application of a high-level model,

providing a formal specification and standardization

of a CDC standard ETL process. In there, LSN (Log

Sequence Number) represents a unique identifier for

each record inside transaction log that we only

represent by a simple integer value. Transaction ID

(T.ID) identifies modifications that belong to the

same Transaction ID. So we know if they are related

or not to each other. Each transaction begins with

LOP_BEGIN_XACT operation and ends with

LOP_COMMIT_XACT. Between these two rows

can exists many LOP_MODIFY_ROW operations,

representing a specific type of modification. Each

LOP_BEGIN_XACT represents a specific type of

transaction described in transaction name column:

INSERT, UPDATE or DELETE. All this needs to

be decoded in order to interpret and analyse data in a

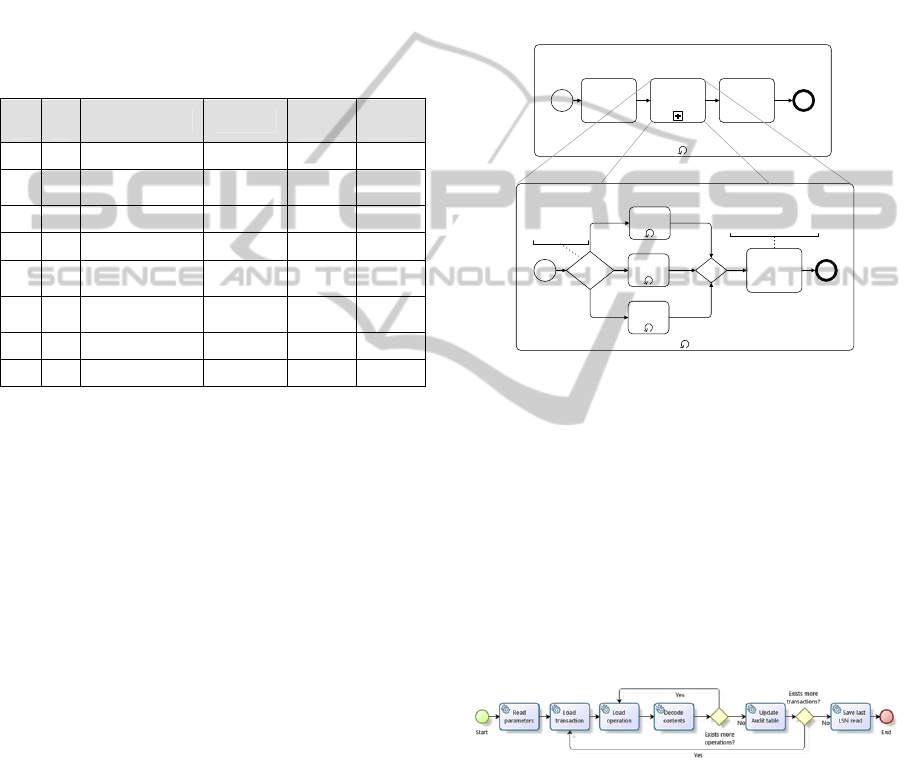

more readable way. Using the BPMN notation to

represent all data extraction steps from log based

CDC process, we introduce in Figure 5 a standard

meta-model for general ETL use. Generally, a CDC

process begins loading the required data parameters

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

124

necessary in subsequence steps, such as the server

name and the source of the table data where we want

to capture data changes, data staging area (DSA)

connection data, the name of the audit table that will

store all extracted records and attributes with

variation, which need to be captured (Load

Properties activity). Next, transaction log must be

read based on the previous LSN read (if we have it).

That is, instead read all records from the log file,

process reads transaction log based on previous

LSN.

Table 2: An excerpt of a Microsoft SQL Server 2008

transaction log.

LSN

T.I

Operation

Transaction

Name

Alloc Unit

Name

RowLog

Contents

1 1 LOP_BEGIN_XACT INSERT NULL NULL

2 1 LOP_INSERT_ROWS NULL

dbo.produc

0x10…

3 1 LOP_COMMIT_XACT NULL NULL NULL

4 2 LOP_BEGIN_XACT UPDATE NULL NULL

5 2 LOP_MODIFY_ROW NULL

dbo.produc

0x63…

6 2 LOP_MODIFY_ROW NULL

dbo.produc

0x63…

7 2 LOP_COMMIT_XACT NULL NULL NULL

… … … … … …

The BPMN model of Figure 5 represents one

expanded sub process and a collapsed sub process

that was zoomed (due to space limitations) in order

to show all their contents. Iteratively, expanded sub

process handle all the transactions contained in the

transaction log. Through Read Transaction activity,

each transaction is passed to the Process transaction

sub process, in order to read all operations inside

transaction. The Process transaction sub process

identifies the type of transaction received: Insert,

Update and Delete, and for each of them represents

loop structure that read all records and extracts

contents to be decoded in Decode contents activity.

After processing all transactions from transaction

log, for each transaction changed rows are inserted

into audit table for ETL processing. When all

transactions are processed, it is necessary to preserve

last LSN read for further CDC processes.

After the initial specification of a high-level

model, we develop the necessary bridges to translate

it to a more detailed one, providing its execution

through BPMN 2.0 specific constructs. In order to

carry out an appropriated mapping between the high-

level model and the executable model we need to

ensure some characteristics related to the execution

of tasks. For that, we used some orchestration

elements provided by BPMN 2.0 for services that

allow the coordination of multiple tasks. In order to

turn the model of Figure 5 in an executable process,

we use BPMN specifications and a service-oriented

approach, which allowed us invoking methods

through a set of services provided by web services.

Once coordinated, these services allow the

application of the necessary transformations for the

implementation of the CDC process through the use

of an intermediate layer of stored procedures. These

ensure services interaction with all transaction log

structures that need to be accessed.

Figure 5: A BPMN pattern for the transaction log file

CDC.

Beyond the specification of all activities represented

in the conceptual model, the definition of the

executable model also requires an additional

specification of tasks because it will has the right

characteristics to support its own implementation.

For example, activities that communicate with a web

service must be defined as service tasks. This type of

activity is performed by the system without human

intervention, and it is used regularly to maintain

communication with external interfaces.

Figure 6: The executable CDC BPMN model.

In Figure 6 it is presented a proposal to convert the

model of the CDC process (Figure 5) to BPMN 2.0

that can be executed using BizAgi. The

implementation of the model is based on a data

storage structure especially conceived for this

process with a SOA (Service Oriented Architecture)

layer, which acts as a bridge between the model and

the BPMN storage structure. All Service tasks have a

web service method associated. The methods are

Foreachlogtransaction

Foreachtransactionoperation

Read

transaction

UpdateAudit

table

Process

transaction

Insert

Update

Delete

Decode

contents

Start

End

Start

End

Basedonatributes

withvariation

Check

transaction

type

ETLStandardProcessesModelling-ANovelBPMNApproach

125

responsible to invoke the most appropriated stored

procedure in order to perform its related activity

over log file or audit table. The stored procedures

were created using Dynamic SQL and provide a

readable view to transaction log. The process begins

reading configuration parameters of the

implementation, which involves usually access and

operational data, such as the server connection,

access credentials, processing data, the name of the

source tables to process and the target audit table.

All this metadata can be filled in the BizAgi

configuration environment using specific

constructed forms. The activities: Insert, Update and

Delete from the collapsed sub process Process

transaction (Figure 5), can be omitted in the

execution model specification, since Load

transaction task retrieves records to the BPMN

runtime environment and identifies the respective

performed operation.

The interaction with the log file and the records

of the audit table is coordinated by the BPMN

process that runs using the methods implemented in

the web service layer. For each operation contained

in transactions, Load operation task extracts contents

from records through the use of specifics Web

services. Next, RowContents columns need to be

decoded using Decode Contents task that invokes

another web service to decode data. Once decoded,

data are inserted into an audit table. The looping

structure was implemented by means of two

gateways, which operate as two conventional

structured cycles. These looping structures are

modelled using gateways with transitions, which

allow repeating a set of predefined activities

accordingly to some particular condition. Finally,

LSN read is stored by Save last LSN read task into

DSA, in order to use it for further executions.

BizAgi provides a set of structures especially

oriented to support BPMN models execution. After

model definition it is possible to construct a special

oriented data structure to receive the information

used in all the activities included in the model, as

simple input data or as support business rules. In any

model’s structure, is possible to define entities and

relationships as we usually do in a relational model.

We use these structures to store temporary

transaction records, in order to process them (e.g.

sending them to another task) one by one and put

them in respective audit table.

6 ANALYSIS AND EVALUATION

The use of meta-models for formal specification of

ETL standard tasks defines a level of abstraction that

allows simplifying and enhancing the quality of any

ETL design and implementation process. With the

BPMN meta-model extension, we propose the

inclusion of a set of sub process packages, which

have a set of predefined atomic operations that allow

a high level conceptual representation and

specification of ETL processes, simplifying and

accelerating their design and implementation

processes, while reducing complexity and

minimizing construction errors. Meta-models

definition allows consolidating and parameterizing

of the ETL development, which have, as we know, a

strong impact on the success or failure in the life

cycle of any data warehousing system.

Currently, tools that support the creation and

maintenance of ETL processes, based on proprietary

notations and methodologies, clearly aimed at

technical users who have to use other mechanisms in

order to communicate with "non-technical" users.

Using the constructs and the semantic richness

offered by BPMN notation, it is possible

conceptually to define a new set ETL processes,

which simplifies the communication between users

and ETL designers that use to be responsible for

managing business processes. The conversion of a

conceptual model in an execution model is possible

using the constructors and semantics implemented in

BPMN 2.0 meta- model, such as a structure based on

web services that enables the implementation of the

tasks set out in the conceptual model. Each meta-

model may be considered as a black box, which

based on the specification of a set of parameters, that

is performed by set of operations and consequently

produce a output result. Through the use of DBMS

transaction log file, the CDC process is able to

capture relevant data from sources in order to load it

to target DW. The interpretation of transaction log

file allows a very simple way to identify changes in

data sources, hiding to end-users the inherent

complexity of such processes. As a consequence,

they allow the simplification and optimization of this

kind of activities in the planning and execution of

any ETL process.

7 CONCLUSIONS

Akkaoui and Zimanyi (Akkaoui and Zimanyi, 2009)

assumed that an ETL process can be seen as a

particular case of a business process, and proposed

the use of generic processes platform independent

for running ETL processes (Akkaoui et al., 2011).

The clear and simple notation of BPMN 2.0

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

126

facilitates a lot understanding and communication

among users and offers an easy discussion platform

to technical users who are responsible for

implementing the system (Akkaoui and Zimanyi

2009). Specifying a new set of meta-models, like the

ones presented in this paper, including new types of

sub processes that represent specific tasks typically

used in the implementation of ETL processes -

slowly changing dimensions, surrogate key

pipelining, data quality assurance processes, or

change data capture, among others – it is helpful in

any ETL specification and implementation process.

Each of these models, consists of a finite set of pre-

established atomic activities, which contributes

significantly to improving the quality of

construction, and reduce operational errors, resulting

in a significant reduction of implementation time

and costs. The meta-models referred and presented

here represent only a subset of the models we intend

to implement in a near future, in order to

demonstrate effectiveness of the BPMN 2.0 meta-

model extension presented and discussed in this

paper.

REFERENCES

Akkaoui, Z. El et al., 2011. A model-driven framework for

ETL process development. In DOLAP ’11

Proceedings of the ACM 14th international workshop

on Data Warehousing and OLAP. pp. 45–52.

Akkaoui, Z. El et al., 2012. BPMN-Based Conceptual

Modeling of ETL Processes. Data Warehousing and

Knowledge Discovery Lecture Notes in Computer

Science, 7448, pp.1–14.

Akkaoui, Z. El & Zimanyi, E., 2009. Defining ETL

worfklows using BPMN and BPEL. In DOLAP ’09

Proceedings of the ACM twelfth international

workshop on Data warehousing and OLAP. pp. 41–

48.

Golfarelli, M. & Rizzi, S., 2009. Data Warehouse Design:

Modern Principles and Methodologies, McGraw-Hill.

Available at: http://books.google.pt/books?id=R7

qqNwAACAAJ

Inmon, W. H., 2005. Building the data warehouse, Wiley.

Available at: http://books.google.pt/books?id=Ee

VQAAAAMAAJ.

Kimball, R & Ross, M., 2002. The Data Warehouse

Toolkit: The Complete Guide to Dimensional

Modeling, Wiley. Available at: http://books.google.pt/

books?id=2OCbq8Azdm8C.

Kimball, Ralph & Caserta, J., 2004. The Data Warehouse

ETL Toolkit: Practical Techniques for Extracting,

Cleaning, Conforming, and Delivering Data,

Kleppe, A. G., Warmer, J.B. & Bast, W., 2003. MDA

Explained: The Model Driven Architecture : Practice

and Promise, Addison-Wesley Professional.

Losavio, F., Chirinos, L. & Pérez, M.A., 2001. Quality

Models to Design Software Architectures. In

TOOLS ’01 Proceedings of the Technology of

Object-Oriented Languages and Systems.

Oliveira, B. & Belo, O., 2012. BPMN Patterns for ETL

Conceptual Modelling and Validation. In 20th

International Symposium on Methodologies for

Intelligent Systems.

OMG, 2011. Documents Associated With Business

Process Model And Notation (BPMN) Version 2.0. In

Documents Associated With Business Process Model

And Notation (BPMN) Version 2.0.

Scacchi, W., 2001. Process Models in Software

Engineering. In J.J. Marciniak (ed.), Encyclopedia of

Software Engineering, 2 nd Edition, John Wiley and

Sons, Inc.

Simitsis, A. & Vassiliadis, P., 2003. A Methodology for

the Conceptual Modeling of ETL Processes. In The

15th Conference on Advanced Information Systems

Engineering (CAiSE ’03). pp. pp. 305–316.

Stroppi, L. J. R., Chiotti, O. & Villarreal, P.D., 2011.

Extending BPMN 2.0: Method and Tool Support.

Lecture Notes in Business Information Processing,

95(59-73).

Trujillo & Luján-Mora, S., 2003. A UML Based Approach

for Modeling ETL Processes in Data Warehouses.

Conceptual Modeling - ER 2003 - Lecture Notes in

Computer Science, 2813, pp.307–320.

Vassiliadis, P. et al., 2003. A framework for the design of

ETL scenarios. In Proceedings of the 15th

international conference on Advanced information

systems engineering. Berlin, Heidelberg: Springer-

Verlag, pp. 520–535. Available at: http://dl.acm.org/

citation.cfm?id=1758398.1758445

Vassiliadis, P., Simitsis, A. & Skiadopoulos, S., 2002a.

Conceptual modeling for ETL processes. In

DOLAP ’02 Proceedings of the 5th ACM

international workshop on Data Warehousing and

OLAP. pp. 14–21.

Vassiliadis, P., Simitsis, A. & Skiadopoulos, S., 2002b.

On the Logical Modeling of ETL Processes. In In

International Conference on Advanced Information

Systems Engineering (CAiSE. pp. 782–786.

Weske, M., Aalst, W. M. P. van der & Verbeek, H.M.W.,

2004. Advances in business process management.

Data & Knowledge Engineering 50, 50(1–8).

Wilkinson, K. et al., 2010. Leveraging Business Process

Models for ETL Design. Lecture Notes in Computer

Science, 6412/2010(15-30).

ETLStandardProcessesModelling-ANovelBPMNApproach

127
