InCC: Hiding Information by Mimicking Trafﬁc In Network Flows

Luis Campo Giralte, Cristina Conde, Isaac Martin de Diego and Enrique Cabello

Universidad Rey Juan Carlos, Madrid, Spain

Keywords:

Storage Covert Channel, Network Flow, P2P Applications.

Abstract:

This article proposes and implements a light-weight covert channel called InCC, which is designed to produce

a undetectable communication channel between systems. This channel, fully transparent to any network anal-

ysis, is able to send messages on the same production network without compromising its existence. By using

techniques like encryption, address spooﬁng, signatures and trafﬁc analysis, the channel is able to hide the

ﬂows on the network without compromising the source and destination.

1 INTRODUCTION

Traditionally, network covert channels were classi-

ﬁed into storage and timing channels despite the fact

that there is no fundamental distinction between them

(5200.28-STD, 1985). The storage channels involve

the direct/indirect writing of object values by the

sender and the direct/indirect reading of the object

values by the receiver. On the other hand, timing

channels involve the sender signaling information by

modulating the use of resources over time so that

the receiver can observe and decode the information

properly.

One of the main drawbacks of existing network

covert channels is that they only send small amounts

of information, since otherwise the connection could

be detected. When using timing channels, the amount

of packets needed to send information is quite high.

Notice that timing channels use variable time in order

to encode the binary information. On the other hand,

network storage channels are capable of sending more

information in comparison with timing channels, but

by using DPI (Deep packet inspection) technique ren-

ders most of them detectable.

In this article we propose a storage network

covert channel called InCC (Invisible Covert Chan-

nel) which is capable of hiding the communication

between two peers without compromising their exis-

tence. One of the main differences of the proposed

system as compared with the existing ones is that

InCC learns from the network and generates trafﬁc

that mimics the existing one on the network. This

feature makes InCC a perfect network covert channel,

capable of going undetected by any DPI technique.

The proposed system has been tested using some

open-source trafﬁc engines and to test the effective-

ness of the covert channel, we have implemented a

prototype on Python that enables secure communica-

tion between transparent network systems. The main

idea of the proposal is to camouﬂage the ﬂows on the

network trafﬁc in order to remain unnoticed for any

type of network analysis. So even if the ﬂows are

detected by a network analysis, the trafﬁc generated

by the channel cannot be identiﬁed. InCC learns the

trafﬁc most commonly used by the network, being ca-

pable of hiding the new ﬂows generated in this trafﬁc

in order to communicate systems.

The organization of this paper is as follows. The

related work is discussed in Section 2. The discussion

of the methods proposed, together with the descrip-

tion, is presented in Section 3. The implementation

details are presented in Section 4. The experiments

carried out can be found in Section 5 and, ﬁnally, a

conclusion is reached in Section 6.

2 RELATED WORK

The most common techniques for hiding information

on network ﬂows are network covert channels (Lla-

mas et al., 2005; Zander et al., 2007b; Sellke et al.,

2009; Nussbaum et al., 2009; Rios et al., 2012),

which focus on hiding data in various network proto-

cols like IPv4, TCP, DNS, HTTPS, etc. Applications

like Skype use covert channels (Freire et al., 2009) on

HTTP trafﬁc in order to hide their communications,

and many others use these techniques in order to com-

ply with ISP network restrictions. The most relevant

Campo Giralte L., Conde C., Martin De Diego I. and Cabello E..

InCC: Hiding Information by Mimicking Trafﬁc In Network Flows.

DOI: 10.5220/0004436600050014

In Proceedings of the 10th International Conference on Security and Cryptography (SECRYPT-2013), pages 5-14

ISBN: 978-989-8565-73-0

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

works are shown next, with the most interesting tech-

niques by the different authors classiﬁed in Table 1.

(Dittmann et al., 2005) examine the existing VoIP

applications with respect to their extensibility to

steganographic algorithms. They have also paid at-

tention to the part of steganalysis in PCM audio data

that allows us to detect hidden communications while

running VoIP communication with the usage of the

PCM codec. They show the results for their PCM ste-

ganalyzer framework that is able to detect this kind of

hidden communication by using a set of 13 ﬁrst and

second order statistics.

(Liu et al., 2009) use covert timing channels by

encoding the modulated message in the inter-packet

delay of the underlying overt communication chan-

nel such that the statistical properties of regular traf-

ﬁc can be closely approximated. The system was de-

signed for UDP trafﬁc by hiding the covert trafﬁc on

networks with on-line gaming trafﬁc.

Most timing channels are based on the use of a

time variable in order to encode the information. This

increases the number of packets sent on the network

-an evidence of the channel’s existence, which is the

largest disadvantage of timing channels (Zhang et al.,

2011). In addition, jitter and delays are of no avail on

these channels.

Storage channels are becoming of increasing in-

terest for the research community. This is due to the

arrival of new techniques that allow the hiding of in-

formation, such as stenography. The most interesting

research will now be evaluated and later classiﬁed.

(Zander et al., 2007a) compare the different en-

coding techniques and also propose two new im-

proved encoding schemes based on the IP TTL

ﬁeld. They group the existing techniques for encod-

ing covert information into the TTL ﬁeld into three

classes: (a) Direct encoding encodes covert bits di-

rectly into bits of the TTL ﬁeld, (b) Mapped encoding

encodes covert bits by mapping bit values to speciﬁc

TTL values and (c) Differential encoding encodes

covert bits as change between subsequent TTL val-

ues. The weakness of this model is the high amount

of packets that have to be sent to the destination, since

the limitation of the TTL ﬁeld is 8 bits.

(Nussbaum et al., 2009) propose a system called

TUNS which is an IP over DNS tunnel. Their system

only uses the CNAME record of the DNS header. It

encodes the IP packets using a Base32 encoding with-

out splitting the IP packets into several smaller DNS

packets. The main problem of this model resides in

the fact that, by using a good DNS analyzer most of

the bogus packets could be detected due to modify the

use of the DNS CNAME record.

(Luo et al., 2009) propose a system called

CLACK, which encodes covert messages into the

TCP acknowledgements (ACKs). Their system is

based on a persistent ﬂow of TCP data. They ﬁnd

two objectives: to provide a reliable covert channel,

similar to the reliable data service provided by TCP,

and increase the cost of detecting the covert channels.

Their weakest point is that they assume that all trans-

missions are perfect, i.e. lossless, packet order pre-

served and no duplicate packets, and this is not very

common on the Internet network.

(Wendzel and Zander, 2012) shows a method for

detect switching covert channels (PSSCCs). PPC-

SSs transfer hidden information by sending networks

packets with different selected network protocols

such as HTTP, POP3, etc. Protocols are therefore

linked to secret values, e.g., a HTTP packet could rep-

resent the value ’1’ and a SMTP packet could repre-

sent the value ’0’. The weakness of this model relay

on the high amount of packets that the sender needs

to sent in order to encode the information.

(Mazurczyk and Szczypiorski, 2009) present

steganographic methods that utilize mechanisms for

handling over-sized IP packets: IP fragmentation,

PMTUD (Path MTU Discovery) and PLPMTUD

(Packetization Layer Path MTU Discovery). They

modify the offset value of the fragmented packets to

add the information payload and also modify certain

IP ﬂags. However, the detection of these methods are

trivial due to the short number of IP fragmented pack-

ets on the networks.

(Lucena et al., 2004) describe an approach to

application-layer protocol steganography, showing

how they can embed messages into commonly used

TCP/IP protocols such as SSH and HTTP. They also

introduce the notion of semantics preservation, which

ensures that messages still conform to the host proto-

col, even after embedding. Strong semantics preser-

vation ensures that the meaning of the message is

unchanged, while weak semantics preservation only

guarantees the less stringent condition that the mes-

sage be semantically valid. Their main shortcoming

is that their model only works in speciﬁc protocols

such as HTTP.

(Fu et al., 2002) present a ﬂow-based architecture

for network trafﬁc camouﬂaging. They hide both the

message trafﬁc pattern and the fact that camouﬂaging

itself is taking place, while at the same time guaran-

teeing the QoS requirement of the message ﬂow. The

idea is to embed the packets of the message ﬂow into

the packets of another ﬂow, denoted as carrier ﬂow,

which in turn may be generated by a well-known net-

work service. The system’s main drawback is that it

replaces the carrier payload, making changes in the

payload vulnerable to detection simply by checking

SECRYPT2013-InternationalConferenceonSecurityandCryptography

the same packet in different paths.

(Burnett et al., 2010) present a system called

Collage, which allows users to exchange messages

through hidden channels in sites that host user-

generated content, such as photo-sharing sites. To

send a message, the user embeds it into covert traf-

ﬁc and posts the content onto some site, where re-

ceivers retrieve the content using a sequence of tasks.

Their evaluation shows that performance overhead is

acceptable when sending small messages such as web

articles, emails and so on. The system’s weakest point

is that the communication cannot be interactive due to

its architecture.

(Rios et al., 2012) examine the Dynamic Host

Conﬁguration Protocol (DHCP) for search new forms

of covert communications. They shows that is pos-

sible to create covert channels on speciﬁc ﬁelds (xid,

Sname, File and Option) of the DHCP messages. The

problem of the solution proposed lies in the DHCP

scope and also the ﬁelds are easily detectable using a

dedicated analyzer.

Below, Table 1 offers a classiﬁcation of the re-

viewed papers under the following labels: Cryptog-

raphy, if the system uses some type of cryptography

functions for hiding the information; Modify L7, if

the system modiﬁes application layers such as HTTP,

DNS, etc.; Modify IP, if the technique involves the

modiﬁcation of some IP ﬁelds for hiding informa-

tion; Modify TCP/UDP, if it includes the modiﬁcation

of TCP/UDP ﬁelds for enclosing the covert message;

Timing, if it uses timing techniques to hide messages

on the ﬂow; and ﬁnally, Network, if the system reacts

in a different way to network trafﬁc.

Notice that most covert channel classiﬁcations are

based on storage or timing channels, as shown in Ta-

ble 1. Most of the studies are actually related to stor-

age channels, since the amount of information in stor-

age channels is larger than in timing channels. One of

the weaknesses of timing channels is that they need

a high amount of packets to send information to the

destination. According to the Table, InCC could be

classiﬁed as a storage channel, dynamically adapted

to network trafﬁc.

3 INVISIBLE COVERT CHANNEL

The purpose of this section is to introduce the chan-

nel, ﬁrst by describing the system (detailed further be-

low in subsection 3.1), then by reviewing the different

parts and techniques involved (subsections 3.2, 3.3,

3.4 and 3.5).

InCC offers a solution for communicating two

systems by using storage covert channels. This

is achieved by combining several hiding techniques

which allow the systems to share information without

compromising source and destination.

3.1 System Description

InCC supports the following speciﬁcations in order

to avoid being detected: a) The channel uses a port-

walking technique (inspired by the port-knocking

(Miklosovic, 2011; Degraaf et al., 2005; Tariq et al.,

2008) technique), which consists in emulating P2P

trafﬁc management of ports in order to disturb any

trafﬁc analysis. P2P applications generate a huge

amount of disturbing trafﬁc to random ports previ-

ously negotiated by the applications. b) Encryption

of the main payload packet by using RC4 (Rcf4557,

2006), with the introduction of some variations such

as key rotation. RC4 is chosen due to the simplicity

of the code and the negligible CPU overload. c) The

channel uses IP spoofed addresses for both source and

destination. Consequently, only source and destina-

tion will know the spoofed IP addresses. And ﬁnally,

d) it uses signatures from other systems, such as Snort

(Snort, 2013) or OpenDPI (OpenDPI, 2013). The

channel is capable of inserting the signatures on the

generated ﬂows in order to camouﬂage the ﬂows with

those existing on the network.

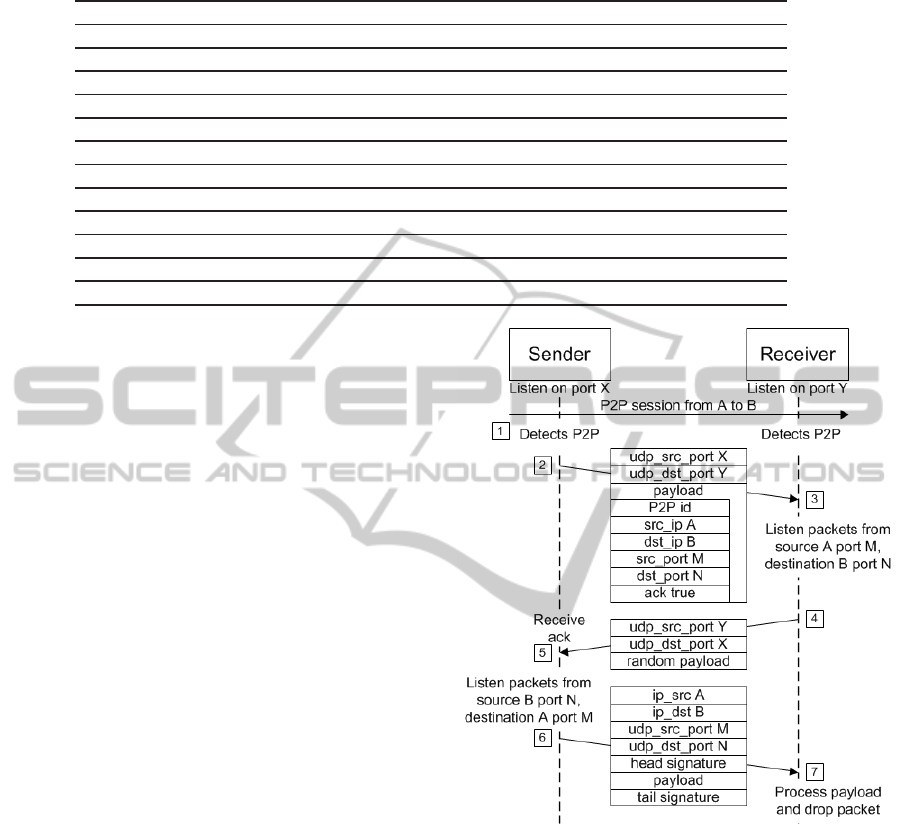

Figure 1 illustrates how the channel operates. No-

tice that the sender and the receiver may belong to

either the same or to different networks, being A and

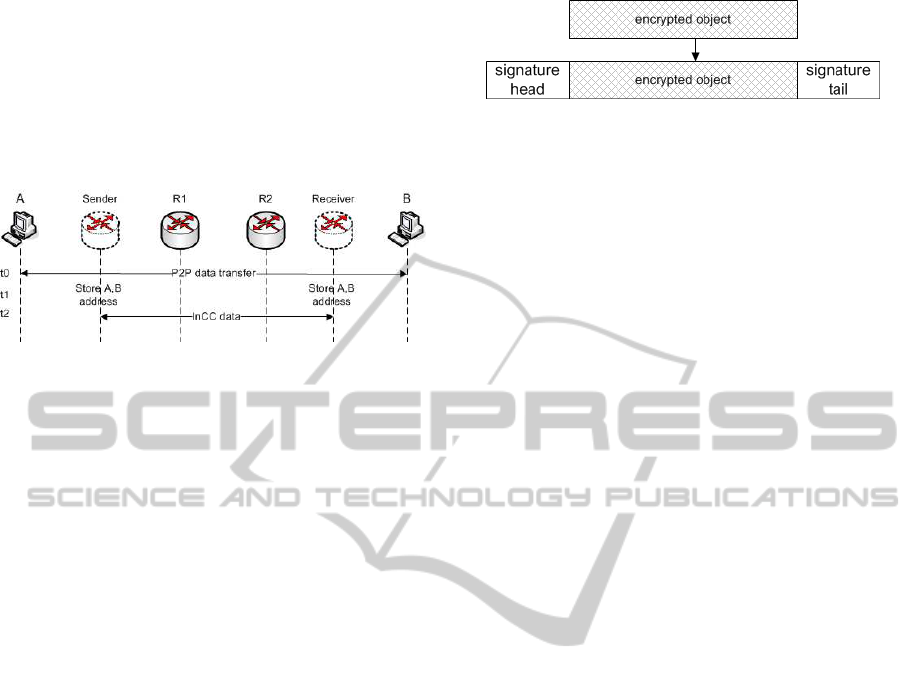

B users who are sharing ﬁles via P2P, as detailed in

Figure 7. Both sender and receiver are authenticated

by RSA (Rfc2246, 1999) or port-knocking (Mikloso-

vic, 2011; Degraaf et al., 2005; Tariq et al., 2008)

mechanisms at the initialization state. In our design,

InCC uses standard RSA authentication, but notice

that the authentication phase is out of scope of the

paper. As seen in Figure 1, once the authentication

state has passed the sender and the receiver could re-

ceive messages on ports X and Y. Elements A and B

are P2P users sharing a ﬁle. The different states in the

channel may be summarized as:

1. The source detects a P2P session between A and

B, the detection being made by signatures.

2. The sender sends out a message to the receiver

including the following information: a P2P iden-

tiﬁer which identiﬁes the signature detected at the

P2P session; A’s IP address (src

ip) and source

port (src

port); B’s IP address (dst ip) and desti-

nation port (dst port); and optionally, an acknowl-

edgement ﬂag. All the messages have been previ-

ously encrypted by RC4.

3. Once the message has been decoded and the ﬁelds

InCC:HidingInformationbyMimickingTrafficInNetworkFlows

Table 1: Network covert channels techniques.

Author Cryptography Modify L7 Modify IP Modify TCP/UDP Timing Network

(Zander et al., 2007a) * *

(Luo et al., 2009) * *

(Wendzel and Zander, 2012) * *

(Lucena et al., 2004) * *

(Burnett et al., 2010) * *

(Fu et al., 2002) * * *

(Rios et al., 2012) *

(Dittmann et al., 2005) * *

(Mazurczyk and Szczypiorski, 2009) *

(Nussbaum et al., 2009) * *

(Liu et al., 2009) *

InCC * * * *

processed by the receiver, the receiver’s behavior

changes.

4. The receiver sends out an acknowledgement mes-

sage to the sender because the ACK ﬂag had been

previously activated. The payload of the message

is made up of random bytes whose only purpose

is to disturb the ﬂow’s analysis.

5. The sender gets the acknowledgement and under-

stands that new messages should use A and B’s IP

addresses and ports, as well as the signature de-

tected in the previous message.

6. The sender sends out a datagram with the P2P sig-

nature detected and all the payload encrypted by

RC4. Notice that the IP addresses and the ports

used are A and B’s.

7. The receiver intercepts the message, decodes it

and processes its ﬁelds, then sends it one layer

up enclosing an incident report. Note that the re-

ceiver drops the packet in order to avoid ICMP

unreachable port packets that could be suspicious.

After describing the channel, we proceed to the

different techniques involved in the system. This has

the following options: ’Port walking’, so the ﬂow can

change from different ports; ’Payload noise’, which

adds trash noise to the payload; ’IP randomness’,

which enables the use of spoofed addresses in order

to communicate source with destination; and ﬁnally,

’Signature poisoning’, which inserts known trafﬁc

signatures into the generated payload. These options

will be discussed next.

3.2 Port Walking

Port knocking (Miklosovic, 2011; Degraaf et al.,

2005; Tariq et al., 2008) is a technique whereby au-

thentication information is transmitted across closed

network ports. A machine using port knocking closes

Figure 1: InCC description.

all network ports to all hosts but logs incoming pack-

ets. A program watches the ﬁrewall logs for certain

sequences of packets, which encode authentication in-

formation and make a request for opening or closing

ports. Based on this information, the port knocking

system can choose to open network ports to the origi-

nating host. In essence, port knocking enables or dis-

ables services which are invisible most of the time,

and which appear on the network by a combination of

special IP packets. So secure systems could enable or

disable their reporting mechanism by using this type

of technique.

By using the same principle as port knocking, we

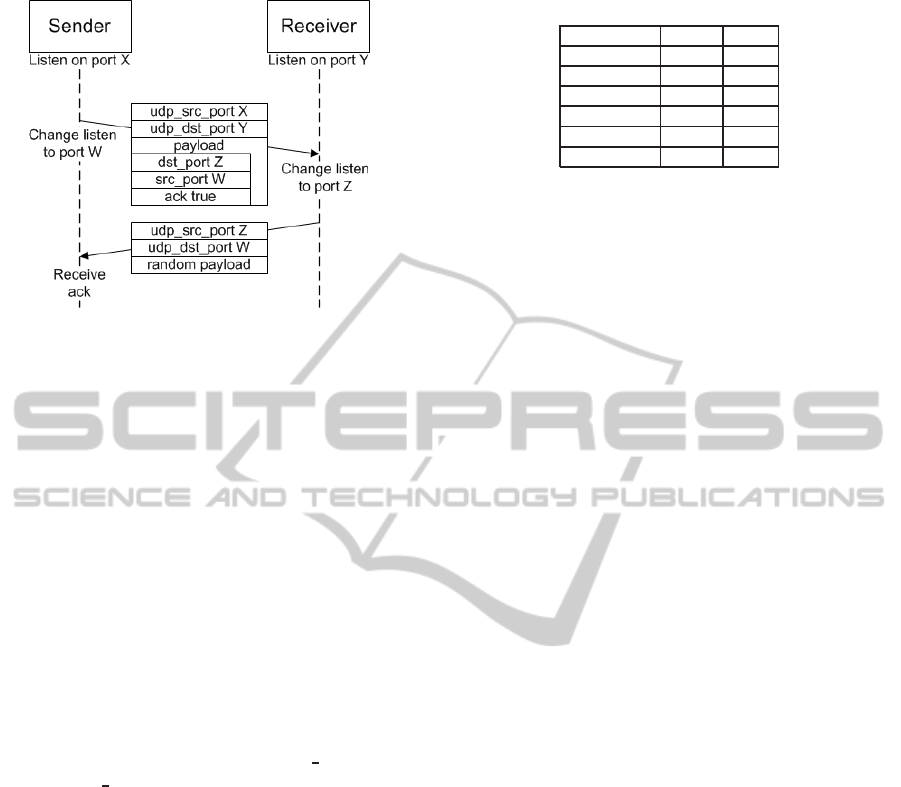

have created port walking (refer to Figure 2). This is a

technique which consists in generating several ﬂows

SECRYPT2013-InternationalConferenceonSecurityandCryptography

Figure 2: InCC port walking.

between the source and the destination machines,

much in the same way as P2P applications. P2P ap-

plications generate a lot of ﬂows in order to send and

receive information over the distributed network. By

using this idea, the InCC behaves like P2P applica-

tions, which use random ports in order to avoid ﬁl-

tering and shaping. Thus, for every object sent to the

destination a new port parameter is added to the pay-

load. If the object size is too large, then InCC splits

it into several packets (only when this option is en-

abled at the initialization state or when AB identiﬁes

P2P trafﬁc). This feature is recommended when Bit-

Torrent (BitTorrent, 2013), Gnutella, Skype, or simi-

lar applications which use random ports for signaling,

ﬁle-transfer, etc. are detected.

As shown in Figure 2, to synchronize the destina-

tion and the source ports of both sender and receiver,

InCC sends out the following ports (src

port for the

sender and dst

port for the receiver), either randomly

or by using the distribution ports previously detected

in a P2P session.

The tcpdump output below shows a port Walk-

ing technique without acknowledgement, where

192.168.1.1 represents the sender, 192.168.1.2 the re-

ceiver, and 2000 the initialization port.

IP 192.168.1.1.

47578

> 192.168.1.2.

2000

: len 123

IP 192.168.1.1.

35690

> 192.168.1.2.

7030

: len 157

By contrast, a tcpdump output of a port Walking tech-

nique with acknowledgement is shown next. Notice

that the acknowledgement uses the same port. Ports

2000 and 7949 in the output are used to verify the ac-

knowledgement.

IP 192.168.1.1.

47578

> 192.168.1.2.

2000

: len 123

IP 192.168.1.2.

2000

> 192.168.1.1.

33225

: len 53

IP 192.168.1.1.

36347

> 192.168.1.2.

7949

: len 163

IP 192.168.1.2.

7949

> 192.168.1.1.

36347

: len 23

It is possible to use full random ports to make the ﬂow

analysis more difﬁcult, allowing the receiver to send

Table 2: BitTorrent port usage.

Application Flows Ports

BitComet 10890 8617

BitLord 890 587

Vuze 1704 1528

Azuerus 2512 2257

uTorrent 1865 1668

BitTorrent 1819 1112

the acknowledgements from different ports as shown

in the output below.

IP 192.168.1.1.

47578

> 192.168.1.2.

2000

: len 123

IP 192.168.1.2.

1280

> 192.168.1.1.

33225

: len 53

IP 192.168.1.1.

36347

> 192.168.1.2.

7949

: len 163

IP 192.168.1.2.

98634

> 192.168.1.1.

36347

: len 23

In order to check the viability of this technique, we

evaluate the most use BitTorrent clients for study how

many ports this type of applications uses. As shown

on table 2, during 4 minutes we capture trafﬁc and

study how many ports and ﬂows this applications

uses. Taking into account this information we can ar-

gue that on average this applications uses 2628 dif-

ferent ports on a single session. So by having this

technique implemented on our proposal we will dis-

turb network analysis due to the difﬁculty of analyze

these ﬂows.

3.3 Payload Noise

The algorithm RC4 has vulnerability problems

(Klein, 2008; Mantin, 2005; Paul and Preneel, 2004),

with frequency analysis-based attacks. However, by

using techniques such as key rotation these vulnera-

bilities could be partially solved. The behavior of the

mentioned techniques can be observed in Figures 3,

4 and 5. These ﬁgures represent the dispersion of the

packet payload frequency generated by InCC without

any signature. The byte is represented on the x-axis,

whereas on the y-axis we ﬁnd the number of occur-

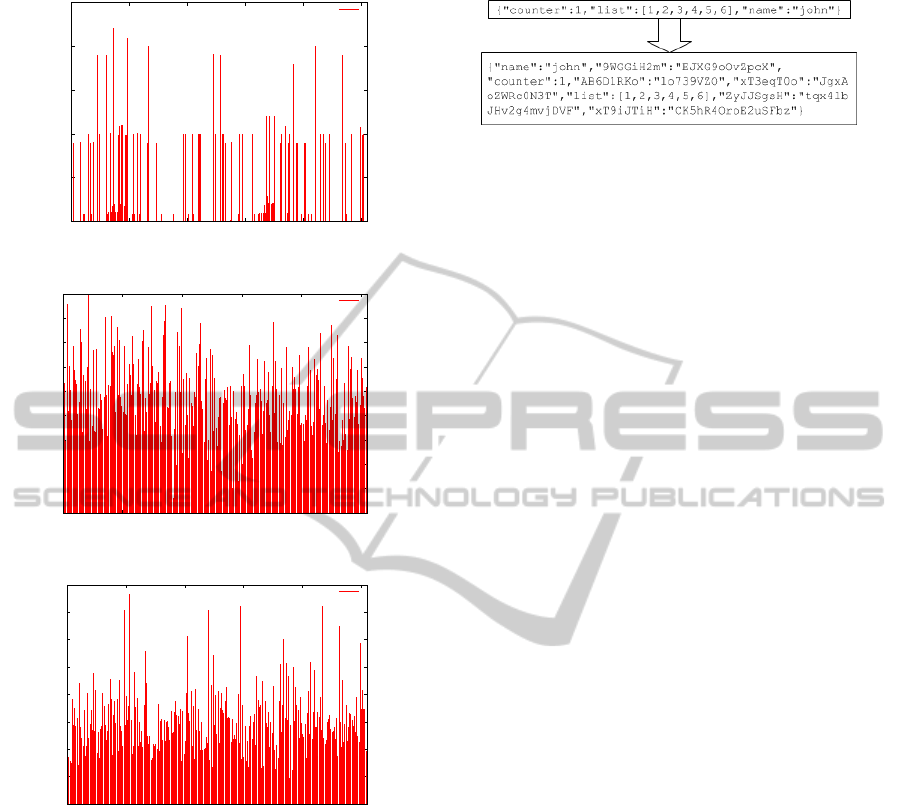

rences of the x byte. As shown in Figure 3, when

we encrypt 10.000 objects by using the same key, the

byte frequency distribution of RC4 is poor and a fre-

quency attack could be launched. However, when the

channel uses a random key, as shown in Figure 4, the

resiliency is better than in the previous case.

Notice that the dispersion of the frequency data

in Figures 4 and 5 are similar, whereas in terms of

compression they are different due to the trash noise

added to the payload.

We propose to add noise to the payloads, what we

call ’payload noise’. This consists in adding the key

value pair of random bytes to some parts of the object,

in our case a dictionary, as shown in Figure 6. By us-

ing this technique we get the same frequencydistribu-

tion (see Figure 5) as the one in Figure 4, which uses

InCC:HidingInformationbyMimickingTrafficInNetworkFlows

5000

10000

15000

20000

25000

0 50 100 150 200 250

Count

Byte

Frequencies

Figure 3: 10.000 objects with RC4.

260

280

300

320

340

360

380

400

420

440

0 50 100 150 200 250

Count

Byte

Frequencies

Figure 4: 10.000 objects with RC4 and random key.

200

400

600

800

1000

1200

1400

1600

1800

0 50 100 150 200 250

Count

Byte

Frequencies

Figure 5: 10.000 objects with RC4 and noise payload.

random key. On the other hand, this technique ﬁxes

the payload to a speciﬁc size in order to generate pay-

load sizes which already exist on the network. For ex-

ample, if the AB process detects BitTorrent with size

packets of 300 bytes, then the packet generated with

this technique will generate packets of 300 bytes in

order to camouﬂage them with the current bit-torrrent

trafﬁc detected by the AB process.

The process of adding noise to the payload is

achieved by using dictionaries and JSON (JavaScript

Object Notation), as shown in Figure 6. The addi-

tion of random key value pairs in this ﬁgure gives us

a fuzzy frequency value and increases the object size.

However, this technique only gives us extra bytes to

cope with speciﬁc payload sizes, and does not give us

an encryption method like RC4.

Figure 6: Noise payload serialization.

3.4 IP Randomness

One of the interesting things about InCC is that the IP

addresses of the generated datagrams do not belong to

any of the systems trying to communicate with each

other (see ﬁgure 7). This is achieved by learning the

most used IP addresses on the network, or by conﬁg-

uring the IP address with spoofed addresses from the

source and destination networks.

This technique consists of the following points:

• When Sender and Receiver are in the process of

learning from the networks, all the IP addresses

identiﬁed by the signatures are stored on a tem-

porary memory (called temporary IP address).

These IP addresses are temporary because they

depend on the ﬂow duration and on the type of

user. For example, if a user spends 20 minutes

downloading a large ﬁle from a torrent client, the

temporary IP of this user will have a duration of

20 minutes due to the ﬂows generated by the tor-

rent application.

• If node Sender wants to send messages to node

Receiver the channel has two options: ﬁrst, using

the temporary addresses, or second, using random

addresses. Random addresses are IP addresses

generated by changing the last digit of the source

network’s IP address.

Thus, if an advance administrator manages a transit

network, our ﬂows will be completely hidden to any

analysis the attacker could conduct because the IP ad-

dresses are spoofed or even used by other systems

such as web-servers, email-servers, etc.

The use of temporary IP addresses by the chan-

nel has the advantage of learning from active IP

addresses, for instance the address of a P2P user

from another network. For our purposes, we use C

class addressing, so for a 192.168.0.0 network the

random address would range from 192.168.0.1 to

192.168.0.254.

In Figure 7, the Sender node represent the system

which wants to share information, the R routers are

transient routers, and A and B are two users sharing

a ﬁle with a P2P application. When the Sender and

Receiver detects P2P activity they stores the source

and destination addresses (A,B), as seen in point t1

SECRYPT2013-InternationalConferenceonSecurityandCryptography

of the ﬁgure. Then, when the Sender needs to trans-

fer information to the Receiver, it sends IP trafﬁc with

B’s destination address and A’s source address, as ob-

served in point t2. Notice that the Receiver will never

forward the trafﬁc to B, since this ﬂow is generated in

a non-natural way and will always be destroyed after

being processed by destination (see point 7 in subsec-

tion 3.1).

Figure 7: IP usage mechanism.

One of the strengths of the temporary addresses is

that the datagrams generated by InCC can be camou-

ﬂaged with the source trafﬁc detected by A and B.

This gives more robustness to the channel with re-

spect to the random addresses, which do not depend

on the network IP addresses. On the contrary, random

addresses using spoofed addresses could be more sus-

picious because the IP addresses generated would be

unique in the network and an advance attacker could

notice the lack of response of the IP address, for ex-

ample by using port scanning techniques. One of the

main drawbacks of this technique is that Sender and

Receiver should be on the same network path than A

and B, in order to spoof properly the IP addresses.

However, this could be solved having installing Bit-

Torrent clients on the network path.

3.5 Signature Poisoning

NIDS and tools like tcpdump (Tcpdump, 2013) can

be used by network administrators in order to inspect

the trafﬁc. Normaly commercial systems and open

source solutions use network signatures in order to

identify the network ﬂows. So by using signatures

from different tools (Hippie, 2013; OpenDPI, 2013;

Snort, 2013), the channel hides the ﬂows with the

network’s current trafﬁc. The channel is only imple-

mented on UDP for the proof of concept, so our ﬂows

are capable of hiding with DNS, BitTorrent, Gnutella

or any other application that uses UDP and may have

a signature for identifying the ﬂow.

Figure 8 shows how the signatures provided by

third parties are added to the encrypted payload. No-

tice that some signatures have head and tail, depend-

ing on the signatures provided.

The following tcpdump output shows an InCC

message. This packet contains the initial payload

Figure 8: Signature Poisoning.

bytes 0x474e and 0x4403, which correspond to a sig-

nature for the Gnutella protocol. The rest of the

packet is encrypted by RC4.

IP 192.168.1.1.55728 > 192.168.1.2.4399: UDP

0x0000: 4500 00ce 2e5b 4000 4011 8870 c0a8 0101

0x0010: c0a8 0102 d9b0 112f 00ba 2044

474e 4403

0x0020: 578e df02 9088 bd1b e3db d268 5bf4 4ffc

0x0030: d626 4e10 9440 c93e c1a1 6249 ce2d 92df

4 PROTOTYPE

IMPLEMENTATION

The channel consists of a light-weight multi-platform

library with two differentiated processes, called Ap-

plication behavior (AB) and Obfuscator (OB). As

shown in Figure 9, process AB is in charge of ana-

lyzing the network trafﬁc by using signatures. These

signatures are provided by external subsystems like

Snort, or even OpenDPI, and loaded on a database.

AB identiﬁes some of the ﬂows with the trafﬁc sig-

natures provided, learning from the identiﬁed ﬂows

the packet size distribution. AB then informs OB that

the protocol identiﬁed at the previous stage is the best

suited for usage, and, by implementing the techniques

described in the previous subsections, OB sends the

message from the external subsystem to the destina-

tion.

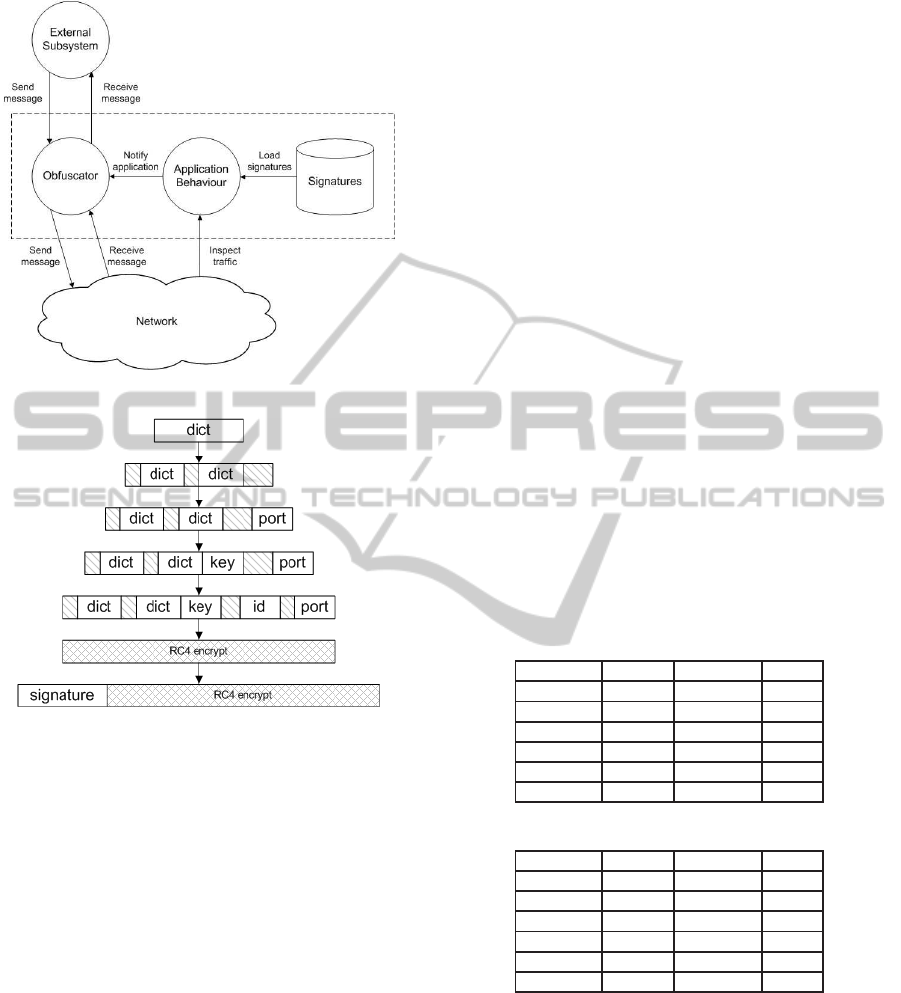

Figure 10 shows the OB process ﬂow with InCC.

This process generates the ﬁnal payload of the packet

using the different options attached to the payload.

These options are: First, noise is added to the pay-

load (described in section 3.3); second, a random port

is added in order to change ports for the next packets

(explained in section 3.2); third, a new key is added to

give more robustness to the RC4 algorithm if needed

(described in section 3.3); four, a behavior identiﬁer

is forwarded to the destination; ﬁve, a full encryption

of the current payload takes place; and ﬁnally, a sig-

nature of the trafﬁc identiﬁed is added to the network

(for further details see section 3.5).

Taking into account these options, the ﬂows gen-

erated will be camouﬂaged on the network. This al-

lows the external systems to share information with-

out compromising their existence on the network. Our

method does not modify the packets, as happens with

Xinwen et al. (Fu et al., 2002), and does not de-

pend on speciﬁc protocols as Lucena et al. explain

InCC:HidingInformationbyMimickingTrafficInNetworkFlows

Figure 9: InCC Process.

Figure 10: InCC Obfuscator Process Flow.

in their model (Lucena et al., 2004). On the contrary,

our channel depends on trafﬁc signatures, where the

amount of available signatures from different open-

source projects (Snort, 2013; OpenDPI, 2013; Hippie,

2013) is high.

5 EXPERIMENTS

The tests were carried out by two PC Linux with ker-

nels 2.6.38, one of them having a CPU Intel core duo

3.16GHz, and the other with a CPU Intel core duo

2GHz. First we generated Gnutella trafﬁc with an

application on one of the PCs. We chose the signa-

tures from Gnutella because generating real trafﬁc is

achievedjust by downloading theapplication and cap-

turing the trafﬁc on a pcap ﬁle. Secondly, we gener-

ated one ﬂow between the two PCs (with the char-

acteristics described in previous sections) by using

InCC and by setting up the behaviorto Gnutella. Then

the trafﬁc generated was captured on a pcap ﬁle.

All capabilities were implemented in our conﬁgu-

ration, developing a complete test of all the modules

presented. This is because the costs of having a real

environment are much higher due to the expenditure

in routers, web-servers, links, etc. But as shown in

Figure 7, which is just a small part of the previous

ﬁgure, we can emulate this environment with only a

single network LAN and two PCs as a proof of con-

cept.

Thirdly, we merge the trafﬁc generated by

Gnutella with the one generated by the channel. By

using tools like Snort (Snort, 2013) and OpenDPI

(OpenDPI, 2013), we analyze network trafﬁc and we

inject the merged traces, resulting in the fake ﬂows

being completely hidden from the rest of the trafﬁc.

Also, the ﬂows will be identiﬁed with the provided

signature as shown in the following tables.

Tables 3 and 4 represent the detection rates ob-

tained by OpenDPI in order to check InCC’s viability.

Table 2 shows OpenDPI detecting a Gnutella session,

including byte distribution, and number of ﬂows and

packets. On the other hand, Table 3 shows how the

new ﬂow generated by InCC is detected by OpenDPI

as Gnutella. Notice that the ﬂow generated by InCC

contains 51 packets, 13.827 bytes and a packet av-

erage size of 271 bytes, an amount which is large

enough for reporting network incidents.

Table 3: Gnutella trafﬁc.

Protocol Packets Bytes Flows

Unknown 61215 19031577 17

Dns 10 960 3

Http 115 44107 11

Netbios 53 7679 3

Gnutella 102656 30658221 270

Icmp 563 52454 21

Table 4: Gnutella trafﬁc and InCC.

Protocol Packets Bytes Flows

Unknown 61215 19031577 17

Dns 10 960 3

Http 115 44107 11

Netbios 53 7679 3

Gnutella 102707 30672048 271

Icmp 563 52454 21

To test the performance of the channel, partic-

ularly the library’s CPU overload (see Figure 11),

10.000 objects were generated using the different op-

tions described in subsections 3.2, 3.3, 3.4, and 3.5.

The results shed light on the consumption, negligible

for all the options supported by InCC.

SECRYPT2013-InternationalConferenceonSecurityandCryptography

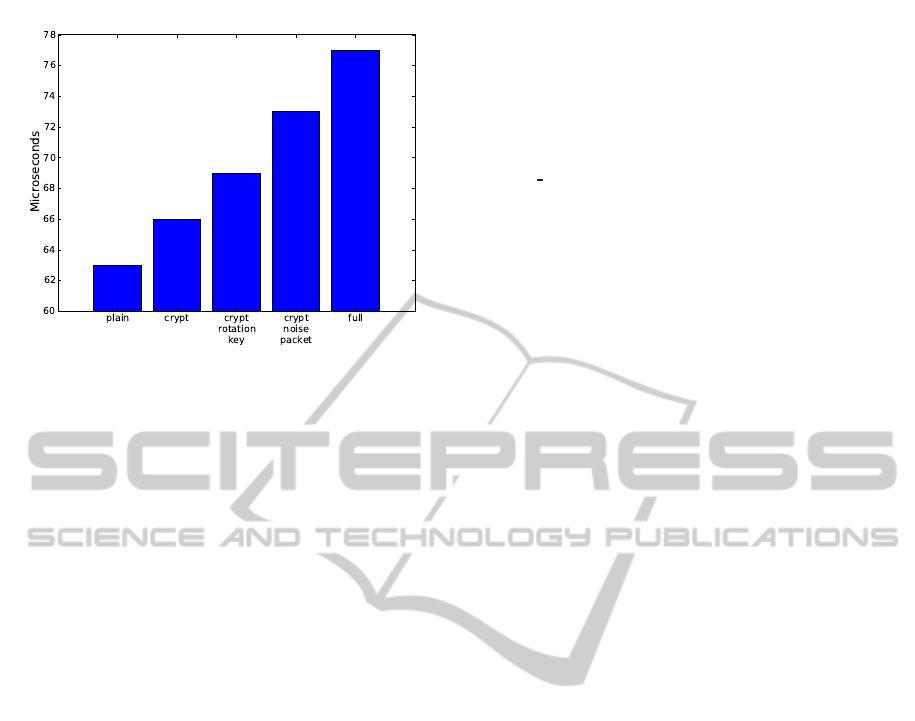

Figure 11: InCC option costs.

6 CONCLUSIONS

This article presents a light-weight library for covert

channels, capable of communicating with other sys-

tems from different networks. By using the options

described in the previous sections the channel is ca-

pable of sending information to other systems without

compromising their existence. The channel is modu-

lar and any of the options can be conﬁgured indepen-

dently. The source code is under the terms of the GPL

and is available on https://github.com/camp0/incc.

We propose a new technique which evades detec-

tion by camouﬂaging the ﬂows with the existing ones

on the network. InCC was designed for UDP trafﬁc in

order to check the viability of its implementation and

test its functionality. However, it would be possible to

extend it to TCP ﬂows in order to camouﬂage the gen-

erated ﬂows with the ones detected on the network.

Many P2P applications send packet garbage in or-

der to disrupt the trafﬁc analysis of the ISP networks.

One possible extension to InCC is the production of

fake datagrams to disturb all sorts of analysis during

the transmission of InCC ﬂows. When there is not

enough trafﬁc for InCC to identify, the administrators

could install P2P applications in order to help camou-

ﬂage the InCC ﬂows, thus making the channel more

resilient and robust.

ACKNOWLEDGEMENTS

This work has been partially funded by Vulcano

project (ref 442808215-8215-4-9) funded by Spanish

ministry of Science and Innovation.

REFERENCES

5200.28-STD, D. (1985). Trusted Computer System Evalu-

ation Criteria. Dod Computer Security Center.

BitTorrent (2013). The bittorrent protocol speciﬁ-

cation, version 11031. http://bittorrent.org/beps/

bep

0003.html.

Burnett, S., Feamster, N., and Vempala, S. (2010). Chip-

ping away at censorship ﬁrewalls with user-generated

content. In Proceedings of the 19th USENIX confer-

ence on Security, USENIX Security’10, pages 29–29,

Berkeley, CA, USA. USENIX Association.

Degraaf, R., Aycock, J., and Jacobson, M. (2005). Improved

port knocking with strong authentication. In In Proc.

21st Annual Computer Security Applications Confer-

ence (ACSAC 2005, pages 409–418. Springer.

Dittmann, J., Hesse, D., and Hillert, R. (2005). Steganog-

raphy and steganalysis in voice-over ip scenarios: op-

erational aspects and ﬁrst experiences with a new ste-

ganalysis tool set. In Delp, E. J. and Wong, P. W.,

editors, Security, Steganography, and Watermarking

of Multimedia Contents, volume 5681 of Proceedings

of SPIE, pages 607–618. SPIE.

Freire, E. P., Ziviani, A., and Salles, R. M. (2009). On met-

rics to distinguish skype ﬂows from http trafﬁc. J.

Network Syst. Manage., 17(1-2):53–72.

Fu, X., Guan, Y., Graham, B., Bettati, R., and Zhao, W.

(2002). Using parasite ﬂows to camouﬂage ﬂow traf-

ﬁc. In Proceedings of the 2002 IEEE Workshop on

Information Assurance.

Hippie (2013). Hi-performance protocol identiﬁcation en-

gine. http://sourceforge.net/projects/hippie/.

Klein, A. (2008). Attacks on the rc4 stream cipher. Des.

Codes Cryptography, 48(3):269–286.

Liu, Y., Ghosal, D., Armknecht, F., Sadeghi, A.-R., Schulz,

S., and Katzenbeisser, S. (2009). Hide and seek in

time - robust covert timing channels. In Backes,

M. and Ning, P., editors, ESORICS, volume 5789 of

Lecture Notes in Computer Science, pages 120–135.

Springer.

Llamas, D., Miller, A., and Allison, C. (2005). An eval-

uation framework for the analysis of covert channels

in the tcp/ip protocol suite. In ECIW, pages 205–214.

Academic Conferences Limited, Reading, UK.

Lucena, N. B., Pease, J., Yadollahpour, P., and Chapin, S. J.

(2004). Syntax and semantics-preserving application-

layer protocol steganography. In Proceedings of the

6th Information Hiding Workshop, pages 164–169.

Luo, X., Chan, E. W. W., and Chang, R. K. C. (2009).

Clack: A network covert channel based on partial ac-

knowledgment encoding. In ICC, pages 1–5. IEEE.

Mantin, I. (2005). Predicting and distinguishing attacks on

rc4 keystream generator. In EUROCRYPT,pages 491–

506.

Mazurczyk, W. and Szczypiorski, K. (2009). Steganog-

raphy in handling oversized ip packets. CoRR,

abs/0907.0313.

Miklosovic, S. (2011). Pa018 - term project - port knocking

enhancements. http://www.portknocking.org/view/

resources.

InCC:HidingInformationbyMimickingTrafficInNetworkFlows

Nussbaum, L., Neyron, P., and Richard, O. (2009). On ro-

bust covert channels inside dns. In Gritzalis, D. and

Lopez, J., editors, SEC, volume 297 of IFIP, pages

51–62. Springer.

OpenDPI (2013). Opendpi. http://www.opendpi.org/

opendpi.org/index.html.

Paul, S. and Preneel, B. (2004). A new weakness in the rc4

keystream generator and an approach to improve the

security of the cipher. pages 245–259.

Rcf4557 (2006). The rc4-hmac kerberos en-

cryption types used by microsoft windows.

http://www.ietf.org/rfc/rfc4757.txt.

Rfc2246 (1999). The tls protocol. http://www.ietf.org/rfc/

rfc2246.txt.

Rios, R., Onieva, J. A., and Lopez, J. (2012). Hide

dhcp:

Covert communications through network conﬁgura-

tion messages. In Gritzalis, D., Furnell, S., and Theo-

haridou, M., editors, Proceedings of the 27th IFIP

TC 11 International Information Security and Privacy

Conference (SEC 2012), volume 376 of IFIP AICT,

pages 162–173, Heraklion, Crete, Greece. Springer

Boston, Springer Boston.

Sellke, S. H., Wang, C.-C., Bagchi, S., and Shroff, N. B.

(2009). Tcp/ip timing channels: Theory to implemen-

tation. In INFOCOM, pages 2204–2212. IEEE.

Snort (2013). Snort. http://www.snort.org/.

Tariq, M., Baig, M. S., and Saeed, M. T. (2008). Associ-

ating the authentication and connection-establishment

phases in passive authorization techniques.

Tcpdump (2013). Tcpdump. http://www.tcpdump.org/.

Wendzel, S. and Zander, S. (2012). Detecting protocol

switching covert channels. 37th Annual IEEE Con-

ference on Local Computer Networks, 0:280–283.

Zander, S., Armitage, G. J., and Branch, P. (2007a). An

empirical evaluation of ip time to live covert channels.

In ICON, pages 42–47. IEEE.

Zander, S., Armitage, G. J., and Branch, P. (2007b). A sur-

vey of covert channels and countermeasures in com-

puter network protocols. IEEE Communications Sur-

veys and Tutorials, 9(1-4):44–57.

Zhang, D., Askarov, A., and Myers, A. C. (2011). Predictive

mitigation of timing channels in interactive systems.

In Proceedings of the 18th ACM conference on Com-

puter and communications security, CCS ’11, pages

563–574, New York, NY, USA. ACM.

SECRYPT2013-InternationalConferenceonSecurityandCryptography
