Semantic Enterprise Architecture Management

Willy Chen

, Claudia Hess

, Melanie Langermeier

, Janno Stuelpnagel

and Philipp Diefenthaler

1,2

Softplant GmbH, Munich, Germany

Department of Computer Science, University of Augsburg, Augsburg, Germany

Keywords:

Semantic Web Technology, Enterprise Architecture Management, Ontology.

Abstract:

Enterprise architecture management (EAM) provides information about an enterprise and its information sys-

tems landscape for thorough analysis. Semantic technologies allow for integrating data sets from various

relevant information sources within enterprises in a so-called EA repository, which serves as a comprehen-

sive formal information base for EAM. We call this approach Semantic Enterprise Architecture Management,

SEAM for short. We show how SEAM uses semantic technologies to bridge the heterogeneity between vari-

ous data sets relevant for EAM, such as The Open Group Architecture Framework (TOGAF) models, Business

Process Modeling Notation (BPMN) business process models and Service-oriented Architecture (SOA) mod-

els. Query answering and reasoning enable detailed analysis and consistency checks on the SEAM repository

in order to discover complex dependencies and implicit knowledge.

1 INTRODUCTION

Enterprise architectures (EA) are formal models of

core artifacts of an enterprise and their dependen-

cies (Aier et al., 2008). Within enterprise architec-

ture management (EAM) these models are utilized to

design and align IT landscapes of enterprises based

on strategic, organizational and technological view-

points. Therefore, an EA aggregates information

about business, especially about the business strategy

and business processes, about the application land-

scape, i.e. the information systems used and planned

with their components and interfaces, and last but

not least, about the infrastructure and the technology

used. The EA provides different types of analysis on

all this information for the various stakeholders and

their particular concerns.

During the last years, many so called EA frame-

works have been developed to facilitate the introduc-

tion and the further development of an EAM approach

in an organization. As recent analyses have shown, to-

day an EAM approach “is something that is unique to

every organization, and will be formed from a combi-

nation of frameworks, industry models, and method-

ologies” (Blowers, 2012). EA frameworks therefore

have to be tailored to be used in a particular organi-

zation. (Blowers, 2012) found that the majority of

the interviewed organizations (66%) are using a cus-

tomized framework. One-third of the interviewees

even developed their framework on the basis of two

or more frameworks, resulting in so-called hybrid

frameworks.

Customizing a framework means that terminol-

ogy as well as process and architectural models sug-

gested by the framework are adapted to an organiza-

tion’s needs (Open Group, 2009). The terminology

used in the framework description can be replaced

where necessary with the organization-speciﬁc terms.

The Open Group (Open Group, 2009) recommends to

link the EAM approach closely to other EAM related

activities such as project and service portfolio man-

agement processes, project lifecycle, operations han-

dover processes, operational management processes

and procurement processes. All these activities cre-

ate information in their own, specialized information

bases (e.g. service architectures, enterprise service

bus, conﬁguration management databases). These nu-

merous additional sources could provide valuable in-

put to an EA model. However, when integrating dif-

ferent data sources we have to deal with structural,

syntactic and semantic conﬂicts. In large corporate

groups and in cases of mergers and acquisitions it

is even more challenging to build a single corporate

EA based on multiple EAM approaches and numer-

ous EAM related activities.

According to recent research the documentation of

318

Chen W., Hess C., Langermeier M., Stuelpnagel J. and Diefenthaler P..

Semantic Enterprise Architecture Management.

DOI: 10.5220/0004445003180325

In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 318-325

ISBN: 978-989-8565-61-7

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

the EA is still mostly done manually today (Buschle

et al., 2012; Farwick et al., 2011). This is not only

time consuming but keeping the acquired data up-to-

date is also difﬁcult. We therefore aim to automate

the documentation process of an EA by providing ef-

ﬁcient and intelligent means to reuse and interconnect

existing data sets. This should not only reduce the

amount of effort for creating an initial EA model but

also allow to leverage related management processes

to keep the information within an EA up-to-date.

To this aim, we analyze different data sources rel-

evant to an EA and their interdependencies. We show,

how semantic technologies as being developed for

knowledge representation and reasoning on the Web

allow for building an EA repository based on open

standards and well-studied modeling languages and

formalisms. We provide a mapping between several

of the data sources identiﬁed as relevant for EAM.

We then use this mapping to integrate the data sets

and show possible analysis on the linked data sets.

The paper is structured as follows. Section 2

brieﬂy gives an overview on EA frameworks and

models and discusses possible conﬂicts that arise

when interconnecting different data sources relevant

to EA. In Section 3 we present our approach to create

a EA repository based on semantic technologies by

formalizing and integrating the data sets from various

sources. We show the applicability of the approach by

integrating EA documentation according to the The

Open Group Architecture Framework (TOGAF) con-

tent metamodel, related process models in Business

Process Model and Notation (BPMN) and informa-

tion on services according to the Service-Oriented Ar-

chitecture Ontology. We discuss the results in Section

4 and analyze related works in Section 5. We con-

clude the paper by discussing further application sce-

narios based on SEAM repositories and pointing out

the future direction of our research.

2 ENTERPRISE ARCHITECTURE

REPOSITORIES

2.1 EA Frameworks - A Guideline

to EAM Approaches

There are currently more than 50 known frameworks

speciﬁed by standards setting organizations, compa-

nies, consultancies, governmental organizations and

military agencies (Matthes, 2011). The Zachman

framework (Zachman, 1987) is one of the early ap-

proaches. Its development was inspired by the pro-

cess of constructing a building and the deliverables

produced in this process. It provides an analogous set

of architectural representations produced for the de-

velopment of an information system. TOGAF (Open

Group, 2009), The Open Group Enterprise Architec-

ture Framework, is an industry standard architecture

framework and is nowadays widely accepted. The

core of TOGAF is its generic enterprise architec-

ture method, the Architecture Development Method

(ADM), which speciﬁes the different steps required

for building up and using an EA. The core content

metamodel, guidelines, recommended standards and

compliant products complete the framework.

The keystone of an EA framework is the archi-

tectural model that it provides to represent an orga-

nization’s enterprise architecture. As EA frameworks

differ in purpose and scope, they all come up with

their own architectural model. TOGAF, for example,

deﬁnes the core content metamodel and several ex-

tensions. The core content metamodel encompasses

a minimum set of artifacts for an EAM endeavor. It

partitions the artifacts in ﬁve units, ﬁrst architecture

principles, vision and requirements, then the three ar-

chitecture layers deﬁned by TOGAF (i.e. the busi-

ness, the information systems and the technology ar-

chitecture) and last the architecture realization. On

this basis, analyses such as ’show me all applications

that are implemented on deprecated platforms’ can be

made.

2.2 Information Sources relevant

to EAM

Within large enterprises and complex information

system landscapes there are numerous structured and

unstructured data sources that hold relevant informa-

tion for a complete EA documentation. Structured

sources include but are not limited to

: business pro-

cess models, software documentation (e.g. UML

documentation or Web service documentation), con-

ﬁguration management databases (i.e. conﬁguration

items in the IT infrastructure following the ITIL stan-

dard), enterprise resource planning (organizational

data such as departments and roles, project manage-

ment and portfolio data), and middleware systems

(e.g. enterprise service bus (Buschle et al., 2012)).

Linking those data into an EA repository provides

a powerful groundwork for complementing and reﬁn-

ing any EA documentation. Today, this information

is mostly added manually to the EA repository, see

e.g. (Buschle et al., 2012; Farwick et al., 2011). This

is very time-consuming and data can hardly be kept

For creating a more comprehensive listing we sug-

gest to utilize electronic product catalogs such as eCl@ss

http://www.eclasscontent.com/

SemanticEnterpriseArchitectureManagement

319

up-to-date constantly. For automating this process ap-

propriate interfaces for the data exchange have to be

provided and a mapping from the source data to the

EA model has to be deﬁned. Conﬂicts w.r.t. syntac-

tic, structures and semantics have to be faced.

Syntactic conﬂicts denote the problem that EAM

related data is represented in various languages spe-

cialized for the intended use. Within domains, this

problem is addressed by standards. Examples are

UML for software documentation, BPMN as a stan-

dard by the OMG for business process models, Archi-

Mate for EA documentation or the CMDB Federation

(CMDBf) speciﬁcation for representing items from

conﬁguration management databases. Some of these

standards are well-accepted and widely used while

other standards are only emerging, i.e. most data

sources are still provided in their original formats.

In order to integrate the various EAM relevant data

sources in the EA repository, we have to deal with all

these different standards and formats.

Structural conﬂicts arise when semantically

equivalent information is represented in a structurally

different way. Attributes of the same entities can have

different names or different data types. Such het-

erogeneity will occur, for example, if for an appli-

cation component the date of its go-live is indicated.

One source might call this attribute initial live date

(e.g. according to the TOGAF content metamodel for

physical application components), the other source

simply go-live date. A more complex structural con-

ﬂict occurs when a source uses one object to represent

certain information, and another source uses two or

more objects. This is the case, for example, if the

TOGAF content metamodel is used with and with-

out a particular extension. A source using only the

core artifacts for the application architecture contains

the entity application component while a source us-

ing the core with the infrastructure consolidation ex-

tension extends the application component to a logi-

cal application component and a physical application

component.

Semantic conﬂicts occur where information is as-

sumed to be equivalent, for instance, due to an iden-

tical name although being different. An often cited

example is here an attribute indicating a price, e.g.

the ﬁxed and variable costs of a service, which may

be given in different currencies. More complex is

the following example. An EA repository might in-

tegrate information on organization units, such as the

headcount. There is a semantic heterogeneity if a

ﬁrst source counts only the full-time employees (cf.

TOGAF content metamodel) while a second source

also considers freelancers. Semantic heterogeneities

might not only occur with respect to attributes but

also with entities. Integrating information from two

concurrent EAM approaches in different departments,

one might consider as application only the business

applications while the other one lists business and in-

frastructure applications (e.g. as distinguished by the

TOGAF Technical Reference Model). The result of a

query for all infrastructure applications over the inte-

grated data will be misleading.

3 BUILDING A SEAM

REPOSITORY

We call the approach for representing and analyz-

ing enterprise architecture models with semantic Web

technologies Semantic Enterprise Architecture Man-

agement – SEAM for short. With SEAM we formal-

ize the knowledge about interdependencies of rele-

vant data sets, including EA frameworks. Therewith

equalities and inconsistencies are identiﬁed. SEAM

links existing data within an enterprise instead of du-

plicating it in yet another tool. It facilitates the doc-

umentation of the architecture as it supports the map-

ping and integration of relevant data sets and deriving

the required views for EAM. Semantic technologies,

especially ontologies, provide a mean for bridging the

structural and semantic heterogeneities between the

different data sets. The resulting models for enterprise

architecture do not only serve as a static documenta-

tion but can also be utilized for architecture analysis

and the provisioning of structured data for succeeding

processes such as project initiations.

To resolve structural and semantic conﬂicts, we

use the metamodel of one of the data sources as

global, neutral model. All other data sources are then

mapped to this neutral ontology. Each data source

keeps its own data model adapted to its particular ap-

plication context instead of enforcing a single model

to all sources. Through a mapping of the elements

and attributes of the local sources to the neutral on-

tology, implicit assumptions of the local models are

made explicit and can be used during query answer-

ing. Having mapped local entities and attributes to

their counterparts in the neutral ontology and having

modeled implicit assumptions, inference mechanisms

can be used for consistency checks.

For providing a SEAM repository based on dif-

ferent existing data sources within an enterprise we

propose the following approach:

• Formalize and Analyze Data Sources: formal-

ize the data sources by identifying and deﬁn-

ing the underlying metamodels and analyze their

overlap

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

320

• Expose Data Sets: expose relevant data sets from

the underlying data sources as an abstracted view

using a simpliﬁed metamodel

• Linking the Data Sets: deﬁne a set of mappings

between the data sets within the repository that

can be computed automatically

• Reﬁnement: manually reﬁne mappings including

individual equality assertions

The approach is depicted in Figure 1. In the fol-

lowing sections we describe the technical background

of the used representation formalism and give details

and examples on every step.

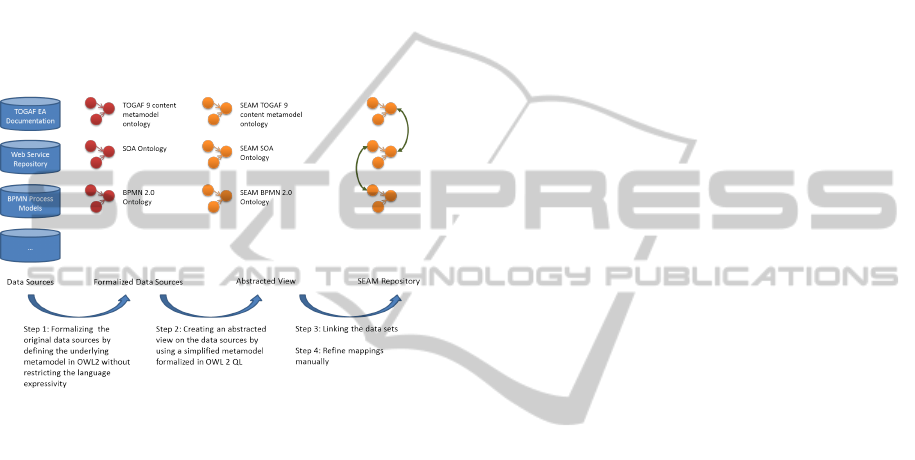

Figure 1: Approach for creating a SEAM repository.

3.1 Technical Foundations

We propose to use ontologies for representing the data

sources. While the T-Box covers the metamodel of

the data sources, i.e. their structure and semantics,

we use the A-Box for representing the actual model

instances. We choose to start with the QL language

proﬁle from the OWL 2 standard. An OWL 2 pro-

ﬁle is a ”trimmed down version of OWL 2 that trades

expressive power for efﬁciency of reasoning” (Motik

et al., 2012). OWL 2 QL in special is made for ”ap-

plication that use very large volumes of instance data,

and where query answering is the most important rea-

soning task” (Motik et al., 2012). Technically, the

query answering can be implemented by rewriting on-

tology queries, e.g. in SPARQL to SQL queries that

can be posed to standard relational database systems.

Thus, a SEAM repository can be built on top of ma-

ture relational database management systems, which

are widely adopted and operated in enterprises.

Clearly, the expressiveness of OWL 2 QL is lim-

ited. Nevertheless, it still covers most of the for-

malisms required for representing mappings between

different ontologies. Given two ontologies O and

P, class expressions CE, object property expressions

OPE and data property assertions DPE we can deﬁne

a set of mappings M based on:

• EquivalentClasses(CE

, CE

)

• EquivalentObjectProperties(OPE

, OPE

)

• EquivalentDataProperties(DPE

, DPE

)

Additionally individual equalities using the con-

struct SameIndividual(a

... a

) are deﬁned. Although

this construct is not part of the OWL 2 QL language

proﬁle, such axioms can be computed in LOGSPCAE

w.r.t. the size of data by computing the reﬂexive-

symmetric-transitive closure of the equality relation

and using the resulting relation within query answer-

ing (Motik et al., 2012).

3.2 Formalize and Analyze Data

Sources

As mentioned before, information sources within en-

terprise as well as the actual EA models are relevant

data sets for an EAM initiative. To guarantee for most

exact semantic descriptions, we do not need to restrict

the language expressiveness of OWL 2 for formaliz-

ing the relevant data sources in this ﬁrst step. Within

this paper we consider following existing ontologies,

which represent the T-Box of speciﬁc data sources rel-

evant for an EA repository:

• TOGAF 9 Content Metamodel Ontology. Ger-

ber et al. (Gerber et al., 2010) have developed

an OWL representation, which should represent

the information from the TOGAF 9 content meta-

model in a more precise and unambiguous man-

ner.

• BPMN 2.0 Ontology. Natschlaeger

(Natschlaeger, 2011) provides an ontology

for the process modeling standard BPMN. It

formalizes the entire BPMN 2.0 speciﬁcation

as well as further textual annotations from the

speciﬁcation.

• SOA Ontology. The service-oriented architecture

ontology (Open Group, 2010) describes both busi-

ness and technical aspects of a service-oriented ar-

chitecture.

We assume that each data source provides data

sets represented within the A-Box of each of the

ontologies. Moreover, any additional data source

within an enterprise may be formalized using the

same approach, either by reusing existing ontologies

or by modeling special ontologies. This formalization

serves as a starting point for analyzing connections

between the different data sources. Possible struc-

tural and semantic conﬂicts are identiﬁed in this step.

SemanticEnterpriseArchitectureManagement

321

We did this for the above presented ontologies. All

have an overlap within the TOGAF 9 business archi-

tecture. In this architecture TOGAF deals with busi-

ness processes and business services and sets them

into context to other organizational elements. There-

fore, the TOGAF Ontology will be our neutral ontol-

ogy whereas the BPMN 2.0 and SOA ontologies are

the local ones, which will be mapped into the neutral

one.

Based on the formal ontology language following

types of mapping can be identiﬁed:

• Direct Equivalence: given two class expressions

and CE

, we can state CE

≡ CE

i.e.

EquivalentClasses(CE

, CE

)

• Subset Equivalence: given two class expressions

and CE

, we can state CE

⊆ CE

i.e.

SubClassO f (CE

, CE

)

We identiﬁed such equivalences between the se-

lected ontologies. For example, the class Process in

TOGAF corresponds to the class Process in the SOA

ontology. Here, we have a direct equivalence. Equiv-

alence between object properties and data properties

can be deﬁned analogously using object property ex-

pressions and data property expressions. While di-

rect equivalences can be applied automatically, subset

equivalences only provide a support to ﬁnd possible

mappings in a manual reﬁnement step.

3.3 Expose Data Sets

As the different data sources cover very speciﬁc de-

tails about a single aspect of an EA, a full integra-

tion of all ontologies into a single ontology covering

the complete semantic and representation is a highly

complex task. To reduce the complexity we limit

the used OWL 2 fragment as explained in chapter

3.1. Complex OWL constructs can be materialized

in OWL 2 QL by applying forward chaining. Addi-

tionally highly speciﬁc model elements may be ne-

glected. This is necessary since we want to enable

efﬁcient querying in the combined ontology although

we have to deal with a very high amount of data.

We have done this task with the three ontologies

introduced before. The following examples illustrate

these results.

SEAM TOGAF 9 Content Metamodel Ontology.

Figure 2 shows a TOGAF model excerpt, which cov-

ers organizational and functional aspects of a business

and connects them with business processes. Further-

more it links business services with the supported pro-

cesses. We use a simple UML class notation to visu-

alize this ontology excerpt. UML stereotypes denote

the TOGAF content metamodel classes.

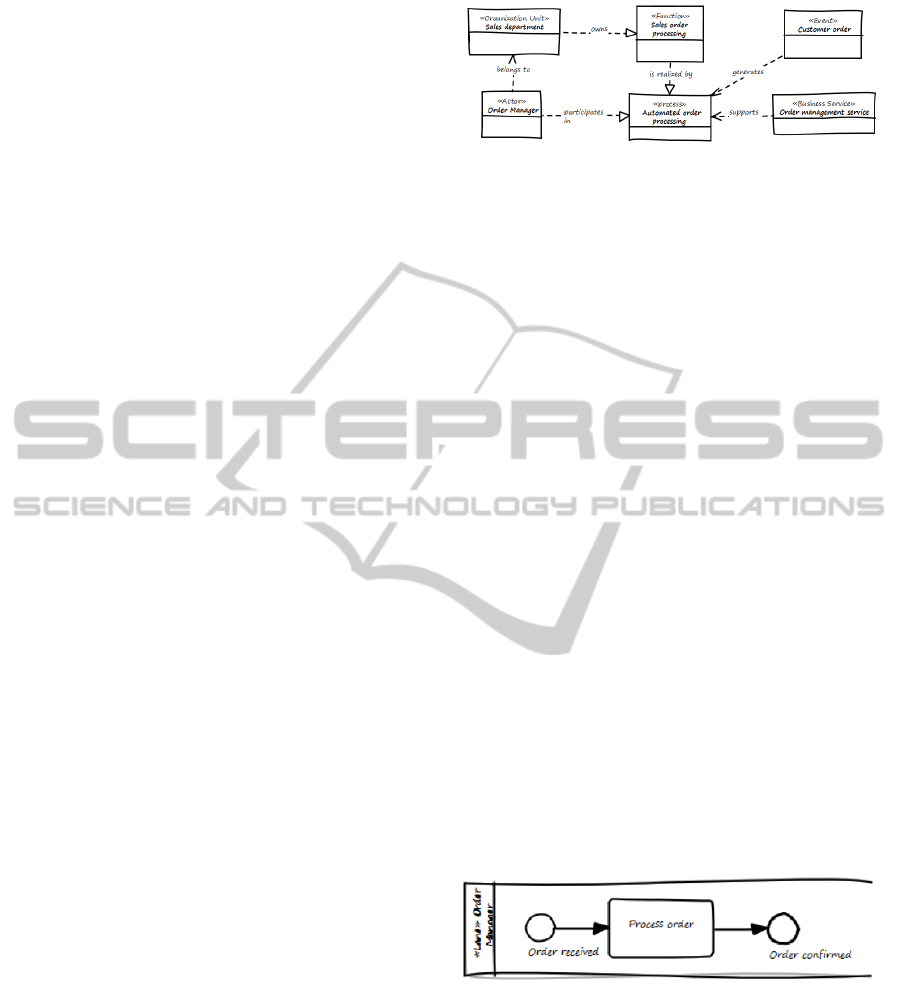

Figure 2: Excerpt of SEAM TOGAF 9 content metamodel

Ontology.

Figure 2 can be represented in OWL 2 functional-

style syntax (FSS). The following excerpt includes the

relevant part of T- and A-Box, but omits the deﬁnition

of object properties and object property assertions.

Class(T:OrganizationUnit) Class(T:Function)

Class(T:Process) Class(T:Actor)

Class(T:BusinessService) Class(T:Event)

Individual(T:‘‘Sales department’’)

ClassAssertion(T:OrganizationUnit T:‘‘Sales

department’’)

Individual(T:‘‘Sales order processing’’)

ClassAssertion(T:Function T:‘‘Sales order

processing’’)

Individual(T:‘‘Order manager’’)

ClassAssertion(T:Actor T:‘‘Order manager’’)

Individual(T:’’Automated order processing’’)

ClassAssertion(T:Process T:‘‘Automated order

processing’’)

Individual(T:‘‘Order management service’’)

ClassAssertion(T:BusinessService T:‘‘Order

management service’’)

Individual(T:‘‘Customer order’’)

ClassAssertion(T:Event T:‘‘Customer order’’)

SEAM BPMN 2.0 Ontology. Using BPMN the busi-

ness process “automated order processing” is mod-

eled in more details (see Figure 3). As typical for

BPMN models, the lane holds a business role (Order

Manager) that is the performer of the tasks associated

with the lane. However, the usage of lane elements

within BPMN is not deﬁned.

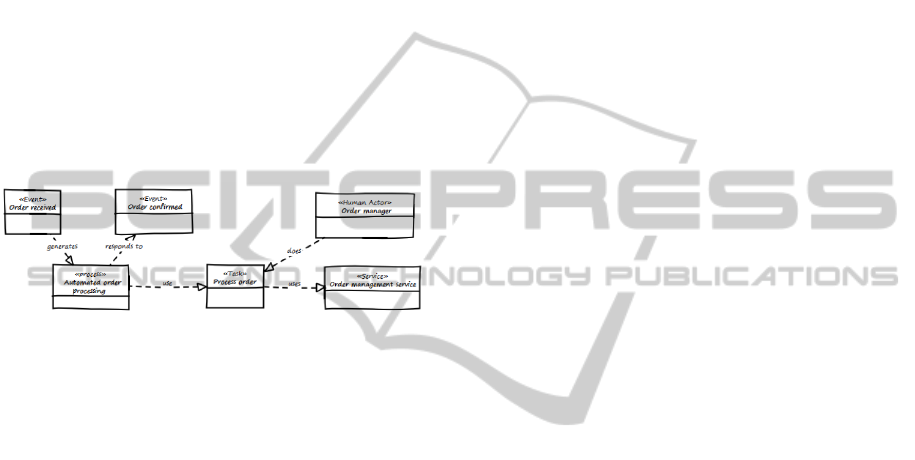

Figure 3: Excerpt of SEAM BPMN 2.0 Ontology.

The representation in OWL 2 FSS omitting ob-

ject properties would be (note that the Events and

the FlowNodes are connected via the SequenceFlow

class):

Class(B:Task) Class(B:FlowNode)

Class(B:SequenceFlow)

Class(B: Event) SubClassOf(B:Event B:FlowNode)

Class(B:StartEvent) Class(B:CatchEvent)

SubClassOf(B:CatchEvent B:Event)

SubClassOf(B:StartEvent B:CatchEvent)

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

322

Class(B:EndEvent) Class(B:ThrowEvent)

SubClassOf(B:ThrowEvent B:Event)

SubClassOf(B:EndEvent B:ThrowEvent)

Individual(B:‘‘Process order’’)

ClassAssertion(B:Task B:‘‘Process order’’)

Individual(B:‘‘Order received’’)

ClassAssertion(B:StartEvent

B:‘‘Order received’’)

Individual(B:‘‘Order confirmed’’)

ClassAssertion(B:EndEvent

B:‘‘Order confirmed’’)

SEAM SOA Ontology. The SOA ontology allows

for modeling the example from an additional point of

view. Figure 4 represents an excerpt of this SEAM

SOA ontology. A process is thereby drilled down into

tasks. Tasks use services to fulﬁll a service contract.

Note that the service contract is part of the SOA on-

tology but not of this example.

Figure 4: Excerpt of SEAM SOA Ontology.

An equivalent OWL 2 FSS representation, again

omitting the object properties, would be:

Class(S:Event) Class(S:Process)

Class(S:Task) Class(S:Service)

Class(S:HumanActor)

Individual(S:‘‘Process order’’)

ClassAssertion(S:Task S:‘‘Process order’’)

Individual(S:‘‘Order received’’)

ClassAssertion(S:Event S:‘‘Order received’’)

Individual(S:‘‘Order confirmed’’)

ClassAssertion(S:Event S:‘‘Order confirmed’’)

Individual(S:‘‘Automated order processing’’)

ClassAssertion(S:Process S:‘‘Automated order

processing’’)

Individual(S:‘‘Order management service’’)

ClassAssertion(S:Service S:‘‘Order management

service’’)

Individual(S:‘‘Order manager’’)

ClassAssertion(S:HumanActor

S:‘‘Order manager’’)

The examples above only show a small range of

possible contents. In practice the models are far more

detailed and complex. If required, data aggregation

operations can be applied within this step to reduce

the complexity of the next mapping step.

3.4 Linking the Data Sets

The equivalences that were identiﬁed in step 1 (For-

malizing and Analyzing Data Sources, see section

3.2) are now formalized. In our example, we can now

add following OWL mappings:

EquivalentClasses(T:Event, B:Event)

EquivalentClasses(T:Event, S:Event)

EquivalentClasses(T:BusinessService, S:Service)

EquivalentClasses(T:Process, S:Process)

EquivalentClasses(T:Actor, S:HumanActor)

By applying the mappings on concrete data sets

within the SEAM repository, equality assertions from

the different data sets can be derived. In our example

this is quite obvious by matching the labels. How-

ever, more intelligent means, e.g. partial matchmak-

ing (Stuckenschmidt, 2007), are required in real world

scenarios. Also, it is crucial in this step to consider

possible semantic conﬂicts. For our example we can

derive:

SameIndividual(B:‘‘Order received’’

S:‘‘Order received’’)

SameIndividual(B:‘‘Order confirmed’’

S:‘‘Order confirmed’’)

SameIndividual(T:‘‘Automated order processing’’

S:‘‘Automated order processing’’)

SameIndividual(T:‘‘Order management service’’

S:‘‘Order management service’’)

SameIndividual(T:‘‘Order manager’’

S:‘‘Order manager’’)

3.5 Reﬁnement

As mentioned in section 3.2 there are subset mappings

that only provide hints on possible equivalences. In a

ﬁnal step this knowledge is utilized to provide sugges-

tions to the user to reﬁne the SEAM repository. The

user can then add further mappings with the SameIn-

dividual construct.

For the considered ontologies following subset

mappings can be analyzed in more detail:

T:BusinessService ∪ T:PlatformService∪

T:InformationSystemService ≡

S:Service ∪ S:ServiceComposition

T:Actor ∪ T:Role∪

T:LogicalApplicationComponent∪

T:LogicalTechnologyComponent ⊆ S:Element

The latter mapping for example states that in-

stances of the class Element in the SOA ontology

may show equivalences within individuals of the TO-

GAF classes Actor, Role, LogicalApplicationCompo-

nent and LogicalTechnologyComponent.

During the reﬁnement, the SEAM repository can

be constantly validated using reasoning and query an-

swering in order to detect inconsistencies within the

formal model.

SemanticEnterpriseArchitectureManagement

323

3.6 Architecture Analysis

The resulting SEAM repository can now be utilized

for architecture analysis. For example, having iden-

tiﬁed equality between a process within TOGAF and

a business process model in BPMN would allow an

enterprise architect to directly navigate from an EA

model to the actual process deﬁnition. Additionally,

such an integrated approach provides further means

for consistency checks. The consistency of the EA

model cannot only be veriﬁed based on the meta-

model but also w.r.t. to the data quality. Documented

information systems services within the EA can be

compared with other sources for service deﬁnition.

Clearly, enterprise architecture aims at a holis-

tic model of an enterprise whereas the other data

sets contain detailed information about speciﬁc as-

pects thereof. As these data is not manually docu-

mented within an EAM initiative but automatically

linked from the actual sources, they can serve as ad-

ditional information that can be considered for de-

cisions within the EA. Also data redundancies can

be reduced if required elements are looked up within

these data sets and referenced using natural or unique

identiﬁers (e.g. department names, cost centers,

project numbers, Web service name, host name, busi-

ness process name). Detailed and up-to-date informa-

tion can be accessed later on using these identiﬁers

instead of working on an outdated copy.

4 DISCUSSION

In the previous section we presented a methodol-

ogy for building a SEAM repository. We evaluated

the approach by creating a EA repository based on

business process descriptions, service speciﬁcations

of a service-oriented architecture and TOGAF-based

EAM documentations. For each of the data sources,

we utilized an ontology-based metamodel to formal-

ize them and to analyze their overlap. Focusing on

efﬁcient query answering and analysis in the SEAM

repository, we derived simpliﬁed data sets based on

a formal language with reduced language complexity,

namely OWL 2 QL. Step by step we added mappings

between the data sets to capture all relations and al-

low for analyses within the linked data. Parts of the

resulting SEAM repository has already been shown as

a running example in the last section (the authors may

be contacted to obtain the ontologies).

We have shown that semantic technologies pro-

vide adequate means to overcome syntactic and struc-

tural conﬂicts. Data sources relevant for an EA can be

transformed into data sets that are linked via the ex-

plicit deﬁnition of equivalent classes, properties and

individuals. Still, semantic conﬂicts (cf. section 2.2)

have to be considered separately. When mapping the

data sets, we have to ensure that the semantics of the

mapped classes and individuals correspond to each

other. Otherwise, there is still the possibility to alter

the step of exposing the data sets.

The SEAM approach allows creating an EA repos-

itory based on linking existing data sources. This sup-

ports in comprising different data formats, enhances

the reusability of existing results in research and in-

dustry and allows for consistency checks and analysis

also between the different data sources. That means,

through an integration of the local ontologies in the

neutral EA ontology inconsistencies between these

local ontologies can be detected, since we have one

big mapped ontology. For example if an activity in

a business process requires a speciﬁc data input, but

does not call the corresponding service, this error can

be detected if there is an integrated SOA, BPMN and

EA repository. Through traversing the ontology the

mismatch between the service and the required data

is detected.

5 RELATED WORK

The Essential Meta-Model (Essential Project, 2012)

is an EA model that has been developed in the scope

of the Essential Project. It provides on the basis of

the ontology editor Protege an open source EA tool,

the Essential Architecture Manager. They predeﬁne

the T-Box of the architectural model in OWL. It in-

corporates best practices and can be extended to meet

particular requirements. Also, they claim that it can

be easily mapped to industry standard frameworks.

In SEAM we aim at automating the acquisition and

maintenance of the data required for an EAM initia-

tive while relying on existing research and best prac-

tices on EA modeling.

Using semantic technologies for formalizing in-

formation sources yields a number of advantages,

starting with having a formal, unambiguous model to

the possibilities of reasoning and consistency check-

ing. TopQuadrant, for example, describes in its

whitepaper (TopQuadrant, 2012) the vision of exe-

cutable EA models based on semantic technologies.

Executable means that the knowledge base can be

consulted at run time by humans as well as by applica-

tions. In the last years, architectural models have been

published as ontologies (such as for the TOGAF con-

tent metamodel (Gerber et al., 2010)). As described

in section 3, the SEAM approach uses these models.

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

324

6 CONCLUSIONS

Enterprise architecture management (EAM) aims to

optimize the alignment of business and IT. EA repos-

itories provide the required information base for deci-

sions on the information systems landscape, e.g. for

the development of a new application or new services.

EA frameworks such as TOGAF provide metamodels

as guideline for creating EA repositories. They deﬁne

which information is required and how it is linked.

This information, however, is only the core. A more

comprehensive information base can be provided by

integrating data from other EAM related information

sources. Connecting such already existing informa-

tion sources to the EA documentation avoids redun-

dant time and effort for its creation and maintenance.

However, integrating the data from these heteroge-

neous sources, each coming with its own data model

in a particular language, is a complex task.

We propose the use of semantic technologies for

integrating heterogeneous EAM relevant information

sources allowing for a Semantic Enterprise Archi-

tecture Management - SEAM. We deﬁned a process

for building a SEAM repository that uses linked data

within an enterprise. Thereby, existing enterprise data

sets are exposed as ontologies and linked into the en-

terprise architecture. The EAM initiative can thus fo-

cus on modeling the interdependencies between busi-

ness, information systems and IT infrastructure. Mis-

matches between the documentation within the infor-

mation sources and reality can be easily discovered

and made transparent. We demonstrated the approach

by linking EA documentation (according to TOGAF),

business process models (in BPMN) and aspects of

services (according to the SOA ontology).

Depending on the existence of relevant data sets

the documentation task within an EAM initiative can

thus be reduced. Moreover, the resulting EA model

does not only statically document an EA, but is avail-

able in a formal and machine-readable representa-

tion formalism. Semantic technologies provides a

strong foundation for architecture analysis and con-

sistency checks as well as additional supporting tasks

for EAM. These will include visualization but also

novel applications of AI methodologies such as au-

tomated planning in the ﬁeld of EA.

Future works include the reﬁnement of the de-

ﬁned mapping axioms and the inclusion of additional

data sources based on well-known standards. As the

chosen OWL language fragment is limited, complex

mapping operations such as aggregations or conver-

sions may be applied outside the repository within a

data provisioning step.

REFERENCES

Aier, S., Riege, C., and Winter, R. (2008). Unternehmen-

sarchitektur literatur

uberblick und stand der praxis.

Wirtschaftsinformatik, 4(50):292–304.

Blowers, M. (2012). Hybrid enterprise architecture frame-

works are in the majority. http://ovum.com/2012/03/

22/hybrid-enterprise-architecture-frameworks-are-in-the-

the-majority/, accessed Feb. 12 2013.

Buschle, M., Grunow, S., Hauder, M., Matthes, F., and

Roth, S. (2012). Automating enterprise architecture

documenation using models of an enterprise service

bus. In AMCIS 2012 Proceedings, Seattle, Washing-

ton.

Essential Project (2012). Essential meta-model. http://

www.enterprise-architecture.org/component/content/

article/11-project-components/35-essential-meta-model,

accessed Feb. 12 2013.

Farwick, M., Agreiter, B., Breu, R., Ryll, S., Voges, K., and

Hanschke, I. (2011). Automation processes for enter-

prise architecture management. In Proceedings of the

2011 IEEE 15th International Enterprise Distributed

Object Computing Conference Workshops (EDOCW

’11), pages 340–349. IEEE Computer Society.

Gerber, A., Kotz, P., and van der Merwe, A. (2010).

Towards the formalisation of the TOGAF content

metamodel using ontologies. In Proceedings of the

12th International Conference on Enterprise Infor-

mation Systems (ICEIS 2010), pages 54–64, Funchal,

Madeira, Portugal.

Matthes, F. (2011). Enterprise Architecture Frameworks

Kompendium:

Uber 50 Rahmenwerke f

ur das IT-

Management. Springer, 1 edition.

Motik, B., Grau, B., Horrocks, I., Wu, Z., Fokoue, A., and

Lutz, C. (2012). OWL 2 web ontology language: Pro-

ﬁles. http://www.w3.org/TR/owl2-proﬁles/, accessed

Feb. 12 2013.

Natschlaeger, C. (2011). Towards a BPMN 2.0 ontol-

ogy. In Business Process Model and Notation, Lecture

Notes in Business Information Processing, page 115.

Springer.

Open Group (2009). TOGAF version 9. Technical report,

Van Haren Publishing.

Open Group (2010). Service-oriented architecture ontology.

ISBN 1931624887.

Stuckenschmidt, H. (2007). Partial matchmaking using ap-

proximate subsumption. In Proceedings of the 22nd

Conference on Artiﬁcial Intelligence (AAAI 07), pages

1459–1464.

TopQuadrant (2012). Towards executable enterprise

models: Building semantic enterprise archi-

tecture solutions with topbraid suite. http://

www.topquadrant.com/docs/whitepapers/WP-Building

SemanticEASolutions-withTopBraid.pdf, accessed

Feb. 12 2013.

Zachman, J. (1987). A framework for information systems

architecture. IBM Systems Journal, 3(26).

SemanticEnterpriseArchitectureManagement

325
