Feature Model Extraction from Product Source Codes based on the

Semantic Aspect

Jihen Maazoun

, Nadia Bouassida

, Han

ene Ben-Abdallah

and Abdelhak-Djamel Seriai

Mir@cl Laboratory, Facult

e des Sciences Economiques et de Gestion , Sfax University, Sfax, Tunisia

Mir@cl Laboratory, Institut Sup

erieur d’Informatique et de Multim

edia, Sfax University, Sfax, Tunisia

LIRMM Laboratory, University of Montpellier 2, Montpellier, France

Keywords:

SPL, Semantic Name Correspondence, Feature Diagram, Feature Identiﬁcation From Source Code.

Abstract:

Software Product Lines can be constructed through either a top-down or bottom-up process. A top-down

process begins by a domain analysis where variabilities are speciﬁed then it derives the product line. It is

especially interesting for the creation of new product lines. However, in practice, SPL are often set up after

several similar product variants have been in use. This practice prompted the search for bottom-up processes

that start from an analysis of existing product variants to identify the product line. The proposed bottom-up

processes rely on two hypotheses: the product variants use the same vocabulary to name elements in their

source code, and the product variants have very similar/identical structures. However, while the names repre-

sent the application domain of the products, when different developers were involved in the development of the

product variants, the naming assumption becomes too restrictive. Furthermore, the variants’ code structures

are often different when developed separately and even when one variant is derived from another through sev-

eral modiﬁcations. To loosen these two hypotheses, this paper proposes a bottom-up approach that integrates

the semantic aspect of the product variants when extracting the SPL feature model. In addition, a second

contribution of our approach is its capability to identify automatically the constraints among the identiﬁed

features.

1 INTRODUCTION

A Software Product Line (SPL) (Clements and

Northrop, 2001) is a set of systems that share a group

of manageable features. A feature is seen as an end-

user, visible characteristic of the system (Kang et al.,

1990). The features of an SPL can be used in variable

combinations to derive product variants in the SPL.

To represent the variability in an SPL, a feature model

(or diagram) is used to specify the SPL variants and

variation points; it indicates the features and the con-

straints (and, or, require, etc) relating the features to

one another. A feature model is constructed by the

development processes of SPL either in a bottom-up

(cf., (Ziadi et al., 2012), (She et al., 2011)) or top-

down (cf., (Ziadi, 2004)) approach.

A top-down development process starts with a do-

main analysis to construct the feature model of an

SPL. Thus, this process is driven by the functional

requirements towards the deﬁnition of alternative so-

lutions. It is best applied when the application do-

main has not yet been sufﬁciently explored. However,

this type of processes is time consuming and requires

guidelines (so far undeﬁned) for the domain require-

ments analysis. On the other hand, a bottom-up pro-

cess starts from the code of a set of products in a given

domain and it identiﬁes their common and variable

features. The purpose of examining sample products

is to create a generic reusable SPL that is understand-

able and easy to reuse.

In recent years, several researchers examined the

extraction of features and/or feature models from

product source codes. Existing feature identiﬁcation

approaches (Ziadi et al., 2012), (Al-Msie’Deen et al.,

2012), (Salman et al., 2012) (Acher et al., 2013) rely

on two essential hypotheses: all source codes use the

same vocabulary to name packages, classes, attributes

and methods in their source codes; and the product

variants have very similar/identical structures. These

assumptions stem from their way of seeing how the

product variants were created: essentially through

”copy” and ”paste” operations which, indeed, pre-

serve the names and cause little structuring changes.

However, these approaches cannot be applied in the

154

Maazoun J., Bouassida N., Ben-Abdallah H. and Seriai A..

Feature Model Extraction from Product Source Codes based on the Semantic Aspect.

DOI: 10.5220/0004486701540161

In Proceedings of the 8th International Joint Conference on Software Technologies (ICSOFT-EA-2013), pages 154-161

ISBN: 978-989-8565-68-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

general setting where an SPL should be constructed

from product variants that were produced by different

developers, and/or product variants that endured so

many modiﬁcations that the ”same names and struc-

ture” assumptions are violated. For instance, a class

in one product can be represented in a second product

through two classes where the attributes and methods

of the original class are distributed. A second exam-

ple of product variability is when a class in one prod-

uct was moved from one package to another package.

For these simple examples, existing feature identiﬁ-

cation approaches would fail. Besides the two restric-

tive assumptions, existing bottom-up SPL construc-

tion approaches have limitations in the identiﬁcation

of the constraints relating identiﬁed features: Some

approaches offer no guidance in the identiﬁcation of

the constraints (cf., (Ziadi et al., 2012)), while others

manage to identify some constraints without a certi-

tude on their types, e.g., they do not distinguish be-

tween the AND and Require constraints. However,

the constraints are as important as the features in an

SPL since they are the means to derive product vari-

ants from an SPL.

In this paper, we propose a bottom-up SPL con-

struction approach that both accounts for the differ-

ences in the names and structures of the source code

products, and identiﬁes automatically the feature con-

straints along with the features. Our approach was in-

spired from (Al-Msie’Deen et al., 2012); it ﬁne-tuned

Formal Concept Analysis (FCA)(Ganter and Wille,

1996) and Latent Semantic Indexing (LSI) (Binkley

and Lawrie, 2011) by using semantic analysis to by-

pass the naming assumption and alleviate the struc-

ture assumption. In addition, it conﬁrms the feature

constraint types by using semantic criteria.

The remainder of this paper is organized as fol-

lows. Section 2 overviews currently proposed ap-

proaches for feature identiﬁcation from source code

of product variants. Section 3 presents our technique

for feature extraction using the semantics. In addition,

it illustrates it through an example of an SPL for mo-

bile phones. Finally, Section 4 summarizes the paper

and outlines our future work.

2 RELATED WORK

As mentioned in the introduction, an SPL is often

modeled in terms of a feature model. Before examin-

ing existing approaches for SPL construction, we ﬁnd

it necessary to ﬁrst overview the concept of feature

models.

2.1 Feature Models

Feature models are a popular means to express re-

quirements in a domain at an abstract level. They are

used to describe variable and common properties of

products in a product line, and to derive and validate

conﬁgurations of software systems. As introduced by

the FODA method (Kang et al., 1990) and by (Czar-

necki and Eisenecker, 2000), a feature model repre-

sents a hierarchy of properties of domain concepts. A

feature is a prominent or distinctive quality or charac-

teristic of a software system or systems (Kang et al.,

1990).

Feature models have also been used to improve

program comprehension. In most reengineering activ-

ities, the source code is the only reliable source of in-

formation. Feature models allow designers to bridge

the gap between the concrete code and the fairly ab-

stract information of documents such architecture de-

sign. They are applied in methods for supporting re-

verse engineering in a hypothesis-veriﬁcation proce-

dure (Riebisch, 2003).

A Feature model has a tree structure where each

node represents a feature. Feature variability is rep-

resented by the arcs and groupings of features. There

are two different types of feature groups: Mandatory,

Optional (see Table 1).

Table 1: Different types of feature groups.

Feature Deﬁnition Notation

Mandatory Child feature

is obligatory.

Optional Child feature

is optional.

In addition to the parental relationships between

features, constraints between the nodes across-tree are

allowed. The ﬁve most common cross-tree constraints

are: Xor, Or, Require, And, Exclude (see Table 2)

Note that since the features are identiﬁed from the

code source, then each feature can be documented by

the corresponding source code parts. This documen-

tation is essential in the creation of a new product

variant from a feature model. Note also that a feature

can be either simple/elementary like a package and a

FeatureModelExtractionfromProductSourceCodesbasedontheSemanticAspect

155

Table 2: Different constraints in feature groups.

Constraint Deﬁnition Notation

Or At least one

of the sub-

features must

be selected

Xor One of the

sub-features

must be

selected

Require The selection

of A in a

product ne-

cessitates the

selection of B

And A and B must

be part of the

same product.

Excludes A and B

cannot be part

of the same

product

class, or composed of several elements like {package,

Class}, {package, Class,attribute, method}...

2.2 Feature Model Extraction

Approaches

Several approaches were proposed to extract feature

models. Some of them extract feature models from

product descriptions. For example, Acher et al.,

(Acher et al., 2010) propose to reverse engineer fea-

ture models from the documentation of products; and

(Acher et al., 2013) propose to extract feature models

from the product conﬁgurations. Other approaches

propose to extract feature models from source code

but for different purposes (Lozano, 2011). One main

purpose of extracting feature models is to obtain in-

formation to understand and possibly refactor the

SPL. For instance, (Rubin and Chechik, 2012) aims

at refactoring existing, closely related products into a

product line. Their approach compares the product el-

ements and measures their degree of similarity based

on which elements can be merged as features.

A second purpose of feature model extraction is

to analyze and understand the evolution of SPL cf.,

(Xue, 2011), (Loesch and Ploedereder, 2007). For ex-

ample, (Xue, 2011) aims at assisting analysts in de-

tecting changes to product features during their evo-

lution. They propose a model differencing algorithm

to identify evolutionary changes that occurred to fea-

tures of different product variants. On the other hand,

Loesch et al. (Loesch and Ploedereder, 2007) note

that obsolete variable features are not removed after

an SPL evolution; thus, they treat the problem of re-

structuring variability in an SPL that was degraded in

its evolution. For this purpose, they use Formal Con-

cept Analysis (FCA) to construct a lattice that classi-

ﬁes the usages of variable features in real products.

Furthermore, some works were interested in fea-

ture model extraction for reverse engineering and

maintenance purposes. As an example, (She et al.,

2011) propose an approach that constructs the feature

model once the features have been identiﬁed. This ap-

proach takes as inputs a set of feature names, descrip-

tions and dependencies, and it uses a set of heuris-

tics to ﬁnd the hierarchies among the features. It can

identify feature groups (i.e. features used together),

mandatory features and features that imply or exclude

other features. However, it cannot identify alternative

groups (Or-groups).

Several works investigated feature model extrac-

tion from the source code of products in order to con-

struct the SPL ((Ziadi et al., 2012), (Al-Msie’Deen

et al., 2012),(Paskevicius et al., 2012)). For instance,

(Ziadi et al., 2012) propose an approach that ﬁrst ab-

stracts the input products in SoCPs (Sets Of Construc-

tion Primitives ) and, secondly, it identiﬁes features by

determining common and intersecting SoCPs. This

approach was validated using two case studies: a

banking example and the Argo-UML software prod-

uct line (Couto et al., 2011). The obtained results

show that the approach can handle products with vari-

able names of classes, methods and attributes. How-

ever, this approach does not examine the body of the

methods. In addition, the produced feature model

contains only one mandatory feature and optional fea-

tures; it can identify neither separated mandatory fea-

tures, nor alternative features and their related con-

straints such as the mutual exclusion.

On the other hand, Al-Msie’Deeen (Al-

Msie’Deen et al., 2012) propose an approach

based on the deﬁnition of the mapping model be-

tween OO elements and feature model elements. This

approach uses Formal Concept Analysis (FCA) to

cluster similar OO elements into one feature. It uses

Latent Semantic Indexing (LSI) to deﬁne a similarity

measure based on which the clustering is decided.

This approach improves the approach of Ziadi (Ziadi

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

156

et al., 2012) since it extracts mandatory features and

optional features along with some constraints among

features like And and Require. However, it does

not treat product variants wit different structures or

different terminologies.

(Salman et al., 2012) present a genetic algorithm

to recover traceability links between feature mod-

els and source code. Traceability links in SPL are

needed to relate variation points and variants with all

corresponding low level artifacts (requirements, de-

sign, source code and test cases artifacts). The ge-

netic algorithm can determine approximately the im-

plementation of each feature (by linking the feature to

classes). However, it generates just one solution for

each run, and the number of runs necessary to deter-

mine all possible classes for each feature is unknown.

In addition, when the number of features and classes

grows, the number of possible implementations for

each variable feature grows exponentially.

In summary, considering the semantic aspect

when extracting the SPL from product variants source

code is missing in existing works. In addition, ex-

isting approaches suppose that the product variants

have a similar/identical structure and the same termi-

nology. However, even though products may vary in

their package, class, attribute, and method names and

structures, they solve semantically the same problems

in their domain. These semantic relationships must be

accounted for.

3 FEATURE MODEL

IDENTIFICATION BASED

AND SEMANTIC CRITERIA

As argued in Section 2.2, considering only

elements with identical names and structures when

extracting feature models from existing products

is too restrictive. Semantics carried through the

names of the classes, packages, attributes and method

declarations is also important to identify the features

and their constraints.

To account for semantics, our feature model ex-

traction operates in three steps (cf., Figure 1):

• Name harmonization: in this pre-processing step,

the semantic correspondences among the names

of the packages, classes, methods and attribute

are treated. This step relies on linguistic and typ-

ing information to harmonize the names. It also

resolves the problems where the same attribute

exists but with different types (e.g., integer or

string).

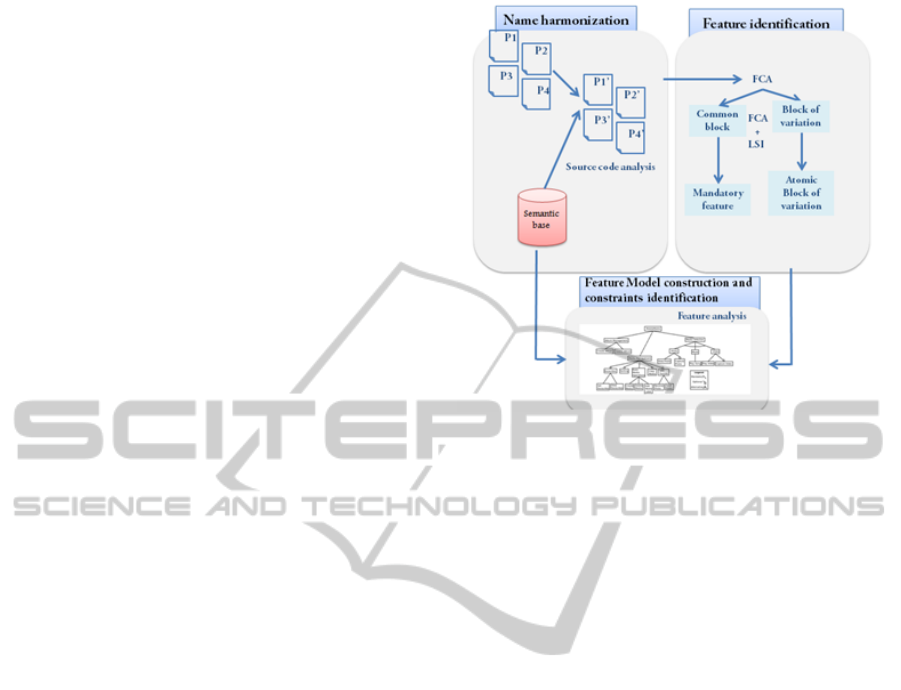

Figure 1: Feature model extraction process.

• Features identiﬁcation: In order to tolerate some

structural differences among the source codes of

the product variants, we adapt the FCA (Loesch

and Ploedereder, 2007) and LSI (Binkley and

Lawrie, 2011) by considering the semantics.

• Feature model construction and constraints identi-

ﬁcation: In this last step, the semantic information

is used ﬁrst to deﬁne the hierarchy in the feature

model and, secondly, to extract the types of con-

straints among identiﬁed features. For this, a set

of semantic criteria are used to ensure that all con-

straints among the features are extracted correctly.

In order to determine the correspondences be-

tween the names, we adapted the set of semantic cri-

teria we deﬁned in our previous works on construct-

ing frameworks (Ben-Abdallah et al., 2004). The fol-

lowing three criteria express linguistic relationships

between element names (however, the list can be ex-

tended):

• Synonyms(C1,···,Cn): implies that the names are

either identical or synonym, e.g., Mobile-Mobile

and Phone-Mobile.

• Hypernyms(C1; C2,···,Cn): implies the name C1

is a generalization of the speciﬁc names C2 ,· ··,

Cn, e.g., Media-Video.

• Meronyms(C1; C2): implies that the name C1 is a

string extension of the name of the class C2, e.g.,

Image-NameImage.

The determination of the above linguistic/semantic re-

lationships can be handled through either a dictionary

(e.g., Wordnet), or a domain ontology when available.

FeatureModelExtractionfromProductSourceCodesbasedontheSemanticAspect

157

We will illustrate the steps of our approach

through the example of an SPL for mobile phones.

This SPL example is a software product family with

nine product variants Our approach takes as input the

source code of a set of these product variants. Each

product implements a simple mobile application.

3.1 Name Harmonization

The product variants must be ﬁrst harmonized to be-

come suitable as input to the LSI (in step 2). This pre-

processing starts by identifying the semantic corre-

spondences between the names of packages, classes,

methods and attributes names. The semantic relations

are examined in the following order: the equivalence

(Synonyms), the string extension (Meronyms), and

then the generlization (Hypernyms).

All element names identiﬁed as equivalent are har-

monized by keeping one version of them across all

the product variants. In our mobile phone, in the class

”AddPhotoToAlbum”, we found ”GetPhotoName()”

and ”SetPhotoName()”; these two methods are equiv-

alent. A second example is the methods ”GetItem-

Name()” and ”SetItemName()” are also equivalent.

A third example is the equivalence between the at-

tributes ”image” and ”photo”. For each pair of equiv-

alent names, one of them is chosen to replace all other

occurrences of the name.

After the equivalent names are harmonized, the

pre-processing step considers the semantic relation-

ship ”Meronyms(C1; C2)” to replace the occurrences

of C2 by C1 which, being an extension of C2, is more

informative. In our example, we found ”Image” and

”ImageName”. At this stage, ”ImageName” will re-

place all occurrences of ”Image” in all product vari-

ants.

Finally, in general and especially with JAVA, the

class and its constructor has the same name. In

this case, we ignore one of them to save time. For

example, in the class AlbumListScreen, we found

methods having the same name AlbumListScreen(),

AlbumListScreen(String args0, int arg1), Album-

ListScreen(String args0, int arg1, String[] args2, Im-

age[] arg3).

At the end of the pre-processing step, all seman-

tically related names would be harmonized and can

then be analyzed through the FCA in the features

identiﬁcation step.

3.2 Features Identiﬁcation Step

In this step, we use FCA and LSI to extract the com-

monalities and variabilities among the harmonized

product variants. Before explaining this step, let us

ﬁrst overview the basics of FCA and LSI.

Formal concept analysis (FCA) (Ganter and Wille,

1996) is a method of data analysis with a growing

popularity across various domains. As illustrated in

Figure 2, the main idea of FCA is to analyze data de-

scribed through the relationships among a particular

set of data elements (the table in Figure 2). In our ap-

proach, the data represent the product variants being

analyzed; the data description is represented through

a table where the product variants constitute the rows

while source code elements (packages, classes, meth-

ods, attributes) constitute the columns of the table.

Due to space limitations, Figure 4 shows an extract

of this table.

From the table, a concept lattice is derived. The

concept lattice permits, in the ﬁrst time, to deﬁne

commonalities and variations among all products.

(The last part of Figure 2). The top element of the

lattice indicates that certain objects have elements in

common (i.e., common elements), while the bottom

element of the lattice shows that certain attributes ﬁt

to common objects (variations). The elements are

grouped in blocks. First, common elements are com-

mon block which are commonly used in all products.

Secondly, the blocks of variations only appear in spe-

ciﬁc products. Common blocks and block variations

are composed of atomic blocks of variation represent-

ing only one feature.

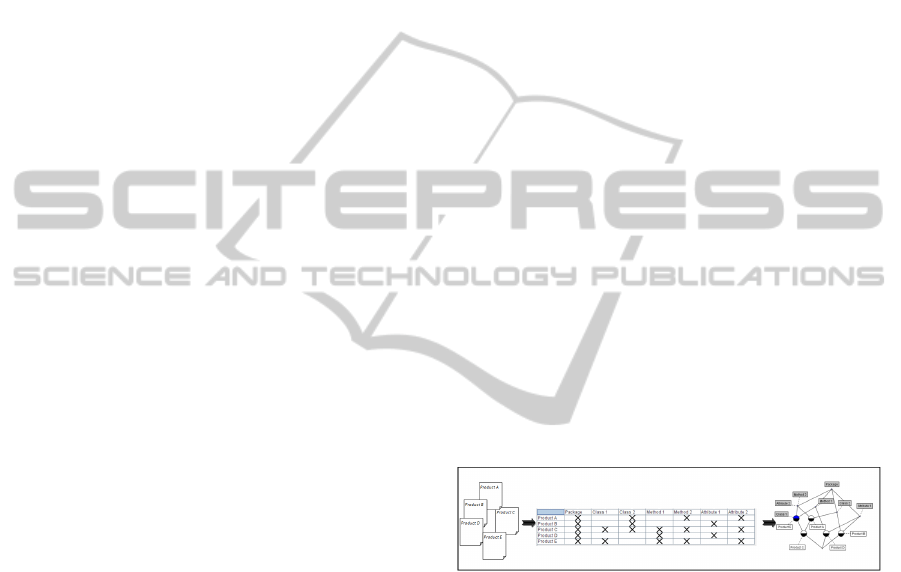

Figure 2: Basics of the FCA analysis process.

In our running example, the common block con-

tains all the source code elements that appear in every

product. The source code elements that are shared by

more than one product are a block of variations. Ex-

ample,”Package:screen”, ”Class: AlbumListScreeb”,

”Class: PhotoViewScreen” presents the common

block. Others, like ”Class:AddListToAlbum”,

”Method:SelectionTypeOfMedia” are blocks of vari-

ation.

Besides the blocks, the lattice also indicates the re-

lationships among elements. The following relation-

ships can be automatically derived from the sparse

representation of the lattice and presented to the an-

alyst:

• Mandatory: features appearing at the top concept

in the lattice are used in every product.

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

158

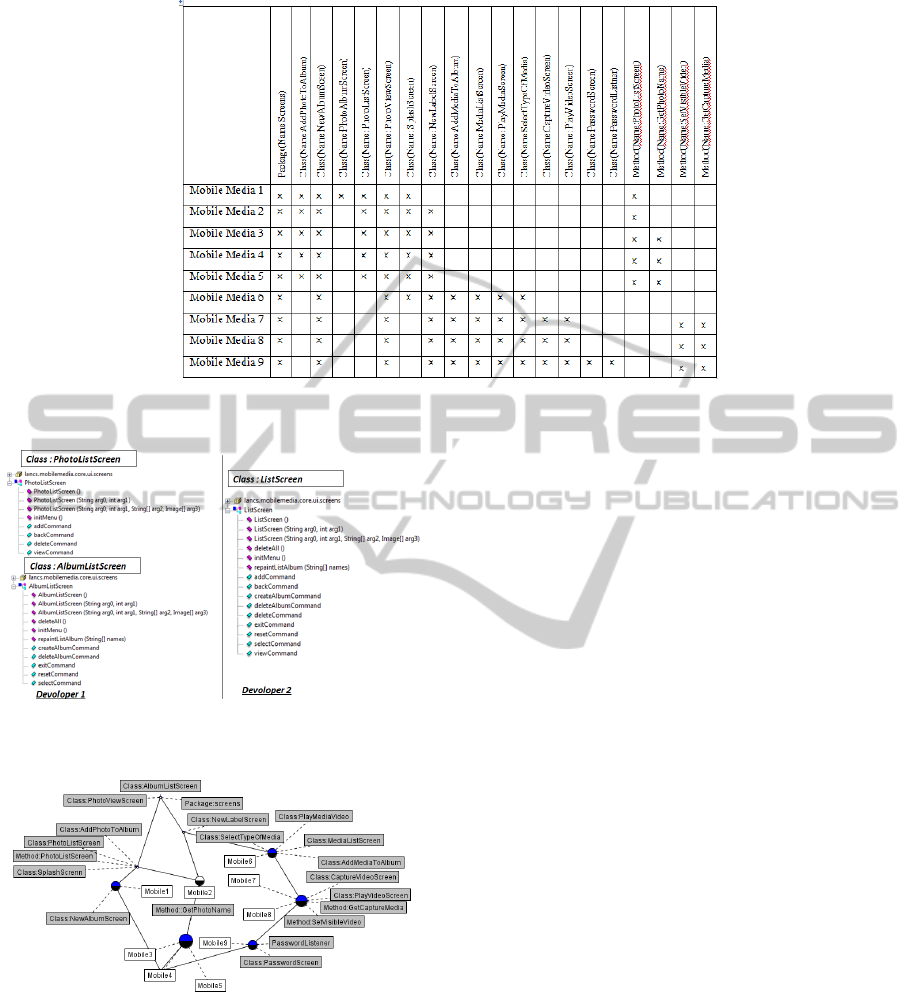

Figure 4: Part of the formal context describing mobile systems by source code elements.

Figure 3: Example of different structures.

Figure 5: The lattice for the formal context of Table 1.

• Optional: features appearing at the bottom con-

cept in the lattice are used in some product.

• Xor: Two variable features F1 and F2 that ap-

pear in different concepts and whose inﬁmum is

the bottom concept are only used in alternative in

the product. These features are likely to be Xor

features,

• Require: if any element has all attributes in F1

also has all attributes in F2

• AND: Two features F1 and F2 that appear in the

same concept

Recall that, in our work, we suppose that the prod-

uct variants are implemented by different developers.

Consequently, the products may have different struc-

tures. For example, a class in one product can be re-

placed in a second product with two classes where the

attributes and methods of the original class are dis-

tributed.

In the extract shown in ﬁgure 5, we note that the

common elements are indicated with the same color.

We have common methods and attributes present in

two classes for the ﬁrst developer and in one class for

the second developer. Thus, if we consider the owner

of the attributes and methods (as treated in (Ziadi

et al., 2012)(Al-Msie’Deen et al., 2012)), then these

attributes and methods will be considered as differ-

ent. For example, the owner of method ”InitMenu()”

is the class ”AlbumListScreen” to the ﬁrst devel-

oper (InitMenu(), AlbumListScreen) and the class

”ListScreen” to the second developper (InitMenu(),

ListScreen), these pairs are considered different. To

resolve the problem of structure, we omitted the

owner information.

Moreover, since all the products belong to the

same application domain, there are semantic relation-

ships among the words used in the names. To de-

ﬁne the similarity, we apply LSI. It allows to mea-

sure the similarity degree between names for pack-

ages, classes, methods and attributes. Informally, LSI

assumes that words that always appear together are

related (Binkley and Lawrie, 2011). Consequently,

we use LSI and FCA to identify features based on

FeatureModelExtractionfromProductSourceCodesbasedontheSemanticAspect

159

the textual similarity. Similarity between lines is de-

scribed by a similarity matrix where the columns and

rows represent lines vectors. LSI uses each line in the

block of variations as a query to retrieve all lines sim-

ilar to it, according to a cosine similarity. In our work,

we consider the most widely used threshold for cosine

similarity that is equals to 0.70 (Binkley and Lawrie,

2011). The similarity matrix which is the LSI result

is used as input for the FCA to group the similar ele-

ments together based on the lexical similarity. Thus,

any document that has similarity with only itself will

be ignored. We take the interchanged context as input

for FCA which identiﬁes the meaningful groupings of

objects that have common attributes.

In our case, each line in the block of variations

represents one product variant and at the same time it

represents a query. The application of the name har-

monization step followed by the identiﬁcation of fea-

ture step extract candidate features without any struc-

ture or hierarchy.

The next step in our approach determines the hi-

erarchy and constraints among features and ﬁnalizes

the feature model construction.

3.3 Feature Model Construction and

Constraints Identiﬁcation

This phase has a threefold motivation. First, the fea-

tures which are composed of many elements (pack-

age, classes, attributes, methods) are renamed based

on the frequency of the names of its elements. For ex-

ample, the feature F1 which is composed of ”Class:

AddMediaToAlbum”, ”Method: MediaListScreen”,

”Method: PlayMediaScreen”, ”Method: SelectType-

OfMedia” is renamed MEDIA. Since, it is the word

the most frequent and signiﬁcant.

In addition, the organization and structure of the

features is also retrieved based on the semantic crite-

ria. In fact, since the owner information was omitted,

then to retrieve the organization of the features, we

use the semantic criterion

Hypernyms(FeatureN1, FeatureN2) −→ FeatureN1

is the parent of FeatureN2

For example,the relation Hypernyms(Media,

Photo)and Hypernyms(Media, Video) implies that

the feature Media is the parent of the features Photo

and Video. Moreover, the relation between these

feature ”Photo” and ”Video” can be ”OR” or ”XOR”.

To resolve this problem, we use Meronyms(Name1,

Name2).

Meronyms(FeatureN1, FeatureN2) −→ FeatureN1

OR FeatureN2

In fact, Meronyms(MediaListScreen, Pho-

toListScreen) and Meronyms(MediaListScreen,

VideoListScreen) implies that features Photo and

Video are related with OR.

Finally, the constraints between the different fea-

tures that are extracted with FCA and LSI are veriﬁed

and some others are added based on the semantic cri-

teria.

Synonyms(FeatureN1, FeatureN2) −→ FeatureN1

XOR FeatureN2

In our running example, we found that the

features ”NewAlbumScreen” and ”NewLa-

belScreen” have equivalent names. Syn-

onyms(NewAlbumScreen,NewLabelScreen) implies

that these two features play the same role (Thus one

of them is sufﬁcient) and they are related by XOR.

However, when we found these two features do not

the same parent, therefore they are related with an

Exclude relation.

At the end of this last step, all the features are col-

lected in a feature model to specify the variations be-

tween these products. The feature model of the mo-

bile system is shown in Figure 6; the features with

white circles are Optional while the features with

black circles are Mandatory.

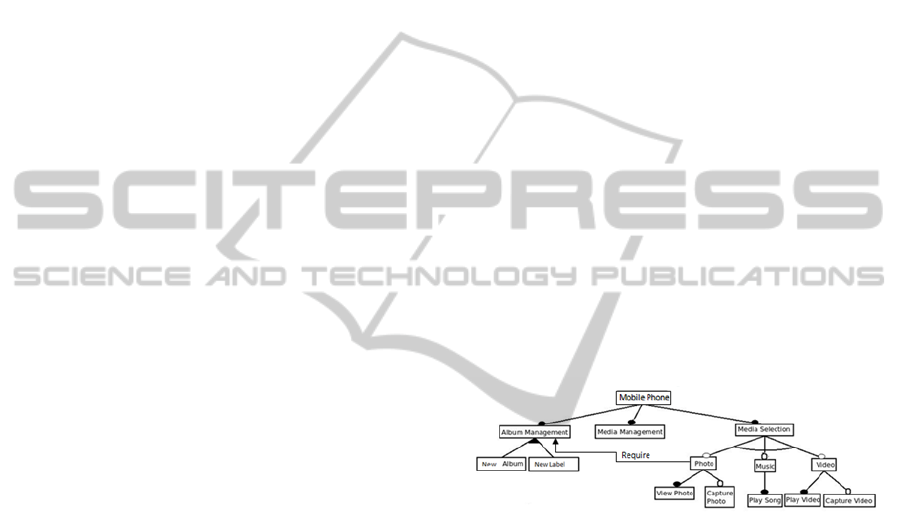

Figure 6: Mobile media system FM.

4 CONCLUSIONS

This paper ﬁrst overviewed existing works for feature

model extraction from product variants. Secondly, it

presented a new approach based on a set of linguis-

tic criteria to identify a feature model from different

product source codes. Besides accounting for naming

differences, our approach has the advantage of identi-

fying automatically the features and their constraints

in source codes with different structures. The paper

illustrated the proposed approach through the extrac-

tion of the feature model of an SPL for mobile phones.

In our ongoing works, we are examining how to

add more intelligence in the feature model extraction

by considering product variants where the variability

is in the body of the operations. We will also con-

sider the use of semantics in the refactoring of soft-

ware product lines.

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

160

REFERENCES

Acher, M., Baudry, B., Heymans, P., Cleve, A., and Hain-

aut, J.-L. (2013). Support for reverse engineering

and maintaining feature models. In Proceedings of

the Seventh International Workshop on Variability

Modelling of Software-intensive Systems, VaMoS ’13,

pages 1–8, New York, NY, USA.

Acher, M., Collet, P., Lahire, P., Moisan, S., and Rigault,

J. (2010). Modeling variability from requirements to

runtime.

Al-Msie’Deen, R., Seriai, A., Huchard, M., Urtado, C.,

Vauttier, S., and Salman, H. (2012). An approach

to recover feature models from object-oriented source

code. In Day Product Line 2012.

Ben-Abdallah, H., Bouassida, N., Gargouri, F., and

Hamadou, A. B. (2004). A uml based framework de-

sign method. Journal of Object Technology, pages 97–

120.

Binkley, D. and Lawrie, D. (2011). Information retrieval

applications in software maintenance and evolution.

In Encyclopedia of Software Engineering, pages 454–

43.

Clements, P. and Northrop, L. (2001). Software product

lines: Practices and patterns. SEI Series in Software

Engineering.

Couto, M., Valente, M., and Figueiredo, F. (2011). Extract-

ing software product lines: A case study using condi-

tional compilation. pages 191–200.

Czarnecki, K. and Eisenecker, U. (2000). Genera-

tive programming - methods, tools and applications.

Addison-Wesley.

Ganter, B. and Wille, R. (1996). Formal concept analysis:

Mathematical foundations. Springer-Verlag.

Kang, K., Cohen, S., Hess, J., Novak, W., and Peterson, A.

(1990). Feature-oriented domain analysis (foda) fea-

sibility study,. Technical report CMU/SEI-90-TR-21,

Software Engineering Institute,Carnegie Mellon Uni-

versity,.

Loesch, F. and Ploedereder, E. (2007). Restructuring vari-

ability in software product lines using concept analy-

sis of product conﬁgurations. pages 159–170.

Lozano, A. (2011). An overview of techniques for detecting

software variability concepts in source code. In ER

Workshops, pages 141–150.

Paskevicius, P., Damasevicius, R., and tuikys, V. (2012).

Quality-oriented product line modeling using feature

diagrams and preference logic. In Information and

Software Technologies, pages 241–254.

Riebisch, P. (2003). Using feature modeling for program

comprehension and software architecture recovery.

Huntsville Alabama, USA.

Rubin, J. and Chechik, M. (2012). Combining related prod-

ucts into product lines. In FASE, pages 285–300.

Salman, H., Seriai, A., Dony, C., and Al-Msie’Deen, R.

(2012). Genetic algorithms as recovering traceability

links method between feature models and source code

of product variants. In Day Product Line 2012.

She, S., Lotufo, R., Berger, T., Wsowski, A., and Czarnecki,

K. (2011). Reverse engineering feature models. pages

461–470.

Xue, Y. (2011). Reengineering legacy software products

into software product line based on automatic variabil-

ity analysis. pages 1114–1117.

Ziadi, T. (Decembre, 2004). Manipulation de lignes de pro-

duits en uml. These de doctorat, Universite de Rennes

Ziadi, T., Frias, L., da Silva, M. A. A., and Ziane, M. (2012).

Feature identiﬁcation from the source code of product

variants. pages 417–422.

FeatureModelExtractionfromProductSourceCodesbasedontheSemanticAspect

161
