Model-driven Transformation for Optimizing PSMs

A Case Study of Rule Design for Multi-device GUI Generation

David Raneburger, Roman Popp and Hermann Kaindl

Institute of Computer Technology, Vienna Universtity of Technology, Gusshausstrasse 27-29, Vienna, Austria

Keywords:

Platform-speciﬁc Model, Transformation Rules, Rule Design, GUI Generation, Optimization.

Abstract:

Software design and implementation, in general, have to take many alternatives into account for decision

making. Still, current approaches to Model-driven Architecture (MDA) typically transform in one and only

one thread from Platform-independent Models (PIMs) to Platform-speciﬁc Models (PSMs). Also in the special

case of automatically generating graphical user interfaces (GUIs) according to MDA, in most approaches one

thread derives a Final User Interface Model from some higher-level model(s). We think that this is one reason

for less than optimal usability of automatically generated GUIs.

Our transformation approach (as implemented for GUI generation) allows exploring different design alterna-

tives and evaluating the resulting PSMs according to given optimization objectives. Such a search approach

leads to optimal PSMs according to these objectives. In this way, resulting GUIs can be tailored for different

devices such as tablet PCs and smartphones. In this context, we design transformation rules for optimizing

PSMs independently from concrete device properties, which are given in separate device speciﬁcations (Plat-

form Models). We present a related case study for multi-device GUI generation and show that this approach

facilitates the automated optimization of PSMs for several devices.

1 BACKGROUND AND

INTRODUCTION

The Object Management Group’s Model Driven Ar-

chitecture

(MDA) proposes a generic concept to

reﬁne models over different levels of abstraction

to source code. Between these levels, MDA pro-

poses the use of transformation rules that trans-

form a certain source model to a certain target

model, as illustrated in Figure 1 for a transformation

from Platform-independent Model (PIM) to Platform-

speciﬁc Model (PSM). Important promises of MDA

are, e.g., faster time-to-market and easier mainte-

nance (Truyen, 2006).

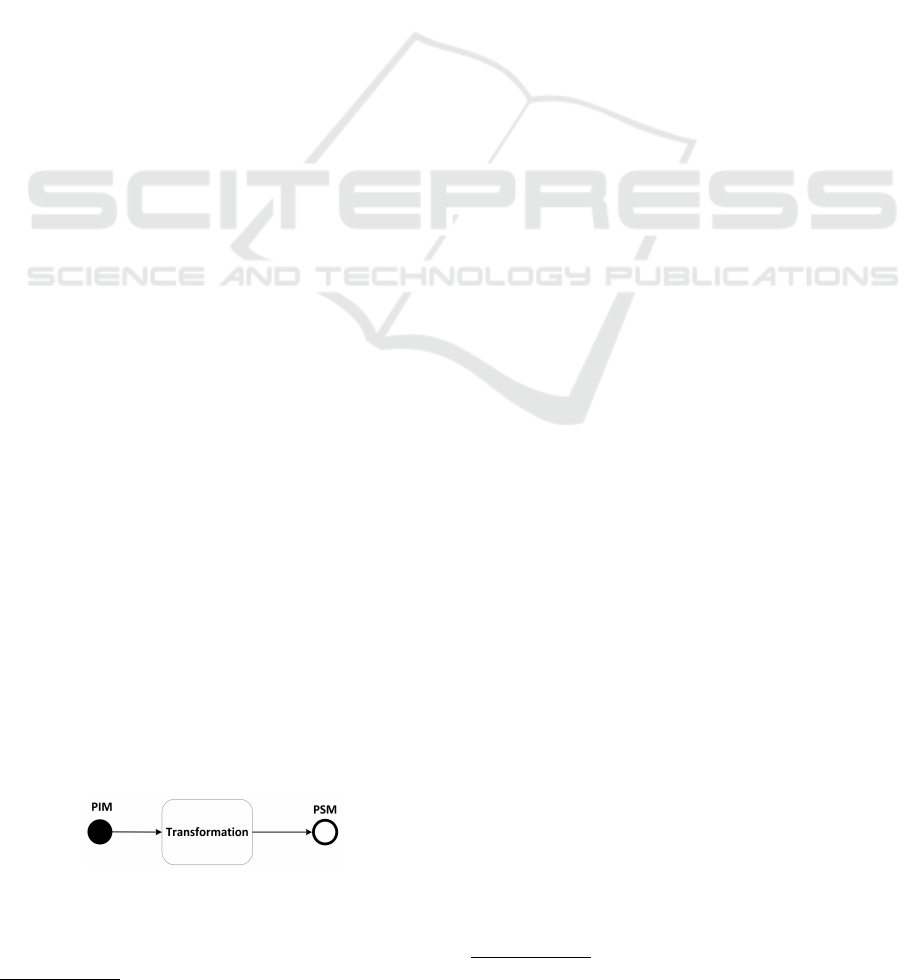

Figure 1: Standard Model-driven Transformation.

Transformation languages like the Atlas Transfor-

mation Language

(ATL) or Query / View / Trans-

http://www.omg.org/mda/

http://www.eclipse.org/atl/

formations

(QVT) have been developed to support

the speciﬁcation of transformation rules. These lan-

guages can reference any meta-model speciﬁed in an

appropriate modeling language (typically Meta Ob-

ject Facility

(MOF) compliant languages like the

Uniﬁed Modeling Language

(UML) or Ecore) and

are thus also applicable for model-driven UI genera-

tion.

Each of these languages comes with its own trans-

formation engine, which supports the execution of the

speciﬁed transformation rules. These engines do not

contain conﬂict resolution mechanisms, thus they al-

low for exactly one rule to match a certain pattern in

the source model. In effect, each source model can

be transformed to exactly one target model, as illus-

trated in Figure 1 for a transformation from PIM to

PSM according to MDA.

We consider this a major restriction, since soft-

ware design (and implementation), in general, have

to take many alternatives into account (Eramo et al.,

2012). Ideally, the “best” design resulting from all

possible alternatives should be taken. While software

http://www.omg.org/spec/QVT/1.1/

http://www.omg.org/mof/

http://www.uml.org/

496

Raneburger D., Popp R. and Kaindl H..

Model-driven Transformation for Optimizing PSMs - A Case Study of Rule Design for Multi-device GUI Generation.

DOI: 10.5220/0004490104960503

In Proceedings of the 8th International Joint Conference on Software Technologies (ICSOFT-PT-2013), pages 496-503

ISBN: 978-989-8565-68-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

design as speciﬁed in practice may typically suggest

that there is only the documented solution, many al-

ternatives are typically considered and discussed.

Automated generation of graphical user interfaces

(GUIs) can also apply MDA, typically starting from

high-level interaction models (e.g., Task Models ac-

cording to (Patern

o et al., 1997) and UsiXML

Discourse-based Communication Models (Falb et al.,

2006; Popp and Raneburger, 2011)) and transforming

them over different levels of abstraction to the source

code of a GUI. Such approaches also apply transfor-

mation rules to transform the corresponding models

between different levels of abstraction (Calvary et al.,

2003).

For automatically generated GUIs according to

such an approach, the restriction through a single-

threaded transformation is even more obvious, since

it is a major reason for the less than optimal usabil-

ity visible to and experienced by the end-user. Multi-

device GUI generation from a single source model ob-

viously needs at least alternatives for each generated

GUI, e.g., for a PC, a tablet PC and a smartphone.

While several GUIs may be achieved through a

speciﬁc set of transformation rules for each GUI, we

strive for a single set of transformation rules for all

supported devices. They should deﬁne a kind of

search space, where a heuristic search can ﬁnd op-

timal PSMs according to given optimization crite-

ria and constraints posed by a given device (Plat-

form). Figure 2 sketches this approach of model-

driven transformation with alternatives, where the

Optimal PSMs correspond to different Platforms. The

optimization happens in the course of the Transforma-

tion indicated through the rounded box, which Fig-

ure 3 zooms into for further illustration of this opti-

mization approach to be explained below. A trans-

formation engine that allows for matching more than

one rule for the same source model pattern as required

for this kind of optimization was developed by (Popp

et al., 2012). While this engine is speciﬁc to GUI

generation, we think that this optimization approach

is generally applicable to model-driven software gen-

eration.

This paper presents our approach to model-driven

transformation including PSM optimization. A case

study investigates the important aspect of designing

transformation rules in such a context. In particu-

lar, we show characteristics that need to be consid-

ered when designing transformation rules that support

multi-device GUI generation, where device speciﬁca-

tions are given as separate Platform Models. In this

way, the transformation rules can be deﬁned indepen-

USer Interface eXtensible Mark-up Language – http:

//www.usixml.eu/

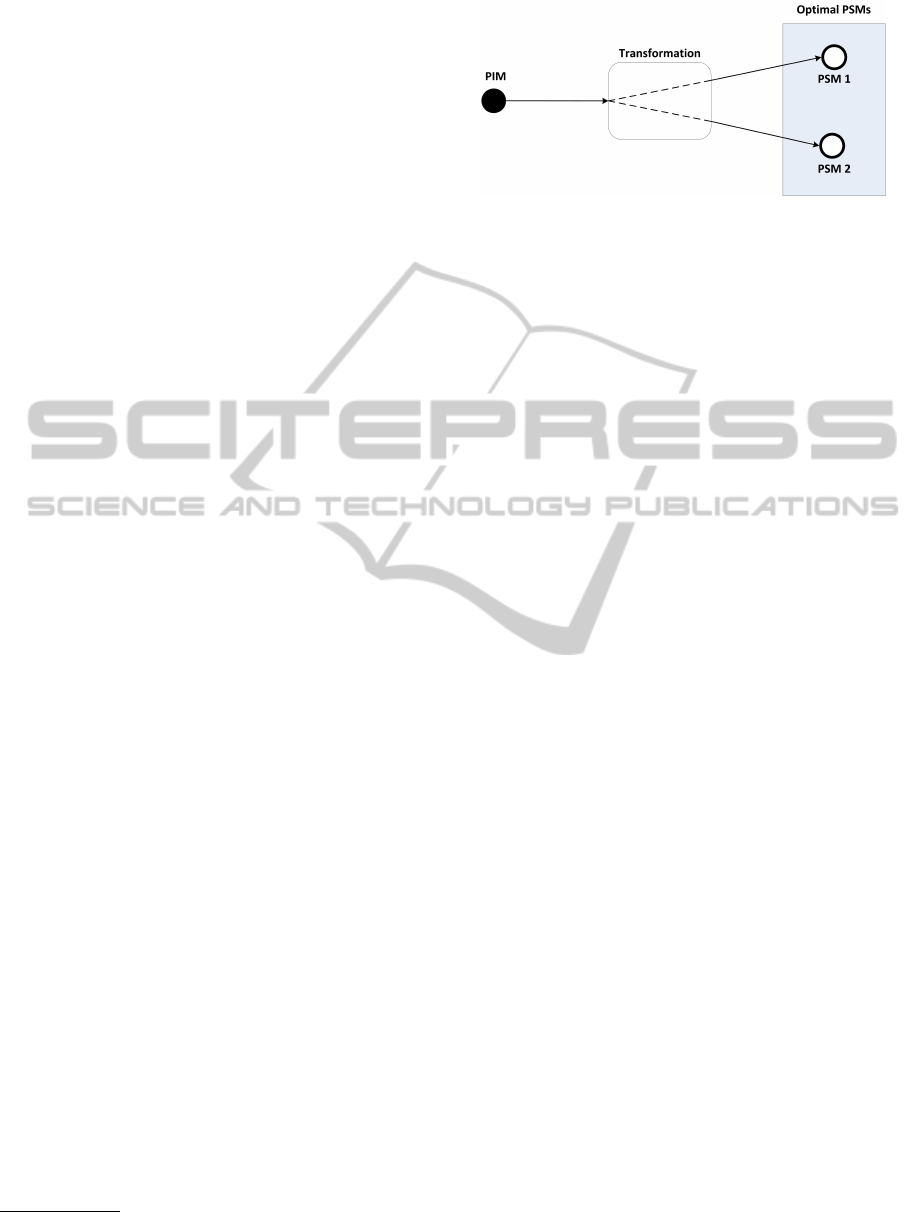

Figure 2: Model-driven Transformation with Alternatives

for Optimization.

dently from concrete device properties.

The remainder of this paper is organized in the fol-

lowing manner. First, we discuss the state of the art,

followed by a presentation of our new conceptual ap-

proach to PSM optimization. Then we provide some

background material for our case study in the context

of GUI generation, in order to make this paper self-

contained. Based on that, we elaborate on our case

study on rule design for multi-device GUI generation

and include lessons learned.

2 STATE OF THE ART

The currently available transformation engines for

ATL and QVT support only matching one rule per

source model pattern. (Wagelaar et al., 2010) present

a solution for this problem called Module Superim-

position. Their approach is based on ATL and sup-

ports overriding transformation rules. By overriding,

they mean replacing the original rule with a new one,

whereby it is not possible to refer to the original rule

anymore. Using module superimposition in our con-

ceptual approach, however, has the drawback that the

rule set would need to be changed during the transfor-

mation process. If the rule set is modiﬁed before the

transformation, there is no difference to the standard

approach, because there would be exactly one rule for

each source model pattern.

A GUI generation framework that supports multi-

device GUI generation using ATL is UsiComp

(Garc

ıa Frey et al., 2012). This Framework sup-

ports transformation rule design at run- and design-

time through the designer. Thus, the device informa-

tion is encoded manually in the transformation rules

before the transformation is performed. Another UI

generation framework supports semi-automatic multi-

device UI generation based on ConcurTaskTree Mod-

els (CTT) (Patern

o et al., 1997) (Patern

o and San-

toro, 2002). Semi-automatic means that the high-

level CTT model, which is a Computation Indepen-

dent Model, is tailored manually to a system-task

model that already takes device characteristics like

Model-drivenTransformationforOptimizingPSMs-ACaseStudyofRuleDesignforMulti-deviceGUIGeneration

497

Figure 3: Model-driven Transformation including PSM Optimization.

screen size into account. Other GUI generation ap-

proaches specify their transformations in Groovy

Java as part of their transformation tool (Pastor et al.,

2008), which makes the modiﬁcation of the transfor-

mations for device-tailoring or GUI beautiﬁcation dif-

ﬁcult (Aquino et al., 2009).

So, multi-device GUI generation typically relies

on manual creation of device-dependent transforma-

tion rules or manual device-tailoring of the source

model, which makes subsequent transformations with

ATL or QVT sufﬁcient.

Declarative user interface speciﬁcations are used

as input for multi-target UI generation in (Gajos and

Weld, 2004). The user interface adaption is treated as

an optimization problem based on a user- and device-

speciﬁc cost function. Compared to such user inter-

face speciﬁcations, our interaction models are on a

higher level of abstraction.

3 CONCEPTUAL APPROACH TO

PSM OPTIMIZATION

To allow such a PSM optimization, a new and ex-

tended transformation approach is required. In gen-

eral, some of the objectives can only be evaluated on

the whole PSM as already generated, and not on a

target pattern of a single rule. Therefore, in contrast

to traditional model transformations, it is necessary

to allow the generation of different PSMs out of one

PIM. This is the case even for a single Platform. From

these resulting PSMs, the one ﬁtting best the given

optimization objectives is selected.

In addition, our approach covers multi-device op-

timization. For each Platform, an optimal PSM is gen-

http://groovy.codehaus.org/

erated and selected. This actually happens for one de-

vice at a time, and one after the other.

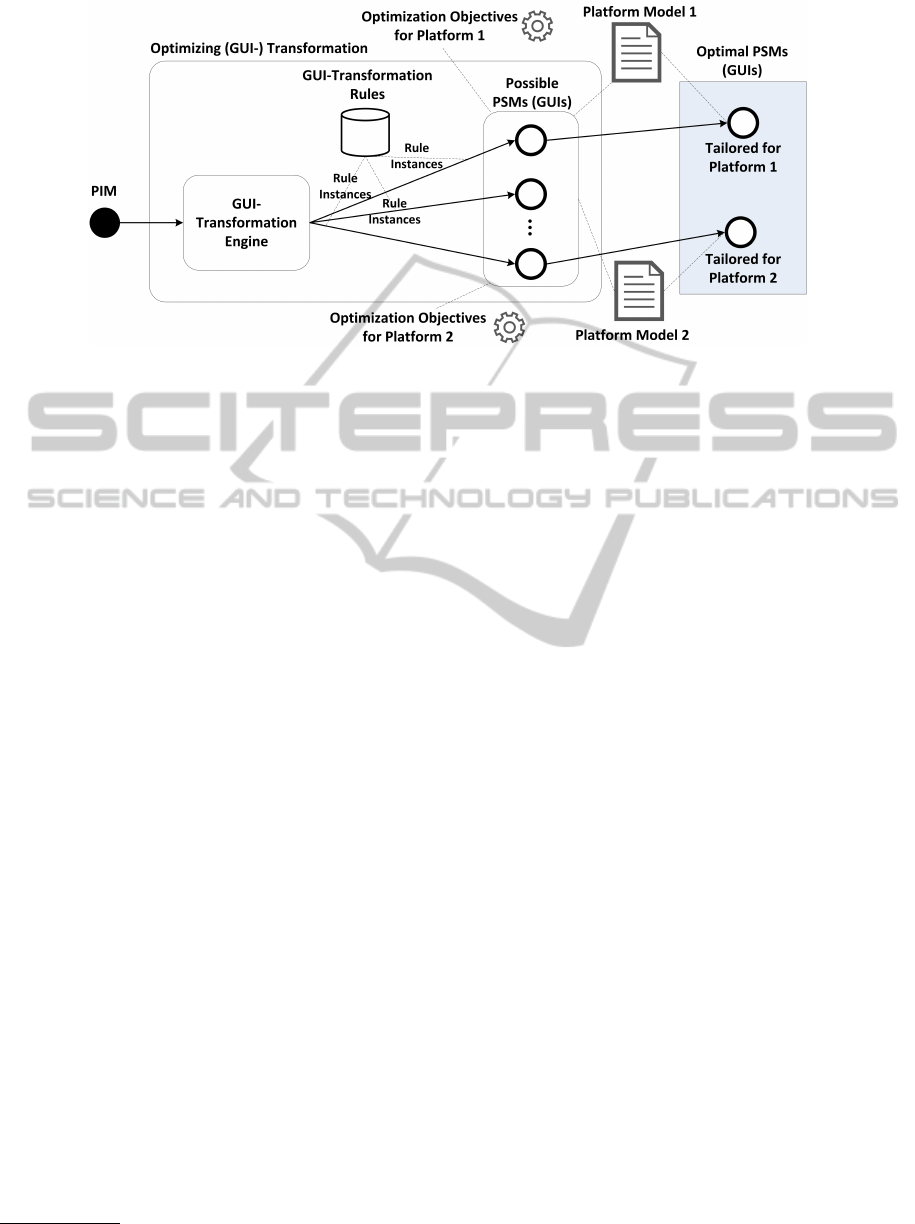

Figure 3 illustrates the new conceptual approach.

Let us focus on the case of a single Platform ﬁrst. The

PIM shown on the left side is transformed into sev-

eral PSMs to be evaluated through an objective func-

tion for optimization according to given optimization

objectives. This is illustrated inside the rounded box

for “Optimizing Transformation” through “Possible

PSMs”. In addition, also the concrete values of at-

tributes speciﬁed in the Platform Model are taken into

account. Some of these attributes constrain the space

for optimization. One of the generated PSMs high-

est ranked by the objective function that fulﬁlls the

constraints is selected as the output of the optimizing

transformation and is an optimal PSM, shown at the

right side of Figure 3.

Our optimization objective for GUI Generation

is to ﬁt as much information as possible in a given

amount of screen space. Our optimization search em-

ploys branch-and-bound techniques and does, there-

fore, not really explore the whole search space de-

ﬁned by the transformation rules. For more details

on our optimization approach for GUI generation see

(Raneburger et al., 2011).

For other Platforms, there are other Platform mod-

els, and there may also be different objective func-

tions with the purpose of tailoring for different Plat-

forms, so that several optimal PSMs may arise as in-

dicated on the right side of Figure 3.

Note, that all these optimizations are being per-

formed using a single set of transformation rules, even

though this happens for one Platform after the other.

In order to make this possible, the rules must not

speciﬁcally depend on any single Platform. More pre-

cisely, the rules have to be deﬁned independently of

the concrete values of the attributes speciﬁed in the

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

498

various Platform Models, at least for those attributes

taken into account for the optimization.

As indicated for the optimization approach, dif-

ferent transformations need to be possible for a single

given PIM, in the course of each single optimization

run. This is in contrast to traditional MDA transfor-

mations. So, the rule set has to provide several rules

for a given source pattern in the PIM, at least for some

of these patterns. Otherwise, no search space can be

generated for optimization. In order to implement the

actual ﬁring of several rules for a single pattern, a

transformation engine like the one presented in (Popp

et al., 2012) is necessary.

Much as in the traditional approach, however, care

must be taken that no illegal PSMs are generated,

with characteristics not supported by the correspond-

ing Platforms (e.g., widgets not supported by a certain

toolkit). For this reason, the transformation rules are

usually ﬁltered before their execution. Since our ap-

proach optimizes for one Platform at a time, the sin-

gle rule set for all Platforms can still be ﬁltered for the

Platform at hand as usual.

4 CASE STUDY BACKGROUND

For an investigation on how transformation rules

should be designed in such a context, we employed

our own transformation engine, which allows for

more than one rule to match the same source pat-

tern (Popp et al., 2012). It is part of our Uni-

ﬁed Communication Platform UI Generation Frame-

work

(UCP:UI). This engine has its own transfor-

mation language and supports the transformation of

Discourse-based Communication Models (Falb et al.,

2006; Popp and Raneburger, 2011) to Structural UI

Models (Kavaldjian et al., 2008). UCP:UI further-

more allows the optimization of the resulting Struc-

tural UI Models according to optimization objectives

(Raneburger et al., 2011) and so we selected the do-

main of GUI generation for our case study and imple-

mented our transformation rules using UCP:UI. We

present background information on Discourse-based

Communication Models, Structural UI Models, and

the Uniﬁed Communication Platform GUI Generation

Module, in order to make this paper self-contained.

4.1 Discourse-based Communication

Models

Discourse-based Communication Models specify

high-level communicative interaction of the user with

http://ucp.ict.tuwien.ac.at

the application, primarily based on discourses in the

sense of dialogues. For the purpose of this paper,

these models are PIMs in the sense of MDA and do

not consider any device or modality characteristics. A

small excerpt of a Communication Model of a simple

hotel booking application is shown in Figure 4. This

excerpt models the interaction between the user and

the system during the collection of payment data (i.e.,

contact person details, billing address and credit card

information). The interacting agents (User and Sys-

tem) are depicted in the upper left corner of Figure 4.

The basic building-blocks of Discourse-based

Communication Models are Communicative Acts

(CAs), depicted as rounded rectangles in Figure 4.

Each CA is assigned to an agent, represented through

its ﬁll color (green/dark for User, and yellow/light

for System). Adjacency Pairs model typical turn-

takings in a conversation (e.g., Question–Answer or

Offer–Accept/Reject). Such Adjacency Pairs are rep-

resented through diamonds as shown in Figure 4 and

relate one opening and zero to two closing CAs.

Additional Discourse Relations, like the Ordered-

Joint relation, can be used to link such Adjacency

Pairs and to model more complex discourse struc-

tures. The OrderedJoint relation, as depicted in Fig-

ure 4 links two or more Adjacency Pairs and spec-

iﬁes that all Adjacency Pairs may be executed con-

currently. If all branches are performed in the same

presentation unit (i.e., a screen) the order is used to

identify the order of presentation (i.e., the position of

the branches on a single screen). In the case it is not

possible to perform all branches concurrently, i.e., the

screen is too small to display all branches together, the

relation deﬁnes the order for displaying the branches,

e.g., the order of screens of a GUI.

Discourse-based Communication Models refer to

a Domain-of-Discourse Model, which speciﬁes the

concepts that the two interacting agents can “talk

about”. A Domain-of-Discourse Model can be spec-

iﬁed by an Ecore or UML class diagram. For the

HotelBooking Excerpt it needs to specify a Person,

an Address and a CreditCard concept. The con-

nection between the Discourse and the Domain-of-

Discourse Model is established through the proposi-

tional content speciﬁed for a Communicative Act (for

details see (Popp and Raneburger, 2011)).

4.2 Structural UI Models

For our case study, Structural UI Models are the

PSMs. The Structural UI Models are used to de-

ﬁne the screens of a GUI on the level of a Concrete

User Interface according to the Cameleon Reference

Model (Calvary et al., 2003). Each of these models is

Model-drivenTransformationforOptimizingPSMs-ACaseStudyofRuleDesignforMulti-deviceGUIGeneration

499

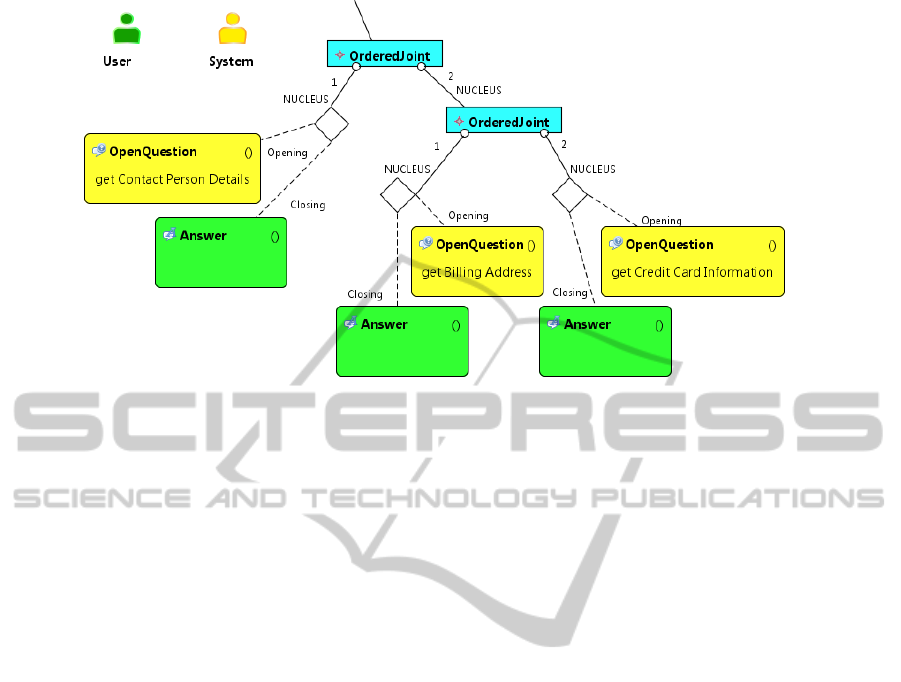

Figure 4: HotelBooking Excerpt.

Platform-speciﬁc, but independent of the used graph-

ical toolkit and consists of widgets. As a widget is

independent of the used toolkit here, it is an abstrac-

tion of an implemented “real world” widget. Such a

widget can either be a container, grouping some other

widgets, or a simple widget, like a textbox or a label.

We distinguish between two types of containers, one

displaying its contained widgets together and one dis-

playing each contained widget at a time. The second

one is used to deﬁne multiple screens of a GUI. An

example for the second one is a TabControl, which is

used to deﬁne a separation into multiple screens in the

case that the screen does not provide enough space for

displaying all of them together on one screen.

4.3 The Uniﬁed Communication

Platform GUI Generation Module

The GUI generation module of the Uniﬁed Communi-

cation Platform UCP:UI transforms Discourse-based

Communication Models to device-tailored, toolkit-

independent Structural UI Models (Raneburger et al.,

2011), using the transformation engine developed by

(Popp et al., 2012). Thus, we used the corresponding

transformation language for the implementation of a

complete transformation rule set.

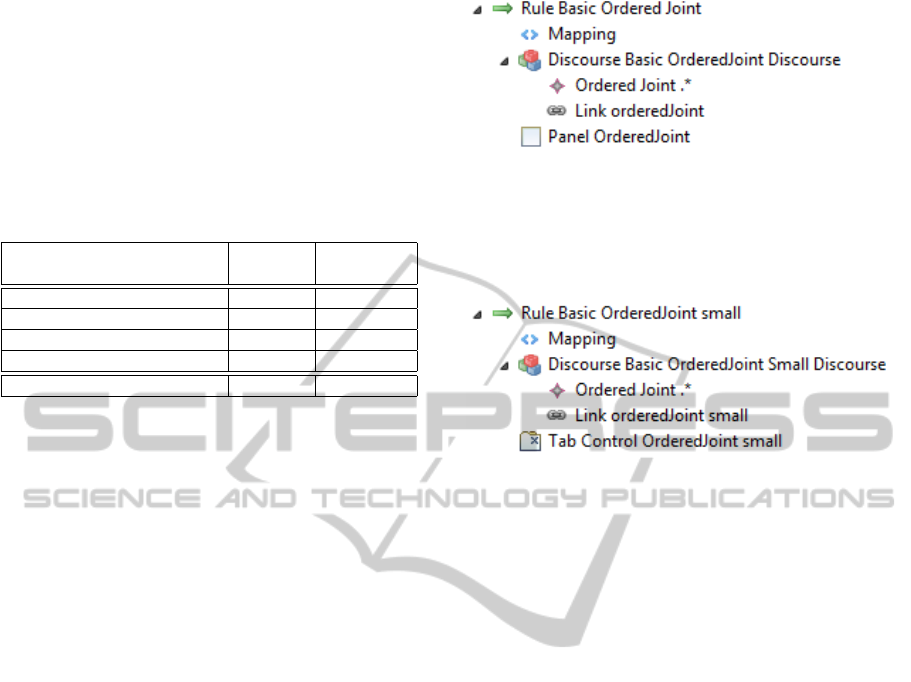

The left-hand-side (LHS) of these transformation

rules is a Communication Model Pattern and the right-

hand-side (RHS) is a Structural UI Model pattern.

The UCP:UI transformation engine has the unique

feature that it allows for more than one rule with the

same LHS to match. The selection of which rule is

matched for which element depends on target device

characteristics (i.e., the Platform Model) and an ob-

jective function.

The transformation engine in UCP:UI builds each

possible Structural UI Model step by step, controlled

by the optimization engine. The optimization engine

further evaluates the generated Structural UI Models

and selects the highest ranked one. So the two parts

of the UCP:UI module together implement such an

optimizing transformation. Let us emphasize again,

that the optimization search implemented here em-

ploys branch-and-bound techniques and does, there-

fore, not really explore the whole search space deﬁned

by the transformation rules.

5 CASE STUDY OF RULE DESIGN

Now let us present our case study of rule design for

multi-device GUI generation. In the given context,

we designed transformation rules for allowing PSM

optimization according to our conceptual approach.

Instead of creating Platform-speciﬁc transformation

rules or tailoring the input model manually to the

Platform, we developed and implemented a rule set

that supports the transformation of one PIM to several

PSMs. These rules are per se not tailored to any spe-

ciﬁc Platform. Which of these PSMs is optimal only

depends on the given optimization objectives, which

tailor the PSM to the Platform, and the corresponding

constraints speciﬁed in the Platform Model.

As usual, the transformation rules enrich the mod-

els with information while concretizing them over

various levels of abstraction. Normally the transfor-

mations are ﬁltered before the transformation accord-

ing to Platform characteristics, so that exactly one rule

matches each source pattern. Thus, they already con-

tain Platform-speciﬁc aspects and have to be created

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

500

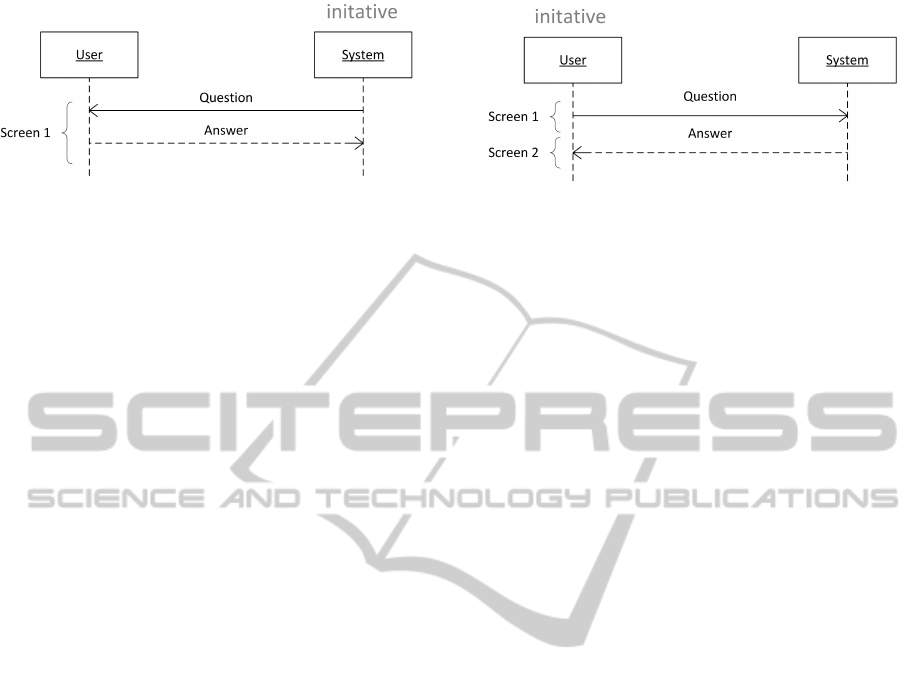

Figure 5: System Initiative.

anew or at least adapted for a new Platform.

A key challenge was to design a “minimal” set of

transformation rules that supports the generation of at

least one PSM for each compliant PIM. This means

that the PIM is compliant to its metamodel (e.g., spec-

iﬁed in UML or Ecore) and satisﬁes all constraints

that are speciﬁed in addition for this metamodel (e.g.,

in OCL).

Another key challenge regarding the design of

transformations for our new conceptual approach as

explained above was to design “additional” transfor-

mation rules that match the same source model pat-

tern to enable the transformation of one PIM into sev-

eral PSMs. An example is whether a rule splits the

resulting screen or not, which relates to an optimiza-

tion objective that a minimum number of clicks shall

be achieved. More on such optimization objectives

can be found in (Raneburger et al., 2011).

5.1 Towards Completeness of the Rule

Set

While it is hard to formally deﬁne completeness of

such a rule set, we tried to design the rule set in such

a way, that no rules are obviously lacking. Our ﬁrst

consideration was about the granularity of units to be

transformed. This led us to identifying atomic trans-

formation units. In addition, we had to make sure that

there were alternative transformations possible.

5.1.1 Identifying Atomic Transformation Units

To ensure that each PIM can be transformed with the

available rules, it is important to identify the atomic

transformation units, like in traditional transforma-

tions. The elements in Discourse-based Communi-

cation Models (PIMs) are CAs, Adjacency Pairs and

Discourse Relations. We distinguish between rela-

tions whose metamodel element has a deﬁned number

of child links and relations whose metamodel element

has an undeﬁned number of links.

Both the metamodels of the Discourse-based

Communication Model (the PIM in our case study)

and of the Structural UI Model (the PSM) deﬁne these

Figure 6: User Initiative.

atomic transformation units. Every Discourse Rela-

tion is itself an atomic transformation unit, because

it can be mapped to a combination of some container

widgets.

For Adjacency Pairs, such a deﬁnition is more

difﬁcult. Let us look at the Adjacency Pair

OpenQuestion–Answer at the left side of Figure 4. In

this case the System asks the User a question and the

User has to answer it. In a GUI the widgets for the

two Communicative Acts are usually combined and,

therefore, the PSM deﬁnes the atomic transformation

unit as the whole Adjacency Pair (see Figure 5). In

the case the User requests something from the Sys-

tem, the situation is different: the widgets for send-

ing the request and for the response of the System are

usually displayed on different screens (see Figure 6).

Therefore, it is possible to transform each CA on its

own, so that in such a case the CA is the atomic trans-

formation unit. So, the deﬁnition of an atomic trans-

formation unit depends here on the initiative in the

Adjacency Pair.

5.1.2 Taking Platform Restrictions into Account

In addition, it was necessary to take Platform restric-

tions into account, since not all the Platforms have

the same characteristics, e.g., not all devices have the

same widget set. Since the GUI generation (including

optimization) will be done for each Platform at a time,

we looked into each Platform Model separately for its

restrictions as related to the rule set. Before a gen-

eration run, rules will be ﬁltered out that would not

lead to a legal PSM. In the course of the rule design,

therefore, we had to make sure that for each such case

still at least one remaining rule exists for each atomic

transformation (see above).

Another example for such a restriction is the input

method to be used on a given device. On a touch-

screen to be used with ﬁnger pointing, for instance,

widgets too small for that are not to be used. There-

fore, all rules generating such widgets will be ﬁltered

out, and other rules need to be available (for each

compliant PIM, in principle).

Model-drivenTransformationforOptimizingPSMs-ACaseStudyofRuleDesignforMulti-deviceGUIGeneration

501

5.2 Transformations with Alternatives

As described above, we designed a “minimal” rule set

ﬁrst, for transformations to one PSM per given Plat-

form Model. Table 1 shows the numbers of rules of

this set, broken down in subcategories. For optimiz-

ing PSMs according to our approach, however, it was

necessary to provide additional rules for generating

alternatives.

Table 1: Numbers of Transformation Rules.

Category Name

Minimal

Rules

Additional

Rules

Communicative Act Rules 28 -

Relation Rules 23 10

Adjacency Pair Rules 52 4

Domain-of-Discourse Rules 19 -

122 14

Table 1 also shows numbers of such additional rules

for generating alternatives that we created. We de-

ﬁned ten more rules having the same source pattern

for Relations as already deﬁned rules, and four more

rules having the same source pattern for Adjacency

Pairs as already deﬁned rules. In the following, we

elaborate on these additional rules.

5.2.1 Additional Relation Rules

Relation rules typically create containers for their

children. According to the behavior deﬁnition of a

given Relation, its children are either displayed con-

currently, leading to a Panel, or in different screens,

leading to a Choice element (e.g., a TabControl). All

the ten additional Relation Rules for alternative trans-

formations match Relations whose children may, in

principle, be displayed concurrently, but these addi-

tional rules split the screen. Thus, their respective

RHSs have different impact on the resulting PSM

(i.e., Structural UI Model) than the one of the rule in

our “minimal” rule set. In fact, a split screen means

at least one additional click but reduces the amount of

scrolling.

Let us illustrate this with a small example, tak-

ing the OrderedJoint relation from our Hotelbook-

ing Communication Model. All children of an Or-

deredJoint may be displayed concurrently, in princi-

ple. Figure 7 shows the basic rule that matches an

OrderedJoint relation and creates a Panel containing

the OrderedJoint children. Thus, the resulting GUI

will show them concurrently.

Figure 8 shows another rule that matches an Or-

deredJoint relation, but creates a TabControl, which

contains its children instead. So, less space is required

in the resulting GUI than in the one generated with the

Figure 7: OrderedJoint Rule Large.

rule above, as the screen is split. How much space is

saved in the end depends on the children and, there-

fore, on the Communication Model.

Figure 8: OrderedJoint Rule Small.

5.2.2 Additional Adjacency Pair Rules

For the additional four Adjacency Pair Rules with

LHSs matching the same PIM pattern as some other

rule each, the approach was analogous. In particular,

these rules generate drop-down lists that show only

one list entry per default instead of displaying more

than one entry at the same time, using radio buttons

for their selection. It is important to note that these

rules do not discard any information (which would be

another way to save space).

As an example, we used the presented rule set to

generate GUIs for a simple ﬂight booking application

for different devices (available at http://ontoucp.

ict.tuwien.ac.at/UI/FlightBooking).

5.3 Lessons Learned

Now let us present a few lessons learned that we gen-

eralize from our concrete experience gained in the

course of this case study:

• Adding additional rules to the “minimal” rule set

allows optimization, even when adding a small

number of rules (compared to the number of rules

in the “minimal” rule set).

• The design of rules independent of a concrete

Platform allows the optimization of several PSMs

with the same rules.

• When such a rule set works for a certain PSM (for

a smartphone), it can at least to a large extent be

reused for a similar PSM (for a tablet PC).

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

502

6 CONCLUSIONS

In this paper, we propose an approach for optimizing

PSMs using model-driven transformations. Since this

approach selects from several generated PSMs (ac-

cording to given optimization objectives), it requires

an engine supporting that more than one transforma-

tion rule can ﬁre on the same source pattern. Of

course, it also requires that at least some rules exist

where this actually happens.

In a case study in the context of model-driven gen-

eration of graphical user interfaces, we studied rule

design for such an approach. Such a rule design has

its own intricacies, but we even found possibilities

for reuse of rules for generating several PSMs (for

GUIs on several devices). On an existing platform

that supports this approach, optimization for several

such GUIs was actually possible with the rule set de-

signed.

ACKNOWLEDGEMENTS

Part of this research has been carried out in the

GENUINE project (No. 830831), another part in the

ProREUSE project (No. 834167), both funded by the

Austrian FFG.

REFERENCES

Aquino, N., Vanderdonckt, J., Valverde, F., and Pastor, O.

(2009). Using proﬁles to support model transforma-

tions in the model-driven development of user inter-

faces. In Lopez Jaquero, V., Montero Simarro, F.,

Molina Masso, J. P., and Vanderdonckt, J., editors,

Computer-Aided Design of User Interfaces VI, pages

35–46. Springer London.

Calvary, G., Coutaz, J., Thevenin, D., Limbourg, Q., Bouil-

lon, L., and Vanderdonckt, J. (2003). A unifying refer-

ence framework for multi-target user interfaces. Inter-

acting with Computers, 15(3):289 – 308. Computer-

Aided Design of User Interface.

Eramo, R., Malavolta, I., Muccini, H., Pelliccione, P., and

Pierantonio, A. (2012). A model-driven approach to

automate the propagation of changes among architec-

ture description languages. Software & Systems Mod-

eling, 11(1):29–53.

Falb, J., Kaindl, H., Horacek, H., Bogdan, C., Popp, R., and

Arnautovic, E. (2006). A discourse model for inter-

action design based on theories of human communi-

cation. In Extended Abstracts on Human Factors in

Computing Systems (CHI ’06), pages 754–759. ACM

Press: New York, NY.

Gajos, K. and Weld, D. S. (2004). SUPPLE: Automatically

generating user interfaces. In Proceedings of the 9th

International Conference on Intelligent User Interface

(IUI ’04), pages 93–100, New York, NY, USA. ACM

Press.

Garc

ıa Frey, A., C

eret, E., Dupuy-Chessa, S., Calvary, G.,

and Gabillon, Y. (2012). Usicomp: an extensible

model-driven composer. In Proceedings of the 4th

ACM SIGCHI symposium on Engineering interactive

computing systems, EICS ’12, pages 263–268, New

York, NY, USA. ACM.

Kavaldjian, S., Bogdan, C., Falb, J., and Kaindl, H. (2008).

Transforming discourse models to structural user in-

terface models. In Models in Software Engineer-

ing, LNCS 5002, volume 5002/2008, pages 77–88.

Springer, Berlin / Heidelberg.

Pastor, O., Espa

na, S., Panach, J. I., and Aquino, N.

(2008). Model-driven development. Informatik Spek-

trum, 31(5):394–407.

Patern

o, F., Mancini, C., and Meniconi, S. (1997). Con-

curTaskTrees: A diagrammatic notation for specify-

ing task models. In Proceedings of the IFIP TC13

Sixth International Conference on Human-Computer

Interaction, pages 362–369.

Patern

o, F. and Santoro, C. (2002). One model, many in-

terfaces. In Proceedings of the 4th International Con-

ference on Computer-Aided Design of User Interfaces

(CADUI 2002), pages 143–154.

Popp, R., Falb, J., Raneburger, D., and Kaindl, H. (2012).

A transformation engine for model-driven UI gen-

eration. In Proceedings of the 4th ACM SIGCHI

symposium on Engineering interactive computing sys-

tems, EICS ’12, pages 281–286, New York, NY, USA.

ACM.

Popp, R. and Raneburger, D. (2011). A High-Level Agent

Interaction Protocol Based on a Communication On-

tology. In Huemer, C., Setzer, T., Aalst, W., Mylopou-

los, J., Sadeh, N. M., Shaw, M. J., and Szyperski,

C., editors, E-Commerce and Web Technologies, vol-

ume 85 of Lecture Notes in Business Information Pro-

cessing, pages 233–245. Springer Berlin Heidelberg.

10.1007/978-3-642-23014-1 20.

Raneburger, D., Popp, R., Kavaldjian, S., Kaindl, H., and

Falb, J. (2011). Optimized GUI generation for small

screens. In Hussmann, H., Meixner, G., and Zuehlke,

D., editors, Model-Driven Development of Advanced

User Interfaces, volume 340 of Studies in Computa-

tional Intelligence, pages 107–122. Springer Berlin /

Heidelberg.

Truyen, F. (2006). The Fast Guide to Model Driven Archi-

tecture - The basics of Model Driven Architecture.

Wagelaar, D., Van Der Straeten, R., and Deridder, D.

(2010). Module superimposition: a composition

technique for rule-based model transformation lan-

guages. Software and Systems Modeling, 9:285–309.

10.1007/s10270-009-0134-3.

Model-drivenTransformationforOptimizingPSMs-ACaseStudyofRuleDesignforMulti-deviceGUIGeneration

503
