Web Service to JSON-RPC Transformation

Christian Samsel, Sevket Gökay, Paul Heiniz and Karl-Heinz Krempels

RWTH Aachen University, Informatik 5, Ahornstr. 55, 52074 Aachen, Germany

Keywords:

Web Services, XML, SOAP, WSDL, JSON, JSON-RPC, Transformation, Mobile Development.

Abstract:

During the last years JavaScript Object Notation Remote Procedure Call (JSON-RPC) emerged as the de

facto standard for service calling on mobile devices. Unfortunately many enterprise services are still only

available as traditional Web Service accessible via Web Services Description Language (WSDL) and Simple

Object Access Protocol (SOAP). In this paper we introduce the Web Service to JSON-RPC adapter tool which

offers JSON-RPC ports matching the SOAP ports in a WSDL-based web service deﬁnition. The adapter

automatically translates JSON-RPC requests incoming on these ports to a responding SOAP message and

forwards it the SOAP server. The SOAP response is translated back to JSON-RPC and delivered to the original

client. Our adapter enables software developers to use a JSON-RPC client which is well supported on mobile

platforms to access SOAP-based Web Services without altering the server nor requiring additional software

on client side.

1 INTRODUCTION

Since the Internet gains more and more importance in

our lives there is an explosive growth of information

in the world. To cope with such big data, an environ-

ment of automated and interactive systems is needed.

This causes a shift from an Internet where humans

were the only actors who request information to the

Internet of things, where applications and devices can

also communicate with each other.

Such application communication services are real-

ized between a client (sevice requester) and a server

(service provider). The interaction involves the client

sending a request message with some parameters to

the server to execute a procedure and the server send-

ing a response (return values) back to the client. This

is called a Remote Procedure Call (RPC).

A Web Service is a software system designed

to support interoperable machine-to-machine

interaction over a network. It has an interface

described in a machine-processable format

(speciﬁcally WSDL). Other systems interact

with the Web Service in a manner prescribed

by its description using SOAP-messages, typ-

ically conveyed using HTTP with an XML

serialization in conjunction with other Web-

related standards.

In this work we stick to this deﬁnition of Web Service.

The later described JSON-RPC is explicitly exclude

from the deﬁnition of Web Service for an easier dis-

tinction.

An alternative way of realizing the communica-

tion between a client and a server is JavaScript Ob-

ject Notation Remote Procedure Call (JSON-RPC)

(JSON-RPC Working Group, 2012). In JSON-RPC

the messages are encoded in JSON which is a data

representation, serialization and interchange format

with similar purpose as Extensible Markup Language

(XML). JSON is part of the JavaScript standard but

still language independent. JavaScript Object Nota-

tion (JSON) is very simple and therefore easy to gen-

erate, to parse, and has only a small memory footprint.

We deliberately do not use the term RESTful in

this paper to not mix up Representational State Trans-

fer (REST) and JSON-RPC. REST is a collection of

paradigms whereas JSON is a technology which even-

tually can fulﬁll REST. Our tool purely works on a

technology level and does not deal with paradigms.

1.1 Motivation

Web Services induce a massive overhead in terms of

ﬁle size and parse effort mainly due to the use of XML

Deﬁnition Web Service in http://www.w3.org/TR/2004/

NOTE-ws-gloss-20040211/

214

Samsel C., Gökay S., Heiniz P. and Krempels K..

Web Service to JSON-RPC Transformation.

DOI: 10.5220/0004499502140219

In Proceedings of the 8th International Joint Conference on Software Technologies (ICSOFT-EA-2013), pages 214-219

ISBN: 978-989-8565-68-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

as serialization format (Lawrence, 2004; Cook and

Barﬁeld, 2006; Pautasso et al., 2008; Nurseitov and

Paulson, 2009; Sumaray and Makki, 2012). For ex-

ample, compare the size of the JSON-RPC and Sim-

ple Object Access Protocol (SOAP) requests in 1 and

2. Both essentially contain the same payload. For

stationary computers and servers these drawbacks are

negligible because of the usual high internet connec-

tion speed and high processing powers for these de-

vices. But in todays Internet the percentage of mo-

bile and low power devices like smartphones, tablets,

embedded systems (e.g. in cars), etc is high. RPC

using Web Services is not desirable for such devices.

Instead, JSON is emerging as new standard for mo-

bile service calling. Frameworks for JSON are a built

in part of every noteworthy mobile platform develop-

ment environment.

Additionally, many existing enterprise solutions

are solely available through Web Services, but these

are not well supported by mobile development kits.

Unfortunately, both Web Services and JSON-RPC are

not interoperable. We propose a solution to this issue.

The remainder of this paper is structured as fol-

lows: In 2 existing approaches and the used tools are

discussed. 3 describes our approach to the problem on

an abstract level, whereas 4 introduced our prototype

implementation. In 5 an evaluation is proposed and 6

concludes the work.

2 RELATED WORK

This section lists recent related research and the used

tools.

(Wang, 2011) describes the process of translating

between XML and JSON for web applications. Un-

fortunately, no proof-of-concept nor implementation

details are given. Instead of operating on real Web

Services and real data encoded in SOAP and JSON-

RPC, it is only vaguely spoken of XML and JSON.

It is questionable if the approach can be applied to

real world applications and if the evaluation results

are valid.

2.1 Tools

Apache Camel

is a framework for enterprise appli-

cation integration. Its main part is a routing-engine

builder which is used to deﬁne routing rules, data

sources and destinations. It also supports protocol

conversions. It is a mature open source project.

Apache Camel is the basis for our tool (Ibsen et al.,

2011).

StAXON

allows to read and write JSON using

the Java Streaming API for XML, thus it is a con-

venient tools for syntactic translation between JSON

and XML.

All presented tools are available under the Apache

Software License, Version 2.0

3 APPROACH

This section describes our approach on an abstract

level from the view of the developer using our tool.

Assume the following scenario: A developer intends

to create a mobile application using a speciﬁc existing

Web Service. This Web Service is traditionally SOAP

/ Web Services Description Language (WSDL)-based

and cannot be changed. Unfortunately, most mobile

frameworks only support JSON / JSON-RPC for ser-

vice calling.

3.1 Workﬂow

We opted for a two-stage approach to this problem. A

few preparation steps are required to shove the tool be-

tween the Web Service (WS) server and JSON-RPC

client. The developer has to login into the manager

(see 4.1) conﬁguration interface and enter the URL to

the WSDL which describes the Web Service of inter-

est. After the processing is done, the developer can

choose to start the adapter (see 4.3) or if preferred

download the archive instead (e.g. to deploy it else-

where). From now on no additional runtime conﬁgura-

tion is required. The adapter presents an informal de-

scription of the JSON-RPC interface on a status web

page, which then can be used as a guide to implement

the JSON-RPC client. The description contains in-

formation about the base URL, the available function

names, their expected parameters, and corresponding

return values. The GUI utilities JSON Editor Online

for user interaction and presentation. It also contains

a JSON-RPC simulator for debugging purposes.

3.2 Translation

For translation between XML and JSON we use

StAXON (see 2.1) which employs the BadgerFish

convention scheme. It consists of nine simple conver-

sions which are powerful enough to project the pay-

load of XML to JSON and vice versa. Here you can

see an example rule:

https://camel.apache.org

https://github.com/beckchr/staxon

https://www.apache.org/licenses/LICENSE-2.0

https://github.com/josdejong/jsoneditoronline

WebServicetoJSON-RPCTransformation

215

Adapter

Web Service

WSDL

Web Service

WSDL

Clients

Controller

Adapter

Manager

Web Interface

Web Service

WSDL

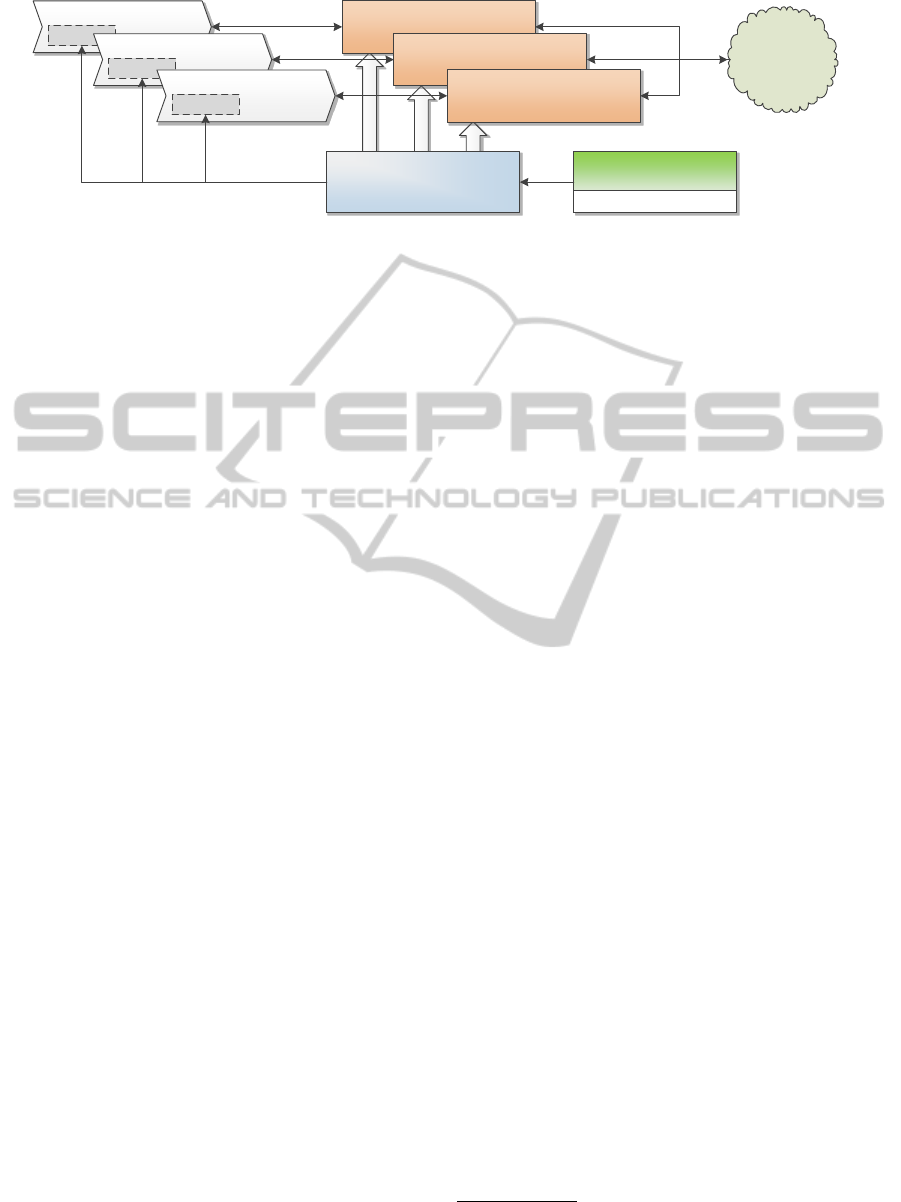

Figure 1: System Architecture. Using manager and controller the user creates and controls independent adapter instances

which are responsible for the actual translation between Web Service and JSON-RPCs Clients.

Rule 2: Text content of elements goes in the $

property of an object.

becomes

{ "alice": { "$" : "bob" } }

Using these approaches the developer can conve-

niently use JSON-RPC without changing the existing

Web Service and also proﬁt from its advantages for

mobile development (e.g. lightweight memory foot-

print).

4 IMPLEMENTATION

The Web Service to JSON-RPC translator is imple-

mented as a group of Java servlets. It is designed to

run under the Apache Tomcat Java application server.

The translator consists of the manager and controller

combined in one Java servlet (see 4.1 and 4.2) and one

or more adapters (4.3) each as independent servlet.

The general architecture is presented in 1.

4.1 Manager

The developer interacts with the frontend component,

called manager. The manager is a lean web interface

similar to the standard Apache Tomcat servlet man-

ager. The developer can access the manager using

username and password and then add, start, stop and

delete adapters. To add an adapter the developer en-

ters the URL of the respective WSDL ﬁle into the web

interface. The manager will then download and ana-

lyze the WSDL ﬁle and generate a standalone adapter

in form of a Java servlet. This Java servlet can ei-

ther be directly deployed to the local Apache Tomcat

instance or downloaded as a WAR archive for deploy-

ment on a different host. Locally deployed adapters

can also be started, stopped, removed or exported via

the manager.

4.2 Controller

The controller is the backend component. It accepts

commands received from the manager and is respon-

sible for controlling the independent adapters, e.g.,

starting and stopping adapter servlets.

4.3 Adapters

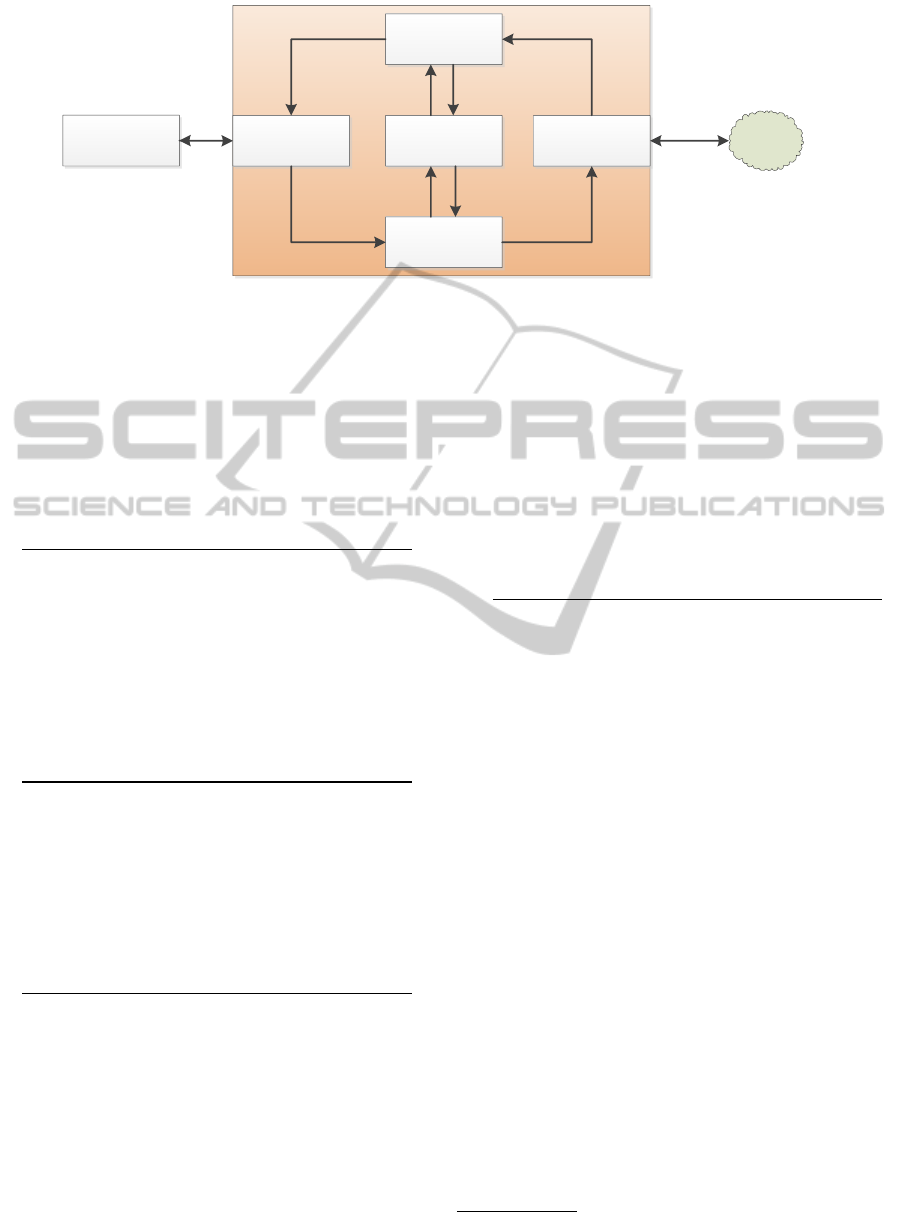

2 presents the implementation of the adapter.

Adapters are independent servlets speciﬁc per WSDL

ﬁle and therefore per Web Service. The adapters are

responsible for the actual translation between JSON-

RPC and SOAP. The JSON-RPC client sends a JSON-

RPC request to the adapter. The request is parsed and

unmarshalled to plain JSON. Using StAXON (2.1)

the JSON data is transformed to a XML tree and

then embedded into a standard compliant SOAP mes-

sage and send to the target Web Service. StAXON

implements a slightly customized BadgerFish (3.2)

scheme. On the reverse path the corresponding SOAP

response is unmarshalled to plain XML and converted

to JSON using StAXON. After embedding the JSON

into JSON-RPC the response is delivered to the origi-

nal Client.

Hereafter, we present a complete Web Service to

JSON-RPC transformation session using the listAll

function call from the Study Web Service present

OpenClinica. It returns all clinical trials listed in

OpenClinica to which the authenticated users has ac-

cess. OpenClinica

is a prominent open source appli-

cation for conduction clinical trials. It contains multi-

ple well documented Web Services with different de-

gree of complexity.

4.3.1 JSON-RPC to SOAP Transformation

We start with a simple JSON-RPC request as it has

been generated by a mobile client in 1. The JSON-

http://www.sklar.com/badgerﬁsh/

https://www.openclinica.com

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

216

Adapter

RequestProcessor

StaxonConnector

ResponseProcessor

JSON

XML payload

JSONXML payload

XML tree

params element

result element

XML payload

Client

Web Service

SOAP JSON-RPC

JSON-RPC Port

SOAP Port

Figure 2: Adapter Implementation. The adapter receives a JSON-RPC request on its JSON-RPC port which is then translated

to a analogous SOAP message and sent to the respective SOAP port. The accruing SOAP response is parsed and translated

back to JSON-RPC and delivered to the original client.

RPC ﬁeld id is set by the client to an arbitrary

alphanumeric value (usually just integers) and car-

ried over in the response so the client can corre-

late unordered responses to their respective requests.

The SOAP-HEADER is transformed to a XwsSecurity

header for authentication as expected by the Open-

Clinica Web Service.

1 {

2 "jsonrpc": "2.0",

3 "id": 1337,

4 "method": "v1:listAllRequest"

5 "params":

6 [

7 "SOAP-HEADER":

8 ["username": root,

9 "password": 123456]

10 ]

11 }

Listing 1: JSON-RPC Request. A minimal JSON-RPC call

only containing the required elements jsonrpc and id plus

the authentication credentials and the method name.

The id is not used in the SOAP request but instead

handled by an internal state in the adapter. The SOAP

request shown in 2 is enriched with XML namespace

information extracted from the WSDL ﬁle.

1 <?xml version="1.0"?>

3 <soapenv:Envelope

4 xmlns:soapenv="http:// schemas ....oap/envelope/"

5 xmlns:v1="http://openclinica.org/ws/study/v1">

7 <soapenv:Header>

8 <wsse:Security soapenv:mustUnderstand="1"

9 xmlns:wsse="http://docs.oas...secext -1.0. xsd">

10 <wsse:UsernameToken wsu:Id="UsernameToken -..."

11 xmlns:wsu="http://docs.oas....tility -1.0. xsd">

12 <wsse:Username>root</wsse:Username>

13 <wsse:Password

14 Type="http://docs.o....ofile -1.0# PasswordText">

15 password</wsse:Password >

16 </wsse:UsernameToken >

17 </wsse:Security>

18 </soapenv:Header>

20 <soapenv:Body>

21 <v1:listAllRequest/>

22 </soapenv:Body>

24 </soapenv:Envelope >

Listing 2: SOAP request (shortened). A minimal SOAP

call only containing the required SOAP elements; authenti-

cation credentials and the method name. Namespace infor-

mations have been trimmed.

4.3.2 SOAP to JSON-RPC Transformation

We start with the response created by the OpenClinica

Web Service in 3. It contains a result status ﬁeld with

the contents success and the requested payload object

studies. The object studies contains one object of

complex type study containing information about the

respecting study like the unique identiﬁer.

The translated response is shown in 4. It contains

the result distilled from XML to JSON plus the re-

quired JSON-RPC ﬁelds. It is valid JSON-RPC and

can be parsed easily by common JSON frameworks.

Complex types like study in 3 are converted to a rep-

resentation of Arrays and Strings.

4.3.3 Security

For conﬁdential transmission the client to adapter con-

nection can be SSL-secured using the the standard

Apache Tomcat facilities. For example an externally

signed certiﬁcate can be used. The adapter to Web

https://static.springsource.org/spring-ws/sites/1.5/reference/

html/security.html

WebServicetoJSON-RPCTransformation

217

2 <?xml version="1.0"?>

4 <SOAP -ENV:Envelope

5 xmlns:SOAP -ENV="http://schemas ... oap/envelope/">

6 <SOAP -ENV:Header/>

8 <SOAP -ENV:Body>

9 <listAllResponse

10 xmlns="http://openclinica.org/ws/study/v1">

11 <result>Success</result>

12 <studies>

13 <study>

14 <identifier>default -study</ identifier >

15 <oid>S_DEFAULTS1</oid>

16 <name>Default Study</name>

17 </study>

18 </studies>

19 </listAllResponse>

20 </SOAP -ENV:Body>

22 </SOAP -ENV:Envelope>

Listing 3: SOAP response (shortened). A minimal SOAP

response only containing the required SOAP elements; au-

thentication credentials and the result array.

Service connection is used as noted in the WSDL

either with SSL or in plaintext. If SSL is used, a cer-

tiﬁcate check can be optionally forced. The manager

is secured by default using a username / password au-

thentication to prevent abuse. If required, the adapters

can also be protected to restrict access.

4.3.4 Availability

The adapter has no special failover or other redun-

dancy features incorporated. Instead the idea for a

reliable function is to deploy the same adapter mul-

tiple times to different locations and use them in a

1 \vspace{-1cm}

2 {

3 "jsonrpc": "2.0",

4 "id": 1337,

5 "result": {

6 { "result" : success }

7 { "studies" :

8 [ "study" :

9 {"identifier": "default -study",

10 "oid": "S_DEFAULTS1",

11 "name": "Default Study"}

12 ]

13 }

14 }

15 }

Listing 4: JSON-RPC response. A minimal JSON-RPC re-

sponse only containing the required elements jsonrpc and

id plus the requested playload containing the study name.

round robin fashion. Alternatively a load balancer can

be used to distribute incoming requests to different

adapter instances. Although, more components might

increase the aggregate delay to a point the user expe-

rience suffers.

4.3.5 Error Handling

The adapter itself only does syntax checking on in-

coming transmissions. Neither JSON-RPC nor SOAP

messsages are checked for conformity to e.g. the re-

spective schema. Instead we rely on the checks on the

endpoints and just pass-through potential error mes-

sages using the approriate measures for JSON-RPC

(error object) and SOAP (Fault element). This also

applies to miscellaneous error message, for example,

in case of an overloaded server.

5 EVALUATION

Proof of functionality of our tool and the approach to

a performance evaluation of our tool are presented in

this chapter.

5.1 Functionality

For functionality demonstration we use an existing

test installation of OpenClinica, an Open Source ap-

plication for clinical research. Excerpts of a real ses-

sion can be found in 4.3. Additionally, we tested Web

Services available online, including but not limited to

entries in 1.

5.2 Performance

Performance measurements are currently a subject of

work in progress. We will evaluate the overhead in-

duced by the adapter in both terms of additional delay

and processing overhead. To calculate the overhead

delay we will time simulated JSON-RPC requests us-

ing the adapter to a test Web Service and compare the

results to equivalent direct SOAP requests. For efﬁ-

ciency measurement we will add the adapter to the

host running the Web Service and compare served

requests per second for equivalent requests in both

JSON-RPC and SOAP. As the setup processing only

occurs once, we consider its effort negligible.

Depending whether URL starts with https:// or http://

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

218

Table 1: List of tested public Web Services.

Name Function WSDL Uniform Resource Locator (URL)

BLZService Get bank name by BLZ (german identiﬁca-

tion number for banks)

http://www.thomas-bayer.com/

axis2/services/BLZService?wsdl

ConvertSpeeds ConvertSpeed units (e.g. mph to kmh) http://www.webservicex.net/

ConvertSpeed.asmx?WSDL

Weather Provides weather information in USA by

zip code

http://wsf.cdyne.com/WeatherWS/

Weather.asmx?WSDL

Calculator Performs arithmetic operations http://soaptest.parasoft.com/

calculator.wsdl

6 CONCLUSIONS AND FUTURE

WORK

We presented a tool which translates JSON-RPC re-

quests to SOAP requests and SOAP responses to

JSON-RPC responses based on information present

in WSDL. This approach enables mobile JSON-RPC

clients to access traditional Web Services without al-

tering the Web Service application and only requiring

JSON-RPC support on client side (instead of the more

complex SOAP support).

6.1 Future Work

We are currently working on a mechanism to deliver

functioning client stub classes for the iOS and An-

droid plattforms in addition to the informal descrip-

tion of the generated interface. This will simplify mo-

bile development even further.

The architecture of our tool leaves open space to

support more RPC standards. We are considering

adding support for additional protocols on both client

and server sides.

REFERENCES

Cook, W. and Barﬁeld, J. (2006). Web Services versus Dis-

tributed Objects: A Case Study of Performance and

Interface Design. IEEE International Conference on

Web Services (ICWS’06), pages 419–426.

Ibsen, C., Anstey, J., and Zbarcea, H. (2011). Camel in

Action. Manning.

JSON-RPC Working Group (2012). JSON-RPC 2.0 Speci-

ﬁcation.

Lawrence, R. (2004). The space efﬁciency of XML. Infor-

mation and Software Technology, 46(11):753–759.

Nurseitov, N. and Paulson, M. (2009). Comparison of

JSON and XML data interchange formats: A case

study. In 22nd International Conference on Comput-

ers and their Applications in Industry and Engineer-

ing (ISCA’06).

Pautasso, C., Zimmermann, O., and Leymann, F. (2008).

Restful web services vs. big’web services: making the

right architectural decision. 17th International Confer-

ence on World Wide Web (WWW’08), pages 805–814.

Sumaray, A. and Makki, S. (2012). A comparison of Data

Serialization Formats for Optimal Efﬁciency on a Mo-

bile Platform. In Proceedings of the 6th International

Conference on Ubiquitous Information Management

and Communication (ICUIMC’12).

Wang, G. (2011). Improving Data Transmission in Web

Applications via the Translation between XML and

JSON. 3rd International Conference on Communica-

tions and Mobile Computing (CMC’11), pages 182–

185.

WebServicetoJSON-RPCTransformation

219
