AVON

A Fast Hash Function for Intel SIMD Architectures

Matt Henricksen

and Shinsaku Kiyomoto

Institute for Infocomm Research, 1 Fusionopolis Way #21-01 Connexis (South Tower), 138632 Singapore, Singapore

KDDI R & D Laboratories Inc, 2-1-15 Ohara, Fujimino-shi, 356-8502 Saitama, Japan

Keywords:

Hash Functions, SHA-3, Single-instruction Multiple-data.

Abstract:

In this paper, we propose a hash function that takes advantage of the AES-NI and other Single-Instruction

Multiple-Data operations on Intel x64 platforms to generate digests very efﬁciently. It is suitable for appli-

cations in which a server needs to securely hash electronic documents at a rate of several cycles/byte. This

makes it much more efﬁcient for certain applications than SHA-2, SHA-3 or any of the SHA-3 ﬁnalists. On

the common Sandy Bridge micro-architecture, our hash function, AVON, has a throughput of 2.65 cycles per

byte while retaining a high degree of security.

1 INTRODUCTION

Following the successful analysis of MD-5 and SHA-

1 (Wang and Yu, 2005)(Wang et al., 2005), the aca-

demic community, and to an extent, industry have

been looking for replacement hash functions. In 2007,

NIST launched the SHA-3 hash function competi-

tion (National Institute of Standards and Technology,

2007), as a multiple-phase effort to ﬁnd suitable hash

functions to complement or replace the standardized

SHA-2, which seemed at the time to be vulnerable to

the same set of attacks.

Of the 51 submissions, ﬁve were chosen as ﬁnal-

ists. These were Blake, Grostl, JH, Keccak and Skein.

In 2012, Keccak (Bertoni et al., 2011) was selected as

the winner. There has been criticism that these ﬁnal-

ist hash functions are too slow to meet industry needs

(see Table 1, which provides median throughputs for

long messages on different Intel microarchitectures

(ECRYPT, 2012)). Some calls have been made for

hash functions with a throughput of 2-5 cycles/bytes

(Gligoroski, 2010).

One of the reasons for the conservative speed of

the SHA-3 ﬁnalists is that in order to be competi-

tive in processes such as the NIST SHA-3 hash func-

tion competition, the hash functions must offer many

properties, above and beyond the well known trinity

of pre-image, second pre-image and collision resis-

tance. The hash functions must also perform well on

a large number of platforms.

This means that these hash functions are not well

Table 1: Throughput of the SHA-3 ﬁnalists (and SHA-2) in

generating 512-bit digests for long messages (cycles/byte).

Hash Function Westmere Sandy Bridge Atom

BLAKE 8.06 5.66 12.80

Grostl 30.32 26.05 110.2

JH 15.56 13.85 30.28

Keccak 12.14 10.86 21.43

Skein 7.27 6.38 9.96

SHA-2-512 12.50 11.67 15.41

suited to niche applications. The industry request

that inspired this research identiﬁed an application in

which a server rapidly hashes very many electronic

documents. In this application, although the clients

may use a diverse range of processors, there is no

reason why the servers cannot be a speciﬁc type of

processor, for which the hash function is targeted and

optimized. The hash function should be very fast

on the server, with throughput around the cited two

cycles/byte. After the documents and their digests

are distributed, each client can verify the digests on

some subset of documents without the same severe

time/throughput constraint.

In this paper, we investigate how to construct

a hash function that offers pre-image and second-

preimage resistance, but not necessarily collision-

resistance, on Intel x86-64 architectures using Single-

Instruction Multiple-Data (SIMD) sets with SSE

(Streaming SIMD Extensions) and AVX (Advanced

Vector Extensions). This processor family is very

popular. The hash function’s performance require-

482

Henricksen M. and Kiyomoto S..

AVON - A Fast Hash Function for Intel SIMD Architectures.

DOI: 10.5220/0004502104820487

In Proceedings of the 10th International Conference on Security and Cryptography (SECRYPT-2013), pages 482-487

ISBN: 978-989-8565-73-0

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

ments are asymmetric: it must perform very efﬁ-

ciently on the Intel x86 server using SIMD operation,

but on the client, throughput is not critical. Pre-image

and second pre-image resistance are required, since a

rogue client might try to modify a received document

without altering the digest.

In Section 2, we describe SSE/AVX in terms of

relevant instructions. In Section 3 of this paper, we

present the new hash function AVON, built using the

well-known sponge construction, with a permutation

specially designed to use SIMD instructions. In Sec-

tion 4, we outline our design decisions. In Sections

5 and 6, we analyse the security and efﬁciency of the

cipher. We provide concluding notes in Section 7.

2 PRELIMINARIES -

STREAMING SIMD

EXTENSIONS

Recent Intel architectures offer SIMD functionality,

through the SSE and the newer AVX instruction sets.

SSE instructions operate on dedicated 128-bit XMM

registers, and AVX instructions operate on 256-bit

YMM registers. This is in contrast to general pur-

pose instructions, which are restricted to 32- or 64-bit

registers. On recent architectures, such as Westmere,

Sandy Bridge and Ivy Bridge, SSE and AVX instruc-

tions are implemented efﬁciently so that for many

applications, increases in throughput result by using

these larger register sets.

As an example of the increased power offered

by SSE/AVX, consider the instruction PBLENDW,

which takes two 128-bit operands and an immediate

value. The operands are notionally divided into eight

sixteen-bit blocks. The instruction creates a target

word using blocks chosen from either of the operands,

according to the bit pattern of the immediate value.

This instruction can be synthesized in 32-bit C code

by masking each of the source words in 32-bit blocks,

and exclusive-oring the blocks together, which takes

at least three cycles on general purpose registers, but

only one cycle when using PBLENDW.

Of particular interest to cryptographers are the

AES-NI instructions, which enable very fast im-

plementation of the Advanced Encryption Standard

block cipher and variants. The foremost instruction is

the AESENC instruction, which performs one round

of the AES, incorporating the non-linear SubByte

(SB) operation (comprising sixteen parallel invoca-

tions of an optimal 8× 8 s-box), and the ShiftRows

(SR), MixColumns (MC) and AddKey (AK) opera-

tions. On Westmere, the instruction is executed with

a throughput of six cycles and a latency of two cycles.

On Sandy Bridge, the instruction is executed with a

throughput of eight cycles and a latency of one cycle

(Agner, 2012). So, for independent operands, Sandy

Bridge is more efﬁcient, but for a sequence of iterated

rounds, Westmere is more efﬁcient.

AESKEYGENASSIST is also part of the AES-NI,

although its use is less straight-forward than AES-

ENC. The AES round key schedule needs to pro-

vide 128-bit round keys for each round of AES plus

one additional 128-bit key for pre-whitening. It does

this in different ways for 128-, 192- and 256-bit mas-

ter keys. AESKEYGENASSIST operates in such a

way that it simultaneously provides support for all

these master-key lengths by computing s-boxes and

other operations on two of the four 32-bit words in

the source operand. This provides more non-linearity

than required by the weak AES key schedule, so sig-

niﬁcant manipulation is required to derive the AES

keys. If we use the instruction directly, rather than

manipulating it to derive the keys, we are actually

beneﬁted by the additional non-linearity it provides as

well as processing more quickly than if deriving the

keys. The form of the instruction is AESKEYGENAS-

SIST target, source, imm, where imm is a hard-wired

round constant.

3 SPECIFICATION

The AVON hash function is based on the sponge func-

tion construction to provide an easy trade-off between

security and efﬁciency, by altering the rate at which

message material is added to, or digest material is

leaked from the state. The sponge function construc-

tion also provides certain guarantees about security,

if its core permutation is considered ideal, simplify-

ing analysis. In this section, we show how to imple-

ment AVON by using the sponge function with the

core permutation. We also provide the details of the

permutation.

3.1 Construction

The sponge function, as deﬁned by Bertoni, Daemen,

Peeters and Assche (Bertoni et al., 2007), shown in

Figure 1, is a generalization of a hash function (with

variable input length and ﬁxed output length) and a

stream cipher (with ﬁxed input length and variable

output length). It iteratively applies a (bijective) per-

mutation to an t-bit state, which is divided between a

capacity component of size c and a rate component of

size r. The permutation does not require an inverse or

a key schedule.

AVON-AFastHashFunctionforIntelSIMDArchitectures

483

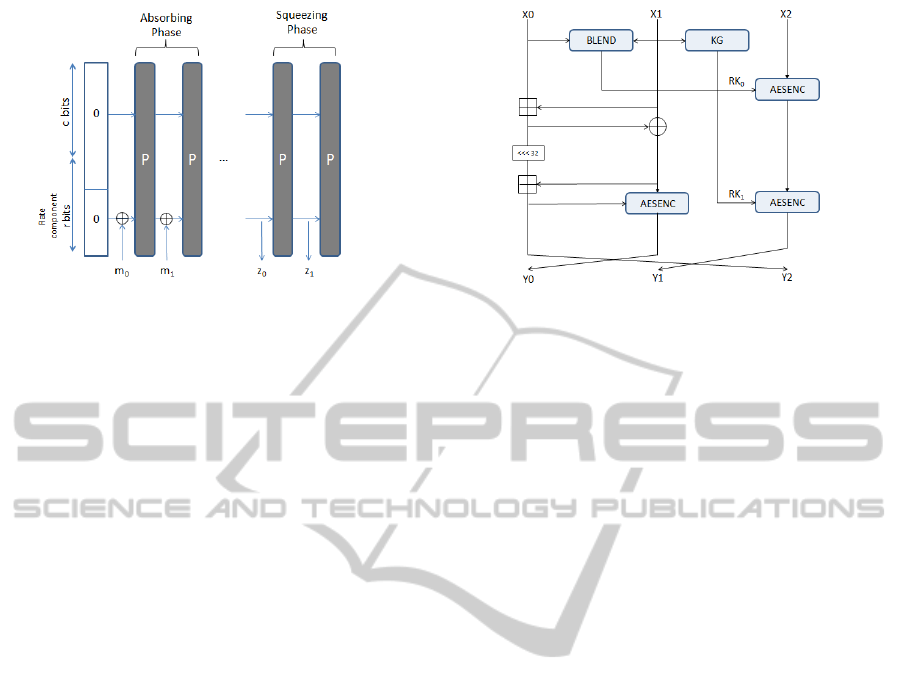

Figure 1: The sponge construction.

Generating a digest requires initializing the state

with a ﬁxedconstant (for example, the all-zero string),

then running absorbing and squeezing phases. Dur-

ing the absorbing phase, message material is itera-

tively added to the state in r- bit blocks (m

). After

each block is absorbed, the permutation P is called

to mix the state. The absorbing state is followed by

the squeezing state, in which r

′

- bit blocks (z

) are

emitted from the state in between iterations of the per-

mutation. These blocks are concatenated to form the

digest. We assume in this article that r = r

′

AVON uses an internal state of 384 bits (divided

between three double quadwords of 128 bits each,

termed X

, X

and X

). The initial state is set to the

all-zero string. The rate for absorbing and squeezing

is r = 128. The capacity is set to c = 256.

During the absorbing phase, the message is broken

into blocks of 128 bits. The last block is padded ac-

cording to the rules given in Section 3.3. Each block

is absorbed into the sponge state, by combination with

the 128-bit rate component X

, using binary addition.

After each combination, the permutation P (Section

3.2) is executed.

Once the absorbing phase has ﬁnished, the

squeezing mode commences to produce the digest.

This is formed by extracting the 128 bits of state that

is stored in the rate component X

, invoking the per-

mutation, then iterating. The n-bit digest is formed by

concatenating the x blocks of extracted state.

3.2 Permutation

The permutation P operates on a 384-bit state

X0||X1||X2, where each variable X

is a 128-bit dou-

ble quadword, and || represents concatenation. The

permutation consists of iterating the SubRound func-

tion three times. The SubRound function is shown in

Figure 2.

AESENC encrypts its input P with one round of

the AES using the round key RK, as documented in

Figure 2: Subround - one third of the permutation.

(Daemen and Rijmen, 2002). The round keys for the

AESENC operations in the X

sub-state are deﬁned

as:

= (X

& mask

0,r

) ⊕ (X

& mask

1,r

)

= KG(X1, c

)

The masks vary according to round number 0 ≤

r ≤ 2. The series mask

1,r

are the inverse of mask

0,r

mask

0,0

= {0xFFFFFFFF, 0x00000000,

0xFFFF0000, 0xFFFF0000}

mask

0,1

= {0xFFFF0000, 0xFFFF0000,

0xFFFFFFFF, 0x00000000}

mask

0,2

= {0xFFFFFFFF, 0x00000000,

0xFFFF0000, 0xFFFF0000}

The operation to derive RK

can be implemented

using PBLENDW, with constants 0xCA for sub-

rounds 0 and 2, and 0xAC for sub-round 1. The

KG operation can be implemented using AESKEY-

GENASSIST with constants 0x1, 0x3 and 0x9 for

r = 0, 1, 2 consecutively.

The permutation P is implemented as:

Y0 = AESENC((X0 + X1) ⊕ X1, Y2)

Y1 = AESENC(AESENC(X

, RK

), RK

)

Y2 = ((X0+ X1) ≪

128

32) + ((X0+ X1) ⊕ X1)

At the end of the sub-round, the sponge state is up-

dated as (X0 = Y0, X1 = Y1, X2 = Y2).

3.3 Padding

We use the simplest sponge compliant padding rule

pad10*, which consists of padding the last block of

the message with a 1 bit, followed by as many 0-bits

as required to ensure that the padded message length

is a multiple of the block size, eg. n × r for some

integer n.

SECRYPT2013-InternationalConferenceonSecurityandCryptography

484

4 DESIGN PRINCIPLES

4.1 Sponge Construction

We use the sponge construction because it is the most

scalable construction to trade-off efﬁciency and secu-

rity, simply by varying the rate r. It also offers some

proofs of security, given a randomized permutation.

In particular, resistance against collisions, pre-images

and second-preimagescan be computed as (Guo et al.,

2011):

• Collision: min(2

, 2

)

• Second Preimage: min(2

, 2

)

• Preimage: min(2

min(n,t)

, max (2

min(n,t)−r

, 2

))

We set the size of the construction (t = c + r) to

384 bits so that we only need to use three registers

to store the state, with a few other registers for tem-

porary values (in 32-bit mode, there are only eight

XMM registers available). Setting the capacity (c) to

256 bits means that if there are no ﬂaws in the permu-

tation, then for generating a 256-bit digest (n = 256),

collision resistance = 2

128

, second-preimage resis-

tance is 2

128

, and pre-image resistance is 2

128

4.2 The Permutation

The permutation P is designed to meet the following

requirements: P must make use of AESENC and SSE

instructions; every output byte of P depends upon ev-

ery input byte; P must provide similar diffusion and

confusion to one full AES encryption; using SSE,

the permutation must complete within 48 cycles and

without SSE, it must complete within 256 cycles.

The permutation is a combination of ARX design

and components of the AES. This combines both the

well-established properties and efﬁciency of the AES,

with some uniqueness in its design permitted by the

SSE instruction set. Choosing the permutation to be

a combination of AES and ARX should be more re-

silient than either in isolation.

ARX designs tend to be popular because addition

is generally faster than an s-box lookup (addition is an

atomic operation, an s-box lookup is a sequence of in-

structions). However, access to the AES-NI changes

this, since an s-box lookup can be performed in an

average of less than

cycle. There is no way to use

any s-box other than that of the AES in a competitive

manner on the Intel x86-64, and due to its optimal se-

curity properties, nor is there any need.

The permutation is designed to exploit SIMD ar-

chitectures. SIMD instructions are designed for spe-

cialized operations such as graphics acceleration, so

is more limited than for those of the general purpose

registers. For example, Intel SSE instructions are in-

capable of generic indirect addressing, such as used

in s-boxes implemented using lookup tables.

However, AES-NI provides a single s-box imple-

mented on chip, and accessible through SIMD. The s-

box, used by the AES, is optimal against differential

and linear cryptanalysis for that table size. The rele-

vant instruction, AESENC computes sixteen s-boxes

in parallel with a throughput of six to eight cycles. So

it does not make sense to implement any other s-box.

The AES-NI instruction set also provides AESKEY-

GENASSIST, which partially computes round keys.

It provides more non-linearity than is used in the key

generation for round keys (eight s-boxes per 128 bits

rather than four). This should be exploited rather than

discarded.

We also use a number of other instructions,

including PBLENDW, for computing the round

keys for both AESENC operations per SubRound.

PBLENDW completes in one cycle, so is ideal for

computing the ﬁrst round key. AESKEYGENAS-

SIST can start to compute the second round key at

the same time, since its operands are not modiﬁed by

PBLENDW. So the round keys are computed respec-

tively one cycle, and 6-8 cycles after the start of the

SubRound. As two AESENC operate in serial, the

second round key is not required until at least six cy-

cles after the start of the round.

5 ANALYSIS

AVON uses the sponge construction, and it is proved

in (Bertoni et al., 2008) that if the underlying permu-

tation is ideal, then the hash function constructed us-

ing a sponge function is indifferentiable from a ran-

dom oracle. This means that we only need to concen-

trate on the security of the permutation. A more full

analysis will be presented in an extended version of

this paper.

5.1 Statistical Analysis

We performed statistical analysis on AVON to mea-

sure the diffusion and confusion of the permutation

for 2

pairs of inputs with one-byte, two-byte or ran-

dom differences. 98% of samples produced at least

47 active bytes over the permutation P, showing that

three rounds of SubRound is sufﬁcient for diffusion

purposes. All samples produced at least 35 active s-

boxes, and 99% of samples with random differences

produced 166, 167 or 168 (the maximum) active s-

boxes. This means that even if the attacker has direct

AVON-AFastHashFunctionforIntelSIMDArchitectures

485

access to the input of P, which is not possible when

using the sponge function construction, he is unable

to control the differences in order to produce a colli-

sion in a 256-bit digest that is more efﬁcient than a

generic attack. This is because the maximum proba-

bility of an input difference passing through an AES

s-box to a speciﬁc output difference is 2

−6

, and pass-

ing through 35 active s-boxes is 2

−210

5.2 Cryptanalysis

5.2.1 Differential and Linear Cryptanalysis

The security of AVON against differential and lin-

ear cryptanalysis rests on the security of the AES,

which has been well studied. The maximum probabil-

ity of any non-zero input difference passing through

the AES s-box to any speciﬁc output difference is 2

−6

and the maximum bias of the s-box is 2

−3

. Since P ac-

tivates at least 35 active s-boxes, it seems unlikely that

any differential path with a probability of more than

−210

, and any linear approximation with bias of less

than 2

−105

is unlikely, and the attacker will be unable

to generate a collision.

5.2.2 ARX Cryptanalysis and Rotational

Distinguishers

Rotational distinguishers are applied to ARX ciphers

in (Khovratovich and Nikolic, 2010). The aim is

to analyse how the difference between a pair of in-

puts, where one is a rotated version of another, passes

through the components of an ARX cipher. Only the

addition component of the cipher alters the difference,

and the number of additions required to effect n-bit

security can be simply quantiﬁed.

AVON-2 uses an ARX component which can be

analysed in isolation by the rotational cryptanalysis

method. However, the non-linear s-boxes in the AES

component are not readily analyzable, and also pro-

vide higher non-linearity than the equivalent addi-

tions. So rotational distinguishers are unlikely to ap-

ply to AVON-2. The attacker might try to build a

rotational distinguisher by carefully controlling how

difference propagate through the s-boxes, either by

ﬁxing the difference or ﬁxing values. But the large

number of activated s-boxes means this approach is

very unlikely to succeed.

5.2.3 Rebound Attacks

Rebound attacks (Mendel et al., 2009) combine meet-

in-the-middle attacks with truncated differentials, to

allow the attacker to efﬁciently control an intermedi-

ate segment of the hash function rounds, so that the

input differential of the segment and the output dif-

ferential converge to the same pattern midway. The

attacker aims to reduce the number of active s-boxes

subsequent to, and preceding the segment, allowing

the attack to be probabilistically extended in the for-

ward and back directions over a further number of

rounds.

Rebound attacks assume full control over the in-

termediate values of the round function, and are dif-

ﬁcult to convert to full hash functions that use the

sponge function construction. Rebound attacks are

known to be ineffective in the presence of ARX com-

ponents, so seem unlikely to apply AVON.

5.2.4 Algebraic Attacks and Cube Testers

Cube attacks and cube testers are described in (Au-

masson et al., 2009). To date there has been no mean-

ingful progress in applying algebraic attacks to the

AES. Since each message block is modiﬁed by 162

s-boxes, it is infeasible to apply this attack to AVON.

6 IMPLEMENTATION

The SubRound core is iterated three times, with dif-

ferent constants, to comprise P. The ﬁrst instance of

SubRound is shown, using SSE assembly, here:

#define SUBROUND1 \

vpblendw $0xCA, %%xmm1, %%xmm0, %%xmm3 \

vaeskeygenassist $1, %%xmm1, %%xmm5 \

vaesenc %%xmm3, %%xmm2, %%xmm4 \

vpaddw %%xmm1, %%xmm0, %%xmm0 \

vpxor %%xmm1, %%xmm0, %%xmm1 \

vpshufd $0x93, %%xmm0, %%xmm0 \

vpaddw %%xmm1, %%xmm0, %%xmm0 \

vaesenc %%xmm5, %%xmm4, %%xmm2 \

vaesenc %%xmm0, %%xmm1, %%xmm1 \

The throughput of the cipher is limited by the

serial nature of the AESENC operations on the X2

word.

This cipher was implemented on an Intel Core i7

Extreme 990X running at 3470 MHz based on the

Westmere microarchitecture, and on an Intel Core i7

2600 running at 3400 MHz based on the Sandy Bridge

architecture. The permutation P was timed at 2.65

cycles/bytes when coded on the latter machine using

AVX instructions, and at 3.36 cycles/byte when coded

on the former without.

AVX instructions, which operate on 256 bit reg-

isters, are not currently very useful, since for the

cryptographic operations and many others, the left-

most 128 bits are zero-ﬁlled, meaning that the instruc-

tions remain oriented on 128 bits. However, AVX

instructions frequently take one additional operand

SECRYPT2013-InternationalConferenceonSecurityandCryptography

486

Table 2: Throughput of the AVON hash function (cy-

cles/byte).

Hash Function Westmere Sandy Bridge

AVON Permutation 3.27 2.58

AVON Full 3.36 2.65

MD5 5.04 5.38

SHA-1 7.66 7.80

Keccak 12.14 10.86

SHA-2-512 12.50 11.67

compared to SSE instructions, specifying a target,

whereas the comparable SSE instructions overwrite

one of the source operands. This means that some

speedup can be obtained by using AVX, since for

where the source needs to be preserved, one move op-

eration can be saved. We note that if AVX and SSE in-

structions are mixed, there is a penalty applied to the

throughput. The real beneﬁt of the Sandy Bridge ar-

chitecture lies in the ability to execute AESENC oper-

ations concurrently on two execution ports (on West-

mere, only one port can handle this instruction).

7 CONCLUSIONS

In this document, we specify a new hash function

- AVON - that speciﬁcally uses the SIMD instruc-

tion set on the Intel platform to increase through-

put. We achieved a speed of 2.65 cycles/byte on the

Sandy Bridge micro-architecture, which is roughly

four times faster than the standardized SHA-3 on the

same platform, and roughly double the speed of the

insecure MD5 hash function on Sandy Bridge (see Ta-

ble 2). On other platforms, it is not so effective, but

this is unimportant for two reasons. Firstly, wherever

AES is efﬁcient, AVON will also be efﬁcient. There

is a strong trend to SIMD, and AES will be avail-

able as atomic SIMD instructions on more platforms

in the future. Secondly, the hash function is useful in

a server-client scenario, where the server has to hash

many documents, and the client to verify only a few.

Future work includes optimization of the code,

and further cryptanalysis to more precisely determine

the security of the hash function.

REFERENCES

Agner (2012). The microarchitecture of Intel, AMD

and VIA CPUs. http://www.agner.org/optimize/

microarchitecture.pdf.

Aumasson, J.-P., Dinur, I., Meier, W., and Shamir, A.

(2009). Cube Testers and Key Recovery Attacks on

Reduced-Round MD6 and Trivium. In (Dunkelman,

2009), pages 1–22.

Bertoni, G., Daemen, J., Peeters, M., and Assche, G. V.

(2007). Sponge functions. In Proceedings of ECRYPT

Hash Workshop 2007, May 24 - 25, 2007, Barcelona,

Spain.

Bertoni, G., Daemen, J., Peeters, M., and Assche, G. V.

(2008). On the Indifferentiability of the Sponge Con-

struction. In Smart, N. P., editor, EUROCRYPT, vol-

ume 4965 of LNCS, pages 181–197. Springer.

Bertoni, G., Daemen, J., Peeters, M., and Assche,

G. V. (2011). The KECCAK SHA-3 Submis-

sion. Submission to NIST (Round 3). Available at

http://keccak.noekeon.org/Keccak-submission-3.pdf.

Daemen, J. and Rijmen, V. (2002). The Design of Rijndael:

AES - The Advanced Encryption Standard. Springer.

Dunkelman, O., editor (2009). Fast Software Encryption,

16th International Workshop, FSE 2009, Leuven, Bel-

gium, February 22-25, 2009, Revised Selected Papers,

volume 5665 of LNCS. Springer.

ECRYPT (2012). ebacs: Ecrypt benchmarking of

cryptographic systems. http://bench.cr.yp.to/

results-sha3.html.

Gligoroski, D. (2010). Cryptographic hash functions. http://

www.nisnet.no/ﬁler/Finse10/Cryptographic

ash

Gligoroski.pdf.

Guo, J., Peyrin, T., and Poschmann, A. (2011). The PHO-

TON family of lightweight hash functions. In Rog-

away, P., editor, CRYPTO, volume 6841 of Lecture

Notes in Computer Science, pages 222–239. Springer.

Khovratovich, D. and Nikolic, I. (2010). Rotational crypt-

analysis of ARX. In Hong, S. and Iwata, T., editors,

FSE, volume 6147 of Lecture Notes in Computer Sci-

ence, pages 333–346. Springer.

Mendel, F., Rechberger, C., Schl¨affer, M., and Thomsen,

S. S. (2009). The Rebound Attack: Cryptanalysis

of Reduced Whirlpool and Grøstl. In (Dunkelman,

2009), pages 260–276.

National Institute of Standards and Technology (2007). An-

nouncing Request for Candidate Algorithm Nomina-

tions for a New Cryptographic Hash Algorithm (SHA-

3) Family. Federal Register, 27(212):62212–62220.

Available at http://csrc.nist.gov/groups/ST/hash/

documents/FR

Notice Nov07.pdf.

Wang, X., Yin, Y. L., and Yu, H. (2005). Finding collisions

in the full SHA-1. In Shoup, V., editor, CRYPTO,

volume 3621 of Lecture Notes in Computer Science,

pages 17–36. Springer.

Wang, X. and Yu, H. (2005). How to break MD5 and other

hash functions. In Cramer, R., editor, EUROCRYPT,

volume 3494 of Lecture Notes in Computer Science,

pages 19–35. Springer.

AVON-AFastHashFunctionforIntelSIMDArchitectures

487
