Resource-aware Virtualization for Industrial Networks

A Novel Architecture Combining Resource Management, Policy Control

and Network Virtualization for Networks in Automation or Supervisory

Control and Data Acquisition Networks

Hans-Peter Huth and Amine M. Houyou

Siemens AG, Corporate Research, Munich, Germany

Keywords: Network Virtualization, Quality-of-Service, Automation Networks, Industrial Ethernet, Network

Management and Control, Multi-tenancy.

Abstract: Within the EU Project IoT@Work future Internet techniques such as network virtualization are investigated

in order to provide communication services in automation systems. The physical network is modeled as an

abstract pool of resources that is allocated through virtual slices to different automation applications. Each

slice of the network resources fulfils the application communication needs in terms of security, QoS, and re-

liability. The proposed architecture is targeted at constrained networks, where a centralized control and

management point could be accessed through an API to create and implement virtual networks which could

be mapped to a real physical infrastructure. This approach would impact not only the task of engineering by

separating application programming from configuring networks. It also hides the network dynamics and

self-management connecting ever more dynamic, adaptive and smart automation systems.

1 INTRODUCTION

Networks play a major role in all distributed applica-

tions and any network has to support many, some-

times very different, data flows which are potentially

planned, implemented and operated by different

parties. Consequently configuration of networks to

meet those requirements is a crucial task. In tele-

communication networks and to a lesser degree also

in enterprise networks the solution to achieve the

desired quality of service (QoS) is to construct virtu-

al networks dedicated and optimized for the respec-

tive applications which try to optimize the use of the

underlying physical network. There exists a broad

range of possible network virtualization solutions

adapted to the respective domains (Duan et al.,

2012)

In the last years, networks controlling machines

in industry automation, buildings or in Supervisory

Control and Data Acquisition (SCADA) systems are

using more and more technologies and standards

which are built upon Ethernet and Internet technolo-

gies. However, those networks face very specific

requirements which cannot easily be met by apply-

ing technologies from the telecommunication or

enterprise networks. Still, there is an ever increasing

need for interoperability driven by higher integration

between clouds, enterprise networks, on the one

hand, and the industrial networked systems on the

other. Several trends in these areas demand for new

networking concepts. First, the upcoming Internet-

of-Things will vastly increase the number of devices

and applications managed and to be supported in the

network and will demand for more agility, see also

Houyou et al., 2012. Second, the market demands

for an ever-increasing flexibility to support new

business models and to be able to quickly adopt new

technologies. In the industrial domain, however, it is

crucial to provide a reliable and deterministic opera-

tion. This is the major reason why operators of in-

dustrial networks are reluctant to change a running

system.

This work introduces a system architecture

which adapts the network virtualization and resource

control ideas to the industrial domain to achieve a

greater agility, lower management and control costs

while still fulfilling industrial requierements.

Specifically we use the industry automation as a

major focus as it has both high complexity and tight

requierments so it is a good benchmark for the novel

solution.

Huth H. and M. Houyou A..

Resource-aware Virtualization for Industrial Networks - A Novel Architecture Combining Resource Management, Policy Control and Network

Virtualization for Networks in Automation or Supervisory Control and Data Acquisition Networks.

DOI: 10.5220/0004508900440050

In Proceedings of the 4th International Conference on Data Communication Networking, 10th International Conference on e-Business and 4th

International Conference on Optical Communication Systems (DCNET-2013), pages 44-50

ISBN: 978-989-8565-72-3

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

Industrial automation and control are

characterized by a great variety of communication

standard. There is still a large installation of non-IP

based so-called fieldbus systems, but in this study

we address IP-based technologies only as this is

commonly considered to be the future in automation

(see Jasperneite et al., 2009).

Requierements for automation networks differ

significantly from their counterparts in enterprise

and telecommunication. Jasperneite 2009 lists, e.g.,

low configuration costs, IEEE-802.3 compatibility,

hard real-time, and reliability requierments far

beyond multimedia for automation networks.

Another non-technical requierement has its origin in

the long life cycles and large base of installed -and

often very expensive- devices in industrial domains.

Thus any new concept must provide a clear

migration path that enables gradual modernisation

by re-using as much as possible from existing

installations. Shielding control applications from

other traffic in the LAN is requiered for reliable

operation (Martin, 2011). Devices in the embedded

domain typically also differ from enterprise or

telecommunication equipment. These devices are in

general much smaller in terms of computing power

and number of ports. Also, - as opposed to applica-

tion-based programming- many real-time related

functions are supported by ASIC implementations

and specialized operating systems. However, most

of these devices already have powerful management

features by means of standard SNMP and propietary

extensions. There is also a high cost pressure on

both network and end devices in automation. Thus

all solutions must be “lean,” i.e. they should not add

additional costs by requiering powerful CPUs or

larger on-device memory.

Furthermore, both network and applications

typically are subject of a planning step. After this

step there is the commissioning of the configurations

determined in the planning phase, followed by the

operation phase. One drawback of this approach is

that any change in the applications or in the network

may necessitate revision of the planning. If this is

the case, reconfigurations in many places might be

required. Additionally, many applications are tightly

bound to a select physical topology and specific

devices. This tight coupling of applications with the

physical network makes again any change a

challenge.

The solution presented here decouples

applications from the physical network. This is done

by providing an abstract view that is independent of

concrete technologies and that is also independent of

the physical network topology. Furthermore,

different applications can be seperated and

“shielded” from each other by means of on-demand

virtualization of the network and its resources. This

allows for independent changes in applications or in

the physical network. By adherring to this approach

one also isolates changes in a way that is not needed

to re-plan the complete automation applications if

only small changes have occured. Forming virtual

networks for applications also allows to integrate

different technologies. Our apporach has thus the

additional avantage of supporting heterogeinity and

multi-tenancy in a natural way.

Unlike telecommunication networks, our

approach cannot be realised by using overlays such

as VPNs or MPLS. The reason for this is that the

underlying network shall remain simple and well

suited for small, embedded devices. Also, the per-

packet overhead of tunneling technologies (overlays)

makes it impossible to meet ultra-fast forwarding

and switch times required in industrial-Etherent

standards. Even lean concepts like MPLS may not

be usable, since they requiere reading larger portions

of a packet before a forwarding decision can be met.

This procedure prohibits ultra-fast cut-through

forwarding found in many industrial switches (see

Prytz, 2008).

Since overlays cannot be used for virtualization

in automation networks, other means are needed.

Our approach attempts to re-use layer-2 features

such as, e.g., VLANs (see Chowdhury and Boutaba ,

2010) or Shortest-Path Bridging (see D. Allan et al.,

2010). We also consider the direct manipulation of

forwarding/routing tables in the the spirit ofOpen

Flow (see, e.g., Curtis et al., 2011). Unlike Open

Flow however, our concept allows to implement a

work split between an intelligent and central live

management tool and intelligent devices, which then

can operate at full speed and with some autonomity.

Because our architecture essentially partions a

network including resources into new virtual

networks, which -from an applications point of

view- behave more or less like physical networks,

we use the term 'slice' for a virtual network in our

architecture (see Chowdhury and Boutaba, 2010).

2 RELATED WORK

Network virtualization is not new. Well known

technologies and standards include IEEE 802.1ak

VLAN (IEEE Std 802.1Q and amendments) and

Multiprotocol Label Switching (Rosen et al., 2001).

These technologies allow marking and identifying

packets throughout the network and also

Resource-awareVirtualizationforIndustrialNetworks-ANovelArchitectureCombiningResourceManagement,Policy

ControlandNetworkVirtualizationforNetworksinAutomationorSupervisoryControlandDataAcquisitionNetworks

manipulating the way packets are treated (i.e. rout-

ing, QoS, security policies). This is achieved in all

underlying network elements such as switches or

routers. IP tunnelling or encrypted SSH tunnels is a

second form of network virtualization, also called

'Virtual Private Networks' (VPN). VPNs create an

overlay between peers and cannot easily be manipu-

lated by the underlying infrastructure.

Current network-virtualization approaches ad-

dress the following problems by manipulating the

route of packets between end points:

 Logical separation of distributed applications or

end points over the same shared physical infra-

structure (path isolation). The result of such a logi-

cal separation is frequently referred to as 'sub-

strate'.

 Allow additional security features (encryption,

access control, and authentication) and limiting

connectivity to parts of the network.

 Less common, but also possible, is to tailor differ-

ent QoS dimensions (e.g. bandwidth, delay guaran-

tees, reliability needs, security, etc.) for each virtu-

al network. This is done by hiding the substrate

choices or the methods involved in establishing the

virtual network. Therefore, applications are una-

ware of the underlying resource management and

resource allocation. Both are managed on a per-

virtual-network basis.

Additionally, one needs means to (a) calculate

optimal paths through the network (traffic engineer-

ing) and (b) means to commission rules to network

elements. The latter is necessary for configuring the

virtual network. The state of the art is to rely on

costly and complex tools that are inherently bound

to a specific technology. Step (a), traffic engineer-

ing, is typically done off-line and then commis-

sioned once before network boot. There are rare

exceptions, for example the MPLS- and IP-routing-

based approach described by Hoogendoorn 2003.

Similar to Hoogendoorn work, this paper also intro-

duces a domain controller that is responsible for part

of the network. This controller also implements on-

line traffic engineering and automatic configuration

of network elements.

Together with a better management of resources

in the network and a classification of communication

needs of “factory” applications, we aim at making

the network management happen in an autonomous

way. This is done in such a way that requests for

resources are dealt with in a central entity which also

may established and/or extended virtual networks as

needed. Also, changes (for optimization purposes, or

dealing with limited failures) in the network are

hidden from both the operator and the application as

much as possible. By so doing one limits the run-

time management overhead to dealing with critical

situations (e.g., large-scale hardware failures or

system breakdowns).

However, today's solutions are pre-configured

by means of network management based on pre-

planned rules, and resource management or QoS

aspects are typically not or only rudimentary han-

dled. The granularity of a solution is typically on a

domain or application-group level. Examples in-

clude multi-tenancy networks enabling many com-

panies to share a common infrastructure or to sepa-

rate various applications such as voice-over-IP,

network management and automation. Our approach

shall support a finer-granularity mapping of services

to virtual networks. While this is of course feasible

with today's approaches, the incurred management

costs prohibit implementation and management of a

(potentially) large number of virtual networks. In

fact, today's networks do not have any interface to

applications for creating, changing, or even monitor-

ing properties of a virtual network. The proposal of

combining several Ethernet extensions and protocols

with virtualization has been addressed in previous

work. However, the proposed combination by Finn

2012 does not address the network-design issue and

the interface between applications and the network.

Rather than using a zoo of specialized protocols

another approach is to directly configure the behav-

iour of network elements. Notice that the this strate-

gy is also pursued by the OpenFlow community

(The GENI Project Office, 2008). OpenFlow how-

ever imposes a high signalling overhead, as it typi-

cally attempts to control the network on a per-flow

level. Also, OpenFlow requires new network devices

(Curtis et al., 2011). Another weak point of Open-

Flow is error handling: rearranging or recreating

paths and states may take a significant amount of

time due to a high signaling load. To meet industrial

reliability demands, very fast and locally imple-

mented failure recovery is a must.

The interface to a virtual network for applica-

tions is typically mapped to a physical or a virtual

network interface (see Fischer et al., 2013). There

are basically two strategies for achieving this map-

ping:

 An end device is attached to an edge device (i.e. a

switch) and the virtualization begins/ends at the

respective edge port (i.e. port-based VLAN). In

this case, all applications on the end device will

share the same virtual network and are not be able

to detect it.

 A virtual network ends in the end device and a

virtual interface provides network access. In this

DCNET2013-InternationalConferenceonDataCommunicationNetworking

case, applications can use a specific virtual net-

work by simply using the respective virtual inter-

face.

Building on these existing protocols and technol-

ogies, our communication service adds means for

creating and tearing down a virtual network on de-

mand, and for managing resources “behind the

scenes.”

In the state-of-the-art solutions presented above,

the network does not -or only in a very restricted

way- communicate with applications. Thus, applica-

tions that need to react to network issues such as

broken links or bandwidth problems, need to imple-

ment either their own end-to-end monitoring system

or they need to use the minimal error messages pro-

vided by the socket layer via ICMP. Our approach

on the one hand shall provide a richer interface for

network state information. On the other hand it shall

hide and repair many errors by means of resilience

mechanisms.

Network virtualization is in principle independ-

ent from quality-of-service or other traffic policies,

but in telecommunication a combination of both

already in use. One example is the use of MPLS to

create virtual networks and the use RSVP-TE to

apply QoS policies to that path (Rodriguez-Perez

and Gonzalez-Sanchez, 2007). This approach may

employ different granularities, i.e. it may operate on

aggregates or per-flow.

There are QoS concepts on different OSI layers

that are in principle independent of network virtual-

ization. For example IntServ (Wroclawski, 1997) is

based on reservations for application-layer flows. A

similar idea is used on layer-2 by the Audio/Video

Bridging (AVB) standards promoted by IEEE 802.1

(Imtiaz et al., 2009). These approaches, however,

rely on a routing or path finding mechanism that are

hard to manipulate in order to allow full-blown traf-

fic engineering similar to MPLS (i.e. assigning dif-

ferent parallel traffic to different paths).

It should be noted that today’s concepts of net-

work virtualization and network-resource control are

also driven by cloud-computing and data-center

applications. In these case, creation of virtual net-

works on-demand is an essential functionality, the

so-called 'Network-as-a-Service' (Costa et al., 2012).

3 SOLUTION ARCHITECTURE

3.1 Overall System Architecture

The solution presented here proposes, at its core, a

network-abstraction layer, the 'slice layer'

(see fig. 1).

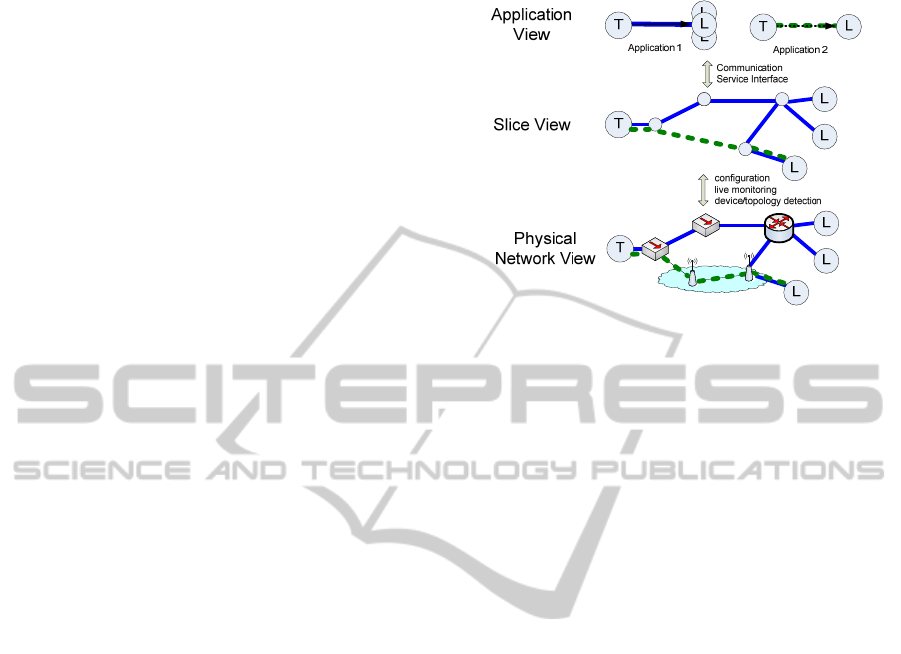

Figure 1: Layers of Network Abstraction.

This slice layer provides a graph view of the net-

work: applications can only see edge nodes and

intelligent traffic-engineering algorithms can operate

on the graph without knowing details of the underly-

ing substrate implementation. Important architectur-

al components are clean interfaces meaning they

must provide clearly defined responsibilities and

enforce a "separation of concerns" (Laplante, 2007).

Applications (including planning and management

tools) use the 'Communication Service Interface'

(CSI) for setting up and using the network. The slice

view is provided and controlled from a central com-

ponent, the slice manager (SMGR). The SMGR is

responsible for a network, or a part of a network. If a

network virtualization (= slice) must be constructed,

the SMGR receives the necessary specifications

from the application via the CSI. The SMGR then

calculates an optimal routing sub-graph and finally

commissions the required rules to the physical net-

work using a 'driver layer'. The driver layer has

knowledge of the concrete methods for accessing the

devices and this layer also provides device abstrac-

tion for the slice view in the SMGR. The driver layer

forms the base for including a multitude of different

standards or vendor-specific device interfaces. It is

an important component for making the slice layer

agnostic to the underlying device and protocol het-

erogeneity. Unlike approaches like OpenFlow or

MPLS based networks, this layered approach does

not mandate for specific interfaces. The slice man-

ager can handle all of the interfaces simultaneously

by means of driver "plug-ins". Because of that, the

slice manager constitutes an upgrade-friendly solu-

tion.

Devices, be it end devices or network elements,

must be able to perform routing or forwarding ac-

cording to the policies defined by the SMGR. In our

Resource-awareVirtualizationforIndustrialNetworks-ANovelArchitectureCombiningResourceManagement,Policy

ControlandNetworkVirtualizationforNetworksinAutomationorSupervisoryControlandDataAcquisitionNetworks

architecture, we bundle the needed functionality plus

signaling interface towards the SMGR in a logical

function called 'Slice Enforcement Point' (SEP, see

fig. 2). The SEP can be implemented on that device

or it uses other means (e.g. SNMP) to remotely

perform its tasks. End devices that are not under

control of a SEP -hereafter called 'legacy devices'-

can be attached to an adjacent network element with

an SEP ('edge SEP' in fig. 2). This edge SEP con-

trols the corresponding network interfaces and en-

forces the needed policies for the legacy devices.

This solution is similar to a port-based VLAN,

which indicates a migration path from today’s

Ethernet technology toward our slice solution.

Devices that are specifically dedicated to support

the new approach will have their own local SEP

('integrated SEP', fig. 2) so that slices can origin in

that device.

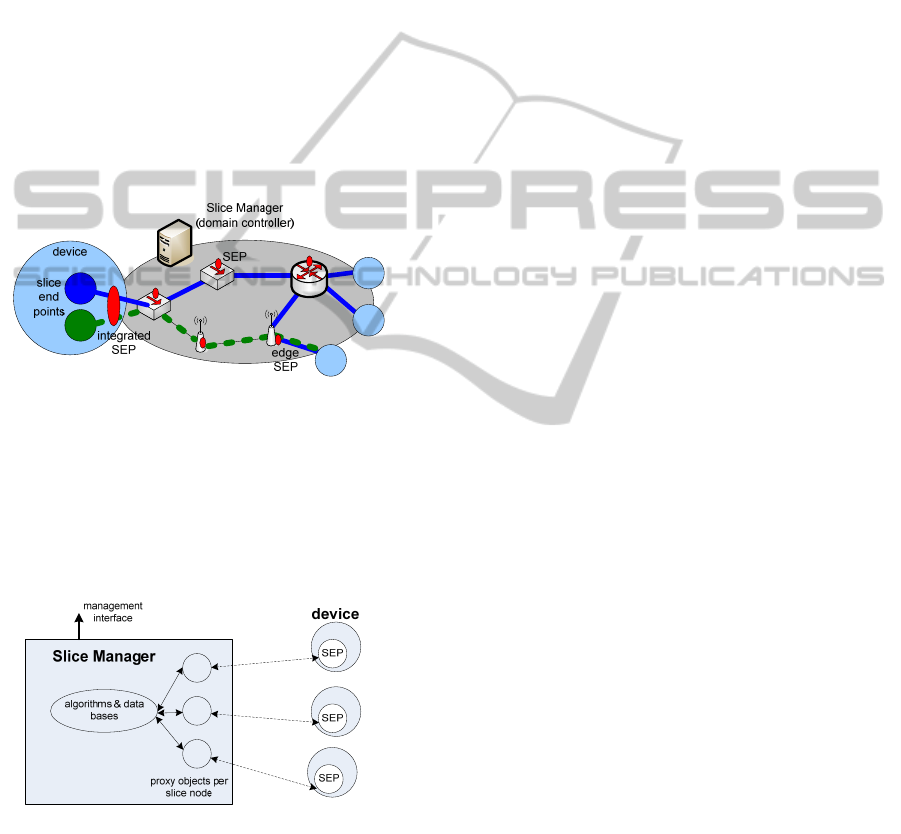

Figure 2: Architecture Birds View.

3.2 The Slice Manager

The slice manager controls all devices it is responsi-

ble for and it provides the interface for managing

slices. Fig. 3 shows the internal functional architec-

ture of the slice manager.

Figure 3: Simplified Slice Manager Architecture.

The slice manager needs exposes both a manage-

ment interface and an interface for accessing devices

in the network. The management interface allows

controlling (i.e. establishing, tearing down and

changing) slices without interventions of applica-

tions. The management interface can also be ac-

cessed by planning tools or by an operator. The

interface towards the physical devices follows an

object-oriented paradigm with one proxy object per

device managed by this SMGR instance. These

proxy objects also provide a standardized abstract

view of a device and they contain drivers for access-

ing the device. For example, an industrial-Ethernet

device and a legacy-Ethernet device have different

proxy implementations and the algorithms in the

SMGR only see different device properties but

access to the devices (viz. the interface) is of the

same type for both.

In order to manage and optimize slices, the

SMGR must not only know all devices and their

capabilities, but also the topology of the network.

One way to accomplish this is to collect all neigh-

borhood information from the devices and infer the

network graph from the information collected. As

SNMP and LLDP are already frequently used in

industrial devices, this info is usually present even in

today's devices.

Notice that fig. 3 does not show an application

interface. We propose to re-use the device interface

(which uses SEP signaling) as an application signal-

ing channel for several reasons: (a) it is easy for

applications to discover a local SEP, so there is no

need for another service discovery. (b) Access con-

trol becomes easier as it already can be performed in

the SEP. (c) No need for an additional asynchronous

and multi-client interface, a fact that simplifies im-

plementation of the SMGR.

3.3 The Slice Enforcement Point

As explained before, the SEP is a functionality

bound to a device. It is responsible for signaling

towards the SMGR or the applications, and it con-

trols the network interfaces of that device. For ex-

ample, the SEP must be able to manipulate forward-

ing or routing tables and to set QoS rules. The actual

implementation can re-use existing control interface

such as SNMP (Case, 2002) or IETF FORCES

(Yang et al., 2004). However, we believe that a

small dedicated agent forming the SEP is beneficial

because it can be tailored for that purpose and it may

add local intelligence which, e.g., enables quick

recovery in failure cases without contacting the

SMGR. Notice that due to the object-oriented archi-

tecture of the SMGR, a mix of different SEP imple-

mentations is of course possible.

3.4 The Applications Interface

to Communication Services

In order to use slices, applications need a

DCNET2013-InternationalConferenceonDataCommunicationNetworking

communication interface (User Plane) and signaling

means (Control Plane) for attaching to a slice and for

specifying properties such as e.g. bandwidth con-

straints or QoS. For the user plane we propose the

use a virtual layer-2 interface, similar to solutions

found in server-virtualization environments. The

signaling can use the next SEP as entry point, which

is either located on a device or on an adjacent edge

device (switch or router).

Specification of a slice includes at least a specifi-

cation of the required QoS, but in order to enable on-

line traffic engineering, a specification of the traffic

is also beneficial. Notice we propose to use slices for

aggregate flows of an application and not for single

flows, although the latter is conceptually possible.

Beside pure QoS, industrial applications may

have tight reliability requirements. Further more,

some of them will have a high importance (i.e. the

safety application). Thus we propose to add a notion

of resilience and importance to the specification of

traffic requirements. A traffic-engineering algorithm

can use this information to, e.g., establish redundant

paths or to resolve resource shortages.

3.5 Use Cases

The following sample use cases illustrate how the

slice system can be used.

First, consider a data acquisition application ac-

cessing many sensors and a server collecting the

sensor data. In a planning step, a traffic matrix is

calculated and a slice is defined. The slice definition

can be forwarded to the slice manager. The slice

manager then calculates an optimal path for the slice

and commissions it to the network devices. After

that, the end devices (sensors and server) simply

attach to the predefined slice. In the 'attach' process,

a virtual network interface is created by the device

SEP and the interface is bound to the slice in ques-

tion.

A second example is an automation application

that uses a PLC for controlling actuators and reading

sensors. The application requires “hard” real-time

communication and is programmed by a planning

tool. This tool can estimate and generate the traffic

matrix and also the slice specification. The latter is

then pushed into the slice manager. Unlike today,

the planning tool does not need full knowledge of

the topology and capabilities of the network. The

slice manager in turn - knowing the properties of the

network - can construct an optimal slice, eventually

re-using specific means from one of the many Indus-

trial Ethernet standards (Jasperneite et al., 2009).

While the first two examples assume pre-

planning, dynamic slice set-up in the running system

can is also feasible. For instance, consider that a

remote support needs to access a robot for mainte-

nance. In this case the factory operator may install

means for granting access for the remote service

over the firewall. In order to facilitate this, the op-

erator installs a slice on the fly. This slice might

support best-effort communication and an upper

bandwidth limit. Additionally, this slice only expos-

es the devices needed for the remote service.

These sample use cases also illustrate that the

'normal' use of the slice system is to construct semi-

static or longer living slices for aggregates (i.e.

flows belonging to one application). In many cases

the slices will be instantiated by means of a configu-

ration/management interface rather than application

signaling.

3.6 Security Aspects

Slices or network virtualization in general is not a

security concept; rather it is a complements security

tools for constructing application 'sand boxes'. Fur-

thermore, the proposed approach allows not only to

dynamically grant or deny access, but it also sup-

ports 'on-demand' control of the resources that a

certain slice consumes. By virtue of this control the

slice manager prevents DoS attacks (see also the

third use case above). We believe that this is an

essential property for supporting multi-tenancy and

applications sharing the same infrastructure.

4 CONCLUSIONS

The work presented specifies a system architecture

for network virtualization in industrial networks.

Concepts from Enterprise and Telecommunication

have been mapped and adopted to fulfill industrial

requirements. A domain controller, the Slice Man-

ager, directly manipulates a potentially heterogene-

ous network while providing a simple abstract view

to planning and management applications. Applica-

tions run in "slice" which is a virtual network with

clear QoS guarantees and bandwidth policies.

Ongoing research focuses on three issues:

 Scalability: our current approach assumes one slice

manager. In order to cover larger physical areas

(signaling lag!) or larger numbers of devices, we

investigate the use of multiple domain controllers,

which, of course, need to co-ordinate their work.

 Optimal use of Industrial Ethernet features: current

industrial standards provide many advanced resili-

Resource-awareVirtualizationforIndustrialNetworks-ANovelArchitectureCombiningResourceManagement,Policy

ControlandNetworkVirtualizationforNetworksinAutomationorSupervisoryControlandDataAcquisitionNetworks

ence features, sophisticated QoS beyond standard

Ethernet, and many other features optimized for

industrial requirements. Re-using these capabilities

in an optimal manner is another challenge for fu-

ture work.

 Traffic Engineering adapted to the slice system:

considering the specific capabilities and require-

ments in this industrial domain, TE algorithms

known from other areas must be analysed and

adapted.

Further more, implementation issues and stand-

ardization have to be considered. The first topic is

addressed by a Linux-based proof-of-concept, which

forms a test bed for future enhancements. Concern-

ing standardization, the authors believe that engag-

ing IETF Forces or the OpenFlow community may

be a way to proceed, but also Industrial Ethernet

standardization must be addressed.

ACKNOWLEDGEMENTS

This work has been carried out in the European FP7

funded research project IoT@Work.

We would like to thank Jo Walewski for his use-

ful review and helpful discussion.

REFERENCES

Houyou A., Huth H.-P., Kloukinas C., Trsek H., Rotondi

D., "Agile Manufacturing: General Challenges and an

IoT@Work Perspective", 17th IEEE International

Conference on Emerging Technologies and Factory

Automation (ETFA 2012); 09/2012

Duan Q, Yan Y., Vasilakos A., "A Survey on Service-

Oriented Network Virtualization Toward Convergence

of Networking and Cloud Computing", IEEE Transac-

tions on Network and Service Management, Vol. 9,

No. 4, Dec. 2012

Jasperneite J., Imtiaz J., Schumacher M., Weber K., "A

Proposal for a Generic Real-Time Ethernet System",

IEEE Transactions on Industrial Informatics, 06/2009

Hoogendoorn C., Schrodi K., Huber M., Winkler C.,

Charzinski C., "Towards Carrier-Grade Next Genera-

tion Networks", Proc. ICCT 2003, Beijing, China, Apr.

2003

The GENI Project Office, "The GENI System Overview",

Document ID: GENI-SE-SY-SO-02.0, September 29,

2008, Cambridge, US, geni.net

Rosen E., Viswanathan A., Callon R., "RFC 3031: Multi-

protocol Label Switching Architecture", IETF, 2001

McKeown N., Anderson T., Balakrishnan H., Parulkar G.,

Peterson L., Rexford

Curtis, A., Mogul, J., Tourilhes J., Yalagandula P., Sharma

P., Banerjee S., "DevoFlow: Scaling Flow Manage-

ment for High-Performance Networks", SIGCOMM

11, August 15-19, 2011, Toronto, Canada

Martin K., "Network Infrastructure in Large, Integrated

Control Systems", Cement Industry Technical Confer-

ence, 2011 IEEE-IAS/PCA 53rd

Costa P., Migliavacca M., Pietzuch P., Wolf A. 2012.

"NaaS: network-as-a-service in the cloud." Hot-

ICE'12. USENIX Association, Berkeley, CA, USA

Case J., "Introduction and Applicability Statements for

Internet Standard Management Framework", RFC

3410, IETF, Dec. 2002

Yang L., Dantu R., Anderson T., Gopal R., "Forwarding

and Control Element Separation (ForCES) Frame-

work", RFC 3746, IETF, April 2004

Wroclawski J., "The Use of RSVP with IETF Integrated

Services", RFC 2210, IETF, Sept. 1997

Imtiaz J., Jasperneite J., Han L., “A performance study of

Ethernet Audio Video Bridging (AVB) for Industrial

real-time communication”, Proceedings of 12th IEEE

International Conference on Emerging Technologies

and Factory Automation, Palma de Mallorca, Spain,

22-25 Sept. 2009

Chowdhury N., Boutaba R., “A survey of network virtual-

ization”, Computer Networks, 2010 – Elsevier, Vol-

ume 54, Issue 5, 8 April 2010, Pages 862–876

Allan D., Ashwood-Smith P., Bragg, N. Farkas J., Fedyk

D. Ouellete M., Seaman M, Unbehagen P., "Shortest

path bridging: Efficient control of larger ethernet net-

works," Communications Magazine, IEEE , vol.48,

no.10, pp.128-135, October 2010.

Rodriguez-Perez F., Gonzalez-Sanchez J., "Extending

RSVP-TE to support Guarantee of Service in MPLS

Innovative Algorithms and Techniques in Automation,

Industrial Electronics and Telecommunications,

Springer 9/2007, DOI:10.1007/978-1-4020-6266-7_28

pp 149-154

Finn N., “Improvement in Ethernet Standards to Further

Reduce Latency and Jitter”, Presented at the ODVA

Industry Conference and 15

Annual Meeting, Oct.

2012, Stone Mountain, Georgia, USA.

Fischer, A.; Botero, J.; Beck, M.; De Meer, H.; Hessel-

bach, X., "Virtual Network Embedding: A Survey",

Communications Surveys & Tutorials, IEEE , vol.PP,

no.99, pp.1,19, 0 doi: 10.1109/SURV.2013.013013.

00155

Prytz, Gunnar. "A performance analysis of EtherCAT and

PROFINET IRT.", IEEE International Conference on

Emerging Technologies and Factory Automation ET-

FA, 2008.

Laplante, P. " What Every Engineer Should Know about

Software Engineering", CRC Press, 2007, ISBN

1420006746.

DCNET2013-InternationalConferenceonDataCommunicationNetworking
