EvoGUITest – A Graphical User Interface Testing Framework

based on Evolutionary Algorithms

Gentiana Ioana Laţiu, Octavian Creţ

and Lucia Văcariu

Technical University of Cluj-Napoca, Computer Science Department, 26-28 Bariţiu Street, Cluj-Napoca, Romania

Keywords: Graphical User Interface Testing, Evolutionary Algorithms, Testing Framework.

Abstract: Software testing has become an important phase in software applications’ lifecycle. Graphical User

Interface (GUI) components can be found in a large number of desktops and web applications and also in a

wide variety of systems like mobile phones. In the last years GUIs have become more and more complex

and interactive. The GUI testing process requires interaction with the GUI components, mainly by

generating mouse and keyboard events. Given their increased importance, GUIs verification for correctness

can contribute to the establishment of the correct functionality of the corresponding software application.

Most of the current GUI testing methodologies are ad hoc and manual, therefore they are resource

consuming. This paper presents EvoGUITest, a novel GUI testing framework based on evolutionary

algorithms which tests the GUI independently from the application code itself. EvoGUITest framework is

designed for testing GUIs of web applications.

1 INTRODUCTION

GUI is a specification for the look and feel of the

software application (Bernard, 1998). GUI consists

of graphical elements such as windows, icons,

menus, buttons, testboxes. A well designed GUI is

very intuitive and easy to be used by the users. The

GUI components can be a crucial point in the users’

decisions to either use or not use that specific

software application (Pimenta, 2006).

While GUIs have become ubiquitous and

increasingly complex, their testing remains largely

ad-hoc. Due to his complexity, the testing process is

problematic and time-consuming (Ganov et al.,

2008).

During manual GUI testing procss, each test case

needs a long time to execute (tens of seconds, for a

medium complexity GUI). The manual checking

process of the result needs another time spent by the

human tester, which is also of a few tens of seconds.

If for instance there is a suite of 10,000 test cases to

be applied, then the total testing time becomes

enormous (hundreds of hours) (Yang, 2011).

If the test cases are executed automatically, it

takes around 3 seconds for each test case to be

executed, and another 1 second for checking the

output results. 10,000 test cases need around 10

hours to be executed, which shows an acceleration

of one order of magnitude compared to the manual

testing process (Yang, 2011) – that is why the

research mainly focuses on automated GUI testing.

Some years ago, test cases were generated

randomly during the automatic GUI testing process.

Because the coverage of random input testing was

very weak, the scientific community started studying

the usage of the Evolutionary Algortihms (EA) for

automating the GUI testing process.

In the last years the Evolutionary Art started to

be used in a lot of applications, with interactive

evolutionary algorithms in which user assigns scores

to images based on their suitability (Bergen and

Ross, 2011). EvoSpace framework is used for

development of interactive algorithms for artistic

design (Valdez et al., 2013).

The rest of this paper is organized as follows:

Section 2 describes the automatic process for GUI

testing, Section 3 describes in details the EA

process, Section 4 describes our novel proposed GUI

testing framework (EvoGUITest). Inside this Section

the framework architecture and the experimental

results are also presented. Section 5 concludes the

paper, sumarizing the future work planned.

Ioana Latiu G., Cre¸t O. and V

acariu L..

EvoGUITest – A Graphical User Interface Testing Framework based on Evolutionary Algorithms.

DOI: 10.5220/0004518200750082

In Proceedings of the 5th International Joint Conference on Computational Intelligence (ECTA-2013), pages 75-82

ISBN: 978-989-8565-77-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 AUTOMATIC GUI TESTING

The GUI testing is a process which aims at testing

the software application’s user interface and

detecting if the GUI is functionally correct. GUI

testing includes checking how the software

application handles mouse and keyboard events

(Prabhu and Malmurugan, 2011).

The automatic GUI testing process includes

automatic manual testing tasks performed by human

testers. By the automatic testing process, a software

program executes the testing tasks and analyzes if

the GUI under test is functionally correct.

Automatic GUI testing can be executed using

different techniques.

2.1 Capture/Replay Tools

These tools have two modes of functioning: capture

and replay. In capture (record) mode, the tool is able

to record testers’ actions while they are interacting

with the GUI. The set of actions are recorded inside

test scripts. These tools provide a scripting language

which can be used by engineers for maintaining the

test scripts.

In replay mode, the recorded test scripts are

executed. During execution of each test script, some

mouse or keyboard events are executed on the GUI.

The test scripts’ execution process is automatic and

can be repeated several times.

The most important disadvantage of these GUI

testing tools is the lack of structure of the test

scripts, which makes the maintenance process

difficult. These tools don’t provide any support to

design and evaluate test cases based on coverage

criteria.

Three examples for these tools are: Selenium

(http://seleniumhq.org), WinRunner (http://mercury.

com) and Rational Robot (http://www-

01.ibm.com/software/awdtools/ tester/robot/)

2.2 Random Input Testing

This testing technique is also referred in the

literature as stochastic testing or monkeys testing

(Nyman, 2006). Random input testing refers to the

idea that somebody seats in front of a software

application and interacts randomly with it, by

sending keyboard and mouse events.

The goal of monkeys testing is to crash the GUI

of the software application under test. They generate

tests cases randomly without knowing anything

about the software application. The biggest problem

of this testing technique is that monkeys cannot

recognize software errors. There is a smarter

category of monkeys called “smart monkeys” which

have some knowledge about the software application

under test. These monkeys can find more bugs, but

they are more expensive to be developed (Pimenta,

2006).

Even if random input testing tools have a weak

coverage, one of the biggest software companies has

reported that 10-20% of the bugs in their software

applications were found by using random input

testing method (Nyman, 2006).

2.3 Unit Testing Frameworks

Unit testing technique for GUI testing requires

programming the test cases. Unit testing frameworks

like NUnit (http://nunit.org) can be used for

executing GUI test cases.

These tools are helpful in case many bugs can

only be discovered through a particular sequence of

actions. With these tools the tester has to write code

to simulate user interaction with the GUI under test.

After executing the test cases the tester should check

if the result obtained is the one expected.

In order to be effective, the GUI testing process

using unit testing frameworks needs a lot of

programming effort. There are some GUI libraries

such as Abbot (http://abbot.sourceforge.net) which

provide methods to simulate user interaction.

2.4 Model-based Testing

Model-based testing requires that GUI states and

events are described with a certain type of model.

Having these models in place, the test cases can be

generated automatically, either randomly or

according to some particular coverage criteria.

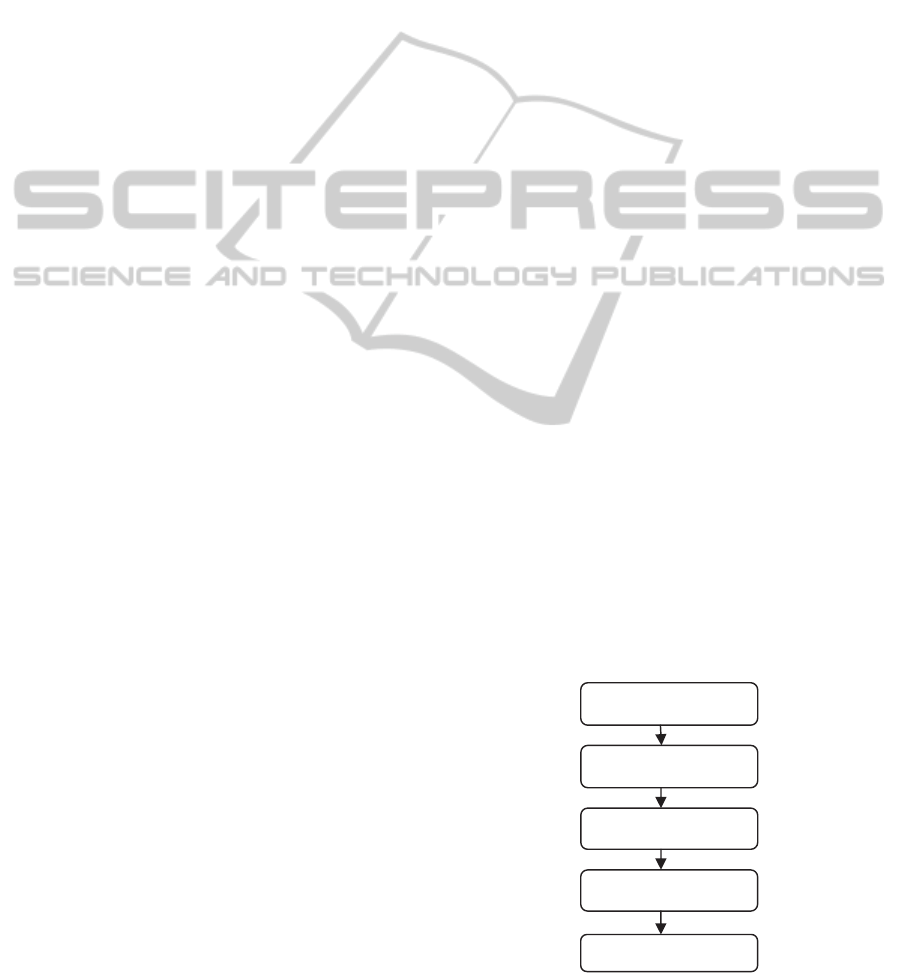

The model-based testing process is presented in

Figure 1.

GUI

GUI model

Test case generation

Test case execution

Results checking

Figure 1: Model based testing.

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

The model based testing process starts with the

construction of the GUI model. The model is used to

generate test cases which are then executed over the

GUI. In the last step, the obtained results are

compared to the expected results described in the

model.

The most important existing testing models used

for model based testing are the following ones

(Yang, 2011):

 Event Sequence Graph (ESG) – a directed graph

which contains a finite set of nodes and a finite set

of edges. Each node represents a GUI event and

the sequence of nodes represents the sequence of

GUI events. This model was proposed by Belli et

al. (Belli, 2001).

 Event Flow Graph (EFG) and Event interaction

graph (EIG) – inside EFG, each node represents a

GUI event and all events which can be executed

immediately after one event are directly linked

with directed edges from this event. A path inside

the EFG represents a sequence of GUI events and

can be considered a test case. EIG is the later

version of EFG. The structure of EIG is composed

by all GUI events which represent the GUI nodes

and all relations between events which represent

the graph edges.

The model-based testing technique is usually

used to test the structural representation of a GUI

(Qureshi and Nadeem, 2013).

EvoGUITest framework uses in the beginning of

testing process a random input testing method for

generating the first set of test cases. Then the test

cases evolve using the EA process. The aim of

EvoGUITest framework is to find out the longest

sequence of events which tests as much as possible

GUI controls.

3 EVOLUTIONARY

ALGORITHMS

EAs are software programs that attempt to solve

complex problems by mimicking the processes of

Darwinian evolution (Jones, 1990). They operate on

a population of possible solutions by applying the

principle of survival of the fittest to produce better

approximations to a solution (Pohlheim, 2006).

During the EA process a big number of artificial

individuals search the solution over the space of the

problem.

The artificial individuals are usually represented

by vectors of binary values. Each individual encodes

a possible solution for the problem which needs to

be solved.

The most widely known EA is the Genetic

Algorithm (GA). In the following, the GA and the

Simulated Annealing (SA) algorithms will be

presented. These two algorithms were used for

generating test cases inside the EvoGUITest

application.

3.1 Genetic Algorithms

GA originated from the work of John Holland. They

are the most obvious mapping of natural

evolutionary process into a software application

(Streichert, 2007).

The GA process begins with a set of candidate

solutions which is called population. A population is

composed of individuals who are constituted from

one or more genes. A population’s individuals are

used to form a new population by using crossover

and mutation operators. During the GA process there

is an expectation that the newly generated

individuals are better than their parents.

GAs are well known and widely used in

scientific and technical research because of their

parallel nature, of their design space exploration and

also due to their ability to solve non-linear problems

(Rauf, 2010).

A GA has four important phases:

 Evaluation – during this phase each individual is

evaluated by the evaluation method. The fitness

function is used for evaluation. It calculates how

good the individual is to satisfy the test criteria.

 Selection – during this phase individuals are

chosen randomly from the current population for

creating new individuals in the next generation.

The main idea of the selection methods is that

fittest individual has the biggest probability of

survival; therefore he has a greater probability to

be picked for reproduction.

 Crossover – during this phase, recombination

reproduces the chosen individuals and pair wise

information will be exchanged and will result in a

new population (Rauf, 2010). The crossover

process joins two selected individuals at a

crossover point, thus producing two new

offsprings. During crossover, the first parent’s

right half genes are exchanged with the subsequent

right half of the second parent. After crossover is

performed, each parent pair will result in two

offsprings. Crossover is the operator which is

responsible for improving the individuals.

 Mutation – during this phase a randomly chosen

bit is changed from ‘0’ to ‘1’ or from ‘1’ to ‘0’.

Each bit inside an individual has the same

probability to mutate. Mutation is the operator

EvoGUITest-AGraphicalUserInterfaceTestingFrameworkbasedonEvolutionaryAlgorithms

which is responsible for introducing variety inside

the population.

3.2 Simulated Annealing

SA is a probabilistic method for finding the global

minimum of a cost function that may possess several

local minima (Bertsimas and Tsitsiklis, 1993). This

algorithm emulates the physical process whereby a

solid is slowly cooled until its structure becomes

frozen. This happens at a minimum energy

configuration.

The SA algorithm has four basic elements

(Rutenbar, 1989):

 Configurations – these represent the possible

problem solutions over which the process will

search for the problem solution.

 Move Set – this set represents the computations

performed to move from one configuration to

another, as annealing proceeds.

 Cost Function – measures how “good” a particular

configuration is?

 Cooling Schedule – anneal the problem from a

randomly generated possible solution to a good

solution. Usually the schedule needs a starting hot

temperature and different rules for establishing

when the current temperature should be decreased,

by which amount temperature should be lowered

and when the process should take end.

The most important feature of the SA algorithm

is that it is a probabilistic method where during the

search process the moves that increase the cost

function are accepted in addition to moves which

decrease the cost function (Nascimento et al., 1999).

This feature is the central point of the algorithm

which enables the search process to locate the global

minimum among all the other local minima.

The most important challenge in improving the

performance of the SA algorithm is to decrease the

temperature and in the same time to ensure that the

process does not stop in a local minimum.

The goal of the SA algorithm is to find the

quickest annealing schedule that achieves a value for

finding the global minimum equal to unity

(Nascimento et al., 1999).

The SA algorithm is suitable for solving large

scale optimization problems inside which the global

minimum is located among many local minima

values.

4 EvoGUITest

EvoGUITest is a GUI automated testing framework

based on evolutionary algorithms. It automatically

generates test cases which are used afterwards for

testing the GUI. The test cases suite is generated

automatically by an EA-based process.

EvoGUITest’s objective is to find the sequence of

events which produces the biggest number of

changes inside the GUI in a minimum amount of

time.

4.1 The EvoGUITest Framework

Architecture

The EvoGUITest application is a GUI testing

framework which uses EAs for generating GUI test

cases. It is developed in JavaScript and it runs on

client side. Being developed in JavaScript it is very

easy to be extended without any need of extra tools

to write JavaScript. EvoGUITest is able to generate

test cases for Web applications which have a GUI

component already developed.

The testing process with this GUI testing

framework consists of the following main steps:

 Analysis – the GUI state together with each GUI

controls’ states are analyzed. The result of this step

is the list of HTML properties and events which

correspond with each control located inside GUI.

 Test cases generation – generate test cases by

using the specific EAs methods.

 Test cases execution – executes test cases.

 Results verification – verifies the results after the

execution of the test cases.

Figure 2 presents the main components of the

EvoGUITest framework.

Analysis module

Test cases generation module

Test cases execution module

Results verification module

Figure 2: The EvoGUITest architecture.

The most important part of the framework is the

module which generates test cases using EAs. Each

test case is represented by an individual. The first

population of individuals is randomly generated

(Figure 3).

Each individual consists of an array of genes,

each corresponding to a GUI control. In Figure 3 the

array of genes for each individual corresponds to an

array of ids which correspond to each GUI control.

Each GUI control which appears inside an individual

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

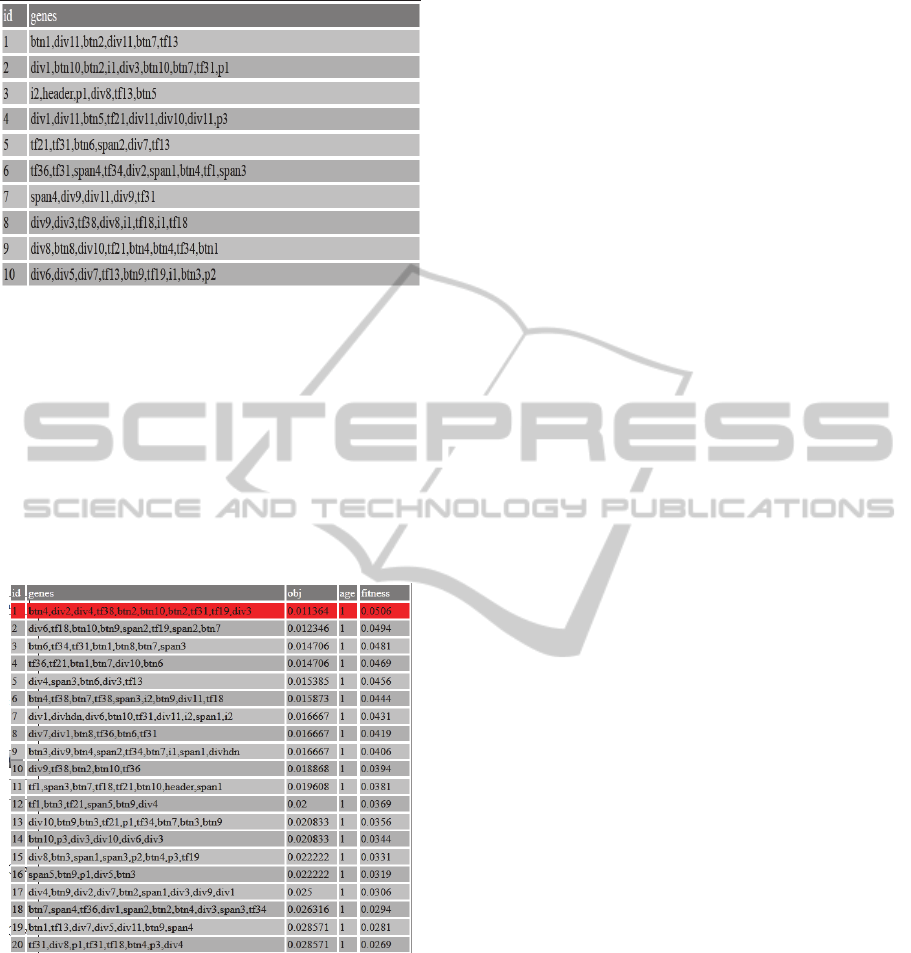

Figure 3: Randomly generated individuals for testing GUI

of Calculator application.

is linked with a user action on the GUI. After the

first population of individuals is generated, the

individuals are evolved by means of the EA process.

After each generation, the new individuals are

displayed together with their objective, age and

fitness function. Figure 4 shows the individuals from

the first generation. The population of individuals is

generated for testing the GUI of a complex

application.

Figure 4: First generation of individuals for testing

complex GUI component.

The individuals are classified so that the first one is

the best individual from the current generation. As it

can be easily observed, the first individual is the one

which contains more button controls; therefore it is

the one which produces the biggest number of

changes inside the GUI. Each individual has the age

equal with 1, because they are individuals from the

first generation. The age represents the current

generation number. The objective column contains

the objective value for each individual, and the

fitness column contains the fitness value assigned to

each individual. The objective attribute represents

the performance of the individuals, while the fitness

value represents rang of individuals inside the

hierarchy.

For example, if we have the following objective

values:

Individual 1: 2

Individual 2: 1000

Individual 3: 65536

if the roulette wheel selection will be applied on

the above population of individuals the last

individual won’t have any chance to be selected for

reproduction. If we assign a fitness function for each

individual, who have the following values:

Individual 1: 2 Fitness: 0.5

Individual 2: 1000 Fitness: 0.3

Individual 3: 65536 Fitness: 0.2

than the last individual has a small chance to be

selected for crossover.

The objective function which evaluates each

individual is presented in formula (1.1):

Objective = (1 / no_of_changes) +

1/(100  no_of_similar_states) +

1/(100  no_of_useless_states)

(1.1)

Each individual should produce the greatest number

of changes and the smallest number of similar states

and useless actions. A useless action is an action

which doesn’t produce any change inside the GUI. A

similar state is a state which has already appeared

earlier inside the set of states produced by the same

individual.

The EvoGUITest framework contains a separate

section where the user can set values for the most

important parameters used by the GA and SA

algorithms. For each one of these two algorithms,

the user can select the values for the parameters

presented in Table 1. The variables that affect the

outcome of the SA algorithm are: the initial

temperature, the rate at which the temperature

decreases (alpha) and the stopping condition of the

algorithm (epsilon).

The number of individuals indicates how many

individuals are there in each population and the

number of generations represents the generations for

which the GA algorithm will be performed. The

number of genes represents the minimum and the

maximum length of each individual from the first

population. The number of selected pairs for

crossover represents how many individuals will be

selected for reproduction. The mutation probability

represents the percentage value of applying the

EvoGUITest-AGraphicalUserInterfaceTestingFrameworkbasedonEvolutionaryAlgorithms

Table 1: Parameters list for GA and SA algorithms.

GA Values SA Values

Number of

individuals

40 Initial

temperature

100

Number of genes

(min, max)

Min: 10

Max: 25

Epsilon 0.001

Number of selected

pairs for crossover

20 Alpha 0.999

Mutation probability 0.2 -

Mutation addition

probability

0.5 -

Mutation removal

probability

0.5 -

Number of

generations

50 -

mutation operator. Mutation can be applied in two

ways: either by removing a gene from an individual

or by adding a new gene.

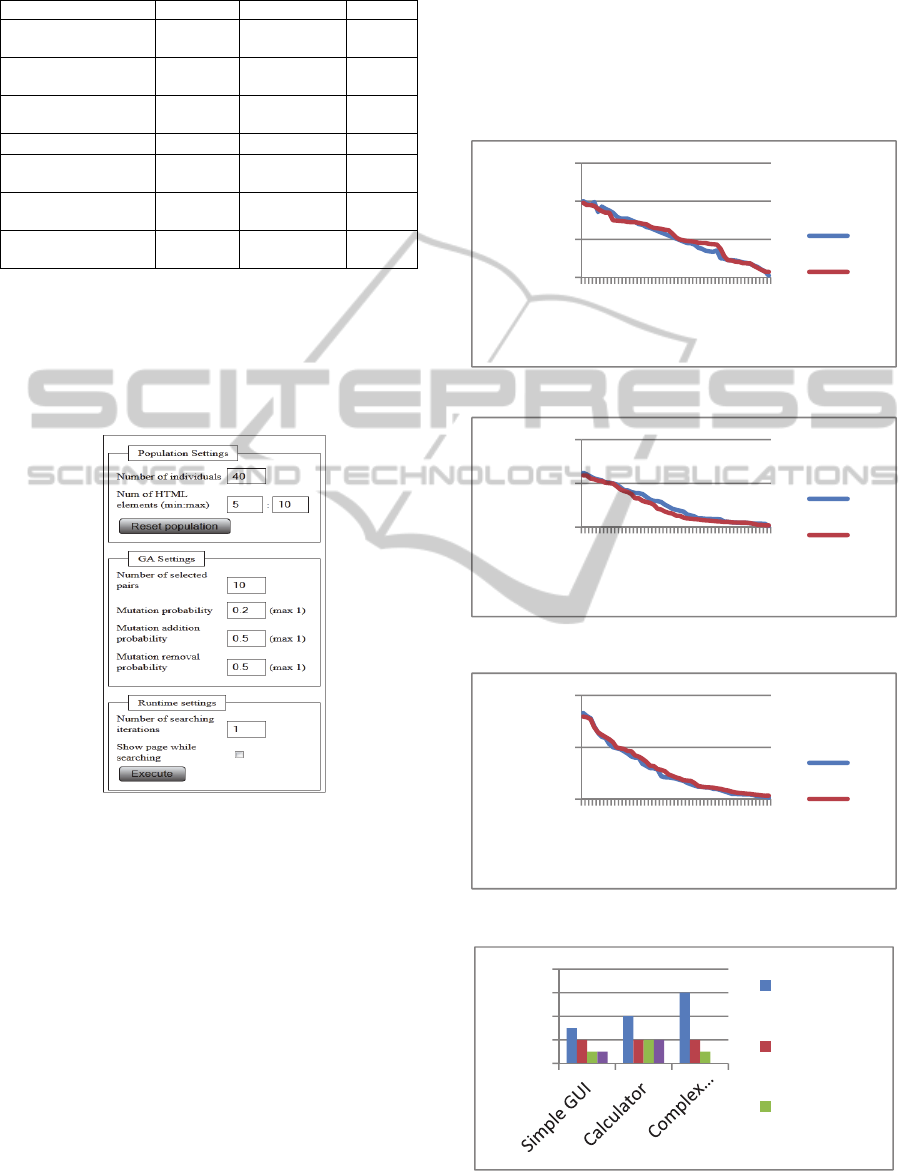

Figure 5 displays the section which consists of

the GA parameters list for the EvoGUITest

application.

Figure 5: GA parameters settings area.

4.2 Experimental Results

All the experiments were performed on a computer

having the following configuration: Intel I3

processor, 2.2 GHz, Windows 7 Operating System.

Three GUIs were tested: the first one is a simple

GUI which consists of two buttons and two

textboxes, the second one is the GUI of the classic

Calculator application from Windows and the last

one is a complex GUI which consists of more than

twenty user controls.

For test cases generation we used both the GA

and the SA algorithms. The selection method used

for GA algorithm was the roulette wheel method.

For each specific parameter, for each algorithm, the

values presented in Table 1 were used in order to

generate the test cases. These values were chosen to

be used for running EAs based on our empirical

studies done before. All the EAs’ specific

parameters’ values were setup after we have tried

hundred of runs with different values for these

parameters. The values for which we have obtained

the best results were chosen.

Figure 6: Test case generation for the simple GUI.

Figure 7: Test case generation for the Calculator GUI.

Figure 8: Test case generation for the complex GUI.

Figure 9: Number of defects discovered by different

testing frameworks.

0,02

0,04

0,06

1 1121314151

Fitness

Iterations

0,05

0,1

1 1121314151

Fitness

Iterations

0,05

0,1

1 1121314151

Fitness

Iterations

DefectsNumber

EvoGUITest

Selenium

WinRunner

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

Figures 6, 7 and 8 present the test results obtained

for each of the three GUIs using the GA and the SA

algorithms for evolving the test cases suite. In Figure

9 there is presented a comparison between four test

suites which are composed of ten test cases. The test

suites were generated with EvoGUITest, Selenium,

WinRunner and Rational Robot. They were used in

regression testing phase for detecting errors inside

Web application.

The performance of the best for both GA and SA

is presented in Table 2.

Table 2: Best individuals’ performance for the GA and SA

algorithms.

GUI

Perfor-

mance

No. of

GUI

Changes

Perfor-

mance

No. of

GUI

changes

Best individual for

simple GUI testing

0.001

14 0.0029 11

Best individual for

calculator GUI

testing

0.0012 19

0.0019

Best individual for

complex GUI testing

0.0015 27 0.0034 23

From Figures 6, 7, 8 and Table 2 one can notice that

the GA is able to find better test data in comparison

with the SA algorithm. GA manages to find out the

sequence of events which produces more changes

inside GUI in comparison with SA. The individual

which produces the biggest number of changes

inside the GUI is the one which has the smallest

value for fitness function, because the testing

problem is transformed into a minimization problem.

It shows that individuals have evolved from the first

generation to the last one. The best individual from

the last generation produces the biggest number of

changes inside the GUI; therefore, it has the smallest

value of the fitness function.

The mean value of convergence time (in

seconds) obtained from ten runs of each algorithm is

presented in Table 3.

Table 3: Convergence time(s) for the GA and SA

algorithms.

GUI type

Convergence (s)

Simple GUI testing

Calculator GUI testing

40 57

Complex GUI testing 60 78

The convergence time for GA algorithm is smaller

than the convergence time obtained for SA

algorithm.

From Figure 9 can be noticed that the test suite

generated using EvoGUITest is able to find more

defects in comparison with the other test suites even

if they have the same amount of test. This illustrates

the fact that the test suite generated with

EvoGUITest is better than the others test suites.

5 CONCLUSIONS AND FUTURE

WORK

This paper presents EvoGUITest, an original

framework for automatically testing graphical user

interfaces of Web applications based on EAs

techniques. The main features of the EvoGUITest

framework are the following:

 It tests the GUI separately from the application

source code itself.

 It automatically generates and executes the test

suite.

 It is able to find the sequence of events which

produces the biggest number of changes inside the

GUI, so it verifies a biggest number of controls

inside the GUI.

The EvoGUITest framework is original because

it runs on client side, being developed in Javascript

and it tests the GUI of the application separately

from the software application itself. It is the first

GUI testing application developed only using

JavaScript. The advantage of using JavaScript is that

it is platform-independent and it can test GUI

components developed in any programming

language. The extension of the framework is very

easy because there is no need of any extra tools to

write JavaScript code. This can be done using any

plain text or HTML editor.

EvoGUITest has the objective to find out the

most important sequence of events which produces

the biggest number of changes inside the GUI. By

producing the biggest number of changes, the

sequence is able to verify as many components as

possible inside the GUI.

EvoGUITest is able to find out the most

important sequence of GUI events in about 50

iterations.

Future work will involve using EvoGUITest

framework for testing larger projects. We will also

focus on using EvoGUITest for regression testing.

The test cases suite will be used to check if the GUI

still functions correct after each development change

is performed. The framework will be extended with

other evolutionary algorithms: Particle Swarm

Optimization (PSO) and Ant Colony Optimization

(ACO) algorithms.

A complete automated testing framework based

EvoGUITest-AGraphicalUserInterfaceTestingFrameworkbasedonEvolutionaryAlgorithms

on EAs could be designed and implemented, for

completely automating the GUI testing process.

ACKNOWLEDGEMENTS

This work was supported by a grant of the Romanian

National Authority for Scientific Research, CNDI-

UEFISCDI, project number 47/2012.

REFERENCES

Belli F., 2001. Finite-State Testing and Analysis of

Graphical User Interfaces, International Symposium

on Software Reliability Engineering, China.

Bergen S., Ross J., 2011, Evolutionary art using summed

multi-objective ranks, Genetic Programming Theory

and Practice VIII, Springer Science.

Bernard J., 1998. The Graphical User Interface: An

Introduction, Seminal works in computer human

interaction, 30(3), 24-28.

Bertsimas D., Tsitsiklis J., 1993. Simulated Annealing,

Statistical Science, vol. 8, no.1, 10-15.

Ganov S., Killmar C., Khurshid S., Perry D., 2008, Test

Generation for Graphical User Interfaces Based on

Symbolic Execution, AST.

Jones G., 1990. Genetic and Evolutionary Algorithms,

University of Sheffield, CGA04.

Nascimento V., Carvalho V., Castilho C., Soares E.,

Bittencourt C., Woodruff D., 1999. The Simulated

Annealing Global Search Algorithm Applied to the

Crystallography of Surfaces by Leed, Surface Review

and Letters, vol. 6, no. 5, 651-661.Nyman N., 2000.

Using Monkey Test Tools, Software Testing and

Quality Engineering Magazine.

NUnit Framework, http://nunit.org, online documentation.

Abbot, http://abbot.sourceforge.net, online

documentation

Nyman N., 2006. In Defense of Monkey Testing, Software

Testing and Quality Engineering Magazine.

Qureshi I.A., Nadeem A., 2013. GUI Testing Techniques:

A Survey, International Journal of Future Computer

and Communication, vol. 2, no.2.

Pimenta A., 2006. Phd. Thesis, Automated Specification-

Based Testing of Graphical User Interfaces,

Department of Electrical and Computer Engineering,

FEUP.

Pohlheim H., 2006. Evolutionary Algorithms: Overview,

Methods and Operators.

Prabhu J., Malmurugan N., 2011. A Survey on Automated

GUI Testing Procedures, European Journal of

Scientific Research, no. 3, pp. 456-462.

Rational Robot Framework, http://www-

01.ibm.com/software/awdtools/tester/robot/, online

documentation.

Rauf A., 2010. Coverage Analysis for GUI Testing, Phd.

Thesis, Department of Computer Science, National

University of Computer and Emerging Sciences,

Pakistan.

Rutenbar R., 1989. Simulated Annealing Algorithms: An

Overview, IEEE Circuits and Devices Magazine.

Selenium Framework, http://seleniumhq.org, online

documentation.

Streichert F., 2007. Evolutionary Algorithms in Multi-

Modal and Multi-Objective Environments, Phd.

Thesis, University of Tubingen, Germany.

Valdez-Garcia M. et al., 2013, EvoSpace-Interactive: A

Framework to Develop Distributed Collaborative-

Interactive Evolutionary Algorithms for Artistic

Design, Evolutionary and Biologically Inspired Music,

Design, Sound Art and Design, vol. 7834, pp. 121-

132.

WinRunner Framework, http://mercury.com, online

documentation.

Yang X., 2011. Phd. Thesis, Graphic User Interface

Modelling and Testing Automation, Victoria

University.

IJCCI2013-InternationalJointConferenceonComputationalIntelligence
