Limitations of Super Resolution Image Reconstruction

and How to Overcome them for a Single Image

Seiichi Gohshi

and Isao Echizen

Kogakuin University, 1-24-2 Nishi-Shinjuku, Shinjuku-ku, Tokyo,163-8677, Japan

National Institute of Informatics, 2-1-2, Hitotsubashi, Chiyoda-ku, Tokyo, 101-8430, Japan

Keywords:

Image Enhancement, Super Resolution Reconstruction, Frequency Domain, Real-time.

Abstract:

Super resolution image reconstruction (SRR) is a typical super resolution (SR) technology that has been re-

searched with varying results. The SRR algorithm was initially proposed for still images. It uses many

low-resolution images to reconstruct a high-resolution image. Unfortunately, in practice, we rarely have a suf-

ﬁcient number of low-resolution images for SRR to work. Usually, there is only one (or a few) blurry images.

On the other hand, there is a need to improve blurry images in applications ranging from security and photo

restoration to zooming functions and countless other examples related to the printing industry. Recently, SRR

was extended to video sequences that have many similar frames that can be used as low-resolution images

to reconstruct high-resolution frames. In normal SRR, one reconstructs a high-resolution image from low-

resolution images sampled from one high-resolution image, but in the video application, the low-resolution

video frames are not taken from higher resolution ones. This paper proposes a novel resolution improvement

method that works without such a high- resolution image. Its algorithm is simple and can be applied to a single

image and real-time video systems.

1 INTRODUCTION

Methods of creating high-resolution images from

low-resolution images have been researched for many

years. These gimage restorationh methods were ini-

tially applied to still pictures. They were later ex-

tended in scope and are now called super resolu-

tion (SR)(Sung et al., 2003). One SR technique is

super resolution image reconstruction (SRR) (Farsiu

et al., 2004)(Adam et al., 2010)(Katsaggelos et al,,

2007)(Panda et al., 2011). SRR is at present the

only SR method among the many proposed to be in-

corporated in commercial products (Matsumoto and

Ida, 2008)(Matsumoto and Ida, 2010)(Matsumoto

and Ida, 2010)(Toshiba). However, the practical lim-

itations of SRR have not been discussed especially in

regard to real-time applications.

Display devices, such as LCDs, and ink jet print-

ers have advanced to such an extent that their reso-

lutions exceed those of pictures taken with ﬁlm cam-

eras. Moreover, although most photographs are taken

with digital cameras these days, they are prone to be-

ing blurred because of focusing mistakes or the cam-

era being shaken while in operation. SRR is not a

good way to improve the resolution of individual pho-

tographs since it requires many low-resolution im-

ages; typically, only one blurry photograph is avail-

able. In contrast, video would seem to be a very good

application for SRR, since video consists of numer-

ous frames and adjacent frames that look similar. Not

surprisingly, therefore, many papers have been pub-

lished on the subject citeSR:Face (Katsaggelos et al,,

2007)(Protter et al., 2009). However, the methods

proposed so far are complex. Recently, SRR func-

tions with self congruency characteristics in a frame

have been incorporated in HDTV sets and BluRay

players (Matsumoto and Ida, 2008)(Matsumoto and

Ida, 2010). However, before we can evaluate the efﬁ-

cacy of SRR for these devices, we must bear in mind

that video frames have different characteristics than

those of still images taken with still cameras.

A common form of video content is TV broad-

casting. Analogue broadcasting has been around for

more than 60 years, but it is being replaced with digi-

tal HDTV broadcasting in many countries. The ini-

tial cost of digital HDTV broadcasting is high for

most broadcasting companies. SRR for video would

be very useful if it could improve the resolution of

analogue video that has been converted into HDTV;

broadcasters could continue showing analogue pro-

Gohshi S. and Echizen I..

Limitations of Super Resolution Image Reconstruction and How to Overcome them for a Single Image.

DOI: 10.5220/0004518300710078

In Proceedings of the 10th International Conference on Signal Processing and Multimedia Applications and 10th International Conference on Wireless

Information Networks and Systems (SIGMAP-2013), pages 71-78

ISBN: 978-989-8565-74-7

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

ductions and thereby reduce their costs. Viewers who

own HDTVs with SRR functions for converting ana-

logue video into HDTV would be able to view po-

tentially all their programming at an HDTV level of

resolution. For manufacturers, this would mean that

HDTV receivers with SRR could be sold all over

the world. In fact, HDTV sets with SRR functions

are now on the market, and SRR has been deemed

a practical technology (Toshiba). However, despite

there having been many studies, no HDTVs equipped

with SRR functions for converting analogue broad-

casting have been developed. Recently, it was proven

that the resolution of HDTV with SRR is inferior to

the HDTV without SRR (Gohshi and Echizen, 2013).

This suggests that SRR cannot improve the resolution

of general TV content.

SRR has another issue. To improve resolution of a

still image, we need many low-resolution images with

different phases. This presents a problem if there is

only one low-resolution image. Although some tech-

nologies can improve resolution with a single image

(Glasner et al., 2009)(Panda et al., 2011), they need it-

erations and the processing time depends on the char-

acteristics of the image. In practice, the effectiveness

of SRR technologies should not be image dependent.

This paper is organized as follows. First, the lim-

itations of SRR are discussed in the frequency do-

main. Second, a non-linear signal processing (NLSP)

method that is free of the issues of SRR is introduced.

The basic idea behind this method was recently de-

scribed (Gohshi, 2012) . However, the theoretical

backgroundofNLSPin the frequencydomain was not

discussed in detail. This paper proposes another non-

linear function that gives better results and discusses

the algorithm of NLSP in the frequency domain. As

just one image simulation result is not sufﬁcient for

practical applications, we give several simulation re-

sults to prove the validity of the method. In the same

way it is applied to still images, the NLSP method can

improve resolution of video sequences using a single

frame at a time, which is something that SRR cannot

do.

2 ISSUES OF SRR IN

FREQUENCY DOMAIN

SRR is usually discussed with regard to an original

image and the reconstructed image. Image quality is

a subjective assessment, and it is not easy to tell the

difference in image quality between similar images

printed on sheets of paper or in pdf ﬁles. Image qual-

ity can, however, be discussed in an objective way by

referring to spectra in the frequency domain. To see

how this is done, let us consider Figure 1. One of

LRIs shown in Figure 2 is created from Figure 1 by

subsampling. Figure 3 is the corresponding SRR im-

age generated from 16 LRIs and 100 iterations (Farsiu

et al., 2004). The sizes of the LRIs in this case were a

quarter that of the original HRI. Such a still image is

the best condition of SRR signal processing since the

still image has sufﬁcient sharp edges for SRR. More

than 16 LRIs would be necessary to get a comparable

result for video since motion blur would smear out

such sharp edges (Gohshi, 2007). Although Figure

1 and Figure 3 look the same, their two-dimensional

fast Fourier transforms (FFTs) are different (Figure 4

and Figure 5). In Figure 5 showing the FFT of the

SSR, there is a rectangular null area without any fre-

quency components and the same repeated frequency

characteristics. This sort of phenomenon is due to

sub-sampling and the null area does not exist if SRR

can reconstruct the HRI perfectly.

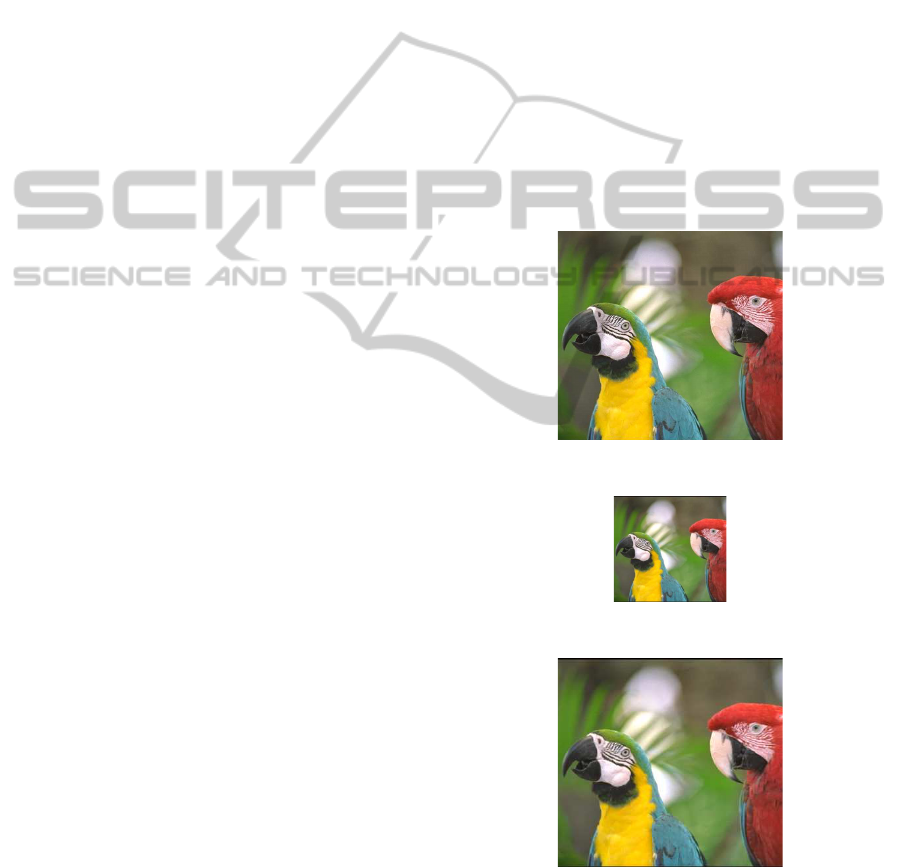

Figure 1: Original image.

Figure 2: LRI.

Figure 3: SRR image.

Figure 6 shows the two-dimensional FFT of one

of the quarter-size LRIs from Figure 2. All the LRIs

have the same null areas in the frequency domain due

to the sampling theory. The white rectangle in Figure

6 is the Nyquist frequency (vertical and horizontal) of

SIGMAP2013-InternationalConferenceonSignalProcessingandMultimediaApplications

Figure 4: 2D FFT of Fig.1.

Figure 5: 2D FFT of Fig. 3.

the LRIs, and it is clear that the same frequency spec-

tra spread outside of the white rectangle. Compared

with Figure 5 and Figure 6, both of the vertical and

horizontal Nyquist frequencies are half those shown

in Figure 4. There are repeated frequency spectra in

Figure 5, and the repetition cycle is the same value in

cycles as the frequency of the white rectangle shown

in Figure 6. Although Figure 3 is reconstructed from

16 LRIs, Figure 5 has the same shape cycle as Figure

6. This means that SRR cannot reconstruct the origi-

nal image completely, and the SRR result is affected

by the size of the LRIs. Figure 3 was reconstructed

from 16 LRIs over 100 iterations. It was made under

the ideal conditions for SRR but it is not the same as

the original image. The rectangular null area shown

in Figure 5 appears at any factor of enlargement. The

null areas in Figure 5 are exactly the same as the

Nyquist frequencies of LRIs. The difference between

the two-dimensional frequency characteristics of Fig-

ure 4 and Figure 5 causes the difference in resolution

between in Figure 1 and Figure 3.

3 NON-LINEAR SIGNAL

PROCESSING METHOD

The non-linear signal processing (NLSP) algorithm

is simple (Figure 7). The basic idea is similar to

Unsharp Mask or Enhancer (Schreiber, 1970)(Lee,

1980)(Pratt, 2001). The difference between the pro-

posed method and Enhancer is the cubic function in

Figure 7. Enhancer detects edges with a high pass

ﬁlter (HPF) and a limiter (LMT) restricts the level

Figure 6: 2D FFT of one of 16 LRIs.

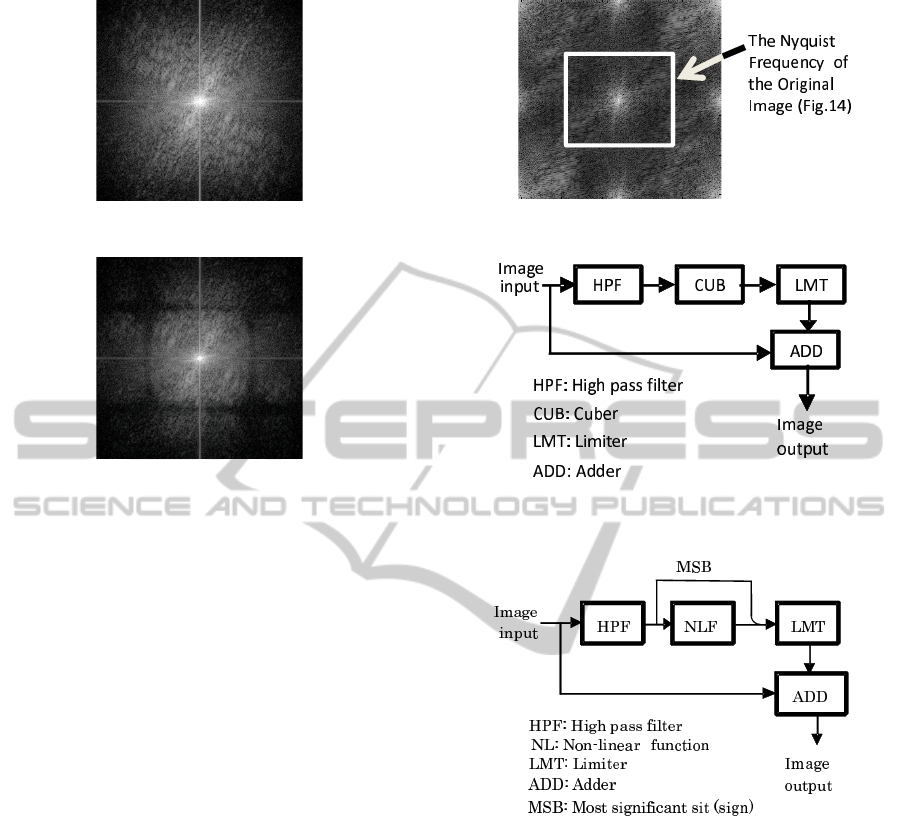

Figure 7: NLSP algorithm.

Figure 8: New NLSP algorithm.

of edges so as not to emphasize noise in the images.

However, Enhancer cannot create frequency elements

that the input image does not have. The proposed

method uses a non-linear cubic function (CUB). CUB

can generate higher frequency elements that the input

image does not have as follows.

In Figure 7, edges are detected with the HPF and

are added to the input image. It uses y = x

as the

non-linear function.

In Figure 7 edges are detected with HPF and are

added to the input image. It uses y = x

as the non-

linear function. However, y = x

creates three times

higher frequencyelements than the original frequency

elements. The output of the high pass ﬁlter has plus

and minus elements. Although y = x

can hold pos-

itive and negative values, it may create unnecessar-

ily high frequency elements. There is no feedback

LimitationsofSuperResolutionImageReconstructionandHowtoOvercomethemforaSingleImage

Figure 9: NLSP image.

Figure 10: 2D FFT of Fig. 9.

Figure 11: Comparison.

loop in Figure 7, which means that the NLSP is just

straightforward signal processing and iterations are

not necessary. NLSP uses just one LRI for the input.

The image is input at the left top and is enlarged with

a linear digital ﬁlter such as a Lanczos ﬁlter or bicu-

bic ﬁlter. The enlarged image is distributed to the high

pass ﬁlter (HPF) and the adder (ADD). The HPF de-

tects the edges in the image and the edges are cubed.

The cubed edges can create high-frequency elements

that the input image does not have. It is well known

that an image expanded by a Fourier series consists

of sin and cos functions. Edges are represented with

sinnω

and cosnω

functions. Here, ω

= 2π f

: f

is the sampling frequency, and n is an integer number

(n = 0, ±1, ±2, · · · ). The edge cuber (CUB) gener-

ates sin

nω

and cos

nω

from sinnω

and cosnω

sin

nω

andcos

nω

generate sin3nω

and cos3nω

. This means three times higher frequency elements

are generated and these high-frequency elements are

edges that the original image does not have. The

edges are added to the input image by ADD, and the

resulting high-resolution image is output. A new al-

gorithm shown in Figure 8 is proposed in this paper.

The output of HPF is the edge information that has

signs, which means plus or minus for each pixel. Af-

ter the HPF, the edges are processed with a non-linear

function (NLF). If an even function such as x

is ap-

plied, the sign information, plus or minus, is lost. The

most signiﬁcant bit (MSB) is separated from the edge

information before NLF and restored to them after

NLF. Using this method, we can use even non-linear

functions. This method gives much more ﬂexibility

than the previous algorithm shown in 7. A simple

non-linear function y = x

is used in this paper. Gen-

erally, non-linear functions can generate harmonics

that can create higher frequency elements, which the

original image does not have. NLSP with other non-

linear functions should also be able to create high-

frequency elements. Here, we propose y = x

for plus

edges and y = −x

for minus edges. They create two

times higher frequency elements and are for enlarg-

ing mages twice horizontally and vertically, such as

in the conversion from HDTV to 4K TV. The pro-

cessed image is shown in Figure 9. In this process,

just one LRI shown in Figure 2 is the input image.

In spite of the simple signal processing, the resolu-

tion is not worse than that of Figure 1 and Figure 3.

Figure 10 shows the two-dimensional FFT result of

Figure 9. Figure 10 does not have the null in-band

areas shown in Figure 5, and it means that the NLSP

does not generate null areas. Although the size of the

input image is just a quarter that of the output im-

age shown in Figure 1, NLSP can create the higher

frequency elements beyond the Nyquist frequency of

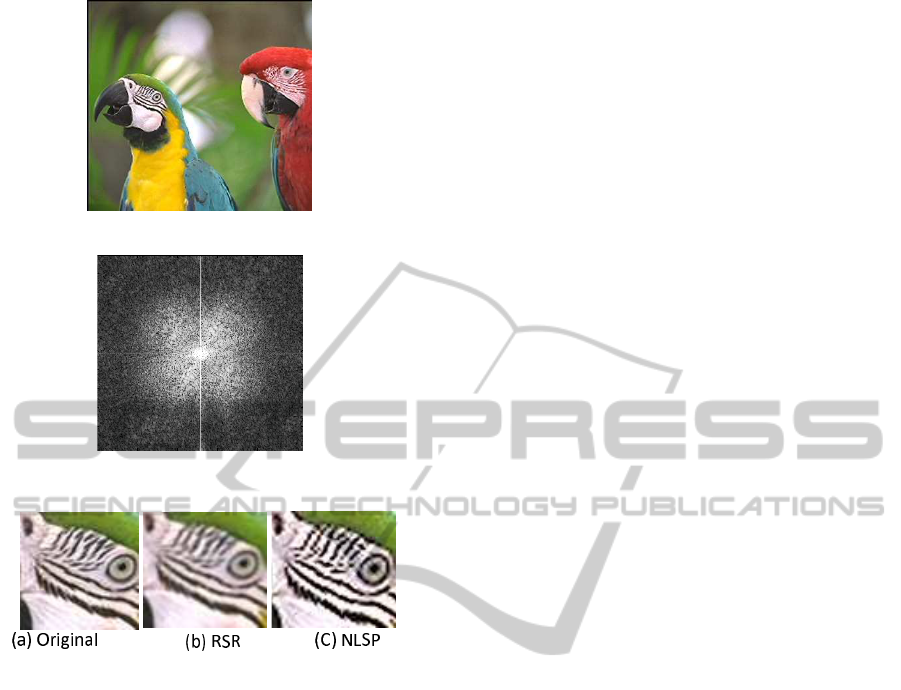

the input image. Figure 11 shows enlarged parts of

the original image, SRR image, and the NLSP image.

They are enlarged images and help to understand the

resolution difference of (b)SRR and (c)NLSP.

Three other simulation results are shown from

Figure 12 to Figure 29. Each simulation result

shows the original image (512x512), the quarter

size (256x256), enlarged and NLSP processed im-

age (512x512) and their two-dimensional FFT re-

sults. Figure 17, Figure 23, and Figure 29 show two-

dimensional FFT results of NLSP processed results.

These simulations show that NLSP produces good re-

sults even with enlarged images. There are no null

areas in the frequency domain characteristics. This

means NLSP does not have the issues that SRR has.

4 COMPARISON OF NLSP WITH

SRR

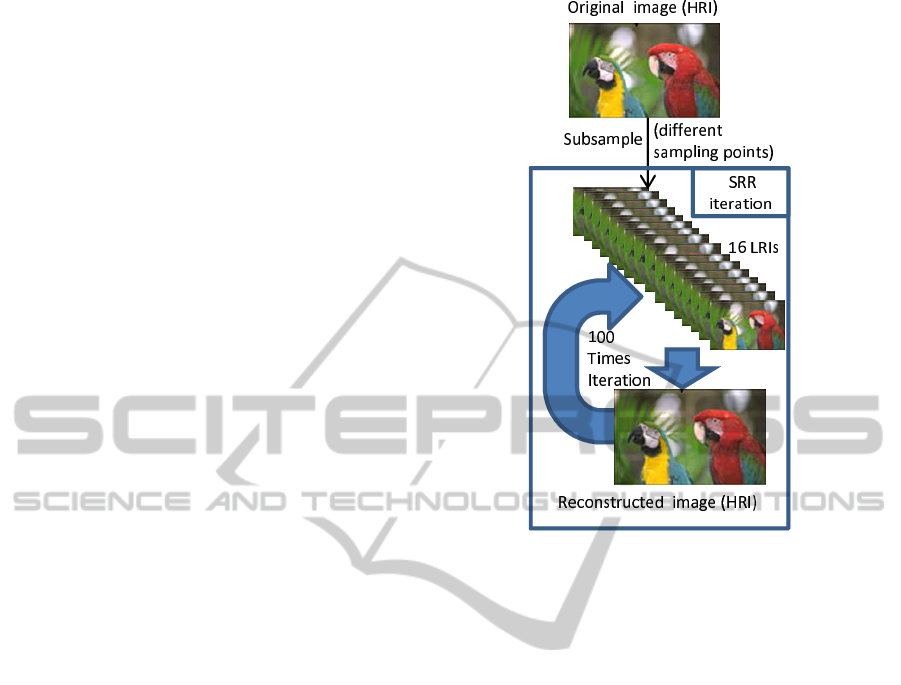

Figure 30 illustrates the signal processing of SRR.

The top and bottom images in Figure 30 are those

of Figure 1 and Figure 3. It is necessary to create

16 LRIs and iterate the procedure 100 times. The

SIGMAP2013-InternationalConferenceonSignalProcessingandMultimediaApplications

Figure 12: (512X512). Figure 13: (256X256.)

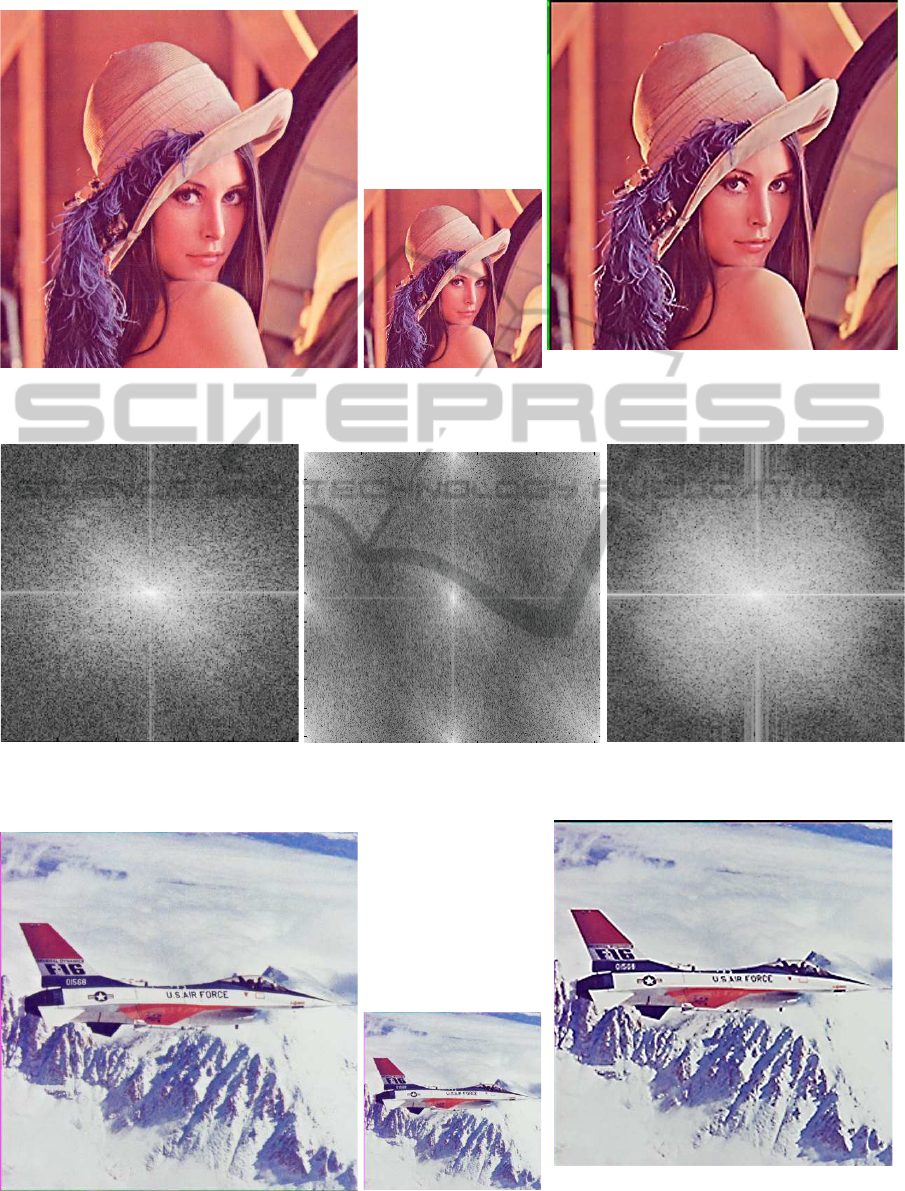

Figure 14: Lenna (512x512 NLSP image pro-

cessed from Fig. 13).

Figure 15: 2D FFT of Fig. 12. Figure 16: 2D FFT result of Fig.13. Figure 17: 2D FFT of Fig. 14.

Figure 18: (512X512). Figure 19: (256X256).

Figure 20: (512x512 NLSP image processed from

Fig. 19).

LimitationsofSuperResolutionImageReconstructionandHowtoOvercomethemforaSingleImage

Figure 21: 2D FFT of Fig. 18. Figure 22: 2D FFT of Fig. 19. Figure 23: 2D FFT of Fig. 20.

Figure 24: (512X512). Figure 25: (256X256).

Figure 26: (512x512 NLSP image processed from

Fig. 25).

Figure 27: 2D FFT of Fig. 24. Figure 28: 2D FFT of Fig. 25. Figure 29: 2D FFT of Fig. 26.

SIGMAP2013-InternationalConferenceonSignalProcessingandMultimediaApplications

16 LRIs contain the same amount of information as

four original images, so the amount of information

in the 16 LRIs is four times the original image. The

reconstructed HRI image is stored in the frame mem-

ories. SRR thus uses ﬁve times the memory needed

to store the original image. Moreover, 100 iterations

are needed to create the SRR image. This means

SRR consumes a lot of resources in reconstructing the

image and its resolution is still not the same as the

original image because of the null in-band frequency

shown in Figure 4 and Figure 5.

On the other hand, the NLSP signal processing

is very simple: just straightforward signal process-

ing and no feedback processing, as shown in Figure

8. Moreover, NLSP needs only one quarter-size LRI.

The HPF part is just a digital ﬁlter in the frame, the

NLF part can be replaced by a look up table, and the

ADD part is very simple, which all means NLSP has

negligible frame delay when it is applied to video. It

is not difﬁcult to embody a real-time NLSP method in

an inexpensive FPGA. Although a single frame mem-

ory type of SRR has been proposed for TV (Mat-

sumoto and Ida, 2008)(Matsumoto and Ida, 2010) and

there are HDTV sets equipped with it, the resolution

of HDTV sets with it is inferior to the HDTV sets

without it . The simulation results presented in this

paper show that SRR cannot give sufﬁcient resolution

for enlarged images even if it is used under the ideal

condition, which means one high-resolution image is

reconstructed from all of the LRIs. In the simulation

results, the size of the LRIs was a quarter that of the

reconstructed image, which is the same ratio as the

image conversion from HDTV to 4K TV, and16 LRIs

were necessary to create one HRI from a still image.

Hence, it seems that an SSR technique would need 16

HDTV frames to convert HDTV into 4K TV. Besides

that, SRR faces other difﬁculties with motion vector

detection, motion blur, etc.

5 CONCLUSIONS

SRR is a useful tool only as long as the LRIs have

aliasing in them. That is, SRR can remove alias-

ing and create beautiful images, but it is useless if

the LRIs do not have aliasing in them. This means

SRR will not work if all we have is a single low-

resolution image. Moreover, SRR only works for

certain kinds of video sequences such as infrared-ray

video sequences with block noise and does not work

for general video TV and BluRay content. The prob-

lem is that most video sequences do not have aliasing,

except for interlaced aliasing or block noise, and SRR

cannot create higher frequency elements than what

Figure 30: SRR algorithm.

are in the original HRI. This means it is very difﬁcult

to ﬁnd video sequences taken with commercial video

cameras that would beneﬁt from SRR. Although SRR

has been widely researched and has been touted as

a means of improving resolution for HDTV content,

its ability to improve video under practical circum-

stances turns out to be very limited.

The new NLSP method was compared with SRR,

and it was found to have better frequency characteris-

tics than those of SRR. NLSP can improve the reso-

lution of a single low-resolution image and can create

frequencyelements higher than the Nyquist frequency

of the original image. The four simulation results and

their frequency characteristics presented in this pa-

per prove that NLSP can create frequency elements

higher than the Nyquist frequency of the original im-

age.

The complexity and processing loads of NLSP

and SRR were also compared, and NLSP was found

to be light enough to be embodied in an FPGA. This

means it is possible to design a real-time NLSP device

for a real-time video system. There are many poten-

tial applications of NLSP including broadcasting, cin-

ema, security and medical ﬁelds. Two-dimensional

FFTs show that the resolution of NLSP is better than

that of SRR. However, subjective assessments with

NLSP and SRR with HDTV or 4K TV will have to

be made in the future. Several SR ideas have been

proposed for still images, and signal processing of

LimitationsofSuperResolutionImageReconstructionandHowtoOvercomethemforaSingleImage

still images is much more ﬂexible in the sense that

real-time signal processing is not required. Thus, a

comparison of SR and NLSP for still images should

also be done. Further analysis is necessary before this

method can be implemented in an FPGA. An anal-

ysis of the high-frequency components generated by

the non-linear function used in the proposed method

and the original high-resolution image should also be

conducted.

REFERENCES

Sung Cheol Park, Min Kyu Park and Moon Gi Kang,

”Super-Resolution Image Reconstruction: A Techni-

cal Overview”, IEEE Signal Processing Magazine,

1053-5888/03, pp. 21-36, May, 2003.

S. Farsiu, D. Robinson, M. Elad, and P. Milanfar, ”Fast and

Robust Multi-frame Super-resolution”, IEEE Transac-

tions on Image Processing , vol. 13, no. 10, pp. 1327-

1344, October, 2004.

Adam W. M. van Eekeren, Klamer Schutte, and Lucas J.

van Vliet, ”Multiframe Super-Resolution Reconstruc-

tion of Small Moving Objects”, IEEE Transactions on

Image Processing, pp. 2901-2912, Vol. 19, No. 11,

November, 2010.

Aggelos Katsaggelos, Rafael Molina, and Javier Mateos,

”Super Resolution of Images and Video”, Synthesis

Lectures on Images, Video and Multimedia Process-

ing, Morgan& Clayppo Publishers, 2007.

Xianghua Houa and Honghai Liu, ”Super-resolution Image

Reconstruction for Video Sequence”, 2011 Interna-

tional Conference on Electronic & Mechanical Engi-

neering and Information Technology, pp. 4600-4603,

12-14 August, 2011.

Matan Protter, Michael Elad, Hiroyuki Takeda, and Pey-

man Milanfar, ”Generalizing the Nonlocal-Means to

Super-Resolution Reconstruction”, IEEE Transac-

tions on Image Processing, pp. 36-51, Vol. 18, No. 1,

Jan. 2009.

D. Glasner, S. Bagon, and M. Irani, ”Super-Resolution from

a Single Image”, International Conference on Com-

puter Vision (ICCV), October 2009.

S. Panda, R.S. Prasad, and G. Jena, ”POCS Based Super-

Resolution Image Reconstruction Using an Adaptive

Regularization Parameter”, IJCSI International

Journal of Computer Science Issues, Vol. 8, Issue 5,

No. 2, September 2011, ISSN (Online), 1694-0814.

N. Matsumoto and T. Ida, ”A Study on One Frame

Reconstruction-based Super-resolution Using Image

Segmentation”, IEICE Technical Report , SIP2008-

6,IE2008-6 (2008-04) (in Japanese).

N. Matsumoto and T. Ida, ”Reconstruction Based Super-

Resolution Using Self-Congruency around Image

Edges”, Journal of IEICE , Vol. J93-D, No. 2, pp.

118-126, Feb. 2010 (in Japanese).

http://www.toshiba.co.jp/regza/lineup/xs5/quality

4k2k.html

http://www.toshiba.co.jp/regza/detail/superresolution/reso

lution.html(in Japanese)

http://techon.nikkeibp.co.jp/english/NEWS

EN/20110906/

198008/

Seiichi Gohshi and Isao Echizen, ”Subjective Assessment

for HDTV with Super-Resolution function”, Sev-

enth International Workshop on Video Processing

and Quality Metrics for Consumer Electronics -

(VPQM2013), Jan. 2013.

Seiichi Gohshi, ”A New Signal Processing Method for

Video” ACM Multimedia Systems 2012, Feb.2012.

ACM Digital Library: MMSys ’12 Proceedings of the

3rd Multimedia Systems Conference, pp. 47-52 ACM

New York, NY, USA c2012.

W. F. Schreiber, ”Wirephoto Quality Improvement by Un-

sharp Masking”, J. Pattern Recognition, 2, 1970,

pp. 111-121.

J-S. Lee, ”Digital Image Enhancement and Noise Filtering

by Use of Local Statistics”, IEEE Trans. Pattern

Analysis and Machine Intelligence, PAMI-2, 2, March

1980, pp. 165-168.

W. K. Pratt, ”Digital Image Processing (3rd Ed)”, John

Wiley and Sons, 2001, pg. 278.

Seiichi Gohshi, ”Limitation of Super Resolution Image

Reconstruction for Video”, Computational In-

telligence, Communication and Networks (CICSyN),

Madrid, Jun. 2007.

T. Kurita and Y. Sugiura, Consideration on Motion Com-

pensated Deinterlacing and its Converter”, Tech-

nical Report of IEICE, CS93-148, IE93-85(1993-12).

(in Japanese)

SIGMAP2013-InternationalConferenceonSignalProcessingandMultimediaApplications
