Extending the Ciphertext-Policy Attribute Based Encryption Scheme

for Supporting Flexible Access Control

Bo Lang, Runhua Xu and Yawei Duan

School of Computer Science & Engineering, Beihang University, 37# Xueyuan Road, Beijing, China

Keywords: Ciphertext-Policy Attribute Based Encryption (CP-ABE), Extended CP-ABE, Attribute Based Access

Control, Cloud Computing.

Abstract: Ciphertext-Policy Attribute Based Encryption (CP-ABE) is recognized as an important data protection

mechanism in cloud computing environment for its flexible, scalable and fine-grained access control

features. For enhancing its security, efficiency and policy flexibility, researchers have proposed different

schemes of CP-ABE which have different kinds of access policy structures. However, as far as we know,

most of these structures only support AND, OR and threshold attribute operations. In order to achieve more

effective data self-protection mechanisms in open environments such as Cloud computing, CP-ABE needs

to support more flexible attribute based policies, most of which are described using operators of NOT, <, ,

>, . This paper proposed an Extended CP-ABE(ECP-ABE) scheme based on the existing CP-ABE scheme.

The ECP-ABE scheme can express any access policy represented by arithmetic comparison and logical

expressions that involve NOT, <, , >,  operators in addition to AND, OR and threshold operators. We

prove the Chosen-plaintext Attack (CPA) security of our scheme under the Decisional Bilinear Diffie-

Hellman (DBDH) assumption in the standard model, and also discuss the experimental results of the

efficiency of ECP-ABE.

1 INTRODUCTION

In open computing environment such as cloud

computing, the protection mechanism of outsourced

data (sometimes just simply called data) attracts

much more attentions(Samarati et al., 2010);

(Vimercati et al., 2010). These data departs from the

control domain of its owner and is stored and

managed by unreliable service providers. Hence, the

self-protection capabilities of data become very

important. Traditionally, access control and

encryption are the two basic protection mechanisms

for achieving data integrity and confidentiality. Self-

protection of data means that data itself can ensure

its integrity and confidentiality without depending

on other parties.

Data encryption is the primary data self-

protection means at present. Traditional Public-Key

encryption and Identity Based Encryption schemes

(Shamir, 1985)

are designed for one-to-one

communication, which means the information

encrypted by a public key or identity can only be

decrypted by the specific private key. This situation

has been changed since Sahai and Waters proposed

the Attribute Based Encryption scheme (Sahai and

Waters, 2005), where ciphertexts are not necessarily

encrypted to one particular user. Both users’ private

keys and ciphertexts are associated with a set of

attributes or a policy over attributes. When the

attributes of a user’s private key can match the

attributes of the ciphertext in a certain extent, the

user can be able to decrypt the ciphertext. By

defining decryption attributes, ABE can dynamically

control the user group of the encrypted data.

Goyal et al. further developed this idea and

introduced two variants of ABE, namely key-policy

attribute based encryption(KP-ABE) and ciphertext-

policy attribute based encryption(CP-ABE). In KP-

ABE, whose first construction is given by (Goyal et

al., 2006), ciphertext is associated with a set of

attributes and the secret key is associated with the

access tree. A user will be able to decrypt if and only

if the attributes in the ciphertext satisfy his access

tree. In CP-ABE, the idea is reversed. The ciphertext

is associated with the access tree and the secret key

is associated with a set of attributes, and the

encrypting party determines the decryption policy.

147

Lang B., Xu R. and Duan Y..

Extending the Ciphertext-Policy Attribute Based Encryption Scheme for Supporting Flexible Access Control.

DOI: 10.5220/0004525801470157

In Proceedings of the 10th International Conference on Security and Cryptography (SECRYPT-2013), pages 147-157

ISBN: 978-989-8565-73-0

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

(Bethencourt et al., 2007) gave the initial

structure of CP-ABE. We refer to this scheme as

BSW07 in this paper. BSW07 is relatively

expressive and efficient, but the security argument is

based on generic group model, an artificial model

which assumes the attacker needs to access an oracle

in order to perform any group operation. After that,

many researchers have presented different schemes

for the less ideal security argument, trying to prove

the security based on a well-studied complexity-

theoretic problem. And also there are many people

worked at improving the efficiency or the flexibility

of access policy for the CP-ABE scheme. These

schemes mainly support three kinds of access policy

structure: AND-gates, tree structure and Linear

Secret Share Scheme (LSSS) matrix. Among them,

the tree structure and LSSS matrix are relatively

flexible, which supports AND, OR and threshold

operation. BSW07 uses “bag of bits” to express

policies containing <, , >, . However, this

approach is much complex and has poor scalability,

and is hard to be used in practical applications. For

NOT operator, BSW07 has no solution. To the best

of our knowledge, there is no efficient way to

express an access policy that contains operators such

as NOT, <, , > and  in present CP-ABE schemes,

which makes CP-ABE only support simple attribute

policies.

Access control and encryption are the two key

techniques in data-centric protection, and CP-ABE

makes it possible to integrate these two techniques

seamlessly. However, the limited access policy

expression in CP-ABE restricts its access control

capability.

Our Contribution. In the area of access control,

Attribute-based Access Control (ABAC) model

(Junbeom and Dong Kun, 2011, Lang et al., 2009,

Wang et al., 2010) makes access control decisions

based on user attributes. The policies in ABAC are

defined as attribute expressions that contain

attributes, constants, and AND, OR, NOT, <, , >, 

operators, and can express complex access control

rules. If the access policy structure of CP-ABE can

be enhanced to express complex attribute policies as

ABAC, CP-ABE will become an ideal scheme for

implementing data self-protection in open computing

environments. Following this idea, we proposed the

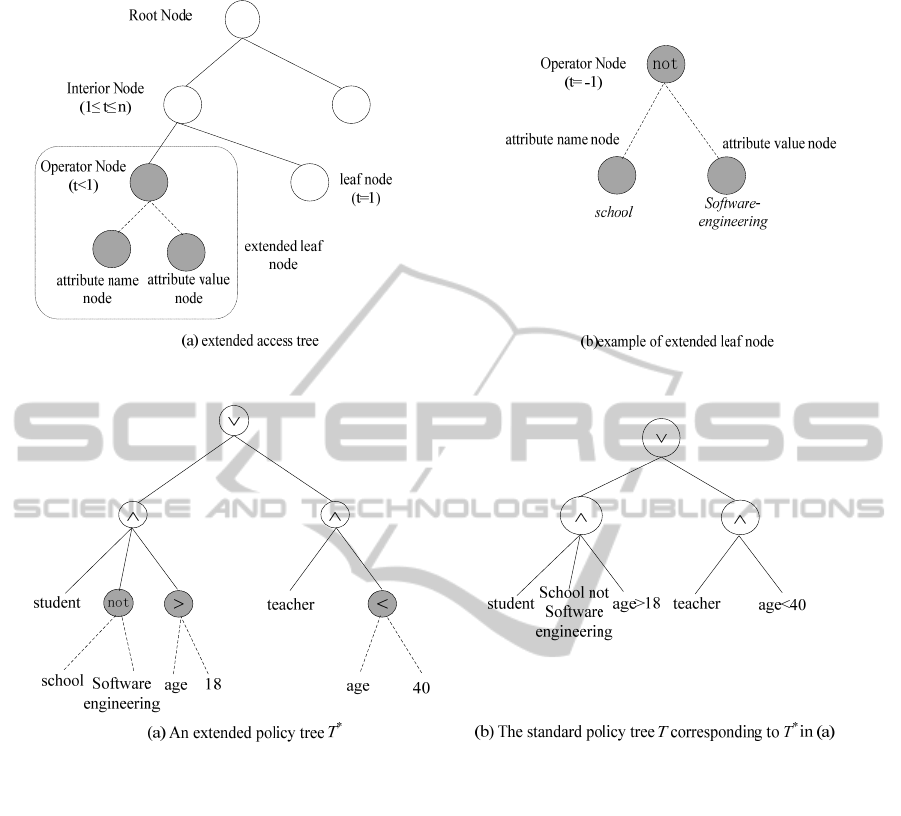

Extended CP-ABE scheme (ECP-ABE). In ECP-

ABE, by introducing extended leaf nodes, the access

tree of CP-ABE is enhanced to support all kinds of

logical and arithmetic comparison operators,

including <, , =, >,  and NOT et al. Therefore,

ECP-ABE can realize powerful access control as

well as encryption, and data processed by ECP-ABE

will have strong self-protection capabilities. Our

scheme is proven to be chosen plaintext (CPA)

secure under the decisional Bilinear Diffie-Hellman

(DBDH) assumption in the standard model.

Organization. The remaining sections are organized

as follows. In Section 2, we introduce related work.

In Section 3, we review the concepts of access

structure, Shamir’s secret sharing scheme, bilinear

maps, DBDH assumption and the backgrounds of

the CP-ABE scheme. We present our extended CP-

ABE (ECP-ABE) scheme in Section 4. We then

discuss the performance of ECP-ABE from aspects

of security and efficiency in Section 5. Finally, we

conclude this paper in Section 6.

2 RELATED WORK

BSW07 expresses the access policy by a tree

structure which supports AND, OR and threshold

operations. At the same time, the length of the

ciphertext and the encryption or decryption time are

linearly related with the number of attributes of the

access structure tree. However, the security proof of

BSW07 is based on generic group model, rather than

the standard numerical theoretical assumptions. In

addition, as a result of using polynomial

interpolation to resume secret during the decryption

phase, BSW07 needs greater number of bilinear

mapping and exponentiation operation, and costs of

these operations are relatively high.

After that many scholars have proposed different

schemes (Su et al., 2011). Cheung and Newport first

gave the CP-ABE scheme (CN07)(Cheung and

Newport, 2007) under CPA security based on

DBDH assumption. However, the scheme only have

the AND and NOT operator in the access policy

structure, and the ability of policy expression is

poor. Moreover, the length of the ciphertext and the

key, and the time of encryption or decryption are

linearly related with the number of attributes, which

lead to the lower efficiency. Goyal et al raised the

Bounded Ciphertext Policy Attribute Based

Encryption scheme (Goyal et al., 2008) based on

DBDH assumption, which supported the AND, OR

and threshold operations. (Liang et al., 2009a);

(Liang et al., 2009b) shortened the system’s public

key, the user’s private key and the length of the

ciphertext and improved the efficiency of encryption

and decryption based on BCP-ABE. But it limited

the level of the access policy tree and the number of

child non-leaf nodes.

SECRYPT2013-InternationalConferenceonSecurityandCryptography

148

Nishide gave an Attribute-Based encryption scheme

(Nishide et al., 2008) with partially hidden

encryptor-specified access structures, which only

supported the AND operation and attributes have

more than one candidate value. Emura et al first

raised the CP-ABE with constant ciphertext length

based on Nishide’s scheme

(Emura et al., 2009),

which improved the efficiency of the algorithm. But

it also just supported the AND operation. Ibraimi et

al gave an efficient and provable secure CP-ABE

scheme (Ibraimi et al., 2009) based on DBDH

assumption using the threshold secret share

technology (Shamir, 1979), which supported AND,

OR and threshold operations. Its access structure

was an n-tree and the costs of key generation,

encryption and decryption are lower than the

BSW07 scheme. Waters has used the LSSS matrix

to express the access control policy and pointed out

that the ability of expression is not lower than the

tree structure(Waters, 2011). Lewko et al (Lewko et

al., 2010) also applied the LSSS matrix structure in

their scheme, which supported any monotone access

formula. Attrapadung and Imai (Attrapadung and

Imai, 2009) gave a revocable scheme which admits

ciphertext and private key sizes roughly the same as

the currently best (non-revocable) ciphertext-policy

ABE.

In order to support complex Boolean access

policies, Junod and Karlov (Junod and Karlov, 2010)

proposed an efficient public-key ABBE scheme

allowing arbitrary access policies, which is based on

a modification of the Boneh-Gentry-Waters

broadcast encryption scheme. Chen et al (Chen et al.,

2011)

presented two new CP-ABE schemes, which

have both constant-size and constant computation

costs for a non-monotone AND gate policy. Jin et al

(Li et al., 2011)

enhanced the attribute-based

encryption with attribute hierarchy and obtain a

provable secure HABE under tree hierarchy.

(Attrapadung et al., 2011); (Attrapadung et al., 2012)

proposed the first KP-ABE schemes allowing for

non-monotonic access structures and with constant

ciphertext size. Zhiguo et al (Zhiguo et al., 2012)

proposed a hierarchical attribute-set-based

encryption (HASBE) scheme which extended the

ciphertext-policy attribute-set-based encryption for

access control in cloud computing.

From the view of security and expressive ability

of access policy, only the W08 and ITHJ09 scheme

supported the AND, OR and threshold operation

under the theoretical assumptions of the standard

numerical. And the computation cost of encryption

and decryption of ITHJ09 is lower than W08’s.

Therefore, we choose ITHJ09 as the basic CP-ABE

scheme, and further expand the access policy tree of

ITHJ09 to construct an Extended CP-ABE scheme.

3 ANALYSIS OF CP-ABE

SCHEME

3.1 Preliminaries

We firstly give formal definition for access structure,

and then introduce the relevant background

information on Shamir secret sharing scheme,

bilinear maps and the Decision Bilinear Diffie-

Hellman(DBDH) assumption.

3.1.1 Access Structure

Definition 1. Access Structure (Beimel, 1996). Let

{}

,P ,...,P

be a set of parties. A collection

{}

2A 

,P ,...,P

is monotone if

C

: if



and

BC

then



. An access structure

(respectively, monotone access structure) is a

collection (respectively, monotone collection)

non-empty subsets

{}

12 n

P , P ,..., P

, i.e.,

{}

2A

12 n

P ,P ,...,P

\{∅}

。The sets in

are called the authorized sets, and

the sets not in

are called the unauthorized sets.

In ECP-ABE, the access structure

will contain

the set of authorized attributes.

3.1.2 Shamir Secret Sharing Scheme

In Shamir's secret sharing technique (Shamir, 1979)

a secret s is divided into n shares in such a way that

any subset of t shares, where t  n, can together

reconstruct the secret; no subset smaller than t can

reconstruct the secret. The technique is based on

polynomial interpolation where a polynomial y =

f(x) of degree t-1 is uniquely defined by t points (x

). The details of the scheme are as follows:

1. Setup. The dealer D wants to distribute the secret

s  0 among t users.

a) D chooses a prime p  max(s,n), and define a

= s.

b) D selects t-1 random coefficients a

,…,a

t-1

, 0

 a

 p-1, and define the random polynomial

over



()

xax







c) D computes s

=f(i) mod p, and sends securely

the share s

to user p

together with the public

ExtendingtheCiphertext-PolicyAttributeBasedEncryptionSchemeforSupportingFlexibleAccessControl

149

index i.

2. Pooling of shares. Any group of t or more users

pool their distinct shares (x,y)=(i,s

) allowing

computation of the coefficients a

of f(x) by

Lagrange interpolation,

01,

() () , ()

jj j

it i j

fx lxswherelx



 





 







The secret s is f(0) = a

3.1.3 Bilinear Maps

Let 

and 

be two multiplicative cyclic groups of

prime order p. Let g be a generator of  and e be a

bilinear map, e:     

, with the following

properties:

 Bilinearity: for all x, y  and a,b



, we have

e(x

) = e(x,y)

 Non-degeneracy: e(g, g) ≠ 1

If the group operation in  and the bilinear map e

are both efficiently computable, the multiplicative

cyclic group  is a bilinear group. Notice that the

map e is symmetric since e(g

, g

) = e(g,g)

= e(g

3.1.4 The Decisional Bilinear

Diffie-Hellman Assumption

Let a, b, c, z 

be chosen randomly, Z be the

random element from 

(Z= e(g, g)

), and g be a

generator of . 

and 

are two multiplicative

cyclic groups mentioned in 3.1.3. The decisional

BDH assumption(Boneh and Boyen, 2004); (Sahai

and Waters, 2005) is that no probabilistic

polynomial-time algorithm



can distinguish the

tuple <g

, g

, e(g, g)

abc

> from the tuple <g

, g

, Z> with more than a negligible advantage



|Pr[(, , ,(,))0]Pr[(, , ,)0]|

abc abc abc

gggegg gggZ

 



Here the probability is over the random choice of Z

in

, the random choice of a, b, c in Z

, and the

random bits of



3.2 CP-ABE

3.2.1 Access Tree

Definition 2. Access Tree (Bethencourt et al., 2007).

Let



be a tree representing an access structure.

Each non-leaf node of the tree represents a threshold

gate, described by its children and a threshold value.

If num

is the number of children of a node x and k

is its threshold value, then 0<k

<num

. When k

=1,

the threshold gate is an OR gate and when k

=num

it is an AND gate. Each leaf node x of the tree is

described by an attribute and a threshold value k

=1.

We define tree functions over the tree. The

function parent(x) represents the parent of node x. If

x is a leaf node, we define the function attr (x) to

denote the attribute with the leaf node. As the access

tree has an ordering between the children of every

node, the function index(x) represents the index

number of each child node.

3.2.2 Satisfying an Access Tree

Definition 3. Satisfied Access Tree (Bethencourt et

al., 2007). Let



be an access tree with root r.

Denote by



the subtree of



rooted at the node x.

Thus,



is the same as



. If a set of attributes γ

satisfies the access tree



, we denote it as



(γ)=1.

We compute



(γ) recursively as follows. If x is a

non-leaf node, evaluate



(γ) for all children x' of

node x.



(γ) returns 1 if and only if at least k

children return 1. If x is a leaf node, then



(γ)

returns 1 if and only if att(x) γ.

3.2.3 CP-ABE Algorithms

The ciphertext-policy attribute based encryption

scheme consists of four fundamental algorithms

(Bethencourt et al., 2007): Setup, Encrypt, Key

Generation, and Decrypt.

Setup (k). The setup algorithm takes no input other

than the security parameter k. It outputs the public

parameters PK and a master key MK.

Key-Generation (MK, S). The key generation

algorithm takes as input the master key MK and a set

of attributes S that describe the key. It outputs a

private key SK.

Encrypt (PK, M, A). The encryption algorithm takes

as input the public parameters PK, a message M, and

an access structure A over the universe of attributes.

The algorithm will encrypt M and produce a

ciphertext C

such that only a user that possesses a

set of attributes that satisfies the access structure will

be able to decrypt the message. We will assume that

the ciphertext implicitly contains A.

Decrypt (PK,C

, SK). The decryption algorithm

takes as input the public parameters PK, a ciphertext

which contains an access policy A, and a private

key SK. If the set S of attributes satisfies the access

structure A then the algorithm will decrypt the

ciphertext and return a message M, otherwise return

the error symbol .

SECRYPT2013-InternationalConferenceonSecurityandCryptography

150

4 ECP-ABE SCHEME

The ITHJ09 used Shamir secret sharing technique to

support AND, OR and of (threshold) nodes based on

CP-ABE scheme. The access policy tree is n-ary

tree. Each node has two attributes: the number of

child nodes n and threshold value t (1



). When t

=1, it’s an OR gate; when t = n, it’s an AND gate;

when 1<t<n, it’s an of gate. The leaf node associates

policy properties and its value t is 1. The ECP-ABE

scheme we proposed is based on the ITHJ09 scheme

and we extend the access tree to make it be able to

express the complex policies that contain arithmetic

and logical expressions.

4.1 Extended Leaf Node

The universal attribute set U is published by the

Trusted Authority. Each user has his or her attribute

set w which is used for key generation and we refer

to it as the basic attribute set. In Attribute Based

Access Control system, user’s access right could be

dynamically calculated according to his security

character and the resource he applied for. Inspired

by this, we extend the leaf node of the access policy

tree.

We replace the original leaf node with the

operator node and give it two children, which we

refer to as the attribute name node and the attribute

value node, as shown in Figure 1(a). The operator

node, the attribute name node and the attribute

value node compose an extended leaf node, and the

attribute expression described by an extended leaf

node is called an extended attribute, for instance, the

attribute “age>18” is an extended attribute.

Meanwhile, the range of threshold value t of the

extended leaf node is less than 0 from the original

value 1.

The operator node only has the threshold value t

(t<0). Different value of t denotes specific operator,

for instance, t = -1 for not operator, t = -2 for 

operator. The attribute name/value node denotes the

attribute name and the attribute value respectively

that are associated with the operator. With this

structure, we can express policy attributes using

operators of not, , , ,  . Figure 1(b) is an

example of this structure, which express the policy

attribute “school not software-engineering”.

ECP-ABE scheme augments two kinds of

operators: comparison operators and logic operators.

 Comparison operators:, , , .

 Logic operators: not.

The values of t and the corresponding operator that

each value represents are defined in Table 1.

Table 1: Values of t and its corresponding operator.

Value t Operator

-1 not

-2 <

-3 >

-4



-5



4.2 Transforming an extended Policy

Tree to a Standard Tree

Now we define the extended policy tree as the

extended tree T

and the original tree is called the

standard tree T. An extended tree can be

transformed to an equivalent standard tree by

removing the attribute name/value node, converting

the operator node to the standard leaf node and then

assigning the attribute expression described by the

extended leaf node as an extended attribute to the

stand leaf node. The extended tree T

and the

standard tree T express the same access policy. For

example, the extended tree in Figure 2(a) can be

transferred into the standard tree in Figure 2(b).

The user expresses the access policy using the

extended tree and makes it the parameter for the

encryption. The encryption algorithm will firstly

transform the extended tree to a standard tree, and

then encrypts the message using the standard access

policy tree. Finally, we attach the extended tree in

the ciphertext.

To decrypt the ciphertext, the decryption party

needs to apply the secret key by giving PKG his

basic attribute set and the extended parts of the

access tree. At the PKG side, we use the attribute

verification algorithm as shown in Algorithm 1 to

verify and transform an extended leaf node.

Algorithm 1: Attribute Verification.

Get the expression exp(N.O.V) of the extended leaf node,

where N, O and V denote the basic attribute name, the

operator and the attribute value respectively;

Traverse the basic attribute set A’ to find the basic

attribute N and its value V’;

Let N=V’, and calculate the expression exp(N.O.V);

if the value of exp(N.O.V) is true

5: Convert exp(N.O.V) to string S=“N.O.V”

return S;

else

return null;

end if

ExtendingtheCiphertext-PolicyAttributeBasedEncryptionSchemeforSupportingFlexibleAccessControl

151

Figure 1: Extended access tree.

Figure 2: Examples of extended and standard access policy tree.

This algorithm will first get user’s basic attribute

set and then traverse the attribute set to check

whether or not the attribute N satisfies the

expression exp(N.O.V). If the answer is yes, it

returns the string form of exp(N.O.V), i.e. “attribute

name operator attribute value” which is regarded as

an extended attribute of the user. Otherwise it will

return null.

Here is an example of the transformation.

There is a file F in a campus network system and

the file has an access policy: “It can be accessed if

and only if the user is a teacher under age of 40 or an

older than 18-year-old student who is not in school

of software-engineering”. So, we can give the policy

“T* = (student  school not software-engineering 

age  18)  (teacher  age  40)”, and the extended

access tree for this policy is shown in Figure 2(a).

Figure 2(b) is the standard access tree which

converts from the extended tree in figure 2(a). The

encryption party encrypts the file F with T and

attaches T

in the ciphertext.

Suppose user A and user B wants to decrypt the

file F. The basic attributes of A is {student,

school=computer science, age=20}, and the basic

attributes of B is {student, school=computer science,

age=17}. Firstly, Both A and B need to extract the

extended parts of T

from the ciphertext and send

them with their basic attribute set to PKG. Then,

PKG verifies and generates the new attribute set

{student, school not software-engineering ， age 

18} for A, and the new attribute set { student，

school not software-engineering，age = 17} for B.

The corresponding private keys are generated using

these new attribute sets by PGK concurrently.

Obviously, user B’s attribute set doesn’t satisfy the

access policy, hence user A can decrypt the file F

while user B can’t.

SECRYPT2013-InternationalConferenceonSecurityandCryptography

152

4.3 Encryption and Decryption

Process of ECP-ABE

The encryption party expresses the access policy

with an extended tree and the tree in the ciphertext is

also in the extended structure. However, when

encrypts a message, the encryption algorithm will

first transform the extend tree to an equivalent

standard tree and encrypt the message using the

standard one. So in the encryption phase, we can use

the algorithm of ITHJ09 scheme. For ciphertexts that

encrypted under different extended access trees,

users have to apply for different secret keys, since

PKG need to verify and generate extended attributes

according to the extended tree and user’s basic

attributes. Detailed encryption and decryption

processes are described as follows.

a. Initialize: the system initializes and generates

public parameter pk and master key mk. It gives

pk to the encryption party. The description of

initialization algorithm Setup (k) is as follow.

i. Generate a bilinear group G of prime order p

with a generator g and a bilinear map e:G  G

 GT.

ii. Generate the attribute set U = {a1,a2,…,am},

for some integer m, and random elements ,

t1, t2,…,tm Zp*. Let y = e(g,g), Tj = gtj

(1 j  m). The public key is pk = (e, g, y,

Tj(1 j  m)), and the master key is mk = (,

tj (1 j  m)).

b. Specify the Access Policy: the encryption party

specifies access policy, which is expressed by an

extended tree T

c. Encryption: the encryption party calls the

encryption algorithm Encrypt (m, T

, pk) with

plaintext m, the extended tree T

and the public

parameter pk. The encryption algorithm will first

transform T

to the equivalent standard tree T,

and then encrypt m under T using Shamir’s secret

sharing technique. Finally it returns the

ciphertext C

which contains T

, such that only

users who have the secret key generated from the

attributes that satisfy T

will be able to decrypt

the message. The detail description is as follows:

i. Convert the T

to the standard tree T;

ii. Select a random element s Z

and compute

= g

and c

= M



= M



e(g,g)



iii. Set the value of the root node of T to be s,

mark all child nodes as un-assigned, and

mark the root node assigned. Recursively, for

each un-assigned non-leaf node, do the

following:

If its child nodes are un-assigned，the secret

s is divided using (t,n)-Shamir secret sharing

technique. The relation of n and t is: if the

symbol is of then 1  t  n; if the symbol is

AND, then t = n; if the symbol is OR, then t

= 1. To each child node a share secret s

= f(i)

is assigned. Mark this node assigned.

iv. For each leaf attribute a

j,i

T, compute c

j,i

, where i denote the index of the attribute

in the access tree.

v. Return the ciphertext: C

= (T, c

, c

, a

j,I



T:c

j,i

d. Secret Key Request: when a user gets C

and

wants to decrypt, he first needs to analyze the

structure of T

and find the extended parts, then

apply for the secret key by giving PKG his basic

attribute set w and the extended parts of the

access tree.

e. Secret Key Generation: PKG first verify the

user’s basic attribute. If the basic attributes of the

user are authenticated, PKG will extract the

attribute name, the attribute value and the

operator, and run Algorithm 1. Attributes in w

that satisfy the extended leaf node will be

replaced by the returned extended attributes.

Finally PKG gets the new attribute set w

and

generates the secret key sk

corresponds to w

and sends it back to the user. The detailed

description is as follows:

i. Select a random value r Z

, d

= g



- r

ii. For each attribute a

in w, compute d

1

iii. Return the secret key sk

=(d

,a

 w:d

)

f. Decryption: the user calls the decryption

algorithm Decrypt(C

, sk

). The algorithm

returns message m if the smallest attribute set w’

 w

that corresponds to sk

satisfies T.

Otherwise it returns an error symbol . More

details are as follows:

For every attribute a

 w’, computing:

(0)

00 ,

(, ) ( , )

ji j

ec d ec d









(0) is a Lagrange coefficient and can be computed

by everyone who knows the index of the attribute in

the access tree.

ExtendingtheCiphertext-PolicyAttributeBasedEncryptionSchemeforSupportingFlexibleAccessControl

153

Correctness Proof:

(0)

00 ,

(0)

(, ) ( , )

(, )

(, )( , )

(, )

(, ) ( , )

ji j

ts rt

ec d ec d

megg

eg g eT g

megg

eg g eg g

























(, ) (, )

(, )(,) (, )

sr rs s

megg megg

eg g egg eg g











5 ECP-ABE PERFORMANCE

ANALYSIS

5.1 Security

The major contribution of ECP-ABE scheme is the

extension of the access tree. The core

encryption/decryption algorithm of ECP-ABE is

based on ITHJ09 scheme. In ITHJ09 scheme

semantic security under chosen-plaintext attack

(CPA) is modeled by IND-sAtt-CPA game. The

security model of ECP-ABE will still be based on

IND-sAtt-CPA game, but the challenging access tree

provided by the adversary in

Init phase will be an

extended tree instead of a standard tree. IND-sAtt-

CPA game of ECP-ABE security model is as

follows:

 Init. The adversary A chooses the challenge

access tree T

and gives it to the challenger, T

an extended tree.

 Setup. The challenger runs Setup to

generate(pk,mk) and gives the public key pk to

adversary A. The challenger also transforms T

the equivalent standard tree T.

 Phase1. Adversary A makes a secret key request

to the Keygen oracle for any attribute set w = { a

| a

U}, with the restriction a

 T

and a

does

not satisfy the policy attribute requirement

expressed by the extend part of T

. The

challenger runs Algorithm 1 to generate extended

attribute set w

and then returns Keygen(w

, mk).

 Challenge. Adversary A sends to the challenger

two equal length messages m

, m

. The

challenger picks a random bit b  {0,1} and

returns C

= Encrypt(m

, T

, pk).

 Phase2. Adversary A can continue querying

Keygen oracle with the same restriction as in

Phase1.

 Guesss. Adversary A outputs a guess b

’

 {0,1}.

The advantage of A winning this game is defined as:



= |Pr[b’=b] – 1/2|.

Definition 1. ECP-ABE scheme is said to be secure

against an adaptive chosen-plaintext attack(CPA) in

the standard model if any polynomial-time adversary

has only a negligible advantage in the above IND-

sAtt-CPA game.

In the above game, adversary A uses an extended

tree to challenge instead of a standard tree. We have

the following analyse:

The limitation for the basic attribute set w = { a

 U } provided by adversary A in Phase1 is a

 T

and a

does not satisfy the policy attribute

requirement expressed by the extended part of T

According to this limitation, we can infer that

b

w

， b

T. So in Phase1, changes of

access tree will not introduce any new security

problem, i.e. the secret key that A gets could not

decrypt the ciphertext C

Although adversary A submits the extended tree

in Init phase, message m

is encrypted under

standard tree T. Transformation between T

and T

is public. In

Phase1, Challenge and Phase2,

adversary A could design the query and challenge

against T

. So the attacking ability of A keeps the

same.

Hence, we can conclude that in ECP-ABE scheme

the advantage of A in the IND-sAtt-CPA game

equals to the advantage of A in ITHJ09 scheme, i.e.

in ECP-ABE scheme any polynomial-time adversary

has only a negligible advantage in the IND-sAtt-

CPA game.

So ECP-ABE scheme is secure against an adaptive

chosen-plaintext attack(CPA) in the standard model.

Our extension for the access tree will not lower the

system security compared with ITHJ09.

5.2 Efficiency

In ITHJ09 scheme, encryption requires |

|+1

exponentiations in

 and one exponentiation in 

and |

| is the number of attributes in the access tree

. Key generation requires |w|+1 exponentiations in

, w is the attribute set the user has. Decryption

requires |w’|+1 pairing operations, |w’|

multiplications, w’ is the set of attributes satisfying

the access tree, w’  w.

SECRYPT2013-InternationalConferenceonSecurityandCryptography

154

Table 2: The test samples without repetitive same name attributes.

1-4 attribute nodes

（4 nodes for instance）

5-7 attribute nodes

（6 nodes for instance）

8-10 attribute nodes

（9 nodes for instance）

Standard attribute policy

security_ level=7

∧salary=7500

∧genderM

∧age24

(security_level=7

∧genderM

∧department=product

∧expired_date201301

∧age24

∧nameSk

(security_level =7

∧department=product

∧nameSky

∧genderM

∧officeBC‐1

∧projectT1

∧age24∧salary7

∧expired_date201301

Extended attribute policy

(id not Bob@gmail.com)

∧namenotTom

∧salary7000

∧security_level4

(age25)∧(salary9000)

∧(department not account)

∧idnotTom@gmail.com

∧namenotjack

∧security_level7

(age20)∧(salary5000)

∧(department not account)

∧namenottom

∧projectnotS1

∧idnotBob@gmail.com

∧officenotA1

∧professionalnotPA

∧security_level7

(a) The encryption time cost comparison of

ECP-ABE scheme and ITHJ09 scheme.

(b) The key application time cost

comparison of ECP-ABE scheme and

ITHJ09 scheme

ECP-ABE scheme and ITHJ09 scheme

Figure 3: The efficiency comparison of ECP-ABE and ITHJ09 scheme without repetitive same name attributes.

ECP-ABE uses the encryption and decryption

algorithms of ITHJ09 scheme, so the calculation

expenses and the length of ciphertext are the same as

ITHJ09. The ECP-ABE scheme has two main

differences compared with ITHJ09 scheme: the

ECP-ABE has the conversion from an extended tree

to a standard tree during the encryption; it also has

the verification and transformation of extended

attributes during the key generation. Meanwhile, in

ECP-ABE, the attribute set used to generate the

private key will be expanded after the extended leaf

node transformation. Therefore, the added

calculation expense comes from the following three

factors:

ExtendingtheCiphertext-PolicyAttributeBasedEncryptionSchemeforSupportingFlexibleAccessControl

155

 The transformation from the extended tree to the

standard tree during the encryption phase

 The verification and transformation of the

extended attributes during the key generation

phase

The following experiments illustrate the impact of

the above factors on the actual efficiency.

We use two groups of policy file shown in Table

2 as test samples. One group only contains policies

with the standard attributes which are used as the

policies of the ITHJ09 scheme, and the other only

contains policies with the extended attributes which

are used as the policies of our ECP-ABE scheme.

Each group has 10 test policy files to test the

efficiency when the number of attribute node varies

from 1 to 10. The access tree is a two-tier structure

when there are 1-4 attribute nodes, a three-tier

structure when there are 5-7 attribute nodes, and a

four-tier structure when there are 8-10 attribute

nodes.

We run three times for each test policy file and

get the average cost as the result. Figure 3 is the

result of test.

Discussion: the verification of the extended leaf

nodes and the transformation from the extended tree

to the standard tree nearly have no effect on the

performance during the encryption and key

application phase. However, the ECP-ABE scheme

has greatly enhanced the access policy expression

capability.

6 CONCLUSIONS

The paper proposed an ECP-ABE scheme, which

introduces the extended leaf nodes into the access

policy tree to support access policy formulas

involving operators including

NOT,  ,  , ,  in

addition to AND, OR and threshold operators.

Hence the scheme enhanced access control ability

prominently, which is important to data self-

protection in open computing environments.

ECP-ABE adopts the same implementation

mechanism as other CP-ABE schemes. Basing on

the experiments analysis, we can see that our scheme

has nearly the same expense compared with ITHJ09

scheme, and ECP-ABE scheme is proven chosen

plaintext (CPA) secure under the decisional Bilinear

Diffie-Hellman assumption in the standard model.

Hence, ECP-ABE can keep the security and

efficiency properties of the CP-ABE scheme which

it based on, but prominently improves the access

capability of the baseline scheme. Also, the policy

extension method used in ECP-ABE is not limited to

the ITHJ09 scheme; it can be used on other CP-ABE

schemes that utilize tree-based access policy

structures.

For future work, it would be interesting to probe

other more efficient way to enhance the access

control capability of CP-ABE schemes, such as

working on other access policy structures like LSSS,

or designing new encryption/decryption algorithms.

ACKNOWLEDGEMENTS

This work was supported by the National Natural

Science Foundation of China (Grant No.61170088)

and Foundation of the State Key Laboratory of

Software Development Environment (Grant No.

SKLSDE-2013ZX-05).

REFERENCES

Attrapadung, N., Herranz, J., Laguillaumie, F., Libert, B.,

De Panafieu, E. & Ràfols, C. 2012. Attribute-based

encryption schemes with constant-size ciphertexts.

Theoretical Computer Science, 422, 15-38.

Attrapadung, N. & Imai, H. 2009. Conjunctive Broadcast

and Attribute-Based Encryption. In: SHACHAM, H.

& WATERS, B. (eds.) Pairing-Based Cryptography –

Pairing 2009. Springer Berlin Heidelberg.

Attrapadung, N., Libert, B. & Panafieu, E. 2011.

Expressive Key-Policy Attribute-Based Encryption

with Constant-Size Ciphertexts. In: CATALANO, D.,

FAZIO, N., GENNARO, R. & NICOLOSI, A. (eds.)

Public Key Cryptography – PKC 2011. Springer

Berlin Heidelberg.

Beimel, A. 1996. Secure schemes for secret sharing and

key distribution. PhD thesis, Israel Institute of

Technology, Technion, Haifa, Israel.

Bethencourt, J., Sahai, A. & Waters, B. Ciphertext-Policy

Attribute-Based Encryption. Security and Privacy,

2007. SP '07. IEEE Symposium on, 20-23 May 2007

2007. 321-334.

Boneh, D. & Boyen, X. Efficient selective-ID secure

identity-based encryption without random oracles.

Advances in Cryptology-EUROCRYPT 2004, 2004.

Springer, 223-238.

Chen, C., Zhang, Z. & Feng, D. 2011. Efficient Ciphertext

Policy Attribute-Based Encryption with Constant-Size

Ciphertext and Constant Computation-Cost. In:

BOYEN, X. & CHEN, X. (eds.) Provable Security.

Springer Berlin Heidelberg.

Cheung, L. & Newport, C. 2007. Provably secure

ciphertext policy ABE. Proceedings of the 14th ACM

SECRYPT2013-InternationalConferenceonSecurityandCryptography

156

conference on Computer and communications security.

Alexandria, Virginia, USA: ACM.

Emura, K., Miyaji, A., Nomura, A., Omote, K. & Soshi,

M. 2009. A Ciphertext-Policy Attribute-Based

Encryption Scheme with Constant Ciphertext Length.

In: BAO, F., LI, H. & WANG, G. (eds.) Information

Security Practice and Experience. Springer Berlin

Heidelberg.

Goyal, V., Jain, A., Pandey, O. & Sahai, A. 2008.

Bounded Ciphertext Policy Attribute Based

Encryption. In: ACETO, L., DAMG RD, I.,

GOLDBERG, L., HALLD RSSON, M., ING LFSD

TTIR, A. & WALUKIEWICZ, I. (eds.) Automata,

Languages and Programming. Springer Berlin

Heidelberg.

Goyal, V., Pandey, O., Sahai, A. & Waters, B. 2006.

Attribute-based encryption for fine-grained access

control of encrypted data. Proceedings of the 13th

ACM conference on Computer and communications

security. Alexandria, Virginia, USA: ACM.

Ibraimi, L., Tang, Q., Hartel, P. & Jonker, W. 2009.

Efficient and Provable Secure Ciphertext-Policy

Attribute-Based Encryption Schemes. In: BAO, F., LI,

H. & WANG, G. (eds.) Information Security Practice

and Experience. Springer Berlin Heidelberg.

Junbeom, H. & Dong Kun, N. 2011. Attribute-Based

Access Control with Efficient Revocation in Data

Outsourcing Systems. Parallel and Distributed

Systems, IEEE Transactions on, 22, 1214-1221.

Junod, P. & Karlov, A. 2010. An efficient public-key

attribute-based broadcast encryption scheme allowing

arbitrary access policies. Proceedings of the tenth

annual ACM workshop on Digital rights management.

Chicago, Illinois, USA: ACM.

Lang, B., Foster, I., Siebenlist, F., Ananthakrishnan, R. &

Freeman, T. 2009. A Flexible Attribute Based Access

Control Method for Grid Computing. Journal of Grid

Computing, 7, 169-180.

Lewko, A., Okamoto, T., Sahai, A., Takashima, K. &

Waters, B. 2010. Fully Secure Functional Encryption:

Attribute-Based Encryption and (Hierarchical) Inner

Product Encryption. In: GILBERT, H. (ed.) Advances

in Cryptology – EUROCRYPT 2010. Springer Berlin

Heidelberg.

Li, J., Wang, Q., Wang, C. & Ren, K. 2011. Enhancing

Attribute-Based Encryption with Attribute Hierarchy.

Mobile Networks and Applications, 16, 553-561.

Liang, X., Cao, Z., Lin, H. & Shao, J. 2009a. Attribute

based proxy re-encryption with delegating capabilities.

Proceedings of the 4th International Symposium on

Information, Computer, and Communications Security.

Sydney, Australia: ACM.

Liang, X., Cao, Z., Lin, H. & Xing, D. 2009b. Provably

secure and efficient bounded ciphertext policy

attribute based encryption. Proceedings of the 4th

International Symposium on Information, Computer,

and Communications Security. Sydney, Australia:

ACM.

Nishide, T., Yoneyama, K. & Ohta, K. 2008. Attribute-

Based Encryption with Partially Hidden Encryptor-

Specified Access Structures. In: Bellovin, S., Gennaro,

R., Keromytis, A. & Yung, M. (eds.) Applied

Cryptography and Network Security. Springer Berlin

Heidelberg.

Sahai, A. & Waters, B. 2005. Fuzzy Identity-Based

Encryption. In: CRAMER, R. (ed.) Advances in

Cryptology – EUROCRYPT 2005. Springer Berlin

Heidelberg.

Sam

arati, P. & Di Vimercati, S. D. C. Data protection in

outsourcing scenarios: Issues and directions.

Proceedings of the 5th ACM Symposium on

Information, Computer and Communications Security,

2010. ACM, 1-14.

Shamir, A. 1979. How to share a secret. Commun. ACM,

22, 612-613.

Shamir, A. 1985. Identity-based cryptosystems and

signature schemes. Proceedings of CRYPTO 84 on

Advances in cryptology. Santa Barbara, California,

United States: Springer-Verlag New York, Inc.

Su, J., Cao, D., Wang, X., Sun, Y. & Hu, L. 2011.

Attribute-based Encryption Schemes. Journal of

Software, 22, 1299-1315.

Vimercati, S. D. C. D., Foresti, S., Jajodia, S., Paraboschi,

S. & Samarati, P. 2010. Encryption policies for

regulating access to outsourced data. ACM

Transactions on Database Systems (TODS), 35, 12.

Wang, G., Liu, Q. & Wu, J. 2010. Hierarchical attribute-

based encryption for fine-grained access control in

cloud storage services. Proceedings of the 17th ACM

conference on Computer and communications security.

Chicago, Illinois, USA: ACM.

Waters, B. 2011. Ciphertext-Policy Attribute-Based

Encryption: An Expressive, Efficient, and Provably

Secure Realization. In: Catalano, D., Fazio, N.,

Gennaro, R. & Nicolosi, A. (eds.) Public Key

Cryptography – PKC 2011. Springer Berlin

Heidelberg.

Zhiguo, W., Jun'e, L. & Deng, R. H. 2012. HASBE: A

Hierarchical Attribute-Based Solution for Flexible and

Scalable Access Control in Cloud Computing.

Information Forensics and Security, IEEE

Transactions on, 7, 743-754.

ExtendingtheCiphertext-PolicyAttributeBasedEncryptionSchemeforSupportingFlexibleAccessControl

157
