Analysis of Co-evolutionary Approach for Robotic Gait Generation

Jan

Cern

y and Ji

ı Kubal

ık

Department of Cybernetics, Faculty of Electrical Engineering,

Czech Technical University, Technick

a 2, 166 27 Prague 6, Czech Republic

Keywords:

Evolutionary Algorithms, Genetic Programming, Legged Robots, Robotic Gait, Co-evolution, Motion

Patterns, Evolutionary Robotics.

Abstract:

Recently, a new co-evolutionary approach for generating motion patterns for multi-legged robots which ex-

hibit symmetry and module repetition was proposed. The algorithm consists of two evolutionary algorithms

working in co-evolution. The ﬁrst one, a genetic programming module, evolves a motion of a single leg. The

second one, a genetic algorithm module, seeks for the optimal deployment of the single-leg motion pattern

to all legs of the robot. Thus, the whole task is decomposed into two subtasks that are to be solved simulta-

neously. First proof-of-concept experiments proved such a decomposition helps to produce better solutions

than a simple GP-based approach that tries to evolve individual motion patterns for all legs of the robot. This

paper further analyzes the co-evolutionary algorithm focusing on two things – the way it handles the problem

decomposition and the type of functions it uses to control joints of the robot. The experiments carried out in

this work indicate that both design choices positively contribute to its performance.

1 INTRODUCTION

Walking robots have advantage over wheeled ones

when navigating complex and uneven environments.

However, to fully use abilities of a particular legged

robot it is necessary to optimize its gait speciﬁcally

for its mechanical structure, dimensions and parame-

ters.

This is a highly challenging task seeking for a co-

ordinated control of many joints, given multiple (of-

ten contradictory) optimization objectives such as the

maximal or some speciﬁc speed of locomotion, low-

energy operational mode, stability of the robot, etc.

The solution sought must also comply with multi-

ple constraints. Typically, the state transitions have

to be continuous in order to attain smooth gait pat-

terns. Other constraints can be determined by limited

resources and mechanical parameters that determine

inherent capability limits of the robot (Gong et al.,

2010). Moreover, the optimization objectives as well

as the constraints are non-linear, in general.

Obviously, manual generation of gaits is very dif-

ﬁcult, if feasible at all, due to the aspects mentioned

above. Utilization of standard numerical optimization

methods is limited since the objective functions are

not deﬁned analytically (each candidate gait is eval-

uated by a real experiment or through a simulation),

hence no information about continuity or differentia-

bility of the objective function is available. Single-

state heuristic methods that work in point-to-point

manner are ineffective as well since they are very

prone to get stuck in some sub-optimal solution when

searching huge space with many local optima.

On the contrary, evolutionary algorithms (EAs)

are population-based search and optimization tech-

niques that have been used for solving hard opti-

mization problems of the black-box type. Unlike the

single-state heuristics, the search direction is adjusted

using the information accumulated over all candidate

solutions of the population in each generation step of

the EA run. Thus, the EAs are more resistant to get-

ting trapped in a local optimum. They are also resis-

tant to noise in the evaluation function, which is very

important for this particular optimization domain.

There have been many studies devoted to the evo-

lutionary design of systems for automated gait gener-

ation and gait optimization of biped, quadruped, and

hexapod robots (Gong et al., 2010). Several types

of gait representation has been used by evolutionary-

based gait generators. Genetic Programming and

Grammatical Evolution evolve directly the functions

deﬁning the joint angle trajectories (Seo and Hyun,

2008). One example of this approach is in the work

of Ivan Tanev who used it to create controllers for ar-

tiﬁcial snakes (Tanev and Shimohara, 2008).

Cerný J. and Kubalík J..

Analysis of Co-evolutionary Approach for Robotic Gait Generation.

DOI: 10.5220/0004554900370046

In Proceedings of the 5th International Joint Conference on Computational Intelligence (ECTA-2013), pages 37-46

ISBN: 978-989-8565-77-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

Another approach to this problem is evolution

of Central Pattern Generators (CPG) (Crespi and

Ijspeert, 2008). Those are type of neural network with

the ability to generate rhythmic patterns. CPGs are

nature inspired mechanisms used to generate rhyth-

mic signals useful for periodical motions. This con-

cept comes from neurology. Small clusters of neu-

rons were isolated from brains of many different an-

imals which were able to generate rhythmic signals

hours after any sensory input. Simple CPG can be

sine wave generator or multiple sine wave generators

with different frequency amplitude and phase, more

complex ones are usually constructed from artiﬁcial

neural network. CPGs in robotics are used the same

way as in living organism for periodical motions like

walking or swimming.

In (Parker, 2001) Parker used the idea of two stage

evolution. He used an evolution algorithm to evolve

the motion of single limb of hexapod robot and then

combined those moves into gait in another stage of

evolution. This approach simpliﬁes the task by evolv-

ing part of the problem in advance, but it also has

some limitations. Because the movement of entire

robot cannot be observed during the ﬁrst stage of the

evolution it is not part of ﬁtness function. The motion

pattern which has a good ﬁtness when used for a sim-

pliﬁed problem of the ﬁrst stage might behave poorly

when used for ﬁnal robot.

Neuroevolutionary approach to generate con-

trollers for entire robot has been described in (Yosin-

ski, 2011). Yosinski et al. used HyperNEAT gen-

erative encoding to evolve controller for a physical

quadruped robot. The gaits produced by HyperNEAT

performed signiﬁcantly better than locally optimized

parameterized motion models. This has been at-

tributed to an ability of HyperNEAT to discover a va-

riety of gait regularities. However, the gaits evolved

by HyperNEAT directly on a physical robot were not

impressive. Evolution on real hardware proved to be

impractical. Since the robot would constantly over-

heat or break, number of evaluations in evolution has

to be greatly reduced and this led to inferior results.

Thus, further improvement of the gaits was achieved

only after it has been moved to the simulated environ-

ment (Lee et al., 2013).

In (Cerny, 2012; Cerny, 2013) a new co-

evolutionary approach for automatic generation of

robotic gait was presented. The method was designed

for modular robotic creatures that are composed of a

number of simple cubic-shaped robotic blocks

. The

robotic blocks are endowed with a movable arm and

Multi-legged robots that exhibit features of symme-

try and module repetition were considered (particularly a

quadruped robot).

several slots that they use to connect to each other (re-

alizing joint-like connections) to form complex struc-

tures. Joint angles are controlled by functions of a

single input, time, that return desired joint positions

at discrete time steps. Thus, the generation of the gait

consists in ﬁnding a set of functions (a single func-

tion for each joint) that make the whole robotic crea-

ture to move in a desired way. The gaits were gen-

erated through a simultaneous evolution of (1) opti-

mal single-leg motion and (2) its coordinated deploy-

ment to all legs of the robot. The results presented in

(Cerny, 2013) show that such a decomposition of the

whole problem can lead to better motion patterns than

simple GP approach that evolves individual control

function to all legs. However, there are still a number

of open issues that has to be investigated in order to

conclude about the relevance of the co-evolutionary

approach.

The primary goal of this work is to investigate

the impact of key features of the co-evolutionary ap-

proach on its performance. Particularly, we focus on

the following two design choices:

• Co-evolution vs. Single-population Evolution.

The robotic gait is sought through the co-

evolution of the single-leg motion pattern and the

coordination strategy. Another way to approach

the gait generation problem using decomposition

is to evolve a single population of individuals,

where each one encodes both the single-leg mo-

tion and the coordination strategy. Thus, the ques-

tion is whether the co-evolution of the two aspects

of the complete robotic gait is better than single

evolution of composite individuals.

• Complexity of the Control Functions. The single-

leg motion patterns are represented as arbitrary

functions that are sought by the GP. Another way

to realize the motion patterns is to some periodic

function, such as the sine wave, to control mod-

ules of the robot and then to tune just the pa-

rameters of the sine waves (amplitude, phase, fre-

quency) of each module. Thus, the question is

whether the more general functions evolved by

GP are advantageous and can allow for generating

better motion patterns than the sine wave ones.

Series of experiments were carried out in or-

der to compare a performance of the baseline co-

evolutionary GP approach with its variants that differ

in the above mentioned aspects.

This paper is structured as follows. In section 2,

characteristics of robots simulated in the simulation

platform Sim are described. Section 3 describes

the co-evolutionary approach for automatic robot gait

generation. Section 4 describes algorithms used to

empirically validate the design of the co-evolutionary

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

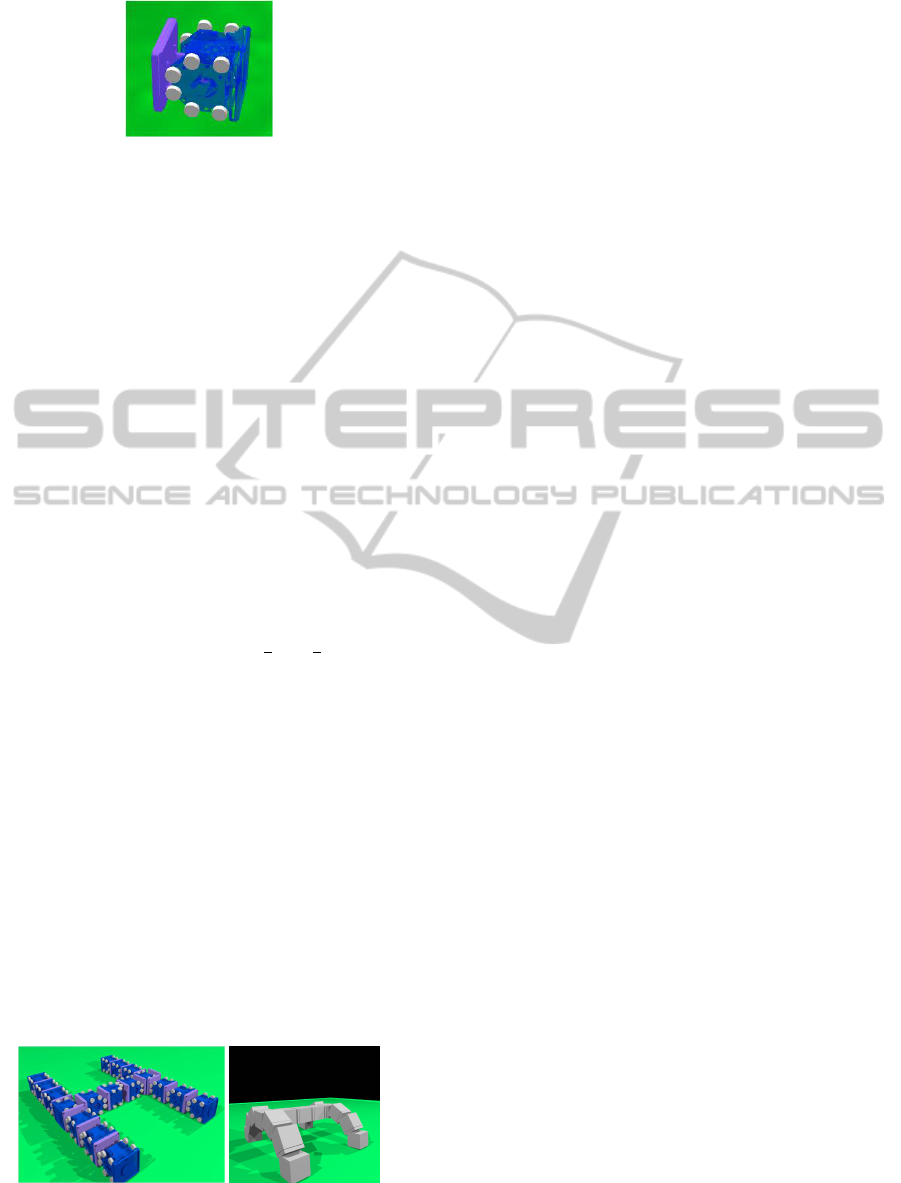

Figure 1: A single robotic block used as a building block of

robotic creatures.

algorithm. Section 5 describes the experimental sce-

nario and presents the achieved results. Final section

concludes the paper and lists further extensions of the

presented approach.

2 SIMULATION PLATFORM AND

EXPERIMENTAL ROBOT

In this work, we use just a simulation platform Sim

(Vonasek and Fiser, 2012), not the real physical

robots. However, the simulation platform, which is

based ODE physics simulator, provides very realistic

and accurate experimental environment.

In Sim, robots composed of a number of simple

cubic-shaped robotic blocks, see Fig. 1, can be inves-

tigated. Each block consists of the main body and one

movable arm. This arm has its axle in the center of the

body and can be moved between −

and

. While the

main body of the block has wheels which can be used

to move it on the ﬂat ground, those are not used as

a means of motion. Instead, the blocks are endowed

with slots (three of them on the main body and one is

on the movable arm) that enable them to connect to

each other and form more complex robots capable of

walking motion.

By connecting a slot on the movable arm of one

block to the slot on the main body of another block

a joint-like functionality is realized. Motors moving

with arms are controlled by input signals which ex-

press a desired angle of the arm. This means that the

motor tries to move the arm to the desired angle, how-

ever it may fail to reach exactly the desired position

due to the physical constraints.

Figure 2: Tested conﬁguration of the complete robot in

starting position (i.e. lying on the ﬂoor) and a higher-level

abstraction of the same robot in standing position.

In this work we focus on multi-legged robots that

exhibit features of symmetry and module repetition.

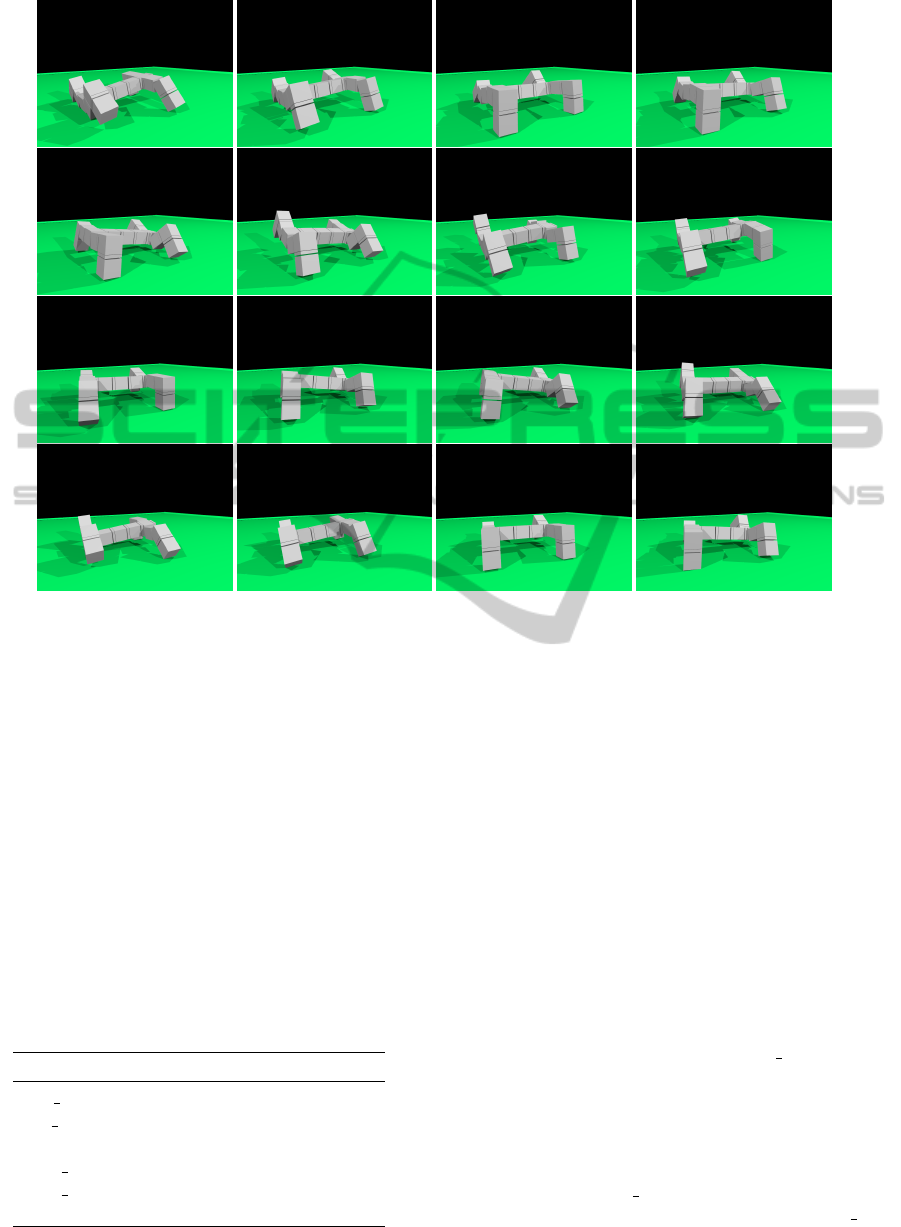

Particularly, a quadruped robot was investigated, see

Fig. 2. This structure of the robot was ﬁxed for all

experiments as the search for ideal morphology is not

part of this work. This robot is assembled from 17

blocks, ﬁve of these blocks form a torso of the robot

and remaining twelve blocks are used for four iden-

tical legs. Note that the movable arms do not realize

spherical joints, they can move only in one plane, ei-

ther the vertical or the horizontal one. Thus the con-

nection types chosen for individual joints of the robot

determine the character of gait the robot can perform.

The robot used in our experiments is designed to walk

sideways just as crabs do.

3 CO-EVOLUTIONARY

APPROACH TO MOTION

PATTERN GENERATION

In this work we assume multi-legged robots that ex-

hibit symmetry and module repetition properties and

propose a gait generation algorithm that makes use of

these properties to decompose the whole task in or-

der to efﬁciently evolve gaits of such complex robots.

There are two modules, genetic programming mod-

ule (GP-module) and genetic algorithm module (GA-

module), involved in the algorithm, each devoted to

evolution of a speciﬁc trait of the resulting gait:

• The GP-module is responsible for evolution of a

single-leg motion pattern, i.e. evolution of func-

tions controlling movement of individual joints of

a single leg and their coordination. A standard

tree-based GP is used to realize this module.

• The GA-module is responsible for evolution of a

coordination strategy that optimally deploys the

single-leg motion pattern, evolved by the GP-

module, to all legs of the robot. This module is

realized by genetic algorithm as the coordination

strategy is represented by a linear vector of con-

trol parameters that are to be tuned.

The two modules co-evolve simultaneously in a

sense that the single-leg motion patterns are coupled

with coordination strategies for the purpose of assess-

ing their quality. So, when evaluating one particular

individual of GP-module some individual of the GA-

module has to be assigned in order to make a com-

plete gait, and vice versa. The motivation for this co-

evolutionary approach is to let the system seek for a

good single-leg motion pattern that could be re-used,

with certain adjustment for left/right and fore/hind

leg, multiple times for all legs of the complete robot.

AnalysisofCo-evolutionaryApproachforRoboticGaitGeneration

Clearly, this approach could be used only if all legs

of the robot have the same structure and the motion

patterns they perform are expected to be similar

3.1 Genetic Programming Module

3.1.1 Representation

Given that each leg is composed of k connected

blocks, where each of the k joints is controlled by

its own function, the single-leg motion pattern is then

represented by k trees which use the following sets of

terminals and non-terminals:

• non-terminals: +, -, unary -, sin, cos, *, /, max,

min

• terminals: input variable time t, π, real-valued

constants r = h−1,1i

3.1.2 Genetic Operators

Standard GP subtree-swapping crossover operator

was implemented. On the other hand, no mutation

operator was used. To select individuals for reproduc-

tion, the tournament selection method was chosen.

To reduce the bloat and increase the computational

efﬁciency of the algorithm, a bloat control method

called Proportional Tournament (Panait and Luke,

2004) was used. In this method, a proportion of tour-

naments, given by parameter R, are based on parsi-

mony and the remaining tournaments, 1−R, are based

on ﬁtness. This means that either well-ﬁt or small tree

wins the tournament.

3.1.3 Evolution Model and Initialization

This algorithm uses generational evolution model.

The ﬁrst generation is initialized by ramped-half-and-

half method with the maximal depth limit of 5.

3.2 Genetic Algorithm Module

3.2.1 Representation

This module evolves coordination strategies that de-

termine the way a particular single-leg motion pattern

is deployed to all legs of the robot. The coordination

strategy is given by the following parameters deﬁned

for each leg:

Note, the joints connecting the blocks of the robot’s

torso are ﬁxed, they are not included into the evolved gait

control strategy.

• Direction, d, speciﬁes whether the single-leg mo-

tion will be applied in the direct or its reverse

mode. If the reverse mode is chosen for a partic-

ular leg then the input time parameter passed into

its joints functions is negated so that the leg per-

forms a motion which is a ”mirrored” version of

the original single-leg motion. This is important

for the crab like motion as it allows legs on one

side of the robot to pull and legs one the other side

to push. The direction parameter is represented by

a single bit for each leg.

• Phase, ϕ, speciﬁes phase shift in legs movement.

This makes it possible to have different legs in dif-

ferent phases of the gait at the same time. This pa-

rameter is represented by a real number from in-

terval h0.0,1.0i, where the interval covers all pos-

sible shifts within one period of the corresponding

single-leg motion.

The ﬁnal structure of the chromosome represent-

ing a coordination strategy for n legs is as follows

...d

| ϕ

...ϕ

] (1)

where the direction bits are grouped in the head

part and the phase real numbers in the tail part of the

chromosome.

3.2.2 Genetic Operators

The representation described above requires a

crossover operator that operates differently for the

two parts of the chromosome. Standard one-point

crossover is used for the binary string of direction

bits. For the real-valued tail part of the chromosome,

a variant of the Blend crossover was implemented.

Given two parents p1 and p2, the offspring phase

value at position i, o

ϕi

, is taken at random (with uni-

form distribution) from the following set of possible

choices

ϕi

∈ {p1

ϕi

, p2

ϕi

,(p1

ϕi

+ p2

ϕi

)/2,

min(p1

ϕi

, p2

ϕi

) − 0.5 ∗ range,

max(p1

ϕi

, p2

ϕi

) + 0.5 ∗ range}

(2)

where range = abs(p1

ϕi

− p2

ϕi

). Every newly

generated value o

ϕi

is further adjusted to fall into the

interval of admissible values h0.0, 1.0i.

For the binary direction parameters, simple bit-ﬂip

mutation operator was used. When a phase parameter

is selected for mutation, it is replaced by a new value

randomly generated from h0.0,1.0i. Tournament se-

lection is used to select parents for crossover and mu-

tation.

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

3.2.3 Evolution Model and Initialization

This algorithm uses a steady-state evolution model

where the newly generated individual replaces the

worst individual in the population. The ﬁrst gener-

ation is initialized randomly.

3.3 Co-evolution of GP-module and

GA-module

As mentioned at the beginning of this section, the

co-evolution of GP-module and GA-module is based

on pairwise relationships between individuals from

these two populations. These relationships are nec-

essary for assessing the quality of the individuals so

that when evaluating an individual from GP-module

its counterpart from GA-module is used to make up

the whole gait strategy, and vice versa. Below, the

ﬁtness function used to assess evolved gait strategies

and the scheme used for maintaining the pairwise re-

lationships are described.

3.3.1 Fitness Function

The same minimization ﬁtness function is used to as-

sess individuals from GP-module and GA-module. It

takes into account two aspects of the evaluated gait -

(i) a distance covered by the robot in desired direction

and (ii) a body posture of the robot during its move-

ment.

The covered distance term is measured as the dis-

tance of the central block of the robot’s torso from

desired destination point. The body posture term is

deﬁned as a penalty punishing robots that show ten-

dency to drag its body on the ground. This is realized

so that a minimum height of the central block of the

robot is speciﬁed and then certain value is added to

the ﬁnal penalty for each step of the whole simula-

tion of the robot’s movement

the robot made in lower

posture. Note, the penalty is in fact very high, hence

strongly encouraging evolution of walking gaits in-

stead of crawling ones.

3.3.2 Pairing off Individuals of GP-module and

GA-module

At the beginning of the run, individuals of the GP-

module are randomly paired off with individuals of

the GA-module so that each GP-module individual

has exactly one counterpart in GA-module. On the

The simulations are carried out in discrete steps, with

frequency 125 steps per second.

other hand, the GA-module individual can have arbi-

trary number of links (0 to many) to individuals in

GP-module.

Then, the co-evolution proceeds by phases, alter-

ing M generations of GP-module and N generations

of GA-module in each phase. When the GP-module

generates a new population, each newly generated in-

dividual inherits the relationship with the GA-module

individual from one of its parents. This way it is en-

sured that every individual in GP-module has always

assigned its counterpart in the GA-module for evalua-

tion purposes.

When GA-module evolves its population, each

newly generated individual is evaluated with several

candidates from GP-module and the best value is set

as its ﬁtness. Moreover, it may happen that some of its

individuals has lost its counterpart in the GP-module

(because they were replaced by new individuals in

some of the previous generations of GP-module). In

this case, the ﬁtness of such unpaired GA-module in-

dividual is penalized. This way individuals with no

link to GP-module can still compete between each

other but will always lose against those that are linked

to someone in GP-module. Also, whenever an indi-

vidual from GA-module is deleted it is important to

ﬁnd a new GA-module individual for all GP-module

individuals which were connected to it.

4 COMPARED ALGORITHMS

In this section algorithms for automatic robot gait

generation, used for comparisons with the original

co-evolutionary approach (Cerny, 2013), will be de-

scribed. The algorithms vary in the way they han-

dle the problem decomposition and the type of func-

tions they use to control joints between modules of

the robot.

4.1 GP-based Algorithms

These are the variants of the original approach that all

evolve general functions using the GP. The original

co-evolutionary algorithm will be denoted as GP

co-

evolution.

4.1.1 GP with composite Individuals

This algorithm, denoted as GP composite, handles

the problem decomposition via composite individu-

als, where each individual encodes both

• the trees representing functions for controlling

joints of a single leg and

AnalysisofCo-evolutionaryApproachforRoboticGaitGeneration

• the set of synchronization parameters for coordi-

nated deployment of the single-motion to all legs

of the robot, as deﬁned in Section 3.2.1.

Note, in the GP co-evolution approach, each

newly generated set of synchronization parameters is

tried with several single-leg motion patterns being as-

sessed and linked with the best performing one in the

end. In GP composite variant, the newly created set

of synchronization parameters is always linked with

the single-leg pattern inherited from its parents irre-

spectively of whether such a linkage performs well or

not.

4.1.2 GP without Decomposition

This algorithm, denoted as GP, does not make use of

the problem decomposition at all. It evolves functions

to all of the joints of the robot in a single population.

In particular, the GP evolves individuals, each repre-

senting twelve functions (4 legs times 3 joints).

4.2 Sine Wave based Algorithms

Approaches in this group do not use general func-

tions for controlling the joints of the robot. Instead, a

sine wave functions are used for controlling the joints’

movements. These algorithms thus evolve just a set

of parameters determining particular sine wave func-

tions. There are four parameters that determine the

sine wave – amplitude, center amplitude, frequency

and phase.

4.2.1 Sine Waves with Co-evolution

This algorithm, denoted as Sine co-evolution, is in

principle very much like the GP co-evolution – it co-

evolves two populations. The ﬁrst population evolves

individuals that encode 12 sine wave parameters for a

single leg (3 joints times 4 parameters). These are rep-

resented as a vector of 12 real values. Standard Simu-

lated Binary Crossover (Deb and Agrawal, 1995) and

Gaussian mutation operators designed for the real rep-

resentation were used for generating new individuals.

The second population evolves the synchroniza-

tion strategies like in the GA-module described in Sec-

tion 3.2. The only difference is that here only the

phase parameters, ϕ, are considered because the di-

rection does not make sense for the sine function.

4.2.2 Sine waves with Composite Individuals

This algorithm, denoted as Sine composite, is an ana-

logue of the GP composite algorithm. It evolves a

population of composite individuals composed of the

12 sine wave parameters for a single leg motion plus

the phase synchronization parameters.

4.2.3 Sine Waves without Decomposition

This algorithm, denoted as Sine, does not make use of

the problem decomposition. It evolves a population

of individuals, each encoding parameters sine waves

controlling all joints of the robot. Thus, each individ-

ual is represented as a vector of 48 real-valued param-

eters (12 joints times 4 parameters).

5 EXPERIMENTAL EVALUATION

Series of experiments were carried out in order to

analyze impact of the two design choices of the co-

evolutionary approach, namely the way the algorithm

handles the problem decomposition and the utiliza-

tion of general functions for controlling joints of the

robot. In this work we consider just simulations of the

robot and its gaits that are carried out using a simula-

tion platform Sim, based on ODE physics simulator

which has been developed within the SYMBRION

and REPLICATOR

projects (Kernbach et al., 2008),

focused on an application of evolutionary and swarm

techniques in robotics.

5.1 Experimental Scenario

To evaluate performance of implemented methods a

simple experiment was set up. Gaits for the robot de-

scribed in Section 2 were evolved in an arena where

the environment was just a ﬂat surface without any

obstacles. When simulating the robot with a candi-

date gait, the robot was always placed in the center

of the simulation arena in laying position. First, the

robot was given a ﬁxed amount of simulation steps to

start moving, hopefully to stand up, and then it was let

to walk as far as possible for speciﬁed amount of time

(10 seconds in this case). Finally, the distance of its

ﬁnal position from the speciﬁed target point was mea-

sured. In this work, the target point is located straight

to the north at [0, 40].

5.2 Experimental Set-up

Control parameters of the co-evolutionary algorithms

were set as follows:

• GP-module:

– population size 500

www.ode.org

http://www.symbrion.eu/tiki-index.php

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

Figure 3: Movement of a robotic creature.

– generations 200

– tournament size 7

• GA-module:

– population size 50

– tournament size 3

• synchronization: start-up phase of 20 generations

of the GP-module and then repeatedly carrying

out 2 generations of GP-module followed by 30

newly generated individuals in the GA-module;

Control parameters for the non-co-evolutionary

algorithms were set as follows:

• population size 600

Table 1: Mean and best results of all tested algorithms.

Algorithm Mean (StDev) Best

GP co-evolution 35.98 (1.58) 33.08

GP composite 39.83 (1.71) 35.91

GP 38.67 (1.78) 35.16

Sine co-evolution 39.13 (1.28) 35.54

Sine composite 39.26 (1.03) 37.78

Sine 39.14 (1.61) 34.07

• generations 250

• tournament size

This conﬁguration ensures that the simple GP al-

gorithms should compute at least as many ﬁtness eval-

uations (i.e. simulations) as the co-evolutionary ones.

5.3 Results

All motions generated by all algorithms managed to

at least put the robot into standing position, but not all

of them were able to walk or move signiﬁcantly far

from the starting position in the desired direction.

The overall best and the mean best results calcu-

lated from ten independent runs for all algorithms are

in Table 1. Note, the less the better since the val-

ues represent distances of the robot’s ﬁnal position

from the desired target point. The GP co-evolution

algorithm achieved the mean best distance 35.98 and

the overall best distance of 33.08. These results are

the best out of the group of the compared algorithms.

The Mann-Whitney rank sum test gives signiﬁcant ev-

idence (p < 0.05, two-tailed) for the observed dif-

ferences between GP co-evolution and all other al-

gorithms. The typical pattern evolved by the GP co-

evolution can be seen in Figure 3.

AnalysisofCo-evolutionaryApproachforRoboticGaitGeneration

a) d)

b) e)

c) f)

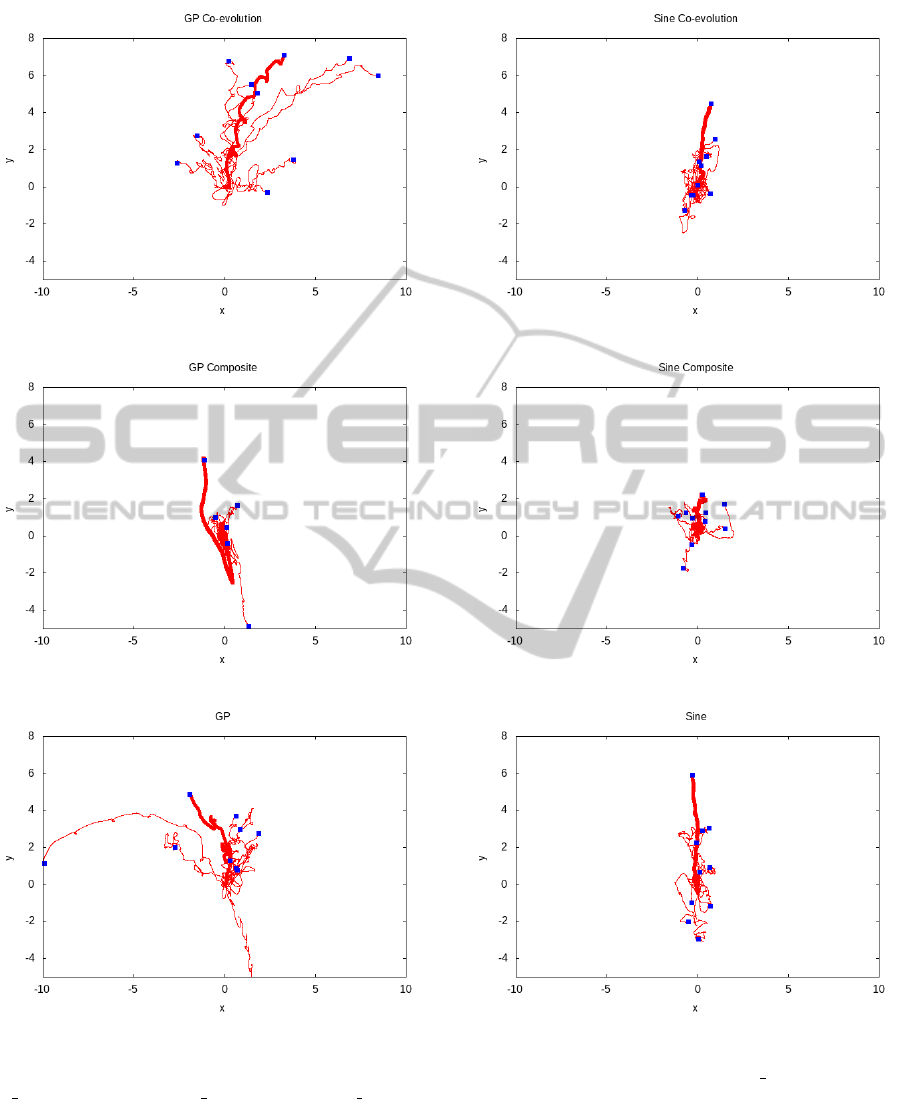

Figure 4: Trajectories of robots with control functions evolved by the compared algorithms - a) GP co-evolution, b)

GP composite, c) GP, d) Sine co-evolution, e) Sine composite and f) Sine.

There are several important observations based on

the achieved results

• Tuning parameters of sine waves is less effective

than the evolution of general functions by means

of the GP. This indicates that sine waves might not

be sufﬁcient for efﬁcient generation of appropri-

ate motion patterns which can be more easily pro-

duced with general functions. For example, sine

wave is not able to produce intervals with constant

value, that can be interpreted as ”do not change

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

the joint angle” control action.

• The problem decomposition is important and pro-

duces better results than approaches not utilizing

the decomposition. This is rather expected con-

clusion since the decomposition reduces the size

of the search space.

• The decomposition realized via co-evolution is

better than evolution of a single population of

composite individuals. A possible explanation of

this observation can be that it is harder to ﬁnd an

optimal composite individual than to ﬁnd the so-

lution in parts. In case of the evolution of the

composite individuals each individual has ﬁxed

pair of the single-leg motion pattern and the syn-

chronization scenario. So if one part of the indi-

vidual is not good the ﬁtness of the whole indi-

vidual is very likely bad as well irrespectively of

the quality of the other part. On the contrary, in

the co-evolutionary algorithm each individual of

one population is evaluated based on a number of

trials when coupled with individuals of the other

population. This way the possibility of accidental

suppressing of good individuals is reduced.

Evolved paths are shown in Figure 4. All dia-

grams show 10 trajectories tracked by the robot driven

by the evolved control strategies for 10 seconds. It can

be observed several times that the best rewarded mo-

tion pattern lead the robot in the opposite direction to

the desired one, i.e. to the south. This happens due to

the ﬁtness function deﬁnition, which strongly forces

the robot to walk with elevated body and not to crawl

on the ground (note that all crawling movements are

rewarded less than any movement with the elevated

body). It is evident, that in these cases the algorithms

only managed to evolve ”well-rewarded” walking gait

that made the robot walk backwards.

6 CONCLUSIONS

In this paper we analyze the recently proposed co-

evolutionary GP-based approach for automatic gen-

eration of robotic gaits. The approach is based on the

decomposition of the whole problem so that it simul-

taneously evolves single-leg motion and synchroniza-

tion scheme that determines coordinated deployment

of the single-leg motion to all legs of the robot.

We focus on two key components of the co-

evolutionary algorithm – the way it handles the prob-

lem decomposition and the type of functions it uses to

control joints of the robot.

The experiments carried out in this work indicate

that both the co-evolution of two separate populations

and the evolution of general function controlling the

joints positively contribute to the overall algorithm

performance.

There are a number of possible further extensions

of the co-evolutionary approach. One of them is evo-

lution of multiple motion primitives like left and right

turn and forward and backward walking. For exam-

ple, it is assumed that when given an efﬁcient forward

walking gait the co-evolutionary approach should be

able to change the direction of walking just by evolv-

ing new leg-synchronizing strategy in GA-module for

the ﬁxed single-leg motion patterns. Those walk-

ing primitives can be further used to navigate a robot

along some desired path. Another area of interest is

evolution of gaits for more challenging environments

such as sloped surfaces or walking up and down stairs.

Since the most time- and resource-consuming compu-

tations are related to the simulations it might be useful

to design the evaluation procedure in a staged manner

so that the candidate gait ﬁrst undergoes simple and

short simulations and only if it passes them it pro-

ceeds to the main simulation that returns the objective

value.

ACKNOWLEDGEMENTS

This work has been supported by the research pro-

gram No. MSM 6840770038 ”Decision Making and

Control for Manufacturing III” of the CTU in Prague

and by the Grant Agency of the CTU in Prague, grant

No. SGS12/145/OHK3/2T/13.

REFERENCES

Cerny, J. (2012). Evolutionary design of robot motion pat-

terns.

Cerny, J. and Kubalik, J. (2013). Co-evolutionary Approach

to Design of Robotic Gait. In Proceedings of 16th Eu-

ropean Conference on the Applications of Evolution-

ary Computation – EvoApplications 2013. LNCS, vol.

7835, Springer, pages 550–559.

Crespi, A. and Ijspeert, A. (2008). Online optimization

of swimming and crawling in an amphibious snake

robot. IEEE Transactions on Robotics, vol. 24, no.

1, pp. 75–87.

Deb, K. and Agrawal, R. B. (1995). Simulated binary

crossover for continuous search space. Complex sys-

tems, vol. 9, pp. 115–148.

Gong, D., Yan, J., and Zuo, G. (2010). A review of gait

optimization based on evolutionary computation. Ap-

plied Computational Intelligence and Soft Computing,

2010.

Kernbach, S., Meister, E., Schlachter, F., Jebens, K., Szy-

manski, M., Liedke, J., Laneri, D., Winkler, L.,

AnalysisofCo-evolutionaryApproachforRoboticGaitGeneration

Schmickl, T., Thenius, R., et al. (2008). Symbiotic

robot organisms: Replicator and symbrion projects.

In Proceedings of the 8th Workshop on Performance

Metrics for Intelligent Systems. ACM, pages 62–69.

Lee, S., Yosinski, J., Glette, K., Lipson, H., & Clune, J.

(2013). Evolving Gaits for Physical Robots with the

HyperNEAT Generative Encoding: The Beneﬁts of

Simulation. In Proceedings of 16th European Confer-

ence on the Applications of Evolutionary Computation

– EvoApplications 2013. LNCS, vol. 7835, Springer,

pp. 540–549.

Panait, L. and Luke, S. (2004). Alternative bloat control

methods. In Proceedings of the Genetic and Evo-

lutionary Computation Conference – GECCO 2004.

LNCS, vol. 3102, Springer, pages 630–641.

Parker, G. (2001). ”The incremental evolution of gaits

for hexapod robots.” In Proceedings of the Genetic

and Evolutionary Computation Conference (GECCO

2001) (pp. 1114-1121).

Seo, K. and Hyun, S. (2008). Genetic programming based

automatic gait generation for quadruped robots. In

Proceedings of the 10th Genetic and Evolutionary

Computation Conference – GECCO 2008. New York,

NY, USA, ACM, pages 293–294.

Tanev, I. and Shimohara, K. (2008). Co-evolution of active

sensing and locomotion gaits of simulated snake-like

robot. In Proceedings of the Genetic and Evolutionary

Computation Conference – GECCO 2008. New York,

NY, USA, ACM, pages 257–264.

Vonasek, V. and Fiser, D. (2012). Sim: a general purpose

3d robotic simulator.

Yosinski, J., Clune, J., Hidalgo, D., Nguyen, S., Zagal, J.,

Lipson, H. (2011) Evolving robot gaits in hardware:

the HyperNEAT generative encoding vs. parameter

optimization. In Proceedings of the 20th European

Conference on Artiﬁcial Life, pp. 11–18

IJCCI2013-InternationalJointConferenceonComputationalIntelligence
