A Comparison of Maintainability Metrics of Two A+ Interpreters

P´eter G´al and

Akos Kiss

Department of Software Engineering, University of Szeged, Dugonics t´er 13., 6720 Szeged, Hungary

Keywords:

Maintainability, Metrics, A+, .NET.

Abstract:

Reports on reimplementing or porting legacy code to modern platforms are numerous in the literature. How-

ever, they focus on technical problems, functional equivalence, and performance. In the current paper, our goal

is to pull maintainability into focus as well and we argue that it is (at least) of equal importance. We conducted

source code analysis on two implementations of the runtime environment of the A+ language and computed

maintainability-related metrics for both systems. In this paper, we present the results of their comparison.

1 INTRODUCTION

A+ is an array programming language (Morgan Stan-

ley, 2008) inspired by APL. It was created more than

20 years ago to suite the needs of real-life ﬁnancial

computations. However, even nowadays, many criti-

cal applications are used in computationally-intensive

business environments. Unfortunately, the original

interpreter-based execution environment of A+ is im-

plemented in C/C++ and is ofﬁcially supported on

Unix-like operating systems only.

In our previous work, we introduced the A+.NET

project (G´al and Kiss, 2012), a clean room implemen-

tation of the A+ runtime for the .NET environment

The goal of the .NET-based implementation was to

allow the interoperability between A+ and .NET pro-

grams (calling .NET methods from A+ scripts, or

executing A+ code from or even embedding – as a

domain-speciﬁc language – into .NET programs), and

the hosting of A+ processes on Windows systems.

This may extend the lifetime of the existing A+ appli-

cations, unlock the existing ﬁnancial routines to .NET

developers, and make .NET class libraries available to

A+ developers.

Reports on reimplementing or porting old legacy

code bases are numerous in the literature (Wang

et al., 2006; Sneed, 2010). However, similarly to our

previous work, they usually focus on the technical

problems that occur during the porting, on reaching

functional equivalence, and on reporting performance

data. In the current paper, our goal is to pull maintain-

ability into focus as well. During the development of

Project hosted at:

https://code.google.com/p/aplusdotnet/

A+.NET we felt that interoperability is not the only

beneﬁt of the reimplementation but the resulting code

is somewhat cleaner, easier to comprehend, and more

maintainable. To justify our intuition, we conducted

source code metric measurements on the two imple-

mentations of the A+ runtime, i.e., on the reference

implementation and on the A+.NET engine. In this

paper, we present the results of their comparison.

The rest of the paper is organized as follows. To

make the paper self-contained, we give a glimpse of

A+ in Section 2, focusing on the specialities. How-

ever, for the exact details of the language, the reader

is refered to the Language Reference. In Section 3,

we introduce the two A+ runtime implementations,

show their differences, and suggest a method that still

allows their unbiased comparison. In Section 4, we

present the source code metric measurements of the

two systems and the result of their comparison. In

Section 5, we overview related work, and ﬁnally, in

Section 6, we conclude the paper and give directions

for future work.

2 THE A+ PROGRAMMING

LANGUAGE

A+ derives from one of the ﬁrst array programming

languages, APL (Clayton et al., 2000). This legacy of

A+ is one of the most notable differences compared

to the more recent programming languages. While

the operations in modern widespread programing lan-

guages usually work with scalar values, the data ob-

jects in A+ are arrays. Even a number or a character

292

Gál P. and Kiss Á..

A Comparison of Maintainability Metrics of Two A+ Interpreters.

DOI: 10.5220/0004597702920297

In Proceedings of the 8th International Joint Conference on Software Technologies (ICSOFT-EA-2013), pages 292-297

ISBN: 978-989-8565-68-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

(+/a) ,

←

1 +

Listing 1: The computation of the sum and product of the

ﬁrst 10 natural numbers in A+.

is itself an array, of the most elementary kind. This

approach allows the transparent generalization of op-

erations even to higher dimensional arrays.

The other striking speciality of A+ is the vast num-

ber of (more than 60) built-in functions, usually called

operators in other languages. These functions range

from simple arithmetic functions to some very com-

plex ones, like the matrix inverse or inner product cal-

culations. Furthermore, most functions have special,

non-ASCII symbols associated. This allows quasi-

mathematical notations in the program source code,

but may cause reading and writing A+ code to be a

challenge for the untrained mind.

Finally, although being a language of mathemati-

cal origin, A+ has an unusual rule: all functions have

equal precedence and every expression is evaluated

from right to left.

The above mentioned specialities are exempliﬁed

in Listing 1, which shows how the computation of the

sum and product of the ﬁrst 10 natural numbers can

be formalized in A+. The expression ι

(using the

symbol iota) generates a 10-element array containing

values from 0 to 9, while

1 +

increments each ele-

ment by one, which is then assigned to the variable

The operator ×

computes the product of the vector,

while

computes the sum. The concatenation func-

tion is denoted by comma, which ﬁnally results the

two-element array

55 3628800

. Note the parentheses

around the sum, whithout which concatenation would

be applied to variable

and the product, and summa-

tion would be applied only afterwards because of the

right-to-left order of evaluation.

As the above code shows, quite complex computa-

tions can be easily expressed in a very compact form

in A+. The Language Reference gives further exam-

ples, mostly from ﬁnancial applications, e.g., how to

compute present value at various interest rates in a

single line (Morgan Stanley, 2008, page 62).

3 TWO A+ EXECUTION

ENGINES

In this paper, our goal is to compare the two A+

execution engines: the reference interpreter and our

A+.NET system. However, there are several difﬁcul-

ties we have to handle. First, although both imple-

mentations aim at doing the same thing, i.e., execut-

ing A+ scripts according to the language speciﬁca-

.NET Base Class Library

DLR

Parser

Lexers

Helpers

Code Generator

Execution Engine

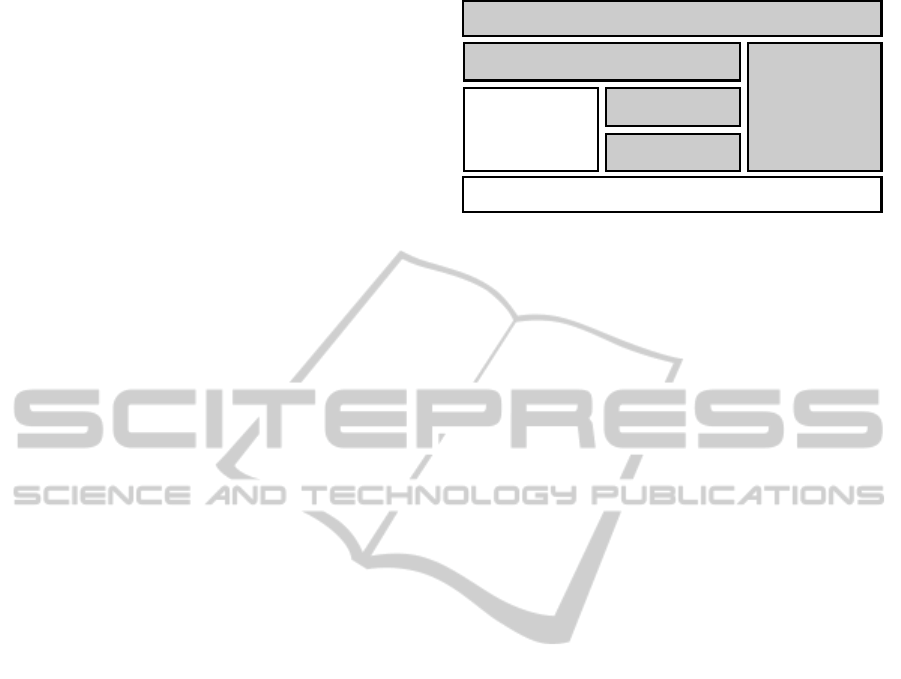

Figure 1: Architecture of the A+.NET runtime. (White

boxes denote components provided by the .NET framework,

shadowed boxes are modules of A+.NET).

tion, their architecture and their internal logic is com-

pletely different.

The modules of the .NET implementation, their

interrelation, and their behaviour are known and doc-

umented (G´al and Kiss, 2012). Figure 1 depicts the

main components of the system, and how they build

on each other, and on the BCL and DLR (Chiles and

Turner, 2009) libraries of the .NET framework. How-

ever, the reference implementation has no available

documentation other than the source code itself. The

only meaningfullydeducible model for modules is the

directory layout of the source code ﬁles.

Other difﬁculties include the difference in the lan-

guages of implementation: the reference interpreter is

written in C/C++, while A+.NET in C#. And ﬁnally,

we admit that the .NET-based version is far from be-

ing as functionally rich as the reference implementa-

tion. These issues prevent matching lines, functions,

classes, or even ﬁles directly to each other in the two

code bases. Thus, we had to ﬁnd a way to make our

analysis unbiased. We decided to determine the func-

tionally equivalent parts of the two implementations

and perform the comparison on those parts.

Determinig the functionally equivalent parts re-

quired a reasonably large and diverse A+ code base

to drive the engines and a way to track which parts of

the engines were exercised by the test inputs. Fortu-

nately, during the development of A+.NET, tests were

written for almost every implemented functionality.

At the time of writing this paper, this means 1778 test

cases, of which 1719 tests (consisting of about 2300

lines of A+ code) could be used as input to both A+

execution engines.

For the reference implementation, we used the in-

strumentation support of GCC. We recompiled the

interpreter and instructed GCC to instrument every

function at its entry point with a call to a routine

that determines (with the help of the libunwind li-

brary (Mosberger,2013)) the name of the called func-

tion at execution time and dumps it out into a log

ﬁle. Then, this instrumented interpreter was used to

AComparisonofMaintainabilityMetricsofTwoA+Interpreters

293

Table 1: Modules of the A+ reference interpreter, the size of each module (given as NF – number of functions, LOC – lines

of code, and NOS – number of statements), and the size and ratio of those code parts that are exercised by the test suite. (The

granularity of the code coverage information is functions).

Module Size Coverage

NF LOC NOS NF LOC NOS

a 819 7716 12578 576 (70.33%) 5083 (65.88%) 8546 (67.94%)

cxb 26 480 484 1 (3.85%) 18 (3.75%) 15 (3.10%)

cxc 66 1073 877 2 (3.03%) 38 (3.54%) 32 (3.65%)

cxs 1 13 8 0 (0.00%) 0 (0.00%) 0 (0.00%)

cxsys 82 1802 1501 5 (6.10%) 123 (6.83%) 108 (7.20%)

dap 227 4094 2466 18 (7.93%) 344 (8.40%) 208 (8.43%)

esf 201 3690 3494 16 (7.96%) 155 (4.20%) 132 (3.78%)

main 17 425 322 15 (88.24%) 272 (64.00%) 209 (64.91%)

AplusGUI 3328 23761 17041 72 (2.16%) 1768 (7.44%) 1576 (9.25%)

IPC 303 2680 2358 12 (3.96%) 52 (1.94%) 47 (1.99%)

MSGUI 8938 78268 44858 16 (0.18%) 110 (0.14%) 53 (0.12%)

MSIPC 399 2298 1344 28 (7.02%) 261 (11.36%) 156 (11.61%)

MSTypes 4574 27690 15593 100 (2.19%) 431 (1.56%) 179 (1.15%)

TOTAL 18981 153990 102924 861 (4.54%) 8655 (5.62%) 11261 (10.94%)

Table 2: Modules of A+.NET, the size of each module (given as NF – number of functions, LOC – lines of code, and NOS –

number of statements), and the size and ratio of those code parts that are exercised by the test suite. (The granularity of the

code coverage information is functions. The table does not include data on those parts of the lexers and the parser that are

generated).

Module Size Coverage

NF LOC NOS NF LOC NOS

Code Generator 385 5008 1706 217 (56.36%) 4003 (79.93%) 1231 (72.16%)

Execution Engine 87 639 284 55 (63.22%) 355 (54.56%) 176 (61.97%)

Helpers 1213 11396 5020 909 (74.94%) 9171 (80.48%) 4183 (83.33%)

Lexers 5 68 41 3 (60.00%) 48 (70.59%) 29 (70.73%)

Parser 34 255 104 22 (64.71%) 227 (89.02%) 98 (94.23%)

TOTAL 1724 17366 7155 1206 (69.95%) 13804 (79.49%) 5717 (79.90%)

execute the A+ test scripts and by analyzing the log

ﬁles, we were able to determine which functions were

called. For the .NET version, we used the built-in

functionality of Visual Studio to gather these code

coverage results.

Tables 1 and 2 show the modularization of both

systems and data about the size and the test cover-

age ratio of each module. The reference interpreter

(version 4.22) has quite a large code base of C and

C++ ﬁles. It consists of 153,990 lines of code and

102,924 statements in 18,981 functions (class meth-

ods and global functions included). This means that

its code is 8.87-14.38x larger than the code base of

A+.NET (revision 232), depending on which code

size metrics we compare. It is also visible from the

tables that a big portion of the reference interpreter is

not covered by the tests. This is not a surprise, since

the scripts were written as tests for the A+.NET sys-

tem to coverits functionality. However, if we consider

that the major part of the functionality of all the mod-

ules of A+.NET correspondto module ‘a’ of the refer-

ence interpreter and only parts of the ‘Helpers’ mod-

ule contain code that match other modules of the ref-

erence implementation, the coverage results become

much closer to each other: the function-level cover-

age ratio is cca. 70% for both the whole A+.NET

system and module ‘a’ of the reference interpreter.

Moreover, the size metrics of the covered code do not

differ as much as they do in the case of the whole code

bases: in the reference implementation, 8,655 lines of

code and 11,261 statements were covered by the tests

in 861 functions, while the same data for A+.NET

is 13,804 lines, 5,717 statements in 1,206 functions.

This means that we managed to identify two function

sets, one in each system, of comparable size and of

equivalent functionality, which can form the basis of

our further investigations.

4 MAINTAINABILITY METRICS

Once we identiﬁed the functionally equivalent parts

of the two A+ execution environments, their compar-

ison became possible. We used the Columbus tool

chain (Ferenc et al., 2002) to analyze the sources of

the two systems and to compute such maintainability-

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

294

Table 3: Maintainability-related metrics measured for the

A+ reference interpreter and A+.NET.

Metric Reference Interpreter A+.NET

min / avg / max min / avg / max

LOC 1 / 10.07 / 375 1 / 11.46 / 275

NOS 0 / 13.08 / 372 0 / 4.73 / 71

McCC 1 / 4.45 / 123 1 / 2.38 / 71

NLE 0 / 1.04 / 6 0 / 0.59 / 5

related metrics for the covered functions, which were

deﬁned for both implementation languages. As a re-

sult, we got two size metrics – (executable) lines of

code (LOC) and number of statements (NOS), those

that were already presented in Tables 1 and 2 – and

two complexity metrics – McCabe’s cyclomatic com-

plexity (McCC) and nesting level (NLE) – for each

function.

Two out of the four metrics above are traditional

and well-known: LOC is one of the easiest met-

ric to compute (but often still very informative) and

McCC (McCabe, 1976) is also often used. For the

sake of completeness however, NOS and NLE is ex-

plained below. NOS counts the number of control

structures (e.g., if, for, while), unconditional control

transfer instructions (e.g., break, goto, return), and top

level expressions in a function. This deﬁnition makes

NOS capture a more syntax-oriented concept of size

than LOC (at least for languages where the concepts

of line and statement are not related). The NLE met-

ric determines the maximum number of the control

structure depth in a function.

Table 3 presents the aggregated metrics for both

systems. The averages of NOS, McCC, and NLE, and

the maximums of all metrics show that the size and

the complexityof the functions in the reference imple-

mentation are higher (sometimes signiﬁcantly higher,

see NOS) than in A+.NET, which is usually an ac-

cepted mark of lower maintainability. The only out-

lier is avg(LOC), where the reference implementation

produces a lower (i.e., better) metric. However, the

difference in the case of this metric is much smaller

(a factor of 1.14 only) than for the others.

In addition to the aggregated results, Figure 2

shows the histograms of the computed metrics. (For

the size metrics, the histograms use exponentially

growing intervals with numbers on the horizontal axis

denoting the upper bound of the interval. For the

complexity metrics, the intervals are of equal size.

The vertical axis denotes the percentage of functions

falling in a given interval.) The histogram of LOC

explains why the aggregations of the metric do not

give a conclusive result. Whether the relative number

of functions falling into a size category (interval) is

larger in the reference implementation or in A+.NET

is almost alternating. However, the histograms of

the other three metrics, especially NOS and McCC,

strengthen the hypothesis that the reference inter-

preter is larger and more complex. For A+.NET, a

larger portion of functions fall into the small metric

ranges than for the reference implementation, while in

10%

20%

30%

40%

1 2 4 8 16 32 64 128 256 256+

A+.NET

A+ Ref. Impl.

20%

40%

60%

0 1 2 4 8 16 32 64 128 256 256+

A+.NET

A+ Ref. Impl.

(a) LOC (b) NOS

20%

40%

60%

80%

1 2 3 4 5 6 7 8 9 10 10+

A+.NET

A+ Ref. Impl.

20%

40%

60%

80%

0 1 2 3 4 5 5+

A+.NET

A+ Ref. Impl.

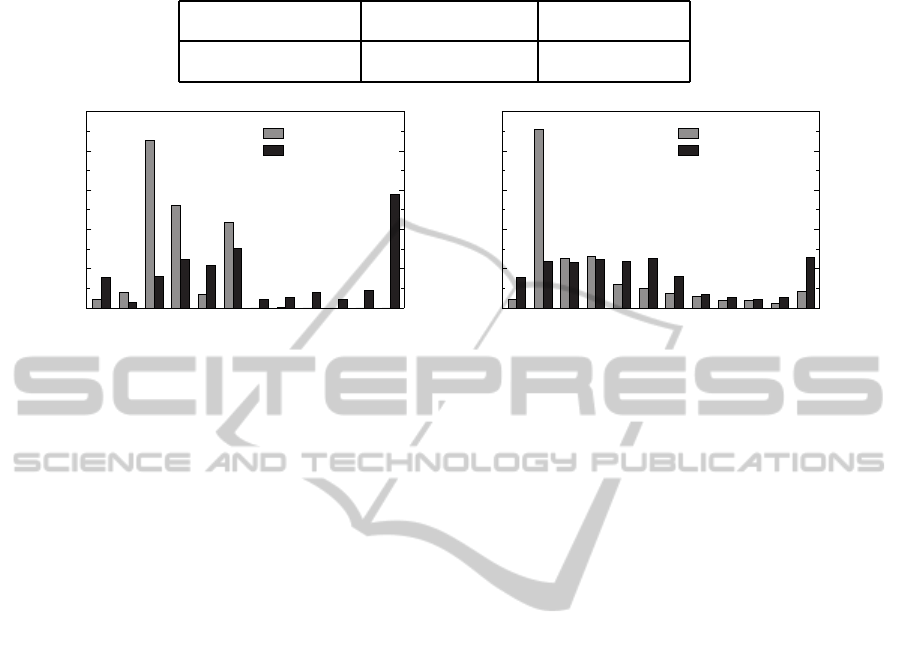

Figure 2: Histograms of the computed maintainability-related metrics.

AComparisonofMaintainabilityMetricsofTwoA+Interpreters

295

Table 4: Derived metrics computed for the A+ reference interpreter and A+.NET.

Metric Reference Interpreter A+.NET

min / avg / max min / avg / max

NOS/LOC 0 / 2.94 / 37 0 / 0.50 / 1.40

McCC+ ln(1+ NOS) 1 / 6.42 / 128.36 1 / 3.72 / 75.28

10%

20%

30%

40%

50%

0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 2+

A+.NET

A+ Ref. Impl.

10%

20%

30%

40%

50%

1 2 3 4 5 6 7 8 9 10 11 11+

A+.NET

A+ Ref. Impl.

(a) NOS/LOC (b) McCC+ ln(1+ NOS)

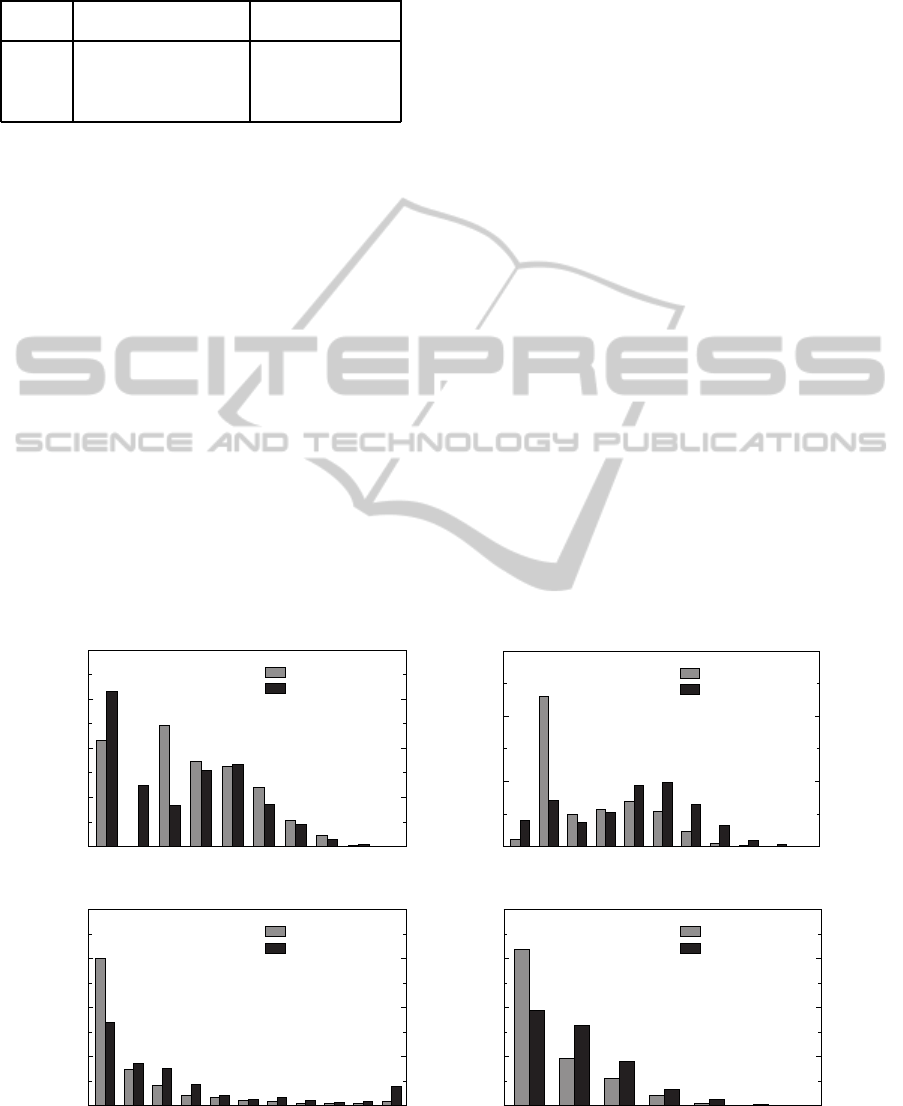

Figure 3: Histograms of the derived metrics.

the large ranges the reference implementation domi-

nates. We can observe that in A+.NET, cca. 60%

of the functions have 2 statements at the maximum,

while in the reference interpreter, on the contrary, cca.

60% of the functions have more than 4 statements.

For the McCabe complexity, we can see that while in

A+.NET only 2% of the functions have a metric value

higher than 10, in the reference interpreter 8% of the

functions is so complex.

Additionally to the metrics that are directly com-

puted by the Columbus tool chain from the sources,

we experimented with derived metrics as well. Our

original plan was to compute the Maintainability In-

dex (MI) (Oman and Hagemeister, 1992) for both sys-

tems but unfortunately, the current version of the tool

chain does not compute the Halstead Volume met-

ric that is a component of MI. Thus, the analysis of

MI is left for future work. In this paper, we compute

two simpler formulae that grasp some key differences

between the reference implementation and A+.NET.

The ﬁrst formula is NOS/LOC: this derived metric

tells the average number of statements written in a sin-

gle line. Guidelines normally suggest one statement

per line to keep the code readable and comprehen-

sible. The second formula is McCC+ ln(1+ NOS):

combining the complexity and the size of a function

into a single number. This metric is motivated by

the Maintainability Index but the currently unavail-

able Halstead Volume component is left out and the

scale is inverted: now higher values represent larger

code size and/or higher complexity, thus – presum-

ably – lower maintainability.

The above discussed derived metrics were also

computed for each investigated function, and their ag-

gregated data is shown in Table 4. For all averages

and maximums, A+.NET scores considerably lower

than the reference interpreter. Moreover, the state-

ments per line metric of the reference interpreter is

stunning: the average number of statements in ev-

ery executable line of source code is about 3, and the

most ‘crowded’ function contains 37 top-level state-

ments in a line on average! Manual investigation re-

vealed that this extreme function consisted of a single

line only. However, multi-line functions with a high

NOS/LOC ratio are not uncommon either. Actually,

cca. 30% of the investigated functions of the refer-

ence interpreter have more than two statements on a

line on average, as depicted in Figure 3.

5 RELATED WORK

The porting and reengineering of legacy systems have

long been the focus of research. However, most au-

thors concentrate on estimating the cost of the reengi-

neering work (Sneed, 2005) or on using automated

tools to transform the legacy system from the source

language to another target language (Sneed, 2010).

These papers focus mainly on the tools developed for

the transformation explaining that a great amount of

time and effort is required to create such software. In

the case of A+.NET, such an automatic transforma-

tion was not viable since a completely different ar-

chitecture – the use of the DLR – was envisioned to

allow interoperability with other .NET routines and

applications.

As a script language, A+ was not the ﬁrst to be

integrated into the .NET framework. Another suc-

cessful work was the porting of the Python language,

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

296

which resulted in the IronPython project (Hugunin,

2004). The project is still under active development

and it is regularly compared to the reference imple-

mentation (Fugate, 2010). Most importantly, the DLR

also grew out from this project (Hugunin, 2007).

6 SUMMARY AND FUTURE

WORK

In this paper, we argued that technical difﬁculties and

performance are not the only important aspects of

porting legacy code to modern platforms, but main-

tainability is (at least) of equal importance. Thus,

we took two implementations of the A+ runtime, one

that had been developed for 20 years in C/C++ and

a clean-room implementation in C#, and investigated

them. We described how we managed to identify

the functionally equivalent parts of the two systems

and then we presented the analysis of maintainability-

related source code metrics, as well as some simple

derived metrics. The results indicate that the reimple-

mented version is less complex and thus – presumably

– more maintainable.

For the future, we have several plans for improve-

ments. First of all, we would like to increase the func-

tionality of the A+.NET runtime to support more fea-

tures of the reference implementation. This would re-

sult in larger functionally equivalent code bases that

can be compared. (And this would also help mov-

ing more A+ applications to the .NET-based environ-

ment.) Then, we would like to compute and analyze

more maintainability-related metrics for the two im-

plementations. Most importantly, we would like to

compute the Maintainability Index for C/C++ and C#

as well. Furthermore, we would like to build a broad

benchmark set that allows the evaluation of the per-

formance of A+ environments. This would allow the

evaluation of performance and maintainability side-

by-side. Unfortunately, such an A+ benchmark does

not exist yet, or it is not publicly available at least.

Although we plan more analysis and comparison

for the future, we hope that our current ﬁndings can

already give guidance in assessing the costs and the

gains of porting legacy systems.

ACKNOWLEDGEMENTS

The authors would like to thank P´eter Siket and P´eter

Heged˝us for their help with the Columbus tool chain.

REFERENCES

Chiles, B. and Turner, A. (2009). Dynamic Language Run-

time. http://dlr.codeplex.com/.

Clayton, L., Eklof, M. D., and McDonnell, E. (2000).

ISO/IEC 13751:2000(E): Programming Language

APL, Extended. Internation Standards Organization.

Ferenc, R., Besz´edes,

A., Tarkiainen, M., and Gyim´othy,

T. (2002). Columbus – reverse engineering tool and

schema for C++. In Proceedings of the 18th Inter-

national Conference on Software Maintenance (ICSM

2002), pages 172–181, Montr´eal, Canada. IEEE.

Fugate, D. (2010). IronPython performance comparisons.

http://ironpython.codeplex.com/wikipage?title=Iron

Python%20Performance.

G´al, P. and Kiss,

A. (2012). Implementation of an A+ in-

terpreter for .NET. In Proceedings of the 7th Interna-

tional Conference on Software Paradigm Trends (IC-

SOFT 2012), pages 297–302, Rome, Italy. SciTePress.

Hugunin, J. (2004). IronPython: A fast Python implemen-

tation for .NET and Mono. In PyCON 2004, Wash-

ington, DC, USA.

Hugunin, J. (2007). A dynamic language runtime (DLR).

http://blogs.msdn.com/b/hugunin/archive/2007/04/30/

a-dynamic-language-runtime-dlr.aspx.

McCabe, T. J. (1976). A complexity measure. IEEE Trans-

actions on Software Engineering, (4):308–320.

Morgan Stanley (1995–2008). A+ Language Reference.

http://www.aplusdev.org/Documentation/.

Mosberger, D. (2002–2013). The libunwind project.

http://www.nongnu.org/libunwind/index.html.

Oman, P. and Hagemeister, J. (1992). Metrics for assessing

a software system’s maintainability. In Proceedings of

the 1992 IEEE Conference on Software Maintenance,

pages 337–344, Orlando, FL, USA. IEEE.

Sneed, H. M. (2005). Estimating the costs of a reengineer-

ing project. In Proceedings of the 12th Working Con-

ference on Reverse Engineering (WCRE 2005), pages

111–119, Pittsburgh, PA, USA. IEEE.

Sneed, H. M. (2010). Migrating from COBOL to Java. In

Proceedings of the 26th IEEE International Confer-

ence on Software Maintenance (ICSM 2010), pages

1–7, Timisoara, Romania. IEEE.

Wang, X., Sun, J., Yang, X., Huang, C., He, Z., and Maddi-

neni, S. R. (2006). Reengineering standalone C++

legacy systems into the J2EE partition distributed en-

vironment. In Proceedings of the 28th International

Conference on Software Engineering, pages 525–533.

ACM.

AComparisonofMaintainabilityMetricsofTwoA+Interpreters

297
