Abstracting Imperative Workflow to Declarative Business Rules

Preparation of Camera-Ready Contributions to INSTICC Proceedings

Lex Wedemeijer

Department of Computer Science, Open University, Valkenburgerweg 177, Heerlen, The Netherlands

Lex.Wedemeijer@ou.nl

Keywords: Business Rules, Requirements Engineering, Workflow Model, Controlflow Pattern, Relation Algebra.

Abstract: Large business administrations rely on workflow systems to coordinate their business processes. In practice,

workflow models are the blob-and-arc diagrams that outline required activities for dealing with an incoming

event. In general however, user understanding is served better by the business rules approach. The Business

Rules Manifesto advocates to express in declarative business rules what should be complied with, but to

abstract from how to accomplish that by way of procedures. In this paper, we transform the main procedural

components of imperative workflows to declarative business rules. The transformation results in two rules

that still reflect the procedural nature of workflow, but more abstract than the corresponding workflow

model. Once a workflow is transformed to declarative rules, these rules can be merged with other, content-

aware business rules or pruned for unnecessary restrictions. The declarative rules and relations may capture

business requirements about work processing better than blob-and-arc diagrams of imperative workflows.

1 INTRODUCTION

Have you ever done a Sudoku puzzle? Its rules are

surprisingly simple, yet the challenge of Sudoku is

that there is no simple workflow how to solve the

puzzle. The same applies to workflow models in

business: the rules governing the day-to-day work

are rather simple, yet the implemented workflows

and procedures that prescribe how business workers

and applications should execute the work, are much

more complicated.

Our point is that work should be done to comply

to the rules set by the business, but an operational

workflow may impose additional restrictions for

implementational reasons having little business rele-

vance. In keeping with the Business Rules Manifesto

(2003), we believe that business rules should be

expressed as explicit constraints on behavior,

independent of how the rules may currently be

implemented in process descriptions or workflow

diagrams. In practice, users regard workflow models

often just as blob-and-arc diagrams that depict how

an incoming event should be dealt with. Such

diagrams tell the users what to do and when, but not

why. Transforming the imperative workflow model

into the format of declarative business rules opens

the road to identify the rules based on legitimate

business requirements, and to eliminate the ones that

were added for implementational reasons.

Using the Relation Algebra approach for rules

coined by (Joosten, 2007), restrictions of the

workflow are captured in a single declarative rule

(section 5) which builds upon binary relations

corresponding to the various structural components

of common workflow models. Next, we express the

business goal of the workflow by a second rule

(section 6). Thus, the imperative constraints and the

goal reached by the workflow are exposed at the

same level of abstraction, and in a format compatible

to other business rules. The workflow rules,

previously encapsulated in descriptions or diagrams,

become amenable for practicable validation by the

user community, and for conflict analysis and

optimization by rule designers.

The paper outline is as follows. Section 2 sets the

stage for basic workflow models. Section 3 outlines

declarative business rules and notions used in the

paper. Sections 4 and 5 explain how the basic

constructs of workflow models are transformed to

assertions of Relation Algebra. Section 6 outlines

how the workflow process is driven by way of the

Control Principle. Section 7 discusses elaborations.

Section 8 concludes the paper and indicates some

directions for further research.

Wedemeijer L.

Abstracting Imperative Workﬂow to Declarative Business Rules.

DOI: 10.5220/0004774200740085

In Proceedings of the Third International Symposium on Business Modeling and Software Design (BMSD 2013), pages 74-85

ISBN: 978-989-8565-56-3

2 BASIC WORKFLOW MODELS

We outline features of conventional workflows, and

explain the core notion of imperative workflow.

2.1 Basic Workflow Models

The Workflow Management Coalition (1999)

defines a workflow process as a formalised view of a

business process. It is presented as a coordinated set

of process activities aimed to achieve a common

business goal. Figure 1 depicts a typical workflow

model as a blob-and-arc diagram. The example,

adapted from the WMC'99 technical report, contains

the four components of typical workflows: sequence,

parallel flow, selective flow, and iterative loop

(Aalst, Hofstede, et al., 2003). Sections 4 and 5

discuss how to transform each to relations and

declarative rules.

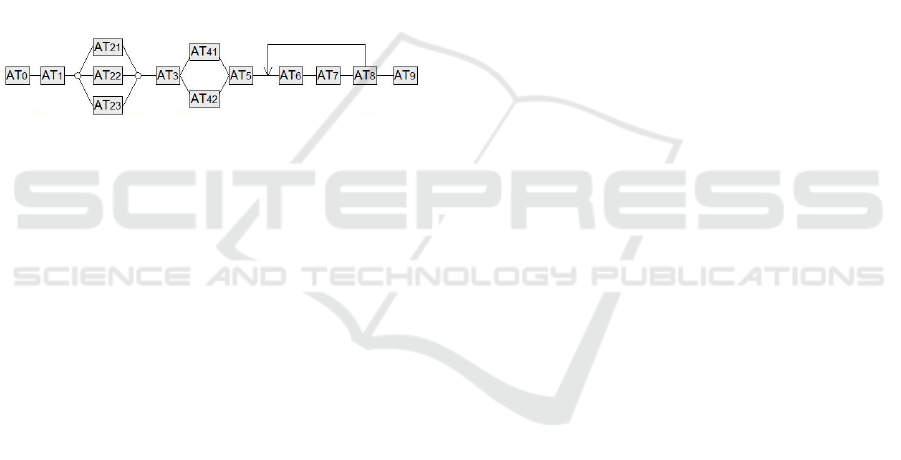

Figure 1: A typical workflow model.

A workflow model may be read in several ways.

The more usual interpretation is of the flow as a

kind of roadmap. Once an activity is completed, the

roadmap is consulted to answer the 'now what,

where to go next' type of question. The answer is

what may be called a 'statement of advice' (Witt,

2012). Upon completion of activities, it indicates

which activities in the processing chain may be

executed next. Typical wordings of this kind are 'you

may now start activity A', or 'activity B is now

enabled'. This interpretation of workflow is forward-

looking in time: what may come next, and we will

refer to it as the indicative view of workflow.

We prefer a more rigorous interpretation: the

flow specifies compulsory precedence. Prior to com-

pleting an activity, all of the preceding activities

should also have completed, out of necessity. The

question here is 'what must have come before', and

the answer takes the form of a business rule. The

rule has 'immediate' enforcement, i.e. the preceding

activities must have completed, and this may never

be violated. This interpretation looks backward in

time: what must have come before. We will refer to

this as the imperative view of workflow.

In this paper, we are only interested whether an

activity has completed or not. The timestamp of its

completion or duration of the activity are not recor-

ded. We abstract from details such as activity life

cycle (Russell, Aalst et al., 2006) comprising steps

like enabling, allocation to resource, work initiation,

data transacting or recording the data outputs. We

also abstract from issues such as resource respon-

sible for enactment, execution cost, etc.

2.2 Case Management

A workflow models how an incoming case is

processed. Therefore, it always features some trigger

(sometimes even more than one) where a new case

may enter the business process. Successive activities

are then executed for the case (in parallel and/or in

series) until all work is done and, by assumption, the

intended business goal is achieved. Spontaneous

generation of new cases somewhere along the line is

prohibited in the imperative view of workflow. Inte-

restingly, the indicative view of workflow allows

new cases to suddenly emerge, but it is a tacit

assumption that cases should start only at a trigger.

The notion of 'case' or 'workflow instance'

constitutes an essential difference between workflow

models and business rules in general. A declarative

business rules model specifies rules that should be

complied with, but it does not require the notion of

any particular 'case' being managed. If any rule is

violated, there is work to do, regardless how or what

caused the violation.

Hence, in order to transform the imperative

workflow model into declarative rules, we need to

include the concept of 'case' or 'working instance'

into our models. Surprisingly, we find that just this

concept, together with the concept of 'activity type',

provide a basic structure (figure 2) that is sufficient

to transform an imperative workflow model into its

equivalent declarative rule model.

3 DECLARATIVE RULES

This section outlines features of declarative business

rules, and the structural components of the approach

for business rules that we will be using in the paper.

3.1 Relation Algebra

We use binary Relation Algebra (Maddux, 2005) to

specify and formulate our declarative rules. For

readers familiar with relational database modeling, a

few major differences may be mentioned. The

notion of concept as we use it, is comparable to enti-

ties, but our concept is just a single column which is

key, and has no attributes. Binary relations as we use

them, are not foreign-key pointers, but are defined as

Abstracting Imperative Workflow to Declarative Business Rules

subsets of the Cartesian Product. They have many-

to-many cardinality, unless specified otherwise.

Time is not a native notion of binary Relation

Algebras. Indeed, none of the formulas and rules

that we discuss in this paper will refer to timestamps

or intervals. For this reason, some authors call rules

formulated in binary Relation Algebra 'invariant'.

3.2 Related Approaches

Our terms declarative and imperative are interpreted

differently in (Mendling et al., 2009). Their

understanding of 'declarative' is simply that the

given behavior satisfies all requirements. The basic

workflow models that we consider will satisfy all

requirements, perhaps not instantly but eventually,

still we do not consider them to be declarative.

Linear Temporal Logic (LTL) is an excellent

approach to study workflows in great detail (Maggi

et al., 2011). LTL extends first-order logic with a

linear, discrete model of time. A workflow suite,

called Declare, uses LTL to model and execute

business processes. A main difference with our

approach is again the notion of time, which is a

prominent feature in LTL, but absent from ours. For

example, precedence is sometimes interpreted to

mean that an activity should not be started prior to

the completion of the preceding one. This would

imply that activities have a certain duration, but as

noted before, time is irrelevant to our approach and

we do not follow this interpretation.

Protocol modelling (McNeile and Simons, 2006)

also does away with temporal aspects and the notion

of cases. Aspect oriented models enable state transi-

tions while taking multiple crosscutting concerns

and business constraints into account. This approach

takes the indicative view of workflow when it labels

state transitions as 'desired' (Wedemeijer, 2012).

3.3 Structure of the declarative model

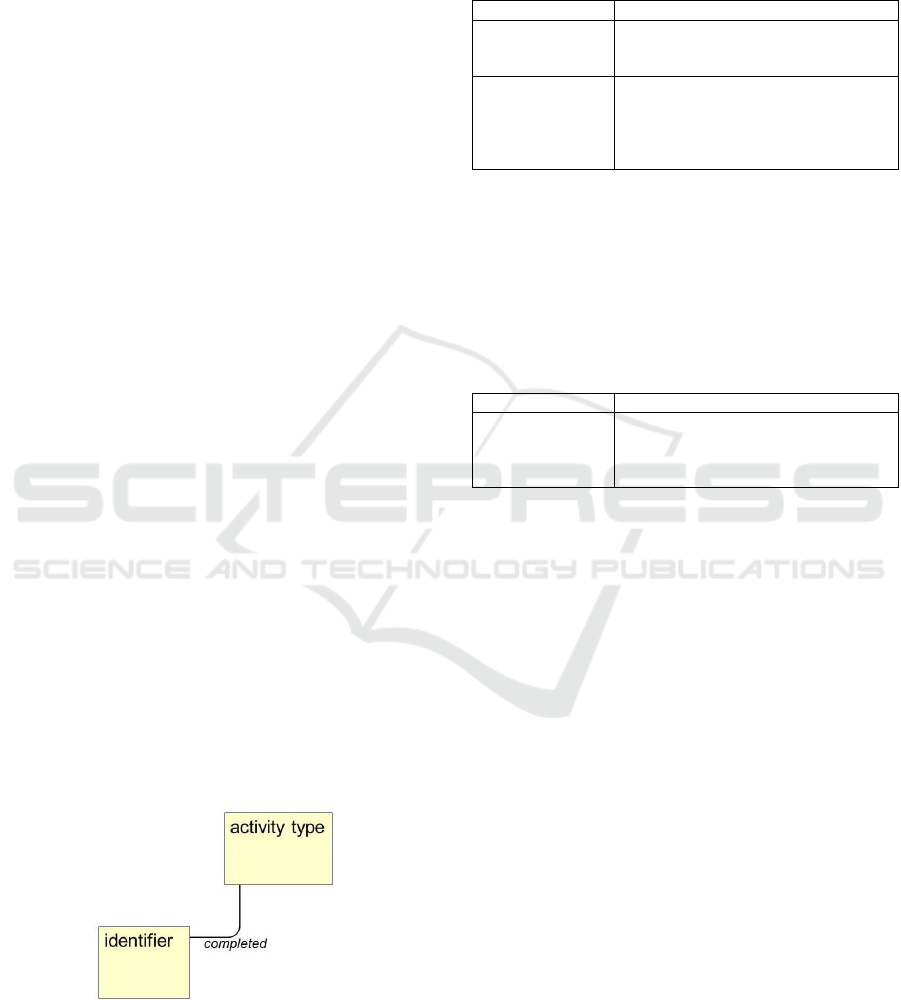

Figure 2: Basic structure of the declarative model.

To transform imperative flows to declarative rules of

Relation Algebra, we must first specify a suitable

structure to capture the terms, facts and rules of

imperative workflows. The basic structure of our

declarative model (figure 2) is attractively simple,

containing just two concepts as defined below. We

will expand this basic structure with other features

as needed:

concept semantics

[identifier]

is: (a pool of) available case identifiers,

each associated to a particular workflow

case, e.g. a case 'customer request 123'

[activity type]

is: (the set of) activity types. Each

activity type may be executed

(instantiated) any number of times, in

order to achieve the goal of the business

process

The declarative model for workflows specifies a

number of binary relations on these concepts. The

most important one, called completed, records

workflow progress. A tuple (i,A) in this relation

completed, sometimes called a transition, records

that this particular case identifier, i, has successfully

been processed by the particular activity type, A. For

ease of reading, we write relation names in italics:

relation semantics

[identifier]

completed

[activity type]

is: (the recording that) all work of the

activity type has been successfully

completed for (the case associated with)

identifier i.

The completed relation represents the audit trail

of the work done on a particular case. In accordance

with compliance regulations and good records-

keeping (McKemmish et al., 2006), tuples may be

added into this relation, but they may never be

altered or deleted thereafter: an activity cannot be

un-completed. And to safeguard referential integrity,

we cannot delete an identifier or activity type once it

is recorded in the completed relation.

Notice that we abstract from a lot of attributes

commonly included in audit trails, such at deadlines

being set, the exact times of start and completion,

business resource that executed the work, or the

actor taking responsibility for the work done.

We assume the completed relation to be total, i.e.

a case identifier is recorded only if it completed at

least one activity. This is because we are interested

only in identifiers associated with actual work done,

not in possible future work. The reverse is not

required: an activity type may exist even if no case

has ever completed that activity.

Instead of completed, an started relation might

have been modeled. Again, we are interested only in

actual work done, not in ongoing execution of activi-

ties. A similar argument is used in Petrinet theories,

the formal foundation of most workflow models.

Third International Symposium on Business Modeling and Software Design

4 TRANSFORMING FORWARD

FLOW

Many business processes can be represented in sim-

ple workflow models where activities are executed

in sequence, or perhaps in parallel. This section

outlines how common components are transformed:

sequence, synchronize (AND-join), and selective

OR-splits (disable, exclusive split), as in figure 3.

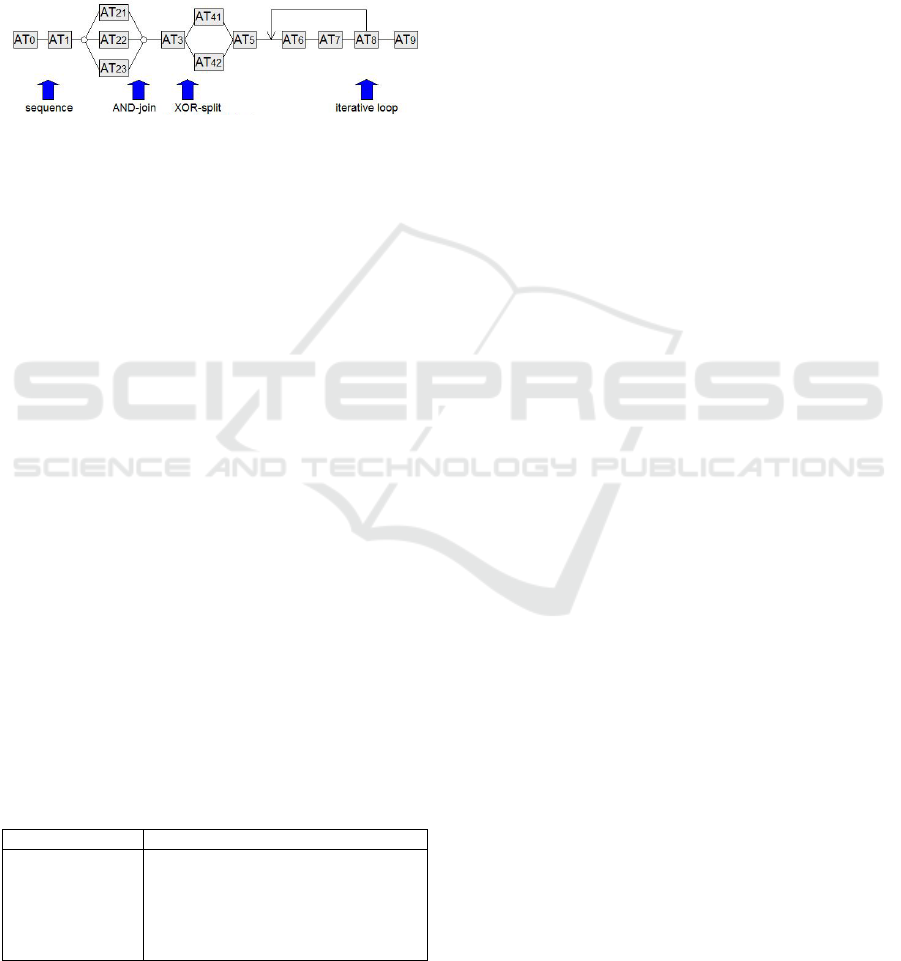

Figure 3: Common components in workflow.

4.1 Sequence / Precedence

4.1.1 Sequencing in Workflows

This is the most common pattern in workflows. Most

workflow diagrams depict sequencing by an arc

from one blob, representing some activity type A

0, to

some next blob labelled type A

The indicative interpretation of such sequencing

is: after A

0 is completed, then A1 should be executed

next. Not having completed activity A

1 after A0

means that the rule for sequencing is temporarily vi-

olated. There is work to do while the violation lasts.

In the imperative interpretation of workflow, the

arc from A

0 to A1 represents strict precedence: if the

second activity A1 is completed for some case

instance, then A

0 must have already been completed

for that case instance. Or: if completion of A0 is not

on record, then the rule says that completion of A1 is

impossible. Not having completed A

0 prior to A1

means that the imperative workflow rule is violated,

and this violation is never permitted.

4.1.2 Rule for Precedence

To capture precedence as a declarative rule, the

precedes relation on activity types is used (see

table).

relation semantics

[activity type]

precedes

[activity type]

is: the precedence relation among

activity types. A tuple (A0,A1) in this

relation means that only if an activity of

type A0 has completed, may a

corresponding activity of type A1 also

be completed.

The precedence rule can be formulated in first-order

logic by way of the precedes relation:

for any i∈[identifier], and A1∈[activity type], we

have: if i completed A

1 then there must exist

some activity type A

0 such that i completed A0

and A0 precedes A1.

which in Relation Algebra reads:

completed ⊂ completed ○ precedes

(1)

4.1.3 Precedence for Triggers

A problem with the sequencing rule is that not every

activity type is preceded by another. Such activity

types are customarily called triggers, or initial

activities, and they are important because they set

the workflow in motion.

At first glance, triggers invalidate assertion (1),

as completion of an identifier cannot be recorded for

an initial activity type because a proper tuple in the

precedes relation is absent. We solve this by adjus-

ting the definition of relation precedes: initial

activity types are recorded by way of self-referring

tuples (A

0,A0). By recording such tuples in precedes,

assertion (1) also covers initial activities.

4.1.4 About the Precedes Relation

Basic properties of the binary precedes relation

correspond nicely to important features of

imperative workflows. As we are merely concerned

with transforming the workflow to declarative rules,

we refrain from a deeper analysis of this and other

relations to be defined. We take quality issues for

granted, such as the workflow being well-designed

with respect to liveness, deadlock etc.

The precedes relation is not univalent, and an

activity type may well precede several others,

corresponding to a so-called split in the workflow. It

establishes what may be called a multiple-instance

pattern (Aalst et al., 2003). The subsequent activities

may be executed and completed in parallel along

separate branches of the flow.

It is not total. An activity type may be a last one,

a terminating activity in the workflow. Nor is prece-

des an injective relation, as more than one activity

type may precede an activity type A

X. Assertion (1)

will ensure that at least one precedent is completed

prior to the completion of A

X. This is the common

OR-join of workflow models.

We explained above that self-referring tuples are

recorded to capture triggering (initial) activities. As

a result, the binary precedes relation is surjective.

Abstracting Imperative Workflow to Declarative Business Rules

4.2 Synchronizing AND-Joins

4.2.1 Synchronization in Workflows

Sometimes an activity may only be completed after

completion of more than one activity. Known as

AND-join or more formally as synchronization point

in workflow models, it is not captured by rule (1).

4.2.2 Rule for Multiple Precedence

To capture AND-joins in a declarative rule, we in-

troduce a relation multi_precedes for activity types.

relation semantics

[activity type]

multi-precedes

[activity type]

is: activity type precedes the next

activity type and executions must be

synchronized. A tuple (AM,AN) means

that only if the activity of type AM and

certain others too have completed, may a

corresponding activity of type AN also

be completed.

The synchronization rule is that no compulsory

precedent has not completed. In first-order logic:

for any i∈[identifier] and AY∈[activity type], we

have: if i completed A

Y, then it holds that never

an activity type AX multi_precedes AY and the

identifier i has not completed activity type AX.

In Relation Algebra, such a double negation is

known as left demonic composition operator (Back-

house, van der Woude, 1993). We can denote it as:

completed⊂ ¬(¬completed○multi_precedes)

(2)

4.2.3 About the Multi-precedes Relation

This relation looks a lot like the regular precedes

relation. In fact, the only difference is at the join-

points in a workflow. Whereas the precedes relation

captures OR-join behavior, multi-precedes models

AND-join behavior. As workflows can display both

types of behavior, both relations are needed.

The multi-precedes relation constitutes a partitio-

ning of activity types. Most partitions are uninteres-

ting, consisting of just a single activity type. Just a

few partitions, that correspond to the AND-joins,

contain more than one activity type, meaning that

those must synchronize: the workflow may only

continue once all of them have completed.

4.3 Selective OR-Splits and Disabling

4.3.1 Selections in Workflow

Selective flow, also known as conditional branching,

means that one activity precedes two (or more)

activities that are placed in parallel but not all of

these succeeding activities are allowed to complete.

Select in a workflow diagram is depicted by a so-

called XOR-split: two (or more) arcs go out from a

single point. Also, a business condition that

determines which arc should be enacted (or not) is

often indicated, but as we are concerned only with

transforming the imperative flow into declarative

rules, we abstract from such business knowledge.

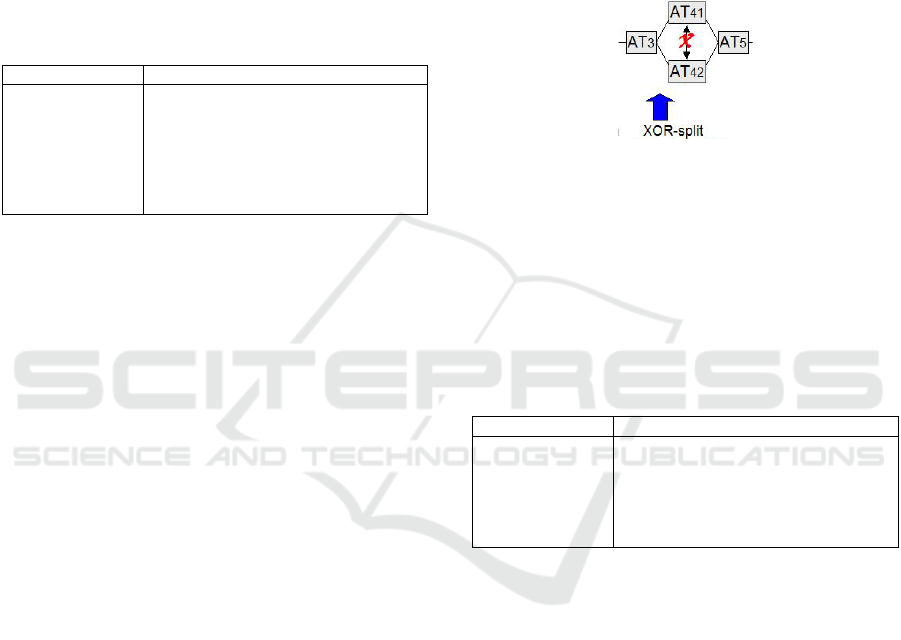

Figure 4: Mutual exclusion of activity types.

4.3.2 Rule for Selective / Disabling Activities

Consider the XOR-split after activity type A3 which

is the precedent for both A41 and A42, but only one of

them is allowed to complete (figure 4). The first

consideration is normal sequencing, as has been

dealt with before. We cover the new restriction of

mutual exclusion by way of a new relation disables

on activity types:

relation semantics

[activity type]

disables

[activity type]

is: the disabling relation among activity

types. A tuple (AX,AY) in this relation

means that never if an activity of type

AX has completed, may an activity of

type AY be completed by the same

identifier.

The rule for selective flow can now be

formulated in first-order logic:

for any i∈[identifier] and AX,AY∈[activity type]

we have: if i completed A

Y then it is never true

that i completed AX and AX disables AY.

Denoted as a Relation Algebra assertion it reads:

completed ⊂ ¬ ( completed ○ disables )

(3)

4.3.3 About the Disables Relation

Most activities are not involved in disablings, and

therefore the disables relation is neither total nor

surjective. One activity type may disable, or be dis-

abled by several others, hence the relation is neither

univalent nor injective. Evidently, the homogeneous

disables relation is irreflexive, while nothing can be

said about its being transitive or not.

The important point however is that, in our

Third International Symposium on Business Modeling and Software Design

context, the disables relation is symmetric by nature.

A tuple (A

X,AY) in the disables relation means that

never if an activity of type A

X has completed, may a

corresponding activity of type AY also be completed.

The reverse is then automatic: if an activity of type

Y is recorded as completed, then no corresponding

activity of type AX may be completed.

Imperative workflows also know a disabling

feature, which however is not symmetric by nature.

A workflow may model that activity type A

3 is

disabling for activity type A2, meaning that

completion of A

2 is allowed prior to, but not after

A3. This allows a sequence of activities a1-a2-a3, but

not a sequence like a1-a3-a2. The exact sequencing

is determined by the actual timestamps of completi-

on, an attribute that we have explicitly omitted from

our declarative rules.

4.4 Forward-flow Rule

The three basic patterns of workflow analyzed so far

all ensure a forward flow, in contrast to the flow that

we will be analyzing in the next section. The three

Relation Algebra assertions (1), (2) and (3) acquired

so far, easily combine into a single assertion:

rule forward_flow as

completed must imply

( ( completed ○ precedes )

∪ ¬( ¬completed ○ multi_precedes ))

\ ( completed ○ disables )

For later reference, we will refer to the righthand

side of this assertion as the forward-flow relation:

relation semantics

[identifier]

forward-flow

[activity type]

is: the relation with a tuple (i,A)

indicating that at least one (regular)

precedent or all of its multi-precedents

are completed, and none of its disabling

activities has completed.

Using this relation, a forward flow rule may be

stated: 'if identifier i completed activity type A, then

tuple (i,A) must be in relation forward-flow'.

The rule has immediate enforcement: completion

is always prohibited if the tuple is absent from the

forward-flow relation. But, as the naming suggests,

the rule holds for forward flows only, and does not

apply for loops or 'backward' flows.

5 TRANSFORMING ITERATIVE

FLOW

The previous section transformed forward flows. this

section, we deal with the transformation of iterative

loops, which slightly more complicated.

5.1 Iterative Looping in Workflows

Handling a workflow case may sometimes involve

the repeated execution of a series of activity types

until some condition is met. But the forward-flow

rule described above cannot deal with a flow that

loops back onto itself, so we must adjust the rule. A

peculiarity is that binary relations may record a tuple

once, but not several times over. Hence, completed,

as a binary relation, cannot record iterations as

required. Our solution is to employ a new identifier

for each iteration of the loop. By expanding the

definition of the identifier concept in this way, our

forward-flow condition remains valid.

5.1.1 Relations for Modeling Iterations

We capture iterations by imagining the execution of

the workflow-case to pause at the looping activity

where it may fire zero, one or more iterations, as

depicted in figure 5. Execution of the looping acti-

vity by the the workflow-case can be thought of as

being suspended, and only when all iteration(s) have

been dealt with, can it complete the looping activity,

and proceed in the normal way.

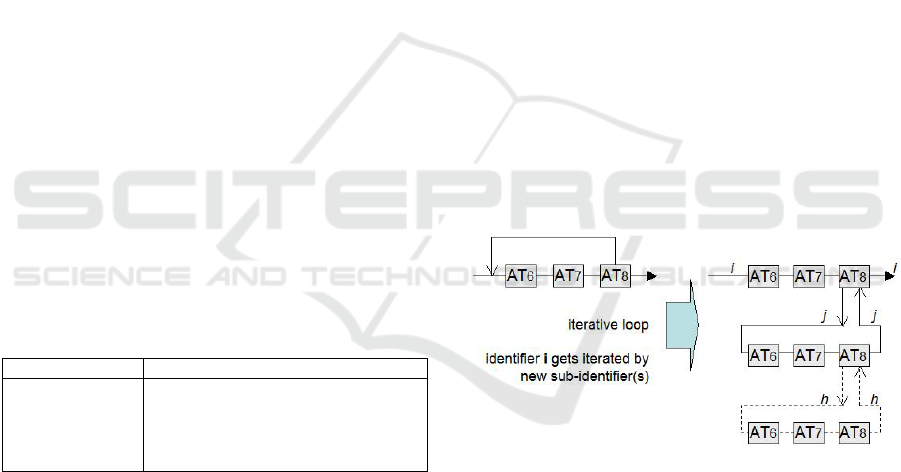

Figure 5: Iterating by way of sub-identifiers.

But this image cannot be taken literally, as our

approach has abstracted from duration of an activity

and we record only its completion. Instead, we just

prohibit the activity to complete if iterations are run-

ning. This is somewhat different from the standard

understanding of iterations, where a loop starts after

completion of the looping activity, and not during its

execution. As far as we could assess, this detail has

no consequences for validity of the transformation.

Several new relations are needed to help us

capture iteration loops as declarative rules.

First, relation loops_to records the iteration loop

as drawn in the workflow diagram. To keep things

Abstracting Imperative Workflow to Declarative Business Rules

simple, we will assume that this relation on activity

types is univalent and injective. Moreover, the target

activity type (where it loops to) is assumed to be a

precedent for the source activity type. This is to

ensure that a case looping back, will eventually

return to the activity type that fired it.

relation semantics

[activity type]

loops_to

[activity type]

is: the iterative-loop relation of activity

types. A tuple (AN,AK) in this relation

means that an activity of type AN,

before its completion, may invoke no,

one or more iterations of the loop

starting from AK.

As pointed out before, a binary relation such as

completed cannot record that the same activity type

is repeatedly completed by a single identifier. We

solve this by assigning a new identifier for every

loop iteration, in the same way as used in audit

trailing tools, activity logging and process mining

(van Dongen, van der Aalst, 2005). To track which

iterative loops are running for what workflow cases,

we coin two more relations, fired_from and iterates:

relation semantics

[identifier]

fired_from

[activity type]

is: which subordinate case identifier has

started from the activity type. A tuple

(j,AM) in this relation means that

identifier j is fired from the activity type

AM.

[identifier]

iterates

[identifier]

is: the iteration of identifiers. A tuple (j,i)

in this relation means that the identifier j

is fired for the identifier i, which is

deemed necessary as an activity executes

for the workflow case associated with

identifier i. The identifier that iterates

another is referred to as subordinate or

sub; the other identifier is called the main

case.

The iterates relation actually is a function.

Remark that a sub may again fire its own sub-

subordinates, and a stack of arbitrary depth can be

created. Moreover, the iterates relation allows to fire

several subordinates at once, for instance if a

complex scheduling problem is broken down into

several smaller scheduling alternatives, to be

analyzed in parallel. Still, an identifier cannot iterate

itself, so the iterates relation and its transitive

closure must be irreflexive.

The fired_from relation, which is also a function,

prevents possible confusion about which identifier

originates where, in case a workflow contains more

than one loop. For the sake of consistency, activity

types recorded in the fired_from relation must also

be present in the loops_to relation, but here again,

we take this quality issue for granted.

Firing-from an activity type can occur when the

case at hand has not completed the activity yet, and

some business worker or condition determines that

iteration is required. In this paper, we abstract from

the specific conditions or business knowledge that

controls invocation of the iterative loop.

5.1.2 Rules for Iteration

To model iterations in imperative workflow, three

restrictions regarding (the identifier of) the iteration

must be considered:

− allow the completion of its first activity,

− ensure completion of subsequent forward-flow

activities, and

− constrain the sub-identifier to stop at precisely

the activity type where it was fired-from, and no

further activities are to be completed.

Regarding the main case, we must ensure that:

− the main case identifier must wait for all of its

iterations to complete, prior to continuing.

First, remark that the activity type where an iteration

begins, is rarely marked as a trigger. Hence, the

forward-flow condition would normally prohibit that

the activity type is completed by this sub, as it lacks

its proper precedent, and spontaneous generation of

new cases is explicitly forbidden in the imperative

view. The solution of course is that another identifier

acts as a substitute for predecessor, viz. the main

case that is firing this iteration. The proper condition

for the starting activity of the subordinate case is

captured in first-order logic as:

for any j∈[sub] and AK∈[activity type] we have:

if j completed A

K, and AM loops_to AK, and j

iterates the identifier i, then the tuple (i,A

M) is in

the forward-flow relation.

Rephrased in Relation Algebra, it reads:

completed ⊂

iterates ○ forward_flow ○ loops_to

(4)

In rephrasing the first-order logic, we used that both

relations, iterates and loops_to, are functions. Also

remember that formula (4) applies only for the initial

activity to be completed by the subordinate

identifier.

Once an iteration has completed its initial

activity, it has to go forward through the entire loop,

up to the activity type where it was fired. This is

already described by the forward-flow condition,

and no additional rules are needed.

Third, we must ensure that the iteration termina

Third International Symposium on Business Modeling and Software Design

tes at its point of origin, where it is fired from. It

may never go beyond that point and complete some

activity further down the flow. In particular, the

firing activity type never precedes an activity type

that is being completed by a subordinate identifier.

In first-order logic:

for any j∈[sub] and AP∈[activity type], we have:

if j completed A

P, then it cannot be that j is

fired_from some activity type AM preceding AP.

Rephrased in Relation Algebra, it reads:

completed ⊂ - ( fired_from ○ precedes )

(5)

Finally, we need to consider the main case. That

main case must wait at exactly the activity type

where it fired subordinate identifier(s). Which is to

say that this main case might have completed this

activity under normal circumstances, but if some

iteration(s) are running then must wait for them to

complete. Otherwise, a running iteration becomes

orphaned, executing activities to no avail. Thus, at

the looping activity may be completed by the main

case only if all of the iterations that it fired from

there, have all run their course to completion. This

condition to wait for iterations can be formulated in

first-order logic:

for any i∈[identifier] and AM∈[activity type] we

have: if i completed A

M, then it is never true that

some sub exists that iterates this identifier i, and

that sub was actually fired_from A

M (remind that

a workflow may contain other loops), while it

has not yet completed the activity type A

(which is to say: that sub is still running).

Using double negation again, we can write this as a

Relation Algebra assertion:

completed ⊂

¬( iterates~ ; ( fired_from ∩ ¬completed ) )

(6)

The assertion is trivially satisfied if no iterations are

fired (Backhouse and van der Woude 1993). The

assertion is also satisfied if iterations for a case exist,

but were fired from other activity types in the

workflow than the one about to be completed by the

case. Notice how assertion (6) applies recursively,

i.e. nesting is allowed. If a subordinate identifier

fires sub-subordinates of its own, it too will wait for

its own sub-subordinates before completing.

5.2 Imperative Workflow Rule

5.2.1 Forward-Flow and Subordinates

Conditions (4) and (5) determine a scope for a sub

ordinate identifier. They govern the inception and

termination of each subordinate, i.e. the activity type

where it starts, and where it terminates. Evidently,

these two activity types coincide exactly with one

corresponding tuple in the loops_to relation. Condi-

tions (4) and (5) plus the forward-flow condition

describe behavior of the subordinate, which is

expressed in a Relation Algebra assertion as follows:

rule subordinate_workflow as

completed must imply

( forward_flow

∪ iterates ○ forward_flow ○ loops_to )

/ ( fired_from ○ precedes )

Notice how for main workflow cases this subor-

dinate_workflow rule coincides with the regular for-

ward-flow behavior, except at activity types where

looping may occur. Hence, we only need to merge

condition (6) that controls behavior at looping

activities into the rule above. The declarative

business rule for imperative workflow becomes:

rule imperative_workflow as

completed must imply

¬ ( iterates~ ; ( fired_from ∩ ¬completed ) )

∩ ( ( forward_flow

∪ iterates ○ forward_flow ○ loops_to )

/ ( fired_from ○ precedes ) )

Remarkably, this rule, although we produced it in

accordance to the imperative view of workflow,

provides us with an indicative view. The righthand

side of the rule assertion indicates for a case iden-

tifier i which activity types either have completed, or

are allowed to complete, always in full compliance

to the imperative workflow constraints. It is fairly

easy to deduce from this rule an is_enabled relation

that, for a given identifier, will determine exactly

which activity types are allowed to complete, but

have not completed yet.

6 CONTROL PRINCIPLE

The previous sections detailed how to capture the

various aspects of imperative workflow. This section

outlines how the workflow process is driven by way

of the Control Principle.

6.1 Completing the Flow

A general assumption is that a workflow case, to

fulfil the intended business goal, will always and

automatically run from start to finish. A recorded

Abstracting Imperative Workflow to Declarative Business Rules

trigger will always progress to its final tasks, or

terminal activities. Likewise, we assumed that any

subordinate iteration fired from some looping

activity type will always return to its point of origin.

The indicative view of workflow states what

should come after by way of enabling activities. By

assumption, every activity that is enabled, ought to

complete in due course, unless its completion is no

longer desired or disabled (McNeile, Roubtsova,

2008). By another assumption, the terminating acti-

vity of the workflow will be enabled and completed

eventually, and so the process goal is achieved.

In the imperative view of workflow, the goal of

the process is not achieved as a matter of course. If a

process halts in mid-term, nothing goes wrong. No

rule is violated, there is no signal that there is work

to do, or that a deadline has expired. The imperative

workflow rule dictates what must come before, but

not what ought to come after. Nothing controls that a

case shall be handled start to finish. To remedy this

situation, a new rule called the Control Principle is

formulated.

6.2 About the Progresses_to Relation

Whereas the imperative workflow rule has imme-

diate enforcement (it may never be violated), the

Control Principle does allow deferred enforcement:

violations are allowed but only temporarily so.

Every violation should be remedied sooner or later,

and work should proceed until there are no more

violations. The Control Principle reasons that every

workflow trigger should always progress to all of its

terminal activities:

for any i∈[identifier], and A0,AZ∈[activity type]:

if i completed A

0, with A0 trigger and AZ termi-

nating activity type for the workflow, then i must

(eventually) also have completed all such A

We coin a relation progresses_to from trigger to

terminating activity types. In fact, this relation

applies to not just one, but to all workflows that an

engineer may consider. We define it as follows:

relation semantics

[activity type]

progresses_to

[activity type]

is: the relation that describes the overall

start-to-finish structure of workflows. A

tuple (A0,AZ) in this relation means that

A0 is a triggering activity type and AZ is

a corresponding terminating activity type

in the workflow.

The Control Principle in Relation Algebra reads:

rule control_principle as

completed ○ progresses_to must imply

completed

Under this rule, work continues as long as any one

the final tasks has not yet been completed. All

outcomes must always be produced eventually; the

Control Principle does not allow to disregard or skip

some of the final tasks.

Inspecting the derived relation is_enabled, it will

be clear which activities may be completed in com-

pliance to the imperative workflow rule. Thus, work-

to-do can be allocated to available actors, human or

machine. In due course, activities are recorded as

completed, and the rules can once again be inspected

to determine violations and appropriate actions.

6.3 Workflow Execution

The Control Principle and the imperative workflow

rule act independently and in harmony to realize the

behavior as described in WMC'99 report.

Separate, each rule is valuable as a means to

understand and interpret workflow.

The imperative workflow rule dictates that work

must always be done in compliance to the workflow,

and specifies in exact detail how. Violation of this

rule is never tolerated. Applying this rule in a

business environment without the Control Principle

means that the work will certainly be performed in

the correct order, but there is no guarantee that the

process goals will be realized.

The Control Principle dictates that every work-

flow trigger should always progress to its terminal

activity or activities. Violation of this rule is

permitted, and it means that there is work to do.

Applying this rule in a business environment without

the imperative workflow rule means that business

workers know that there is work to do, but there is

no guidance as to the correct order of their activities.

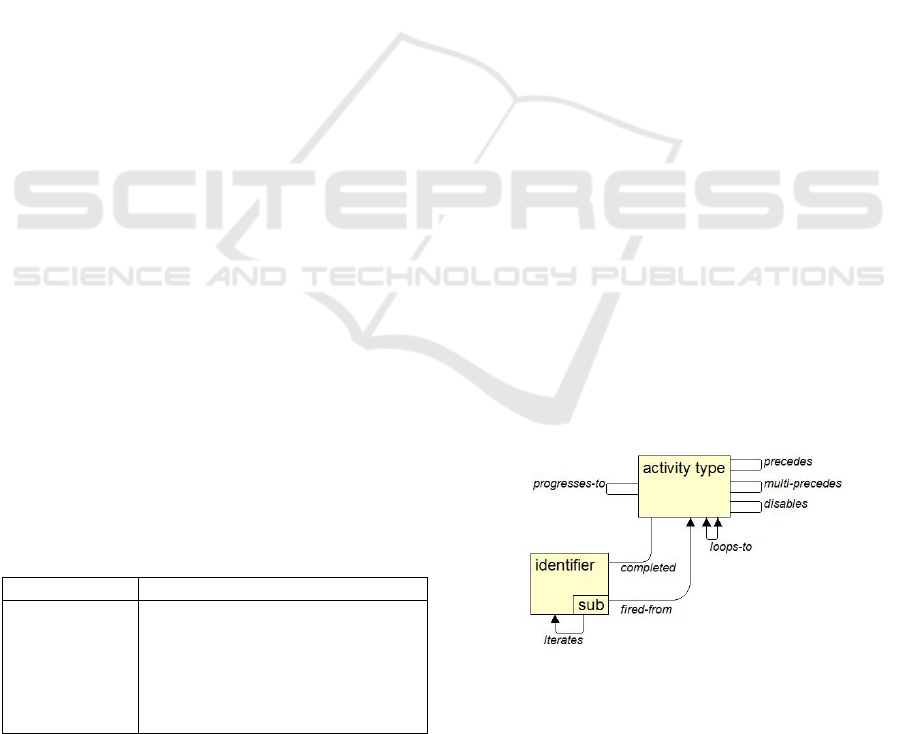

Figure 6: Elaborated structure of the declarative business

rules model.

The real benefit of our approach emerges when

the two rules are combined. Together, the rules

ensure that the process activities execute in a well-

co-ordinated fashion, exactly as pictured by the

Third International Symposium on Business Modeling and Software Design

workflow diagram. In the end, all violations are

resolved, all terminating activities have completed,

and the process goal is achieved.

Figure 6 is a diagram of the concepts and relati-

ons used to formulate our declarative business rules

for imperative workflow. An important observation

is that this declarative structure is not restricted to a

single workflow only. Other workflow models are

readily captured in the same declarative structure,

merely by populating the various binary relations

with the structural knowledge encapsulated in the

workflow models.

More details about the model, scripted in the

Ampersand toolset, will be available at the site

http://wiki.tarski.nl/index.php/Research_hub. There,

a realistic example will be available to show and

explore the benefits and issues of our approach. It

lists the binary relations, the exact formulas, and the

violations of the declarative business rules of a

workflow model fashioned like figure 1.

7 DISCUSSION

7.1 Advanced Flow Structures

This paper covered only the principal structures as

seen in workflows. We are convinced that other,

more advanced structures can also be transformed.

How, requires further analysis.

For instance, an 'empty' activity type may show

up in a workflow diagram. As we abstracted from

the actual work executed by an activity, the empty

activity type is treated like any other: it has

precedents, it may be the precedent of other activity

types, it turns up in the completed relation etc.

In practice other exceptions exist that operational

workflows must deal with, such as lack of resources,

user-initiated aborts, and crosscutting events (e.g. a

client dies, or an order is cancelled). Likewise,

quality problems may arise in workflows, such as

deadlock, irregular termination, or loops that never

terminate. Merely transforming to a declarative rules

model cannot be expected to solve the quality

problems. This area of research is beyond the scope

of this paper.

7.2 Limitations of Our Approach

The sequencing of activities in a workflow is the

outcome not only of business requirements, but also

of design decisions and implementation choices. An-

other designer may propose a different sequence that

also complies with the essential business rules.

Hence, precedence analysis is required to bring out

what aspects of the flow is due to design choices,

and which are based on actual business needs. To

some extend, is a matter of opinion whether a

workflow constitutes legitimate business rules, or

whether it is just a way to implement underlying,

more fundamental business rules (Hofstede, Aalst, et

al., 2003). It can also be debated with users which

flow features must have immediate enforcement, and

which ones may be relaxed to allow temporary

violations.

Moreover, flow rules such as precedence,

disabling and the like, are just one of the many kinds

of business rules. Business rules in general support

not only the consecutive steps of process flows but

also the rules to assess the business conditions and

facts as activities are being executed. For instance, a

workflow diagram often specifies the business rules

that determine whether iteration is required, or

which branch in an XOR-split to follow, but our

relations cannot records such business conditions.

In our approach, iterative loops are dealt with in

a slightly different way. The usual interpretation is

that an iteration branches off immediately after

completing a looping activity. Our interpretation is

that iterations are recorded by way of subordinate

identifiers, prior to completion of the looping

activity by the main case identifier.

Furthermore, our approach was found to be

limited in dealing with a disable, when there is time-

dependence involved. An example is a workflow

model with a constraint that 'an activity of type C3

may complete, but not before an activity of type C2'.

Such a non-coexistence rule would allow to record

the sequence of activities c1-c2-c3-c4, but disallow

the sequence c1-c3-c2-c4. Like all of the declarative

rules, our disabling rule is time-independent, and

therefore must be symmetric. It cannot distinguish

between the allowed sequence, c1-c2-c3-c4, and the

forbidden sequence, c1-c3-c2-c4. Hence, transfor-

ming this into declarative format is not possible. A

work-around may be to adjust the original workflow

model to capture the precedences in another way.

7.3 Lack of Temporal Features

Our approach is founded on Relation Algebra, which

does not provide temporal capabilities. Therefore, a

main limitation of our approach is the lack of time in

all of our formulas. This is not a drawback, instead

we regard it as a major advantage. Indeed, we

demonstrated how main components of workflow

can well be captured without referring to time.

Abstracting Imperative Workflow to Declarative Business Rules

Still, deadlines or deadline expiry are not

handled in our approach. Having abstracted from

time altogether, we do not record whether an activity

has begun, nor the time when its execution started.

Additional binary relation such as Identifier started

Activity_Type might be added, but it will require

extra constraints, such as: completed must imply

started. Furthermore, Relation Algebra provides no

clock mechanism that allows to inspect which activi-

ties have started but did not complete within the

allotted time. In all, we think that this paper is not

the place to investigate these aspects and how to deal

with them within the context of Relation Algebra.

Finally, it must be pointed out that time is also not a

native feature of Petrinets, the formal foundation of

most workflow models.

7.4 Transforming Rules to Workflow

We conducted one-way analysis: from implemented

workflow structure to more abstract business rules.

The workflow was transformed without information

loss, and reverse transformation will not prove to be

hard. However, this is not true in general. Once the

users edit, improve and rephrase the abstracted busi-

ness rules, there is no guarantee that reverse trans-

formation is easy, or that it produces a compatible

flow structure. Engineering a given set of abstract

business rules into a corresponding workflow model

involves implementation choices, and design skills.

8 CONCLUSIONS

AND OUTLOOK

The research in this paper covers the main structural

components of imperative workflows. We outlined

how to transform a workflow into just two rules.

The first one, called imperative-workflow rule,

captures the structure of the imperative workflow,

and it allows no violations at any time (immediate

enforcement). This comprehensive rule comprises

two parts. The easy part is called the forward-flow

rule, and it adequately captures normal and parallel

sequence, multiple precedence, and exclusions

(selection). The more complicated part captures the

iterative loops.

The second rule is called the Control Principle,

which drives the workflow through to its end. This

rule does allow violations, but while violations exist,

there is work to do resolving them (deferred

enforcement). Case handling is finished when there

are no more violations, and the goal of the business

process is reached.

The 8 binary relations and 2 rules that we

describe can be characterized as follows:

− they capture all the knowledge about the

workflow (sequencing, precedence, etc.),

− they are declarative, not procedural in character,

and involve only (persistent) states, not the

volatile events or transitions,

− the notion of time is not needed, the rules and

relations are time-invariant, and do not refer to

'before' or 'after'

− the imperative-workflow rule and the Control

Principle apply independently and simultane-

ously, there is no priority among the two.

We conclude that imperative workflows can be

transformed into declarative business rules following

the format of binary Relation Algebra. We demon-

strated in detail how to do this for each of the four

basic flow structures.

To accomplish the transformation of imperative

workflows to declarative rules, two concepts suffice.

One is the identifier concept, representing the work-

flow cases to be handled, and possibly the

subordinates when cases trace iterative loops in the

workflow. The other concept is activity type,

representing the 'blobs' of workflows. The various

types of 'arc' in workflow models are captured in a

number of binary relations, the majority being

homogeneous relations on the activity type concept.

We have shown how the procedures of workflow

may be mapped into declarative business rules. This

constitutes tangible evidence that the way of doing

business may indeed be captured in a business rules

model that meets all the demands of the Business

Rules Manifesto. On the other hand, the business

rules and relations that we describe are basically

procedural in character, while the Business Rules

Manifesto encourages to capture the business rules

in a non-procedural format.

Future work is to augment our two declarative

workflow rules with content-aware rules, such as the

criteria for iterations and OR-splits, and also the

implicit decision rules in activities encapsulated in

automated services or applied by knowledge

workers.

The Control Principle in its current formulation

requires that all final tasks must eventually be

completed. In practice, a workflow process may

finish even if not all outcomes have been produced.

For instance, when a customer order is rejected, then

the workflow produces only a rejection message,

and not the intended order delivery. The Control

Principle should be adapted and improved to cover

such practical circumstances. Furthermore, the

Third International Symposium on Business Modeling and Software Design

connections between the progresses_to relation of

the Control Principle, and the various relations that

capture the details of the imperative-workflow rule,

need to be analyzed and clarified.

As a result, we envision a ruleset that is

consistent and comprehensive, that reflects the

processing needs of the business, but without the

restrictions of workflow models. A next step is to

check with business users how the workflow

precedences and the like, now captured in binary

tables and declarative rules, correspond to the

requirements of the business.

We expect that declarative rules, developed

along these ideas, will capture the business require-

ments about the processing of incoming work better

than rigid rules of imperative workflows do. The

ruleset will provide an essential basis for improved

models to coordinate business processes. Indeed, the

reverse exercise, to derive an imperative workflow

compliant to even a small set of declarative rules,

may not be as straightforward, as may be illustrated

by your next Sudoku puzzle.

REFERENCES

Aalst W van der, Hofstede A ter, et al., 2003. Workflow

Patterns. In: Distributed and Parallel Databases 14(1)

p.5-51.

Ampersand. At: http://wiki.tarski.nl

Backhouse R, van der Woude J, 1993. Demonic operators

and monotype factors. In: Mathematical Structures in

Computer Science 3(4) p.417-433.

Business Rules Manifesto, 2003. At: www.business

rulesgroup.org/brmanifesto.htm. Version 2.0. Edited

R.G. Ross. Last accessed 24 march 2013.

van Dongen B, Aalst W van der, 2005. A meta model for

process mining data. CAiSE Conference Proceedings.

Joosten S, 2007. Deriving Functional Specification from

Business Requirements with Ampersand. Available at

http://icommas.ou.nl/wikiowi/images/e/e0/

Fahland D, Mendling J, et al., 2009. Declarative versus

Imperative Process Modeling Languages: The Issue of

Maintainability. In ER BPM.

Hofstede A ter, Aalst W van der, et al., 2003. Business

Process Management: A Survey. In: Business Process

Management. M. Weske, Springer Notes 2678.

Maddux R, 2006. Relation Algebras. Studies in Logic and

the Foundations of Mathematics, vol. 150. Elsevier

Science.

Maggi FM, Westergaard M, et al., 2011. Runtime

Verification of LTL-Based Declarative Process

Models. In: RV 2011, Khurshid and Sen (editors)

LNCS 7186, p.131–146.

McKemmish S, Acland G, et al., 2006. Describing records

in context in the continuum: the Australian

Recordkeeping Metadata Schema Archivaria 1(48).

McNeile A, Simons N, 2006. Protocol modelling: A

modelling approach that supports reusable behaviour

abstractions. In: Software and Systems Modeling 5(1)

p.91-107.

McNeile A, Roubtsova E, 2008. CSP parallel composition

of aspect models. In: Proceedings of the 2008 AOSD

workshop on Aspect-oriented modeling. Brussels,

Belgium, ACM p.13-18.

Russell N, Hofstede A ter, et al., 2006. Workflow Control-

Flow Patterns: A Revised View. At:

www.workflowpatterns.com/patterns

Russell N, Aalst W van der, et al., 2005. Workflow

Resource Patterns: Identification, representation and

tool support. Advanced Information Systems

Engineering, Springer.

Wedemeijer L, 2012. A comparison of two business rules

engineering approaches. In: BMSD 2012, p.113-121

Witt G, 2012. Writing Effective Business Rules. Morgan

Kaufmann. ISBN 978012-385051-5.

Workflow Management Coalition, 1999. Terminology &

Glossary. Tech.Report WFMC-TC-1011 issue 3.0.

Abstracting Imperative Workflow to Declarative Business Rules
