Multi-level Visualisation using Gaussian Process Latent Variable Models
Shahzad Mumtaz
1
, Darren R. Flower
2
and Ian T. Nabney
1
1
Non-Linearity and Complexity Research Group, Aston University, Birmingham B4 7ET, U.K.
2
School of Life and Health Sciences, Aston University, Birmingham B4 7ET, U.K.
Keywords:
Multi-level Gaussian Process Latent Variable Model, k-means, Gaussian Mixture Model, Trustworthiness,
Continuity, Negative Log-likelihood, Visualisation Distance Distortion, Mean Relative Rank Errors, Major
Histocompatibility Complex.
Abstract:
Projection of a high-dimensional dataset onto a two-dimensional space is a useful tool to visualise structures
and relationships in the dataset. However, a single two-dimensional visualisation may not display all the
intrinsic structure. Therefore, hierarchical/multi-level visualisation methods have been used to extract more
detailed understanding of the data. Here we propose a multi-level Gaussian process latent variable model
(MLGPLVM). MLGPLVM works by segmenting data (with e.g. K-means, Gaussian mixture model or inter-
active clustering) in the visualisation space and then fitting a visualisation model to each subset. To measure
the quality of multi-level visualisation (with respect to parent and child models), metrics such as trustwor-
thiness, continuity, mean relative rank errors, visualisation distance distortion and the negative log-likelihood
per point are used. We evaluate the MLGPLVM approach on the ‘Oil Flow’ dataset and a dataset of protein
electrostatic potentials for the ‘Major Histocompatibility Complex (MHC) class I’ of humans. In both cases,
visual observation and the quantitative quality measures have shown better visualisation at lower levels.
1 INTRODUCTION
Recent advances in sciences as diverse as astron-
omy, biology, weather forecasting and economics
have led to the generation and storage of large
high-dimensional datasets. Such datasets have not
only presented new challenges for researchers but
also created new openings for theoretical develop-
ments (Donoho, 2000).
In the machine-learning domain, projection of
large and high-dimensional datasets onto a single
two-dimensional plot is a useful and popular way
of extracting intrinsic structures. A single two-
dimensional visualisation plot (using either linear or
non-linear visualisation methods) seldom captures all
the intrinsic structure in complex datasets. Con-
sider, for example, situations where a single two-
dimensional visualisation plot of a complex and large
high-dimensional dataset can only show major clus-
ters whereas a hierarchical or multi-level visualisation
approach could show more interesting detailed struc-
tures. Such a tree-like visualisation model uses a root-
level visualisation plot to give a high-level overview
of a dataset and child visualisation plots for more de-
tailed views.
In the last two decades, unsupervised hierarchi-
cal visualisation or clustering models have been in-
troduced and are reviewd as in (Vicente and Vel-
lido, 2004; Murtagh and Contreras, 2011). Two well
known visualisation approaches are: probabilistic hi-
erarchical models and multi-level models. Both cat-
egories are based on a top-down divisive approach to
build a tree-like visualisation structure. The term ‘hi-
erarchical’ is used here to indicate a probabilistic way
of assigning data points (also known as soft member-
ships) to child visualisations whereas the term ‘multi-
level’ indicates that we partition the dataset into sub-
sets (using hard clustering) for building the child vi-
sualisations.
Probabilistic hierarchical models use density esti-
mation to build a complete and consistent hierarchical
model of the data. For example, a hierarchical mix-
ture of latent variables model (HMLVM) uses a single
linear latent variable model to obtain a top-level visu-
alisation plot and uses a probabilistic mixture of la-
tent variable models to represent the lower-level mod-
els (Bishop and Tipping, 1998). This process can
be continued recursively where child models at level
N +1 represent a mixture decomposition of the parent
model at level N. A non-linear extension of the HM-
122
Mumtaz S., Flower D. and Nabney I..
Multi-level Visualisation using Gaussian Process Latent Variable Models.
DOI: 10.5220/0004686801220129
In Proceedings of the 5th International Conference on Information Visualization Theory and Applications (IVAPP-2014), pages 122-129
ISBN: 978-989-758-005-5
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)
LVM was proposed in (Tino and Nabney, 2002). This
non-linear variant uses the Generative Topographic
Mapping (GTM) as a building block to represent visu-
alisation of high-dimensional datasets in a tree struc-
ture of multiple two-dimensional plots and is known
as hierarchical GTM (HGTM). A multiple manifold
learning framework based on HGTM was proposed
in (Wang et al., 2008): this uses an approximation
method to initialize a hierarchical model to represent
each sub-model as a single manifold. These proba-
bilistic hierarchical visualisation methods are based
on soft clustering.
Multi-level approaches based on the Self Orga-
nizing Map (SOM) use hard clustering where each
of the low-dimensional code vectors represents a
single cluster and the corresponding points in the
high-dimensional space are projected onto a sepa-
rate lower-level two-dimensional plot to show sub-
clusters (Miikkulainen, 1990; Versino and Gam-
bardella, 1996; Lampinen and Oja, 1992).
In this paper we propose a multi-level visualisa-
tion with Gaussian Process Latent Variable Models
(MLGPLVM). In MLGPLVM we visualise a com-
plete dataset at the root level which gives a high-level
view. We apply clustering on this root-level visual-
isation plot in order to create a hard partition into
subsets. Each subset is then used to build a child-
level visualisation model. These child-level or subset-
level models may help us to visualise detailed local
structures or clusters in the dataset. We take this ap-
proach since there is no simple way of modifying the
GPLVM to take account of ‘soft’ cluster membership,
as would be needed for a probabilistic hierarchy. In
our experiments we used K-means, Gaussian mix-
ture models and interactive clustering for partitioning
the data. An interactive clustering approach permits
the user to draw polygons on the visualisation plot to
identify clusters. The benefit of clustering in the visu-
alisation space is that the user can see the nature of the
segmentation, and correct it manually if necessary. To
measure the effectiveness of our proposed multi-level
visualisation approach we apply it to two datasets and
compute quantitative visualisation quality measures.
The outline of the paper is as follows. In Section 2,
we briefly discuss the theory of GPLVM with sparse
and back-constrained extensions. In Section 3 we ex-
plain our proposed MLGPLVM approach with brief
details about the clustering approaches we used in our
analysis. Section 4 defines the quantitative quality
matrics used in our analysis to show the effectiveness
of our approach. In Section 5 we describe briefly the
‘Oil Flow’ and the ‘MHC class-I’ datasets. In sec-
tion 6 we explain the visualisation experiments and
discuss the results for both datasets. Section 7 con-
cludes our paper with potential advantages and dis-
advantages of this new method and proposes future
work.
2 GAUSSIAN PROCESS LATENT
VARIABLE MODEL (GPLVM)
2.1 Probabilistic Dimensionality
Reduction Process
A latent-variable model is used to represent a dataset
Y R
N×D
with N data points in D dimensions by
mapping from the low-dimensional X R
N×Q
with
N data points in Q dimensions (usually Q = 2). The
mapping between a low-dimensional data point x
n
and
a high-dimensional data point y
n
is defined by
y
ni
= f
i
(x
n
) + η
ni
, (1)
where η
ni
represents noise for the ith feature of the
nth data point. The noise model we assume is a Gaus-
sian with zero mean and inverse variance β. So the
conditional distribution of a data point y
n
given a data
point x
n
is
p(y
n
|x
n
) =
D
i=1
N(y
ni
| f
i
(x), β
1
). (2)
If the mapping is assumed to be linear f
i
(x
n
) = w
T
i
x
n
,
and the latent variable x is drawn from a Gaussian
prior (with zero mean and unit variance) then the
maximum likelihood solution of the model repre-
sents the principal subspaces of the data (Tipping and
Bishop, 1999): this is Probabilistic Principal Compo-
nent Analysis (PPCA). Integrating out the latent vari-
able gives the marginal likelihood,
p(y
n
) =
Z
p(y
n
|x
n
)p(x
n
)dx
n
. (3)
So the marginal distribution for the complete dataset
is given as
p(Y ) =
N
n=1
p(y
n
). (4)
In a standard latent-variable model we use maximum
likelihood to optimize weights and marginalize out la-
tent variables.
2.2 Standard GPLVM
A non-linear extension of PPCA is the Gaussian pro-
cess latent variable model (GPLVM), which uses a
smooth mapping from the latent space to the data
space. In the GPLVM instead of optimizing weights
Multi-levelVisualisationusingGaussianProcessLatentVariableModels
123
they are marginalized out and instead of marginaliz-
ing over the latent space it is optimized (i.e. the po-
sition of each point in the latent space is optimized).
A conjugate prior over the weights is chosen, taking
the form of a spherical Gaussian distribution for each
dimension
p(w) =
D
i=1
N(w
i
|0, I). (5)
The likelihood after marginalizing the weights is
p(Y |X) =
D
i=1
N(y
(:,i)
| f
i
(x), β
1
), (6)
where p(y
(:,i)
) = N(y
(:,i)
|0, XX
T
+ β
1
I) represents a
distribution over a single feature in the data space.
GPLVM uses the following likelihood function to op-
timize the latent variables (similar to the likelihood
used in (Tipping and Bishop, 1999))
L =
DN
2
log(2π)
D
2
log(detK)
1
2
tr(K
1
YY
T
).
(7)
If K = X X
T
+ β
1
I is a linear kernel, then it is sim-
ilar to PPCA. But for the GPLVM a non-linear RBF
kernel is used as explained in (Lawrence and Hyvri-
nen, 2005; Lawrence, 2004) and then the optimiza-
tion of the latent variable can be achieved using the
non-linear optimization algorithm using the gradient
of the likelihood with respect to the kernel. The ker-
nel parameters are optimized by combining this gra-
dient with the derivative of the kernel parameters us-
ing the chain rule. The gradient calculation uses the
inverse of the kernel matrix; it has O(N
3
) complex-
ity thereby making it less practical for large datasets.
Due to this complexity, a GPLVM is usually trained
using sparse approximations where a small subset of
data points of size k << N known as ‘inducing points’
or the ‘active set’ is used to reduce the complex-
ity from O(N
3
) to O(k
2
N). For sparse approxima-
tion the standard GPLVM uses informative vector ma-
chine (IVM) (where data points are chosen sequen-
tially based on the reduction of the posterior process’s
entropy (Lawrence et al., 2003)). But we used the
GPLVM with the improved sparse approximation ap-
proach compared to IVM based sparse approach as
proposed in (Lawrence, 2008). This new improved
approximation process was originally proposed for
Gaussian process regression and is based on the uni-
fied view process as explained in (Quionero-candela
et al., 2005).
2.3 Preserving Local Distances
The standard GPLVM uses mapping from the latent
space to the data space for the training data only
which constraints distant points in the data space to
be distant in the latent space at the expense of the lo-
cal distance preservation. When users visualize data,
it is the local structure that is most relevant to their
analysis (for example, when they identify clusters).
Therefore we use the variant of GPLVM where con-
strained smooth mapping as in Neuroscale (Lowe and
Tipping, 1996) is employed to overcome the problem
of local distance preservation because the data points
x are no longer freely optimized. Instead they are the
image of points y in the data space under the non-
linear function like a Radial Basis function (RBF)
kernel or multi-layer kernel perceptron (MLP). This
constrained mapping (also known as back-constraint)
ensures that the data points which are close in the vi-
sualisation space are also close in the data space. We
use an MLP kernal as a back-constraint. Further de-
tails on preserving local distances with GPLVM can
be found in (Lawrence, 2006).
3 MULTI-LEVEL GPLVM
We propose here a multi-level GPLVM (MLGPLVM)
visualisation method for analysing complex datasets.
The fundamental building block of our proposed visu-
alisation model is GPLVM with back constraint. The
steps involved to generate a MLGPLVM visualisation
are:
1. Generate a root visualisation plot using standard
GPLVM with back constraint which represents
the mapping from data space Y to latent visuali-
sation space X.
2. Cluster the data in the two-dimensional visualisa-
tion space.
3. Partition the high-dimensional dataset Y into sub-
sets based on the clustering information at step 2.
4. Build a separate visualisation model for each sub-
set to generate local visualisation sub-models.
5. Repeat steps 2 to 4 on local visualisation sub-
models if required to add more levels in the multi-
level visualisation.

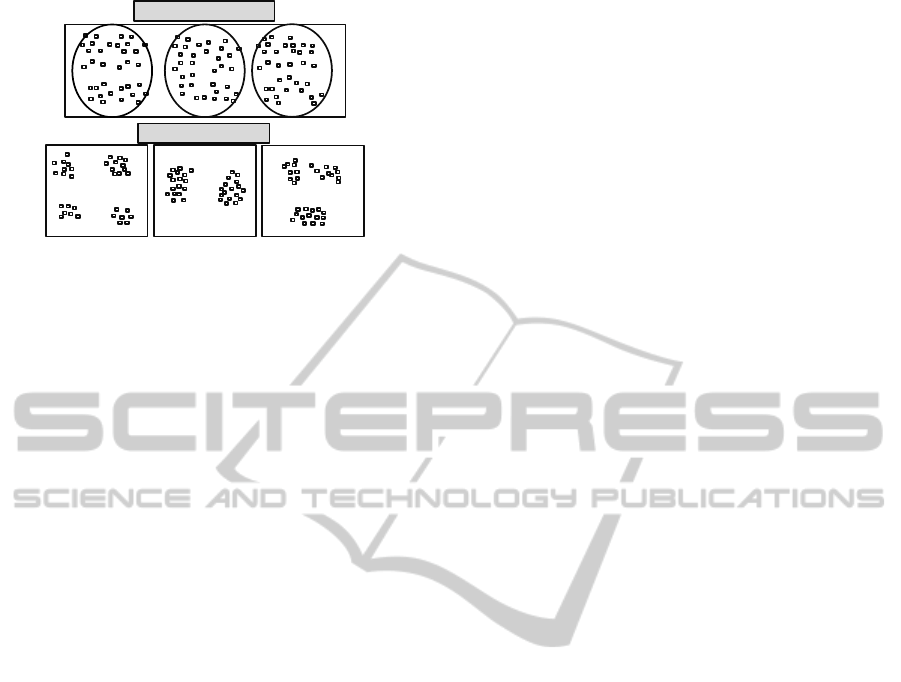

The structure of the multi-level GPLVM visualisation
approach is shown in Figure 1 where the top-level vi-
sualisation shows only three major clusters whereas
second-level visualisations show more detailed local
structures (e.g. cluster-1 at level-1 shows four clear
sub-clusters at level-2). The similar high-level and
detailed views have been found in real datasets (as
shown in Section 6). For the purpose of comparison
and findnig the effectiveness of our proposed ML-
GPLVM approach, we use three different clustering
IVAPP2014-InternationalConferenceonInformationVisualizationTheoryandApplications
124
Cluster
1
Cluster
2
Cluster
3
Level-1 Visualisation
Level-2 Visualisation
Figure 1: Structure of multi-level GPLVM visualisation.
methods to partition a dataset to generate lower-level
visualisations: Kmeans, Gaussian mixture models
and interactive clustering by drawing polygons.
3.1 Cluster Identification
Traditional well known clustering approaches such as
Kmeans and Gaussian mixture models can be used
for generating subsets of a dataset required to gener-
ate level2 visualisations.
K-means is an unsupervised clustering method
where K cluster centres are initialised as randomly
selected data points (MacQueen, 1967) and is trained
iteratively in a two step process: in the first step the
cluster centres are kept fixed to compute cluster mem-
berships and in the second step cluster centres are up-
dated to be the mean of the assigned data points. This
continues until no cluster memberships change. This
algorithm faces certain limitations:there is no princi-
pled way of determining the true number of clusters,
it is sensitive to outliers and it is difficult to identify
true boundaries of clusters due to the unknown opti-
mal number of clusters.
As argued in (Iwata et al., 2012; Lawrence and
Hyvrinen, 2005), the standard GPLVM considers a
single Gaussian in the latent space to represent a more
complex dataset. Therefore applying Gaussian mix-
ture model (GMM) could not be a useful way to iden-
tify clusters in the latent space. We also observed the
same by applying variational mixture modeling (Cor-
duneanu and Bishop, 2001) approach on the latent vi-
sualisation space in order to determine the true num-
ber of Gaussians. As GPLVM gives good cluster-
ing results in the visualisation latent space (Lawrence,
2006) therefore only for the purpose of compari-
son with our proposed interactive region selection
approach we applied finite Gaussian mixture mod-
els (McLachlan and Basford, 1988) for the purpose of
segmenting the dataset based on the clustering in the
visualisation latent space. Visualisation results using
Kmeans and GMM under MLGPLVM framework
are available in a technical report (Mumtaz et al.,
2013).
As K-means and GMM have limitations in defin-
ing the true number of clusters and identification of
cluster boundaries onto visualisation space, we there-
fore propose involving user in identifying clusters by
drawing polygon regions interactively on visualisa-
tion space can give us better clusters by defining true
boundaries (Larkin and Simon, 1987). This interac-
tive approach of defining clusters using human per-
ception requires no mathematical or statistical mod-
eling but enables the user to control the drill-down
directly (Shneiderman, 2002). Clusters were iden-
tified by using a polygon region-selection approach
proposed in (Hormann and Agathos, 2001). We com-

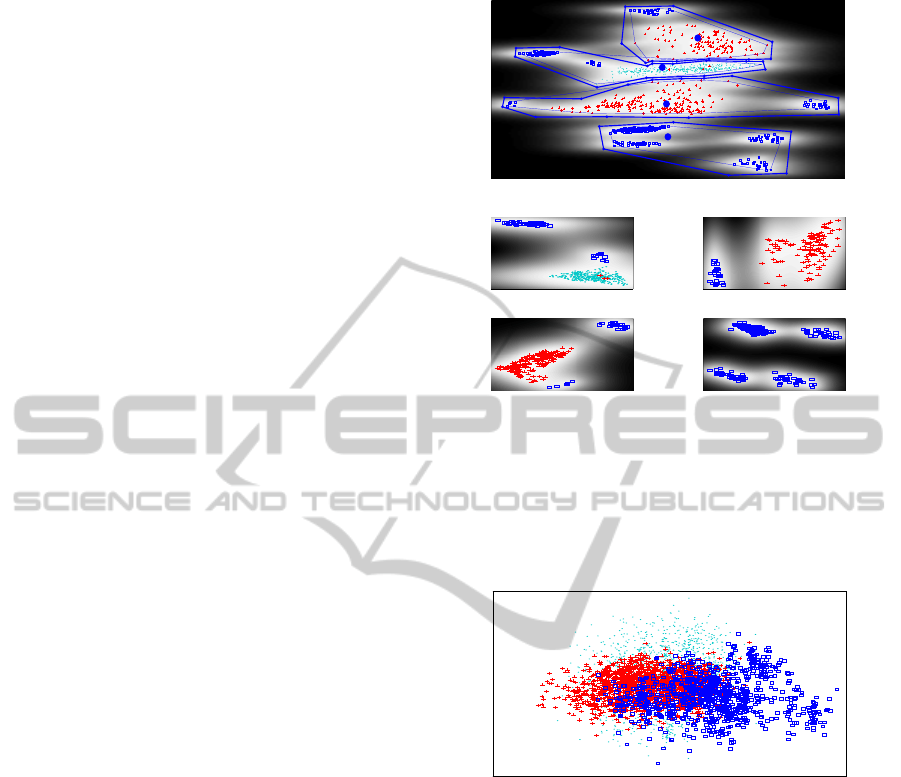

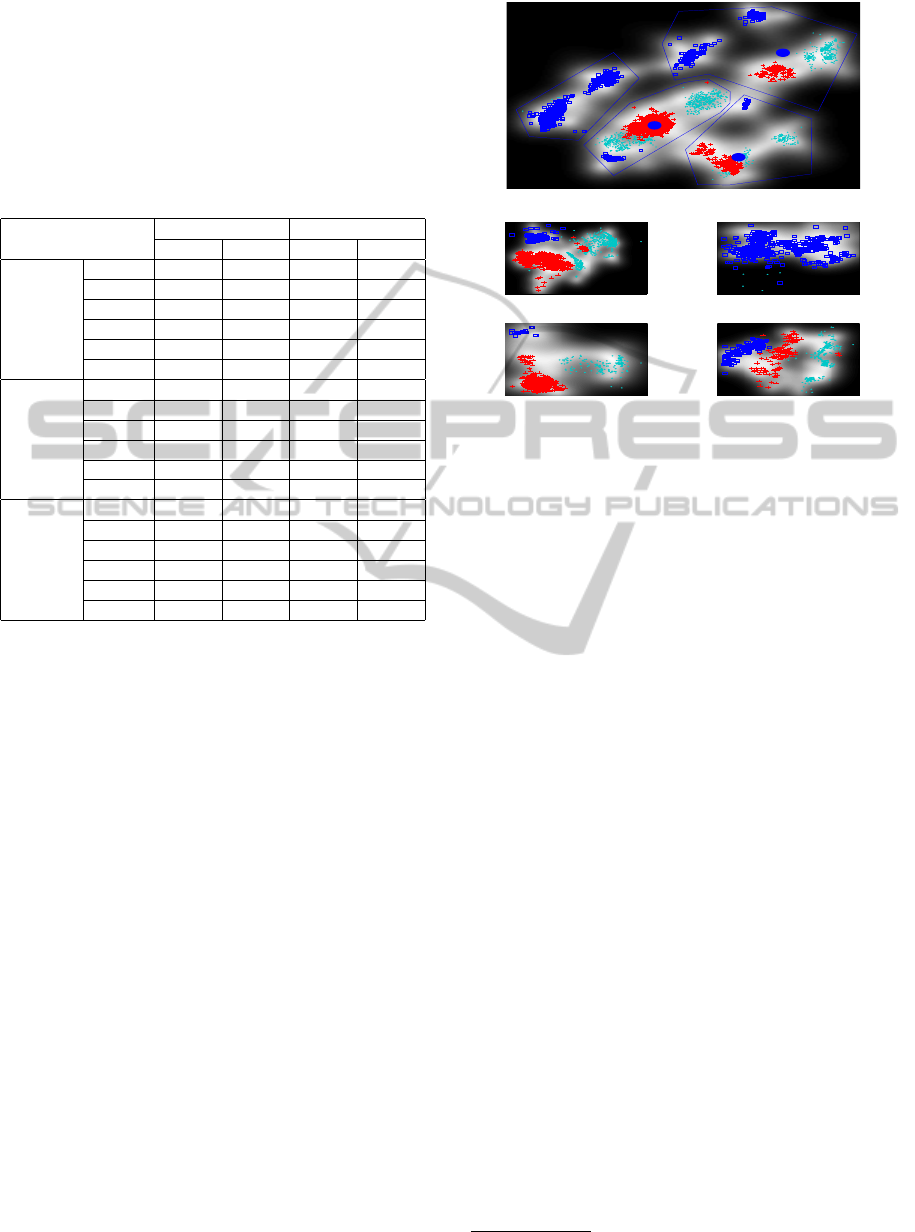

pute mapping precision for the GPLVM (see Figures 2
and 4 where it is represented as grey background).
This can be helpful to identify clusters interactively.
4 MLGPLVM VISUALISATION
QUALITY MEASURES
Evaluating visualisation performance quantitatively is
necessary but difficult because there is no true target
output. The log likelihood is a global model fit mea-
sure. Because visual interpretation is often focused
on clusters of points, we need to use metrics that cap-
ture local neighbourhood preservation. To compare
the mapping at different levels of the hierarchy we use
local quality measures such as visualisation distance
distortion, trustworthiness, continuity and mean rela-
tive rank errors. We briefly explained them in the fol-
lowing sub-sections whereas detailed description of
each of these is avaialable in a technical report (Mum-
taz et al., 2013).
4.1 Visualisation Distance Distortion
The visualisation distance distortion (VDD) measure
is used to compare the distances between the points in
the data space Y and the projection space X for each
data point and its k nearest neighbours. VDD is cal-
culated as the norm of the difference vectors between
the scaled distances in the data space and the visual-
isation latent space. The scaled distances are used to
make the distance comparable between the data space
and the latent visualisation space. The idea of VDD
is similar to the projection precision score (PPS) as
discussed in (Schreck et al., 2010) where it was used
to observe projection precision quality on the visuali-
sation plot. We compute the sum of the VDD values
of all the data points in a subset to compare the subset
Multi-levelVisualisationusingGaussianProcessLatentVariableModels
125
visualisation quality in the level-1 and level-2 visual-
isation plots.
4.2 Rank Based Neighbourhood
Visualisation Quality Measures
In the information visualisation domain, two well
known visualisation quality measures based on com-
paring neighbourhoods in the data space Y and pro-
jection space X are trustworthiness and continu-
ity (Venna and Kaski, 2001). Mapping is assumed
to be trustworthy if k-neighbourhood in the visu-
alised space matches in the data space but if the k-
neighbourhood in the data space matches the visual-
ized space it maintains continuity. Two another qual-
ity measures mean relative rank errors (MRREs) with
respect to data and latent space are also used (Lee
et al., 2007). MRREs are computed using the exact
rank position differences within the k-neighbourhood
of the data space and visualisation space.
The higher the value of trustworthiness and con-
tinuity (ranges from 0 to 1) the better the proximity
preservation is whereas for mean relative rank errors
the lower the measure is the better the proximity is
preserved.
5 DATASETS
For evaluating the MLGPLVM visualisation, we con-
sider two datasets: ‘oil flow’ and ‘MHC class I’.
5.1 Oil Flow Dataset
The ‘oil flow’ dataset is a twelve-dimensional dataset
collected from a simulation of a non-invasive moni-
toring system (Bishop and James, 1993) and used pre-
viously to demonstrate the Generative Topographic
Mapping (Bishop and Svensen, 1998) and hierar-
chical visualisation algorithms (Bishop and Tipping,
1998; Tino and Nabney, 2002). The dataset comprises
1000 data points and it was generated artificially in
a multiphase flow configuration of three liquids (oil,
water and gas) by defining three known classes: ho-
mogeneous, annular and laminar. From knowledge of
the generation process, the data is expected to lie on
low-dimensional manifolds.
5.2 Major Histocompatibility Complex
class-I
The second dataset is related to MHC class-I that we
used previously to demonstrate variants of generative
topographic mapping (GTM) and GTM with simulta-
neous feature saliency (Mumtaz et al., 2012).
Here we briefly explain the process of generat-
ing a Poisson-Boltzmann electrostatic potential data
for the MHC class-I genes. MHC genes in humans
are known as Human Leukocyte Antigen (HLA). We
modelled 3, 944 three-dimensional protein structures
of HLA class I (1236 for HLA-A, 1, 779 for HLA-B
and 929 for HLA-C) using homology modelling (as
in (Doytchinova et al., 2004)). We then computed a
Poisson Boltzmann electrostatic potential for all the
modelled proteins by placing a three dimensional grid
box (with 17
3
= 2, 601 grid points) around the top sur-
face (covering α1 and α2 region). We are interested
in analysing interaction with other molecules there-
fore ignored all those grid points that were inside the
van der Waals surface of the target protein. We end up
with 2, 418 grid points which were definitely outside
the van der Waals surface of all the target proteins.
Each grid point worked as a variable in our dataset
and each protein is represented as a row in our dataset.
Further details for the data generation process can be
found in (Mumtaz et al., 2012; Mumtaz et al., 2013).
6 EXPERIMENTS
We used full GPLVM for the ‘oil flow’ dataset and
sparse GPLVM for the ‘HLA class I’ dataset for visu-
alisation under the MLGPLVM framework. The ‘oil
flow’ dataset has fewer data points and fewer vari-
ables and therefore, applying full GPLVM, it was pos-
sible to generate results in a matter of a few hours
whereas applying full GPLVM on the MHC class-I
dataset could take months as this has thousands of
data points with more than a couple of thousand vari-
ables. Therefore, we used sparse GPLVM (as briefly
explained in Section 2.2) for the ‘HLA class-I’ dataset
to create visualisations under the MLGPLVM frame-
work in a matter of few hours. Each visualisation
model under the MLGPLVM framework is trained
(with 1500 iterations for the ‘oil flow’ dataset and
2000 iterations for ‘HLA-Class I’ dataset) using the
scaled conjugate gradient optimisation method.
To evaluate the visualisation quality of ML-
GPLVM, we compute the quality measures defined
in Section 4 for a range of number of neighbours
k = 5, 10, . . . , 50 for each cluster as indicated at level-
1 and its corresponing subset visualisation at level-
2. We intially computed the mean of these measures
(over k) (see in (Mumtaz et al., 2013)) and then sum-
marised them by taking mean across all the subsets to
compare the performance across levels (see Table 1).
IVAPP2014-InternationalConferenceonInformationVisualizationTheoryandApplications
126
6.1 Results
Root level visualisation plot for both the datasets (the
‘oil flow’ and ‘HLA class I’) have shown that the
three classes in each dataset case are well separated
with a number of clusters observed for each class (see
Figure 2(a) for ‘oil flow’ dataset and Figure 4(a) for
‘HLA class I’ dataset whereas applying linear visual-
isation such as Principal Component Analysis (PCA)
has not shown clear separation of the alleles of each
HLA gene but instead the alleles of all three genes
overlap (as shown in Figure 3)). We present in this pa-
per second level visualisation results (see Figures 2(b)
and 4(b)) generated by applying interactive cluster-
ing at the root level visualisation plots (See (Mumtaz
et al., 2013) for second level visualisation results gen-
erated by applying K-means and GMM clustering on
the root level visualisation plots). Experiments were
performed with a different numbers of clusters at root
level but here we present only the results with 4 clus-
ters used to generate the second-level visualisation.
Visual inspection of all these local second-level
visualisation models show that they provide a more
detailed clustering/visualisation structure compared
to the root visualisation. Tabel 1 show the mean of the
quality measure over clusters at level-1 and over sub-
models at level-2 using three clustering approaches
under MLGPLVM framework: K-means, GMM and
interactive clustering. We compute per point nega-
tive log-likelihood for each cluster at level-1 and sub-
model at level-2. The mean negative log-likelihood
(per point) is then computed over clusters at level-1
and sub-models at level-2 and presented in terms of
ratio increase or decrease of level-2 with respect to
level-1. For the ‘oil flow’ dataset we observe that the
mean quantitative quality matrics (over clusters) to
compare visualisation quality across levels appeared
better for level-2 compared to level-1 visualisations
(see Table 1). For the ‘HLA class I’ dataset trust-
worthiness, continuity and TVDD are observed better
for all the second level visulisation models using each
of the clustering algorithm applied to generate second
visualisations (as shown in Table 1). The other mea-
sures such as MRREs and negative log-likelihoods
were slightly better for level-1.
By rigorous state-of-the-art analysis of projected
properties, we have identified clusters corresponding
to the three class I human MHC loci, and sub groups
therein. It is notable that the analysis recovers the
HLA-A; HLA-B, and HLA-C alleles without prior
knowledge of such a division at the root level visual-
isation and hence such grouping is refined by adding
the lower level visualisations. This gives confidence
to any assertion we might make regarding the division
1
2
3
4
(a)
(b)
Figure 2: MLGPLVM visualisation of ‘oil flow’ dataset
with K-means clustering. (a) Root visualisation plot: blue
circles with numbers indicate cluster centres and blue lines
represent cluster boundaries, cyan dots (‘.’) for ‘Homo-
geneous’, red plus signs (‘+’) for Annular’, blue squares
(‘’) for ‘Laminar’, and the grey background shows map-
ping precision (lighter regions correspond to better preci-
sion in mapping). (b) Level-2 visualisation.
Figure 3: PCA visualisation (cyan dots (‘.’) for HLA-A,
red plus signs (‘+’) for HLA-B and blue squares (‘’) for
HLA-C).
of the allele population into structurally and function-
ally similar sub-groups. The results of our analysis
are fully consistent with both the choice of Poisson-
Boltzmann electrostatic potential as a meaningful in-
dicator of molecular spatial interactions and with the
sophisticated methods of data reduction used to de-
rive the final clustering. It is also consistent with
the evolutionary argument, since it suggests that with
the exception of a handful of genes, the three class-I
loci exhibit quite distinct specificities for peptides and
TCRs, since redundant specificities shared between
loci would be not favourable since it would reduce
the diversity of peptides that a host could recognize
and respond to and thus the diversity of pathogens it
could effectively combat. It will be interesting to ex-
tend our analysis to investigate the structural basis for
this phenomenon.
Multi-levelVisualisationusingGaussianProcessLatentVariableModels
127
Table 1: Visualisation Quality Matrics of MLGPLVM eval-
uation for two datasets (i.e. Oil flow and HLA class 1
dataset). (‘Trust’ for trustworthiness, ‘Cont’ for continuity,
‘MRREd’ and ‘MRREl’ for mean relative rank errors with
respect to data space and latent space respectively, ‘TVDD’
for total visualsiation distance distortion) and ‘NLL for
negative log likelihood. Measures such as ‘Trust’ and
‘Cont’ the higher the better visualisation whereas measures
such as ‘MRREd’, ‘MRREl’ ‘TVDD’ and ‘NLL the lower
the better the visualisation.
Clustering Oil Flow HLA class 1
Level-1 Level-2 Level-1 Level-2
K-means
Trust 0.9484 0.9705 0.7895 0.8191
Cont 0.9409 0.9749 0.8022 0.8406
MRREd 0.1974 0.1352 0.0440 0.0445
MRREl 0.1956 0.1346 0.0407 0.4130
TVDD 0.5807 0.4752 0.8121 0.7978
NLL 1.0000 0.9911 1.0000 1.0295
GMM
Trust 0.9501 0.9729 0.7896 0.8285
Cont 0.9428 0.9743 0.8022 0.8406
MRREd 0.1661 0.1103 0.0440 0.0445
MRREl 0.1658 0.1103 0.0407 0.0413
TVDD 0.5806 0.4853 0.8121 0.7978
NLL 1.0000 0.9931 1.0000 1.0303
Interactive
Trust 0.9469 0.9788 0.7932 0.8243
Cont 0.9353 0.9817 0.8055 0.8341
MRREd 0.1682 0.1037 0.0439 0.0433
MRREl 0.1700 0.1043 0.0405 0.0408
TVDD 0.5990 0.4360 0.8112 0.7917
NLL 1.0000 0.9918 1.0000 1.1661
7 CONCLUSIONS AND FUTURE
WORK
In this paper we propose a multi-level visualisa-
tion using Gaussian process latent variable models
where the root-level visualisation gives an overview
of the complete dataset and the second-level view
gives refined visualisation results for the clustered
data. We experiment the generation of second level
visualisations using three different clustering algo-
rithms: K-means, GMM and interactive. Both the
datasets we used for the demonstration of MLGPLVM
have shown promising improvements on the root-
level visualisation by giving refined lower level vi-
sualisations. We briefly conclude here the results of
‘MHC class-I’ dataset by saying that the present ap-
proach, which combines the established protocol of
chemical landscape profiling with calculated proper-
ties and state-of-the-art data visualization and clus-
tering, is promising. We will seek to extend this to
approach and apply it to the classification of MHC
alleles in terms of peptide specificity, TCR speci-
ficity, and antibody interaction and use it to inves-
tigate practical problems in epitope prediction, solid
organ and bone marrow transplantation, mate-choice,
1
2
3
4
(a)
(b)
Figure 4: MLGPLVM visualisation of ‘MHC class-I’
dataset with interactive clustering. (a) Root visualisation
plot (numbered blue circles with numbers indicate cluster
centres and blue lines represent cluster boundaries, cyan
dots (‘.’) for HLA-A, red plus sign (‘+’) for HLA-B and
blue squares (‘’) for HLA-C, and the grey background
show mapping precision (lighter regions show better pre-
cision in mapping)). (b) Level-2 visualisation.
and MHC-mediated adverse drug reactions.
We have also incorporated the code of ML-
GPLVM in our recently developed visualisation tool
called Data Visualisation and Modelling System
(DVMS). This tool is freely accessible from our web-
site
1
. We plan to extend this work with a probabli-
istic hierarchical visualisation framework (based on
soft assignments to child models).
REFERENCES
Bishop, C. and James, G. (1993). Analysis of Multiphase
Flows Using Dual-Energy Gamma Densitometry and
Neural Networks. Nuclear Instruments and Methods
in Physics Research, 327(2-3):580–593.
Bishop, C. M. and Svensen, M. (1998). GTM: The gen-
erative topographic mapping. Neural Compuatation,
10(1):215–234.
Bishop, C. M. and Tipping, M. E. (1998). A hierarchical la-
tent variable model for data visualization. IEEE Trans.
Pattern Anal. Mach. Intell., 20(3):281–293.
Corduneanu, A. and Bishop, C. M. (2001). Variational
bayesian model selection for mixture distributions.
In Artificial intelligence and Statistics, volume 2001,
pages 27–34. Morgan Kaufmann Waltham, MA.
Donoho, D. L. (2000). High-dimensional data analysis: the
curses and blessings of dimensionality. In American
1
http://www.aston.ac.uk/ncrg
IVAPP2014-InternationalConferenceonInformationVisualizationTheoryandApplications
128
Mathematical Society Conf. Math Challenges of the
21st Century.
Doytchinova, I. A., Guan, P., and Flower, D. R. (2004).
Identifying human MHC supertypes uisng bioin-
formatics methods. The Journal of Immunology,
172:4314–4323.
Hormann, K. and Agathos, A. (2001). The point in poly-
gon problem for arbitrary polygons. Comput. Geom.
Theory Appl., 20(3):131–144.
Iwata, T., Duvenaud, D., and Ghahramani, Z. (2012).
Warped mixtures for nonparametric cluster shapes.
arXiv preprint arXiv:1206.1846.
Lampinen, J. and Oja, E. (1992). Clustering properties of
hierarchical self-organizing maps. Journal of Mathe-
matical Imaging and Vision, 2:261–272.
Larkin, J. H. and Simon, H. A. (1987). Why a diagram
is (sometimes) worth ten thousand words. Cognitive
Science, 11(1):65–100.
Lawrence, N. and Hyvrinen, A. (2005). Probabilistic
non-linear principal component analysis with gaus-
sian process latent variable models. Journal of Ma-
chine Learning Research, 6:1783–1816.
Lawrence, N. D. (2004). Gaussian process latent variable
models for visualisation of high dimensional data. In
Thrun, S., Saul, L., and Sch
¨
olkopf, B., editors, Ad-
vances in Neural Information Processing Systems 16,
pages 329–336, Cambridge, MA. MIT Press.
Lawrence, N. D. (2006). Local distance preservation in the
GPLVM through back constraints. In In ICML, pages
513–520. ACM Press.
Lawrence, N. D. (2008). Large scale learning with the gaus-
sian process latent variable model. Technical report,
university of sheffield, United Kingdom.
Lawrence, N. D., Seeger, M., and Herbrich, R. (2003).
Fast sparse gaussian process methods: The informa-
tive vector machine. In Advances in Neural Infor-
mation Processing Systems 15, pages 609–616. MIT
Press.
Lee, D., Redfern, O., and Orengo, C. (2007). Predicting
protein function from sequence and structure. Nature
Reviews Molecular Cell Biology, 8:995–1005.
Lowe, D. and Tipping, M. E. (1996). Neuroscale: Novel
topographic feature extraction using RBF networks.
In NIPS, pages 543–549.
MacQueen, J. (1967). Some methods for classification and
analysis of multivariate observations. In Le Cam,
L. M. and Neyman, J., editors, Proceedings of the 5th
Berkeley Symposium on Mathematical Statistics and
Probability - Vol. 1, pages 281–297. University of Cal-
ifornia Press, Berkeley, CA, USA.
McLachlan, G. and Basford, K. (1988). Mixture Mod-
els: Inference and Applications to Clustering. Marcel
Dekker, New York.
Miikkulainen, R. (1990). Script recognition with hierarchi-
cal feature maps. Connection Science, 2:83–101.
Mumtaz, S., Flower, D. R., and Nabney, I. T.
(2013). Multi-level visualisation. Technical re-
port, NCRG, Aston University, Birmingham, UK.
http://eprints.aston.ac.uk/.
Mumtaz, S., Nabney, I. T., and Flower, D. (2012). Novel
visualization methods for protein data. In Compu-
tational Intelligence in Bioinformatics and Computa-
tional Biology (CIBCB), 2012 IEEE Symposium on,
pages 198 –205.
Murtagh, F. and Contreras, P. (2011). Methods of hierarchi-
cal clustering. CoRR, abs/1105.0121.
Quionero-candela, J., Rasmussen, C. E., and Herbrich, R.
(2005). A unifying view of sparse approximate gaus-
sian process regression. Journal of Machine Learning
Research, 6:1939–1959.
Schreck, T., von Landesberger, T., and Bremm, S. (2010).
Techniques for precision-based visual analysis of pro-
jected data. Information Visualization, 9(3):181–193.
Shneiderman, B. (2002). Inventing discovery tools: com-
bining information visualization with data mining. In-
formation Visualization, 1(1):5–12.
Tino, P. and Nabney, I. T. (2002). Hierarchical GTM: Con-
structing localized nonlinear projection manifolds in
a principled way. In IEEE Transactions on Pattern
Analysis and Machine Intelligence, volume 24, pages
639–656.
Tipping, M. E. and Bishop, C. M. (1999). Probabilistic prin-
cipal component analysis. Journal of the Royal Statis-
tical Society, Series B, 61:611–622.
Venna, J. and Kaski, S. (2001). Neighborhood preserva-
tion in nonlinear projection methods: An experimen-
tal study. In Proceedings of the International Con-
ference on Artificial Neural Networks, ICANN ’01,
pages 485–491, London, UK, UK. Springer-Verlag.
Versino, C. and Gambardella, L. M. (1996). Learning fine
motion by using the hierarchical extended kohonen
map. In MAP, Proceedings Proc. ICANN96, Inter-
national Conference on Artificial Neural Networks,
pages 221–226. Springer-Verlag.
Vicente, D. and Vellido, A. (2004). Review of hierarchi-
cal models for data clustering and visualization. Ten-
dencias de la Minera de Datos en Espaa, Espaola de
Minera de Datos.
Wang, X., Ti
ˇ
no, P., and Fardal, M. A. (2008). Multiple man-
ifolds learning framework based on hierarchical mix-
ture density model. In Proceedings of the European
conference on Machine Learning and Knowledge Dis-
covery in Databases - Part II, ECML PKDD ’08,
pages 566–581, Berlin, Heidelberg. Springer-Verlag.
Multi-levelVisualisationusingGaussianProcessLatentVariableModels
129
