Towards Embedded Robot Vision for Multi-scale Object Recognition

Repeatability of Interest Points Detected in Half-octave Binomial Pyramids

Peter Andreas Entschev and Hugo Vieira Neto

Graduate School of Electrical Engineering and Applied Computer Science, Federal University of Technology – Paran

Avenida Sete de Setembro 3165, Curitiba, Brazil

Keywords:

Repeatability, Interest Points, Multi-scale Pyramids, Embedded Robot Vision.

Abstract:

The construction of multi-scale image pyramids is used in state-of-the-art methods that perform robust ob-

ject recognition, such as SIFT and SURF. However, building such image pyramids is computationally expen-

sive, especially when implementations in embedded systems with limited computing resources are considered.

Therefore, the use of alternative less expensive approaches are necessary if near real-time operation is desired.

Previous work has reported that using binomial ﬁlters to construct half-octave multi-scale pyramids consumes

only 1/4 of the processing time of the Gaussian pyramid originally used in the SIFT framework. Here we

investigate how interest points detected using the binomial approach behave when compared to the Gaussian

approach, focusing on repeatability. Experimental results show that in average up to 86% of interest points

detected with the original SIFT pyramid building scheme are also detected when using the binomial method,

despite of large gains in processing time. When rotation of image features is considered, experimental results

demonstrate that slightly superior repeatability of interest points is achieved using the binomial pyramid.

1 INTRODUCTION

In the last decade, many research efforts were directed

to robust object recognition in terms of invariance to

scale, rotation and partial occlusion. Among some of

the most well-known methods are SIFT (Lowe, 1999;

Lowe, 2004) and SURF (Bay et al., 2008).

However, most methods designed for multi-scale

object recognition are computationally expensive and

memory consuming – therefore, implementations that

run in real-time are difﬁcult to be achieved, even in

modern computer architectures. When it comes to

performing multi-scale object recognition in embed-

ded systems with limited computing resources, the

difﬁculty in achieving near real-time performances is

even more challenging.

Recently, physically small and low-power embed-

ded systems based on ARM cores were made avail-

able at affordable costs, such as the BeagleBoard-

xM (Coley, 2010) and Raspberry Pi (Halfacree and

Upton, 2012), making them interesting platforms for

such object recognition methods, especially when au-

tonomous robot systems are considered. As these em-

bedded systems consume little power at full load and

are small in size, their computing power is naturally

signiﬁcantly smaller than the computing power avail-

able in most desktop computers.

Among the efforts being directed at enabling em-

bedded systems to be capable of performing real-time

multi-scale object recognition, there are some that are

based on computationally cost-effective, but coarser

approximations of already known methods available

in the literature. For example, the work in (Entschev

and Vieira Neto, 2013) aims at near real-time object

recognition in an embedded platform, using a half-

octave binomial image pyramid (Crowley et al., 2002)

to represent multi-scale visual information, approxi-

mating the Gaussian image pyramid approach com-

monly used in object recognition methods, such as

SIFT (Lowe, 2004) and other approaches (Mikola-

jczyk and Schmid, 2004).

Previous work shows that the use of half-octave

binomial pyramids for multi-scale interest point de-

tection is approximately four times faster than when

using their Gaussian counterparts, yielding similar

properties – real-time interest point detection at 25

frames per second can be achieved for images of

129 ×129 pixels in size (Entschev and Vieira Neto,

2013). Here, the repeatability of interest points de-

tected using half-octave binomial pyramids is as-

sessed in comparison to that obtained using conven-

tional Gaussian pyramids.

Andreas Entschev P. and Vieira Neto H..

Towards Embedded Robot Vision for Multi-scale Object Recognition - Repeatability of Interest Points Detected in Half-octave Binomial Pyramids.

DOI: 10.5220/0004700200970103

In Proceedings of the 4th International Conference on Pervasive and Embedded Computing and Communication Systems (PECCS-2014), pages

97-103

ISBN: 978-989-758-000-0

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

Multi-scale representations of images using the no-

tion of low-pass ﬁltering and sub-sampling was ﬁrst

proposed in (Burt and Adelson, 1983) and has been

exploited for about three decades now. One of the

great advantages in the use of such a multi-scale ap-

proach is that it allows recognition of objects indepen-

dently of the scale in which it appears in the scene.

Much research work has been done in multi-scale ob-

ject recognition since then, from which we can par-

ticularly cite SIFT, ﬁrst introduced in (Lowe, 1999)

and later extended and improved in (Lowe, 2004), and

also SURF (Bay et al., 2008).

Both SIFT and SURF present processes to gener-

ate multi-scale image pyramids, followed by the ex-

traction of robust local descriptors from a model ob-

ject image, which can be subsequently matched to the

descriptors of a scene to ﬁnd the object position and

afﬁne orientation regardless of changes in scale and

some degree of changes in illumination.

In SURF, a multi-scale image pyramid is obtained

by ﬁrst computing an integral image (Viola and Jones,

2001) and then processing it with coarse approxima-

tions of Gaussian derivative ﬁlters in different scales

and orientations. As the processing effort to ﬁlter in-

tegral images is independent of the scale of the ﬁlter,

overall computational cost is reduced when compared

to traditional ﬁlter-and-subsample pyramid building

schemes. The Hessian matrix is then applied locally

at the pyramid in order to detect stable interest points,

usually corresponding to blobs and corners, around

which image information is encoded as a descriptor

that is invariant to rotation.

The SIFT framework also builds a scale space, but

using the traditional Gaussian ﬁlter-and-subsample

approach at multiple scales. After ﬁltering and sub-

sampling, differences between adjacent levels of the

Gaussian pyramid are computed in order to obtain

a difference-of-Gaussian pyramid, which is a ﬁner

representation of derivatives when compared to the

coarser method used in SURF. The sub-sampling pro-

cess is used to avoid the use of unnecessarily large

Gaussian ﬁlters, whose sizes grow with scale. The

set of pyramid levels in which the scale of ﬁltering is

doubled is conventionally named an octave (Crowley

et al., 2002).

The difference-of-Gaussian constitutes an approx-

imation of the Laplacian of Gaussian (Burt and Adel-

son, 1983) and the main purpose of using it resides

in its reduced computational cost when compared

to the direct computation of the Laplacian of Gaus-

sian (Crowley and Stern, 1984). Both difference-of-

Gaussian and Laplacian of Gaussian approaches re-

sult in high-pass ﬁltering of the original image, en-

hancing edges as their result.

A more computationally efﬁcient way to build

multi-scale image pyramids than the one used in the

original SIFT approach uses binomial kernels instead

of Gaussian kernels (Crowley et al., 2002). Although

it is not possible to generate all possible scales us-

ing binomial ﬁlters, their resolution is enough to build

image pyramids with scales sufﬁciently spaced by

σ =

√

2 (Crowley and Riff, 2003).

More recently, the method presented in (Crowley

et al., 2002) was used in (Entschev and Vieira Neto,

2013) to build SIFT image pyramids more efﬁciently.

In this approach, the time spent to compute the whole

multi-scale pyramid was reduced to up to one fourth

of the time spent to build the same multi-scale pyra-

mid using the original approach of SIFT.

The work presented in (Entschev and Vieira Neto,

2013) proposes the use of binomial ﬁlters to build im-

age pyramids for SIFT-like object recognition, aiming

at near real-time performance in a BeagleBoard-xM

embedded development kit. That work explains how

the scale space for the SIFT framework can be built

more efﬁciently, focusing in execution time perfor-

mance, but did not consider the repeatability of inter-

est points. The present work intends to ﬁll the gap left

in (Entschev and Vieira Neto, 2013), assessing the re-

peatability of interest points detected using binomial

image pyramids.

2.1 Binomial Pyramid

As described in (Entschev and Vieira Neto, 2013),

there are two kernels of special interest for the con-

struction of a binomial pyramid,

×[1 2 1] and its

auto-convolution

×[1 4 6 4 1], which are approxi-

mations to Gaussian kernels of scale σ =

and σ = 1,

respectively (Crowley et al., 2002). The reason for

such importance is that with just these two kernels,

it is possible to build full scale spaces separated by

σ =

√

The relationship for cascaded convolutions of bi-

nomial ﬁlters is given in:

σ =

+ σ

. (1)

From Equation 1, it is possible to deduce that with

two consecutive convolutions with the

×[1 4 6 4 1]

kernel, an image with scale σ =

√

2 is obtained. The

same scale is also obtainable by applying four con-

secutive convolutions with the

×[1 2 1] kernel. This

important relationship determines that multiple con-

volutions of binomial kernels result in a scale space

separated by σ =

√

2, the so-called half-octave bino-

mial pyramid.

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

Every time that the scale doubles, 1:2 nearest

neighbour sub-sampling is performed in each dimen-

sion for the next octave, in order to avoid increas-

ing the size of the ﬁlters and therefore saving com-

putational resources (Crowley et al., 2002). In or-

der to facilitate the computation of differences be-

tween pyramid levels, in (Entschev and Vieira Neto,

2013) neighbouring levels in adjacent octaves are ei-

ther up-sampled or down-sampled to match image di-

mensions in each particular pyramid octave, in a sim-

ilar fashion to what is done in (Lowe, 2004).

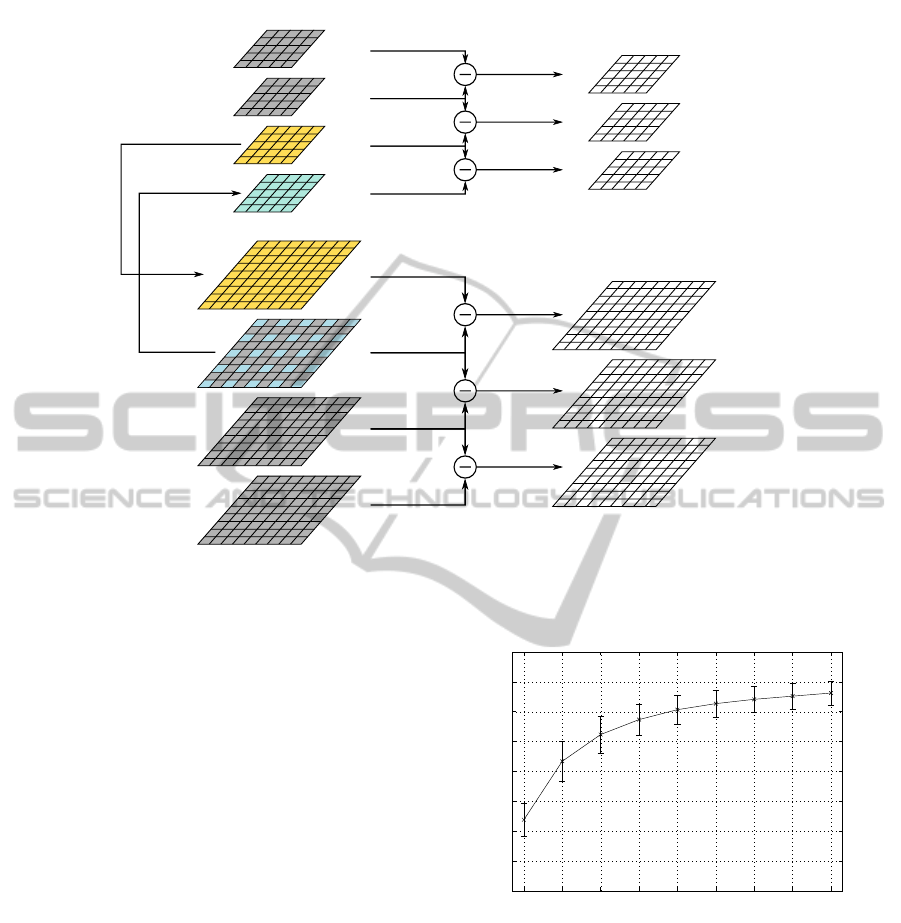

In Figure 1, the construction model of a binomial

pyramid with two octaves and four levels per octave is

shown. The ﬁrst level of each octave (except for the

ﬁrst octave) is obtained by nearest neighbour down-

sampling of the third level of the previous octave. The

fourth level is obtained by up-sampling via bilinear

interpolation of the second level of the next octave.

3 EXPERIMENTAL SETUP

The experiments to assess interest point repeatability

reported in this work involve comparisons between

the conventional SIFT pyramid building scheme and

the half-octave pyramid described in (Entschev and

Vieira Neto, 2013), regarding both stability in the de-

tection of interest points (keypoints) and their robust-

ness to rotations.

Firstly, the binomial pyramids were constructed

exactly as explained in (Entschev and Vieira Neto,

2013) and the reference Gaussian pyramids were con-

strained to have the same number of octaves as the bi-

nomial pyramids. In order to achieve this, the SIFT

implementation in the OpenCV library (Bradski and

Kaehler, 2008) was adapted to generate image pyra-

mids with ﬁve scales per octave. The number of oc-

taves for both pyramid types is equal to blog

dc−2,

where b.c indicates the ﬂoor function and d is the

smallest dimension of the original input image.

For a detected test keypoint K

to be considered

a repetition of a reference keypoint K

, the euclidean

distance between K

and K

must not be larger than the

scale s of K

. The scale s of the keypoint being tested

must also satisfy the condition

√

2s−s ≤s ≤

√

2s+s.

When robustness to rotation is concerned, all key-

points that lie outside a circle with radius equal to

the smaller dimension of the image are disregarded,

because some of them will not be present when the

image is synthetically rotated. The orientation of key-

points was not considered in the experiments reported

here.

To test if the keypoints are repeated, we can not

consider the exact coordinates of keypoints K

and

. Due to the nature of the scale space, the coor-

dinates of keypoints might shift slightly, and that is

the reason to consider a small surrounding region as

valid for location of repeated keypoints. When key-

points are found in different octaves, their location

must be estimated according to the original size of

the input image, which might also vary for differ-

ent approaches of scale space construction. Finally,

as proposed in (Brown and Lowe, 2002) and used in

SIFT (Lowe, 2004), the interpolated location of key-

points is determined by ﬁtting a quadratic 3D function

to the scale space.

All tests were performed using a dataset con-

taining 12 images taken from the Afﬁne Covariant

Regions Dataset provided by the Visual Geometry

Group of the University of Oxford (Visual Geometry

Group, 2004) and from the original dataset of images

of SIFT, provided along with the SIFT demo program

from David Lowe(Lowe, 2005). The images were not

used in their full size, but were cropped to dimensions

of 2

+ 1, with both horizontal and vertical dimen-

sions being the same.

In a ﬁrst experiment, the repeatability of keypoints

detected using the binomial pyramid is ﬁrst compared

to the ones detected using the conventional Gaussian

pyramid. Then, in a second experiment, the robust-

ness of keypoint detection using both approaches is

assessed regarding rotation – for this purpose, the

original input images are synthetically rotated around

their central pixel using bicubic interpolation, and the

repeatability of keypoints computed.

4 RESULTS

In this section some peculiarities that arise from the

use of binomial ﬁlters to construct image pyramids

are discussed, as well as the similarity between Gaus-

sian and binomial pyramids with regard to keypoint

repeatability.

The process of up-sampling the subsequent oc-

tave to obtain scales that cannot be achieved by a bi-

nomial ﬁlter of small size has a coarser effect than

that of using larger Gaussian ﬁlters directly. This

coarseness of the method seems to yield more ex-

trema when performing non-maximum suppression in

scale space, which are prone to result in unstable key-

points. To prevent the existence of too many unstable

keypoints with corresponding low curvatures, we per-

formed tests with non-maximum suppression using

smaller curvature threshold values than the original

curvature threshold value of 10 proposed in (Lowe,

2004).

TowardsEmbeddedRobotVisionforMulti-scaleObjectRecognition-RepeatabilityofInterestPointsDetectedin

Half-octaveBinomialPyramids

Nearest Neighbour

Sub-sampling

Bilinear

Interpolation

Half-octave binomial pyramid Binomial diﬀerence pyramid

Figure 1: Construction of a half-octave binomial pyramid with two octaves and corresponding difference pyramid. Neighbour-

ing levels in adjacent octaves are either up-sampled or down-sampled to match image dimensions and facilitate computation

of differences between pyramid levels, resulting in four levels per octave (Entschev and Vieira Neto, 2013).

4.1 Keypoint Repeatability

Figure 2 shows the relative amount of keypoints de-

tected within images processed with a binomial scale

space that are also detected in the Gaussian scale

space. According to the explanation given in sec-

tion 3, K

are the test keypoints found using the bi-

nomial approach, and K

are the reference keypoints,

found using the Gaussian approach. The repeatability

of keypoints is shown in the graph by the ascending

continuous line, where average samples are marked

(×) and vertical bars represent the standard deviation

obtained with the test dataset.

A pyramid constructed with binomial ﬁlters and a

curvature threshold of 5 repeats in average 78% of the

keypoints found in a pyramid cosntructed with Gaus-

sian ﬁlters, as shown in Figure 2. The repeatability of

keypoints grows up to about 86% when using a cur-

vature threshold of 10. Repeatability stabilises if the

curvature threshold is raised any further.

This experiment shows that even using a much

less computationally expensive approach as the one

in (Entschev and Vieira Neto, 2013) to build the scale-

space, most of the relevant keypoints are preserved,

while reducing processing time to up to 1/4.

An example of the resulting keypoints for a test

2 3 4 5 6 7 8 9 10

100

Curvature Threshold

Repeatability (%)

Figure 2: Average repeatability of keypoints found in a bi-

nomial pyramid in relation to the ones found in a Gaussian

pyramid as a function of curvature threshold in the binomial

pyramid – vertical bars indicate standard deviations. The

number of average repeated keypoints grows as the curva-

ture threshold is raised.

image using both Gaussian and binomial pyramids,

with curvature threshold values of 10 and 5, respec-

tively, is shown in Figure 3.

4.2 Keypoint Ratio

When a binomial pyramid is used, more keypoints

are found due to the coarseness that results from up-

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

100

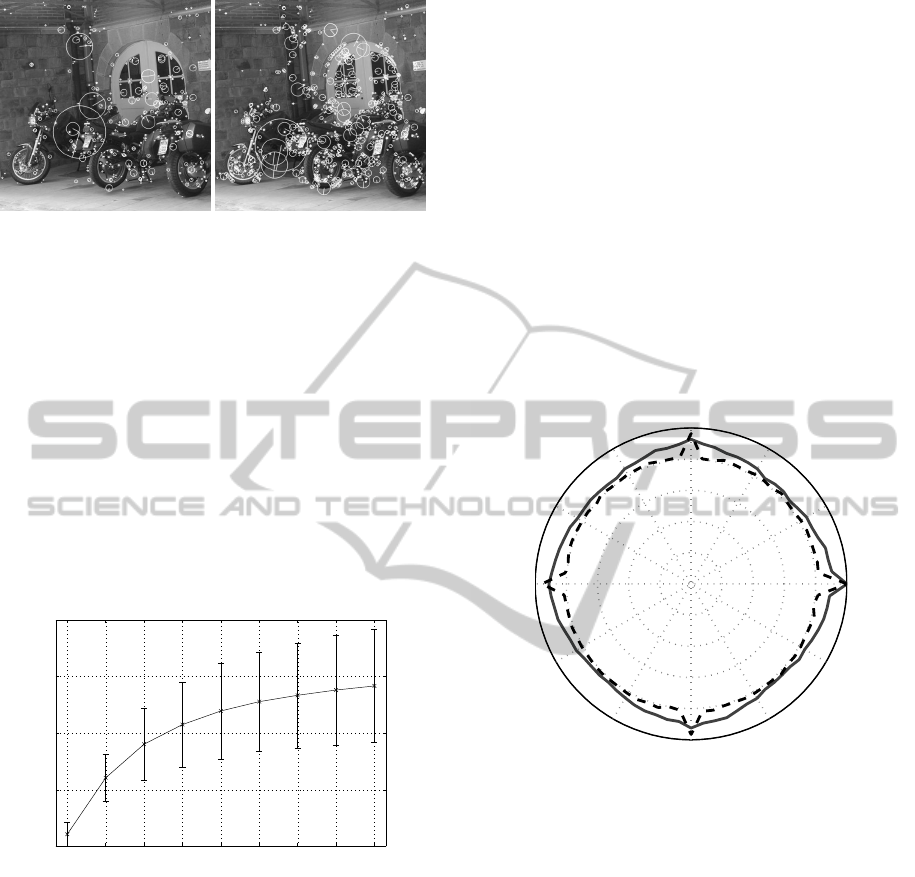

Figure 3: Example of detected keypoints with a Gaus-

sian pyramid and curvature threshold value of 10 (left) and

with a binomial pyramid and curvature threshold value of

5 (right). All detected keypoints in both approaches are

shown, according to the constraints deﬁned in section 3.

More keypoints are detected when a binomial pyramid is

used, even with lower curvature threshold values are used.

sampling the levels from subsequent octaves. The ra-

tio between the number of detected keypoints in a bi-

nomial pyramid and the ones detected in a Gaussian

pyramid can be seen in Figure 4 – the average ratio

as a function of curvature threshold, now considering

the total amount of keypoints found, results in an as-

cending continuous line with increasing standard de-

viation, represented by the vertical bars.

2 3 4 5 6 7 8 9 10

0.5

1.5

2.5

Curvature Threshold

Keypoint Ratio (Binomial/Gaussian)

Figure 4: Ratio between the number of keypoints found in a

binomial pyramid and the number found in a Gaussian pyra-

mid — vertical bars indicate the standard deviation. For

the same curvature threshold value of 10, the binomial ap-

proach yields almost twice the number of keypoints than the

Gaussian approach.

As shown in Figure 4, when non-maximum sup-

pression is performed over a scale space built with bi-

nomial ﬁlters, with a curvature threshold of 5, about

50% more keypoints are found in average, compared

to non-maximum suppression performed over a scale

space built with Gaussian ﬁlters. The average number

of keypoints found almost doubles when the curva-

ture threshold is set to 10. As the curvature threshold

is increased, the standard deviation of the ratio of key-

points also increases.

4.3 Repeatability and Rotation

In this subsection, the repeatability achieved when in-

put images are subject to rotation will be analysed.

The results that follow were all gathered with syn-

thetic rotations of the same 12 image samples used

to obtain the results previously presented.

Figure 5 shows a polar graph with the repeatabil-

ity obtained for a 360 degree rotation window, in steps

of ﬁve degrees. For the Gaussian scale space, a cur-

vature threshold of 10 was used, in accordance to the

original value proposed in (Lowe, 2004), and for the

binomial scale space, a curvature threshold of 5 was

used, based on the results obtained in subsections 4.1

and 4.2.

100

210

240

270

120

300

150

330

180

Rotation Angle

Repeatability (%)

Figure 5: Average rotation repeatability of keypoints. The

black dashed line represents the repeatability of keypoints

found in the original SIFT scheme and the solid gray line

represents the repeatability of keypoints found using the

binomial approach. The binomial approach results in a

slightly superior overall repeatability of keypoints, except

for rotation angles that are multiples of 90 degrees.

As can be seen in Figure 5, the original scale space

proposed in (Lowe, 2004) has maximum repeatability

when the rotation angle is a multiple of 90 degrees.

This is not surprising, as there is no need for inter-

polation to generate the synthetic pixel values of the

rotated image, but only transposition of intensity val-

ues in the image. For different angles, the repeatabil-

ity of keypoints for the original SIFT scheme almost

remains constant at a rate of 80%.

Using the binomial scale space pyramid proposed

in (Entschev and Vieira Neto, 2013), the repeatabil-

ity is also maximum for 90 degrees multiples, sim-

TowardsEmbeddedRobotVisionforMulti-scaleObjectRecognition-RepeatabilityofInterestPointsDetectedin

Half-octaveBinomialPyramids

101

ilarly to the scale space built with Gaussian ﬁlters,

achieving approximately 90%. The farther rotation

gets from a 90 degree multiple and closer it gets to an

odd 45 degree multiple, the repeatability decreases,

the smallest repeatability being around 80%.

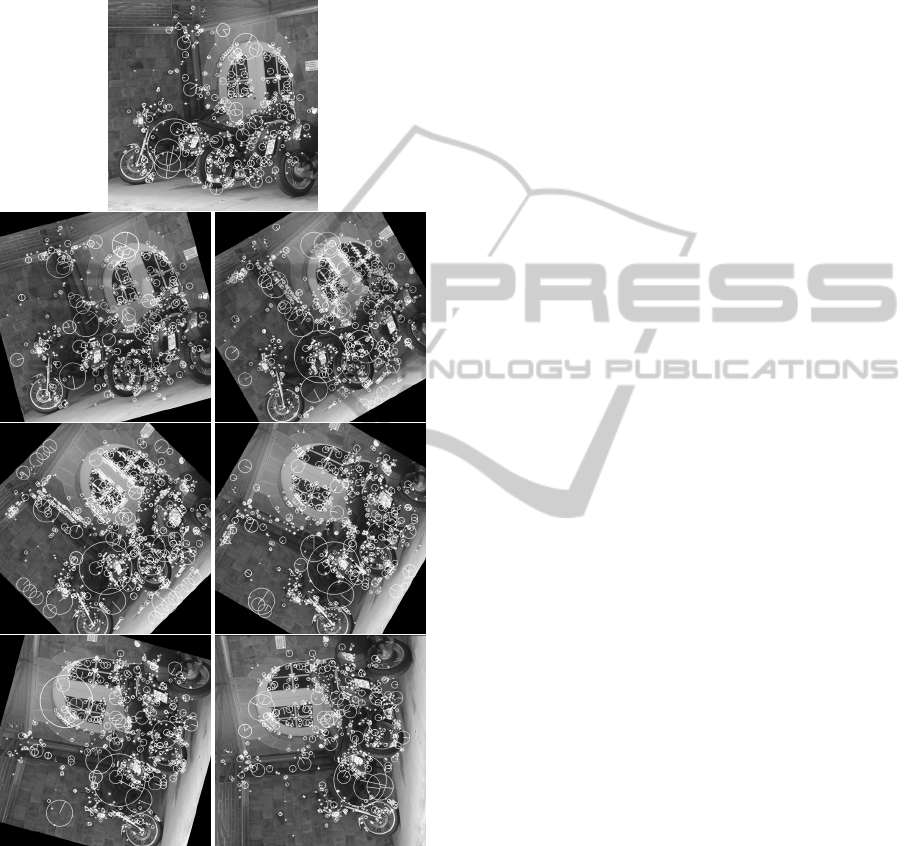

Figure 6: Example of detected keypoints using a binomial

pyramid as a function of rotation. The original input im-

age appears at the top – then, from left to right and top to

bottom, rotations of 15 to 90 degrees in steps of 15 degrees

are shown. The centre of the white circles represent key-

point locations and their radius represent their correspond-

ing scale.

In Figure 6, the detected keypoints from 0 to 90

degrees, in steps of 15 degrees, are presented for one

of the image samples used in the experiments. Be-

cause the average repeatability is similar, only sam-

ples for the ﬁrst 90 degrees are shown.

5 CONCLUSION

The experiments presented here show that the ap-

proach proposed in (Entschev and Vieira Neto, 2013)

yields good keypoint repeatability rate when com-

pared to the original SIFT method proposed in (Lowe,

2004). When compared to the conventional Gaussian

approach, the average keypoint repeatability rate for

a binomial scale space is 78% for a curvature thresh-

old value of 5 and reaches about 86% with a curvature

threshold value of 10.

With a curvature threshold value of 5, the keypoint

repeatability of the binomial scale space regarding ro-

tations is maximum at multiples of 90 degrees and

reaches more than 90%, while the worst cases involve

rotations of odd multiples of 45 degrees, no less than

82%.

The most computationally expensive step of the

method is considered to be upscaling of levels from

subsequent octaves by bilinear interpolation during

the pyramid construction. Further studies on this

speciﬁc topic, including experiments with alternative

methods to build binomial pyramids in time-efﬁcient

manners are still in sight.

Additional comparisons concerning changes in

scale of the input image are also necessary, as well

as performance assessment involving actual match-

ing of SIFT descriptors generated for keypoints found

when using the approach proposed in (Entschev and

Vieira Neto, 2013) to construct the scale space – these

are subjects of future research.

REFERENCES

Bay, H., Ess, A., Tuytelaars, T., and Van Gool, L. (2008).

Speeded-up robust features (surf). Computer Vision

and Image Understanding, 110(3):346–359.

Bradski, G. and Kaehler, A. (2008). Learning OpenCV:

Computer Vision with the OpenCV library. O’Reilly

Media.

Brown, M. and Lowe, D. G. (2002). Invariant features

from interest point groups. In Proceedings of the 13th

British Machine Vision Conference.

Burt, P. and Adelson, E. (1983). The Laplacian pyramid as

a compact image code. IEEE Transactions on Com-

munications, 31(4):532–540.

Coley, G. (2010). Beagleboard-xm system reference man-

ual, revision A2. Beagleboard.org.

Crowley, J. L. and Riff, O. (2003). Fast computation of

scale normalised gaussian receptive ﬁelds. In Scale

Space Methods in Computer Vision, pages 584–598.

Springer.

Crowley, J. L., Riff, O., and Piater, J. (2002). Fast compu-

tation of characteristic scale using a half octave pyra-

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

102

mid. In Proceedings of the International Workshop on

Cognitive Vision.

Crowley, J. L. and Stern, R. M. (1984). Fast computation

of the difference of low-pass transform. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

6(2):212–222.

Entschev, P. A. and Vieira Neto, H. (2013). Efﬁcient con-

struction of SIFT multi-scale image pyramids for em-

bedded robot vision. In Proceedings of TAROS 2013:

Towards Autonomous Robotic Systems.

Halfacree, G. and Upton, E. (2012). Raspberry Pi User

Guide. Wiley.

Lowe, D. G. (1999). Object recognition from local scale-

invariant features. In Proceedings of the 7th IEEE

international Conference on Computer Vision, vol-

ume 2, pages 1150–1157. IEEE.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. International Journal of Com-

puter Vision, 60(2):91–110.

Lowe, D. G. (2005). Demo software: SIFT keypoint de-

tector. University of British Columbia. http://www.

cs.ubc.ca/ lowe/keypoints/.

Mikolajczyk, K. and Schmid, C. (2004). Scale & afﬁne in-

variant interest point detectors. International Journal

of Computer Vision, 60(1):63–86.

Viola, P. and Jones, M. (2001). Rapid object detection using

a boosted cascade of simple features. In Proceedings

of the 2001 IEEE Computer Society Conference on

Computer Vision and Pattern Recognition, volume 1,

pages 511–518.

Visual Geometry Group (2004). Afﬁne covariant regions

dataset. University of Oxford. http://www.robots.ox.

ac.uk/

∼

vgg/data/data-aff.html.

TowardsEmbeddedRobotVisionforMulti-scaleObjectRecognition-RepeatabilityofInterestPointsDetectedin

Half-octaveBinomialPyramids

103
