On Designing Recommenders for Graphical Domain Modeling

Environments

Andrej Dyck, Andreas Ganser and Horst Lichter

Software Construction, RWTH Aachen University, Ahornstr. 55, 52074 Aachen, Germany

Keywords:

Model, Recommender, Recommender Systems, User Interface and Interaction, Modeling Support, Survey.

Abstract:

Recommender systems for source code artifacts are newly emerging and are now successfully supporting pro-

grammers. Their underlying knowledge bases, recommender algorithms, and user interfaces are well studied.

Integrated into the development environment, they do a fairly good job in reducing complexity and develop-

ment time.

In contrast, research in recommender systems for domain modeling is widely missing. As a matter of fact,

knowledge bases, studied as model libraries, are only a possible foundation but concerning recommender al-

gorithms and user interface design research needs to be conducted.

Hence, we provide some foundations for graphical user interface design by answering how domain model rec-

ommender systems should look and feel like in graphical environments. To do so, we conducted a three-phased

survey relating to modeling of UML class diagrams. Most importantly, we found that various user interfaces

are required to meet different user needs. Finally, several algorithms are desired for diverse knowledge bases

and diagram types; hence, leading to a demand for a ﬂexible recommender architecture.

1 INFORMATION OVERFLOW

In order to make use of masses of information, sev-

eral approaches emerged. Most popular among these

are certainly recommender systems (Resnick and Var-

ian, 1997). These became famous through Ama-

zon (Linden et al., 2003) and Netﬂix (Bennett and

Lanning, 2007), which recommend related products

alongside search results. For example, a query for a

book or video also presents products that were bought

or viewed by customers with similar liking. In doing

so, product portfolios become much more accessible

for customers and they are not drowning in informa-

tion overﬂow any more. In other words, recommender

systems help users to overcome the information over-

load problem by exposing users to the most interest-

ing items, and by offering novelty, surprise, and rele-

vance (Systems, 2009).

Looking into software development, the amount

of artifacts is steadily increasing as well and manag-

ing these became a major issue in lots of develop-

ment projects. One kind of these artifacts is source

code. Hence, state of the art integrated develop-

ment environments (IDEs) offer query mechanism

and code completion functionality to ease informa-

tion overﬂow. Furthermore, ideas from recommender

systems were recently adapted to bolster code reuse.

For example, an Eclipse project called Code Recom-

menders learns from existing code bases to provide

best guesses of what the programmer might want to

do next (Bruch, 2012), (Bruch, 2008), (Weimer et al.,

2009), (Eclipse, 2012). This means, as a programmer

just created a new text object (cf. ﬁgure 3) the code

recommender will offer a set of methods which other

programmers invoked on such objects.

Other artifacts, which are often designed in soft-

ware development, are domain models. Unfortu-

nately, there is no recommendation support for mod-

elers available yet. This is quite surprising, since a lot

of effort has been put in researching model libraries

and how to preserve modeling experience. Hence, the

data which could form the knowledge base for a rec-

ommender is available, but, to the best of our knowl-

edge, no efforts have been undertaken to make it rea-

sonably accessible. This means, recommender algo-

rithms and user interfaces are unavailable.

In fact, modeling tools are lacking in usability and

barely support modelers beyond model validation and

automatically arranging elements (Bobkowska and

Reszke, 2005). As a consequence, modelers need

to integrate models from knowledge bases manually

from such sources if found at all (cf. ﬁgure 1). This

291

Dyck A., Ganser A. and Lichter H..

On Designing Recommenders for Graphical Domain Modeling Environments.

DOI: 10.5220/0004701802910299

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 291-299

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Model

Library

IDE

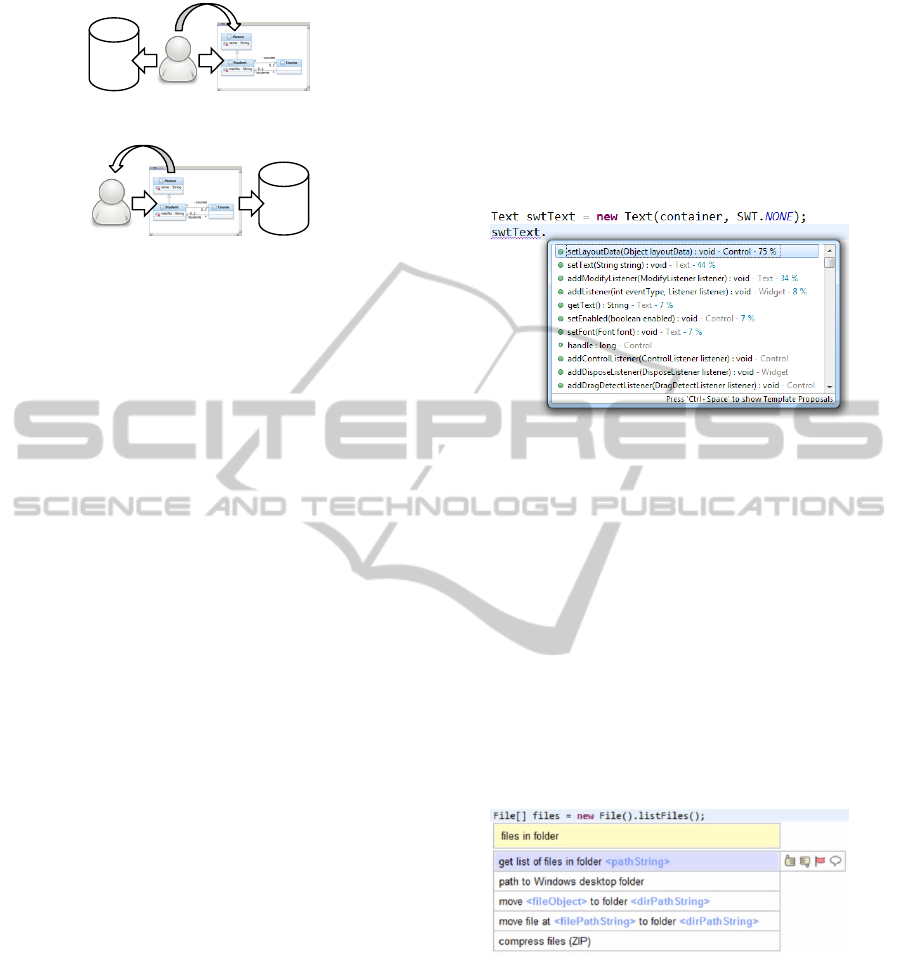

paste / modify

Figure 1: Model Reuse: How it is.

Model

Library

IDE

recommend

Figure 2: Model Reuse: How it should be.

means, each time modelers want to reuse models from

a library, they are distracted from modeling because

they need to mediate between the modeling tool and

the model library. Obviously, this has most likely

a negative impact on the time spent and the quality

achieved in modeling; therefore, making model reuse

unappealing.

We want to put forward a design for an integrated

recommender as illustrated in ﬁgure 2. Here, the de-

veloper interacts with the modeling tool only, which

uses model libraries and recommender algorithms to

recommend models for reuse. Unfortunately, there

is no common sense on how a user interface should

look and feel like. This is why we conducted a three-

phased survey to ﬁnd out how a graphical recom-

mender should look and feel like for domain model-

ing. First, we study existing approaches from related

domains in section 2. Second, we deﬁne the survey in

section 3 explaining our methodology in section 3.1

as a three-phased approach. After that, we analyze

the results in section 4 and discuss further ideas in

section 4.4. Finally, we conclude with highlighting

the most important ﬁndings and discuss future work

in section 5.

2 RELATED RECOMMENDERS

Until lately, most recommender systems have been

mostly tied to the web, e.g., as part of commercial

systems, such as Amazon’s recommenders. However,

recommender systems speciﬁc to software engineer-

ing are emerging to assist software developers in a

wide range of activities including code reuse (Robil-

lard et al., 2010). Most of these systems are inte-

grated in an IDE and suggest software artifacts, such

as code snippets, and focus on “you might like what

similar developers like” scenarios. A detailed discus-

sion is provided by Happel and Maalej in (Happel and

Maalej, 2008).

Three code recommender systems have inspired

us. First, the project Code Recommenders is a recom-

mender system for the Java programming language

and is integrated into the Eclipse IDE (Bruch, 2012),

(Bruch, 2008), (Weimer et al., 2009), (Eclipse, 2012).

It comprises various intelligent code completion en-

gines and documentation providers. For example, its

intelligent call completion recommends only methods

which will most likely be called at the current editing

position (cf. ﬁgure 3).

Figure 3: Code Recommenders’ Call Completion (Eclipse,

2012).

Code Recommenders’ dynamic templates com-

pletion take this to the next level by recommending

a complete sequence of method calls. To this end, it

uses available open-source code repositories analyz-

ing common code structures. These code templates

can serve as additional documentation that quickly

shows how an API can be used, and thus, save de-

velopers’ time with APIs they are not familiar with.

Second, SnipMatch recommends common code

snippets similar to Code Recommenders’ dynamic

templates. However, here the developer queries the

system describing the task they want to accomplish

(cf. ﬁgure 4) (SnipMatch, 2012).

Figure 4: Querying SnipMatch (SnipMatch, 2012).

SnipMatch is now part of the Code Recom-

menders project.

Last but not least, Code Conjurer is a recom-

mender system that uses code-search engines to de-

liver high-relevance software-reuse recommendations

with minimal disturbance to a developer’s work-

ﬂow (Hummel et al., 2008). It seamlessly integrates

code search and reuse functionality into the Eclipse

Java development environment, and thereby, allow-

ing the developer to search for reusable code, for

example, by deﬁning unit tests (test-driven search).

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

292

Code Conjurer delivers code recommendations as re-

sults which satisfy the tests and even generate adapter

classes to match the interface speciﬁed in the tests, if

needed.

3 SURVEY

With model libraries and autocomplete functions of

IDEs in mind, we had a vision of bringing these two

together to gain easy access from graphical model-

ing environments. To the best of our knowledge, ex-

isting autocomplete functions in modeling tools have

barely exceeded completion of textual elements. In

fact, an autocomplete function gives proposals for all

possible syntactical tokens within a certain syntacti-

cal position. However, the graphical syntax of mod-

els, e.g., class diagrams, is fairly simple. Thus, in-

stead of an autocomplete function, we now consid-

ered recommender systems, which then could recom-

mend restructuring of a model w.r.t. the semantics of

that model. In the interests of simplicity, we have re-

stricted ourselves in this survey to class diagrams and

tools to design such.

There already exist recommender systems embed-

ded into IDEs focusing on code reuse. However, if

one considers modeling as a graphical task, one could

imagine that the model recommender UI has to differ

from UI of textual recommenders. Moreover, the rec-

ommender system can be triggered, either re-actively

by the user, or pro-actively by the system. As a con-

sequence, we have to consider different UIs for both

cases. In this survey, we studied possible interac-

tions with different UIs for recommending models

and asked users what recommendations for class di-

agrams could be. As a constraint, we assumed that an

ideal interaction is embedded into the modeling envi-

ronment.

3.1 Methodology

The conducted survey consists of three phases in

which we determined possible UIs for a model rec-

ommender. Starting with brainstorming and sketch-

ing mock-ups, we continued with guided interviews,

and ﬁnally, we collected further opinions with an on-

line questionnaire.

In the ﬁrst phase, we did several sessions of brain-

storming, where we gathered ideas for a model rec-

ommender system and sketched mock-ups showing

possible graphical user interfaces (GUIs). We used

the mock-ups to show users what a GUI might look

like.

In the next phase, we conducted guided interviews

with several Ph.D. students in order to reﬁne and im-

prove the designs. Since all of the participants have

an extended knowledge in modeling and user inter-

face design, we included a brainstorming session at

the end of these interviews as well. Here, the partic-

ipants should consider themselves using a build tool

and wonder if and how it would blend in and support

their modeling. This unveiled further design and in-

teraction ideas, which we discussed iteratively with

other Ph.D. students.

In the last phase, we condensed the gathered ideas

and put them into an online questionnaire. The over-

all goal of this was twofold. First, we wanted to get

participants opinion on how beneﬁcial each user in-

terface would be, and second, we wanted to stimu-

late further thinking on the topic. Hence, thoughts

on this topic could be noted at the end of the ques-

tionnaire. The participants in this phase can be sub-

divided into three groups. Firstly, related team mem-

bers from the research project were asked to ﬁll out

the questionnaire. Secondly, computer science stu-

dents in general were asked to participate. Lastly, we

posted a link on a modeling board asking members to

contribute (EMFBoard, 2012).

3.2 Conducted Survey

As prototyping is an important technique to reduce

risks by identifying design ﬂaws before implementing

the actual system, we have drawn mock-ups upfront

and in multiple steps. While iterating over model rec-

ommender UI sketches in the brainstorming sessions,

we tried to answer the following questions: How

should the system be triggered best? What should

the GUI look like? How could recommendations be

presented, previewed, and picked? In order to focus,

we restricted our survey to class diagrams as mod-

els and assumed the modeling software is used on a

PC with a pointing device, e.g., computer mouse, and

keyboard. Our ideas of a model recommender and its

GUI evolved with each session of brainstorming.

After having collected several ideas and sketched

GUI mock-ups in brainstorming sessions, we de-

signed a guided interview, which was conducted with

ﬁve Ph.D. students at the department at our univer-

sity. Two of the interviewees assessed themselves

as modeling experts, two as advanced modeler, and

one as a beginner. All interviewees have experi-

ence with today’s modeling software like AgroUML,

AndroMDA, EMF, IBM’s Rational Architect, Yatta’s

UMLLab, Visual Paradigm, and other tools.

We started an interview by introducing recom-

mender systems like Amazon’s “Customers Who

OnDesigningRecommendersforGraphicalDomainModelingEnvironments

293

Bought This Item Also Bought”-recommendations

and Code Recommenders for programming Java with

Eclipse as explained above. Then, we asked the in-

terviewees what they think would be useful to be rec-

ommended while modeling and if they miss a recom-

mender system in today’s modeling software. More-

over, we asked them how they could picture the user

interaction with a possible recommender system for

modeling software, e.g., how the system should be

triggered, or how the results and previews should be

displayed. Finally, we showed our mock-ups to en-

courage further discussion. An interview lasted about

60 minutes on average.

Having all the results in mind, we designed a ques-

tionnaire, which was published online eventually. The

questionnaire was subdivided into four sections: The

ﬁrst section covered general questions about model-

ing with software, about a possible recommender sys-

tem in modeling tools, about EMF, and questions re-

garding our mock-ups. Therefore, after introducing

the recommender system as an “intelligent autocom-

plete function” for class diagram modeling tools, we

asked for the modeling expertise and if they used soft-

ware tools for modeling. Moreover, we wanted to

know if existing models are reused and where the

users get these models from. The second section cov-

ered the question if participants ever missed a recom-

mender system in today’s modeling software. Fur-

thermore, we were interested in what recommenda-

tions participants consider to be useful. In the third

section the “Eclipse Modeling Framework” (EMF)

arouse from curiosity how popular this framework is

and how pleasant the work with it’s editors is. It will

not take any role in our results since it was not the

focus of this survey. Still, these information can be

used to study correlations in more details which is out

of focus here. In the last section, we presented our

mock-ups in a slide show and examined how appeal-

ing the mock-ups appeared. Moreover, we questioned

what keyboard shortcuts participants expect and what

kind of preview would ﬁt best for small and big dia-

grams. Finally, we gave participants the possibility to

add additional thoughts.

A participation in this survey took eight and a half

minutes to ﬁll in on average (standard deviation: ﬁve

minutes). The survey was open for three weeks.

4 SURVEY RESULTS

As this survey was subdivided into three phases,

we dedicate a results section to each; the mock-ups

phase, the guided-interviews phase and the online-

questionnaire phase.

4.1 Mock-ups

Initially, we experimented with sketchy mock-ups to

do reasoning on how a recommender system for mod-

eling tools might look and feel like. We explain this

reasoning because we were following the questions

mentioned subsequently:

1. How is the Recommender System triggered?

In general, there are two ways to trigger a recom-

mender. First, re-active triggering, meaning informa-

tion is provided after an explicit user request. This

is comparable to source code autocomplete which is

triggered by keyboard shortcuts in general. Second,

with pro-active triggering the system identiﬁes cer-

tain situations based on the users context and give

recommendations automatically in a continuous, non-

disruptive way. Happel et al. state that pro-active trig-

gers are important to be considered for recommender

systems and that current recommender systems do

rarely follow this concept (Happel and Maalej, 2008).

For example, such pro-active recommender systems

exist in other areas; e.g., recommendations in e-shops

like Amazon (Schafer et al., 1999) (Linden et al.,

2003), context-aware traveler agents (Felfernig et al.,

2007) (Al Tair et al., 2012), or recommendations

while writing documents, e.g., manuals (Puerta Mel-

guizo et al., 2007). Mind that the decision whether to

use re-active or pro-active triggers has a strong impact

on the GUI.

2. What does the GUI Look Like? The GUI is

heavily inﬂuenced by the kind of trigger. Thus, we

created GUI mock-ups accordingly. First, for a re-

active recommender system we were inspired by auto-

complete functions from IDEs. Since a modeling can-

vas in general is a graphical editor, we designed ﬁg-

ure 5 to what we call a Searchbox similar to the GUI

of the Eclipse plug-in SnipMatch (SnipMatch, 2012).

The Searchbox is activated by a keyboard shortcut and

provides a textﬁeld, where the user can enter a query.

The query together with the context, i.e., the current

model, deﬁne the context for recommendations.

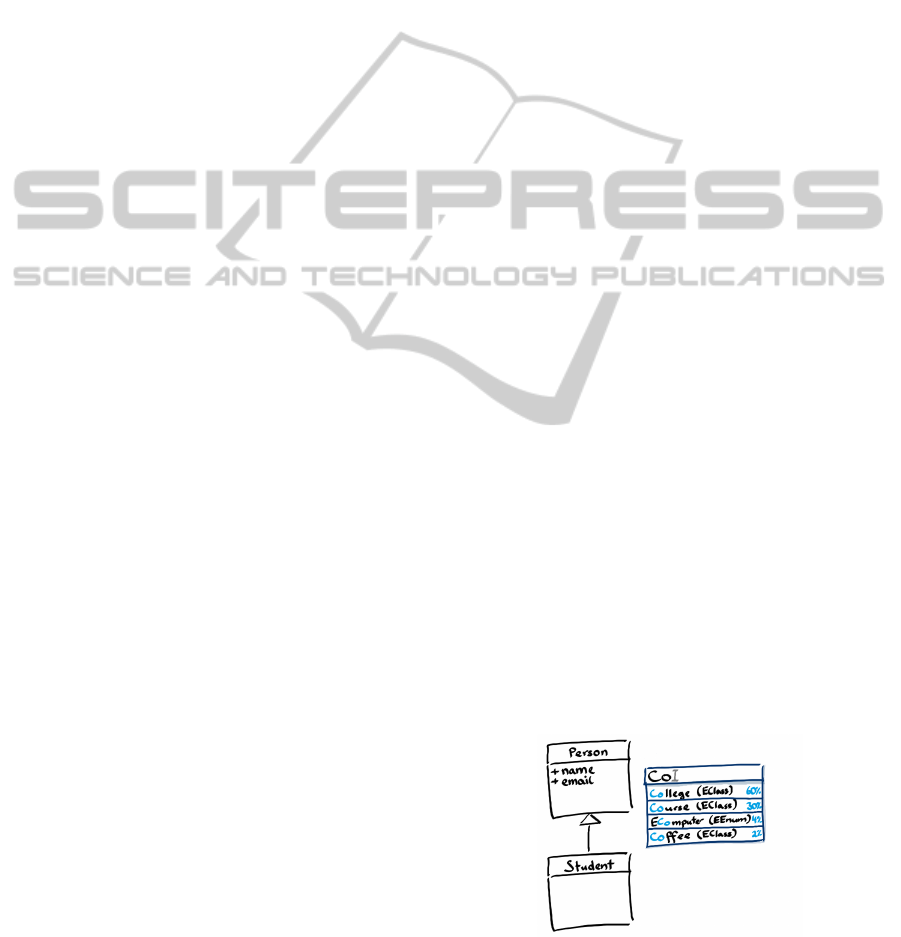

Figure 5: Re-active Recommender.

Second, a pro-active recommender system should

present information related to the current context

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

294

Figure 6: Pro-active Recommender.

only. Moreover, the recommendations should be pre-

sented in an unobtrusive manner since presenting pro-

active information can be easily disturbing. In ﬁg-

ure 6, we designed a list of recommendations in a

separate window (lower left corner). This list is up-

dated along the context, e.g., if a class is selected or

added. A minimalist pro-active GUI can be a text ﬁeld

depicting the status by updating the number of recom-

mendations found. Here, a user needs to request the

listing of recommendations explicitly.

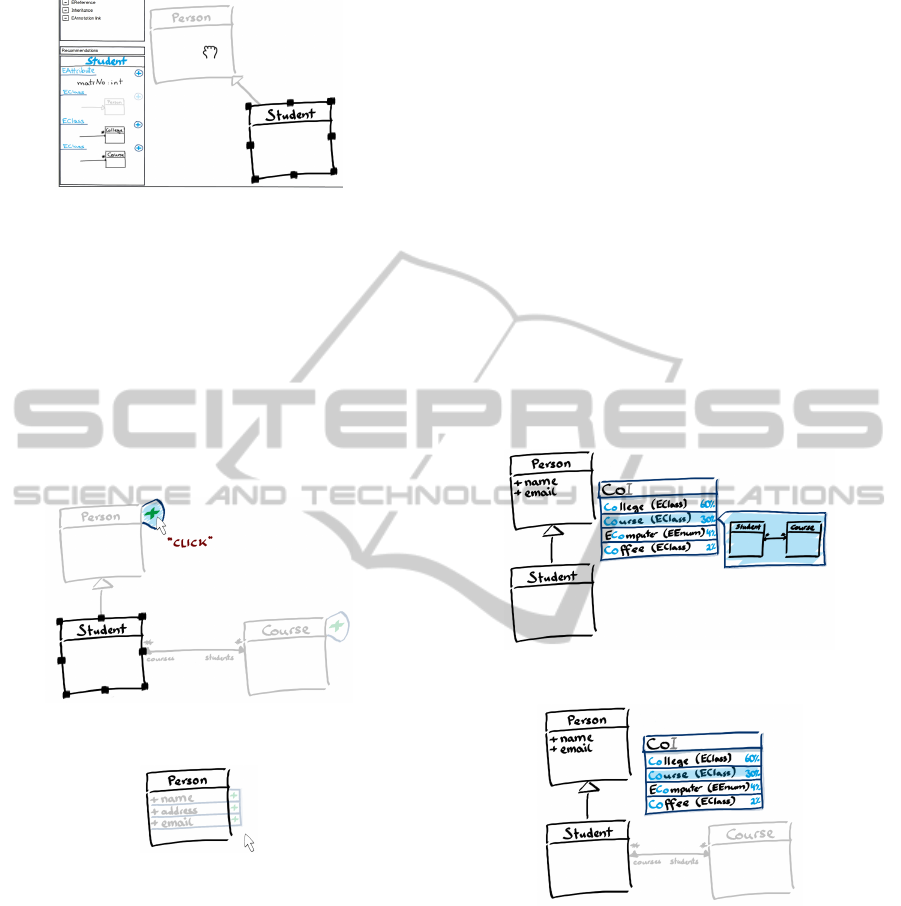

Figure 7: Classes Overlay.

Figure 8: Attributes Overlay.

Third, overlays might integrate the user interac-

tion into the canvas (see ﬁgure 7 and ﬁgure 8). Those

are activated automatically or manually by the user.

Considering recommendations that alter elements, we

need to adapt the overlays to put emphasis on the

changes. Mind that this should be used only for re-

active recommendations since it most disturbing.

3. How are the Recommendations presented?

The most common ways to display recommendations

are lists and overlays. Lists could hold entries, which

are either textual, as shown in ﬁgure 5, graphical, or

both as depicted in ﬁgure 6. Here, one has to con-

sider the amount of recommendations shown in the

list. Bollen et al. studied the choice overload effect

in recommender systems (Bollen et al., 2010). Their

ﬁndings have implications for the design of recom-

mender system user interfaces; in particular, a recom-

mendation set that contains between ﬁve and twenty

items works best.

The overlay approach tentatively integrates rec-

ommendations into the diagram. For example, ﬁg-

ure 7 shows how this might look like and depicts a

preview of a possible result. But, there are two prob-

lems with this approach. First, the display space is

limited, which might hide overlays or might cause

overlapping. Second, recommendations that alter or

remove elements in the diagram are difﬁcult to stress.

4. How can a Recommendation be previewed?

We sketched two kinds of recommendation previews.

Figure 9 shows a graphical preview as a thumbnail,

which can either be a box appearing next to the selec-

tion or an outline window. Further, previews can be

overlays as depicted in ﬁgure 10. Again, we have to

consider display limitations and altered elements.

Figure 9: Thumbnail Preview.

Figure 10: Overlay Preview.

5. How does the User Pick a recommendation?

This question is strongly inﬂuenced by the presenta-

tion of recommendations. First, lists allow double-

click actions (see ﬁgure 6) or press-enter-key actions

(see ﬁgure 5). Second, overlay GUIs allow double-

click actions as well, but this interaction is not in-

tuitive for most users. Therefore, a plus-button as

shown in ﬁgure 7 and ﬁgure 8 might be the better al-

ternative. In addition, a minus-button could indicate

remove actions. Additionally, lists might have plus-

buttons like in ﬁgure 6. Last, a list of recommenda-

tions in a separate window as shown in ﬁgure 6 allows

drag-and-drop actions. The advantage over an inser-

OnDesigningRecommendersforGraphicalDomainModelingEnvironments

295

tion, which includes an auto-layout, is that the user

can place elements properly.

4.2 Guided Interviews

All interviewees had no or little knowledge of recom-

mender systems. After a short introduction, they had

a vague idea of recommender systems, but could not

transfer this idea to modeling. One of the intervie-

wees said: “I can hardly imagine recommendations

[in modeling], yet.”. But after providing a domain and

an example how to recommend classes and relation-

ships, they got a good idea about it. Still, few intervie-

wees were unsure if such a system would help expert

modelers. Hence, one of the experts mentioned:

“Before I start modeling, I already have a

coarse model in mind and know how to pro-

ceed. A recommender system would have to

know the semantic meaning of what I am mod-

eling to give proper recommendations.”

One of the interviewees noted “I cannot imagine how

recommendation of class or entity names can work.”

The suggestion was recommending “reusable bigger

components”. Additionally, some interviewees were

concerned about over-automating modeling:

“One should avoid the system to be annoy-

ing. [..] Consider the auto correction in to-

day’s mobile phones. If the system thinks I

misspelled a word and auto correct the word,

I have to delete this word and retype. This cre-

ates frustration.”

Finally, we exhibited the mock-ups and the intervie-

wees gave hints for improvements. Regarding the pre-

view of recommendations one of the experts argued:

“Just a graphical representation [the preview]

of recommendations is not sufﬁcient, but is a

nice aid. However, a text-only representation

is sufﬁcient for me.”

Another interviewee added: “Overlays [ed., see ﬁg-

ure 10] are cool, but can be disturbing. Especially if

they are shown in a full screen model.” To sum up the

interviews, there were concerns about the use of rec-

ommender systems in modeling, but the interviewees

were curious about the system. Yet, after we imple-

mented a functional prototype, ﬁrst of all the expert

modelers said they “badly want this tool: NOW!”.

4.3 Online Questionnaire

After brainstorming, interviewing, and pretesting the

survey, we presented the survey to a broader audience

asking to participate. We found great curiosity in such

a system in the EMF modeling community. Surpris-

ingly, we got slightly different results compared to the

interviews. On the one hand, nearly half of the par-

ticipants wanted a recommender system for modeling

editors right away. On the other hand, a large percent-

age of the surveyed did not know if they could be able

to make use of such a system.

The ﬁrst result is actually not part of the question-

naire, but it shows how the community responded: We

created a thread in the Eclipse-Forum at the model-

ing community with the title “An ”intelligent” auto-

complete function for Ecore diagram editors” (EMF-

Board, 2012). The title did not contain any words

like “survey” or “questionnaire” on purpose, since we

wanted to test curiosity on this topic. After introduc-

ing our research topic, we asked the people to partic-

ipate in our survey. This post got about 600 views in

less than 24 hours, while most other post never get

this many views at all. At the end of the survey, this

post had about 2400 views. Compared to other posts

on the board only “really hot topic”-post get this many

views. Thus, we can conclude that the modeling com-

munity has a great interest in an autocomplete func-

tion or a recommender system for models.

In total, forty (40) beginner, advanced and expert

modelers ﬁlled out our questionnaire. Each question

was answered by thirty-nine (39) participants on aver-

age, since, we did not make questions mandatory. As

a consequence, we only had twenty-nine (29) entirely

completed questionnaires.

Totally

missed it.

11%

Yes.

29%

I do not

know.

43%

Why

should I?

11%

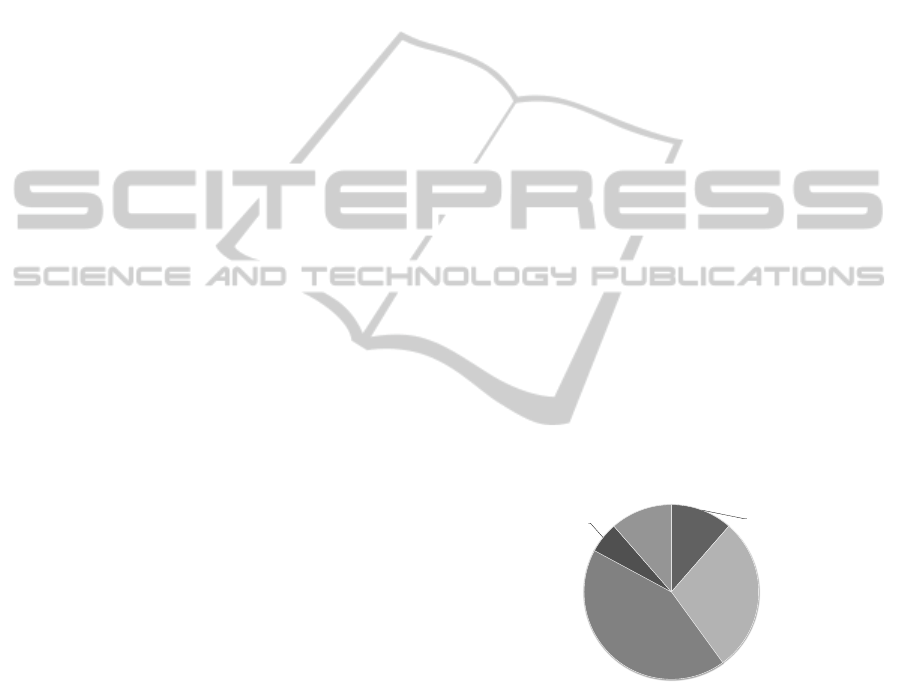

Figure 11: Do you miss a recommender?

Of thirty-nine (39) participants, about 31% con-

sider themselves having a lot of modeling experience,

41% say they have advanced modeling skills and 28%

see themselves as beginners. Only three of those

polled do not use software tools to design class dia-

grams. In a comment ﬁeld they reasoned why they

are not using software for modeling.

“[Modeling software is] a little bit complex.”

“Hand-drawn sketches are usually enough

[..]. We draw it digitally only when there are

frequent updates, or when we want a perma-

nent documentation.”

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

296

Further, only 33% of these participants reuse mod-

els. Interestingly, this is a high percentage consider-

ing today’s weak support to store and retrieve mod-

els in libraries. However, only one of the participants

uses a team library, the others reuse local ﬁles, and

no participant uses libraries like MOOGLE (Lucr

edio

et al., 2008), or ReMoDD (ReMMoD, 2012).

Regarding the section about recommender sys-

tems, we ﬁrst asked if participants miss a recom-

mender system in modeling tools. The majority

(about 43%) unsurprisingly stated that they do not

know (see ﬁgure 11). This seems all natural, since

there is no such system in today’s modeling software.

However, approximately 40% are missing this feature

and only 17% do not.

Next, we asked users what they consider as use-

ful recommendations. As one can see in ﬁgure 12,

all suggested recommendations were highly appreci-

ated, and a lot of participants voted for design patterns

as recommendations. Moreover, one participant sug-

gested in a free text ﬁeld to recommend “the normal

usage of the class” (ed., how a class is usually deﬁned

in a speciﬁc context).

Class Names Class

Attributes &

Methods

Relationships Best Practice

Diagrams

Design Pattern Types

Figure 12: What should be recommended?

In the free-thoughts text ﬁeld on recommender

systems for class diagram editors, we received many

suggestions. In the following, we brieﬂy present some

of the suggestions. To begin with, one of the par-

ticipants addressed the interaction with a modeling

software and argued: “Although diagramming [ed.,

modeling] is a graphical task, a tool should be totally

keyboard-friendly for entering speed.”

Moreover, users desired a preview for a recom-

mendation in order to get an idea how the model

would look like when the recommendation is applied.

To this end, one surveyed user said: “If the best prac-

tices will be recommended, it were nice to have the

recommendation as an example in a separate part of

the window.”

One participant came up with what we called over-

lays for class attributes and methods (cf. ﬁgure 8).

“The attributes/methods of a class can appear

in other color (or better as transparent text),

and if I click on it, it will be asked if I wish

to add the transparent elements to my class or

not.”

Summarizing the results of this questionnaire sec-

tion, we found that a good share did not know if a rec-

ommender system would be useful. However, many

participants would appreciate such a system. Above

all, the participants gave us some great ideas and con-

ﬁrmed other ideas of ours, although we have not yet

presented the mock-ups.

Finally, we presented our mock-ups. Before ask-

ing them any speciﬁc questions related to the mock-

ups, we wanted to know how appealing they felt. As

we can see in ﬁgure 13, most of the participants liked

the presented ideas. Moreover, we can see that the

Searchbox approach in ﬁgure 5, the pro-active ap-

proach using the overlays in ﬁgure 7 and ﬁgure 8, and

the overlay previews in ﬁgure 10 are the favorite solu-

tions. The pro-active approach within a separate win-

dow like in ﬁgure 6 was not appealing. However, its

drag-and-drop interaction was liked. Last, the screen-

shot preview in ﬁgure 9 was not the ﬁrst choice.

General Feeling

Use of Keyboard

Shortcuts

Searchbox

Screenshot Preview

Pro-active Search

Overlays

Representation

Overlay Preview

Seperate Window

Drag&Drop

Seperate Window

Plus-buttons

neutral

dislike

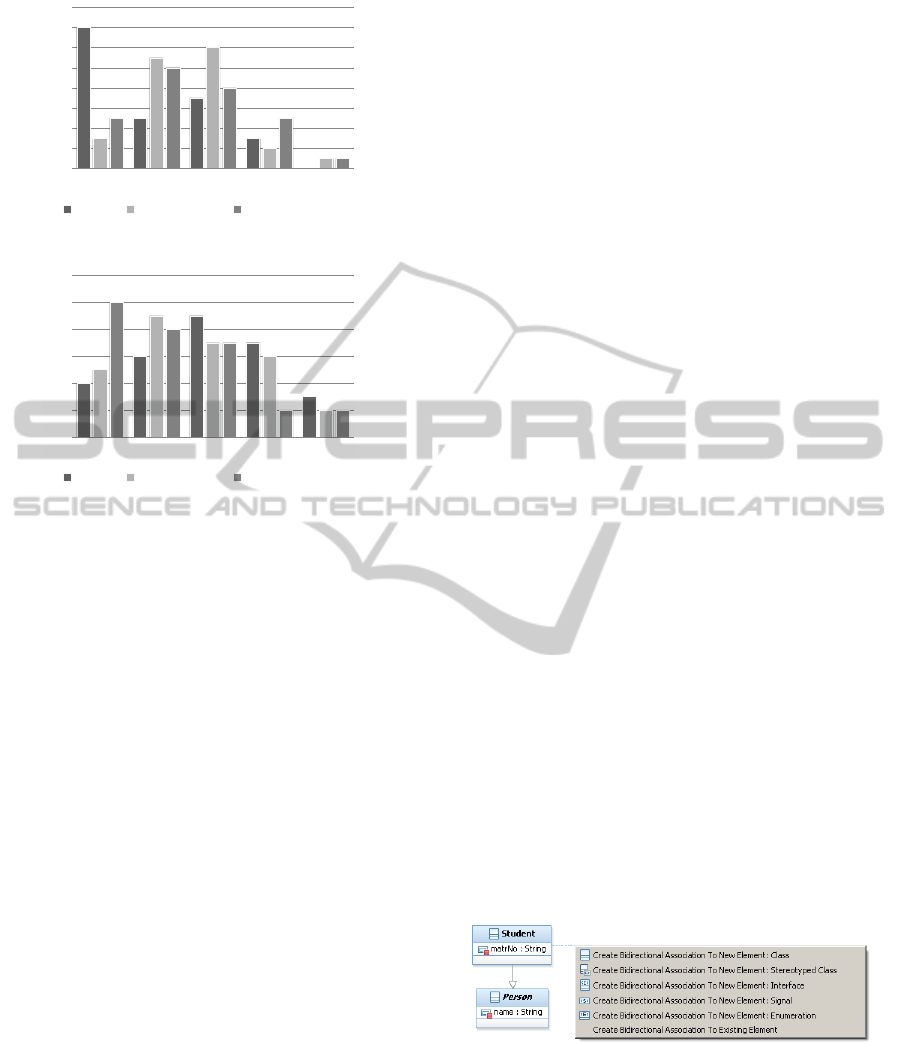

Figure 13: Mock-up Assessments.

The most striking result is that a lot of these ideas

were liked, but they need to be realized quite differ-

ently. Hence, there is not only one solution for a tool

realizing all of the ideas at hand, but rather a frame-

work with a ﬂexible architecture, which allows vari-

ous options for realizations.

Next, we examined what kind of recommendation

preview appeared more suitable in small (less or equal

15 elements) and big (more than 16 elements) dia-

grams. As shown in ﬁgure 14 the overlay preview is

preferred in small diagrams, but the thumbnail pre-

view is not rejected. However, for big diagrams only

a few participants think that the overlay preview is

suitable and prefer the thumbnail preview either in an

outline window or a box like in ﬁgure 9.

Furthermore, we were interested in keyboard

friendliness of such a system. To this end, we asked

participants what keyboard shortcuts they expect for

OnDesigningRecommendersforGraphicalDomainModelingEnvironments

297

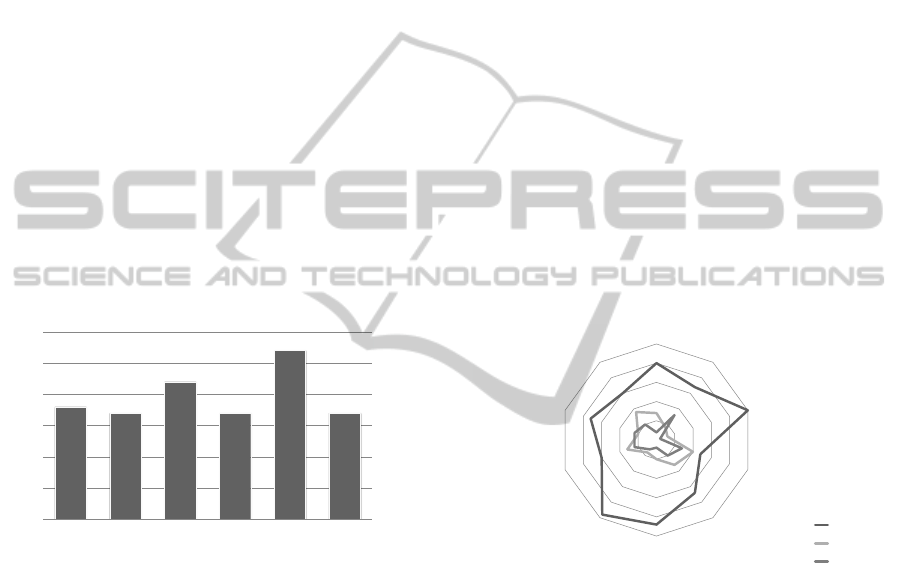

very well good neutral not good bad

Overlay Thumbnail Box Thumbnail View

Figure 14: Suitable Previews for Small Diagrams.

very well good neutral not good bad

Overlay Thumbnail Box Thumbnail View

Figure 15: Suitable Previews for Large Diagrams.

what interaction. We found, that 18 out of 29 partic-

ipants (about 62%) would like to simply start typing

and the searchbox should appear. Additionally, the

common shortcut CTRL/CMD+Enter was suggested

to trigger the recommender system.

Finally, we provided some space for further notes

on recommender systems and mock-ups. As con-

ﬁrmed by ﬁgure 15, some participants discussed: “At

preview with overlay, you may hide the rest of the

class.” And that “Overlaying UI can be difﬁcult,

when there are a lot of classes around, so a sepa-

rate view [ed., for example as a sub-window] or the

screenshot box should just work ﬁne.”

Furthermore, it seems to be a good idea to show

the overlay representation (cf. ﬁgure 7) only if the

user requests recommendations explicitly. One partic-

ipant stated this as “At pro-active search with overlay

preview, show the recommendation only after typing

a keyboard shortcut or a activate button on the class,

but not simply at selecting a class.”

There is another thought for a re-active GUI that

integrates the searchbox into the window, such that

it is always visible: “I’d expect a Searchbox that is

always visible.” To this end, the pro-active GUI in

ﬁgure 6 could be extended to provide this query ﬁeld.

Altogether, the participants showed great interest

in the system, which one participant put as: “The UI

elements are looking pretty nice for me. Interaction

and previews are also OK.” Above all, the ﬁndings

suggest that there is a great curiosity in the commu-

nity for such a system.

4.4 Further Ideas

At the end of the interviews and surveys, we offered

some space to state further ideas. We summarize:

Almost all of the interviewees proposed a sys-

tem which might analyze requirement speciﬁcations

and recommends models based on that. For exam-

ple, “If one has a domain model in a context of re-

quirement speciﬁcations, [..] one could suggest simi-

lar domain models which implements similar require-

ments.” That makes additional knowledge bases a re-

quirement which do not need to be model libraries.

Moreover, one participant hinted at proﬁle-based

recommender systems, i.e., collaborative ﬁltering,

and proposed that “A user should have the possibil-

ity to say ‘I do not want this recommendation, any-

more.’”. Similarly, a collaborative recommender is to

say that “[The system] should be ﬂexible enough to

let users decide about whether something is ‘recom-

mendable’.” One can even extend this idea to a social

rating in order to opt out bad recommendations. Such

a feature is, e.g., implemented in SnipMatch.

Regarding listed recommendations, a participant

proposed a ﬁlter to classify, because “It were also

good, if it were possible to classify the given recom-

mendations. [..] [They] will be given only for the

chosen category [..].” Quite similarly, an interviewee

wanted to categorize the recommendations because

there could “be a lot of recommendations. Thus, you

can use accordions or tree views to categorize these.”

Furthermore, a participant yield an idea to provide

descriptions for the recommendations because “you

get info about its usage, advantages and so on.” As

marginal note, such information should be provided

by the underlying model library. However, an archi-

tecture of a recommender system should be as ﬂexible

to integrate this into the UI.

Figure 16: Association Context Recommendation.

Last to mention is that many class diagram edi-

tors support drawing an association into empty space.

This opens a context menu offering to create new el-

ements at the other end of the association (cf. ﬁg-

ure 16). An idea, which has to be examined, is to put

recommendations into this menu, e.g., top ﬁve classes

that are associated with the origin class.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

298

5 SUMMARY AND OUTLOOK

The results of this study show that model recom-

menders are new grounds. This is best illustrated

by the about eighty percent of the participants almost

equally split into two groups; who want a model rec-

ommender and who do not know. Other than that, the

results are signiﬁcant in three major respects.

First, there are several alternative UIs that suggest

different triggering, user interaction, and displaying

recommendations. Most of which are reasonable and

applicable in different circumstances. Most impor-

tantly, the size of recommended models might serve

as a deal breaker if they should be displayed in an

overlay manner. Moreover, changing the type of the

model could change reasoning on alternative UIs.

Second, there seem to be different needs of what

items are recommended. In class diagrams, we

have seen desires for recommendations of classes, at-

tributes, or complex models. E.g., design patterns

were asked for and we are currently investigating on

that. Similarly, a model recommender should not be

limited to a one back-end. Hence, different recom-

mendation algorithms, each of which implementing

another algorithm, need common grounds.

Finally, not only model libraries (e.g., (Ganser and

Lichter, 2013)) are requested as data sources for rec-

ommendations. In project environments, lots of ar-

tifacts are created and could serve as inputs for pro-

ducing recommendations; e.g., a requirements docu-

ment. We can use it to help producing recommen-

dations since this can play the role of a user proﬁle

in terms of collaborative recommender system. Yet,

we are aware of self contradicting requirements spec-

iﬁcations. Moreover, the recommender system might

be used in diverse modeling tools. There is, therefore,

need for multiple recommendation contexts.

All in all, this leads to the need of a ﬂexible and

generic architecture. This can bolster research by of-

fering three options for extensions, namely various

UIs, algorithms, and contexts. Our realization of this

can be found here (Dyck et al., 2014).

REFERENCES

Al Tair, H., Zemerly, M. J., and Al-Qutayri, M. (2012).

Architecture for Context-Aware Pro-Active Recom-

mender System. International Journal Multimedia

and Image Processing, 2(1/2):125–133.

Bennett, J. and Lanning, S. (2007). The Netﬂix Prize. In

Proceedings of KDD cup and workshop.

Bobkowska, A. and Reszke, K. (2005). Usability of UML

Modeling Tools. In Conference on Software Engineer-

ing: Evolution and Emerging Technologies.

Bollen, D., Knijnenburg, B. P., Willemsen, M. C., and

Graus, M. (2010). Understanding choice overload in

recommender systems. In ACM conference on Rec-

ommender Systems, RecSys ’10, USA. ACM.

Bruch, M. (2008). Towards Control-ﬂow Aware Code Rec-

ommender Systems. In 3rd International Doctoral

Symposium on Empirical Software Engineering 2008.

Bruch, M. (2012). IDE 2.0: Leveraging the Wisdom of the

Software Engineering Crowds. PhD thesis.

Dyck, A., Ganser, A., and Lichter, H. (2014). A framework

for model recommenders – requirements, architecture

and tool support. In Modelsward 2014, PT.

Eclipse (2012). Code Recommenders.

http://www.eclipse.org/recommenders/.

EMFBoard (2012). EMF Forum: An “intelligent” autocom-

plete function for Ecore diagram editors.

Felfernig, A., Gordea, S., Jannach, D., Teppan, E., and

Zanker, M. (2007). A Short Survey of Recommen-

dation Technologies in Travel and Tourism. OEGAI

Journal, 25(7):17–22.

Ganser, A. and Lichter, H. (2013). Engineering model

recommender foundations - from class completion to

model recommendations. In Modelsward 2013, ESP.

Happel, H.-J. and Maalej, W. (2008). Potentials and Chal-

lenges of Recommendation Systems for Software De-

velopment. In International Workshop on Recommen-

dation Systems for Software Engineering.

Hummel, O., Janjic, W., and Atkinson, C. (2008). Code

Conjurer: Pulling Reusable Software out of Thin Air.

IEEE Software.

Linden, G., Smith, B., and York, J. (2003). Amazon.com

recommendations: item-to-item collaborative ﬁlter-

ing. Internet Computing, IEEE, 7(1):76–80.

Lucr

edio, D., De M Fortes, R., and Whittle, J. (2008).

MOOGLE: A Model Search Engine. In Model Driven

Engineering Languages and Systems, LNCS.

Puerta Melguizo, M. C., Boves, L., Deshpande, A., and

Ramos, O. M. n. (2007). A Proactive Recommenda-

tion System for Writing: Helping Without Disrupting.

In European Conference on Cognitive Ergonomics.

ReMMoD (2012). http://www.cs.colostate.edu/remodd/v1/.

Resnick, P. and Varian, H. R. (1997). Recommender Sys-

tems. Communications of the ACM, 40(3):56–58.

Robillard, M., Walker, R., and Zimmermann, T. (2010).

Recommendation Systems for Software Engineering.

In IEEE Software, volume 27, pages 80–86.

Schafer, J. B., Konstan, J., and Riedi, J. (1999). Recom-

mender Systems in E-Commerce. In ACM Conference

on Electronic Commerce.

SnipMatch (2012). http://www.snipmatch.com/.

Systems, A. R. (2009). http://recsys.acm.org/2009/.

Weimer, M., Karatzoglou, A., and Bruch, M. (2009). Max-

imum Margin Matrix Factorization for Code Recom-

mendation. In ACM conference on Recommender sys-

tems, RecSys ’09, New York, NY, USA. ACM.

OnDesigningRecommendersforGraphicalDomainModelingEnvironments

299
