Compiling Graph Transformation Rules

into a Procedural Language for Behavioral Modeling

Sabine Winetzhammer and Bernhard Westfechtel

Applied Computer Science I, University of Bayreuth, Bayreuth, Germany

Keywords:

Graph Transformation Rules, Behavioral Modeling, Code Generation.

Abstract:

Graph transformation rules provide an opportunity to specify model transformations in a declarative way at

a high level of abstraction. So far, compilers have translated graph transformation rules into conventional

programming languages such as Java, C, or C#. In contrast, we have developed a compiler which translates

graph transformation rules into a procedural language for behavioral modeling (Xcore). The generated code is

signiﬁcantly more concise and readable than programming language code. Furthermore, the code is portable

since it is completely programming language independent.

1 INTRODUCTION

Model transformation languages have been devel-

oped for specifying transformations of models at a

higher level of abstraction than in conventional pro-

gramming languages. Among many features (Czar-

necki and Helsen, 2006), model transformation lan-

guages may be classiﬁed according to their underly-

ing paradigm: In procedural languages, the transfor-

mation is described by specifying the order in which

elementary transformation steps are executed. In con-

trast, rule-based languages specify transformations

by a set of rules for matching and replacing pat-

terns. Since the algorithms for pattern matching and

replacement need not be provided by the user, rule-

based languages are located at a higher level of ab-

straction than procedural languages.

A model may be considered as a graph whose

nodes and edges correspond to the model’s objects

and links. Graph transformation rules (Ehrig et al.,

1999) are ideally suited for specifying model trans-

formations in a declarative way. Essentially, a graph

transformation rule consists of a left-hand side and

a right-hand side. The left-hand side describes the

graph pattern to be searched, while the right-hand side

deﬁnes the replacing pattern. Quite a number of graph

transformation languages have been proposed, includ-

ing PROGRES (Sch

urr et al., 1999), Fujaba (Norbis-

rath et al., 2013), GReAT (Agrawal et al., 2006), Gr-

Gen.NET (Jakumeit et al., 2010), Henshin (Arendt

et al., 2010), MDELab (Giese et al., 2009), VIA-

TRA2 (Varr

o and Balogh, 2007), eMOFLON (An-

jorin et al., 2011), and ModGraph (Buchmann et al.,

2011). Users of these languages specify transforma-

tions with the help of high-level graph transformation

rules. Users are not concerned with the algorithms for

pattern matching and replacement, which are taken

care of by the underlying execution engines.

To support the execution of graph transformation

rules, both interpreters and compilers have been de-

veloped. An interpreter provides excellent support

for debugging, which is slowed down by a compiler.

On the other hand, compiled code is more efﬁcient.

So far, compilers have translated graph transforma-

tion rules into conventional programming languages

such as Java, C, or C#. This approach results in rather

complicated generated code which is difﬁcult to un-

derstand.

In contrast, we have built a compiler which trans-

lates graph transformation rules into a procedural

language for behavioral modeling (Figure 1). The

compiler accepts ModGraph rules and translates them

into Xcore (Eclipse Foundation, 2013), a recently de-

veloped modeling language which is based on Ecore.

Xcore is a textual language which covers both struc-

tural and behavioral modeling. Our compiler trans-

forms ModGraph rules into procedural Xcore opera-

tions, speciﬁcally making use of Xcore’s expression

language. The Xcore environment in turn translates

Xcore into Java (and prospectively into other target

languages in the future). Within our work we follow

our goal to provide total model driven software en-

gineering as explained in (Winetzhammer and West-

fechtel, 2013). Xcore interacts with ModGraph in or-

415

Winetzhammer S. and Westfechtel B..

Compiling Graph Transformation Rules into a Procedural Language for Behavioral Modeling.

DOI: 10.5220/0004723604150424

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 415-424

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Xcore

JavaC++ C#

...

ModGraph

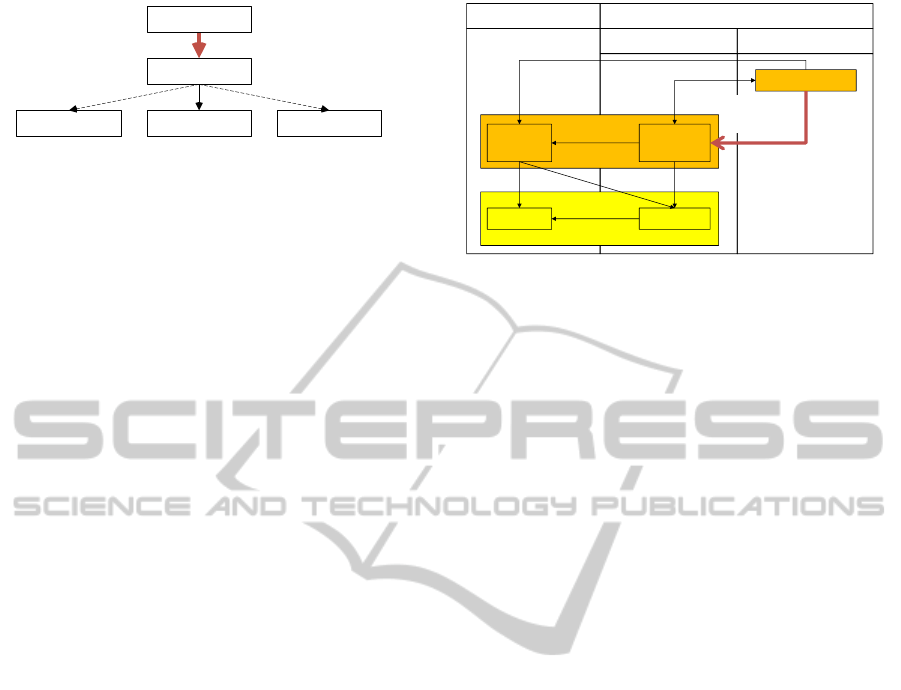

Figure 1: Staged translation.

der to provide high level control structures for rules.

The translation to Xcore uniﬁes the level of abstrac-

tion between rules and control ﬂow.

This staged translation approach (Figure 1) pro-

vides the following advantages over the traditional ap-

proach of compiling into a conventional programming

language directly, which is followed by all competing

tools:

Conciseness. The generated code is concise (but it

still takes care of the details of pattern matching

and replacement which should be shielded from

the user).

Readability. The generated code is human readable,

which facilitates e.g. code-level debugging.

Simplicity. The task of compiling is simpliﬁed sig-

niﬁcantly since Xcore provides more high-level

language constructs than conventional program-

ming languages such as Java.

Portability. With direct compilation into a program-

ming language, one compiler is required for each

target language. In our approach, the compiler

does not depend on the programming language

which is eventually used for execution.

2 OVERVIEW

The Eclipse Modeling Framework (EMF) (Steinberg

et al., 2009) has been designed with the intent to im-

prove the software process by providing lightweight

support for model-driven software engineering. For

this reason, EMF provides a fairly minimalistic meta-

model for structural modeling (Ecore, an implementa-

tion of Essential MOF (EMOF) (OMG, 2011)). Using

the components of the EMF core, software engineers

create Ecore models as instances of the Ecore meta-

model. From an Ecore model, the EMF code gener-

ator creates code for classes, including methods for

creating objects, assigning attribute values, as well as

creating and deleting links which implement the se-

mantics of Ecore. However, for user-deﬁned opera-

tions, the EMF code generator may only create empty

method bodies, which have to be ﬁlled in by the user.

ModGraph rules

Structure Behavior

Procedural Rule‐based

call

generate

Javaclasses

MethodsStructure

Xcoremodel

Xbase

operations

Structural

model

implement /

generate

reference

Figure 2: Interplay between ModGraph and Xcore.

Xcore (Eclipse Foundation, 2013) adds behavioral

modeling to EMF. Xcore provides a single language

for both structural and behavioral modeling. To this

end, Xcore introduces a textual syntax for Ecore mod-

els as well as procedural behavioral models. Xcore

is driven by the vision that software engineers need

no longer deal with code in a programming language

such as Java (as current programmers do not inspect

assembly or byte code). In Xcore, the sublanguage

Xbase (Efftinge et al., 2012) is used to model behav-

ior, i.e. the bodies of operations. Xbase is an ex-

pression language that was designed to be reused in

different domain-speciﬁc languages. Xbase expres-

sions provide both control structures and program ex-

pressions in a uniform way. Its program expressions

may be used e.g. for navigation in models and check-

ing constraints. Altogether, Xbase programs specify

computations in a procedural way at a higher level of

abstraction than Java.

ModGraph (Buchmann et al., 2011) is an EMF-

based language for specifying graph transformation

rules. With ModGraph, an operation deﬁned in an

Ecore model may be realized as a graph transforma-

tion rule (or rule in short form). A graph pattern

forms the core of a ModGraph rule. The graph pat-

tern describes both the pattern to be searched and the

replacing pattern in a single diagram. If no replace-

ment is speciﬁed, the rule describes a test or a query

rather than a transformation. In addition to the core, a

rule may comprise optional components such as tex-

tual pre- and postconditions and graphical negative

application conditions (NACs).

A graph pattern may be composed of several kinds

of nodes and edges. Nodes are distinguished into

a current object, named this, bound nodes, repre-

senting the non-primitive parameters of the operation,

and unbound nodes, representing the objects to be

searched in the model instance. Both may be single-

(simple object and parameter) or multi-valued nodes

(multi-object and multi-parameter). Nodes provide

a status which may be preserved (grey, no marker),

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

416

Listing 1: Deﬁnition of annotations.

1 annotation " http :// www . ec lipse . org / e mf /200 2 / Eco r e / OCL / Pi vot " as OCL

2 annotation " ht tp :/ / www . ec l i p s e . org / emf /20 0 2 / Eco r e " as Eco r e

3 annotation " ht tp :/ / www . ec l i p s e . org / emf /20 0 2 / G e nModel " as GenMode l

5 @G e n M o d e l ( l o ad I n i t ia l i za t i o n =" t rue " , o pe r a ti o n R ef l e c ti o n =" t rue " ,

6 model D i r e c t o r y = "/[ s o m e P ath ]/ s rc ")

7 @E c ore ( invo c a t i o nD e l e ga t e s =" htt p :// www . eclip s e . org / emf /20 0 2 / Eco re / OCL / Pivo t " ,

8 sett i n g D e l e ga t e s =" h ttp :// www . ec l i pse . org / emf /2 0 0 2/ Ec o re / O CL / Pi v ot ",

9 val i d a t i on D e l eg a t es =" htt p : // www . eclips e . org / emf /200 2 / Eco r e / OCL / Pi vot ")

created (green, ++), or deleted (red, −−). They

can be marked as return parameter (<<out>>) or

as optional (<<optional>>) nodes. Nodes to pre-

serve or to delete may be constrained, nodes to create

or to preserve may be modiﬁed, for example by set-

ting an attribute value or calling an operation (opera-

tion calls allow ModGraph rules to interact directly

with each other). All nodes may be connected by

two kinds of edges: links (instances of references)

and paths (derived references). Analogously to nodes,

links provide a status. Creation links instantiating

multi-valued references may be ordered. Paths are

marked with a path expression, written in OCL or

Xbase. Negative application conditions describe pat-

terns which must not occur when the main pattern has

been matched. NACs are speciﬁed in a similar way as

graph patterns; however, nodes and edges do not have

a status and nodes may only be single-valued.

The interplay between ModGraph and Xcore is il-

lustrated in Figure 2. The user deﬁnes the structural

model in Xcore’s textual notation. With respect to

behavioral modeling, the user may choose between

the procedural and the rule-based paradigm. Simple

operations may be deﬁned directly in Xbase. Com-

plex operations may be speciﬁed in ModGraph, tak-

ing advantage of its expressiveness and its easily read-

able graphical notation. If a complex operation may

not be coded as a single rule, the user may resort to

Xbase control structures for controlling the applica-

tion of multiple rules. In general, Xbase operations

may call ModGraph rules and vice versa. For the pur-

pose of execution, ModGraph rules are ﬁrst compiled

into Xcore operations. The second stage of compi-

lation (currently targeting Java) is performed by the

Xcore compiler. Please note that the user gets in touch

only with Xcore and ModGraph (orange boxes); there

is no need to inspect the generated Java code (yellow

boxes).

In the following sections, we will focus on the

ModGraph2Xcore compilation (see red and bold ar-

row in Figure 2).

3 CODE GENERATION

This section explains from scratch how ModGraph

generates Xcore code and injects it into the Xcore

model.

3.1 Preliminaries for Code Generation

The initial step of integrating a ModGraph rule into an

Xcore model is parsing. We use a recursive, heuristic

greedy algorithm to transform the rule’s graph pattern

into a forest of spanning trees. The forest speciﬁes the

reachability of nodes inside the graph pattern. A node

is reachable if it can be accessed from a non-primitive

parameter of the method or the current object using

links. The forest acts as a search plan and is built in

the following way:

(1) Each bound node in the pattern acts as root of

a tree inside the forest.

(2) Regarding all outgoing edges of the forest’s

nodes, select the instance of the reference with min-

imum multiplicity. Consider paths as multiplicity

many references. If two links instantiating references

of the same multiplicity exist, choose one randomly.

(3) Check if the link’s target node is mandatory and

not contained in any tree yet. If true, add it as a

child into the tree containing the source node. (4) Re-

peat steps (2) and (3) for all mandatory nodes. If any

mandatory node cannot be inserted into a tree it can-

not be bound, is therefore unreachable, and the match-

ing fails. (5) Repeat – without the mandatory check

– steps (2) and (3) for all optional nodes. (This pre-

vents the search of a mandatory object from an op-

tional one.)

For more information on the pattern matching pro-

cess, please refer to (Winetzhammer, 2012).

3.2 Injecting Code into the Xcore Model

Annotating the Xcore Model: Using ModGraph

with Xcore means adding OCL support and some

Genmodel speciﬁcations to the original model as

CompilingGraphTransformationRulesintoaProceduralLanguageforBehavioralModeling

417

Listing 2: Xcore Model for Refactoring.

1 class Re f a c t o r i n g {

2 re fers EO p e r a t i o n [] r e f er e n ce T o EO p e ra t i o n

3 re fers EC lass [] r e f e r en c e T oE C l a s s

4 re fers ER e f e r e n c e [] r e f er e n ce T o ER e f er e n c e

5 re fers EP a r a m e t e r [] r e f er e n ce T o EP a r am e t e r

6 re fers ESt r u c t u r al F e a tu r e [] r e fe r en c eT o E St r uc t ur a l Fe a tu r e

8 op voi d ch a ng e Un i To B id i re c ti o na l Re f e re n ce (

9 St r i ng c l a s s 1 N a m e , Stri n g cl a s s 2 N a m e )

10 op voi d co l l a ps e H i e ra r c h y ( Cl a ssType c l a s s T y p e ,

11 EC l a ss s u p e r C l a s s , ECla s s su bClass )

12 op voi d r e m o v e S u b ( ECla s s su p e r C l a s s , E C l ass s u bClass )

13 op voi d re m o v e S u p e r ( ECla s s su p e r C l a s s , E C lass su b C l a ss )

14 }

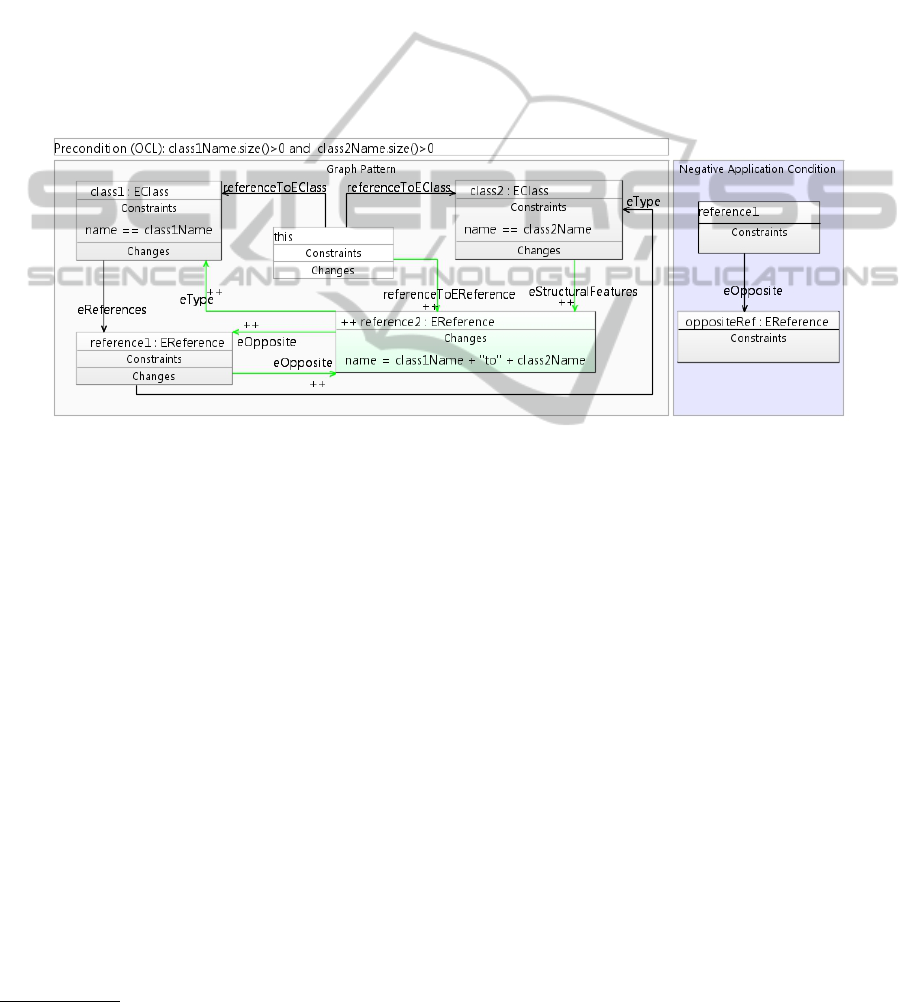

Figure 3: ModGraph rule for changeUniToBidirectionalReference(String class1Name , String class2Name).

shown in Listing 1. Therefore we deﬁne annotations

(including Xcore aliases) to ensure that the Xcore

code generator works with correct parameters.

Concerning OCL we add EMF provided invoca-

tion, setting and validation delegates using the Eclipse

OCL Pivot evaluation. The Pivot evaluator is used

here because of its full OMG compliance

Furthermore we add some Genmodel directives,

e.g. to ensure the operation reﬂection is set true to

make OCL work or for documentation purposes.

Please note that these changes are applied once for

each Xcore model, no matter how many operations

are implemented within ModGraph.

Annotating the Xcore Operation: In this step we

parse the Xcore model until the rule’s implemented

operation is found. The generator annotates the oper-

ation implemented by the ModGraph rule depending

on it’s content.

In each case it creates an Xcore Genmodel doc-

umentation annotation. This annotation is used

See eclipse help: http://help.eclipse.org/kepler/index.jsp

twofold: It contains a note that this Xcore code is

generated by ModGraph as well as the comment on

a ModGraph rule.

Using ModGraph, you may write pre- and post-

conditions in OCL or Xbase. If there are any OCL

pre- or postconditions, they are translated into Xcore

OCL annotations. (Xbase conditions are integrated

into the operation’s body within the subsequent step.)

Implementing the Operation’s Body with Xbase:

Inside the operation’s body, the generated Xbase code

is structured as follows: (1)Check the rule’s precondi-

tions written in Xbase. (2)Deﬁne all variables needed

to perform the transformation. (3) Generate code for

pattern matching using nested for-loops. (4)Within

the most inner loop check the negative application

condition using an additional if-condition. (5) If any

object cannot be matched, an exception of type GT-

Failure is thrown. If all objects could be matched, go

on. (6) Calculate all attribute values on the pre-state

of the model. These values are stored in ﬁnal vari-

ables. (7) Delete or change objects and links between

them and create new ones. (8) If there is any opera-

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

418

tion call inside the rule, call the operation. (9) Check

Xcore postconditions. (10) Return what needs to be

returned.

4 EXAMPLE

This section provides concrete examples on the code

generation mechanism described above. Therefore

we consider two refactoring operations on an Ecore

model: changing an unidirectional reference to a bidi-

rectional one and collapsing the hierarchy between

two classes as deﬁned by Fowler (Fowler, 1999).

These examples have been selected (and slightly

adapted for demonstration purposes) from a bachelor

thesis (D

ummel, 2013) in which a much more com-

prehensive set of refactoring operations has been im-

plemented with ModGraph transformation rules.

The structure of our simple refactoring is de-

scribed textually in Xcore as shown in Listing 2. A

refactoring class references elements of the Ecore

model to be refactored, and deﬁnes the refactoring op-

erations to be applied. Each refactoring operation is

applied to model elements ﬁxed by parameters. The

operations are invoked through an interactive user in-

terface. For demonstration purposes, both strings and

objects are used to identify model objects. In the ﬁrst

example, the use of string parameters implies the in-

sertion of nested loops into the generated code. In the

second example, objects are used instead of strings to

focus on other issues of code generation. In the actual

implementation (D

ummel, 2013), model objects are

identiﬁed consistently by strings for implementation-

speciﬁc reasons.

To get a clear impression of the pattern matching

in Xcore, we consider the refactoring rule to change

a unidirectional reference into a bidirectional one as

shown in Figure 3. Since only the classes’ names are

given as parameters of the operation, a precondition,

written in OCL ensures them not to be empty or null.

The graph in the graph pattern shows the pattern to be

matched: starting at the current object named this,

two classes with the given names need to be found.

The class we call class1 needs to contain a reference

typed over class2. In that case the negative applica-

tion condition (NAC) ensures that the reference does

not have an opposite set yet. If all these conditions are

fulﬁlled, an opposite reference is created and embed-

ded into the model by setting the links marked with

++ and colored green.

The Xcore code generated for this rule is shown in

Listing 3. In line 1 a Genmodel annotation is used to

mark the operation as generated by ModGraph. Line

2 checks the OCL precondition (in Figure 3 at the

top), using the EMF OCL Pivot evaluator via an an-

notation. Line 3 & 4 show the Xcore generated oper-

ation head. For each bound object in the rule’s graph

pattern, the generator declares variables as shown in

lines 5-7. Lines 8-19 show the matching, which is

implicitly given in the ModGraph rule. Nested for-

loops are built up according to the spanning forest de-

scribed in 3.1. These for-loops also use the Xbase

λ-expression language to ﬁlter the collections they it-

erate by the constraints given to the objects in the rule,

e.g. name == class1Name. The most inner loop con-

tains an if condition, that checks the NAC. If match-

ing succeeds, the variables deﬁned above the loops

are initialized. Unfortunately Xcore does not support

break-commands. Therefore, the variables are initial-

ized with the last match found

. Line 19 checks if

matching has succeeded; otherwise, an exception is

raised.

Line 20 shows the calculation of the name for

the new reference depending on the pre-state of the

model. The reference itself is created in line 21 and its

name is set to the calculated one in line 22. Lines 23

to 27 put the new reference into its context executing

the following expressions: The new reference’s oppo-

site is set to the existing one and vice versa. class2

is set as a container for the new reference by adding

it to its structural features. The refactoring class adds

the new reference and the reference’s type is set to

class1.

The second refactoring rule shown here is col-

lapse hierarchy. It shows the interplay of procedu-

ral and rule-based operations. For simpliﬁcation we

assume that there is only one subclass to a super-

class

. Collapsing a hierarchy means eliminating ei-

ther the sub- or the superclass. Both possibilities may

be modeled in separate ModGraph rules implement-

ing the methods removeSub and removeSuper. The

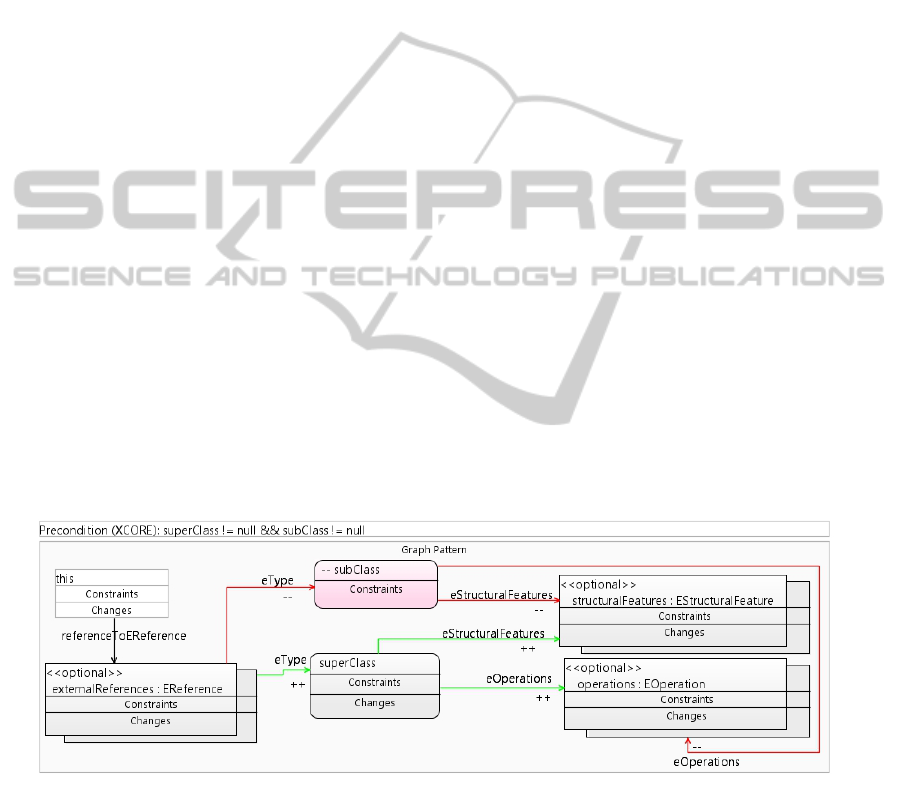

rule to remove the subclass is shown in Figure 4. An

Xcore precondition ensures the parameters not to be

null

. The graph pattern shows the superclass and

the subclass as well as all its operations and struc-

tural features, which need to be shifted to the super-

class. Additionally all references typed over the sub-

class need to be retyped by the superclass. All fea-

tures are marked optional because if there is none, the

rule may be executed anyway. The ModGraph rule

for removing the superclass works analogously.

Since we expect that break-commands will be added

soon to Xcore, we refrain from rewriting the generated code

with more awkward while-loops returning the ﬁrst match.

The presence of another subclass may be excluded by

a negative application condition in a similar way as already

demonstrated in Figure 3.

This precondition is redundant and has been added to

demonstrate that Xcore expressions may be used alterna-

tively to OCL expressions.

CompilingGraphTransformationRulesintoaProceduralLanguageforBehavioralModeling

419

Listing 3: Generated Xcore implementation of method changeUniToBidirectionalReference.

1 @Gen M od e l ( doc u m e n t at i o n =" G en e ra t e d by Mod G ra p h . ")

2 @ OCL ( pre_ p re 1 =" c la s s 1 Na m e . size () >0 a n d cl a ss 2 Na m e . size () > 0 ")

3 op v o id cha ng eU ni To B i d i r e c t i o n a l R e f e r e n c e (

4 Str i ng cla s s1 N am e , Strin g cl a ss 2 N a me ) {

5 var E C la s s cl a s s1 = nu l l

6 var E C la s s cl a s s2 = nu l l

7 var E Re f e r en c e ref e re n ce 1 = null

8 for ( _ c l as s 1 : r ef e r e n c e T oE Cl a s s . fi l ter (e| e . name == c la s s1 N a m e )) {

9 for ( _ c l as s 2 : r ef e r e n c e T oE Cl a s s . fi l ter (e| e . name == c la s s2 N am e )){

10 for ( _ r ef er e nc e 1 : c l as s 1 . E R ef e r e nc e s . filt e r (e |e . E T y pe . equal s ( _c l a ss 2 ))) {

11 if (! ( ref e re n ce 1 . E O pp o si t e != null )) {

12 cla s s1 = _ c la s s 1

13 cla s s2 = _ c la s s 2

14 re f er e n c e1 = _ref e re n c e 1

15 }

16 }

17 }

18 }

19 if( class 1 == null ) th r o w n e w GTF a il u re

20 val r e f e r e n c e 2N am eV a l u e = c l a ss 1 Na m e + " to " + cl a ss 2 N a me

21 var r ef e r e nc e 2 = E co r e F ac t o r y :: e I NS T AN C E . cre at e E R e f er en c e ()

22 r e fe r en c e 2 . name = r ef er en c e 2 N a m e V a lu e

23 r e fe r en c e 2 . EO p p o s i t e = r e f e re n ce 1

24 r e fe r en c e 1 . EO p p o s i t e = r e f e re n ce 2

25 cl a ss2 . ES t r u c t u r a l F e at ur e s . a d d ( ref er e nc e 2 )

26 r ef e r e n c e T o E R e f e r e nc e . a d d ( re f er e n c e2 )

27 r e fe r en c e 2 . ETy p e = class1

28 }

Listing 4: Xcore implementation of method collapseHierarchy.

1 op v o id col l a p se Hi e r a r c h y ( Cl a s s Ty p e classType , EC l ass super C l ass , EC l ass sub C la s s ){

2 if ( cla s sT y pe == Cla s sT y pe :: S UP E R _ CL A SS )

3 re m ov e S u pe r ( su p e rCla s s , subCl a ss )

4 if ( cla s sT y pe == Cla s sT y pe :: S UB _ CL A SS )

5 re m ov e Su b ( sup e r Clas s , s ub C la s s )

6 }

Figure 4: ModGraph rule for removeSub(EClass superClass , EClass subClass).

As we do not want to split up this refactoring, we

use Xcore’s procedural capabilities and write a third

method encapsulating the other two. This method is

called collapseHierarchy. It acts as a control ﬂow

determining which of the two generated methods will

be called. Its Xcore implementation is shown in lines

1-6 in Listing 4.

Listing 5 shows the generated Xcore code for the

ModGraph rule removeSub. Lines 1 and 2 show the

comment complementing the rule. Line 3 contains

the head of the method. Line 4 checks the Xcore

precondition. Lines 5–7 declare variables for stor-

ing matches of multi-objects. In lines 8–11, values

for these variables are retrieved which are assigned in

lines 12–14. Line 15 removes the subclass. Lines 16

and 17 assign the structural features and operations

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

420

Listing 5: Generated Xcore implementation of method removeSub.

1 @G e n M o d e l ( d o c u m en t a t i o n =" Gen e r a t e d by M o d G r a p h : Re moves the

2 su b c l a s s . Par t of the c o l l a p s e hi e rarchy r e f a c t or i n g . ")

3 op v oid re moveSub ( EC l ass s u p e r C l a s s , E C l ass s u b Class ) {

4 if (! ( su p e r C l a s s != nul l && subCla s s != nul l )) th r ow new G T F ailure

5 var EList < ES t r ucturalFeatu r e > s t r u c tu r a l Fe a t u re s = nul l

6 var EList < E O per a tio n > op e r a t i o n s = n ull

7 var EList < E R efe r enc e > ex te r n al R e f e re n c e s = null

8 val _ o p e r a t i o n s = su b C l a ss . EOperat i o n s

9 val _ s tr u c t ur a l Fe a t u re s = su b C l ass . E S t r u c t ur a l Fe a t u re s

10 val _ e xt e r n al R e fe r e n ce s = refe r e n c eT o E R ef e r en c e

11 . fi l ter (e | e . E Typ e . equ a l s ( subC l a s s )) . as E L i s t

12 str u c t u r a lF e a t ur e s = _st r u c t u r al F e at u r e s

13 op e r a t i o n s = _o p e r a t i o n s

14 ext e r n a l R ef e r e nc e s = _ex t e r n a l Re f e re n c e s

15 org :: ec l i p s e :: emf :: ecor e :: ut il :: Ecor e U t i l :: r e move ( su b C l ass )

16 su p e r C l a s s . E St r u ct u r a lF e a t ur e s . a d dAll ( s t ru c t u ra l F e at u r e s )

17 su p e r C l a s s . E O p e r a t i on s . add A l l ( operations )

18 ext e r n a l R ef e r e nc e s . f o r E ach (e | e . E T ype = su p e r C l a s s )

19 }

21 op v oid re m o v e S u p e r ( ECla s s su p e r C l a s s , E C lass su b C l a s s ) {

22 /* an a l o g o u s l y to r e m o v e S u b */

23 }

to the superclass, respectively, and line 18 retypes the

references.

5 DISCUSSION

This section discusses the advantages of our staged

transformation approach. To this end, we consider the

three implementations to delete a subclass in an Ecore

model in order to collapse the hierarchy: the Mod-

Graph rule (Figure 4), the generated Xcore implemen-

tation (Listing 5), and the Xcore generated Java code

(Listing 6).

Comparing the ModGraph rule to the Xcore im-

plementation, we observe that a rule is still more intu-

itive than the generated code: its clearly structured

format with the graphical, color-coded, nodes and

edges visualize the pattern to be matched and the ac-

tions to be performed.

The Xcore code is a clearly structured, target lan-

guage independent text which we consider to be still

concise and simple enough to be human readable. Its

high level of abstraction increases the readability es-

pecially when the functional expressions provided by

Xbase come into play.

The generated Xcore code shown in Listing 5

could be written more concisely if written by hand. In

fact, lines 5–14 could be expressed by only three lines

of hand-written code. In contrast, the code generator

creates declarations of variables which are assigned

values only when a complete match has been found.

During the matching, ﬁnal variables are used to store

partial matches. In this way, it can be checked con-

veniently whether matching has succeeded (if it has

not, the non-ﬁnal variables will still be null). This

code generation approach supports the most general

case, in which matching has to be performed in (po-

tentially nested) loops (see Listing 3 for the refactor-

ing rule converting a unidirectional to a bidirectional

reference).

This example demonstrates that hand-written code

may be shorter than generated code. This is not sur-

prising and quite common. Nevertheless, the gener-

ated code is still concise and readable. Thus, debug-

ging may be performed quite conveniently on the gen-

erated code.

The result of compiling the Xcore code of List-

ing 5 to Java code is shown in Listing 6. Comparing

them, we note a signiﬁcant difference in length: The

generated Java code is much longer than the Xcore

code. Furthermore, the Java code is much more dif-

ﬁcult to read. This results from Xcore’s higher level

abstraction. Compare, e.g., the precondition initially

written as one line Xcore expression in the rule in Fig-

ure 4 and the Xcore implementation in Listing 5. The

Java implementation uses lines 6–19 to ensure this

condition. A closer look at the Xcore generated Java

code reveals that internal functions need to be called

or even implemented. The ﬁlter function shown in

Listing 5, lines 10–11 to ﬁlter the references typed

CompilingGraphTransformationRulesintoaProceduralLanguageforBehavioralModeling

421

Listing 6: Xcore Generated Java Code for method removeSub.

1 / * *

2 * <!- - begin - user - doc - -> <! - - end - user - doc - ->

3 * @ g en e ra t ed

4 */

5 p ubl i c v oid remo v eS u b ( final EClas s super C l ass , fi n al EClass sub C la s s ){

6 try {

7 boo l ea n _and = fal s e ;

8 boo l ea n _n o tE q u a ls = (! Objec t s . equal ( superCl a s s , n ull ));

9 if (! _n o tE q u a ls ) {

10 _and = f a l se ;

11 } e lse {

12 bo o le a n _no t Eq u a l s_ 1 = (! Obj e ct s . equa l ( s u bClass , null ));

13 _and = ( _ n ot E qu a ls && _n o tE qu a ls _ 1 );

14 }

15 boo l ea n _not = (! _an d );

16 if ( _not ) {

17 G T Fa i lu r e _gT F ai l ur e = new GT F ai l ur e ();

18 thr o w _ g TF a il u re ;

19 }

20 EList < ES t ru c tu r al F ea t ur e > str uc tu r a l F e a t ur es = n u ll ;

21 EList < E Oper a t ion > o pe r at i on s = null ;

22 EList < E Refe r e nce > e x t er na l R e f e r e nc es = n u ll ;

23 fina l EList < E O p era t i on > _ o pe r a t io n s = s u bC l as s . g e t E Op er a t i on s ();

24 fina l EList < E St r uc t ur a lF e at u re > _st r u c tu ra lF e a t u r e s =

25 sub C la s s . ge t E S t r u c t u ra lF ea tu r e s ( ) ;

26 Re f a c to r in g _t h i s = this ;

27 EList < E Refe r e nce > _ r e f e r e nc eT oE Re f e r e n c e =

28 _t h i s . ge t R e fe re nc eT oE Re fe r e n c e ( ) ;

29 fina l Functi o n 1 < ERefere n c e , Boolean > _ fu n ct i on =

30 new Fun c t i on1 < E R e fer e n ce , Boolean > ( )

31 {

32 pu b lic Bool e an apply ( final ERe f er e nc e e){

33 E C la s s i fi e r _eTyp e = e . get E Ty p e ();

34 bo o le a n _equa l s = _e T ype . e qua l s ( subC l as s );

35 re t urn Bool e an . val u eOf ( _eq u al s );

36 }

37 };

38 Iterable < E R efer e n ce > _f i lt e r = I te r a b l e E x te ns i o n s .< ER e f ere n c e > filt e r (

39 _ r ef e r e nc e T o ER e fe r e n ce , _func t i o n ) ;

40 fina l EList < E R e fer e n ce > _ e x t e r n a lR ef er e n c e s = ECo l l e ct i o n s . < E R efer e n ce > a s EL i st (

41 (( E R e f er e nc e []) Co n v e rs i on s . u n w r ap A r r ay ( _filter , E Re f er en c e . class )));

42 s t ru ct u r a l F e a t u re s = _ s t ru ct u r a l F e a t u r e s ;

43 op e ra t i o ns = _ o p er a t i on s ;

44 e x te rn a l R e f e r e n ce s = _ e x te rn a l R e f e r e n c e s ;

45 Ec o re U ti l . re m ove ( sub C la s s );

46 EList < ES t ru c tu r al F ea t ur e > _e S tr uc tu r a l F e a t u r e s =

47 su p er C la s s . ge tE S t r u c t u r a l F e a t u r e s ();

48 _ e St ru ct ur a l F e a t u r e s . addA l l ( s t r u c t u r al Fe at u r e s );

49 EList < E Oper a t ion > _ eO p e r at i o n s = s up e rC l as s . g e t E O p er a t i o n s ();

50 _e O p e ra t i o ns . add A ll ( ope r at i o n s ) ;

51 fina l Proce d u re1 < E R efer e n ce > _ f un c t i on _ 1 = new Procedur e 1 < ERefer e n ce > ( )

52 {

53 pu b lic void a p ply ( final ERe f er e nc e e) {

54 e. s e tE T yp e ( s u pe r Cl a ss );

55 }

56 };

57 I t er ab l e E x t e n s i on s . < E R efer e n ce > f o rE a ch ( ext e rn a lR e fe r e n c e s , _fun c t i on _ 1 );

58 } catch ( T hr o wa b le _e ){

59 thro w Ex c ep t io n s . sn e ak y Th r o w ( _e ) ;

60 }

61 }

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

422

Table 1: Graph transformation languages and tools.

language/tool interpreter compiler target language(s) (if compiled)

eMOFLON (Anjorin et al., 2011) x x Java

Fujaba (Norbisrath et al., 2013) x x Java

GReAT (Agrawal et al., 2006) x - -

GrGen.NET (Jakumeit et al., 2010) - x C#

Henshin (Arendt et al., 2010) x - -

MDELab (Giese et al., 2009) x - -

ModGraph (x) x Xcore or Java

PROGRES (Sch

urr et al., 1999) x x C or Java

VIATRA2 (Varr

o and Balogh, 2007) - x Java

over the subclass is mapped to lines 38–41 in List-

ing 6. An additional Java ﬁlter function is called to

map the procedural expression to Java. The foreach-

expression shown in Listing 5, line 18, even forces

a re-implementation to be mapped to Java, see lines

51–57.

Altogether, these considerations reinforce the

claims stated at the end of Section 1: In fact, the

generated Xcore code is concise, readable, and sim-

ple. In addition, it is also portable since Xcore could

be mapped to other target languages, as well. Thus,

we have clearly demonstrated the advantages of the

staged translation approach (Figure 1).

6 RELATED WORK

In (Winetzhammer and Westfechtel, 2013) we already

gave an overview on how Xcore and ModGraph inter-

act on code level. Here we make Xcore and Mod-

Graph interact on model level.

Code level interaction means that a graph trans-

formation rule is speciﬁed which is based on a method

deﬁned in an Xcore model; subsequently, Java code is

generated from the ModGraph rule and injected into

the Xcore generated Java code. That means the Xcore

model is completely independent of the ModGraph

rule and leads to a fully compiled solution: both tools

meet at the generated Java code.

The approach described here goes beyond our pre-

vious work. As before, an operation deﬁned in an

Xcore model is speciﬁed by a ModGraph rule. How-

ever, the implemented operation is not compiled di-

rectly to Java code. Instead, we use a staged trans-

lation approach: The rule is compiled into Xcore

code and injected at model level into the textual Xcore

model. Hence we do not leave the model level as we

do in (Winetzhammer and Westfechtel, 2013). In this

way, ModGraph code is independent of the program-

ming language. In our new approach, the code gen-

eration to Java (and possibly other languages) is com-

pletely left to the Xcore generator. Another advan-

tage of compiling into a procedural behavioral mod-

eling language relies on the fact that such a language

resides on a higher level of abstraction than a conven-

tional programming language.

As a side note, we mention that generation of

Xcore code implies partial support of interpretation

of ModGraph rules: Since the generated code is quite

concise and human readable, the Xcore interpreter

may be used conveniently for testing and debugging

ModGraph rules. This is a low-cost alternative to im-

plementing a full-ﬂedged rule-level interpreter.

Concluding, we developed a compiler from graph

transformation rules using a procedural language for

behavioral modeling. The result of compilation is in-

terpretable as well as compilable. A staged transfor-

mation approach is used to make the generated code

independent of the programming language which is

eventually used for execution.

Table 1 provides a short comparison of related

tools / languages. Here we consider only tools related

to EMF and based on the theory of graph transforma-

tion. Some tools provide a direct interpreter. Quite

a number of tools compile graph transformation rules

into widely used programming languages such as C,

C#, or Java. Only ModGraph provides model-level

code generation (into Xcore code). None of the com-

peting tools supports a staged translation approach as

illustrated in Figure 1.

7 CONCLUSIONS

We have presented a new approach of compiling high

level graph transformation rules into a procedural lan-

guage for behavioral modeling (Xcore). Using this

approach, the modeler may resort to graph transfor-

mation rules for complex operations, while simple op-

erations may be directly implemented in Xcore us-

ing Xbase. We described the mechanisms of inject-

ing graph transformation rules into the Xcore model.

CompilingGraphTransformationRulesintoaProceduralLanguageforBehavioralModeling

423

The resulting code may be compiled as well as inter-

preted. It is much more concise, readable, and simple

than programming language code due to the fact that

we do not leave the modeling level. Furthermore, the

Xcore code is portable since it is programming lan-

guage independent. The approach presented here is

unique with respect to these properties: All compet-

ing tools for generating code from graph transforma-

tion rules create code in a conventional programming

language (see Section 6).

REFERENCES

Agrawal, A., Karsai, G., Neema, S., Shi, F., and Vizhanyo,

A. (2006). The design of a language for model trans-

formations. Software and Systems Modeling, 5:261–

288.

Anjorin, A., Lauder, M., Patzina, S., and Sch

urr, A. (2011).

eMoﬂon: Leveraging EMF and Professional CASE

Tools. In INFORMATIK 2011, volume 192 of Lecture

Notes in Informatics, page 281, Bonn. Gesellschaft f

Informatik, Gesellschaft f

ur Informatik. extended ab-

stract.

Arendt, T., Biermann, E., Jurack, S., Krause, C., and

Taentzer, G. (2010). Henshin: Advanced concepts

and tools for in-place EMF model transformations. In

Petriu, D. C., Rouquette, N., and Haugen, Ø., editors,

Proceedings 13th International Conference on Model

Driven Engineering Languages and Systems (MOD-

ELS 2010), Part I, volume 6394 of Lecture Notes

in Computer Science, pages 121–135, Oslo, Norway.

Springer.

Buchmann, T., Westfechtel, B., and Winetzhammer, S.

(2011). ModGraph — A Transformation Engine

for EMF Model Transformations. In Proceedings

of the 6th International Conference on Software and

Data Technologies (ICSOFT 2011), pages 212 – 219,

Sevilla, Spain.

Czarnecki, K. and Helsen, S. (2006). Feature-based sur-

vey of model transformation approaches. IBM Sys-

tems Journal, 45(3):621–646.

ummel, N. (2013). Refactoring mit Graphtransforma-

tionsregeln. Bachelor thesis, University of Bayreuth,

Bayreuth, Germany.

Eclipse Foundation (2013). Xcore.

http://wiki.eclipse.org/Xcore.

Efftinge, S., Eysholdt, M., K

ohnlein, J., Zarnekow, S., Has-

selbring, W., von Massow, R., and Hanus, M. (2012).

Xbase: Implementing domain-speciﬁc languages for

java. In GPCE ’12 Proceedings of the 11th Inter-

national Conference on Generative Programming and

Component Engineering, pages 112–121. ACM, New

York, NY, USA.

Ehrig, H., Engels, G., Kreowski, H.-J., and Rozenberg, G.,

editors (1999). Handbook on Graph Grammars and

Computing by Graph Transformation: Applications,

Languages, and Tools, volume 2. World Scientiﬁc,

Singapore.

Fowler, M. (1999). Refactoring: Improving the Design of

Existing Code. Addison-Wesley, Boston, MA, USA.

Giese, H., Hildebrandt, S., and Seibel, A. (2009). Im-

proved ﬂexibility and scalability by interpreting story

diagrams. In Boronat, A. and Heckel, R., editors, Pro-

ceedings of the 8th International Workshop on Graph

Transformation and Visual Modeling Techniques (GT-

VMT 2009), volume 18 of Electronic Communications

of the EASST, York, UK. 12 p.

Jakumeit, E., Buchwald, S., and Kroll, M. (2010). Gr-

Gen.NET — the expressive, convenient and fast graph

rewrite system. International Journal on Software

Tools for Technology Transfer, 12:263–271.

Norbisrath, U., Z

undorf, A., and Jubeh, R. (2013). Story

Driven Modeling. CreateSpace Independent Publish-

ing Platform. ISBN-10: 1483949257.

OMG (2011). Meta Object Facility (MOF) 2.0

Query/View/Transformation, v1.1. OMG.

Sch

urr, A., Winter, A., and Z

undorf, A. (1999). The PRO-

GRES approach: Language and environment. In

Handbook of Graph Grammars and Computing by

Graph Transformation: vol. 2: Applications, Lan-

guages, and Tools, pages 487–550. World Scientiﬁc

Publishing.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF Eclipse Modeling Framework. The

Eclipse Series. Addison Wesley, Boston, MA, 2nd edi-

tion.

Varr

o, D. and Balogh, A. (2007). The model transforma-

tion language of the VIATRA2 framework. Science of

Computer Programming, 68(3):214–234.

Winetzhammer, S. (2012). ModGraph — generating ex-

ecutable EMF models. In Margaria, T., Padberg, J.,

Taentzer, G., Krause, C., and Westfechtel, B., editors,

Proceedings of the 7th International Workshop on

Graph Based Tools, volume 54 of Electronic Commu-

nications of the EASST, pages 32–44, Bremen, Ger-

many. EASST.

Winetzhammer, S. and Westfechtel, B. (2013). ModGraph

meets Xcore: Combining rule-based and procedural

behavioral modeling for EMF. In Tichy, M., Ribeiro,

L., Margaria, T., Padberg, J., and Taentzer, G., edi-

tors, Proceedings of the 12th International Workshop

on Graph Transformation and Visual Modeling Tech-

niques (GTVMT 2013), volume 58 of Electronic Com-

munications of the EASST, page 13 p., Rome, Italy.

EASST.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

424
