Homogeneous Wireless Sensor Network Programming

using MuFFIN

Rui Pires, Francisco Martins and Dulce Domingos

Universidade de Lisboa, Faculdade Ci

encias & Lasige, Lisbon, Portugal

Keywords:

Sensor Networks, Middleware, Virtual Machines, Remote Sensor Reprogramming.

Abstract:

Web services have been used as an homogeneous interface between client applications and sensor networks.

The MuFFIN middleware makes possible for a client application to remotely (re)program sensor networks.

However, this (re)programming is dependent on the characteristics of the hardware or of the programming

languages provided by manufacturers. To generalize this feature, we propose a middleware extension to

include the execution of code on behalf of sensor devices in case they are not (re)programmable. As a proof of

concept, we use the MuFFIN middleware and the Callas sensor programming language together with its virtual

machine. Additionally, we extend the MuFFIN with a component that supports the communication between

two wireless sensor networks. This way, messages can ﬂow from one network to another one without the

intervention of the client application, reducing the number of messages exchanged between sensor networks

and client applications.

1 INTRODUCTION

Sensor networks consist of a set of interconnected de-

vices that can gather information about the environ-

ment that surrounds them. Due to its sensing capa-

bilities, these networks are widely used in various ar-

eas such as security, defense, trafﬁc management, and

process automation.

Given the wide heterogeneity of sensors available

in the market, Web services have been used to provide

a uniform interface to interact with sensors. These

Web services may be available in the sensors them-

selves or through middleware systems (Zeng et al.,

2011). MuFFIN is an example of this kind of mid-

dleware, which also provides a Web service for re-

mote sensor (re)programming, when this functional-

ity is supported either by the sensor’s hardware or via

a software layer added to the sensor devices (Valente,

2011).

In order to make available the reprogramming ca-

pability for all kinds of sensor devices, we propose to

extend the middleware system to include the ability to

execute code in place of the sensors that are not repro-

grammable. Additionally, to address the communica-

tion between sensor networks, we developed a new

middleware component that handles the routing and

the conversion of messages. This way, it is possible

to reduce the number of exchanged messages between

sensor networks and high-level applications, decen-

tralizing the decision-making process to the middle-

ware or to sensor networks (Haller et al., 2008).

The paper is organised as follows. Section 2 de-

scribes a use case scenario and we present related

work in section 3. Section 4 describes the approach

for extending MuFFIN, whereas Section 5 reports on

the solution we propose to establish communication

between sensor networks at the middleware system.

Finally, sections 6 and 7 discuss an assessment we

made to the middleware and draw our conclusions,

respectively.

2 MOTIVATION SCENARIO

We present a use case scenario that is used along the

paper: a temperature and humidity control system of

an historical documents archive. To this end, there

exists a sensor network that monitors both the tem-

perature and the humidity of the rooms and another

network of actuators that controls the air conditioning

equipment. The monitoring application deﬁnes the

behavior of the sensors in order to be notiﬁed when

the temperature values are outside the range of 16

to 20

C or the humidity is outside the range of 45%

to 60%. Due to an inﬁltration, there is the need to

change the behavior of the sensors in order to moni-

127

Pires R., Martins F. and Domingos D..

Homogeneous Wireless Sensor Network Programming using MuFFIN.

DOI: 10.5220/0004730501270132

In Proceedings of the 3rd International Conference on Sensor Networks (SENSORNETS-2014), pages 127-132

ISBN: 978-989-758-001-7

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

tor the humidity in regular time intervals and to detect

in advance if the dehumidiﬁcation system is powerful

enough to handle this exceptional situation. For that,

sensors need to be reprogrammed. With the extension

of the MuFFIN middleware proposed in this paper,

this reprogramming can be performed regardless of

the capabilities of the sensors.

3 RELATED WORK

We group the related literature on middleware tech-

nologies and on virtual machines. On what concerns

middleware, the Sensor Web Enablement standards

(SWE) from the Open Geospatial Consortium (OGC)

deﬁne a set of interfaces and metadata aimed at hiding

the details of communication and the heterogeneity

of sensors. The Sensor Event Service standard (SES)

manages subscriptions and ﬁlters; the Sensor Obser-

vation Service standard (SOS) provides a standard-

ized way to access data from observations of the de-

vices; the Observation and Mesurement standard (O&

M) provides a schematic representation of the mea-

surements and observations received from sensors;

and SensorML speciﬁes models and XML schemas

to describe sensor networks.

Existing middleware systems provide sensor in-

formation through web services and interact with

sensor networks through gateways, which encapsu-

late sensor speciﬁcities (Valente, 2011; Kansal et al.,

2007; Br

oring et al., 2011). In particular, the Mid-

dleware Framework For the Internet of Things (MuF-

FIN) (Valente, 2011; Valente and Martins, 2011) fol-

lows the SWE standard, including SOS for making

available sensor data to applications, the O&M for

storing the data from sensor networks, and the Web

Service Notiﬁcation (WS-N) (Huang and Gannon,

2006) for notifying applications via web services.

MuFFIN is implemented on top of FuseESB

and its

modules follow the publish/subscribe paradigm. Fig-

ure 1 depicts the MuFFIN architecture.

As for virtual machines, Squawk (Simon and Ci-

fuentes, 2005) is a Java Virtual Machine (JVM) de-

signed to run on devices without an operating system

installed, having been tested on SunSPOT devices.

This virtual machine has the abilities to run multiple

applications simultaneously and to migrate applica-

tions to other devices as long as they run the same

virtual machine. Mat

e (Levis and Culler, 2002) is

a communication system based on a virtual machine

Open Geospatial Consortium —

http://www.opengeospatial.org/

Fuse ESB — http://fusesource.com/products/enterprise-

servicemix/

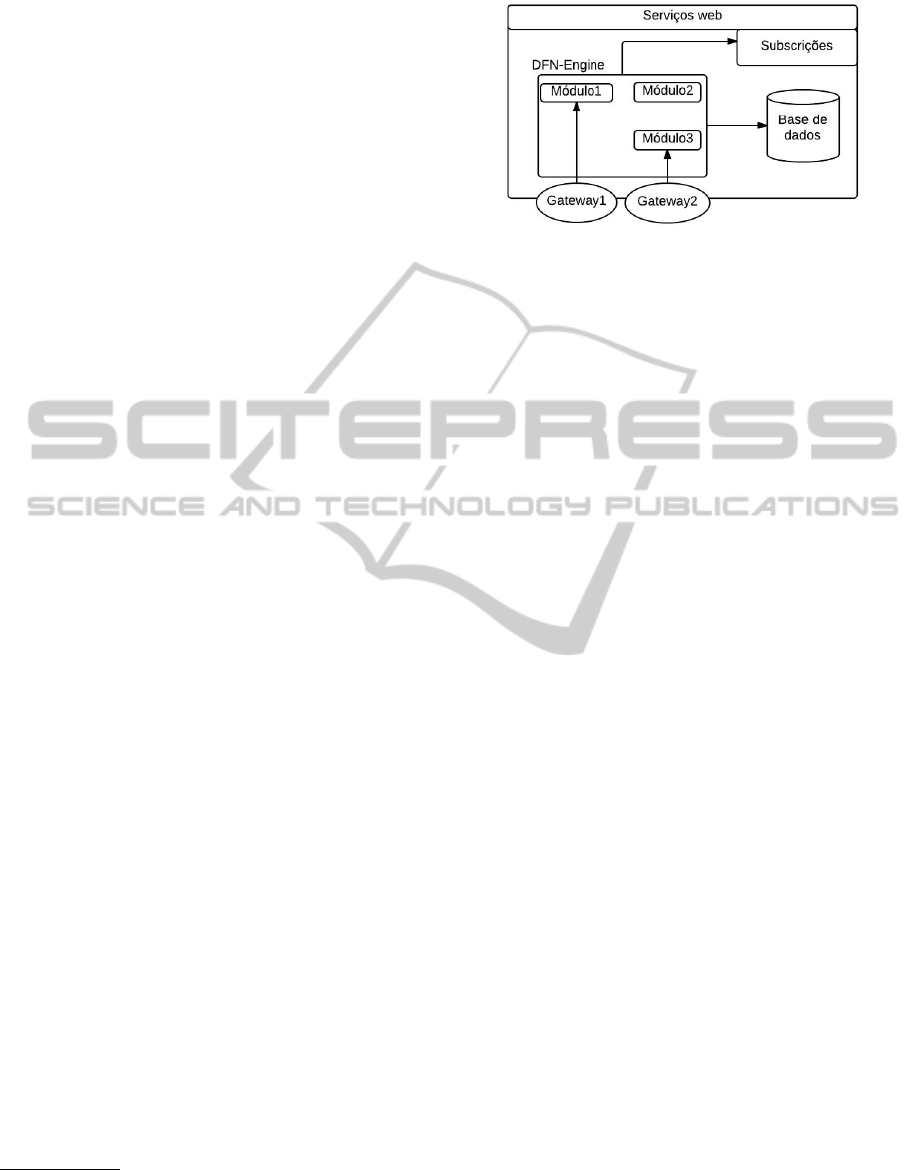

Figure 1: MuFFIN architecture.

for sensor networks, breaking complex programs into

small programs in order to reduce energy costs asso-

ciated with the transmission of programs. This vir-

tual machine runs on TinyOS and only requires 1kb

of RAM and 16KB of memory for instructions.

At last, the Callas Virtual Machine (CVM) runs

applications developed in the Callas programming

language (Martins et al., 2010), abstracting the hard-

ware and the software installed on the devices.

This virtual machine is available for Arduino and

SunSPOT devices. The Callas programming lan-

guage is strongly typed, avoiding certain kind of run-

time errors and enabling the reprogramming of sen-

sors remotely. This allows the remote updates to the

system without the need to physically access the de-

vices. We have implemented a proof of concept for

our proposal in MuFFIN, running the Callas Virtual

Machine.

4 MuFFIN WITH THE CALLAS

VIRTUAL MACHINE

This section presentes an extension to MuFFIN that

makes it possible to reprogram sensor devices homo-

geneously. We start by describing how MuFFIN ex-

ecutes code on behalf of real sensor devices and then

present how it simulates the communication between

simulated sensors.

MuFFIN allows for remote reprogramming of

sensor networks via web services, in case sensor de-

vices support this functionality. In order to make such

a functionality available for non-reprogrammable net-

works, we have integrated the CVM into MuFFIN

(MuFFIN-CVM component) to be able to run code on

behalf of sensor devices that are not reprogrammable.

Figure 2 presents the architecture of the MuFFIN-

CVM component.

When the reprogramming web service is invoked,

MuFFIN sends the code to the sensor network via its

gateway. If the network is not reprogrammable, the

gateway sends the code to the MuFFIN-CVM com-

SENSORNETS2014-InternationalConferenceonSensorNetworks

128

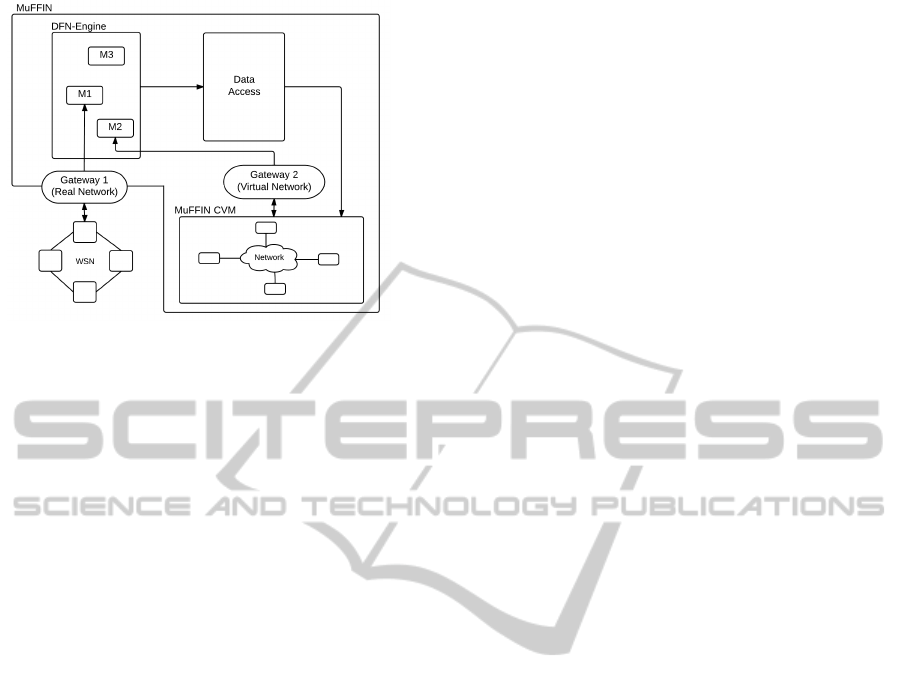

Figure 2: MuFFIN extended with the CVM module.

ponent, which executes it. Additionally, it is neces-

sary to inform the MuFFIN-CVM about the number

of sensors that constitute the network. To do this, we

changed the installation process of the gateway to in-

clude a SensorML ﬁle with the description of the net-

work to run virtually. This information is sent to the

MuFFIN-CVM together with the code.

Instead of creating an instance of the CVM to run

each virtual sensor, MuFFIN executes a single CVM

instance and creates an object per virtual sensor to

hold its execution state. Once the MuFFIN-CVM ex-

ecutes code on behalf of real sensor devices, it is nec-

essary to simulate system calls, such as the observa-

tions real sensors make and the receiving and sending

of messages to the network. To obtain the observation

values, each CVM state instance has a unique identi-

ﬁer that refers to a single real sensor device. Then,

with this key we fetch the corresponding observations

from the database, which is stored when the actual

readings from the real sensor devices are sent to the

middleware.

During the execution of each virtual sensor, the

data it produces (the result of internal sensor compu-

tation) is sent via the gateway of the virtual network

like any other real network does. This allows MuF-

FIN to treat all networks homogeneously. This way,

for instance, features for processing information (such

as data ﬁlters or topic subscriptions) are also available

for virtual networks.

For simulating the sending and receiving of mes-

sages we use a circular buffer, wherein each message

contains (1) the information sent by sensors (the pay-

load); (2) an identiﬁer of the sensor emitting the mes-

sage that ensures that the message is not delivered to

itself; (3) a message identiﬁer that prevents each sen-

sor from reading repeated messages; and (4) the tar-

get port the message is addressed to, in order to model

various communication channels. The use of a circu-

lar buffer also simulates message loss, since if there

is a large number of messages in the “network”, a

message in the buffer can be overwritten before be-

ing read.

5 COMMUNICATION BETWEEN

SENSOR NETWORKS: THE

THINGSGATEWAY -

COMMUNICATION

COMPONENT

The motivation scenario presented in Section 1 men-

tions two sensor network: one to monitor the temper-

ature and humidity of the rooms, and another that ac-

tuates on an equipment that has the ability to control

these variables. Considering that these networks can-

not communicate directly with each other (e.g., they

use different communication equipments), their coor-

dination would have to be performed at the applica-

tion level. In this section we present a MuFFIN exten-

sion that supports the communication between sensor

networks. The main challenge of this new feature is

the conversion of sensor networks protocols.

5.1 Message Protocol Converters

In order to support communication between networks

at the middleware level, we developed a system for

converting messages from one protocol to another, in

case network protocols do not match. The conver-

sion takes the message received from the source net-

work gateway, respecting the protocol of the source

network, and directs the message though a sequence

of converters that cast it to match the protocol of the

destination network. Then, the ﬁnal step routes the

message to the destination network gateway to be de-

livered to the devices of that network. Notice that the

conversion process may generate new messages to, or

prevent some messages from reaching, the destination

network in order to follow its protocol.

To solve the problem of protocol conversion be-

tween networks, we initially considered two ap-

proaches: (1) to use a generic protocol as an inter-

mediary between source and destination protocols,

(2) use of speciﬁc protocol converters for each pair

of networks. The ﬁrst approach poses the problem

of ﬁnding such a generic protocol, while the second

requires a converter for each pair of distinct proto-

cols. Thus we choose to extend MuFFIN to allow the

installation and composition of converters in such a

way that converters can be used in adapting differ-

ent protocols and, if desired, can be used to convert

HomogeneousWirelessSensorNetworkProgrammingusingMuFFIN

129

<?xml version= " 1.0 " enco d i n g = " UTF -8" ? >

< d e ploy >

< descrip t i on >Ex a m p l e of a c o n verter </ descr i p t ion >

< insta n c e Sourc e id = "1" / >

< instan c e D est id ="2" / >

< convert e r s >

< converte r s erviceId =" 3 "/ >

< converte r s erviceId =" 1 "/ >

</ conve r t e rs >

< exter n a lServi c e >

http: // w ww . l a s ige . fc. ul .pt / ex t e rnServ i c e

</ exte r n alSer v i ce >

</ deploy >

Figure 3: XML example of the association between net-

works.

to a generic protocol as well. This way, we beneﬁt

from the advantages of both approaches, while avoid-

ing their limitations. For examples, we can create

a converter from network A to network C by com-

posing converters from network A to network B and

from network B to the network C. These elementary

converters are coded as Java classes that implement a

common interface.

5.2 Interconnecting Converters

The association between converters and gateways is

deﬁned by an XML ﬁle. This ﬁle includes the source

and destination gateway identiﬁers and the converters

to be used. Additionally, we can set a Uniform Re-

source Identiﬁer (URI) of an external entity, whose

explanation is delayed until section 5.3. The middle-

ware creates an instance of each converter speciﬁed

in the XML ﬁle, which are interconnected in the se-

quence described by the ﬁle. Figure 3 presents an ex-

ample of an XML ﬁle that associates gateways 1 and 2

to converters 3 and 1.

The communication between the source gateway,

converters and the destination gateways is established

using the ActiveMQ tool, that follows a publish/sub-

scribe paradigm. Thus, converters subscribe the infor-

mation sent by the source network and, after process-

ing each message, publish them so that another con-

verter will pick it. At the end of the conversion path,

the destination gateway subscribes the last converter

and gets the message ready to be sent to its network.

Figure 4 illustrates the motivation scenario pre-

sented in section 1, in which it is necessary to es-

tablish communication between the sensor network

(represented by Gateway origin 1) and the actuators

network (represented by Gateway destination 2). For

such, converters C1 and C3 are installed and instanti-

ated in MuFFIN, which can adapt the protocols used

by the networks. Each message sensor network send

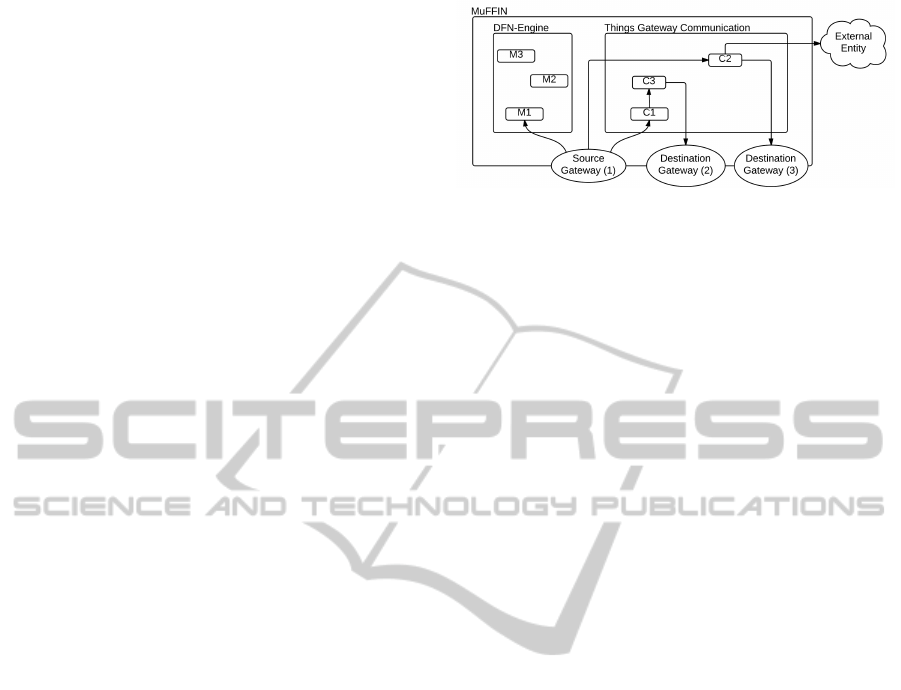

Figure 4: ThingsGateway-Communication component.

arises at Gateway origin 1 and then follows through

convertes C1 and C3, reaching Destination gateway

2—the actuator network.

The communication established between gate-

ways is richer than just a point to point commu-

nication, i.e., there can be a communication from

one source gateway to more than one destination

gateways, even in the presence of different destina-

tion protocols. Figure 4 illustrates the scenario just

described (one to many communication) in which

Source gateway 1 sends information to Destination

gateway 2 and to Destination gateway 3.

5.3 External Entity

There is also a mechanism that allows the use of exter-

nal entities, so that when it is not possible to convert

the data received from a network using the installed

converters, the middleware can use an external ser-

vice that can perform the conversion (e.g., converting

a Java object to a Callas module). This conversion

requires a JVM (to interpret the Java bytecode) and

the backend of the Callas compiler (to synthesise the

Callas module), which are deﬁnitely not to be part of

a middleware system. This entity is speciﬁed by an

URI upon the instantiation of an external converter.

The user needs to guarantee that the external entity

will perform the conversion according to what is re-

quired.

6 EVALUATION

The middleware is installed in the Fuse ESB applica-

tion server. We use several services from Fuse ESB,

in particular, ActiveMQ is used in the communication

between MuFFIN components and gateways. MuF-

FIN is deployed on a virtual machine inside Virtual

Box that virtualizes an Intel(R) Core(TM) Duo E8400

@ 3.00GHz (1 CORE) CPU, 1000 Mb of RAM, us-

ing the Linux Ubuntu 12.04 Server. This section fo-

cuses on the performance test results of the new com-

ponents, thus not taking into account the time mes-

sages take from the a sensor network to its gateway

SENSORNETS2014-InternationalConferenceonSensorNetworks

130

Table 1: Results for the performed tests.

Num. sensors 10 50 100 200 500 1000 1500 2000

Boot time

Average (ms) 11.08 33.22 64 130.73 351.38 795.66 1167.1 1625.01

Std. dev. 1.107 1.685 2.471 3.703 19.972 44.405 64.757 67.251

Boot and processing times

Average (ms) 20.69 46.22 78.69 160.56 450.96 955.37 1448.15 2025.14

Std. dev. 3.78 3.196 4.417 5.761 13.685 24.534 37.038 58.736

and vice versa.

Our tests to the CVM-mufﬁn component comprise

the time to boot a virtual sensor network, accounting

for the period of time that mediates from the arrival

of the Callas code to the beginning of code execution

by some device on the virtual network, and the time

to boot the network plus the reading of a sensed value

(stored in the database). In both cases, to determine

how the number of devices inﬂuence the processing

time, we simulated sensor networks with different di-

mensions (10, 50, 100, 200, 500, 1000, 1500, and

2000 nodes).

To evaluate the ThingsGateway-Communication

component we performed two types of tests: (1) net-

works use the same language/protocol, without need-

ing message conversion and (2) networks need to con-

vert messages from a string to an integer value. Since

we only want to evaluate new MuFFIN extensions,

we did not perform tests with external conversion en-

tities.

Figure 5 shows the performance of the MuFFIN-

CVM component, considering the simulation of the

startup of a network with several nodes and the startup

of a network with several nodes where each sensor

also performs an observation, i.e., a read operation to

the database. For each type of network, we repeated

the tests 100 times. The ﬁgure shows that the boot

time and start-up of networks up to 200 nodes are

almost identical. However, for networks with more

than 500 nodes, processing begins to take longer, but

in both cases the growth is linear. Table 1 has their

average values and standard deviations.

Figure 6 shows the results of measuring the time

taken for routing messages from one gateway to an-

other. We performed 100 measurements that resulted

in an average value of 11.8 ms (with a standard de-

viation of 1.13) for messages sent without adaptation

(left bar). When using an adapter for adjusting mes-

sages, we get an average value of 12.2 ms (with a

standard deviation of 1.17) (right bar). The obtained

values show that, for this particular case, the cost of

adapting a message is minimal (3.27%) when com-

pared to the routing cost.

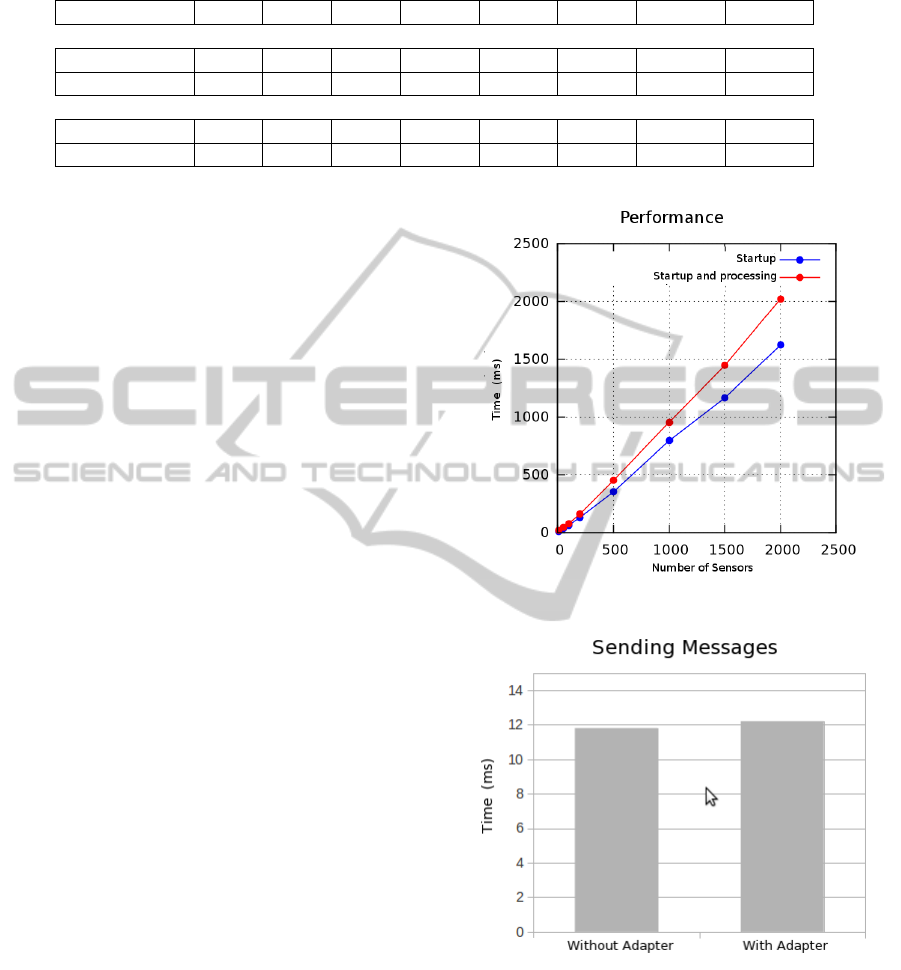

Figure 5: Sensor startup performance.

Figure 6: Message routing time.

7 CONCLUSIONS

Providing the sensor remote reprogramming function-

ality depends on the hardware characteristics or on the

programming languages. In this paper, we present an

extension to the MuFFIN middleware for generalizing

this feature, making it available through web services.

To meet this goal, we incorporated the Callas virtual

HomogeneousWirelessSensorNetworkProgrammingusingMuFFIN

131

machine into MuFFIN. Additionally, we also devel-

oped a middleware component that supports the com-

munication between different sensor networks, avoid-

ing messages to be routed to client applications.

With these two middleware extensions, MuFFIN

can support the decomposition and distribution of

business processes through sensor networks. Indeed,

by converting to Callas code the business logic sensor

networks will execute, we can use MuFFIN to send

it to sensors. When sensors do not have the CVM,

MuFFIN executes it on their behalf. If business pro-

cesses foresee direct communication between sensor

networks, MuFFIN also ensures that communication,

in case they are not directly connected.

As future work, we plan to adapt MuFFIN to run

on devices with limited computing capabilities, such

as the Raspberry Pi, so it can be used in on-board ve-

hicle technology, providing an interface to intelligent

transportation system.

ACKNOWLEDGEMENTS

This project is supported by portuguese Founda-

tion for Science and Technology (FCT) through the

Macaw project (PTDC/EIA-EIA/115730/2009) and

the LaSIGE multi-year funding programs (UI 408 -

2011-2013, ref PEst-OE/EEI/UI0408/2011)

REFERENCES

oring, A., Echterhoff, J., Jirka, S., Simonis, I., Everding,

T., Stasch, C., Liang, S., and Lemmens, R. (2011).

New generation sensor web enablement. Sensors,

11(3):2652–2699.

Haller, S., Karnouskos, S., and Schroth, C. (2008). The

Internet of Things in an Enterprise Context. In Pro-

ceedings of FIS 2008, volume 5468 of LNCS, pages

14–28. Springer.

Huang, Y. and Gannon, D. (2006). A comparative study of

web services-based event notiﬁcation speciﬁcations.

In ICPP Workshops, pages 7–14. IEEE Computer So-

ciety.

Kansal, A., Nath, S., Liu, J., and Zhao, F. (2007).

SenseWeb: an infrastructure for shared sensing. IEEE

MultiMedia, 14(4):8–13.

Levis, P. and Culler, D. (2002). Mat

e: a tiny virtual ma-

chine for sensor networks. SIGOPS Oper. Syst. Rev.,

36(5):85–95.

Martins, F., Lopes, L., and Barros, J. (2010). Towards the

Safe Programming of Wireless Sensor Networks. In

Proceedings of PLACES’09, volume 17 of EPTCS.

Simon, D. and Cifuentes, C. (2005). The squawk virtual

machine: Java on the bare metal. In Proceedings of

OOPSLA’05. ACM Press.

Valente, B. and Martins, F. (2011). A middleware frame-

work for the internet of things. In Proceedings of

AFIN 2011, volume 57, page 139 to 144.

Valente, B. A. L. (2011). Um middleware para a Internet

das coisas. Master’s thesis, Universidade de Lisboa,

Faculdade de Ci

encias.

Zeng, D., Guo, S., and Cheng, Z. (2011). The web of things:

A survey (invited paper). JCM, 6(6):424–438.

SENSORNETS2014-InternationalConferenceonSensorNetworks

132
