Optimization of Endoscopic Video Stabilization by Local Motion

Exclusion

Thomas Gross, Navya Amin, Marvin C. Ofﬁah, Susanne Rosenthal, Nail El-Sourani

and Markus Borschbach

Competence Center Optimized Systems, University of Applied Sciences (FHDW),

Hauptstr. 2, 51465 Bergisch Gladbach, Germany

Keywords:

Endoscopy, Foreground Moving Objects, Global Motion, Local Motion, Outlier Rejection, Image Composi-

tion, Video Stabilization.

Abstract:

Hitherto video stabilization algorithms for different types of videos have been proposed. Our work majorly

focuses on developing stabilization algorithms for endoscopic videos which include distortions peculiar to

endoscopy. In this paper, we deal with the optimization of the motion detection procedure which is the most

important step in the development of a video stabilization algorithm. It presents a robust motion estimation

procedure to enhance the quality of the outcome. The outcome of the later steps in the stabilization, namely

motion compensation and image composition depend on the level of precision of the motion estimation step.

The results of a previous version of the stabilization algorithm are here compared to a new optimized version.

Furthermore, the improvements of the outcomes using the video quality estimation methods are also discussed.

1 INTRODUCTION

As discussed in (Ofﬁah et al., 2012) endoscopic

videos include a variety of distortions making it difﬁ-

cult for the surgeon to have a better view of the region

of interest. These may be the movement of the or-

gans,foreground moving objects such as scalpels, or

body ﬂuids secreted during the operation. Of all the

distortions, the foreground moving objects contribute

majorly to affect the quality of stabilization. This is

because, the endoscopic videos have the camera lens

held very close to the region of interest. Thus the fore-

ground objects consume major part of the captured

video frame. In contrast to the global motion, wherein

each image pixel (px) from frame to frame experience

the same speed and direction, the direction and speed

of the local motion in a local area is different from the

co-existing motion in the frame. The estimated mo-

tion from our previous motion estimation procedure

is majorly inﬂuenced by these foreground moving ob-

jects. This makes it essential to separate these local

motions from the global motion to determine a global

camera path for further stabilizing the video. In the

following, approaches for local motion detection are

presented. Depending on the application ﬁeld, this

research area is sometimes referred to as foreground

object detection (Liyuan Li et al., 2003) or local mo-

tion segmentation (Flores-Mangas and Jepson, 2013),

(Bradski1 and Davis2, 2002).

2 PREVIOUS WORK

The local motion detection plays an important role

in a variety of ﬁelds, namely object tracking, video

surveillance or in the ﬁeld of video coding (MPEG)

(Berna and Faouzi, 2000), (Georgia et al., 2009).

Previous approaches for segmentation of local image

changes included the subtraction of consecutivevideo

frames where stationary background objects remain

in the same position and moving objects change their

position from frame to frame. The image frames are

then subtracted and only areas with a local change ap-

pear in the resultant image. However, this method has

the disadvantage that the camera must be located at a

ﬁxed position, so that the background is always in the

same position. For this reason, this method proved to

be unsuitable for our purpose.

Another method for motion detection is to use the

optical ﬂow (OF) ﬁeld, which determines motion vec-

tors for all image px based on the image intensities

(Shaﬁe et al., 2009). Motion vectors with different

directions and lengths represent the local changes in

Gross T., Amin N., C. Ofﬁah M., Rosenthal S., El-Sourani N. and Borschbach M..

Optimization of Endoscopic Video Stabilization by Local Motion Exclusion.

DOI: 10.5220/0004745900640072

In Proceedings of the 9th International Conference on Computer Vision Theory and Applications (VISAPP-2014), pages 64-72

ISBN: 978-989-758-009-3

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

the video frame. The exact calculation of the opti-

cal ﬂow is limited by the following restrictions: First,

the image intensities may differ slightly between suc-

cessive frames which is not often the case in endo-

scopic videos. Second, because of the small light

source of the endoscope, the lighting conditions of-

ten vary within a video sequence. A further disadvan-

tage of the OF is that large movements in the image

cannot be well determined. But motion changes in

endoscopic recordings can be quite large. Also, the

frames must be noise-free, which is not the case in

endoscopic videos.

Another technique for motion detection is the

feature-based method, which detects feature points in

a frame and tracks the feature points in the next frame

(Han et al., 2006). This method is well suited for this

approach of this work because it is based on feature

points. The local motion detection can be directly

integrated into our video stabilization algorithm En-

dostabf2f.

3 MOTION ESTIMATION

The process of video stabilization includes three ma-

jor steps: motion estimation, motion compensation

and image composition. The quality of the resultant

video completely depends on the precision of these

three steps. However, motion estimation inﬂuences

the quality majorly. The process of estimating mo-

tion vectors from the extracted features is inﬂuenced

by certain distractions which need to be dealt with to

obtain the optimal motion vectors. To do so, the fol-

lowing approaches are used to ﬁrst exclude the out-

liers and further the local motion vectors to attain the

global camera path:

3.1 Outlier Removal

Feature detection using Shi-Tomasi corner detection

algorithm (Shi and Tomasi, 1994) and looking for

matching features in the next frame using KLT tracker

(Kanade-Lucas-Tomasi feature tracker) (Tomasi and

Kanade, 1991) generate point matches tracking the

best match for spatial intensity information. However,

changes in the corresponding frame such as lumi-

nance variations, out of plane rotations lead to some

false matches called ’outliers’ which corrupt the re-

sults of stabilization. This complicates the estimation

of geometric transformation leading to jittery videos

with added shakes. Some of these irregularities can be

solved by performing an outlier rejection method us-

ing RANSAC (Zhao et al., 2009) on the correspond-

ing point matches. Figure 1 shows the results of the

RANSAC outlier analysis and removal. The image

on the left shows two frames, current and next over-

layed on each other. The red circles and green crosses

represent the features and the connecting yellow lines

show matching features between the two images. The

left image shows some false matches between distant

points in the respective frames. The image on the

right of Figure 1 shows perfect matches left after the

application of the outlier removal procedure.

3.2 Local Motion Detection

Our motion estimation approach algorithm includes

local motion detection and foreground moving object

detection. In the ﬁrst step, the image is divided into

mxn large sectors called grid cells. The feature points

(FPs) determined in the subsequent steps are assigned

to a cell and the local movement of a cell is measured.

Different cell sizes can be selected and typically a

size of 10x10 px is used. Since the video record-

ings have different resolutions such as 384x288 px

to 1280x1024 px for HD videos, the cell size can be

chosen dynamically, depending on the image resolu-

tion. Once the FPs were determined using the KLT

method in frame A and tracked in frame B, the un-

traceable FPs are deleted from the feature point ma-

trix. As a result, only valid FPs, which correspond in

the two frames, are kept (Frame A: reference points,

Frame B: tracked points). Next, all the FPs are as-

signed to their respective grid cell. An index matrix is

created to indicate the cell belonging to its respective

FP. Then, the local motion for individual cell is de-

termined by calculating an average of motion values

from all FPs within the respective cell. More specif-

ically, the change of the x and y position from frame

A to frame B for each FP within a cell c

is measured.

The change of the position of each image px rep-

resents the movement in a frame. The median of all

measured x- and y changes is calculated for each cell

and stored in a local cell movement matrix. Cells with

too large local translation in the + / - or x + / - y di-

rections, are marked as outliers by using the Median

Absolute Deviation from the median (MAD). MAD

is a robust estimate of the spread, and calculates the

maximum permissible deviation of the position (+ / -

x and y) of a cell compared to the overall movement

of all the cells in the x or y direction. The MAD is

deﬁned as follows (Walker, 1999):

MAD = median

− median

)| (1)

where, c

is motion of an individual cell and c

is the

set of motion values of all cells.

The cells labelled as outlier cells are excluded

from the calculation of the global camera path. In Fig-

ure 2 the left image with the red vector arrows show

OptimizationofEndoscopicVideoStabilizationbyLocalMotionExclusion

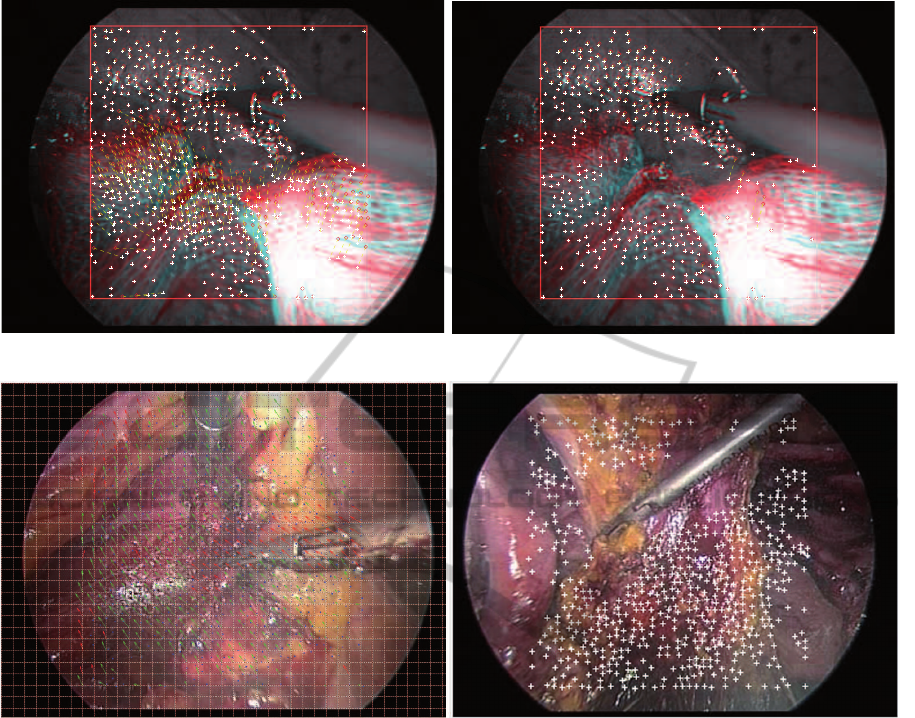

Figure 1: Outlier Rejection. Left: Original image consisting of outliers Right: Resultant one after ﬁltering.

Figure 2: Local motion estimation. Left: Grid Map with global and local motion vectors from the tracked FPs. The red arrows

on the moving scalpel are the excluded local motions. Right: FPs after local motion exclusion.

the local movements of the scalpel. In contrast, the

green vector arrows represent the movements of the

camera. The local motions are excluded for global

motion estimation as shown in the right image of Fig-

ure 2. where the tracked feature points of a video are

represented by white crosses. In the region of the

moving scalpel illustrated by red arrows, only local

movements are detected by the algorithm and the FPs

in this region are excluded from the complete set of

tracked FPs. From the x/y translation values from all

inlier cells, the median is calculated, which represents

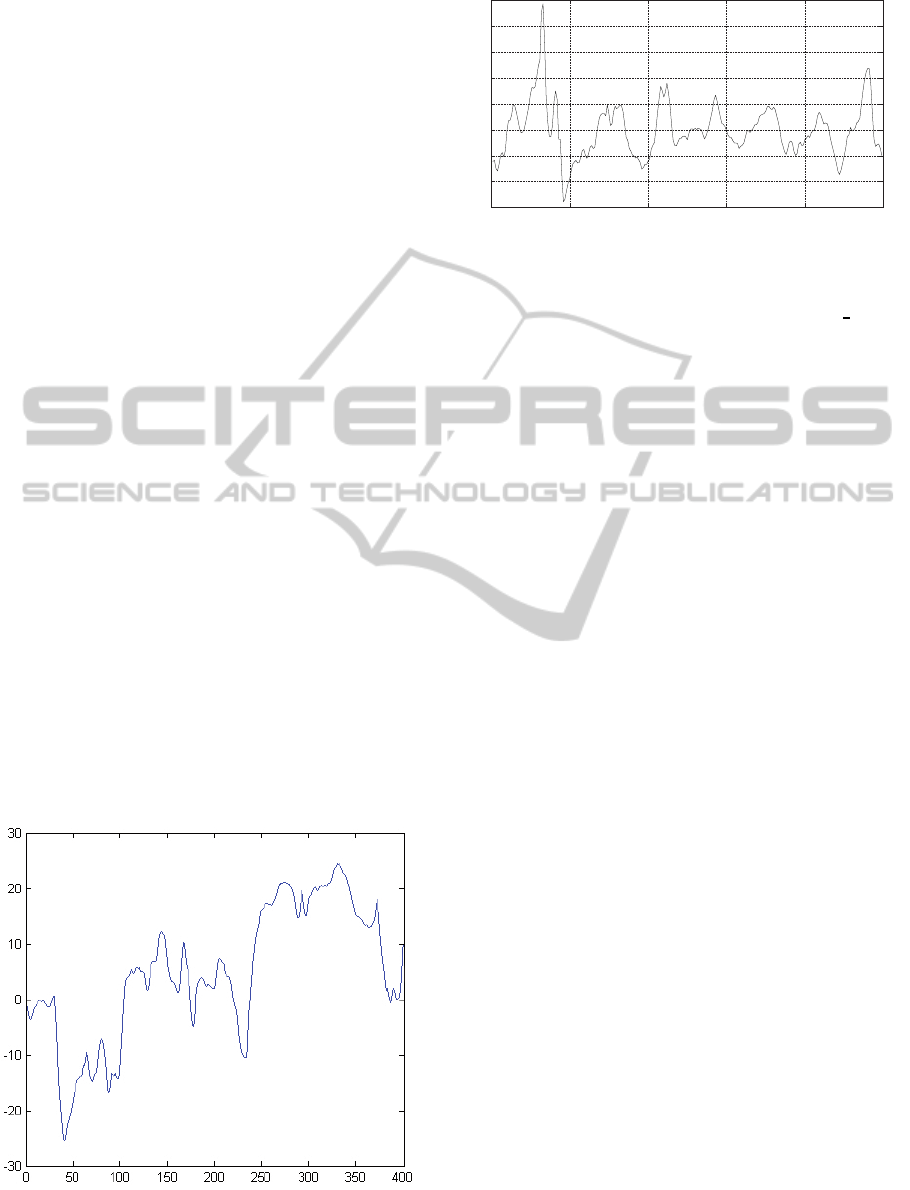

the global camera motion of the endoscope as shown

in Figure 3 for the y direction. The Y-axis of the graph

describes the motion of the px in the y direction, the

X-axis indicates the frame number in the video.

Unlike our previous method of motion compensation

where we smoothened the raw global camera path and

further used this smoothened path for image composi-

tion, our current method uses an optimized approach.

Here the difference between the original camera mo-

tion and the smoothened camera path is used for im-

age composition. In most cases, the intense move-

ments are in the range of +/- 15 px called the high-

frequencyjitter. The peaks in the motion curve caused

by sudden movement of the endoscope (Figure 4) re-

sult in a jerky stabilized video which can be a dis-

advantage for the subsequent creation of the crop-

ping mask (see next section Image Composition 4).

In order to mitigate the impact of these peak values,

the values which are above a selected threshold are

smoothened. As a threshold +/- 12 px is chosen. To

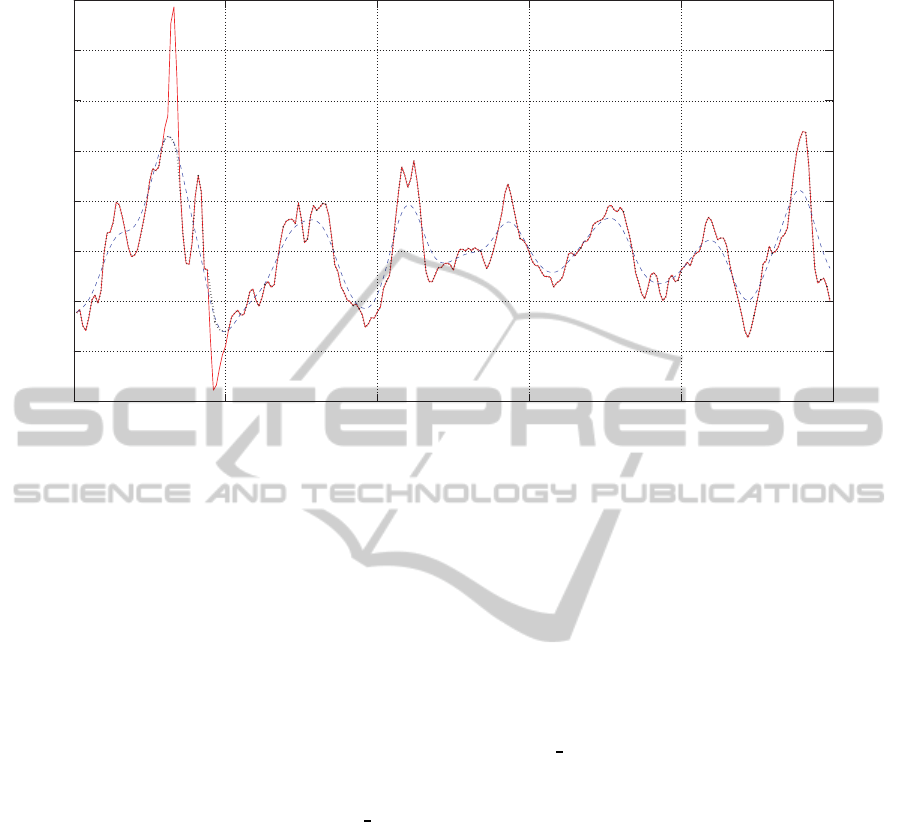

sort out the peak values, the difference curve between

the original and smoothened camera motion is calcu-

lated as shown in red in ﬁgure 4. Thereafter, the dif-

ference curve is smoothened where the peak values

are reduced as shown in ﬁgure 6. Subsequently, all

the values in the difference curve (red) which exceed

the threshold value are replaced by the values of the

smoothened difference curve (green curve). The blue

curve in Figure 6 shows the new difference motion

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

which is used for the transformation in the subsequent

image composition procedure.

4 IMAGE COMPOSITION

As mentioned in the previous section the smoothened

difference curve is used for transformation of the

video frames. Afﬁne transformation, inspite of hav-

ing two added degrees of freedom when compared to

Similarity Transformation does not produce expected

results as mentioned in (Grundmann et al., 2011),

(Zhou et al., 2013). We used the similarity transfor-

mation for transformingthe video frames according to

the smoothened difference curve. Further the frames

are cropped such that the stabilized video is devoid of

black borders which are a result of the motion com-

pensation. In the previous step, the motion values in

the video are reduced to a maximum allowed value.

This makes it possible to calculate a cropping mask,

which discards the black area around the stabilized

video. The maximum movement in the video is the

maximum value used for the cropping area. How-

ever, it would be better to divide the video into scenes

and not crop the entire video with the maximum value

because individual scenes often have different move-

ments.

5 EXPERIMENT

The complete workﬂow of the stabilization process

in described in detail in (Amin et al., 2014). The

motion estimation part of the previous algorithm de-

scribed in this paper is optimized by excluding the

Figure 3: Camera motion (Pixel) in y-direction over 400

frames.

0 50 100 150 200 250

−15

−10

−5

Pixelmotion in y

Frames

Figure 4: Difference of motion between Original Global

Camera Motion and Smoothened Global Camera Motion.

local motion vectors in the current Endostabf2f

LME

algorithm. The stabilization algorithm EndoStabf2f

with Local Motion Exclusion (LME) and without

LME is applied to two datasets: Dataset 1 includ-

ing 15 non-distortion-speciﬁc videos (provided by the

Forschungszentrum Borstel (Frey, 2012) and Leipzig

(HTWK Leipzig, 2013)) and dataset 2 including 52

gastroscopic distortion-speciﬁc test video sequences

from human surgery that were provided by the Charit´e

Berlin (Charit´e Berlin, 2013).

The test video sequences of dataset 2 were taken

from a large database of over 1400 videos. These

videos are of varying ﬁle sizes, durations and frame

numbers and have a resolution of 364x288 px (in-

cluding, in part of the cases, black regions around

the medical ROI), while the medical ROI generally

covers at least three quarters of each video frame.

They are available as MPEG ﬁles and are converted

to MP4 (25 frames and 2208 kb per second). A list of

11 different distortion types (see appendix) is deﬁned

that follows from the previously described and refer-

enced types of distortions in endoscopic videos. The

1400 videos are also manually screened to identify

further distortion types that ﬂow into this list. A sec-

ond manual screening process by members of the sci-

entiﬁc team goes through each distortion type of this

list and identiﬁes appropriate videos that contain that

distortion type. This categorization of video scenes

by distortion type enables a distinguished (distortion-

speciﬁc) evaluation of the stabilization algorithm.

It is of course the case that multiple distortion

types occur in some video scenes (or in parts of them)

although only associated with a particular distortion

type in its test case (e.g. a video with foreground ob-

jects that also contains smoke and body ﬂuids). (It

is of course also not excluded that the same video

source is used for several test cases, be it with differ-

ent scenes.) This can generally not be prevented but

compensated for by increasing the sample size (i.e.

the number of test cases and scene lengths) per dis-

tortion type. At the same time, the high computation

OptimizationofEndoscopicVideoStabilizationbyLocalMotionExclusion

−15

−10

−5

Pixelmotion in y

50 100 150 200 250

Frames

Figure 5: Difference of motion between Original Global Camera Motion and Smoothened Global Camera Motion (solid line),

Smoothened difference curve (dashed) and replaced peak values used for the Image Composition (dotted).

time of the stabilization algorithm (which at this level

is not optimized for runtime performance) sets some

limits on the number of frames that can be stabilized

in a justiﬁable time. For this reason, the screening

of the over 1400 videos only selects 5 test cases per

distortion type. As an exception, only two scenes are

used for the Low Light distortion type. See the ap-

pendix for a full list of all distortion types, the num-

ber of videos used in each, and their respective cu-

mulative number of frames used for the stabilization

and quality calculation. This adds up to 52 test cases

comprising approximately 69,000 frames.

For dataset 1, both the LME and non-LME algorithms

are applied. The robustness of the Endostabf2f

LME

is further tested on distorion-speciﬁc videos of dataset

2 (i.e., only the non-LME version is used there). The

stabilization of all videos is carried out in Matlab.

Each test case ﬁrst calculates the binary ROI mask de-

scribed earlier. Only content within this video mask

is considered during feature detection, and after the

ﬁnal warping of each frame, the mask is applied to

the frame before writing it into the stabilized output

video. This makes the output video also visually sta-

ble, as it prevents a visually unstable ROI (except for

the resulting black areas within the mask).

6 RESULTS AND DISCUSSION

The benchmarking of the algorithm is done by using

the Inter-Frame Transformation Fidelity (ITF) (Mori-

motoa and Chellappa, 1998) where an average PSNR

is calculated between consecutive frames across the

whole video. For dataset 1, the results of EndoStabf2f

with LME is compared to the results of EndoStabf2f

without LME and evaluated per video. The videos

of data set 1 that are stablized using the Endostabf2f

with LME, shows better quality (i.e. higher PSNR

values) compared to the stabilized videos using the

Endostabf2f with the LME. As shown in Figure 6,

the endoscopic videos with heavy foreground move-

ments show a very high difference in quality for the

Endostabf2f

LME compared to the other with higher

PSNR values. This shows that excluding the local

motion from the estimation of the global camera mo-

tion does have a positive impact on the overall quality

of the stabilized videos.

For dataset 2, the PSNR metric both for the origi-

nal (unstabilized) video scene and for the stabilized

one are calculated to identify their improvements

across different distortion types as follows: The met-

ric is ﬁrst calculated for every original and stabi-

lized video scene of a test case: PSNR for neigh-

bouring frames of the test scene (i.e. between neigh-

bouring frames in the intervals between start and end

frame according to the test database) is determined.

PSNR is calculated as shown in the ITF calculation in

(C.Ofﬁah et al., 2012). An average PSNR value for

all frames of the original and stabilized video, respec-

tively, is then calculated. Next, the distortion-speciﬁc

PSNR value is obtained by using a weighted average

from all test cases pertaining to the speciﬁc distor-

tion, where the scene lengths of the associated videos

in numbers of frames are used as weights. The results

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

a b c d e f g h i j k l m n o

f2f_PSNR

f2f_LME_PSNR

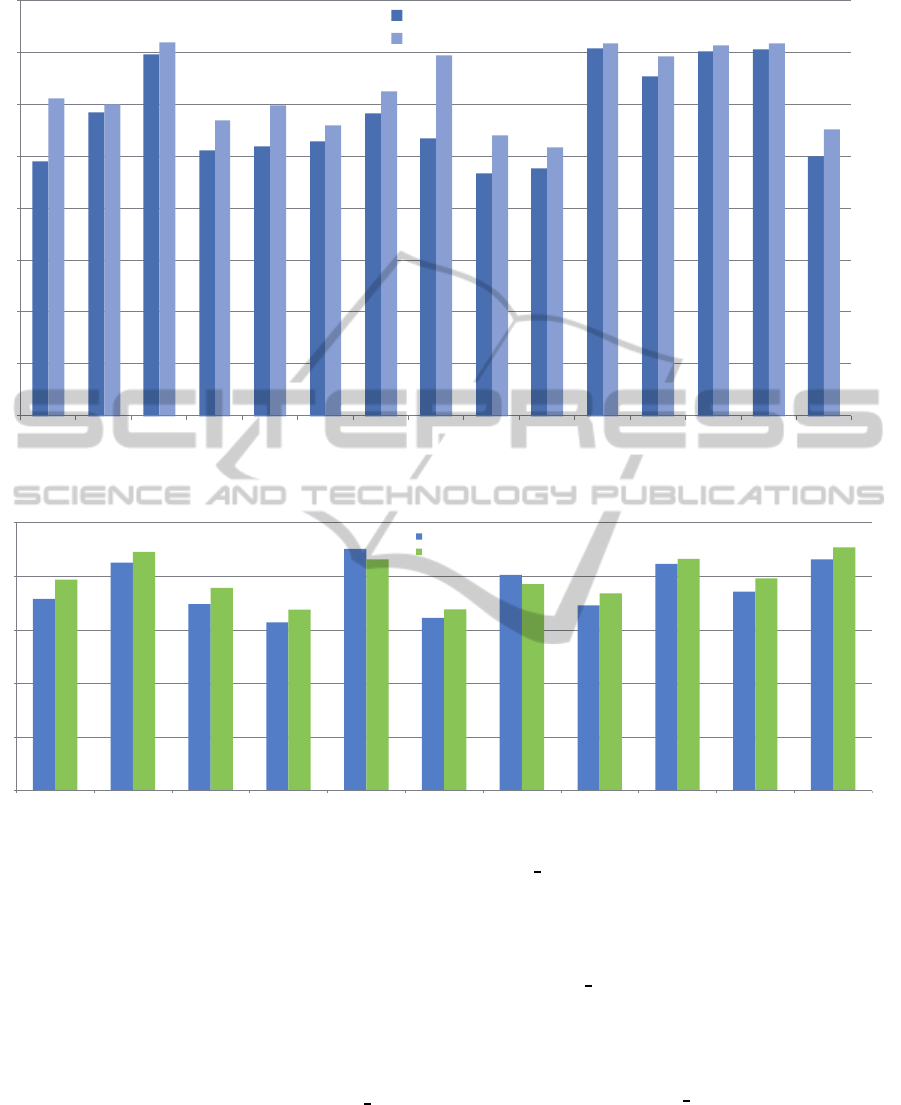

Figure 6: Estimated video quality using PSNR.

Foreground object Body Fluids Smoke Camera Shaking Shaking ROI Luminance Changes Body Movements Spotlights Low Contrasts Special Distortion Low Light

PSNR Original

PSNR Stabilized

Figure 7: Comparision of the calculated PSNR values in dB for the original and the stabilized videos.

as shown in Figure 7 show that some dB of improve-

ments of the original video are made by using the

non-LME algorithm. This holds for most distortion

types, with only a shaking ROI and body movements

as an exception. This further underscores the conclu-

sions drawn from dataset 1, that non-LME achieves

an overall improvement of the video quality.

The exclusion of local motion vectors makes the

algorithm robust against presence or absence of im-

mense foreground moving objects. As shown in

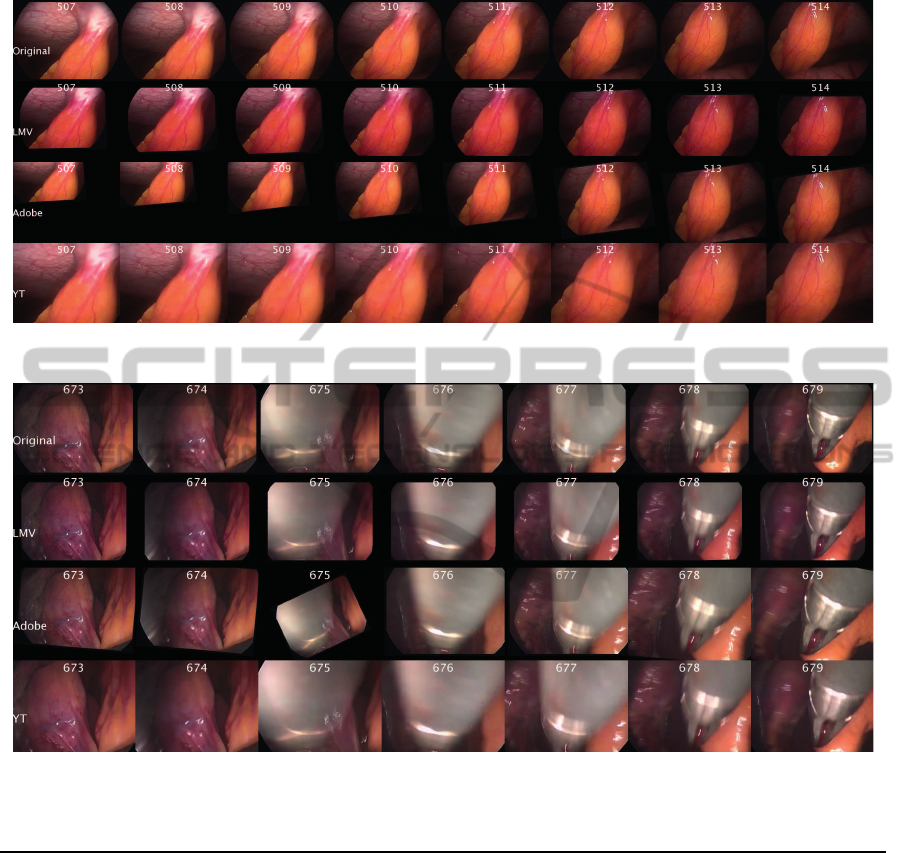

Figure 8, a comparison between Endostabf2f

LME

(LMV in the ﬁgure) and state-of-the-art stabilization

algorithms is made along frames from a scene where

some internal body movements and no foreground

moving objects are present as well as the endoscope

moves slightly for examination. In such a case, the

Adobe AE shows tremendous frame jump unlike En-

dostabf2f

LME and YouTube. Youtube also does

some scaling and cropping and thus loses some re-

gion as seen along the bottom right-hand corner of

the frames which might have some useful information

for the surgeon. But these problems are dealt well by

the Endostabf2f

LME. Further, in Figure 9, the scene

contains introduction and rigorous movement of a for-

cep. In such a case, again a frame jump is seen in

the stabilized frame number 675 for the Adobe AE

which could be because of the loss of trajectory on

scene change. Endostabfef

LME handles problems

speciﬁc to endoscopic vidoes well. However, there

is still scope for improvement in motion estimation

and handling foreground moving objects when these

objects consume major part of the frame making it

difﬁcult for the stabilization algorithm to distinguish

foreground and background.

OptimizationofEndoscopicVideoStabilizationbyLocalMotionExclusion

ACKNOWLEDGEMENTS

This work as a part of the PENDOVISION-project is

funded by the German Federal Ministry of Education

and Research (BMBF) under the registration identi-

ﬁcation 17PNT019. The ﬁnancial project organiza-

tion is directed by the Research Center J¨ulich. The

work was conducted under supervision of Markus

Borschbach.

REFERENCES

Amin, N., Gross, T., Ofﬁah, M. C., Rosenthal, S., El-

Sourani, N., and Borschbach, M. (2014). Stabilization

of endoscopic videos using camera path from global

motion vectors. In To appear in the 9th International

Joint Conference on Computer Vision, Imaging and

Computer Graphics Theory and Applications.

Berna, E. and Faouzi, K. (2000). Partitioning of video ob-

jects into temporal segments using local motion infor-

mation. In ICIP, pages 945–948.

Bradski1, G. R. and Davis2, J. W. (2002). Motion segmen-

tation and pose recognition with motion history gradi-

ents. In Machine Vision and Applications.

Charit´e Berlin (2013). Universit¨atsmedizin Berlin.

http://www.charite.de.

C.Ofﬁah, M., Amin, N., Gross, T., El-Sourani, N., and

Borschbach, M. (2012). Towards a benchmarking

framework for quality-optimized endoscopic video

stabilization. In ELMAR, Sep.,2012 Proceedings,

pages 23–26.

Flores-Mangas, F. and Jepson, A. D. (2013). Fast rigid

motion segmentation via incrementally-complex local

models. In IEEE Conference on Computer Vision and

Pattern Recognition.

Frey, A. (2012). Research center borstel - leibniz center

for medicine and biosciences, germany. http://www.fz-

borstel.de/cms/index.php.

Georgia, A. M., Alexander, G., Andreas, K., Thomas, S.,

Marta, M., and M., K. A. (2009). Global motion es-

timation using variable block sizes and its application

to object segmentation. In WIAMIS, pages 173–176.

Grundmann, M., Kwatra, V., and Essa, I. (2011). Auto-

directed video stabilization with robust l1 optimal

camera paths. In IEEE Conference on Computer Vi-

sion and Pattern Recognition (CVPR).

Han, M., Xu, W., and Gong, Y. (2006). Video foreground

segmentation based on sequential feature clustering.

In 18th International Conference on Pattern Recogni-

tion, ICPR 2006., volume 1, pages 492–496.

HTWK Leipzig (2013). Forschungszentrum.

http://www.htwk-leipzig.de.

Liyuan Li, W. H., Gu, I. Y., and Tian, Q. (2003). Fore-

ground object detection from videos containing com-

plex background. In In Proc. of the eleventh ACM

international conference.

Morimotoa, C. and Chellappa, R. (1998). Evaluation of

image stabilization algorithms. In Proc. IEEE Inter-

national Conference on Acoustics, Speech and Signal

Processing, 5:2789–2792.

Ofﬁah, M. C., Amin, N., Gross, T., El-Sourani, N., and

Borschbach, M. (2012). On the ability of state-of-

the-art tools to stabilize medical endoscopic video se-

quences. In MedImage 2012, Mumbai.

Shaﬁe, A. A., Haﬁz, F., and Ali, M. H. (2009). Motion

detection techniques using optical ﬂow. In World

Academy of Science, Engineering and Technology.

Shi, J. and Tomasi, C. (1994). Good features to track.

In IEEE Conference on Computer Vision and Pattern

Recognition, pages 593–600.

Tomasi, C. and Kanade, T. (1991). Detection and track-

ing of point features. In Carnegie Mellon University

Technical Report CMU-CS-91-132.

Walker, J. T. (1999). Statistics in Criminal Justice: Analysis

and Interpretation. Aspen Puplishers Inc.

Zhao, F., Wang, H., Chai, X., and Ge, S. (2009). A fast and

effective outlier detection method for matching uncal-

ibrated images. In ICIP, pages 2097–2100.

Zhou, Z., Jin, H., and Ma, Y. (2013). Content-preserving

warps for 3d video stabilization. In IEEE Conference

on Computer Vision and Pattern Recognition.

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

APPENDIX

Figure 8: Comparision of the state-of-the-art algorithms for a stabilized scene having no fore-ground moving object.

Figure 9: Comparision of the state-of-the-art algorithms for a stabilized scene having fore-ground moving object.

Table 1: List of the videos used for stabilization.

Video Description

a Bronchoscopic staboptic video of a rat with circular content

b Bronchoscopic staboptic video of a rat with rectangular content and moving camera

c Bronchoscopic staboptic video of a rat with rectangular content and steady camera

d Shaky video of a hippo

e Human Rhinoscopic 1 with rectangular content and steady camera

f Human Rhinoscopic 2 with rectangular content and steady camera

g Human Rhinoscopic 3 with rectangular content and steady camera

h Human surgery video with scalpel moving in the foreground

i Lab video 1 with forward and backward movement

j Lab video 2 with forward and backward movement

k Bronchoscopic grid removed ﬁbreoptic video of a rat with steady camera

l Bronchoscopic grid removed ﬁbreoptic video of a rat with moving camera and distortion (Bubbles)

m Bronchoscopic grid removed ﬁbreoptic video of a rat with forward-backward movement of camera

n Bronchoscopic grid removed ﬁbreoptic video of a rat with rectangular content and steady camera

o Shaky video of a tiger with jittery motion

OptimizationofEndoscopicVideoStabilizationbyLocalMotionExclusion

Table 2: Dataset 1- List of the videos used for Distortion-Speciﬁc stabilization.

Videos Distortions Frames

19 Foreground Objects 10981

12 Body Fluids 3283

23 Smoke 7754

23 Camera Shaking 6311

22 Shaking ROI 8333

23 Luminance Changes 7382

15 Body Movements 2815

15 Spotlights 5545

25 Low Contrast 6849

5 Dirty Lens 6150

2 Low Light 3601

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications
