Comparative Study of Two Segmentation Methods of Handwritten

Arabic Text

MM-OIC and HT-MM

Fethi Ghazouani

, Samia Snoussi Maddouri

2,3

and Fadoua Bouaﬁf Samoud

LIPAH - FST, University of Tunis El Manar, Tunis, Tunisia

National Engineering School of Tunis (ENIT), University of Tunis El Manar, Tunis, Tunisia

Hnayka Community Faculty, Taibah University, Medina, Saudi Arabia

Keywords:

Arabic Handwriting Documents, Segmentation, Mathematical Morphology, Outer Isothetic Cover, Hough

Transform.

Abstract:

We present in this paper a comparative study of two segmentation methods of handwritten Arabic text. The

ﬁrst method is a combination of the Mathematical Morphology (MM) and the algorithm of construction of

the Outer Isothetic Cover of a digital object (OIC) named MM-OIC. The second method uses the Hough

Transform (HT) and MM to segment the handwriting Arabic script called HT-MM. These methods are applied

in two levels of segmentation: text lines and Pieces of Words. The two proposed methods are evaluated and

compared to a set of documents selected from three databases: IFN/ENIT-database (17 documents), BSB (16

documents) and KSU (30 documents) online databases. The average rate line segmentation of MM-OIC is

75%, and of HT-MM is 45%. The average rate of PAW segmentation acheive 89% for the MM-OIC and 70%

for the HT-MM method. The efﬁciency of the MM-OIC method is explained by the fact that this method can

extract the approximate form of writing, and sometimes it can exceed some problems that are related to the

Arabic script such as the overlapping lines and diacratical symbols.

1 INTRODUCTION

The ﬁrst step in the automatic document recognition

is the segmentation of the text image into text lines.

This prepares the data for further processing steps

like normalization, word segmentation and features

extraction.

The segmentation of handwritten text is compli-

cated by the variation of the interline distance and by

the baselines undulation that often generates different

orientations of the text. The characters in two adja-

cent lines may touch (Figure 1(a)) or overlap (Fig-

ure 1(b) and 1(c)). This considerably complicates the

text lines segmentation. In Arabic script, these situ-

ations frequently exist because of the presence of as-

cendant and/or descendant characters. On the other

hand, the massive presence of diacritical symbols in

Arabic script often generates false lines (Figure 1(d)

and 1(e)).

In the literature, most works of page segmentation

in lines are based on the decomposition of the image

content into connected components. For Arabic hand-

writing, the extraction of pieces of words seems to be

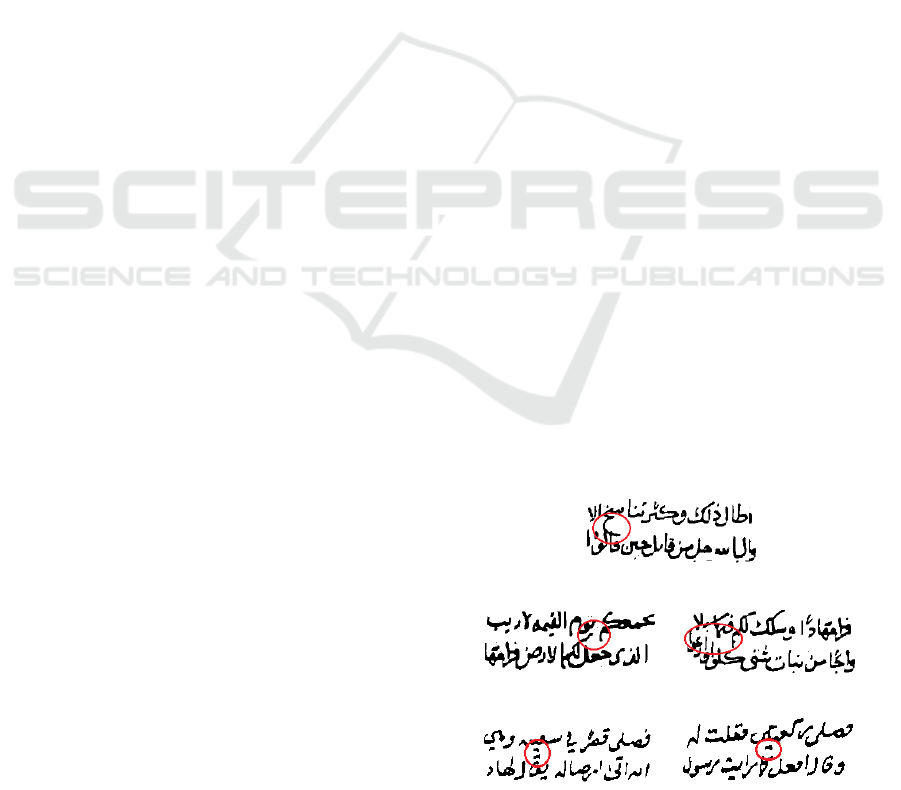

(a)

(b) (c)

(d) (e)

Figure 1: Examples of existing situations in Arabic script.

(a) touch lines. (b,c) lines overlap. (d,e) presence of diacrit-

ical symbols between lines.

easier than the detection of words. Several segmenta-

tion methods for lines extraction have been presented

such as: projection method ((Bennasri et al., 1999),

(Nicolaou and Gatos, 2009)), k-means algorithm (Za-

hour et al., 2007), Hough transform method ((Bouaﬁf

528

Ghazouani F., Snoussi Maddouri S. and Bouaﬁf Samoud F..

Comparative Study of Two Segmentation Methods of Handwritten Arabic Text - MM-OIC and HT-MM.

DOI: 10.5220/0004764205280535

In Proceedings of the 3rd International Conference on Pattern Recognition Applications and Methods (ICPRAM-2014), pages 528-535

ISBN: 978-989-758-018-5

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

et al., 2006), (Malleron et al., 2009)) and snake tech-

nique or active contour (Bukhari et al., 2009). On the

same, some works are proposed for the segmentation

in pieces of words for instance: contour technique

(Snoussi, 2003), labeling-recognition (Abdulkader, )

and projection methods (Sarfaz et al., 2003).

In this framework, two segmentation methods of

handwritten Arabic documents are proposed. The

First method is based on a combination between

Mathematical Morphology (MM) and Outer Isothetic

Cover (OIC). The second method is a combination

between Hough Transform (HT) and Mathematical

Morphology (MM) operators. Finally, a comparative

study of the two methods on the obtained results is

done. We end our paper with a conclusion and per-

spectives that show possible extensions of this work.

2 MM-OIC SEGMENTATION

METHOD

The MM-OIC method is a combination of the math-

ematical morphology and the algorithm of construc-

tion of the outer isothetic cover of a digital object.

This method is used for the segmentation of the hand-

written Arabic text into lines and into sub words. To

extract lines from Arabic text, ﬁrstly, we have ap-

plied morphologic operators to connect components

belonging to the same line. Then we have applied the

algorithm of the construction of OIC on the MM’s re-

sult in order to delimit zones of each line.

2.1 Connect Adjacent Component: MM

The Arabic script is generally represented in the form

of pieces or parts of words called Pieces of Arabic

Words (PAWs) (Miled et al., 1998). Each PAW rep-

resents a connected component. For this speciﬁc rea-

son we thought about the application of morpholog-

ical operators for connecting small adjacent compo-

nents belonging to the same line. In this case, the

latest is seen as a single object. The fact of having a

single object allows to facilitate the extraction of the

line after the application of the OIC algorithm (sub-

section 2.2). In this step we chose the closing as a

basic morphologic ﬁlter to connect components. The

structuring element is a rectangular form with length

1 and width 25. The closing operation allows us to

connect horizontally the different components which

are situated at a distance less than the structuring ele-

ment. The structuring element is chosen after a learn-

ing phase on the treated images documents. The set of

the used documents to choose the size of the structur-

ing element consists of 25 images and selected from

three different databases. Some of them are written by

different scripters, containing curved or skewed lines

and sometimes with variable sizes of the script. We

have also chosen the size of the structuring element

such that after the application of the MM, the adja-

cent lines can not be touching and overlapped.

Indeed, the choice of a length equal to 1 is ex-

plained by the fact that in the set of selected docu-

ment, there is presence of texts with a very small inter-

line and that sometimes the distance between certain

characters, especially the ascendants and the descen-

dants of two adjacent lines of text is very small. So,

increasing the length value of the structuring element

can lead to a touch between writing. Figure 2 illus-

trates an example of this situation. The distance be-

tween the two green characters of the two successive

lines is too small (Figure 2(a)). Figure 2(b) shows the

result of the MM after application of a structuring el-

ement with length = 1, it is clear that the components

of each row are connected together. Contrariwise, in

Figure 2 (c), the components of the two different lines

are connected in a single object (instead of two ob-

jects) and are touched (red circle) after increasing the

length of the structuring element (length = 4).

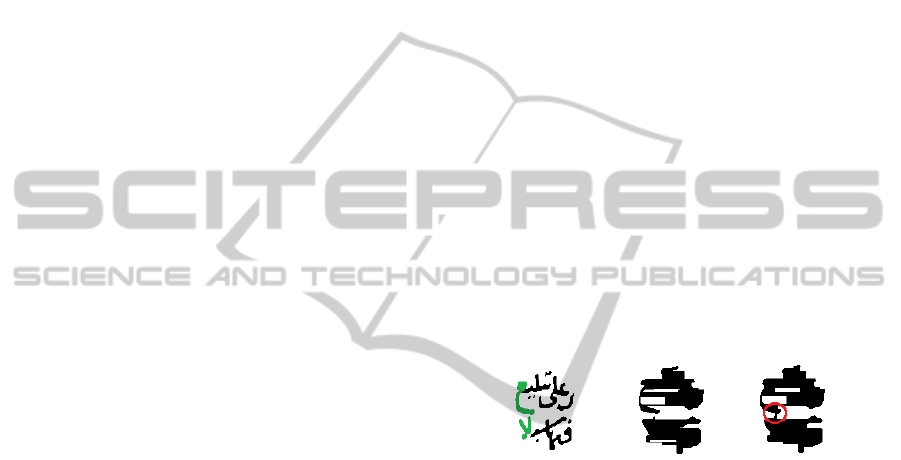

(a) (b) (c)

Figure 2: Results of the MM with two different values of

length of the structuring element. (a) original image. (b)

Applying of a structuring element with a length = 1. (c)

Applying of a structuring element with a length = 4.

Secondly, in the Arabic script the inter-words

space is often variable. Then, for connecting horizon-

tally those components, we must choose an adequate

width value. Two situations can exist with decreasing

and increasing the width value. Decreasing this value,

generally, allows only the connection of the very near-

est components. In this case, we can have several

big ”sub-connected” objects instead of a single con-

nected object. On the other hand, the ascendant and

descendant characters often overlap and the distance

between a descendant (respectively ascendant) of a

line and another ascendant (respectively descendant)

of the next line (respectively the previous line), in the

horizontal sense, is smaller. Increase the width value

allows these speciﬁc characters to be touched. Figure

3 presents an example of the second case. In Figure

3(a), the distance (in the horizontal sense) between

the descendant character (green color) of the ﬁrst line

and the ascendant character (green color) of the sec-

ComparativeStudyofTwoSegmentationMethodsofHandwrittenArabicText-MM-OICandHT-MM

529

ond line is smaller. The correct result of the MM is

obtained after applying of a structuring element with

a width value = 25 (Figure 3(b)). Contrariwise, in Fig-

ure 3(c), the components of the two different lines are

connected in a single object (instead of two objects)

and are touched (red circle) after increasing the width

of the structuring element (width = 30).

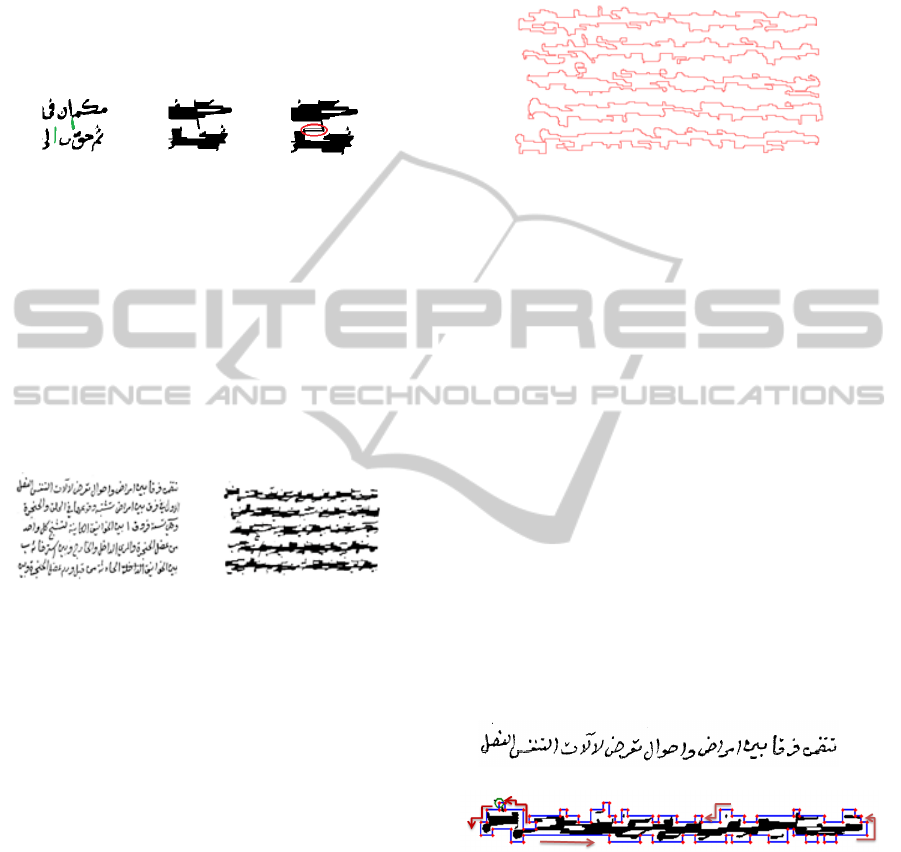

(a) (b) (c)

Figure 3: Results of the MM with two different values of

width of the structuring element. (a) original image. (b)

Applying of a structuring element with a width = 25. (c)

Applying of a structuring element with a width = 30.

So, after an experimental phase, the best chosen

width value of the structuring element is 25.

Figure 4 illustrates the result of concatenation of con-

nected components belonging to the same line. Figure

4(a) presents the initial image and Figure 4(b) shows

the morphologic operator effect.

(a) (b)

Figure 4: Mathematical morphology applied to connect dif-

ferent components belonging to the same line. (a) original

image. (b) connected component concatenation result.

2.2 Line Extraction: Construction of

OIC

In order to extract lines in a handwritten Arabic doc-

ument, we construct the outer isothetic cover of the

corresponding document after applying the MM by

the use the algorithm given by (Biswas et al., 2010).

The isothetic cover of a digital object speciﬁes a

simple representation of the object and provides ap-

proximate information about its structural content and

geometric characteristics. When, the cover ”tightly”

encloses the object, it is said to be an outer isothetic

cover (OIC). And when the cover inscribes the ob-

ject, it is considered as an inner isothetic cover (IIC)

(Biswas et al., 2010). The outer isothetic cover is de-

ﬁned by a set of isothetic polygons, having their edges

lying on the grid lines, such that the effective area cor-

responding to the object is minimized (Biswas et al.,

2010). The Figure 5 shows an example of the set of

outer polygons for different handwritten Arabic lines.

The outer isothetic covers are obtained for grid size g

= 2.

Figure 5: Set of polygons representing handwritten Arabic

lines corresponding to results of MM of Figure 4(b).

Then, to draw multiple polygons corresponding

to different lines, we modify the algorithm given by

(Biswas et al., 2010). This idea was used by Sarkar

for words segmentation of handwritten Bangla docu-

ments (Sakar et al., 2010). So, the algorithm is ap-

plied on the result of MM on handwritten Arabic doc-

ument. With a proper grid size each polygon corre-

sponds to a single line in the initial document.

In fact, on the result image of MM the grid points

are traversed in the raw-major order until a 90

◦

vertex

(start vertex) is found ((Biswas et al., 2010), (Sakar

et al., 2010)). Subsequent grid points are classiﬁed,

marked as ”visited”, and the direction is determined

from each grid point to the start vertex. Finally, the

OIC is constructed when the start vertex is reached

again. Figure 6 presents an example of construction

of OIC for the handwritten Arabic text line after appli-

cation of MM. In this ﬁgure each vertex is represented

by a red point, the start vertex is surrounded (green

circle) and the OIC of a line is represented with blue

color.

(a)

(b)

Figure 6: Construction of the OIC of handwritten Arabic

lines. (a) original image, (b) result of OIC algorithm.

With this process we extract text lines from a doc-

ument image. In Figure 7 we show a simple example

of text lines extraction from handwritten Arabic doc-

ument. Figure 7(a) presents the initial image. Figure

7(b) illustrates the result of the MM applied to the ini-

tial image. Figure 7(c) shows the OICs construction

of different objects with an appropriate grid size g (g

= 2), which has been deﬁned after a number of exper-

imental tests on a set of 15 documents, on the result of

ICPRAM2014-InternationalConferenceonPatternRecognitionApplicationsandMethods

530

MM: the green polygons generally represent diacriti-

cal symbols that can be identiﬁed by their perimeters,

while each large polygon represents a text line. The

text line extraction result is shown in Figure 7(d).

(a) (b)

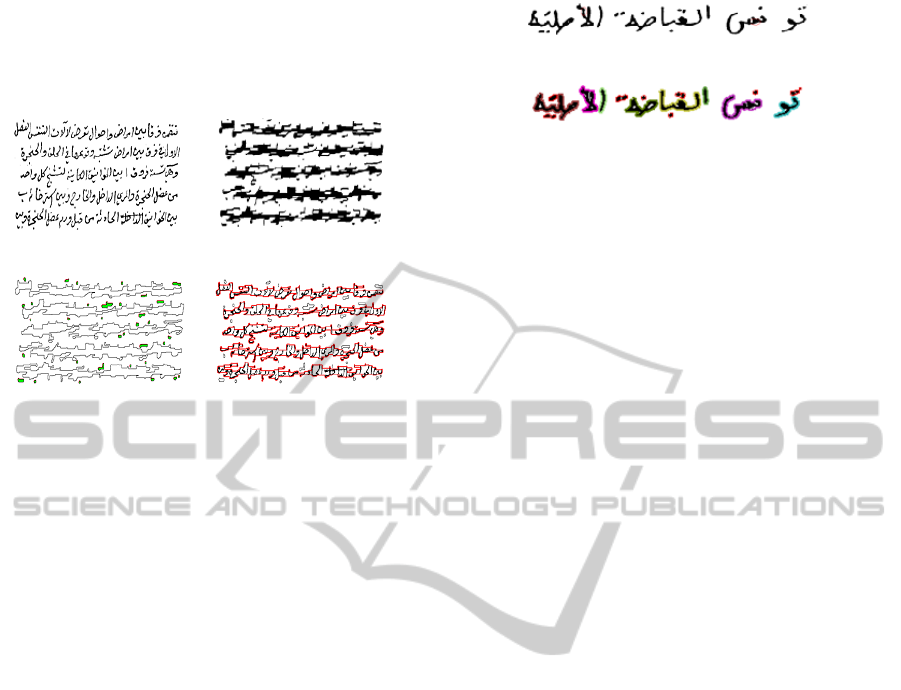

Figure 7: Text lines extraction with MM-OIC method. (a)

original image, (b) MM result, (c) OIC algoritm result, (d)

text lines extraction.

2.3 PAWs Segmentation

In (Snoussi, 2003) a PAW is described by a closed

contour which is neither a diacritic point nor a loop.

For this case, we focus on the separation of connected

components of each extracted line. We apply the al-

gorithm of the construction of the OIC, without the

application of the MM, with a grid size g = 1 on the

result image of line extraction step, we attain the seg-

mentation of the line into PAWs. In this case the

choice of the value of the grid size is not arbitrary.

Because, with the smallest value of g (g = 1), the OIC

algorithm allows the construction of the exact shape

of each detected component. The set of extracted

polygons contains some small polygons correspond-

ing generally to diacritic points or punctuation mark

and identiﬁed by their perimeters. Figure 8 illustrates

an example of a handwritten Arabic line segmented

into PAWs. Figure 8(a) presents a handwritten Arabic

line. The PAWs segmentation result is shown in Fig-

ure 8(b). In this ﬁgure, each PAW is represented by a

colored polygon. The red polygons represent diacritic

points and punctuation marks.

3 HT-MM METHOD

The HT-MM segmentation method is a combination

between the Hough Transform (HT) and Mathemati-

cal Morphology (MM). This method is applied on the

handwritten Arabic script in order to detect text line

and PAWs also.

(a)

(b)

Figure 8: Segmentation of handwritten Arabic line in

PAWs. (a) Handwritten Arabic line. (b) Segmentation re-

sult.

3.1 Text Line Detected

The HT (Duda and Hart, 1972) is applied to the bi-

narized edge map to generate its Hough image. For

this purpose the parameters of the Hough transform

are tuned in such a way that the lines are extracted as

a set of connected PAWs (Bouaﬁf et al., 2012).

In this stage the MM is applied in order to connect

PAWs and charchters. Indeed, the closing ﬁlter is one

of the basic tools of MM; it permits the connection

of adjacent components that have a separate distance

that is lower than the structuring element. The ap-

plication of a closing ﬁlter, using a rectangular form

of the structuring element of length 10 and width 2

on the result of HT, enabling us to construct continu-

ous lines. This step is applied three times to connect

the different components existing on the same hori-

zontal line. The structuring element is chosen after

a learning phase on the processed documents images

with the same steps explained as before. A labeling

stage is then applied in order to associate a label color

to each connected component. Each color represents

handwritten text line. Figure 9 presents the different

steps of text lines extraction of a handwritten Arabic

document. The initial image is shown in Figure 9(a).

Figure 9(b) illustrates all lines detected after the HT

application. Figure 9(c) shows the effect of MM and

the labeling stage applied to the HT result. Each com-

ponents color represents a text line in Figure 9(d).

3.2 PAWs Segmentation

Proposed PAW segmentation method is composed by

two stages: Detection of baselines and extraction of

PAW’s.

3.2.1 Detection of the Baseline of the Text Lines

Baseline is an artiﬁcial line composed by a sequence

of aligned pixel that connects the maximum black pix-

els of the characters in the text line. Different base-

line extraction methods are abound in the literature

(Snoussi et al., 2008). The proposed baseline detec-

tion method is applied to the text binary image with-

ComparativeStudyofTwoSegmentationMethodsofHandwrittenArabicText-MM-OICandHT-MM

531

(a) (b)

Figure 9: Different steps for text line detection.

out slant correction. It is based on the HT in order to

detect the median baseline. In fact the maxima of the

accumulator present the median baseline of word pro-

cessing. The horizontal projection stage is applied in

the Hough space in order to extract the lower and up-

per lines. These two lines divide the word into three

parts: (1) Ascender and upper diacritic points above

the upper baseline; (2) Descender and lower diacritic

points under the lower baseline and (3) the main con-

tent of the word between the two baselines. Figure

10 illustrates the three baselines extracted by HT and

horizontal projection. Upper and lower baselines are

presented in blue color and median baseline in red

color.

Figure 10: Median, upper and lower baseline detected from

an Arabic handwritten word.

3.2.2 PAW Detection

Handwritten Arabic words can have some discontinu-

ities due to the pen up and the binarization stage. Ac-

cording to these discontinuities we can detect more

than the real number of a PAW in a given word. The

application of morphological ﬁlter can connect some

parts of PAW. A labeling stage is then applied in or-

der to associate a label color to each connected com-

ponent. The labeled component can be an isolated

character or a token diacritic or characters set. The

extraction of the PAW needs to eliminate the compo-

nents existing below the lower baseline and above the

upper baseline.

Figure 11 illustrates the different steps of PAW

detection. Figure 11(a) presents the original image,

where a discontinuity is surrounding in red color. The

smoothing and labeling stage is presented in Figure

11(b), where the correction of discontinuity is sur-

rounded in blue color and baselines are presented in

red color. The diacritic points localized above the up-

per baseline are eliminated. Figure 11(c) shows two

extracted PAW’s.

(a) (b) (c)

Figure 11: PAWs detection.

4 EVALUATION AND

COMPARISON

The evaluation method allows a comparison between

the coordinate’s components automatically extracted

from the segmented image and the real coordinate’s

components of the original text image.

4.1 Test and Results

The two segmentation methods are tested on a set

of handwritten Arabic documents selected from three

different databases. For the line extraction method we

select a sub-set of documents divided into 30 doc-

uments extracted from the KSU

database contain-

ing 470 lines, 17 images selected from IFN/ENIT-

databases containing 162 lines and 16 documents ex-

tracted from the BSB

databases containing 191 lines.

To evaluate the segmentation of handwritten line into

PAWs, we select 30 lines from the KSU-database

composed of 922 PAWs, 30 lines from IFN/ENIT

composed of 772 PAWs and 11 lines extracted from

BSB images containing 300 PAWs. In Figure 12 we

show the correct extraction rate of the two methods

for lines segmentation.

We can see in Figure 12 that the MM-OIC method

extraction rate is greater than for HT-MM. We also

notice that the two methods have given the best ex-

traction rate on the IFN/ENIT database. This is ex-

plained by the fact that the documents of this database

are simple and contain lines with a large interline

space. The low results of the HT-MM segmenta-

tion method is due to the choice of structural element

for connecting the components. In fact, the HT-MM

http://ksu.edu.sa/ar/research/manuscripts-makhtota

http://www.bsb-muenchen.de/

ICPRAM2014-InternationalConferenceonPatternRecognitionApplicationsandMethods

532

method uses as structural element to connect horizon-

tally different components. This enables successive

lines to touch or to overlap for the cases of documents

containing lines with a relatively small interline or

having annotation between lines as in BSB and KSU

documents.

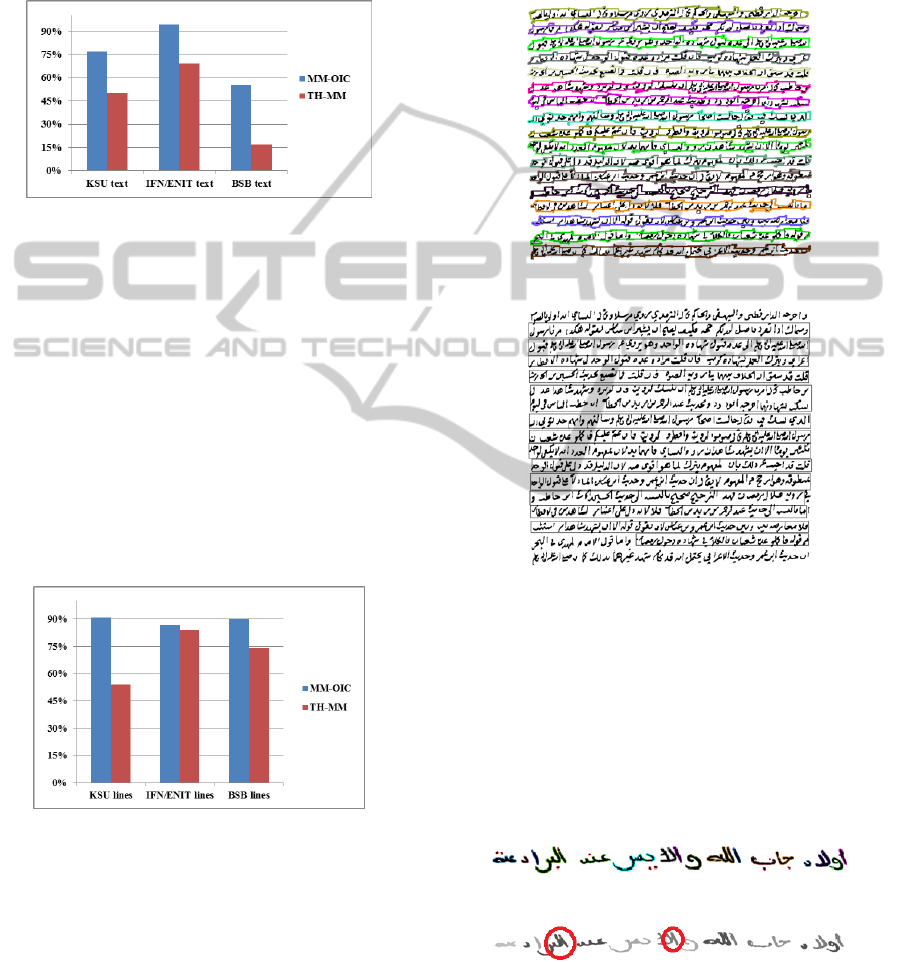

Figure 12: Lines extraction rate for the two methods.

The results of the two methods for the case of the

line segmentation into PAWs are illustrated in Figure

13. We notice that the best extraction rate is given by

the MM-OIC method also. This is explained by the

fact that the proposed method can ﬁnd the OICs of

all components in the treated document. The extrac-

tion rate for the IFN/ENIT lines is approximately the

same for the two methods. However, for the case of

the KSU and BSB lines, the MM-OIC gives a greater

extraction rate than of the HT-MM ones. The very

low extraction rates given by the HT-MM method are

due also to the utilization of the structural element by

this method in order to resolve the problem of the dis-

continuity in the Arabic words.

Figure 13: PAWs extraction rate for the two methods.

4.2 Comparison of the Two Methods

The chosen evaluation method favors the second

method because it considers the extracted blocks as

geometric segments. However, we can deduce that

the MM-OIC segmentation method is better than HT-

MM. But this method has a bad rate of text line de-

tection by the use of the KSU and BSB database. In

Figure 14, we illustrate the result of the two methods

applied on the same document for the text line seg-

mentation. Figure 14(a) clearly shows that the MM-

OIC method has given a better result than the HT-MM

method. (Figure 14(b)). For the ﬁrst method, each

colored polygon represents a text line and for the sec-

ond method, each extracted line is delimited by a rect-

angle.

(a)

(b)

Figure 14: Text lines segmentation. (a) MM-OIC method,

(b) HT-MM method

In the same, we illustrate in the Figure 15 two ex-

amples of segmentation of text line into PAWs with

the two method. Figure 15(a) present a good PAWs

segmentation by the MM-OIC method. On the other

side, the HT-MM method has given an under seg-

mentation result for the same segmented line (Figure

15(b)). The under segmentation is circled in red color.

(a)

(b)

Figure 15: PAWs segmentation.(a) MM-OIC method, (b)

HT-MM method (under segmentatio)

Another advantage which classiﬁes the method

MM-OIC compared to the HT-MM method is that

ComparativeStudyofTwoSegmentationMethodsofHandwrittenArabicText-MM-OICandHT-MM

533

the ﬁrst method, in some cases, can overcome the

problems of lines overlap and diacriticals symbols

which generally generate false lines. In Figure 16,

we present an example of this case. Figure 16(a)

shows clearly that the HT-MM method gives a bad

text lines segmentation caused by overlapped lines

(circle in green color) and diacritical symbols (circle

in red color) respectively. On the contrary, in Figure

16(b), the MM-OIC method gave better results of seg-

mentation by exceeding these problems.

(a)

(b)

Figure 16: Text lines segmentation with presence of the

problems of overlapped lines and diacritical symbols. (a)

Result of the HT-MM method, (b) Result of the MM-OIC

method

The main reason of this difference is due to the

fact that the shape of extracted component for second

method is rectangular (Figure 9(d)). This shape can

increase overlapping between lines or PAWs. How-

ever, for the ﬁrst method the shape tries to approxi-

mate the shape of the script (Figure 7(c)).

In the other hand, MM is used for the two meth-

ods to connect desired extracted components. For the

MM-OIC the extraction step is done by the OIC algo-

rithm. However, the HT in the second method is not

used for the extraction but to improve the connection

step. The extraction is then done by a labeling step.

4.3 Comparison with Other Methods

Several approaches have been developed for the seg-

mentation of the handwritten Arabic script, espe-

cially for text lines segmention. The obtained seg-

mentation results depend of each method and of the

databases used for the test. To classify the two pro-

posed method, we present in Table 1 the results of

some approaches with each used database. This table

gives an idea about the obtained segmentation rates

but cannot be used for comparison only if all these

methods are evaluated on the same databases.

Table 1: Results of some existing methods of segmentation

of handwritten Arabic documents in lines.

Approaches Test Extraction

Database rate

(Bennasri et al., 1999) 100 98.6%

documents

(Zahour et al., 2007) 100 96%

documents

(Zahour et al., 2008) 160 96.6%

documents

(Li et al., 2008) 2691 Arabic 84.6%

text lines

(Ouwayed et al., 2012) 36 98.35%

(samples)

documents

65.07%

(muti-size)

Our approaches 63 MM-OIC: 75%

documents

HT-MM: 45%

5 CONCLUSIONS

Two segmentation methods of handwritten Arabic

documents are presented. The ﬁrst one is the MM-

OIC method and the second one is the HT-MM

method. Both methods allow the extraction of text

lines from handwritten Arabic document and the seg-

mentation of lines in PAWs. An evaluation method is

proposed in order to assess and to compare the efﬁ-

ciency of these two segmentation methods. The eval-

uation criterion used is the limit positions of zones

(lines or PAWs). Evaluation is done on a set of

documents selected from three sources: IFN/ENIT-

database, the two online libraries of BSB and KSU.

The average rate line segmentation of MM-OIC is

75%, and of HT-MM is 45%. But the average rate

of PAW segmentation of MM-OIC is 89%, and of the

HT-MM is 70%.

We should focus in the future works on the im-

provement of the MM stage of both segmentation

methods in order to improve the segmentation rate.

ICPRAM2014-InternationalConferenceonPatternRecognitionApplicationsandMethods

534

Furthermore, we should test these two segmentation

methods on a larger and a complex database. And, we

think to evaluate the proposed methods on other cri-

teria such as the number of detecting segments or the

recognition rate for PAWs extraction. A comparison

to other developed method is also one of our perspec-

tives on the same databases.

REFERENCES

Abdulkader, A. Two-tier approach for arabic ofﬂine hand-

writing recognition. In IWFHR06, pages 65000T.1–

65000T.11.

Bennasri, A., Zahour, A., and Taconet, B. (1999). Extrac-

tion des lignes dun texte manuscrit arabe. In Vision

Interface99, pages 42–48.

Biswas, A., Bhowmick, P., and Bhattacharya, B. (2010).

Construction of isothetic covers of a digital object: A

combinatorial approach. Journal of Visual Communi-

cation and Image Representation, 21:295–310.

Bouaﬁf, S. F., Snoussi, S. M., and Ellouze, N. (2006).

etection des lignes pr

e-imprim

ees de ch

eques ban-

caires tunisiens par la transformation de hough en vue

de l’extraction de l’

ecriture manuscrite. In S

eminaire

Automatique Industrie (SAI), pages 45–52.

Bouaﬁf, S. F., Snoussi, S. M., and Ellouze, N. (2012). A

hybrid method for three segmentation level of hand-

written arabic script. IAJIT’12, 9(2):117–123.

Bukhari, S. S., F., S., and Breuel, T. M. (2009). Use of

the hough transformation to detect lines and curves in

pictures. In Communication of the ACM, pages 446–

450, Barcelona, Spain.

Duda, R. O. and Hart, P. E. (1972). Script-independent

handwritten textlines segmentation using active con-

tours. In ICDAR’72, pages 11–15.

Li, Y., Zheng, Y., Doermann, D., and Jaeger, S. (2008).

Script-independent text line segmentation in freestyle

handwritten documents. IEEE Transactions on Pat-

tern Analysis and Machine Intelligence, 30(8):1313–

1329.

Malleron, V., Eglin, V., Emptoz, H., Dord-Crousl

e, S., and

egnier, P. (2009). Text lines and snippets extraction

for 19th century handwriting documents layout analy-

sis. In ICDAR’09, pages 1001–1005.

Miled, H., Cheriet, M., and Olivier, C. (1998). Multi-level

arabic handwritten words recognition. In The Interna-

tional Workshops on Advances in Pattern Recognition

(IAPR), pages 944–951, Sydney, Australia.

Nicolaou, A. and Gatos, B. (2009). Handwritten text line

segmentation by shredding text into its lines. In IC-

DAR’09, pages 626–630, Barcelona, Spain.

Ouwayed, N., and Belaid, A. (2012). A general approach

for multi-oriented text line extraction of handwritten

documents. IJDAR12, 15(4):297–314.

Sakar, A., Biswas, A., Bhowmick, P., and Bhattacharya,

B. (2010). Word segmentation and baseline detection

in handwritten documents using isothetic covers. In

ICFHR10, pages 445–450.

Sarfaz, M., Nawaz, S. N., and Al-Khuraidly, A. (2003). Off-

line arabic recognition system. In International con-

ference on geometric modeling and graphics, pages

30–35.

Snoussi, S. M. (2003). Mod

ele prespectif neuronal

a vision

globale-locale pour la reconnaissance de mots arabe

omni-scripteurs. PhD thesis, ENIT.

Snoussi, S. M., ElAbed, H., Bouaﬁf, F. S., Bouriel, K., and

Ellouze, N. (2008). Baseline extraction : Comparison

of six methods on ifn/enit database. In ICFHR’08,

page 1170.

Zahour, A., Likforman-Sulem, L., Boussalaa, W., and

Taconet, B. (2007). Text line segmentation of histori-

cal arabic documents. In ICDAR’07, pages 138–142,

Curitiba, Paran, Brazil.

Zahour, A., Taconett, B., Likforman-Sulem, L., and Bous-

sellaa, W. (2008). Overlapping and multitouching

text-line segmentation by block covering analysis.

Pattern Analysis and Applications, 12(4):335–351.

ComparativeStudyofTwoSegmentationMethodsofHandwrittenArabicText-MM-OICandHT-MM

535
