Resourcebus

A New Substrate for Model-driven Creations

Petr C. Smolik and Pavel Vitkovsky

Metada s.r.o., Antala Staska 64, Prague, Czech Republic

Keywords: Model-Driven Engineering, Resource-oriented Computing, Model Versioning, Model Storage, Model

Interpretation, Linked Data Platform.

Abstract: In this paper we present our on-going work on a framework we are building as a basis for construction of

modeling and metamodeling environments. Resourcebus is basically a web-based resource-oriented

computing environment for creation and execution of dynamic resources based on interpretation of models.

Resourcebus adheres to the linked data principles and REST architectural style, and enables publishing

models on the web using open standards. The framework includes built-in versioned storage, caching,

access control, and set of various interpreters. We are developing Resourcebus primarily as a runtime

environment for model storage, model interpretation, and code generation. Resourcebus itself knows

nothing about metamodels and does not implement any particular meta-metamodel. It just provides an

environment for creating them. We conclude this paper with a list of issues that still need to be resolved.

1 INTRODUCTION

There are various types of model-driven tools

available. Some tools, such as Xtext (Eysholdt,

2010), are primarily text-based and enable

development of textual DSLs for various purposes

and include code editors with syntax coloring, and

code completion. Some tools, such as MetaEdit+

(Tolvanen, 2006), are primarily graphical and enable

creation of visual representations of domain-specific

concepts and their relations. Finally, some tools,

such as the Meta Programming System (MPS)

(Voelter, 2011), enable textual projectional editing

via structured code editors that directly operate on

the syntax tree of a program instead of on lines of

text. A large recent comparison of various tools and

approaches is provided in a report from the 2013

Language Workbench Challenge (Erdweg, 2013).

In the spectrum of approaches, Resourcebus is a

foundation for web-based model-driven tools that

are mostly targeted to non-programmers. Users of

such tools create models primarily by filling forms,

but there is also some support of graphical

navigation through the models and there are

structured code editors for specifics such as

expressions.

Resourcebus realizes several foundational

services that model-driven solution creators should

not have to worry about. These are model storage,

versioning, intelligent caching, access control, multi-

user environment, support for combining languages

(both domain-specific and general-purpose ones),

facilities for model interpretation, and the possibility

of publishing models and metamodels on the web.

In this paper we show our work in progress on

Resourcebus. We are currently working on release

0.14 and hope to reach version 1.0 within months.

Parts of Resourcebus are already in use by two of

our customers in the financial services domain, since

we are in the process of incremental migration of our

existing Metada Metarepository metamodeling

environment to Resourcebus. Metarepository takes

advantage of all the Resourcebus features and adds

its meta-metamodel and few model interpreters, such

as an editor interpreter that enables form-based

editing of models based on a specified metamodel.

2 FUNDAMENTALS

Resourcebus adheres to the linked data principles

stated in (Berners-Lee, 2006):

 Use Uniform Resource Identifiers (URIs) as names

for things.

 Use HTTP URIs so that people can look up those

names.

460

C. Smolik P. and Vitkovsky P..

Resourcebus - A New Substrate for Model-driven Creations.

DOI: 10.5220/0004808504600465

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 460-465

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

 When someone looks up a URI, provide useful

information, using the standards such as RDF

(Klyne, 2004).

 Include links to other URIs, so that they can

discover more things.

Using these principles, Resourcebus enables

expressing models and metamodels as regular linked

data and enables standard ways of their creation,

maintenance, and retrieval as regular web resources.

2.1 Resource

Resourcebus resource is defined as a thing identified

by an HTTP URI. Using content negotiation some

representation of the thing, or information about the

thing can be retrieved. This way Resourcebus has no

problem working with model entities that are often

representing real-world things or abstract things that

have only some metadata about them, but cannot be

really retrieved themselves.

The distinction whether resource identifies a

real-world thing or an abstract concept and not a file

or a document can be made by inspecting the

available resource properties describing the

resource. We found this solution more efficient and

practical compared to other proposed solutions such

as the use of “303 URIs” or “hash URIs” that are

discussed in (Sauermann, 2008).

2.2 Resource Properties

Each Resourcebus resource may have one or more

resource properties. Resource properties are directly

related to the concept of RDF predicates and their

types to RDF properties. Each property type is also a

thing identified by an HTTP URI, so that

information about any property may be retrieved and

used by Resourcebus applications.

Resource properties are either simple or

complex. Simple property has a simple value

whereas complex property defines a sub-resource

that can also have simple or complex properties.

Each complex property has an ID unique within the

scope of the given resource and may be addressed by

adding a fragment identifier with its ID behind the

resource URI (e.g. http://example.org/resource#cp).

Within Resourcebus, resource properties are

natively represented in simple XML format, where

XML namespaces are used to declare the full HTTP

URIs of all the resource properties. Via content

negotiation, it is possible to retrieve also other

representations of resource properties such as in

text/turtle (Beckett, 2013) or application/rdf+xml

Klyne, 2004) formats.

This is a simple example of the native XML

representation of resource properties:

<rbs:Data xmlns:dcterms="http://purl.org/dc/terms/"

xmlns:ex="http://example.org/”

xmlns:rbs="http://resourcebus.org/ns/storage#"

xmlns:rdf="http://www.w3.org/1999/02/22-rdf-

syntax-ns#">

<dcterms:title>Example resource</dcterms:title>

<rdf:type>ex:ExampleType</rdf:type>

</rbs:Data>

And this is the above example represented in

text/turtle:

@prefix dcterms: <http://purl.org/dc/terms/>.

@prefix ex: <http://example.org/>.

@prefix rbs: <http://resourcebus.org/ns/storage#>.

@prefix rdf: <http://www.w3.org/1999/02/22-rdf-

syntax-ns#>.

<> a ex:ExampleType;

dcterms:title "Example resource".

The example shows very simple properties of an

“Example resource” of type ex:ExampleType.

Information about the example type then would be

retrievable, in non-example scenario, from a URL

like http://example.org/ExampleType.

We are convinced that this form of

representation provides easy and standard way of

sharing models while enabling clear composition of

concepts from different ontologies or metamodels.

2.3 Dynamic Resources

Resourcebus resources may have content. The

content is either static or dynamic, or does not exist

at all. If there is no content, there are at least

resource properties informing about the existing

resource. Static resource is a resource that has some

associated file that can be directly retrieved as its

content. Dynamic resource provides its content (or

even properties) via interpretation of its properties

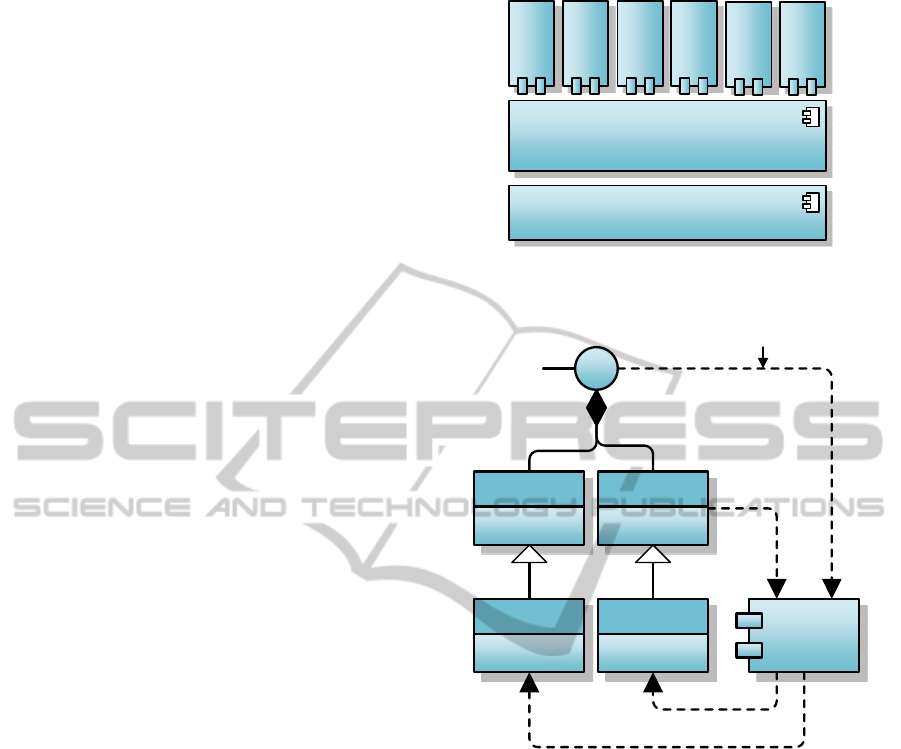

by an interpreter (depicted on Figure 2). During

interpretation it is possible to call other resources

and this mechanism thus provides means for

complex computations and even whole model

interpretations.

We expect that dynamic resources may also

provide elegant means for constructing modern web

applications based on the REST architectural style

(Fielding, 2002), because they may provide useful

properties for their execution and navigation to

related resources, and thus define their REST APIs.

Furthermore, they may use APIs of other such

resources to achieve their composition into complex

applications.

Resourcebus-ANewSubstrateforModel-drivenCreations

461

2.4 Content Negotiation

Since Resourcebus resources may contain both

properties and an actual content, it has to be clear

how to retrieve each of them. The HTTP protocol

does not provide explicit means for separate

handling of content and metadata. For this reason

Resourcebus uses the following rule during the

HTTP content negotiation:

 IF there is no content nor properties THEN return

404 status code

 ELSE IF properties may be represented in an

acceptable content-type AND URL does not end

with a filename extension THEN return properties

 ELSE IF content may be represented in acceptable

content-type THEN return content

 ELSE return 406 status code.

In other words, if Resourcebus client wants to

retrieve resource properties it puts to the Accept

header only the content-types expected to be used

for properties representation, such as text/turtle or

application/rdf+xml. Nevertheless, if a client wants

to request content with such specific content types, it

has to use a URL with corresponding filename

extension (i.e. .rdf or .ttl).

To enable the REST architectural style, the

actual resource properties returned do contain a

property holding a reference to an existing content

with the proper filename extension included, so the

client can just follow this advice and does not have

to resort to undesirable URL construction. Also, if

content is returned on the resource URL without the

filename extension, the response headers contain the

content-location header that provides the URL with

the proper filename extension included.

3 ARCHITECTURE

The architecture strategy of Resourcebus is to have a

core that is as small as possible (like a microkernel)

and all other functionality to be implemented via

pluggable “interpreters” as shown on Figure 1.

Resourcebus interpreters implement the methods

(corresponding to standard HTTP methods) of an

abstract interpreter provided by the Resourcebus

core. Interpreters may use the Resourcebus client

API to access other resources based on their needs.

Interpreters are used through dynamic resources

where a dynamic resource is configured (via

resource properties) to use a specific interpreter for

its interpretation as shown on Figure 2.

Resourcebus core uses a storage API for

Resourcebus Core

Interpreter

Resourcebus Storage

Figure 1: Resourcebus components.

Resource

Content Properties

Interpreter

Dynamic

Content

Interpreted

Computes

Representations

requested by

GE T, PO ST, PUT, DELETE,

HEAD, PATCH, OP TIONS

Dynamic

Properties

Figure 2: Resource-oriented computing.

persistence of both resource content and resource

properties. The following subsections provide

further information about the individual

components.

3.1 Resourcebus Core

Resourcebus core is divided to client and server

parts as shown on Figure 4. The client part is used to

access both local and external resources via standard

HTTP methods and respects the content negotiation

rule specified in section 2.4 in order to distinguish

resource content from resource properties. A

resource-oriented API is provided that enables

traversal of the graph of related resources instead of

having to place raw HTTP requests.

The server part implements the resource handling

via the standard HTTP methods. The server ensures

communication with the storage where static

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

462

resource content and resource properties are stored,

executes dynamic resources by running the

appropriate interpreters, and caches the resulting

representations for repeated use.

The server tracks all resource execution

dependencies and for each cached representation it

knows exactly what was used for its computation.

Representations have to be un-cached only if

something changed that they depend on.

Computations are thus done only when really needed

and nothing is recomputed unnecessarily. This style

of computing, depicted in Figure 2, based on our

opinion, could be called the “resource-oriented

computing”, nevertheless this term is currently not

widespread and one of the few used we know of is in

(Geudens, 2012) where it is made more complex by

using a non-standard protocol.

We see the resource-oriented computing style

used within Resourcebus as its most interesting

contribution for the area of model execution (both

interpretation and code generation), because

involved computations have to be recomputed only

if their sources change. This means that not only

model changes get effectively propagated, but even

the metamodel or meta-metamodel changes do. This

allows for construction of integrated metamodeling

environments (aka metatools).

Currently there exists one metamodeling

environment built on Resourcebus, the Metada

Metarepository, that realizes a meta-metamodel and

a set of metamodels and model interpreters realizing

the metamodeling environment. The tool has been

already used on two larger projects in the financial

services domain.

The philosophy of Resourcebus core is also very

similar to the one of the Linked Data Platform

(LDP), as described in (Speicher, 2013), because

Resourcebus is built on the same linked data

principles. Resourcebus is mostly compliant with the

current working draft of the LDP specification and it

should not be a problem to reach full compliance to

the potential standard in the future.

3.2 Resourcebus Storage

Resourcebus is designed to support large

development teams working on relatively large

models with tight and overlapping release-cycles.

Versioning capabilities are therefore natively

included in the storage API. Versioning of

individual models or whole model repositories is

possible. There is an instant access to models at any

branch, tag, or historical commit. Private branches

are used by individual users to model and debug

models in a sandbox where they are not distracted by

changes of other users. Private branches may be

updated with changes from their parent branches and

may publish their changes back to them. Propagation

of fixes is possible from production branch to

several development branches.

Currently there is just one implementation of the

storage API, depicted on Figure 3, but other

implementations are possible. It is based on the Git

versioning system described in (Chacon, 2009) that

we extended with the support of sparse checkouts.

When a private branch is created, only a new Git

branch pointer is created, when changes are made,

only those changes are written to the sparse. No full

checkouts are needed, which makes large number of

private branches to be continually in use without

multiplying the disk space needed. Apache Lucene

(McCandless, 2010) indexing is used to support fast

lookup of entities and traversing their relations. The

storage format of resource properties is XML.

Storage API

Apache Lucene Git

Figure 3: First storage implementation.

This storage implementation combining Git with

Lucene was initially created only to figure out

requirements for the storage API, but it seems to be

still sufficient for a model repository with 30,000

objects (180MB in XML files), hundreds of tags and

branches, and tens of thousands of commits.

More sophisticated storage implementations are

possible if needed. Good candidates may be XML or

NoSQL databases, both described in (Strauch,

2011). It is also possible that several different

storage implementations will need to be used in

parallel, since each one will have different trade-

offs. For example the Git/Lucene implementation

seems to be quite powerful on the versioning side.

The Apache Lucene search engine is useful also

for full-text search both in static resource content or

properties, but this feature does not have to be

available through the storage API and could be

implemented via separate interpreter.

3.3 Interpreters

Resource interpreters enable realization of dynamic

resources. Their use is configured via the properties

of a given dynamic resource. They are called

interpreters, because their primary purpose is to

Resourcebus-ANewSubstrateforModel-drivenCreations

463

interpret models and do useful things based on them.

With different interpreters behind different resources

it is easy to combine both interpreters and

metamodels into flexible applications.

Groovy

Interpreter

Model Storage (XML files)

Git Apache Lucene

Resourcebus Core

Storage API

Client Server Cache

Resource API

JavaScr ipt

Interpreter

Clojure

Interpreter

Prolog

Interpreter

Freemarker

Interpreter

XSLT

Interpreter

Meta

Interpreter

Editor

Interpreter

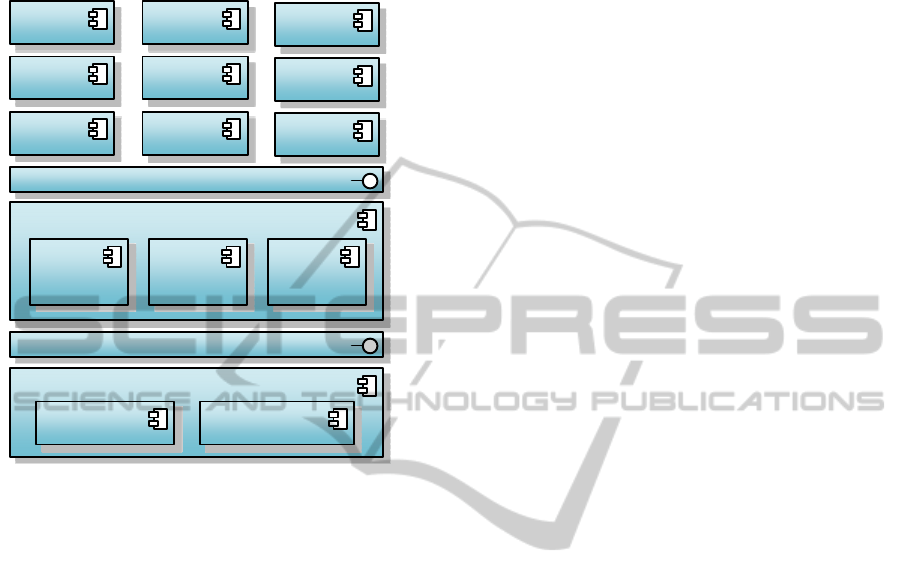

Figure 4: Resourcebus architecture.

Currently the most interesting interpreter realized is

the Editor Interpreter used by the Metada

Metarepository to provide for form-based editing of

arbitrary models based on the interpretation of their

metamodels. It nicely demonstrates how changes in

metamodel immediately take effect in the runtime.

The same way that Resourcebus interpreters

enable execution of various domain-specific

languages, they may support execution of various

general-purpose or special-purpose languages that

can be this way easily used within Resourcebus and

even use its client API to access other resources. We

have used or at least tested interpreters for the

following languages: Groovy (Koenig, 2007),

JavaScript (Crockford, 2008), Scala (Odersky,

2010), Clojure (Emerick, 2012), Freemarker

(Forsythe, 2013), XSLT (Kay, 2007), and XQuery

(Boag, 2010).

We plan Resourcebus interpreters to be hot-

pluggable and to enable parallel existence of their

several versions. The former should allow for

flexible dynamic configuration of applications, the

latter should enable long-term support of older

functionalities without having to migrate to newer

versions of interpreters.

4 CONCLUSIONS

In this paper we have presented our work on

something that we see as a substrate for model-

driven creations. Resourcebus is designed to be as

simple as possible, but to provide all foundational

services that all modeling tools need to provide, such

as model storage, versioning, access control,

intelligent caching, and a way to plug-in model

interpreters. Resourcebus aims to be compatible with

current standards such as HTTP and RDF, and future

standards such as Linked Data Platform (LDP). This

way it could serve as the basis for sharing and

distribution of models and metamodels on the web.

Our further work will be focused on finishing

version 1.0 with enough examples so that other

researchers would be able to test and potentially use

Resourcebus for implementation of their own ideas.

Issues that are still unresolved include combining

multiple types of model storage including in-

memory storage, finalization of the REST

application style, implementation of more sample

interpreters, such as ones for model-to-model

transformations, and support for event processing.

REFERENCES

Beckett, D., Berners-Lee, T., Prud'hommeaux, E.,

Carothers, G., 2013. Turtle: Terse RDF Triple

Language, W3C Candidate Recommendation.

Berners-Lee, T., 2006. Linked Data Design Issues. W3C-

Internal Document, http://www.w3.org/DesignIssues/

LinkedData.html.

Boag, S., Chamberlin, D., Fernández, M. F., et al, 2010.

XQuery 1.0: An XML Query Language (Second

Edition). W3C Recommendation.

Chacon, S., 2009. Pro Git. Apress, New York.

Crockford, D., 2008. JavaScript: The Good Parts.

O'Reilly Media, Sebastopol.

Emerick, C., Carper, B., Grand, C., 2012. Clojure

Programming: Practical Lisp for the Java World.

O'Reilly Media, Sebastopol.

Erdweg, S., van der Storm, T., Völter, M., et al, 2013. The

State of the Art in Language Workbenches:

Conclusions from the Language Workbench

Challenge. In Proceedings of the Software Language

Engineering conference (Indianapolis, USA, October

26-28, 2013). Springer.

Eysholdt, M., Behrens, H., 2010. Xtext: implement your

language faster than the quick and dirty way. In

Proceedings of the ACM international conference

companion on Object oriented programming systems

languages and applications companion, pp. 307-309.

Fielding, R., Taylor, R., 2002. Principled Design of the

Modern Web Architecture, ACM Transactions on

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

464

Internet Technology (TOIT), Volume 2 Issue 2, May

2002.

Forsythe, C., 2013. Instant FreeetMarker Starter. Packt

Publishing, Birmingham.

Geudens, T., 2012. Resource-Oriented Computing with

NetKernel: Taking REST Ideas to the Next Level,

O'Reilly Media.

Kay, M., 2007. XSL Transformations (XSLT) Version

2.0. W3C Recommendation.

Klyne, G., Carroll, J. J., 2004. Resource Description

Framework (RDF): Concepts and Abstract Syntax,

W3C Recommendation.

Koenig, D., Glover, A., King, P., et al, 2007. Groovy in

Action. Manning Publications Co., New York.

McCandless, M., Hatcher, E., Gospodnetic, O., 2010.

Lucene in Action, Second Edition: Covers Apache

Lucene 3.0. Manning Publications Co., Stamford.

Odersky, M., Spoon, L., Venners, B., 2010. Programming

in Scala, Second Edition. Artima Press, Walnut Creek.

Sauermann, L., Cyganiak, R., 2008. Cool URIs for the

Semantic Web. W3C Interest Group Note.

Speicher, S., Arwe, J., Malhotra, J., 2013. Linked Data

Platform 1.0. W3C Last Call Working Draft.

Strauch, Ch., 2011. NoSQL Databases. Lecture Selected

Topics on Software-Technology Ultra-Large Scale

Sites, Manuscript. Stuttgart Media University,

http://www.christof-strauch.de/nosqldbs.pdf.

Tolvanen, J.-P., 2006. MetaEdit+: integrated modeling and

metamodeling environment for domain-specific

languages. OOPSLA’06 Companion, pp. 690-691.

Voelter, M., 2011. Language and IDE Development,

Modularization and Composition with MPS. In

GTTSE 2011, LNCS. Springer.

Resourcebus-ANewSubstrateforModel-drivenCreations

465
