Semi-Markov Modeling-Clustering of Human Sleep with Efﬁcient

Initialization and Stopping

Chiying Wang

, Sergio A. Alvarez

, Carolina Ruiz

and Majaz Moonis

Department of Computer Science, Worcester Polytechnic Institute, Worcester, MA 01609 U.S.A.

Department of Computer Science, Boston College, Chestnut Hill, MA 02467 U.S.A.

Department of Neurology, University of Massachusetts Medical School, Worcester, MA 01605 U.S.A.

Keywords:

Time Series, Dynamic Time Warping, Data Mining: Clustering, Modeling, Markov, Sleep.

Abstract:

Collective Dynamical Modeling-Clustering (CDMC) is an algorithmic framework for time series dynamical

modeling and clustering using probabilistic state-transition models. In this paper, an efﬁcient initialization

technique based on Itakura slope-constrained Dynamic Time Warping is applied to CDMC. Semi-Markov

chains are used as the dynamical models. Experimental evaluation demonstrates the effectiveness of the pro-

posed approach in providing more realistic dynamical modeling of sleep stage dynamics than Markov models,

with improved clustering quality and convergence speed as compared with pseudorandom initialization.

1 INTRODUCTION

The dynamics of the sleep-wake cycle present

species-speciﬁc patterns with some underlying sim-

ilarities across mammalian species (Phillips et al.,

2010). In humans, a more detailed description

of sleep is available in terms of the sleep stages

determined via polysomnography, as described in

the Rechtschaffen-Kales (Rechtschaffen and Kales,

1968) and AASM (Iber et al., 2007) staging stan-

dards. An example of an all-night sleep stage se-

quence is shown in Fig. 1. Sleep stage transitions and

sleep stage durations provide essential indicators in

describing the relationship between sleep and health

(Kishi et al., 2008), (Hernandez et al., 2009), (Chervin

et al., 2009), and (Bianchi et al., 2010).

0 200 400 600 800 1000

Wake

REM

Stage 1

Stage 2

Stage 3

Time (epochs)

Sleep stage

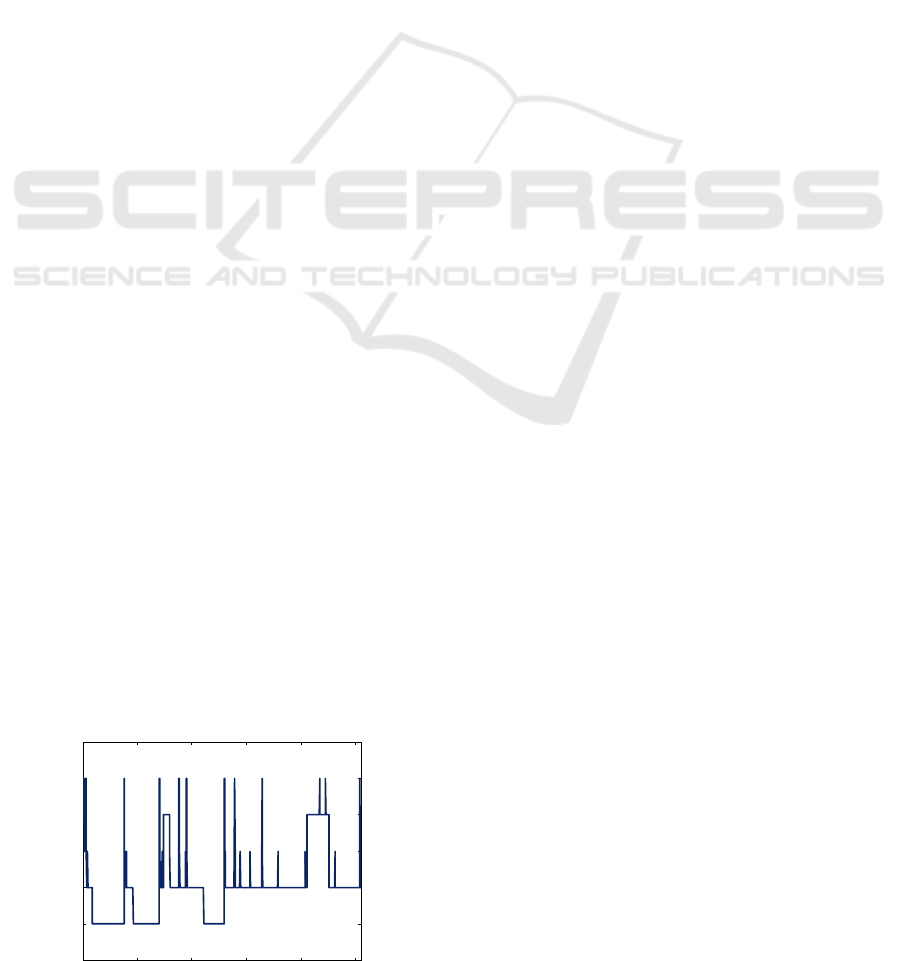

Figure 1: Sample hypnogram

Scarcity of Dynamical Events in Sleep Data. We

are interested in the discovery of dynamical patterns

in sleep stage sequences by means of automated algo-

rithms. Sleep presents a particular challenge to such

algorithms, in that key dynamical events such as stage

transitions occur very sparsely within a hypnogram,

making it difﬁcult to extract reliable dynamical infor-

mation from a single night of sleep for a given indi-

vidual (Bianchi et al., 2010).

The collective dynamical modeling-clustering

(CDMC) algorithm (Alvarez and Ruiz, 2013) ad-

dresses the problem of scarcity of dynamical events

by pooling sleep data across multiple individuals, si-

multaneously partitioning the collection of subjects

by sleep-dynamical similarity. CDMC reduces the

model variance by selectively aggregating instances

through clustering. This reduction in variance is ac-

complished in CDMC without the loss of detail that

would result by simply aggregating data without re-

gard for dynamical similarity. The result of CDMC

is a collection of groups of hypnograms such that

hypnograms within a given group are dynamically

similar, while hypnograms in different groups are not.

Scope of the Paper. CDMC is a general algorithmic

framework that leaves open several important choices.

Two main choices that must be made when applying

the CDMC framework are the clustering initializa-

tion technique and the dynamical model type. Stan-

Wang C., A. Alvarez S., Ruiz C. and Moonis M..

Semi-Markov Modeling-Clustering of Human Sleep with Efﬁcient Initialization and Stopping.

DOI: 10.5220/0004824900610068

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing (BIOSIGNALS-2014), pages 61-68

ISBN: 978-989-758-011-6

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

dard choices are pseudorandom clustering initializa-

tion, and Markov dynamical models. These are the

choices used in (Alvarez and Ruiz, 2013). Markov

models have been widely used in previous applica-

tions to sleep (Zung et al., 1965) and (Kim et al.,

2009).

The present paper focuses on two main elements:

1. The use of Dynamic Time Warping (DTW) for

clustering initialization in CDMC. DTW has pre-

viously been applied to initialization of a differ-

ent clustering technique based on Hidden Markov

Models (Oates et al., 1999). We show that DTW

initialization signiﬁcantly improves CDMC con-

vergence as compared with pseudorandom initial-

ization.

2. The use of semi-Markov dynamical models in

CDMC in order to better describe the dynamical

characteristics of human sleep as compared with

Markov models.

Experimental evaluation conﬁrms the advantages

of the approach proposed in the paper.

The rest of the paper is organized as follows. Sec-

tion 2 brieﬂy reviews the CDMC algorithm, presents

the application of dynamic time warping to cluster-

ing initialization in CDMC, and describes the semi-

Markov dynamical model version of CDMC. Sec-

tion 3 describes the synthetic and actual human sleep

datasets used for evaluation, together with the exper-

imental protocol. Section 4 presents experimental re-

sults and analysis of the proposed approach. Section 5

describes conclusions and ideas for future work.

2 PROPOSED APPROACH

This section describes the Collective Dynamical

Modeling-Clustering (CDMC) framework that con-

stitutes the foundation for this work (Algorithm 1),

the semi-Markov chains to be used as the dynamical

models in CDMC, the Dynamic Time Warping-driven

clustering initialization approach for CDMC (Algo-

rithm 2), and the clustering similarity metrics to be

used for the CDMC stopping criteria.

2.1 Collective Dynamical

Modeling-Clustering (CDMC)

CDMC is a general algorithmic strategy for simul-

taneous clustering and dynamical modeling of se-

quence data (Alvarez and Ruiz, 2013) that is shown

in pseudocode in Algorithm 1. CDMC simultane-

ously groups data instances by dynamical similarity

and induces a dynamical model of each group. The

following is an outline of the CDMC procedure:

• An initial grouping of instances x

, . . . , x

into k

clusters is provided.

• The grouping is iteratively reﬁned by repeating

the following steps until the similarity of two suc-

cessive clusterings (e.g., c and c

old

) reaches a pre-

determined similarity threshold minSim (step 3):

- A maximum likelihood dynamical model M

built from each cluster C

(step 5).

- Each instance x is assigned to the cluster C(x)

for which the generative likelihood P(x | M

C(x)

)

is maximized (step 6).

• A ﬁnal clustering c of the dataset and a genera-

tive model M

for each of the clusters are returned

(step 7).

Note that the details of cluster initialization, dynam-

ical model type, and similarity metric are left un-

speciﬁed in the general version of CDMC. (Alvarez

and Ruiz, 2013) includes an illustration that uses

pseudorandom initialization, hidden Markov models,

and the Rand index in these roles. The present pa-

per shows that improved results can be obtained by

using agglomerative distance-based clustering with

dynamic time warping for initialization, and semi-

Markov chains as the dynamical models.

2.2 Semi-Markov Dynamical Models

for CDMC

Markov chains and the related models with partially

observable state spaces, hidden Markov models, have

been used to model sleep stage transitions in previ-

ous work (Zung et al., 1965), (Kim et al., 2009), (Al-

varez and Ruiz, 2013). State transitions in a Markov

model occur with a ﬁxed probability in every cycle

of a standard clock that is shared by all of the states.

The probability of transitioning from state i to state

j in a given clock cycle is a ﬁxed probability value

i, j

. In particular, the probability of leaving state i

in a given clock cycle of a Markov model is the ﬁxed

value p

i,?

∑

j6=i

i, j

. It follows that the probability of

remaining in state i for precisely n clock cycles, leav-

ing in the (n + 1)st cycle, is (1 − p

i,?

)

i,?

. Thus, the

duration of visits to a given state in a Markov model

has a geometric (discrete exponential) probability dis-

tribution.

Experimental results (Kim et al., 2009) and (Chu-

Shore et al., 2010) demonstrate that geometric distri-

butions are a poor ﬁt for actual stage bout duration

BIOSIGNALS2014-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

Algorithm 1: Collective Dynamical Modeling-Clustering (CDMC, (Alvarez and Ruiz, 2013)).

Input: An unlabeled time-series dataset D = {x = (a

(x))|i = 1, 2, . . . , n}; a positive integer, k, for the desired

number of clusters; an initial guess c

: D → {1, . . . k} of the cluster label c

(x) of each instance x ∈ D; param-

eter values, s, specifying the desired conﬁguration of the models (e.g., number of states); and a real number

minSim between 0 and 1 for the minimum clustering similarity required for stopping.

Output: A set M

, . . . M

of generative dynamical models (with conﬁguration parameters s), together with a

cluster labeling c : D → {1 . . . k} that associates to each data instance, x, the index c(x) of a model M = M

c(x)

for which the generative likelihood

∏

x∈D

P(x|M

c(x)

) is as high as possible.

CDMC(D, k, c

, s, minSim)

1. c(x) = c

(x) for all x in D

2. c

old

(x) = 0 for all x ∈ D

3. while CLUSTERINGSIMILARITY(c, c

old

) < minSim

4. c

old

= c

5. (M

, . . . M

) = LEARNMLPROTOTYPES(D, k, c, s)

6. c = LEARNMLCLUSTERLABELS(D, M

, . . . M

)

7. return M

, . . . M

, c

distributions of human sleep.

For example, the wake

stage has a distribution of bout durations with a slowly

decaying tail that is more similar to a power-law func-

tion than to a discrete exponential. Motivated by this

fact, the present paper employs a semi-Markov chain

model for the sequence of sleep stages, instead of a

Markov model. In a semi-Markov model, the mech-

anism that determines the durations of state visits is

independent of any model-wide clock. Each state i in

a semi-Markov model of the type considered here has

a speciﬁed visit duration distribution P

(τ); upon ar-

riving in the given state, a random sample τ is taken

from this visit duration distribution; the model then

remains in state i for the duration τ, at the end of

which time the next state is selected from among all

states other than i, according to some Markov-type

transition probability matrix with zeros along the di-

agonal. Other varieties of semi-Markov models also

exist. For a general discussion, see (Yu, 2010).

Prior research (Wang et al., 2013) has established

that individual sleep stage durations are well modeled

by Weibull distributions. The present paper therefore

uses semi-Markov dynamical models in which the

state visit duration distributions belong to the Weibull

family. A completely observable state space is used,

with one state for each sleep stage considered. The

resulting semi-Markov chains are used as the dynam-

ical models within the CDMC framework discussed

above in section 2.1. Standard Markov models within

CDMC provide a benchmark for performance com-

parisons.

A stage bout is a maximal uninterrupted period during

which the stage of sleep remains the same.

2.3 Clustering Initialization and

Stopping Criteria for CDMC

This section proposes using agglomerative cluster-

ing with a distance function based on Dynamic Time

Warping as the clustering initialization technique for

CDMC. This idea is based on prior work (Oates et al.,

1999) that uses Dynamic Time Warping in conjunc-

tion with Hidden Markov Models to cluster time se-

ries data. The use of the modiﬁed Rand index as a

similarity metric in the CDMC stopping criterion in

order to account for the role of chance is also dis-

cussed.

2.3.1 Dynamic Time Warping (DTW)

Dynamic Time Warping (DTW) is a classical dy-

namic programming algorithm that provides an opti-

mal alignment between two time series by nonlinearly

warping their time dimensions (Berndt and Clifford,

1994). DTW has been extensively used in speech

recognition, periodic movement capture, and so on

(Sakoe and Chiba, 1978) and (Itakura, 1975). In this

paper, DTW is used as a measure of similarity for un-

supervised clustering of time series in section 2.3.2.

The standard dynamic programming approach to

DTW for input sequences of length n implicitly con-

siders all pairings of time indices in the two input se-

quences, leading to O(n

) time complexity. Subop-

timal constrained versions of DTW aim to reduce the

time complexity by restricting the portion of the index

space considered in the warping search. Itakura slope-

constrained DTW (Itakura, 1975) imposes slope con-

straints on the warping path, thereby constraining the

search for a warping path to a parallelogram in the

Semi-MarkovModeling-ClusteringofHumanSleepwithEfficientInitializationandStopping

index space. The Sakoe-Chiba approach (Sakoe and

Chiba, 1978) constrains the warping search to a band

in the index space. An alternative hierarchical mul-

tiresolution approach has the potential to reduce the

time complexity of DTW to O(n) (Salvador and Chan,

2007).

2.3.2 DTW Clustering Initialization (DTWC)

The core of the clustering initialization approach for

CDMC that is proposed in the present paper is de-

scribed in pseudocode in Algorithm 2. This approach

performs agglomerative metric clustering using the

distance function computed by DTW. The main steps

of the proposed DTWC initialization for CDMC are:

• Place each instance x

, . . . , x

in its own cluster

, . . . ,C

(step 1-2)

• Repeat until there are only k clusters left (step 3)

- Merge the closest clusters, C

and C

; the dis-

tance measure between two instances (i.e., x

and x

) is deﬁned by DTW; the distance mea-

sure between two clusters is the average dis-

tance of instances in these clusters (step 4-5)

• Return the ﬁnal partition of the dataset D into k

clusters (step 7)

Constrained DTW-Driven Clustering (cDTWC).

A faster variant of DTWC, constrained DTWC

(cDTWC), is obtained by using Itakura slope-

constrained DTW instead of the full DTW when

computing the distance metric in Algorithm 2.

These two initialization techniques for CDMC will

be compared with pseudorandom initialization in

section 4.2.

2.3.3 Stopping Criteria

The Rand index (RI) (Rand, 1971) is a measure of

agreement between two partitions of the same set,

and therefore could be used in Algorithm 1 to mea-

sure the similarity of two clusterings on the same

data. A drawback of this index is that it will pro-

duce a nonzero value for the comparison of two ran-

domly constructed partitions. The adjusted Rand in-

dex (ARI) (Hubert and Arabie, 1985) is based on

the Rand index but corrects for clustering agree-

ments due to chance. Normalized mutual information

(NMI) (Vinh et al., 2010) is a distinct way of evalu-

ating clusters by the tradeoff between the number of

clusters and qualities. In the present paper, these three

metrics are compared as the basis for the stopping cri-

terion in CDMC (Algorithm 1), using the resulting

CDMC convergence time (number of modeling-

Algorithm 2: DTW-driven Clustering (DTWC).

Input: An unlabeled time series dataset D =

, x

, . . . , x

}; a positive integer, k, for the de-

sired number of clusters; a predeﬁned local dis-

tance measure d : X × X → R

≥0

where X denotes

the space in which the x

take their values.

Output: A partition C of D into k clusters.

DTWC(D, k, d)

1. C

= {x

} for each x

in D

2. m = n

3. while m > k

4. (i

∗

, j

∗

) = arg min

i, j∈{1,···m}

d(C

)

= arg min

i, j∈{1,···m}

∑

l(x

)=C

,l(x

)=C

DTW(x

,d)

|·|C

, x

∈ D

5. Merge C

∗

and C

∗

so that C = {1, . . . , m − 1}

6. m = m − 1

7. return {C

, ··· ,C

}

clustering iterations) and classiﬁcation accuracy over

labeled synthetic data for evaluation (see section 4).

3 EVALUATION

This section describes the synthetic and human sleep

datasets, as well as the protocols used for experimen-

tal evaluation of the approach proposed in section 2.

3.1 Data Description

3.1.1 Human Sleep Data

A collection of 200 fully anonymized human

polysomnographic recordings was extracted from

polysomnographic overnight sleep studies performed

in the Sleep Clinic at Day Kimball Hospital in Put-

nam, Connecticut, USA, with approval of the re-

spective Institutional Review Board for human sub-

jects research. The subjects of the recordings had re-

quested consultation due to sleep-related symptoms

(e.g., sleepiness during daytime hours), and hence

there is selection bias in the data. Each polysomno-

graphic recording is split into 30-second epochs.

Staging of each 30-second epoch into one of the stan-

dard sleep stages (wake, stage 1, stage 2, stage 3,

and REM) is carried out by trained sleep technicians.

Stages 1, 2, and 3 were subsequently grouped to-

gether into a single non-REM stage (NREM), result-

ing in a representation of human sleep in terms of

three stages: Wake, NREM, and REM.

BIOSIGNALS2014-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

3.1.2 Semi-Markov Mixture Data

A synthetic dataset was also generated from two dis-

tinct semi-Markov chains, each with two states, but

with different transition probability matrices and state

duration statistics. The use of synthetic data pro-

vides precise control over the generative statistical

parameters, whereas the generative parameters of hu-

man sleep data can only be estimated. Weibull state-

duration distributions are used for each of the semi-

Markov chains (see section 2.2).

Semi-Markov Chain Parameter Values. The fol-

lowing transition matrices and Weibull (shape, scale)

parameter values (in that order) were used for the two

semi-Markov chains. There are two Weibull distribu-

tions per chain, one for each state.

chain 1 :



0.90 0.10

0.10 0.90



(3, 5), (2.5, 4.5)

chain 2 :



0.15 0.85

0.85 0.15



(3, 4), (2.5, 3.5)

Generation of Synthetic Mixture Data. In order

to generate a sequence of a given length, L, from the

mixture model, a random choice is ﬁrst made between

the two semi-Markov chains. A state sequence of the

desired length is then generated by the randomly se-

lected semi-Markov chain. The random chain selec-

tion and state sequence generation process continues

until a desired total number of sequences, N, has been

generated. See Algorithm 3.

In the present paper, N = 100 sequences, each of

length L = 100, were used in all trials involving syn-

thetic semi-Markov data.

Algorithm 3: Generation of synthetic data.

Input: Positive integers N and L, semi-Markov

chains S

, ··· , S

Output: A collection of N sequences, each of

length L, generated by a mixture of the semi-

Markov chains S

, ···S

genData(N, L, (S

, ··· , S

))

1. C = {}

2. for i = 1, ··· , N

3. j = random choice among {1, ···k}

4. x

= sequence of length L generated by S

5. C = C ∪ {x

}

6. return C

3.2 Experiment Description

Each experiment involved 100 trials. The human

sleep dataset of section 3.1.1 was used in the compar-

ative evaluation of semi-Markov and standard Markov

dynamical models (section 4.1). The synthetic semi-

Markov mixture dataset of section 3.1.2 was used in

the evaluation of initialization techniques and stop-

ping metrics. This allows the use of classiﬁcation

accuracy to evaluate performance (section 3.3). For

the initialization experiments in section 4.2, the lo-

cal cost measure was deﬁned as that if a pair of ele-

ments in two sequences are same, the cost is 0, other-

wise, 1. In section 4.3, the stopping metrics described

in section 2.3.3: the standard Rand index (RI), the

adjusted (chance-corrected) Rand index (ARI), and

Normalized Mutual Information (NMI), were used re-

spectively in CDMC, and the results were compared

in terms of the resulting classiﬁcation accuracy and

number of iterations to convergence. The similar-

ity threshold for stopping in CDMC (Algorithm 1)

was set to 0.8. Wilcoxon-Mann-Whitney statistical

hypothesis testing was used for comparison of medi-

ans (section 3.4). All experiments were performed in

MATLAB



(The MathWorks, 2012).

3.3 Cluster Validity

Clustering quality in section 2.3 is evaluated by com-

paring the clustering results to known class labels for

the synthetic data described in section 3.1.2. The class

label of an instance is the Markov chain that gener-

ates that instance. The classiﬁcation accuracy (frac-

tion of instances that are classiﬁed correctly, relative

to the set of all instances) is used as the evaluation

metric. Higher classiﬁcation accuracy of a clustering

indicates a more meaningful data partition.

3.4 Statistical Signiﬁcance

Non-normality of the observed accuracy and conver-

gence time distributions was detected in some of the

experiments, making the standard t-test for the differ-

ence of population means inappropriate. Comparison

of population medians was therefore carried out by

using a non-parametric Wilcoxon rank sum (Mann-

Whitney) test at the p < 0.05 signiﬁcance level.

4 RESULTS

This section discusses the results obtained using

CDMC with the proposed choices of semi-Markov

Semi-MarkovModeling-ClusteringofHumanSleepwithEfficientInitializationandStopping

dynamical models, DTW-distance clustering initial-

ization, and adjusted Rand index stopping criterion,

as discussed in section 2. The evaluation protocol is

discussed in section 3.

4.1 Semi-Markov Model

The human sleep data described in section 3.1.1 were

clustered using CDMC (Algorithm 1) with k = 2 clus-

ters, for each of two dynamical model types: semi-

Markov chains with Weibull state durations (sec-

tion 2.2), and Markov chains. Three-state chains

were used in both cases. The generative negative

log-likelihood P(obs|cluster) was used to measure

the quality of model ﬁt, with lower negative log-

likelihood values (higher generative probabilities) in-

dicating a better model ﬁt. Fig. 2 shows the re-

sults. The median negative log-likelihood of the semi-

Markov version is signiﬁcantly better than that of the

Markov version (p < 0.05, Wilcoxon-Mann-Whitney

test). Comparison of the semi-Markov version of

CDMC against a Hidden Markov Model (HMM) ver-

sion (results not shown) also resulted in superior per-

formance of the semi-Markov version (p < 0.05).

SMM MM

100

200

300

400

− log P(obs | model)

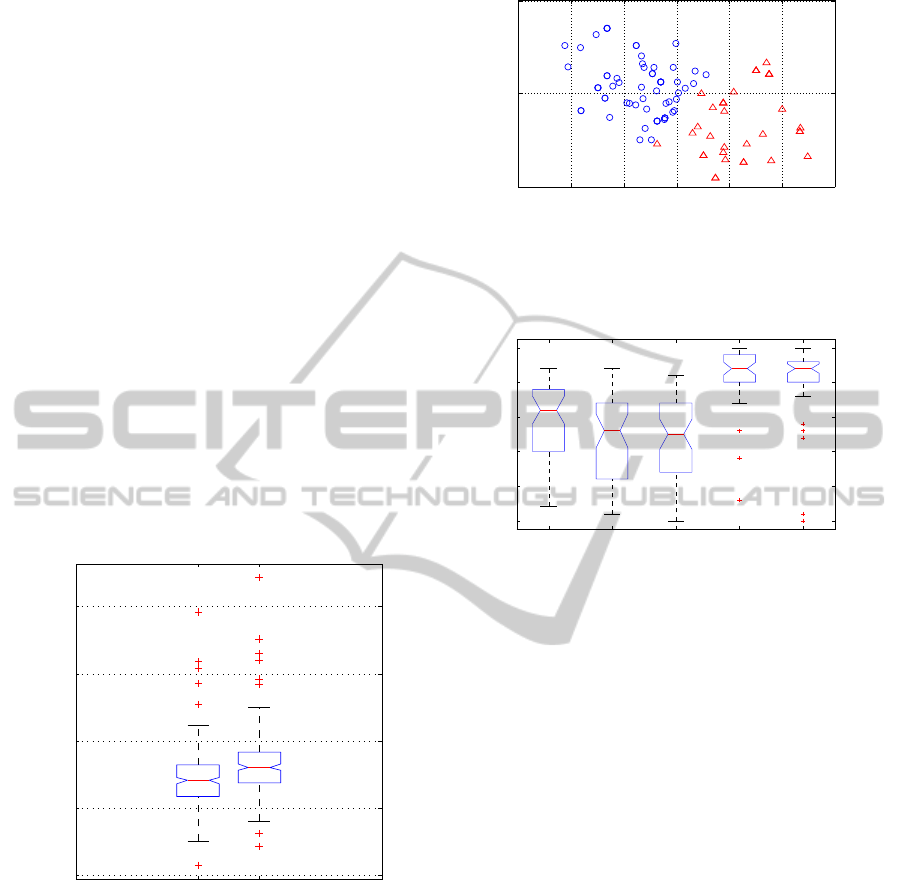

Figure 2: Negative generative log-likelihoods of CDMC

clusters for semi-Markov (left) and standard Markov (right)

dynamical models. Non-overlapping notches indicate sig-

niﬁcant difference in medians (p < 0.05). Semi-Markov

models provide signiﬁcantly better log-likelihood.

Fig. 3 illustrates the CDMC clustering results for

the semi-Markov dynamical models. The coordinates

of each instance are the estimated parameter values of

the Weibull distribution for that instance’s wake du-

ration distribution. Cluster centroids are signiﬁcantly

separated along both parameter axes (p < 0.05).

0.5 1 1.5 2 2.5 3 3.5

−0.8

−0.2

0.4

log(scale)

log(shape)

Figure 3: Visualization of CDMC clustering of human sleep

data with Weibull semi-Markov dynamical model. Coordi-

nates of each instance are parameter values of wake stage

Weibull model ﬁt individually to the instance.

CDMC−rand DTWC cDTWC CDMC−DTW CDMC−cDTW

0.5

0.6

0.7

0.8

0.9

Accuracy

Figure 4: Accuracies for randomly initialized CDMC,

DTW-only clustering (DTWC), constrained DTW-only

clustering (cDTWC), DTW-initialized CDMC, and con-

strained DTW-initialized CDMC. Non-overlapping notches

indicate signiﬁcant difference in medians (p < 0.05). DTW-

initialized and CDTW-initialized CDMC yield signiﬁcantly

better accuracies than the other clustering techniques.

4.2 Initialization Technique

Pseudo-random initialization for CDMC was com-

pared with DTW-distance clustering and Itakura con-

strained DTW (cDTW) clustering initializations for

CDMC (section 2.3.2), as well as with the DTW and

cDTW clustering results directly. Fig. 4 shows the

resulting accuracy values. Pseudorandomly initial-

ized CDMC (median accuracy 0.82) is not signiﬁ-

cantly more accurate than the two DTW-only clus-

tering techniques without CDMC (medians 0.76 and

0.75, for full and constrained DTW, respectively).

However, the DTW-initialized CDMC (median accu-

racy 0.94) signiﬁcantly outperforms all other tech-

niques. Furthermore, DTW initialization provides

signiﬁcantly faster convergence than pseudorandom

initialization in the case of the Rand index as the sim-

ilarity metric (left two boxes in Fig. 5.) Statistical

signiﬁcance is assessed at the p < 0.05 level, using a

Wilcoxon rank sum test (Mann-Whitney test).

BIOSIGNALS2014-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

RI−rand RI−DTW ARI−rand ARI−DTW NMI−rand NMI−DTW

Figure 5: Iterations to convergence for different stop-

ping criteria. Random and DTW-initialized CDMC. Semi-

Markov mixture data. Stopping metrics: RI (two left), ARI

(two center), NMI (two right). Non-overlapping notches

indicate signiﬁcant difference in medians (p < 0.05).

RI stopping is signiﬁcantly faster than others. DTW initial-

ization signiﬁcantly speeds up convergence for RI stopping.

4.3 Stopping Criterion

The criterion for stopping the iterative process in

CDMC depends on the clustering similarity metric.

Three similarity metrics were compared (see sec-

tion 2.3.3): the standard Rand index (RI), the adjusted

Rand index (ARI) intended to correct for chance clus-

tering agreements, and Normalized Mutual Informa-

tion (NMI). The resulting numbers of iterations re-

quired for convergence are shown in Fig. 5. RI is seen

to lead to a signiﬁcantly lower median number of it-

erations to convergence (4 and 3, for pseudorandom

initialization and DTW initialization, respectively) as

compared with ARI (7 and 6 iterations) and NMI (8

iterations for both random and DTW initialization).

The faster convergence observed for RI as com-

pared with ARI is in itself not surprising, as the nu-

merical threshold minSim used for stopping in Al-

gorithm 1 is the same for the three similarity met-

rics, while ARI has lower values than RI due to the

intended correction of clustering agreement due to

chance. One would therefore also expect that the

more stringent ARI criterion would lead to better dif-

ferentiated clusters. However, as Fig. 6 shows, the

resulting median accuracy values from testing over la-

beled synthetic semi-Markov mixture data are not sig-

niﬁcantly different at the level p < 0.05 (Wilcoxon-

Mann-Whitney test). The combination of faster con-

vergence and comparable accuracy points to RI as the

superior choice of stopping criterion for CDMC.

5 CONCLUSIONS AND FUTURE

WORK

The collective dynamical modeling-clustering

(CDMC) algorithmic framework (Alvarez and Ruiz,

RI cRI ARI cARI NMI cNMI

0.8

0.85

0.9

0.95

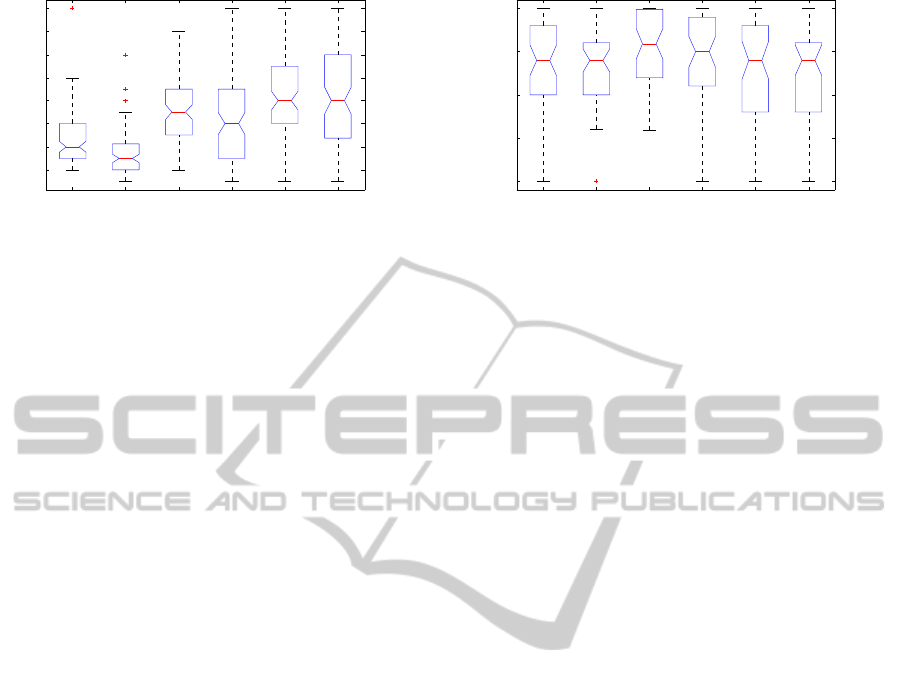

Figure 6: Accuracies for different stopping criteria of DTW-

initialized and constrained DTW-initialized CDMC over

semi-Markov mixture data. Stopping metrics: RI (two

left), ARI (two center), NMI (two right). Non-overlapping

notches indicate signiﬁcant difference in medians (p <

0.05). Median accuracy values do not differ signiﬁcantly.

2013) is designed to more reliably identify rare

dynamical events in sequence data by selectively

aggregating instances based on dynamical similarity

to increase sample size for modeling, simultaneously

yielding a dynamics-based clustering.

The present paper uses semi-Markov chains as

the CDMC dynamical models, as they better capture

the dynamics of human sleep in comparison with the

more widely used Markov models. Our experimental

results over data from human sleep studies conﬁrm

the validity of this statement.

The use of distance-based dynamic time warping

clustering for CDMC initialization is found in this pa-

per to lead to signiﬁcantly more accurate CDMC clus-

tering results in experiments with labeled synthetic

data than pseudorandom initialization does, as well

as signiﬁcantly faster CDMC convergence.

The adjusted Rand index was tested as the cluster-

ing similarity metric that deﬁnes the CDMC stopping

criterion, in order to correct for clustering agreements

due to chance. However, this was shown not to lead to

signiﬁcantly more accurate clusterings, while signiﬁ-

cantly increasing the number of iterations required for

convergence as compared with the standard Rand in-

dex. Similar statements hold for the Normalized Mu-

tual Information metric as compared with the standard

Rand index. Therefore, the standard Rand index is

the best choice of similarity metric for CDMC among

these candidates.

One direction for future work is the use of par-

tially observable semi-Markov models as the dynam-

ical models.

REFERENCES

Alvarez, S. A. and Ruiz, C. (2013). Collective probabilis-

tic dynamical modeling of sleep stage transitions. In

Proc. Sixth International Conference on Bio-inspired

Semi-MarkovModeling-ClusteringofHumanSleepwithEfficientInitializationandStopping

Systems and Signal Processing (BIOSIGNALS 2013),

pages 209–214, Barcelona, Spain. SciTePress.

Berndt, D. J. and Clifford, J. (1994). Using dynamic time

warping to ﬁnd patterns in time series. In KDD Work-

shop, volume 10 (16), pages 359–370. Seattle, WA.

Bianchi, M. T., Cash, S. S., Mietus, J., Peng, C.-K.,

and Thomas, R. (2010). Obstructive sleep apnea al-

ters sleep stage transition dynamics. PLOS ONE,

5(6):e11356.

Chervin, R. D., Fetterolf, J. L., Ruzicka, D. L., Thelen, B. J.,

and Burns, J. W. (2009). Sleep stage dynamics differ

between children with and without obstructive sleep

apnea. Sleep, 32(10):13251332.

Chu-Shore, J., Westover, M. B., and Bianchi, M. T. (2010).

Power law versus exponential state transition dynam-

ics: application to sleep-wake architecture. PLOS

ONE, 5(12):e14204.

Hernandez, T. L., Ballard, R. D., Weil, K. M., Shep-

ard, T. Y., Scherzinger, A. L., Stamm, E. R., Sharp,

T. A., and Eckel, R. H. (2009). Effects of maintained

weight loss on sleep dynamics and neck morphology

in severely obese adults. Obesity, 17(1):84–91.

Hubert, L. and Arabie, P. (1985). Comparing par-

titions. Journal of Classiﬁcation, 2:193–218.

10.1007/BF01908075.

Iber, C., Ancoli-Israel, S., Chesson, A., and Quan, S.

(2007). The AASM Manual for the Scoring of

Sleep and Associated Events: Rules, Terminology

and Technical Speciﬁcations. Westchester: American

Academy of Sleep Medicine.

Itakura (1975). Minimum prediction residual principle ap-

plied to speech recognition. IEEE Transactions on

Acoustics, Speech, and Signal Processing, 23(1):52–

72.

Kim, J., Lee, J. S., Robinson, P., and Jeong, D. U. (2009).

Markov analysis of sleep dynamics. Physical Review

Letters, 102(17):178104.

Kishi, A., Struzik, Z. R., Natelson, B. H., Togo, F., and

Yamamoto, Y. (2008). Dynamics of sleep stage tran-

sitions in healthy humans and patients with chronic

fatigue syndrome. American Journal of Physiology-

Regulatory, Integrative and Comparative Physiology,

294(6):R1980–R1987.

Oates, T., Firoiu, L., and Cohen, P. R. (1999). Clustering

time series with hidden Markov models and dynamic

time warping. In Proceedings of the IJCAI-99 Work-

shop on Neural, Symbolic and Reinforcement Learn-

ing Methods for Sequence Learning, pages 17–21.

Phillips, A. J., Robinson, P. A., Kedziora, D. J., and Abey-

suriya, R. G. (2010). Mammalian sleep dynamics:

how diverse features arise from a common physiolog-

ical framework. PLOS Computational Biology, 6(6).

Rand, W. M. (1971). Objective criteria for the evaluation of

clustering methods. Journal of the American Statisti-

cal Association, 66(336):846–850.

Rechtschaffen, A. and Kales, A. (1968). A manual of stan-

dardized terminology, techniques and scoring system

for sleep stages of human subjects. US Department of

Health, Education, and Welfare Public Health Service

- NIH/NIND.

Sakoe, H. and Chiba, S. (1978). Dynamic programming

algorithm optimization for spoken word recognition.

IEEE Transactions on Acoustics, Speech and Signal

Processing, 26(1):43–49.

Salvador, S. and Chan, P. (2007). Toward accurate dynamic

time warping in linear time and space. Intelligent Data

Analysis, 11(5):561–580.

Vinh, N. X., Epps, J., and Bailey, J. (2010). Informa-

tion theoretic measures for clusterings comparison:

Variants, properties, normalization and correction for

chance. The Journal of Machine Learning Research,

9999:2837–2854.

Wang, C., Alvarez, S. A., Ruiz, C., and Moonis, M.

(2013). Computational modeling of sleep stage dy-

namics using Weibull semi-Markov chains. In Proc.

Sixth International Conference on Health Informat-

ics (HEALTHINF 2013), pages 122–130, Barcelona,

Spain. SciTePress.

Yu, S.-Z. (2010). Hidden semi-Markov models. Artiﬁcial

Intelligence, 174(2):215 – 243. Special Review Issue.

Zung, W. W., Naylor, T. H., Gianturco, D. T., and Wilson,

W. P. (1965). Computer simulation of sleep EEG pat-

terns with a Markov chain model. Recent advances in

biological psychiatry, 8:335–355.

BIOSIGNALS2014-InternationalConferenceonBio-inspiredSystemsandSignalProcessing
