Evaluating the Impact of Virtualization on Performance

and Power Dissipation

Francisco J. Clemente-Castell

o, Sonia Cervera, Rafael Mayo and Enrique S. Quintana-Ort

Department of Engineering and Computer Science, Jaume I University (UJI), Castell

on, Spain

Keywords:

Virtualization, Cloud Computing, KVM, Energy Consumption, Server Consolidation.

Abstract:

In this paper we assess the impact of virtualization in both performance-oriented environments, like high

performance computing facilities, and throughput-oriented systems, like data processing centers, e.g., for

web search and data serving. In particular, our work-in-progress analyzes the power consumption required

to dynamically migrate virtual machines at runtime, a technique that is crucial to consolidate underutilized

servers, reducing energy costs while maintaining service level agreements. Preliminary experimental results

are reported for two different applications, using the KVM virtualization solution for Linux, on an Intel Xeon-

based cluster.

1 INTRODUCTION

Cloud computing is now a mainstream approach

to accelerate application deployment and execution,

with lower maintenance and total costs of ownership

(TCO), increased manageability, and higher ﬂexibil-

ity to rapidly adjust resources to a ﬂuctuating demand.

Cloud computing was originally conceived for ap-

plications and setups very different from those usu-

ally found in high-performance scientiﬁc computing.

However, due to the recent advances in virtualization

design and its smooth unfolding, cloud solutions are

being also adopted for resource management in the

high performance computing (HPC) arena.

Virtualization is the essential technology underly-

ing cloud computing, which has resulted in the re-

naissance of a research line that was initiated in the

70s (Goldberg, 1974). Two key aspects that have fur-

ther nourished the spur of virtualization are the devel-

opment of production-level tools (e.g., KVM (Kivity

et al., 2007) and Xen (Barham et al., 2003)) and the

accommodation of hardware to support this technol-

ogy (hardware-assisted virtualization) in a signiﬁcant

fraction of current processors from large architecture

companies such as AMD, IBM or Intel.

Most virtualization efforts address the consolida-

tion of underutilized dedicated physical servers and

the implementation of tools for cloud computing. On

the other hand, research & development projects that

adopt virtualization as a tool for HPC are signiﬁcantly

more scarce. While there exist sound reasons for

these primary studies, a needful prerequisite before

embracing virtualization in HPC environments is an

analysis of the impact of this technology on perfor-

mance.

In this paper we present an experimental study of

a virtual machine (VM) hypervisor, from the points

of view of performance, productivity and, especially,

power consumption. Speciﬁcally, our study examines

the problems arising from live relocation of VMs, in-

specting the actual effect on power of such strategy,

for two well-known applications running on a three-

node Intel Xeon-based cluster. For our study, we

selected KVM (Kernel-based Virtual Machine), due

to its low overhead, fair adoption, and its integration

with the open source cloud computing platform Open-

Stack (Ope, 2013).

The rest of the paper is structured as follows. In

section 2 we review several basic concepts, advan-

tages and beneﬁts of virtualization, and its connec-

tion with energy saving strategies via consolidation.

In section 3 we brieﬂy discuss KVM, the technology

employed in our experimental evaluation. The main

contribution of this paper is in section 4, where we

present the experimental setup and preliminary results

from our work-in-progress. Finally, in section 5 we

close the paper with a few concluding remarks and a

discussion of future work.

513

Clemente-Castelló F., Cervera S., Mayo R. and Quintana-Ortí E..

Evaluating the Impact of Virtualization on Performance and Power Dissipation.

DOI: 10.5220/0004837205130518

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (CLOSER-2014), pages 513-518

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

2 VIRTUALIZATION AND

CONSOLIDATION

System (or hardware) virtualization creates an ab-

straction layer on top of the physical machine (host)

which allows one or more VMs (guests) to run sepa-

rately from the underlying hardware resources. Cur-

rent virtualization solutions rely on the concept of vir-

tual machine monitor (VMM), or hypervisor, that is in

charge of virtualizing the hardware and executing the

VMs, acting as a ﬁrewall between these two compo-

nents.

There exist two alternatives for virtualiza-

tion (Goldberg, 1974). In one of these, the hypervi-

sors interact directly with the hardware. The hypervi-

sor is in this case a kernel-mode driver (or module) of

the host operating system (OS). In the alternative one,

both the hypervisor and the VMs execute on a top of a

standard OS which offers access to the host resources,

including its devices. The advantage of the ﬁrst option

is clear: since it provides direct access to the hard-

ware, avoiding interaction through multiple software

layers, in principle its peak performance can be close

to that attained from a native execution. Xen, KVM

and VMWare (Nieh and Leonard, 2007) are examples

of the ﬁrst type of virtualization, while QEMU (qem,

2013) and VirtualBox (vir, 2013) follow the nonnative

alternative.

There are several important aspects that have to

be considered when applying virtualization (Younge

et al., 2011; Younge et al., 2010), independently of

whether the target is a data processing center, where

throughput is the fundamental driving force, or an

HPC facility, which may be willing to trade-off work-

load productivity for application performance. One

particular aspect asks for an assessment of the bal-

ance between the costs (i.e., negative performance

impact) and the beneﬁts of accommodating virtual-

ization. Fortunately, many processor architectures

nowadays feature hardware support to amend possible

penalties resulting from virtualization. Furthermore,

there is a continuous research to address these over-

heads also from the software viewpoint (e.g., paravir-

tualization that offers virtualized memory addresses;

previrtualization software to adopt a certain hypervi-

sor while, simultaneously, maintaining compatibility

with the physical hardware; etc.)

On the other hand, applications can also beneﬁt

from embracing virtualization. For example, an OS

can be tuned to improve application performance by

letting the hypervisor control allocation of resources

among applications such as a ﬁxed memory space, a

certain fraction of the processor cycles or, in VMs

running with real-time constraints, the maximum la-

tency for interrupt handling. In most of these situa-

tions, as a single VM runs in a virtual environment

isolated from those of other VMs, an application fail-

ure will only affect the causing VM. Thus, in case

the VM cannot recover, all its resources can be real-

located by the hypervisor to a different VM.

An additional advantage of virtualization is de-

rived from the possibility of running a collection of

the logical nodes of a virtual cluster concurrently on a

smaller number of physical nodes of an actual cluster.

Under certain conditions (workload characteristics,

service level agreements, etc.), this in turn enables the

deployment of a virtualization-aware energy-saving

strategy where servers are consolidated on a reduced

number of physical machines, which may render a re-

duction of energy consumption, both by the process-

ing equipment and the infrastructure (e.g., cooling,

UPS, etc.). A step further in this line is to adopt a

dynamic strategy for consolidation that adaptively se-

lects the number of active physical servers depending

on the workload, migrating VMs to allow consolida-

tion, and turning on/off unused nodes (Kusic et al.,

2009).

Live migration of VMs is crucial to leverage the

energy savings potentially yielded by server consol-

idation. In this process, a VM that is running on a

physical server A is migrated to an alternative server

B, transparently to the user that is running his appli-

cations in the VM. For this purpose, i) all the memory

in use by the VM has to be migrated from A to B; next

ii) those memory pages that were modiﬁed by the VM

on A since the migration started are copied to B; and

ﬁnally iii) the process is completed with the transfer

of the current processor state for the VM from A to

3 KVM

KVM is an open source software for full virtualiza-

tion of x86 hardware. From the implementation point

of view, it is a Linux kernel module that operates as

a type-I hypervisor, providing the functionality that is

needed to run VMs on the host platform. The integra-

tion of KVM into Linux offers two major advantages:

ﬁrst, all enhancements to Linux can be automatically

leveraged from KVM; and second, KVM developers

only need to tackle with the optimization of the appli-

cations running on the VMs being thus isolated from

the underlying software layer (OS).

The main characteristics of KVM are:

Scheduling, Resource Control, and Memory

Management. VMs run in KVM as regular Linux

processes. Therefore, all the kernel-level man-

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

514

agement tools in the OS are also applicable to

VMs. This includes scheduling, resource control

and memory management, among others. Thus,

for example, improvements to Linux such as pro-

cess priority, CFS (Completely Fair Scheduler)

and group control, which allow a ﬁne-grain con-

trol of scheduling, can be easily leveraged to guar-

antee a certain quality of service (QoS) in VM

management.

Storage. Images of VMs are treated in KVM as

any other Linux regular ﬁle. VMs are thus stored

using the standard mechanisms and media avail-

able in Linux, which includes local disks as well

as high performance network storage systems.

Support for New Hardware Features. KVM in-

herits the entire Linux system so that all devices

supported by Linux are supported by KVM as

well. This permits the interoperation with sys-

tems that comprise a large number of CPUs and

large amounts of RAM.

Security. VMs run as Linux system processes

in KVM. Therefore, any single VM is protected

from malicious execution of other VMs. Even

more important is that the hypervisor is protected

from such malicious behaviour.

4 EXPERIMENTS

In this section we present the experiments that were

performed to assess the impact that the adoption of

virtualization exerts on the performance and power

dissipation of two applications with quite different

properties. One particular aspect that is analyzed is

the overhead incurred during live migration of VMs

since, as argued at the end of section 2, this is crucial

to consolidate physical servers and thus attain energy

savings.

4.1 Hardware Setup

All the experiments were performed on a cluster com-

posed of three HP Proliant DL120 G6 servers, with

a single Intel Xeon X3430 processor (four cores op-

erating at 2.67 GHz with a power dissipation of 95

Watts), 4 GB of RAM, and two Fast Ethernet cards

per server. All nodes operated under 64-bit Linux

Ubuntu 10.04LTS, and were connected via a Fast Eth-

ernet switch.

The hypervisor was KVM version 0.12.3, with

support for live migration of VM. Created instances

of VMs featured a single-core x86 64 CPU with

512 MB of RAM, running 64-bit Linux Ubuntu 11.10.

Power was measured using an external powerme-

ter Watts up? .Net with a sampling rate of 1 Hz.

The measures were collected for the full execution of

the test, and the average power was multiplied by the

execution time to obtain the energy consumption in

Watts-hour.

4.2 Application Benchmarks

We employed the following two benchmarks for the

evaluation:

AB. A signiﬁcant part of today’s servers perform

data and web searches. We therefore selected an

Apache server (Fielding and Kaiser, 1997) to eval-

uate the effect of virtualization on this type of ser-

vices. Performance was measured for this test in

terms of average time to serve requests (response

time) from the clients.

MVB. Many scientiﬁc applications running on

HPC platforms occupy a relevant fraction of CPU

and memory resources of the target system. Per-

formance, in terms of time-to-solution, is the

key factor for these applications. Therefore, our

goal here is to measure the impact of virtual-

ization and live migration on the execution time

of this type of computations. For that purpose,

we chose a simple linear algebra operation, the

matrix-vector product, which is representative of

many memory-bounded computations that under-

lie more complex scientiﬁc computations. The

actual performance is reported as the rate of

GFLOPS (billions of ﬂoating-point arithmetic op-

erations per second), which is inversely propor-

tional to the time-to-solution.

When reporting results from both benchmarks, we

also indicate the size of the VM that needs to be mi-

grated.

4.3 Evaluation of Benchmark AB

In the experiments in this subsection, we evaluate the

impact of live migration on performance by compar-

ing two different scenarios. In one of them, (labelled

as “VM” in the following four ﬁgures,) the Apache

server runs in a VM placed on node A of the sys-

tem, serving the web queries sent by a number of

clients (users) running on node B. In the alternative

scenario, (labelled as “VM+Migration”,) the Apache

server is migrated from node A to node C, while re-

quests from the users on node B are simultaneously

received. To avoid interferences, in this second sce-

nario the migration occurs over a network different

from that used to send queries and responses between

EvaluatingtheImpactofVirtualizationonPerformanceandPowerDissipation

515

server and clients. Thus, the differences observed be-

tween both scenarios, for the duration of the VM re-

location, are a clear indicator of the overhead intro-

duced by the migration process.

Figure 1 reports the results with the benchmark

AB with 20 and 120 users, that concurrently send re-

quests to the server, for the period of time that com-

prises the VM migration plus some additional mar-

gins before the relocation commences and after it is

completed. The traces show several relevant details.

When there are only 20 users, the average response

time is 0.889 s, while this value grows to 5.375 s for

120 users. It is also worth pointing out the conse-

quences that the workload intensity has on the time

that is necessary to migrate the VM. With 20 users

(left-hand side plot), the VM that runs the server em-

ploys only 316 MB of memory, which results in 25 s

to transfer it over the network and a total migration

time of 31 s. The difference in this case, 6 s, is due

to the time required to send the actual state of the

VM. When the number of users grows to 120 (right-

hand side plot), the size of the VM becomes larger,

441 MB, but the impact on the migration time is even

more acute: 35 s for the network transfer and a total

migration time of 64 s. One more aspect to note from

the results in both ﬁgures is that, during the period of

time in which the state of the VM is being migrated,

there appears a much longer delay in the average re-

sponse time. The reason is that, during this period,

certain parts of the VM memory are modiﬁed while,

simultaneously, others are being transferred and, as a

consequence, the synchronizations necessary to main-

tain the consistency of the information have a relevant

negative impact on the productivity.

Figure 2 shows the results from the same tests,

but now with the option keep alive active that en-

ables to use persistent connections to the server. Al-

though the average response times are similar to those

reported in the previous experiment, we note the in-

crease of the memory utilized by the VM, for exam-

ple, 508 MB for 120 users. The net outcome is a re-

markable growth of the time required for the migra-

tion, which now requires 155 s.

4.4 Evaluation of Benchmark MVB

We have performed three types of experiments with

benchmark MVB, to analyze the impact on both per-

formance and power dissipation. In the ﬁrst experi-

ment, we simply evaluate the impact that the usage of

VMs and live migration exerts on the GFLOPS rate

of the operation. For that purpose, we consider three

scenarios, depending on how/where the operation is

run: i) directly executed on (one single core) of a node

(label “Node”); ii) on a VM running on (one core) of

a node (label “VM”); and iii) on a VM while it is mi-

grated between two nodes (label “VM+Migration”).

Figure 3 compares the results for this ﬁrst exper-

iment. As the matrix-vector product is a memory-

bounded operation, the differences observed between

the performances attained for the ﬁrst two scenarios

are quite small: 1.75 GFLOPS when the operation is

run directly on the node vs. 1.70 GFLOPS if instead is

executed by the VM. Furthermore, the migration only

exerts a visible impact on the GFLOPS rate while the

control is being transferred between the nodes, while

the overhead is negligible for the rest of the relocation

period.

The next experiments examine on the energy costs

of virtualization and relocation. For reference, we ini-

tially analyze the power dissipated by a node that ex-

ecutes benchmark MVB using 1, 2, 3 and 4 cores as

well as when the node is in different states/phases:

shut off waiting for a Wake-on-LAN (WoL) signal,

starting up, idle, and shutting down; see Figure 4. The

corresponding values are captured numerically in Ta-

ble 1. These results reveal that the power that is dissi-

pated per core is gradually diminished as the the num-

ber of cores executing the workload is increased. For

instance, the execution of the benchmark by a single

core yields an increase of 22 W with respect to the

idle state; on the other hand, the increase from 3 to 4

cores executing the workload results in an increment

of power of only 10 W. A rapid conclusion from this

study is that consolidation, when possible, can actu-

ally yield the desired energy-savings for this particu-

lar benchmark.

Table 1: Power dissipation and energy consumption of dif-

ferent states.

State Duration Power or

Energy

Shut off/WoL – 9 W

Starting up 75 s 1.42 Wh

Idle – 50 W

Running MVB - 1 core – 72 W

Running MVB - 2 core – 90 W

Running MVB - 3 core – 100 W

Running MVB - 4 core – 110 W

Shutting down 35 s 0.48 Wh

The following experiment reports the power over-

head incurred by virtualization of benchmark MVB.

Speciﬁcally, in Figure5 we show two scenarios: one

with the benchmark being executed directly on the

node (label “Node”) and an alternative with the

benchmark running on a VM (label “VM”). In both

cases, up to 4 cores/VMs are involved in the experi-

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

516

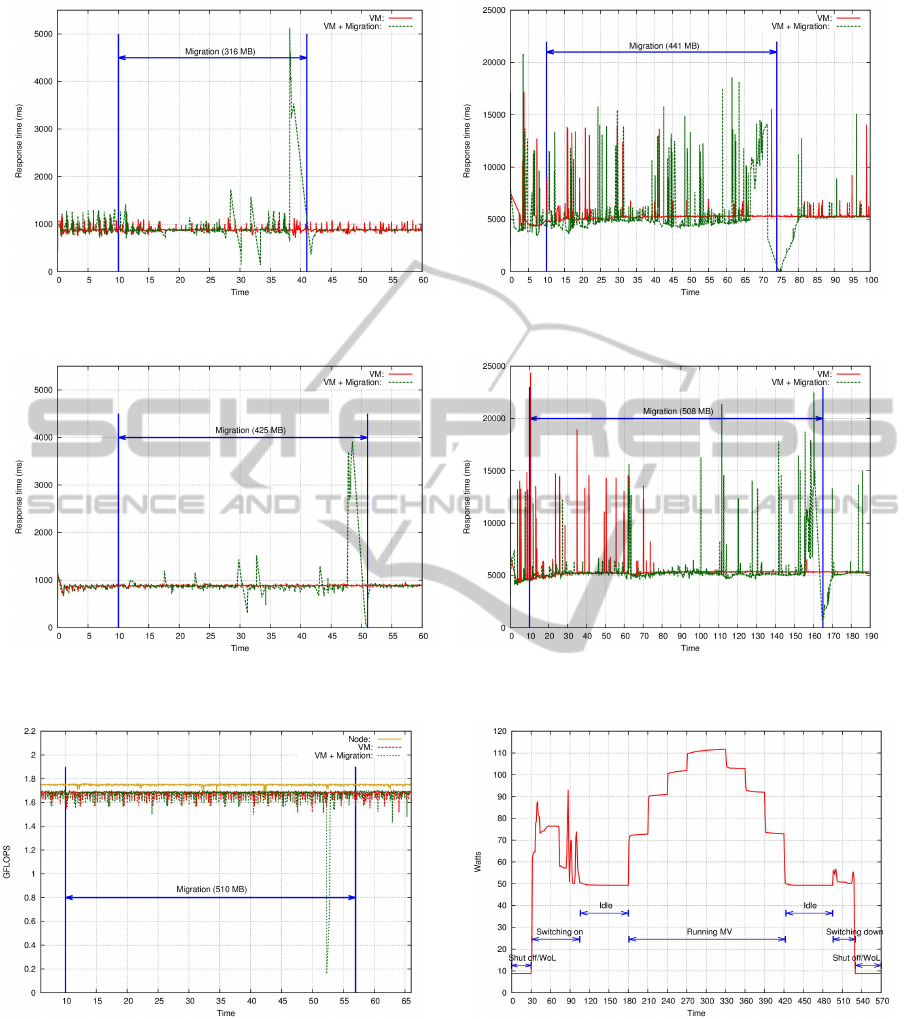

Figure 1: Response time for benchmark AB with 20 and 120 users (left and right, respectively).

Figure 2: Response time for benchmark AB with 20 and 120 users (left and right, respectively) and keep alive active.

Figure 3: GFLOPS rate for benchmark MVB.

ment. The trace reveals that the power differences be-

tween both scenarios are small, decreasing the num-

ber of active cores, and being in all cases lower than

2.5 W.

The ﬁnal two experiments illustrate the overhead

of VM relocation on power consumption. In the ﬁrst

one, we report the power dissipated by a node A dur-

Figure 4: Power dissipation and energy consumption of dif-

ferent states.

ing the relocation of an idle VM to a different node B,

and (after 300 s) back from B to A; see the left-hand

side plot of Figure 6. In the second test we repeat

the experiment, this time while the VM is executing

one instance of benchmark MVB; see the right-hand

side plot of the same ﬁgure. Theses two traces clearly

expose the overhead in both performance (time) and

EvaluatingtheImpactofVirtualizationonPerformanceandPowerDissipation

517

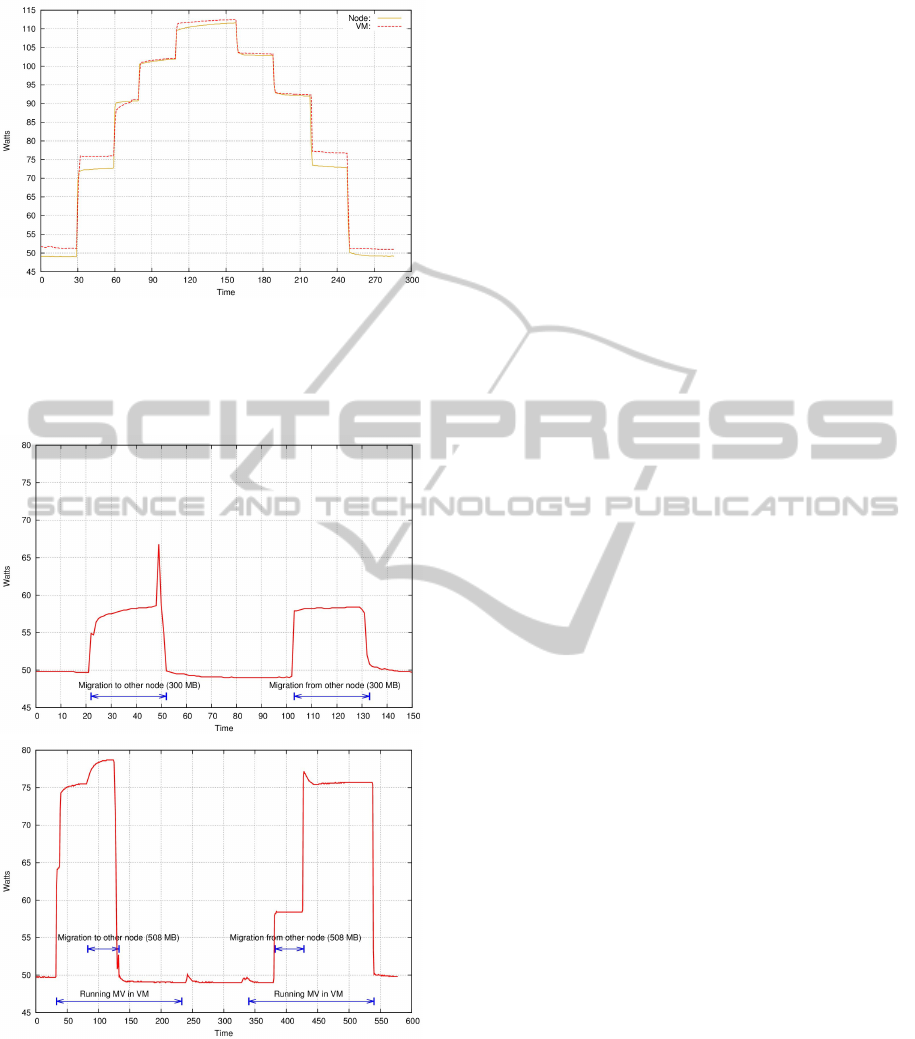

Figure 5: Power dissipation of a node running benchmark

MVB.

power that the second case exhibits due to the pres-

ence of the workload.

Figure 6: Power dissipation during the relocation of an idle

VM and a VM running benchmark MVB on a single core

(top and bottom, respectively).

5 CONCLUSIONS AND FUTURE

WORK

In this paper we have investigated the beneﬁts and

costs of virtualization for two different applications,

related to the common workloads running on datacen-

ters and HPC facilities. The results from this work-

in-progress link the response time and performance

with the potential energy savings that consolidation

of physical servers can yield. Further research is nec-

essary to formally characterize the effects of VM re-

location into the power dissipation and performance

of the applications.

ACKNOWLEDGEMENTS

This work was supported by project TIN2011-23283

of the Ministerio de Econom

ıa y Competitividad and

FEDER, and project P11B2013-21 of the Universidad

Jaume I.

REFERENCES

(2013). Openstack open source cloud computing software.

http://www.openstack.org.

(2013). QEMU. http://wiki.qemu.org.

(2013). VirtualBox. https://www.virtualbox.org/.

Barham, P., Dragovic, B., Fraser, K., Hand, S., Harris, T.,

Ho, A., Neugebauer, R., Pratt, I., and Warﬁeld, A.

(2003). Xen and the art of virtualization. SIGOPS

Oper. Syst. Rev., 37(5):164–177.

Fielding, R. and Kaiser, G. (1997). The Apache HTTP

server project. IEEE Internet Computing, 1(4):88–90.

Goldberg, R. (1974). Survey of virtual machine research.

IEEE Computer, 7(6):34–45.

Kivity, A., Lublin, U., and Liguori, A. (2007). KVM: the

Linux virtual machine monitor. Reading and Writing,

1(1465-6914):225–230.

Kusic, D., Kephart, J. O., Hanson, J. E., Kandasamy, N.,

and Jiang, G. (2009). Power and performance man-

agement of virtualized computing environments via

lookahead control. Cluster Computing, 12(1):1–15.

Nieh, J. and Leonard, O. C. (Aug. 2007). Examining

VMware. Dr. Dobb’s Journal.

Younge, A., Henschel, R., Brown, J., von Laszewski, G.,

Qiu, J., and Fox, G. (2011). Analysis of virtualiza-

tion technologies for high performance computing en-

vironments. In IEEE Int. Conf. on Cloud Computing

2011, pages 9–16.

Younge, A. J., Brown, J., Henschel, R., Qiu, J., and Fox,

G. (2010). Performance analysis of HPC virtualiza-

tion technologies within FutureGrid. In Conference

CloudCom 2010. poster.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

518
