Evaluation of Concept Importance in Concept Maps Mined

from Lecture Notes

Computer Vs Human

Thushari Atapattu, Katrina Falkner and Nickolas Falkner

School of Computer Science, University of Adelaide, Adelaide, SA 5005, Australia

Keywords: Concept Map Mining, Concept Importance, Lecture Notes, Evaluation Methodology.

Abstract: Concept maps are commonly used tools for organising and representing knowledge in order to assist

meaningful learning. Although the process of constructing concept maps improves learners’ cognitive

structures, novice students typically need substantial assistance from experts. Alternatively, expert-

constructed maps may be given to students, which increase the workload of academics. To overcome this

issue, automated concept map extraction has been introduced. One of the key limitations is the lack of an

evaluation framework to measure the quality of machine-extracted concept maps. At present, researchers in

this area utilise human experts’ judgement or expert-constructed maps as the gold standard to measure the

relevancy of extracted knowledge components. However, in the educational context, particularly in course

materials, the majority of knowledge presented is relevant to the learner, resulting in a large amount of

information that has to be organised. Therefore, this paper introduces a machine-based approach which

studies the relative importance of knowledge components and organises them hierarchically. We compare

machine-extracted maps with human judgment, based on expert knowledge and perception. This paper

describes three ranking models to organise domain concepts. The results show that the auto-generated map

positively correlates with human judgment (r

~1) for well-structured courses with rich grammar (well-fitted

contents).

1 INTRODUCTION

Concept mapping is recognised as a valuable

educational visualisation technique, which assists

students in organising, sharing and representing

knowledge. Concept maps model knowledge so that

it can be expressed externally using set of concepts

and propositions (Novak and Gowin, 1984). These

concepts are organised in a hierarchy with the most

general concept at the top and the most specific

concepts arranged below (Coffey et al., 2003).

Based on the Assimilation theory (Ausubel et al.,

1978), this externally expressible concept map is

utilised to improve human learning, by integrating

newly learned concepts and propositions into

existing cognitive structures. Concept maps have

been widely used in the educational context,

particularly in identifying misconceptions and

knowledge gaps, conceptual changes and being

utilised as “advance organisers” (Novak and Gowin,

1984), and externalising mental models (Chang,

2007).

However, ‘construct-by-self’, where students are

responsible for creating their own concept maps,

introduces a substantial difficulty for novice students

to correctly identify concepts, relations and hence,

requires continuous assistance from academic staff.

A common alternative is to provide students with

maps constructed by human experts (expert maps),

placing additional load and intellectual commitment

on academic staff.

Although constructing a concept map for a

lecture is a one-off process, it needs to be updated

continuously, to cope with the changing nature of

knowledge. However, due to the lack of human

awareness of knowledge representations and a

general preference for writing informal sentences

over creating network models, concept maps are not

yet widely used for learning.

Therefore, recent efforts in this area work toward

semi- or fully automated approaches to extract

concept maps from text (called concept map

mining), with the aim of providing useful

educational tools with minimal human intervention

Atapattu T., Falkner K. and Falkner N..

Evaluation of Concept Importance in Concept Maps Mined from Lecture Notes - Computer Vs Human.

DOI: 10.5220/0004842300750084

In Proceedings of the 6th International Conference on Computer Supported Education (CSEDU-2014), pages 75-84

ISBN: 978-989-758-020-8

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

(Olney et al., 2012); (Alves et al., 2002); (Chen et

al., 2008). However, a significant problem in

concept map extraction is the lack of an evaluation

framework to measure the quality of machine-

extracted concept maps (Villalon and Calvo, 2008).

At present researchers rely upon human efforts to

evaluate machine-extracted concept maps either

through manual judgement or comparison with

expert maps.

The majority of works in this area focus on the

performance of automated tools using the popular

metrics - precision and recall. These forms of

measurement evaluate whether the machine

extracted concepts and relations are relevant.

However, in the educational context, particularly in

course materials, the majority of knowledge

presented is relevant to the learner, resulting in large

part of lectures or textbooks being retrieved and

identified for knowledge organisation (Atapattu et

al., 2012). But, according to the definition of

concept maps, a concept map should be an

overview, which organises most important

knowledge according to learning objectives (Novak

and Gowin, 1984). Hence, the aim of this paper is to

discuss a machine-based evaluation technique which

studies the relative importance of knowledge,

focusing beyond the simple measure of relevancy.

Current instructional methods widely support

verbal learning through linear and sequential

learning materials. The literature provides

inadequate research to assist transforming linearity

of resources into network models such as semantic

networks and concept maps. Our approach takes the

work that has already been invested in producing

legible slides and focus on extracting useful

knowledge that are beneficial for both the teacher

and the learner. This will be an increasingly

important research topic in the decade of Massive

Open Online Courses (MOOCs). This paper

provides a concise overview of our concept map

extraction approach using Natural Language

Processing (NLP) algorithms.

In this paper, we hypothesize that the natural

presentation layout, linguistic or structural features

might influence the human expert’s judgement of

relative concept importance. We developed three

ranking models: 1) Baseline methods which use the

natural layout of lecture slides (e.g. titles are the

most important, sub-points are the least important);

2) Linguistic features such as grammatical structure

of English text; and 3) Structural features such as

proximity, number of incoming and outgoing

connections, and degree of co-occurrence. We

compare each of these models with human

judgement using Spearman’s ranking correlation

coefficient (r

). According to the results (Section 5),

outcome of the structural feature model positively

correlates with human judgment. There is a strong

correlation (r

> 0.7) for well summarised courses

with rich grammar (i.e. well-fitted content). The

correlation ranges from well-fitted to ill-fitted

proportionally with respect to the quality and

structure of the content. Lecture notes with some

potential issues, including excessive information,

category headings (e.g. key points, chapter 1),

confusing visual idioms and ambiguous sentences

(i.e. ill-fitted content) result in poor machine

interpretation and hence, poor correlation with

human judgement.

The concept map extraction, particularly from

course materials, is beneficial for both students and

educators. It organises and represents knowledge

scattered throughout multiple topics. These maps

can be used as an assessment tool (Villalon and

Calvo 2008, Gouli et al., 2004) to identify

understanding about concepts and relations.

Additionally, these concept maps can be used as an

“intelligent suggester” to recommend concepts,

propositions, and existing concept maps from the

web (Leake et al., 2004). In the educational context,

these maps can provide scaffolding aid for students

to construct their own concept maps. Students learn

better when they are encouraged to fill in blank links

(relations) rather than blank nodes (concepts)

(Maass and Pavlik, 2013). Concept mapping has also

been utilised widely in question generation (Olney et

al., 2012) and question answering (Dali et al., 2009).

The preliminary concept maps extracted from this

research can also be extended as an ontology for

domain modelling in intelligent systems (Starr and

Oliveira, 2013).

This paper includes a background study of

various concept map mining evaluation techniques

in Section 2. In Section 3 and 4, we discuss about

our core research of concept map mining from

lecture notes and ranking model respectively. We

evaluate our approach with human experts and

present results and analysis in Section 5 and our

study is concluded in Section 6.

2 RELATED WORK

The evaluation of the quality of machine-extracted

knowledge representations is a challenging and

tedious task. This can categorised into three

dimensions as structural, semantic and comparative

evaluation (Zouaq and Nkabou, 2009). In the

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

concept mapping perspective, assigning scores to

extracted elements such as concepts and relations

can be classified as structural evaluation. In a

traditional scoring system, 1 point is assigned for a

valid proposition, 5 points for each level of adopted

hierarchies, and 10 points for cross-links (Novak and

and Gowin, 1984). Although, the scoring technique

provides information about creator’s knowledge

structure, this technique is time-consuming when

assessing large-scale maps (Coffey et al., 2003).

In semantic evaluations, human experts are

involved in judging the validity of machine-

extracted maps. These types of studies are affected

by the subjective judgment of human experts.

Therefore, an average agreement among participants

(inter-rater agreement) is compared with human-to-

machine agreement. Generally, machine extractions

are acceptable when human-to-machine agreement

is equal or higher than inter-rater agreement

(Hearst, 2000). Other research utilises expert-

constructed maps as a gold standard to compare with

machine-extracted maps (Villalon and Calvo, 2008).

It is uncertain of the objective behind generating

concept maps from computer algorithms in the

presence of already constructed expert maps.

In comparative analysis, the machine-extracted

concept maps are compared with other tools, which

are built for the same purpose and test using the

same corpus. TEXT-TO-ONTO is a popular

ontology extraction tool. It is compared with

TEXCOMON (Text-Concept map-Ontology) that

automatically extracts concept maps from text

(Zouaq and Nkabou, 2009). In order to use the

comparative evaluation, other tools should exist

which are built for same purpose. We demonstrate

our approach using Microsoft PowerPoint

Framework (as a commonly used lecture note

format), although our approach is not constrained to

PowerPoint but generalises across any common

lecture note formats such as OpenOffice, Latex, and

Apple Key note with a structured template for

headers and text. To the best of our knowledge, there

are no existing tools which do this.

However, despite the benefits to the educational

context, state of art studies focused on concept

existence, and not their relative importance. Our

work adapts several structural features (e.g.

proximity, incoming and outgoing links) (Leake

et al., 2004) and graph-based metrics (e.g. degree)

(Zouaq et al., 2012) to rank the concepts according

to their importance. However, we also use linguistic

features, semantic information and the association

between terms to mimic the human judgment using

machine algorithms. This resolves syntactically and

semantically incomplete information in lecture notes

which recognised as a key challenge in applying

computer algorithms to semi-structured lecture

notes.

3 CONCEPT MAP EXTRACTION

Our core research focus is on extracting useful

knowledge as concept maps (concept map mining)

from educational materials, particularly from lecture

notes. Current concept map mining techniques rely

upon informational retrieval techniques (e.g. vector

space model, C-value/ NC-value), linguistic-based

approaches (e.g. part-of-speech tagging, language

models) or hybrid models (Frantzi et al., 2000).

Information retrieval approaches suffer from

probable semantic loss. Although linguistic-based

techniques address this issue and extract nouns as

semantic concepts, nouns may be present that are not

semantic concepts in that particular domain. In order

to overcome these issues, studies based on linguistic

techniques utilise external dictionaries and

thesaurus. However, these types of external

resources are very limited for specific domains such

as Computer Science.

Therefore, our work utilises NLP algorithms to

extract concepts, relations using syntactic parsing

and part-of-speech tagging. We rank extracted

concepts using statistical features such as term

frequency, degree of co-occurrence, proximity (see

Figure 1).

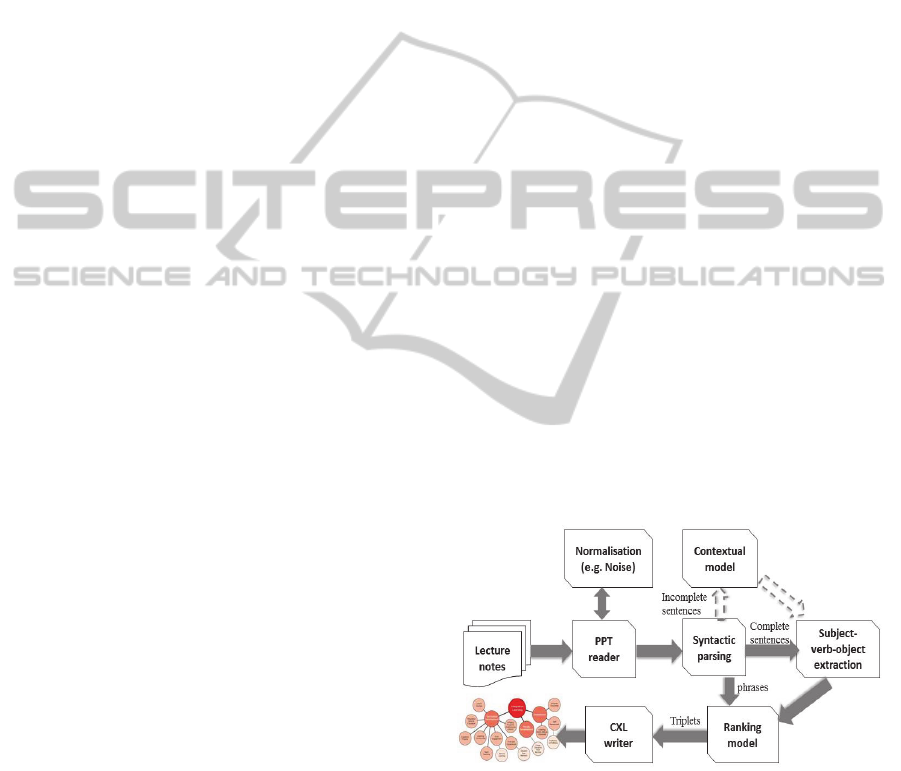

Figure 1: Overview of concept map extraction process.

As shown in Figure 1, our system relies on the use

of the lecture notes presented as set of slides.

Therefore, it is capable of extracting rich text

features such as underline, font color and highlights

and type of text such as a title, bullet point, and sub-

point. Lecture notes frequently contain noisy data

such as course announcements and assignment

details that are irrelevant for a knowledge

EvaluationofConceptImportanceinConceptMapsMinedfromLectureNotes-ComputerVsHuman

representation. The system detects and resolves them

automatically by utilising co-occurrence between

domain-related and unrelated topics. For example, if

course title is co-occurred with some terms in body

text, that pair of terms has strong relation with the

domain, and hence recognised as a domain-specific

terms.

Lecture slides occasionally contain incomplete

and ambiguous English sentences for machine

interpretation. Therefore, it is challenging to apply

NLP algorithms to extract knowledge from lecture

slides. We implemented a contextual model which

automatically replaces syntactically and

semantically missing entities (e.g. subjects or objects

of sentences). Our initial research also focused on

resolving pronouns (e.g. it, their) and demonstrative

determiners (e.g. these, this) using a backward

search approach (under review).

In contrast to other related works in literature

(Chen et al., 2008), which has no relation labels

among extracted concepts, our work generates

concept-relation-concept triplets by analysing

subject-verb-object (SVO) in English sentences. We

utilise the link grammar parser developed by CMU

to extract SVO in English sentences and applied the

greedy approach to the remaining text to identify

key terms using part-of-speech tags. The extracted

key terms are ranked using the approach discussed

in Section 4.

The extracted concepts and relationships are

arranged according to their importance, which

produces a CXL (Concept map extensible language)

file which can be directly exported to IHMC cmap

tools

for visualisation (Figure 2).

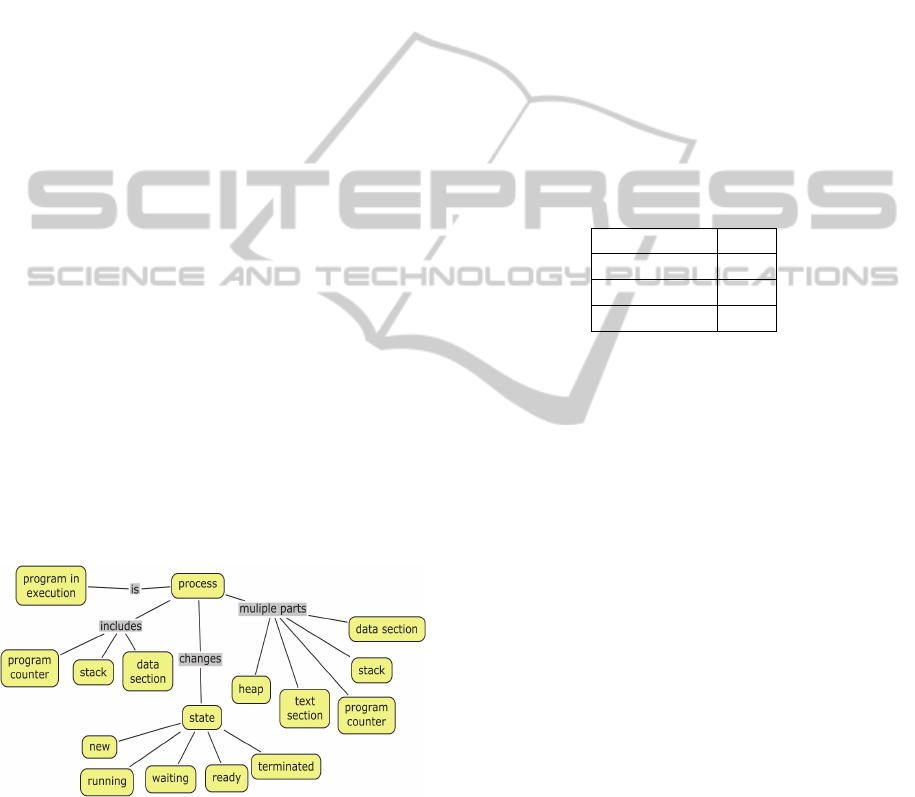

Figure 2: An example of an extracted concept map from

‘process’ topic of Operating system course.

4 RANKING MODEL

In order to construct a high quality concept map,

---------------------------------------------------------------------------------------

http://cmap.ihmc.us/

both domain knowledge and hierarchy are equally

significant (Novak and Canas, 2006). This section

discusses three candidate models which arrange

concepts by their importance.

4.1 Baseline Model

Our knowledge source (i.e. lecture slides) contains a

natural layout of presentation title, slide headings,

bullet points, and enumerated sub-points. Therefore,

one can argue that this layout can directly transfer to

a hierarchy. To validate this assumption, we

implemented a baseline model by integrating ‘text

location’ in lecture slides (Table 1).

Hypothesis I: Text location allocated by the natural

layout of presentation slides might influence human

judgment of which concepts are most important

Table 1: concept importance by location.

Location Rank

Title 3

Bullet statement 2

Sub-point 1

However, a concept can occur in multiple locations.

In order to select the most suitable location for such

concepts, we implemented a “link-distance

algorithm” which can be found in our previous work

(Atapattu et al, 2012).

4.2 Linguistic Feature Model

First, we used the greedy approach to extract nouns

and noun phrases using part-of-speech tags

(Atapattu et al., 2012). Although, this approach is

efficient for extracting isolated nouns or noun

phrases, we found it difficult to extract phrases

joined by prepositions (e.g. of, for,in) and

conjunctions (e.g. and, or).Therefore, we developed

a new approach using the link grammar parser of

CMU

, which produces syntactic parse trees (Figure

3).

It is straightforward to extract nouns (leaf nodes)

or noun phrases (pre-terminal which is one level

above leaf). This approach outperforms the first

method and hence, solves the preposition and

conjunction issue.

Our hypothesis is based on the recommendation

of using the smallest number of words for a concept

(Novak and Canas, 2006).

---------------------------------------------------------------------------------------

http://www.link.cs.cmu.edu/link/

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

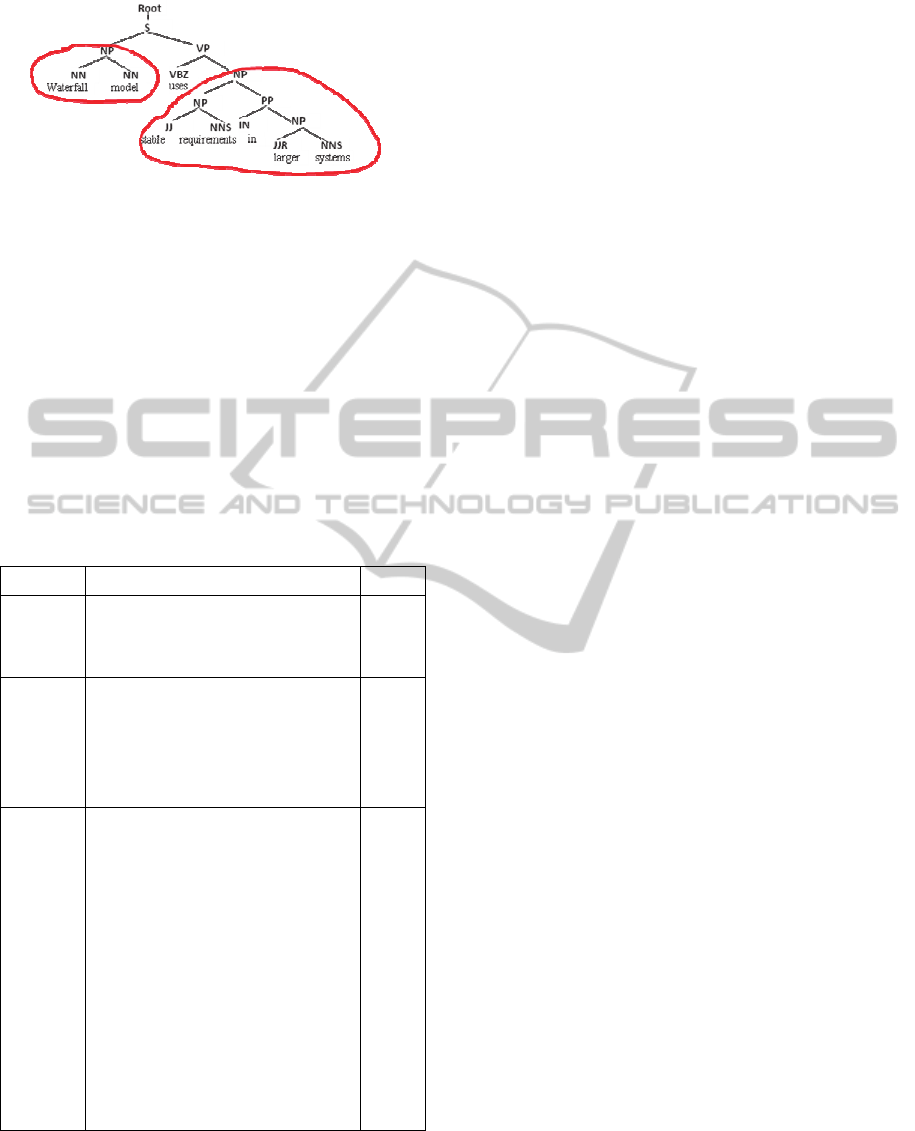

Figure 3: Syntactic parser tree of an example English

Sentence.

Hypothesis II: Simple grammatical structures

(nouns, noun phrases) of Lecture slides might have

higher influence than complex grammatical

structures (nested sentences, dependent clauses,

indirect objects) for human judgment of which

concepts are most important

Table 2 shows our ranking based on grammatical

structure.

Table 2: Concept importance by grammatical structure;

NP: noun phrase, PP: prepositional phrase, S: sentence,

VP: verb phrase (see all tags in http://bulba.

sdsu.edu/jeanette/thesis/PennTags.html).

Feature Example grammatical structure Rank

Noun

phrase

(NP

(NP (NNP Advantage))

(PP (IN of)

(NP (NN unit) (NN testing))))

Simple

sentence

(NP (NNP Process))

(VP (VBZ is)

(NP

(NP (NN program))

(PP (IN in)

(NP (NN execution))))))

Complex

sentence

(NP (DT A) (NN software) (NN

process))

(VP (VBZ is)

(NP (NP (DT a) (NN set))

(PP (IN of)

(NP (NP

(ADJP (RB partially) (VBN

ordered))

(NNS activities))

(CC and)

(NP (NP (JJ associated) (NNS

results))

(SBAR (WHNP (WDT that))

(VP (VBP produce)

(CC or) (VBP maintain)

(NP (DT a) (NN software) (NN

product)))))))))))

As shown in Table 2, complex sentences contain

nested sentences (S), clauses (SBAR) and

conjunctions (CC). Therefore, we assume these

sentences contain definitions or elaborations rather

than the abstract concepts of a knowledge

representation. Verb phrase (VP) is the remaining

grammatical structure which is usually nested with a

verb (or multiple verbs) and a noun phrase. We

usually extract NPs from verb phrases.

4.3 Structural Feature Model

In the third candidate model, we integrate some

structural features (e.g. incoming, outgoing links and

proximity) which have already been proposed in

Zouaq et al., 2012 and Leake et al., 2004 and new

distributional features (e.g. typography and co-

occurrence) that are unique to presentation

framework.

Hypothesis III: Structural (Incoming and outgoing

links, proximity) and distributional (term frequency,

degree of co-occurrence, typography) features might

influence the human judgment of which concepts are

most important

Log Frequency Weight

The system counts the occurrence of nouns or noun

phrases and normalises the term frequency (t

)

(Atapattu et al., 2012). This value is significant than

typical term frequency measure used in information

retrieval applications since our ‘terms’ are restricted

to nouns or noun phrases.

= log (1+ t

) (1)

Incoming and Outgoing Links (I/O links)

We keep track of the number of incoming (n

) and

outgoing (n

) connections for each node. The ‘root’

node contains only outgoing links and leaf nodes

contain only incoming links. Those that have more

outgoing than incoming are identifies as of greater

importance.

These metrics are significant to demonstrate

disjoint nodes from central concept map. Our system

provides this information as a conceptual feedback

for teachers. This feedback can be used to reflect on

whether their expert structures have been transferred

successfully to teaching material. If not, students

struggle to organise disjoint information into their

knowledge structures since there is no relation

between new and existing information (paper under

submission).

= n

(2)

= n

(3)

Degree of Co-occurrence

Our hypothesis is ‘if two key terms co-occur in many

slides (equals to pages in other documents), it is

assumed that those two terms have a strong relation’

EvaluationofConceptImportanceinConceptMapsMinedfromLectureNotes-ComputerVsHuman

and hence, can be chosen as domain concepts. To

measure the degree of co-occurrence, we use the

Jaccard coefficient, a statistical measure which

compares the similarity of two sample sets.

In order to measure the degree of co-occurrence

between term t

and term t

, first calculate the

number of slides, that t

and t

co-occurs. This is

denoted as | n

∩ n

|. Then calculate the number of

slides the term t

(|n

|), t

(|n

|) occurs. The degree of

co-occurrence of t

and t

is denoted by J (t

, t

) is,

(4)

This value is utilised as a key decisive factor for

noise detection since key terms such as

announcements, assignments have low degree of co-

occurrence with other domain concepts.

Typography

Lecture slides often contain emphasised texts (e.g.

different font color, underline) to illustrate their

importance in the given domain. We introduced a

probability model to select candidate concepts using

their level of emphasis. According to the proposed

model, terms which contain infrequent styles are

allocated higher weights. More information of this

work can be found in Atapattu et al., 2012.

Proximity

We consider the ‘lecture topic’ as the root (or central

concept) of concept map. Therefore, we hypothesise

the concepts that have a higher proximity to the root

are expected to be more important than those with

lower proximity (Leake et al., 2004). We denote the

proximity weight (Wp) by calculating the number of

nodes (d

) from root to participating node

(inclusive).

(5)

Generally, a concept map with 15 to 25 nodes is

sufficient to assist learning while not providing an

overwhelming amount of information (Novak and

Canas, 2006). Thus, the aim of introducing a

ranking model is to construct a conceptual overview

with the most important domain knowledge from the

lecture notes.

5 EVALUATION OF CONCEPT

IMPORTANCE

We conducted experiments with domain experts

(lecturers) to study their judgment of concept

importance in their lecture notes. These data are then

compared with the machine predictions to assess the

accuracy of the auto-generated concept maps.

Data

Seven computer science courses across different

Undergraduate levels (1

year, 2

year, 3

year and

year) were selected. These courses contain a

combination of content types such as text, program

codes, mathematical notations, tables and images.

The seven courses chosen were Introductory

programming (IP), Algorithm design and data

structures (ADDS), Object oriented programming

(OOP) (level 1); Software Engineering (SE) (level

2); Distributed systems (DS), Operating systems

(OS) (level 3); and Software Architecture (SA)

(level 4). Each participant was provided with

approximately 54 slides including one to three

topics. Tasks were designed to be completed within

30 to 45 minutes, with the variation due to how

recently the lecturer had been teaching the course.

Seven lecturers from the Computer Science

School volunteered to assist with the experiments.

They are the domain experts of selected topics who

have extensive experience in teaching the courses.

Procedure

This study required participants to rate the domain

concepts according to their importance. The

judgment was expected to reflect personal opinions

based on their knowledge and perception. However,

we provided a few tips, such as how the importance

of a concept can be affected by the learning

outcome, course objective, and examination

perspective. These instructions did not have any

relation with the factors we considered in developing

our concept map extraction tool.

We provided colour pens and printed lecture

slides to the participants who preferred working in a

paper-based environment. The rest used their

computers or tablets to highlight the domain

concepts. The three rating scale given to the

participants consisted of ‘most important’,

‘important’, and ‘least important’ using three

colours ‘red’, ‘yellow’ and ‘green’ respectively.

Participants tended to rate single concepts as well as

noun phrases.

During the experiments, we did not show the

machine-extracted concept maps to the participants.

They only had access to the course lecture slides.

This could prevent any influence arising from

structure or layout of concept maps for the human

judgement.

Results

We developed a simple program to extract the

annotations of participants. A Java API for

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

Microsoft framework

was used to extract

highlighted texts. Using this approach, we extracted

678 concepts from 376 lecture slides. The average

number of concepts per slide was approximately 2.2

except in IP course. In IP, multiple slides repeated

the same content in animations. Therefore, in IP, the

average number of concepts per slide is 0.8.

The highlighted texts are categorised and sorted

based on their ranks from 3 to 1 (most important to

least important). Similarly, our system arranged

important concepts according to ranks assigned by

each candidate models.

In the baseline model, our ranking algorithm

allocated rank 3 for text located in titles (see Table

1) and 0 for concepts annotated by human, but not

retrieved by machine. The two rankings were

compared using ranking correlation coefficient and

results are presented in table 4. The correlation (r

) is

close to 0 for the majority of the courses except for

ADDS and SA. This implies there is no linear

correlation between human judgment of concept

importance and the natural layout of presentation

software. This causes us to question and reject the

original hypothesis that assumes most important,

important and least important concepts are located in

titles, bullet points and sub points respectively.

Therefore, the approach which utilises the natural

layout of lecture slides for knowledge organisation

does not produce an acceptable outcome (Ono et al.,

2011). Further, topic map extraction in Gantayat et

al., 2011 and Kinchin, 2006 should focus on fine-

grained course contents in addition to lecture

headings. The feedback obtained from lecturers

regarding concept importance is significant for

students. This implies layout of slides is not

overlapping with lecturer’s judgment of what is

more important in the lecture.

However, if we could expand the ranking to a

few other levels, we could expect a slightly more

positive correlation from the baseline model. This

occurs because the ranking model categorises

remaining concepts as false positive (rank=0) that

have not been ranked by human and false negative

(rank =0) that have not been retrieved by machine,

but annotated by human.

The linguistic feature model assumes the

grammatical structure of text (noun / phrases, simple

sentences and complex sentences) has an impact for

selecting candidate concepts. Similar to the baseline

model, this has assigned higher rank (rank = 3) for

noun or noun phrases and lower rank (rank = 1) for

complex grammatical structures (see Table 2).

---------------------------------------------------------------------------------------

http:/poi.apache.org/

However, Table 4 shows the correlation is closer to

0 for all the selected courses. This reveals that, in

addition to single terms and brief phrases, simple

and complex sentences contain candidate domain

concepts. Therefore, a deep analysis of all text

contents irrespective of their grammatical

complexity is significant to extract the useful

knowledge from lecture slides.

In the structural candidate model, we normalise

weights of each metrics within the range of 0-1. The

influence of each metric (discussed in Section 4.3) is

determined by the parameter values (Table 3). For

example, terms with higher outgoing links can be

more general, thus more important than terms with

higher incoming links. We trained our weighting

function using previously annotated data for a

previous study (Atapattu et al., 2012). The training

data contains slides extracted from recommended

text books, university course materials and randomly

chosen topics from web.

Table 3: Best fit parameter values for Structural features.

Feature Best fit

parameter values

Outgoing links 0.923

Proximity 0.853

Typography 0.764

Co-occurrence 0.559

Frequency 0.514

Incoming links 0.281

After obtaining best fit parameter values, we

calculated the aggregate weight for each term in the

study and sort them in the descending order of

weights. Our system defines upper, medium and

lower threshold values in order to rank the most

important (above upper), important (in-between

upper and medium) and least important (in-between

medium and lower) domain concepts. These three

threshold values vary depending on the number of

concepts retrieved. Finally, similar to other two

candidate models, we compare the ranks given by

participants with machine predication. The results

can be found in the last column of Table 4.

The results are interpreted as strong positive or

strong negative if r

close to +1 or -1 respectively.

There is no linear correlation when r

is close to 0

and hence, consider as independent variables.

Since the selected courses contain combinations

of content (e.g. text, images, program codes), we

claim our data ranges from well-fitted (e.g. SE and

SA) to ill-fitted (e.g. IP and ADDS) contents for

‘machine interpretation’.

EvaluationofConceptImportanceinConceptMapsMinedfromLectureNotes-ComputerVsHuman

Table 4: Spearman’s ranking correlation (r

) between

candidate models and Computer Science courses.

Model Baseline (r

) Linguistic (r

) Structural (r

)

0.193 0.247 0.805

ADDS

0.436 0.252 0.435

0.113 0.293 0.353

0.325 0.240 0.715

0.183 0.129 0.455

OOP

0.287 0.347 0.521

0.605 0.050 0.806

(6)

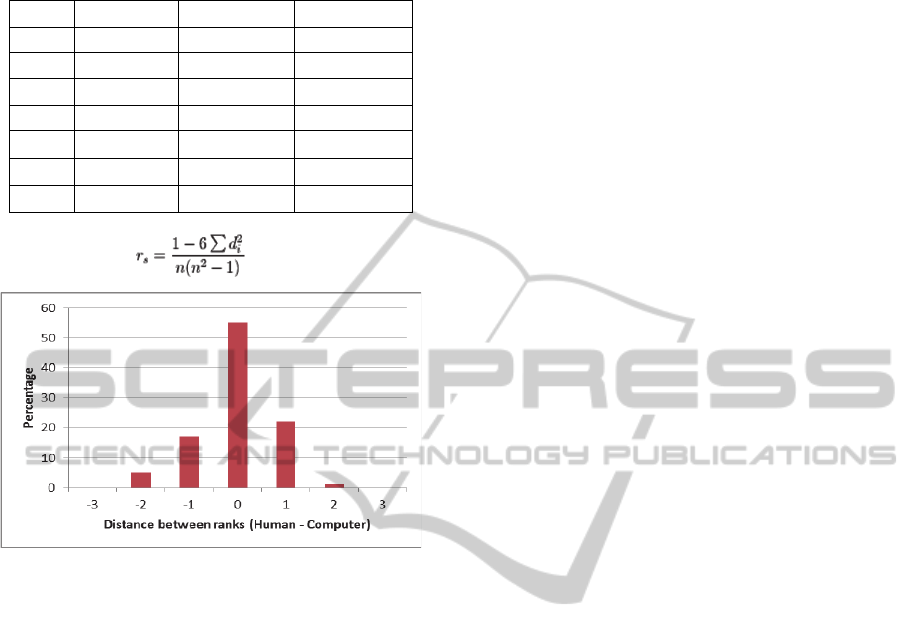

Figure 4: Distance between human and computer ranking

against number of concepts (%) in Software testing topic

=0.813).

In the structural feature model, our results show

satisfactory correlation for the majority of the

courses and strong positive correlation for SE, SA

and OS courses. As an example, in Software Testing

topic (Figure 4), 55% of concepts (out of 64) overlap

between computer and human (distance = 0) and

39% of concepts indicate one level difference

between ranks. This implies 94% of concepts

extracted from machine algorithms are closely

aligned with human judgement, resulting in a

machine extraction of approximate expert maps.

Both OS and SE lecture slides are constructed using

popular text books written by Sommerville and

Silberschatz respectively and SA lecture slides were

well written and structured. Therefore, those topics

contain rich grammar, good summarisation and

emphasise domain concepts. These well-fitted

contents assist relatively straightforward machine

interpretation.

Conversely, the remaining course topics include

combinations of category headings (e.g. review,

summary, welcome, and today’s format), additional

text boxes with excessive content, ambiguous texts

that are difficult to resolve and repetitive contents in

consecutive slides for animations (i.e ill-fitted

content). These types of content reduce the

reliability of machine extraction algorithms. Hence,

as a general rule, machine-extracted concept map

has a significant correlation with human judgment in

well-fitted contents.

This study highlights the importance of structural

features rather than natural layout or grammatical

structures. This implies that important information in

the lecture should be emphasised, and recapped.

Lecturer should also construct probable links with

the central idea of the topic. This ensures that

approximately reliable machine extraction of

concept maps from algorithms developed in this

work.

In this study, we only had a single expert

participating for the assessment of each course.

Therefore, we cannot measure the inter-rater

agreement since the author of the material is the

only person having an expert knowledge structure of

the content.

We received evocative feedback from domain

experts during the experiments.

“I tend to think that summary generally contains things

that have already been discussed. But, I found a new

concept in the summary which hasn’t seen in the lecture

note. I read the lecture from the beginning again to locate

that concept, but couldn’t find it”.

This comment provides an evident that there can

be disjoint concepts included in lecture note which

are not fitting with students’ knowledge structures.

“There are tables which provide comparison between

important concepts. How does this handles by the

system?”

This is one of our challenges. The data comes

from tabular form include useful domain concepts.

However, we have not yet implemented a feature to

tackle the comparisons in tabular data.

“Examples are very useful to learn concepts, but they are

not concepts. Therefore, I am not sure whether they should

be included or not. I have included them in cases where I

think they are very useful”.

“In IP, many domain concepts are introduced via analogy.

So, are they also be classified?”

We do not have an exact answer for this

comment. Examples or analogies can be included

into the extracted concept map, if they are strongly

correlates with domain or emphasised within the

context.

In our future work, we plan to extend the

experiments across disciplines to create a general

model. The focus of this study is limited to measure

the quality of ‘concept’ ranking according to their

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

importance. We plan to extend our study to measure

the quality of extracted ‘relations’. It is difficult for

participants to judge relationships from lecture slides

since relations are not highly visible like concepts.

Therefore, we plan to provide extracted concept

maps using IHMC cmap tools to collect feedback on

the ‘strength of extracted relationships’. Lecturers

will also receive conceptual feedback regarding

deficiencies in knowledge organisation of their

courses. This includes disjoint concepts without any

relation to the central concept map and relations

without proper labelling. This process should

improve the legibility of the materials.

6 CONCLUSIONS

The primary challenge of concept map mining is the

lack of a suitable evaluation framework. The

existing approaches utilise human experts’

judgement or expert maps as the gold standard to

measure the quality and validity of machine-

extracted maps. However, these studies focus on

concept existence using IR metrics – precision and

recall, and not the concept ranking according to their

importance. Therefore, this paper proposes a

machine-based evaluation mechanism to assess

mined concept maps in an educational context. We

compared the machine-generated maps with human

judgment and obtained strong positive correlation (r

~1) for well-fitted courses.

This work has potential to be utilised as

conceptual feedback for lecturers to have an

overview of knowledge organisation of their

courses. Machine-extracted concept maps require

the assistance of domain experts to validate.

However, this effort is substantially smaller than that

required to construct a concept map manually. In

future work, we plan to provide task-adapted

concept maps instead of hints in intelligent tutoring

environment. This will help students to identify

knowledge gaps and to improve their organisation of

knowledge. We believe that this will help to improve

the depth of meaning that students can extract from

their learning.

REFERENCES

Atapattu, T, Falkner, K. and Falkner, N. 2012. Automated

extraction of semantic concepts from semi-structured

data: supporting computer-based education through

analysis of lecture notes. In proceedings of the 23

International conference on Database and Expert

systems applications, Vienna, Austria.

Alves, A., Pereira, F and Cardoso, F. 2002. Automatic

reading and learning from text. In International

Symposium on Artificial Intelligence.

Ausubel, D., Novak, J. and Hanesian, H. 1978.

Educational psychology: A cognitive view, New York.

Chang, S. N. 2007. Externalising students’ mental models

through concept maps. Journal of Biological

Education.

Chen, N., Kinshuk, and Wei, C. 2008. Mining e-learning

domain concept map from academic articles,

Computer and Education.

Coffey, J., Carnot, M., Feltovich, P., Feltovich, J.,

Hoffman, R., Canas, A. and Novak, J. 2003. A

summary of literature pertaining to the use of concept

mapping techniques and technologies for education

and performance support, The Chief of Naval

Education and Training.

Dali, L., Rusu, D., Fortuna, B., Mladenic, D., Grobelnik,

M. 2009. Question answering based on Semantic

graphs. In Language and Technology Conference.

Poznan, Poland.

Frantzi, K., Ananiadou, S. and Mima, H. 2000. Automatic

recognition of multi-word terms: the C-value/NC-

value method. International Journal on Digital

Libraries.

Gantayat, N and Iyer, S. 2011. Automated building of

domain ontologies from lecture notes in courseware.

In Proceedings of the IEEE international conference

on Technology for education, India.

Gouli, E., Gogoulou, A., Papanikolaou, K. and

Grigoriadou, M. 2004. COMPASS: An adaptive web-

based concept map assessment tool. In Proceedings of

the first international conference on concept mapping.

Hearst, M. A., 2000. The debate on automated essay

grading. Intelligent systems and their Applications.

Kinchin, I. 2006. Developing PowerPoint handouts to

support meaningful learning. British Journal of

Education technology. 37 (4), 647-650.

Leake, D., Maguitman, A. and Reichherzer, T. 2004.

Understanding Knowledge Models: Modelling

Assessment of Concept Importance in Concept Maps.

In Proceedings of CogSc.

Maass, J., Pavlik, P. 2013. Utilising Concept mapping in

Intelligent Tutoring Systems. In Artificial Intelligence

in Education.

Novak, J. and Canas, A. 2006. The theory underlying

Concept maps and How to construct and use them.

Institute of Human and Machine Cognition.

Novak, J. and Gowin, D. 1984. Learning how to learn.

Cambridge University Press, New York and

Cambridge.

Olney, A. M., Graesser, A. and Person, N. 2012. Question

generation from Concept maps. Special issue on

Question generation, Dialogue and Discourse.

Ono, M., Harada, F. and Shimakawa, H. 2011. Semantic

network to formalise Learning items from Lecture

notes. International Journal of Advanced Computer

Science.

Starr, R. and Oliveira, J. 2013. Concept maps as the first

EvaluationofConceptImportanceinConceptMapsMinedfromLectureNotes-ComputerVsHuman

step in an ontology construction. Information systems.

Villalon, J. and Calvo, R., 2008. Concept map mining: A

definition and a framework for its evaluation. In

International Conference on Web Intelligence and

Intelligent Agent Technology.

Zouaq, A. and Nkabou, R. 2009. Evaluating the generation

of domain ontologies in the knowledge puzzle project.

IEEE Transactions on Knowledge and Data

Engineering.

Zouaq, A., Gasevic, D. and Hatala, M. 2012. Voting

theory for concept detection. The Semantic Web:

Research and Applications.

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation
