An Exercise Assistant for Practical Networking Courses

Jens Haag

1,2

, Christian Witte

, Stefan Karsch

, Harald Vranken

and Marko van Eekelen

2,3

Cologne University of Applied Sciences, Steinmüllerallee 1, Gummersbach, Germany

Open Universiteit, Heerlen, The Netherlands

Radboud University Nijmegen, Nijmegen, The Netherlands

Keywords: Virtual Lab, e-Learning, Exercise Assistant, Networking Exercises, Description Logic.

Abstract: Supporting students with feedback and guidance while they work on networking exercises can be provided

in on-campus universities by human course advisors. A shortcoming however is that these advisors are not

continuously available for the students, especially when students are working on exercises independently

from the university, e.g. at home using a virtual environment. In order to improve this learning situation we

present our concept of an exercise assistant, which is able to provide feedback and guidance to the student

while they are working on exercises. This exercise assistant is also able to verify solutions based on expert

knowledge modelled using description logic.

1 INTRODUCTION

Computer science curricula for students at

universities nowadays include courses on

networking and information technology security.

Teaching theory on networking and IT security is

usually done by means of textbooks and classes

(either face-to-face classes or virtual classes, which

are popular at universities for distance education).

To anchor and deepen the acquired theoretical

knowledge, a commonly used teaching method is to

hand out practical exercises. The exercises can be

worked out in a computer lab, which can be either a

traditional on-campus lab or a virtual lab.

Recent evaluation shows that students of a

traditional on-campus networking course deem it

crucial for their learning success to be able to get

support from a course advisor (Haag et al., 2013).

While an on-campus university will be able to

provide course advisors which can support students

in so-called guided learning hours, this support is no

longer feasible if students work e.g. at home in the

evening hours using a virtual lab.

In this paper we introduce an exercise assistant

for networking courses which is able to support

students while they work on networking exercises.

Equipped with a formal model of an exercise, the

exercise assistant can be run on a student’s computer

whenever and wherever support is needed. The

effort to author such an exercise has to be done once

while instances of the exercise assistant equipped

with this exercise will then be able to support any

number of students.

The paper is organized as follows: First we

introduce our current learning environment in

chapter 2 and an example exercise in chapter 3. In

chapter 4 we explain our formal model of an

exercise. This formal model can be processed by our

exercise assistant, whose software architecture we

introduce in chapter 5. After giving a guiding

example in chapter 6 we conclude our work in

chapter 7.

2 VIRTUAL LAB

The virtual computer security lab (VCSL) is a stand-

alone environment that each student can install on

his or her local computer (Vranken and

Koppelmann, 2009). It is composed of two

virtualization layers, as shown in Figure 1. The host

machine is the student’s computer, which runs an

arbitrary operating system, i.e. the host operating

system. The first virtualization layer creates the

virtual host machine. It consists of virtualization

software such as VMware Player or Oracle

VirtualBox, which runs on the host machine just like

an ordinary application. Virtualization software in

general introduces an additional software layer with

corresponding interface, which creates a logical

Haag J., Witte C., Karsch S., Vranken H. and van Eekelen M..

An Exercise Assistant for Practical Networking Courses.

DOI: 10.5220/0004843700970104

In Proceedings of the 6th International Conference on Computer Supported Education (CSEDU-2014), pages 97-104

ISBN: 978-989-758-020-8

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

abstraction from the underlying system software and

hardware (Smith and Nair, 2005). Versions of this

software are available for free for a large range of

platforms and therefore run on nearly all student

computers, regardless of the hardware and the host

operating system.

The virtual host machine runs the guest operating

system. For the VCSL, Linux was selected, since it

is open source and can also be distributed to students

without licensing costs.

Figure 1: Architecture of the VCSL.

The second virtualization layer is a Linux

application, called Netkit (Pizzonia and Rimondini,

2008), which runs inside the virtual host machine.

This layer allows to instantiate multiple virtual

machines that all run Linux. Netkit applies

virtualization based upon User Mode Linux (UML).

A UML virtual machine is created by running a

Linux kernel as a user process in the virtual host

machine (Dike, 2006). Multiple UML virtual

machines can easily be run simultaneously, while

using minimal resources. The file system is shared

by all UML virtual machines using the copy-on-

write (COW) mechanism. Hence, the file system is

shared read-only by all UML virtual machines. Each

UML virtual machine has a second, separate file

system in which only the local changes to the shared

file system are stored. This saves both disk space

and memory, and simplifies management of multiple

UML virtual machines. Restoring an initial clean

system means to simply remove the second file

system.

The VCSL was further developed (Vranken et

al., 2011), (Haag et al., 2011) into a distributed

VCSL (DVCSL). This DVCSL enables students to

work together in a virtual lab by connecting their

labs, even if they are physically distant from each

other by using an interface to the Netkit

environment. This interface consists of a Ghost Host

and a Remote Bridge. While the Ghost Host was

developed to extract and inject network packets

when connected to an existing Netkit virtual

network, the Remote Bridge is able to send and

receive this packets using an intermediate

connection network, e.g. the internet. Using this

interface, local Netkit networks can be connected in

a transparent and secure manner although they reside

on different, distant students’ computers.

This decentralized approach is suited to

accommodate any number of students and offers

students freedom to run the lab whenever and

wherever they want, while preserving the properties

of a conventional computer lab (e.g. the isolated

network). Therefore, this approach is not limited to

distance teaching but could also be useful for

universities using a conventional computer lab.

3 EXAMPLE EXERCISE

An example assignment of a practical networking

course to be solved using the VCSL environment is:

“Setup and configure a scenario with at least three

hosts (client, router, server). Client and server

should be located within different subnets. The client

should be able to intercommunicate with the server

by using the intermediate router. The routing should

be based on static routing tables.”

The minimal requirement for this setup is shown

in Figure 2, consisting of at least three hosts. The

client and the server have one network interface card

(NIC); the router is equipped with two NICs; one for

the client network named n1 and one for the server

network n2. Each NIC of each host has to be

configured with a valid network configuration.

Figure 2: Valid concept draw for the example assignment.

In this example exercise, students will have to set up

hosts and interconnect them accordingly within two

different networks. They will then have to assign

appropriate IP addresses to these hosts and

ultimately configure the routing by altering the

routing tables on the hosts. Once the setup is

configured properly, students can demonstrate the

validity of their solution, e.g. by sending network

packets between client and server.

Hostserver

Hostrouter

Hostclien t

Networkn1

Networkn2

Host machine

Virtual host machine

UML virtual machines in

virtual network

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

A valid and straightforward solution for this

example networking assignment solved in Netkit is

stated in Table 1.

Table 1: Valid solution using Netkit.

# Create the hosts and networks in Netkit

vstart client --eth0=n1

vstart router --eth0=n1 --eth1=n2

vstart server --eth0=n2

# Assign IP address on the client

ifconfig eth0 10.0.0.1 up

# Assign IP address on the router

ifconfig eth0 10.0.0.2 up

ifconfig eth1 11.0.0.2 up

# Assign IP address on the server

ifconfig eth0 11.0.0.1 up

# Set default gateway on the client

route add default gw 10.0.0.2

# Set default gateway on the server

route add default gw 11.0.0.2

# Connection test on client to the server

ping 11.0.0.1

4 EXERCISE MODELLING

In the following chapter we show how the exercises

can be transferred into a formal representation, in

order to be processed by a computer program. First

we will show the partition of our example exercise

into activities that will then be organized in a graph

structure. This graph will then be extended with

conditions that will make the activities verifiable.

We also show a way to add feedback attributes to

the graph in order to model a certain feedback

strategy. Finally we introduce probing, a mechanism

to improve the verifiability of activities.

4.1 Activities

Typically, exercises will start with an empty lab.

Students have to perform activities that result in a

working network environment, configured according

to the requirements of the given exercise. While

Table 1 shows the commands needed to solve the

exercise in Netkit, the minimal conceptual activities

needed for solving this exercise are listed in Table 2.

While A10 is the final activity, the order of the

activities A1 through A9 shows only one possible

sequence. The order can vary because some

activities are independent from each other (e.g. A1

and A2), while some other activities have

interdependencies (e.g. A1 is a precondition for A3).

These activities and their interdependencies can

be modelled as an acyclic, directed graph with

exactly one sink (node N with outdegree(N) = 0) and

at least one source (node N with indegree(N) = 0).

Table 2: Activities needed to solve the example exercise.

Activit

The client network has to be created. A1

The server network has to be created. A2

The client has to be connected to the

client network and an appropriate IP

address has to be assi

ned.

The server has to be connected to the

server network and an appropriate IP

address has to be assi

ned.

One NIC of the router has to be

connected to the client network and an IP

address from the client network has to be

assi

ned.

One NIC of the router has to be

connected to the server network and an IP

address from the server network has to be

assigned.

The client has to be configured to use the

router’s NIC in the client network as

default

atewa

The server has to be configured to use the

router’s NIC in the server network as

default

atewa

Routin

has to be enabled on the router. A9

Client and server must intercommunicate

via the intermediate router using the IP

rotocol.

A10

Activities are represented by nodes. A precondition

is modelled as a directed edge from the predecessor

to the successor, seamlessly indicating the order of

the activities. The final activity will be represented

by a sink. Activities without a precondition will be

represented by sources.

Figure 3: Example graph.

A1 A2

A3 A4A5 A6

A7 A8A9

A10

AnExerciseAssistantforPracticalNetworkingCourses

A valid graph for our example exercise is shown

in Figure 3. This graph is based on the activities

stated in Table 2. The interdependencies and thus

possible sequences of activities show a valid

example. These can of course vary, depending on

the exercise and the author’s intent, too.

4.2 Conditions

In order to process the graph, the activities have to

be verifiable. That means that a condition is needed

to detect or to decide, whether an activity is deemed

passed, i.e. whether the student has successfully

solved a part of the exercise.

In (Haag, Karsch, Vranken, and Van Eekelen,

2012) we showed, that network packets, obtained

from the student’s Netkit lab, can be used to detect

and verify network properties and behaviour of an

Ethernet based network. By modelling network

specific expert knowledge as predicates and

verifying these predicates using the captured

network packets, it is possible to detect e.g. the

presence of certain hosts and also routing behaviour.

While the prototype in (Haag, Karsch, Vranken, and

Van Eekelen, 2012) demonstrated the technical

feasibility of that approach by using SQL queries to

model predicates, we improved on it by using

description logics (Baader, Calvanese, McGuinness,

Nardi, and Patel-Schneider, 2003).

For the terminological box (TBox) we created a

network ontology for Ethernet based networks,

representing the network layers 2 and above

(Tanenbaum, 1985), including but not limited to the

header and payload fields of the most commonly

used protocols, e.g. Ethernet (RFC1042), ARP

(RFC826), IP (RFC791), TCP (RFC793) and UDP

(RFC768). In addition, we added a unique identifier

for each packet and the network origin. An excerpt

of our ontology for Ethernet networks is shown in

Figure 4.

Figure 4: Ontology excerpt for Ethernet networks.

Using this ontology it is possible to model expert

knowledge as predicates using a logic programming

language, e.g. Prolog (Colmerauer and Roussel,

1993). For example, the expert knowledge to

describe the network behaviour "routing" according

to (Haag, Karsch, Vranken, and Van Eekelen, 2012)

is:

“Routing occurs if an OSI layer 3 IP transmission of

a network packet between two hosts is based on

more than one OSI layer 2 transmissions”.

The technical background is shown in Figure 5.

The client wants to communicate with the server

using the IP protocol, but the server is located in a

different network segment. Direct inter-

communication between client and server is not

possible because the underlying Ethernet protocol

does not support communication over network

borders. The client has to use a known router located

in the same network as itself, and thus reachable by

Ethernet. The client now sends an IP packet

addressed to the IP address of the server, but the

underlying Ethernet packet will be addressed to the

router. When the router does receive such a packet,

it will forward it to the server. While the two packets

that the client and the router send do not differ on

the IP layer (both are sent from the client, and

addressed to the server), both differ on the Ethernet

layer, with different source and destination MAC

addresses.

Figure 5: Routing packet flow example.

Based on the Ethernet network ontology, this

behaviour can be expressed as the following Prolog

predicate:

routing :-

ip_packet(X,A,B),

ip_packet(Y,A,B),

ethernet_packet(X,M1,M2),

ethernet_packet(Y,M3,M4),

M1 \= M3, M2 \= M4.

This predicate can be read as “routing occurs,

when there are two IP layer packets X and Y, both

sent from IP address A to IP address B, for which

Packet

Network

Ethernet

Source MAC

Destination M AC

Source IP

Destination IP

TCP

Source Port

Destination Po rt

UDP

Source Port

Destination Po rt

ARP

Operation

Source MAC

Source IP

Destination MAC

Destination IP

server

router

clie nt

IPPacketY

SourceIP:Client(A)

DestinationIP:Server(B)

EthernetPacket2

SourceMAC:Router(M3)

DestinationMAC:Server(M4)

EthernetPacket1

SourceMAC:Client(M1)

DestinationMAC:Router(M2)

IPPacketX

SourceIP:Client(A)

DestinationIP:Server(B)

IPtransmissionviaROUT ING

Source:Client

Destination:Server

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

100

the source and destination addresses differ on the

Ethernet layer.”

Predicates can be used as conditions to detect

activities. E.g. the predicate 'routing' can be used to

verify the activity A10. We extended the graph, so

that every activity can be associated with a condition

to verify that activity.

Routing is only one example. We successfully

created predicates describing e.g. the presence of

hosts and networks, the network behaviour NAT or

routing and also higher level usage. E.g. ARP

spoofing behaviour can be detected if two hosts

within the same subnet having different MAC

addresses pretend to own the same IP address using

the ARP protocol. However, this behaviour can also

be caused by a misconfiguration of the hosts. For

that reason this condition requires preconditions to

verify a valid and error-free setup.

We also found a trade-off between the shape of

an assignment and the capabilities to design

predicates. If the assignment is more tightly

controlled (e.g. predefined network names and IP

addresses), more precise predicates can be designed

to detect activities. If the assignment is more

generic, the predicates also have to be designed in a

more generalized manner.

4.3 Feedback

There are various types of feedback strategies which

can be used to support students working on the

exercise, e.g. suggestions, complete guiding or an

exam mode. The specific shape will be either

customized to match the author’s aims or

customized to the learning style of the learner or a

combination. Usually recent progress the student has

made in the exercise graph should trigger interaction

with the student according to the feedback strategy.

Therefor we extended the graph with feedback

attributes. The graph as a whole can be associated

with an attribute containing the exercise description;

all activities can be associated with different

attributes for feedback control, i.e. text messages

that give hints about what the next activity might

involve (pre messages), or text messages that give

feedback about detected activities (post messages).

An example for activity A1 from our example

exercise look like this:

pre_message = "You will need at least one

host connected to network 'n1'."

post_message = "Network 'n1' detected."

While our message mechanism provides the

technical means for the implementation of various

feedback strategies, the evaluation and choice of an

appropriate strategy resides with the exercise author.

4.4 Probing

While the verification of activities based on

passively observed network packets works for many

activities, there still are limitations. One such

limitation occurs, when an activity needs to be

verified that does not have immediate results in the

form of network packets.

An example for that would be A9 from our

example exercise: the routing functionality has to be

activated on the router. Students can do that by

setting the appropriate kernel flag on the router if

this flag is not enabled by default. This however will

not result in the occurrence of observable network

packets, until packets are sent to the router for being

routed. A possible solution would be to ask the

student to send appropriate network packets himself.

We followed a different approach. For detecting

certain activities we inject special predefined

network packets into the Netkit environment to

provoke a certain predictable behaviour. This

behaviour can also be expressed as a predicate. In

the routing example we inject an Ethernet packet

addressed to the router into the client network that is

addressed to a host in the server network (which

does not have to exist) on the IP level. If routing is

enabled in the router, the router will try to reach that

host in the server network using ARP requests.

These packets can be used to verify that routing is

indeed enabled on the router.

Such a “probing” packet can be assembled by

strictly following the network stack, starting with an

Ethernet frame. The destination MAC address must

be the router’s NIC connected to network n1. In

Netkit, the MAC address of a network interface is

bound to the name of the client, resulting in a

predictable MAC address for the router’s first NIC

eth0: 0a:ab:64:91:09:80. The source MAC address

can be virtual, e.g. ee:ba:7b:99:bc:a5, followed by an

IPv4 ethertype identifier (0x0800). The encapsulated

IP packet starts with the version identifier (0x4),

followed by mandatory header fields, e.g. length and

checksum. The source IP address can be virtual but

should be located within the IP range of network n1.

The destination IP address can also be virtual but

must be part of subnet n2. The IP packet

encapsulates an ICMP echo request just to get a

complete and valid network packet. This customized

packet layout can be represented by a hexadecimal

character array, e.g. 0aab64910980eeba7b99b

ca508004500001c12344000ff01549c0a00

00010b0000100800f7fd00010001.

AnExerciseAssistantforPracticalNetworkingCourses

101

We extended the graph, so that every activity can

be associated with a custom network “probing”

packet to be sent once before verifying its condition.

While that actively alters the environment, it enables

the verification of additional activities.

5 EXERCISE ASSISTANT

In order to support a student while working on an

exercise, we developed an exercise assistant, which

can be used in the VCSL. As shown in Figure 6, the

exercise assistant is composed of three components:

reasoning engine, feedback engine, and an interface

to the student's working environment called Netkit

interface.

Figure 6: Architecture of the Exercise Assistant.

The reasoning engine itself is composed of a

reasoner and a knowledge base, which contains a

TBox (“terminology box”) and an ABox (“assertion

box”). The TBox contains knowledge about the

domain, i.e. our ontology, in the form of predefined

predicates that can be extended by the author with

exercise specific extensions, while the ABox

contains the concrete instantiations.

The data in the ABox is obtained through an

interface to the “real world“, in our case the Netkit

interface. The Netkit interface consists of one or

more Ghost Hosts (Vranken, Haag, Horsmann, and

Karsch, 2011) that record network packets from

their respective Netkit network, extract the

information in them and store that information in the

ABox. The Ghost Hosts can also be used to inject

special network packets into the environment.

The feedback engine is the part where the

activity graph will be processed. Our exercise

assistant is able to read an exercise graph stored in

the GraphML (Brandes, Eiglsperger, Herman,

Himsolt, and Marshall, 2002) format. Once read, the

activities are continuously processed according to

their interdependencies, starting at the source nodes

which represent activities without preconditions.

Processing the activities in this case means verifying

their conditions and giving the student feedback

according to the feedback attributes of that activity.

Once the activity is completed it will be removed

from the graph and thus as a precondition for its

successors. The feedback engine can also use the

Netkit interface, respectively the Ghost Hosts, to

insert custom network packets into the environment

in order to provoke certain network behaviour to

verify an activity’s condition using the reasoning

engine.

The Exercise Assistant is a software program

written in the programming language C using SWI-

Prolog (Wielemaker, 2009) as the reasoning engine.

6 EXAMPLE

Using the VCSL, the window layout of the desktop

presented to the students looks like Figure 7. The

exercise assistant shell is a window where the

student can keep track of the feedback generated by

the feedback engine. The linux shell is a window

where the student is able to administrate and use

Netkit in order to e.g. create hosts and networks.

Once a host is started, it will open a respective shell

enabling the student to administrate the host itself.

Further hosts, e.g. the router and the server, will

open respective shells, too.

Figure 7: Desktop draft.

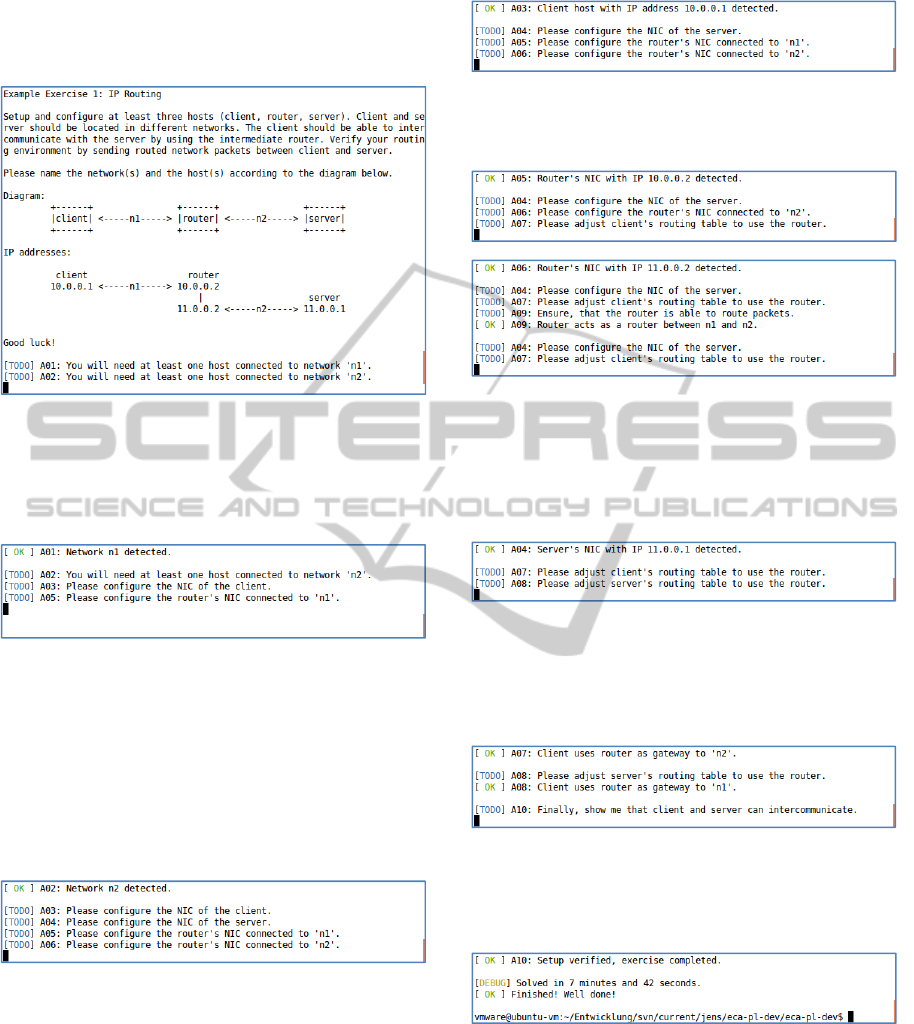

The following figures are screenshots taken from the

exercise assistant shell guiding the example exercise.

We authored the activities of table 2 according to the

exercise graph of figure 3 and added verbose

feedback. The introduced routing predicate is used

to verify the final activity (A10). The intermediate

activities too have been modelled using our

ontology, partially by utilizing probing packets.

Once started, the exercise assistant introduces the

exercise by displaying the exercise description.

ExerciseConfiguration ExerciseAssistant NetkitEn viro nment

VirtualNetkitHost

(client)

VirtualNetkitHost

(router)

VirtualNetkitHost

(server)

NetkitInterface

ReasoningEn gine

ABoxTBox

Student

Student

administrates

andusesNetkit

Exercise

Specific

Extensions

Exercise

Specific

Storybo ard

Author

prepares

exercise

Feedback

Engine

GhostHost

(net1)

GhostHost

(net2)

Feed back

Reasoner

Desktop

ExerciseAssi sta ntShell

ClientShell RouterShell ServerShell

LinuxShell

We lc om etoExampleExercise1:IPRo u ti ng

[TODO]A01:Youwi ll needatleas tone host con ne ctedto net wor k'n1'.

[TODO]A02:Youwi ll needatleas tone host con ne ctedto net wor k'n2'.

[OK]A01:Networkn1detected.

>vstartclient‐‐eth0=n1

Netkitisstarti ngcl ient…

>ifconf igeth0 10.0.0.1up

>...

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

102

Starting with the activities without precondition (A1

and A2), the exercise assistant will prompt the

student using the respective

pre_messages.

The student can start solving the exercise according

to Table 1. After the first command

vstart client

--eth0=n1

is entered using the linux shell, the

exercise assistant is able to confirm this valid

activity.

While A1 is being marked as verified, using the

respective

post_message of A1, the remaining

independent activities without preconditions will be

displayed again, superseding the preceding

messages. According to the exercise graph, the

student is now able to choose A2, A3 or A5 as the

next activity. Starting the router connected to

network n1 and n2 results in a verified presence of

n2.

While the presence of the two networks is verified

now, the exercise assistant is not able to detect

whether the student has started the server, unless its

network interface card gets assigned an IP address.

Therefore the

pre_messages are authored to prompt

the student properly.

Choosing to assign the client’s IP address as next

activity, using the command

ifconfig eth0

10.0.0.1 up

in the client shell, will result in a

verified activity A3.

Still missing IP addresses of router’s and server’s

NICs, the student can proceed to configure the

router’s NICs.

Having verified that the two NICs of the router are

present, the exercise assistant is able to verify A9

using a probe packet. For the simple reason that

routing is enabled per default for hosts in the Netkit

environment, the condition of A9 can be verified

immediately.

After assigning an IP address to the remaining NIC

of the server, the student has to alter the routing

table on the client and on the server. The exercise

assistant is also able to verify these activities by

using probing packets.

Finally, the student is asked to demonstrate the

routing functionality by sending packets between the

client and the server using the intermediate router.

One valid solution is to use the command ping.

Once the final activity is verified, the exercise

assistant congratulates the student and then quits.

7 CONCLUSIONS

We presented an exercise assistant which improves

the learning situation of students solving practical

exercises in a networking course. Even when human

AnExerciseAssistantforPracticalNetworkingCourses

103

course advisors are not available, our exercise

assistant can recognize learning progress and

provide appropriate feedback and support. This

significantly improves the learning situation for

students working remotely in a virtual environment,

which is common at universities for distance

education. Besides this automatic support, the

exercise assistant can verify intermediate and

complete solutions of an exercise.

We also presented an approach to formally

model exercises in a manner processable by the

exercise assistant. For that purpose the exercise

author can define possible activities and sequences

using a graph structure. Description logic is used to

define conditions for the verification of these

activities. The exercise author is also able to define a

feedback strategy by adding feedback attributes to

the graph.

Especially for courses with many participants,

our experience shows that teaching staff can benefit

from utilizing the exercise assistant. While the

teaching method of tutors personally and

individually supporting students is certainly one of

the most effective for knowledge transfer, it is not

feasible for courses of sufficient size. In such

scenarios, the exercise assistant can e.g. be used to

offer all students a basic guided tutoring support not

only wherever and whenever they want, but also at

the speed that best suits their own learning style and

their own abilities.

REFERENCES

Baader, F., Calvanese, D., McGuinness, D.L., Nardi, D.,

and Patel-Schneider, P.F. 2003. The description logic

handbook: theory, implementation, and applications,

Cambridge University Press New York, NY, USA.

Brandes, U., Eiglsperger, M., Herman, I., Himsolt, M., and

Marshall, M. S. 2002, GraphML Progress Report:

Structural Layer Proposal, Proceedings of the 9th Intl.

Symp. Graph Drawing (GD '01), LNCS 2265, pp. 501-

512, Springer-Verlag.

Colmerauer, A. and Roussel, P. 1993, The birth of Prolog,

Proceedings of HOPL-II The second ACM SIGPLAN

conference on History of programming languages,

ACM New York, NY, USA, pp. 37-52.

Dike, J. 2006, User Mode Linux, Prentice Hall, Upper

Saddle River, NJ, USA.

Haag, J., Horsmann, T., Karsch, S., and Vranken, H. 2011,

A distributed virtual computer security lab with central

authority, Proceedings of the CSERC '11 Computer

Science Education Research Conference (Heerlen, The

Netherlands, April 7 - 8, 2011), Open Universiteit,

Heerlen, pp. 89-95.

Haag, J., Karsch, S., Vranken, H., and Van Eekelen, M.

2012, A Virtual Computer Security Lab As Learning

Environment For Networking and Security Courses,

Proceedings of the 3rd Annual International

Conference on Computer Science Education:

Innovation and Technology. CSEIT 2012, Singapore,

November 19 - 20, 2012, Global Science &

Technology Forum, pp. 61-68.

Haag, J., Witte, C., Karsch, S., Vranken, H., and Van

Eekelen, M. 2013, Evaluation Of Students' Learning

behaviour And Success In A Practical Computer

Networking Course, Proceedings of the Second

ICEEE2013 International Conference on E-Learning

and E-Technologies in Education, (Lodz, Poland,

Sept. 23-25, 2013).

Pizzonia, M. and Rimondini, M. 2008, Netkit: easy

emulation of complex networks on inexpensive

hardware, Proceedings of the ICST Int. Conf. on

Testbeds and Research Infrastructures for the

Development of Networks & Communities, pp. 1-10.

Smith, J. and Nair, R. 2005, Virtual machines: versatile

platforms for systems and processes, Morgan

Kaufmann, Amsterdam.

Tanenbaum, A. S. 1985, Computer Networks, Prentice

Hall PTR Upper Saddle River, NJ, USA.

Vranken, H., Haag, J., Horsmann, T., and Karsch, S. 2011,

A distributed virtual computer security lab,

Proceedings of the CSEDU '11 3rd International

Conference on Computer Supported Education, Vol. 1

(Noordwijkerhout, May 6 - 8, 2011), SciTePress, The

Netherlands, pp. 110-119.

Vranken, H. and Koppelman, H. 2009, A virtual computer

security lab for distance education, Proceedings of the

EuroIMSA '09 5th IASTED European Conference on

Internet and Multimedia Systems and Applications,

(Cambridge, UK, July 13-15, 2009), Acta Press,

Calgary, Canada, pp. 21-27.

Wielemaker, J. 2009, Logic programming for knowledge-

intensive interactive applications, PhD Thesis,

University of Amsterdam, Netherlands.

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

104
