Information System Support for Quality Management Applying

European Standards and Guidelines for Higher Education

Ulf Schreier, Marius Reusch, Marc Hüffmeyer and David Belzer

Furtwangen University, Robert-Gerwig-Platz 1, Furtwangen, Germany

Keywords: Quality Management, Document Management, Service Network, Organizational Networks, Service

Description, Structured Documents, Higher Education, Accreditation.

Abstract: Higher education institutions strive for high quality of study courses and programs. One important tool is

the introduction of a well-defined quality management system (QMS) supported by information systems.

Editing service and review documents with office tools is not sufficient; a consistent and coherent

management of all data is needed in an environment for authors. Data analysis, especially target-

performance comparisons, and flexible generation of a variety of web and PDF documents are required

tasks. This paper investigates the problems of simple file solutions in more detail and derives general

requirements for better software support. Based on the requirements we propose an object-oriented

framework that is able to handle core tasks around structured documents associated with organizational

networks on top of a relational database. Document and organizational structures can be adapted to serve

special needs of institutions. The system follows the European standards and guidelines for quality

assurance.

1 INTRODUCTION

Quality assurance and improvement of educational

services are essential tasks for universities and other

higher education institutions. A standard procedure

to accomplish quality management is accreditation

of study programs carried out by external

organizations (see for instance the description of the

U.S. system (Eaton, 2012) or the standards and

guidelines of the European system (ENQA, 2009)).

Internal structures and procedures should support

and extend this external review process. This

combination of internal and external procedures

leads to substantial quality management systems

(QMS) inside universities. For instance, German

universities can get a so-called system accreditation

(Akkreditierungsrat, 2013), if they have

implemented an internal QMS with specified

characteristics. Quality management systems are

understood as a bundle of business processes and

associated information at the organizational level.

Besides quality data itself detailed master data about

the study programs like module descriptions or

objectives of study programs are needed, as a QMS

can check quality only, if the expected achievements

of modules and programs are known.

Higher education institutions worldwide accept

in general QMS as a tool for quality assurance and

improvement, although sometimes concerns exist in

the introduction phase. A description of common

misunderstandings, viewed from the perspective of

an accreditation organization, can be found in

(Romero, 2008).

Many universities store the additional

information in document files and continue to use

classic database-oriented applications for course

management (containing basic course information

like name, extent or semester and mainly used for

course registration of students) concurrently. But

editing QMS document files is not enough. It might

be quite easy for everyone involved to write the

documents using standard office applications

supported by document templates and to generate

PDF files for publication. In addition, a centralized

directory system could be used to group the files, but

this simple solution comes along with some critical

problems. However, internal discussions at our

university, mainly at our quality management board

with experts from university administration and all

faculties, illustrated the problems of redundancy and

subsequent inconsistency of too many files in too

many versions. Moreover, experiences of board

members with external accreditation show that other

higher education institutions have the same

309

Schreier U., Reusch M., Hüffmeyer M. and Belzer D..

Information System Support for Quality Management Applying European Standards and Guidelines for Higher Education.

DOI: 10.5220/0004846403090316

In Proceedings of the 6th International Conference on Computer Supported Education (CSEDU-2014), pages 309-316

ISBN: 978-989-758-020-8

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

problems.

An example of a number based quality data item

with many implications is a credit point attribute of a

course module (e.g. following the European Credit

Transfer System (ECTS)). It needs a consistent

representation (summations should be correct or

breakdowns to specification of attendance and

learning times should add up correctly). It is used at

several positions (module description, study and

examination regulations) and quality analysis

compares it with actual student workload data.

Those kinds of data items should not be hidden in

document files. It should be under application

control, but still be integrated with text-based

information about modules.

For these reasons an adequate information

system for QMS should help to manage, to integrate

and to utilize all documents and data. Exploiting

these data for analysis of quality (like target-

performance comparisons) and for further

processing (like web site publishing or PDF

generation using the additional text based

information) would be very valuable. Furthermore,

an integrated information system facilitates the

uniform handling of quality management data and

documents at the entire university.

This paper outlines basic features of QMS at

universities and the correspondence to general

quality management. It is based on the European

standards and guidelines for quality assurance

(ENQA, 2009), but could be used elsewhere, if

similar tenets are applied. It investigates the

problems of simple file solutions in more detail and

derives general requirements for better software

support resulting in a design proposal. The

consequences for adequate software support are

extremely comprehensive. It turns out that the major

challenge for information system support of quality

management at higher education institutions is to

find a proper mixture of features known from

document management and data management. After

introducing related work we propose an object-

oriented framework based on structured documents

with associated organizational networks.

FINQUAS is an on-going project developing an

implementation in order to proof the proposed

concepts, based on the experience of our institution

with program and system accreditation, but it is

adaptable to special document and organizational

structures of other universities. A first release of the

system is available at our university supporting peer

reviews.

2 OUTLINE OF UNIVERSITY

QMS

In general, the established quality management

practices at universities (for the European variant see

(ENQA, 2009)) follow the basic scheme of PDCA

(plan-do-check-act) cycles known from industrial

management; see for instance (Deming, 2000). More

sophisticated schemes are well known, too, and are

applied as well. However, in the following we will

only sketch and summarize major activities of

quality management as preparation for the

presentation of requirements and solution

architecture. Specific institutions will vary

appropriately these activity structures and associated

information formats.

At the level of study programs the quality

management activities can be summarized as

follows:

 Planning defines the output by setting objectives

like learning outcomes for study programs and

key figures like a dropout quota of students (to

take a simple example figure that does not take

into account the influence of grades of incoming

students) or professor/student ratio. Boards at

institution or faculty level are usually

responsible for setting the objectives.

 Doing refers to the implementation of the

objectives. Higher education represents this as a

program curriculum consisting of modules and

their descriptions. In a broader sense it also

comprehends the documentation about required

technical (labs) and human resources with

organizational structures. Precise descriptions

are necessary as a base for quality assurance.

The exact description structure can differ

depending on the kind of study and university

specialities. Besides the core teaching service,

supporting processes and policies

(examinations, notification of credit transfer,

admissions, generation of certificates, course

scheduling, etc.) have to be documented as well.

A release process complements the

development process of descriptions.

 Peer reviews are a standard practice for

checking program quality (for instance as

accreditation process). Based on documentation

of the study program, on-site visitations and

their domain knowledge, reviewers give a

structured judgment. Checklists are a common

way to support reviews. These lists are basically

document templates filled out by reviewers. The

written statements of reviewers can be

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

310

supplemented by comparisons of actual values

with planned values for a set of key figures (for

instance the dropout quota). The doing

(implementation) should satisfy the objectives

of the study program. Reviews and monitoring

of key figures should be performed in periodic

intervals. Before university boards approve

reviews, usually answers on review conditions

of persons in charge of a service (e.g. a program

director) are considered in addition.

 Recommendations as review results lead to

documented action plans and their execution in

order to improve the quality of content and

structure of study programs. Action plans have a

common format as known from project

management. Actions could be changes of

program objectives or implementation.

Traceability from review statements to actions

and concerned learning services is an important

demand.

PDCA cycles occur at other levels too. At a

lower level quality assurance of modules is

important as well. A module description has plan

(objectives) and do (content, extent, examination)

sections. Objectives of modules should be derived

from objectives of the study program (which are

derived from university or faculty objectives).

Checking could be done by reviews or student

evaluation. At a higher level the aggregation of

programs to program families (at a department,

faculty or school level) or of a whole university are

under consideration. Objectives at a lower level

should derive or extend from higher level.

3 REQUIREMENT ANALYSIS

The main subject matter of QMS is the quality of the

educational services. An educational service can be

divided into smaller units at the next lower level.

Modules are usually the smallest considered unit.

They are the basic building blocks of a study

program, which can be perceived as a composed

educational service. Closely related study programs

build a service group indicated by organizational

units like departments, faculties or schools. Finally,

the entire university itself can be considered as an

educational service as well. All educational services

together build a service network connected by part-

of relationships. The services have a common

structure at all levels.

For each service a group of people is responsible,

usually organized as a board (e.g. a departmental

committee is responsible for a study program).

Composition of services and responsible groups

indicate the university organization from lecturers

towards university executive board. Furthermore, all

services have certain types of objectives and each

service type has an individual set of attributes

describing the special properties.

The checking activities of quality management

(like peer reviews or monitoring reports) themselves

have similar structures to educational services. Each

activity has an assigned responsible group (e.g. a

reviewer group is responsible for a peer review), has

objectives and an individual set of attributes. Hence,

these activities can be considered as services, too.

The quality services are also part of the service

network providing the interconnections with the

educational services. The service network altogether

describes the complete structural organization of a

university. The two service types differentiate

themselves by an emphasis on objectives

(educational services) respectively review results

(quality services).

Beyond these core attributes and relationships to

supporting concepts, services have many individual

attributes with textual and numerical descriptions as

described above. The service description as a whole

can be considered as a document, as a unit of work

that is edited, printed, read, archived or moved to

another point in the overall service network.

Therefore a careful analysis of the functional

requirements unveils many features known from

document management.

 Document relationships: Documents (in the

context of QMS actually service descriptions)

have part-of relationships with other documents,

for instance a module description could be part

of one or more study programs. A review

belongs to a study program.

 Version control: Study programs change over

time and new improved versions which are only

valid for a certain time period are continuously

being released. New versions of documents

could be valid only for new students, while

older versions are still needed for current

students. Versions no longer in use should be

archived.

 Concurrent author access: Several authors might

work concurrently on the same documents (e.g.

a group of peer reviewers works on the same

peer review at the same time). The time frame

for work could be more than just minutes. It

could be hours or longer.

 Flexible release workflow: New documents or

documents with need for changes should be new

versions in draft mode. Documents may only be

InformationSystemSupportforQualityManagementApplyingEuropeanStandardsandGuidelinesforHigherEducation

311

released after the approval of several boards or

responsible individuals. Interim statements of

reviewers and answers from document authors

might be considered. Only after approval the

documents can be applied. The workflow can

differ from organization to organization.

Therefore, an information system for quality

management should be flexible and adjustable

enough to satisfy the demands of various

organizations.

 Flexible authorization: Some members of some

boards are permitted to write on some

documents, others not. Especially accessing of

documents in draft mode should be disabled for

not related groups or individuals.

 Auditing: It should be known who has changed

what data, but not at tracing level (for instance

at database operation level). The recording

should be domain oriented and should show

who called what application function and its

parameter values.

Furthermore additional requirements exist which

cannot be easily integrated into document

management systems. These requirements can be

achieved in a simpler fashion using solutions based

on the standard relational database paradigm

directly.

 Structured flat content: All documents regarding

programs and their quality are highly structured

and contain not only text but also numeric,

enumeration, date and string data. The structure

is usually simple, a linear sequence of sections

and can contain lists of part information (e.g. a

service with a list of objectives as part

information).

 Extensible structure: It should be possible with

small programming effort to add and to remove

attributes from service documents in order to

adapt to special needs.

 Data relationships: There are a lot of

relationships between data at the detail level

inside documents. For instance, learning

outcomes of modules could be derived from

learning outcomes of programs (sometimes

documented additionally in matrix form and

stored as a table sheet) or modules relate to

lecturers.

 Data integrity: It is not possible to check data

integrity with office applications for documents.

While some input data are formatted text

without any constraints, other data have

number, date or enumeration types and require

integrity checks, e.g. number of ECTS credits of

a module, or the level of a learning outcome

item described with help of the Bloom

taxonomy (Kennedy et al., 2006). Constraint

checking can get very complex, e.g. describing

university boards responsible for study

programs with a variety of roles (with minimal

and maximal number of members) and member

duration.

 Integration of other databases: Some

information might be available in other

databases or applications, for instance, master

data from course management systems like

weekly hours of a course, student progress or

grading statistics.

 Data analysis: Obviously, quality management

needs evaluation of data from status reports of

documents for target-performance comparisons.

 Generation of varied mixed documents from

partial files: It is quite easy to generate a PDF

file from a text document, but sometime users

like to generate a complete catalogue of module

descriptions or a program curriculum (using

partial data from module description).

4 RELATED WORK

An off-the-shelf document management system

would support or could be customized to satisfy the

first list of requirements (Päivärinta and Munkvold,

2005). But, they focus on documents as a whole

(which could be extended only with attributes for

meta information). The second list of requirements

is specific to QMS and needs a special

implementation. Furthermore it depends on the

specific needs of each university. Data analysis

could focus on just a few performance indicators,

but could consist of a very detailed analysis.

Convenient programming access to parts of

documents is needed like query access to attributes

in relational databases.

Content management systems are similar to

document management systems and focus in

addition on web publishing using XML and HTML

(Päivärinta and Munkvold, 2005). Partial structure

access is possible, but not fully integrated to

persistence APIs of object-oriented programming

languages.

Software support of QMS for industrial

management is closely related to production

planning and control (Gerber, 2008). For instance,

test plans needs to be integrated into work plans or

samples needs to be tested during production or at

delivery of goods. Therefore, these systems cannot

be easily reused for education services.

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

312

Management software for quality audits following

ISO 19011 is another approach and part of the ISO

9000 (ISO, 2013) standard family of quality

management. There are several software products

for audit management available (easy to find by

internet search with keywords like “quality audit

software” or “QM software”; a scholarly overview is

not yet available). They focus on any kind of audits

(like reviews) on any kind of service activities.

Adaption to university QMS would have to take into

account the special data structures, processing and

analysing at universities.

Although a lot of information about quality

management at higher education institutions is

available, there is only a small amount of scholarly

literature about its software support. Reprotool

(Pouyioutas et al., 2013) is a relational database

application that manages course and program

descriptions according to the European Credit

Transfer System. The system facilitates the work of

faculty members in a similar way as our system. An

additional student module supports the recording

and calculation of student workload. However,

Reprotool is not focusing on quality audits and

relationships to educational service descriptions.

PROCON (Dosbergs, 2011) is another system

specialised on managing curriculum descriptions.

(Pah et al., 2008) describe the system eUniv that

uses a general groupware software to manage QMS-

related documents and projects without specifying

details. e-EdU-Quality (Moisil et al., 2007) is an

extension on top of eUniv providing document

templates, workflow, integration of external data

like student performance indicators and student

questionaires. General groupware solutions have a

generic user interface not tailored for the needs of

quality management at higher education institutions.

It is furthermore difficult to integrate application

oriented data analysis, because groupware systems

are based on a generic data model.

Tools supporting course evaluation by providing

questionnaires, for instance (Mediero et al., 2010)

should be also part of a QMS, but are

complementary to our object of investigation.

In the next section we describe an object-

oriented framework that can be used for quality

management with structured documents with

relational access to parts of documents.

5 A FRAMEWORK BASED ON

STRUCTURED DOCUMENTS

AND NETWORKS

FINQUAS provides an object-oriented solution for

the requirements above. It is based on a relational

database management system accessed by an object-

oriented persistence layer. Consequently, features

known from content/document management systems

have to be created on top, but the implementation

can be reused for any kind of service description.

FINQUAS is a framework that implements standard

tasks of quality management, though it can be

customized by simple inheritance for data structure,

changed user interface descriptions, changed

workflow configuration or new data analysis

functions.

The basic idea is a concept of an abstract service

related to generic components providing the general

functions required for handling services. The

management of concrete service types deals only

with the special data. An advantage of this approach

is that generic functions (mainly content/document

management features) can be reused for all service

types. Another advantage is that extensions with

general database query access to special attributes of

services and their general processing in the

application program are still possible. In this respect

we get structured documents: document objects with

relational persistence access to parts (attributes and

partial objects).

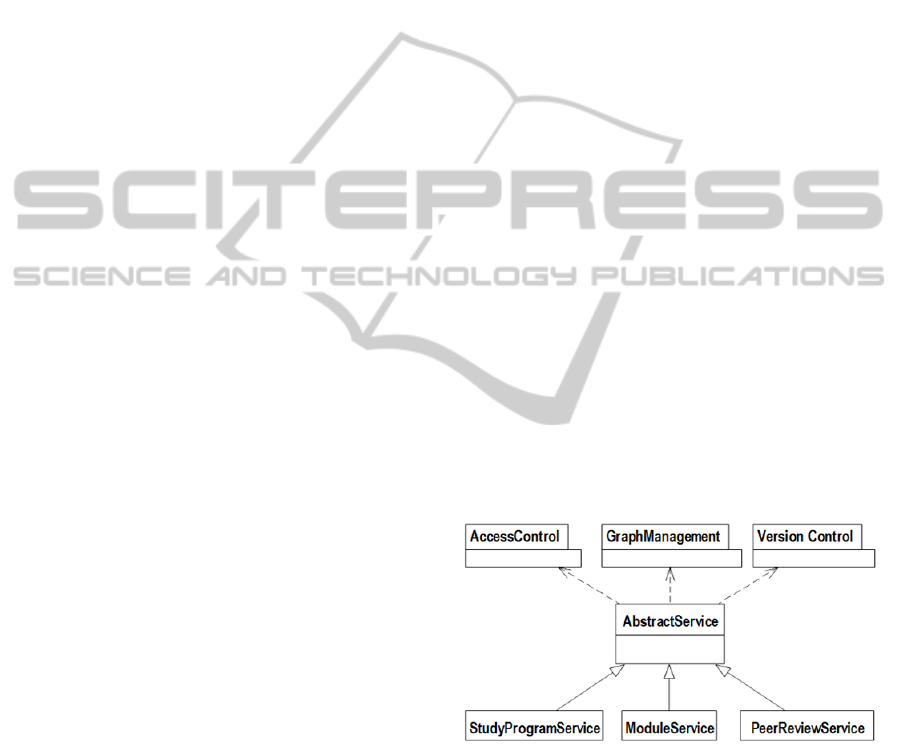

Figure 1: Related components of abstract and special

service.

Figure 1 shows a simplified view of the abstract

service concept. It explains how FINQUAS achieves

its framework capability to adjust to diverse

structure and organization details of higher

education institutions. An AbstractService

class provides the general features required in order

to treat service documents. It represents the super

class for concrete services like a study program, a

InformationSystemSupportforQualityManagementApplyingEuropeanStandardsandGuidelinesforHigherEducation

313

module or a peer review of a program. The concrete

service classes contain the actual data, texts and

numbers of the service description.

AbstractService is related to a couple of

generic components as shown in the next figures and

explained in the following paragraphs.

As described before, services could have

relationships to other services. A graph structure

helps to represent these relationships in a flexible

way. Several kinds of relationships have to be

considered. One example could be curricular

relationships. A single module for instance, might

belong to two programs. It could be a mandatory or

an elective module. Organizational relationships, for

instance between program and university, may exist.

Peer reviews and study programs have a special

control relationship representing quality assurance.

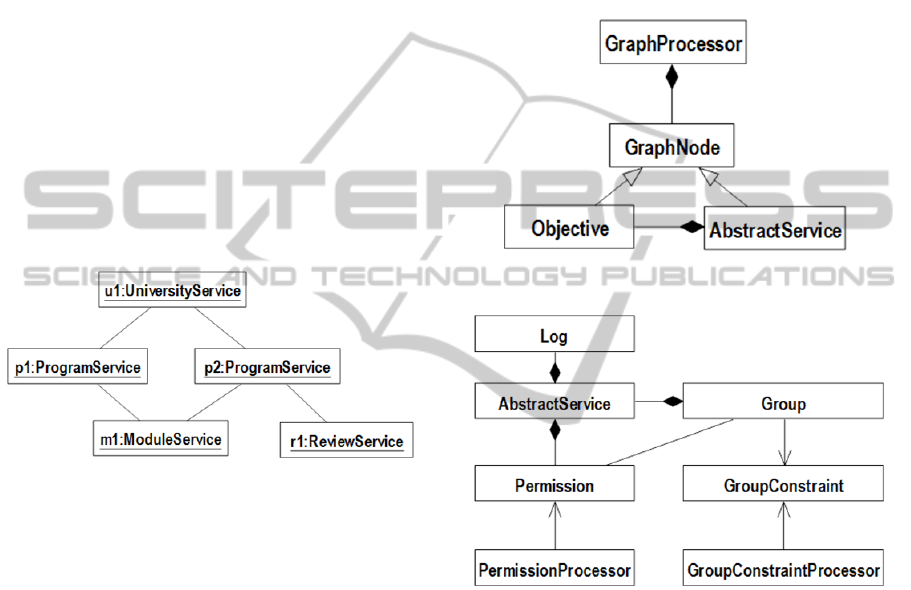

Figure 2 shows a sample object diagram with

university u1, programs p1 and p2, a module m1 and

a peer review r1 (simplified view without adding

levels like faculty).

Figure 2: A sample service graph (or network).

To handle this task FINQUAS has a graph

management component, illustrated in Figure 3.

AbstractService inherits from a Node class. A

GraphProcessor manages a set of nodes and

edges (not shown in figure 3) between nodes.

A service has links to objectives that should be

satisfied. Depending on the type of service, different

types of objectives can be distinguished. FINQUAS

uses subclasses of a general class for objectives to

describe learning outcomes and planned values for

key figures. Objectives should be coherent. This

means in this context that objectives of

superordinate services should be refined by services

at lower levels. In order to comply with this basic

principle of quality management the connections of

objectives between higher and lower service level

are captured at the definition time of services. These

connections build a graph, too. Hence, graph

management is reused for this task.

Each service has a group of people who are

responsible for it. Figure 4 shows this relationship

together with associated tasks. The configuration of

a person group (at some university levels called

board) could have to comply with complex rules.

Group members might have a variety of roles. The

number of instances for each role could be restricted

to a specific range of values. The duration of

memberships has to be considered, too. Additional

representations are helpful for this kind of constraint

processing. The group constraint processor in Figure

4 (class GroupConstraintProcessor) is a

simplified depiction of this task.

Figure 3: Graph management.

Figure 4: Authorization and group management.

A user who wants to perform an action on a

service document needs an authorization from the

system. The permissions depend mainly on some

attributes of the service and of the user as well as on

the group related to the considered service. In

particular the role of the user, type of service, status

(e.g. in draft mode only the authors have access) and

action type are essential for permitting or denying

access. Moreover, users belonging to a group

associated with a superordinate service could have

permissions on a service (depending on the

organization service authors can have action rights

for subservices, e.g. a member of the university

executive board can have permissions to edit a

subservice of the university like a program). Hence,

a sophisticated and flexible processing of access

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

314

control is necessary, as indicated in Figure 4 by the

class PermissionProcessor.

When groups of people collaborate on service

documents, auditing information is needed in order

to annotate who has changed what. The system does

not log information about the domain operation at

the database operation layer. For this reason an

auditing processor is implemented, which is directly

related to the AbstractService class. It is

implemented as a listener, which is triggered as soon

as a service has been created or removed or any data

of a service has been changed. The listener stores the

modification date as well as the originator of the

modification in the database. Besides the control

aspects, the tracked auditing information supports

the collaborative work on service documents by

providing the information via the user interfaces to

the collaborators.

Furthermore, our framework provides for the

first software version a locking concept in order to

ensure a consistent access on service documents.

The locking concept is implemented by an access

controller, which also belongs to the generic

functions, provided by the AbstractService

entity (see Figure 1). As soon as a user with

accordant permissions begins to edit a service, the

service will be locked. Thus, other users can’t edit

this service anymore as long as the locking author is

working on the document. However, it is possible to

read the service and see the current changes, made

by the lock owner. Future versions of our system

shall contain more sophisticated mechanisms in

order to support synchronous collaboration of

several authors on the same document. For the

beginning we preferred the more conservative and

proven approach of locking.

The lifecycle of a service is represented by a

workflow or at least a service is involved in

workflows from other services. For instance the

lifecycle of a peer review service begins with the

workflow state “DRAFT” and after passing several

states it results in the state “DETERMINED” as

soon as the accordant committee has approved the

preceding steps. In order to enable a simple and

flexible workflow concept for all services and their
