A Survey on Approaches for Interoperability and Portability of Cloud

Computing Services

Kostas Stravoskoufos, Alexandros Preventis, Stelios Sotiriadis and Euripides G. M. Petrakis

Department of Electronic and Computer Engineering, Technical University of Crete, Chania, Greece

Keywords:

Cloud Computing, Cloud Interoperability, Cloud Portability.

Abstract:

Over the recent years, the rapid development of Cloud Computing has driven to a large market of cloud

services that offer infrastructure, platforms and software to everyday users. Yet, due to the lack of common

accepted standards, cloud service providers use different technologies and offer their clients services that are

operated by a variety of proprietary APIs. The lack of standardization results in numerous heterogeneities

(e.g., heterogeneous service descriptions, message level naming conﬂicts, data representation conﬂicts etc.)

making the interoperation, collaboration and portability of services a very complex task. In this work we

focus on the problems of interoperability and portability in Cloud Computing, we address their differences

and we discuss some of the latest research work in this area. Finally we evaluate and point out relationships

between the identiﬁed solutions.

1 INTRODUCTION

According to the NIST (U.S. Government’s National

Institute of Standards and Technology) Cloud Com-

puting deﬁnition (Mell and Grance, 2009), the Cloud

is composed by three Service models: The Infrastruc-

ture as a Service (IaaS) model, which is used to man-

age the underlying hardware in order to provide the

consumers with computer resources such as storage,

processing power, or network. The Platform as a Ser-

vice (PaaS) model which virtualizes a computer envi-

ronment supporting the development and deployment

of consumer applications and, ﬁnaly, the Software as

a Service(SaaS) model which gives consumers the ca-

pability to use applications running on the cloud.

The term of interoperability has many deﬁnitions

in literature (Petcu, 2011) and is often misused to in-

clude the term of portability. In order to get a more

clear view we focus on the three cloud service models

and the different conceptions interoperability refers to

in each model. This also applies for applications that

are not already ported to the cloud: developers who

want to port an application to the cloud must con-

sider all the different options offered by cloud service

providers and ﬁnd the most suitable for their applica-

tion. On the other hand, in case where a client com-

bines two SaaS (this leads to more complex service

composition), interoperability refers to the ability of

the services to communicate and be compatible by

overcoming message level heterogeneities like nam-

ing conﬂicts or data representation conﬂicts. the ser-

vices to communicate and be compatible by overcom-

ing message level heterogeneities like naming con-

ﬂicts or data representation conﬂicts.

The NIST makes a clear distinction between in-

teroperability and portability by deﬁning service in-

teroperability, system portability and data portability

(Bohn et al., 2011). Service interoperability is de-

ﬁned as “the ability of cloud consumers to use their

data and services across multiple cloud providers with

a uniﬁed management interface” while portability is

further distinguished into Data Portability and System

Portability. Data Portability is deﬁned as “the ability

of cloud consumers to copy data objects into or out of

a cloud or to use a disk for bulk data transfer” while,

System Portability is deﬁned as “the ability to migrate

one of a fully stopped virtual machine(VM) instance

(that represents a cloud service or an application) or

a machine image from one cloud infrastructure to an-

other cloud, or migrate applications and services and

their contents from one service provider to another”.

The NIST also deﬁnes the concept of the “hy-

brid cloud” which is a composition of two or more

clouds that remain as distinct entities but are bound

together by standardized or proprietary technology

that enables data and application portability. In gen-

eral, portability and interoperability between the var-

ious cloud service models resort to standards.

112

Stravoskoufos K., Preventis A., Sotiriadis S. and Petrakis E..

A Survey on Approaches for Interoperability and Portability of Cloud Computing Services.

DOI: 10.5220/0004856401120117

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (CLOSER-2014), pages 112-117

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

In the following sections we present the various

approaches for solving the problem. In Section 2 we

discuss interoperability and portability and in Sec-

tion 3 approaches on this. In Section 4 we present

a cross comparison study of the discussed approaches

to characterize the most crucial requirements for fu-

ture developments. At last, in Section 5 we highlight

the future research steps of this work.

2 CLOUD SERVICE

INTEROPERABILITY AND

PORTABILITY

Service Interoperability allows customers to use ser-

vices across multiple clouds using common manage-

ment API. The general requirement to achieve service

interoperability, since world-wide standards haven’t

been deﬁned yet (Petcu et al., 2013), is the seman-

tic description of services which is vital to create the

middleware towards a common management API to

override the proprietary ones.

Service Interoperability applies to all three Cloud

Computing service models but the meaning of it (and

also the requirements) varies in each model. Achiev-

ing interoperability in the IaaS model means that

clients have the ability to use the infrastructure of dif-

ferent clouds and control them as if they were one.

A simple example is when the client has control of

several virtual machines that encapsulate the compu-

tational resources from different clouds. In PaaS, ser-

vice interoperability is about enabling the clients to

use different APIs, tools, libraries etc. from differ-

ent platforms ported in different clouds in order to

create applications. Finally, in the SaaS model, in-

teroperability refers to enabling cloud applications to

exchange messages or data. Below we present some

of the latest research work on this subject.

System portability refers to the ability of cloud

services to be deployed on other cloud services of a

lower service model (e.g. the ability of a SaaS ser-

vice to be deployed on different PaaS services). In the

IaaS model, portability refers to the ability to migrate

and run Virtual Machines along with data and con-

ﬁgurations, across different infrastructure providers.

In the PaaS model, portability refers to the ability to

deploy applications across different platforms (across

different virtual machines). Finally portability in the

SaaS model refers to the ability of clients to move

their data across equivalent SaaS applications. This is

also known as data portability and is further analyzed

below.

Another case of portability is when an external

application needs to be ported in the cloud. In such

case, an application description is required along with

the description of the platform services. According to

(Nagarajan et al., 2006) there are 4 types of semantics

describing applications:

1. System semantics are semantics pertaining system

characteristics (deployment and load balancing).

2. Data semantics are semantics pertaining to data

(typing, storage and manipulation restrictions).

3. Non functional semantics which are semantics

pertaining to QoS characteristics (performance,

security).

4. Logic and process semantics which semantics per-

taining to the core functions of the application

(programming language, runtime, exception han-

dling).

The basic requirement to achieve system portabil-

ity, as in service interoperability, is the description

of services. The concept of data portability applies

only on the SaaS model and refers to the ability of

customers to move their data along equivalent cloud

applications hosted on different providers. Since the

“vendor lock-in” also affects data portability, the main

problem in this task is the variety of data represen-

tations used among the different cloud applications.

This requires transforming the representation of data

which is the output of one cloud application to the

representation of data required as input by the tar-

get application. Another important problem to deal

with is the different import and export functionalities

of cloud applications (the mechanisms used to export

or import data from and into cloud applications). The

description of those functionalities is required to en-

able migration of data from one application to another

(standardization plays an important role in this part).

3 SERVICE DISCOVERY IN

CLOUDS

This section describes the analysis of the related ap-

proaches in the area of service discovery in cloud sys-

tems. The works deal a) with the service descrip-

tion problem (a vital requirement to achieve service

Interoperability) and b) with message level hetero-

geneities. Although messages may be described in

the same way (i.e., using SOAP) they may differ in

the domain level (Nagarajan et al., 2006). This kind of

differences is described as heterogeneity at the mes-

sage level. Dealing with message heterogeneities is

very important if we take into consideration all the

ASurveyonApproachesforInteroperabilityandPortabilityofCloudComputingServices

113

Table 1: A summary of the cloud interoperability and portability approaches for service discovery.

Approach Focus Key operations

WSDL-S, OWL-S Approaches that provide the vocab-

ulary for describing services.

Introduce semantics for the descrip-

tion of services (including cloud).

Uniﬁed Cloud Interface

(UCI)

Standardization for interacting be-

tween clouds using an interface.

Common management API for

cloud services.

Open Cloud Computing In-

terface (OCCI)

Standardization approach that pro-

poses a common management API.

API for common management tasks

e.g. cloud resource deployment.

OWL-S based Broker Cloud service description and dis-

covery approach using a broker.

OWL ontology for service discov-

ery, providers need to be compliant.

Cloud Computing Ontology

(CoCoOn)

Cloud service description and dis-

covery using a broker.

OWL ontology for service descrip-

tion (IaaS model) and discovery.

Cloud Service Generic

Search Engine

Description and discovery of ser-

vices using a broker.

OWL ontology that uses a service

discovery mechanism.

mOSAIC Service description approach and

service discovery and composition

using a broker.

OWL-S ontology for service de-

scription. Interoperability through a

common management API (OCCI).

PSIF Framework for semantic interoper-

ability conﬂicts on the PaaS layer.

Description of services for captur-

ing and representing the conﬂicts.

different proprietary APIs that are used in cloud com-

puting. In Table 1 we present a summary of the cloud

interoperability and portability approaches for service

discovery.

The Uniﬁed Cloud Interface (UCI)

Project’s

goal is to create an interface to interact with various

cloud API’s. The main idea is to create an API to

handle all other API’s. The UCI abstracts the usage

of any cloud API and uniﬁes them in one layer that

is agnostic to cloud providers. It uses ontologies and

OWL (van Harmelen and McGuinness, 2004) in order

resolve any heterogeneities between the cloud based

APIs and the existing protocols and standards. OWL

is also used for describing the cloud data models and

the UCI uses this description to make resources from

multiple cloud providers available.

The Open Cloud Computing Interface (OCCI)

is an API and Protocol that supports different kinds

of management tasks (e.g. deployment, monitor-

ing etc.). The API acts as a service front-end to a

provider’s internal management framework, for con-

trolling the cloud hardware resources and it can also

be used as a management API for all kinds of re-

sources (virtualization, networking and storage). It is

highly extensible and focuses both on interoperability

and portability. OCCI is one of the ﬁrst approaches

towards standardization and was ﬁrst introduced as a

remote management API for IaaS model based ser-

vices. Since then, with the support of the Open Grid

Forum

community it evolved to support all three

http://code.google.com/p/uniﬁedcloud/

http://occi-wg.org/

http://www.gridforum.org/

cloud service models. Many academic and industry

members currently support OCCI (e.g. OpenStack,

GoGrid etc.).

OWL-S (Martin et al., 2004) is an OWL ontol-

ogy that provides the vocabulary for describing ser-

vices. It enables automatic service discovery, com-

position and invocation. The main OWL-S ontol-

ogy consists of three sub-ontologies, the “ServicePro-

ﬁle”, the “ServiceModel” and the “ServiceGround-

ing”. The service proﬁle is an upper level description

of the service. It is mostly used for describing what

the service does, in order to be discovered by agents

and determine if it ﬁts their needs.

The service model gives a detailed description of

how the service works. It describes a) the semantic

content of the service’s inputs and outputs b) the con-

ditions that have to be satisﬁed under which the ser-

vice can be performed c) step by step processes that

lead to the outcome of the service and d) the result

of the service, meaning the effects of the service in

the world (i.e., change in the balance of an account).

Service grounding describes how a service can be ac-

cessed. It speciﬁes the communication protocols, the

message formats and other speciﬁc details such as the

port that is used for accessing the service. OWL-S has

such a structure that can be used with WSDL (Chris-

tensen et al., 2001) by extending the existing bindings

of the later.

The Cloud Computing Ontology (CoCoOn)

(Zhang et al., 2012) is an OWL ontology for de-

scribing cloud infrastructure services. Although they

currently focus on the IaaS model, CoCoOn creators

claim that the ontology will be extended in the future

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

114

to discribe the PaaS and SaaS models. The ontology

proposed in this work consists of: a) functional Cloud

service conﬁgurations information parameters and b)

non-functional service conﬁguration parameters.

In the functional cloud service conﬁguration in-

formation part, the concepts deﬁning the IaaS model

are deﬁned as a taxonomy. For example, the IaaS con-

cept is divided into three subclasses: Compute, Net-

work and Storage, which in turn are further analyzed

and categorized. In the non-functional cloud service

conﬁguration information part, properties of the on-

tology concepts are described. A distinction is made

here between properties of Cloud resources that are

known at design time (non-functional properties) like

the provider or the deployment model and attributes

that can only be recorded after at least one execution

cycle of a Cloud service (QoS attributes) like durabil-

ity or performance. Based on the ontology describing

the services, a service discovery system has been im-

plemented that uses the CoCoOn Ontology to search

for available infrastructure services. The ontology

has been populated with well-known cloud providers

(Amazon, Microsoft Azure, GoGrid, etc).

OWL-S Cloud Broker (Ngan and Kanagasabai,

2012) is an OWL-S based semantic cloud service bro-

kering system that enables dynamic service discovery.

The broker uses the OWL-S ontology to describe the

services and SWRL

to apply complex constraints on

them. The user describes the desired service with a set

of preferences and constraints that the service should

satisfy. The preferences are represented by OWL en-

tities that are inserted into the system’s ontology. The

broker uses reasoning techniques to match the inputs

and outputs of the requested service to the inputs and

outputs of services available. The services that do

match the user’s preferences are checked for satisfy-

ing also the constraints of the preference. In the ﬁnal

stage, the services that have passed the previous steps

are ranked using a scoring function.

The Cloud Service Generic Search Engine

(henceforth referred to as CSGSE) (Nagireddi and

Mishra, 2013) is an approach towards cloud service

discovery. The work is based on an OWL ontology

which provides the description of services and their

attributes. Also it includes a search engine for ser-

vices discovery in the ontology directory. The search

engine uses the SPARQL query language

to retrieve

information from the ontology and to match services

based on user requests. Cloud services must be regis-

tered in an ontology registry and are available to the

search mechanism.

mOSAIC Project’s (Moscato et al., 2011) vision

http://www.w3.org/Submission/SWRL/

http://www.w3.org/TR/rdf-sparql-query/

is to provide a platform that will enable interoper-

ability between different cloud services, portability of

cloud services in different platforms, automatic ser-

vice discovery and composition and management of

Service Level Agreement. It provides a set of APIs

that enable developers to build vendor independent

applications that consist of multiple cloud compo-

nents. Each of these components perform a simple

operation. On run-time, the applications are decom-

posed into these components and the mOSAIC plat-

form automatically will decide which cloud imple-

mentation is better for each component to be deployed

on. The mOSAIC API serves as an intermediate layer

between the developers and the cloud platforms. It

lets the developers deploy their applications without

getting involved with APIs.

The PaaS Semantic Interoperability Frame-

work (PSIF) (Loutas et al., 2011) is a framework

used to capture and represent semantic interoperabil-

ity conﬂicts on the PaaS layer. Semantic interoper-

ability conﬂicts may arise a) during the migration of

an application from one PaaS to another, b) during

the deployment of an application to a PaaS or, c) on

the message exchange level between two PaaS sys-

tems. PSIF is structured according to three dimen-

sions. Firstly, the fundamental PaaS entities (i.e.,

PaaS system, PaaS offering, management interface,

software component, IaaS system and application) it

is used to determine which entities are involved in the

conﬂict and secondly, the types of semantics on the

PaaS layer (functional, non-functional and execution)

it is used to identify the semantic conﬂict. Thirdly,

the levels where semantic conﬂicts occur (either on

the information model or the data).

4 SERVICE DISCOVERY FOR

PORTING APPLICATIONS IN

CLOUDS

This section focus on the critical analysis of the re-

lated approaches for cloud service discovery. Table 2

demonstrates a cross comparison of the cloud service

interoperability and portability approaches in order to

deﬁne the most prominent. Based on the comparison

we conclude that mOSAIC uses OWL-S and OCCI

standards as well as provides the most complete on-

tology for service description. In addition, it is com-

pliant with most of the cloud providers. The CoCoOn

and OWL-S also present ontologies, yet there is still

place for improvement. Their difference is that Co-

CoOn is compliant with most common vendors (and

we consider it as an advantage), while OWL-S re-

ASurveyonApproachesforInteroperabilityandPortabilityofCloudComputingServices

115

quires vendors to be compliant with it. Finally, CGSE

ontology is non detailed and requires from vendors to

for most common cloud services).

In Figure 1, we demonstrate the portability and

interoperability in the case of porting a service from

a legacy system to a cloud. Here portability refers to

the porting action while interoperability refers to the

translation mechanism for matching purposes. The

assumption is that the service to be ported requires to

give an input to a broker that interprets and translates

the service description. This has been characterized

as a vital requirement by (OWL-S, CSGSE, OWL-S

Broker and mOSAIC) for service acknowledgment.

The broker includes the interoperability functional-

ity in order to interpret and translate the request and

match it with available ontological descriptions.

BROKER

CoCoOn

CSGSE

OWL-S

mOSAIC

Service1

Service2

CLOUD 1

Service4

Service2

CLOUD 2

SERVICE

MANAGEMENT API

mOSAIC

Service3

PORTABILITY

INTEROPERABILITY

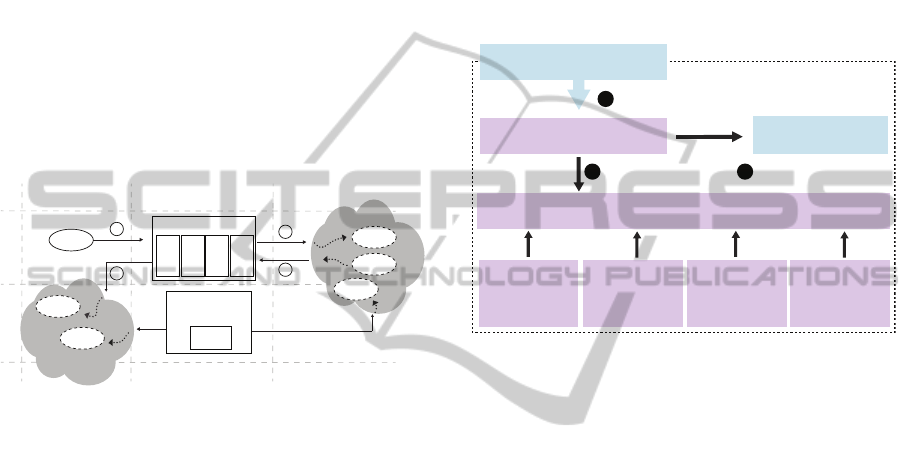

Figure 1: The interoperability and portability in cloud ser-

vice discovery.

We highlight portability for the SaaS, PaaS and IaaS

cases:

• The SaaS user/developer a) decides the service(s)

to be ported, b) the broker interprets and translates

the service(s) description based on ontologies, c)

the broker selects a cloud instrance that matches

the service description, and d) the developer uses

the service(s).

• The PaaS user/developer a) decides the service(s)

to be ported, b) the broker interprets and translates

the service(s) description based on ontologies, c)

the broker selects a cloud node for instantiation,

d) the broker selects a cloud instance that matches

the service(s) description and build the platform,

and e) the developer accesses the service(s).

• The IaaS user/developer a) decides the service(s)

to be ported, b) the broker interprets and translates

the service(s) description based on ontologies, c)

the broker selects the cloud node that matches the

required computational resources, d) the devel-

oper accesses and utilizes the node(s).

Figure 1 shows that a service (Service1) could

be ported to a cloud (CLOUD1), as shown in steps

1 and 2, through a broker (as implemented from the

literature review approaches) based on semantically

translation of the service requirements, described as

Service Level Agreement (SLA). The broker opera-

tion includes the matching process (match SLA de-

scription with available ones based on ontologies).

The interoperability is demonstrated in steps 3 and 4,

where a service (Service2 from CLOUD1) is moved

to another cloud (CLOUD2). The service manage-

ment API is the common control point for different

clouds (CLOUD1 and CLOUD2) integrated based on

OCCI standards.

2 3

Input:

Service Ontology Repository

CoCoOn CSGSE OWL-S Broker

mOSAIC

broker

Move to porting action

Search for service description

Interpret & translate

Output

GET: Service description

Use repository

Compliant with

specic cloud

providers

Vendors require

to register services

Requires Vendors

to be compliant.

Compliant with

specic cloud

providers

Figure 2: The interoperability and portability cloud service

discovery broker.

Figure 2 demonstrates the functionality of the ser-

vice broker. The ﬁrst step is to get the service de-

scription and interpret and translate the descriptions.

The second step is to use the repository where all four

approaches add as input their ontologies. For exam-

ple, CoCoOn is compliant with service descriptions of

speciﬁc cloud providers (e.g. Microsoft Azure). After

the matching, the process moves to step 3 that is the

porting action.

5 CONCLUSIONS

This work presented an analysis of the related works

that aim to service interoperability and portability on

cloud systems. By summarizing the different ap-

proaches we concluded to key features such as a) the

use of semantics in the description of services and on-

tologies as the most suitable tool for this task (e.g. Co-

CoOn, mOSAIC etc.), b) the deﬁnition of standards in

the description of services (e.g. OCCI) and c) the use

of broker to bridge gap of translating services between

systems.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

116

Table 2: A cross correlation study of the cloud interoperability and portability approaches.

CSGSE OWL-S Broker mOSAIC

CoCoOn

CSGSE ontology in not

as detailed compared to

CoCoOn. Also, Co-

CoOn is compliant with

speciﬁc providers, yet

CGSE requires vendors

to register in a broker.

OWL-S Broker is con-

sidered as a more de-

tailed ontology. It uses

OWL-S standard. Yet,

OWL-S requires compli-

ant providers with its on-

tology.

Compared with CoCoOn, mOSAIC

is more detailed ontology in the

level of descitpion of services.

It uses the OWL-S standard and

OCCI as a service front-end to

a providers internal management

framework.

CSGSE

OWL-S Broker is a more

specialized ontology as it

uses standards as OWL-

S and SWRL. Also, CS-

GSE uses databases for

storage thus it looses the

beneﬁts of semantics.

mOSAIC has a more specialized

ontology on the level of ser-

vice description for IaaS. Also it

uses OWL-S, SPARQL unambigu-

ous queries, as an advantage com-

pared with CGSE that uses database

for storage. It uses also OCCI.

OWL-S Broker

mOSAIC uses OWL-S, SPARQL

and OCCI. In the level of ontol-

ogy repository, OWL-S Broker re-

quires vendors to be compliant with

ontologies, yet mOSAIC is compli-

ant with most providers (e.g., MS

Azure).

ACKNOWLEDGEMENTS

The research leading to these results has re-

ceived funding from the European Unions Seventh

Framework Programme (FP7/2007-2013) under grant

agreement no 604691 (project FI-STAR).

REFERENCES

Bohn, R. B., Messina, J., Liu, F., Tong, J., and Mao, J.

(2011). Nist cloud computing reference architecture.

In Proceedings of the 2011 IEEE World Congress on

Services, SERVICES ’11, pages 594–596, Washing-

ton, DC, USA. IEEE Computer Society.

Christensen, E., Curbera, F., Meredith, G., and Weer-

awarana, S. (2001). Web Service Deﬁnition Lan-

guage (WSDL). W3C recommendation, W3C.

http://www.w3.org/TR/wsdl.

Loutas, N., Kamateri, E., and Tarabanis, K. A. (2011). A

Semantic Interoperability Framework for Cloud Plat-

form as a Service. In CloudCom, pages 280–287.

Martin, D. L., Paolucci, M., McIlraith, S. A., Burstein,

M. H., McDermott, D. V., McGuinness, D. L., Parsia,

B., Payne, T. R., Sabou, M., Solanki, M., Srinivasan,

N., and Sycara, K. P. (2004). Bringing Semantics to

Web Services: The OWL-S Approach. In SWSWPC,

pages 26–42.

Mell, P. and Grance, T. (2009). The NIST Deﬁnition of

Cloud Computing. Technical report.

Moscato, F., Aversa, R., Martino, B. D., Fortis, T.-F., and

Munteanu, V. I. (2011). An Analysis of mOSAIC on-

tology for Cloud Resources annotation. In FedCSIS,

pages 973–980.

Nagarajan, M., Verma, K., Sheth, A., Miller, J., and

Lathem, J. (2006). Semantic Interoperability of Web

Services - Challenges and Experiences. In ICWS ’06:

Proceedings of the IEEE International Conference on

Web Services (ICWS’06), pages 373–382, Washing-

ton, DC, USA. IEEE Computer Society.

Nagireddi, V. and Mishra, S. (2013). An ontology based

cloud service generic search engine. In Computer Sci-

ence Education (ICCSE), 2013 8th International Con-

ference on, pages 335–340.

Ngan, L. D. and Kanagasabai, R. (2012). Owl-s based se-

mantic cloud service broker. In ICWS, pages 560–567.

Petcu, D. (2011). Portability and interoperability between

clouds: challenges and case study. In Proceedings of

the 4th European conference on Towards a service-

based internet, ServiceWave’11, pages 62–74, Berlin,

Heidelberg. Springer-Verlag.

Petcu, D., Macariu, G., Panica, S., and Crciun, C. (2013).

Portable Cloud applications - From theory to practice.

Future Gener. Comput. Syst., 29(6):1417–1430.

van Harmelen, F. and McGuinness, D. (2004). OWL

web ontology language overview. W3C recommen-

dation, W3C. http://www.w3.org/TR/2004/REC-owl-

features-20040210/.

Zhang, M., Ranjan, R., Haller, A., Georgakopoulos, D.,

Menzel, M., and Nepal, S. (2012). An ontology

based system for cloud infrastructure services discov-

ery. CoRR, abs/1212.0156.

ASurveyonApproachesforInteroperabilityandPortabilityofCloudComputingServices

117
