Uniﬁed Invocation of Scripts and Services for Provisioning, Deployment,

and Management of Cloud Applications Based on TOSCA

Johannes Wettinger, Tobias Binz, Uwe Breitenb

ucher, Oliver Kopp, Frank Leymann

and Michael Zimmermann

Institute of Architecture of Application Systems, University of Stuttgart, Universit

atsstraße 38, Stuttgart, Germany

Keywords:

Management Plans, Management Operations, Script Invocation, Uniﬁed Interface, TOSCA, DevOps.

Abstract:

There are several script-centric approaches, APIs, and tools available to implement automated provisioning,

deployment, and management of applications in the Cloud. The automation of all these aspects is key for

reducing costs. However, most of these approaches are script-centric and provide proprietary solutions

employing different invocation mechanisms, interfaces, and state models. Moreover, most Cloud providers

offer proprietary Web services or APIs to be used for provisioning and management purposes. Consequently,

it is hard to create deployment and management plans integrating several of these approaches. The goal of

our work is to come up with an approach for uniﬁed invocation of scripts and services without handling each

proprietary interface separately. A prototype realizes the presented approach in a standards-based manner using

the Topology and Orchestration Speciﬁcation for Cloud Applications (TOSCA).

1 INTRODUCTION

Automated provisioning, deployment, and manage-

ment of Cloud applications are key enablers to reduce

costs of their operation (Leymann, 2009). However,

it is hard to implement automated processes for man-

aging applications in production after the actual de-

velopment is ﬁnished. The main reason is that key

aspects for operating an application in production were

not considered during development. The idea of Dev-

Ops (development & operations) aims to eliminate the

barrier between developers and operations personnel

(Humble and Molesky, 2011). Consequently, a highly

automated management environment has to be estab-

lished during development already to continuously

deploy and manage new iterations of an application

to different environments (e.g., development, test, and

production).

When automating such deployment and manage-

ment processes there are typically a number of building

blocks involved: (i) different Cloud providers expose

proprietary APIs to provision and manage resources

such as storage and virtual machines. (ii) Several tools

such as Chef (Nelson-Smith, 2011) originating in the

DevOps community provide a means to automatically

deploy application components on top of the Cloud

resources provisioned before. The DevOps community

also publicly offers reusable artifacts to be used for the

deployment of particular application components. (iii)

Custom scripts (e.g., Unix shell scripts) may be imple-

mented to manage the application during runtime (e.g.,

adding new users).

However, it is hard to combine these building

blocks because the invocation mechanisms of Web ser-

vices/APIs, scripts, and other plans involved in these

automated processes differ signiﬁcantly and the major-

ity of them is not standards-based (Breitenb

ucher et al.,

2013). The main goal of our work is to address this

deﬁcit by creating a management bus to provide a uni-

ﬁed invocation interface hiding all the technical details

of the employed management technologies. This inter-

face is used by management plans implementing the

logic required to automate a particular management

task. The main contributions of our work are outlined

in the following. We present:

•

Concepts for uniﬁed invocation of different kinds

of scripts (e.g., used for deployment) and different

APIs (e.g., used for provisioning).

•

Architecture and prototype of a uniﬁed invocation

bus and interface to be used by management plans

based on the Topology and Orchestration Speciﬁ-

cation for Cloud Application (TOSCA) (OASIS,

2013).

•

Evaluation based on an end-to-end open source

toolchain to show that plans get simpler and the

559

Wettinger J., Binz T., Breitenbücher U., Kopp O., Leymann F. and Zimmermann M..

Uniﬁed Invocation of Scripts and Services for Provisioning, Deployment, and Management of Cloud Applications Based on TOSCA.

DOI: 10.5220/0004859005590568

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (CLOSER-2014), pages 559-568

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

number of speciﬁc “wrappers” used for invoking

certain scripts and services are reduced.

The remaining of this paper is structured as fol-

lows: 2 outlines the currently existing issues and limi-

tations we address in our work. We present TOSCA

as an emerging standard for managing Cloud applica-

tions in 3 because major parts of our work is based

on it. 4 discusses the notion of a management plan

and the orchestration of management operations using

plans. Our concepts regarding the uniﬁed invocation

approach are presented in 5, followed by an evaluation

of this approach in 6. Finally, we discuss some related

work in 7 and conclude this paper in 8.

2 PROBLEM STATEMENT

Regarding the state of the art of provisioning and de-

ployment of Cloud applications, several approaches

emerged in the last few years. Some of the most popu-

lar approaches today are based on tools originating in

the DevOps community such as Chef (Nelson-Smith,

2011), Puppet (Loope, 2011), CFEngine (Zamboni,

2012), and Juju

. (Delaet et al., 2010) survey and

compare some of the technical aspects of these tools

in more detail. The main purpose of these tools is

automating the installation and conﬁguration of appli-

cation components on physical and virtual machines.

This is the reason why they are often called conﬁgu-

ration management tools. To implement deployment

logic for application components such as a Web server

or a database, scripting languages are used. As an ex-

ample, Chef uses a domain-speciﬁc language (G

unther

et al., 2010) based on Ruby to implement deployment

and management operations. In case of Chef, these op-

eration implementations are called recipes, bundled in

cookbooks

. Since each tooling uses different concepts

for developing, managing, and invoking management

operations, it is hard to combine them in order to au-

tomate the deployment of a certain application stack.

Such a stack typically consists of several components,

some of which are hosted on others (e.g., a PHP ap-

plication hosted on on an Apache HTTP Server) and

connected to each other (e.g., an application is con-

nected to a database). We further refer to such a stack

as an application topology.

The hard-to-realize interoperability of these ap-

proaches would make a lot of sense because the com-

munities afﬁliated with these tools provide plenty of

reusable management operations such as cookbooks

Juju: http://juju.ubuntu.com

Cookbooks: http://community.opscode.com/cookbooks

provided by the Chef community and charms

offered

by the Juju community. These operations can be used

to implement deployment plans automating the de-

ployment of whole application stacks consisting of

different components. Especially components that are

commonly used as middleware such as the Apache

HTTP Server can be deployed by parameterizing these

operations. As an example for the deployment of a typ-

ical stack, a publicly available Juju charm can be used

to create a MySQL database cluster, an already avail-

able Chef recipe may be used to create an instance of

the Apache HTTP Server, whereas the deployment of a

particular PHP application is implemented by a custom

Unix shell script. As of today, however, the orchestra-

tion of these operations is limited to the boundary of a

single ecosystem, including its operations, its tooling,

and its community.

Another limitation of the approaches described be-

fore is their limited management view on application

topologies. Since an application typically is not a

monolithic block, there are several application com-

ponents involved that are related to each other. Some

of these tools provide a means to model topologies

and stacks such as the Juju GUI

and Amazon Web

Services’ OpsWorks

, but most of them do not. This

limited management view, mostly focusing on single

more or less isolated parts of a topology, makes it hard

to manage large and distributed applications. Relations

between components are only modeled implicitly and

are typically hard-wired in the operations’ implemen-

tation. However, especially the relations are important

for management to understand the dependencies and

possible side effects of a management action. What

these tools miss anyhow is a portable and standards-

based approach to specify such topologies. This is

another reason why the orchestration of different oper-

ation types is hard to implement because if there is a

means to model an application topology it is limited to

a single ecosystem. Furthermore, different approaches

own different state models where properties are stored

following a certain structure. A central and overarch-

ing state model is required to access these data in a

uniﬁed manner.

The provisioning of resources such as storage or

virtual machines in the Cloud is another key aspect

in this context. This is typically the ﬁrst step of a de-

ployment process because a machine is required to be

running to deploy and manage application components

on it. In addition, provisioning of resources is a funda-

mental part of many management tasks. For example,

to scale an application, additional resources must be

Juju Charms: http://jujucharms.com

Juju GUI: http://juju.ubuntu.com/resources/juju-gui

AWS OpsWorks: http://aws.amazon.com/opsworks

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

560

provisioned. There are standardization and uniﬁcation

efforts going on such as OpenStack (Pepple, 2011) and

Deltacloud

to provide a uniﬁed API for provisioning

tasks across different Cloud providers. However, in

practice there are still lots of different APIs such as

the Google Compute Engine API

, the Amazon Web

Services API

, and Baremetalcloud’s API

to name

a few. Consequently, in a multi-cloud management

scenario where application components are distributed

across different Cloud providers (e.g., for resilience

purposes), it is hard to combine them because of their

different APIs.

The goal of our work is to address the issues de-

scribed before by presenting an approach for creating

overarching plans orchestrating different kinds of op-

erations and APIs. Furthermore, plans, covering both

deployment and runtime management of Cloud appli-

cations, should be able to access a holistic topology

model covering the whole automatically deployed ap-

plication stack.

We present the most important concepts of the

Topology and Orchestration Speciﬁcation for Cloud

Applications in the next section. The purpose of using

this emerging standard in our work is to specify ap-

plication topologies and package them together with

corresponding management plans in a portable man-

ner.

3 TOSCA

The Topology and Orchestration Speciﬁcation for

Cloud Applications (TOSCA) (OASIS, 2013) enables

the deﬁnition of application topologies including their

application components, the relations between them,

and the resources where they are hosted on such as

VMs. It is an emerging standard supported by a num-

ber of prominent industry partners such as IBM and

Hewlett-Packard to enable the portable deﬁnition of

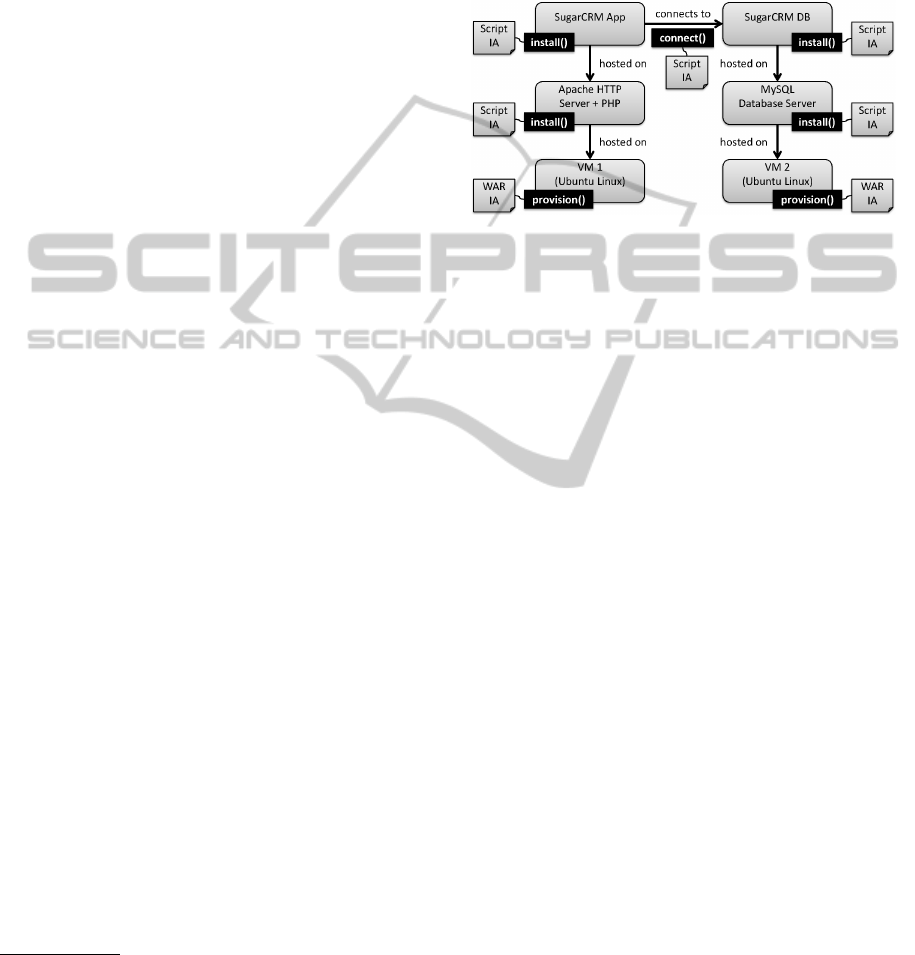

topology models. 1 shows a TOSCA-based topology

model for SugarCRM

, an open source customer rela-

tionship management software. The SugarCRM appli-

cation topology is used by the TOSCA interoperability

subcommittee

as an example for different vendors to

check whether their TOSCA runtime environment is

compliant to the speciﬁcation. The topology model is

a graph consisting of nodes that represent both appli-

cation components (Apache HTTP Server, SugarCRM

Deltacloud: http://deltacloud.apache.org

http://cloud.google.com/products/compute-engine

AWS API: http://aws.amazon.com/documentation

Baremetalcloud: http://www.baremetalcloud.com

SugarCRM: http://www.sugarcrm.com

SugarCRM Interop Topology: http://goo.gl/C6pqRd

App, etc.) and infrastructure resources (VM 1, VM

2). These nodes are linked by relationships to express

that a particular node is hosted on another one (e.g.,

SugarCRM App is hosted on Apache HTTP Server)

and to specify a connection between two nodes (e.g.,

application connects to the database).

Figure 1: SugarCRM topology model.

Each node and relationship can have management

operations attached. For instance, a VM node has a

provision operation deﬁned that is in charge of provi-

sioning a new VM. Furthermore, nodes representing

application components typically own an install oper-

ation to install and conﬁgure a particular application

component. Operations can also be attached to re-

lationships as it the case for the connect operation

attached to the relationship wiring the application with

the database. However, at this level an operation is still

an abstract modeling construct. To make it executable,

an implementation artifact (IA) needs to be attached

to each operation that implements the operation. As

an example, a WAR ﬁle exposing a Web service could

be attached to the provision operation of a VM node.

This WAR ﬁle is then deployed to a servlet container

provided by the TOSCA runtime environment. Once

the operation is invoked, a request is sent to the Web

service performing the actions required to create a new

VM. Another example is to attach a Unix shell script

to the install operation of an application component

node. When the operation is invoked, the script gets

copied to the target VM and then is executed there.

If several IAs are attached to a single operation, it is

assumed that all of them implement the same logic

based on different technologies. The TOSCA runtime

environment is free to pick one of them to perform the

operation.

In addition to deﬁning the topology model and im-

plementing the IAs, plans need to be written such as a

build plan to create new instances of such a topology

model. A plan basically deﬁnes the order of opera-

tion invocations to achieve a certain management goal

(Binz et al., 2012). BPMN4TOSCA (Kopp et al., 2012)

proposes TOSCA-speciﬁc modeling constructs to be

used in plans based on BPMN (OMG, 2011). TOSCA

UnifiedInvocationofScriptsandServicesforProvisioning,Deployment,andManagementofCloudApplicationsBasedon

TOSCA

561

further deﬁnes a packaging format called Cloud Ser-

vice Archive (CSAR) to deliver all ingredients belong-

ing to a particular topology model such as IAs, plans,

and the topology model itself as a single ﬁle, a CSAR.

The following 4 outlines the notions of manage-

ment plans and management operations as well as how

they work together. These are the fundamentals for the

concepts we describe later.

4 MANAGEMENT PLANS

AND OPERATIONS

Management logic is implemented on different levels:

script-centric artifacts provided by the DevOps com-

munity (Wettinger et al., 2013) typically implement

the installation and conﬁguration of application com-

ponents such as an Apache HTTP Server or a PHP

module on a physical or virtual machine (VM). Since

the nature of these artifacts is relatively ﬁne-grained,

specifying low-level management tasks that need to be

performed, we refer to these artifacts as management

operations. They are typically designed in a way to

perform a conﬁgurable “atomic” management action

such as installing an Apache HTTP Server or adding a

new user account to an application. These operations

focus on the deployment of application components as

well as their management at runtime such as changing

the conﬁguration of a particular component:

Management Operations

automate management

actions that are considered “atomic”, i.e., it does not

make sense to split them up further to achieve a certain

low-level management goal.

Figure 2: Plans orchestrate plans and operations.

A particular management operation may, for in-

stance, represent a script performing a particular man-

agement action on a VM. However, it could also be an

invocation of a service or an API offered by a Cloud

provider, for instance, to provision new resources such

as VMs. In order to enable the orchestration of several

management operations, for instance, to deploy a com-

plete application topology, more coarse-grained plans

are required. We refer to these plans as management

plans:

Management Plans

control the invocation of man-

agement operations and other management plans.

They specify the proper ordering of the invocations

as well as handling the input and output of each invo-

cation.

As mentioned in the deﬁnition before, plans may

also be used to combine existing plans and operations,

so plans can be positioned on different levels as shown

in 2. As an example, a scalable application typically

consists of several components that are deployed in

a distributed manner. In order to scale such an appli-

cation in or out, some of the components need to be

scaled according to the current workload. There could

be a management plan for each component that realizes

its scale-out. A plan on this level (e.g., implemented

as a Ruby script) may invoke operations (e.g., Chef

recipes) to reconﬁgure deployed instances that belong

to this particular component of the application as well

as operations to create and conﬁgure new instances to

enable the scale-out. Moreover, an overarching man-

agement plan (e.g., realized as a workﬂow) could be

implemented to invoke individual management plans

for each component involved in the scale-out process.

Finally, management plans enable multi-cloud manage-

ment scenarios: a particular plan may invoke different

operations for resources distributed across different

Cloud providers such as installing a database on a VM

at provider A and installing an application server on a

VM at provider B. Furthermore, such a management

plan can use APIs and services (management opera-

tions) exposed by different providers to provision new

resources such as storage or a VM.

Actually, management plans are very similar to

workﬂows and business processes. (Binz et al., 2012)

describe how to use existing workﬂow technology and

standards such as the Business Process Model and

Notation (BPMN) (OMG, 2011) and the Business Pro-

cess Execution Language (BPEL) (OASIS, 2007) to

implement and execute management plans. The recur-

sive character of management plans, i.e., orchestrating

existing management plans by another management

plan, is similar to how BPEL deals with Web services:

a BPEL workﬂow is not limited to invoking existing

Web services. It can also be exposed as a new Web

service that can then be invoked by another BPEL

workﬂow, possibly as subprocess (Kopp et al., 2010).

The distinction of management logic in plans and oper-

ations is similar to how workﬂows are typically distin-

guished: low-level workﬂows (similar to operations)

are often referred to as micro ﬂows (Manolescu and

Johnson, 2001) that can be orchestrated by “real” work-

ﬂows (similar to plans).

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

562

By implementing management plans as workﬂows

based on established standards such as BPMN or

BPEL, the plans’ portability is improved. Existing

general-purpose workﬂow engines can be used to ex-

ecute these plans. Moreover, the plans inherit the

properties of workﬂows such as recoverability and

compensation as discussed by (Binz et al., 2012).

To enable the portability of management oper-

ations, domain-speciﬁc languages (DSLs) such as

the Ruby-based DSL used by the Chef community

unther et al., 2010) can be used. These languages

provide platform-independent abstractions for typical

low-level management and deployment actions such

as installing a particular software package, writing a

conﬁguration ﬁle, or setting ﬁle permissions.

Again similar to workﬂows, there are different ﬂa-

vors of plans and operations: management logic can

be implemented in an imperative or in a declarative

manner. Whereas a declarative implementation only

speciﬁes what actions have to be performed, an imper-

ative implementation additionally describes how these

actions need to be performed. As an example, a declar-

ative management operation may deﬁne a set of soft-

ware packages that need to be installed. The imperative

variant would further deﬁne how to install these pack-

ages. Imperative management plans based on work-

ﬂows can be realized using BPMN or BPEL. However,

there are also declarative workﬂow languages (Pesic

and van der Aalst, 2006) available that could be used

to implement declarative management plans. For man-

agement operations, the very same distinction exists:

some of the DevOps tools such as Puppet provide a

declarative domain-speciﬁc language, whereas Chef

recipes, for instance, can be implemented using both

a declarative (Ruby-based domain-speciﬁc language)

and an imperative approach (plain Ruby). Further-

more, Unix shell scripts as for instance used by several

Juju charms are a typical example for imperative man-

agement operations because their logic encapsulates

several system commands that exactly deﬁne what

action to perform and how to perform this action. Con-

ceptually, there is no limitation to combining plans and

operations of different ﬂavors. As a result, an impera-

tive management plan could invoke several declarative

plans and operations or vice versa.

In the following section we present concepts for

a standards-based approach to tackle the problems

outlined in 2. Furthermore, we come up with an ar-

chitecture and a prototype that realizes these concepts

based on TOSCA.

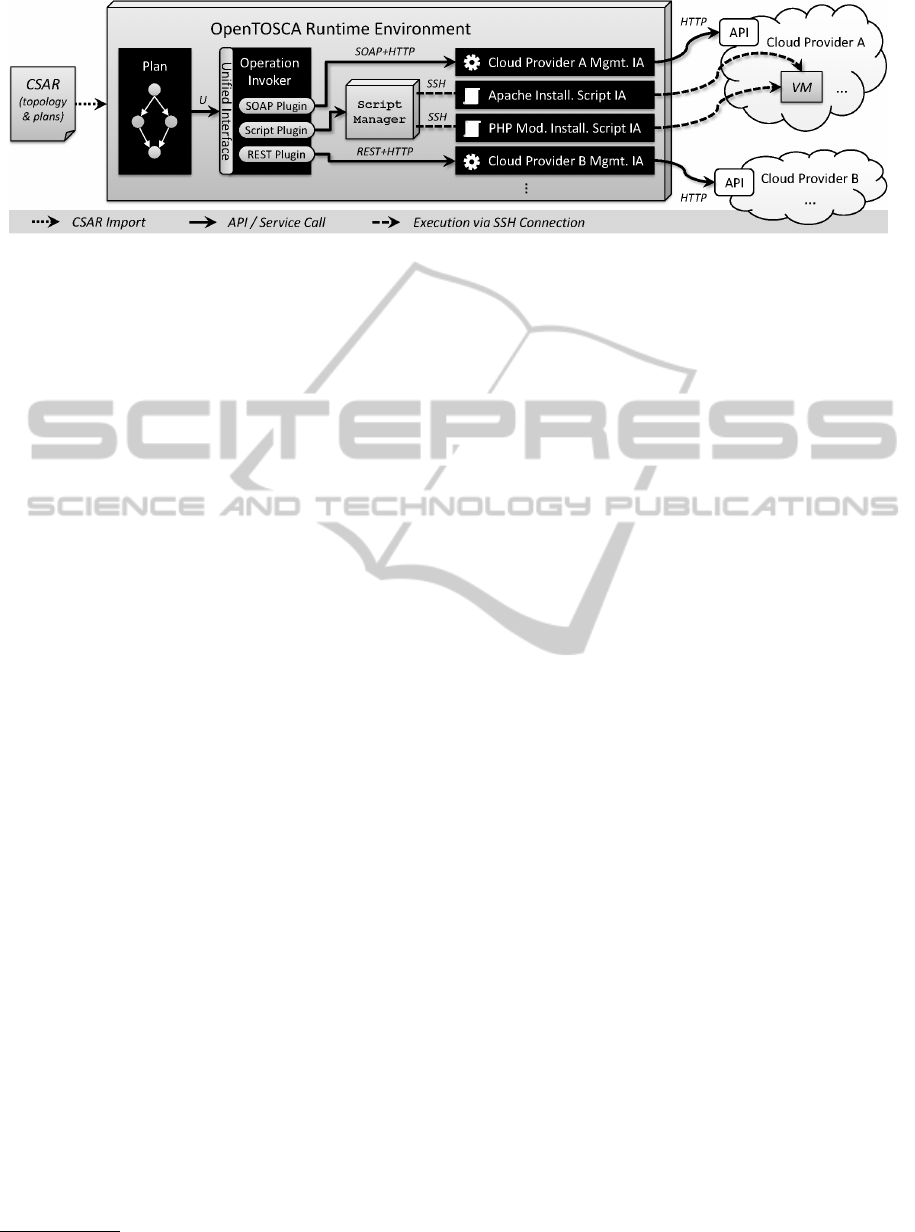

5 UNIFIED INVOCATION

INTERFACE FOR PLANS

As outlined in 2 it is difﬁcult to combine different

management operations such as Chef recipes, Unix

shell scripts, or certain provider APIs because each

of them has individual invocation mechanisms. To

address this issue the goals of our concepts presented

in this section are threefold:

Creating management plans has to be as simple

as deﬁning the ﬂow logic (e.g., a sequence) of

operations of particular nodes or relationships in

a TOSCA topology model. The technical details

of invoking a particular operation are completely

hidden to such a management plan.

The number of implementation artifacts (IAs) cre-

ated for a CSAR should be reduced as much as

possible. As an example, the CSAR should not de-

liver an IA that implements the execution of scripts

of a certain kind, because this logic does not im-

mediately belong to the application’s management

logic and thus has to be provided by other means.

Different operations in a topology model can be

implemented using different kinds of IAs such as

Chef recipes, Unix shell scripts, or Juju charms.

However, there should not be any dependency on

additional IAs (e.g., an IA exposed as Web service

to execute a Chef recipe) to enable the execution

and orchestration of such operations.

All these goals enable separation of concerns, so

that (i) a management plan focuses on the logic of

combining operations properly, (ii) a CSAR contains

artifacts and plans only related to the application it

speciﬁes, and (iii) different kinds of IAs can be used

to implement a particular operation without changing

higher-level management plans.

To achieve these goals a uniﬁed invocation inter-

face is required that can be used by plans to invoke op-

erations without knowing what kind of IA or technol-

ogy is used in the background. The uniﬁed invocation

interface is implemented based on OpenTOSCA (Binz

et al., 2013), an open source TOSCA runtime environ-

ment. OpenTOSCA is one of the core components of

an end-to-end toolchain to create and process TOSCA

models. First, we outline how OpenTOSCA deals with

plans, operations, and their invocation without such an

interface. Then, we describe how we improved Open-

TOSCA addressing the issues we discussed before.

UnifiedInvocationofScriptsandServicesforProvisioning,Deployment,andManagementofCloudApplicationsBasedon

TOSCA

563

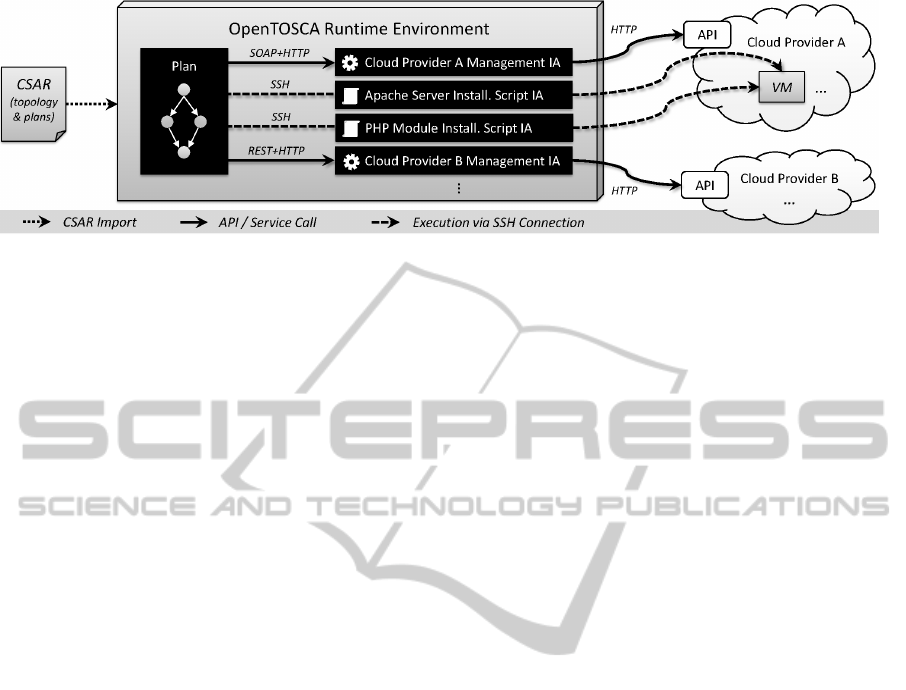

Figure 3: Original architecture without a uniﬁed invocation interface for plans.

5.1 Original Architecture of

OpenTOSCA

3 shows a simpliﬁed overview of the architecture of

OpenTOSCA. It further outlines the process of cre-

ating an instance of a particular application topology

speciﬁed by a CSAR as it is currently implemented

without the issues in mind we mentioned before. The

initial step is to import a CSAR to the runtime environ-

ment, so that new instances can be created based on the

model described in the CSAR. In addition to the actual

topology model, the CSAR further contains all con-

ﬁguration and management plans as IAs and TOSCA

management plans (Binz et al., 2012). We assume that

each CSAR contains an overarching build plan speci-

fying which operations of nodes and relationships in

the topology have to be invoked in which order. This

plan is executed by the OpenTOSCA runtime environ-

ment to build a new instance of the topology described

in the model.

When the plan invokes a particular operation the

corresponding implementation artifact (IA) is executed.

Some IAs may be implemented as SOAP-based Web

services in Java (WAR ﬁles), others may be imple-

mented as Unix shell scripts or Chef recipes. When

importing a CSAR, all implementation artifacts that

have to run in the local OpenTOSCA management

environment are deployed. For instance, the IAs pro-

viding Web services implemented in Java are hosted

on a local Java servlet container that is part of the

OpenTOSCA runtime environment. We refer to these

IAs as local IAs. OpenTOSCA further supports local

IAs providing RESTful Web services implemented in

Java. All other IAs such as script IAs are obviously not

deployed locally because they need to be executed on

the target VMs remotely. Therefore, we refer to these

IAs as remote IAs. Plans are bound to local IAs, so the

corresponding plan and IAs are hard-wired. This fact

decreases the portability and reusability of plans.

The sample plan outlined in 3 depicts several man-

agement operations that are performed in a multi-cloud

management scenario. These represent a subset of

operations required to create a new instance of the

SugarCRM application topology described in 3. (i)

The plan uses the local Cloud Provider A Management

IA to interact with the API of provider A. The same

applies to the Cloud Provider B Management IA for

provider B. However, the invocation interfaces differ

(SOAP+HTTP vs. REST+HTTP). Consequently, the

plan needs to be aware of the interfaces’ idiosyncrasies

in terms of invocation, passing input data, and receiv-

ing the result of the execution. (ii) Furthermore, the

plan invokes operations implemented by script IAs

(Unix shell scripts) such as the Apache Server Installa-

tion Script IA. Since these scripts need to be executed

remotely on a target VM at the provider, there are two

options to deal with remote execution: the plan itself

could implement the management logic for copying

the scripts to the target machine using SSH, setting in-

put and environment variables accordingly, performing

the execution, and retrieving its output. Alternatively,

a local wrapper IA such as an SSH Unix Shell Script

Invoker IA could be implemented and packaged with a

CSAR. This IA would expose the management logic

for handling the execution of a certain type of script

(Unix shell scripts) as Web service to be used by the

plan. The second option is typically necessary in case

the plan is implemented as workﬂow, e.g., based on

BPEL, because such workﬂows cannot establish SSH

connections without proprietary extensions.

Both options for executing remote IAs such as

scripts pollute plans and CSARs with management

logic that does not belong to the application’s manage-

ment logic and should therefore be provided by the

management environment. In this case, such manage-

ment logic can be reused by different CSARs. Fur-

thermore, plans need to deal with different invoca-

tion mechanisms such as SOAP+HTTP, REST+HTTP,

and SSH-based script execution. Thus, plans can get

complex even if the application topology is relatively

simple.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

564

Figure 4: Improved architecture providing a uniﬁed invocation interface for plans.

5.2 Improved Architecture with Uniﬁed

Invocation Interface

Based on the state of OpenTOSCA without a uniﬁed

invocation interface presented before, 4 outlines how

we improved OpenTOSCA’s architecture to provide

a uniﬁed invocation interface to plans. Thus, we im-

plemented an additional component, namely the Op-

eration Invoker acting as a bus in the sense of a ser-

vice bus (Chappell, 2004). This component provides

a uniﬁed interface to plans to invoke operations. In

contrast to the original architecture outlined in 3, the

plan does only communicate with the single uniﬁed

interface of the Operation Invoker. Technically, the

uniﬁed interface is implemented as SOAP-based Web

service. However, it could alternatively or additionally

make the interface accessible through a RESTful Web

service or any other communication protocol.

The uniﬁed interface enables loose coupling be-

tween plans and IAs. When a particular operation is

called through the Operation Invoker, it checks what

kind of IA is available to execute the operation. Then,

it checks whether there is a plugin registered that can

execute IAs of the given type (e.g., an IA of type SOAP

or of type REST). In case there is a corresponding plu-

gin, this plugin gets invoked, which itself invokes the

corresponding IA. The Operation Invoker is extensible

by adding plugins to it enabling OpenTOSCA to pro-

cess any kind of IA. These plugins are implemented

using OSGi

(Leitner et al., 2009) and (De Antonellis et al.,

2006) present solutions similar to the Operation In-

voker in order to dynamically invoke different kinds of

Web services. However, these solutions are limited to

service invocation and do not consider the execution of

arbitrary executables such as scripts on a VM. In case

of deploying and managing Cloud applications, ser-

vice invocations do typically only cover provisioning

tasks, e.g., creating a new VM. The actions to install

and conﬁgure application components on the VM are

OSGi: http://www.osgi.org

typically implemented as scripts. We discussed this

fact in 2, especially in the context of the tools such as

Chef or Puppet originating in the DevOps community.

Thus, it is essential for the Operation Invoker and the

uniﬁed invocation interface that it provides a means

to manage and monitor the execution of scripts. To be

able to easily combine different kinds of scripts such

as Chef recipes or Unix shell scripts the Operation

Invoker has to deal with their individual invocation

mechanisms and their way of handling input and out-

put.

We decided to create the Script Plugin to enable

the Operation Invoker to deal with IAs that are im-

plemented as scripts. However, the actual logic for

dealing with the idiosyncrasies of different types of

scripts is realized by a separate reusable component,

namely the Script Manager, which is used by the Op-

eration Invoker’s Script Plugin. When a plan invokes

an operation that is implemented as a script, the Ser-

vice Invoker calls the Script Manager and passes the

references to the script ﬁles, some meta information

such as the type of the script, and the context such as

the properties of the node of which the particular op-

eration belongs to. The following XML listing shows

an example for a message that is created by the Script

Plugin when a plan invokes the install operation of the

SugarCRM App node:

1 <Definitions ...

2 targetNamespace="http://www.opentosca.org/script"

3 xmlns="http://.../tosca"

4 xmlns:toscaBase="http://.../toscaBaseTypes"

5 xmlns:s="http://www.opentosca.org/script">

7 <ArtifactTemplate ... type="toscaBase:ScriptArtifact">

8 <Properties>

9 <toscaBase:ScriptArtifactProperties ...>

10 <ScriptLanguage>sh</ScriptLanguage>

11 <PrimaryScript>scripts/install.sh</PrimaryScript>

12 </toscaBase:ScriptArtifactProperties>

13 </Properties>

14 <ArtifactReferences>

15 <ArtifactReference reference="scripts/install.sh" />

16 </ArtifactReferences>

UnifiedInvocationofScriptsandServicesforProvisioning,Deployment,andManagementofCloudApplicationsBasedon

TOSCA

565

17 </ArtifactTemplate>

19 <s:ArtifactContext>

20

21 <Files url="http://localhost/.../CSARs/SugarCRM/" />

23 <Operation>

24 <InputParameter name="licenseKey" type="string">

25 DUMMY_KEY

26 </InputParameter>

27 <OutputParameter name="stdout" type="string" />

28 </Operation>

30 <Node>

31

32 <NodeProperties nodeTypeName="SugarCRMApp">

33

34 </NodeProperties>

36 <!-- properties of server node on which the

37 SugarCRM App node is hosted -->

38 <HostProperties nodeTypeName="UbuntuLinuxServer">

39

40 </HostProperties>

41 </Node>

42 </s:ArtifactContext>

43 </Definitions>

This message is then sent to the Script Manager.

First, the script ﬁles (line 15) are retrieved from Open-

TOSCA’s RESTful API endpoint (line 21). Second, the

Script Manager establishes, for instance, an SSH con-

nection to copy the script ﬁles to the target VM, to set

the corresponding environment variables, to execute

the scripts, and to retrieve the result of the execution.

The Operation Invoker’s Script Plugin uses a RESTful

API provided by the Script Manager to monitor the sta-

tus of the execution and to ﬁnally retrieve the output to

pass it back to the plan through the uniﬁed invocation

interface. Such a message is structured as shown in

the following XML listing:

1 <body>

2 <status>completed</status>

3 <output>

4 <param>

5 <name>stdout</name>

6 <type>string</type>

7 <value>SugarCRM installed successfully</value>

8 </param>

9 </output>

10 </body>

We evaluated our concepts based on the improved

architecture of OpenTOSCA to show that our solution

proposal can be implemented in practice to address the

issues outlined in 2. The following section discusses

the evaluation in more detail.

6 EVALUATION

Based on the topology of SugarCRM described in 3

we show that the concepts and the improved architec-

ture presented in the previous 5 can be implemented

in practice to address the issues discussed in 2. The

overarching build plan to create new instances of Sug-

arCRM is implemented using BPEL (OASIS, 2007).

The main reason for using standards-based workﬂow

languages as proposed in TOSCA is to beneﬁt from

the workﬂows’ advantages such as recoverability and

to reuse existing workﬂow engines for plan execution.

However, the plan’s implementation does not rely on

any unique feature of BPEL. If certain workﬂow prop-

erties such as recoverability or compensation are not

required for a particular plan it could also be imple-

mented, for instance, using a scripting language such

as Ruby or Python.

For evaluation purposes we created two CSARs

including a build plan for each of them: (i) the original

one does not use the Operation Invoker at all, so the

build plan directly invokes Web services provided by

local IAs bound to certain operations. The IAs’ imple-

mentation is part of the CSAR. Consequently, a local

wrapper IA was created to copy scripts on VMs and ex-

ecute these scripts because a BPEL plan cannot do this

directly. (ii) The improved CSAR’s build plan invokes

all operations through the Operation Invoker, meaning

there is no direct dependency to any IA. Furthermore,

there is no IA needed to invoke scripts because this

task is delegated to the Script Manager. By using the

Operation Invoker for each operation invocation cen-

tralized monitoring can be implemented because all

input and output is going through a central component.

1 summarizes the evaluation results showing that (i)

the complexity (measured as the number of XML el-

ements in the BPEL plan) of the improved CSAR’s

build plan is lower, so plan creation gets simpliﬁed by

using the Operation Invoker. This is mainly because

many low-level actions such as copying scripts to the

target machine do not appear in the plan. (ii) In con-

trast to the original CSAR the improved one does not

require a special IA for invoking scripts because the

Table 1: Evaluation Results.

CSARs: Original Improved

Complexity of build plan (num-

ber of XML elements)

563 161

Wrapper IA for script invocation

yes no

IAs exchangeable without

changing plans

no yes

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

566

Operation Invoker uses the Script Manager for this

purpose. (iii) IAs can be arbitrarily exchanged in case

of the improved CSAR because the plan only points

to the operations that need to be invoked. Then, the

Operation Invoker deals with the IAs and invokes them

accordingly.

7 RELATED WORK

Invoking Web services dynamically by using some

kind of uniﬁed invocation interface was discussed be-

fore (Leitner et al., 2009; De Antonellis et al., 2006).

These approaches do not consider the invocation of

arbitrary management operations such as Chef recipes

or Unix shell scripts. However, their invocation is of

utmost importance in case of creating management

plans because many operations such as installing and

conﬁguring application components are implemented

as scripts. In the ﬁeld of multi-cloud research there is

related work (Petcu et al., 2011; Moscato et al., 2011;

Sampaio and Mendon

c¸

a, 2011) proposing concepts

and architectures to talk to different Cloud providers

using a uniﬁed API. Only some of them (Liu et al.,

2011) marginally consider the invocation of scripts

on VMs in the target Cloud. Most of the time it is

assumed that application components are bundled and

deployed as virtual image ﬁles, e.g., using OVF.

In terms of provisioning resources such as VMs,

libraries (e.g., jclouds

and fog

) enable the abstrac-

tion of speciﬁc Cloud provider APIs. However, their

functionality is limited to provisioning tasks and they

can only be used in a programmatic manner. Conse-

quently, a standards-based plan (e.g., based on BPEL

or BPMN) cannot use such libraries directly without a

wrapper exposing the libraries’ functionality as Web

services. Beside these libraries, approaches such as

cloud-init

can be used to run scripts on a VM when

it gets started. This may work for the initial deploy-

ment of application components. However, arbitrary

management operations such as a database backup that

need to be performed later cannot be covered by this

approach.

Some DevOps approaches can also perform pro-

visioning actions. However, they are either bound to

speciﬁc Cloud providers such as AWS OpsWorks

or they are mainly used as a command-line tool such

as Chef’s knife

and Juju

. Beside the DevOps tools

jclouds: http://jclouds.incubator.apache.org

fog: http://fog.io

cloud-init: http://launchpad.net/cloud-init

AWS OpsWorks:http://aws.amazon.com/opsworks

Knife: http://docs.opscode.com/knife.html

Juju: http://juju.ubuntu.com

such as Chef or Puppet, there is another category of

tools emerging. These are in particular platform-as-a-

service (PaaS) frameworks such as Cloud Foundry

Their goal is to provide an integrated environment,

namely a PaaS environment (Mell and Grance, 2011),

for deploying and running applications and all their

management processes. However, standards such as

TOSCA are not considered there.

8 CONCLUSIONS AND

FUTURE WORK

The uniﬁed invocation interface presented in 5 cleanly

decouples overarching management plans (e.g., the

application’s build plan) from their underlying man-

agement operations (e.g., IAs implemented as Chef

recipes and Unix shell scripts). The Script Manager

used to invoke management operations implemented

as scripts can be arbitrarily extended to support the

execution of any kind of scripts. This enables reusing

existing management operations published by the Dev-

Ops community that can be embedded into CSARs to

implement certain operations. Finally, IAs exposing

SOAP-based or RESTful Web services (e.g., to provi-

sion a new VM) can also be invoked by a plan through

the Operation Invoker without binding the plan to a

certain Web service. As a result, management plans fo-

cus on the actual orchestration of different operations

and thus do not have any dependency on particular IAs

or scripts. Our evaluation presented in 6 conﬁrmed

that this approach can be implemented in practice.

Furthermore, the complexity of plans can be notably

decreased.

In terms of future work we aim to extend our pro-

totype in two dimensions: (i) extending the Script

Manager to process a wide range of existing manage-

ment operations (Puppet, Juju, etc.) and (ii) exposing

the Operation Invoker’s uniﬁed interface as RESTful

Web service to make it directly usable for scripts im-

plemented in Ruby, Python, etc. This enables the

implementation of plans based on scripting languages

as an alternative to workﬂows. Provisioning libraries

such as jclouds mentioned in 7 can be wrapped as IAs

to be reused in different CSARs for provisioning tasks.

ACKNOWLEDGEMENTS

This work was partially funded by the BMWi project

CloudCycle (01MD11023).

Cloud Foundry: http://cloudfoundry.org

UnifiedInvocationofScriptsandServicesforProvisioning,Deployment,andManagementofCloudApplicationsBasedon

TOSCA

567

REFERENCES

Binz, T., Breitenb

ucher, U., Haupt, F., Kopp, O., Ley-

mann, F., Nowak, A., and Wagner, S. (2013). Open-

TOSCA - A Runtime for TOSCA-based Cloud Applica-

tions. In Proceedings of 11th International Conference

on Service-Oriented Computing (ICSOC’13), volume

8274 of LNCS, pages 694–697. Springer Berlin Hei-

delberg.

Binz, T., Breiter, G., Leymann, F., and Spatzier, T. (2012).

Portable Cloud Services Using TOSCA. Internet Com-

puting, IEEE, 16(3):80–85.

Breitenb

ucher, U., Binz, T., Kopp, O., Leymann, F., and

Wettinger, J. (2013). Integrated Cloud Application Pro-

visioning: Interconnecting Service-centric and Script-

centric Management Technologies. In Proceedings

of the 21

International Conference on Cooperative

Information Systems (CoopIS 2013).

Chappell, D. A. (2004). Enterprise Service Bus. O’Reilly.

De Antonellis, V., Melchiori, M., De Santis, L., Mecella,

M., Mussi, E., Pernici, B., and Plebani, P. (2006). A

layered architecture for ﬂexible Web service invocation.

Software: Practice and Experience, 36(2):191–223.

Delaet, T., Joosen, W., and Vanbrabant, B. (2010). A Survey

of System Conﬁguration Tools. In Proceedings of the

24th Large Installations Systems Administration (LISA)

conference.

unther, S., Haupt, M., and Splieth, M. (2010). Utilizing In-

ternal Domain-Speciﬁc Languages for Deployment and

Maintenance of IT Infrastructures. Technical report,

Very Large Business Applications Lab Magdeburg,

Fakult

at f

ur Informatik, Otto-von-Guericke-Universit

Magdeburg.

Humble, J. and Molesky, J. (2011). Why Enterprises Must

Adopt Devops to Enable Continuous Delivery. Cutter

IT Journal, 24(8):6.

Kopp, O., Binz, T., Breitenb

ucher, U., and Leymann, F.

(2012). BPMN4TOSCA: A Domain-Speciﬁc Lan-

guage to Model Management Plans for Composite Ap-

plications. In Business Process Model and Notation,

volume 125 of Lecture Notes in Business Information

Processing, pages 38–52.

Kopp, O., Eberle, H., Leymann, F., and Unger, T. (2010).

The Subprocess Spectrum. In Proceedings of the

Business Process and Services Computing Conference:

BPSC 2010, volume P-177 of Lecture Notes in Infor-

matics, pages 267–279. Gesellschaft f

ur Informatik e.V.

(GI).

Leitner, P., Rosenberg, F., and Dustdar, S. (2009). Daios:

Efﬁcient Dynamic Web Service Invocation. Internet

Computing, IEEE, 13(3):72–80.

Leymann, F. (2009). Cloud Computing: The Next Revolu-

tion in IT. In Photogrammetric Week ’09. Wichmann

Verlag.

Liu, T., Katsuno, Y., Sun, K., Li, Y., Kushida, T., Chen, Y.,

and Itakura, M. (2011). Multi cloud management for

uniﬁed cloud services across cloud sites. In Cloud Com-

puting and Intelligence Systems (CCIS), 2011 IEEE

International Conference on, pages 164–169.

Loope, J. (2011). Managing Infrastructure with Puppet.

O’Reilly Media, Inc.

Manolescu, D.-A. and Johnson, R. E. (2001). Micro-

Workﬂow: A Workﬂow Architecture Supporting Compo-

sitional Object-oriented Software Development. Uni-

versity of Illinois at Urbana-Champaign.

Mell, P. and Grance, T. (2011). The NIST Deﬁnition of

Cloud Computing. National Institute of Standards and

Technology.

Moscato, F., Aversa, R., Di Martino, B., Fortis, T., and

Munteanu, V. (2011). An analysis of mosaic ontology

for cloud resources annotation. In Computer Science

and Information Systems (FedCSIS), 2011 Federated

Conference on, pages 973–980.

Nelson-Smith, S. (2011). Test-Driven Infrastructure with

Chef. O’Reilly Media, Inc.

OASIS (2007). Web Services Business Process Execution

Language (BPEL) Version 2.0.

OASIS (2013). Topology and Orchestration Speciﬁcation for

Cloud Applications (TOSCA) Version 1.0, Committee

Speciﬁcation 01.

OMG (2011). Business Process Model and Notation

(BPMN) Version 2.0.

Pepple, K. (2011). Deploying OpenStack. O’Reilly Media.

Pesic, M. and van der Aalst, W. M. (2006). A Declarative Ap-

proach for Flexible Business Processes Management.

In Business Process Management Workshops, pages

169–180. Springer.

Petcu, D., Craciun, C., Neagul, M., Lazcanotegui, I., and

Rak, M. (2011). Building an interoperability api for

sky computing. In High Performance Computing and

Simulation (HPCS), 2011 International Conference on,

pages 405–411.

Sampaio, A. and Mendon

c¸

a, N. (2011). Uni4cloud: An

approach based on open standards for deployment and

management of multi-cloud applications. In Proceed-

ings of the 2Nd International Workshop on Software

Engineering for Cloud Computing, SECLOUD ’11,

pages 15–21. ACM.

Wettinger, J., Behrendt, M., Binz, T., Breitenb

ucher, U.,

Breiter, G., Leymann, F., Moser, S., Schwertle, I., and

Spatzier, T. (2013). Integrating Conﬁguration Manage-

ment with Model-Driven Cloud Management Based

on TOSCA. In Proceedings of the 3

International

Conference on Cloud Computing and Services Science

(CLOSER). SciTePress.

Zamboni, D. (2012). Learning CFEngine 3: Automated

System Administration for Sites of Any Size. O’Reilly

Media, Inc.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

568
