A Meta-heuristically Optimized Fuzzy Approach towards Multi-metric

Security Risk Assessment in Heterogeneous System of Systems

naki Eguia and Javier Del Ser

TECNALIA, 48170 Zamudio, Bizkaia, Spain

Keywords:

Multi-metric Security Assessment, Fuzzy Logic, Meta-heuristics

Abstract:

Security measurement of complex systems is a challenging task since devices deployed over the so-called

System of Systems (SoS) are extremely heterogeneous and hence imply an interoperability effort in order to

enable a common resilient security measurement language. Moreover, systems demand more features beyond

security concept, require to preserve privacy and claim for dependable structures in order to seek a holistic and

aggregated security and safety view. This paper addresses this need by capitalizing the availability of multiple

security metrics through an hybrid meta-heuristic fuzzy aggregation and composition approach that takes into

account the expertise compiled by the security manager, towards the generation of visual dashboards reﬂecting

the SPD (Security, Privacy and Dependability) risk status of the system at hand.

1 INTRODUCTION

In the security ﬁeld one of the most sounding

paradigms resides in the security interoperability

within a heterogeneous device landscape. In this

scenario each of such devices performs with different

protocols and scales. Interoperability is by itself a

challenge for engaging the security paradigm as a

built-in approach. Many efforts have been devoted

to deﬁne security patterns (Yoshioka et al., 2008;

Heyman et al., 2007; VanHilst & Fernandez, 2007;

Fernandez et al, 2007) so as to develop and implement

a understandable security backdrop.

Unfortunately, this background is usually quite

complex. In this context, the setup elaborated by

the nSHIELD initiative (NSHIELD, 2013) proposes

a System of Systems representing a set of assets: sub-

systems, software components, protocols and devices

and boards. These elements are conﬁgured along

node, network and middleware-overlay layers. On the

other hand, risks are denoted as the probability that a

threat can become real impacting in a vulnerability

of one or more components from those listed above.

Threats are numerous and can be predictable or

unpredictable. Those which can be predicted may

be guarded by metrics, whereas those which are

unpredictable could be challenged by composable,

heuristics techniques. Therefore, metrics will be

mapped to threats and problems to be measured.

For example, if a problem of a given system is

the network latency, the network latency must be

measured. This obvious afﬁrmation is the key for

starting the process for selecting the correct metrics

for any heterogeneous system. Consequently, risk

analysis is the ﬁrst process for creating a set of

security metrics in scenarios with a diverse device

spectrum.

This paper joins this research trend by outlin-

ing and sketching a novel multi-metric approach for

heterogeneous systems capable of measuring risks

impacting on different vulnerabilities in an inter-

operable and normalized fashion. This practical ap-

proach requires understanding and identifying before-

hand security needs of the system at hand, as well as

those of its constituent components. In other words,

current vulnerabilities and threats must be identiﬁed

so as to discriminate those vulnerabilities and threats

more likely to take place in the future. To this end, this

paper elaborates in advance of several evident, rele-

vant observations: 1) systems’ complexity yields an

accordingly complex and also non-interoperable se-

curity management; and 2) without loss of generality,

metrics considered in this approach are restricted to

operational activities beyond security organizational

metrics and measurements. Moreover, this paper de-

picts SPD metrics as resiliently built-in artifacts that

are aggregatedly delivered from the engineering pro-

cess to the operation phase, thus rendering a holistic

SoS SPD view. Finally, a self-optimized hybrid meta-

heuristic fuzzy system will be conceptualized as a de-

231

Eguia I. and Del Ser J..

A Meta-heuristically Optimized Fuzzy Approach towards Multi-metric Security Risk Assessment in Heterogeneous System of Systems.

DOI: 10.5220/0004876802310236

In Proceedings of the 4th International Conference on Pervasive and Embedded Computing and Communication Systems (MeSeCCS-2014), pages

231-236

ISBN: 978-989-758-000-0

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

cision support system capable of providing the sys-

tem security manager with an easy and understand-

able mechanism to tune and trigger security-related

actions and rules based on ﬁne-grained input metrics

and measurements.

2 SPD METRICS IN

HETEROGENEOUS DEVICE

ECOSYSTEMS

The meaning of metric can be understood from a

naive business standpoint in the sense that metrics

should be made similar to human understanding

because they need to be recognized and understood

by both business and technical engineers operating on

the systems. Informational SPD metrics are deemed

an important factor when making reliable, well-

grounded decisions about several aspects of security

and dependability, ranging from the design of SPD

architectures and controls to the effectiveness and

efﬁciency of SPD operations. SPD metrics strive to

offer a quantitative and objective basis for security

assurance.

Given the application scope in Industrial Systems

of Systems (SoS) environment tackled in this paper,

we will analyze and combine traditional operational

indicators with SPD metrics. Metrics in industrial

operations (i.e. metrology) have always been regu-

lated and certiﬁed by a higher authority. In the IT

area this methodology has been applied in a less rigor-

ously manner, since safety has always prevailed over

security. However, SoS environments require both se-

curity and safety (part of dependability) requisites, as

threats could proceed from both virtual and real (un-

predicted/failure threats) worlds.

The spectrum of SPD metrics derived in

nSHIELD constitute the ﬁrst attempt in the related lit-

erature to correlate operational and SPD metrics so

as to develop a business continuity approach for in-

dustrial sectors. It is important to highlight that con-

trol systems such as SCADAS or ICS (Industrial Con-

trol Systems) not only depend on the operational pro-

cess (which is linked directly to business), but also

is becoming progressively more dependent on robust-

ness, resilience and security factors that preserve op-

eration from malicious attacks and large failures. In-

deed, the dependability concept guarantees this fact:

dependability mechanisms deal with availability (e.g.

threats against DDoS), which is the most important

feature for industrial operations. However, security

may also be threatened in terms of integrity; for in-

stance, a man-in-the-middle attack for value modi-

ﬁcation in the communications link from smart me-

ters to concentrators could cause less proﬁt to elec-

tric vendors and an unequal operation for distribu-

tion system operators when balancing energy offer-

ing & demand. On the other hand, the notion of pri-

vacy implies conﬁdentiality and anonymity, and is be-

coming essential as Big Data gets involved within in-

dustrial and large organizational settings. Therefore,

nSHIELD metrics are set towards business continuity:

1) heterogeneous but measurable; 2) understandable

by the human being with comprehensible, possibly

fuzzy glossary; and 3) composable since inputs are

aggregated through an expert system. This envisaged

portfolio of requirements makes the nSHIELD view

fulﬁll with the so-called Security by Design (SbD)

principles (Cavoukian & Dixon, 2013): nSHIELD

SPD metrics apply to security, privacy and depend-

ability built-in concepts and functionalities within the

whole engineering process. Furthermore, such func-

tionalities are not seen as the ﬁnal patch but as an in-

trinsic conceptualization of the whole and holistic en-

gineering and operation procedure. SPD metrics are

extracted from a set of SPD requirements and risks

statements within SoS scenarios.

Bearing this rationale in mind, the nSHIELD

multi-metric approach follows a quantitative focus.

This approach provides a metric template for metrics

identiﬁcation and gathering process. In the ﬁrst spec-

iﬁcation approach more than 60 metrics were iden-

tiﬁed and structured in layers {SPD, L

}. Metrics

identiﬁed as heterogeneous sometimes overlap in dif-

ferent layers. The result of measurements according

to these metrics has to be described quantitatively.

The following list oversees some of the most relevant

metrics concluded after this study

1. Code execution (Node Layer): veriﬁcation that

only authorized code (booting, kernel, applica-

tion) runs on the system.

2. Network delay (Network Layer): this is a perfor-

mance metric used for measuring the delay in-

duced by a node in retransmitting incoming data.

3. Network Capacity (Network Layer): this is a per-

formance metric used for measuring the networks

capacity, which shall be large enough to allow

the necessary trafﬁc to go through. As a rule of

thumb, at normal operation, the trafﬁc should be

about 60-70% of the network capacity, so as to

avoid bottlenecks when there will be trafﬁc peaks.

4. Discovery frequency (Middleware Layer):

amount of discovery events per protocol and unit

Upon its acceptance a more detailed list of metrics will

be presented and discussed, along with their corresponding

formulae.

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

232

of time.

5. Metric Composition statistics (Middleware

Layer): statistics on the availability of the compo-

sition service: queue length (momentarily count

of outstanding composition requests); Thread

count (count of threads serving composition re-

quests); used memory (amount of heap memory

reserved by the service); wait time (time from

arrival to sending, averaged for all requests per

interval); and response time (time from start of

sending to receiving response, averaged for all re-

quests per interval).

6. Proﬁt per agent type (Middleware Layer): it

stands for the proﬁt that each agent type (namely,

evil or malicious, disturbing, selﬁsh and honest)

can obtain according to its behaviour. The proﬁt

is higher if an agent cheats on another agent.

7. Uptime (Overlay Layer): this metric denotes the

uninterrupted system availability.

8. Attack surface (Overlay Layer): used to count the

number of data inputs to an overlay node.

9. Failed authentication (Overlay/Middleware

Layer): used to count the number of data inputs

to an overlay node.

10. Detection accuracy (Overlay Layer): Measure

of the detection accuracy as the ratio of the

number of undetected attacks to the total amount

of detected attacks.

11. Total attack impact (Overlay Layer): quantiﬁes

the impact of the attack as the ratio of the number

of nodes attacked to the total amount of nodes.

2.1 Design of the proposed Multi-metric

Decision Making Approach

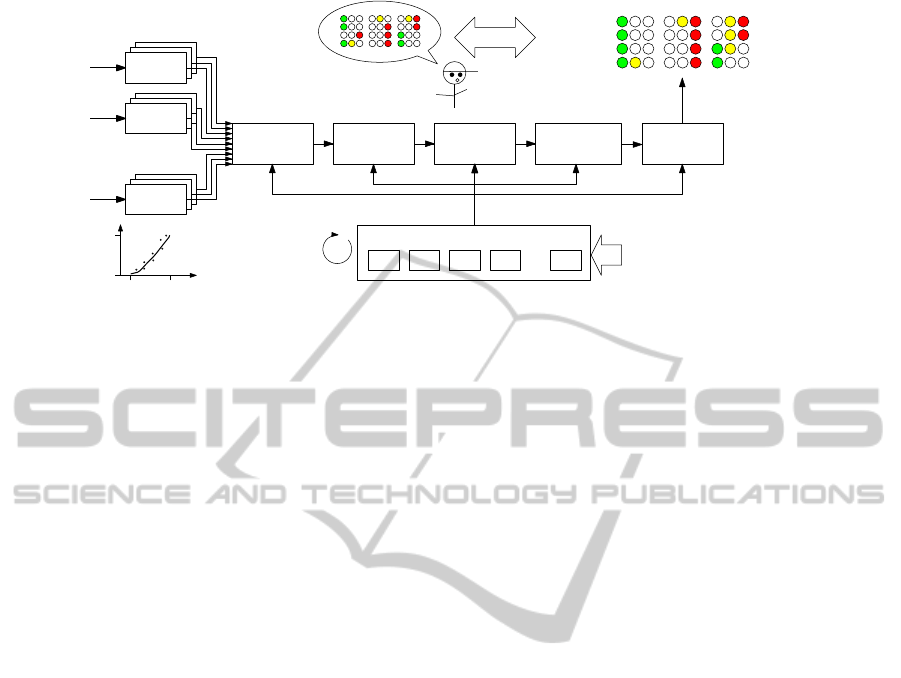

Once the overall set of metrics under consideration

has been deﬁned, a multi-metric decision making

approach is applied to infer and trigger security

actions rules based on the values of the metrics in a

understandable fashion. Such expert system builds

upon the following design steps:

A. Selection of Metrics: system operators will se-

lect speciﬁc security metrics according to the require-

ments and risk factors of the scenario at hand. In

particular, the nSHIELD approach addresses more

than 60 types of SPD metrics structured in 4 layers:

node, network, middleware and overlay. System op-

erators must decide which metrics refer better to their

business operation: some might prioritize integrity to

availability, whereas other could trade reliability for

privacy, etc.

B. Normalization and Regression: Each of the

metrics identiﬁed previously may feature different

units and value range. This means that such values

must be normalized in order to have a common

value range domain and not to bias subsequent

processing stages of the decision making engine.

This is of utmost importance in order to deﬁne a

common value range for their mutual comparison,

and is indeed one of the purposes of the SPD metric

triplet: to homogenize the representation of metrics

in a threefold risk-valued domain. In other words,

metrics quantify phenomena of very diverse nature,

and therefore samples can be represented in different

units (e.g. seconds, KW or Celsius) and within

distinct numerical ranges (i.e. from discrete sets such

as key par length – 64, 128, 256, 512 – to continuous-

valued quantities such as time lapse in nanoseconds).

For instance, if one assumes that the network latency

takes on valid values from a positive region between

4 and 10 milliseconds, correct SPD values for this

metric will be declared if all fall within this range.

This axiom shall only be valid in a particular domain

concerning a certain business process. If is hence

between 4 and 10 milliseconds, the valid range for

the network latency could be set to [0, 10].

At this stage it must be pointed out that al-

though time is an objective and measurable concept,

the S level (Security Threat Level) is a subjective,

experience-earned concept that the system operator in

the nSHIELD approach must set up. The same con-

clusion holds for the P and D levels as they corre-

spondingly relate to privacy and dependability. The

S level represents the security threat level that will

be bounded by its valid value range and its normal

performance region. All these subjective SPD indi-

cators must be determined by expert engineers and

system operators who have the operational experience

and who are in the position to shape universal secu-

rity principles to the speciﬁc scenario under opera-

tion. Therefore, the decision making approach pro-

posed in this work not only takes into account the ex-

perience of the operator, but also learns from past de-

cisions in order to set up the best indicators for the

considered metrics.

Table 1: Example of S level values for a temporal variable

mapped by an expert.

Time 0 1 2 3 4 5 6 7

S level 0 2 4 6 8 11 14 17

Time 8 9 10 11 15 25

S level 20 23 26 32 44 58

Returning to the aforementioned example, the S

level associated to the ﬁrst time values [0, 3] could

be labeled as unlikely to happen under the criterion

AMeta-heuristicallyOptimizedFuzzyApproachtowardsMulti-metricSecurityRiskAssessmentinHeterogeneousSystem

ofSystems

233

Input scaling

Fuzziﬁcation

Rule

Defuzziﬁcation

Output scaling

application

SPD

regression

SPD

regression

SPD

regression

[S,P,D]

metricA

[S,P,D]

metricZ

metricB

metricA

S P D

Node

Network

Middleware

Overlay

Security operator

metricD

metricB

metricA

metricZ

Meta-heuristic optimizer

. . .

KB1 KB2 KB3 KB4 KBN

KB under evaluation

Comparison between output

by the system and output

by the operator

Iterative

metricZ

metricZminZ

maxZ

100

Figure 1: Overview of the proposed meta-heuristic fuzzy multi-metric aggregation scheme. The term KB (Knowledge Base)

stands for any set of ruleset, scaling and membership functions within the population tuned by the meta-heuristic solver.

and experience of the system administrator. Correct

values fall between [4, 10], within where the threat

level is kept linear to reﬂect that systems are able to

handle this security context in an scalable fashion.

However, the mapped level of security context is

set to grow exponentially beyond 10 milliseconds

and logarithmically above 15 miliseconds in order

to represent a sharp increase of the severity of the

security context. A similar methodology should

be adopted for privacy and dependability concepts

referring to each of the considered metrics.

The behavior of the SPD metrics with respect to

any given value of the input metric can be analytically

characterized in terms of the expected risk for each

of such values. To this end, a function f

→ r

can be inferred by regressing the values

taken by metric λ to a risk value r

∈ [0, 100]

for SPD metric α ∈ {S, P, D}. The analytical

expression for this function f

can be obtained by

performing a piecewise regression (not necessarily

linear) over a set of metric-risk pairs input by the

security manager of the system at hand. As a result of

the overall processing step, one obtains a numerical

triplet [S, P, D] for every security metric input to the

system, which is then processed via a decision making

engine to produce visual indicators of the level of

SPD risk for every layer of the system based on the

expertise of the manager for security operations.

C. Multi-metric Aggregation based on Expert

Systems and Meta-heuristically Optimized Fuzzy

Systems: The last step of the envisaged multi-metric

security approach consists of an aggregation and

decision making engine that processes the numerical

values of the monitored security metrics (part of

which are shown in the enumerated list of Section

2) towards providing a fuzzy representation of the

risk level of the heterogeneous device ecosystem at

hand. The aggregation system should 1) comprise

a set of human understandable linguistic rules (in

the form of IF-THEN-ELSE conditional statements)

to ease their supervision and manual crafting; 2)

automatically infer optimized rule sets based on a

performance index that reﬂects the error between

the produced decision and that provided by security

experts; and 3) tailor the mapping between the

numerical and linguistic domains corresponding to

the SPD values of the considered metric with their

fuzzy representation and processing through the rule

set. These speciﬁcations are deemed of utmost

importance in our attempt at avoiding black-box

decision engines that provide no further beneﬁt than

the blind automation of the decisions to be made.

These speciﬁcations call for the adoption of a spe-

ciﬁc class of fuzzy systems that incorporates stochas-

tic solvers to optimize the scaling factors and mem-

bership functions that specify the meaning of the nu-

merical SPD inputs in the linguistic domain, as well

as the collection of fuzzy rules that best matches

the decisions taken by security experts (see Figure

1). Traditionally tackled via evolutionary algorithms

(mostly, genetic optimizers (Cordon et al., 2004,

2001)), we plan to analyze and benchmark the perfor-

mance – in the context of optimizing fuzzy rule-based

systems – of more recent meta-heuristic solvers. In

particular we will focus on Harmony Search (Geem et

al., 2001), a population-based optimization algorithm

that has been proven to outperform their genetic coun-

terparts in a plethora of application ﬁelds such as en-

gineering optimization, routing, resource allocation,

economics and operations research (see (Manjarres et

al., 2013) for a thorough survey). This algorithm re-

sembles the way musicians in an orchestra improvise

with their instruments before playing a piece of music

in order to reach an aesthetically well-sounding har-

mony. This mimicking has implications in the def-

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

234

µ(x) =











0 if S

metricA

< a,

λ−1



metricA

−a

b−a



if a ≤ S

metricA

≤ (a + b)/2,

1 − 2

λ−1



b−S

metricA

b−a



if (a + b)/2 < S

metricA

< b,

1 − 2

β−1



metricA

−b

c−b



if b ≤ S

metricA

< (b + c)/2,

β−1



c−S

metricA

c−b



if (b + c)/2 ≤ S

metricA

≤ c,

0 if S

metricA

> c.

(1)

inition of the operators driving the search procedure

of the algorithm, which ultimately leads to a better

adaptability of the explorative and exploitative capa-

bilities with respect to the problem to be optimized.

Back to the pursued aggregation system, the

goal is to produce an intensity, colored, real-valued

indicator of the level of risk for the S, P and D

components at each of the considered layers (node,

network, middleware, overlay), in the form of an

output matrix. To this end, the expert would be ﬁrst

asked to provide, by means of e.g. questionnaires,

their estimated output to a series of eventual metric

values so as to lay decisional baseline information.

This would permit to compare the output of the

system under differently optimized fuzzy systems

and extract therefrom a performance index (integer

from the range [0-100], in %) quantifying the level

of compliance of the optimized decision maker with

the expected output by the security expert(s). This

performance index would measure the ﬁtness of every

combination of rule set/membership function/scaling

factor iteratively reﬁned by the harmony search

optimizer. In particular, parameterized membership

functions and rules will be jointly optimized by means

of a Pittsburg approach where the population of the

algorithm is formed by separately encoded variable

domains.

Once the fuzzy engine is optimized after a given

number of iterations of the Harmony Search heuris-

tic, the aggregation system is ready to receive out-

puts from the different security metrics and fuzzify

them through the optimized scaling and membership

functions µ(x), which could be parametrized to yield

the generic function formulation in Expression (1) to

be optimized by means of the aforementioned meta-

heuristic solver, where S

metricA

denotes the S com-

ponent of metric A (the same holds for the rest of SPD

components and metrics), and {λ, β, a, b, c} are the

parameters to be optimized. It should be obvious that

λ and β deﬁne the shape of right and left slopes of

the membership function at hand, i.e. λ = β = 1

would correspond to the well-known triangular func-

tions with center b and upper and lower extremes a

and c, respectively.

Next the engine would apply the simultaneously

optimized rule set and combine their outputs into a

linguistically encoded output SPD matrix (by means

of conventional methods for accumulating fuzzy

outputs of individual rules, such as normalized and

bounded sums), which is ﬁnally defuzziﬁed (via

e.g. the center of gravity method (Van Leekwijck &

Kerre, 1999)) into colored intensity indicators so as to

yield a more intuitive security assessing information

of increased visual understandability. This 4 ×

9 output matrix of integer entries between 0 (low

intensity) and 10 (high intensity) facilitates a global

perspective of the Security, Privacy and Dependability

risk status at node, network, middleware and overlay

layers. All in all, this visual information provides an

holistic understanding of aggregated metrics in a SoS

scenario.

3 CONCLUDING REMARKS

This manuscript has outlined the main design prin-

ciples of a metric aggregation engine technically en-

visaged as a fuzzy expert system hybridized with a

novel meta-heuristically optimized learning mecha-

nism. The paper has gravitated, from a theoreti-

cal perspective, on the feasibility of measuring met-

rics in an heterogeneous complex systems environ-

ment. Mainly motivated by the lack of universal secu-

rity guidelines for highly heterogeneous systems, the

proposed aggregation approach regards system expert

knowledge as an essential basis for security decision

making. However, we foresee that this dependency

could also be circumvented by a learn-as-it-goes ap-

proach, i.e. by supervising the SPD levels of succes-

sively held security incidences and feeding this infor-

mation back to the decision making tool for its au-

tonomous adjustment. Next steps will be oriented to-

wards implementing and validating this procedure in

diverse application scenarios.

AMeta-heuristicallyOptimizedFuzzyApproachtowardsMulti-metricSecurityRiskAssessmentinHeterogeneousSystem

ofSystems

235

REFERENCES

Yoshioka, N., Washizaki, H., Maruyama, K., 2008, A

Survey on Security Metrics, Progress Informatics, N. 5,

pp. 35-47.

Heyman, T., Yskout, K., Scandariato, R., Joosen, W.,

2007, Analysis of the Security Patterns Landscape,

International Workshop on Software Engineering for

Secure Systems. Washington, DC, USA, p. 3.

VanHilst, M., Fernandez, E. B., 2007, Reverse Engineering

to Detect Security Patterns in Code. Proceedings of

the International Workshop on Software Patterns and

Quality. Information Processing Society of Japan, pp. 25-

30.

Fernandez, E. B., Yoshioka, N., Washizaki, H., 2007, Using

Security Patterns to Build Secure Systems, Proceedings

of the International Workshop on Software Patterns and

Quality. Information Processing Society of Japan, pp. 47-

48.

NSHIELD Artemis project, 2013,

http://www.newshield.eu/.

Cavoukian, A., Dixon, M., 2013, Privacy and Security by

Design: An Enterprise Architecture Approach, retrieved

from http://www.ipc.on.ca.

Cordon, O., Gomide, F., Herrera, F., Hoffmann, F.,

Magdalena, L., 2004, Genetic Fuzzy Systems: New

Developments, Fuzzy Sets and Systems, Vol. 141 (1), pp.

1-3.

Cordon, O., Herrera, F., Gomide, F., Hoffmann, F., Mag-

dalena, L., 2001, Ten Years of Genetic-Fuzzy Systems:

A Current Framework and New Trends, Proceedings

of Joint 9th IFSA World Congress and 20th NAFIPS

International Conference, pp. 1241-1246, Vancouver,

Canada.

Geem, Z. W., Kim, J.-H., Loganathan, G. V., 2001, A New

Heuristic Optimization Algorithm: Harmony Search,

Simulation, Vol 76 (2), pp. 60-68 (2001)

Manjarres, D., Landa-Torres, I., Gil-Lopez, S., Del Ser, J.,

Bilbao, M. N., Salcedo-Sanz, S., Geem Z. W., 2013,

A Survey on Applications of the Harmony Search Al-

gorithm, Engineering Applications of Artiﬁcial Intelli-

gence, Vol. 26 (8), pp. 1818-1831.

Van Leekwijck, W., Kerre, E. E., 1999, Defuzziﬁcation:

Criteria and Classiﬁcation, Fuzzy Sets and Systems, Vol.

108 (1999), pp. 159–178.

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

236
