Extending UML Testing Proﬁle Towards Non-functional Test Modeling

Federico Toledo Rodríguez

1,3

, Francesca Lonetti

, Antonia Bertolino

, Macario Polo Usaola

and Beatriz Pérez Lamancha

Abstracta, Montevideo, Uruguay

CNR-ISTI, Pisa, Italy

Alarcos Research Group, UCLM, Ciudad Real, Spain

Keywords:

Model-based Testing, Non-functional Test Cases, UML-TP.

Abstract:

The research community has broadly recognized the importance of the validation of non-functional properties

including performance and dependability requirements. However, the results of a systematic survey we car-

ried out evidenced the lack of a standard notation for designing non-functional test cases. For some time, the

greatest attention of Model-Based Testing (MBT) research has focused on functional aspects. The only excep-

tion is represented by the UML Testing Proﬁle (UML-TP) that is a lightweight extension of UML to support

the design of testing artifacts, but it only provides limited support for non-functional testing. In this paper

we provide a ﬁrst attempt to extend UML-TP for improving the design of non-functional tests. The proposed

extension deals with some important concepts of non-functional testing such as the workload and the global

verdicts. As a proof of concept we show how the extended UML-TP can be used for modeling non-functional

test cases of an application example.

1 INTRODUCTION

In modern software systems the validation of non-

functional properties, such as performance and de-

pendability, becomes more and more important, so

that a variety of automated approaches and tools for

veriﬁcation and assurance of non-functional require-

ments are being proposed. The main aim of these

approaches is to evaluate the system performance in

terms of responsiveness and stability under a partic-

ular workload or to assess other quality attributes of

the system, such as scalability, dependability and re-

sources usage.

Concerning the modeling of non-functional prop-

erties, numerous proﬁles have been proposed to al-

low easy and accurate design of performance and

dependability aspects of modern software systems.

Among them, MARTE (OMG, 2011) extends UML

(OMG, 1997) by providing a rich framework of con-

cepts and constructs to model non-functional proper-

ties of real-time and embedded systems and deﬁnes

annotations to augment models with information re-

quired to perform quantitative predictions and analy-

sis of time-related aspects, such as schedulability and

performance.

An important role in the software validation pro-

cess is played by Model-Based Testing (MBT) (Ut-

ting and Legeard, 2007), which contributes to test au-

tomation by pushing the application of model-based

design techniques to software testing. It involves the

development of models that describe test cases, test

data and the test execution environment, and the ap-

plication of automated facilities for generating exe-

cutable test cases from these models. A key element

involved in MBT is the modeling language used for

deﬁning a test model from the informal system re-

quirements or the design models. For testing pur-

poses, it is important to have a test model that is easy

to verify, modify and manipulate without losing all

the information needed to generate test cases.

The authors of (Dias Neto et al., 2007) present a

systematic literature review on MBT. A result of this

review is that by adopting models developed from the

analysis of the abstract behavior of the System Under

Test (SUT), MBT has been traditionally used for gen-

erating functional test cases, but has missed to address

non-functional requirements.

The ﬁrst contribution we present in this paper is

a systematic survey on MBT approaches for non-

functional requirements. However, as a result of this

review, we noticed a lack of a standard and common

language for designing non-functional test cases. The

488

Toledo Rodríguez F., Lonetti F., Bertolino A., Polo Usaola M. and Pérez Lamancha B..

Extending UML Testing Proﬁle Towards Non-functional Test Modeling.

DOI: 10.5220/0004878204880497

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 488-497

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

only proposal in this direction is the UML Testing

Proﬁle (UML-TP) (Baker et al., 2007), a standard no-

tation to support the design, visualization, analysis

and documentation of the artifacts involved in testing.

However, UML-TP provides only limited support for

non-functional testing and we noticed that it does not

allow specifying some important concepts of perfor-

mance testing such as the workload and the deﬁnition

of a global verdict for concurrent executions.

This paper aims to overcome this limitation by

providing insights about the design of non-functional

aspects with UML-TP. Speciﬁcally, the main ad-

dressed issues deal with the representation of the

workload and the verdict deﬁnition involved into non-

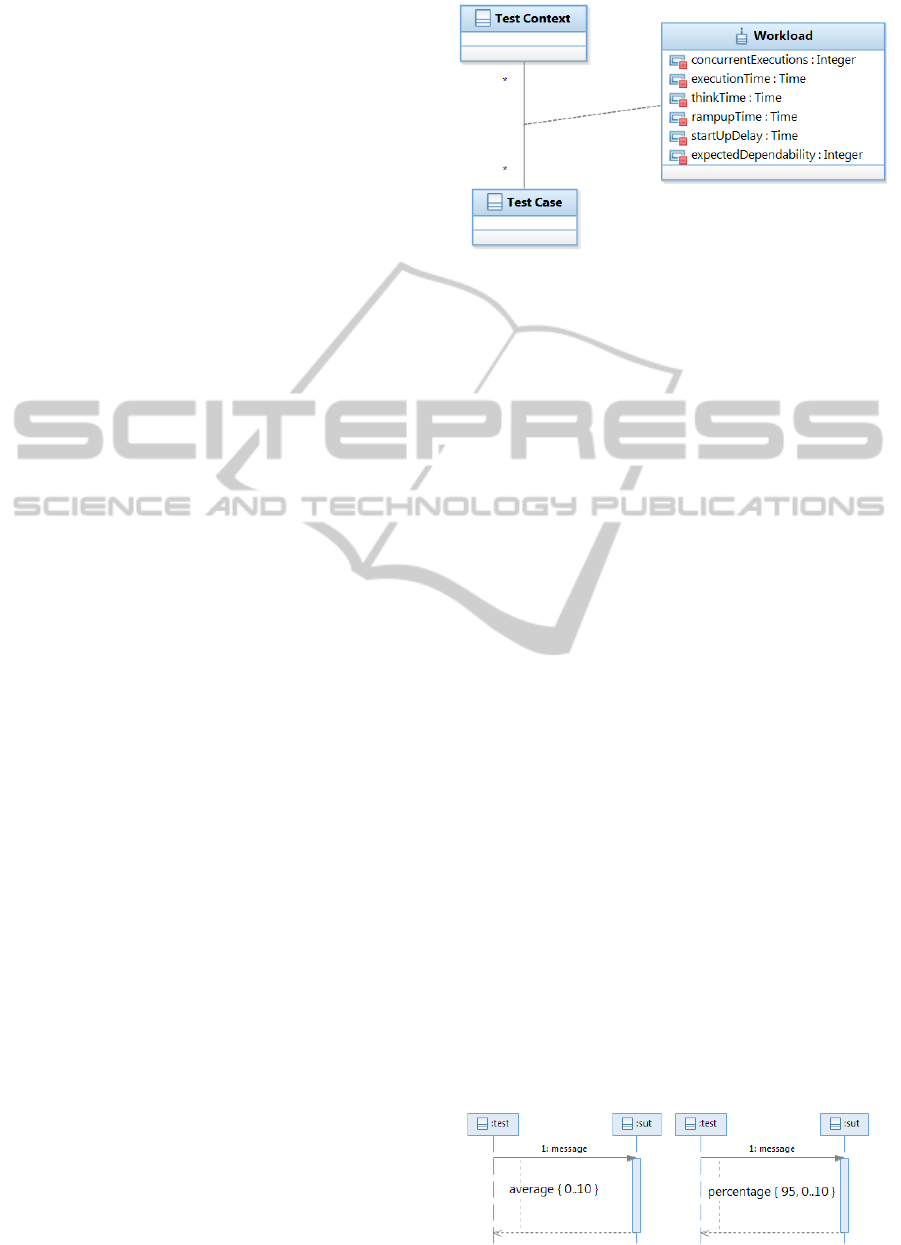

functional validations. For the ﬁrst one, we introduce

a new stereotype called “Workload”, which can spec-

ify among others, the amount of concurrent execu-

tions, the intensity of the execution, the test duration

and the ramp-up. Concerning the non-functional vali-

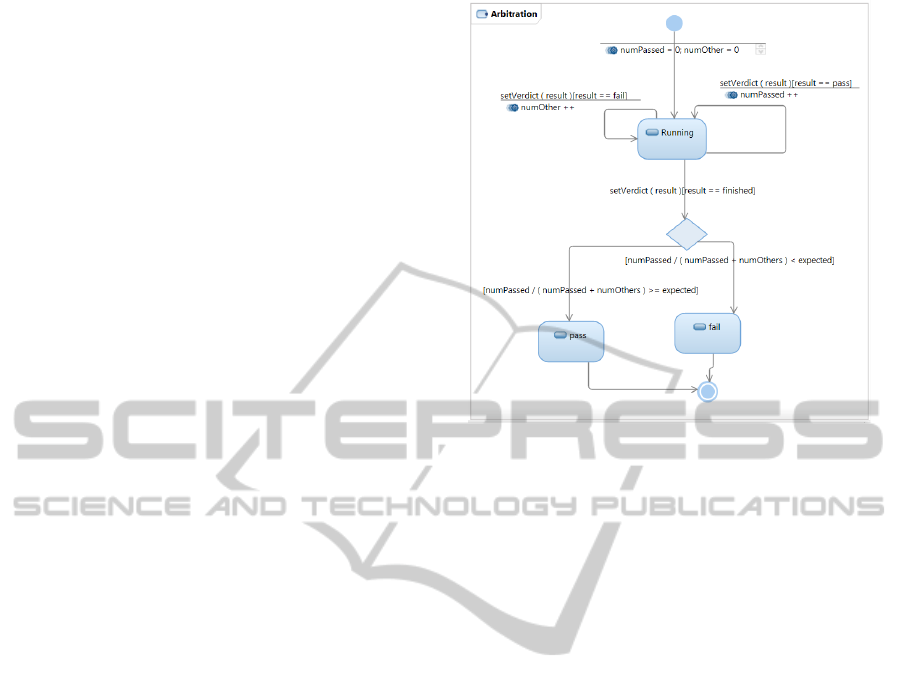

dation, we propose to extend UML-TP with the ability

to express global verdicts, considering also the aver-

age (or percentage) of the response times of all the

executions of a given test case in a workload simula-

tion. To illustrate the usefulness of our proposal, we

provide an application example in which we deﬁne

some non-functional requirements and show how to

apply the extended UML-TP for designing test cases

for such requirements.

The remainder of this paper in organized as fol-

lows. Section 2 contains the results of a systematic

survey addressing model-based testing approaches

for non-functional requirements. Section 3 gives an

overview of the current version of UML-TP outlining

its limitations for designing performance and depend-

ability tests. Section 4 presents some insights for ex-

tending UML-TP whereas Section 5 shows their ap-

plication for deﬁning a load test modeling example.

Finally, Section 6 concludes the paper, also hinting at

future work.

2 SYSTEMATIC SURVEY

To know the state of the art about model-driven ap-

proaches for non-functional validation we performed

a systematic literature review. This survey has been

conducted following the guidelines for systematic re-

view in software engineering research proposed by

Kitchenham (Kitchenham, 2004). These guidelines

cover three aspects of a systematic review: planning

the review, conducting the review and reporting re-

sults. Below we brieﬂy present ﬁrst the research

method and then the obtained results.

2.1 Research Method

In the planning phase of our systematic survey we

identiﬁed the following research question (RQ):

RQ: what approaches have been proposed for non-

functional test modeling and automatic gener-

ation of non-functional test cases with model-

driven approaches?

According to this research question we deﬁned the

following search string:

((test or verification or testing or

validation)

AND

(performance or "non-functional" or

nonfunctional or dependability)

AND

(model or metamodel or "meta model" or

"model-driven" or "model-based"))

We searched by title in the IEEE Xplore, ACM

Digital Library, SCOPUS, WEB OF KNOWLEDGE

databases, and selected “English papers” from 1990

to 2013 (30 July):

From this automatic search we obtained 411 pa-

pers (157 in IEEE Xplore, 67 in ACM Digital Library,

103 in SCOPUS, 84 in WEB OF KNOWLEDGE), re-

duced to 25 after reading the title, keywords and ab-

stract, and ﬁnally reduced to 24 papers after reading

the full text.

2.2 Results

For the sake of space we do not present here the over-

all results of the systematic survey but we focus on the

most relevant works about model-driven validation

approaches of non-functional properties. We classi-

ﬁed them according to four main research directions:

benchmark generation; performance tests generation;

models to predict performance and Software Perfor-

mance Engineering (SPE); search-based testing for

non-functional properties.

We refer to (Rodríguez et al., 2013) for a more

complete report about the systematic survey results.

Benchmark Generation. There are a large num-

ber of code generation techniques that can be used in

benchmark suite generation. The aim of the work in

(Zhu et al., 2007) is to automate the generation of a

complete benchmark suite from a UML-based design

description, along with a load testing suite modeled

in the UML-TP. The authors have tailored UML-TP

to represent a workload including some tagged val-

ues such as the number of process the load genera-

tor should start, the number of threads that each pro-

cess spawns, the maximum length of time in millisec-

ExtendingUMLTestingProfileTowardsNon-functionalTestModeling

489

onds that each process should run for, the time in-

terval between starting up or stopping new processes,

etc. Thus, the main result of the approach is the auto-

mated generation of the application under test includ-

ing a complete test harness with the load to execute

and some facilities to automatically collect monitor-

ing information. However, differently from our work,

the effort of the authors is more focused on automated

benchmark generation than on test modeling. They

are merely concerned on representing load tests using

the tailored proﬁle in order to produce a conﬁguration

ﬁle containing all the tagged values and derive a de-

fault implementation of the model including both test

logic and test data.

In (Cai et al., 2004) a performance test-bed gen-

erator for industrial usage is proposed. The test bed

is modeled indicating interactions between client and

server that have to be simulated. The model is used

to generate the code of a performance test bed able

to run the speciﬁed performance tests. Differently

from our proposal, this approach does not focus on

the load test modeling, but it aims at solving some

challenges of performance test bed generation includ-

ing the extension of the open-source ArgoUML tool

to provide UML-like architecture modeling and XMI-

derived model representation capabilities.

Performance Tests Generation. A recent research

direction in performance testing is the model-based

generation of test-beds for assessing that the applica-

tion meets its performance requirements. In partic-

ular, the approach in (de Oliveira et al., 2007) takes

as input a performance speciﬁcation using the UML

2.0 SPT Proﬁle, and derives a modiﬁed Stochastic

Petri Net from which a realistic test scenario in JMe-

ter (Apache, 2001) is generated. It also has a result

interpreter to give a verdict. The main difference with

our proposal is that this approach tries to generate the

test code directly from the requirements speciﬁcation

without having a test model that is the objective of our

work. Another solution in this context is presented in

(da Silveira et al., 2011) in which the authors propose

to include ﬁve stereotypes in the system UML mod-

els (use cases and activity) to express performance in-

formation that will be used for generating test scripts

for a commercial tool called LoadRunner (Mercury,

2001). Speciﬁcally, these stereotypes include: PA-

population representing the number of users and the

host where the application is executed, PAprob rep-

resenting the probability of execution for each exist-

ing activity, PAtime representing the expected time to

perform a given use case, PAthinktime that is the time

between two different user actions and PAparameters

representing the input data to be provided to the appli-

cation when running the test scripts. The main limita-

tion of this approach is that it addresses the issues of a

speciﬁc performance testing tool that is LoadRunner.

An attempt to model the workload for perfor-

mance test generation is in (Krishnamurthy et al.,

2006). It provides a tool for generation of a synthetic

workload characterized by sessions of interdependent

requests. From requests logs of a system under test,

the approach automatically creates a synthetic work-

load that has speciﬁed characteristics and maintains

the correct inter-request dependencies. The main dif-

ference of this approach with respect to our proposal

is that it pays much attention to the scripts generation

and the deﬁnition of how to take data (from an ex-

ternal ﬁle of from the previous response) than to the

workload speciﬁcation.

Finally, another performance tool is proposed in

(Abbors et al., 2012; Abbors et al., 2013). This tool

aims to evaluate the performance of a system and

monitor different key performance indicators (KPI)

such as the response time, the mean time between

failures, the throughput, etc. The tool accepts as in-

put a set of models expressed as probabilistic timed

automata, the target number of virtual users, the du-

ration of the test session and will provide a test report

describing the measured KPIs. The main contribution

of the paper is that the load applied to the system is

generated in real time from the models.

Moreover, four metamodels related with perfor-

mance testing are presented in (Pozin and Galakhov,

2011). They are: metamodel of requirements, meta-

model of the system, metamodel of the load, meta-

model of measurements. The use of these metamod-

els in planning a new load testing experiment make it

possible to automate the conﬁguration of automated

testing tools for the parameters of a speciﬁc load ex-

periment.

Models to Predict Performance and Software Per-

formance Engineering (SPE). An orthogonal re-

search direction to our work is represented by model-

based software performance prediction. An exten-

sive survey on methodological approaches for inte-

grating performance prediction in the early phases of

the software life cycle is presented in (Balsamo et al.,

2004). This survey gives some indications concern-

ing the software system speciﬁcation and the perfor-

mance modeling. For software speciﬁcation, most of

the analyzed approaches use standard practice soft-

ware artifacts like UML diagrams whereas Queueing

Network Model and its extensions are candidate as

performance models since they represent an abstract

and black box notation allowing easier model com-

prehension. However, a performance model inter-

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

490

change format (PMIF) (Smith et al., 2010) has been

proposed as a common representation of system per-

formance modeling data. Finally, (Bennett and Field,

2004) presents a performance engineering methodol-

ogy that addresses the early stages of the development

process. Is is based on UML sequence diagrams an-

notated with performance information using the Pro-

ﬁle for Schedulability, Performance and Time.

These approaches for model-based software per-

formance prediction are far from our proposal since

they are conceived for internal analysis of the perfor-

mance of the system and not for testing. Indeed, the

main purpose of these works is not the test cases mod-

eling as in our proposal, but the representation of the

internal structure of the system and the simulation of

its behavior with model analysis, to predict the per-

formance results.

Search-based Testing for Non-functional Proper-

ties. Search-based software testing deals with the

application of metaheuristic search techniques to gen-

erate software tests. In the last years these techniques

have been also applied to testing non-functional prop-

erties. McMinn (McMinn, 2004) provides a compre-

hensive survey about the application of metaheuris-

tics in white-box, black-box and grey-box testing.

This survey also addresses non-functional testing ev-

idencing the application of metaheuristic search tech-

niques for checking the best case and worst case ex-

ecution times of real-time systems. An extension

of this survey is presented in (Afzal et al., 2009)

in which the authors show that metaheuristic search

techniques have been applied for testing of the exe-

cution time, quality of service, security, usability and

safety. These techniques are totally different from our

proposal since they are mainly based on genetic algo-

rithms, grammatical evolution, genetic programming

and swarm intelligence methods.

3 UML-TP

The Uniﬁed Modeling Language (UML) (OMG,

1997) is a widely known and applied standard no-

tation used along the software development process.

The most common and practical way to extend the

expressiveness of UML is by the use of proﬁles. The

UML Proﬁle mechanism includes the ability to tai-

lor the UML metamodel deﬁning domain speciﬁc lan-

guages by means of stereotypes, tag deﬁnitions, and

constraints which are applied to speciﬁc model el-

ements. The UML-TP (OMG, 2004) (Baker et al.,

2007) is the OMG standard for test modeling, imple-

mented as a UML Proﬁle. UML-TP is mainly used

to perform functional testing whereas its application

for specifying non-functional test cases is quite lim-

ited since it lacks facilities able to address speciﬁc

non-functional concepts. In the next sections we ﬁrst

provide an overview of UML-TP and then present the

limitations of the current standard version for deﬁning

test cases to measure performance and dependability

properties.

3.1 Current UML-TP Standard Version

UML-TP is a lightweight extension of UML with spe-

ciﬁc concepts (stereotypes) for testing, grouped into:

i) test architecture; ii) test data; iii) test behavior; and

iv) test time. This extension ﬁlls the gap between sys-

tem design and testing, allowing the users to have a

uniﬁed model for both aspects of the development of

a software product. The test architecture provides all

the elements that are needed to deﬁne the test cases.

Speciﬁcally, it includes the set of concepts to specify

the structural aspects of the test. Among them, there

are: i) the Test Context, which groups the Test Cases,

and ii) the Test Components, which are responsible of

the communication with the SUT.

The main constructor is the Test Case whose be-

havior can be described by sequence diagrams, state

machines or activity diagrams. In UML-TP, the Test

Case is an operation of a Test Context that speciﬁes

how a set of Test Components cooperates with the

SUT to achieve the Test Objective, and to provide a

Verdict. The behavior can be enriched with timer re-

strictions which are not part of the UML standard,

and are included in UML-TP. Finally, another impor-

tant aspect of the test speciﬁcation is the test data.

It is possible to model different Data Partitions that

are obtained from a Datapool through Data Selector

methods. Also, it is possible to enrich these deﬁni-

tions with the use of Wildcards and Coding Rules.

Generally, a UML-TP model is presented through

different diagrams. Mainly, there is a UML package

diagram representing the test architecture, and show-

ing how the test package uses a test data package and

includes the SUT model in order to allow the test el-

ements to access the different elements under test. A

class diagram could be used to show the structure

of the test package, showing how the Test Context is

related to the different Test Components, Datapools,

and SUT components that are going to be exercised

in the test. This class diagram should also model the

Test Cases as methods of the different Test Contexts,

representing in this way the complete test suite. There

could be also a composite structure diagram of the

Test Context class to show its Test Conﬁguration, de-

scribing the relationships between the SUT and the

ExtendingUMLTestingProfileTowardsNon-functionalTestModeling

491

Test Components for this Test Context. Finally, each

Test Case behavior is presented with any kind of UML

behavior diagram, such as State Machine Diagram,

Sequence Diagram or Activity Diagram.

UML-TP provides a mechanism of “default” be-

haviors, for example for the Arbiter and for the Test

Scheduler. If the modeler/tester wants a different be-

havior for them, it is also necessary to provide an ex-

tra behavior diagram, mentioned in the standard as

“user-deﬁned behavior”.

3.2 Limitations of the Current Version

In this section we show the main limitations of the

current UML-TP standard version for modeling per-

formance and dependability test cases. Speciﬁcally,

experimenting with UML-TP for trying to model

some real load testing scenarios, we realized that:

i) it does not provide support for modeling the work-

load concept;

ii) it does not include the most common valida-

tion facilities for performance and dependability,

mainly based on the average or percentage of the

response times values or the amount of pass and

fail verdicts.

In load testing it is important to model the work-

load that is usually required from any load simulation

tool. The workload deﬁnes how many operations can

be concurrently executed on the SUT into an interval

time. As part of testing design the tester should for

instance deﬁne how the different test cases can be ex-

ecuted concurrently into a load testing scenario, what

data they use, what is the delay between different test

executions and how the test is going to reach the simu-

lated load goal, namely the ramp-up of each test case.

As we already said, there is no workload concept

deﬁned in the UML-TP standard. However, using the

UML-TP concepts provided in the standard and ac-

cording to the UML-TP examples in (OMG, 2004;

Baker et al., 2007), it is possible to derive a partial

and tricky way to model the workload. To illustrate

it, we have created an example (see Figure 1) to show

how a simple workload composed by one test case

(“testcase_1”) executed by 150 users during a certain

time, can be modeled.

In this example the workload is considered as a

test case in the Test Context and the Test Component

executes concurrently the different stimulus on the

SUT for a certain time. As showed in the ﬁgure, the

Test Context includes a test case “testcase_1”, and an-

other special test case “testcase_workload” that is in

charge of the concurrent execution. The behavior of

this special test case is modeled with a sequence di-

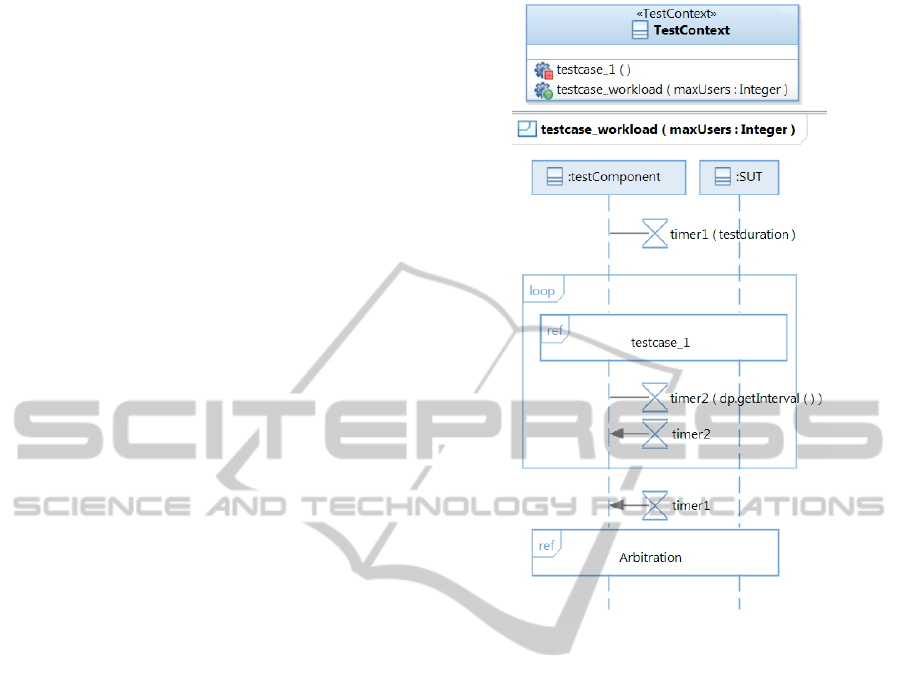

Figure 1: Workload test model from the current UML-TP

speciﬁcation.

agram where the Test Component executes the “test-

case_1” inside a loop. To set the total test execution

time a timer “timer1” is added. The amount of users

for the test case that we want to simulate is speci-

ﬁed in a generic parameter of the sequence diagram

(“maxUsers”), but it is not clear how to set it. In addi-

tion, for the distribution of the executions (think times

between executions), it is necessary to store the values

in a Datapool, and give them to the timer (“timer2”)

that establishes a pause in the loop after the execution

of the test case. The main problem of this workload

representation is that it is very tricky and incomplete

since it does not allow to specify different and concur-

rent test cases (it is not clear how to represent more

than one test case in that way) and other important

concepts such as for instance the ramp-up of the test

case.

Other examples presented in the standard speciﬁ-

cation of UML-TP (OMG, 2004), in order to repre-

sent the workload, include two concepts that are: the

“background load”, useful to generate a certain stress

on the system, and the “foreground load” that includes

the test cases that the user is interested to measure.

These examples show that the test cases are executed

in parallel, but there is no way to see clearly how

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

492

the workload is deﬁned. Speciﬁcally, the limitations

of the provided examples are: i) it is not evidenced

which load should be executed against the SUT in

order to verify the non-functional properties; ii) the

amount of users executing the “background load” is

not represented; iii) the amount of executions, the de-

lay between executions (presented as a datapool) and

the ramp-up for each test case of the workload are not

clearly deﬁned.

Another attempt to represent a workload with

UML-TP is presented in (Zhu et al., 2007). In

this work the authors use the UML-TP in a non-

conventional way in order to model a load test by

specifying in the datapool the percentage of users ex-

ecuting each test case. Also this workload represen-

tation is limited since the semantic of the workload

representation is not in the model, it is in the way the

authors interpret the content of a generic datapool.

Another important aspect that, in our opinion, is

not well-covered by the UML-TP standard, is related

to validation, namely how to deﬁne the verdict when a

non-functional property (performance or dependabil-

ity) related to a set of test cases needs to be veriﬁed.

In these cases, the arbiter should be capable to ex-

press global validations in an easy way, taking into

account for instance the average of the different re-

sponse times of all the executions of a test case, or

considering the verdicts of all the test cases execu-

tions, in order to compute the percentage of the passed

test cases.

In the aforementioned book (Baker et al., 2007)

and in the UML-TP standard (OMG, 2004), some ex-

amples are presented in which the global arbiter gives

the verdict according to the percentage of “pass” test

cases. However, it is necessary to express how to

calculate this percentage in order to set the verdict.

Figure 2 shows a possible representation of a user-

deﬁned behavior for an arbiter (according to the ex-

amples of the standard) asking for certain percentage

of the responses to be “pass”. Since this kind of vali-

dation is much common in performance and depend-

ability testing, it is important to have a simple way to

represent it.

On the other hand, and still in line with non-

functional validations, the current UML-TP standard

allows us to determine the minimum and maximum

accepted response time values, specifying that all the

response times should be within a certain range of

values. We claim that these time restrictions are

not enough to represent the most typical validations

that usually are performed in a load simulation test,

namely the average or percentage of the response

times being under certain boundary.

Figure 2: Arbitration to accept certain percentage of correct

responses.

For both cases (performance and dependability

validations) a limitation is given by the default be-

havior of the arbiter that has an only-get-worse pol-

icy. This means that if one test case reports a failure,

the whole test suite fails. In our proposal we want to

take into account all the test executions and provide a

global verdict for the test suite according to a different

policy.

4 PROPOSAL FOR EXTENDING

UML-TP

In this section we present some insights for improving

the expressiveness of UML-TP in the design of non-

functional test cases, focusing on performance and

dependability. Speciﬁcally, in the following sections

we show our proposal for improving mainly two as-

pects: the workload speciﬁcation and the verdict def-

inition involved into non-functional validations. The

proposed concepts allow for modeling a wider vari-

ety of test cases with different test goals in one sin-

gle UML model. It is also important to mention that

the need for extension of the UML-TP to design non-

functional tests and the ideas we propose in this paper

have undergone detailed and useful discussions with

some members of the UML-TP development team.

4.1 Workload Information

An important lack of the UML-TP standard is the rep-

resentation of the workload. Workload modeling is

one of the most important aspects of the performance

ExtendingUMLTestingProfileTowardsNon-functionalTestModeling

493

testing activity. Designing a performance workload

model very similar to the SUT environment is one of

the core activities in performance testing. The test

case design should deﬁne the workload including a

list of parameters (load distribution, number of con-

current users, etc.) that are necessary for an accu-

rate simulation in order to reach the test objective.

Our proposal is to introduce into UML-TP standard

the concept of WORKLOAD as a new stereotype with

some tagged values in order to model all the param-

eters of performance testing. The stereotype would

be applicable to Test Cases (to operations of a Test

Context that already have a Test Case stereotype ap-

plied). With this new stereotype we can for instance

specify test suites (or Test Context) with an associ-

ated workload that speciﬁes the number of concurrent

users. This information is necessary in order to verify

non-functional properties.

Conceptually, the “workload” stereotype applies

to the relation between the Test Context and the Test

Case (see Figure 3). The different tagged values

(stereotype properties) we propose to model into the

workload are:

• concurrentExecutions: also known as virtual

users, refers to the number of concurrent execu-

tions of the test case that are going to be consid-

ered in the load simulation;

• executionTime: represents the total execution

time, namely for how long the test case is going

to be executed;

• thinkTime: represents the delay between itera-

tions, also known as think times, determines the

pause between different executions of the test case

for each virtual user;

• rampupTime: determines the initial time to reach

the expected load, when the virtual users are in-

creasing in the system progressively;

• startUpDelay: deﬁnes the time when the vir-

tual users executing the test case are going to be

started, relative to the beginning of the whole test

suite;

• expectedDependability: represents the expected

percentage of executions that should pass in order

to consider the test case as passed, more details

about this property are in Section 4.2.

The Test Scheduler is in charge to take into account

(in its default behavior) the above parameters speci-

ﬁed into the workload.

4.2 Non-functional Validations

With the time restrictions provided by the UML-TP

standard we can only deﬁne a local verdict, namely

Figure 3: UML-TP extension relative to the workload con-

cept.

if the test case takes more time than the deﬁned re-

strictions, it is considered to be failed. On the other

hand, the default behavior of the arbiter has the only-

get-worse policy, what means that once it gets a fail

result it never can get better than that.

Two typical situations in performance and de-

pendability testing that are not covered by the above

time restrictions and verdict deﬁnition are: i) it is

needed to give the verdict according to the average

of the execution times; and ii) it is needed to verify

that a certain amount of the executions pass, so tak-

ing into account a policy different from the only-get-

worse one.

In the current UML-TP standard version it is only

possible to model the maximum and minimum ac-

ceptable values. Then it is not possible to report a

failure according to the average or a percentage of

the response times of all executions of the test case

in the test context. To address this issue and improve

the UML-TP time restrictions we propose the addition

of new constructors that are average and percentage.

The former gives the verdict considering the average

of the response times, and the latter gives the verdict

according to the percentage of the response times that

are under the expected value.

Figure 4 shows an example of the new UML-TP

Time Restrictions. In this ﬁgure “average” has a range

as a parameter (0..10), and “percentage” has an ex-

tra parameter (95) indicating which percentage of the

times should be in the range (we want in this case to

validate that at least the 95% of the response times are

in the range 0..10).

Figure 4: UML-TP Extended Time Restrictions.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

494

On the other hand, we want to provide the tester

with the capability to model that a test case is con-

sidered acceptable (with a pass verdict) if there is a

certain percentage of the responses with pass verdict.

For this, we consider that two changes are needed to

be done on the standard proﬁle. Firstly, we propose

to add an extra property to the “Workload” stereo-

type, indicating the level of tolerance that we have

for failures. We call this attribute “expectedDepend-

ability” referring to the expected percentage of exe-

cutions that should pass in order to consider the test

case as passed. However, the test execution has only

one arbiter associated to the Test Context, which has

the only-get-worse policy. We propose to add a “par-

tial” arbiter to each test case, in order to give a ver-

dict for each test case considering all its executions.

Those arbiters should not have the only-get-worse be-

havior, instead, they should give the verdict consid-

ering the level of tolerance for the corresponding test

case. Then, the main arbiter associated to the Test

Context is notiﬁed of each verdict and provides the ﬁ-

nal verdict as pass only if all partial arbiters returned

pass. It is important to note that the UML-TP user

would only need to model the “expectedDependabil-

ity”, and let the default arbiter to be in charge of giv-

ing the ﬁnal verdict.

From our point of view, this representation is a

proposal to model the most common performance test

scenarios and their typical validations. If it is neces-

sary to calculate the verdict into another way, it is al-

ways possible to describe this behavior with another

UML diagram. It is evident that the proposed exten-

sion allows to represent in a simpler way not only the

same but also more information. Including these ex-

tensions into the standard UML-TP increases the ex-

pressiveness of the meta-model, consequently the re-

sulting models are easier to develop and understand.

In the following section we present a load test

modeling example to show the expressiveness of the

proposed UML-TP extensions.

5 MODELING EXAMPLES WITH

THE EXTENDED UML-TP

In this section we provide a load test modeling exam-

ple using the extended UML-TP. We ﬁrst give a short

overview of the SUT and the load simulation that we

want to test, and ﬁnally we show the test artifacts.

The system under test we consider as applica-

tion example is an online bookstore system offering

a books’ catalog to the user. Basically, the system

allows the users to search different books and buy

them. After a market analysis and sales forecast, it

has been deﬁned that, in a peak hour, it is possible to

have continuously about 500 concurrent users search-

ing a book, while other 100 are buying a book. It was

analyzed that between one execution and another one

typically a user waits around 5 seconds. We want to

assure that when the system is under this load situa-

tion, it is able to keep good response times and low

error rates. For this, we deﬁned the following non-

functional requirements: i) the average of the dura-

tion of the search operation should be less than 15

seconds (only considering server time that is the time

for having the system answer, excluding user time);

ii) at least the 95% of the total amount of the buying

process and the 90% of the search operation should

be correctly processed by the system.

In the following subsections we present how a

tester could model this common load test using the

insights about UML-TP presented in this paper.

One of the proposed UML-TP extensions is about

the workload. This extension allows to model in a

clear and easy way the workload of the above appli-

cation example. As showed in Figure 5, we model

the test suite as a Test Context including two test

cases, one for the search operation and one for the

buying operation. To each test case a workload def-

inition is associated including all parameters related

to the users’ concurrent executions. Speciﬁcally, the

stereotype “Workload”, includes some parameters set

according to the load test deﬁnition and other ones

set according to the tester experience. The former

involve: i) the number of concurrent users, repre-

sented by concurrentExecutions value that is equal to

500 for workload_Search and equal to 100 for work-

load_Buying respectively; ii) the time between two

different executions, named thinkTime, its value is

equal to 5 sec for both test cases workload. The latter

involve: i) the total time execution (executionTime),

equal to one hour; ii) the way the test is going to reach

the simulated load goal (rampupTime) that is set to 10

minutes in order to initiate the load test progressively,

because it is not realistic to start 600 users at the same

time; iii) the start-up time (startupDelay) that is set to

0 in order to start the execution of both test cases at

the beginning of the load test.

In Section 4.2 we presented our idea of extending

UML-TP to cope with non-functional validation and

global arbiter deﬁnition. We show here how to use

this extension to validate both non-functional require-

ments presented above.

Concerning the ﬁrst requirement (the average of

the duration of the search operation should be less

than 15 seconds), we model the behavior of the test

case “search” as showed in the sequence diagram pre-

sented in Figure 6. This model includes a time restric-

ExtendingUMLTestingProfileTowardsNon-functionalTestModeling

495

Figure 5: Test architecture with the extended workload

stereotype.

Figure 6: Test behavior of the search operation with the

extended time restriction.

tion specifying that the average of the response times

of the search operation should be less than 15 sec-

onds. This deﬁned time restriction allows the arbiter

to give a global verdict summarizing all the response

times and verifying that the average of the response

times obtained from the different executions of the

test case must be compliant with the expected value.

By means of this global verdict it is possible to ver-

ify that the constraints expressed in the requirements’

model are reached.

For validating the second non-functional require-

ment above deﬁned, namely “at least the 95% of the

total amount of the buying process and the 90% of

the search operation should be correctly processed by

the system”, we indicated in the “Workload” stereo-

type of Search and Buying test cases what is the ex-

pected amount of correct responses (the expectedDe-

pendability value is set equal to 90 and 95 respec-

tively). Then the arbiter can give a global verdict

according to the speciﬁed expectedDependability that

represents the deﬁned tolerance to failures.

This simple application example evidences that

using our insights for extending UML-TP it is pos-

sible to model in a simple and clear way the elements

of a common load test scenario.

6 CONCLUSIONS AND FUTURE

WORK

This paper focuses on model-based testing for non-

functional requirements and speciﬁcally on the mod-

eling languages used for deﬁning a test model. We

brieﬂy presented the results of a systematic survey

on model-driven non-functional validation that evi-

denced the lack of a standard and common language

for designing non-functional test cases, apart from

the UML-TP that per se provides only limited sup-

port for non-functional testing. We proposed in this

paper some insights for extending UML-TP to repre-

sent the workload concept and the global verdict def-

inition involved into non-functional validations. We

also validated our proposal by presenting an applica-

tion example of an online bookstore system, for which

we deﬁned two non-functional requirements and we

showed how to apply the extended UML-TP for de-

signing test cases for such requirements. In future

work, we plan to further extend the UML-TP speciﬁ-

cation by including timing concepts of MARTE pro-

ﬁle (OMG, 2011) and by focusing on other issues of

non-functional testing such as the resource usage and

the variable load during the time. In the meanwhile,

we want also to include in the standard other model-

ing facilities speciﬁcally conceived for other kinds of

non-functional testing such as stress testing or peak

testing. Furthermore, we want also to investigate

other research directions of model-based testing that

are the derivation of an integrated test model includ-

ing functional and non-functional aspects and the gen-

eration of executable test cases from this model.

ACKNOWLEDGEMENTS

This work has been partially funded by the Agen-

cia Nacional de Investigación e Innovación (ANII,

Uruguay) and by the GEODAS project (TIN2012-

37493-C03-01, Spain).

The authors wish to thank the leaders of the UML-

TP development team, Ina Schieferdecker and Marc-

Florian Wendland, for their suggestions and useful

discussions.

REFERENCES

Abbors, F., Ahmad, T., Truscan, D., and Porres, I. (2012).

MBPeT: a model-based performance testing tool. In

Proc. of the Fourth International Conference on Ad-

vances in System Testing and Validation Lifecycle

(VALID), pages 1–8.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

496

Abbors, F., Ahmad, T., Truscan, D., and Porres, I. (2013).

Model-Based Performance Testing in the Cloud Using

the MBPeT Tool. In Proc. of the 4th ACM/SPEC In-

ternational Conference on Performance Engineering

(ICPE), pages 423–424.

Afzal, W., Torkar, R., and Feldt, R. (2009). A systematic

review of search-based testing for non-functional sys-

tem properties. Information and Software Technology,

51(6):957–976.

Apache (2001). Jmeter. http://jmeter.apache.org/.

Baker, P., Dai, Z. R., Grabowski, J., Haugen, O., Schiefer-

decker, I., and Williams, C. (2007). Model-Driven

Testing: Using the UML Testing Proﬁle. Springer-

Verlag New York, Inc.

Balsamo, S., Di Marco, A., Inverardi, P., and Simeoni, M.

(2004). Model-based performance prediction in soft-

ware development: A survey. IEEE Transactions on

Software Engineering, 30(5):295–310.

Bennett, A. J. and Field, A. J. (2004). Performance engi-

neering with the UML proﬁle for schedulability, per-

formance and time: a case study. In Proc. of the 12th

IEEE Annual International Symposium on Modeling,

Analysis, and Simulation of Computer and Telecom-

munications Systems (MASCOTS), pages 67–75.

Cai, Y., Grundy, J., and Hosking, J. (2004). Experiences

integrating and scaling a performance test bed gen-

erator with an open source CASE tool. In Proc. of

the 19th IEEE International Conference on Automated

Software Engineering (ASE), pages 36–45.

da Silveira, M. B., Rodrigues, E. d. M., Zorzo, A. F., Costa,

L. T., Vieira, H. V., and de Oliveira, F. M. (2011).

Generation of scripts for performance testing based

on UML models. In Proc. of the Twenty-Third In-

ternational Conference on Software Engineering and

Knowledge Engineering (SEKE), pages 258–263.

de Oliveira, F. M., Menna, R. d. S., Vieira, H. V., and Ruiz,

D. D. (2007). Performance testing from UML mod-

els with resource descriptions. In Proc. of 1st Brazil-

ian Workshop on Systematic and Automated Software

Testing, pages 1–8.

Dias Neto, A. C., Subramanyan, R., Vieira, M., and Travas-

sos, G. H. (2007). A survey on model-based testing

approaches: a systematic review. In Proc. of the 1st

ACM International Workshop on Empirical Assess-

ment of Software Engineering Languages and Tech-

nologies (WEASELTech), in conjunction with the 22nd

IEEE/ACM International Conference on Automated

Software Engineering, pages 31–36.

Kitchenham, B. (2004). Procedures for performing system-

atic reviews. In Joint Technical Report, Keele Univer-

sity Technical Report TR/SE-0401 and NICTA Techni-

cal Report 0400011T.1.

Krishnamurthy, D., Rolia, J. A., and Majumdar, S. (2006).

A synthetic workload generation technique for stress

testing session-based systems. IEEE Transactions on

Software Engineering, 32(11):868–882.

McMinn, P. (2004). Search-based software test data gener-

ation: a survey: Research articles. Softw. Test. Verif.

Reliab., 14(2):105–156.

Mercury, H. (2001). Loadrunner. http://www8.

hp.com/us/en/software-solutions/software.html?comp

URI=1175451.

OMG (1997). Uniﬁed Modeling Language. http://

www.uml.org/.

OMG (2004). UML 2.0 Testing Proﬁle Speciﬁcation.

http://utp.omg.org/.

OMG (2011). UML Proﬁle for Modeling and Analy-

sis of Real-Time and Embedded systems (MARTE).

http://www.omgmarte.org/.

Pozin, B. A. and Galakhov, I. V. (2011). Models in perfor-

mance testing. Programming and Computer Software,

37(1):15–25.

Rodríguez, F. T., Lonetti, F., Bertolino, A., Usaola, M. P.,

and Lamancha, B. P. (2013). Extending the Non-

Functional Modeling of UML-TP. Technical Report.

http://pumalab.isti.cnr.it/index.php/en/.

Smith, C. U., Llado, C. M., and Puigjaner, R. (2010). Per-

formance Model Interchange Format (PMIF 2): A

comprehensive approach to Queueing Network Model

interoperability. Performance Evaluation, 67(7):548–

568.

Utting, M. and Legeard, B. (2007). Practical Model-Based

Testing: A Tools Approach. Morgan Kaufmann Pub-

lishers Inc.

Zhu, L., Bui, N. B., Liu, Y., and Gorton, I. (2007). MD-

ABench: customized benchmark generation using

MDA. Journal of Systems and Software, 80(2):265–

282.

ExtendingUMLTestingProfileTowardsNon-functionalTestModeling

497
