Towards an Automatic Motion Coaching System

Feedback Techniques for Different Types of Motion Errors

Norimichi Ukita

, Daniel Kaulen

and Carsten Röcker

Graduate School of Information Science, NAIST, 8916-5 Takayama, Ikoma, Japan

Human-Computer Interaction Center, RWTH Aachen University, 52056 Aachen, Germany

Keywords: Motion Coaching, Motion Error Feedback, Prototyping, Error Visualization, Error Audiolization.

Abstract: The development of a widely applicable automatic motion coaching system requires one to address a lot of

issues including motion capturing, motion analysis and comparison, error detection as well as error feed-

back. In order to cope with this complexity, most existing approaches focus on a specific motion sequence

or exercise. As a first step towards the development of a more generic system, this paper systematically ana-

lyzes different error and feedback types. A prototype of a feedback system that addresses multiple modali-

ties is presented. The system allows to evaluate the applicability of the proposed feedback techniques for ar-

bitrary types of motions in a next step.

1 INTRODUCTION

Over the last decade, we have seen a tremendous

improvement of commercial real-time motion track-

ing devices. Systems like, e.g., Microsoft Kinect,

Nintendo Wiimote, PlayStation Move provide low-

cost solutions for end users in home environments.

Despite the large market success of these systems,

applications are mostly restricted to the gaming

domain. However, potential application fields of

such systems are manifold (see, e.g., Kasugai et al.,

2010, Klack et al., 2010 or Heidrich et al., 2011).

One area that is becoming more and more im-

portant is computer-supported medical homecare

(Ziefle et al., 2011) and in particular home rehabili-

tation. With the ongoing demographic changes in

most industrialized countries (Röcker, 2013), we are

currently heading towards a situation where the

demand for personal rehabilitation assistance can not

be met by medical personnel alone anymore.

In this context, automated motion coaching sys-

tems are a promising solution for addressing the

increasing demand of home training and rehabilita-

tion. Hence, our research goal is to develop an au-

tomatic motion coaching system that does not only

adopt the role of a human trainer, but also provides

additional benefits compared to existing training and

rehabilitation concepts.

2 RELATED WORK

During the last years, several motion coaching sys-

tems have been developed. With the exception of

Velloso et al. (2013), most authors focus on a special

type of motion or exercise. This is due to the fact

that there are tremendous differences between mo-

tions that have to be considered when analyzing

motion data programmatically.

2.1 Results Gained in Previous Motion

Coaching Projects

A review of several virtual environments for training

in ball sports was performed by Miles et al. (2012).

They stressed that coaching and skill acquisition

usually involve three distinct processes (see Law-

rence & Kingtson, 2008): conveying information

(i.e. observational learning), structuring practice (i.e.

contextual inference) and the nature and administra-

tion of feedback (i.e. feedback frequency, timing and

precision). Additionally, general possibilities when

to provide feedback were identified. Concurrent

feedback (during), terminal feedback (immediately

following) or delayed feedback (some period after)

can be used to assist the subject in correcting the

motion. All of these aspects are worthwhile to be

considered when developing a motion coaching

system. The system presented in this paper

167

Ukita N., Kaulen D. and Röcker C..

Towards an Automatic Motion Coaching System - Feedback Techniques for Different Types of Motion Errors.

DOI: 10.5220/0004884901670172

In Proceedings of the International Conference on Physiological Computing Systems (PhyCS-2014), pages 167-172

ISBN: 978-989-758-006-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

especially focuses on how and when to provide

feedback.

A recent concurrent feedback approach was tak-

en by Velloso et al. (2013) who developed “a system

to communicate movement information in a way that

people can convey a certain movement to someone

else who is then able to monitor his own perfor-

mance and receive feedback in an automated way”.

Several types of visual feedback were included in

the first prototype system and analyzed in a user

study (n = 10). Based on the evaluation results, the

authors identified the exploration of appropriate

feedback mechanisms as an important topic for fu-

ture research. Another example for concurrent feed-

back was presented by Matsumoto et al. (2007) who

combined visual and haptic feedback to teach

Shorinji (Japanese martial art). Subjects were asked

to perform a movement which was projected on a

wall. The correct angle of the wrist is enforced by a

custom-engineered haptic device. Even though this

device greatly improved the performance, it was

very disturbing while performing the exercises due

to its weight. This disadvantage is one of the rea-

sons, why we refrain from using haptic feedback in

our motion coaching system.

Chatzitofis et al. (2013) analyzed how to assist

weightlifting training by tracking the exercises with

a Kinect and using delayed feedback. They used 2D

and 3D graphs to illustrate the captured performance

metrics (angle of knees, velocity etc.). Nevertheless,

there is still need for a human trainer to interpret

those values in order to give feedback to the subject.

We aim at providing feedback in such a way that

there is no need for this type of professional assis-

tance. The tennis instruction system developed by

Takano et al. (2011) also uses a delayed feedback

approach but the focus is put on the process of ob-

servational learning. To do so, the system searches a

video database that contains expert movements by

just performing the movement you want to learn

with the Wiimote. Due to the absence of any explicit

feedback, it is hard to determine how to actually

correct the motion. Correction arrows or joint color-

ing are promising approaches to overcome this

weakness (see section 3).

An example for terminal feedback can be found

in (Chen & Hung, 2010) where the focus is put on

the correct classification of motion errors by using a

decision tree approach to determine an appropriate

verbal feedback phrase. This phrase (e.g. “stretch

out the arm”) is immediately provided after the

completion of the motion. However, this only allows

the correction of previously known and trained error

types.

2.2 Categorization in the Design Space

of Multimodality

In order to systematically analyze possible designs

of motion coaching systems, the related work can be

classified in a three-dimensional design space of

multimodality (O'Sullivan & Igoe, 2004).

The modality (visual, auditory, haptic) is chosen

depending on the type of sense that the computer or

human needs to perceive or convey information. The

remaining classification is performed according to

the following rules:

 [Input, Control] - The subject interacts with the

system to control its function.

 [Input, Data] - The system perceives the subject

performing the exercise.

 [Output, Control] - The system gives explicit in-

structions to the user (e.g., “move faster”).

 [Output, Data] - The system conveys certain per-

formance metrics to the user that allow to improve

the motion by interpreting those values (e.g., ta-

chometer, traffic lights).

Note that a single system generally consists of mul-

tiple points in this design space (represented as a

connected series of points).

This paragraph exemplary describes how a sys-

tem is classified in the design space of multimodali-

ty (see Figure 1). For example, the system developed

by Chatzitofis et al. (2013) can be controlled with

mouse and keyboard (haptic input of control), visu-

alizes performance metrics (visual output of data)

and captures motion data by using the Kinect system

(visual input of data).

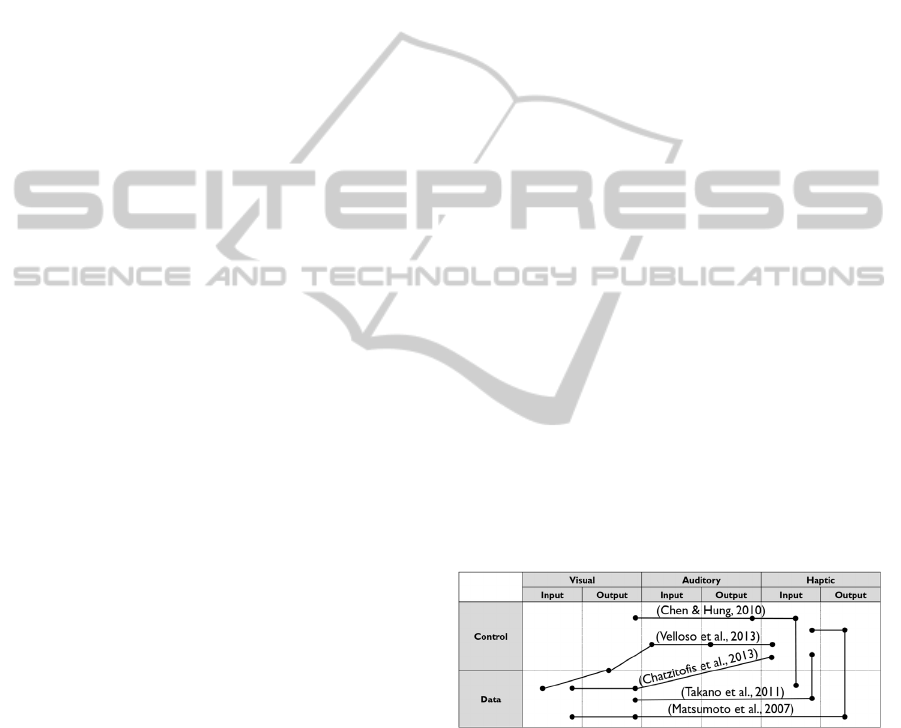

Figure 1: Classification of related work in the design space

of multimodality. One system is represented by a connect-

ed series of points. The classification is partly based on the

modality (visual, auditory, haptic) that the system uses for

communication purposes.

In some cases, the differentiation between output of

control and data is not unambiguous. Nevertheless,

this can still be visualized. For example, in (Velloso

et al., 2013) the output of an arrow indicating the

direction in which to move the left or right arm can

be regarded as both, output of data and control. In

PhyCS2014-InternationalConferenceonPhysiologicalComputingSystems

168

the following, this type of visualization will be re-

ferred to as output of control.

3 MOTION ERRORS

AND FEEDBACK TYPES

3.1 Spatio-Temporal Motion Errors

The first step when thinking about how to provide

motion error feedback is to become aware of differ-

ent types of motion errors (i.e. deviation between a

template and comparison motion) that need to be

addressed. To that extent, it is obvious to differenti-

ate between the spatial and temporal dimension.

When just considering the spatial dimension, there

are three main types of motion errors that can occur.

First, the absolute position of a joint can be wrong

(i.e. the coordinates of the left knee are expected to

be [x, y, z] but are [x’, y’, z’]). When only the spatial

collocation of several joints is important, the relative

position of them should be taken into account in-

stead. For example, a motion coaching system for a

clapping motion should not pay attention to the

absolute positions of the hands as it is only im-

portant that the palms touch each other. The last

main error type that was identified is a wrong angle

between the connections of three neighboring joints

(e.g., stretching the arm implies an angle of 180°

between the shoulder, elbow and hand). Naturally,

the angle is influenced by the actual positions of the

joints, but it is expected that a different type of visu-

alization is required depending on whether the focus

is put on the correction of an angle or the absolute

joint positions. However, in a real world scenario the

spatial dimension is always considered in combina-

tion with the temporal dimension. This allows to

additionally find wrong execution speeds.

3.2 Feedback Techniques

In a next step, several general ways to provide feed-

back by using different modalities were elaborated

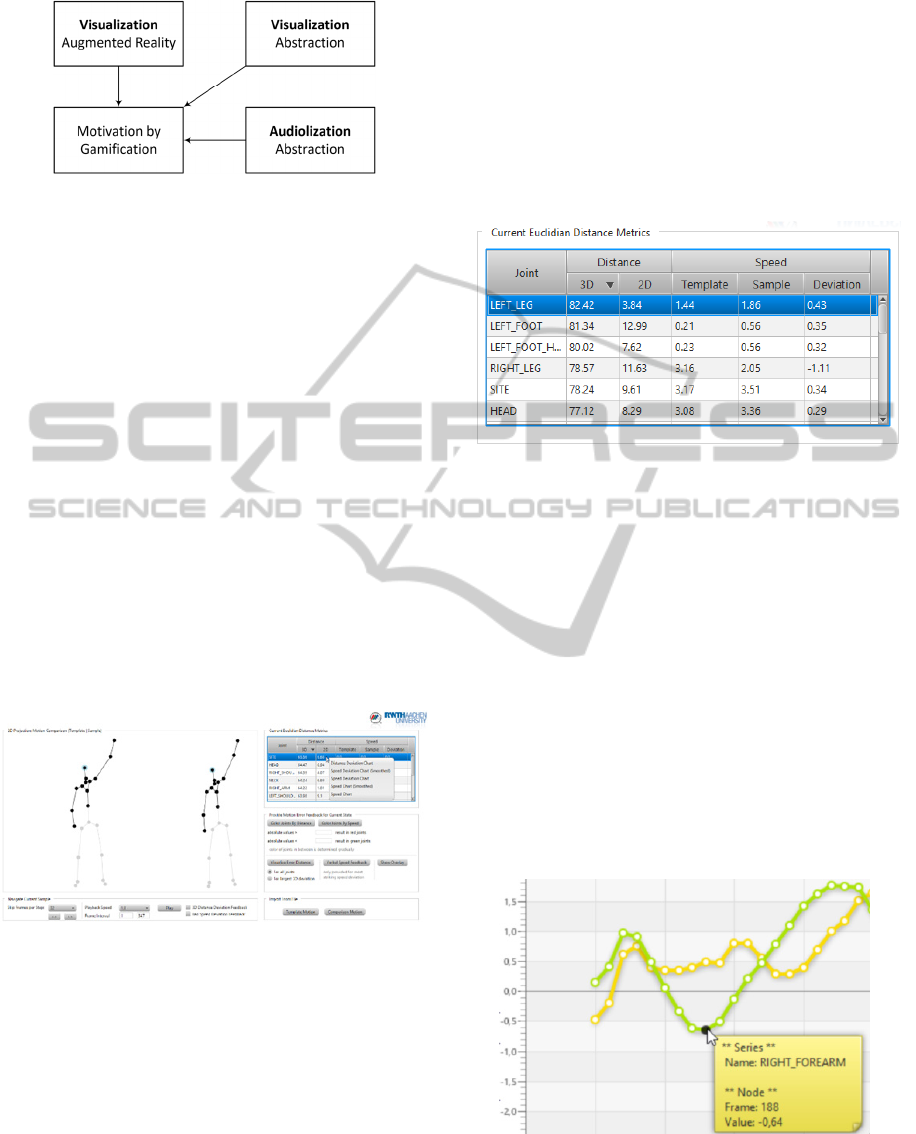

(see Figure 2). The most natural but technically the

most complex way when using the visual channel is

to either extract only the human body or to use the

complete real scene and overlay it with visual feed-

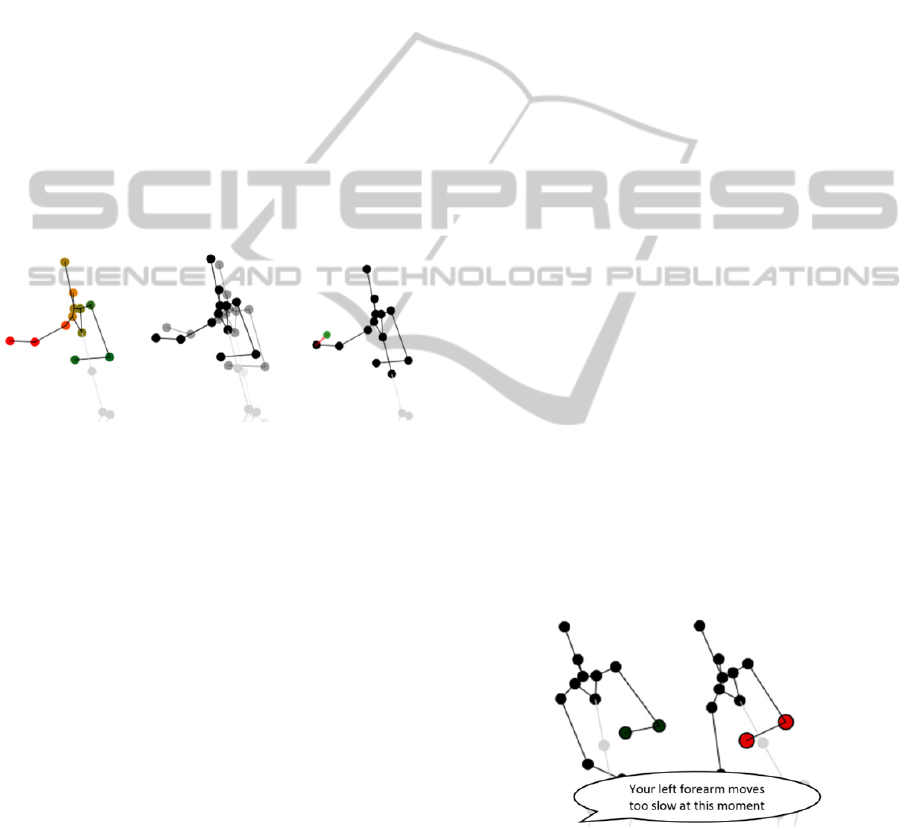

back (e.g., colored overlay of body parts depending

on the distance error). The natural scene reduces the

cognitive load for the subject as the mapping be-

tween the real world and the visualization is trivial.

Displaying the human body as a skeleton to repre-

sent the motion makes this mapping a bit harder but

allows to put the focus on the motion itself. To com-

pare a template with a comparison motion, the ab-

stracted skeletons can be visualized side by side or

in an overlaid manner. It is expected that the over-

laid view is mainly applicable when trying to correct

very small motion errors. At an higher abstraction

level, performance metrics such as speed or distance

deviation per joint or body part can be calculated

and displayed textually or graphically (i.e. with the

aid of charts). All these feedback types are referred

to as visual output of data as there is no information

on how to correct the motion and the subjects need

to interpret those values to improve their motion. To

overcome this weakness, it is desirable to be able to

visualize instructions (i.e. visual output of control)

that guide users in correcting their motion. Two

possible approaches are simple textual instructions

(Kelly et al., 2008) or graphical instructions such as

arrows indicating the direction in which the motion

should be corrected (Velloso et al., 2013).

Audio feedback can be used in several ways to

give motion error feedback. Spoken instructions (i.e.

auditory output of control) are one possible way to

which most people are already used to from real

training situations. Note that the bandwidth of the

auditory channel is much lower than the one of the

visual channel and therefore not much information

can be provided in parallel. Nevertheless, this chan-

nel has the big advantage that it easily catches hu-

man attention and users do not have to look in a

special direction (e.g., for observing a screen). In

terms of auditory output of data, different parame-

ters of sound (i.e. frequency, tone, volume) can be

modified to represent special motion errors. A first

step in this direction was taken by Takahata et al.

(2004) in a karate training scenario.

Another important point of research is the ques-

tion of how to motivate people to use a motion

coaching system. As it is commonly accepted that

the use of multiple modalities increases learning

performance (see, e.g., Evans & Palacios, 2010), a

motion coaching system should aim at addressing

multiple senses. Therefore, several of the above

ideas should be combined.

The use of haptic output devices is not treated as

applicable for a motion coaching system that shall

be used to teach a wide range of different exercises

due to two main reasons. First, there is no reliable

and generic way to translate instructions into haptic

patterns (see, e.g., Spelmezan & Borchers, 2008)

Second, specially adapted hardware is required to

provide appropriate haptic feedback, which often is

considered as disturbing (Matsumoto et al., 2007).

TowardsanAutomaticMotionCoachingSystem-FeedbackTechniquesforDifferentTypesofMotionErrors

169

Figure 2: Possible ways for motion error feedback.

4 MOTION COACHING SYSTEM

To combine the ideas of motion errors and different

types of motion feedback, a prototype system was

implemented that enables first experiments with

some of the proposed feedback types.

JavaFX was used as an underlying framework

since it allows fast creation of user interfaces with

JavaFX Scene Builder and provides built-in support

for animations and charts. In order to enable concen-

trating on the visualization itself, the system takes

two synchronized motion sequence files as input.

Synchronized in this context means that frame num-

ber i in the template motion corresponds with frame

number i in the comparison motion. The contained

joint positions are normalized and allow to ignore

different physiques. Figure 3 provides an overview

of the system (joints that are not relevant for a spe-

cial motion can be de-selected manually).

Figure 3: Overview of the motion coaching system.

For testing purposes, sample data collected from

subjects performing a baseball pitching-motion were

used.

4.1 Feature Overview

Visual Output of Data I – Metrics (Textual): The

performance metrics illustrated in Figure 4 provide

basic information such as 3D and 2D distance devia-

tions per joint and a comparison of the template and

sample speed per joint. Due to the perspective pro-

jection of the real-world 3D coordinates to the joint

positions in the visualized 2D skeleton on the screen,

it may occur that there are large 3D deviations that

are not recognizable in the skeleton representation.

The data helps to get an understanding of this rela-

tion and allows for very detailed motion analysis.

Nevertheless, this high precision is not necessarily

needed for a motion coaching scenario and a subject

may only use this type for terminal or delayed feed-

back.

Figure 4: Distance and speed metrics for a single pair of

frames for currently loaded motion sequences.

Visual Output of Data II – Metrics (Graphical):

Charts are used to visualize distance and speed met-

rics over time. Multiple joints can be selected to be

included in a single chart to compare the respective

deviations. This allows for an extensive joint cluster-

ing analysis, e.g., for finding out which joints can be

clustered together as bodypart in order to provide

feedback on a per-bodypart instead of a per-joint

basis. From a motion coaching perspective, this type

of feedback is mainly suited for terminal or delayed

feedback. It is expected that the acceptance depends

on the subject’s spatial abilities. Figure 5 exemplary

visualizes the speed deviation (between the template

and comparison motion) of two different joints for a

small frame interval.

Figure 5: Speed deviation chart for right forearm (selected

series) and right hand.

As real world data is often subject to large fluctua-

tions, values are smoothed for visualization purposes

PhyCS2014-InternationalConferenceonPhysiologicalComputingSystems

170

by calculating a weighted average for the k-step

neighborhood (k between 5 and 10).

Visual Output of Data III – Colored Joint Over-

lay: The developed system allows to define a lower

and an upper threshold value. All joints with devia-

tions larger than the upper threshold value are col-

ored in red, all joints with deviations smaller than

the lower threshold value are colored in green (ap-

plicable for speed and distance deviations). The

coloring of joints with values in between those

thresholds is determined gradually (i.e. vary from

red over orange to green). An example can be found

in Figure 6 (left skeleton) where the largest devia-

tions occur for joints located on the right arm. This

visualization approach can be used either for concur-

rent, terminal or delayed feedback and allows to

easily determine joints with high deviations. Never-

theless, the determination of reasonable threshold

values over time is technically hard and no infor-

mation is given on how to correct the motion.

Figure 6: Exemplary skeleton-based distance error visuali-

zations (left: colored joint overlay, center: overlay of

template and comparison skeleton, right: static result of

animated joint moving to its correct position).

Visual Output of Data IV - Skeleton Overlay:

Visualizing the template and comparison skeleton in

an overlaid manner (instead of side by side, which is

the default behavior of the proposed system) turned

out to be only suitable to correct very small motion

errors. Otherwise the mapping between the intended

and actual joint position is not directly visible. Of-

ten, it is hard to differentiate between the two skele-

tons. To overcome this weakness, the opacity value

of the template is lower than the one of the compari-

son skeleton (see Figure 6, center).

Visual Output of Control - Distance Error Ani-

ma- tion: So far, no direct information on how to

correct the motion was given. The initial idea of

Velloso et al. (2013) that used directed arrows to

indicate how to correct the motion was adapted and

replaced by an animated joint that moves to its cor-

rect position and thereby gradually changes its color

from red (wrong position) to green (correct target

position is reached). Even though this is still a quite

technical representation, this approach is considered

to be more natural than the representation using

arrows (see Figure 6, right). Since the projected 2D

position difference does not automatically reflect the

3D position difference, it is expected that the success

of this method highly depends on the projection

parameters. It is only applicable for terminal or de-

layed feedback.

Auditory Output of Control - Speed Feedback:

To address more than one sense, auditory feedback

was included as well. For the most striking speed

deviation, a verbal feedback phrase is provided by

using a text-to-speech library. However, even if

humans are used to this type of auditory feedback,

such a specific per-joint feedback is not applicable

in practice. Therefore, several joints are clustered to

body parts and feedback is provided accordingly

(e.g. “Move your right arm faster” instead of “Move

your right elbow faster”). Auditory Feedback in

general is best suited for concurrent feedback. Speed

feedback in particular suffers from the fact that it is

too slow to convey feedback for very fast motions at

the correct moment.

Combination of Visual and Auditory Output of

Data: As stressed in the previous section, per joint

speed feedback is regarded as too technical. In this

approach that combines visual and auditory output,

joints are clustered to body parts (by using the charts

for analyzing deviation dependencies) and consid-

ered as a whole during motion error feedback. The

animated illustration is embedded in a video play-

back of the motion sequences (see Figure 7) and

supported by corresponding speech output. Note that

the coloring allows to easily determine the affected

body part and the blinking speed of the highlighted

joints depicts the type of speed deviation (too fast:

fast blinking, too slow: slow blinking).

Figure 7: Example for embedded multimodal speed feed-

back in motion sequence playback (Note: text in speech

bubble is provided by speech output and is not visualized).

4.2 Future Work

In a next step, an empirical analysis is required to

evaluate the effectiveness and acceptance of the

TowardsanAutomaticMotionCoachingSystem-FeedbackTechniquesforDifferentTypesofMotionErrors

171

different types of feedback. For this analysis, it is

important to consider several types of motions and

exercises and compare respective acceptance values.

To do so, the integration of an automatic determina-

tion of appropriate projection parameters is required.

Two of the proposed general feedback types (ab-

stracted visualization and abstracted audiolization)

were addressed in our prototype system. Additional-

ly, first analogue approaches by using an augmented

reality scenario should be anticipated. A last im-

portant research area to be worked on is the effect of

using sounds and changing its parameters for motion

error feedback.

5 DISCUSSION

This paper analyzed different ways to provide mo-

tion error feedback, a very specific aspect within the

development of an automatic motion coaching sys-

tem. This divide-and-conquer approach allowed us

to focus on feedback techniques itself without strug-

gling too much with implementation details that are

not directly relevant at this point. It is expect that the

results from this first prototype can be used for an

initial evaluation that may allow to exclude several

feedback possibilities or reveal the need for analyz-

ing others in more detail. However, technology ac-

ceptance is a quite complex phenomenon (Ziefle et

al., 2011) and the success of a motion coaching

system does not only depend on the visualization

alone. Consequently, final statements are only pos-

sible when a complete system has been developed

and tested in detail. The development of such a sys-

tem requires an interdisciplinary approach with

scientific contributions from the fields of machine

learning, computer vision, human-computer interac-

tion and psychology.

REFERENCES

Chatzitofis, A., Vretos, N., Zarpalas, D. & Daras, P., 2013.

Three-Dimensional Monitoring of Weightlifting for

Computer Assisted Training. In: Proc. of VRIC '13.

Chen, Y.-J. & Hung, Y.-C., 2010. Using Real-Time Ac-

celeration Data for Exercise Movement Training with

a Decision Tree Approach. In: Expert Systems with

Applications, 37(12), pp. 7552-7556.

Evans, C. & Palacios, L., 2010. Using Audio to Enhance

Learner Feedback. In: Proc. of ICEMT’10, pp. 148-

151.

Heidrich, F., Ziefle, M., Röcker, C. & Borchers, J., 2011.

Interacting with Smart Walls: A Multi-Dimensional

Analysis of Input Technologies for Augmented

Environments. In: Proc. AH'11, CD-ROM.

Kasugai, K., Ziefle, M., Röcker, C. & Russell, P., 2010.

Creating Spatio-Temporal Contiguities Between Real

and Virtual Rooms in an Assistive Living Environ-

ment. In: Proc. of Create’10, pp. 62 - 67.

Kelly, D., McDonald, J. & Markham, C., 2008. A System

for Teaching Sign Language Using Live Gesture

Feedback. In: Proc. of FG’08, pp. 1-2.

Klack, L., Kasugai, K., Schmitz-Rode, T., Röcker, C.,

Ziefle, M., Möllering, C., Jakobs, E.-M., Russell, P. &

Borchers, J., 2010. A Personal Assistance System for

Older Users with Chronic Heart Diseases. In: Proc. of

AAL'10, CD-ROM.

Lawrence, G. & Kingtson, K., 2008. Skill Acquisition for

Coaches. In: An Introduction to Sports Coaching:

from Science and Theory to Practice. New York

(USA): Routledge, pp. 16-27.

Matsumoto, M., Yano, H. & Iwata, H., 2007. Develop-

ment of a Motion Teaching System Using an Immer-

sive Projection Display and a Haptic Interface. In:

Proc. of WHC’07, pp. 298-303.

Miles, H. C., Pop, S., Watt, S. J., Lawrence, G. P. & John,

N. W., 2012. A Review of Virtual Environments for

Training in Ball Sports. In: Computers & Graphics,

36(6), pp. 714-726.

O'Sullivan, D. & Igoe, T., 2004. Physical Computing.

Boston, MA: Thomson Course Technology.

Röcker, C., 2013. Intelligent Environments as a Promising

Solution for Addressing Current Demographic Chang-

es. In: International Journal of Innovation, Manage-

ment and Technology, 4(1), pp. 76-79.

Spelmezan, D. & Borchers, J., 2008. Real-Time Snow-

board Training System. In: Extended Abstracts of

CHI’08, pp. 3327-3332.

Takahata, M., Shiraki, K., Sakane, Y. & Takebayashi, Y.,

2004. Sound Feedback for Powerful Karate Training.

In: Proc. of NIME’04, pp. 13-18.

Takano, K., Li, K. F. & Johnson, M. G., 2011. The Design

of a Web-Based Multimedia Sport Instructional Sys-

tem. In: Proc. of WAINA’11, pp. 650-657.

Velloso, E., Bulling, A. & Gellersen, H., 2013. Mo-

tionMA: Motion Modeling and Analysis by Demon-

stration. In: Proc. of CHI’13, pp. 1309-1318.

Ziefle, M., Röcker, C., Kasugai, K., Klack, L., Jakobs, E.-

M., Schmitz-Rode, T., Russell, P. & Borchers, J.,

2009. eHealth – Enhancing Mobility with Aging. In:

Proc. of AmI'09, pp. 25-28.

Ziefle, M., Röcker, C., Wilkowska, W., Kasugai, K.,

Klack, L., Möllering, C. & Beul, S., 2011. A Multi-

Disciplinary Approach to Ambient Assisted Living.

In: E-Health, Assistive Technologies and Applications

for Assisted Living: Challenges and Solutions. Niagara

Falls, NY: IGI Publishing, pp. 76-93.

PhyCS2014-InternationalConferenceonPhysiologicalComputingSystems

172
