Business Process Modeling and Instantiation in Home Care
Environments
Júlia K. Kambara da Silva, Guilherme Medeiros Machado,
Lucinéia Heloisa Thom and Leandro Krug Wives
Instituto de Informática, Universidade Federal do Rio Grande do Sul (UFRGS), Caixa Postal 15.064, CEP 91.501-970,
Porto Alegre, RS, Brasil
Keywords: Home Care, Web Service, Business Process, Modeling, Device Instantiation.
Abstract: There are many studies currently being conducted within the field of Home Care, where houses fulfilled
with devices and sensors can help users in their daily lives, even the ones with chronicle diseases and
disabilities. One important challenge in this area refers to the selection of the device and functionalities that
best meets users’ needs based on their context, location and disabilities. In this sense, this paper presents a
novel approach for selecting the most appropriate device for the current user context. In our approach,
devices and their functionalities are described and represented by Web services, and business processes are
used as guidelines that specify procedures that should be taken in the treatment of a home care patient.
Therefore, the issue of what device and which of its corresponding functionalities should be selected is
treated as an approach to discover and select Web services based on its syntactic and semantic aspects as
well as the user context.
1 INTRODUCTION
The world population is currently over 7 billion
inhabitants, which 8.2% of these are people over 65
years (WorldoMeters, 2013). Besides, according to
the Department of Economic and Social Affairs of
the United Nations (2013), the life expectancy is
augmenting. While there is no alternative for
hospitals in the treatment of patients with terminal
illnesses, elderly who are healthy still need
assistance to live independently (Pung et al., 2009).
Hence, innovative technologies are needed to enable
keeping these elderly at their own homes (Bastide et
al., 2010).
In this context, Home Care Systems (HCS)
emerged. According to McGee-Lennon (2008), HCS
can be defined as a technology used to support the
accomplishment of networking tasks, providing the
means to collect, distribute, analyze and manage
information related to care. Such technology
typically includes sensors, devices, displays, data,
networks and computing infrastructure. Thus, HCS
aim to empower people in the need of assistance to
continue living in their own homes, while their
health and autonomy deteriorates (Auvinen et al.,
2011).
In order to efficiently manage home healthcare
assistance, a virtual connection between the patient
and the hospital has to be established, which
supports monitoring activities, requesting services
and management of medical protocols that the
patient undergoes (Ardissono et al., 2006).
In this sense, Ardissomo et al. (2006) describe
that the development of this type of application is far
from trivial because the service should be tailored to
different actors (patient and/or relatives, nurses,
doctors, etc.), and it should integrate distributed,
heterogeneous subservices to mediate the interaction
between users and service suppliers. Moreover, the
service has to cope with medical guidelines in a
context-aware way in order to provide users with
instructions that are appropriate to the patient’s
situation.
In this paper, we use business processes (BP)
designed with the Business Process Management
Notation (BPMN) to describe the guidelines of how
the user’s smart home could manage undesired
events or situations, i.e., those that would lead the
users to a dangerous situation or may debilitate their
health condition. In this context, a situation is a
description of the states of the entities managed by a
513
K. Kambara da Silva J., Medeiros Machado G., Heloisa Thom L. and Krug Wives L..
Business Process Modeling and Instantiation in Home Care Environments.
DOI: 10.5220/0004886905130525
In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 513-525
ISBN: 978-989-758-028-4
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)
system, where an entity is a person, place, or object
that is considered relevant to the interaction between
the user and an application (Dey, 2001). Therefore,
examples of situations include “Patient is sleeping”
and “Door is open”.
In our approach, the expression situation of
interest refers to undesirable situations that can
happen to an elderly in a home care context and are
relevant to be monitored in our system. Therefore,
when a situation of interest happens, the application
should react in order to restore its situation to
normal.
In this sense, the activities specified by a BP
should be performed by home devices. However, in
an environment where devices may have different
features and are scattered around the house, the
challenge is to identify which device should be
chosen to perform a particular activity, specially
based on the characteristics of the patient. Thus, this
is the research question addressed in this paper. In
such approach, each device is represented by a Web
service, and then the instantiation of such Web
services from BP becomes an issue.
To accomplish Web Service’s selection and
instantiation, we take into account both the concepts
used in semantic Web services’ descriptions and
their data types. The idea consists on performing the
closest possible semantic and syntactic matching. In
addition, we consider contextual aspects, and
according to Dey (2001), context is any information
that can be used to characterize the situation of an
entity.
In this context, the main contributions of this
paper are the specification of an ontological model
and of business processes models to support a
framework that can be used to guide the selection
and instantiation devices functionalities in a home
care environment. Such selections are based on both
the user's context and the syntactic and semantic
aspects of Web services, allowing the system to be
adaptive to the user. Therefore, houses can
incorporate new devices and still manage them
accordingly.
The remaining of the paper is structured as
follows. Section 2 provides a motivation scenario. In
Section 3, we discuss related work. Section 4 shows
the underlying concepts used and Section 5
describes our approach. Section 6 indicates how our
approach would execute into two fictitious
scenarios. Finally, Section 7 concludes the paper.
2 MOTIVATING SCENARIO
Machado et al. (2013) describe a scenario in which
applications for home care use pervasive BP. These
BP describe guidelines for managing situations of
interest. Therefore, when a situation of interest is
detected, the system triggers the execution of a
business process that addresses such situation. In
this sense, smart environments equipped with
sensors and actuators represented by Web services
(WS) could be managed by a controller that is
responsible by the execution of the business
processes, therefore assisting the daily life of people.
In this scenario, BP are specified in a conceptual
level, and are related to the operational level.
Therefore, they must be instantiated and adapted
according to the environment of each home, being
managed by a controller. This controller requires
identifying the most suitable WS to run in every
situation of interest. For instance, a house controller
could be instructed to send an alert to the patient
informing him that it is time to take his medication.
Since in a house there are several devices that
could perform such task (e.g., radio, television or
mobile phone), and the patient may have specific
restrictions (e.g., being deaf), television and mobile
phone would be the best options. However, if the
patient is not in the same room where the TV or
phone is, another device should be selected. The
problem in this case becomes the identification and
instantiation of any WS that performs the requested
functionalities or is compatible with the provided
operations. This paper intends to act rightly in this
matter, assisting in the identification and
instantiation of the WS that performs the activity
described by the business process.
3 RELATED WORK
Many works related to Home Care, e.g., Machado et
al. (2013), Paganelli and Giuli (2011), address the
instantiation of a device to perform a certain action
inside a house, but they do not state how it is made.
Works as Ardissono et al. (2006), Bastide et al.
(2010), and Gassen et al. (2012) use workflows to
describe a guideline to assist in home caring using
actions to achieve a certain goal, but do not specify
which device should perform a certain action. Other
works like the ones of Wang and Turner (2008) and
Kaldeli et al. (2013) propose approaches for smart
home-based rules, which, when a certain condition is
met, an action is performed through a device.
ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
514
However, these works do not take into account
syntactic or semantic WS, i.e., there is no guarantee
that the datatypes of Input and Outputs are
compatible (syntactic), nor that the service perform
the same function (semantic).
4 RELATED CONCEPTS
The approach proposed in this paper is able to
identify and dynamically instantiate WS to execute
applications based in BP for Home Caring, and it is
built upon the following concepts: ontology, which
models entities and house devices (also known as
appliances); business processes, used for modeling
the activities that a controller must perform; and
Web services, which are used to communicate with a
controllable device and ask them to perform a
particular functionality.
4.1 Ontology
An ontology is a formal explicit specification of a
shared conceptualization (Gruber, 1993). One of the
languages most used for describing ontologies is the
Web Ontology Language (OWL). By using OWL
we can define the following concepts, according to
(Bechhofer et al., 2004) and (Bock et al., 2012):
class, also known as concept, promotes abstraction
mechanism for grouping resources with similar
characteristics; individual (instance of a class);
datatype (refers to sets of data values); object
property (links individuals to individuals); and
datatype property (links individuals to data values),
which is also called attribute.
4.2 Business Processes
A business process (BP) consists of a set of activities
that are performed and coordinated in an
organizational and technical environment, which
together aim to realize a business goal (Weske,
2012).
A BP model consists of a set of activity models
and execution constraints between them (Weske,
2012). In this context, the Business Process Model
and Notation (BPMN) is the de-facto standard for
representing in graphical way the processes
occurring in virtually every kind of organization
(Chinosi and Trombetta, 2012).
Moreover, according to Weske (2012), BP can
be classified by levels of abstraction into: business
goals and strategies, which refers to long-term
objectives to the company; organizational business
processes, which are typically specified in textual
form by their inputs, outputs, expected results, and
dependencies on other business process; operational
business processes, where activities and theirs
relationships are specified by business process
models, but implementation aspects of the business
process are disregarded; and implemented business
processes, which refers to a specification that allows
the enactment of the process on a given platform,
being it organizational or technical. In this paper we
only address the operational level.
4.3 Web Services
Su and Wang (2010) define WS as an interoperable
unit of application logic that transcends
programming languages, operating systems,
communication protocols, network and data
representation dependencies and issues. WS are
formed by a set of open standards that define how
these components should be specified (through
WSDL), and how they should be announced for
being discovered and reused (via UDDI API), and
how they should be invoked at runtime (via SOAP
API) (Stroulia and Wang, 2003).
WS standards solve many problems at the
technical level, since they describe how the service
can be accessed, but they do not describe WS’s
semantics. The description of what the service does
and in what order its operations have to be called is
described in inputs or comments presented (if any)
in a WSDL description or UDDI entry (Fensel et al.,
2007; Wang et al., 2004).
The Semantic Web Service (SWS) initiative aims
to address the problem of WS semantics. Want et al.
(2004) define SWS as a description of the skills and
content of a WS in a computer-interpretable
language.
One of the main description initiatives to enable
SWS is the Web Ontology Language Schema
(OWL-S), which is an ontology with a framework
based on OWL to describe WS. OWL-S describes
the inputs, outputs, preconditions, effects and the
WS in terms of concepts defined in an OWL
ontology.
5 PROPOSED APPROACH
In our scenario, a house has devices, each
represented by a WS, and a controller, which is a
central system responsible for the management of
the house’s devices. Therefore, when a situation of
interest happens, the controller invokes the suitable
BusinessProcessModelingandInstantiationinHomeCareEnvironments
515
set of WS to treat such situation.
Briefly, our proposal is that, given an ontology
that describes the controller and devices in a house,
this ontology must be used when the modeler is
defining the BP that describes the guidelines that
will help the patient in a situation of interest.
Therefore, when the BP is instantiated and running,
the set of WS representing the house’s devices
should perform any needed action. The instantiation
of this WS is made with the aid of the ontology,
taking into account the user context.
In many cases, we have to specify the
appropriate input parameters before calling a WS.
Since WS represent devices in a home, and they are
not necessarily made by the same manufacturer,
each manufacturer is responsible for creating the
corresponding WS for their device. Therefore, two
or more WS that do the same thing in different
devices may have different input and output
parameters, and the most appropriate must be
selected. For instance, let us consider the following
devices’ definitions (Figure 1).

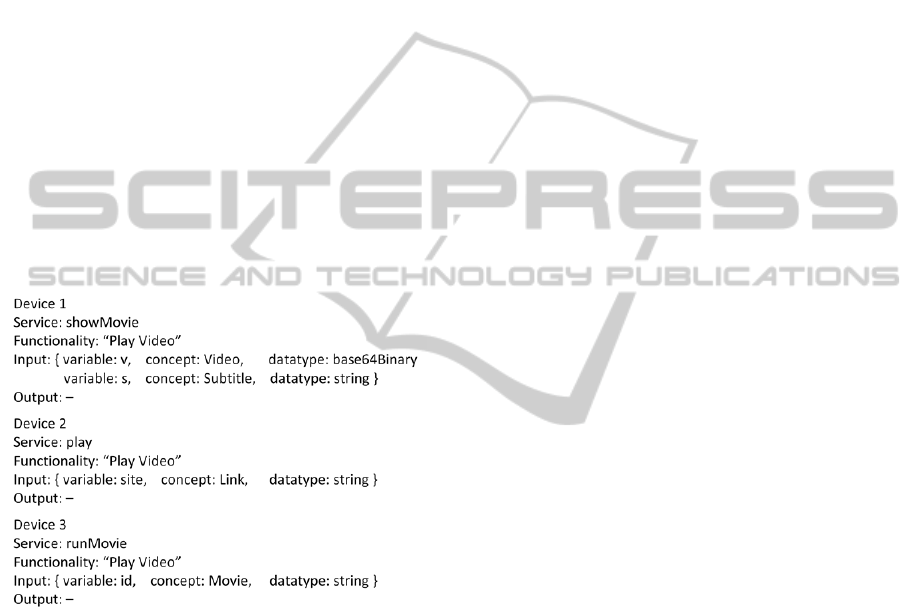

Figure 1: Example of the same service in different devices.
Figure 1 shows three devices that could be
instantiated to show a Video. In all of them, notice
that the input element is formed by a variable, the
ontological concept that the variable represents, and
its datatype (in SWS). Also notice that the same
functionality can have different inputs (to simplify
we are focusing only on inputs, but the same may
happen to outputs). Thus, how the controller passes
these parameters for the WS, since they may change
from one device to another? The solution chosen in
this paper is that the controller already has a default
abstract input set for each action and use syntactic
and semantic matching techniques to choose the
most appropriated one.
For instance, we could have a URL of
normalizedString datatype as the default abstract
input to the “Notifies Agitation” action, and the
“Play Video” functionality could execute this action.
Therefore, all devices that have a service with this
“Play Video” functionality would be analyzed
through our WS matching technique (see sections
5.1.5 and 5.3.1 for details).
It is important to state that the semantic WS
matching is concerned with the distance between the
concepts used in of the parameters. It compares the
concepts of the available services’ input with the
concepts of the default abstract service input, i.e.
(URL, video) (URL, Subtitle) (URL, Link), (URL,
Movie). This is done using the ontology where these
concepts were referenced. The syntactic matching
however is concerned with the distance between the
parameters datatypes, which, in this case, are
(normalizedString, base64Binary) and
(normalizedString, string).
Using semantic and syntactic matching, one
arrives at the result that the play service of Device 2
is most similar to the default abstract service given
in the previous example, since it has the same
number of input arguments and its input concepts
(Link and URL) and data types are similar (string
and normalizedString).
This allows the house to have various devices
made by different manufacturers, but all manageable
by the same controller. In our approach, we assume
that manufacturers specify these functionalities in
the WS description, but one is free to implement
them in any manner. So, when a device is purchased
and connected into the house, the controller
recognizes that a new device was acquired, checks
its functionalities, and registers it in its database
(these parts are not covered in this paper).
5.1 Home Care Applications Modeling
The models observed for the development of the
proposed approach are:
Person: characterizes a person, its disabilities and
location;
Organization: characterizes the organizations
involved (e.g., Health provider);
Location: represents people and devices’ locations
in a higher level of abstraction.
Controller: describes the capabilities of the house’s
controller;
Device: describes devices, their features,
parameters and restrictions.
Such models compose the base of an ontology,
i.e., it is not a complete finished domain ontology,
but it can be the basis to a new ontology or be
ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
516
included into another. Such models will be detailed
in the following sections and we will use capital
letters in the ontology concepts names to distinguish
them from their respective real world individuals.
5.1.1 Person
The information presented in our modeling of
persons are straightforward, and contains only the
characteristics of the users, their disabilities, level
and location within the house.

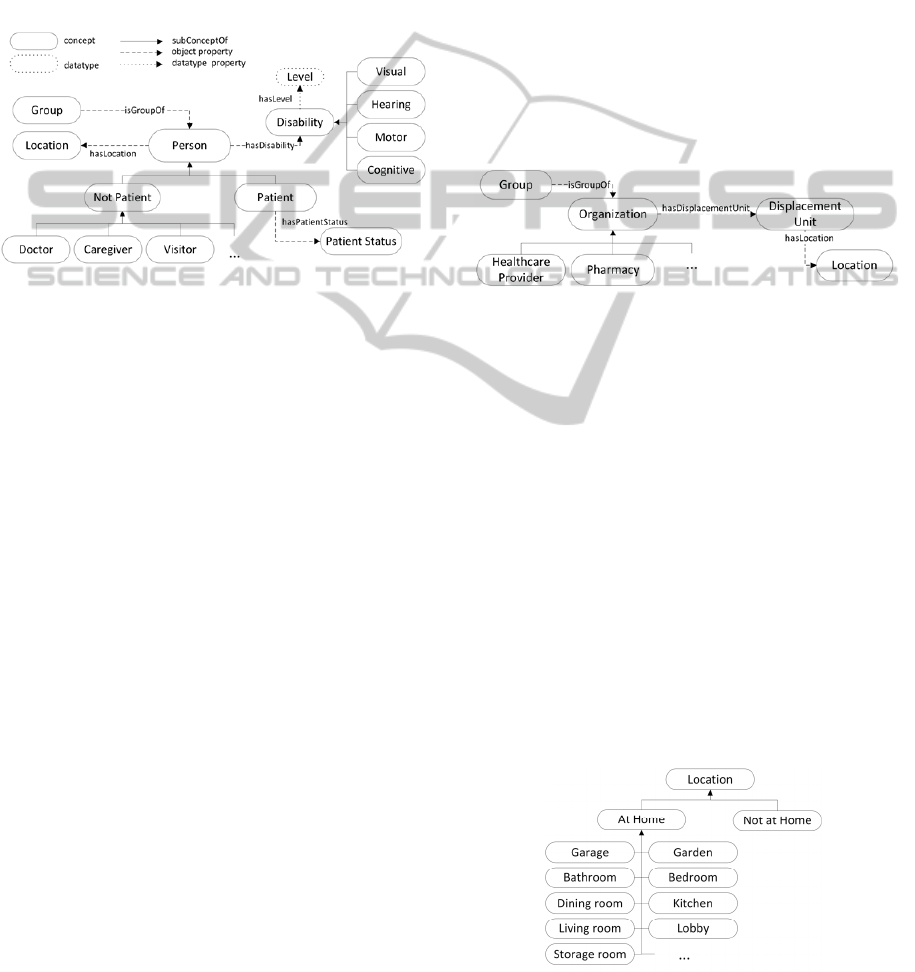

Figure 2: Person model.
As shown in Figure 2, a Person is categorized into
several sub-concepts in order to clarify who a
particular person is. Person has a Location, which is
a place in or out the house (details in section 5.1.3);
and Disability, which is an incapacity that the person
may have, affecting how the device communicates
with her.
Disability has the datatypeProperty Level that
indicates the degree of disability, and is subdivided
into four categories, taken from (Crow, 2008):
Visual: people with visual disability may have
difficulty understanding written text and graphic
content, and both are the main ways for presenting
information;
Hearing: people with this disability have a
decreased ability to hear certain frequencies, or
have difficulty hearing all frequency levels, which
affect the reception of auditory information;
Engine: people may have limited use of their
hands, or cannot use them, which affects their
interaction with a device;
Cognitive: involves a wide range of memory,
perception, problem solving and conceptualization
of change, this could affect any interaction with
the person, since information should be repeated
more often.
Although the work of Crow (2008) reports the
impact of these disabilities in online learning, it is
understood that these disabilities are also important
in daily life of person.
Notice that not only Patient may have a
Disability, but also of Doctor, Visitor, or other
person. Since even a young person can have
disabilities. Thus, there is no use sending a sound
message to the caregiver if he/she has hearing
problems.
Person of Patient type has a Patient Status, i.e.,
the state in which the patient lies, for instance:
agitation, shock, stroke, acute state of diabetes, etc.
Finally, Person may be related to the concept of
Group, e.g., People are a group of Person.
5.1.2 Organization
Organization models entities that are not part of the
house, but somehow interact with the controller, for
example, the health care provider, pharmacy, etc.
Figure 3: Organization model.
As shown in Figure 3, in the organization model
only “Displacement Unit” has Location (that will be
more explained in section 5.1.3), since we
understand that no organization is located in the
patient's home ("Not at Home"), but the
“Displacement Unit”, because it moves, could be.
For instance, if the organization needs to send a unit
to the patient’s house (e.g., an ambulance), and want
to know its location (or if it has already reached the
patient’s house, e.g. Garden, or not, “Not at Home”).
Similarly as in the concept of Person, Organization
may be related to a Group.
5.1.3 Location
The Location model (Figure 4) specifies at a high
level of abstraction if something is located within
the house (At Home) or not (Not at Home), and, if
Figure 4: Location model.
BusinessProcessModelingandInstantiationinHomeCareEnvironments
517

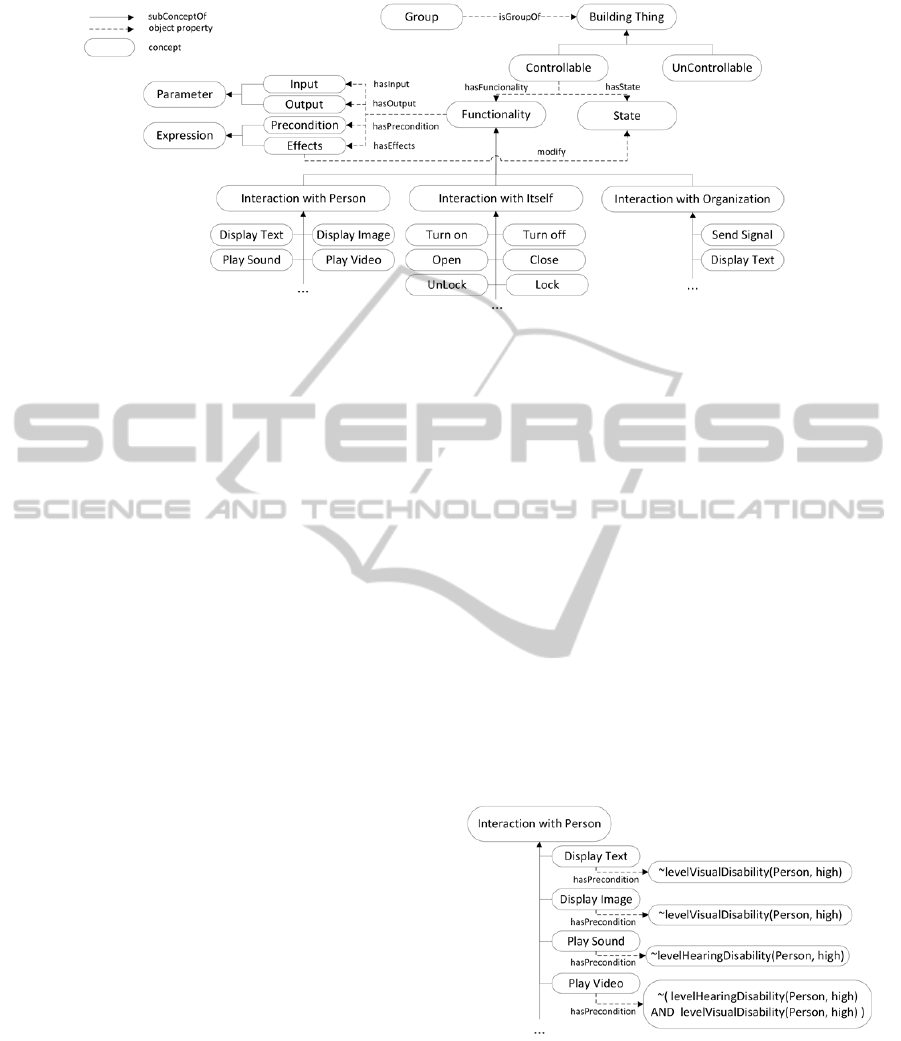

Figure 5: Device model.
inside the house, where specifically it lies. The part
that characterizes the inside house location of an
entity was taken from the DogOnt ontology (Bonino
and Corno, 2008).
5.1.4 Device
The device model (Figure 5) is used both to
categorize which built thing is controllable or not,
and to report the functionalities of controllable
things.
The concepts Building Thing, Controllable,
Uncontrollable, Functionality and State were also
taken from DogOnt (Bonino and Corno, 2008).
Building Thing refers to everything available inside
the house. Uncontrollable refers to any object that
cannot be managed, and Controllable refers to any
object that can be under control. From now on, in
order to facilitate reading, all Controllable Things
will be simply referred as “Device”. Furthermore, in
this model, there exists a relationship between the
concepts of Group and Building Thing (either
controllable or not).
Device has Functionality and State, where State
refers to the internal configurations that the device
can assume in a time instance, and Functionality
refers to what the device can do to change the State
values. For example, a lamp can have lamp_state =
off, but once its “turn on” functionality is triggered,
its status will be changed to lamp_state = on.
Based on OWL-S (Martin et al., 2004),
Functionality has zero or more Inputs and Outputs
(both are Parameters), besides zero or more
Preconditions and Effects, which are Expressions.
Input represents an entry concept, which is used for
the execution of functionality; Output represents a
concept that is generated after the execution of
functionality. Preconditions represent rules that must
be accomplished in order to perform a functionality,
and Effects represents rules that change the status of
a device.
Functionality can be classified according to the
target object of interaction into the following
categories:
Interaction with Person: when one wants to
interact with a person through a device;
Interaction with Itself: when a device wants to
perform some action in itself;
Interaction with Organization: usually when one
wants to communicate / ask something to an entity
that is outside the house.
In this model, “Interaction with Person” is a type
of Functionality, hence it inherits their relationships
(hasInput, hasOutput, hasPrecondition, hasEffects),
and thus some specific characteristics of a given
functionality may be previously indicated.
Figure 6: Example of functionality with pre-defined
characteristics
As shown in Figure 6, any Device that has “Display
Text” as Functionality will have Precondition that
has a rule that informs that the targeted person,
whose text will be shown (i.e., the target entity),
cannot have high visual disability.
ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
518
5.1.5 Controller
The Controller model is used to indicate the
capabilities of a controller and helps the modeler
specifying the BP that will perform the more
appropriate activities related to each situation of
interest. Thus, as shown in Figure 7, the Controller
has Action.
An Action is understood as something that is
done willingly, executes, or entails something in an
intentionally, deliberately and effortful way (Zhu,
2004). In our context, we define action as:
Definition 1: Action is something that an entity
executes, does, or performs, either manually or
automated.
Thus, in the specific case of the Controller, the
actions that can be performed are divided in Sensing
and Acting, which correspond to the actions of
Getting and Setting (Kaldeli et al., 2013):
Definition 2: Sensing actions are those that return
the status of an entity.
Definition 3: Acting actions are those that change
the status of one or more entities.
Acting can be further classified into the
following categories, considering to whom it is
applied:
Regarding a Person: refer to actions that are
performed in order to communicate something to a
person;
Regarding a Device: refer to actions that only
modify a device;
Regarding an Organization: refer to actions to
inform/call an organization.
All Actions of Acting type are executed by the
Functionality of a device. Thus, when the Acting is
“Regarding a Person”, it will be executed by a
Functionality of “Interaction with Person”; when it
is “Regarding an Organization”, it will executed by a
Functionality of “Interaction with Organization”,
and when “Regarding a Device”, the acting will be
its Functionality of “Interaction with Itself” (Figure
7).
Finally, each Acting leaf contains aggregated
information so one can choose more than one
functionality to perform such actions. Figure 8
illustrates this point: “Notifies Agitation” has Text,
Image, Video and Sound, and, so this acting can be
executed by any device that has the following
functionalities: “Display Text”, “Display Image”,
“Play Sound”, or “Play Video”. That is, from
Information of Acting leafs is created the set of input
of default abstract service.
In this model, it is not necessary to provide all
the information requested by the Functionality and
used by the Acting leaf. However, when it happens,
it will affect the functionality that can execute them.
For example, the “Calm Agitation” action (Figure 8)
does not have all kinds of information (e.g., Text,

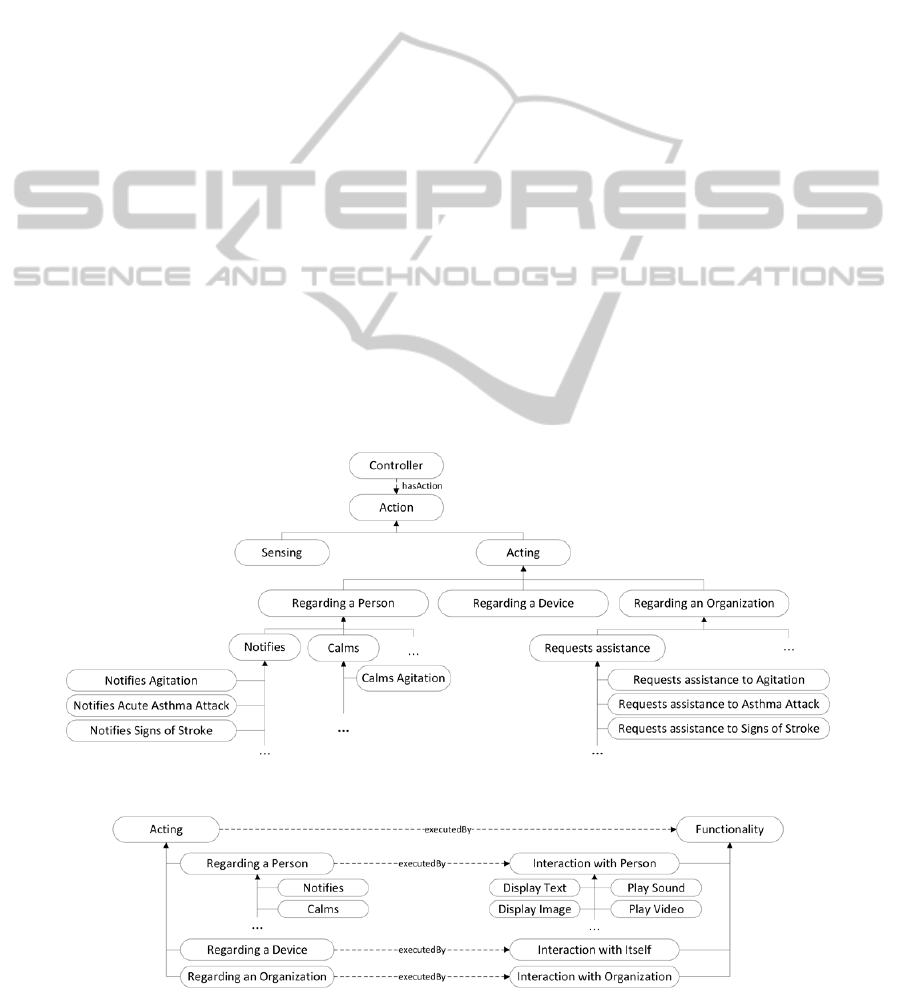

Figure 7: Controller model.

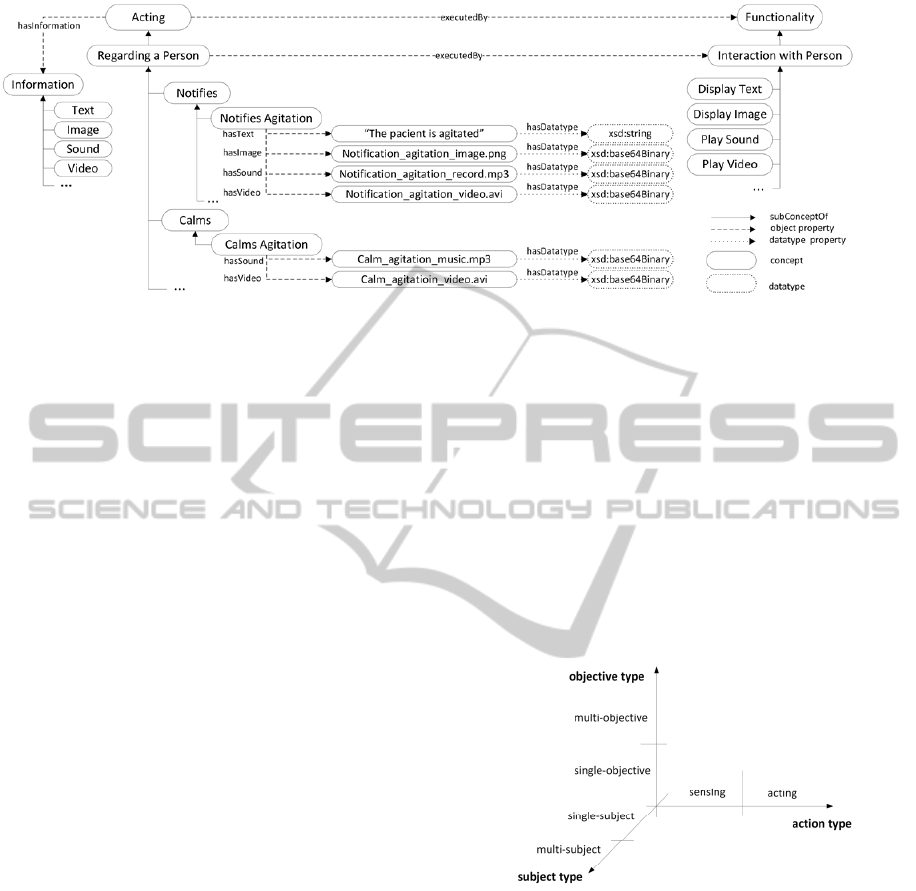

Figure 8: Acting is performed by some kind of device functionality.
BusinessProcessModelingandInstantiationinHomeCareEnvironments
519
Figure 9: The controller model has information to choose more than one functionality to perform the acting.
Image, Sound, Video), which in this case makes
sense because it is unlikely to appease a patient in a
state of agitation with a text or a picture. Thus, only
the Devices that have the “Play Sound” and/or “Play
Video” functionality can perform this action.
5.2 Business Process Modeling
Gassen et al. (2012) propose a methodology in
which ontologies are used to support business
processes. In their approach, each activity label is
composed of a triple <Subject, Action, Object>,
where: the Subject is who performs the activity,
Action is what is executed by the activity, and the
Object is the thing that suffers the action. Subject
and Object are related to ontological concepts
(Classes), while actions are related to ontological
relationships (Object Properties) between concepts.
This approach provides more semantics to assist the
design and the development of business process
models.
Based on the methodology of Gassen et al.
(2012), we also propose that each label activity
should be composed of a triple <Subject, Action,
Object>. However, in our case, every element of the
triple must be related to an ontology concept, even
Actions, which will have more specific semantics.
For instance, in our approach, we are able to add
ontological relationships and attributes to an action,
and it allows us to perform associations between
actions and elements that represent or execute in our
scenario.

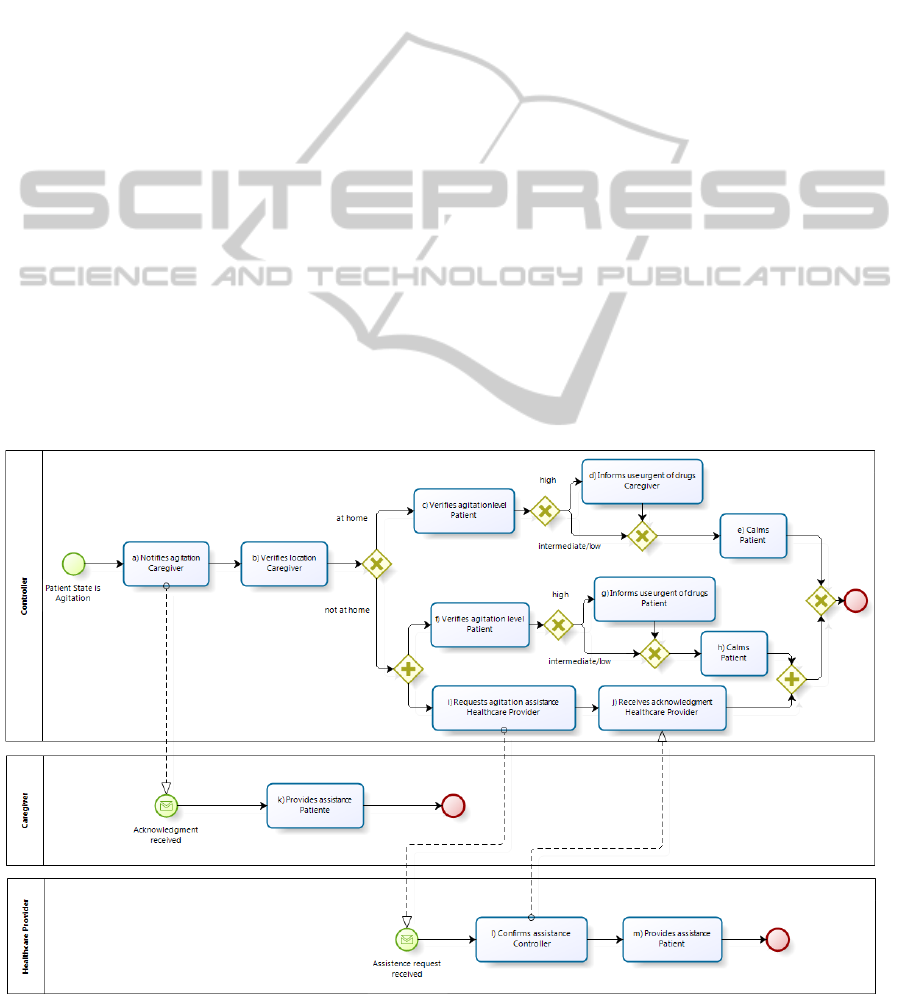

Figure 12 shows how the proposed approach can
be used to model a BP to describe the behavior of
agitation in a home care scenario, and it is based on
the BP described by Gassen et al. (2012, p.5).
5.3 BP Instantiation
Each element of the activity label triple is here
explained. The subject can be multi or single-
subject. A multi-subject indicates that all
corresponding devices will perform the same action,
while single-subject indicates that only one will run
it. The action can be classified into sensing and
acting. The object can be divided into multi or
single-objective. Multi-objective indicates that the
action will be performed on a group of goals, and
single-objective indicates that it will run on just one
goal.
Figure 10: Categorization of the subject, action and
objective.
As shown in Figure 10, the type of each element of
the label is orthogonal, not interfering in each
other’s type. For example, the label <Controller,
Close, Doors> means that the controller should close
all the doors, while <Controller, Close, Door>,
indicates that the controller should close only one
specific door.
As stated before, we will focus only on
Controller Actions of Acting type, i.e., the ones in
which the subject labels are of single type, the action
labels are of acting type and either single or multi-
objective.
ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
520
Moreover, the controller behavior changes
depending to whom the action is concerning.
Therefore, we will explain the functioning of the
framework for the label cases listed below:
<single-subject, acting-action, single-objective>
regarding a Person;
<single-subject, acting-action, single-objective>
regarding a Device or an Organization;
<single-subject, acting-action, multi-objective>
regarding a Group of Person;
<single-subject, acting-action, multi-objective>
regarding a Group of Device or Organization;
5.3.1 Single-objective regarding a Person
The proposed framework for the instantiation of
functions/operations of devices is presented in
Figure. It takes into account the disabilities of the
user and the location for a single object, regarding a
Person. Notice that, in this text, we adopted the
notation “DeviceFunc_m.n” to indicate the
functionality n of the device m.
According to the framework (Figure 11), when
the controller needs to perform a determined action
by any of the functionalities available through the
house devices, it has to execute the following steps:
a) Filters by person's location and active status:
selects only the DeviceFunc that are in the same
location or in an environment that is close to where
the person is. The target device must be active.
b) Filters by functionality: filters the set returned
by (a) by those that can attend the desired action (in
this case, as Action is “Related to the Person”, the
functionalities that can execute the desired action are
the “Interact with the People” type).
c) Filters person’s disability: filters the set
returned by (b) taking into account the disabilities of
the target person. This is done attending the
preconditions of functionality (e.g., to use the
“Image Display” functionality, the precondition is
that the level of visual disability of the target person
cannot be high)
d) Extracts action as WS: a default abstract WS
is defined from the business process and the
ontology involved. This step creates one or more
default abstract WS that correspond with the number
of information that has the specified action. For
instance, the “Calms Agitation” action has two types
of information (Sound and Video), so it will define
two WS, one for each information, i.e., each WS
will use such information as input parameter.
e) Orders and filters of devices by relevance:
using the default abstract WS defined by the BP,
semantic and syntactic matching algorithms are
executed (see below) with the DeviceFunc list
returned by step (c), which returns a list of
DeviceFunc by decreasing order of relevance based
on the results of the execution of the matching
algorithms and a threshold is made to discard the
irrelevances (i.e., those who the controller cannot
instantiate). If more than one abstract WS was
defined in step (d), the matching algorithms will be
executed for each abstract WS, and the result of all
will be ordered in the same list. Syntactic matching
may be performed by the algorithm proposed by
Gao et al. (2002), because it considers datatypes’
equivalence and subtype relationship, ensuring that a
DeviceFunc can use and return the same datatypes.
For the semantic matching, we propose using a
modified version of the semantic algorithm proposed
by Lin (1998), which, according to Sánchez et al.
(2012), is the best for ontology concepts matching.
In semantic matching of WS, the algorithm indicates

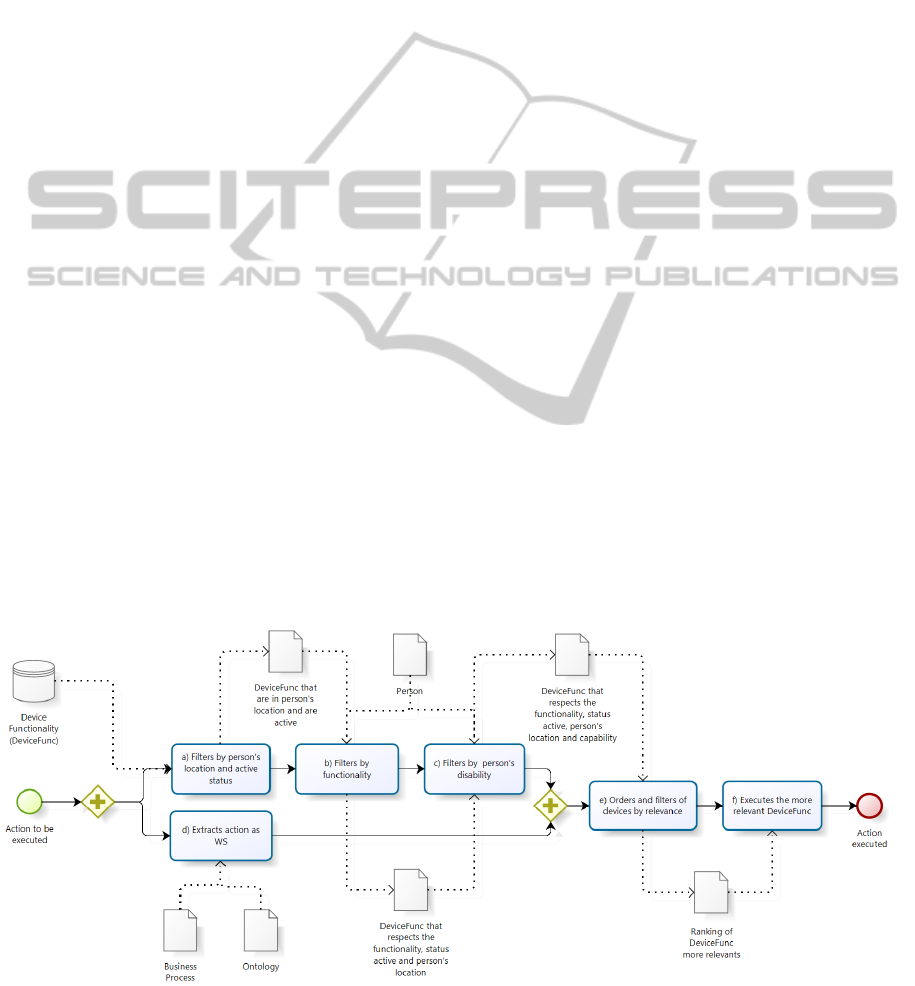

Figure 11: Proposed framework (in BPMN 2.0).
BusinessProcessModelingandInstantiationinHomeCareEnvironments
521
how related are the concepts present in the input and
output of a WS operation.
f) Executes the more relevant DeviceFunc: the
most relevant DeviceFunc from step (d) is selected
and then executed.
Briefly, the framework flow begins when the
execution of a given action is requested (Action to be
executed, Figure 11). The controller then checks
which DeviceFunc is available (i.e., has an active
status) and are in the same location or close to the
target person. After the selection of these
DeviceFunc, the ones that can perform this
particular action (as the Action is “Related to the
Person”, the functionality that can execute the action
are those that of “Interact with the People” type, and
these functionalities are filtered through the
preconditions of use they carry) and attend the target
user’s disabilities are analyzed and then selected.
From this list (which contains functionalities that are
in the same location as the target person, which are
active, can perform the desired action, and respect
the disabilities of target person, but it is not known if
the controller will be able to instantiate them from
the information contained in the desired action), the
matching with the default abstract WS is done,
which is created from the business process and its
ontology. Finally, the controller selects the most
relevant DeviceFunc, according to the matching
operations.
Thus, through the business process model
considering the entities involved (Controller, Person,
Device, Organization, Location), it is possible to
select the functionality of the devices that are in a
location close to a person and that are most suitable
to his/her disability, and to define an abstract WS to
be used in the matching algorithms (typically
comparing how a particular WS is similar to a list of
WS, and returning a list ordered by similarity value).
5.3.2 Remaining Label Cases
Other possible combinations are:
Single-objective regarding a Device or an
Organization: when the action regards a Device or
Organization, step (c) does not need to execute,
since the action is not regarding the Person, so the
controller do not need to communicate anything to
the Person.
Multi-objective regarding a Group of Person: here
the target objective is a group of persons, so the
controller does the same thing as described in
previous section, but for all people in the set.
Multi-objective regarding a Group of Device or
Organization: besides skipping step (c), in this
case instead of running the DeviceFunc more
relevant in step (f), it will run all DeviceFuncs
present in the list.
6 APPLICATION SCENARIO
To illustrate our approach, we describe the
application of our framework in two distinct
fictitious scenarios regarding home care treatment:
the first one describes the controller’s behavior when
the patient, who suffers from Alzheimer’s disease, is
in a state of agitation, and the second describes the
controller’s behavior when the patient, who suffers
from senile dementia, forgets the stove on.
In these scenarios, we assume that the Patient is
an 81 years old man who suffers from Alzheimer’s
disease and senile dementia, with severe visual
disability, mild hearing, and is alone at home; the
Caregiver is a woman of 53 years old, without
disabilities, which is not at home in any of these
scenarios. In Figure 12 and Figure 13 we described
each activity following the format <Subject, Action,
Object> proposed by Gassen et al. (2012). We also
omitted the subject in the label of the BP activity in
order to avoid repetition, so it is shown only in the
BP pool name.
6.1 Behavior to Manage Patient’s
Agitation State
In Figure 12, the BP model for dealing with the
patient’s agitation state is shown. This model was
designed using our approach, and it was adapted
from (Gassen et al., 2012).
Although BPs usually model all participants
involved in the process, we are interested only in the
controller participant. In our BP model, the actions
specified within the activities of the controller have
the following types:
Sensing: (b), (c) and (f) are sensing actions, since
they only observe the status value of an entity, in
this case, the patient’s location and the patient’s
level of agitation.
Acting: (a), (d), (e), (g), (h), (i), (j) are all acting
actions because they will change the status value
of an entity.
As our approach is focused on the actions of
Acting type, we better describe such actions bellow:
(a): first, it will select all the functionalities of the
devices (DeviceFunc) that can run the “Notifies
Agitation” action. As shown in Figure 9, this
action has four types of aggregate information
(Text, Image, Sound and Video). Because of this,
ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
522
only devices that have the following functionalities
will be selected: “display text”, “display image”,
“play sound” and “play video”. As the caregiver is
not in the patient’s house, and the only device that
has the same patient’s location is the mobile phone
(and it has all these functionalities), the controller
can choose any of these mobile phone’s features to
notify the caregiver about the patient’s state. It
could, for example, send an auditory message
(play sound), which would alter the status of the
mobile phone to playing sound = on and running =
true.
(i) and (j): typically each kind of organization will
have only a single mean of communication, what
changes is the information.
(d) and (g): the controller checks which
functionalities can execute this action, then verifies
the location of the target object, which are the
Caregiver and Patient respectively, and selects the
DeviceFunc that attend such requirements. In this
example, the activity (d) will not be executed since
the caregiver is not at home, and we assume that
the patient is in a living room and there is a TV
around (with functionalities: “display text” ,
“display image” and “play video”) and a Stereo
(with “play sound” functionality), but the latter is
unplugged. Thus, the controller would choose the
TV “play video” functionality, since the patient
has severe visual disability, which prevents the
execution of “Display Image” and “Display Text”
(notice that a video has also sound besides the
image shown). Once asked to perform the
functionality of the TV “play video”, the status
will change to playing_video = on and executing =
true.
(e) and (h): to calm the patient, the controller will
choose the functionality of the TV “play video” in
order to play a relaxing sound to the patient.
However it cannot be executed until the device’s
status changes to playing_video = off and
executing = false. In this example, the activity (e)
will not be executed since the caregiver is not at
home.
6.2 Behavior to Manage the Oblivion of
the Stove Turned on
The BP model to handle the oblivion of the stove
turned on was taken from the work of Augusto et al.
(2006). Again, we separate the activities by their
types of actions into the following: Sensing: (a), (b),
(c) and (d); and Acting: only (e).
In the model shown in Figure 13, the controller is
concerned if the patient or anybody else forgot the
stove on. This is presented in the BP activity (a),
whose action is of the Sensing type and has People
(a Group of Person) as a multi-target object, i.e., it
Figure 12: Business process model to take care the state of the patient’s agitation (in BPMN 2.0).
BusinessProcessModelingandInstantiationinHomeCareEnvironments
523

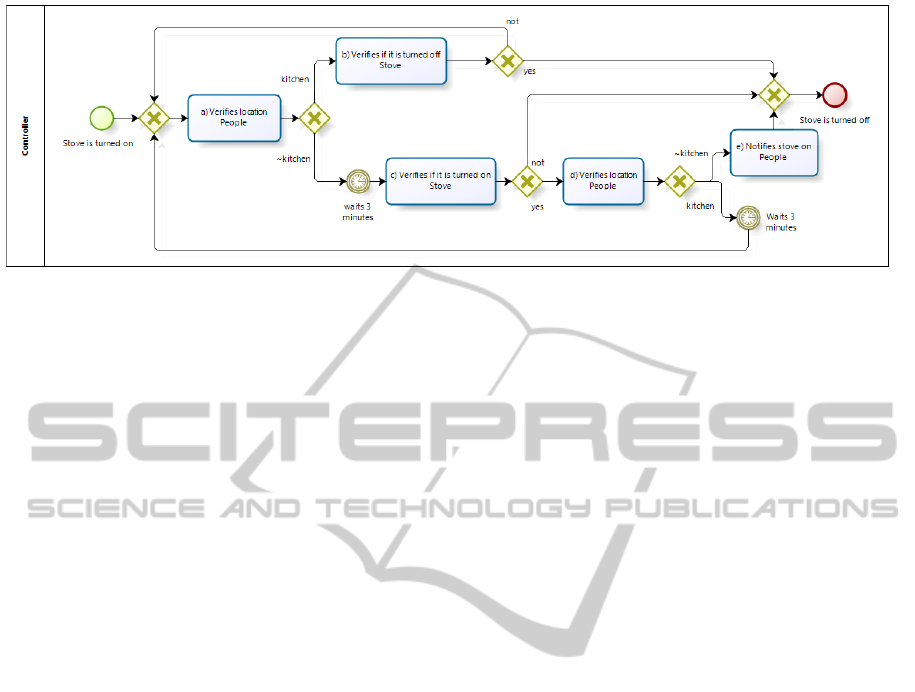

Figure 13: Business process model to notify that the stove was forgotten on (in BPMN 2.0).
will check the location of anyone inside the house.
Thus, the action of acting is performed as follows:
(e): here the target object is also multi; thereby
what is expected is that every person in the house
is informed that the stove is on. Thus, it is
performed according to the following steps: the
controller creates a list of DeviceFunc that could
execute the “Notifies stove on” action for each
person creates a set of DeviceFunc that is in a
nearby location and meets its characteristics
(disabilities). It uses the DeviceFunc information
present in the controller model, and finally the
notification is executed for each person.
7 CONCLUSIONS
In this paper we presented a novel approach to
address the problem of home care services’
instantiation modeled by a BP taking into account
contextual aspects. To solve this problem, we
proposed a base ontology to describe the central
concepts of the domain and their relationship.
Therefore, when modelers are specifying a BP
model at the operational level, they will select the
corresponding concepts in the ontological model to
fulfill the labels of the BP activities. After, when the
BP is executing some acting action, the controller
looks into the ontological model to verify which
functionality can perform such particular action.
Based on this, it also verifies if the device that
possesses the functionality is closely to the user.
Finally, the functionality that meets the user’s
disabilities is selected and the WS is executed.
As main contributions we can cite the base
ontological models for home caring and the
framework for providing dynamic instantiation of
home devices to perform actions taking into account
semantic, syntactic and contextual aspects. Such
contributions allow BP models to keep at the
operational level, allowing the modeler to be
someone from the health care domain, without
having to worry about implementation issues. In
addition, our approach allows the system to be
adaptive to the users, and the house can incorporate
new devices and still manage them according to
need.
A limitation of our work is that models need to
be populated with all possible actions of the
controller and device’s functionalities in order to
allow the modeler to establish the needed
ontological concepts relationships with the BP.
As future work, we intend to simulate a patient at
home and specify more use cases in the area of
home care to validate our approach. We would like
also to focus on actions of sensing type, so that the
entire controller will be modeled and could be
dynamically executed by home devices.
ACKNOWLEDGEMENTS
The authors would like to thank CAPES and CNPq,
Brazil, for partially supporting this work.
REFERENCES
Ardissono, L., Di Leva, A., Petrone, G., Segnan, M.,
Sonnessa, M., 2006. Adaptive Medical Workflow
Management for a Context-Dependent Home
Healthcare Assistance Service. Electron. Notes Theor.
Comput. Sci. 146, 59–68.
Augusto, J. C., Liu, J., Chen, L., 2006. Using ambient
intelligence for disaster management. In: Knowledge-
Based Intelligent Information and Engineering
Systems, pp. 171–178.
Auvinen, A., Silen, R., Groop, J., Lillrank, P., 2011.
Defining Service Elements in Home Care. In: Annual
ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
524
SRII Global Conference. IEEE, pp. 378–383.
Bastide, R., Zefouni, S., Lamine, E., 2010. The homecare
digital ecosystem: An information system support
architecture. In: 4th IEEE International Conference on
Digital Ecosystems and Technologies, pp. 475–480.
Bechhofer, S., Harmelen, F. van, Hendler, J., Horrocks, I.,
McGuinness, D.L., Patel-Schneider, P.F., Stein, L.A.,
2004. OWL Web Ontology Language - Reference
[WWW Document]. Online. URL http://www.w3.org/
TR/owl-ref/
Bock, C., Fokoue, A., Haase, P., Hoekstra, R., Horrocks,
I., Ruttenberg, A., Sattler, U., Smith, M., 2012. OWL
2 Web Ontology Language - Structural Specification
and Functional-Style Syntax (Second Edition) [WWW
Document]. Online. URL http://www.w3.org/TR/
2012/REC-owl2-syntax-20121211/
Bonino, D., Corno, F., 2008. Dogont-ontology modeling
for intelligent domotic environments. Semant. Web-
ISWC 2008 790–803.
Chinosi, M., Trombetta, A., 2012. BPMN: An introduction
to the standard. Comput. Stand. Interfaces 34, 124–
134.
Crow, B.K.L., 2008. Four Types of Disabilities : Their
Impact on Online Learning 51–55.
Current World Population [WWW Document], 2013. .
WorldoMeters. URL http://www.worldometers.info/
world-population/
Dey, A.K., 2001. Understanding and Using Context. Pers.
Ubiquitous Comput. 5, 4–7.
Fensel, D., Lausen, H., Polleres, A., Bruijn, J. de,
Stollberg, M., Roman, D., Domingue, J., 2007.
Enabling Semantic Web Services. Springer Berlin
Heidelberg.
Gao, X., Yang, J., Papazoglou, M.P., 2002. The capability
matching of Web services. In: Fourth International
Symposium on Multimedia Software Engineering.
Proceedings. IEEE Comput. Soc, pp. 56–63.
Gassen, J.B., Machado, A., Thom, H., Oliveira, P.M. De,
2012. Ontology Support for Home Care Process
Design. In: Proc. of the 14th International Conference
on Enterprise Information Systems, pp. 84–89.
Gruber, T.R., 1993. A Translation Approach to Portable
Ontology Specifications by A Translation Approach to
Portable Ontology Specifications 5, 199–220.
Kaldeli, E., Warriach, E.U., Lazovik, A., Aiello, M., 2013.
Coordinating the web of services for a smart home.
ACM Trans. Web 7, 10:1–10:40.
Lin, D., 1998. An Information-Theoretic Definition of
Similarity. In: Proc. of the Fifteenth International
Conference on Machine Learning, pp. 296–304.
Machado, A., Pernas, A.M., Augustin, I., Thom, L.H.,
Krug, L., Palazzo, J., Oliveira, M. De, 2013. Situation-
awareness as a Key for Proactive Actions in Ambient
Assisted Living. In: Proc. of the 15th International
Conference on Enterprise Information, pp. 418–426.
Martin, D., Burstein, M., Hobbs, J., Lassila, O.,
McDermott, D., McIlraith, S., Narayanan, S.,
Paolucci, M., Parsia, B., Payne, T., Sirin, E.,
Srinivasan, N., Sycara, K., 2004. OWL-S : Semantic
Markup for Web Services 1 . Introduction : Services
on the Semantic Web 2 . Some Motivating Tasks
[WWW Document]. W3C. URL http://www.w3.org/
Submission/OWL-S/
McGee-Lennon, M.R., 2008. Requirements engineering
for home care technology. In: Proc. of the Twenty-
Sixth Annual CHI Conference on Human Factors in
Computing Systems - CHI’08, pp. 1439–1442.
Paganelli, F., Giuli, D., 2011. An ontology-based system
for context-aware and configurable services to support
home-based continuous care. IEEE Trans. Inf.
Technol. Biomed. 15, 324–33.
Pung, H., Gu, T., Xue, W., Palmes, P., Zhu, J., Ng, W.,
Tang, C., Chung, N., 2009. Context-aware middleware
for pervasive elderly homecare. IEEE J. Sel. Areas
Commun. 27, 510–524.
Rong, W., Liu, K., 2010. A Survey of Context Aware Web
Service Discovery: From User’s Perspective. In: 2010
Fifth IEEE International Symposium on Service
Oriented System Engineering. IEEE, pp. 15–22.
Sánchez, D., Batet, M., Isern, D., Valls, A., 2012.
Ontology-based semantic similarity: A new feature-
based approach. Expert Syst. Appl. 39, 7718–7728.
Stroulia, E., Wang, Y., 2003. Flexible interface matching
for Web-service discovery. In: Proc. of the 7th
International Conference on Properties and
Applications of Dielectric Materials, IEEE Comput.
Soc, pp. 147–156.
Su, Z., Wang, X., 2010. An improved approach to rapid
discovery of semantic Web service. In: 5th
International Conference on Pervasive Computing and
Applications. IEEE, pp. 378–381.
Wang, F., Turner, K.J., 2008. Towards personalised home
care systems. In: Proc. of the 1st ACM International
Conference on PErvasive Technologies Related to
Assistive Environments - PETRA’08, pp. 44:1–44:7.
Wang, H., Huang, J.Z., Qu, Y., Xie, J., 2004. Web
services: problems and future directions. Web Semant.
Sci. Serv. Agents World Wide Web 1, 309–320.
Weske, M., 2012. Business Process Management.
Springer Berlin Heidelberg, Berlin, Heidelberg.
World Population Prospects: The 2012 Revision [WWW
Document], 2013. . United Nations, Dep. Econ. Soc.
Aff. URL http://esa.un.org/unpd/wpp/Documentation/
pdf/WPP2012_Press_Release.pdf
Zhu, J., 2004. Passive Action and Causalism. Philos. Stud.
119, 295–314.
BusinessProcessModelingandInstantiationinHomeCareEnvironments
525
