Adding Semantic Relations among Design Patterns

Marcos Alexandre Rose Silva and Junia Coutinho Anacleto

Department of Computing, Federal University of São Carlos, Washigton Luis km 235, São Carlos, São Paulo, Brazil

Keywords: Design Patterns, Design Pattern Formalism, Pattern Language, Semantic Relations, Pattern Relationships.

Abstract: Design patterns have been used to support design decisions to solve recurring design problems adopting the

successful solutions stated in design patterns. One of the main characteristics of design patterns is to allow

the patterns' content understanding because they are written using a common language, i.e., not specialized,

and they bring examples to support the comprehension of the solutions. On the other hand, to understand the

correlation among these design patterns, usually organized through nodes and edges as in a graph, is not a

simple task. In this context, this paper presents a semantic approach, based on how humans organize their

knowledge, to connect design patterns and define those relationships according to our intellectual structure

and function. A feasibility study, described here, shows evidences that semantic relations allow organizing

patterns to support the comprehension of patterns connections, as well as, the name of these relations are

able to express their meaning.

1 INTRODUCTION

According to Borches (2001) design patterns contain

the essence of successful solutions to recurring

design problems in a certain context. The concept of

design patterns came from an architect called

Alexander who started observing and formalizing

problems and their successful solutions (Alexander

et al., 1977). Alexander et al., (1977) decided to

formalize and register them in order to share their

knowledge and experience with their colleagues, as

well as, to communicate with their clients. That´s

why they used a common language and examples.

These knowledge and experience registered through

problems and solutions were named patterns.

Patterns were well accepted by architect

communities because they noticed patterns as useful

way to share knowledge and to describe successful

solutions, i.e., solutions applied many times with

satisfactory results (Alexander et al., 1977).

According Michael et al., (1998), patterns started

been used in Software Engineering (SE) area, and

then Human-Computer Interaction (HCI).

HCI researchers and professionals started

formalizing and writing patterns considering their

knowledge, experience and observation about design

of interfaces ( Michael et al., 1998). Figure 1

illustrates a part of HCI design pattern written by

Montero, who has experience on web sites design

(Montero et al., 2002).

Each pattern has some required information as

name of patterns – main idea of pattern; problem –

specific problem that the pattern is meant to solve

solution – main message of pattern, it presents the

solution to the problem; and some optional

information as examples – images, schemes, etc., to

illustrate the solution and facilitate its understanding

(Fincher et al., 2003).

Name: Polyglot

Context: The power of the Web is in its

universality.

Problem: How can the user do a useful use of

the Web site and access information at your own

pace?

Forces: The user wants easy access to

information; The user has little or no incentive to

spend time learning technical details.

Solution: Speak user’s language is “design for

all”. Kids, older or disabled people can visit our

Web site and universal design techniques can be

applied in the design of Web site and his services.

Information should be provided of a suitable manner

by considering several kinds of peoples and

technical features and by using Polite language.

Examples:

Figure 1: Part of Montero´s pattern (Montero et al., 2002).

Alexandre Rose Silva M. and Coutinho Anacleto J..

Adding Semantic Relations among Design Patterns.

DOI: 10.5220/0004896600460056

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 46-56

ISBN: 978-989-758-029-1

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 1 represents one from the twenty-three

patterns formalized by Montero. These patterns are

organized through nodes, with names of patterns,

and edges to represent the relationships to each

other, as in a graph. When patterns are weakly

related to each other, e.g., through categories, is

considered a pattern collection. When there is a well

structured collection of patterns that rely to each

other, as Montero´s patterns, is considered a pattern

language (Coplien, 1998).

It is possible to scan the graph and find the

pattern, which best describes the overall scope of the

project or the problem that needs to be solved, i.e.,

design decisions are made by selecting and

instantiating appropriate patterns, and composing

them together (Coplien, 1998).

In contrast, it is not a trivial task to understand

these relationships among patterns because edges

indicate relationships among patterns but they do not

represent the meaning of these relationships. In this

context, this paper presents semantic relations to

organize patterns and define relationships according

human intellectual structure and function. Our

hypothesis is - organizing patterns as human

intellectual structure and inserting semantic relations

can support the comprehension of pattern

connections.

2 RELATED WORK

Kruschitz et al., (2010) investigated 21 pattern

languages and collections to analyze the design

patterns relationships variety. They describe that

there is no consensus on how patterns should be

organized and categorized in order to provide

appropriate information to produce good design.

They also discuss that the most of authors are using

the Alexandrian form, nodes and edges, possibly

because it was the ﬁrst form used to encapsulate

design knowledge. Because of that, pattern authors

have transferred the Alexandrian pattern structure to

software engineering.

According to Kruschitz et al., (2010) some

authors are using association, aggregation and

specialization, from software engineering concepts,

to define relationships among patterns. Association –

pattern x has an unspecific connection between

pattern y; Aggregation – pattern x is frequently used

together with pattern y; Specialization – pattern x

add more attributes to pattern y, i.e., a pattern

inherits the attributes from another pattern, as well

as, add new ones to fulfill the purpose of pattern.

These authors also pointed out another relationship

called anti-association, which means that pattern x

and a pattern y must not be used together.

Considering software engineering context,

Gamma et al., (1994) defined the relationships

among design patterns considering object-oriented

concepts. Therefore, there is a classification of

design patterns according two criteria: jurisdiction

(class, object, compound) and characterization

(creational, structural, behavioral). Because of that,

there are relationships called is implemented using –

pattern x is implemented using pattern y; similar in

constructing object structures – pattern x is similar

in constructing object structures as pattern y; often

builds a object – pattern x often builds a pattern y

object, among others.

In order to improve the comprehensibility of the

relationships defined by Gamma, Zimmer (1995)

proposed a classification of the relationships which

helps in understanding the similarities among the

relationships. He defined three types or

classifications: uses in its solutions – pattern x uses

the design pattern in its solution. Thus, the solution

of pattern y represents one part of the solution of

pattern y; is similar to - pattern x and pattern y

address a similar kind of problem but not a similar

kind of solution; can be combined with – patterns x

and y are somehow similar, but it is difficult to state

it more precisely.

Conte et al., (2002) also defined relationships

considering software engineering context. For

example, they used stereotypes for use cases, as

Uses and Extend, existing at UML (Unified

Modeling Language) to define relationships among

patterns. Uses – pattern x uses a pattern y; Refine –

pattern x refines pattern y, i.e., one must be a

specialization of another; Requires – pattern x is

required in pattern y; Alternative – pattern x is an

alternative of a pattern y, i.e., they have the same

context and problem but not the same solution.

Girardi et al., (2006) described about

OntoPattern, an ontology that represents knowledge

about how patterns are described and about the

relationships defined by Conte et al., (2002).

Considering UML context, Bottoni et al., (2010) use

the formalizing of the UML diagrams to organize

patterns, for example, they use sequence diagram

and structure diagram.

Taking into consideration architecture context,

Kumar el al., (2010) applied architecture level

techniques at pattern level to derive the DDTM

(Design Decision Topology Model) of a pattern.

According to these authors, this representation

enriches pattern descriptions and helps to analyze

quality requirement traceability, as well as

AddingSemanticRelationsamongDesignPatterns

relationships amongst patterns. The relationships

defined are: Is-Duplicate-of – patterns x and y

provide same solution to same problem; Is-an-

Alternative-to – patterns x and y solve the same

problem, but propose different choices; Comprises –

pattern x uses the pattern y in its solution; Refines –

patterns x and y address same problem but pattern x

provides more refined (with less consequences)

solution than y.

Fincher et al., (2003) discuss a possibility to

identify which patterns from various authors could

refer to patterns in other pattern languages or

collections. According to authors, they defined three

pre-defined link types to reflect the common ways

patterns are structured. These types were inserted in

Pattern Language Markup Language (PLML)

specification, which is a language that explains how

to formalize/write patterns, describing also required

information to express the knowledge and

experience. The types are: is-a – a pattern is the

same as, or is an alternative solution to the same

problem; is-contained-by – a pattern is “smaller” and

is used (with others) to instantiate a larger one and;

contains – the reciprocal of is-contained-by.

Kruschitz (2009) discusses about a framework

called XPLML (eXtended Pattern Language Markup

Language) to support patterns formalization

including these types of relationships among

patterns. On the other hand, Janeiro et al., (2010)

describe that these three types are not enough to

describe more precisely the relationships among

design patterns. Because of that, they presented

more five types as an extension to these existing

types. They defined these types analyzing patterns

descriptions and their references to other patterns.

The types are: Used With – pattern x is frequently

used together with pattern y, but they are not

hierarchically related; Similarity – pattern x has

some characteristics similar to the pattern y, i.e., one

can be used as an alternative to another; Realization

– pattern x implements the concepts described by a

pattern y; Enhancement – pattern x builds upon an

pattern y, enhancing its functionalities; Conflict –

pattern x and a pattern y must not be used together.

According to Fricke et al., (2000) there is not a

temporal distinction among patterns´ relationships,

i.e., there is no information about what patterns

should be used firstly or what patterns should be

used together. Because of that, they defined a

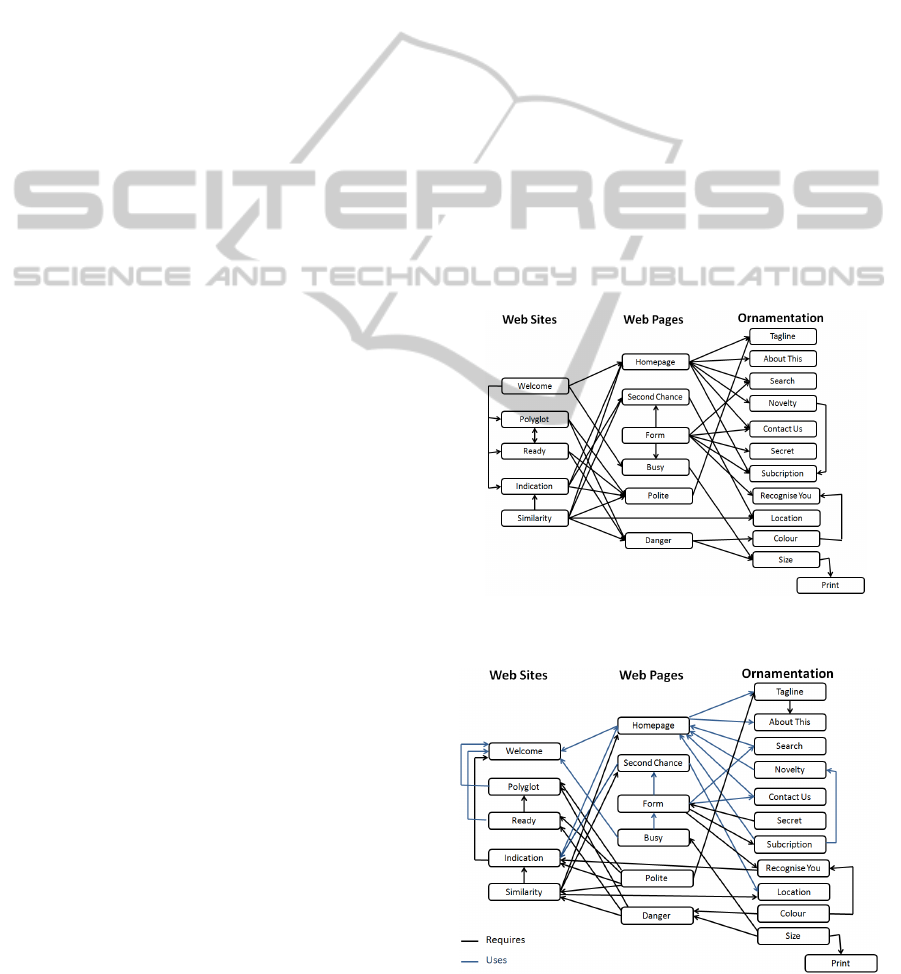

hierarchical organization inserting colors on lines

(edges). Red line means that a pattern must be used

before another; Black line means that a pattern is a

specialization of another and; when there are two or

more patterns at the same rectangle means that they

share a common context and they must be used

together. According to authors, through colors and

direction of the arrow is possible to know the

sequence and how the patterns should be used.

White (2012) describes how to visualize design

patterns relationships at mobiles. Different lines

(edges) show the relationship, solid lines indicate

that a related pattern is required, while dashed lines

indicate that the related pattern is optional. In the

beginning, it is not displayed all patterns at the same

time. The main patterns are displayed and others

related patterns are displayed considering

interaction. For example, when there is a click on a

pattern, others connected patterns are displayed with

solid or dashed lines.

Investigating the related work, it is possible to

identity that these types of relationships can be

appropriated to define the relations among patterns

from different pattern languages or collections. On

the other hand, they are not appropriated to define

the relations among patterns from the same pattern

languages or collections, as well as, some of them do

not have a natural semantic for people, e.g. clients,

with no programming and/or software engineering

knowledge.

For example, relationships as association,

aggregation and specialization come from software

engineering concepts. Because of that, they are not

understandable for all people (Kruschitz et al.,

2010). It is not supposed to people who read patterns

know these concepts and others related to software

development process (Borchers, 2001; Kruschitz et

al., 2010; Welie et al., 2012). It important to

highlight that one of the main characteristics of

design patterns is to support communication among

people at software development process.

Others relationships as is similar to, Alternative,

Is-an-Alternative-to, Is-Duplicate-of, is-a, etc.,

which mean that patterns solve the same problem

with same solution, etc., are not useful for patterns at

the same pattern language, because a pattern

language is a structured collection of patterns that

rely to each other; then, there are not equals patterns

and all of them can be combined with (Used With,

Uses) each other with no Conflict (Coplien et al.,

1998).

In this context, this paper presents semantic

relations defined by Minsky to be used among

patterns in order to connect them at the same way

that humans organize their knowledge, as well as,

using familiar semantic to be comprehensible for all

people.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

3 MINSKY´S RELATIONS

Marvin Minsky is a researcher at artificial

intelligence, cognitive psychology, computational

linguistics, among others areas (Minsky, 1987). He

has worked chiefly on imparting to machines the

human capacity for commonsense reasoning.

Commonsense is a common knowledge shared

by nearly people. This knowledge comes from our

social interactions, observations, behaviors, belief,

culture, etc., i.e., it is not necessarily scientific

knowledge but it can be. For example, some children

believe in Santa Claus and they know how to

describe him, telling that he is an elder with white

beard, red clothes, as well as, he always comes at

Christmas to give gifts, etc. Other people believe

that some teas help to cure some health diseases and

that the Earth revolves around the Sun, etc (Minsky,

1987; Carvalho et al., 2008; Liu et al., 2004).

Marvin Minsky has investigated human

intellectual structure and function in order to know

how to store this knowledge at computer considering

the way that people´s brains do. He intends to make

intelligent machines and explore new interface

designs with that knowledge (Minsky, 1987; Liu et

al., 2004). There are some projects using this

investigation to collect and use human

commonsense at computer (Carvalho et al., 2008;

Liu et al., 2004; Minsky, 1987).

In this paper our focus is not to give intelligence

to machine, etc., but it is to investigate and use

human intellectual structure and function to organize

patterns in order to allow people notice and

understand the relationships among them.

Marvin Minsky has defined twenty semantic

relations to store and organize concepts or

knowledge in a close way to human cognitive

structure (Liu et al., 2004). Figure 2 shows a

network with concepts related to Santa Claus

connected by Minsky´s semantic relations.

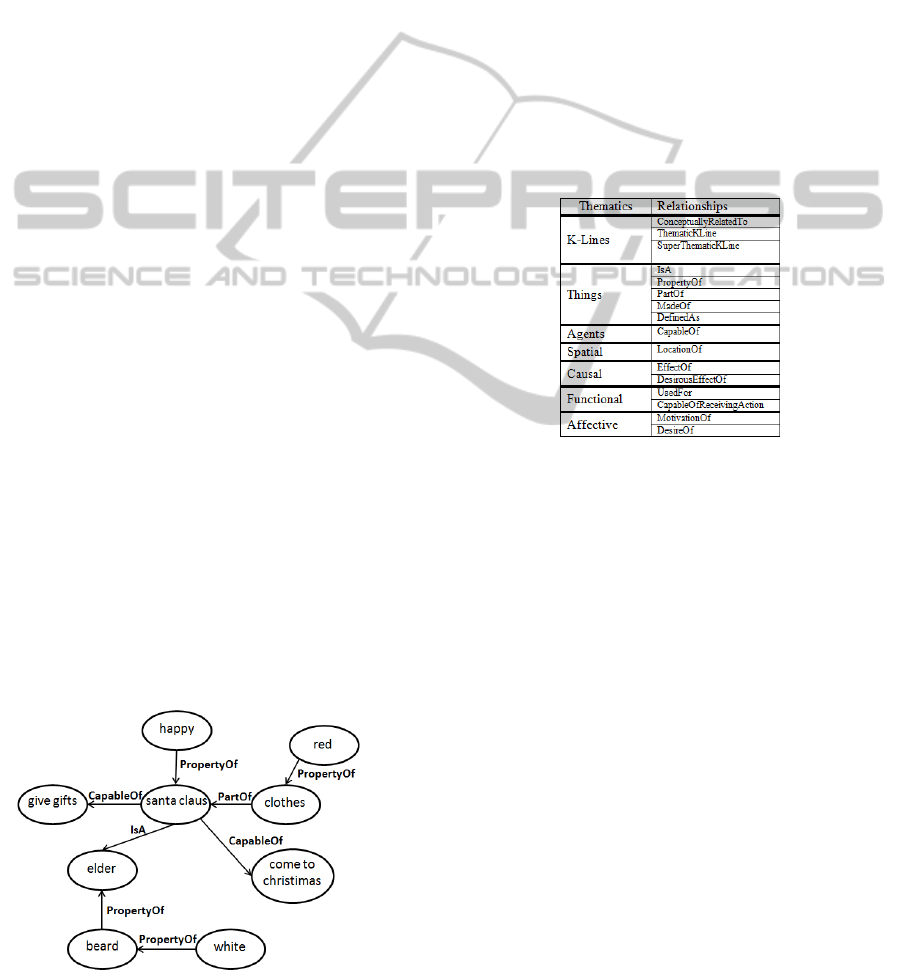

Figure 2: Concepts related to Santa Claus connected by

Minsky´s semantic relations.

Considering Figure 2, it is possible to observe

that Santa Claus IsA elder, CapableOf give gifts, one

PartOf him is his clothes, red can be considered a

PropopertyOf his clothes, etc. There are two main

characteristics in these semantic relations: firstly, as

described previously, they allow organizing

concepts as human cognitive structure and; secondly

they were defined using a familiar semantic, i.e., it is

not necessary scientific knowledge, as software

engineering, etc., to understand the meaning of IsA,

PartOf, CapableOf, etc (Liu et al., 2004).

Figure 3 shows part of Minsky´s semantic

relations grouped into various thematics. For

example, IsA, PropertyOf, etc., are grouped as

Things, because these relations are used to store and

organized concepts related to things. UsedFor and

CapableOfReceivingAction are grouped as

Functional, etc.

Figure 3: Minskys´semantic relations (Liu et al., 2004).

These relations had investigated and applied at one

pattern language and one pattern collection. The

pattern language supports designing of web sites

(Montero et al., 2002) and the pattern collection,

called Co-authoring patterns, support designing of

web educational systems (Anacleto et al., 2013).

These patterns were chosen because we have been

used Montero´s patterns since 2007 and we had

formalized the collection. The results of these

investigations and applications are described at the

next section.

4 SEMANTIC RELATIONSHIPS

FOR PATTERNS

One of the thematics, Figure 3, was not applied. K-

lines represent relations to be used when the

connection between concepts is not clear. These

generic relations are not useful for patterns at the

same language and collections, because it is

supposed that these patterns are connected, and then

AddingSemanticRelationsamongDesignPatterns

it is necessary to specify clearly these relationships.

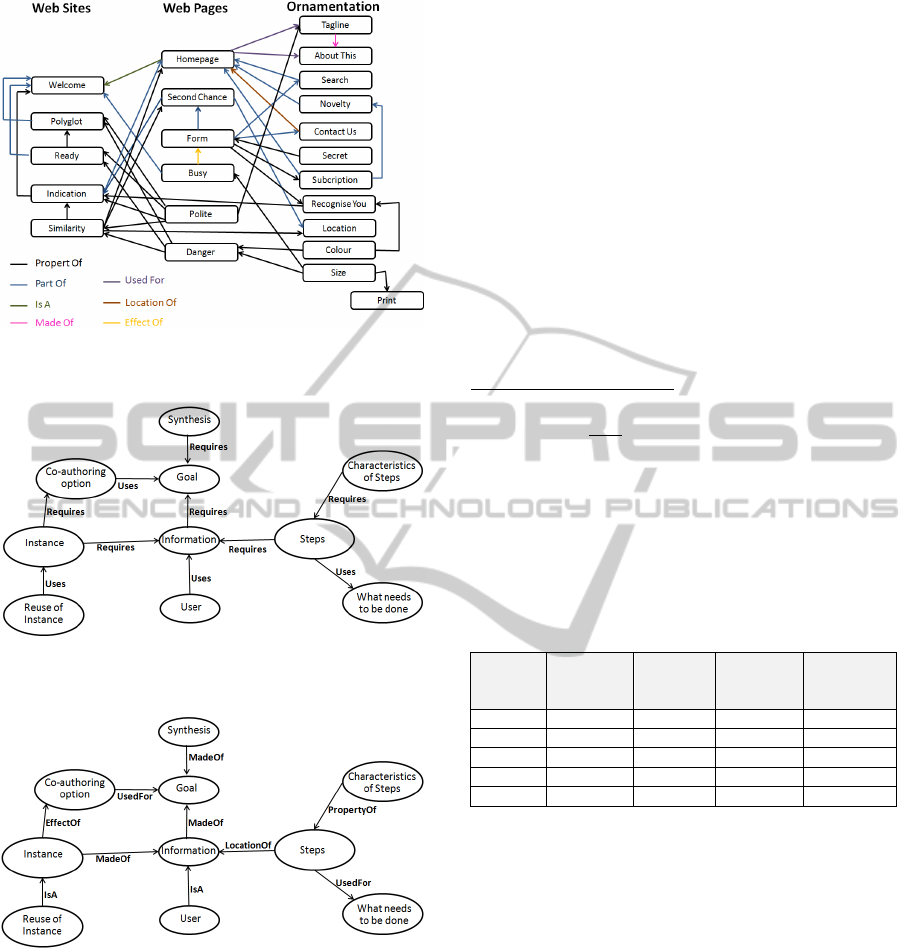

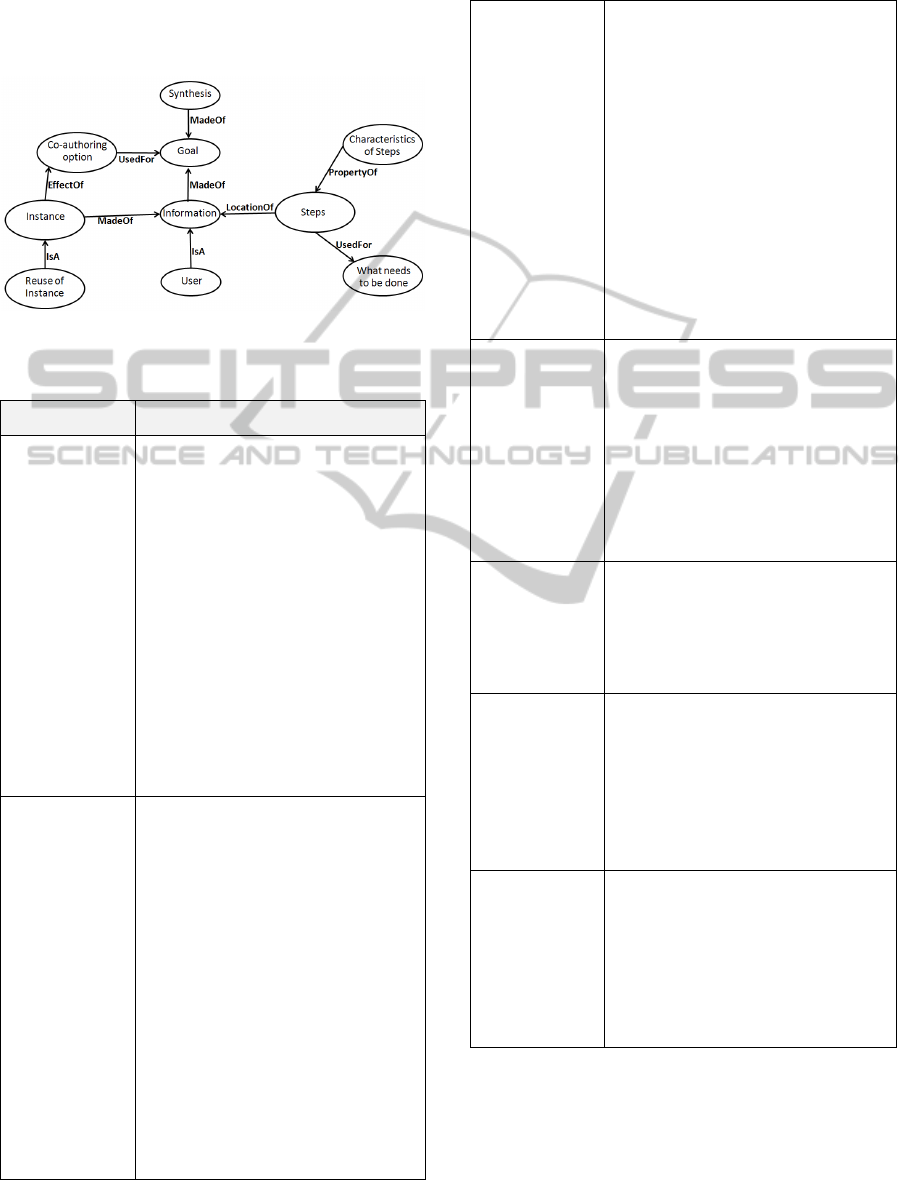

Figure 4 illustrates the Co-authoring patterns

collection and their relationships considering

Minsky´s semantic relations, and after there is Table

1 with explanations about each relation presented.

Figure 4: Patterns connected by semantic relations.

Table 1: Minsky´s semantic relations to connect patterns.

Relationships Explanations and Examples

IsA

pattern x specialize pattern y; they

are hierarchically related.

Natural Example: Santa Claus IsA

Elder

Pattern Example: User IsA

Information

Observation: IsA defined by Minsky

and is-a described by Fincher are

different because IsA does not mean

the same problem and solution.

DefinedAs relation described by

Minsky has this specific meaning

(equal, synonym), but it is not

applied at patterns from the same

language/collection as described at

Section 2.

PropertyOf

pattern x contains

properties/characteristics of pattern

Natural Example: red PropertyOf

clothes

Pattern Example: Elements

PropertyOf Steps

Observation: PropertyOf means

composition (at software engineering

concepts) because there is no sense

to apply just a property. For

example, it is necessary to know

about clothes to identify where to

apply the red. This property (red)

must be applied with clothes. On the

other hand, clothes can be applied

without red.

Table 1: Minsky´s semantic relations to connect

patterns. (Cont.)

PartOf

pattern x can be determined as part

of pattern y.

Natural Example: clothes PartOf

Santa Claus

Pattern Example: Search PartOf

HomePage (patterns from Montero)

Observation: Each part can have its

own properties, etc., i.e., PartOf

means aggregation (at software

engineering concepts) because there

is sense to apply one pattern without

another. For example, It is possible

to apply clothes without Santa Claus,

as well as, Santa Claus without

clothes.

MadeOf

pattern x is a subtype of pattern y.

pattern x is a product and pattern y is

a substance. In other words, pattern x

is obtained through a processing

from pattern y.

Natural Example: bacon MadeOf

pork

Pattern Example: Synthesis MadeOf

Goal (in this case, Synthesis

represents a tip of the Goal).

LocationOf

pattern x represents the location of

pattern y.

Natural Example: in war LocationOf

arm

Pattern Example: Steps LocationOf

Information

EffectOf

pattern x represents a consequence of

an action or an event of pattern y.

Natural Example: entertainment

EffectOf view video

Pattern Example: Coauthoring option

EffectOf Information (in this case,

Coauthoring option allows the

insertion of Information).

UsedFor

pattern x specifies a function of

pattern y.

Natural Example: fireplace UsedFor

burn wood

Pattern Example: Coauthoring option

UsedFor Goal (in this case, Goal

contains the explanation about the

use of Coauthoring Option).

5 FEASIBILITY STUDY

A feasibility study was done in order to observe the

comprehension of relationships among patterns

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

through three different kinds: 1) Alexandrian form

considering just nodes and edges; 2) Conte et al.’

Relations; 3) Minsky´s semantic relations. The

second way was chosen because two of the relations

defined by Conte et al., (2002) represent

relationships among patterns that complement each

other with no conflict. For instance, there are Uses

and Requires to make clear when a pattern can be

used or required by another.

At feasibility study, it was necessary to design

low-fidelity web educational system prototypes, i.e.,

design interfaces of systems on papers, considering

web pattern language formalized by Montero et al.,

(2002); or Co-authoring patterns collection

formalized by Anacleto et al., (2013) for web

educational systems designing.

At feasibility study, there had been 20

participants who attended an optional discipline at

university about Human-Computer Interaction (HCI)

concepts to design web computer systems and, 5

undergraduates from Pedagogy or Mathematic who

accepted the invitation to attend the discipline to

support designing low-fidelity web educational

system prototypes.

5.1 First Step

Firstly, there was a brief explanation about the

feasibility study;

Secondly, the 20 participants filled a pre-

questionnaire considering their experience and

knowledge about Software Engineering (SE), HCI

and their practical experience about design computer

systems, etc., and the 5 participants filled a pre-

questionnaire considering their uses of computer

and internet, as well as their experience using

computer on teaching.

Thirdly, the participants were introduced to some

HCI concepts as design system, prototype and

scenario. This last concept was taught because

participants needed to design prototypes considering

scenarios that described educational activities,

reported by teachers.

During these explanations, the answers of the

questionnaires were analyzed in order to divide the

participants in homogenous groups. It was

interesting to observe that the 20 participants were

electrical engineering undergraduates with no

knowledge related to ES or HCI concepts but they

were interested about designing systems. Everybody

had attended one discipline at computer area, Data

Base and, some of them had a little experience with

web sites development. It was considered as an

opportunity to observe how participants from others

areas understand pattern connections.

Five groups were created with 5 participants. In

each group, there were: one undergraduate from

pedagogy or mathematic, all of them is familiar with

computer and internet and, they had used computer

games at classroom and they think that “educational

games are useful tools”; one undergraduate with web

sites development experience and; others.

Fourthly, groups could discuss the concepts

introduced and one scenario randomly selected for

each group.

5.2 Second Step

Firstly, the groups were introduced to prototype and

design patterns concepts. It was explained about

pattern language and collection but with no details

about the connections among patterns, i.e., with no

explanations related to Alexandrian form, Conte et

al.’ Relations and Minsky´s relations.

Secondly, each group accessed a randomly

selected pattern language with one kind of

relationship. One group with Montero´s Patterns

Figure 5: Montero´s Patterns with Alexandrian Form

(MPAF).

Figure 6: Montero´s Patterns with Conte´s Relations

(MPCR).

AddingSemanticRelationsamongDesignPatterns

Figure 7: Montero´s Patterns with Minsky´s semantic

Relations (MPMR).

Figure 8: Co-authoring Patterns with Conte´s Relations

(CPCR).

Figure 9: Co-authoring Patterns with Minsky´s semantic

Relations (CPMR).

with Alexandrian Form (MPAF), Figure 5; another

with Montero´s Patterns with Conte´s Relations

(MPCR), Figure 6; another with Montero´s Patterns

with Minsky´s semantic Relations (MPMR), Figure

7; another with Co-authoring Patterns with Conte´s

Relations (CPCR), Figure 8 and; the last group with

Co-authoring Patterns with Minsky´s semantic

Relations (CPMR), Figure 9.

Thirdly, each participant of the groups needed to

analyse the graph of web patterns or Co-authoring

patterns to answer a question: “Explain what you

understand when you see the drawing with patterns”.

We did not use words with graph, connections,

relations, etc., to avoid any influence at answers.

Answers of this question were analyzed

considering Content Analysis methodology to make

the categorization, description and interpretation in

order to indentify the frequency of occurrence of

certain terms to observe which information in the

graph is used to understand it (Moraes, 1999).

The terms more cited by participants were

relations among patterns, direction of the arrows,

name of the patterns and the three categories defined

by Montero as Web Sites, Web Pages and

Ornamentation. For example, one participant, who

accessed MPMR, answered “Looking only the

direction of the arrows I can understand that a

pattern with arrow out is connected to a pattern with

arrow in. The tags are very useful and it is possible

to understand how the patterns are connected”. In

this case, tags were interpreted as Minky´s semantic

relations.

In this answer, the participant wrote about

direction of the arrows and relations, and then they

were counted at Table 2.

Table 2: Quantity of participants who described some

terms in their answers.

Groups Direction

of the

arrows

Name of

the

patterns

Relations

among

patterns

Montero´s

categories

MPMR 2 2 4 1

MPCR 2 1 3 1

MPAF 4 0 no 2

CPMR 1 2 3 no

CPCR 2 3 3 no

Fourthly, each participant of the groups needed to

answers some questions considering the graphs, as

MPMR, MPCR, etc. They could answer them just

browsing the graph and/or clicking on each pattern

to read its content.

The questions were created in order to observe if

participants could identify each Minsky´s semantic

relation to be considered to answer them, as well as,

if Conte´s Relations and Alexandrian Form could

support identifying the answers. There were

questions related to three aspects:

(1) Interpretation to observe if participants could

notice the meaning of the relations, because each

question was created considering a Minsky´s

relation. For example, questions about where a

pattern needs to be, the expected answer is another

pattern connected with it through LocationOf

relation.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

(2) Sequence of Use to observe if participants

could notice the meaning of the relations and

direction of the narrows to identify what pattern

should be used firstly.

(3) Obligation to observe if participants could

notice the meaning of the relations to identify what

patterns should be used together.

Table 3 presents the questions related to Co-

authoring patterns with expected answers, as well as,

each Minky´s relation to be considered. Table 4

presents this information as well, but related to

Montero´s patterns.

Table 3: Questions for Co-authoring Patterns.

Interpretation

Q1 – Which pattern describes where pattern “User”

needs to be?

Expected Answer: “Steps” – Relation: LocationOf –

“User” IsA Information” : “Information” LocationOf

“Steps”.

Q2 – Which pattern describes explanations about the

utility of pattern “Steps”?

Expected Answer: “What needs to be done” – Relation:

“UsedFor”.

Q3 – Which pattern describes what pattern

“Information” contains?

Expected Answer: “Goal” – Relation: “MadeOf”.

Q4 – Explain the relationship that you understand

between patterns “User” and “Information”.

Expected Answer: “User” IsA “Information”, “User” is

a specialization of “Information” or, “Information” is a

generalization of “User” – Relation: “IsA”.

Sequence of Use

Q5 – Which pattern should be used before pattern

“Information”?

Expected Answer: “Goal” – Sequence of relation

“MadeOf”.

Q6 - Considering patterns “Information” and “Goal”.

Which pattern must be considered firstly?

Expected Answer: “Goal” - Sequence of relation

“MadeOf”. “Information” is MadeOf “Goal”, then it

needs to be considered before.

Obligation

Q7 – There was no question because Co-authoring

patterns do not contain “PartOf” relation.

Figure 10 shows the quantity of answers, from each

group, that matched with expected answers. X

means no question for the group, for example, there

was not Q5 for groups that accessed Montero´s

Pattern neither Q7 for groups that accessed Co-

authoring patterns.

Table 4: Questions for Montero´s Patterns

Interpretation

Q1 – Which pattern describes where pattern “Contact

Us” needs to be?

Expected Answer: “Homepage” – Relation:

LocationOf.

Q2 – Which pattern describes explanations about the

utility of pattern “Homepage”?

Expected Answer: “Tagline” and “About this” –

Relation: “UsedFor”.

Q3 – Which pattern describes what pattern “Tagline”

contains?

Expected Answer: “About this” – Relation: “MadeOf”.

Q4 – Explain the relationship that you understand

between patterns “Welcome” and “Homepage”.

Expected Answer: “Welcome” IsA “Homepage”,

“Homepage” is a specialization of “Welcome” or,

“Welcome” is a generalization of “Homepage” –

Relation: “IsA”.

Sequence of Use

Q5 – There was no question because Montero´s

patterns contain just one pair of patterns connected by

“MadeOf”.

Q6 - Considering patterns “Tagline” and “About this”.

Which pattern must be considered firstly?

Expected Answer: “About this” - Sequence of relation

“MadeOf”. “Tagline” is MadeOf “About this”, then it

needs to be considered before.

Obligation

Q7 – Do pattern “Novelty” must be considered when

pattern “Homepage” is used?

Expected Answer: No – Relation: “PartOf”.

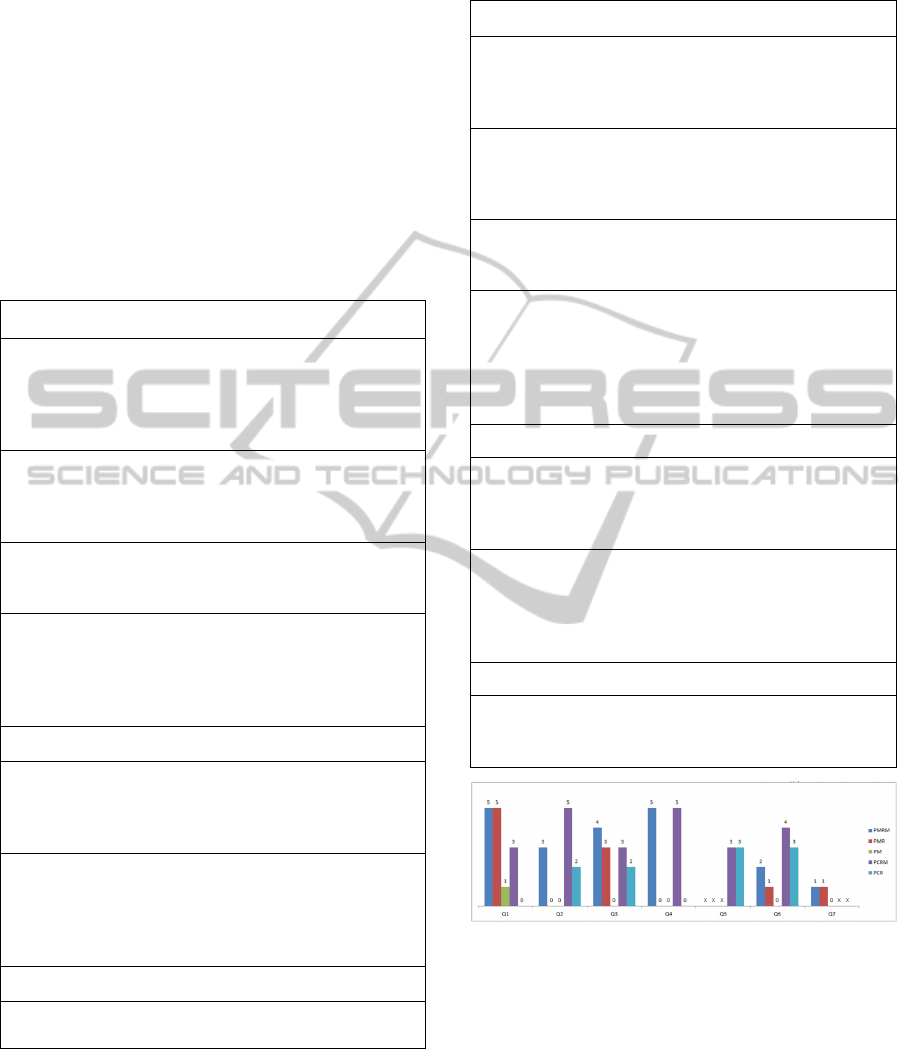

Figure 10: Quantity of expected answers from each group.

6 DISCUSSIONS AND FINAL

CONSIDERATIONS

Analyzing participants´ answers about their

comprehension of the graphs, shown at Table 2, it is

possible to observe that the names of the patterns

and arrows among patterns are considered in order

to understand them as described as Montero et al.,

(2012) and Fincher et al., (2003). Name of patterns

AddingSemanticRelationsamongDesignPatterns

were cited by 32% of participants and arrows by

44%, including direction of the arrows.

Considering 25 participants, 52% of them took

into consideration the name of the relations among

patterns. In contrast, 5 participants or one group did

not access pattern with name of the relations, i.e.,

they accessed just with arrows as Alexandrian Form.

Because of that, considering 20 participants, who

accessed with Conte´s Relations or Minsky´s

semantic relations, the percentage is 65%.

These results can be considered as evidence that

name of the relations are visualized and considered

in order to understand the relationships among

patterns. Because of that, names on arrows to

express the meaning of relationships can be

considered as a useful strategy.

Two participants mentioned none of the terms in

their answers, e.g., one, who accessed PCR, wrote

“It was easy to understand the graph, I could realize

the steps that I have to follow”; another, who

accessed PMRM, wrote “It is a flowchart that user

usually executes to access a site and what s/he hopes

to find on it, then this flowchart helps to design

interface”.

Three participants mentioned their no

comprehension of the graph, two who accessed

PMR and one who accessed PMRM. For example,

one participant from PMR groups wrote “Column

Web sites represents the first level, to prepare

website. Web Pages and Ornamentation describe

more details. Blue arrow represents Uses and its

direction means which pattern uses another; the

same thing for black arrow that represents Requires,

but no legend or explanation about each term makes

the comprehension not clear”.

Another example from PMRM groups was “It is

possible to understand how patterns are connected to

each other, but some relations are not clear as User

is a Information.”

Others participants mentioned what they were

seeing, for example, one who accessed PMRM

wrote “patterns are divided into three groups and I

follow the direction of the arrows to read the legend,

e.g., Size is a property of Print and Busy is an effect

of Form”.

Analyzing Table 2, it is possible to observe that

the term Relations among patterns was more cited

than others terms in almost all Groups, just CPCR

group cited Name of the patterns as many as

Relations and MPAF group, with no relations,

considered more Direction of the arrows.

These results can also be considered as evidence

that relations are visualized and considered to

understand the relationships among patterns,

because it was more cited than others terms.

In this context, the next step was to observe if

these relations could be interpreted considering their

meaning and intention of the use. Because of that, a

questionnaire was available to observe if participants

could realize the expected relation to answer the

questions and, consequently, to answer as expected

answer.

Figure 10 presents the quantity of participants

from each group who answered as expected answers,

e.g., expected answer was “Goal” pattern and

participant wrote “Goal”. In this case, others

answers as “Goal and User”, or “Instance” were not

considered. It is important to say that there was an

“Observation” field after each question to allow

participants write anything about their answers.

In general, Alexandrian Form provided less

understanding than Conte´s Relations or Minsky´s

semantic relations. In the most of the questions,

participants, who accessed Alexandrian Form,

needed to click on each pattern to read it in order to

guess the relationships among them, but the answers

did not represent the correct answers. Usually,

participants wrote all patterns connected with the

pattern described at the question, for example, Q1 –

Which pattern describes where pattern “Contact Us”

needs to be?, the most of the answers contained all

of the patterns connected with “Contact Us”.

Conte´s Relations supported some

interpretations, for example, considering Q1, all

participants, who accessed Monteros´ patterns,

chosen the right pattern connected with “Contact

Us” by Uses. On the other hand, the pattern where

“Contact Us” needs to be was directly connected

with the answer and, its name “Homepage” was a

help for participants. Two participants expressed at

questionnaire that things are on homepage. In this

case, Conte´s relations could be a help in this

reasoning, because nobody from MPAF, with no

relations, described this interpretation.

In contrast, nobody chosen the right answer on

Co-authoring patterns because, in this case, it was

necessary to understand that a pattern, named “User”

is another “Information” that was localized at

another “Steps” to answer the question. In this case,

it was an evidence that it was necessary semantic

among patterns to support this comprehension.

Answers for others questions related to

Interpretation as Q2 and Q4 also illustrated that

Conte´s relations do not represent meanings related

to explanation about the use as UsedFor and

generalization as IsA.

Two participants from CPCR

wrote the expected answer at Q2, but they read the

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

patterns contents. Nobody wrote the expected

answer at Q4, participants wrote answers as “User

needs Information”, “User accesses Information”,

“they are connected”, “Homepage uses Welcome”,

etc.

In contrast, 60% from MPCR group and 40%

from CPCR wrote the expected answer at Q3.

Nobody did any observation about the answers, but

two participants from MPCR and one from CPCR

read the patterns before answering, then it is not

possible to confirm that they interpreted the meaning

of composition from Conte´s relations.

Answers for Q5 and Q6 shown that relations

supported indentify the sequence of use, because

60% of participants from each Conte´s relation

group answers as expected and, nobody read the

patterns before. On the other hand, possibly, names

of patterns helped the groups who accessed Co-

authoring patterns because just 20% of participants,

who accessed Montero´s patterns, wrote the

expected answer.

Answers for Q7 shown that Conte´s relations and

Minsky´s relation do not represent when a pattern

can be used or must be used by others through

relations. Uses and Requires did not represent “can

be” and “must” for all participants. In this question,

all participants who accessed considering

Alexandrian Form did not write the expected

answer. Three participants wrote observation as “I

think that one pattern must be used by another when

they are connected”. This answer is not right in all

cases, because some patterns can be used with

others, but it is not necessary to use them every time

together (Montero et al., 2002).

It is important to clarify that there is no answer

for Q7 at Co-authoring patterns, because PartOf

relation was not necessary. Then, it was an example

that the all Minksy´s Relations are not necessary in

all pattern languages or collections, it is possible to

choose some of them according the connections

among patterns.

Minsky´s Semantic Relations supported more

understanding than others. For example, at Q1, Q2,

and Q3, the most of participants could notice that

LocationOf represents which pattern describes where

another one needs to be, as well as, UsedFor

represents when a pattern explains the utility of

another and MadeOf represents when a pattern is

obtained through a processing from another. Two

different participants, who answered as expected,

read the pattern before answering; one to answer Q2

and another to answer Q3.

Three participants wrote some observations for

Q1 describing about relation, e.g., “There is an

arrow with LocationOf” or “It was clear identify the

dependency between Contact Us and Homepage

through LocationOf”. About Q2 two participants,

who wrote expected answer, reported “In the

beginning, it was not easy to understand” – this

participant read the pattern Steps before; another

“There is an arrow between Steps and What needs to

be done with UsedFor”, others participants did not

write anything.

Answers for Q4 shown that participants wrote

what they were seeing, for example, “User is an

Information” but it does not mean that they

understood the relation. Two participants wrote at

Observation field that “It is possible to understand

that Welcome is a concept more abstract” and “User

is a kind of information to be inserted”. Even with

these two answers, it is not possible to confirm that

others participants had the same comprehension.

The most of participants answered as expected at

Q5 and Q6. Nobody read the patterns before

answering. Two different participants wrote

observations. One for Q5 “Goal pattern has an arrow

pointed at Information” and another for Q6 “the

drawing defines a sequence where Information is

made of Goal”. In these cases, direction of the

arrows were most important than name of relation to

identify the sequence of use, because there are four

patterns connected with MadeOf

at Co-authoring

patterns.

Finally, these expected answers were evidences

that Minsky´s semantic relations allow organizing

patterns to support the comprehension of patterns

connections, as well as, the name of Minsky´s

relations are able to express their meaning.

As future work, we intend to make more studies

with other pattern languages and collections, as well

as, to available some information, e.g., legend, about

the relations in order to observe how the connections

among patterns can be understood when the meaning

of relations are known before their use, as well as,

define Observation field as required, because it

supports knowing participant´s compression of each

answer of the questionnaire.

ACKNOWLEDGEMENTS

We thank CAPES, FAPESP and BOEING for partial

financial support to this research.

REFERENCES

Alexander, C.; Ishikawa, S.; Silverstein, M.; Jacobson, M.;

AddingSemanticRelationsamongDesignPatterns

Fiksdahl- King, I.; Angel, S. “A Pattern Language:

towns, buildings, construction”. New York: Oxford

University Press, 1977, 1171p.

Anacleto, J. C. ; Silva, M. A. R. ; Hernandes, E. C. M. .

Co-authoring Proto-patterns to Support on Designing

Systems to Be Adequate for Users´ Diversity. In:

International Conference on Enterprise Information

Systems, 2013, Angers. Proceedings of the 15th

International Conference on Enterprise Information

Systems. Portugal: SCITEPRESS Science and

Technology Publications, 2013. v. 1. p. 84-89.

Borchers, J. O. A Pattern Approach to Interaction

Design. John Wiley & Sons, Chichester, UK, 2001,

264p.

Carvalho, A. F. P. DE ; Anacleto, J. C. ; Zemmascarenhas,

Silvia Helena . Learning Activities on Health Care

Supported by Common Sense Knowledge. In: 23rd

ACM Symposium on Applied Computing, 2008,

Fortaleza. Proceedings of ACM SAC. New York:

ACM Press, 2008. v. 1. p. 1-5.

Christian Kruschitz and Martin Hitz. 2010. Analyzing the

HCI design pattern variety. In Proceedings of the 1st

Asian Conference on Pattern Languages of Programs

(AsianPLoP '10). ACM, New York, NY, USA, ,

Article 6 , 8 pages.

Conte, Mounia Fredj, Ibtissem Hassine, Jean-Pierre

Giraudin, and Dominique Rieu. 2002. A Tool and a

Formalism to Design and Apply Patterns. In

Proceedings of the 8th International Conference on

Object-Oriented. Information Systems (OOIS '02),

Zohra Bellahsene, Dilip Patel, and Colette Rolland

(Eds.). Springer-Verlag, London, UK, UK, 135-146.

E. Gamma, R. Helm, R. Johnson, and J. Vlissides. Design

Pattern. Addison-Wesley, To Appear, 1994.

Fincher, S., & Finlay, J., (2003). CHI 2003 Workshop

report: Perspectives on HCI patterns: Concepts and

tools (introducing PLML). Interfaces, 56, 26-28.

Brooklyn. NY: ACM Press.

Fricke, A.; Völter, M. Seminars: A Pedagogical Pattern

Language about teaching seminars effectively. In:

Fifth European Conference on Pattern Languages of

Programs, Germany, 2000, pp.1-36.

Coplien, J. O. Software Design Patterns: Common

Questions and Answers. In Linda Rising, editor, The

Patterns Handbook: Techniques,Strategies, and

Applications, p. 311-320. Cambridge University Press,

New York, January 1998.

Jordan Janeiro, Simone D. J. Barbosa, Thomas Springer,

and Alexander Schill. 2010. Semantically relating user

interface design patterns. In Proceedings of the 1st

International Workshop on Pattern-Driven

Engineering of Interactive Computing Systems

(PEICS '10). ACM, New York, NY, USA, 40-43.

Kumar, K.; Prabhakar, T. 2010. Design decision topology

model for pattern relationship analysis. In Proceedings

of the 1st Asian Conference on Pattern Languages of

Programs (AsianPLoP '10). ACM, New York, NY,

USA, , Article 3 , 9 pages.

Kruschitz, C. XPLML: a HCI pattern formalizing and

unifying approach. In CHI '09 Extended Abstracts on

Human Factors in Computing Systems (CHI EA '09),

2009. ACM, New York, NY, USA, 4117-4122.

Liu, H.; Singh, P. ConceptNet – a practical commonsense

reasoning toll-kit. In: BT Technology Journal, vol. 22,

Outubro 2004, pp. 221-226.

Michael, J.; Lorraine, J. J. Principles for a Usability-

Oriented Pattern Language. In Proceedings of the

Australasian Conference on Computer Human

Interaction (OZCHI '98). IEEE Computer Society,

Washington, DC, USA, 1998, pp. 132-140.

Minsky, M: ‘The society of mind’, Simon & Schuster,

1987, 336p.

Montero, F.; Lozano, M.; González, P.; Ramos, I. A First

Approach to Design Web Sites By Using Patterns. In:

First Nordic conference on Pattern Languages of

Programs: VikingPLoP. Hojstrupgard, Denmark,

2002, pp.137-158.

Moraes, R. Análise de conteúdo. Revista Educação, Porto

Alegre, v. 22, n. 37, p. 7-32, 1999.

Paolo Bottoni, Esther Guerra, and Juan de Lara. 2010.

Formalising design and interaction patterns and their

relationships. In Proceedings of the 1st International

Workshop on Pattern-Driven Engineering of

Interactive Computing Systems (PEICS '10). ACM,

New York, NY, USA, 32-35.

Rosario Girardi and Alisson Neres Lindoso. 2006. An

ontology-based knowledge base for the representation

and reuse of software patterns. SIGSOFT Softw. Eng.

Notes 31, 1 (January 2006), 1-6.

van Welie, M. Web Desig Patterns.

http://www.welie.com/patterns/ Acessado em: Mai,

2012.

Walter Zimmer. 1995. Relationships between design

patterns. In Pattern languages of program design,

James O. Coplien and Douglas C. Schmidt (Eds.).

ACM Press/Addison-Wesley Publishing Co., New

York, NY, USA 345-364.

White, B. Visualizing mobile design pattern relationships.

In Proceedings of the 14th international conference on

Human-computer interaction with mobile devices and

services companion (MobileHCI '12), 2012. ACM,

New York, NY, USA, 71-76.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
