Evaluation of Distance-Aware KinFu Algorithm for Stereo Outdoor Data

Hani Javan Hemmat, Egor Bondarev, Gijs Dubbelman and Peter H. N. de With

Department of Electrical Engineering, Eindhoven University of Technology, Eindhoven, The Netherlands

Keywords:

3D Reconstruction, Stereo Camera Depth Data, Voxel-Models, Camera-pose Estimation, Weighting Strategy,

Truncated Signed Distance Function (TSDF).

Abstract:

In this paper, we report on experiments on deployment of an extended distance-aware KinFu algorithm, de-

signed to generate 3D model from Kinect data, onto depth frames extracted from stereo camera data. The

proposed idea allows to suppress the Kinect usage limitation for outdoor sensing due to the IR interference

with sunlight. Besides this, exploiting the stereo data enables a hybrid 3D reconstruction system capable of

switching between the Kinect depth frames and stereo data depending on the quality and quantity of the 3D

and visual features on a scene. While the nature of the stereo sensing and the Kinect depth sensing is com-

pletely different, the stereo camera and the Kinect show similar sensitivity to distance capturing. We have

evaluated the stereo-based 3D reconstruction with the extended KinFu algorithm with the following distance

aware weighting strategies: (a) weight deﬁnition to prioritize importance of the sensed data depending on

its accuracy, and (b) model updating to decide about the level of inﬂuence of the new data on the existing 3D

model. The qualitative comparison of the resulting outdoor 3D models shows higher accuracy and smoothness

of models obtained by introduced distance-aware strategies. The quantitative analysis reveals that applying

the proposed weighting strategies onto stereo datasets enables to increase robustness of the pose-estimation

algorithm and its endurance by factor of two.

1 INTRODUCTION

Accurate 3D reconstruction and mapping has been ad-

dressed as a vital topic and is playing a prominent role

in such important research domains as 3D shape ac-

quisition and modelling, surface generation and tex-

turing, localization and robot vision (Engelhard et al.,

2011; Newcombe et al., 2011a; Steinbrucker et al.,

2011; Whelan et al., 2012a; Whelan et al., 2013).

During recent years, the advent of powerful general-

purpose GPUs has resulted in the ﬁrst generation of

real-time 3D-reconstruction applications which use

depth data obtained from a low-cost depth Kinect sen-

sor (PrimeSense; Kinect; Asus) to generate 3D geom-

etry for relatively large and complex indoor environ-

ments (Newcombe et al., 2011b; Izadi et al., 2011;

Bondarev et al., 2013; Whelan et al., 2012b; Whelan

et al., 2012a; Whelan et al., 2013). Since the depth

sensor is based on projected Infra-Red (IR) patterns,

it is almost impossible to sense outdoor scenes during

daylight. This can be explained by the IR interfer-

ence of the sensor and the sunlight. While the Kinect

is unable to sense the outdoor environments, a stereo

camera can provide depth data for an outdoor scene

and can be potentially used by the KinFu algorithm to

reconstruct 3D model of outdoor environment.

The most prominent real-time 3D reconstruction

applications, such as KinectFusion (Newcombe et al.,

2011b; Izadi et al., 2011), Kintinious (Whelan et al.,

2012b), the open source KinFu (PCL, 2011) and

KinFu Large Scale (Bondarev et al., 2013), utilize

the low-cost depth sensor (Newcombe et al., 2011b;

Izadi et al., 2011) to sense the environment and re-

construct the corresponding 3D model based on the

TSDF voxel-model. While recent evaluation of the

Kinect intrinsics has revealed relative robustness to

ambient light, incidence angle, and radiometric inﬂu-

ences, the important sensor limitation is the low ac-

curacy for large distance measurements (Chow et al.,

2012; Khoshelham, 2011; Khoshelham and Elberink,

2012). Since the default weighting strategy of the

TSDF model is not capable to preserve more accurate

data against less accurate data, an improved approach

has been proposed by introduction of weight deﬁni-

tions and updating strategies (Javan Hemmat et al.,

2014a). The resulting improvements in model qual-

ity (Javan Hemmat et al., 2014a) and pose-estimation

accuracy (Javan Hemmat et al., 2014b) obtained by

these strategies, have motivated us to extend the ap-

746

Javan Hemmat H., Bondarev E., Dubbelman G. and de With P..

Evaluation of Distance-Aware KinFu Algorithm for Stereo Outdoor Data.

DOI: 10.5220/0004901507460751

In Proceedings of the 9th International Conference on Computer Vision Theory and Applications (PANORAMA-2014), pages 746-751

ISBN: 978-989-758-004-8

Copyright

c

2014 SCITEPRESS (Science and Technology Publications, Lda.)

proach to the domain of stereo sensor data.

In this paper, we extend the capability of KinFu

to fuse data from stereo sensors, which enables 3D

model reconstruction of outdoor scenes. We evalu-

ate the impact of the distance-aware weighting strate-

gies on the quality of the resulting KinFu 3D model

obtained from the stereo-based depth data. For this,

we generate depth data from the input stereo camera

data and feed the depth data to the extended distance-

aware KinFu algorithm. Finally, we perform quanti-

tative and qualitative comparison of the obtained 3D

models against models generated by the conventional

KinFu algorithm.

The paper is structured as follows. Section 2 de-

scribes the extended weighting strategies. Section 3

elaborates on performed experiments. Section 4 pro-

vides analysis and discussion of the results. Section 5

concludes the paper.

2 WEIGHTING STRATEGIES

2.1 Conventional TSDF Model

In the original TSDF model (Curless and Levoy,

1996) of the conventional applications (Newcombe

et al., 2011b; Izadi et al., 2011; PCL, 2011), each

voxel contains a pair of distance value (D

i

) and ac-

cumulated weight (W

i

), describing the truncated dis-

tance value to the closest surface and the weight for

this value, respectively. This data structure enables

averaging of the captured depth data, inﬂuencing the

voxel model after i frames. For the (i+1)th depth

frame, the model is updated by the corresponding pair

of distance value (d

i+1

) and weight (w

i+1

) for voxel x,

using the following two equations:

D

i+1

(x) =

W

i

(x)D

i

(x) + w

i+1

(x)d

i+1

(x)

W

i

(x) + w

i+1

(x)

, (1)

W

i+1

(x) = W

i

(x) + w

i+1

(x) . (2)

Parameter d

i

is the calculated distance value for voxel

x based on the corresponding newly sensed valid

depth point, and w

i

is the weight of the depth d

i

.

Depth d

i

is integrated into the corresponding voxel x

based on Equation (1). The weight for voxel x is ac-

cumulated in W

i

according to Equation (2). Choosing

w

i+1

= 1 for each valid point found in the (i + 1)th

frame, results in simple averaging over time. Unfor-

tunately, according to our experiments, the constant

value for the weight affects the synthetic model up-

dating process in the following way. The objects in

the model located close to the sensor (≤ 1.5 m) are

created properly, while the objects located at a ≥ 2.5

m distance are being melted, signiﬁcantly deformed

or even completely destroyed.

2.2 Distance-related weight Deﬁnition

and Updating Strategies

In this paper, we utilize the weight deﬁnition which

has been already proposed in (Javan Hemmat et al.,

2014a; Javan Hemmat et al., 2014b) to guarantee the

assignment of higher weights to points in the scene

located on closer distances to the sensor. Based on

the sensor features and scene characteristics, there is

a valid range for depth data, deﬁned between a maxi-

mum and a minimum distance, d

max

and d

min

, respec-

tively. In addition, the weight is bounded between 0

and a maximum weight W

max

. The following equation

deﬁnes a weight based on the distance to the sensor,

specifying

weight

depth point

(x) =

1

d

(

x)

2

−

1

d

2

max

1

d

2

min

−

1

d

2

max

∗W

max

. (3)

For each depth value x with distance d(x) in the

valid range between d

min

and d

max

, the corresponding

weight is mapped to a value between 0 and W

max

.

In conventional TSDF model implementations,

the model is straightforwardly updated with constant-

weight strategy (weight value is unity). The weight

deﬁnition, introduced by Equation (3), enables us

to distinguish between closer and further distances.

Therefore, we can exploit this weight deﬁnition to in-

telligently update the TSDF model. The intelligent

update prevents more accurate values being overwrit-

ten by less accurate data. This updating strategy guar-

antees that the synthetic 3D model is updated by the

most accurate data available during the update pro-

cess.

Distance-Aware (DA) updating Method

Each voxel value in the synthetic 3D model is up-

dated based on a straightforward intelligent rule: “if

a voxel value has already been updated by a distance

value with a higher weight, never update it again by a

depth distance with a lower weight”. The DA updat-

ing method is formulated as:

Flag(v, x) = weight

new

(x) ≥ r% × weight

LMU

(v),

(4)

Update(v, x) =

Integrate x into v if (Flag(v, x)),

Discard x, keep v otherwise.

(5)

To make the updating method more robust to

noise, there is a tolerance range, r indicating a per-

centage with 0 ≤ r ≤ 100. Since the distance val-

ues are compared to r% of the last maximum updated

EvaluationofDistance-AwareKinFuAlgorithmforStereoOutdoorData

747

weight, the distance values less than the last max-

imum updated weight are therefore integrated into

the synthetic 3D model. This method integrates the

distance values close to the last maximum updated

weight affected by noise.

Due to intrinsics of the conventional TSDF imple-

mentation, the DA method suffers from fast satura-

tion of accumulated weight value, which limits proper

truncated-distance averaging over a long sensing pro-

cess. To eliminate this constraint, the DASS method

has been introduced as below (Javan Hemmat et al.,

2014a; Javan Hemmat et al., 2014b).

Distance-Aware Slow-Saturation (DASS)

updating Method

The DASS method performs similar to the DA

method, except for the weight accumulation. The

DASS uses the weight deﬁnition of Equation (3) for

the U pdate(v, x) function to conditionally update the

synthetic 3D model, similar to the DA method. How-

ever, in contrast with the DA method, the DASS uses

unity for the new weight w

i+1

, to calculate the weight

accumulation value W

i+1

. This solution of w

i+1

= 1

in the DASS method prevents the fast saturation of

the accumulated weight value, while the U pdate(v, x)

function ensures an intelligent updating process.

3 EXPERIMENTS

3.1 Implementation

To implement the proposed updating methods, we

have exploited the original framework of the open

source KinFu implementation from the Points Cloud

Library (PCL, 2011). We have reused the original

structure and only inserted the new deﬁnitions and up-

dating algorithms as discussed above.

3.2 Dataset

For datasets, we have chosen three outdoor statues lo-

cated in our campus and recorded them by a stereo

camera during daylight, which would not be possi-

ble with the Kinect sensor. We have generated depth

maps from the obtained stereo data and adopted the

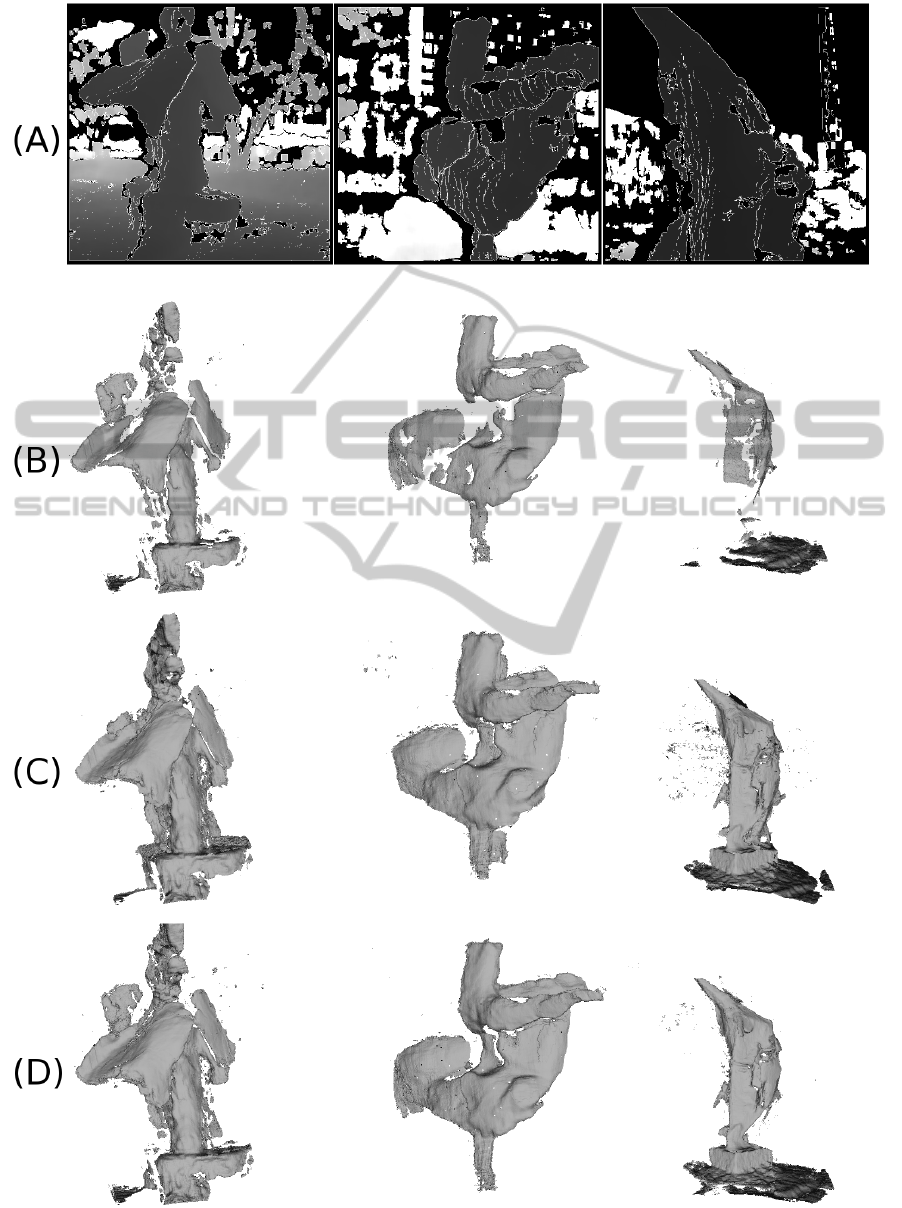

maps to the Kinect depth format. Figure 1 shows the

statues and their corresponding depth frames.

3.3 Evaluation Approach

Due to absence of ground-truth models, the qual-

ity evaluation of models obtained from the original

KinFu, DA, and DASS methods is purely based on

visual assessment. It is known that in the KinFu al-

gorithm, a reset of the 3D modeling occurs in case

of large errors in the pose-estimation algorithm. The

pose-estimation accuracy is mutually dependent on

the quality of reconstructed model. Besides the qual-

itative issues, for a quantitative evaluation, we com-

pute the number of resets and also the endurance in-

terval length before the ﬁrst reset occurs during the

3D reconstruction process, as an indicator of the pose-

estimation accuracy.

4 ANALYSIS AND DISCUSSION

According to the results shown in Figure 2, the most

interesting ﬁnding is that the KinFu-based 3D recon-

struction algorithm works well on the outdoor data

provided by a stereo camera, which is nearly impos-

sible to achieve with the Kinect sensor data during

daylight time.

Figures 2.B-D show that for all datasets, the DA

and DASS methods are able to preserve the model

and avoid deformation, in contrast with the original

KinFu algorithm. The original KinFu easily degrades

the model by overwriting the more accurate data with

less accurate data. This also proves that the stereo

depth data is clearly sensitive to the distance.

Comparing the DA and DASS methods, especially

for the third dataset (swordﬁsh), we can conclude the

DASS method provides a more smooth and accurate

3D model. This can be explained by a fast saturation

of accumulated weights in the DA method, which pre-

vents proper temporal averaging of the depth data.

As a quantitative evaluation illustrated in Table 1,

the average number of resets caused by the DASS

method is signiﬁcantly lower than the corresponding

numbers from the DA and original KinFu methods.

The reason for this reduction is the direct correlation

between the model quality and the pose-estimation

accuracy (Javan Hemmat et al., 2014b).

Another quantitative metric for model quality is

the endurance of an algorithm until the ﬁrst reset oc-

currence. For this metric, the DASS algorithm shows

a higher performance and is able to sustain more than

twice longer than the original KinFu algorithm.

An interesting ﬁnding which has revealed during

the process, is the level of continuity of the stereo

depth data over different surfaces. In contrast with the

Kinect as a depth sensor based on the IR-projection,

the depth frames extracted from stereo data could

be less continuous on featureless surfaces, while the

Kinect is able to prepare continuous data as far as the

surface is not black or shiny. On the other hand, for

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

748

Table 1: Pose-estimation accuracy: comparison of the number of resets and endurance of the DA, DASS and KinFu methods.

Higher reset rates indicate lower accuracy in the pose estimation. The pose-estimation accuracy is mutually dependent on the

3D model quality.

Method metric Statue 1 Statue 2 Statue 3 Average

KinFu number of reset(s) 3 1 1 1.67

endurance (frames) 1,811 2,996 544 1,783.67

DA number of reset(s) 3 1 1 1.67

endurance (frames) 2,195 2,995 544 1,911.33

improvement (%) 21.20 -0.03 0.00 7.06

DASS number of reset(s) 0 0 1 0.33

endurance (frames) 5,604 3,801 544 3,316.33

improvement (%) 209.44 26.87 0.00 78.77

Figure 1: Snapshots of the modern art statues and their corresponding depth frame extracted from stereo data. The depth

frames depict the closer depth information as darker points.

the surfaces with sufﬁcient visual features that absorb

or distract the IR projected patterns of the Kinect, the

stereo camera provides more continuous and smooth

depth data. This motivates a hybrid-sensing approach,

where both the Kinect and stereo sensors are deployed

in a single system setup, to increase reconstruction ro-

bustness of heterogeneous scenes.

5 CONCLUSIONS

We have experimented with the deployment of the

KinFu algorithm onto the depth input data obtained

from stereo sensors to enable 3D reconstruction of

outdoor scenes during daylight, which is an impos-

sible task with the Kinect sensor. We have evaluated

EvaluationofDistance-AwareKinFuAlgorithmforStereoOutdoorData

749

Figure 2: Mesh snapshots obtained by different weighting strategies. Each column shows the result for one of the datasets.

(A) shows a converted depth image in the format of the standard Kinect. (B), (C), and (D) illustrate the reconstruction results

from the original KinFu, DA, and DASS methods, respectively. Note the model degradation in (B) compared to (C) and (D).

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

750

the quality of 3D models reconstructed by the origi-

nal KinFu algorithm in comparison with our distance-

aware DA and DASS methods. The experiments have

revealed that the input from stereo sensors is valid

and sufﬁcient for KinFu-based algorithms, resulting

in an appropriate reconstruction of outdoor scenes.

We have also shown that by replacing the original

KinFu weighting strategy by distance-aware weight-

ing strategies, we obtain 3D models from stereo

data with higher quality and more accurate pose-

estimation values. In our experiments, the new strate-

gies increase the endurance of the reconstruction pro-

cess with a factor of two or more.

Comparing the depth data obtained from the

Kinect and stereo sensors, we have found that the

stereo camera is able to provide more continuous

depth data for scenes with sufﬁcient visual features

that interfere the IR patterns of the Kinect sensor, such

as black or shiny surfaces. Alternatively, the Kinect

can provide more continuous depth data for the sur-

faces with insufﬁcient amount of visual features or

featureless surfaces, where stereo cameras are unable

to extract any depth information.

For future work, we plan experiments on ﬁnding

the optimal hybrid system capable of working in dif-

ferent environments in terms of the quantity and qual-

ity of visual and 3D features and intelligently fusing

the resulting data from depth sensor and stereo cam-

era, based on the scene conﬁguration and features.

ACKNOWLEDGEMENTS

This research has been performed within the

PANORAMA project, co-funded by grants from Bel-

gium, Italy, France, the Netherlands, the United King-

dom, and the ENIAC Joint Undertaking.

REFERENCES

Asus. Xtion-PRO. http://www.asus.com/Multimedia/Xtion

PRO/.

Bondarev, E., Heredia, F., Favier, R., Ma, L., and de With, P.

(2013). On photo-realistic 3d reconstruction of large-

scale and arbitrary-shaped environments. In Con-

sumer Communications and Networking Conference

(CCNC), 2013 IEEE, pages 621–624.

Chow, J., Ang, K., Lichti, D., and Teskey, W. (2012). Per-

formance analysis of a low-cost triangulation-based

3D camera: Microsoft kinect system. In Interna-

tional Archives of the Photogrammetry, Remote Sens-

ing and Spatial Information Sciences, Volume XXXIX-

B5, 2012 XXII ISPRS Congress, Melbourne, Aus-

tralia.

Curless, B. and Levoy, M. (1996). A volumetric method for

building complex models from range images. In CM

SIGGRAPH Conf. Proceedings, pp. 303–312 (1996).

Engelhard, N., Endres, F., Hess, J., Strum, J., and Burgard,

W. (2011). Real-time 3d visual slam with a hand-held

camera. In RGB-D Workshop on 3D Perception in

Robotics, European Robotics Forum.

Izadi, S., Kim, D., Hilliges, O., Molyneaux, D., Newcombe,

R., Kohli, P., Shotton, J., Hodges, S., Freeman, D.,

Davison, A., and Fitzgibbon, A. (2011). Kinectfu-

sion: Real-time 3d reconstruction and interaction us-

ing a moving depth camera. In Proceedings of the

24th Annual ACM Symposium on User Interface Soft-

ware and Technology, UIST ’11, pages 559–568, New

York, NY, USA. ACM.

Javan Hemmat, H., Bondarev, E., and de With, P. (2014a).

Exploring distance-aware weighting strategies for ac-

curate reconstruction of voxel-based 3d synthetic

models. In MMM’14 Proceedings of Multi-Media

Modelling 2014 (will be presented) (2014).

Javan Hemmat, H., Bondarev, E., Dubbelman, G., and

de With, P. (2014b). Improved icp-based pose estima-

tion by distance-aware 3d mapping. In VISAPP’14,

Proceedings of 9th International Conference on Com-

puter Vision Theory and Application (will be pre-

sented) 2014.

Khoshelham, K. (2011). Accuracy analysis of kinect depth

data. In ISPRS workshop laser scanning / ed. by D.D.

Lichti and A.F. Habib., IAPRS XXXVIII-5/W12 (2011).

Khoshelham, K. and Elberink, S. O. (2012). Accuracy and

resolution of kinect depth data for indoor mapping ap-

plications. Sensors, 12(2):1437–1454.

Kinect, M. http://www.xbox.com/en-us/kinect/.

Newcombe, R., Lovegrove, S., and Davison, A. (2011a).

Dense tracking and mapping in real-time. In ICCV’11,

IEEE International Conference on Computer Vision,

Spain.

Newcombe, R. A., Davison, A. J., Izadi, S., Kohli, P.,

Hilliges, O., Shotton, J., Molyneaux, D., Hodges, S.,

Kim, D., and Fitzgibbon, A. (2011b). Kinectfusion:

Real-time dense surface mapping and tracking. In

Mixed and Augmented Reality (ISMAR), 2011 10th

IEEE International Symposium on, pages 127–136.

PCL (2011). Kinectfusion implementation in the PCL.

http://svn.pointclouds.org/pcl/trunk/.

PrimeSense. http://www.primesense.com/.

Steinbrucker, F., Sturm, J., and Cremers, D. (2011). Real-

time visual odometry from dense rgb-d images. In

IEEE International Conference on Computer Vision

Workshops (ICCV Workshops), pages 719–722.

Whelan, T., Johannsson, H., Kaess, M., Leonard, J., and

McDonald, J. (2012a). Robust tracking for real-time

dense rgb-d mapping with kintinuous. In MIT techni-

cal report, MIT-CSAIL-TR-2012-031.

Whelan, T., Johannsson, H., Kaess, M., Leonard, J., and

McDonald, J. (2013). Robust real-time visual odome-

try for dense RGB-D mapping. In IEEE Intl. Conf. on

Robotics and Automation, ICRA, Karlsruhe, Germany.

Whelan, T., Kaess, M., Fallon, M., Johannsson, H.,

Leonard, J., and McDonald, J. (2012b). Kintinuous:

Spatially extended kinectfusion. In RSS Workshop on

RGB-D: Advanced Reasoning with Depth Cameras,

Sydney, Australia.

EvaluationofDistance-AwareKinFuAlgorithmforStereoOutdoorData

751
