Designing Cloud Data Warehouses using Multiobjective

Evolutionary Algorithms

Tansel Dökeroğlu

, S. Alper Sert

, M. Serkan Çinar

and Ahmet Coşar

Department of Computer Engineering, Middle East Technical University, Ankara, Turkey

Department of Computer Engineering, Hacettepe University, Ankara, Turkey

Keywords: Cloud, Multiobjective Data Warehouse Design, Virtualization, Elasticity.

Abstract: DataBase as a Service (DBaaS) providers need to improve their existing capabilities in data management

and balance the efficient usage of virtual resources to multi-users with varying needs. However, there is still

no existing method that concerns both with the optimization of the total ownership price and the

performance of the queries of a Cloud data warehouse by taking into account the alternative virtual resource

allocation and query execution plans. Our proposed method tunes the virtual resources of a Cloud to a data

warehouse system, whereas most of the previous studies used to tune the database/queries to a given static

resource setting. We solve this important problem with an exact Branch and Bound algorithm and a robust

Multiobjective Genetic Algorithm. Finally, through several experiments we conclude remarkable findings of

the algorithms we propose.

1 INTRODUCTION

Cloud computing has emerged as a new computation

paradigm that builds elastic and scalable software

systems. Vendors such as Amazon, Google,

Microsoft, and Salesforce offer several options for

computing infrastructures, platforms software

systems and supply highly-scalable database

services with the goal of reducing the total cost of

ownership price (Amazon, 2013). Users pay all costs

associated with hosting and querying their data

where service providers present different choices to

trade-off price and performance to increase the

satisfaction of the customers and optimize the

overall performance (Balazinska et al., 2011).

Recently, extensive academic and commercial

research is being done to construct self-tuned,

efficient, and resource-economic Cloud database

services that protect the benefits of both the

customers and the vendors. Virtualization that

provides the illusion of infinite resources in many

respects is the main enabling technology of Cloud

computing. This skill is being exploited to simplify

the administration of physical machines and

accomplish efficient systems. The perception of

hardware and software resources is decoupled from

the actual implementation and the virtual resources

perceived by applications are mapped to real

physical resources. Through mapping virtual

resources to physical ones as needed, the

virtualization can be used by several databases that

are located on physical servers to share and change

the allocation of resources according to query

workload requests. This capability of virtualization

can provide efficient Cloud databases where each

Virtual Machine (VM) has its own operating system

and thinks that it is using dedicated resources (CPU,

main memory, network bandwidth, etc.), whereas in

reality the physical resources are shared among by

using a VM Monitor (VMM) that controls the

allocation of resources (Soror et al., 2010; Xiong et

al., 2011; Curino et al., 2011).

In addition to providing efficient queries in

accordance with the service level agreements,

contemporary relational Cloud database

management systems need to optimize a

multicriteria problem that the overall cost of

hardware ownership price is also to be minimized. In

this study, we develop a framework to provide (near-

)optimal virtual resource allocations with respect to

the overall cost of hardware ownership price and a

good tradeoff between the efficiency and the overall

cost of a relational data warehouse is ensured. More

specifically ’Given a budget constraint and a query

workload, how can the available virtual resources of

571

Dökero

glu T., Alper Sert S., Serkan Çinar M. and Co¸sar A..

Designing Cloud Data Warehouses using Multiobjective Evolutionary Algorithms.

DOI: 10.5220/0004906805710576

In Proceedings of the 6th International Conference on Agents and Artiﬁcial Intelligence (ICAART-2014), pages 571-576

ISBN: 978-989-758-015-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

the Cloud (CPU, main memory, network bandwidth,

I/O bandwidth, and etc.) be allocated to Virtual

Machines, each having a part of a distributed

database that the best overall query performance can

be achieved with minimum pricing?’ Our framework

produces cost-efficient design alternatives (virtual

resource configuration and query plans) and

recommends them to the decision makers. A

budgetary constraint can be a more important issue

for a consumer, whereas the response time of the

queries is more crucial for another (D’Orazio et al.,

2012). Therefore, in order to fully realize the

potential of the Cloud, alternative query plans are

executed with well configured virtual resources

instead of only optimizing single query plans on

statically designed virtual resources. This means that

instead of designing the database over standard

VMs, we configure the virtual resources. It indicates

that CPU usage and RAM can be crucial for a data

warehouse workload, whereas network or I/O

bandwidth can be more important for another.

In order to explain the multiobjective query

optimization problem, we give an illustrative

example. Consider a distributed decision support

database (TPC-H) where all of its eight tables are

located on different VMs. When we execute TPC-H

Query 3 with two different query plans and with

alternative virtual resource allocations, we certainly

obtain different performances. During the

experiments, the configuration with higher

performance VMs (4 x 2Ghz CPU, 8GB RAM,

300Mbit/sec network bandwidth) and with query

plan QP1 SQL statement is observed to be the fastest

performing platform, however its monetary price is

one of the most expensive alternatives. A cheaper

VM configuration with 1 x 2Ghz CPU, 768MB

RAM, 100 Mbit/sec network bandwidth and with

QP1 SQL statement has a response time that is only

25.9% slower but 72.0% cheaper. The pareto-

optimal visualization of the proposed solutions that

we obtain by executing with different VM and

network configurations is presented in Figure 1 (see

Appendix for query plans). Looking at the results we

can see that finding solutions that are closer to the

ideal point is the main objective of the problem. In a

two dimensional search space, the optimizers

explore solutions for this NP-Hard problem.

Solutions with appropriate VMs, network bandwidth

and efficient QP configurations can meet the

demand of consumers.

Some queries may request more network

resource, whereas others consume more CPU and

main memory. In this case, the former one can be

executed in a better way by spending the budget on a

broader network bandwidth instead of multiple

CPUs. In order to investigate the effectiveness of our

approach, we incorporate the devised framework

into a prototype system for evaluation and instantiate

it with an exact solution method, multiobjective

branch-and-bound and an evolutionary computation

method multiobjective genetic algorithms. Finally,

through several experiments that we conduct with

the prototype elastic virtual resource deployment

optimizer on different TPC-H query workloads, we

conclude significant results of the space of

alternative deployments as well as the advantages

and disadvantages of the multiobjective optimization

algorithms.

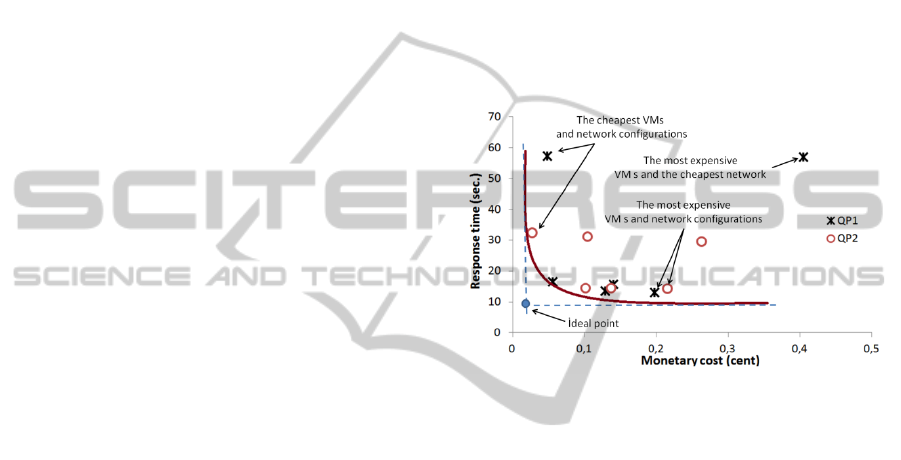

Figure 1: Pareto-optimal curve for the response time and

monetary cost of TPC-H Q3 with different virtual resource

configurations and query plans.

3 MULTIOBJECTIVE DATA

WAREHOUSE DESIGN AND

EXPERIMENTS

The studies concerning the performance of

multiobjective Cloud databases are at their early

ages. Most of the distributed database design and

optimization concepts can be applied to this area

however; multiobjective optimizations are newly

being studied. There has been substantial amount of

work on the problem of tuning database system

configurations for specific workloads or execution

environments (Weikum and Vossen, 2002) and on

the problem of making database systems more

flexible and adaptive in their use of computing

resources. On the other hand, to the best of our

knowledge, there is no approach like ours that

concern both with the optimization of the total

ownership price and the performance of the queries

of a data warehouse by taking into account

alternative virtual resource allocation, and different

query plans workloads, and materialized views.

ICAART2014-InternationalConferenceonAgentsandArtificialIntelligence

572

In this study, we tune the virtual resources to a

distributed data warehouse system, rather than

tuning the database system for a given resource

setting. Moreover, our study optimizes the

objectives of minimum money consumption and

maximum benefit from the virtual resources by

using multiobjective branch and bound genetic

algorithms. In summary, our study focuses on the

elasticity of Cloud resources and produces multiple

virtual resource deployment plans with alternative

query plans for a set of queries in a workload,

enabling the user to select the desired tradeoff with

efficient cost models. Materialized views are

effective techniques for speeding up query

workloads and they are increasingly being used by

many commercial database systems. Materialized

views are especially good for data warehouses

because of the intensive usage of common

subexpressions including select-project-join

operations. In our study, we focus on the selection of

the appropriate materialized views to reduce the

communication cost, response time, and the

ownership price of a relational Cloud database with

respect to the pricing scheme of vendors. The

multiobjective query optimization can benefit from

carefully selected materialized views. In addition to

reducing the response time of the queries, total

ownership prices decrease significantly. Although

storing/maintaining the selected materialized view

has an additional cost, it is still a very effective way

of executing queries. No resource deployment

processing system deals with the concept of

elasticity and cost-efficiency of relational Cloud

databases that makes use of the appropriate

materialized views like our system.

Our design system relies on multiobjective query

optimizers. Therefore, we turn a conventional query

optimizer into a multiobjective query optimizer.

During the execution of the queries, we use a variant

of operator centric model that is known to be more

appropriate than the classical iterative-based (pull-

based) query execution models for multiple query

optimizations. Main component of this system is an

alternative query generator that generates different

bushy-plan based query plans for the incoming

queries.

In order to design a multiobjective Cloud data

warehouse, a multiobjective query optimizer must be

used. Therefore first thing we do is to enhance a

conventional query optimizer to a multobjective one.

Data storage cost depends on the size of the data

(including the structures such as indexes,

materialized views, and replications of the tables)

and its storage period. Processing time of the VMs is

the total price for CPU usage. During the execution

of the queries, different VM configurations can be

used and the configuration of a VM (RAM, number

of CPUs, and etc.) is flexible in accordance with the

resources used. Micro, small, large, and extra large

are some of the configurations provided by the

Cloud vendors at various prices. Data transfer cost is

related with the amount of data migrated between

sites.

Alternative query plans (QP) provide different

ways for executing a query. Alternative QPs can

take advantage of different ways of executing the

same query, thus cheaper resources can reduce the

total price of a query while increasing the response

time. This elasticity provides new opportunities for

the solution of our multiobjective problem.

The formulation of the problem consists of two

parts. The monetary cost and the response time of

the query workloads that will work on the selected

VMs with the alternative QPs of the queries. There

are n VMs with independent DBMS and each VM

has a set of processors and a main memory. Each

DBMS has a workload that consists of a set of SQL

statements. Workload represents the queries

submitted to DBMS i. There are m different physical

resources (CPU capacity, main memory, network

bandwidth, etc.) that are to be deployed to VMs. Our

main goal is to obtain a set of pareto- optimal

solutions that the overall monetary and response

time cost are minimized.

Pricing Scheme Parameters of the Cloud:

Each customer requests queries from the Cloud data

warehouse by using Internet and contacts with the

aggregate node. The aggregate node distributes the

query to the appropriate VM. The Cloud

infrastructure provides unlimited amount of storage

space, CPU nodes, RAM, and very high speed intra-

cloud networking. All the resources of the Cloud are

assumed to be on a network. The CPU nodes, RAM,

and I/O bandwidth of each VM are different from

each other and can be deployed by using VM

Monitors in milliseconds (Barham et al., 2003). The

storage system is based on a clustered file system

where the disk blocks are stored close the CPU

nodes accessing them. I/O bandwidth of the storage

is divided evenly to the VMs (that may have

multiple cores up to 8).

There are several Cloud Service Providers (CSP)

in the market and they offer different pricing schema

for the services they provide. Different pricing

schema of Cloud server providers can be

opportunities for customers in accordance with the

tasks they want to complete. The cost for a small

VM (1GHz CPU, 768MB RAM) is $0.02/hr,

DesigningCloudDataWarehousesusingMultiobjectiveEvolutionaryAlgorithms

573

whereas A7 (8 x 1.6GHz CPU, 56GB RAM) is

$1.64/hr. Data storage is also billed by the Cloud

service providers. In our model, monthly storage

price is used. During our experiments, the data

storage price is constant for all the queries. But for

database designs that use materialized views an

additional storage cost needs to be added. Most of

the Cloud providers do not charge for the data

transfers in a private Cloud but the data that leaves

the Cloud. The bandwidth of the intra-Cloud

network can reach up to 10GBit/sec. In order to

make our problem more interesting and handle this

dimension of the optimization, we have located our

VMs on a virtual switch. Different bandwidth

networks can be chosen and the pricing scheme

changes in this communication infrastructure.

Branch-and-Bound Algorithm (MOD-B&B) is

an exhaustive optimization algorithm. It enumerates

all candidate solutions, where fruitless subsets of

candidates are discarded, by using upper and lower

estimated bounds of the problem instance being

optimized. MOD-B&B starts searching with null

initial values indicating that no QP has yet been

selected for any queries with the current VM

configuration. Later, QPs are assigned to current

selected VM. At each level of the tree, one

additional QP is assigned to the query workload

(Bayir et al., 2007). This procedure is repeated for

every VM configuration. We define two initial upper

bounds for MOD-B&B. The minimum monetary

cost is the running time of VMs that execute the

queries in a workload of queries. The response time

is the finishing time of the workload with the given

VM configuration. In order to estimate a lower

bound, different heuristic functions can be used. The

heuristic we proposed here is reasonable and

performs well during the optimization process. We

will explain the heuristic with a scenario. In Figure

2, we can see the results of a sample multiobjective

query workload optimization. The best response

time and the minimum monetary cost values are

defined and marked on the Figure. We can obtain

these values with the most expensive and the

cheapest VM configurations easily. Hereby, we

propose a heuristic point (marked as Heuristic point

on the Figure) that is the center of the square

constructed by the response time and monetary costs

of the best and worst (the cheapest) VM

configurations. If the response time of a workload

falls above heuristic point or if the monetary cost is

at the right-hand side of heuristic point on the Figure

then it is pruned according to our heuristic.

Multiobjective Genetic Algorithm (MOD-

GA): The principles of applying natural evolution to

Figure 2: Proposed heuristic value for MOD-B&B

algorithm.

optimization problems were first described by

Holland (1975). The GA theory has been further

developed and GAs have become very powerful

tools for solving search and optimization problems

(Tosun et al., 2013; Dokeroglu, 2012). GAs are

based on the principle of genetics and have been

frequently used to solve many NP-Complete

problems. GAs use a computational model that

simulates the natural processes of selection and

evolution. Individuals with better quality have more

chance to survive, to reproduce, and to pass their

genetic characteristics to future generations. Each

potential solution in the search space is considered

as an individual and is represented by strings called

chromosomes. Genes

are the atomic parts of

chromosomes and codify a specific characteristic.

Chromosomes are encoded in different ways for

each application. A random population is generated

in the first step of the algorithm and by applying

selection, crossover, and mutation operations

iteratively, new generations are created. The

individual having the best fitness value in the

population is returned as the solution of the problem.

Our multiobjective data warehouse design problem

can be modeled by using evolutionary methods. A

chromosome corresponds to a solution instance

including a set of VMs (having different CPU,

RAM, I/O bandwidth and etc.) with

tables/replications located on their databases,

alternative query plans (QPs) of queries in the

workload, and a network gene. Figure 3 shows the

chromosome structure of a solution. The leftmost

segment represents the configuration of the VMs

with the tables/replications on its database. Middle

segment is the set of QPs for the queries in the

workload. Rightmost part gene represents the

selected network layer of the solution vector.

Because we do not make use of partitioned

fragments of the relations, the size of the VM

segment of the chromosome can be at most as many

ICAART2014-InternationalConferenceonAgentsandArtificialIntelligence

574

as the number of tables in the database. Using

fragments (partitions) of larger tables can even

further improve the performance as it is used by

most of the commercial data warehouses. Our

proposed genetic model can be enhanced to include

the fragments of the tables.

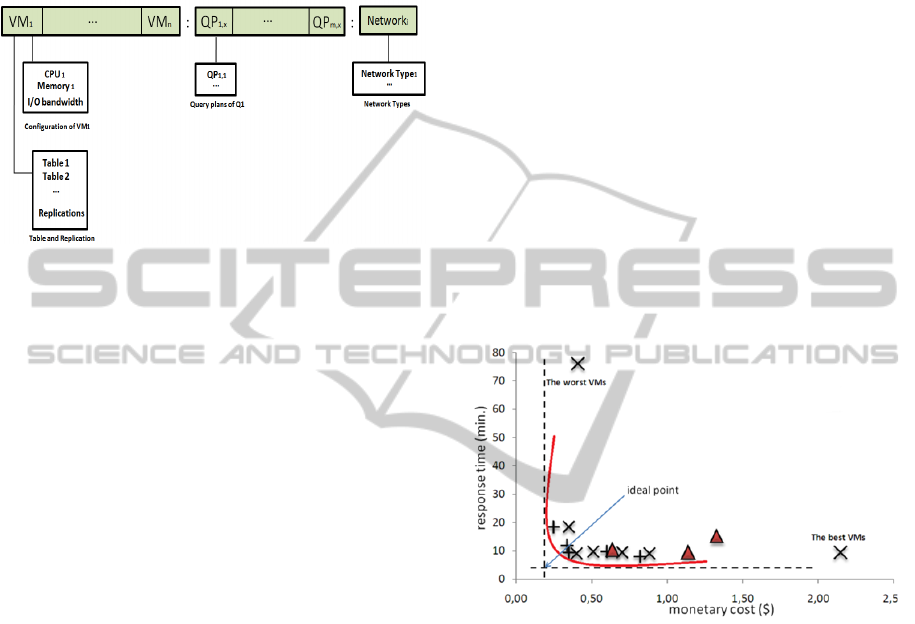

Figure 3: Chromosome structure for the proposed

multiobjective genetic algorithm that consists of Virtual

Machines, query plans and a network layer.

We have introduced three operators for the

MOD-GA. Global and local crossovers, and a

mutation operator. Global crossover operator uses

two parents that are selected from the population by

a selection method. We have proposed two types of

crossover operators, global and local. Global

crossover operator swaps VM, QP, or network part

of two selected chromosomes with the same counter

chromosome. Below we can see two parents and

their VM parts are exchanged to provide two new

chromosomes. Local crossover operator works on

the VM and QP segments of the chromosome by

dividing the parents and exchanging the segments

with each other. Mutation operator changes a

randomly selected gene of a chromosome. In our

chromosome structure this operator can act on any

of the segments. Only a gene is replaced at every

mutation process.

Experimental Results: In this part, we perform

experiments with a sample TPC-H workload. The

workload is first optimized with MOD-B&B and

MOD-GA algorithms. Later, selected solutions that

are produced by our algorithms are executed in our

Cloud Database environment to verify the

correctness of our approach. There are alternative

selected set of VM and query plan configurations in

these results. The solutions are used to measure the

effectiveness of other solutions. The workloads are

executed 10 times with the selected VM

configurations and average values are presented. In

Figure 4, we present the results of pareto-optimal

solutions that are produced by MOD-B&B

(represented with

sign), MOD-GA (represented

with x sign) and solutions with average prices

(represented with triangle sign). The solutions with

the highest and the cheapest performance VMs are

also added to define upper and lower bounds. VMs

with the highest configuration capabilities (XL) give

the best response time and WMs with the worst

configurations (XS) give the longest execution time.

In this sense, they provide meaningful results to

evaluate the quality of solutions provided by MOD-

B&B, and MOD-GA. In the Figure, a hypothetical

ideal point is defined to show the optimal fitness

value that can be achieved within the given

minimum response time and minimum pricing. The

solutions that are chosen from the set of solutions

produced by MOD-B&B, and MOD-GA algorithms

construct a pareto-optimal convex curve that a

decision maker can choose any of the solutions

according to his/her requirements. The MOST

expensive VMs option gives the fastest response

time and the cheapest VMs option is the most time

consuming.

Figure 4: Proposed pareto-optimal solutions for a sample

TPC-H workload with MOD-B&B and MOD-GA

algorithms.

Although view materialization has additional storage

costs for a Cloud data warehouse, it provides faster

response times up to 60-80% for query workloads. It

is observed to be an efficient way of designing a

Cloud data warehouse with respect to monetary and

response time costs. The experimental results

concerning the appropriate selection of the

materialized views for the Cloud data warehouses

are not presented due to the space limitations.

4 CONCLUSIONS

In this paper, we define some principles to design

efficient multiobjective Cloud data warehouses by

making use of the elasticity of the virtual resources.

DesigningCloudDataWarehousesusingMultiobjectiveEvolutionaryAlgorithms

575

We minimize the monetary cost as well as providing

fast response times. We formulate the problem and

propose exhaustive and heuristic algorithms,

namely, multiobjective branch-and-bound (MOD-

B&B) and multiobjective robust genetic algorithm

(MOD-GA) for the optimization of the problem. To

the best of our knowledge, the multiobjective design

of Cloud data warehouses is being solved for the

first time with such an approach. There are studies

that concern with the best virtual resource

deployment or with the minimal monetary cost of

workloads in static hardware resources individually.

However we combine both of these optimization

techniques together and obtain significant results as

they are presented in our study. It is possible to

design and expand the study with additional elastic

virtual resources such as I/O bandwidth and dynamic

RAMs.

REFERENCES

Amazon Web Services (AWS). aws.amazon.com.

Barham, P., Dragovic, B., Fraser, K., Hand, S., Harris, T.,

Ho, A., and Warfield, A. (2003). Xen and the art of

virtualization. ACM SIGOPS Operating Systems

Review, 37(5), 164-177.

Balazinska, M., Howe, B., and Suciu, D. (2011). Data

markets in the cloud: An opportunity for the database

community. PVLDB, 4(12).

Bayir, M. A., Toroslu, I. H., and Cosar, A. (2007). Genetic

Algorithm for the Multiple- Query Optimization

Problem. IEEE Transactions on Systems, Man, and

Cybernetics- Part C: Applications and Reviews, Vol.

37 (1):147-153.

Curino, C., Jones, E., Popa, R., Malviya, N., Wu, E.,

Madden, S., Balakrishnan, H., and Zeldovich, N.

(2011). Relational Cloud: A Database Service for the

Cloud. CIDR, pp.235-240.

D’Orazio, L., Bimonte, S., and Darmont, J. (2012). Cost

Models for View Materialization in the Cloud. In

Proceedings of the Workshop on Data Analytics in the

Cloud (EDBT-ICDT/DanaC).

Dokeroglu, T. (supervised by Ahmet Cosar) (2012).

Parallel Genetic Algorithms for the Optimization of

Multi-Way Chain Join Queries of Distributed

Databases, 38th VLDB Ph.D. Workshop, August 27-

31, Istanbul/TURKEY.

Holland, J. H. (1975) Adaptation in Natural and Artificial

Systems. University of Michigan Press, Ann Arbor,

MI, USA.

Soror, A. A., Minhas, U. F., Aboulnaga, A., Salem, K.,

Kokosielis, P., and Kamath, S. (2010). Automatic

virtual machine configuration for database workloads.

ACM Transactions on Database Systems (TODS),

35(1), 7.

Tosun, U., Dokeroglu, T., and Cosar, A. (2013). A robust

Island Parallel Genetic Algorithm for the Quadratic

Assignment Problem. International Journal of

Production Research, 1-17.

Weikum, G. and Vossen, G. (2002). Transactional

Information Systems. Morgan Kaufmann.

Xiong, P., Chi, Y., Zhu, S., Moon, H. J., Pu, C., and

Hacigumus, H. (2011). Intelligent management of

virtualized resources for database systems in cloud

environment. In Data Engineering (ICDE), IEEE 27th

International Conference on (pp. 87-98).

APPENDIX

Alternative query execution plans for TPC-H query Q3

TPC-H Q3 statement in accordance with the query execution

plan 1 where all of the tables are shipped to query issuing

node.

SELECT TOP 10 L ORDERKEY ,..., O SHIPPRIORITY

FROM [VM2].CUSTOMER C, [VM3].ORDERS O,

[VM1].LINEITEM L,

WHERE C.C MKTSEGMENT = ’BUILDING’

AND C.C CUSTKEY = O.O CUSTKEY

AND L.L ORDERKEY = O.O ORDERKEY

AND O.O ORDERDATE < ’1995-03-15’

AND L.L SHIPDATE > ’1995-03-15’

GROUP BY L.L ORDERKEY, O.O ORDERDATE, O.O

SHIPPRIORITY

ORDER BY REVENUE DESC, O.O ORDERDATE;

TPC-H Q3 statement in accordance with query execution plan

2 where CUSTOMER and ORDERS tables are joined at

virtual machine 3 and the resulting tuples are shipped to

virtual machine 2 to join with LINEITEM table.

SELECT TOP 10 L ORDERKEY ,..., O SHIPPRIORITY

FROM OPENQUERY ( [VM3]. ’SELECT O ORDERDATE, O

SHIPPRIORITY, O ORDERKEY

FROM [VM2].CUSTOMER C, [VM3].ORDERS O

WHERE C.C MKTSEGMENT = ’BUILDING’

AND C.C CUSTKEY = O.O CUSTKEY

AND O.O ORDERDATE < ’1995-03-15’

GROUP BY O.O ORDERDATE, O.O SHIPPRIORITY, O

ORDERKEY ORDER BY O.OORDERDATE) Remote1,

[VM1].LINEITEM L WHERE AND L.L ORDERKEY =

Remote1.O ORDERKEY AND L.L SHIPDATE > ’1995-03-15’

GROUP BY L.L ORDERKEY, Remote1.O ORDERDATE,

Remote1.O SHIPPRIORITY

ORDER BY REVENEU DESC’);

ICAART2014-InternationalConferenceonAgentsandArtificialIntelligence

576
