Model of Syntactic Compatibility in Workflows for Electrophysiology

Jan Štěbeták and Roman Mouček

Department of Computer Science and Engineering, University of West Bohemia, Univerzitní 8, Pilsen, Czech Republic

Keywords: Neuroinformatics, Electroencephalography, Event-Related Potentials, Workflows, Analytic Methods,

Syntactic Compatibility, Workflow Steps.

Abstract: Large amounts of EEG/ERP (electroencephalography, event-related potential) data are produced by

scientific laboratories. For complex analysis, data are processed by a set of methods sequentially or in

parallel. These processes are known as workflows. However, various input/output formats of used methods

involve difficulties while putting methods in a pipe. Simple syntactic rules comparing formats of

input/output are already used by workflow engines. In electrophysiology, it is necessary to extend these

rules due to variety of methods. Therefore, extension of syntactic rules between subsequent methods in a

workflow is presented in this paper. The proposed solution allows creating more complex workflows in the

domain of electrophysiology.

1 INTRODUCTION

Our research group specializes in the research of

brain activity; especially attention of drivers is

investigated. We widely use the methods of

electroencephalography (EEG) and event related

potentials (ERP). EEG/ERP experiments usually

take long time and produce a lot of data. Since we

need to analyze experimental data, analytic methods

that we widely use are presented.

For complex analysis, scientists often must

combine multiple processing steps into larger

“analysis pipelines” that can involve a number of

custom algorithms, specialized tools, local and

remote databases, and web services. These “analysis

pipelines” are known as workflows (Littauer, et al.

2012).

In sequential workflows, a result of a previous

method is transferred to a next method. Since putting

methods into workflows is dependent on formats of

input/output of the used methods, the syntactic rules

have to be defined.

In this paper we first briefly describe available

workflows engines and existing ways of ensuring

syntactic compatibility. The next section presents

principles of analytic methods and creating

workflows which are suitable for the electro-

physiology domain. Section 5 describes proposed

extension of ensuring syntactic compatibility

between subsequent methods. A simple comparison

of input/output formats is commonly used in many

workflow engines. However, for complex sequential

workflows in the electrophysiology domain, it is

necessary to use the methods that are incompatible

using a simple syntactic rule. Therefore, we

extended rules that ensure syntactic compatibility. It

consists in defining more formats of input/output

parameters of a method or using a subset of a result

as an input to a next method.

2 STATE OF THE ART

This section briefly describes available workflow

engines and existing ways of ensuring syntactic

compatibility.

2.1 Workflow Engines

The CARMEN project (CARMEN, 2013) has

currently addressed requirements of scientists and

developed a workflow generation and execution

system within the platform. The CARMEN

Workflow Tool is Java-based and designed to make

use of CARMEN Services. The workflow tool

supports both data and control flow, and allows

parallel execution of services. The complete

workflow tool consists of a graphical design tool, a

workflow engine, and access to a library of

CARMEN services and common workflow tasks.

442

Štebeták J. and Moucek R..

Model of Syntactic Compatibility in Workﬂows for Electrophysiology.

DOI: 10.5220/0004909304420446

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2014), pages 442-446

ISBN: 978-989-758-010-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Taverna (Taverna, 2013) is an open source and

domain-independent Workflow Management System

– a suite of tools used to design and execute

scientific workflows.The Taverna suite is written in

Java and includes the Taverna Engine (used for

enacting workflows) that powers both the Taverna

Workbench (the desktop client application) and the

Taverna Server (which allows remote execution of

workflows). Taverna is also available as

a Command Line Tool for a quick execution of

workflows from a terminal (Taverna, 2013).

e-Science Central is a Cloud based Platform for

Data Analysis. It supports secure storage and

versioning of data, audit and provenance logs and

processing of data using workflows. Workflows are

composed of blocks which can be written in Java, R,

Octave or Javascript (eScience, 2013). Scientists are

able to design workflows using the drag-and-drop

online workflow designer by selecting blocks

(services). The input and output of each block is

typed to prevent incompatible blocks being

connected to each other (Watson, et al. 2010).

2.2 Syntactic Compatibility of

Workflows

The engines described above are designed for

scientific purposes. They provide modelling of

workflows in many scientific areas including

neuroinformatics and in the domain of electro-

physiological experiments.

All of the mentioned engines use the parameter

type control during data processing (Stebetak, 2013).

This simple comparison of parameters ensures that

only compatible methods can be connected.

However, methods used in the electrophysiology

domain are specific in case of syntax and semantics

for various inputs/outputs. For example, only a

subset of the result of a previous method can be used

as an input to a next method. This case is not solved

by these engines.

For well-designed workflows, ensuring syntac-

tical compatibility is necessary but not a single step.

Used methods have to be also connected correctly in

terms of their semantics. However, semantics of

piped methods (if the connection makes sense or

not) is not satisfactorily solved by these engines.

3 ANALYTIC METHODS AND

ALGORITHMS

The following subsections briefly describe a set of

methods suitable for EEG/ERP signal analysis.

These methods are used for detection of ERP

waveforms or artifact removal.

3.1 Signal Preprocessing

A pure EEG signal contains a lot of artifacts (non-

cerebral signal); ERP waveforms are hidden.

Therefore, signal preprocessing methods are used for

suppressing artifacts and obtaining ERP waveforms.

An EEG signal is divided into epochs. Each

epoch starts at the time when a stimulus appeared

and its length depends on the latency and length of

ERP waveforms. In ERP experiments, several types

of stimuli are used.

Averaging (Rondik, 2012) is a common method

for highlighting ERP waveforms. Since the

background EEG has a higher amplitude then ERP

waveforms, the averaging technique highlights the

waveforms and suppress the background EEG

(Vidal, 1977). A set of epochs is the input of the

averaging method. The output of this method is an

averaged signal belonging to a specific stimulus.

3.2 Signal Processing

We widely use the following signal processing

methods: Fast Fourier transform, Matching Pursuit,

Discrete and Continuous Wavelet transform, ICA,

and Hilbert-Huang transform (Ciniburk, et al. 2010).

This section briefly describes principles of these

algorithms.

The Fourier transform converts waveform data in

the time domain into the frequency domain. Since

artifacts usually have higher amplitude and

frequency than a normal ERP component, this

technique is useful for detecting artifacts within the

EEG or ERP signal.

The matching pursuit (MP) algorithm is

frequently used for continuous EEG processing. It

decomposes any signal into a linear expansion of

functions called atoms. An input signal is

approximated by a Gabor atom, which has the

highest scalar product with the original signal, and

then it is subtracted from the signal. This process is

repeated until the whole signal is approximated by

Gabor atoms with an acceptable error (Vareka,

2012).

Wavelet Transform (WT) (Ciniburk, et al. 2010)

is a suitable method for analyzing and processing

non-stationary signals such as EEG. For EEG signal

processing it is possible to use continuous wavelet

transform (CWT) or discrete wavelet transform

ModelofSyntacticCompatibilityinWorkflowsforElectrophysiology

443

(DWT). Both CWT and DWT were tested during

our research focused on automatic ERP detection.

DWT is common in computer science because of

high performance caused by its algorithmic

complexity. In automatic ERPs detection it is

necessary to have a wavelet which corresponds to

a detected ERP component as much as possible.

CWT is often replaced in computer science by its

discrete form because of its algorithmic complexity.

The result of the wavelet transform is visualized in a

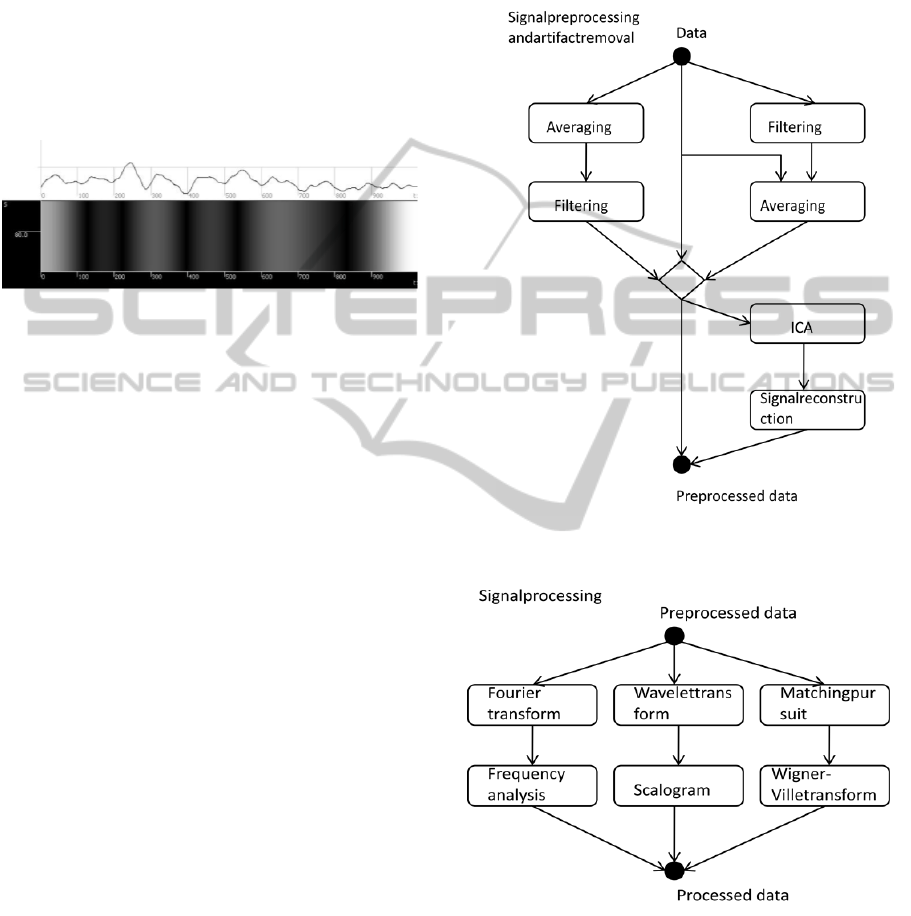

scalogram (Figure 1).

Figure 1: Input signal and its scalogram. (Rondik, 2012).

Independent Component Analysis (ICA)

(Hyvärinen, et al. 2001) is a method for blind signal

separation and signal deconvolution. In the

EEG/ERP domain, ICA can be used for artifact

removal, ERPs detection, and – generally speaking –

for detection and separation of every signal which is

independent on EEG activity.

The Hilbert-Huang transform (HHT) was

designed to analyze nonlinear and non-stationary

signal. It can be used for detection of ERP

waveforms (Ciniburk, 2011).

4 WORKFLOWS IN

ELECTROPHYSIOLOGY

Data obtained from electrophysiological

experiments are mostly analyzed using the methods

described in Section 3. However, there is usually

a need to use more than one method for analyzing an

EEG/ERP signal. Therefore, we provide an

opportunity to define workflows for complex

analysis of experimental data.

In the mentioned domain, a workflow includes a

complex set of analytic methods that process

experimental data sequentially or in parallel.

Workflows are organized as a tree structure,

where each branch of the tree has the same meaning

as a pipe in Linux; an output of the method serves as

an input of the next method. We define steps

between methods in sequential workflows. These

steps ensure that a result from a previous method is

transferred to a next method. Since different

methods have various input/output parameter types,

we have to secure their syntactic compatibility.

In Figures 2 and 3, the preprocessing and

processing methods suitable for giving into a pipe

are shown.

Figure 2: Signal preprocessing and artifact removal

(Stebetak, 2013)

Figure 3: Signal processing (Stebetak, 2013).

Note that ensuring both syntactic and semantic

compatibility of methods is important for well-

designed workflows. This paper is focused on

presenting an innovative approach in case of

ensuring syntactic compatibility of methods in

workflows. We will focus on modelling semantic

compatibility in our future work.

HEALTHINF2014-InternationalConferenceonHealthInformatics

444

5 SYNTACTIC COMPATIBILITY

EXTENSION IN

ELECTROPHYSIOLOGY

It is necessary to ensure the syntactic compatibility

in workflows. It means that the output of a previous

method and the input to a next method must match.

Otherwise, the syntactic error will occur.

The syntactic compatibility is usually ensured by

the parameters type comparison. However, the

methods in the electrophysiology domain can return

more than one result type. It is also possible that

only a subset of result is used as an input to the next

method in a workflow. The next paragraphs describe

proposed extension of ensuring syntactic

compatibility.

5.1 Simple Comparison of Parameter

Type

Each used method has a definition of input/output

parameter types. We define these types via XML file

attached to a method. An example of input/output

parameter type of a method is given below.

<?xml version="1.0" encoding="UTF-8"?>

<param type="input" format="ARRAY"

datatype="DOUBLE" />

<param type="output"

format="2DARRAY" datatype="DOUBLE"

</method>

5.2 Multi-format Parameters

Because of variety of input/output formats, we

extended the implemented methods by multi-format

parameters. It means that the methods accept more

input formats and return more output formats

(Figure 4). In this example, Method 1 provides result

in format of a two-dimensional array and also in data

collections, e.g. Map in Java or Dictionary in C#.

Method 2 accepts input in two-dimensional array

format and Method 3 accepts data collections. Both

these methods can be added into a sequential

workflow following the Method 1 since this method

provides a multi-format output.

The syntactic compatibility of methods is

ensured, when one of output parameter types of

a previous method matches with an input parameter

type of a next method.

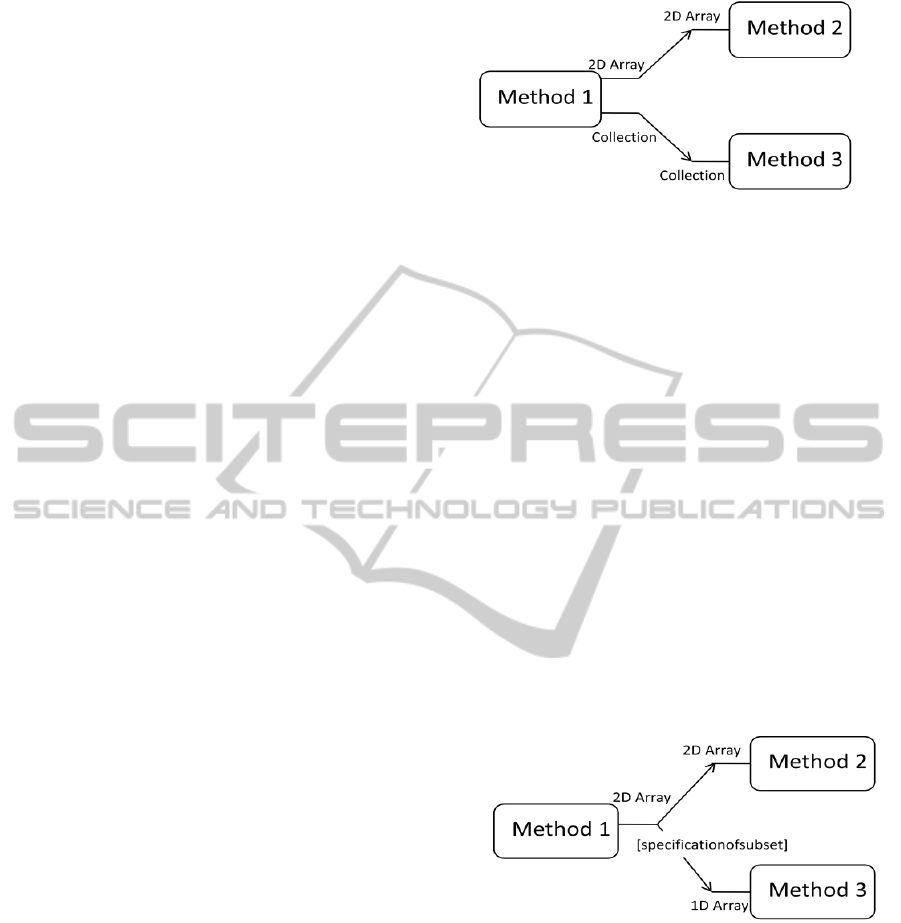

Figure 4: Multi-format output of the result provided by

Method 1.

5.3 Subset of Result

In electrophysiology, we often use methods that

provide results in a different format than a next

method requires, e.g. the method for detection of

epochs (Section 3.1). This method returns signal

belonging to all detected epochs but only signal

from one epoch for further processing (e.g.

averaging) is used.

An example of using a subset of result is given

in Figure 5. In this case, Method 1 returns results

only in a two-dimensional array format. The input of

Method 2 has a two-dimensional array as well.

Therefore, these methods are compatible by simple

comparison of their parameter types. On the

contrary, Method 3 expects a one-dimensional array

as an input. Therefore, a scientist has to select a

subset from two-dimensional array produced by

Method 1.

Figure 5: Scientist specifies a subset of result for Method

When a scientist (a user in general) puts methods

such as Method 1 and Method 3 into a workflow, the

workflow processing stops and the results from

Method 1 is displayed. The user is requested to

choose a subset of the result that is used as an input

to Method 3. Then the workflow processing

continues.

ModelofSyntacticCompatibilityinWorkflowsforElectrophysiology

445

6 CONCLUSIONS

This paper summarizes methods for EEG/ERP

signal preprocessing and processing. It brings an

introduction to principles of these methods as well

as their using for ERP waveforms detection or

artifacts removal.

Since analyzing an EEG/ERP signal usually

includes using more methods sequentially or in

parallel, definition of workflows for complex

analysis is presented.

Since methods are executed sequentially, it is

necessary to ensure that the execution of workflow

does not fail due to incompatibility of piped

methods. In electrophysiology, there are methods

with various input and output formats. The proposed

solution ensures syntactic compatibility of piped

methods. It includes an extension of used methods

by multi-format parameters described in Section 5.2.

This solution also enables using a subset of a result

of a previous method as an input to a next method.

Our future work will focus on testing the

proposed solution by implementation of workflow

steps into our neuroinformatics infrastructure. We

will also focus on modelling semantic compatibility

of methods.

ACKNOWLEDGEMENTS

The work was supported by the UWB grant SGS

2013-039 Methods and Applications of Bio- and

Medical Informatics.

REFERENCES

(CARMEN) Development of a workflow system for the

CARMEN Neuroscience Portal (2013)

http://neuroinformatics2012.org/abstracts/development-of-

a-workflow-system-for-the-carmen-neuroscience-

portal

Taverna (2013), http://www.taverna.org.uk/

eScience Central (2013) http://

www.esciencecentral.co.uk/?p=151

Watson, P., Hiden, H., Woodman, S., 2010, “e-Science

Central for CARMEN: Science as a Service.”

Concurrency and Computation: Practice and

Experience, Volume 22, Issue 17, pages 2369-2380,

10 December.

Rondik, T. 2012, “Methods for Detection of ERP

Waveforms in BCI Systems” State of the Art and

Concept of Ph.D. Thesis, Pilsen.

Vidal, J. J., 1977, Real-time detection of brain events in

EEG. Proceedings of the IEEE, Volume 65, Issue 5,

pp. 633 - 641.

Ciniburk, J., Mouček, R., Mautner, P., Řondík, T., 2010,

ERP components detection using wavelet transform

and matching pursuit algorithm, DCII,Prague (2010)

Vareka, L., 2012, Matching Pursuit for P300-based Brain

Computer Interfaces, Prague.

Hyvärinen, A., Karhunen, J., and Oja, E., 2001,

“Independent Component Analysis” Adaptive and

Learning Systems for Signal Processing,

Communications and Control. J. Wiley,.

Rondik, T., 2010, “Použití matching pursuit s vlastním

slovníkem funkcí při detekci ERP v EEG signálu

(Using matching pursuit algorithm with its own

dictionary for ERP in EEG signal detection)”.

Proceedings of the 10th Conference Kognice a umělý

život (Cognition and Artificial Life), Opava: Slezská

univerzita, pp. 329-332,.

Ciniburk, J., 2011, “Hilbert-Huang transform for ERP

detection“, Ph.D. Thesis, University of West Bohemia,

Pilsen, Czech Republic.

Stebetak, J., 2013, “Analytic Methods and Workflows for

EEG/ERP Domain” State of the Art and Concept of

Ph.D. Thesis, Pilsen.

Littauer, R., Ram, K., Ludäscher, B., Michener, W.

Koskela, R., 2012, “Trends in Use of Scientific

Workflows: Insights from a PublicRepository and

Recommendations for Best Practice“, The

International Journal of Digital Curation, Volume 7,

Issue 2.

HEALTHINF2014-InternationalConferenceonHealthInformatics

446
