1 STAGE OF THE RESEARCH

In the past decade, the cost of sequencing a human

genome has evolved from millions of dollars to

a few thousands of dollars. As a result of this

exponential drop in cost, the amount of sequencing

data is increasing exponentially (Guy Cochrane et al.,

2013)(Yuichi Kodama et al., 2011). Doubling rates

reach down to four months. As storage capacity per

dollar doubles roughly every 18 months, the storage

of genomic data is becoming a problem.

Given the above observations, a substantial amount

of research is done on the compression of genomic

data. However, there is no such thing as genomic

data from a compression point-of-view. Depending

on the type of species (e.g., genomes of humans, bac-

teria, viruses, and tumors), genomic data possesses

different characteristics. Many compression tools are

optimized for a speciﬁc type of genomic data or, at

least, perform differently depending on the type of

species.

Furthermore, the type of storage (stand-alone ﬁles

or databases) offers possibilities for different types

of compression (e.g., stand-alone versus reference-

based compression).

Effectivity (compression ratio) is only one aspect of

managing genomic data. Next to effectivity, there

is also a need for efﬁcient management, efﬁcient

transmission over networks and efﬁcient analysis of

the data. To our knowledge, these aspects are often

neglected.

1.1 Targeted Use Case

A group of scientists wants to create a database con-

taining genomic sequences of different species. For

later reference, the reads of the sequencing machines

also need to be stored, including the quality measure-

ments. This database will be used both locally and on

remote sites. Local access to the database is mainly

done in an ad hoc way at the genomics level (Single

Nucleotide Polymorphism or SNP detection, identiﬁ-

cation). The speed of availability (the time between

sequencing and downloading it from the database)

is more important than the compression rates. Re-

mote access is mainly performed for metagenomics

research and runs over a standard internet connection.

The compression ratio, network load and ability to

compare genomic data at the lowest complexity are

key here. As most of the sequences are conﬁdential,

the scientists also have the responsibility to protect the

privacy of their patients. Therefore, encryption of the

data and Digital Rights Management (DRM) are not

to be neglected.

2 OUTLINE OF OBJECTIVES

Compression algorithms can be mapped on a triangle

with three axes (Figure 1):

• Effectiveness: what is the compression ratio of-

fered by the algorithm?

• Efﬁciency: what is the computing time to com-

press data? What is the transmission efﬁciency?

• Functionality: does the algorithm allow for added

functionality (e.g. random access, metadata, error

correction,...)?

Functionality

Effectiveness

Efficiency

Figure 1: The three axes of compression algorithms.

Paridaens T., De Neve W., Lambert P. and Van De Walle R..

Genome Sequences as Media Files - Towards Effective, Efﬁcient, and functional Compression of Genomic Data.

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

In our research, we will mainly focus on function-

ality and efﬁciency.

Good compression (effectiveness) is important but

might be inefﬁcient in a network context. In gen-

eral, full-ﬁle compression offers higher compression

ratios than block-based compression. However, full-

ﬁle compression requires the transmission of the com-

plete ﬁles, even when only a small part of the data is

needed. As a result, a lot of data is transmitted with-

out ever being used, causing excessive and unneces-

sary network load.

To maximise efﬁciency, a novel compression algo-

rithm will be designed that splits up the data into

small blocks. Each of these blocks will be encoded

separately using prediction tools. These tools will

predict blocks either with a reference (a previously

encoded block) or without a reference. This block-

based approach is expected to affect the effectiveness

of the compression algorithm but will offer higher ef-

ﬁciency and more functionality.

For this block-based compression scheme we will in-

vestigate features such as:

• Random Access, to allow transmission of partial

data;

• Streaming, to offer live access to sequencing

data;

• Parallel Processing, to speed up compression and

decompression;

• Metadata, to facilitate the management of data

and to support random access;

• Encryption, to protect privacy;

• Editing and Analysis in the Compressed Do-

main;

• Error Detection and Correction, to ensure that

the data transmission is error free;

• Load-balancing, choosing a subset of prediction

tools to balance computing time, compression ra-

tio and network load;

• Smart Prediction Tool Selection, to optimise

compression efﬁciency by selecting a subset

of compression tools based on the different

characteristics of different species genomes.

Despite the focus on efﬁciency and functionality, it is

clear that effectiveness is not to be neglected. During

our initial research, we discovered that there is no ref-

erence benchmark set to compare algorithms (Sebas-

tian Wandelt et al., 2013). It is therefore a side goal

to deﬁne such a reference benchmark set that can be

shared amongst researchers to compare different solu-

tions in speed, memory usage and compression ratio.

In order to be accepted generally, the benchmark set

will need to consist of several types of genomic data:

• Reads (with quality information) and full se-

quences;

• Aligned reads and unaligned reads;

• Genes, chromosomes and full genomes;

• Bacteria, viruses, humans and other species.

Note that the ideal genomic data compression tool of-

fers support for all these types of genomic data.

3 RESEARCH PROBLEM

In this doctoral research, we aim at answering the

following overall research question:

“How can we apply existing technologies in me-

dia compression, storage, management and analysis

to genomic data in such a way that they improve on

current existing technologies in the sense of compres-

sion, transmission and/or analysis efﬁciency?”

The above research question can be broken up

into a number of smaller research questions:

“How can we design a ﬁle format for the compres-

sion of genomic data in such a way that it supports all

features that are currently already available for, e.g.,

video ﬁles? These features include, amongst others,

random access, streaming capabilities, metadata, en-

cryption, DRM, load-balancing, compressed-domain

manipulation, parallel processing, error detection

and error correction.”

“Which set of prediction and coding tools pro-

vides the highest compression ratio?”

“How does random access affect the compression

efﬁciency and network load?”

“How does error correction affect the compres-

sion efﬁciency? Does it consume the compression

gain?”

“Which set of prediction and coding tools pro-

vides the highest compression ratio? Can these tools

compensate for the loss of efﬁciency due to the use of

block-based compression?”

“How can we integrate the proposed ﬁle format

into existing technologies that allow re-use of already

existing ﬁle streaming technologies?”

BIOSTEC2014-DoctoralConsortium

“How can we compare the performance of our

solution with already existing solutions in terms of

compression ratio, (de)compression time and network

load?”

4 STATE OF THE ART

4.1 Compression of Genome Sequences

Genome compression is split up in two different dis-

ciplines: full-sequence compression and read com-

pression. Both disciplines cover the compression of

plain sequencing data (a complete sequence or sepa-

rate reads). The latter will also support the compres-

sion of quality information. To compress the genomic

data, four different types of compression are avail-

able(Sebastian Wandelt et al., 2013):

1. Bit Encoding - Bases are stored as a sequence of

two bits (or three bits when the N base is also

used), instead of the eight bits needed for en-

coding the sequence in the ASCII-format. This

type of encoding offers a 4:1 compression ratio

(or 2.67:1 for sequences that use the N base).

2. Dictionary-based Encoding - Groups of bases

are stored as a reference to previously encoded

parts of the sequence(Shanika Kuruppu et al.,

2011)(Xin Chen et al., 1999).

3. Statistical Encoding - Bases are predicted, based

on a probabilistic model. If these predictions are

reliable, statistics encoding can be highly efﬁ-

cient(Armando J. Pinho et al., 2009).

4. Reference-based Encoding - Groups of bases

are stored as a reference to another reference

genome. As genomes are highly similar be-

tween species of the same kind, these compres-

sion schemes can reach compression ratios of

more than 100:1(Markus Hsi-Yang Fritz et al.,

2011).

4.2 Media ﬁles

In the world of media ﬁle

compression and transmis-

sion, a substantial amount of research has been (and

is still being) performed on effectivity, efﬁciency and

functionality.

Organisations such as MPEG (Moving Picture Ex-

perts Group) and JCT-VC (Joint Collaborative Team

on Video Coding) deﬁne technical speciﬁcations for

A ﬁle containing video content, audio content and/or

pictures

video and audio compression. These technical spec-

iﬁcations focus mainly on effectivity (and efﬁciency

to some extent). Next to these compression formats,

MPEG and JCT-VC deﬁne technical speciﬁcations to

add functionality such as media containers for trans-

portation and metadata standards.

MPEG and JCT-VC update their video and audio

compression speciﬁcations on a regular basis. This

is necessary to cope with the ever growing amount

of bandwidth and storage capacity that is needed for

storing video and other media ﬁles. The amount of,

e.g., video data created every day is rising exponen-

tially. While ﬁlming was limited to dedicated devices

until a few years ago, now nearly every computer,

smartphone and tablet can generate Full HD (High

Deﬁnition) videos (or even videos at higher resolu-

tions).

Smartphones and tablets are for media what Next

Generation Sequencing (NGS) is for genomes: a

cheaper way to create data and, as a result, the source

of an exponential growth in data.

Thanks to the standardisation of these compression

formats, researchers can focus on more advanced re-

search, compare their results and built on research of

colleagues.

These standardisation efforts opened doors for re-

search on many surrounding topics:

• Metadata;

• Compressed-domain editing, adaptation and

detection;

– H.264 AVC (Advanced Video Coding)(Chris

Poppe et al., 2009);

– H.264 SVC (Scalable Video Coding)(Heiko

Schwarz et al., 2007);

– H.265 HESVC (High-Efﬁciency Scalable

Video Coding);

– MPEG-21 BSDL, a format-agnostic editing

tool(Tom Paridaens et al., 2007);

• Speed improvements;

– transcoding (Fatma Al-Abri et al., );

– parallel processing;

– GPU (Graphical Processing Unit) accelera-

tion(Pie, );

• Streaming;

– servers;

– streaming formats;

– adaptive streaming(Davy Van Deursen et al.,

2010);

• Adaptivity;

– deﬁnition of levels (levels deﬁne e.g. computa-

tional complexity);

GenomeSequencesasMediaFiles-TowardsEffective,Efficient,andfunctionalCompressionofGenomicData

– customisable compression tools;

– balancing compression rate versus processing

power/energy consumption;

• Encryption(Glenn Van Wallendael et al., 2013);

• Random access.

Many of these topics can be introduced in the

context of genomic data, provided the compression

scheme supports features such as random access and

metadata.

4.3 MPEG-21 BSDL:

Compressed-domain Editing and

Adaptation

In previous research by the authors, it was demon-

strated that the MPEG-21 BSDL (Bitstream Syntax

Description Language) standard can be used to ef-

ﬁciently adapt existing media ﬁles before stream-

ing them to end-users. MPEG-21 BSDL is format-

agnostic and allows fast adaptation of ﬁles. As only

limited processing has to be performed, ﬁles do not

have to be decoded to select pieces of that ﬁle (Davy

Van Deursen et al., 2010). As MPEG-21 BSDL is

format agnostic, it is also applicable to any other ﬁle

format, including our proposed solution as long as a

Bitstream Syntax (BS) Scheme is available for that

ﬁle format. This scheme describes the binary syntax

of the ﬁle format.

The description and adaptation of a data ﬁle happens

in three steps:

1. The generation of a Bitstream Syntax Description

(BSD). This is an eXtensible Markup Language

(XML) ﬁle that contains the structure of the media

ﬁle. To generate this ﬁle, a BS Scheme is used.

This step only needs to be performed once per ﬁle.

The resulting BSD can be reused for any future

adaptation on that ﬁle.

2. The BSD ﬁle is adapted. This can be done manu-

ally or using standard XML transformation tech-

niques. Typical adaptations are the selection of,

e.g., a movie scene. To do so, the data corre-

sponding to all other scenes in that video scene

are removed from the description.

3. Based on the adapted BSD ﬁle, the adapted media

ﬁle is generated.

Figure 2 illustrates this process, applied to ge-

nomic data. In Step 1 (generation), the description

of a sequence of 4 genes is created. In this example,

the genes are deﬁned with their respective ﬁrst and

last bit. As an example, we will select Gene3.

In Step 2 (transformation), the description is adapted

by removing all unwanted genes from the description.

In Step 3 (adaptation), the new genomic data ﬁle is

created by adapting the original ﬁle, in casu deleting

the bits corresponding to the other genes.

4.4 Management and Analysis of

Compressed Genome Sequences

Most genome compression tools are designed to of-

fer maximum compression. To reach maximum com-

pression, functionality is often very limited. Exam-

ples of functionality that many genome compression

formats do not support are:

• Random Access - to access speciﬁc parts of ﬁles

without full decompression (Kalyan Kumar Kaipa

et al., 2010);

• Streaming - to access genomic data, even during

compression and sequencing;

• Metadata - to allow to integrate additional infor-

mation on the genomic data.

• Encryption - to protect the privacy or information

of delicate subjects;

• Compression Parameters - to enable balancing

of (de)compression speed, memory usage, and

compression ratio;

• Compressed-domain Editing and Analysis - to

edit and analyse without decompressing the data.

• Reads and Full Sequences - to support compres-

sion of both reads (and quality information) and

complete sequence ﬁles;

• Parallel (de)Compression - to improve the com-

pression and decompression efﬁciency.

As a result, most of the genomic data is still stored

non-compressed in order to allow for easy editing

and analysis. There are trials ongoing, e.g., ENA

(European Nucleotide Archive) is adding support for

CRAM, but these only limit data trafﬁc and lack func-

tionality(EBI, 2013).

A number of the features mentioned above can be

applied to existing formats by leveraging additional

tools. Other features, such as parallel compression,

might be harder to implement, or even create no efﬁ-

ciency gain at all, depending on the compression al-

gorithm.

5 METHODOLOGY

We will split up the development of the novel ﬁle for-

mat and the corresponding tools into several steps:

BIOSTEC2014-DoctoralConsortium

</Genome>

Gene1 Gene2 Gene3 Gene4

Step 1

</Genome>

Step 2

Gene1 Gene2 Gene3 Gene4

Step 3

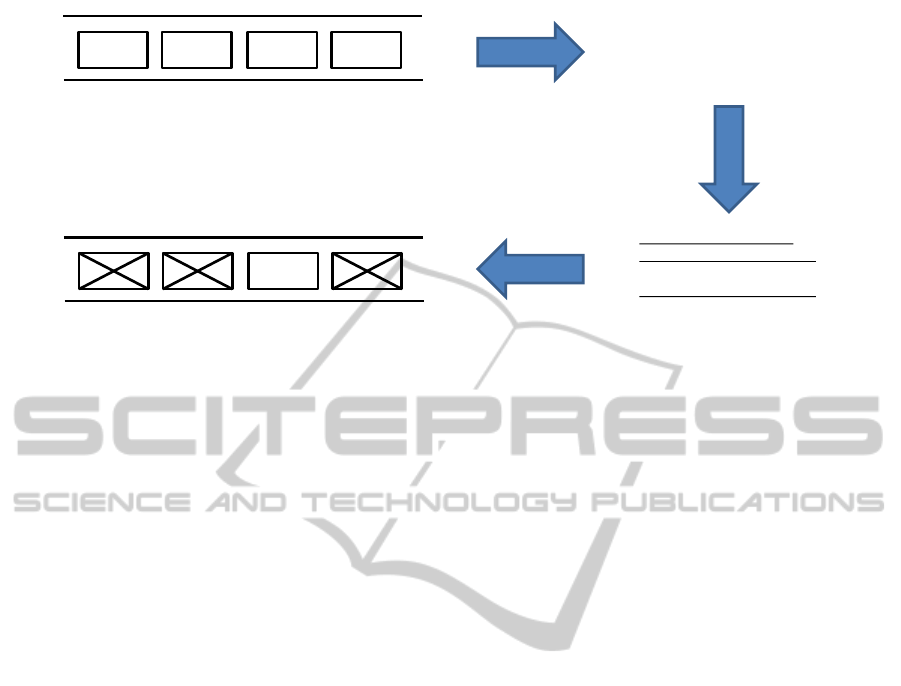

Figure 2: Selecting Gene3 from a genomic data ﬁle.

• The development of a modular compression archi-

tecture. This architecture will consist of modules

responsible for input, compression, output (multi-

plexing), statistics and metadata.

• The creation of a BSDL scheme (or equivalent),

based on the ﬁnal data format.

• The implementation and demonstration of the ba-

sic editing functionality in the compressed do-

main, based on the BSDL scheme.

• The integration of the BSDL scheme and the edit-

ing functionality in an existing BSDL-based ﬁle

parser and streaming server.

• The integration of the compressed data streams

into existing streaming ﬁle formats to enable

use of mainstream (fully-optimised) streaming

servers as backbone servers.

The input module will support:

• Plain ASCII sequence data ﬁles;

• FASTA ﬁles;

• SAM (Sequence Alignment/Map) ﬁles.

The compression module will contain multiple pre-

diction and coding tools based on bit encoding,

dictionary-based encoding and statistical encoding.

The output module will produce binary data, encoded

using CABAC (Context-Adaptive Binary Arithmetic

Coding).

The statistics module will provide users with statis-

tical data on the usage of the different prediction and

coding tools and their compression and computational

performance. The metadata module will handle the

metadata of the input ﬁle and provide the list of ran-

dom access points.

Based on this research, additional research topics

are:

• Support for other popular ﬁle formats (e.g., the

CRAM speciﬁcation);

• Data encryption;

• Error protection and correction;

• Compression acceleration (multi-threading, GPU

acceleration);

• Co-creation of a benchmark data set for DNA data

compression in general.

6 EXPECTED OUTCOME

This research will result in a novel genomic data ﬁle

format that supports:

• Competitive compression and computational per-

formance (in bits/base and msec/base);

• Random access;

• Error protection;

• Data protection (encryption);

• DRM;

• Metadata;

• Conﬁgurable and adaptive encoding.

To test the compression performance, a list of

frequently-used test sequences will be used. We will

attempt to deﬁne a reference benchmark data set to-

gether with other researchers and institutes to offer a

reliable comparison of the performance between for-

mats.

Based on this genomic data ﬁle format, we will

develop a management and streaming solution that

optimises the needed storage capacity, the network

load and the speed of access to both full genomic se-

quences as well as partial sequences.

GenomeSequencesasMediaFiles-TowardsEffective,Efficient,andfunctionalCompressionofGenomicData

7 PRELIMINARY RESULTS

We have implemented a ﬁle compression tool that will

serve as a reference for further test results. It is the

base line to which the effect of additional compres-

sion tools and added functionality will be measured.

The tool performs the following steps:

1. The input sequence is split up in blocks of an ar-

bitrary size (currently 48 bases).

2. For each of the bocks, a prediction is made using

six separate tools:

(a) INTRA Coding - the prediction is a repetition

of a single base. E.g., ”AAAAA...”.

(b) INTRA Coding - the prediction is an alter-

nating repetition of two different bases. E.g.,

”ATATAT...”.

with a 2-base Huffman coding. In this case, nu-

cleotides are encoded in pairs. It is expected

that codon-wise encoding would be more efﬁ-

cient.

(d) SEARCH Coding - the prediction is the block

that contains the least differences when com-

pared to the input block. To ﬁnd this block, the

input block is compared to all previously en-

coded blocks within a range Search Window.

(e) SEARCH INVERSE COMPLEMENT Cod-

ing - the predicion is the same as SEARCH

coding but instead of the block, the inverse

complement of the input block is used during

the search.

(f) HIERARCHICAL Coding - the input block is

being split in half. Each of the parts will then

be encoded with the tools in this list. To avoid

endless splitting, a maximum depth is deﬁned.

3. The differences between a block and its prediction

(residue) are encoded as a sequence of address-

transformation couples. The addresses are en-

coded in plain bits. The transformation informa-

tion is encoded using Huffman coding. The trans-

formation information is based on a couple of op-

erators (complement, switch). The operator com-

plement returns the complement of the predicted

base:

Complement(A) = T Complement(T ) = A

Complement(C) = G Complement(G) = C

The operator switch returns the equivalent base

from the other base pair

Switch(A) = C Switch(C) = A

Switch(G) = T Switch(T ) = G

base pairs are the couples {A,T} and {C,G}

These operators can be combined:

Complement(Switch(T )) = Complement(G) = C

If none of the operators is used, the result is N:

(T ) = N

4. The best prediction mode is chosen based on

compression efﬁciency. It is encoded in the

output bit stream, together with the residue (the

difference between the prediction and the actual

input block).

In early tests, we used a sequence of the Y chro-

mosome of a human. This ﬁle contains both A,C,G,T

bases and the undeﬁned N base. In Table 1, we

show the compression efﬁciency of a number of stan-

dard solutions compared to our compression tool. To

store the Y chromosome sequence in ASCII, 8 bits

are needed per base. Even in pure binary format, it

would still take 3 bits per base. When Huffman would

be used, this speciﬁc ﬁle would need 2.21 bits per

base. Our block-based solution needs, depending on

the conﬁguration, less than 2 bits per base.

Table 1: Compression efﬁciency.

Encoding bits/base

ASCII 8

Binary (ACGTN) 3

Huffman 2.21

Our solution <2

It is obvious that several improvements can be in-

troduced to further enhance the above algorithm. Pos-

sible improvements are:

• The use of arithmetic coding instead of HUFF-

MAN coding;

• The use of context-adaptive arithmetic coding

based on the different types of encoded data;

• Additional prediction schemes, including support

for single-nucleotide insertions and deletions;

• Optimisation of the encoding of the prediction

signalisation and the resulting residue.

However, the current format already inherently sup-

ports:

• Parallel processing, thanks to the ﬁxed block size

(provided the search windows are managed well);

• Load-balancing, thanks to the search parameters

and enabling/disabling of prediction tools;

• Random access, thanks to the block-based coding.

It should be noted that we can expect that some func-

tionality, such as random access and error protection,

will decrease the compression efﬁciency of the tool.

BIOSTEC2014-DoctoralConsortium

ACKNOWLEDGEMENTS

The research activities described in this paper were

funded by Ghent University, iMinds, the Institute for

the Promotion of Innovation by Science and Tech-

nology in Flanders (IWT), the Fund for Scientiﬁc

Research–Flanders (FWO–Flanders), and the Euro-

pean Union.

REFERENCES

Armando J. Pinho et al. (2009). DNA coding using ﬁnite-

context models and arithmetic coding. ICASSP.

Chris Poppe et al. (2009). Moving object detection in

the H.264/AVC compressed domain for video surveil-

lance applications. Journal of visual communication

and image representation, 20(6):428–437.

Davy Van Deursen et al. (2010). NinSuna : a fully in-

tegrated platform for format-independent multime-

dia content adaptation and delivery using Semantic

Web technologies. Multimedia tools and applications,

46(2-3):371–398.

EBI (2013). First bulk CRAM submission to ENA.

EBI. http://www.ebi.ac.uk/ena/about/news/ﬁrst-bulk-

cram-submission-ena.

Fatma Al-Abri et al. Optimal H.264/AVC video transcod-

ing system. Multimedia tools and applications, pages

335–336.

Glenn Van Wallendael et al. (2013). Encryption for high

efﬁciency video coding with video adaptation capa-

bilities. IEEE international conference on consumer

electronics.

Guy Cochrane et al. (2013). The future of DNA sequence

archiving. Gigascience.

Heiko Schwarz et al. (2007). Overview of the Scalable

Video Coding Extension of the H.264/AVC Standard.

IEEE transactions on circuits and systems for video

technology, 17(9).

Kalyan Kumar Kaipa et al. (2010). System for Random

Access DNA Sequence Compression. IEEE Interna-

tional Conference on Bioinformatics and Biomedicine

Workshops.

Markus Hsi-Yang Fritz et al. (2011). Efﬁcient stor-

age of high throughput DNA sequencing data using

reference-based compression. Cold Spring Harbor

Laboratory Press.

Sebastian Wandelt et al. (2013). Trends in genome com-

pression. Journal of Current Bioinformatics.

Shanika Kuruppu et al. (2011). Optimized Relative Lempel-

Ziv Compression of Genomes. 34th Australasian

Computer Science Conference.

Tom Paridaens et al. (2007). XML-driven Bitrate Adap-

tation of SVC Bitstreams. 8th International Work-

shop on Image Analysis for Multimedia Interactive

Services.

Xin Chen et al. (1999). Compression Algorithm for DNA

Sequences and Its Applications in Genome Compari-

son. Genome Inform Ser Workshop Genome Inform.

Yuichi Kodama et al. (2011). The sequence read archive:

explosive growth of sequencing data. Nucleic Acids

Research.

GenomeSequencesasMediaFiles-TowardsEffective,Efficient,andfunctionalCompressionofGenomicData
