Silent Speech for Human-Computer Interaction

João Freitas

1,2

, António Teixeira

and Miguel Sales Dias

1,3

Microsoft Language Development Center, Lisboa, Portugal

Departamento de Electrónica Telecomunicações e Informática/IEETA, Universidade de Aveiro, Aveiro, Portugal

ISCTE-University Institute of Lisbon, Lisboa, Portugal

1 STAGE OF THE RESEARCH

Speech communication has been and still is the

dominant mode of human-human communication

and information exchange. Therefore, an interface

based on speech allows people to interact with

machines in a more natural and effective way

(Teixeira et al., 2009) and, for this reason, spoken

language technology has suffered a significant

evolution in the last years. However, conventional

automatic speech recognition (ASR) systems use

only a single source of information – the audio

signal. When this audio signal becomes corrupted in

the presence of environmental noise or assumes

particular patterns, like the ones verified in elderly

speech, speech recognition performance degrades,

leading users to opt by a different modality or to not

use the system at all. This type of systems have also

revealed to be inadequate in situations where privacy

is required, for users without the ability to produce

an audible acoustic signal (e.g. users who have

undergone a laryngectomy) and users with speaking

difficulties and speech impairments.

To tackle these problems and being speech a

privileged interface for Human-Computer

Interaction (HCI), a novel Silent Speech Interface

(SSI) based on multiple modalities is envisioned.

We propose an SSI for European Portuguese (EP), a

language for which no SSI has yet been developed.

In our in depth state-of-the-art critical assessment,

we have identified several modalities to convey

silent speech data and address the issues raised by

adapting existing work on SSIs to EP such as, the

recognition of nasal vowels. From this analysis

several modalities with low-invasiveness were

selected and a set of preliminary experiments based

on Video, Depth, Surface Electromyography

(sEMG) and Ultrasonic Doppler Sensing (UDS)

were conducted. Taking in consideration the results

from the literature review and the experiments, we

have decided to develop a multimodal SSI for EP.

Results have also show recognition problems

between minimal pairs of words that only differ on a

nasal sound using the visual and the sEMG

approach, supporting our planned development of an

SSI based on the fusion of multiple modalities and

motivating the investigation of the detection of nasal

sounds using less invasive approaches. We are

presently collecting the necessary corpora for

developing a prototype and analysing the use of an

additional sEMG sensor to capture the myoelectric

signal coming from the muscles related with the

nasality phenomena.

2 OUTLINE OF OBJECTIVES

The objectives defined for this PhD thesis are the

following:

European Portuguese Adoption – The adaptation

of SSIs to a new language and the procedures

involved constitute by itself an extension to the

current scientific knowledge in this area. With this

work we will address the challenges of developing a

SSI for EP, the first approach for this language in the

Portuguese and international academia. Using the

techniques described in literature and adapting them

to a new language will provide novel information

towards language independence and language

adoption techniques.

Identify and Address Problems caused by

Nasality – Motivated by the EP adoption, one of the

areas of research to address is the problem of

recognizing nasal sounds, as pointed out in (Denby

et al., 2010). Considering the particular nasal

characteristics associated with EP, we have noticed

performance deterioration in terms of recognition

rates and accuracy using existent approaches. When

this occurs, the root of the system performance

deterioration cause needs to be identified and new

techniques based on that information need to be

thought. For example, adding a sensor that that can

provide complementary information. This will allow

concluding particular aspects that influence language

expansion, language independency and limitations

Freitas J., Teixeira A. and Dias M..

Silent Speech for Human-Computer Interaction.

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

of SSIs for the EP case.

Multi-sensor Analysis - An SSI can be

implemented using several types of sensors working

separately or a multimodal combination of them in

order to achieve better results. For this work we will

preferably adopt the less invasive approaches and

sensors that are able to work both in silent and noisy

environments. Further investigation will also be

conducted on silent speech processing, respectively

on data acquisition, feature extraction, and

classification, as well as, on combining techniques

through multiple sensor devices, data fusion and

solving asynchrony issues verified in different

signals (Srinivasan et al., 2010) in order to

complement and overcome the inherent

shortcomings of some approaches without

decreasing the usability of the system.

User Requirements and Scenarios Definition -

After determining the different possibilities for each

type of SSI, a hybrid and minimally invasive

solution will be envisioned, specified, developed and

tested, including existing hardware components and

new software solutions, and targeting a universal

interface that includes elderly people. The specific

limitations and requirements imposed by an elderly

speaker need to be stipulated based on a pre-defined

user profile in order to provide an efficient use of the

interface. During the full span of the project

duration, close contact with end-users will be

sought, starting from user requirements’ capture to

the adoption of a full usability evaluation

methodology, which will collect feedback and draw

conclusions based on real subjects while interacting

(using SSI) with computing systems and

smartphones, respectively, in real case indoor home

scenarios and in mobility environments.

Usability Evaluation - Usability evaluation will be

conducted, considering different groups of users.

The usability evaluation will be focused on real case

indoor home scenarios. This evaluation will also

include a comparison study, similar to the ones

described in (Freitas et al., 2009) towards traditional

interfaces such as, mouse and keyboard.

Fulfilling these objectives, even partially, will

contribute to expanding knowledge in different areas

of research. The used methodology will be based in

state-of-the-art assessment, analytical modelling of

the proposed solutions, specification, development,

test and concrete deployment of algorithms and

software systems, including also external sourcing of

hardware components in the specified use cases and

usability evaluation of such cases with end-users.

3 RESEARCH PROBLEM

An SSI performs ASR in the absence of an

intelligible acoustic signal and can be used as a

human-computer input modality in high-

background-noise environments such as, living

rooms, or in aiding speech-impaired individuals

which are unable to benefit from the current HCI

systems based on speech. By acquiring sensor data

from elements of the human speech production

process – from glottal and articulators activity, their

neural pathways or the brain itself – an SSI produces

an alternative digital representation of speech, which

can be recognized and interpreted as data,

synthesized directly or routed into a communications

network. Informally, one can say that a SSI extends

the human speech production model by the signal

data of electrodes, ultrasonic receivers, cameras and

other sources. This provides a more natural

approach than currently available speech pathology

solutions like, electrolarynx, tracheo-oesophageal

speech, and cursor-based text-to-speech systems

(Denby et al., 2010).

Since they are still at an early stage SSI systems

aimed at HCI present several problems:

Currently, and to our knowledge, no SSI system

exists for European Portuguese, leaving European

Portuguese users with speech impairments unable to

interact with HCI systems based on speech.

Furthermore, no study or analysis has been made

regarding the adoption of a new language with

distinctive characteristics to this kind of systems,

and the problems that may arise from applying

existent work to EP are unknown. A particularly

relevant characteristic of EP are the nasal sounds,

which may pose problems to several SSI modalities.

Another problem with the current SSI modalities

is how to achieve satisfactory accuracy rates without

a high degree of invasiveness. The notion of a SSI

system entails that no audible acoustic signal is

available, requiring speech information to be

extracted from articulators, facial muscle movement

and brain activity. Considering a real world scenario,

this often leads to unpractical and invasive solutions

due to the difficulty in extracting silent speech

information using current technologies.

SSI systems are also not directed for all types of

users, especially the elderly, which impose several

limitations and requirements. Elderly population

individuals have developed resistance to

conventional forms of human-computer interaction

(Phang et al., 2006) like the keyboard and mouse,

therefore making it necessary to test new natural

forms of interaction such as silent speech. In

SilentSpeechforHuman-ComputerInteraction

addition, elder people often have difficulties with

motor skills due to health problems such as arthritis,

so the absence of small and difficult to handle

equipment may be presented as an advantage over

current solutions. It is also known that due to ageing,

senses like vision become less accurate, hence

difficulties in the perception of details or important

information in conventional graphical interfaces may

arise, since current interfaces, most notably in the

mobility area, are not designed with these

difficulties in mind.

In summary, our research problem addresses

SSIs aimed at HCI and four concrete hypothesis can

be extracted, as follows:

1. Is it possible to extend/adapt the work on SSI for

languages such as English to European

Portuguese?

2. Do nasal sounds, particularly relevant in EP,

poses problems to most, if not all, of the

modalities, and is their detection possible using

less invasive SSIs?

3. Does a multimodal approach has the potential to

improve state-of-the-art results using several less

invasive modalities?

4. Can an SSI be used in a real world scenario,

robust enough to be usable, with sufficient user

satisfaction, by all users including the elderly?

4 STATE OF THE ART

Several SSI based on different sensory types of data

have been proposed in the literature and a detailed

overviews can be found in Denby et al., (2009) and

Freitas et al., (2011). In this section we summarize

the existent approaches grouped according to the

human speech production model.

The speech production model can be divided into

several stages. According to Levelt (1989), the

communicative intention is the first phase of each

speech act and consists in converting patterns of

goals into messages followed by the grammatical

encoding of the preverbal message to surface

structure. The next phase of the speech production is

the passage from the surface structure to the

phonetic plan, which, informally speaking is the

sequence of phones that are fed to the articulators.

This can be divided between the electrical impulse

fed into the articulators and the actual process of

articulating. The final phase consists on the

consequent effects of the previous phases.

The existent experimental SSI systems described

in the literature, cover information extraction from

all the stages of speech production, from intention to

articulation effects, as depicted on Figure 1. The

current approaches can then be divided as follows:

 Intention level (brain / Central Nerve System):

Interpretation of signals from implants in the

speech-motor cortex (Brumberg et al., 2010),

Interpretation of signals from electro-

encephalographic (EEG) sensors (Porbadnigk et

al., 2009);

 Articulation control (muscles): Surface

Electromyography of the articulator muscles

(Schultz and Wand, 2010);

 Articulation (articulators): Capture of the

movement of fixed points on the articulators

using Electromagnetic Articulography (EMA)

sensors (Fagan et al., 2008); Real-time

characterization of the vocal tract using ultra-

sound (US) and optical imaging of the tongue

and lips (Florescu et al., 2010); Capture

movements of a talker’s face through ultrasonic

Doppler sensing (Srinivasan et al., 2010).

 Articulation effects: Digital transformation of

signals from a Non-Audible Murmur (NAM)

microphone (Toda et al., 2009); Analysis of

glottal activity using electromagnetic (Quatieri et

al., 2006), or vibration (Patil and Hansen, 2010)

sensors.

Figure 1: Phased speech production model with the

correspondent SSI technologies.

4.1 SSIs for Portuguese

The existing SSI research has been mainly

developed for English, with some exceptions for

French (Tran et al., 2009) and Japanese (Toda et al.,

2009). There was no published work prior to this

thesis for European Portuguese in the area of SSIs,

although there are previous research on related

areas, such as the use of EMA (Teixeira and Vaz,

2001), Electroglotograph and MRI (Martins et al.,

2008) for speech production studies, articulatory

synthesis (Teixeira and Vaz, 2000) and multimodal

BIOSTEC2014-DoctoralConsortium

interfaces involving speech (Ferreira et al., 2013).

There are also some studies on lip reading systems

for EP that aim at robust speech recognition based

on audio and visual streams (Pêra et al., 2004); (Sá

et al., 2003). However, none of these addresses EP

distinctive characteristics, such as nasality.

4.2 Multimodal SSIs

In 2004, Denby and Stone (2004), presented a first

experiment where 2 input modalities, in addition to

speech audio, were used to develop an SSI. Denby

and Stone employed ultrasound imaging of the

tongue area, lip profile video and acoustic speech

data with the goal of developing an SSI. More

recently, Florescu et al., (2010), using these same

modalities achieved a 65.3% recognition rate only

considering silent word articulation in an isolated

word recognition scenario with a 50-word

vocabulary using a DTW-based classifier. The

reported approach also attributes substantially more

importance to the tongue information, only

considering a 30% weight during classification for

the lip information. In 2008, Tran et al. (2008), also

reported a preliminary approach using information

from 2 modalities: whispered speech acquired using

a NAM and visual information of the face using the

3D position of 142 coloured beads glued to the

speakers face. Later, using the same modalities, the

same author, achieved an absolute improvement of

13.2% when adding the visual information to the

NAM data stream. The use of visual facial

information combined with sEMG signals has also

been proposed by Yau et al., (2008). In this study

Yau et al. presents an SSI that analyses the

possibility of using sEMG for unvoiced vowels

recognition and a vision-based technique for

consonant recognition. When looking at the chosen

modalities, recent work using video plus depth

information has been presented by Galatas et al.,

(2012), showing that the depth facial information

can improve the system performance over audio-

only and traditional audio-visual systems. In the area

of sEMG-based SSIs, recent research on has been

focused on the differences between audible and

silent speech and how to decrease the impact of

different speaking modes (Wand and Schultz,

2011a); the importance of acoustic feedback (Herff

et al., 2011); EMG-based phone classification

(Wand and Schultz, 2011b); and session-

independent training methods (Wand and Schultz,

2011c). For what UDS is concerned, it has been

applied to several areas (e.g. voice activity detection

(Kalgaonkar et al., 2007), speaker identification

(Kalgaonkar et al., 2008), synthesis (Toth et al.,

2010) and speech recognition with promising results

(Srinivasan et al., 2010); (Freitas et al., 2012).

4.3 Nasality Detection

The production of a nasal sound involves air

flow through the oral and nasal cavities. This air

passage for the nasal cavity is essentially controlled

by the velum that, when lowered, allows for the

velopharyngeal port to be open, enabling resonance

in the nasal cavity and the sound to be perceived

nasal. The production of oral sounds occurs when

the velum is raised and the access to the nasal cavity

is closed (Beddor, 1993). The process of moving the

soft palate involves the several muscles (Fritzell,

1969); (Hardcastle, 1976); (Seikel et al., 2010), as

depicted in Figure 2.

Figure 2: Muscles of the soft palate from posterior (left),

and the side (right) view (Seikel et al., 2010).

In previous studies, the application of EMG to

measure the level of activity of these muscles has

been performed by means of intramuscular

electrodes (Fritzell, 1969); (Bell-Berti, 1976) and

surface electrodes positioned directly on the oral

surface of the soft palate (Lubker, 1968); (Kuehn,

1982). Our work differs from the cited papers, since

none of them uses surface electrodes placed in the

face and neck regions, a significantly less invasive

approach and quite more realistic and representative

of the SSIs case scenarios. Also, although

intramuscular electrodes may offer more reliable

myoelectric signals, they also require considerable

medical skills and, for both reasons, intramuscular

electrodes were discarded for this study.

No literature exists in terms of detecting the

muscles involved in the velopharyngeal function

with surface EMG electrodes placed on the face and

neck. Previous studies in the lumbar spine region

have shown that if proper electrode positioning is

considered a representation of deeper muscles can be

acquired (McGill et al., 1996) thus raising a question

that is currently unanswered: is surface EMG

positioned in the face and neck regions able to detect

SilentSpeechforHuman-ComputerInteraction

activity of the muscles related to nasal port

opening/closing and consequently detect the nasality

phenomena? Another related question that can be

raised is how we can show, with some confidence,

that the signal we are seeing is in fact the

myoelectric signal generated by the velum

movement and not spurious movements caused by

neighbouring muscles unrelated to the

velopharyngeal function.

5 METHODOLOGY

The chosen approach to the mentioned research

problems can be divided into 4 main stages, as

depicted in Figure 3. The following subsections

describes each stage in more detail.

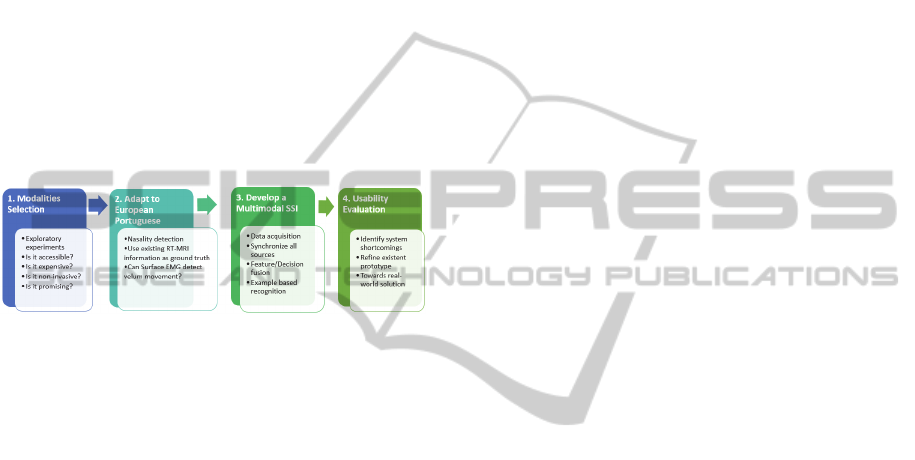

Figure 3: Stages of the chosen methodology.

5.1 Modalities Selection

In the initial stage of the PhD, an in depth study of

related work and preliminary evaluation of different

types of SSIs was made, the major problems were

identified and the aim of the thesis was defined. This

initial study contributed to determine which SSI or

SSIs were more suited to the problem and what were

the available resources. Results of this work include

a state-of-the-art assessment as well as the main

issues to be solved. Then by conducting preliminary

experiments with non-invasive and recent modalities

such as Ultrasonic Doppler (Freitas et al., 2012), we

have selected several HCI technologies based on: the

possibility of being used in a natural manner without

complex medical procedures from the ethical and

clinical perspectives, low cost, tolerance to noisy

environments and be able to work with speech-

handicapped users or elderly people, for whom

speaking requires a substantial effort.

5.2 Adapt to European Portuguese

In the second stage of the PhD we chosen to address

a known challenge in SSIs – the detection of

nasality. This decision was motivated by the fact that

nasality is an important characteristic of EP and an

eventual solution for this problem would allow the

development of a more adapted SSI for EP, and also

because preliminary studies have shown current

techniques for silent speech recognition based on

sEMG will present a degraded performance when

dealing with languages with nasal characteristics.

Thus, we started by exploring the existence of useful

information about the velum movement and also by

assessing if deeper muscles could be sensed using

surface electrodes in the regions of the face and neck

and the best electrode location to do so. To

accomplish these tasks, we have applied a procedure

that uses Real-Time Magnetic Resonance Imaging

(RT-MRI), collected from the same speakers,

providing a method to interpret EMG data.

The main idea behind this approach consists in

crossing two types of data containing information

about the velum movement: (1) images collected

using RT-MRI and (2) the myoelectric signal

collected using surface EMG sensors. By combining

these two sources, ensuring compatible scenario

conditions and proper time alignment, we are able to

accurately estimate the time when the velum moves

and the type of movement (i.e. ascending or

descending) under a nasality phenomenon, and

establish the differences between nasal and oral

vowels using surface EMG. Also, we need to know

when the velum is moving, to avoid that signals

coming from other muscles, artefacts and noise be

misinterpreted as signals coming from the target

muscles. To overcome this problem we take

advantage of a previous data collection based on

RT-MRI (Teixeira et al., 2012), which provides an

excellent method to interpret EMG data and estimate

when velum is moving.

Recent advances in MRI technology allow real-

time visualization of the vocal tract with an

acceptable spatial and temporal resolution. This

sensing technology enables us to have access to real

time images with relevant articulatory information

for our study, including velum raising and lowering.

In order to make the correlation between the two

signals, audio recordings were performed in both

data collections by the same speakers. Notice that

EMG and RT-MRI data can't be collected together,

so the best option is to collect the same corpus for

the same set of speakers, at different times, reading

the same prompts in EMG and RT-MRI.

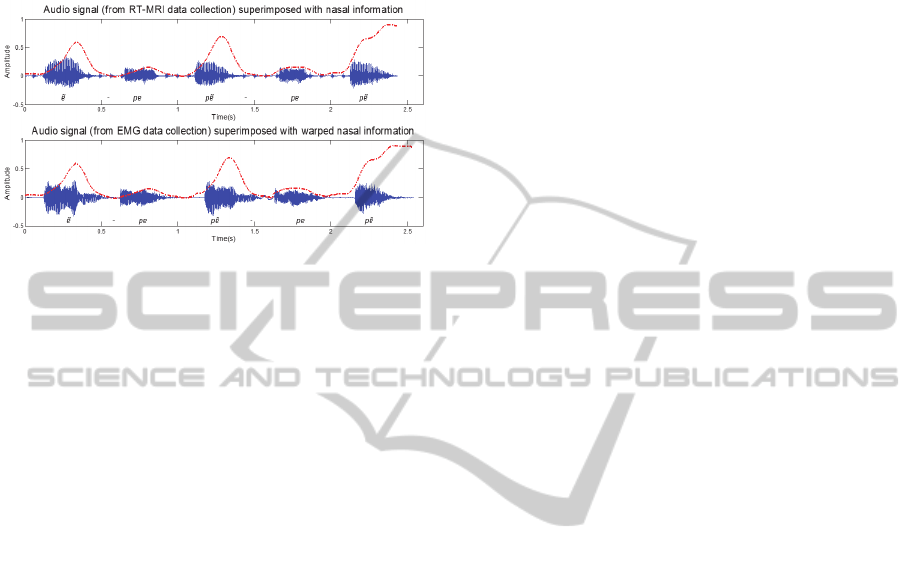

For the EMG and RT-MRI signals

synchronization we start by aligning both EMG and

the information extracted from the RT-MRI with the

corresponding audio recordings. Next, we apply

Dynamic Time Warping (DTW) to the signals,

finding the optimal match between the two

sequences. Based on the DTW result we map the

BIOSTEC2014-DoctoralConsortium

information extracted from RT-MRI from the

original production to the EMG time axis,

establishing the needed correspondence between the

EMG and the RT-MRI information, as depicted in

Figure 4.

Figure 4: Exemplification of the warped signal

representing the nasal information extracted from RT-MRI

(dashed red line) superimposed on the speech recorded

during the corresponding RT-MRI and EMG acquisition,

for the sentence [ɐ

pɐ, pɐ

5.3 Multimodal Ssi

The third stage consists in the development of a

multimodal SSI prototype based on the conclusions

of the previous stages. Since no SSI of this kind

exists the first step is to collect data from the

selected modalities in a synchronized way. Having

collected the necessary data a feature selection

analysis must be conducted due to the high number

of information streams (5 if we consider audio) in

order to avoid an excessively high dimensionality

space. During this analysis it is also necessary to

understand how we are going to combine all these

streams and what type of fusion should be used (i.e.

feature or decision fusion, or both) in our pipeline.

Finally, it is necessary to understand what classifier

(or classifiers) is most appropriate for this case.

Since not much data exists for this novel interface,

our aim is to explore example-based methods such

as Dynamic Time Warping.

To the current time we have collected data from

four modalities with the following specifications: (1)

video input, which captures the RGB colour of each

image pixel of the speakers’ mouth region and its

surroundings, including chin and cheeks; (2) depth

input, which captures depth information of each

pixel for the same areas, providing useful

information about the mouth opening and tongue

position, in the sensor reference frame, in some

cases; (3) surface EMG sensory data, which

provides information about the myoelectric signal

produced by the targeted facial muscles during

speech movements; (4) Ultrasonic Doppler Sensing,

a technique which is based on the emission of a pure

tone in the ultrasound range towards the speaker’s

face, that is received by an ultrasound sensor tuned

to the transmitted frequency. The reflected signal

then contains Doppler frequency shifts that correlate

with the movements of the speaker’s face

(Srinivasan et al., 2010). To the best of our

knowledge, this is the first silent speech corpus that

combines more than two input data types and the

first to synchronously combine the corresponding

four modalities, thus, providing the necessary

information for future studies on multimodal SSIs.

After assembling all the necessary data collection

equipment which, in the case of ultrasound, led us to

the development of custom built equipment based on

the work of Zhu (2008), we needed to create the

necessary conditions to record all signals with

adequate synchronization. The challenge of

synchronizing all signals resided in the fact that a

potential synchronization event would need to be

captured simultaneously by all (four) input

modalities. To that purpose, we have selected the

EMG recording device, which had an available I/O

channel, as the source that generates the alignment

pulse for all the remaining modalities. After the data

collection system setup was ready, a proof-of-

concept database, was collected for further analysis.

The devices employed in this data collection

were: (1) a Microsoft Kinect (2013) that acquires

visual and depth information; (2) an sEMG sensor

acquisition system from Plux (2013), that captures

the myoelectric signal from the facial muscles; (3) a

custom built dedicated circuit board (referred to as

UDS device), that includes: 2 ultrasound transducers

(400ST and 400SR working at 40 kHz), a crystal

oscillator at 7.2 MHz and frequency dividers to

obtain 40 kHz and 36 kHz, and all amplifiers and

linear filters needed to process the echo signal

(Freitas et al., 2012).

The Kinect sensor was placed at approximately

0.7m from the speaker. It was configured, using

Kinect SDK 1.5, to capture a colour video stream

with a resolution of 640x480 pixel, 24-bit RGB at 30

frames per second and a depth stream, with a

resolution of 640x480 pixel, 11-bit at 30 frames per

second.

The sEMG acquisition system consisted of 5

pairs of EMG surface electrodes connected to a

device that communicates with a computer via

Bluetooth. As depicted in Figure 5 the sensors were

attached to the skin using a single use 2.50 cm

diameter clear plastic self-adhesive surfaces and

considering an approximate 2.00 cm spacing

SilentSpeechforHuman-ComputerInteraction

between the electrodes center for bipolar

configurations. Before placing the surface EMG

sensors, the sensor location was previously cleaned

with alcohol. While uttering the prompts no other

movement, besides the one associated with speech

production, was made. The five electrode pairs were

placed in order to capture the myoelectric signal

from the following muscles: the levator angulis oris

(channel 2); zygomaticus major (channel 2); the

tongue (channel 1 and 5), the anterior belly of the

digastric (channel 1); the platysma (channel 4) and

the last electrode pair was placed below the ear

between the mastoid process and the mandible. The

sEMG channels 1 and 4 used a monopolar

configuration (i.e. placed one of the electrodes from

the respective pair in a location with low or

negligible muscle activity), being the reference

electrodes placed on the mastoid portion of the

temporal bone. The positioning of the EMG

electrodes 1, 2, 4 and 5 was based on previous work

(e.g. Schultz and Wand, 2010) and sEMG electrode

3 was placed according to recent findings by the

authors about the detection of nasality in SSIs

(Freitas et al., 2014).

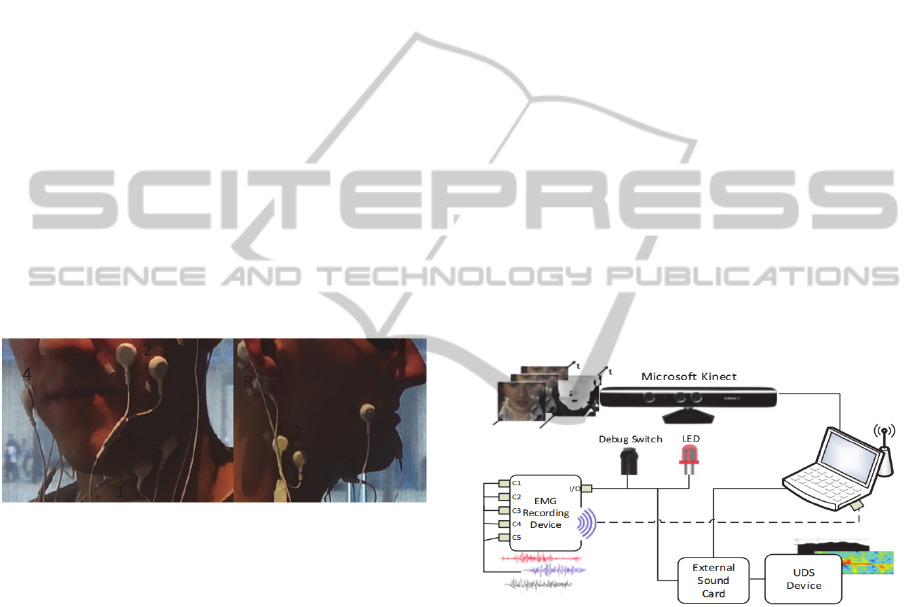

Figure 5: sEMG electrodes positioning and the respective

channels (1 to 5) plus the reference electrode (R).

The UDS device was placed at approximately

40.0 cm from the speaker and was connected to an

external sound board (Roland, UA-25 EX) which in

turn is connected to the laptop through a USB

connection. The two supported recording channels

of the external sound board were connected to the

I/O channel of the sEMG recording device and to the

UDS device. The Doppler echo and the

synchronization signals were sampled at 44.1 kHz

and to facilitate signal processing, a frequency

translation was applied to the carrier by modulating

the echo signal by a sine wave and low passing the

result, obtaining a similar frequency modulated

signal centered at 4 kHz.

In order to register all input modalities via time

alignment between all corresponding four input

streams, we have used an I/O bit flag in the sEMG

recording device, which has one input switch for

debugging purposes and two output connections, as

depicted in Figure 6. Synchronization occurs when

the output of a synch signal, programmed to be

automatically emitted by the sEMG device at the

beginning of each prompt, is used to drive a led and

to provide an additional channel in an external sound

card. Registration between the video and depth

streams is ensured by the Kinect SDK. Using the

information from the led and the auxiliary audio

channel with synch info, the signals were time

aligned offline. To align the RGB video and the

depth streams with the remaining modalities, we

have used an image template matching technique

that automatically detects the led position on each

colour frame. For the UDS acquisition system, the

activation of the output I/O flag of the sEMG

recording device, generates a small voltage peak on

the signal of the first channel. To enhance and detect

that peak, a second degree derivative is applied to

the signal followed by an amplitude threshold. To be

able to detect this peak, we have previously

configured the external sound board channel with

maximum input sensitivity. The time-alignment of

the EMG signals is ensured by the sEMG recording

device, since the I/O flag is recorded in a

synchronous way with the samples of each channel.

Figure 6: Diagram of the time alignment scheme showing

the I/O channel connected to the three outputs – debug

switch, external sound card and a directional led.

5.4 Usability Evaluation

The last stage of the PhD will be focused on

evaluating the interface usability. Here, usability

evaluation tests using the proposed SSI prototype

will be conducted, allowing to identify

shortcomings, refine previously established user

requirements and improve the existent prototype. In

a first phase of the usability tests, the features

provided by the interface will be tested in the form

of a task that the user must accomplish. For each

subject it will be analysed if the task was

accomplished; how many tries were required; if the

BIOSTEC2014-DoctoralConsortium

application flow ran smoothly and how long the user

took to adapt to the system. In these tests, usability

should be evaluated in terms of efficiency,

effectiveness and satisfaction. Concerning

efficiency, the required time to execute a task using

the system, the number of actions and the time spent

with application instructions, should be considered.

In terms of effectiveness, it should be measured if

the task was completed with success, how frequent it

recurs to application features and the quality of the

output. Finally, one should assess if the user enjoyed

and presented a positive attitude towards the system.

6 EXPECTED OUTCOME

So far, this PhD thesis have spawned the following

contributions:

 A new taxonomy that associates each type of SSI

to a stage of the human speech production

model.

 A state-of-the-art overview of SSIs, which

includes the latest related research.

 SSI technologies and techniques applied for the

first time to EP (e.g. sEMG and UDS)

 Results that indicate the difficulty on

distinguishing minimal pairs of words that only

differ on nasal sounds when using surface EMG

or Video.

 Analysis of velum movement detection using

surface electrodes in the regions of the face and

neck and the best electrode location to do so.

 A silent speech corpus that combines more than

two input data types and the first to

synchronously combine the corresponding

modalities.

Upon completion we expect to obtain the following

outcomes:

 Development of a multimodal SSI prototype

based on Video, Depth, UDS, and sEMG where

eventually the weakest points of one modality

can be minored by other(s).

 A careful analysis of what modalities to fuse,

when and how, in order to provide adequate

response to users’ goals and context, striving for

additional robustness in situations, such as noisy

environments, or where privacy issues and

existing disabilities might hinder single modality

interaction.

 Assess the usability of the proposed system in

real-world scenarios.

REFERENCES

Beddor, P. S., 1993. The perception of nasal vowels. In M.

K. Huffman and R. A. Krakow, Nasals, Nasalization,

and the Velum, Phonetics and Phonology, Academic

Press Inc., Vol. 5, pp. 171-196.

Bell-Berti, F., 1976. An Electromyographic Study of

Velopharyngeal Function, Speech Journal of Speech

and Hearing Research, Vol.19, pp. 225-240.

Brumberg, J. S., Nieto-Castanonf, A., Kennedye, P. R. and

Guenther, F. H., 2010. Brain–computer interfaces for

speech communication. Speech Communication, Vol.

52, Issue 4, pp. 367-379.

Denby, B. and Stone, M., 2004. Speech synthesis from

real time ultrasound images of the tongue, Internat.

Conf. on Acoustics, Speech, and Signal Processing,

Montreal, Canada, Vol. 1, pp. I685–I688.

Denby, B., Schultz, T., Honda, K., Hueber, T., Gilbert,

J.M. and Brumberg, J.S, 2010. Silent speech

interfaces. Speech Communication, Vol. 52, Issue 4,

pp. 270-287.

Dias, M. S., Bastos, R., Fernandes, J., Tavares, J. and

Santos, P., 2009. Using Hand Gesture and Speech in a

Multimodal Augmented Reality Environment,

GW2007, LNAI 5085, pp.175-180.

Fagan, M. J., Ell, S. R., Gilbert, J. M., Sarrazin, E. and

Chapman, P.M, 2008. Development of a (silent)

speech recognition system for patients following

laryngectomy. Med. Eng. Phys., Vol. 30, Issue 4, pp.

419-425.

Ferreira, F., Almeida, N., Casimiro, J., Rosa, A. F.,

Oliveira, A., and Teixeira, A. 2013. Multimodal and

Adaptable Medication Assistant for the Elderly

CISTI'2013 (8th Iberian Conference on Information

Systems and Technologies).

Florescu, V-M., Crevier-Buchman, L., Denby, B., Hueber,

T., Colazo-Simon, A., Pillot-Loiseau, C., Roussel, P.,

Gendrot, C. and Quattrochi, S., 2010. Silent vs

Vocalized Articulation for a Portable Ultrasound-

Based Silent Speech Interface. Proceedings of

Interspeech 2010, Makuari, Japan.

Freitas, J. Teixeira, A. Dias M. S. and Bastos, C., 2011.

Towards a Multimodal Silent Speech Interface for

European Portuguese, Speech Technologies, Ivo Ipsic

(Ed.), InTech.

Freitas, J. Teixeira, A., Vaz, F. and Dias, M.S., 2012.

Automatic Speech Recognition based on Ultrasonic

Doppler Sensing for European Portuguese, Advances

in Speech and Language Technologies for Iberian

Languages, vol. CCIS 328, Springer.

Freitas, J., Calado, A., Barros, M. J. and Dias, M. S., 2009.

Spoken Language Interface for Mobile Devices.

Human Language Technology. Challenges of the

Information Society Lecture Notes in Computer

Science, Vol. 5603, pp. 24-35.

Freitas, J., Teixeira, A., Silva, S., Oliveira, C. and Dias,

M.S., 2014. Velum Movement Detection based on

Surface Electromyography for Speech Interface.

Conference on Bio-inspired Systems and Signal

Processing, Biosignals 2014, Angers, France.

SilentSpeechforHuman-ComputerInteraction

Fritzell, B., 1969. The velopharyngeal muscles in speech:

an electromyographic and cineradiographic study.

Acta Otolaryngolica. Suppl. 50.

Galatas, G., Potamianos, G., Makedon, F., 2012. Audio-

visual speech recognition incorporating facial depth

information captured by the Kinect. Proceedings of the

20th European Signal Processing Conference

(EUSIPCO), pp. 2714-2717.

Hardcastle, W. J., 1976. Physiology of Speech Production

- An Introduction for Speech Scientists. Academic

Press, London.

Herff, C. Janke, M. Wand, M. and Schultz, T., 2011.

Impact of Different Feedback Mechanisms in EMG-

based Speech Recognition. In Proceedings of

Interspeech 2011. Florence, Italy.

Kalgaonkar, K., Raj B., Hu., R., 2007. Ultrasonic doppler

for voice activity detection. IEEE Signal Processing

Letters, vol.14, Issue 10, pp. 754–757.

Kalgaonkar, K., Raj., B., 2008. Ultrasonic doppler sensor

for speaker recognition. Internat. Conf. on Acoustics,

Speech, and Signal Processing.

Kuehn D.P., Folkins JW, Cutting CB., 1982. Relationships

between muscle activity and velar position, Cleft

Palate Journal, Vol. 19, Issue 1, pp. 25-35.

Levelt. W., 1989. Speaking: from Intention to Articulation.

Cambridge, Mass.: MIT Press.

Lubker, J. F., 1968. An electromyographic-

cinefluorographic investigation of velar function

during normal speech production. Cleft Palate

Journal, Vol. 5, Issue 1, pp. 17.

Martins, P. Carbone, I. Pinto, A. Silva, A. and Teixeira,

A., 2008. European Portuguese MRI based speech

production studies. Speech Communication. NL:

Elsevier, Vol.50, No.11/12, ISSN 0167-6393, pp. 925–

952.

McGill, S., Juker, D. and Kropf, P., 1996. Appropriately

placed surface EMG electrodes reflect deep muscle

activity (psoas, quadratus lumborum, abdominal wall)

in the lumbar spine. In Journal of Biomechanics, Vol.

29 Issue, 11, pp. 1503-7.

Microsoft Kinect, Online: http://www.xbox.com/en-

US/kinect, accessed on 9 December 2013.

Patil, S. A. and Hansen, J. H. L., 2010. The physiological

microphone (PMIC): A competitive alternative for

speaker assessment in stress detection and speaker

verification. Speech Communication. Vol. 52, Issue 4,

pp. 327-340.

Pêra, V. Moura, A. and Freitas, D. 2004. LPFAV2: a new

multi-modal database for developing speech

recognition systems for an assistive technology

application. In SPECOM-2004, pp. 73-76.

Phang, C. W., Sutanto, J., Kankanhalli, A., Li, Y., Tan, B.

C. Y, and Teo, H. H., 2006. Senior citizens’

acceptance of information systems: A study in the

context of e-government services. IEEE Transactions

On. Engineering Management, Vol. 53, Issue 4, pp.

555–569, 2006.

Plux Wireless Biosignals, Portugal,

Online:

http://www.plux.info/, accessed on 9 December 2013.

Porbadnigk, A., Wester, M., Calliess, J. and Schultz, T.,

2009. EEG-based speech recognition impact of

temporal effects. International Conference on Bio-

inspired Systems and Signal Processing, Biosignals

2009, Porto, Portugal, pp.376–381.

Quatieri, T. F., D. Messing, K. Brady, W. B. Campbell, J.

P. Campbell, M. Brandstein, C. J. Weinstein, J. D.

Tardelli and P. D. Gatewood, 2006. Exploiting non-

acoustic sensors for speech enhancement. IEEE Trans.

Audio Speech Lang. Process, Vol. 14, Issue 2, pp.

533–544.

Rossato, S. Teixeira, A. and Ferreira, L., 2006. Les

Nasales du Portugais et du Français: une étude

comparative sur les données EMMA. In XXVI

Journées d'Études de la Parole. Dinard, France.

Sá, F. Afonso, P. Ferreira, R. and Pera, V., 2003.

Reconhecimento Automático de Fala Contínua em

Português Europeu Recorrendo a Streams Audio-

Visuais. In The Proceedings of COOPMEDIA'2003 -

Workshop de Sistemas de Informação Multimédia,

Cooperativos e Distribuídos, Porto, Portugal.

Schultz, T. and Wand, M., 2010. Modeling coarticulation

in large vocabulary EMG-based speech recognition.

Speech Communication, Vol. 52, Issue 4, pp. 341-353.

Seikel, J. A., King, D. W., Drumright, D. G., 2010.

Anatomy and Physiology for Speech, Language, and

Hearing, 4rd Ed., Delmar Learning.

Srinivasan, S., Raj, B. and Ezzat, T., 2010. Ultrasonic

sensing for robust speech recognition. Internat. Conf.

on Acoustics, Speech, and Signal Processing 2010.

Teixeira, A. and Vaz, F., 2000. Síntese Articulatória dos

Sons Nasais do Português. Anais do V Encontro para

o Processamento Computacional da Língua

Portuguesa Escrita e Falada (PROPOR), ICMC-USP,

Atibaia, São Paulo, Brasil, 2000, pp. 183-193.

Teixeira, A. and Vaz, F., 2001. European Portuguese

Nasal Vowels: An EMMA Study. 7th European

Conference on Speech Communication and

Technology, EuroSpeech – Scandinavia, pp. 1843-

1846.

Teixeira, A., Braga, D., Coelho, L., Fonseca, J.,

Alvarelhão, J., Martín, I., Queirós, A., Rocha, N.,

Calado, A. and Dias, M. S., 2009. Speech as the Basic

Interface for Assistive Technology. DSAI 2009 -

Proceedings of the 2th International Conference on

Software Development for Enhancing Accessibility

and Fighting Info-Exclusion, Porto Salvo, Portugal.

Teixeira, A., Martins, P., Oliveira, C., Ferreira, C., Silva,

A., Shosted, R., 2012. “Real-time MRI for Portuguese:

database, methods and applications”, Proceedings

of PROPOR 2012, LNCS vol. 7243. pp. 306-317.

Toda, T., Nakamura, K., Nagai, T., Kaino, T., Nakajima,

Y., and Shikano, K., Technologies for Processing

Body-Conducted Speech Detected with Non-Audible

Murmur Microphone. Proceedings of Interspeech

2009, Brighton, UK.

Toth, A. R., Kalgaonkar, K., Raj, B., Ezzat, T., 2010.

Synthesizing speech from Doppler signals, Internat.

Conference on Acoustics Speech and Signal

Processing

, pp.4638-4641.

BIOSTEC2014-DoctoralConsortium

Tran, V.-A Bailly, G. Loevenbruck, H. and Toda, T.,

2009. Multimodal HMM-based NAM to-speech

conversion. In Proceedings of Interspeech 2009,

Brighton, UK.

Wand, M. and Schultz, T., 2011. Analysis of Phone

Confusion in EMG-based Speech Recognition,

Internat. Conf. on Acoustics, Speech and Signal

Processing 2011, Prague, Czech Republic.

Wand, M. and Schultz, T., 2011. Investigations on

Speaking Mode Discrepancies in EMG-based Speech

Recognition, Proceedings of Interspeech 2011,

Florence, Italy.

Wand, M. and Schultz, T., 2011. Session-Independent

EMG-based Speech Recognition, International

Conference on Bio-inspired Systems and Signal

Processing, Biosignals 2011, Rome, Italy.

Yau, W. C., Arjunan, S. P. and Kumar, D. K., 2008.

Classification of voiceless speech using facial muscle

activity and vision based techniques, TENCON 2008-

2008 IEEE Region 10 Conference, 2008.

Zhu, B., 2008. Multimodal speech recognition with

ultrasonic sensors. Master’s thesis. Massachusetts

Institute of Technology, Cambridge, Massachusetts.

SilentSpeechforHuman-ComputerInteraction
