An Open-source Framework for Integrating

Heterogeneous Resources in Private Clouds

∗

Julio Proa

no, Carmen Carri

on and Blanca Caminero

Albacete Research Institute of Informatics (I3A), University of Castilla-La Mancha, Albacete, Spain

Keywords:

Cloud Computing, FPGA, Hardware Acceleration, Energy Efﬁciency.

Abstract:

Heterogeneous hardware acceleration architectures are becoming an important tool for achieving high perfor-

mance in cloud computing environments. Both FPGAs and GPUs provide huge computing capabilities over

large amounts of data. At the same time, energy efﬁciency is a big concern in nowadays computing systems. In

this paper we propose a novel architecture aimed at integrating hardware accelerators into a Cloud Computing

infrastructure, and making them available as a service. The proposal harnesses advances in FPGA dynamic

reconﬁguration and efﬁcient virtualization technology to accelerate the execution of certain types of tasks. In

particular, applications that can be described as Big Data would greatly beneﬁt from the proposed architecture.

1 INTRODUCTION

The popularity of Cloud computing architectures is

growing over the Information Technology (IT) ser-

vices. Cloud computing is based on an on-demand

approach to provide to the user different computing

capabilities “as-a-service”. Three Cloud usage mod-

els can be categorized in this computational paradigm,

namely Infrastructure as a Service (IaaS), Platform as

a Service (PaaS) and Software as a Service (SaaS), de-

pending on the type of capability offered to the Cloud

user which in turn is related to the degree of con-

trol over the virtual resource that support the applica-

tion.These cloud models may be offered in a public,

private or hybrid networks.

Nowadays, the main problem to infrastructure

providers are concerned about the relationship be-

tween performance and cost. One of the solutions

adopted has been adding specialized processors that

can be used to speed up speciﬁc processing tasks.

The most well-known accelerators are Field Pro-

grammable Gate Arrays (FPGAs) and Graphics Pro-

cessors (GPUs) but paradoxically this use also di-

rectly related to the energy consumption of the sys-

tem (Buyya et al., 2013), and cost.

Focusing on FPGAs, which have large resources

of logic gates and RAM blocks to implement com-

plex digital computations. This hardware devices are

∗

This work was supported by the Spanish Government

under Grant TIN2012-38341-C04-04 and by Ecuadorian

Government under the SENESCYT Scholarships Project.

an order of magnitude faster for non-ﬂoating point

operations than state of the art CPUs. Furthermore,

FPGAs provides very good performance and power

efﬁciency in processing integer, character, binary or

ﬁxed point data. And also deliver competitive perfor-

mance for complex ﬂoating-point operations such as

exponentials or logarithms. Additionally, the FPGA

component can be reconﬁgured any number of times

for new applications, making it possible to utilize the

heterogeneous computer system for a wide range of

tasks (Intel, 2013). In particular, many life science

(LS) applications, such as genomics, generate im-

mense data sets that require a vast amount of com-

puting resources to be processed. FPGAs provide an

intrinsic degree of parallelism amenable of being ex-

ploited by these applications. Moreover, LS appli-

cations change very quickly, thus making impracti-

cal the use of application speciﬁc integrated circuits

(ASICs). To this end, the use of FPGAs seems a

promising option. Finally, FPGAs exhibit a high com-

putation/power consumption ratio, which turns them

into an interesting option to lower operational ex-

penses as well as minimize the carbon footprint of the

data center.

Thus, the main objective of this work is to achieve

an efﬁcient low power architecture able to provide

on-demand access to a heterogeneous cloud infras-

tructure, which can be especially exploited by big-

data applications. FPGA-based accelerators are key

computational resources in this cloud infrastructure.

The proposal is aimed at enabling the use of FPGA-

129

Proaño J., Carrión C. and Caminero B..

An Open-Source Framework for Integrating Heterogeneous Resources in Private Clouds.

DOI: 10.5220/0004936601290134

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (CLOSER-2014), pages 129-134

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

based accelerators without dealing with the complex-

ity of hardware design. Furthermore, the vision is to

provide users with a repository of bitstream

ﬁles of

common applications, which can be used as a service

but also as building blocks to develop more complex

applications. It must be noted that Amazon AWS al-

ready offers GPU instances (AWS, 2013), and FPGA-

based accelerators are offered by Nimbix within its

JARVICE service. But, to the best of our knowledge,

this is the ﬁrst open-source proposal of an IaaS ar-

chitecture in which the FPGA accelerators (among

others) are considered as computational virtual re-

sources.

The rest of the paper is organized as follows. In

Section 2 some related works are reviewed. Then, the

architecture of our proposal is described in Section 3,

while some implementation details are given in Sec-

tion 4. Finally, Section 5 concludes this work, and

outlines some guidelines for future work.

2 RELATED WORK

Hardware FPGA devices used as co-processors

can offer signiﬁcant improvement to many applica-

tions (Guneysu et al., 2008) (Dondo et al., 2013).

So, there are several attempts to integrate FPGAs

into traditional software environments. Many solu-

tions are provided by the industry, such as PicoCom-

puting, Convey and Xillybus. These products con-

nect software to FPGAs via a proprietary interface

with their own languages and development environ-

ments. The Mitrion-C Open Bio Project (Mitrion-C:

The Open Bio Project, 2013) tries to accelerate key

bioinformatics applications by porting critical parts to

be run on FPGAs. Open source proposals such as (Ja-

cobsen and Kastner, 2013) provide a framework that

uses FPGAs as an acceleration platform. It must be

highlighted that in this work FPGAs are connected to

PCs through PCIe. However, these examples lack the

framework for developing parallel and distributed ap-

plications on clusters with multiple nodes.

There are systems where FPGA devices are used

as the only computing elements forming the clus-

ter (Guneysu et al., 2008). However, not all appli-

cations can be accelerated effectively using FPGAs.

For example, the high clock rate and large numbers

of ﬂoating point units in GPUs make them good can-

didates for hardware accelerators.

The use of GPUs as computational resources

on cloud infrastructures has emerged in the last

years (Suneja et al., 2011). Hence, nowadays sev-

A bitstream is the data ﬁle to be loaded into a FPGA.

eral commercial companies offer GPU service to

their clients (Nvidia, 2013). For example, Amazon

EC2 (AWS, 2013) supports general purpose GPU

workﬂows via CUDA and OpenCL with NVIDIA

Tesla Fermi GPUs. The use of FPGAs in cloud sys-

tems has not been so successful until now. At this

point it must be highlighted that Nimbix (Nimbix,

2013) offers a commercial cloud processing system

with a variety of accelerated platforms. Recently,

the company has launched JARVICE, a PaaS plat-

form that includes the availability of GPUs, DSP

and FPGAs for an application catalog and an API or

command-line access to submit jobs.

Moreover, there are some efforts that combine

accelerators (FPGAs and GPUs) and CPUs in clus-

ter nodes such as Axel (Tsoi and Luk, 2010). Axel

combines heterogeneous nodes with the MapReduce

programming model resulting in a low-cost high-

performance computing platform. The authors in this

work highlight that the largest drawback of FPGA

design is the difﬁculty of implementation compared

with CUDA programming time.

Also, recent researches focus on dynamically re-

conﬁgurable FPGAs. Reconﬁgurable FPGAs are de-

vices where software logic can be reprogrammed to

implement speciﬁc functionalities on tunable hard-

ware. Hence, in (Dondo et al., 2013) a reconﬁguration

service is presented. This service is based on an efﬁ-

cient mechanism for managing the partial reconﬁgu-

ration of FPGAs, so that a large reduction in partial

reconﬁguration time is obtained. Providing this kind

of service is a must in order to attach FPGA resources

in cloud infrastructures. Nevertheless, more in-depth

research is required to provide a virtual machine mon-

itor able to manage the reconﬁgurable capabilities on

FPGA devices.

The closest research to our vision is the HAR-

NESS (Hardware- and Network-Enhanced Soft-

ware Systems for Cloud Computing) European FP7

project (HARNESS FP7 project, 2013). The objec-

tive of this project is to develop an enhanced PaaS

with access to a variety of computational, communi-

cation, and storage resources. The application con-

sists of a set of components that can have multiple im-

plementations. Then, an application can be deployed

in many different ways over the resources obtaining

different cost, performance and usage characteristics.

However, for the time being no framework proposal

nor proof-of concept has been published yet.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

130

3 ARCHITECTURE PROPOSAL

In this section we describe an heterogeneous architec-

ture for building on-demand infrastructure services on

Clouds systems. The architecture attempts to address

the challenges of deploying an infrastructure as a ser-

vice (IaaS) on a private datacenter in which FPGA

devices are considered as computational virtual re-

sources. The virtual FPGAs are computing resources

managed by the system together with the virtual ma-

chines running on CPUs. To be more precise, FPGA

devices are used as accelerators for some codes to be

run. In the remainder of this section, we describe the

main characteristics of the proposal.

First of all, some arrangements must be ﬁxed to

orchestrate the physical computational components

(CPUs, FPGAs and GPUs) of the proposed infrastruc-

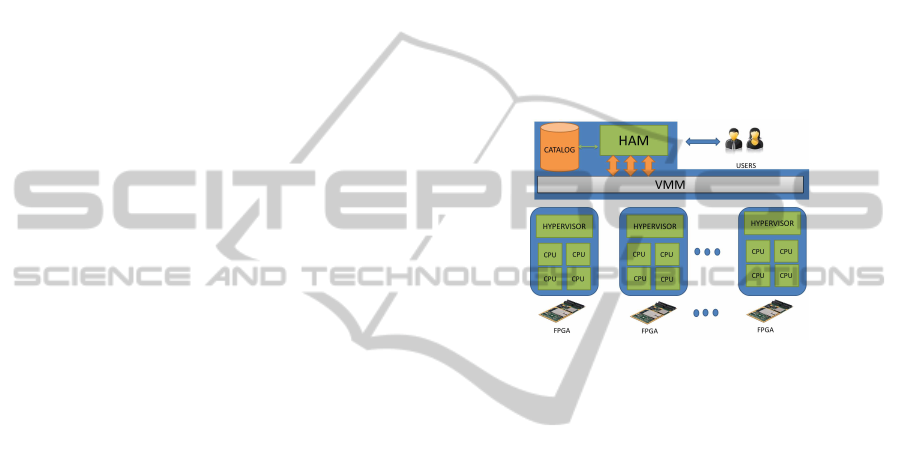

ture. This proposal is based on uniform nodes com-

posed of heterogeneous resources, as shown in Fig-

ure 1. Each node is composed of at least one CPU,

and some extra COTS components can be included,

which means that a FPGA on its own cannot be a

compute node and every node must be provided with

a CPU resource. The CPU of a node accesses and

controls the task assigned to the accelerators. There-

fore, a physical connection is required between the

VM running on the CPU and the COTS.

Secondly, in order to support the heterogeneous cloud

IaaS, some extra functionalities must be provided by

the Virtual Machine Manager (VMM). The VMM is

in charge of the deployment of VMs, and monitor-

ing and controlling their state. Hence, since a mech-

anism is required to manage the heterogeneous archi-

tecture, our proposal makes use of a Hardware Ac-

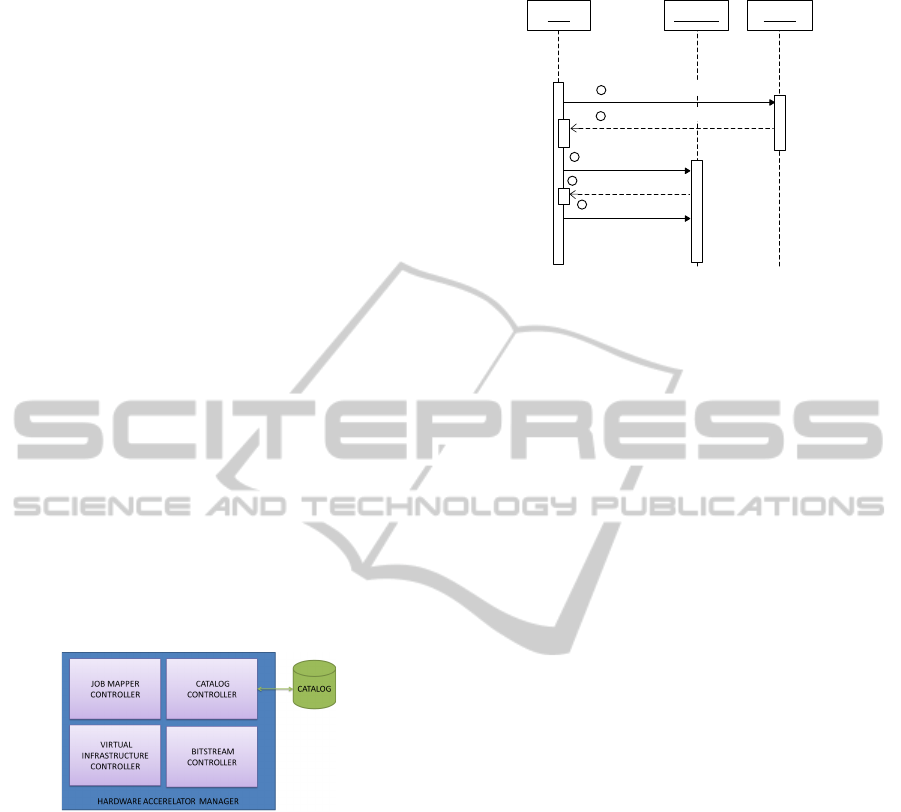

celerator Manager (HAM). HAM is an independent

open-source component that makes use of the func-

tionality of the VMM and extends it by providing

the management of accelerators, namely, FPGAs and

GPUs. When a user requests the use of the cloud in-

frastructure, HAM is in charge of deploying the clus-

ter infrastructure, for example, for a Hadoop appli-

cation (Apache, 2013), to run on it. This also in-

cludes the proper conﬁguration of the accelerators so

that they can be effectively exploited by the VMs. So,

the system has different states which include the set-

up state and the running one. To be more precise, in

the mentioned case, during the set-up state, HAM de-

ploys the master VM together with the worker VMs

required to attend the request of the user on time.

As the integration of GPUs into a virtual infraes-

tucture has already been addressed and even ofered

by some Cloud providers (i.e.,Amazon), we will fo-

cus on the description on the integration of FPGAs.

3.1 Overall Description

In our system, we propose that the users use FPGAs

to execute certain tasks as hardware acceleration mod-

ules integrating FPGAs as part of a private cloud. In

general, the Hardware Acceleration Manager controls

the communication and full processing of preparing

and deploying hardware / software elements.

A general view of the proposed architecture is

shown in Figure 1. Our system is composed of two el-

ements, namely a Hardware Accelerator Manager

(HAM) and a Catalog. On one hand, HAM is respon-

sible of receiving requests from clients and deploying

virtual hardware/software acceleration elements.

Figure 1: Arquitecture Overview.

HAM is supported by the Catalog, which consists

of a set of ﬁles where all the meta-data and informa-

tion about software, hardware, bitstream ﬁles, hosts,

IP address, FPGA resources are stored, that is, the in-

formation stored in the Catalog consists of the state

of the resources and the code of all the tasks loaded

in the system up to now. Note that the repository of

bitstreams is not ﬁxed and can be increased over time.

HAM will access this information when needed.

HAM is implemented as a software component

which uses the functionalities of a Virtual Machine

Manager (VMM) to monitor and deploy virtual in-

frastructures. It also harnesses the Intel VT-d tech-

nology support within the hypervisor to communicate

hardware and software through the PCIe host port.

By using HAM, users will be able to execute jobs

that can be partitioned into simple tasks, which can

be implemented as hardware modules into an FPGA

device, and other tasks which will be deployed in vir-

tual CPUs. To illustrate the use of our architecture,

let us assume that a user wants to run an application

based on matrix-vector multiplication. Firstly, HAM

processes the request from the user and tries to sup-

ply the virtual infrastructure required to run the matrix

multiplication. To be more precise, HAM searches for

efﬁcient resources, including virtual machines with

FPGA accelerators. Then, the system provides the

user with the list of available resources, including the

AnOpen-SourceFrameworkforIntegratingHeterogeneousResourcesinPrivateClouds

131

corresponding FPGA IDs. HAM is responsible for

preparing and deploying the virtual environment to

process the request. Focusing on the FPGA acceler-

ator, deploying the virtual infrastructure consists on

providing access to the resource by using the Intel

VT-d technology and loading the multiplication bit-

stream ﬁle in the FPGA. The multiplication bitstream

ﬁle can be provided by the user or loaded from the

Catalog. When the virtual infrastructure is success-

fully created, the system sends the data (matrix to be

multiplied) and waits for the results. Finally, the re-

sults are sent back to the user. Also, the multiplication

bitstream ﬁle can be stored in the Catalog so that it is

available for future use.

HAM uses four modules (referred to as Con-

trollers) to provide full deployment of virtual acceler-

ation elements in the cloud environment. HAM Con-

trollers will be described next.

4 IMPLEMENTATION DETAILS

In this section, we discuss the details of each part of

the HAM architecture focusing on the integration of

FPGAs as accelerators. The key software controllers

in HAM are depicted in Figure 2, and are the follow-

ing:

Figure 2: Hardware Accelerator Manager (HAM) Con-

trollers.

• The Catalog Controller (CC) keeps the dataset

of the Catalog Module updated.

• The Bitstream Controller (BC) is in charge of

programming the FPGA, so that a given task can

be executed on it.

• The Virtual Infrastructure Controller (VIC)

deploys the virtual infrastructure required by an

application.

• The Job Mapper Controller (JMC) interacts

with the user and controls the execution of the

tasks in the resource of the system.

When a request arrives, the Job Mapper Controller

analyzes the state of the system by consulting the Cat-

alog and supplies different options to the user. Then,

the user will select the best computational resources

C.C. Catalog VMM

Host with FPGA Request

Send back hosts with FPGA

Bitstream files Info

Bitstream files available

Update Catalog

Figure 3: Catalog Controller.

suitable for running his/her application and the Vir-

tual Infrastructure Controller will go ahead with the

set-up of the infrastructure. This controller will be

in charge of the deployment of the virtual resources

and will interact with the Bitstream Controller each

time an FPGA is required as computational resource.

After the set-up, the tasks of the application will be

executed on the provided resources. At the end of the

execution, the Job Mapper Controller will collect the

results and will send them to the user.

A more detailed description of the functionality

and the interaction of the controllers with the envi-

ronment (the Catalog, the VMM, FPGAs,...) is given

next. Note that to get a clear explanation only one

VM and one FPGA accelerator are considered in the

following description, in spite of the fact that HAM is

able to manage all the datacenter resources.

The Catalog Controller (CC) charge of monitor-

ing available hardware/software resources and updat-

ing the Catalog. Figure 3 shows a sequence diagram

illustrating the functionality of this controller. Re-

quests to the Virtual Machine Manager (step 1) are

used to collect all the information about FPGAs, bit-

stream ﬁles and Virtual Machines. This information

is then collected and transferred to the Catalog (step

3). Also, the Catalog Controller is used to register

new bitstream ﬁles corresponding to new computa-

tional resources being accelerated (step 5).

The Bitstream Controller (BC) is responsible

for programming FPGAs with bitstream ﬁles, as

shown Figure in 4. The mechanism used to pro-

gram FPGAs consists of transferring the bitstream ﬁle

to a host with an associated FPGA (which is known

through a query to the Catalog, steps 1 and 2) via ssh

(step 3). Each host with an associate FPGA contains

a FPGA driver, which is used to program the FPGA

device (step 4).

The Virtual Infrastructure Controller (VIC) is

responsible for preparing and deploying the virtual

environment which will be used to communicate the

software (i.e., the application running in the virtual

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

132

B.C

HOST

Catalog

VMM FPGAVM

bitstream request

Searching Info

FPGA, bitstream,host

SSH host and send bitstream file

Load bitstream file

Configure Successful

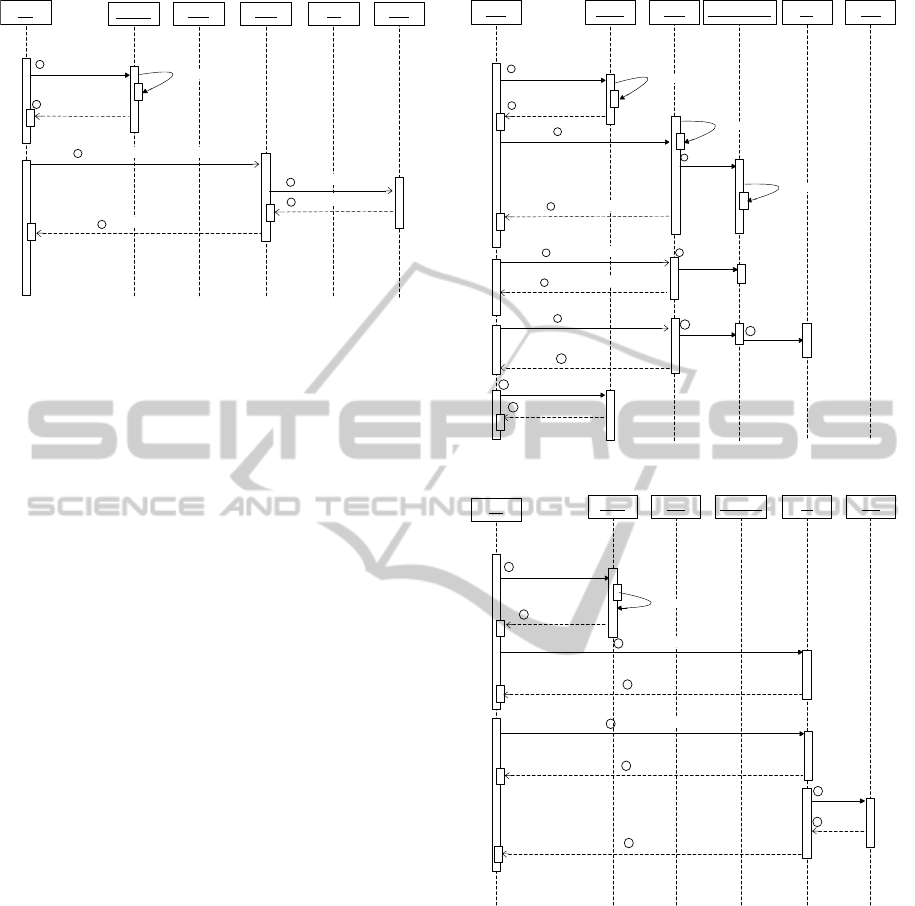

Figure 4: Bitstream Controller.

CPU) with the hardware accelerator. For example, for

a Hadoop application, a cluster composed of several

VMs will be deployed. Figure 5 depicts how this con-

troller works. First of all, the Virtual Infrastructure

Controller uses the Catalog Controller to collect all

the necessary information to deploy a virtual environ-

ment (step 1). For example, a template which con-

tains a deﬁnition of a Virtual Machine, the host name

which contains the FPGA device associated, FPGA Id

device and ﬁnally the PCIe port information.

The Virtual Machine Manager is used then to cre-

ate a virtual machine (step 3) and then, when the vir-

tual machine has been successfully created (step 5),

the controller uses an “attach” functionality (steps 6

and 7) to create the access between the virtual ma-

chine (software) and the FPGA (hardware). Finally,

the full system (composed of both the software and

the hardware) is started up and ready to use (step 9).

It is important to clarify that the Intel VT-d tech-

nology (Intel, 2013) is used to communicate virtual

machines and FPGA hardware because, it allows an

important improvement on the performance achieved

by accessing I/O devices in virtualized environment.

Finally, The Job Mapper Controller (JMC is re-

sponsible for the management of data sharing, moni-

toring the execution of jobs and sending ﬁles and re-

ports to the clients. Additionally, it also makes use

of an efﬁcient scheduling algorithm to assign task to

resources. This algorithm must have into account the

requirements of the client applications, the available

hardware accelerator resources and the state of the

CPUs. The main characteristic that enable job accel-

eration is that data should be allowed to be partitioned

among the available computing resources (i.e., CPU

and FPGA) and be processed independently in order

to improve performance. When the Job Mapper Con-

troller (JMC) receives a job from a client, it adds the

job to the global scheduler queue. Then, the Catalog

Controller (CC) is consulted to discover the FPGA

V.I.C.

HYPERVISOR-HOST

Catalog VMM FPGAVM

Searching Info

Valid Data

Create VM

VM Successful

Attach PCI Device

Attach Successful

host,FPGA,VM

host, FPGA, VM Info

Create VM

Attach device

VM Start

Start VM

VM Ready

Update Catalog FPGA,VM

Update Successful

Figure 5: Virtual Infrastructure Controller.

JMC

Catalog

Info Request VM,SW

VM FPGAVMM HYPERVISOR

Seraching Info

Successful

VM, SW Info

SSH, send SW

Successful

SSH, send Data In

Data In

Data Out

Figure 6: Job Mapper Controller.

resources available on where the data related to the

job reside, to split the job into tasks, and to distribute

these tasks according to the resources and data avail-

ability at each FPGA. These process is depicted in

ﬁgure 6. The Catalog Controller (CC) is used by the

Job Mapper Controller to retrieve information relative

to previously deployed software application and vir-

tual machine identiﬁcation, which users can use (step

1). The Catalog sends back the necessary information

identiﬁcation for preparing software acceleration el-

ements. Then, the job is transferred to the allocated

Virtual Machine (step 3) through ssh. The applica-

tion (bitstream ﬁle) programmed into the FPGA is de-

AnOpen-SourceFrameworkforIntegratingHeterogeneousResourcesinPrivateClouds

133

signed to receive a stream of data as ”input” as shown

in (step 5) the (Data-In). Next, the FPGA processes

data and, when the results are ready, the FPGA sends

back a stream containing data results as ”output” (step

8). Finally, the JMC sends the results to the user.

5 CONCLUSIONS AND FUTURE

WORK

We envision a heterogeneous cloud infrastructure ar-

chitecture in which accelerators such as FPGAs and

GPUs are used to reduce the power consumption of

the datacenter. This will be possible when they get

signiﬁcantly easier to interact with. Hence, in this

work an open-source IaaS architecture has been de-

scribed focused on providing FPGA accelerators as

easy-to-use virtual resources.

The future work will mainly consist on imple-

menting the proposed architecture. As a matter of

fact, a preliminary prototype built on top of the

OpenNebula (Moreno-Vozmediano et al., 2012) Vir-

tual Machine Manager is near to completion. Next,

the focus will be placed on the problem of effective

resource scheduling, addressing the issue of FPGA

sharing among different virtual machines running in

the same node.

Also, the feasibility of exploiting standard Single

Root-I0 Virtualization (SR-IOV) (Intel LAN Access

Division, 2011), which allows a PCIe device to ap-

pear as multiple virtual devices that can be accessed

by a guest making use of VM passthrough will also

be explored.

REFERENCES

Apache (Last access: 18th December, 2013). Hadoop.

Available at: http://hadoop.apache.org/.

AWS (Last access: 10th December, 2013).

Amazon EC2 Instances. Web page at

http://aws.amazon.com/ec2/instance-types/.

Buyya, R., Vecchiola, C., and Selvi, S. T. (2013). Mas-

tering Cloud Computing: Foundations and Applica-

tions Programming. Morgan Kaufmann Publishers

Inc., San Francisco, CA, USA, 1st edition.

Dondo, J., Barba, J., Rincon, F., Moya, F., and Lopez,

J. (2013). Dynamic objects: Supporting fast and

easy run-time reconﬁguration in FPGAs. Journal

of Systems Architecture - Embedded Systems Design,

59(1):1–15.

Guneysu, T., Kasper, T., Novotny, M., Paar, C., and

Rupp, A. (2008). Cryptanalysis with COPACA-

BANA. 57:1498–1513.

HARNESS FP7 project (Last access: 12th Decem-

ber, 2013). HARNESS: Hardware- and Network-

Enhanced Software Systems for Cloud Computing.

Web page at http://www.harness-project.eu/.

Intel (2013). Intel Virtualization Technology of Directed

I/O, Architecture Speciﬁcation, Rev. 2.2. Available at

http://www.intel.com.

Intel (Last access: 13rd December, 2013). Heterogeneous

Computing in the Cloud: Crunching Big Data and De-

mocratizing HPC Access for the Life Sciences. Web

page at http://www.intel.com/.

Intel LAN Access Division (2011). PCI-SIG SR-IOV

Primer: An Introduction to SR-IOV Technology.

Available at http://www.intel.com/.

Jacobsen, M. and Kastner, R. (2013). RIFFA 2.0: A

reusable integration framework for FPGA accelera-

tors. In 23rd International Conference on Field pro-

grammable Logic and Applications, FPL 2013, pages

1–8.

Mitrion-C: The Open Bio Project (Last access:

13rd May, 2013). Web page at http://mitc-

openbio.sourceforge.net/.

Moreno-Vozmediano, R., Montero, R. S., and Llorente,

I. M. (2012). IaaS Cloud Architecture: From Virtu-

alized Datacenters to Federated Cloud Infrastructures.

IEEE Computer, 45.

Nimbix (Last access: 13rd May, 2013). Nimbix Ac-

celerated Compute Cloud (NACC). Web page at

http://www.nimbix.net/.

Nvidia (Last access: 14th December, 2013).

GPU Cloud Computing . Available at:

http://www.nvidia.com/object/gpu-cloud-computing-

services.html.

Suneja, S., Baron, E., Lara, E., and Johnson, R. (2011). Ac-

celerating the Cloud with Heterogeneous Computing.

In Proceedings of the 3rd USENIX Conference on Hot

Topics in Cloud Computing, HotCloud’11, pages 23–

23, Berkeley, CA, USA. USENIX Association.

Tsoi, K. H. and Luk, W. (2010). Axel: A Het-

erogeneous Cluster with FPGAs and GPUs. In

Eighteenth ACM/SIGDA International Symposium on

Field-Programmable Gate Arrays (FPGA’10).

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

134
