An Overview of Cloud Identity Management-Models

Bernd Zwattendorfer, Thomas Zefferer and Klaus Stranacher

Institute for Applied Information Processing and Communications (IAIK), Graz University of Technology,

Inffeldgasse 16a, 8010 Graz, Austria

Keywords:

Cloud, Cloud Computing, Cloud Identity Management-Model, Identity Management.

Abstract:

Unique identiﬁcation and secure authentication are essential processes in various areas of application, e.g.

in e-Government, e-Health, or e-Business. During the past years several identity management-systems and

models have evolved. Many organizations and enterprises or even countries for their national eID solutions

rely on identity management-systems for securing their applications. Since more and more applications are

migrated into the cloud, secure identiﬁcation and authentication are also vital in the cloud domain. How-

ever, cloud identity management-systems need to meet slightly different requirements than traditional identity

management-systems and thus cannot be clustered into the same model types or categories. Therefore, in this

paper we give an overview of different cloud identity management-models that have already emerged up to

now. We further compare these models based on selected criteria, e.g. on practicability and privacy aspects.

1 INTRODUCTION

Secure and reliable identity management (IdM) plays

a vital role in several security-sensitive areas of ap-

plications, e.g. in e-Government, e-Business, or

e-Health. An identity management-system helps

online applications to control access for users to

protected resources or services. However, identity

management is no new topic and several identity

management-approaches and systems have already

emerged over time. A comprehensive overview on

identity management-systems is given in (Bauer et al.,

2005).

Due to the increasing number of cloud comput-

ing adoption and the deployment of security-sensitive

cloud applications, secure identity management be-

comes also more and more important in the cloud do-

main. In addition, outsourcing identity management-

systems to the cloud can bring up several beneﬁts

such as higher scalability or cost savings, since no

in-house infrastructure needs to be hosted and main-

tained. However, the ﬁeld of cloud identity manage-

ment is still new and not extensively investigated yet.

Therefore, the aim of this paper is to overview dif-

ferent cloud identity management-models, discuss ad-

vantages and disadvantages of the individual models,

provide a comprehensive survey, and ﬁnally compare

them based on selected criteria. The criteria for the

comparison have been selected by focusing on practi-

cability and privacy, since one of the main issues of

cloud computing is the loss of data protection and

privacy (Pearson and Benameur, 2010), (Zissis and

Lekkas, 2012), and (Sen, 2013).

The paper is structured as follows. Section 2

classiﬁes existing traditional identity management-

models and their implementations. Section 3 surveys

existing cloud identity management-models and de-

scribes their beneﬁts and drawbacks. These models

are compared in Section 4 based on selected criteria.

Finally, conclusions are drawn in Section 5.

2 TRADITIONAL IDENTITY

MANAGEMENT-MODELS

An identity management-system usually involves four

entities (Bertino and Takahashi, 2011). A service

provider (SP) provides different online services to

users. Before being allowed to consume such ser-

vices, a user has to successfully identify and authen-

ticate. Therefore, the user usually identiﬁes and au-

thenticates at a so-called identity provider (IdP). The

identity provider is then in charge of providing the

users identity data and supplementary authentication

results to the service provider in a secure way. Fi-

nally, a control party, which is usually a law or regula-

tion enforcing body, needs to investigate identity data

transactions, e.g. for data protection reasons. Hence,

Zwattendorfer B., Zefferer T. and Stranacher K..

An Overview of Cloud Identity Management-Models.

DOI: 10.5220/0004946400820092

In Proceedings of the 10th International Conference on Web Information Systems and Technologies (WEBIST-2014), pages 82-92

ISBN: 978-989-758-023-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

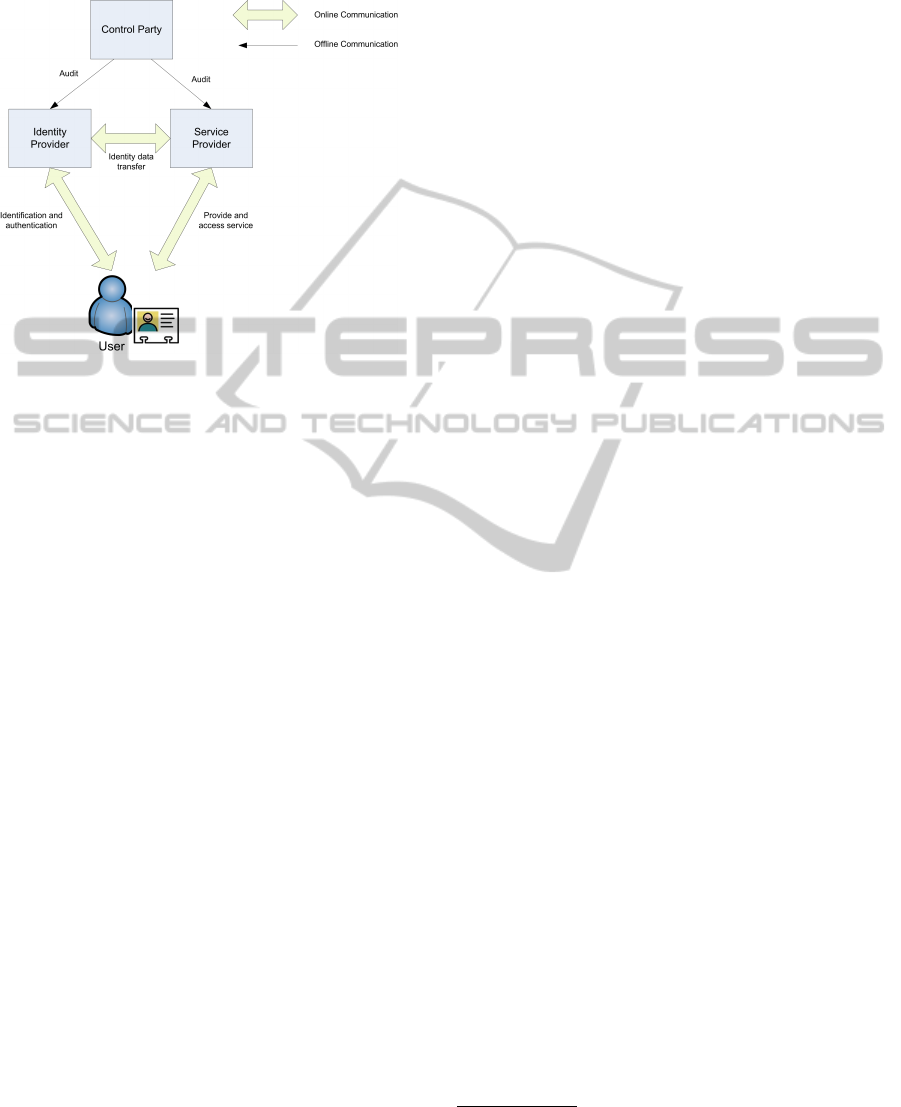

main purpose of such control party is auditing. Figure

1 illustrates the communication process in an identity

management-system including all four entities.

Figure 1: Entities involved in an identity management-

system.

Over time, several identity models involving these

four entities and supporting similar but slightly dif-

ferent use cases have evolved. Some of these mod-

els have advantages in scalability, others in privacy or

user control. In the following subsections we brieﬂy

describe the most important models based on the work

of (Cao and Yang, 2010), (Dabrowski and Pacyna,

2008), (Dbrowski and Pacyna, 2008), (Jøsang et al.,

2005), (Jøsang and Pope, 2005), (Jøsang et al., 2007),

and (Palfrey and Gasser, 2007). For simplicity, we

skip a discussion of the control party in all subsequent

models because its functionality remains the same in

all models.

2.1 Isolated Model

The isolated model is basically the simplest tradi-

tional identity model. In this model, the service

provider and identity provider merge, hence identi-

ﬁcation and authentication are directly carried out at

the service provider. In addition, the functionality of

the identity management-system (creating, maintain-

ing, or deleting identities) can only be used by this

speciﬁc service provider. If a user wants to access ser-

vices of another service provider, she needs to register

at the other service providers identity management-

system again. This further means that each individual

service provider has to store and maintain the identity

data and credentials of the user separately. While this

still may not be a huge burden for service providers,

the diversity of credentials for accessing various ser-

vice providers may become unmanageable for users

(Jøsang and Pope, 2005). This model can still be

found by service providers on the Internet.

2.2 Central Model

The central identity model avoids diverse identity

management-systems, where the user has to register

separately. Instead, the identity management-system

is outsourced by several service providers to a central

identity provider. The identity provider takes over all

identity-related functionality for the service provider,

including credential issuance, identiﬁcation and au-

thentication, and the management of the identity life-

cycle in general (Bertino and Takahashi, 2011). Fur-

thermore, in this model users’ identity data are stored

in a central repository at the identity provider and ser-

vice providers do not need to maintain identity data

in their own repositories (Cao and Yang, 2010). For

authentication at a service provider, the user has to

identify and authenticate at the identity provider be-

fore. The identity provider then assembles a token

including all necessary identity and authentication in-

formation of the user and transmits it to the service

provider

. (Jøsang et al., 2005) further distinguish the

domain model for the identiﬁer used. In the common

identiﬁer model one and the same identiﬁer is used

for identiﬁcation at all service providers. In contrast

to that, in the meta identiﬁer domain model separate

identiﬁers are used for identiﬁcation at the individ-

ual service providers. However, all separate identi-

ﬁers map to a common meta identiﬁer at the identity

provider to uniquely identify the user. Typical exam-

ples implementing this approach are Kerberos (Neu-

man et al., 2005) or the Central Authentication Ser-

vice (CAS)

2.3 User-centric Model

While in the central model all identity data of the user

are stored in the domain of the identity provider, in the

user-centric model all identity data are stored directly

in the users domain, e.g. on a secure token such as a

smart card. The main advantage of this model is that

the user always remains the owner of her identity data

and stays under their full control (Dbrowski and Pa-

cyna, 2008). Identity data can only be transferred by

an identity provider to a service provider if the user

explicitly gives her consent to do so. Compared to

the central model, this tremendously increases users’

privacy. (Jøsang and Pope, 2005) discuss in detail

this user-centric approach. Typical examples imple-

Different approaches exist; hence identity data can be

either pushed to or pulled from the service provider.

http://www.jasig.org/cas

AnOverviewofCloudIdentityManagement-Models

menting this model are Windows CardSpace

or var-

ious national eID solutions such as the Austrian cit-

izen card (Leitold et al., 2002) or the German eID

(Frommm and Hoepner, 2011).

2.4 Federated Model

In the federated model identity data are not stored in

a central repository but are rather stored distributed

across different identity and/or service providers. No

single entity is fully controlling the identity informa-

tion (Palfrey and Gasser, 2007). The distributed iden-

tity data of a particular user are linked usually by the

help of a common identiﬁer

. All identity providers

and service providers, which take part in such a fed-

eration, share a common trust relationship amongst

each other. The trust relationship is usually estab-

lished on organizational level whereas enforcement is

carried out on technical level. This federated model

particularly supports identiﬁcation and authentication

across different domains, which paves the way for

cross-domain single sign-on (Cao and Yang, 2010).

Popular examples of this approach are the Security

Assertion Markup Language (SAML)

, Shibboleth

or WS-Federation (Kaler and McIntosh, 2009).

3 CLOUD IDENTITY

MANAGEMENT-MODELS

Cloud computing is currently still one of the most

emerging trends in the IT sector. Many applications

are already migrated to the cloud because of its ben-

eﬁts such as cost savings, scalability, or less main-

tenance efforts (Armbrust et al., 2009). Due to the

increasing number of cloud applications, secure iden-

tity management is equally important for cloud ap-

plications as for traditional web applications. Hence,

new cloud identity management-models have already

emerged, which particularly take the properties of

cloud computing into account. (Cloud Security Al-

liance, 2011), (Cox, 2012), (Gopalakrishnan, 2009),

(Goulding, 2010), or (Zwattendorfer et al., 2013) al-

ready describe cloud identity management-models in

their publications. We take these publications as a

basis to give an overview of different existing cloud

http://msdn.microsoft.com/en-us/library/vstudio/ms73

3090%28v

vs.90%29.aspx

It is not necessary that the common identiﬁer is shared.

Different identiﬁers mapping to the same user are also pos-

sible (Cao and Yang, 2010).

http://saml.xml.org

http://shibboleth.net

identity management-models. In the following sub-

sections we describe the individual models in more

detail and explain how and where identities are stored

and managed.

3.1 Identity in the Cloud-Model

The Identity in the Cloud-Model is similar to the iso-

lated identity model described in Section 2.1. Again,

identity provider and service provider merge also in

this model. This means for the cloud case that the

cloud service provider, which hosts the application, is

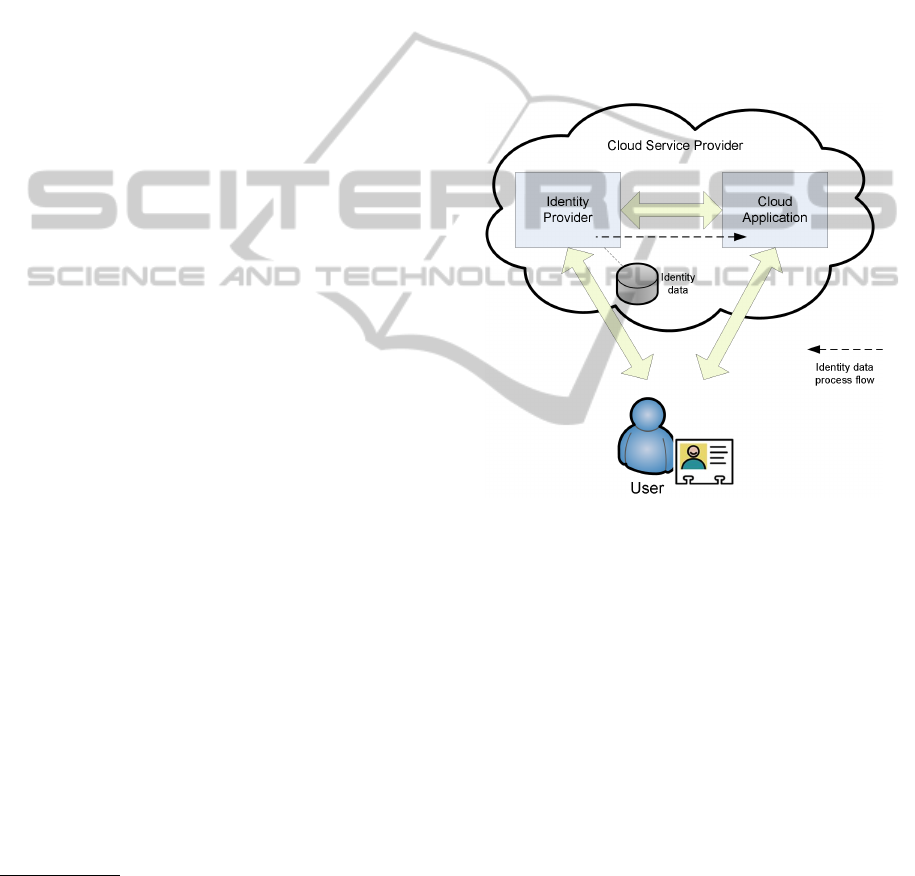

also responsible for the identity management. Figure

2 illustrates this model.

Figure 2: Identity in the Cloud-Model.

Identity data of users, who are accessing the cloud

application, are directly stored in the domain of the

cloud service provider. Hence, the user has actu-

ally no control which data are processed in the cloud.

Cloud service providers which already use this model

for their Software as a Service (SaaS) applications

are for instance Google or Salesforce.com. They of-

fer their own user management to their customers for

managing their own identities. The main advantage

of this model is that organizations do not need to host

and maintain their own identity management-system

but can simply rely on an existing one, which will be

maintained by the cloud service provider. Needless

to say that costs can be decreased at an organization

when applying this model. However, the use of this

model also shifts responsibility in terms of security

and privacy to the cloud service provider and the orga-

nization more or less looses control over the identity

data stored and managed in the cloud.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

3.2 Identity to the Cloud-Model

The Identity to the Cloud-Model is similar to the tra-

ditional central identity model. Also in this model,

the identity provider takes over the tasks regarding

identity management for the service provider. How-

ever, the main difference in this model is that the

service provider and its applications are cloud-based.

This further means that in this model the identity

provider is not deployed in the cloud, which avoids

unnecessary identity data disclosure to a cloud ser-

vice provider. Figure 3 illustrates the Identity to the

Cloud-Model.

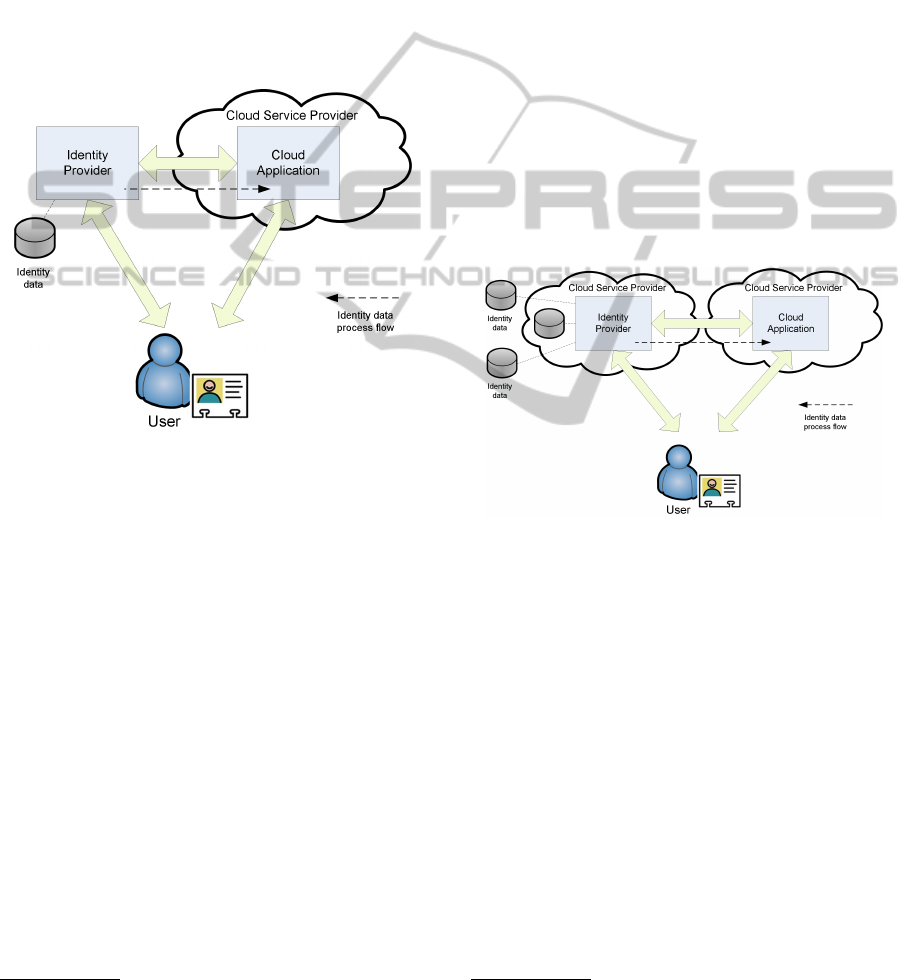

Figure 3: Identity to the Cloud-Model.

In more detail, the complete user and identity

management is still hosted by the organization e.g.

in one of its data centers. Before gaining access to

a cloud application, users have to authenticate at the

identity provider ﬁrst. After that, the identity provider

transfers appropriate identity and authentication data

to the cloud service provider through well-deﬁned and

standardized interfaces. Google or Salesforce.com,

for instance, rely on SAML, OpenID

, or OAuth

for

these interfaces and external identity provisioning.

Appliance of this model has the advantage that an

existing identity management-infrastructure of an or-

ganization can be re-used. Users are identiﬁed and

authenticated at the cloud application by the use of

this external identity management-system. No new

user management has to be created or migrated to the

cloud service provider. The organization remains un-

der control of the identity data and provides it to the

cloud service provider just on demand. However, in-

teroperability issues may arise due to the use of ex-

ternal interfaces. For instance, a common agreement

http://openid.net

http://oauth.net

on the attributes transferred (e.g. format or seman-

tic) between the identity provider and the cloud ser-

vice provider must be given. In addition, the identity

provider must support the interface provided by the

cloud service provider.

3.3 Identity from the Cloud-Model

The Identity from the Cloud-Model fully features the

cloud computing paradigm. In this case, both the

cloud application and the identity provider are oper-

ated in the cloud. However, in contrast to the Iden-

tity in the Cloud-Model of Section 3.1 both enti-

ties are operated by distinct cloud service providers.

Since identities are provided as a service from the

cloud, this model is also named ”Identity as a Service

Model” (Ates et al., 2011). Google or Facebook are

for instance such providers, when using the authenti-

cation functionality for other services than their own

(Google Accounts Authentication and Authorization

or Facebook Login

). Figure 4 illustrates this model.

Figure 4: Identity from the Cloud-Model.

By applying this model, an organization can ben-

eﬁt from the pure cloud computing advantages such

as high scalability or elasticity. Besides that, com-

pared to the previous cloud identity management-

models the advantage of this model is the separation

of cloud service providers. In this model, organiza-

tions can select their preferred identity provider in the

cloud. This is particularly important because the or-

ganization needs to trust the identity provider, which

is responsible for the organization’s identity and user

management. Organizations must be careful in cloud

service provider selection, as e.g. legal implications

such as data protection regulations might hinder the

selection of a provider which stores identity data in a

foreign country.

https://developers.google.com/accounts

https://developers.facebook.com/docs/facebook-login

AnOverviewofCloudIdentityManagement-Models

3.4 Cloud Identity Broker-Model

The Cloud Identity Broker-Model can be seen as

an extension to the Identity from the Cloud-Model.

In this Cloud Identity Broker-Model, the identity

provider in the cloud acts now as an identity broker

in the cloud. In other words, the cloud identity bro-

ker is some kind of hub between one or more service

providers and one or more identity providers. Figure

5 illustrates this model.

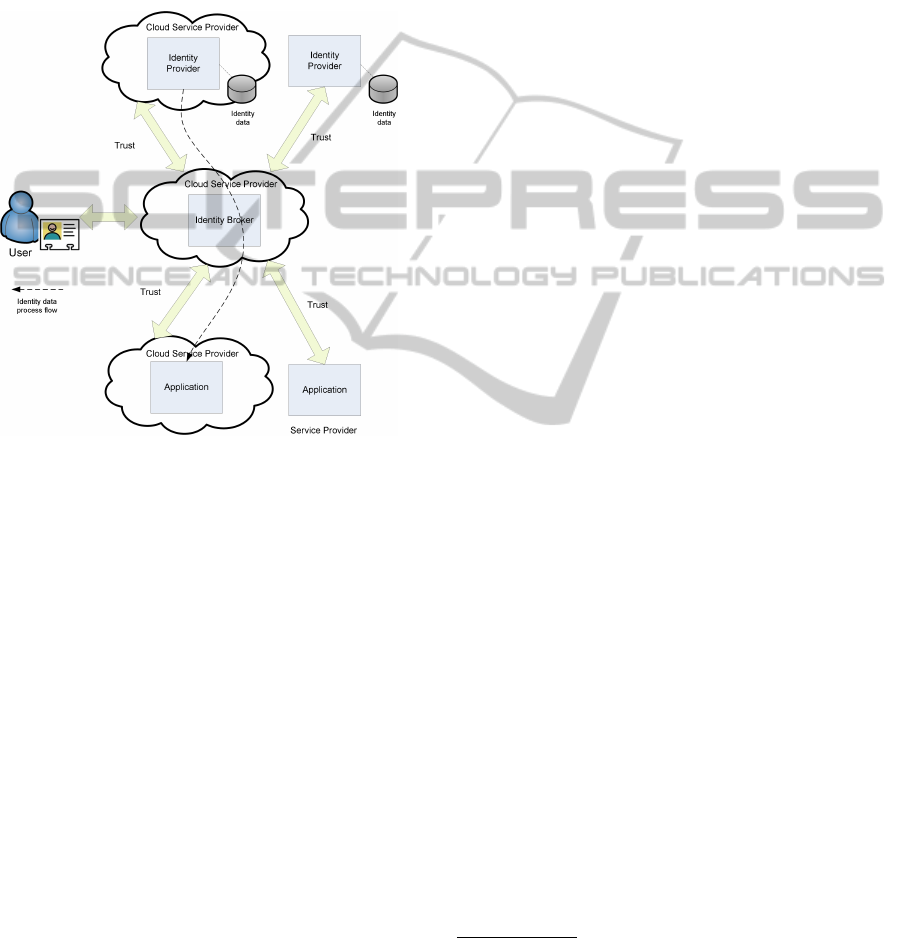

Figure 5: Cloud Identity Broker-Model.

The basic idea behind this model is to decouple

the service provider from integrating and connect-

ing a vast amount of identity providers. If no bro-

ker is used, a single service provider has to imple-

ment all interfaces for communication with the indi-

vidual identity providers if the service provider wants

to support them. By applying the broker concept, the

identity broker hides the complexity of the individ-

ual identity providers from the service provider. This

further means that the service provider just needs to

implement one interface, namely the one to the iden-

tity broker. All other interfaces are encapsulated by

the identity broker and tailored or mapped to the ser-

vice provider’s interface. In addition, for the ser-

vice provider only one strong trust relationship be-

tween the service provider and the identity broker is

required. All other trust relationships with the indi-

vidual identity providers are ”brokered” by the iden-

tity broker. Deploying the broker in the cloud makes

this model even more powerful. Due to the cloud

advantages of nearly unlimited computing resources

and scalability, a high number of active connections

and identiﬁcation/authentication processes at the bro-

ker can be easily absorbed by the cloud.

Nevertheless, still some disadvantages can be

found in this model. One disadvantage is that both

the user and the service provider are dependent on

the functionality the cloud identity broker supports. If

the identity broker does not support the desired iden-

tity provider the user wants to use for authentication,

the service provider cannot provide its services to the

user. Furthermore, if the broker does not support the

communication interface to the service provider any-

more, the service provider is cut off from any other

identity provider. However, probably the main is-

sue is that identity data runs through the cloud iden-

tity broker in plaintext. As already mentioned before,

privacy issues concerning the cloud service provider

might hinder adoption of this cloud-based identity

management-service (Pearson and Benameur, 2010).

The Cloud Identity Broker-Model has already

been implemented by some organizations. McAfee

Cloud Single Sign On

, the SkIDentity

implemen-

tation, or the Cloud ID Broker

of Fugen are just

a few examples. Further details on this model can

be found in (Cloud Security Alliance, 2011), (Huang

et al., 2010), or (Zwattendorfer et al., 2013).

3.5 Federated Cloud Identity

Broker-Model

The Federated Cloud Identity Broker-Model com-

bines the traditional federated identity model with the

newly Cloud Identity Broker-Model. This combined

model has been introduced by (Zwattendorfer et al.,

2013) and aims on eliminating the drawbacks of the

central Cloud Identity Broker-Model. The general ar-

chitecture is illustrated in Figure 6, showing the fed-

eration of two different cloud identity brokers.

Compared to the simple Cloud Identity Broker-

Model, in this federated model users and service

providers do not need to rely on one and the same

identity broker. Actually, both the user and the ser-

vice provider can rely on the individual broker of their

choice. This eliminates the drawback for both the

user and the service provider of being dependent on

the same identity broker. On the one hand, users can

simply select the identity broker that supports all their

desired identity providers (Identity Broker 1 in Figure

6). On the other hand, service providers can select the

broker that e.g. supports a speciﬁc communication

interface (Identity Broker 2 in Figure 6). Hence, re-

ferring to Figure 6 the communication process ﬂow

http://www.mcafee.com/us/products/cloud-single-

sign-on.aspx

http://www.skidentity.com

http://fugensolutions.com/cloud-id-broker.html

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

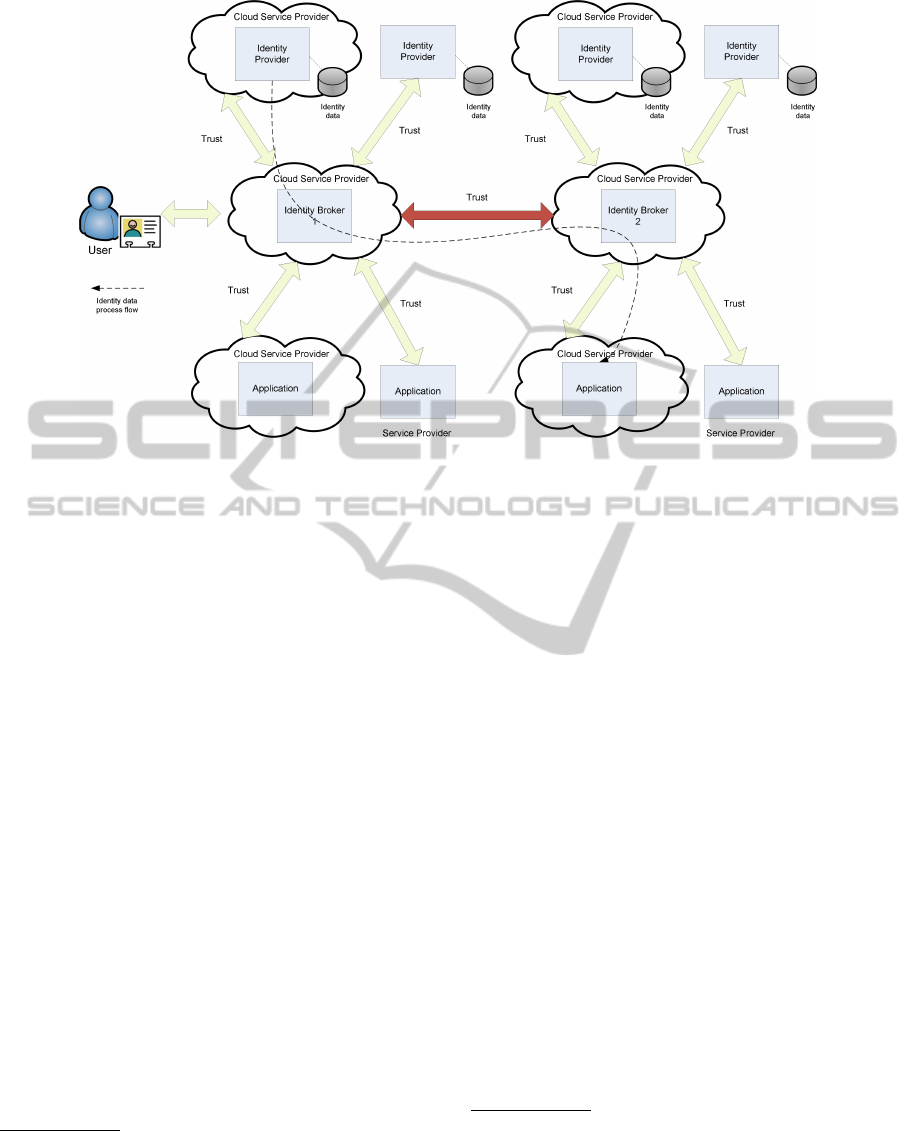

Figure 6: Federated Cloud Identity Broker-Model.

between identity provider and service provider is bro-

kered through the two Identity Brokers 1 and 2.

While this model eliminates some problems of the

Cloud Identity Broker-Model, the issue of plain iden-

tity data transfer between and through cloud service

providers still persists. To bypass such privacy issue,

the following two models had been introduced.

3.6 BlindIdM-Model

The BlindIdM-Model has been introduced by (Nu

nez

et al., 2013) and (Nu

nez and Agudo, ress)

and can

also be seen as an extension and alteration of the Iden-

tity from the Cloud-Model. The basic idea is princi-

pally the same, however, this model enables identity

data storage and data processing also by semi-trusted

identity providers

in the cloud. In fact, the identity

provider in the cloud can provide identity data to ser-

vice providers without actually knowing the contents

of these data. Hence, the identity provider provides

these data in a blind manner (Nu

nez et al., 2013). This

particularly preserves users’ privacy, as only blinded

data is transferred through the cloud identity provider

and the cloud provider has no possibility to inspect

these data.

The identity data being transferred are actually

a similar approach has been introduced by (Zwatten-

dorfer and Slamanig, 2013a)

A semi-trusted identity provider is an identity provider

that works correctly but may be interested in inspecting pri-

vate data. In other words, the identity provider acts honest

but curious.

blinded by using a proxy re-encryption scheme

(Green and Ateniese, 2007) (Ateniese et al., 2006).

In more detail, during identity management setup and

user registration the organization stores the users’

identity data in encrypted format at the cloud identity

provider. Thereby, the private key is kept conﬁdential

by the organization, hence the cloud provider is not

able to decrypt the stored identity data. In addition,

the organization generates a re-encryption key for the

identity provider

, which allows the re-encryption

from the stored data encrypted for the cloud iden-

tity provider into other encrypted data, which how-

ever can be decrypted by the service provider. During

an authentication process, the cloud identity provider

then just re-encrypts the desired identity data of the

user for the service provider. The practical applica-

bility of the BlindIdM-Model has been shown by an

implementation in connection with OpenID (Nu

nez

et al., 2012).

3.7 Privacy-Preserving Federated

Cloud Identity Broker-Model

The main aim of this model is – similar to the

BlindIdM-Model – an improved privacy-preservation

for the user. Thereby, the same concept of ”blinding”

By using proxy re-encryption a semi-trusted proxy can

alter a ciphertext, which has been encrypted for person A,

in such a way that it can be decrypted by person B. Thereby,

the proxy gains no access to the plaintext of the data.

For generating a re-encryption key, the organization

requires its private key and the public key of the service

provider.

AnOverviewofCloudIdentityManagement-Models

identity data is applied to the basic Federated Cloud

Identity Broker-Model. Hence, this model com-

bines the advantages of the Federated Cloud Identity

Broker-Model with the advantages of the BlindIdM-

Model. Furthermore, this model can again be applied

when having semi-trusted cloud identity brokers. The

general concept of this model has been introduced by

(Zwattendorfer, 2014).

The general concept of this model is similar to the

BlindIdM-Model because also proxy re-encryption is

used for protecting identity data from the cloud ser-

vice providers. However, the main differences are

that the data can also be stored encrypted at non-

cloud identity providers and that the data can also be

encrypted by the user and not only by an organiza-

tion. In addition – which is the basic concept of this

federated model – there are two re-encryption steps

required, since identity data needs to ﬂow at least

through two cloud identity brokers. For instance, lets

assume that the user has stored some identity data,

which are encrypted for Identity Broker 1, at an iden-

tity provider. To successfully run such a privacy-

preserving authentication process, the user addition-

ally has to generate two re-encryption keys (One for

the direction Identity Broker 1 → Identity Broker 2

and one for the direction Identity Broker 2 → ser-

vice provider) and issues them to the respective en-

tities. Finally, after successful authentication at the

identity provider, identity data are transferred through

the chain identity provider → Identity Broker 1 →

Identity Broker 2 → service provider by applying

proxy re-encryption in the last two steps (The iden-

tity data was already encrypted for Identity Broker

1 during storage at the identity provider, hence only

two instead of three re-encryption steps are required).

An application of this model can be found in (Zwat-

tendorfer and Slamanig, 2013b), where parts of the

STORK

framework are realized using this architec-

ture to enhance scalability by ensuring users’ privacy

at the same time.

4 COMPARISON OF CLOUD

IDENTITY

MANAGEMENT-MODELS

In this section we evaluate, discuss, and compare the

various cloud identity management-models based on

different criteria. Comparison criteria are deﬁned in

the following Subsection 4.1 whereas the comparison

itself is elaborated in Subsection 4.2.

Secure Identity Across Borders Linked,

https://www.eid-stork.eu/

4.1 Comparison Criteria

The following criteria act as a basis for comparing the

various cloud identity management-models. Some of

the comparison criteria were selected or derived from

(Cao and Yang, 2010), (Nu

nez et al., 2013), and (Bir-

rell and Schneider, 2013). The selected criteria tar-

get aspects of different areas (e.g. general architec-

ture, trust, privacy, etc.). The diversity of the criteria

was deliberately considered to give a comprehensive

overview on the different cloud identity management-

models.

Number of SPs Supported: Is the model limited to

one SP or can multiple SPs be supported?

Number of IdPs Supported: Is the model limited to

one IdP or can multiple IdPs be supported?

Trust Domains: Is authentication supported only

within a single trust domain or also across differ-

ent trust domains?

Trust Model: Is a direct trust model or a brokered

trust model applied?

Trust in the Cloud IdP/identity Broker: Must the

cloud identity provider/identity broker be trusted

or can they be semi-trusted?

Single sign-on (SSO): Can the model support single

sign-on (SSO)?

Storage Location of Identity Data: Where are

users’ identity data stored?

Scalability: Is the model applicable in a large scale?

Extensibility: Is the model easily extensible, e.g. by

adding new service providers?

Governance Framework: Is a governance frame-

work involving several entities required?

Cost Effectiveness: Is the model cost effective?

Conﬁdentiality: Does the identity data stay conﬁ-

dential at the identity provider/identity broker?

Minimal/Selective Disclosure: Can the user select

the amount of identity data to be disclosed to the

identity provider/service provider?

User Control: Does the user have full control over

her identity data?

Unlinkability: Is the user unlinkable to the identity

provider/identity broker? In other words, are dif-

ferent authentication processes of the same user

linkable?

Anonymity: Can the user stay anonymous with re-

spect to the identity provider/identity broker?

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

4.2 Comparison

In this section we compare the individual cloud iden-

tity management-models with respect to the prior

deﬁned criteria. Table 1 shows and summarizes

this comparison. For some comparisons we use

qualitative arguments, for others quantitative argu-

ments (low, medium, high), and for the rest simply

boolean (e.g. yes/no for being applicable or not) ar-

guments. The options marked in bolt indicate the re-

spective best option (only applicable for quantitative

and boolean values). The underlying principle for all

comparisons (in particular for those that are related to

privacy such as conﬁdentiality, minimal/selective dis-

closure, etc.) is that we assume an identity provider or

an identity broker deployed in the cloud acting hon-

est but curious (thus being semi-trusted). In contrast

to that we assume applications in the cloud and their

hosting service providers as being trusted, as they

anyhow require users’ identity data for service pro-

visioning.

In the following we discuss the various models

based on the individual criteria.

Number of SPs Supported: Since in the Identity in

the Cloud-Model the service provider and the

identity provider are the same entity, the identity

provider can only serve one service provider. All

other models have no such restriction and thus can

provide multiple service providers with identity

data.

Number of IdPs Supported: Only those models

that rely on a broker-based approach are able to

deal with multiple connected identity providers.

All others just include one identity provider.

Dealing with multiple identity providers has

the advantage that a user can simply select her

preferred identity provider for an authentication

process. Different identity providers can have

different identity data stored or support different

qualities in the authentication mechanisms.

This allows users to select the identity provider

satisfying best the needs for authentication at a

service provider.

Trust Domains: The broker-based models support

authentication across multiple trust domains, as

multiple entities are involved during an authenti-

cation process. All others support authentication

in single domains only.

Trust Model: Again, all models which rely on an

identity broker also feature a brokered trust

model, hence the trust relationships are seg-

mented. All other models rely on a direct or

pairwise trust model, as only the service provider

and the identity provider communicate with each

other during an authentication process. A clear

statement which model has more advantages can-

not be made. Both have their beneﬁts and draw-

backs, however, details on the individual models

can be found in (Linn et al., 2004).

Trust in the Cloud IdP/identity Broker: For the

two models (BlindIdM-Model and Privacy-

Preserving Federated Cloud Identity Broker-

Model), which rely on proxy re-encryption for

securing the data during cloud transmission, it is

sufﬁcient when the identity provider/identity bro-

ker is considered semi-trusted. In all other cloud

identity models the identity provider/identity

broker must be trusted.

Single sign-on (SSO): In fact, all models that can

handle multiple service providers are principally

applicable to support single sign-on. This means,

that only the Identity in the Cloud-Model cannot

support a simpliﬁed log-in process.

Storage Location of Identity Data: In the Identity

to the Cloud-Model identity data are stored on

a single external identity provider, which is ca-

pable of providing identity to the cloud ap-

plication through a well-deﬁned interface. In

the broker-based models, identity data can be

stored distributed across multiple different iden-

tity providers, being either deployed in the cloud

or in a conventional data center. However, the dif-

ferent identity providers could also have identity

data stored redundantly, i.e. the same attribute

name/value-pair is stored at different providers.

No identity data are actually stored at the iden-

tity broker. In the remaining cloud identity mod-

els identity data are stored directly at the cloud

identity provider.

Scalability: The Identity to the Cloud-Model has the

lowest scalability, as an external identity provider

is usually not designed for dealing with high

load activities. In addition, an external iden-

tity provider has not that ﬂexibility or elasticity

that an identity provider deployed in a cloud has.

Hence, such cloud identity providers (Identity in

the Cloud-Model, Identity from the Cloud-Model,

and BlindIdM-Model) have higher scalability fea-

tures. Although in these three models the iden-

tity provider/identity broker is deployed in the

cloud, we rated the models with just medium level

scalability. The reason is that with the broker-

based models load can additionally be distributed

to other identity providers and thus is not bundled

at one single provider. Hence, the broker-based

models achieve the highest scalability.

AnOverviewofCloudIdentityManagement-Models

Table 1: Comparison of the individual cloud identity management-models based on selected criteria.

Criterion /

Model

Identity in the

Cloud-Model

Identity to the

Cloud-Model

Identity from

the Cloud-

Model

Cloud Iden-

tity Broker-

Model

Federated

Cloud Iden-

tity Broker-

Model

BlindIdM-

Model

Privacy-

Preserving

Federated

Cloud Iden-

tity Broker-

Model

Number of SPs

supported

One Multiple Multiple Multiple Multiple Multiple Multiple

Number of

IdPs supported

One One One Multiple Multiple One Multiple

Trust domains One One One Multiple Multiple One Multiple

Trust model Direct Direct Direct Brokered Brokered Direct Brokered

Trust in

the cloud

IdP/identity

broker

Trusted Trusted Trusted Trusted Trusted Semi-Trusted Semi-Trusted

Single sign-on

(SSO)

No Yes Yes Yes Yes Yes Yes

Storage loca-

tion of identity

data

Cloud identity

provider

External iden-

tity provider

Cloud identity

provider

Cloud iden-

tity provider

and exter-

nal identity

provider

Cloud iden-

tity provider

and exter-

nal identity

provider

Cloud identity

provider

Cloud iden-

tity provider

and exter-

nal identity

provider

Scalability Medium Low Medium High High Medium High

Extensibility Low Medium Medium High High Medium High

Governance

framework

No No No Yes Yes Yes Yes

Cost effective-

ness

Medium Medium Medium High High Medium High

Conﬁdentiality No No No No No Yes Yes

Minimum/Selective

disclosure

No Yes No Yes Yes No Yes

User Control No Yes No Yes Yes No Yes

Unlinkability No No No No No No Yes

Anonymity No No No No No Yes Yes

Extensibility: The Identity in the Cloud-Model can-

not be extended because service provider and

identity provider are one and the same entity. The

Identity to the Cloud-Model, the Identity from the

Cloud-Model, and the BlindIdM-Model can be ex-

tended to integrate additional service providers.

Nevertheless, the broker-based models have the

best extensibility as from their nature the general

aim is to support multiple service providers and

identity providers.

Governance Framework: The non-broker-based

cloud identity models do not require an extensive

governance framework as only a simple pairwise

(direct) trust model applies. In the broker-based

concepts a thorough governance framework is re-

quired as multiple providers have to interact. For

the privacy-preserving models (BlindIdM-Model

and Privacy-Preserving Federated Cloud Identity

Broker-Model) the governance framework gets

even more complex, as encryption keys have to

be managed for the individual entities.

Cost Effectiveness: The broker-based models have

the highest cost effectiveness, since the identity

brokers are deployed in the cloud and addition-

ally multiple identity providers can be connected

and re-used. Due to the re-use of existing external

identity providers, costs can be saved. The same

arguments also hold for the Identity to the Cloud-

Model, where an existing identity management-

system through an external interface is re-used for

identity data provisioning. However, this model

cannot beneﬁt from the advantages of an identity

provider in the cloud deployment, which leads to

medium cost effectiveness only. All other models

also have medium cost effectiveness, as the iden-

tity provider is deployed in the cloud but no exist-

ing identity providers can be re-used.

Conﬁdentiality: Only the BlindIdM-Model and the

Privacy-Preserving Federated Cloud Identity

Broker-Model support conﬁdentiality with respect

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

to the cloud service provider because the iden-

tity data transferred through the cloud service

provider are encrypted. In comparison, in all other

cloud identity models identity data are routed in

plaintext through the cloud service provider that

hosts the cloud identity provider/identity broker.

Minimum/Selective Disclosure: For evaluating this

criterion we assume that minimum/selective dis-

closure is only possible at trusted identity

providers. Hence, this feature is only supported

where external (and trusted) identity providers are

part of the model. These are the broker-based

models as well as the Identity to the Cloud-Model.

All other models rely on cloud identity providers

only.

User Control: Again, for evaluating this criterion we

assume that full user-control is only possible at

trusted identity providers. Therefore, the same re-

sults as for the comparison with respect to mini-

mum/selective disclosure apply.

Unlinkability: The user – in fact – is only un-

linkable with respect to the identity broker in

the Privacy-Preserving Federated Cloud Identity

Broker-Model. The reasons are that, on the one

hand, the identity broker just sees encrypted data

and, on the other hand, that the encrypted data

can be randomized if certain proxy re-encryption

schemes such as from (Ateniese et al., 2006) are

used. The randomization feature allows to pro-

vide the identity broker with different ciphertexts

during different authentication processes although

the containing plaintext data remains the same.

Hence, this avoids user linkage during different

authentication processes of the same user. Al-

though the BlindIdm-Model supports proxy re-

encryption too, the randomization feature has no

effect in this case because the encrypted data are

directly stored at the cloud identity provider. If the

user wants to update her encrypted identity data at

the cloud identity provider, she must somehow be

linkable. All other models also do not support un-

linkability because identity data ﬂows through the

identity provider/identity broker in plaintext.

Anonymity: The only two models that support

anonymity with respect to the identity broker are

the BlindIdM-Model and the Privacy-Preserving

Federated Cloud Identity Broker-Model. In these

two models the identity data are fully hidden from

the identity broker due to encryption. Even if

the user is linkable, the broker cannot reveal the

user’s identity. In all other models anonymity with

respect to the identity provider/identity broker is

not possible because identity data are processed

in plaintext.

5 CONCLUSIONS

Based on the comparison and discussion of the differ-

ent cloud identity management-models it can be con-

cluded that the Privacy-Preserving Federated Cloud

Identity Broker-Model does the best with respect to

the selected criteria. It supports the main basic func-

tions like all other cloud identity models but addition-

ally tremendously increases users’ privacy. However,

application of this model is also more complex than

the others. Reasons are the support of authentication

across several domains of multiple identity providers

and service providers and the incorporation of pri-

vacy features due to the use of proxy re-encryption.

Furthermore, the use of proxy re-encryption requires

a thorough key management, which implies the ne-

cessity of an appropriate governance framework. In

addition, the brokered trust model might be a block-

ing issue for further adoption of this model as liabil-

ity is shifted to the intermediary components (iden-

tity brokers). However, in general the broker-based

cloud identity management-models have more advan-

tages than the simple cloud identity management-

models. Nevertheless, the use of any cloud identity

management-model is advantageous compared to tra-

ditional identity management-models as they provide

higher scalability and better cost effectiveness due to

the cloud computing features.

REFERENCES

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A. D., Katz,

R., Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,

Stoica, I., and Zaharia, M. (2009). Above the Clouds

: A Berkeley View of Cloud Computing Cloud Com-

puting. Technical report, RAD Lab.

Ateniese, G., Fu, K., Green, M., and Hohenberger, S.

(2006). Improved proxy re-encryption schemes with

applications to secure distributed storage. ACM Trans.

Inf. Syst. Secur., 9(1):1–30.

Ates, M., Ravet, S., Ahmat, A. M., and Fayolle, J. (2011).

An Identity-Centric Internet: Identity in the Cloud,

Identity as a Service and Other Delights. ARES 2011,

pages 555–560.

Bauer, M., Meints, M., and Hansen, M. (2005). D3.1:

Structured Overview on Prototypes and Concepts of

Identity Management System. FIDIS.

Bertino, E. and Takahashi, K. (2011). Identity Management:

Concepts, Technologies, and Systems. Artech House.

Birrell, E. and Schneider, F. (2013). Federated Identity

Management Systems: A Privacy-based Characteriza-

tion. IEEE Security and Privacy, 11(5):36–48.

AnOverviewofCloudIdentityManagement-Models

Cao, Y. and Yang, L. (2010). A survey of Identity Manage-

ment technology. In IEEE ICITIS 2010, pages 287–

293. IEEE.

Cloud Security Alliance (2011). Security Guidance for Crit-

ical Areas of Focus in Cloud Computing V3.0. CSA.

Cox, P. (2012). How to Manage Identity in the Public

Cloud. InformationWeek reports.

Dabrowski, M. and Pacyna, P. (2008). Generic and Com-

plete Three-Level Identity Management Model. In

SECURWARE 2008, pages 232–237. IEEE.

Dbrowski, M. and Pacyna, P. (2008). Overview of Iden-

tity Management. Technical report, chinacommunica-

tions.cn.

Frommm, J. and Hoepner, P. (2011). The New German

eID Card. In Fumy, W. and Paeschke, M., editors,

Handbook of eID Security - Concepts, Practical Expe-

riences, Technologies, pages 154–166. Publicis Pub-

lishing, Erlangen.

Gopalakrishnan, A. (2009). Cloud Computing Identity

Management. SETLabs Brieﬁngs, 7(7):45–55.

Goulding, J. T. (2010). identity and Access Management

for the Cloud : CAs Strategy and vision. Technical

Report May, CA Technologies.

Green, M. and Ateniese, G. (2007). Identity-Based Proxy

Re-encryption. In ACNS 2007, volume 4521 of LNCS,

pages 288–306. Springer.

Huang, H. Y., Wang, B., Liu, X. X., and Xu, J. M. (2010).

Identity Federation Broker for Service Cloud. ICSS

2010, pages 115–120.

Jøsang, A., Fabre, J., Hay, B., Dalziel, J., and Pope, S.

(2005). Trust Requirements in Identity Management.

Proceedings of the 2005 Australasian workshop on

Grid computing and e-research, pages 99–108.

Jøsang, A. and Pope, S. (2005). User Centric Identity Man-

agement. AusCERT 2005.

Jøsang, A., Zomai, M. A., and Suriadi, S. (2007). Usability

and privacy in identity management architectures. In

ACSW ’07, pages 143–152.

Kaler, C. and McIntosh, M. (2009). Web Services Federa-

tion Language (WS-Federation) Version 1.2. OASIS

Standard.

Leitold, H., Hollosi, A., and Posch, R. (2002). Security

architecture of the Austrian citizen card concept. In

ACSAC 2002, pages 391–400.

Linn, J., Boeyen, S., Ellison, G., Karhuluoma, N., Mac-

gregor, W., Madsen, P., Sengodan, S., Shinkar, S., and

Thompson, P. (2004). Trust Models Guidelines. Tech-

nical report, OASIS.

Neuman, C., Yu, T., Hartman, S., and Raeburn, K. (2005).

The Kerberos Network Authentication Service (V5).

RFC 4120 (Proposed Standard).

nez, D., Agudo, I., and Lopez, J. (2013). Leveraging

Privacy in Identity Management as a Service through

Proxy Re-Encryption. In Zimmermann, W., editor,

Proceedings of the PhD Symposium at the 2nd Eu-

ropean Conference on Service-Oriented and Cloud

Computing, pages 42–47.

nez, D. and Agudo, I. (In Press). Blindidm: A privacy-

preserving approach for identity management as a ser-

vice. International Journal of Information Security.

nez, D., Agudo, I., and Lopez, J. (2012). Integrating

OpenID with Proxy Re-Encryption to enhance privacy

in cloud-based identity services. In IEEE CloudCom

2012, pages 241 – 248.

Palfrey, J. and Gasser, U. (2007). CASE STUDY: Digital

Identity Interoperability and eInnovation. Berkman

Publication Series,.

Pearson, S. and Benameur, A. (2010). Privacy, Security

and Trust Issues Arising from Cloud Computing. In

CloudCom 2010, pages 693–702. IEEE.

Sen, J. (2013). Security and Privacy Issues in Cloud Com-

puting. In Mart

ınez, A. R., Marin-Lopez, R., and

Pereniguez-Garcia, F., editors, Architectures and Pro-

tocols for Secure Information Technology Infrastruc-

tures, pages 1–45. IGI Global.

Zissis, D. and Lekkas, D. (2012). Addressing cloud com-

puting security issues. Future Generation Computer

Systems, 28(3):583–592.

Zwattendorfer, B. (2014). Towards a Privacy-Preserving

Federated Identity as a Service Model. to appear.

Zwattendorfer, B. and Slamanig, D. (2013a). On Privacy-

Preserving Ways to Porting the Austrian eID System

to the Public Cloud. In SEC 2013, AICT, pages 300–

314. Springer.

Zwattendorfer, B. and Slamanig, D. (2013b). Privacy-

Preserving Realization of the STORK Framework in

the Public Cloud. In SECRYPT 2013, pages 419–426.

Zwattendorfer, B., Stranacher, K., and Tauber, A. (2013).

Towards a Federated Identity as a Service Model. In

Egovis 2013, pages 43–57.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies
