Evolution of the Application and Database with Aspects

Rui Humberto R. Pereira

and J. Baltasar Garc

ıa Perez-Schoﬁeld

ISCAP, IPP, Porto, Portugal

Departamento de Inform

atica, Universidad de Vigo, Vigo, Spain

Keywords:

Schema Evolution, Instance Adaptation, Aspect-oriented Programming, Orthogonal Persistent Systems.

Abstract:

Generally, the evolution process of applications has impact on their underlining data models, thus becoming a

time-consuming problem for programmers and database administrators. In this paper we address this problem

within an aspect-oriented approach, which is based on a meta-model for orthogonal persistent programming

systems. Applying reﬂection techniques, our meta-model aims to be simpler than its competitors. Further-

more, it enables database multi-version schemas. We also discuss two case studies in order to demonstrate the

advantages of our approach.

1 INTRODUCTION

Applications are subject of a continuous evolution

process due to many factors such as changing re-

quirements, new functionalities or even the correc-

tion of design mistakes. Those applications refactor-

ings may have strong implications on the underlying

data model, requiring the evolution of the applica-

tion and the database, thus, becoming a very com-

plex and time-consuming problem for programmers

and database administrators.

Object-oriented databases such as db4o

(Paterson

et al., 2006), Versant

, ObjectDB

, provide transpar-

ent schema evolution mechanisms that alleviate pro-

grammers in this burden of keeping the data and ap-

plication layer synchronized. However, in these sys-

tems, more complex schema updates such as class

movements in the inheritance hierarchy, ﬁeld renam-

ing and semantic changes in the ﬁelds content, require

programmer’s intervention in order to convert the data

from the old structure to the new one.

This evolution problem, of object-oriented ap-

plications and databases, is addressed in this paper.

We present an aspect-oriented approach, which is fo-

cused on the orthogonal persistence paradigm (Atkin-

son and Morrison, 1995). We found differentiating

characteristics in the orthogonal persistent systems,

when compared to non-orthogonal ones, that enable

our aspect-oriented approach. These characteristics,

http://www.db4o.com

http://www.versant.com

http://www.objectdb.com

combined with Aspect-Oriented Programming (AOP)

(Kiczales et al., 1997), provide special conditions in

order to improve the transparency of the entire evolu-

tion.

Our approach is based on a simple meta-model

and the reﬂective capabilities of the programming

language. This meta-model also enables the appli-

cation’s data representation in multiple schema ver-

sions. Each new schema version is incremental to the

previous one, i.e., just new class versions are added to

the database.

In the next section we discuss our approach. Sec-

tion 3 presents a short overview of the AOF4OOP

framework, a prototype that implements our meta-

model. In Section 4 we discuss a related work that in-

spired our research. Next, we present two case studies

that intend to prove the advantages of our approach,

when compared with other systems. Finally, we draw

some conclusions and indicate future directions for

new research work.

2 META-MODEL

The proposed meta-model was designed in order

to support database schemas in a multi-version ap-

proach, enabling bidirectional application compatibil-

ity. Applications, developed to a speciﬁc database

schema, can access data transparently in another

schema version, older or future. The chosen approach

to represent multi-version schemas is based on class

versioning (Monk and Sommerville, 1993). Issues

308

R. Pereira R. and García Perez-Schoﬁeld J..

Evolution of the Application and Database with Aspects.

DOI: 10.5220/0004966903080313

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 308-313

ISBN: 978-989-758-027-7

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

such as data consistency, integrity and object identity

also were taken into account in our meta-model pro-

posal. The meta-model also aims to be as simple as

possible. In order to achieve such goals, a set of meta-

classes were deﬁned, as well as reﬂective techniques.

2.1 Meta-classes

Our meta-model was inspired in Rashid’s meta-model

that we will present in Section 4. However, it deﬁnes

a much more limited set of meta-classes. The meta-

objects are instances of meta-classes These meta-

objects represent the application’s classes, its rela-

tionships and all data required for emulating objects

in every existing schema version. In Section 2.2 we’ll

discuss how we have reduced the model’s complex-

ity by applying the reﬂection capabilities of the pro-

gramming language. The set of meta-classes are the

following:

• Class Version Meta-Object (CVMO) - This meta-

object supports the schema information of an ap-

plication data class in a speciﬁc version.

• Instance Meta-Object (IMO) - Logical represen-

tation of an instance of an entity data object. Each

IMO meta-object is associated to one or more

CVMO meta-objects and to one or more data ob-

jects. The set of CVMO meta-objects provides

the framework with the historical information of

its class, while the set of related data objects pro-

vides input information for the emulation process

in each of the class versions.

• Attribute Meta-Object (AMO) - Represents the re-

lationships among the data objects. Since com-

posite objects are related through their attributes,

this meta-object represents an instance variable

that points to another object instance (an IMO

meta-object). This meta-object has two distinct

forms: as a single object reference or as a refer-

ence to an array of objects.

• Root Meta-Object (RMO) - Are database starting

points, which give access to all other related ob-

jects. Each represents a root object (Atkinson and

Morrison, 1995), identiﬁed by an arbitrary string.

Like AMO meta-objects, these also have the same

two forms for objects and arrays.

• Update/Backdate Meta-Objects (UBMO) - Each

UBMO meta-object deﬁnes an explicit relation-

ship between two versions of a class. These meta-

objects, together with the default instance adapta-

tion behaviour, deﬁne the database instance adap-

tation aspect. In order to deﬁne this database as-

pect, the programmer applies pointcut/advice con-

structs which are stored in these meta-objects. In

Figure 1: System meta-model.

Section 3 we will discuss one example of these

expressions.

• Aspect meta-objects (AspMO) - To make the as-

pect code replacement more agile, this type of

meta-object represents an aspect (in terms of

AOP) which can have one of two usages: appli-

cation aspects (e.g. logging) or database manage-

ment system aspects (e.g. security).

Apart from these meta-objects, there are also the

real data objects in the database. Each data object

(application’s data entities) is under the class ver-

sion it was created in. Furthermore, it is represented

through an IMO meta-object that supports its logical

existence, as well as other meta-objects that specify

its class versions. Any implementation of this meta-

model must emulate the object version as required by

the running application. If the emulation to a speciﬁc

application version is not viable, a copy of the object

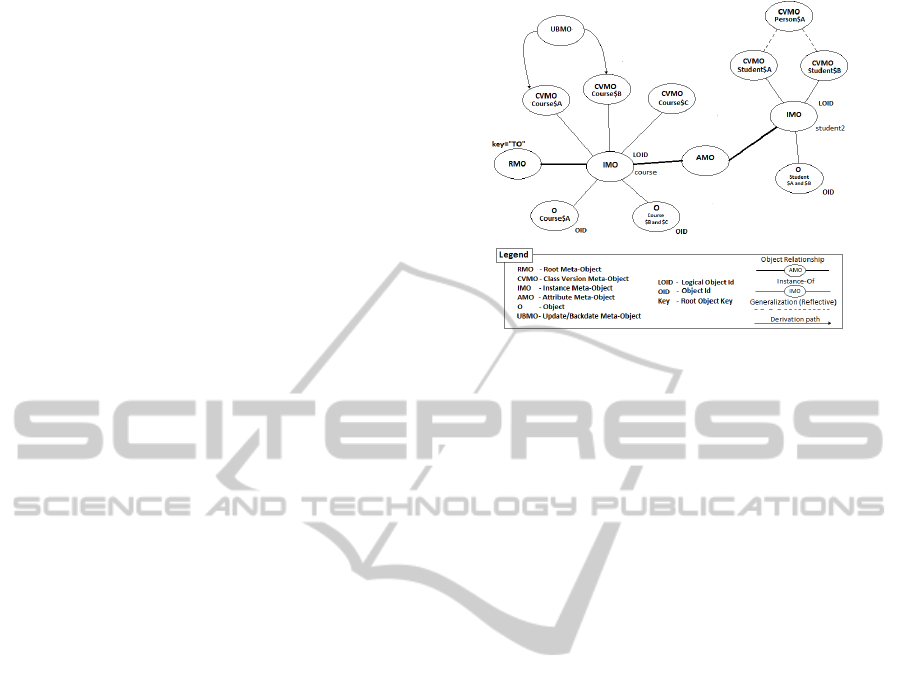

for that version will have to be maintained. Figure 1

illustrates an example of how these meta-objects are

related in order to represent a course related with its

students.

2.2 Versioning Approach

As our meta-model aims to support the application’s

schema in many of its versions by following a class

versioning strategy, the derivation path of class ver-

sions, combined with the classes’ inheritance hierar-

chy, raises the meta-model’s complexity to an unsup-

portable level if many versions exist. Thus, in order

to deal with this complexity problem, we extended the

meta-model with reﬂection and mapping techniques.

The classes’ inheritance hierarchy data is supported

through reﬂection techniques. Regarding the classes’

version derivation path, it is handled with an algo-

rithm of mapping, which is based on direct and user-

deﬁned mapping. In order to enable the coexistence

EvolutionoftheApplicationandDatabasewithAspects

309

of many versions of a same class, a renaming strategy

was adopted.

Inside the CVMO meta-object, the class’s byte-

code is preserved and available for reﬂection. How-

ever, in the class’s bytecode, its name and all its su-

perclasses are renamed following a convention. In

our implementation, a class Person in version A is

renamed to Person$A. This class versioning has two

approaches: (1) as a simple object (an object of a

primitive type, such as an Integer or a String),

or (2) as a composite object (Person or Invoice).

Composite objects can be composed by simple ob-

jects and other composite objects. Thus, simple ob-

jects are treated in a non-versioned approach, while

the composite objects follow the renaming technique.

Using reﬂection, this renaming technique enables our

framework to know, at runtime, the class inheritance

relationships.

Regarding the classes’ version derivation path, we

consider that in many cases an algorithm, based on

the direct mapping of classes and attributes, can es-

tablish an implicit n-to-n connection among all ver-

sions of a class. In this direct mapping, the map-

ping of class version and its attributes is based in

their names and equivalence type, by applying default

conversion functions. Just when the necessary con-

ditions are not satisﬁed, is a user-deﬁned connection

then required. In these cases, our meta-model enables

explicit connections through UBMO meta-objects.

These meta-objects contain all mapping information,

which follows an aspect-oriented approach. Each

UBMO meta-object stores a pointcut/advice expres-

sion that quantiﬁes all points in the application code

that requires instance adaptation code.

2.3 Object Identity

At the meta-model, each IMO meta-object is a logi-

cal representation of an instance of an application data

entity. As an Object Identiﬁer (OID) identiﬁes an ob-

ject, a Logical Object Identiﬁer (LOID) identiﬁes an

IMO meta-object. Thus, a LOID identiﬁes an appli-

cation data entity that is supported in the database by

one or more objects, each one with its own physical

OID. In turn, the OID physically identiﬁes an object

or meta-object. This approach simpliﬁes the object

update process because it avoids the physical replace-

ment of relationships and it also enables the existence

of several versions of the same object. On the other

hand, it enables the internal mapping and caching of

the application’s data objects, which provides means

to ensure that two references of the same object share

the same identity.

Concerning arrays, these are treated as a collec-

tion of individual object references as occurs in the

running environment, according to the same program-

ming language variance rules.

2.4 Schema Consistency

Applications with a speciﬁc schema version should be

able of use objects, which reside in the database, irre-

spectively of their class versions. These requirements

raise structural , semantical and behavioural consis-

tency issues that must be addressed.

Our approach, in order to deal with these issues,

beneﬁts from the orthogonal persistence paradigm:

(1) closed integration of application and database en-

vironments, (2) sharing the same data model and (3)

incremental schema evolution. The static type check-

ing done by the compiler, at compile time, grants

that each object instance inside the application run-

time environment unconditionally pertains to, and fol-

lows, a speciﬁc application schema. The incremen-

tal schema evolution approach enables the propaga-

tion of all new class versions to the database, making

them persistent. Likewise, all objects are created un-

der only one valid schema, ensuring structural consis-

tency.

The semantic consistency is granted through up-

date/backdate conversion code and additional meta-

data added into the application schema. Our ap-

proach, based on UBMO meta-objects (see Sec-

tions 2.1 and 2.2) was inspired in the update/backdate

methods (Monk and Sommerville, 1993). The user-

deﬁned conversion code, inside these meta-objects,

can adapt a class that suffered a semantic update. As

an example, consider a class Product where, in ver-

sion A, the product’s weight is deﬁned as pounds and,

in version B, kilograms is used.

Behavioural consistency must be analysed in two

contexts: (1) the application’s run-time and (2) the

framework’s conversion-time. Considering that all

objects in the application environment pertain to its

schema, naturally, behavioural consistency is always

granted. However, at conversion-time this type of

consistency can raise complex issues since two ver-

sions of a class coexist in the framework’s environ-

ment. For non-versionable data types, the problem is

not relevant. On the other hand, for versionable data

types, version conﬂicts must be avoided. Let C(α)

and C(β) be, respectively, class C in versions α and β,

being α the current class version. If C has a property

P, then C(β) has P(γ), being γ the property’s class ver-

sion. Thus, an object of class C that is being converted

is renamed to C(β) to avoid name conﬂicts, as well as

all its return and argument values, of its methods, and

attributes to P(γ). Within this approach, we guaranty

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

310

that all class properties are synchronized with its ver-

sion state. Thus, each method respects its signature

and its code does not result in run-time errors or un-

expected results.

3 IMPLEMENTATION OF

META-MODEL

In this section we present a short overview of

the implementation of our meta-model (Pereira and

Perez-Schoﬁeld, 2010)(Pereira and Perez-Schoﬁeld,

2011)(Pereira and Perez-Schoﬁeld, 2012). This pro-

totype is an aspect-oriented Java framework capa-

ble of providing an application with persistence and

database evolution services. In the current version of

the implementation, a db4o database (Paterson et al.,

2006) is used as the object and meta-object reposi-

tory. Although this object-oriented database already

provides object persistence and also has some trans-

parent database evolution capabilities, its role is re-

duced to a simple object store.

Our framework is a persistent programming envi-

ronment that follows the three principles of orthogo-

nal persistence formulated by Atkinson (Atkinson and

Morrison, 1995). Furthermore, it applies AOP tech-

niques in its internal operations, as well as provid-

ing applications with persistence and evolution ser-

vices. The system’s aspects were modularized at two

distinct levels: application and framework/database.

Thus, aspects of an aspect were modularized in an-

other level. The system’s default instance adaptation

aspect can be extended through our pointcut/advice

constructs, which follow the (Filman and Friedman,

2000): Quantiﬁcation deﬁnition posited by Filman

and Friedman: ”In programs P, whenever condition

C arises, perform action A”. Thus, each expression

is structured as two groups: trigger conditions and

action. At run-time, when the required conditions

are satisﬁed, user-deﬁned code is weaved and injected

into the system, establishing an explicit mapping be-

tween two distinct class versions.

Figure 2 an example of our XML based expres-

sions that reify the instance adaptation aspect in the

database. Each <ubmo> XML node speciﬁes an

UMBO meta-object. The XML language provides ex-

tensibility and enables easier editing, through a graph-

ical tool of the framework or using a simple text edi-

tor. Due to space restrictions were we cannot describe

the entire syntax of those constructs. However, this

example will be reused in the next sections, helping

its understanding.

The set of pointcut/advice constructs form the in-

stance adaptation aspect, which is rendered at run-

<ubmo matchClassName="rhp.aof4oop.cs.datamodel.*"

matchCurrentClassVersion="B"

matchOldClassVersion="A"

matchSuperClassName="rhp.aof4oop.cs.datamodel.Staff">

<conversion applyDefault="true"

outputClassName="rhp.aof4oop.cs.datamodel.Staff"

conversionClassName="ConvStaff$A_to_StaffB">

String[] parts=oldObj.getSurname().split(" ");

String middleName="";

for(int i=0;i<parts.length-1;i++) {

middleName+=(i>0?" ":"")+parts[i];

}

newObj.setMiddleName(middleName);

newObj.setLastName(parts[parts.length-1]);

return newObj;

</conversion>

</ubmo>

Figure 2: Pointcut/advice XML expression.

time by the framework’s weaver. In the database,

several persistent versions of a class can exist. The

framework’s classloader makes those class versions

available at conversion-time. The classes pertaining

to current schema version are deﬁned in the applica-

tion’s source code.

4 RELATED WORK

Rashid, in the SADES system (Rashid, 1998), in-

troduced the concept of aspect in object-oriented

databases turning the system, in itself, into an aspect-

oriented database. In the SADES system and later, in

the AspOEv system (Rashid and Leidenfrost, 2004),

the aspect-oriented programming techniques were ex-

plored in order to implement database mechanisms of

schema evolution and instance adaptation. The As-

pOEv system has its own language, the Vejal (Rashid

and Leidenfrost, 2006), capable of manipulating the

objects in their multiple class versions. This research

work was inspiring to us, being the starting point for

our work.

Kuppuswami et al. (Kusspuswami et al., 2007)

have also explored AOP techniques proposing a ﬂex-

ible instance adaptation approach.

5 CASE STUDIES AND

DISCUSSION

5.1 Meta-model Evaluation

An earlier case study (Rashid, 2002) provides a com-

parative evaluation of four different systems based on

a design correction scenario. This scenario consists of

EvolutionoftheApplicationandDatabasewithAspects

311

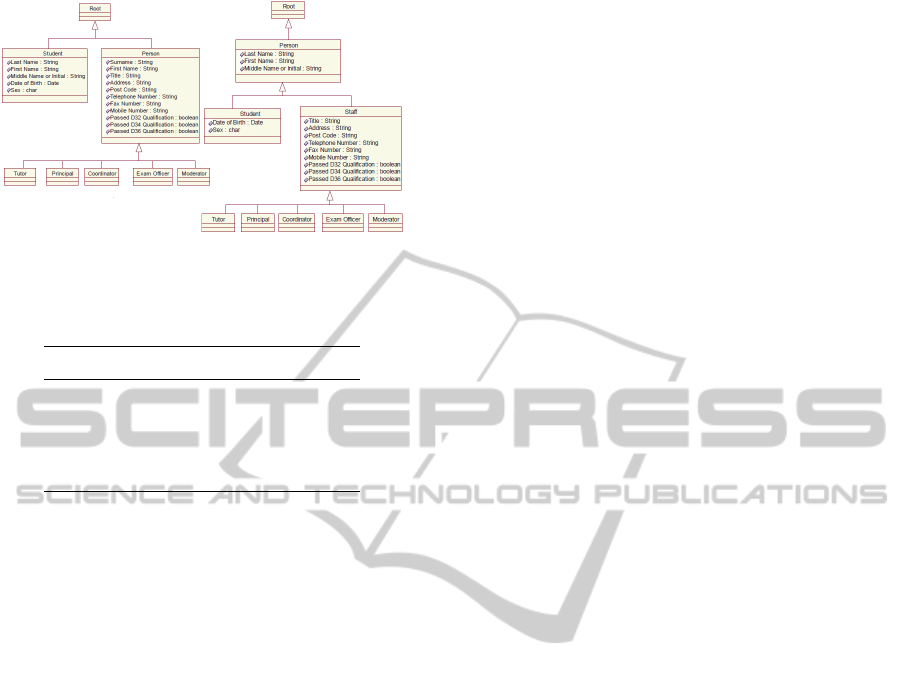

Figure 3: Schema evolution (extracted from (Rashid,

2002)).

Table 1: Meta-model complexity comparation.

Studied system Affected meta-objects

Orion 33

Encore 54

TSE 56

SADES 23

AOF4OOP 10

a data structure of seven classes that are redesigned,

leading to the appearance of a new class Staff. Fig-

ure 3 presents that same structure before and after the

evolution.

We reused this scenario in order to extend the pre-

vious work with our results, enabling a direct and

easier comparison. This comparative case study was

structured into two parts: schema evolution complex-

ity and instance adaption The former analyzes the

impact on meta-objects relationships, at the schema

level, while the latter provides an analysis of the in-

stance adaptation process. Here we just discuss our

approach. A detailed comparison of those four sys-

tems can be found in that earlier case study.

Regarding the complexity in schema evolution,

we argue that the incremental approach enabled by the

orthogonal persistence paradigm and our meta-model

reduce the complexity problem leading to better re-

sults, as shown in Table 1. This table combines the

results of that work with ours, presenting the respec-

tive number of affected meta-objects for each com-

pared system.

In our approach, as schema updates are incremen-

tal, eight new CVMO meta-objects are inserted: seven

new class versions for the existing classes and the new

Staff class. Additionally, due to update/backdate

compatibility, two UBMO meta-objects provide the

conversion means in both directions: Person class

Surname attribute in the former version and the new

one with a distinct attribute called LastName. The

XML expression in Figure 2 presents one of these two

user deﬁnitions. All remaining changes are transpar-

ently treated by the default instance adaptation mech-

anism, avoiding any extra information. Thus, our ap-

proach enables a semi-transparent schema evolution.

This design correction scenario, while being very

simple, allows for a good understanding of the advan-

tages present in our approach: (1) smaller overhead in

terms of effected meta-objects and (2) avoids human

intervention at the database, providing schema evolu-

tion primitives.

Regarding instance adaptation, SADES presents

the best results when compared with the other three

systems. Since our aspect-oriented approach is in-

spired in the author’s work, their results and ours are

equivalent in terms of ﬂexibility.

5.2 Programmers’ Productivity

In this section we will present another comparative

case study which intended to assess the framework’s

added value of its underlying object repository, a db4o

object database. The same redesign scenario of previ-

ous section was used. For that, we invited two distinct

programmers to adapt two simple applications, which

use that data model before redesign. The former ap-

plication stores data directly into a db4o database,

while the latter uses our framework to manage its

persistence. Since both applications share a com-

mon class structure, this code was implemented into a

common library. Furthermore, both base applications

must be adapted to support the occurred changes in

class Person. Given that both tasks are exactly the

same in both applications, we measure just one time

and consider the same value for both. This strategy

guarantees a fare measure, avoiding time variations.

Notice that the second application would beneﬁt from

the programmer’s knowledge acquired during the ﬁrst

application, solving the exact same problem.

After that, both programmers were concerned

with the db4o application. Their ﬁrst challenge lies

in a db4o database limitation, which does not support

the following two schema changes transparently: (1)

inserting classes into an inheritance hierarchy; and

(2) removing classes from an inheritance hierarchy.

Both class transformation types occur in our study, so

an additional application is required to adapt object

instances (Student and all Staff subclasses) from

an old class version to the new one. The authors of

the db4o database suggested an eager stop-the-world

model application, which sequentially scans the en-

tire database, reads, converts and stores data in ob-

jects that pertain to a different class name. In the last

phase, the conversion application uses a db4o API to

rename all new classes to their original name.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

312

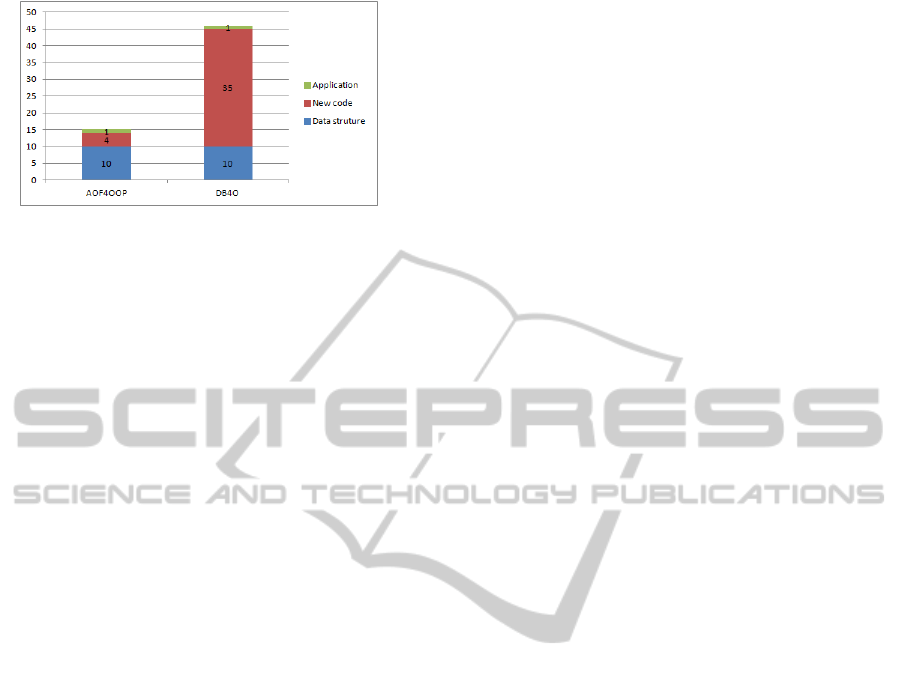

Figure 4: Effort comparison (work minutes).

In contrast to the db4o application case study, the

one based on our prototype does not require any ad-

ditional conversion application, saving programmers

time. Only the semantic consistency cannot be trans-

parently dealt with in the framework, requiring the

programmer’s intervention in order to write two XML

constructs. One of them is presented in Figure 2.

Due to performance reasons, this aspect-oriented

construct is applied just to Staff subclasses. No-

tice that, Student objects can be adapted by default

mechanism with less overhead. On the other hand, it

is applied once in the Staff class, avoiding individ-

ual deﬁnitions for its subclasses. Thus, just one meta-

object is required with the best possible performance.

The graph in Figure 4 illustrates the framework’s

beneﬁts for the programmer in terms of work produc-

tivity in this speciﬁc scenario.

6 CONCLUSIONS

We presented a novel aspect-oriented approach based

on a meta-model in order to provide applications with

orthogonal persistence in a multi-schema database.

Enabled through orthogonal persistence and our XML

expressions, the database evolution among its schema

versions is semi-transparent. Thus, schema evolu-

tion is performed directly into the application’s source

code.

Regarding instance adaptation, it provides the

means for ﬂexible and agile support that just requires

human intervention when semantic updates occur in

the application schema.

Our experimental results, supporting the evolu-

tion, have demonstrated the advantages of our ap-

proach over a reference system in the state-of-the-art

of object-oriented databases.

At current state of our framework the transactional

model is very simple. Object’s properties are updated

in individual transactions. Due to JVM restrictions

some classes cannot be renamed limiting its persis-

tence and the framework’s orthogonality. The over-

all framework’s performance can be improved with a

speciﬁc engine of object storing. Our research will

continue focused on these implementation issues.

REFERENCES

Atkinson, M. and Morrison, R. (1995). Orthogonally per-

sistent object systems. The VLDB Journal, 4(3):319–

402.

Filman, R. E. and Friedman, D. P. (2000). Aspect-

oriented programming is quantiﬁcation and oblivious-

ness. Technical report.

Kiczales, G., Lamping, J., Mendhekar, A., Maeda, C.,

Lopes, C., Loingtier, J.-M., and Irwin, J. (1997).

Aspect-oriented programming. In Aksit, M. and Mat-

suoka, S., editors, ECOOP’97 Object-Oriented Pro-

gramming, volume 1241 of Lecture Notes in Com-

puter Science, pages 220–242. Springer Berlin Hei-

delberg.

Kusspuswami, S., Palanivel, K., and Amouda, V. (2007).

Applying aspect-oriented approach for instance adap-

tation for object-oriented databases. In Proceedings of

the 15th International Conference on Advanced Com-

puting and Communications, pages 35–40, Washing-

ton, DC, USA. IEEE Computer Society.

Monk, S. and Sommerville, I. (1993). Schema evolution in

oodbs using class versioning. SIGMOD Rec., 22:16–

22.

Paterson, J., Edlich, S., Hrning, H., and Hrning, R. (2006).

The Deﬁnitive Guide to db4o. Apress, Berkely, CA,

USA.

Pereira, R. H. and Perez-Schoﬁeld, J. (2010). An aspect-

oriented framework for orthogonal persistence. In

Information Systems and Technologies (CISTI), 2010

5th Iberian Conference, pages 1 –6.

Pereira, R. H. and Perez-Schoﬁeld, J. B. G. (2011). Orthog-

onal persistence in java supported by aspect-oriented

programming and reﬂection. In Information Systems

and Technologies (CISTI), 2011 6th Iberian Confer-

ence, pages 1 –6.

Pereira, R. H. and Perez-Schoﬁeld, J. B. G. (2012).

Database evolution on an orthogonal persistent pro-

gramming system - a semi-transparent approach. In

Information Systems and Technologies (CISTI), 2012

7th Iberian Conference, pages 1 –6.

Rashid, A. (1998). Sades - a semi-autonomous database

evolution system. In Workshop ion on Object-

Oriented Technology, ECOOP ’98, pages 24–25, Lon-

don, UK. Springer-Verlag.

Rashid, A. (2002). Aspect-oriented schema evolution in ob-

ject databases: A comparative case study. In Work-

shop on Unanticipated Software Evolution.

Rashid, A. and Leidenfrost, N. A. (2004). Supporting ﬂex-

ible object database evolution with aspects. In Kar-

sai, G. and Visser, E., editors, GPCE, volume 3286

of Lecture Notes in Computer Science, pages 75–94.

Springer.

Rashid, A. and Leidenfrost, N. A. (2006). Vejal: An as-

pect language for versioned type evolution in object

databases. Workshop on Linking Aspect Technology

and Evolution (held in conjunction with AOSD).

EvolutionoftheApplicationandDatabasewithAspects

313
