A Protocol for Command and Control Systems Integration

Patrick Lara and Ricardo Choren

Military Institute of Engineering, Praça General Tibúrcio, Rio de Janeiro, Brazil

Keywords: Command and Control, Enterprise Integration, JC3IEDM, Message Protocol, SOAP, Systems Integration.

Abstract: Integration of Command and Control (C2) systems is a real need in any Joint Operation. Solutions are

typically based on data exchange, usually using the Joint Consultation, Command and Control Information

Exchange Data Model (JC3IEDM), a data model established by NATO. The use of this model with service

oriented architecture (SOA) has been consolidated as one of the key factors to achieve command and

control systems integration. However, these solutions require great computer process capacity and

broadband networks, which are usually hard to find in military tactical environments. This paper presents

approaches of integration systems available, comparing their technologies, pointing out their advantages and

disadvantages, and finally proposes requirements for a generic protocol to allow message handling between

command and control systems, using the JC3IEDM.

1 INTRODUCTION

Command and control (C2) is the art and science in

the study of the operation of a chain of command,

which consists basically of three components:

authority, processes and structure (Amorim, 2011).

Command and control systems with superior

performance enables commanders to remain

victorious in the joint efforts, helping them to apply

their skills in critical time and select the best strategy

to succeed in a given situation. Two features are

essential: the human element and the need for

relevant information, timely and accurate. The

human element, with its ability to infer what is

important, the essential elements absorbs and reacts

to information, which makes it an important factor

constant over time (Shalikashvili, 1995).

Technology has improved mobility, weapons,

sensors and C2 systems (C2S), and continues to

reduce the time and space, increasing the pace of

operations, generating large amounts of information.

If we cannot process this information, it may impair

the reactions of the fighting force. The use of C2S

systems designed to assist human capabilities and

limitations is essential to keep the C2 commander

capacity victoriously (Shalikashvili, 1995).

The situational awareness shared between

military units is essential for the ability to network-

enabled operations (NEC). This requires greater

access to information, ensuring that the units in need

of information have access to it. Nevertheless, the

operating environment focusing in rapid reaction

requires more adaptable and efficient solutions for

the exchange of information, to create and update

dynamically an operational scenario.

This paper presents an initial solution to the

problem, using a set of messages and rules to

manage traffic of information between C2S, with the

proposal to allow the exchange of data between

systems via messages. The definition of a protocol

for exchanging messages is a complex task. For

example, we have the LRIT system (LONG-

RANGE IDENTIFICATION AND TRACKING

SYSTEM), where a multinational group took about

five years to achieve stabilization at the Interface

Data Exchange (IDE) protocols (IMO, 2012). This

paper therefore aims to solve the problem by

presenting a set of messages and the respective rules

governing the traffic between systems to enable data

exchange. The challenge in this type of solution is

how to minimize the overhead caused by the time

wasted on the reading messages process. This step

could be mandatory to reach a satisfactory

performance in C2S integration.

The rest of the paper is organized as follows:

section 2 presents the command and control systems

integration; section 3 presents the proposed

approach; section 4 presents examples of the

messages handled by the Protocol on a scenario;

section 5 discusses the related work; section 6

484

Lara P. and Choren R..

A Protocol for Command and Control Systems Integration.

DOI: 10.5220/0004970404840489

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 484-489

ISBN: 978-989-758-029-1

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

presents conclusions of the study and the future

works; and the references are listed in section 7.

2 C2S INTEGRATION

The Force Commanders needs accurate and timely

information to operate, guaranteeing that the soldiers

will have access to the information they need. The

C2S system is a major tool to support Joint Force

commanders (JFC) allowing gathering, transport,

process and dissemination of information

(Shalikashvili, 1995).

To ensure the continuous and uninterrupted flow

and processing of information, joint combatants

should have C2S that are interoperable, flexible,

agile, mobile, disciplined, survival and sustainable

(Shalikashvili, 1995).

There are more principles then listed above.

Other relevant principles are encompassed or

applied when appropriate. They are: integration,

ease of maintenance, mobility, modularity, planning,

prioritization procedures, readiness, responsibility,

agility, simplicity and capacity (Blair, 1996).

Joint and multinational operations are complex

and gather various military organizations operating

as a Force. Multinational forces may have

differences in C2S, language, terminology, doctrine

and standards of operation that may cause confusion.

The confusion increases the demand for information

and also the level of uncertainty. The lower the level

of the interface between various commands, the

greater will be the uncertainty as well the demand

for systems of C2S. The JFC must ensure that great

care is taken in structuring multinational force

before operations to avoid unnecessary confusion

within friendly forces (Blair, 1996).

2.1 JC3IEDM

The protocol proposes the handling of information.

The data is treated as having value as a source of

information. The problem of representation of

information for C2S has mature solutions, for

example the JC3IEDM (Joint Consultation,

Command and Control Information Exchange Data

Model. However, the model does not provide

solution to the need of dynamic exchange data

between systems. This dynamic exchange is defined,

as previously mentioned in a protocol for message

handling, using the meta-model of JC3IEDM.

According to the Multilateral Interoperability

Programme (MIP, 2012), Data interoperability

requires a rigorous defined semantic vocabulary.

The JC3IEDM is embedded in a structured context

that defines the standard elements of information

that compose the basis for interoperability between

automated Command and Control Information

Systems (C2IS), as long as can accommodate the

model's information structure.

“The MIP nations agreed with requirements to

define only the information that is to be exchanged

rather than all of the information that would

normally be required in a national system.

Consequently, JC3IEDM is first and foremost an

information exchange data model. The model can

also serve as a coherent basis for other information

exchange applications within functional user

communities. The general pattern is to use a subset

of JC3IEDM and add functional extensions.” - The

JC3IEDM is used by NATO in their joint operations

in the integration of C2 systems of participating

countries (MIP, 2012).

JC3IEDM should be considerate as a

consolidated model. However, this model does not

provide a solution for the dynamic Data exchange

between systems. This dynamic exchange is defined,

as previously stated, in a protocol for exchanging

messages, using the data model JC3IEDM.

2.1.1 JC3IEDM Chosen Entities

Figure 1 shows a part of the model that contains the

chosen independent entities of the data model and

their relationships for this study, with a brief

description of their typical meanings.

Figure 1: Independent entities of JC3IEDM.

ACTION - An activity, or the occurrence of an

activity, that may utilise resources and may be used

against an objective. Examples: Order of Operation,

Operation Plan, Order of Movement, Movement

AProtocolforCommandandControlSystemsIntegration

485

Plan, events or incident (i.e. enemy attack).

LOCATION - A specification of position and

geometry with respect to a specified horizontal

frame of reference and a vertical distance measured

from a specified datum. Examples: points, sequence

points, polygon, circle, rectangle, ellipse, polygon

area, sphere, cone and block space. LOCATION

specifies location and dimensionality.

OBJECT-TYPE - An individually identified

class of objects that has military or civilian

significance.

Examples: type of person (i.e. by rank), type of

material, type of facility, or type of organization.

OBJECT-ITEM - An individually identified

object that has military or civilian significance.

Examples: a specific person, or a specific unit.

REPORTING-DATA - The specification of

source, quality and timing that applies to reported

data.

Using a significant part of the data model shown

above, herewith Web Services technology, it is

believed that there is a synergy between the

available data and services offered by specialized

suppliers. Web services allow platform

independence and programming language because it

uses XML to definitions and communication. It also

enables a strong definition of messages and services

through WSDL documents. The use of HTTPS for

transport will also facilitate the passage of

information through firewalls without the need of

using specific ports.

3 THE PROPOSED APROACH

The study aims to identify available approaches of

integration systems, compare their technologies,

pointing out their advantages and disadvantages, and

propose a model of generic protocol for exchanging

messages between systems situational awareness in

Joint Operations, using the JC3IEDM.

The project has being developed through a survey,

which was prepared a case of study with a model to

exchange messages on a system of maritime

situational awareness already developed, simulating

the exchange of information between C2 systems.

We looked for what type of information that the

source system needs. After this phase, we designed

the model to exchange messages from a source to

the destination C2 systems.

The research considers the following assumptions:

a) The protocol is conceptual, but its

implementation may be accomplished through a

layered architecture on a services layer (Erl, 2009),

which would implement the interfaces of the

messages and business rules governing its

processing; e

b) The architecture Publish/Subscribe (Hohpe

and Woolf, 2003) is suitable for allow maintenance

situational awareness environments war.

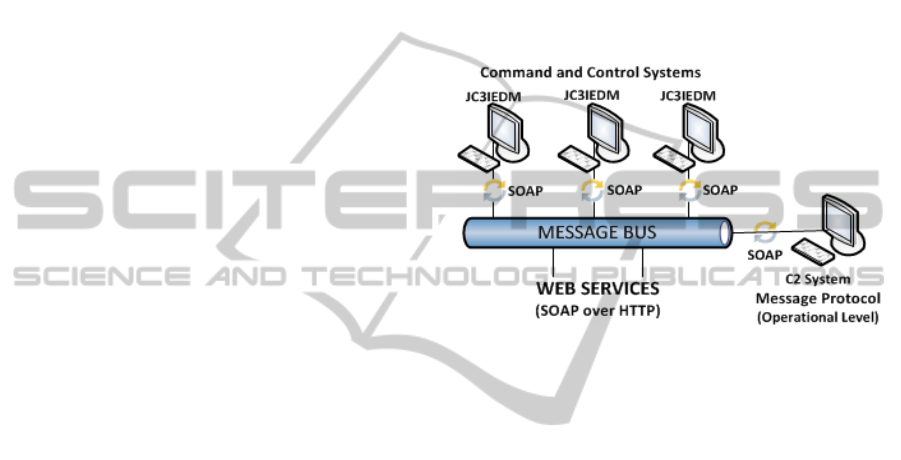

A high-level view (see Figure 2) shows the proposed

architecture, where the protocol allows for messages

to exchange information through a system of

systems, composed of several systems of military

situational awareness, defined as clients, and a C2

System, the main consumer of message content.

Figure 2: High Level Architecture.

The study was conducted comparing the four main

approaches in the area of integration, and how it’s

used to exchange messages between systems based

on SOA standards, considered state of the art in the

field of integration of systems.

Was presented a proposed integration model

through a generic protocol, using the concepts of

JC3IEDM to exchange messages between existing

systems of maritime situational awareness, already

in use, and available for study.

As a result of field research conducted in the

Brazilian Navy organizations, we obtained the

necessary requirements for command and control of

a joint operation at the operational level. It was

emphasized that the delay in the data flow holds the

progress of actions during the Combined Operations

exercises.

In an overview, the protocol should operate as a

message handling service of messages, allowing for

exchange of information between the systems to be

integrated. Based on the field research and previous

experiences in maritime systems of situational

awareness, the functional requirements for the

message protocol were established. Protocol should:

a) allow the system to shall request and send the

position of friendly forces;

b) allow the system to ask and update the

position of friendly forces, in a predefined time;

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

486

c) allow the system to perform the position

request a specific unit known; and

d) allow the system to perform location request

per geographical area.

W. Lam and V. Shankararaman listed ten common

types of integration requirements in enterprise

integration. Analysing our problem, we selected four

of them to apply on the message protocol

requirements (Lam and Shankararaman, 2004).

Also were defined as requirements:

1) Timeliness – Urgency of the communication

or integration between applications. A big time

reflects on the precision and the relevance of the

information in the situational awareness scenario, at

the operational level. To maintain the timeliness, the

Protocol should only route messages between

systems. Its interface should be available for

communication between systems, via standard

Internet protocol. The protocol must use the

Requestor User or the Provider User parameters

included in the messages to determine where to

forward the message.

2) Resilience and recovery – Resilience of the

integration infrastructure in event of failures.

Reaching more redundancy will help to guarantee

the higher the message delivery. To reach these

requirements, the Protocol must store and archive

messages header information in “log” files for

subsequent audits and statistical analysis of the

system operation. The Protocol should only read the

message header, and should not perform any

filtering function on the information contained in the

messages.

3) Size – Size of data that the integration

between applications must handle (related to

volume). Big file sizes reflects on raising the

expected overheads. To avoid big overheads, the

Protocol does not read the information contained in

the messages body (only in the header), and does not

store or archive any information from the systems.

The Protocol should protect the contents of the

messages. Users responsible for the operation and

maintenance of the system should not be able to

access the information contained in the messages.

4) Frequency – Frequency of integration needed

between applications. Directly affects the operations.

The real time frequency is required for the Request /

Response services. For Publish / Subscribe services

can be defined a slightly longer time to interactions.

We found that the integration of heterogeneous

systems has been approached with different views

on the search for solutions. The development of the

generic protocol for message handling uses the

concepts of JC3IEDM, a data model defined by

NATO to allow interoperability between command

and control systems.

The service-oriented architecture (SOA) with the

use of Web Services technology was chosen because

of ease of learning and implementing this

technology. It has good interoperability, regardless

of the programming language and platform used,

despite the expected performance is not the best

possible. To increase the performance, the size of

message should be minimized. A middleware for

managing message queues is also necessary, as an

open source and free distribution software.

Regarding JC3IDEM study was carried out on

the model, which was confirmed ideas based on

previous work. It was found that the operational

vision should be focused on what are the processes

of command and control for joint operations, while

the technical vision should worry about what

formats to be used.

The C2 systems exchange messages through

mechanisms classified as MEM (Message Exchange

Mechanism), or message-driven pre-formatted. The

DEM (Data Exchange Mechanism) has focused on

the information modelled from the perspective of

object orientation, physically implemented in a

database. Based on this model, a simpler model was

created, to facilitate their understanding, and allow

its implementation in academic study projects.

Figure 3: Used Part of the JC3IEDM.

Using the part of data model shown above and the

Web Services technology, it is believed that there is

a synergy between the available data and services

offered by specialized suppliers. Web services allow

platform independence and programming language

because it uses the XML format for definitions and

communication. It also enables a strong definition of

messages and services through WSDL documents.

The use of HTTPS for transport will facilitate the

passage of information through firewalls without the

need to use specific ports.

4 EXAMPLE

This subsection presents three examples of

messages. The scenario is a Joint Force Operation,

ACTION

OBJECT-TYPE OBJECT-ITEM LOCATION

REPORTING-

DATA

AProtocolforCommandandControlSystemsIntegration

487

where Navy, Army and Air Forces are cooperating

to reach the same objective. The Armed Forces need

to share their informations to maintain an updated

situational awareness.

In the first example, a request of position is made

(LOCATION) of an operative unit (OBJECT-

ITEM), defined by its unique identifier (ObjId). The

second one presents the message carries a request

for verification of placement of units within a given

area defined by the geographical coordinates of its

two end points, northeast and southwest geographic

are points (neLat, neLong, swLat and swLon). The

third example is a response for a Position Request

Message, called Position Report Message. The

formatting of tags and spacing of them was changed

for fit to the paper columns.

4.1 Position per Unit Request Message

<soapenv:Envelope

xmlns:soapenv="http://schemas.xmlsoap.o

rg/

soap/envelope/"

xmlns:web="http://web.jc3v314/">

<soapenv:Header/>

<soapenv:Body>

<web:location>

</web:location>

</soapenv:Body>

</soapenv:Envelope>

4.2 Units per Area Request Message

<soapenv:Envelope

xmlns:soapenv="http://schemas.xmlsoap.o

rg/

soap/envelope/"

xmlns:web="http://web.jc3v314/">

<soapenv:Header/>

<soapenv:Body>

<web:request>

</areaRequest>

</web:request>

</soapenv:Body>

</soapenv:Envelope>

4.3 Position Report Message

<soapenv:Envelope

xmlns:soapenv="http://schemas.xmlsoap.o

rg/soap/envelope/"

xmlns:ws="http://ws/">

<soapenv:Header/>

<soapenv:Body>

<ws:positionReport>

</positionReport>

</ws:positionReport>

</soapenv:Body>

</soapenv:Envelope>

5 RELATED WORK

Lund et al. presented that there is a focus on the

establishment of a service-oriented architecture

(SOA) to increase interaction within the allied forces

(Lund et al., 2007). However, this solution has been

adopted for environments with great data

communication capacities, which is the opposite of

military tactical networks. The study also

recommends the architectural principles and

technologies that are best suited to implement this

infrastructure information. Also recommended is the

use of IP as a common protocol for use in all types

of networks technologies, chosen to facilitate

interoperability, the easier for all types of network.

The main idea was to make SOA possible to take by

all military levels, from strategic to tactical

networks.

As presented above, SOA is commonly

performed through web services using XML-

formatted documents, but are designed to be used in

broadband networks and not in military networks

with limited capacity. The XML documents tend to

be large, having a significant overhead. This paper

proposed requirements to make a message handling

protocol, and few XML-formatted messages there

expected to reduce this overhead caused by the use

of Web Services in tactical networks environment.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

488

6 CONCLUSIONS AND FUTURE

WORKS

This paper proposes a study of the requirements of a

protocol and the examples for XML-formatted

messages that must be handling in a protocol, to

allow a satisfactory performance during the

integration process of command and control

systems. The solution has two approaches, both

equal important to establish a protocol. The first one,

the data model, which is supposed to be known,

common, and consolidated by all C2 systems, and

the second one, the integration technology used to

allow the message handling, where is typically used

Web Services, despite of all overhead expected on

the reading messages process.

SOA enable a strong decoupling between clients

and servers, and count with the existence of various

tools for project development. The use of the Web

Services technology allows a greater decoupling

between the systems, which leads to independent

programming language and platform for the existing

C2 systems.

The data model JC3IEDM defines a pattern for

information modelling, allowing the use of the same

vocabulary to all systems. Data is routed through

objects in messages handled by the protocol, using

request/response and publish/subscribe patterns,

which give systems the capacity of data refresh on

demand, or update periodically. The requirements of

the protocol, and the message examples listed above

are design to reduce this impact during joint

operations, allowing their success in battlefields.

This is an initial solution to the problem, using a

set of messages and rules to manage traffic between

C2S, using the protocol requirements listed on

section 3 to minimize the overhead caused by the

use of Web Services. These requirements were

based on a previous experience of specialists in

maritime situational awareness systems and on the

knowledge of the command and control doctrines

contained in the publications listed on section 7.

The future work will be based on design the

complete system protocol architecture to allow the

message handling in runtime. The implement of an

encryption layer is also desirable, that should be

strong enough to ensure the conduction of joint

operations exercises without any interference,

internal or external. This security layer must be

designed and implemented without compromising

the performance of the message exchange protocol.

REFERENCES

Amorim, C., 2011. Joint Operations Doctrine, Ministry of

Defence. Brazil, 1

edition.

Blair, D., 1996. Joint Doctrine for Employment of

Operational/Tactical Command, Control,

Communications, and Computer Systems, Joint Chiefs

of Staf. USA, 1

October 1996 edition.

Erl, T., 2009. SOA Design Patterns, Prentice Hall PTR.

USA, 1

edition.

Hohpe, G. and Woolf, B., 2003. Enterprise integration

patterns: Designing, building, and deploying

messaging solutions, Addison-Wesley Professional.

USA, 1

edition.

International Maritime Organization (IMO), 2012. Long-

Range Identification and Tracking System (LRIT)

Technical Documentation, IMO. London, revision 5.

Lam, W. and Shakararaman, V., 2004. In An Enterprise

Integration Methodology, IT Professional Magazine.

IEEE.

Lund, K. et al., 2007. In Using Web Services to Realize

Service Oriented Architecture in Military

Communication Networks, IEEE Communications

Magazine. IEEE.

Multilateral Interoperability Programme (MIP), 2012. The

Joint C3 Information Exchange Data Model

(JC3IEDM) Main v.3.1.4. Germany, version 3.1.4.

Shalikashvili, J., 1995. Doctrine for Command, Control,

Communications, and Computer (C4) Systems Support

to Joint Operations, Joint Chiefs of Staf. USA, 1

edition.

AProtocolforCommandandControlSystemsIntegration

489
