Recommendations for Impact Analysis of Model Transformations

From the Requirements Model to the Platform-independent Model

Dmitri Valeri Panfilenko

, Andreas Emrich

, Christian Meyer

and Peter Loos

DFKI GmbH, Saarbrücken, Germany

t.e.a.m. Unternehmensberatung AG, Eschborn, Germany

Keywords: MDA, Impact Analysis, M2M Transformations, Recommendations.

Abstract: Model transformations are the core component of MDA. They make it possible to transform models

between different levels of abstraction, which allows the implicit in-built knowledge to be passed on from

domain experts to the IT professionals. What is not considered by the OMG, are the consequences that

changes at each level cause to the other MDA levels, which could be estimated through impact analysis

techniques. For example, if the course of a procurement process in a company is to be changed, this would

be performed by the proper experts at the technical level. However, it is difficult at this time to estimate the

resulting changes at the following adjacent levels. This shortcoming needs to be addressed and proper

recommendation support for the impact analysis of model transformations has to be elaborated.

1 INTRODUCTION

This paper emphasizes the extensibility of MDA.

Extensibility is present partly due to the fact that

MDA relies on a variety of other OMG standards

(OMG, 2003; OMG, 2011a; OMG, 2011b), which

are usually also very extensive. Another reason for

this lies in the vague definition of the OMG. As

pointed out by critics, such as Greenfield et al., 2006

MDA focuses too much on the platform

independence as its main aspect, and leaves many

complex aspects of software development largely

unanswered.

This paper seeks to combine techniques from

impact analysis with recommender systems

approaches by using the cost models of the impact

analysis as design criteria for recommender

mechanisms. The paper will deliver a blueprint for

how to combine these techniques and to enable a

method of modelling support for MDA tooling.

The paper will shortly outline the shortcomings

of contemporary approaches and tools in this area in

section 2 and will then explain how impact analysis

can be used for model transformations in section 3.

Section 4 will discuss appropriate cost models for

transformations and shows how to integrate these

with a recommender systems approach for model

transformations. The paper will conclude with a

summary and an outlook on future implementations

and the potential benefits of the outlined approach.

2 RELATED WORK

2.1 Approaches

There is a number of approaches for impact analysis

of model transformations and accordingly different

surveys for their classifications (to name a few:

Czarnecki and Helsen 2006; Mens and Van Gorp,

2006; Sendall and Kozaczynski, 2003). The most

interesting feature-based survey has been made by

Czarnecki and Helsen, in which they have drawn the

following types of the model-to-model

transformation approaches: direct manipulation,

structure-driven, operational, template-based,

relational, graph-transformation-based, and hybrid.

All of the presented approach types have their

pros and cons: direct manipulation is very low-level

and requires user interaction; structure-driven is well

applied to generating Enterprise Java Beans along

with database schemas from UML models, but

unclear whether they are applicable to other kinds of

applications; template-based are particularly well-

suited for code generation and model compilation,

although not providing traceability out of the box;

relational seem to be most applicable to model

synchronisation scenarios, though may experience

428

Valeri Panﬁlenko D., Emrich A., Meyer C. and Loos P..

Recommendations for Impact Analysis of Model Transformations - From the Requirements Model to the Platform-independent Model.

DOI: 10.5220/0004971604280434

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 428-434

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

performance draw-backs depending on the

constraints to be solved; graph-transformation-based

are without doubt the most theoretically sound

though lacking the coverage of all of the possible

model transformation landscape; hybrid solutions

are mixing the other approach types depending on

the given transformation scenarios.

The existing model transformation approaches

describe extensively the features of the supposed

changes to be made. At the same time, there is a

seeming lack of process description, a kind of

workflow behind the scene that would provide a

guideline for the stakeholders for assessing the

changes made to the model and their propagation to

the adjacent modelling levels, which draws the

attention of this paper.

2.2 Tools

There are four tools we provide overviews for in this

paper, namely AndroMDA, PowerDesigner,

Rational family, and Modelio. For each of these

tools, the feature highlights are addressed first and

then the support for modelling on different MDA-

levels as well as for M2M-transformation and its

impact analysis are questioned.

AndroMDA (pronounced "Andromeda") is an

open source tool supporting many features including

UML modelling and deployment onto different

platforms. AndroMDA is basically a transformation

engine offering modelling support for PIM- and

PSM levels as well as transformation to code. The

impact analysis features are not explicitly supported

or mentioned.

Sybase provides a commercial modelling tool

PowerDesigner for enterprise architecture

modelling, which supports several modelling

techniques on different levels of abstraction as

conceptual, logical and physical. Overall, it is a

powerful tool offering modelling on the CIM-, PIM-

and PSM-levels as well as a bridge to the execution

environments through support of the BPEL export,

which in addition supports impact and lineage

analysis of the certain model artefacts.

IBM’s Rational family is a well-known

commercial tool family supporting modelling of the

different aspects of the enterprise architecture with

established standards like UML targeting different

programming languages. This tool offers support for

modelling on CIM-, PIM- and PSM levels with code

generation to different programming languages and

some support for horizontal and vertical traceability,

as well as a defined impact analysis workflow.

Modelio is a famous commercial modelling tool

with explicit model-driven development support,

which offers support for modelling on CIM-, PIM

and PSM-levels, for code generation to different

programming languages and some support for role

management in the team solution as well as

dependency diagrams for impact analysis of the

models.

3 IMPACT ANALYSIS OF MODEL

TRANSFORMATIONS

This section elicitates the obstacles to impact

analysis of model transformations. In particular,

importance has been put on the fact that the whole

information contained in the source model should be

preserved during a transformation to a target model

and all the transformations should also be

isomorphisms or at least bijective homomorphisms.

3.1 Challenges of the Model

Transformations

The following challenges during conducting of the

model transformations should be considered and be

taken into account. The typical solutions are stated

in each case (Stahl et al., 2007; Kleppe et al., 2003):

 Deal with Quantities – If there is a need for a

function of all or only certain elements of a list that

satisfy a predetermined condition, this has to be

realized somehow. In Java this can be done using a

loop that goes through the elements one by one,

which might be too cumbersome when the number

of elements is large. Typical transformation

languages allow this to be implemented significantly

easier through involvement of the declarative

programming statements (Becker, 2009).

 Deal with Cycles – There are already difficulties

if two artefacts of the source model, A and B, refer

to the same object C in the target model, which

could be solved by storing the target model artefact

in a cache, checking that it already exists and

therefore not regenerating it. It gets even more

difficult when there are cycles. This means that

model X references model Y, which itself refers

back to X. This cannot be solved as in the first case

with the cache, since none of the states has been

initialized and thus none of them stored in the cache.

Transformation tools solve this problem using model

traces (Balzert, 1999).

 Debug Capability of the Transformation

Language – It is quite possible that a small change

in the source model causes enormous changes in the

RecommendationsforImpactAnalysisofModelTransformations-FromtheRequirementsModeltothe

Platform-independentModel

429

target model after the transformation without any

obvious reason (Bohlen, 2003; Brown, 2004). Thus,

the exact process of transformation needs to be

reconstructed in order to find the exact cause, for

which the modelling tool requires certain debugging

functionality.

 Identify Incremental Transformations – In the

case of adding information specific to the target

model, this information should be preserved after the

regeneration or new transformation. In Stahl et al.,

2007 they consider this to be of minor importance

because the technical effort should be enormous and

practice would show that this requirement plays no

decisive role.

 Support Bidirectional Transformations –

Those transformations impose special requirements:

they can be executed not only in one direction from

the source to the target, but also vice versa. There

are basically two ways to define a bidirectional

transformation. Firstly, there may be a collection of

transformation rules which are applicable in both

directions. Secondly, there can be two separate

collections of rules, each of them representing the

inverse of the other (Beltran, 2007).

3.2 Model Transformation Types

A significant influence on the extent of anticipated

changes and thus the expected costs have the

connections between objects in the source and the

target model. Thus, four different types of

relationships can be distinguished (Berg, 2006;

Jouault, 2006):

 Injection: a simple dependency of an element of

the target model from one element of the source

model.

 Scattering: the relations reach out from one

source element to at least two elements of the target

model.

 Tangling: one target element corresponds to at

least two elements from the source model.

 Crosscutting: a mixture of scattering and

tangling. At the same time, the target element is

influenced by at least two elements from the source

model and one of these source elements also

influences another target element.

This nomenclature takes into account possible

changes of the model artefacts from the source

model to the target model. Other models

transformation classifications are conceivable

(Czarnecki, 2006). The focus of this article is set on

exogenous bidirectional model transformations in

context of MDA, specifically between CIM, PIM

and further PSM levels.

3.3 Impact Analysis Process of Model

Transformations

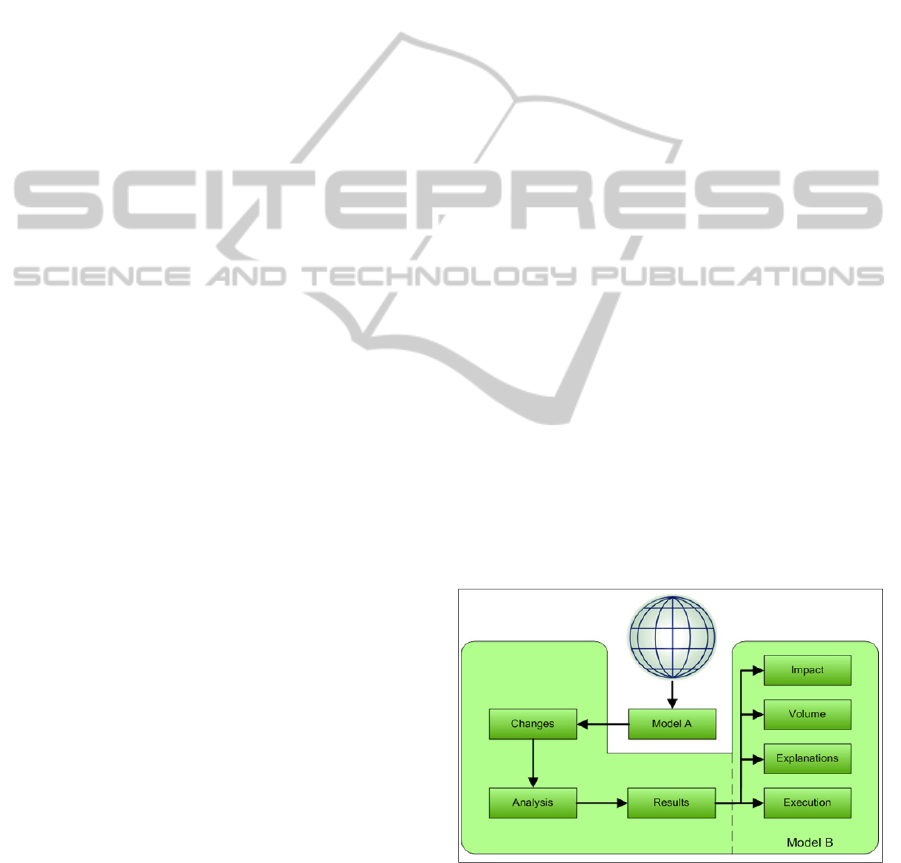

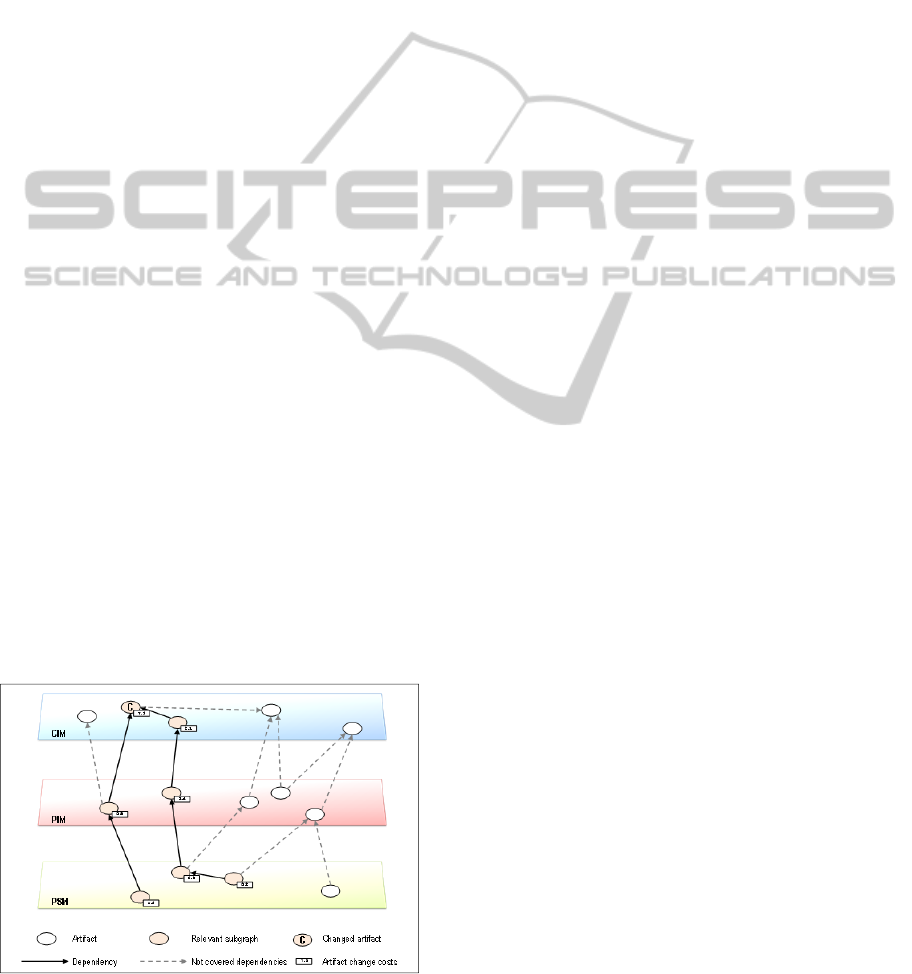

An overview of the process of impact analysis can

be seen in Figure 1. In the first step, changes in the

real world are observed. For example, this can be a

process within the company to process customer

orders, whereas the aim is to accelerate the

processing of orders from existing customers. These

changes have to be reflected in the highest

modelling level of the company. Following the

example above, this could be an EPC (event-driven

process chain) for the process representation on the

CIM level. The planned changes are sketched and

conducted on this level, after which the actual

impact analysis can begin using various techniques

we abstract of at the moment (Arnold, 1993; Pohl,

2008). The results of the impact analysis reflect the

changes in the currently existing system on the PIM

level that have to be done and which consequences

this would have. With aid of these results, the

changes can be estimated, planned and conducted.

The impact analysis might not end at the PIM level

and could be propagated to the PSM level. In this

case one has to be sure of the correct analysis in the

first place, as the incorrect estimates would be taken

into account for the further steps, resulting in the

skewed model changes estimations. Apart from the

sketched analysis estimations of impact, volume,

explanations and execution more features could be

integral parts of the comprehensive analysis:

illustrations to the propagating changes in the

system, access to the changes history, suggestions to

the changes strategies, test of the system with the

executed changes and so on (Arnold, 1993).

Figure 1: Proposed Impact Analysis Process of Model

Transformations.

The ideal of the impact analysis for model

transformations would be not to execute the

transformation every time a change is made for the

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

430

obvious performances reasons depending on the size

of the model, but rather to run a procedure in order

to assess the largest possible impact on the models

of the same, the adjusting and the consequent

abstraction levels. For that we need means of

assessing the impact due to changes made in the

source model, which would give tangible cost

estimates and thus get a solid basis for the decision

making stakeholders.

As can be seen in Figure 1, changes have to be

assessed according to their impact, possible

interrelations among changes or the artefacts in

question and how possible change action plans could

be executed. In artefact-centric software

engineering, a common technique in impact analysis

to analyse, which artefacts are affected by certain

changes in the software. According to Arnold and

Bohner (Arnold, 1993) it is about “identifying the

potential consequences of a change, or estimating

what needs to be modified to accomplish a change”.

In literature three main types of impact analysis

techniques are considered, namely: traceability,

dependency and experiential analysis (Arnold,

1993). Traceability describes structural, global links

among artefacts (e.g. “class Person implements

Requirement R01), whereas dependency analysis

deeply analyses the code and assesses whether a link

constraint has been touched by a certain change or

not. Even then, situations can occur, in which this

cannot be determined automatically, so a fallback to

experience knowledge involving real people –

designers, programmers, etc. – is necessary to

correctly assess these changes.

In order to assess different, possibly conflicting

alternatives of a change, certain cost models need to

be defined. Costs can be seen as an abstract

terminology, as it could represent monetary costs or

metrics such as TTF (time-to-fix).

The following figure depicts how this could be

applied to model-driven architectures:

Figure 2: Impact and Cost Analysis for MDA Artefacts.

In this sketch, we have different artefacts

distributed over the different levels of MDA: The

CIM, PIM and PSM level. In this example, we

mainly consider the traceability links as means for

determining the artefacts affected by a single

change. This network of dependencies is represented

as a directed graph, e.g., as a code class may depend

on a design document, but not necessarily vice-

versa.

An artefact (C) is changed on CIM level. All

dependent artefacts (depicted in orange) that have

ingoing links to our artefact C or other dependent

artefacts constitute the relevant sub-graph for impact

analysis. In addition to Figure 2, artefact-specific

analysis can reveal, whether certain fit criteria are

met (e.g. if the proposed change is relevant at all for

the dependent artefact).

Using this sub-graph, all relevant nodes (i.e.

artefacts) and edges (e.g., transformation tasks, tests)

have to be analysed regarding their costs. For

simplification purposes, in our example we only

show the costs related to artefacts.

A naive approach could add up the costs

recursively, in order to determine the total costs of a

change. However, this would not consider resource

constraints (e.g. artefact A2 can only be changed by

the developer that is on holidays) or opportunity

costs (e.g., if we have a combined assessment of

costs and time). In such cases, it is advisable to take

this to a new level and to apply techniques from

recommender systems research to this problem field.

The next section will explain how this basic

impact and cost analysis can be used to provide

recommendation support for model transformations

in MDA.

4 MODEL TRANSFORMATION

RECOMMENDATIONS

4.1 Cost Models of Model

Transformations

Depending on the underlying cost model there

should be different model changes graphs resulting

from the defined model transformations and the

previous model change traces.

Recommender system among others have two

major phases in their recommendation process:

filtering and ranking. Filtering refers to finding the

appropriate candidate objects for recommendations,

i.e., in our case model transformations. Ranking

comprises the evaluation of the different candidate

RecommendationsforImpactAnalysisofModelTransformations-FromtheRequirementsModeltothe

Platform-independentModel

431

objects according to multiple criteria and combines

them in a so-called ranking function that computes a

numerical score that denotes the relative usefulness

of the given candidate object in the given

recommendation scenario.

In our case, filtering could be realized by

applying state-of-the-art model traceability and

impact analysis approaches. They can determine

which artefacts are impacted by a change and can

derive appropriate change plans.

The ranking process would be rather more

difficult. Multiple criteria can be applied for

deciding which transformation alternatives are the

best. General change metrics could be included, but

also cost models for single artefact changes.

Moreover, testing and integration efforts for artefact

couplings could be a second degree impact that

needs to be assessed in terms of effort and costs.

This example could even be more complex, if an

outsourcing situation is given, where a company has

make-or-buy decisions, i.e., performing the change

themselves or delegating this task to a third

company. As these examples point out, the ranking

of such model transformation alternatives is highly

complex. At this point it is not clear, whether a

generic ranking function could be developed as a

best practice for the entire software industry, or

whether we need to develop tailorable and

customizable ranking models for such alternatives

4.2 Recommendations for Impact

Analysis of Model Transformations

This paper’s position refers to Gruhn et al., 2006,

who describe six following use cases. These use

cases would build a basis for the intended

application of the cost models recommendations to

the impact analysis of model transformations:

1. Refinement – An example is the case of

transformation between PIM and PSM (Gruhn,

2006). Here, the PIM is extended to include

platform-specific information and thus refines the

PSM (OMG, 2003). Furthermore is a transformation

from the analysis model to the design model is

thinkable, which both reside at the PIM level.

2. Abstraction – An important use case for

transformations (Gruhn, 2006). The development

process is not a waterfall one but rather an iterative

process which allows the review of artefacts at

different abstraction levels. Thus, a backward step

during the development might be necessary

(Frankel, 2003). The transformation ensures that the

abstract and the detailed models are synchronised

with each other (Mellor et al., 2004).

3. Migration – The transformations are used to

migrate a complete software system. It is necessary

if the technical platform changes, in which case the

transformation needs to produce a new system that

can be fully utilised without any restrictions and will

function properly. The more diverse the system

landscape, the more difficult this change and

therefore the transformation are (Gruhn, 2006).

4. Refactoring – This refers to „a change made to

the internal structure of software to make it easier to

understand and cheaper to modify without changing

its observable behaviour.“ (Fowler, 2008) Here,

transformations are used to extract common features

through generalisation or restructuring. The visible

behaviour of the software, however, always remains

unchanged.

5. Optimisation – Here, like in the refactoring, the

functions of source and target are equivalent.

Optimisation aims for the improvement of the space

or run-time efficiency of a program. Unlike

refactoring, though, optimisation is automated in its

execution and based on a target platform (Gruhn,

2006).

6. Changing the Presentation Form – This covers

the previously described M2T trans–formations, in

which a graphical model is converted to a textual

one (Gruhn, 2006). This type of transformation is

most efficient when it takes place automatically, like

for instance when changing class names in a UML

diagram that immediately reflects in the underlying

repository model (Mellor et al., 2004).

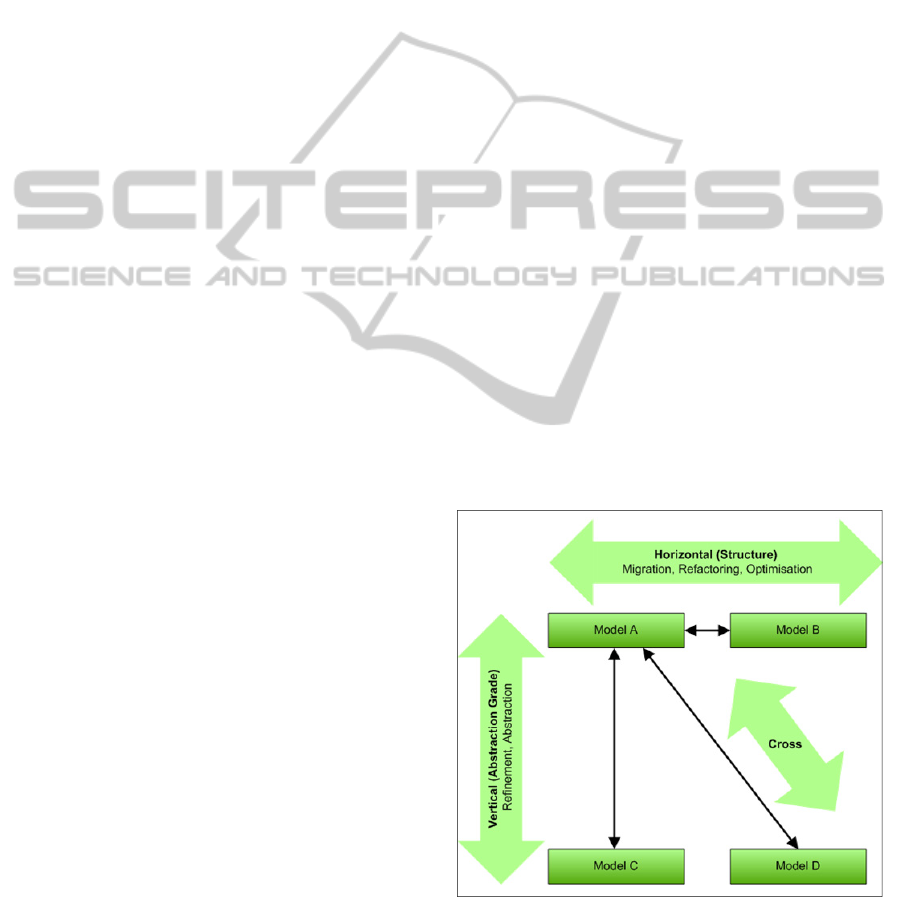

The directions of model transformation are

summarised in Figure 3.

Figure 3: Transformation directions (according to Gruhn

et al., 2006).

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

432

5 CONCLUSIONS AND FUTURE

WORK

The first contribution of this article is the

construction of a conceptual framework based on

established research, which allows the expected

changes to be categorised. Furthermore, it analyses

what changes are to be expected as a result of

transformations within and between model levels

from the requirements model to the platform-

independent models. This allows for better

evaluation and planning of the expected

consequences when future changes take place.

As a future work, it is promising to investigate

impact analysis for transformations on the PIM

level, such as by the transformation in PIM4Agents,

which was proposed in the SHAPE project.

Likewise, the impact of transformations on the PSM

and the code level are also worth consideration.

An automatic process of impact analysis should

be considered as the potential final goal of the

research. This would enable it to deliver very early

in an information change process, in which all

business sectors are involved. In combination with

the actually defined importance of observed effects,

this would constitute a complete recommender

system for deciding whether a change is reasonable

or not feasible at all. Such a system, however, would

require a lot of effort to be implemented in such a

way that the impact analysis would produce accurate

and reliable results in the real world. Before this

point can be reached, however, there is still an

enormous amount of research and development

effort that needs to be done. This especially relates

to the research that has to be carried out regarding

ranking functions for model transformation

alternatives and the alignment of multiple ranking

criteria.

ACKNOWLEDGEMENTS

This research was co-funded by the European Union

in the frame of the SHAPE FP7 project (ICT- 2007-

216408). The authors would like to express their

acknowledgments to SHAPE colleagues.

REFERENCES

Arnold, S. R.; Bohner, A. S., 1993. Impact Analysis –

Towards A Framework for Comparison. In: Card, N.

D.: Proceedings of the Conference on Software

Maintenanc. IEEE Computer Society, Washington DC.

Balzert, H., 1999. Lehrbuch der Objektmodellierung –

Analyse und Entwurf. Spektrum Akademischer

Verlag, Heidelberg et al.

Becker, J.; Mathas, C.; Wilkmann, A., 2009.

Geschäftsprozessmanagement. Springer, Berlin et al.

Beltran, J. C. F., 2007. Modellgetriebene Software-

entwicklung: MDA und MDSD in der Praxis. J.

Trompeter (Ed.). Entwickler. Press.

van den Berg, K., Tekinerdogan, B., & Nguyen, H. (2006,

July). Analysis of crosscutting in model

transformations. In ECMDA-TW Traceability

Workshop Proceedings (No. A219, pp. 51-64).

Bohlen, M., & Starke, G., 2003. MDA entzaubert.

OBJEKTspektrum, 3, 52-56.

Brown, A. W., 2004. Model driven architecture: Principles

and practice. Software and Systems Modelling, 3(4),

314-327.

Czarnecki, K., & Helsen, S. (2006). Feature-based survey

of model transformation approaches. IBM Systems

Journal, 45(3), 621-645.

Frankel, D. S., 2003: Model Driven Architecture –

Applying MDA to Enterprise Computing. Wiley,

Indianapolis.

Fowler, M., 2008: Refactoring – Improving the Design of

Existing Code. Addison-Wesley, Boston et al., 22

edition.

Greenfield, J.; Short, K., 2006: Software Factories –

Moderne Software-Architekturen mit SOA, MDA,

Patterns und agilen Methoden. moderne industrie

Buch, Bonn.

Gruhn, V.; Pieper, D.; Rötters, C., 2006: MDA® –

Effektives Software-Engineering mit UML 2® und

EclipseTM. Springer, Berlin et al.

Jouault, F., & Kurtev, I., 2006. Transforming models with

ATL. In Satellite Events at the MoDELS 2005

Conference (pp. 128-138). Springer Berlin Heidelberg.

Kleppe, A.; Warmer, J.; Bast, W., 2003: MDA Explained –

The Model Driven Architecture: Practice and

Promise. Addison-Wesley, Boston.

Mellor, S.; Scott, K.; Uhl, A.; Weise, D., 2004: MDA

Distilled – Principles of Model-Driven Architecture.

Addison-Wesley, Boston et al.

Mens, T,; Van Gorp, Pieter, 2006: A Taxonomy of Model

Transformation. Electr. Notes Theor. Comput. Sci.

152: 125-142.

Object Management Group (Ed.), 2003. MDA-Guide

Version 1.0.1. http://www.omg.org/cgi-bin/doc?omg/

03-06-01, Retrieved on 2013-11-04.

Object Management Group (Ed.), 2011a. OMG Unified

Modelling Language® (OMG UML), Infrastructure

Version 2.4.1. http://www.omg.org/spec/UML/2.4.1/

Infrastructure/PDF/, Retrieved on 2013-11-04.

Object Management Group (Ed.), 2011b. Query/View/

Transformation Specification – 1.1. http://www.omg.

org/spec/QVT/1.1/PDF/, Retrieved on 2013-11-04.

Object Management Group (Ed.), 2013. Committed Com-

panies and their Products. http://www.omg.org/mda/

committed-products.htm, Retrieved on 2013-11-04.

Pohl, K., 2008: Requirements Engineering – Grundlagen,

RecommendationsforImpactAnalysisofModelTransformations-FromtheRequirementsModeltothe

Platform-independentModel

433

Prinzipien, Techniken. dpunkt.verlag, Heidelberg, 2

edition.

Sendall, S., & Kozaczynski, W., 2003. Model

transformation: The heart and soul of model-driven

software development. Software, IEEE, 20(5), 42-45.

Stahl, T.; Völter, M.; Efftinge, S.; Haase, A., 2007:

Modellgetriebene Softwareentwicklung – Techniken,

Engineering, Management. dpunkt.verlag, Heidelberg,

edition.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

434
