Slrtool: A Tool to Support Collaborative Systematic Literature Reviews

Balbir S. Barn, Franco Raimondi, Lalith Athappian and Tony Clark

Deptartment of Computer Science, Middlesex University, London, U.K.

Keywords:

Systematic Literature Review, Software Tool, Collaborative Research Process.

Abstract:

Systematic Literature Reviews (SLRs) are used in a number of ﬁelds to produce unbiased accounts of spe-

ciﬁc research topics. SLRs and meta-analysis techniques are increasingly being used in other ﬁelds as well,

from Social Sciences to Software Engineering. This paper presents the SLRTool tool - an open source, web-

based, multi-user tool that supports the SLR process for a range of research areas. The tool is available at

http://www.slrtool.org and is developed using a model-driven approach to enable its adaptation to dif-

ferent disciplines. The functionality of the tool is presented in the context of support for various phases of

the SLR process. The use of the tool is illustrated by means of a simulated SLR aiming to map out existing

research in the domain of Enterprise Architecture (EA). Commentary on the use of the tool and potential addi-

tional beneﬁts are discussed, for example, the role of the tool in non-medical meta-studies.The SLRTool tool

supports all phases of the SLR process and lends itself to creating and supporting research communities geared

to SLR oriented activities. In particular, the tool could be suitable for the novice researcher community.

1 INTRODUCTION

The systematic literature review (SLR) is an increas-

ingly important research strategy for extracting new

knowledge from existing research data. The SLR pro-

cess originated from the medical ﬁeld but is now com-

mon across many disciplines, including Social Sci-

ences and Computer Science. The SLR process is a

well deﬁned, methodical approach for identifying, as-

sessing and evaluating existing published studies to

support the exploration of one or more speciﬁc re-

search questions.

The leading effort to formalize the SLR process

has been carried out by Kitchenham et al for Soft-

ware Engineering (Kitchenham and Charters, 2007).

In their work they propose a set of guidelines which

are obtained by synthesising the guidelines provided

in other ﬁelds, including the Cochrane Handbook (

http://www.cochrane.org).

In Software Engineering (SE) and Information

Systems, SLRs have been published on a range of

topics including: open source software development

(Hauge et al., 2010), classifying requirements speci-

ﬁcation errors (Walia and Carver, 2009), motivations

of developers (Beecham et al., 2008) amongst others.

The general usage of SLRs to investigate evidence

base Software Engineering led to a meta study where

Kitchenham et al. assessed the impact of SLRs on

SE practice (Kitchenham et al., 2009). Findings from

this study suggest that the spread of topics covered

by SLRs up to 2009 were fairly limited and main-

stream Software Engineering topics were not well

represented. Such areas could beneﬁt from mapping

studies of domains in the manner of Jorgensen and

Shepherd (Jorgensen and Shepperd, 2007).

SLRs are different from expert-led ad-hoc litera-

ture reviews by providing deﬁnitions and supporting

documentation for review protocols prior to conduct-

ing the review such as: research questions; descrip-

tions of the search strategy; descriptions of criteria

to be used to assess each published study and proce-

dures to be used to perform the review (Kitchenham

and Charters, 2007).

Experiences of SLRs reported in the SE domain

suggest that in general, the SLR process is very re-

source intensive with particular problems associated

with data extraction, management of large data and

collaborative activities associated with conducting

SLRs, with reviewers playing multiple roles during

the SLR process. Further, the relative newness of the

use of SLRs in the SE domain indicates that there also

issues in provision of appropriate support for novice

reviewers. As a consequence, it becomes essential

that the SLR process can be easily validated and re-

peated, if research outputs from the SLR process are

to carry an appropriate level of conﬁdence. Valida-

440

S. Barn B., Raimondi F., Athappian L. and Clark T..

Slrtool: A Tool to Support Collaborative Systematic Literature Reviews.

DOI: 10.5220/0004972204400447

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 440-447

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

tion and repeatability are guaranteed by the compli-

ance with a certain protocol, which is clearly stated in

medical SLR following the Cochrane method. A fur-

ther requirement supporting the need for validation is

the ability to demonstrate traceability between deci-

sions.

1.1 Contribution of this Paper

Currently, there is little evidence of using bespoke

specialist tools to support SLRs in Software Engineer-

ing with respect to protocol deﬁnition, data collection

and analysis, hence the opportunities for perform-

ing meta-level SLRs are consequently also limited.

This paper proposes requirements for tools to support

the SLR process based on existing SLRs performed

within the SE domain and provides an assessment of

existing options available. The main contribution is

the introduction of the SLRtool that is speciﬁcally

aimed at providing support for a collaborative SLR

whilst addressing many of the key challenges cur-

rently prevalent around the SLR process. We suggest

that provision of tool support is paramount for em-

bedding a particular practice such as SLR in the com-

munity.

The remainder of the paper is structured as fol-

lows: In the next section we describe the key chal-

lenges associated with the SLR process. Section 3

presents related work on building tools for supporting

the SLR process and proposes a set of requirements

for SLR tools across a range of possibilities. Section

4 provides a description of the key functionality of

the SLRTool and illustrate its use for a small example

mapping out the literature for Enterprise Architecture.

In Section 5, the conclusion is presented along with

remarks about the directions of future work.

2 CHALLENGES OF THE SLR

PROCESS

One of the consequences of a growing number of

SLRs conducted in Software Engineering and else-

where is the need for consistency. In 2007, Brere-

ton et al. reported on lessons learnt from applying

the SLR process within the Software Engineering do-

main (Brereton et al., 2007), which can be consol-

idated into a set of requirements such as: support

continuous revision of research questions and to keep

track of changes; support multiple reviewers for the

process and to track their usage; ability to tailor and

re-conﬁgure the methodology for a particular review;

support external validation of the review process; sup-

port multiple search strategies as different databases

such as ACM and IEEE use different approaches; and

keep detailed record of decisions. Elsewhere Riaz

et al. report on how formulation of research ques-

tions, quality assessment and the time consuming na-

ture (Babar and Zhang, 2009) of the SLR process cre-

ate challenges (Riaz et al., 2010). The same study also

commented on experiences of novice researchers who

also struggled with formulation of research questions,

with carrying out the reviews, and in particular with

the time factors involved in carrying out the reviews

and extracting data. Others have reported on the need

to manage how speciﬁc roles are allocated and the ac-

tivities associated with roles, for example the need to

cross-check and validate criteria such as that for in-

clusion / exclusion or quality (Hossain et al., 2009).

Staples and Niazi (Staples and Niazi, 2007) re-

ported on their experience of conducting an SLR us-

ing Kitchenham’s guidelines. Of particular interest

is their analysis in the potential for automation and

support for SLRs. They used and beneﬁtted from

only a basic level of automation: simple tabular word

processing, simple spreadsheets and use of statisti-

cal analysis packages. Whist they viewed the po-

tential prospects for tool support as “very dim ...to

support all phases of arbitrary systematic reviews”

they acknowledge that such mechanisms may provide

“a nexus for the improvement of systematic review

methodology” and contribute to a notion of a central

index of systematic reviews for software engineering.

This last point is particularly pertinent in the context

of being able to perform meta-level systematic re-

views across sub-domains within software engineer-

ing.

While not directly concerned with the SLR pro-

cess itself, the UBIRD study by Stelmaszewska et al

(Stelmaszewska et al., 2010) investigated the informa-

tion seeking skills of students in the business domain.

Findings from the study reported that students: used

personal / social networks to reﬁne search strategies;

experienced signiﬁcant difﬁculty in storing informa-

tion collated from the searching activities (time being

one such factor); and struggled with user interfaces

of different digital repositories. The latter is consis-

tent with Brereton et als’ comment on the differences

between the ACM and IEEE approaches.

Summarising, the current experience of using the

SLR process suggests strongly that there is need for

tool support in: conﬁgurable protocol deﬁnition while

executing the SLR process by multiple stakeholders;

reducing the time spent on managing the activities in

carrying out the reviews and extracting the data for

storage for subsequent review and analysis.

Slrtool:ATooltoSupportCollaborativeSystematicLiteratureReviews

441

3 RELATED WORK IN TOOL

BUILDING

Despite the increasing importance of SLRs to the

Software Engineering and to other communities, there

has been remarkably scant effort made to develop

supporting tools for the SLR process. Several tools

have been built: for instance, the SM-VTM tool pro-

vides a text mining based approach to visualising the

SLR clustering activities but does not provide sup-

port for an end to end SLR process (Felizardo et al.,

2010). The SLR tool developed by Fernandez-Saez

et al. (Fernandez-Saez et al., 2010) focuses on the

SLR process but some of the technical hurdles as-

sociated with the tool (such as installation and pre-

conﬁguration requirements, single user, and desktop-

only version) limit its use (Hernandes et al., 2012).

Further, there has been no other evidence of its sub-

sequent development. The StART tool reported by

Hernandes et al (Hernandes et al., 2012) presents less

of these technical limitations but remains limited to

the Windows platform and does not readily lend it-

self to multiple users participating in the SLR process.

Most closely related to the SLRTool is SLurP, (Bowes

et al., 2012) which has a functionality similar to our

SLRTool, provides multiple user access and is a web

based system implemented on top of the Linux dis-

tribution Debian and developed using Java (while we

build upon the standard chain Apache+PHP+Mysql).

The key difference is that our tool is fully open-source

and implements a model-driven approach, in order to

be adapted to a range of disciplines.

The medical domain, by virtue of the Cochrane or-

ganisation, has tool support available from RevMan

Even in the case of RevMan, the tool only provides

a stand-alone text editor enriched with functionalities

that guarantee that all the steps in the review protocol

are followed. Crucially, there is no support for collab-

orative work.

Related to tools supporting the SLR process are

those which are essentially bibliography manage-

ment systems. Some tools such as EndNote, Procite

and Reference Manager focus on managing biblio-

graphic databases and citation of references from such

databases in the context of document preparation us-

ing desktop based applications. Other such as Zotero

and Mendeley provide web based capability and in

addition provide some level of Web 2.0 collaborative

activities including, for example, the sharing of bibli-

ographic data between users. However, the key areas

of collaboration, traceability of decisions, repeatabil-

ity and ease of collection proposed by the functions of

http://ims.cochrane.org/revman.

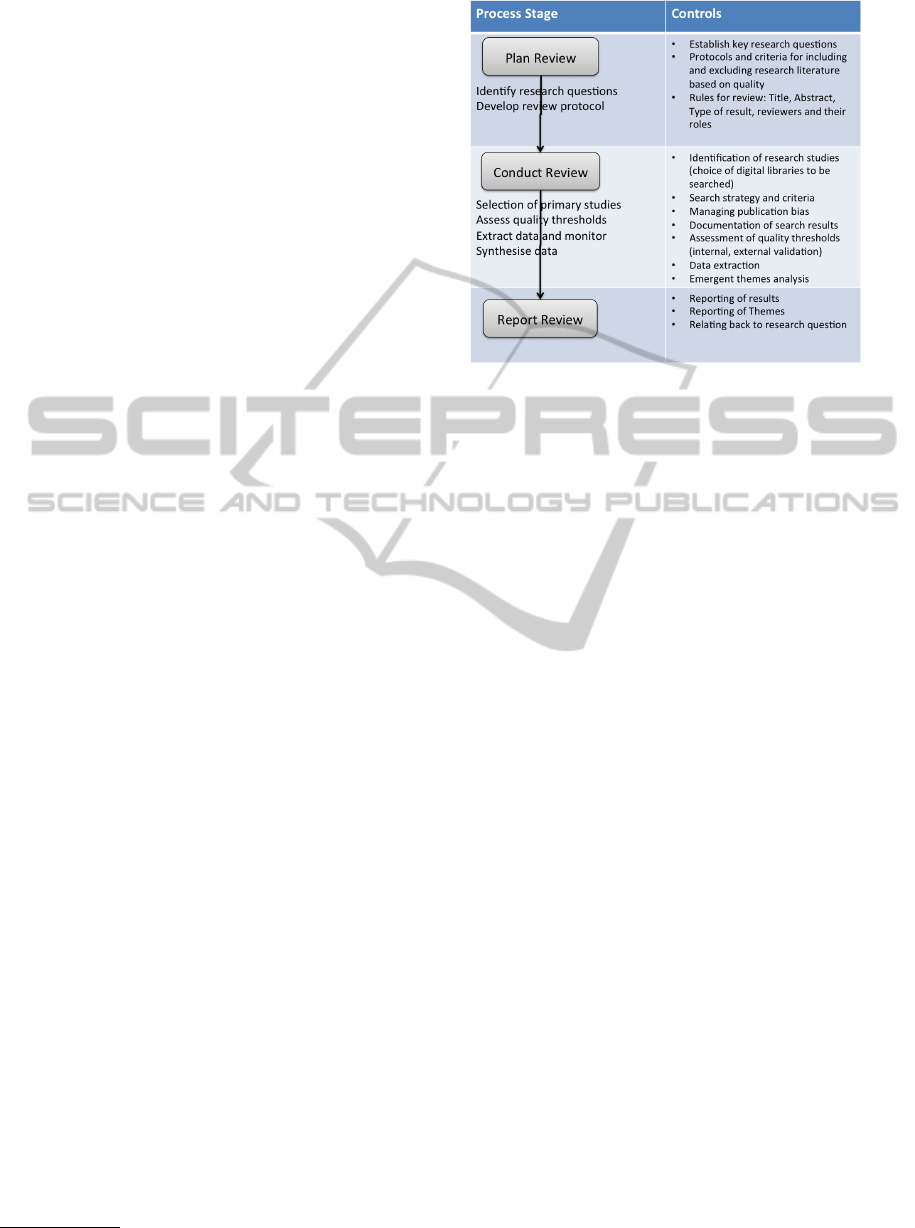

Figure 1: The SLR process.

the tool described here are not collectively available in

these technologies. Thus, generally the key weakness

of these types of tools is the lack of support for the

actual SLR process and there is only the possibility of

manual record keeping of SLR data.

Both the lessons learnt from conducting SLRs as

detailed in the Challenges section and the review of

current tools formed the basis of the requirements for

the software tool introduced in this paper.

4 SLRTool FUNCTIONALITY

The SLRTool is designed to support SLRs conducted

using the guidelines described by Kitchenham et al.

(Kitchenham, 2004; Kitchenham and Charters, 2007),

but is open to extensions, as described in Section 4.5.

There are three key stages at the core of the guide-

lines: Plan Review; Conduct Review and Report Re-

view. These are shown in Figure 1, along with some

of the key activities within each stage.

In the following sections we introduce an illustra-

tive case study of a SLR for Enterprise Architecture.

The case study services to provide a demonstration of

how the SLRTool tool supports the SLR process and

some of the salient requirements.

4.1 Case Study

We ﬁrst introduce our SLR case study on Enterprise

Architecture (EA). EA is the means by which the es-

sentials of a business, its IT and its evolution, and

analysis is performed. It is a coherent whole of princi-

ples, methods, and models that are used in the design

and realisation of an enterprise’s organisational struc-

ture, business processes, information systems and in-

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

442

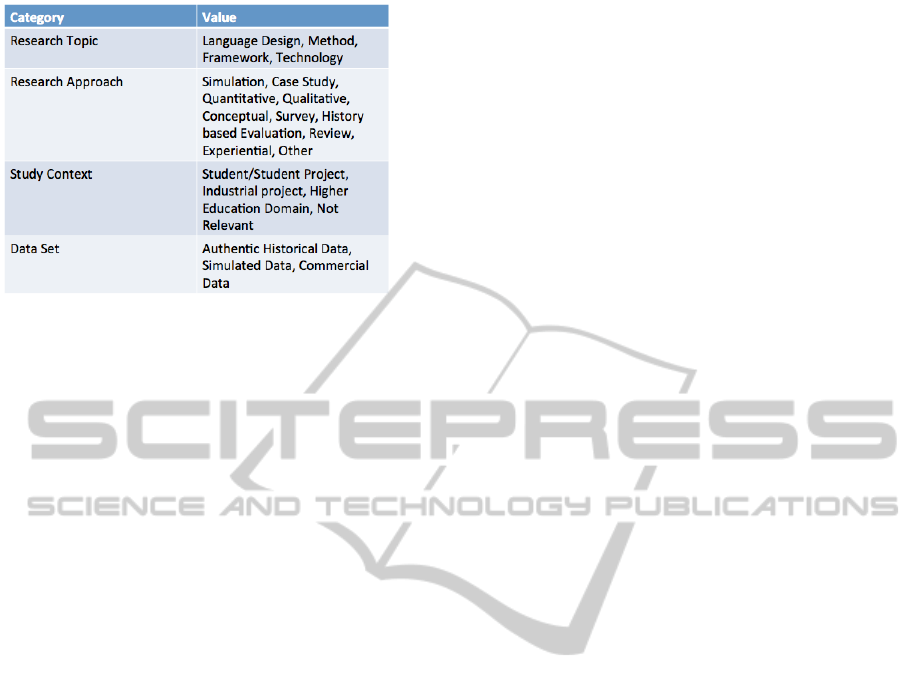

Figure 2: Classiﬁcation Framework for the Enterprise Ar-

chitecture SLR project.

frastructure. To date, there has been no SLR of this

topic. In particular, the type of mapping study in

the manner of Jorgensen and Shepherd (Jorgensen

and Shepperd, 2007) would be particularly beneﬁcial.

Thus, the SLR study has the following research ques-

tions:

1. What are the main research topics being addressed

by EA research?

2. What are the main methodological approaches be-

ing used in EA research?

3. What are the main publication outlets for research

in EA?

As the study is intended to focus on prevalent

research activity in EA, resources such as literature

opinion papers, panel discussions, commercial white

papers are to be excluded. Categorisation of resources

is however, particularly important as the study aims to

address the main research areas and the approaches

taken, hence categories such as: Research Topic

(values are: Language design, Method, Framework,

Technology), Research Approach (values are: Simu-

lation, Conceptual, Survey, Experiential and others)

are needed. The full framework is shown in Figure

2. We can see how research outputs can be classiﬁed

using these categories to help contribute towards an-

swering research questions 1 and 2.

4.2 Plan Review Functionality

The Plan Review stage aims to identify research ques-

tions (examples of research questions are listed in the

previous section) and develop the review protocols

such as deﬁnition of quality criteria, inclusion / ex-

clusion of resources, reviewers and their roles and the

deﬁnition of a classiﬁcation framework. The SLRTool

deﬁnes a review as a project and provides various di-

alogues for deﬁning research questions, and the cat-

egories of resources that contribute to the classiﬁca-

tion framework, see Figure 3. The details of the pro-

tocol may differ in different disciplines: Section 4.5

below describes how to accomodate this variability in

the SLRTool. Repeating a particular SLR is then a

matter of importing a particular protocol and reusing

it. Currently the following requirements are relevant:

1. Ability to deﬁne Research Questions, Inclu-

sion/Exclusion Criteria, Categories for reﬁning

research questions and the values such properties

can take.

2. Ability to deﬁne dependencies and other relation-

ships between criteria and categories.

3. Use of ontologies to provide a structured language

for deﬁning categories, criterias and their values.

4. Ability to deﬁne roles to multiple users.

Tool capability that can provide a structured language

for describing the various categories, criteria and val-

ues in the form of an ontology is an advanced capa-

bility that is curently planned for the SLR Tool but is

not yet available.

4.3 Conduct Review

This is the most time consuming section of the SLR

process. Activities include: deﬁning the sources of

data (the digital resources, journals etc.); the search

strategies; data extraction; assessing the quality of re-

sources; performing classiﬁcations based on the read-

ing of the papers (resources) and of course storing and

managing the data. The SLRTool provides tool func-

tionality for these activities which are optimised for

reducing the time resource spent on this.

Some of the key functions (shown in ﬁgure 3.) in-

clude:

1. Ability to deﬁne search criteria independent of

target resource database with interfaces to bibli-

ographics support tools such as Google Scholar.

2. Automatic extraction of BiBTex data of all re-

sources located, along with automatic download

of full text PDFs subject to permissions for the

host institution. These are done as batch down-

loads on selected resources.

3. Ability to include / exclude resources and to

record reasons based on previous deﬁned criteria.

4. Ability to categorise resources according to the re-

view protocols deﬁned earlier.

5. Support for multiple reviewers on a SLR project.

6. Ability for reviewers to comment on decisions

made and to assess reviewer actions.

Slrtool:ATooltoSupportCollaborativeSystematicLiteratureReviews

443

Figure 3: Classiﬁcation of resources and Inclusion/Exclusion criteria.

Figure 4: Resources.

We have planned development activity to increase

support for this phase of the SLR process to include

requirements for delivering further collaborative ac-

tions such as: difference analysis and Reconciliation

services between users including traceability between

decisions and the ability to support summarisation

and keyword extraction for automated classiﬁcation.

4.4 Report Review

This stage of the SLR process includes both descrip-

tive statistics and more detailed analysis linking back

to the themes and research questions intended to be

explored in the review. The SLRTool provides func-

tions to help in these activities as follows: Report

summaries of publisher details; Report summaries of

publication dates; Reporting on Inclusion and Quality

criteria; and Exporting of data to external systems.

As the tool is still being developed, other reports

planned include reporting on the classiﬁcation frame-

work and the relationships linked to the research ques-

tions. Other scheduled activity includes the ability to

link classiﬁcation decisions to speciﬁc sections in the

resource documents and provision of canned analysis

techniques.

Reports from the case study used in this paper il-

lustrate the ease by which these can be produced: Fig-

ure 5 illustrates the distribution of publishers and the

distribution of quality criteria for the papers identiﬁed

in our study.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

444

Figure 5: Reporting.

4.5 Technical aspects of the tool

In our analysis of existing technologies in this area, all

the existing tools had some speciﬁc technical limita-

tions around platform dependence and lack of multi-

user access. This was inﬂuential in the approach that

we took towards the selection of the technical archi-

tecture of the tool.

The SLRTool uses a standard open source web

development platform comprising the Apache web

server, MySQL and PHP. We have successfully in-

stalled it on a number of operating systems, includ-

ing Linux, Mac, Windows, and even on a Raspberry

Pi: the latter installation has the beneﬁt of being mo-

bile so that the whole set of repositories can be moved

between institutions, if necessary.

Another key element in our approach was an early

realisation that the potential for substantial automated

analysis of reviews could be made possible if we took

a model based approach to tool development. Thus

we see the concepts underpinning the tool as an exam-

ple of a domain speciﬁc language. The overall SLR

process is deﬁned in a similar way, and all the code

is generated from this model. As a result, we are able

to accommodate changes in the protocol and in other

parts of the SLR process just by modifying the model,

and then generating (and re-using, where available)

code to support different disciplines.

4.6 Current Limitations

We consider the tool as a prototype: the ver-

sion available on-line implements a connector with

Google Scholar, but we are planning to include other

databases (subject to institutional agreements etc.).

Google Scholar was given a dominant role as the

study on information seeking behaviours of students

provided empirical evidence of its widespread use in

Higher Education Institutions (Stelmaszewska et al.,

2010). The current operation of the use of the con-

nector to Google Scholar is available on the open-

ing project screen. Users are able to search for a

variety of search parameters and note results aris-

ing from the searches. By limiting searching to just

Google Scholar, we recognise that papers will be

missed because of issues such as how different dig-

ital libraries conﬁgure their search facilities. One side

effect though, is that it does provide a consistency in

the protocols across SLRs. Examples of searching are

shown in Figure 6.

We envisage SLR tool development activity to

continue to progress along the spectrum we outlined

earlier where there is increasing sophisticated support

for the activities that we consider to be key: Manage-

ment of resources (especially auto-upload); Record-

ing evidence (the classiﬁcation of resources and link-

ing them to speciﬁc evidence within a resource) and

Collaboration (how better to support team and inter-

team working). These activities are essential if there

is to be standardisation across SLR cases.

Other areas of the tool that we intend to develop

further include more reporting options of the data

collected, in particular the classiﬁcation frameworks

used. An embedded help guide can be particularly

useful to novice researchers; this help feature can di-

rect users towards the correct use of features of the

tool in the context of the SLR process. We are cur-

rently developing these on-line help facilities.

Staples and Niazi in their report on their experi-

ences of performing SLRs made speciﬁc reference to

the notion that software tools can provide a nexus for

the improvement of systematic review methodology.

We have interpreted this beyond their original inten-

tion and propose that model driven engineering prac-

tice may provide valuable inroads in developing func-

tionality that can speciﬁcally address functions that

allow conﬁgurability of SLR processes. By design-

ing the SLRtool using model driven principles we are

aiming to support speciﬁcation of an SLR process for

a particular domain such that the speciﬁcation can de-

rive an instance of the tool for use for that domain.

Finally, we recognise that the tool has only been

used in a small scale, non-independent manner. It is

our intention to carry out evaluation studies with the

tool both to reﬁne the tool and to examine how the

SLR process is possibly modiﬁed as a result of using

tools.

Slrtool:ATooltoSupportCollaborativeSystematicLiteratureReviews

445

5 FINAL REMARKS

The current literature indicates that a well developed

SLR that provides reliable outputs is a difﬁcult and

time consuming task, mainly because of the manage-

ment and administration of large complex volumes of

data. When this is coupled with multiple users as part

of a team activity then the problem increases. In this

paper we have sought to describe the development of

the SLRTool, which aims to address these issues and

to enhance the capabilities required in performing an

SLR.

While we have been motivated by our our ex-

perience as researchers struggling with bottlenecks

and inefﬁciencies in attempting to carry out SLRs,

we think that expert reviews typically found in re-

search papers in general could also beneﬁt from such

a tool. Given this, we anticipate building a com-

munity around our approach, and future versions of

this tool will have an appeal to many researchers in

a range of research areas. We have noted that Brere-

ton et al reported that the Simula Lab was the leading

research lab on conducting SLRs because they had

developed very effective research procedures which

were embedded in the organisation. Such procedures

require tool support and the provision of the SLRTool

and its usage in the research community could help

developing capability similar to the Simula Lab else-

where. In particular we are keen to embed the tool as

part of the research training undertaken by doctoral

students at our institution and elsewhere.

It is likely that SLRs will become more pervasive

and be relevant to most (if not all) disciplines, hence

software tools that can support the SLR process will

be a necessary requirement. Further, as different dis-

ciplines approach the SLR process deﬁnition differ-

ently (the protocols and activities for example), an

important challenge that arises is the need to support

different ﬂavours of SLR methodologies. The project

reported in this paper has concentrated on a particular

style of SLR methodology; however, the fundamental

design principles that underpin the software are based

on model driven software engineering practice, and

future versions of the software will be able to sup-

port user conﬁgurable SLR methodologies. Related

to this, the setting up of an SLR protocol, the criteria

for inclusion/exclusion, classiﬁers and so on can be

re-used across speciﬁc sub-domains, leading to sys-

tematic meta studies of SLRs. For example, it is not

inconceivable that SLRs aimed at mapping out sub-

domains such as Component Based Design, Service-

Oriented Architecture, Event driven Architecture (all

broadly related to software architecture) could utilise

the same SLR protocol enabling a much richer meta-

analysis of the set of SLRs. We are progressing fur-

Figure 6: Searching Google Scholar.

ther development of the SLRTool to address these pro-

posals and the limitations and requirements discussed

earlier.

The model driven approach we have deployed in

the tool may introduce the possibility for new in-

sights to be generated from the act of performing the

SLR process. For example, implicit relationships be-

tween classiﬁcation frameworks and quality criteria

may become more apparent. In the case study used

to illustrate this paper, we observed that because of

the explicit SLR processes that are supported by the

tool. Conversely, analysis that exposes inconsisten-

cies both in the primary data and in the data arising

from the analysis undergone as part of the SLR pro-

cess may also be possible. As we continue to work

on the development of the tool, we anticipate that

new syntheses of research literature will reveal addi-

tional meta-properties that could guide the production

of more informed research output.

We note that one area of concern remains regard-

less of any tool implementation. There is a policy is-

sue at stake. For a tool like this to be truly embedded

in the research practice of academics and students (at

all levels), the tool will need to be part of the armoury

of utilities resourced by managers of institutional li-

braries. Ease of use of the tool, particularly access

to full text resources, is dependent on permissions

available at the home library. Often, access to digi-

tal resources is determined by various identity man-

agement systems such as Athens

and Shibboleth

the UK. Such systems will need to be integrated the

SLRTool tool for embedding to take place.

http://www.eduserv.org.uk/identity-access.

http://shibboleth.net.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

446

ACKNOWLEDGEMENTS

We thank the UK’s Joint Information Systems Com-

mittee (JISC) which supported this research at Mid-

dlesex University.

REFERENCES

Babar, M. and Zhang, H. (2009). Systematic literature

reviews in software engineering: Preliminary results

from interviews with researchers. In Proceedings of

the 2009 3rd International Symposium on Empirical

Software Engineering and Measurement, pages 346–

355. IEEE Computer Society.

Beecham, S., Baddoo, N., Hall, T., Robinson, H., and

Sharp, H. (2008). Motivation in software engineer-

ing: A systematic literature review. Information and

Software Technology, 50(9):860–878.

Bowes, D., Hall, T., and Beecham, S. (2012). Slurp: a tool

to help large complex systematic literature reviews de-

liver valid and rigorous results. In Proceedings of the

2nd international workshop on Evidential assessment

of software technologies, pages 33–36. ACM.

Brereton, P., Kitchenham, B., Budgen, D., Turner, M., and

Khalil, M. (2007). Lessons from applying the system-

atic literature review process within the software en-

gineering domain. Journal of Systems and Software,

80(4):571–583.

Felizardo, K., Nakawaga, E., Feitosa, D., Minghim, R., and

Maldonado, J. (2010). An approach based on visual

text mining to support categorization and classiﬁca-

tion in the systematic mapping. In Proc. of EASE,

volume 10, pages 1–10.

Fernandez-Saez, A. M., Bocco, M. G., Romero, F. P., and

Romero, F. P. (2010). Slr-tool - a tool for performing

systematic literature reviews. In ICSOFT (2), pages

157–166.

Hauge, Ø., Ayala, C., and Conradi, R. (2010). Adop-

tion of open source software in software-intensive

organizations–a systematic literature review. Informa-

tion and Software Technology, 52(11):1133–1154.

Hernandes, E., Zamboni, A., Fabbri, S., and Di Thommazo,

A. (2012). Using GQM and TAM to evaluate StArt–a

tool that supports systematic review. CLEI Electronic

Journal, 15(1).

Hossain, E., Babar, M. A., and Paik, H.-y. (2009). Using

scrum in global software development: a systematic

literature review. In Global Software Engineering,

2009. ICGSE 2009. Fourth IEEE International Con-

ference on, pages 175–184. Ieee.

Jorgensen, M. and Shepperd, M. (2007). A systematic re-

view of software development cost estimation stud-

ies. Software Engineering, IEEE Transactions on,

33(1):33–53.

Kitchenham, B. (2004). Procedures for performing system-

atic reviews. Keele, UK, Keele University, 33:2004.

Kitchenham, B., Brereton, O. P., Budgen, D., Turner, M.,

Bailey, J., and Linkman, S. (2009). Systematic litera-

ture reviews in software engineering. a systematic lit-

erature review. Information and Software Technology,

51(1):7 – 15.

Kitchenham, B. and Charters, S. (2007). Guidelines for

performing Systematic Literature Reviews in Soft-

ware Engineering. Technical Report EBSE 2007-001,

Keele University and Durham University Joint Report.

Riaz, M., Sulayman, M., Salleh, N., and Mendes, E.

(2010). Experiences conducting systematic reviews

from novices perspective. In Proc. of EASE, vol-

ume 10, pages 1–10.

Staples, M. and Niazi, M. (2007). Experiences using sys-

tematic review guidelines. Journal of Systems and

Software, 80(9):1425–1437.

Stelmaszewska, H., Wong, B., Bhimani, N., and Barn, B.

(2010). User behaviour: searching for scholarly mate-

rial using electronic resource discovery systems. In

Proceedings of the 24th BCS Interaction Specialist

Group Conference, pages 17–26. British Computer

Society.

Walia, G. and Carver, J. (2009). A systematic litera-

ture review to identify and classify software require-

ment errors. Information and Software Technology,

51(7):1087–1109.

Slrtool:ATooltoSupportCollaborativeSystematicLiteratureReviews

447
