Service Oriented Development of Building Energy Management Systems

An Architecture Blueprint

Rodolfo Santos

and Paulo Carreira

Department of Computer Science and Engineering, Technical University of Lisbon, Lisbon, Portugal

INESC-ID, Lisbon, Portugal

Keywords:

Service-oriented Architecture, Building Automation, Energy Management.

Abstract:

Building automation and energy management systems increase the value of buildings by making them more

comfortable, productive, and energy efﬁcient. However, the hardware and software technologies underlying

actual systems are largely monolithic and incompatible with each other hampering extensibility and favouring

consumer lock-in. In order to overcome this problem we propose to create an middleware architecture, that

abstract the heterogeneity of automation systems and provide sophisticated functionality to applications for

intelligent control and energy management. Our middleware, will expose services that allows to abstract the

numerous protocols and technical requirements associated with each manufacturer to applications, allowing

developers to apply all their effort designing algorithms and innovative techniques that maximize the energy

efﬁciency, without worrying about the technical details of each existing system. The concept will be ap-

plied in a real-world setting with the implementation of a service-oriented architecture prototype for energy

management and intelligent control of Instituto Superior T

ecnico (IST) ofﬁce rooms.

1 INTRODUCTION

This document addresses the topic of creating an ap-

propriate architecture for intelligent control and en-

ergy management of building ofﬁces. Given the cur-

rent economic and social situation, it is of utmost im-

portance to focus on systems and technologies that

enable energy efﬁciency, particularly in large build-

ings. In Europe, buildings account for 40% of total

energy use and 36% of total CO

emission (European

Parliament and Council, 2010), and these values are

expected to grow in the coming years. This aspect

result in a major concern for more energy conserva-

tion. Large buildings require technologies with so-

phisticated applications, such as automatic control of

lighting and temperature set-points, as well the need

for the system to learn with the activity of users inside

the building. In addition, these environments must be

energy efﬁcient and must simultaneously ensure the

comfort and well being of the occupants in order to

enable them to become more productive. The main

hindrance in developing this vision are the lack of

interoperability that automation systems offer. Each

manufacturer keeps developing their proprietary spec-

iﬁcations and has little motivation to evolve their sys-

tems to the emerging trends of communication stan-

dards (Litvinov and Vuorimaa, 2011). As well, there

is still no solution for the development of applications

for intelligent control and energy management in a

modular way, based on Service-Oriented Architec-

ture (SOA), where it is possible to reuse and compose

services in order to implement new functionality. The

current solutions of Building Automation (BA) and

Energy Management (EM) are vertically integrated

and do not allow communication with devices in a

standard way, and poorly support their heterogeneity.

Re-designing and re-programming BA and EM sys-

tems, in order to change and extend features to sup-

port new devices and functionalities are still too ex-

pensive and to slow to achieve. Web Services (WS)

and SOA has allowed it, more precisely in Informa-

tion Technology (IT) systems (Lee et al., 2010), due

to several business needs, but not embarked on the au-

tomation and energy management domain yet. What

really happens is that both services and the program-

mer has to know the details and characteristics of the

Building Automation System (BAS), which causes a

massive consumer lock in. Increasingly it is neces-

sary that the IT system and BAS are integrated in the

architecture that supports the business, since the opti-

mization of the energy and the business processes is

something that has to be done in an integrated way.

315

Santos R. and Carreira P..

Service Oriented Development of Building Energy Management Systems - An Architecture Blueprint.

DOI: 10.5220/0004974903150323

In Proceedings of the 3rd International Conference on Smart Grids and Green IT Systems (IEEHSC-2014), pages 315-323

ISBN: 978-989-758-025-3

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

This work will analyse the various existing func-

tionalities in Building Energy Management System

(BEMS) and propose a reference architecture with a

set of services collections required in order to create

modular intelligent energy management and automa-

tion control applications on top of these services.

1.1 Motivation

To illustrate the addressed issue take into account the

following scenarios:

Scenario 1 consider a daylight-harvesting sys-

tem, which aims to use daylight to control

the amount of electric illuminance needed to

properly light a space, in order to reduce en-

ergy consumption. These systems uses a set of

sensors and actuators inside the room to mea-

sure luminance and adjust the lighting of the

lamps, respectively. In this scenario it is nec-

essary to deal with interoperability of diverse

devices, their functionality and technical fea-

tures, since many are from different manufac-

turers and communication protocols.

Scenario 2 consider a scheduling system,

which execute some tasks periodically. This

tasks are triggered after an event or set of

events have occurred. Events can be a time

value or a speciﬁc event from the user’s ac-

tivity. In this scenario it is necessary to un-

derstand how the scheduling system of each

device technology works and map the logic

of scheduling with the operation logic of each

device.

Existing solutions to address the requirements of

scenarios 1 and 2 consist of monolithic applications

that do not provide modular services, and also do

not allow interoperability with other automation tech-

nologies used. In addition, most existing solutions

are proprietary and not expose their insights, which

don’t allow the reusing and extension of its function-

ality. This situation is illustrated in Figure 1, which

compares a monolithic system with a layered archi-

tecture (Bastide et al., 2006).

SOA is a paradigm that deﬁnes services as key el-

ements of software design. The main goal of SOA

approach is to reduce the dependencies of software

parts, where each part is typically a remote piece of

functionality accessed by clients. By reducing such

dependencies, each element can evolve separately and

the application becomes more ﬂexible than mono-

lithic applications. The advantages of SOA also ap-

ply to automation applications: loose coupling, run

time service binding, and location transparency. In-

deed, services abstract implementation to provide the

desired functionality; they provide faster prototyping

based on creation of new services from existing (ser-

vice composition); they enable handling the diversity

of devices and applications, because they are easier

to integrate and evolve; they enable integrate BAS

functionality with the IT systems underlying the oc-

cupant business. Technically, SOA provides abstrac-

tion: upon a call to the speciﬁc service, the implemen-

tation is invoked regardless of whether it is deployed

in a device, or in another software module. This latter

paradigm motivates the need of a SOA-based refer-

ence architecture for Smart Building (SB) systems.

(a)

(b)

Layered System (SOA approach)

System 1

Daylight

harvesting

Devices

Building/Users

Data

Building

Data

System 2

Scheduling

Devices

Users Data

System 3

Automatic

Control

Devices

Daylight

harvesting

Scheduling

Automatic

Control

Devices

Building/Users

Data

Building/

Users Data

History

Service Layer Middleware

Figure 1: Actual systems vs. SOA approach. (a) Monolithic

architecture where high level applications are highly depen-

dent on the original software design. (b) Layered horizontal

solution that enables technology abstraction, interoperabil-

ity, and extensibility.

1.2 Problem Deﬁnition

Solutions to this problem are quite complex as is nec-

essary to realize the system’s architecture and services

that the middleware service layer has to offer. Typi-

cally, architectures for these systems include services

for energy consumption and a services for command-

ing devices. Indeed, these service components are

needed. It’s necessary to integrate all context infor-

mation (e.g. retrieve the state of electrical devices,

SMARTGREENS2014-3rdInternationalConferenceonSmartGridsandGreenITSystems

316

the energy consumption data, and the user presence

data), to derive control decisions that meet the user

preferences and needs while ensuring the best values

of energy consumption in the building.

Solutions, as detailed in Related Work, are try-

ing to solve this issue using service-oriented architec-

tures to provide some interoperability between differ-

ent systems. However, they only expose devices as

service calls along with the idiosyncrasies associated

with each device. There is no semantics on top of

these services, such as logical services to reuse and

extend. The characteristics of different devices, the

different protocols and different drivers continue to

exist, but now at the service level, maintaining the

lack of interoperability.

Herein, we propose a way to build BA applica-

tions atop of a modular service layer middleware that

also abstracts the heterogeneity of BAS. The mid-

dleware abstract all systems and low level devices

to BA applications, making less complex to develop

these software. This novel approach enables taking

advantage of systems that already exist, orchestrating

and reusing the services they offer to implement new

features that take into account the needs of the busi-

ness. Conceivably in the near future, BAS will enable

adding new features without having to redesign the

original architecture of the system.

1.3 Contributions

The contributions of this document are as follows:

• An review of the existing solutions concerning

service-oriented architectures of BEMS,

• A architecture blueprint for a BEMS, that enable

the easy extension and fast development of new

BA and EM applications.

• A architecture case study in a real-world setting.

Our architecture prototype will be used in IST

building, particularly in ofﬁces rooms, in order to

validate the proposed architecture to this scientiﬁc

problem.

2 BACKGROUND

In this section, it is given a brief description of some

of the key terms and systems addressed, in order to

provide a better reader understanding.

2.1 Building Energy Management

System

A Building Energy Management System (BEMS) is

part of a Building Management System (BMS) and is

a computer-controlled system, which when installed

in a building, controls it’s power systems, includ-

ing lighting, heating, ventilating and air-conditioning.

The basic functions of a BEMS are: monitoring, con-

trolling, and optimizing (Levermore, 2002). The

functional aim of BEMS is to manage the environ-

ment within a building, so that energy consumption

perfectly balances with the way of building utilization

and its normal activities. BEMS functionalities ad-

dressed in ISO 16484-3 and EN 15232 standards (In-

ternational Standard, 2007; European Standard, 2006)

are: grouping/zoning; event notiﬁcation; alarm noti-

ﬁcation; historical data access; scheduling; and sce-

narios. Also according to ISO 16484-7 standard (In-

ternational Standard, 2013), a BEMS shall provide

the following control features to enable energy per-

formance in buildings: heating and cooling control;

ventilation and air conditioning control; lighting con-

trol; and blind control.

BEMS are dependent on the other two sys-

tems: Building Automation System (BAS) and En-

ergy Management System (EMS) (Bloom and Gohn,

2013).

2.2 Service-oriented Architecture

The idea of a service-oriented architecture (SOA)

refers to a paradigm for the construction and integra-

tion of software systems where the primary structur-

ing element is the service. In SOA, any subsystem is

described by the services it offers (Open Group Stan-

dard, 2011). Web Services (WS) are the most com-

mon implementation of SOAs. WS consist of mod-

ular and independent software applications that can

be executed over the web. These applications usually

use XML and SOAP over standard network proto-

cols, to implement the communication channels. Or-

ganizations that focus their development effort around

the creation of services, will realize many beneﬁts,

such as, code mobility and reusability, scalability and

availability, and better testing.

2.3 OSGi

Open Services Gateway initiative (OSGi) is a com-

ponent framework speciﬁcation that aims at bringing

modularity to the Java platform. It enables the cre-

ation of highly modular and dynamic systems. These

ServiceOrientedDevelopmentofBuildingEnergyManagementSystems-AnArchitectureBlueprint

317

systems are highly modular in the sense that OSGi-

based applications are composed by multiple inde-

pendent modules or components, and the develop-

ment, testing, deployment, updating, and manage-

ment on each module have minimal or no impact

on the overall system. This means that bundles can

be safely added and removed from the framework

without restarting the application process (Hall et al.,

2010).

3 RELATED WORK

Smart buildings require integration of various build-

ing automation systems that are usually made by dif-

ferent manufacturers (International Standard, 2013).

Most of the manufacturers tend to focus on a speciﬁc

domain, while others try to comprise all domains in

one application. The need to integrate several net-

work technologies and communication protocols into

applications has forced developers and researchers to

create service-oriented frameworks or use existing to

accomplish that objective.

An bottom-up analysis is presented below, start-

ing from the need of heterogeneity abstraction and

interoperability of several ﬁeld devices technologies,

where it’s required that this systems provides services

exposition and composition in order to compose all

various systems in a technology independent integra-

tion way. After being achieved the integration of var-

ious technologies, it is possible to provide several en-

ergy management and automation functionalities that

will deliver application-level services to the end-user

applications.

3.1 Field-bus Heterogeneity Abstraction

Given that there are several automation devices from

different manufacturers, they are incompatible and

can’t communicate with each other. A popular

method to achieve integration is deﬁning a common

protocol between centralized front-end and individual

gateways to proprietary systems.

Building Automation and Control Network (BAC-

net) (Bushby, 1997) protocol has been widely ac-

cepted and used in BAS industry. BACnet is a com-

munication protocol, developed by the American So-

ciety of Heating, Refrigerating and Air-conditioning

Engineers (ASHRAE) and its concept is to replace the

communication portion of each device with a com-

mon, standard set of communication rules, so that all

devices can exchange information using only one lan-

guage.

LonWorks (Corporation, 1999) is another com-

pletely different solution and a great competitor. Lon-

Works is actually a family of products and at the

core of this technology lies a communication proto-

col called LonTalk.

Despite the fact they seem good solutions as it is,

both require Web Services interfaces to accommodate

functionalities integration (Szucsich, 2010), as you

will see in the next sections.

3.2 Services Exposition

The primary technologies used in SOA domains are

Web Services since they have broad industry accep-

tance. In the BA, there is an increasing need and op-

portunity to create interfaces between the physical de-

vices and software applications. BAS developers, in-

spired by Web Services technologies, began research-

ing for a way to extend the SOA paradigm into the de-

vice space, that is, implementing a high-level commu-

nications infrastructure based on Web Services proto-

cols at the device level (Jammes and Smit, 2005).

Devices Proﬁle for Web Services (DPWS) (Men-

sch, 2009) is the extension of the Web Services pro-

tocol that surfaced. With DPWS, all messaging,

whether related to discovery, control or event notiﬁ-

cation, is based on the use of SOAP. In that context, a

target service is a device. Once discovered, a device

exposes the services. This protocol is a service en-

abler for devices, i.e. converts binary communication

to XML via SOAP, and the technical features of the

devices still exist and it is necessary to deal with them

at the higher level.

Service-Oriented Device Architecture

(SODA) (Deugd et al., 2006) is an adaptation

of SOA which aims to integrate a wide range of

devices into an enterprise system. Once again, de-

vices like sensors and actuators are dealt as services.

A SODA implementation adds a new layer to the

SOA model, wherein device interfaces and protocol

adapters are provided, enabling communication be-

tween proprietary and standard device interfaces, and

other SOA services over the enterprise network. This

protocol is also a service enabler, but offers some

integration of devices and provides services extension

and composition to the software layers above.

3.3 Technology Independent Integration

System high level protocols are used to connect these

automation systems with each other and also to inte-

grate them with management software components.

BACnet/WS (Szucsich, 2010) is a standard de-

signed to be a Web-Service based communication

SMARTGREENS2014-3rdInternationalConferenceonSmartGridsandGreenITSystems

318

protocol in the industrial and home automation which

can be applied to any ﬁeldbus system. BACnet/WS is

independent from the underlying BAS and allows het-

erogeneity abstraction and exposes their data model

and attributes through a web service interface. Al-

though this technology allows to expose services,

these are fairly primitive and generic, as only provides

basic operations of read, write, and collect historic

data of nodes.

OPC Uniﬁed Architecture (OPC UA) (Leitner and

Mahnke, 2006), is an architecture designed by the

OPC Foundation to connect industrial devices to con-

trol and supervision applications (Hadlich, 2006).

The focus of OPC is on getting access to large

amounts of real-time data while ensuring perfor-

mance constraints without disrupting the normal op-

eration of the devices.

Open Building Information Exchange group

(oBIX) (OASIS Open, 2013) is a speciﬁcation and

aims to integrate enterprise functions in several build-

ing control systems. This speciﬁcation is designed to

provide access to the embedded software which sense

and control the environment around us. Current ver-

sion of oBIX deﬁnes two protocol bindings designed

to leverage existing Web Service infrastructure: an

HTTP REST binding and a SOAP binding.

Home SOA (Bottaro and France, 2008), is an

open architecture for home service deployment. It

is based on a service platform concept, where dis-

tribution and protocol heterogeneity are managed by

service-oriented drivers. Home SOA allows develop-

ers to model networked applications as a local com-

position of uniform service interfaces, which become

bounded at runtime. This architecture is implemented

regarding the OSGi standard (Dobrev et al., 2002),

where its speciﬁcation deﬁnes how to deal with de-

vice’s access: how to share and isolate resources

between modules. It proposes a modular architec-

ture that can be opportunistically adapted on various

topologies, protocol sets and platform technologies,

as it integrates various home protocol drivers in an ar-

chitecture where functions are registered in a uniform

programming language API. This model was applied

in multimedia, home automation and device manage-

ment domains.

DomoNet (Miori et al., 2006) is a service-oriented

solution framework designed for home environments.

This prototype implements an architecture which

makes the connection between lightning devices of

two different middlewares: UPnP and KNX. This

solution is based on a SOA and uses web services

to reach the interoperability between different home

computer middlewares. The aim of this solution is to

prove how an approach that relies on XML, Web Ser-

vices and Internet protocols, can provide a uniform

architecture to home automation.

LinkSmart middleware, formerly named Hydra

middleware (Eisenhauer et al., 2011), is part of a

European project for the development of service-

oriented software to expose heterogeneous device

functions in a universal way and target domains such

as home automation, among others. The main idea is

to generate the software components and web services

in order to integrate within the supported device in-

stances, based on the semantic model meta-data. De-

coupling the application development from the device

programming brings advantages with regard to mod-

ularity, reusability and extensibility.

Service-Oriented Cross-layer Infrastruc-

ture for Distributed Smart Embedded devices

(SOCRADES) (Cannata et al., 2008) is a Framework

for developing intelligent systems in manufacturing

and relies on European research project addressing

SOA-based manufacturing paradigm. It’s primary

objective is to develop a design, execution and

management platform for next-generation industrial

automation systems, exploiting the SOA paradigm

both at the device and at the application level.

SOCRADES Framework uses a improved DPWS

speciﬁcation in order to perform a Web Service-based

network architecture. This deﬁnes a set of built-in

services that allow service orchestration, service

management, semantic web services, and service

gateway. At application level, SOCRADES allow a

uniﬁed enterprise integration via a cross-layered web

service infrastructure (Karnouskos et al., 2007).

3.4 Energy Management and

Automation Functionalities

Some solutions focuses on energy management and

building automation functionalities to provide best

comfort while ensuring efﬁcient energy consumption.

This aspect is the most important functional require-

ment in a BEMS.

PoliSave (Chiaraviglio et al., 2010) is a software

designed to reduce power consumption in computer

networks. It manages the scheduling of power on and

off of building computers in order to save energy. The

process is carried out via a graphical web-application

interface. A similar solution is what we aim to de-

velop in this project regarding the computers, displays

and datashows present in the building.

MEDUSA (Davidyuk et al., 2009) is a middle-

ware based on Activity-oriented computing (AOC)

paradigm. This paradigm promotes run-time applica-

tions by composing ubiquitous systems based on ab-

stract speciﬁcations of user activities. It is an interest-

ServiceOrientedDevelopmentofBuildingEnergyManagementSystems-AnArchitectureBlueprint

319

ing approach if we think about the SB context when

we deﬁne different possible scenarios to be achieved

in terms of a lecturer wishes to give a class, an exam

or do a presentation.

aWESoME is a Web Service Middleware for Am-

bient Intelligence environments (Stavropoulos et al.,

2013). aWESoME aims to implement a large-scale

building system, regarding energy consumption sav-

ings. The middleware is the middle layer that estab-

lishes the connection between the hardware layer and

the various applications layer. The main goal of this

solution is to fulﬁl functional and non-functional re-

quirements of the system and to ensure universal, ho-

mogeneous access to the system’s services.

Smart Energy Efﬁcient Middleware for Public

Spaces (SEEMPubS) (Osello et al., 2013) is an Euro-

pean project that aims exploiting ICT monitoring and

control services to reduce energy usage and CO

foot-

print in existing buildings. This approach focuses on

easily integration of existing BMS with new sensors

and actuator networks. The main goals of this project

are: a integrated Building Automation and Control

System (BACS); a middleware for energy-efﬁcient

buildings domain; and a multi-dimensional building

information modelling-based visualization. SEEM-

PubS layered architecture are composed by three lay-

ers: LinkSmart Proxy Layer, SEEMPubS Middleware

Layer, and SEEMPubS Application Layer. This so-

lution lacks in providing application-level services to

BEMS.

3.5 Discussion

Previous section was addressed several technologies

that focus on trying to solve different domain issues,

such as automation ﬁeld-bus heterogeneity abstrac-

tion, BA services exposition, BAS technology inde-

pendent integration, and energy management and au-

tomation functionalities providing.

3.5.1 Non-Functional Requirements

Most solutions are supported by SOA, thus providing

greater extensibility and interoperability with other

technologies in an easier way. Systems that stand

out for a higher extensibility and interoperability

are: OPC UA, HomeSOA, LinkSmart, SOCRADES,

aWESoMe and SEEMPubS. These solutions solve

some issues of the problem, because they can help

development of BEMS supporting BA technology in-

tegration and abstraction. As they are based on SOA

it is possible to implement EM and BA functional

application-level services over this systems, using a

modular service composition, being that the focus of

our architecture. The aWESoME and SEEMPubS

middleware are the most similar approaches regard-

ing the architecture objectives, as it integrates differ-

ent layers: hardware, services, integration between

services and devices layer in order to achieve their

interoperability, and application layer to provide the

users of the system a form to manage the devices and

the energy consumption of the building rooms within

a user-friendly interface.

3.5.2 Functional Requirements

Despite all solutions support BA and EM function-

ality, majority have a lack support of BEMS func-

tionality, which causes a need to implement a new

system with all the standard features. Application-

level services providing is an important feature, that

enables extension and development of BAS applica-

tions easily. No solution fulﬁls all the characteristics

surveyed. However, they all complement each other,

increasingly motivating the creation of a new refer-

ence architecture. One aspect that lacks enough, are

the system ability to provide BA and EM application-

level services in order to help the developers to build

easily and quickly BEMS sophisticated applications.

4 ARCHITECTURE BLUEPRINT

The main goal is to develop a new middleware ar-

chitecture in order do overcome the identiﬁed issues,

such as interoperability and extensibility of BEMS.

It is presented a middleware architecture vision and

its software layers, and a collection of different ser-

vices that the middleware must provide and also is

presented and described what is the purpose of each

service collection.

To achieve the middleware goals, existing build-

ing automation and energy management software

standards must be refactored into a modular archi-

tecture. OSGi framework can be used to implement

such architecture, since it has mechanisms that pro-

mote modularity and also can afford all requirements

of BEMS. The ﬁrst step to modularize the application,

is to identify its essential structure. This will help

to understand the dependencies and identify interac-

tions. From there its possible to deﬁne the building

blocks that constitute the middleware. Finally, with

a fully modular and functional middleware it’s possi-

ble to implement a sophisticated BEMS fully based

on SOA, being also highly functional and extensible

system.

SMARTGREENS2014-3rdInternationalConferenceonSmartGridsandGreenITSystems

320

4.1 Architecture Overview

This section proposes an architecture for the service

layer middleware, aiming at ﬂexibility and scalability,

enabling easy development of new applications in a

modular way.

As opposed to other solutions, this architecture

is based on the BA and EM standards (International

Standard, 2007; European Standard, 2006), regarding

also to the latter paradigms of software architectures.

This platform will centralize all the building’s control

functions, in order to reduce the installation, commis-

sioning, maintenance and hardware costs. The pro-

posed layered architecture is composed by several ex-

tensible blocks with well-deﬁned interfaces that ab-

stract it’s implementations. The implementation of

each block can be a software module or even can be

in other proprietary software solution module.

This novel architecture will be very useful, to the

extent that at the end we will take advantage of several

beneﬁts:

• Abstraction - modular service components will al-

low multiple levels of abstraction;

• Fast prototyping - creation and utilization of ex-

isting services;

• Heterogeneity handling - services will enable in-

tegration of devices diversity;

• IT integration - will be possible to create services

that integrate automation systems with the IT sys-

tems present in the building;

• Lower operational and maintenance costs - there

is no more maintenance dependence with suppli-

ers and manufacturers of equipment and systems.

As depicted in Figure 2, this architecture is able to

manage and interoperate with several ﬁeldbus tech-

nologies and their devices, thus solving the problem

of heterogeneity. The system also implements energy

management and intelligent control functionalities on

service layer middleware instead on expensive hard-

ware controllers. High-level services, will provide all

the necessary functionality to the fast development of

BEMS applications. The various services presented

are divided into four layers, corresponding to differ-

ent types of features. Each layer is a different level of

abstraction, where the lower layer offers services to

upper layer, which simultaneously uses the services

of layer below. Service Bus, will enable interoperabil-

ity between service layers, promoting communication

between service providers and service consumers.

4.2 Service Collections

In Figure 3 are shown the set of services that will pro-

Service Middleware

Applications

Service Bus

Management Services

Autonomous Actuation Services

Intelligent Actuation Services

Direct Actuation and Data Access Services

Resources Connectivity

Devices

History

Data

Building/Users

Data

Building/

Users

Data

Service

Enabled

Systems

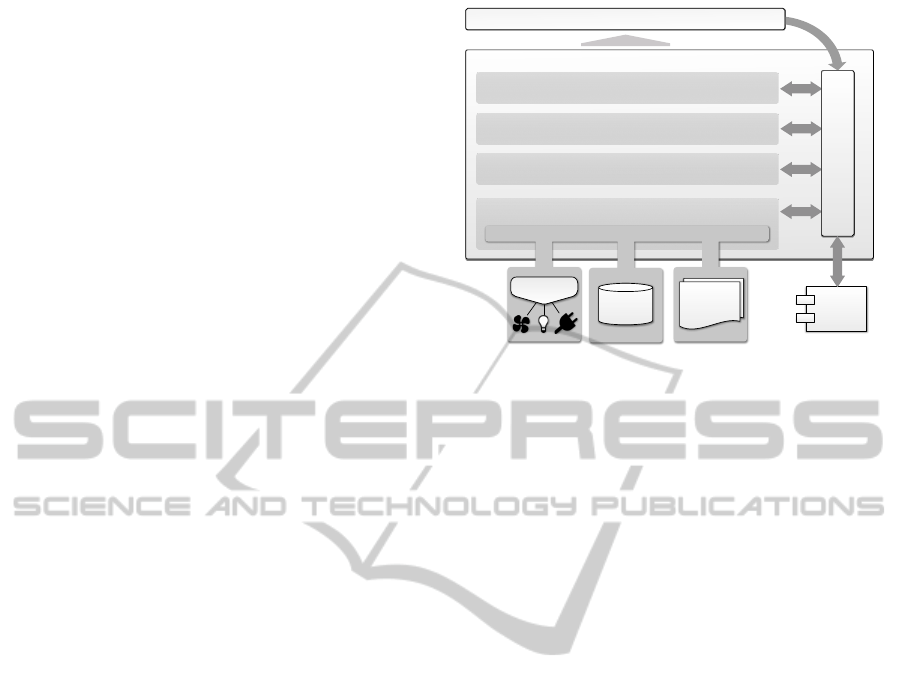

Figure 2: Proposed Service Architecture. The Middle-

ware consists of several service modules which deal and

abstract the speciﬁcations of each different BAS technology

and provide functional services for high-level applications,

starting from the ﬁeld level, then building automation, en-

ergy management, and intelligent control.

vide sophisticated functionality to Applications layer.

The services were divided into multiple logical levels,

the service collections, taking into account the type

of BA and EM functionality and the energy-efﬁcient

control techniques according to standards (Interna-

tional Standard, 2007; European Standard, 2006).

The Direct Actuation and Data Access Services

Collection intends to deal with BAS devices com-

munication and it’s abstraction. It is also responsi-

ble for the devices history data storage, data query-

ing functions, and data fusion and analytics tech-

niques. The Autonomous Actuation Services Collec-

tion aims to provide some basic functionality actu-

ally present in BAS, such as alarms, events, schedul-

ing and scenarios. The Management Services Col-

lection aims to achieve a better way to manage the

building and the BEMS functions, based on available

data models of information. Finally, Intelligent Actu-

ation Services Collection provides energy-efﬁciency

control techniques robustly, given the higher service

abstraction. These techniques are occupancy-based

control, daylight-harvesting, automated blinds con-

trol, Heating, Ventilation, and Air Conditioning sys-

tem (HVAC) control, and some learning techniques

in order to take into consideration the user’s activities

and behaviour.

5 ARCHITECTURE CASE STUDY

The addressed service layer middleware will be ap-

plied in a prototype implementation and it’s integra-

ServiceOrientedDevelopmentofBuildingEnergyManagementSystems-AnArchitectureBlueprint

321

Service Middleware

Applications

Management

Autonomous Actuation

Intelligent Actuation

Direct Actuation

and Data Access

Occupancy

Based

Control

Daylight

Harvesting

Automatic

Blind Control

HVAC

Control

Learning

User Model

Management

Occupancy

Feedback

Management

Building

Model

Management

Energy

Model

Management

Alarms and

Events

Scenarios

Management

Scheduling

Remote

Sensing &

Actuation

Meter &

Sensor Data

Acquisition

History Data

Storage

Data

Querying

Data Fusion

& Analytics

Figure 3: Service collections.

tion with existing BAS technologies already installed

in IST building. Automation devices will be installed

in ofﬁce rooms, featuring a number of sensors and

actuators, which will be used to implement software

modules and services owned by developed middle-

ware platform. This middleware will sustain intelli-

gent automation and energy management applications

that will drive the control of various electrical devices

inside the ofﬁce, such as heating, HVAC, and lighting.

In this study, we will not concern with whole func-

tional requirements since they are intrinsic, i.e., the

application must operate as any other BEMS solu-

tion and the automation devices and services must be

fully functional and further developed in OSGi bun-

dles. However, in order to validate the solution pre-

sented in this document, non-functional requirements

must be validated. Next, we present some of the non-

functional requirements that were identiﬁed:

• The development of new interfaces and soft-

ware modules must be simple and not a time-

consuming task (empirically measured).

• Deployment of new software modules must not

stop the application and they must be available to

use immediately.

• Middleware testability and debugging must be en-

sured.

The solution will be also evaluated according to

the code reusability, level of coupling and the relative

number of lines of code for the implementation.

There are several proven methods for evaluating

an software architecture (Roy and Graham, 2008),

such as early and late evaluation methods. Regarding

early evaluation, a Scenario-based evaluation method

must be applied in order to make sure that the ar-

chitecture exactly meets all requirements before it’s

implementation. After architecture implementation,

a Metrics-based later evaluation method must be ap-

plied in order to proof of compliance with the initial

architecture requirements. Presented solutions in re-

lated work, were evaluated in similar ways, and we

must also use some simulations in order to benchmark

and evaluate the performance of ﬁnal system.

In order to evaluate the user satisfaction, the pro-

totype shall offer a Graphical User Interface (GUI) to

the end-user from a handsome display available on the

room wall. The display should provide a visualization

of consumption curves related with ofﬁce’s HVAC

and lighting systems, and even the access and mod-

iﬁcation of some user proﬁle settings.

6 CONCLUSIONS

Developing software for Building Automation is not

an easy task. With the proliferation of Building Au-

tomation System (BAS) became almost impossible

to integrate several different systems made by differ-

ent manufacturers. In the document we made a re-

view of existing Building Energy Management Sys-

tem (BEMS) technologies and their main functions.

We discovered some lacks in existing systems and

we found that the best solution to this problem was

to provide a modular layered middleware architecture

in order to enable the ability to integrate and extend

new Building Automation (BA) and Energy Manage-

ment (EM) functionality easily. Thus we deﬁned a set

of services collections that we believe to be common

in all building automation domains, according to ex-

istent standards. With this study, we expect to ascer-

tain the best way to deﬁne a software architecture for

BEMS, in order to the development of their function-

SMARTGREENS2014-3rdInternationalConferenceonSmartGridsandGreenITSystems

322

alities is made easier. Chosen technology for the pro-

totype development was OSGi since it provides mech-

anisms that enforce modular design.

REFERENCES

Bastide, G., Seriai, A., and Oussalah, M. (2006). Adap-

tation of Monolithic Software Components by Their

Transformation into Composite Conﬁgurations Based

on Refactoring Example of Experimentation : A

Shared-Diary System. pages 368–375.

Bloom, E. and Gohn, B. (2013). Building Energy Manage-

ment Systems IT-Based Monitoring and Control Sys-

tems for Smart Buildings : Global Market Analysis

and Forecasts.

Bottaro, A. and France, M. (2008). Home SOA – Facing

Protocol Heterogeneity in Pervasive Application Gen-

eral Terms :. pages 73–80.

Bushby, S. T. (1997). BACnet TM : a standard communi-

cation infrastructure for intelligent buildings. 6:529–

540.

Cannata, a., Gerosa, M., and Taisch, M. (2008).

SOCRADES: A framework for developing intelligent

systems in manufacturing. 2008 IEEE International

Conference on Industrial Engineering and Engineer-

ing Management, pages 1904–1908.

Chiaraviglio, L., Mellia, M., and Torino, P. (2010). PoliSave

: Efﬁcient Power Management of Campus PCs.

Corporation, E. (1999). Introduction to the LONWORKS

System - Version 1.0.

Davidyuk, O., Georgantas, N., Issarny, V., and Riekki, J.

(2009). MEDUSA : Middleware for End-User Com-

position of Ubiquitous Applications.

Deugd, S. D., Carroll, R., Kelly, K. E., Millett, B., and

Ricker, J. (2006). Standards & Emerging Technolo-

gies SODA : Service-Oriented Device Architecture

SERVICES.

Dobrev, P., Famolari, D., Kurzke, C., and Miller, B. A.

(2002). Device and service discovery in home net-

works with OSGi. Comm. Mag., 40(8):86–92.

Eisenhauer, M., Pramudianto, F., Researcher, M. S., and

Kostelnik, P. (2011). Towards a generic middle-

ware for developing ambient intelligence applications.

pages 26–28.

European Parliament and Council (2010). Directive

2010/31/EU of the European Parlia- ment and of the

Council of 19 May 2010 on the energy performance

of buildings. Ofﬁcial Journal of the European Union,

L153:13–35.

European Standard (2006). Energy performance of build-

ings - Impact of Building Automation Control and

Building Management - EN 15232. 00247046:1–63.

Hadlich, T. (2006). Providing device integration with OPC

UA. 2006 IEEE International Conference on Indus-

trial Informatics, pages 263–268.

Hall, R., Pauls, K., and McCulloch, S. (2010). Osgi in Ac-

tion: Creating Modular Applications in Java. Man-

ning Pubs Co Series. Manning Publications.

International Standard (2007). Building automation and

control systems (BACS) - Part 3, ISO 16484-3.

International Standard (2013). Building automation and

control systems - Part 7: BACS contribution on the

energy efﬁciency of buildings.

Jammes, F. and Smit, H. (2005). Service-oriented

paradigms in industrial automation. IEEE Transac-

tions on Industrial Informatics, 1(1):62–70.

Karnouskos, S., Baecker, O., de Souza, L. M. S., and Spiess,

P. (2007). Integration of SOA-ready networked em-

bedded devices in enterprise systems via a cross-

layered web service infrastructure. 2007 IEEE Con-

ference on Emerging Technologies & Factory Automa-

tion (EFTA 2007), pages 293–300.

Lee, J. H., Shim, H.-J., and Kim, K. K. (2010). Critical Suc-

cess Factors in SOA Implementation: An Exploratory

Study. Information Systems Management, 27(2):123–

145.

Leitner, S.-h. and Mahnke, W. (2006). OPC UA – Service-

oriented Architecture for Industrial Applications.

Levermore, G. (2002). Building Energy Management Sys-

tems: An Application to Heating, Natural Ventilation,

Lighting and Occupant Satisfaction. Taylor & Fran-

cis.

Litvinov, A. and Vuorimaa, P. (2011). Integration Plat-

form for Home and Building Automation Systems.

(PerNets):292–296.

Mensch, A. (2009). Devices Proﬁle for Web Services Ver-

sion 1 . 1. (July):1–43.

Miori, V., Tarrini, L., Manca, M., and Tolomei, G. (2006).

An open standard solution for domotic interoperabil-

ity. IEEE Transactions on Consumer Electronics,

52(1):97–103.

OASIS Open (2013). oBIX Version 1.1. pages 1–63.

Open Group Standard (2011). SOA Reference Architecture.

Osello, A., Acquaviva, A., Aghemo, C., Blaso, L., Dal-

masso, D., Erba, D., Fracastoro, G., Gondre, D., Jahn,

M., Macii, E., Patti, E., Pellegrino, A., Piumatti, P.,

Pramudianto, F., Savoyat, J., Spirito, M., Tomasi, R.,

and Virgone, J. (2013). Energy saving in existing

buildings by an intelligent use of interoperable ICTs.

Energy Efﬁciency, 6(4):707–723.

Roy, B. and Graham, T. C. N. (2008). Methods for Evalu-

ating Software Architecture : A Survey.

Stavropoulos, T. G., Gottis, K., Vrakas, D., and Vlahavas,

I. (2013). aWESoME: A web service middleware for

ambient intelligence. Expert Systems with Applica-

tions, 40(11):4380–4392.

Szucsich, S. (2010). Web Services in Building Automation

with focus on BACnet / WS. pages 1–25.

ServiceOrientedDevelopmentofBuildingEnergyManagementSystems-AnArchitectureBlueprint

323
