Cloudifying Applications with ARTIST

A Global Modernization Approach to Move Applications onto the Cloud

Leire Orue-Echevarria

, Juncal Alonso

, Hugo Brunelière

, Andreas Menychtas

Philip Langer

and Manuel Wimmer

TECNALIA, ICT-European Software Institute Division, Parque Tecnológico Ed #202, E-48170 Zamudio, Spain

AtlanMod Team Inria, Mines Nantes & LINA, Nantes, France

National Technical University of Athens, Athens, Greece

Vienna University of Technology, Vienna, Austria

Keywords: Software Modernization, Software Migration, Cloud Computing, Cloud Business Model, Feasibility

Assessment, Reverse Engineering, Forward Engineering, Cloud Provider Benchmarking,

CLOUDML@ARTIST.

Abstract: Cloud computing is still considered a disruptive technology in spite of being part of our lives for several

years now. However, cloud computing is much more than a technology; it is also a business model. Many

companies that have sold software in a traditional way are now attending to this revolution, wondering if

that new technological and business shift is adequate for them, if they would be able to move their

application towards the cloud, transforming alongside the company in a service oriented company and how

they could do that. The European Project ARTIST aims to guide companies in this transition by providing

them with methods, techniques, and tools, from when the migration is just a thought, until it can be

provisioned as a service, taking into account technical, business and organizational aspects.

1 INTRODUCTION AND

MOTIVATION

Much more than the technology that supports it,

cloud computing is the latest step in the evolution of

the IT industrialization process. Most CIOs wish to

be on the “cloud train”, and therefore cloud adoption

is growing in popularity for enterprises and

independent software providers. One way to quickly

move to the cloud is by developing new, cloud-ready

software applications that can be delivered through

PaaS solutions like Google App Engine and Azure.

But when cloudifying existing software applications,

significant re-engineering and adaptation is needed.

Only after those steps have been performed, existing

applications can be delivered and offered effectively

in the software-as-a-service (SaaS) model.

However, this transition can be complex, time-

consuming and expensive, especially when not all

applications can be moved to cloud and each

application has its own business specific migration

requirements that derive on the necessity of different

problem approximation strategies. Questions such as

How do you know which applications are best

candidates for fitting the cloud? Are there any tools

that can help with application cloudification? How

can enterprises take advantage of the flexibility and

scalability of the cloud while avoiding application

migration frustrations? arise.

Due to these arising needs, several ongoing

projects (e.g., cf. ARTIST (ARTIST, 2012),

ModaClouds (MODAClouds, 2012), PaaSage

(PaaSage, 2012)) explore automation possibilities

for moving to the Cloud from a modeling

perspective.

Besides, cloud providers’ compatibility issues,

vendor lock in (e.g. being non interoperable) and

performance concerns still keep cloud-wary IT

managers from getting more comfortable with the

idea of moving applications to the cloud.

This paper proposes a global modernization

framework developed in the context of the ARTIST

European project which understands the

cloudification of an application as a global concept

involving technical, business and organizational

aspects and provides methods, techniques, and tools

to guide companies in this transition.

737

Orue-Echevarria L., Alonso J., Brunelière H., Menychtas A., Langer P. and Wimmer M..

Cloudifying Applications with ARTIST - A Global Modernization Approach to Move Applications onto the Cloud.

DOI: 10.5220/0004975107370745

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (MultiCloud-2014), pages 737-745

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

2 THE ARTIST APPROACH

2.1 ARTIST Methodology Overview

ARTIST Migration and Modernization Methodology

(ARTIST WP6, 2013) has been implemented to

enable the effective migration of legacy applications

to cloud environments. Legacy applications have

some unique characteristics which introduce many

challenges for their modernization and migration to

cloud environments. On one hand, there are

technical issues related with the nature of the

specific application and on the other, the business

aspects that need to be considered in offering an

application “as a service”. Often the legacy

applications are not cloud-enabled, following

monolithic architecture design approaches and

implemented in technologies which may be

deprecated. The modernized version of the

applications needs the equivalence of functionality

and performance as well as business continuity. This

does not only require adaptation of the software and

integration of modern services of cloud solutions on

a technical level (monitoring, security etc.), but also

changing the business processes and models based

on which the application is offered to the customers

so as to exploit the strategic advantages of clouds.

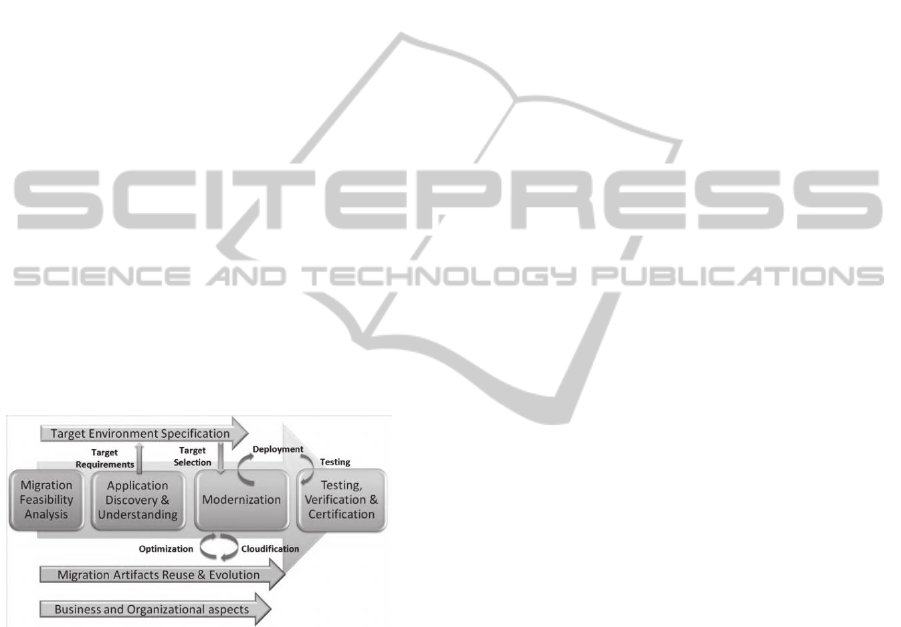

Figure 1: The ARTIST methodology overview.

The ARTIST Methodology consists of three

major phases which are explained below. These

phases are:

 Pre-migration: In this phase, a study on the

technical and economic feasibility will be

conducted as a prelude to perform modernization

of the legacy system.

 Migration: This phase will perform the

migration process itself, by using reverse as well

as forward engineering techniques to deploy the

legacy system in the cloud.

 Post-migration: In this phase the modernized

application will be deployed on the target

environment and checked if both technical and

business objectives established in the pre-

migration phase have been achieved. Moreover,

a certification model will be created in order to

increase customer confidence in the SaaS

system.

2.1.1 Methodology Process Tool

The ARTIST methodology is a detailed (ARTIST

WP6 2 2013), but also generic, methodology that

covers all migration tasks and processes. In order to

practically support this methodology, we incorporate

a central component in the overall architecture: the

ARTIST Methodology Process Tool (MPT).

The objective of the ARTIST MPT is to allow

the customization and instantiation of the ARTIST

Migration Methodology for end-users based on the

Migration Assessment results of the particular

migration project. The MPT, exploiting the results

processed and obtained during the assessment,

defines a customized modernisation process, tailored

to the concrete legacy application needs. The tool

shows the customized process in detail, its tasks

broken down step-by-step, including hooks to

invoke the tools required to accomplish each task

acting as an umbrella for ARTIST tools.

During the first year of the ARTIST Project, we

worked on the requirements analysis to effectively

design and implement MPT. Besides the

requirements analysis, we also investigated the

possible implementation approaches. The identified

approaches are:

 Eclipse-based

 Web-based

 Spikes Together proprietary solution (SPIKES,

2013)

 Hybrid (Eclipse + Web)

After a first analysis on the pros and cons of each

approach, the Hybrid solution seems to be the most

adequate one. It combines the smooth integration

capabilities of the Eclipse based solution (as most of

the ARTIST tools will be Eclipse based) and the

adaptability of the Web solution for collaborative

development environments. In the next year of the

project the final implementation technology will be

selected and the first version of the prototype

implemented.

2.1.2 Pre-migration Phase and Supporting

Tools

The pre-migration takes place even before the

migration starts. Software vendors need to check if

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

738

what they want to achieve with a specific migration

project is actually feasible to them in terms of

technology, processes and business (ARTIST

D5.1.1, 2013).Once a company has realized that

their current product is not sustainable as-it-is any

more, the first big challenge faced is therefore the

decision of what is more convenient, to migrate or to

start from scratch.

ARTIST proposes a pre-migration phase that

starts off with the characterization of the legacy

application from two points of view: technical and

business, and follows up with a technical feasibility

analysis and totally intertwined, an economic and

business feasibility analysis. The result of this pre-

migration phase is a Go / NoGo to the migration.

The first step of the pre-migration is the

Maturity assessment with the main objective of

analysing how mature the application is in terms of

technology (i.e. architecture, programming

language, database, integration with 3rd party

offerings, installation requirements, versioning, etc.)

and business (i.e. current business model, existence

of SLA, maintenance and upgrades procedures,

customer service, etc.) and how the customer wants

the application to be in those two axes once the

application is migrated. The evaluation of the

current situation and the ideal situation allows

ARTIST to perform a gap analysis, described in

terms of a technical feasibility analysis and the

business feasibility analysis.

The Maturity Assessment in ARTIST is

supported by the Maturity Assessment Tool

(MAT). which focuses on two perspectives, business

and technical in both situations (initial and final) and

provides as a result a picture with the position in a

quadrant of the initial and the final situation of the

application enriched by a set of high level

recommendations and goals to be reached along the

migration project (the current prototype supports the

maturity analysis, and the positioning of the

application).

The second activity to be performed in the pre-

migration phase is the Feasibility Analysis which

comprises a Technical Feasibility & Business

Feasibility analysis.

On the one hand the Technical Feasibility

Analysis aims at supporting ARTIST users on the

early technical assessment of the migration of a

legacy application to the cloud. No matter how

simple the application may be the technical

feasibility analysis may require non negligible

efforts and concrete expertise to be accomplished.

The support for decision making at this early pre-

migration stage, can benefit from a detailed

breakdown of the migration process into a set of

technical tasks, to estimate their required efforts, and

to identify other resources needed to accomplish

every task, including the selection of the appropriate

technical expertise or even the detection of

dependencies among tasks or other technical

intricacies.

ARTIST supports the technical feasibility

analysis through the Technical Feasibility Tool

(TFT).The aim of the TFT is to estimate the efforts

required to migrate a legacy application to a selected

target cloud environment, fulfilling some migration

goals and requirements and automating the process

as much as possible. Our implementation of TFT

extends the Cloud Migration Point (Tran, 2011)

approach by automating some steps, using

techniques such as Model Driven Reverse

Engineering (MDRE), Software Metrics or DSL-

based heuristics, notably to extract knowledge of the

legacy system, propose migration strategies and

estimate the component complexity. It provides as a

final result the estimated effort required to perform

the migration project (based on previous based

experiences). The current available prototype

supports the extraction off software metrics and the

proposition of components and migration strategies.

In parallel to the Technical Feasibility Analysis a

Business Feasibility Analysis is proposed. The need

of the Business Feasibility Analysis stems the

observation that, although cloud computing is a

software deployment scheme expected to bring a

number of advantages (e.g. elastic provisioning, cost

savings) to its adopters the same advantages does

not apply equally well to all potential users

(ARTIST D5.1.1, 2013). Hardware costs savings, as

an example, does not equally apply to SME and

large enterprises. Moreover there are also potential

(often sunken) costs that have to be carefully

assessed. The Business Feasibility Analysis in

ARTIST aims to provide, not only economic

information about how ROI, or payback metrics

shall behave in the future, but also which are the

main risks to be faced with the migration and the

organizational processes affected by the uptake of

the new business model.

The tool that performs the Business Feasibility

Analysis in ARTIST is the Business Feasibility

Tool (BFT) which supports decision to estimate

costs, benefits and operational changes to be applied

within a migration to a cloud deployment scheme.

The ARTIST’s BFT adopts (i) the Agent-Based

modelling (Twomey et al., 2002) paradigm to

represent (cloud-based) Business Models (ii) Agent-

based Simulation (Tesfatsion et al., 2006) to support

CloudifyingApplicationswithARTIST-AGlobalModernizationApproachtoMoveApplicationsontotheCloud

739

the user to learn how the organizational changes

required by the adoption of a cloud deployment

scheme may impact an enterprise and (iii) Enterprise

Simulation (ES) (Datar et al., 2000) to support “what

if” scenario aimed at the evaluation of the impact

that additional controls due to the adoption of a

cloud deployment scheme may have on the

organization.

2.1.3 Migration Phase and Supporting Tools

2.1.3.1 Reverse Engineering

Reverse Engineering is the first step of any

migration process, as it consists in performing a

prior analysis of the existing system or software that

is going to be later migrated (e.g. to the cloud)

(Canfora et al., 2011). Within the ARTIST

methodology and model-based framework, a global

Model Driven Reverse Engineering (MDRE)

(Rugaber et al., 2004) approach is being designed

and developed to support it.

Model Discovery, cf. the Model Discovery

Toolbox (MDT) is the initial activity of obtaining

“raw” (i.e. low-level) models from the different

artefacts composing a given software. This is

realized (at least semi-)automatically thanks to

software components called model discoverers. The

main related challenge is to deal with the software

artefacts heterogeneity, as they can take many

different forms/formats (Java or C# source code,

XML documents, databases, etc.). Thus, we have

been working on a taxonomy of legacy artefacts that

helps better classifying them according to several

dimensions (their technical space, internal structure,

nature, size, environment, etc). The second objective

of this taxonomy is to provide some kind of

guidance in the process of deciding on the most

suitable way to discover the required initial models.

Model Understanding, cf. the Model

Understanding Toolbox (MUT) is the activity of

processing the initial models, computed from the

Model Discovery, in order to identify and build

higher-level views on the analyzed software. This is

generally performed via (chains of) model

transformations, usually refining the models

iteratively. There are several issues related to this

model understanding context: How to deal with both

functional and non-functional properties of a

system? How to allow the definition and

computation of new views? How to generalize views

independently from the nature of the system initially

reverse engineered? Intending to answer these open

questions, several tracks are being explored. For

instance, a view definition DSL is being specified in

order to make easier the elaboration of (new) views

covering different aspects of a given system. Also,

experimentations are being performed on which

model transformations are made more generic and so

reusable indifferently in the context of several types

of systems (e.g. both Java- and C#-based).

These two toolboxes come up with sets of

components that can be picked up, used and

combined according to the context (i.e. the input

system or software, the targeted migration platform,

etc.). The final goal is to be able to feed correctly the

next steps of the process, and more particularly the

beginning of the Forward Engineering phase.

2.1.3.2 Target Platform Selection

One of the most complex activities when migrating

to a cloud based solution is the selection of the

appropriate cloud platform. Here, several aspects

come to play, such as the different services offered

by the cloud platforms (in any of their delivery

models IaaS, PaaS or SaaS) and the needs from the

migrated software to be deployed in an efficient

manner (in terms of costs) and fulfilling the required

QoS parameters (without compromising the SLAs

agreed by the service provider and the final user) in

the selected provider.

To ease this process ARTIST proposes

(Menychtas et al., 2013) to implement two phases in

parallel: one in the application domain and one in

the candidate target environment domain.

In the application domain, following the

analysis of the application features and the creation

of models describing the legacy system using

reverse engineering techniques, we examine and

profile the performance aspects of each application

element and feature (through the profiling tool). In

the process, these aspects are linked with specific

software solutions exploiting trace analysis and

benchmarking, which in sequel are matched to

elementary hardware resources (virtualized or

physical) such as computation storage and

networking.

In the target environment domain, the various

offerings, in the IaaS, PaaS and SaaS layers, are

described in a way that will facilitate the matching

between these offerings and application component

requirements. For this, we have developed a unique

Cloud Modeling Language (CloudML@artist). The

specification of the target environment, including

both functional capabilities and detailed

performance aspects of common application types,

enables effective matchmaking and allows for the

selection of the ideal provider for the overall

application and/or its specific fragments. Metrics are

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

740

also investigated to characterize service offerings

based on a combination of performance and cost, to

improve the overall deployed application’s

efficiency.

Models of the candidate cloud targets

(infrastructure or platform providers), which are

available through the ARTIST repository are

matched against the afore-posed requirements, using

a model-enabled matchmaking algorithm. The

optimal target provider (e.g. best ranked match)

could be automatically selected or the selection can

be deferred to the end-user, who selects it amongst

the found matches.

2.1.3.3 Forward Engineering

The main goal of the forward engineering phase is

to produce executable code, which is efficiently

runnable in cloud environments, from platform

independent models (PIMs) which have been

produced in the reverse engineering phase. In order

to produce the required code from the given models,

we use several dedicated steps to cope with the

following main challenges. First, the PIMs have to

be refined in order to deal with the specifics of a

particular cloud environment–this step is called

model cloudification. For instance, a first basic step

when migrating models towards cloud environments

is to select appropriate cloud services and a

virtualization level. Second, possible model

optimizations have to be explored in the refinement

process to meet the non-functional requirements

stated for the migration. Current cloud environments

offer a large set of different configuration options.

Thus, automation support is urgently required to

explore more efficiently and effectively this search

space. Third, tailored code for a particular cloud

environment has to be generated from the refined

models, packaged for, and deployed in the chosen

cloud environment involving also the provisioning

of the required cloud resources beforehand.

Our approach to support this phase relies on

model transformations as main means for

automation. In particular, we employ different

model refinement levels instead of generating code

directly out of the PIMs. Using these subsequent

refinement steps, we ensure that developers are able

to control and guide the model cloudification and

optimization for their purposes. We also aim at

eliminating tedious recurring tasks by applying the

convention-over-configuration principle as well as

design exploration techniques when transitioning

from PIMs to cloudified platform-specific models

(PSMs).

As the Unified Modeling Language (UML)

(OMG, 2011) already provides modelling concepts

to represent software-, platform-, and infrastructure-

related artefacts, especially in version 2.x, e.g.,

considers UML deployment diagrams, UML is used

as host language for specifying PIMs and PSMs in

our approach. UML is designed as a platform-

independent and general purpose modeling

language, but also as an extensible language for

considering specific domains and technologies such

as cloud computing. The language inherent

extension mechanisms of UML are UML libraries

and UML Profiles. On this basis, we developed as

one part of the CloudML@ARTIST language a

sublanguage called Cloud Application Modeling

Language (CAML, available as open source project

at: http://code.google.com/a/eclipselabs.org/p/caml

), which provides cloud-specific modeling concepts

and at the same time well established UML

modeling concepts. In this respect, we have

extended UML by providing the UML-based Cloud

Deployment Modeling Library. This library allows

representing cloud-based deployment models

independent from particular cloud providers. To

keep the cloud provider specifics separate from the

modeling library, additional UML Profiles are

utilized. These UML Profiles are essential to allow

cloud consumers specifying concrete deployments

for a selected cloud provider. In the current first

version of CAML, we developed UML Profiles that

address functional cloud consumer concerns, such as

instance types, storage solutions and service

offerings, as well as non-functional ones, such

pricing, performance and service levels.

To transition from PIMs to cloudified PSMs, we

provide a set of model transformations that achieve

the refinement of the models based on cloud

blueprints, patterns, and best practices. Based on the

stated migration goals, the abstract services

contained in the PIMs are substituted by the most

appropriate specific ones offered by cloud providers.

Once a set of services is selected, additional

configurations and deployment options are

automatically examined in order to improve, e.g., the

performance measures or costs of software running

in the cloud. Therefore, we reuse simulation

techniques for the PSMs that are established for the

migration validation in the post migration phase (cf.

Subsection 3.1.4.2). Based on the results, we foresee

dynamic design-space exploration by applying

different cloud optimization patterns formalized as

model transformations to the models and evaluate

their impact on the non-functional properties by

iterative simulation runs (Troya et al., 2013).

From the optimized PSMs, application code is

CloudifyingApplicationswithARTIST-AGlobalModernizationApproachtoMoveApplicationsontotheCloud

741

generated using model-to-text transformation

approaches. Please note that not only the application

code is produced, but also supporting code, e.g.,

deployment scripts, configuration files, etc., are

generated. These additional artefacts are needed to

automatically transfer the generated applications to

pre-configured cloud environments.

We aim for a highly configurable forward

engineering process built up of reusable

transformations (Kusel et al., 2013). By using

different model composition techniques to develop

transformations chains, we counteract the

development of monolithic transformations. By

reusing standards, such as UML, and Ecore, we have

several possibilities to reuse available

transformations for code generation and available

metamodels and UML profiles that may be of

interest also for the cloud modeling domain such as

SoaML and MARTE.

2.1.3.4 Business Model Definition and

Organizational Impact

Most of the existing cloud migration approaches

(ARTIST DOW, 2012) focus their attention in the

analysis and the implementation of the technical

migration strategy. But cloudification paradigm

affects also the delivery model of the company

(from SaaG to SaaS) which implies change also at

organizational and business level.

Within ARTIST methodology we propose, in

combination with the technical migration activities,

a set of tasks to implement the changes required as a

result of the migration at business and organizational

level.

The activities required for the re-definition of

the business model are based on Osterwalder’s

Business Model Generation and adopted for cloud

based applications, including Market segment re-

definition, cost-structure re-development or

customer relationship update among others.

The tasks related to the organizational changes

include aspects from development process to

accountability or providers management processes

specially adapted for Cloud based and SaaS provider

companies. These ideal processes are based on best

practices and standards such as CCRA (ITU-T

SG13, 2013).

2.1.4 Post-migration Phase and Supporting

Tools

2.1.4.1 Migration Goals

The main objective of the migration goals is to

establish in a formal and shareable manner the main

constraints exposed from the application (or its

owner) for the migration. The requirements for the

migration that cannot be extracted from the legacy

software itself will be established by the migration

goals and circulated over the other ARTIST tool to

be accessible in all migration phases.

These migration goals are worked out through a

questionnaire and finally determined by the end-user

and are circulated over other migration phases with

the purpose of having information about the non-

functional requirements required for the migration

(quality metrics required, infrastructure information,

etc.). These user specified migration goals will be

validated in combination with the functional

requirements in the validation phase c.f. subsection

3.1.4.2.

2.1.4.2 Validation of the Migration

The objective of the validation phase is to assess

whether the migration was successful or not. A

migration is considered to be successful, if the

behaviour of the software has not been affected in

an unexpected way during the migration (i.e.,

preserving functional correctness) and if the

migrated software fulfils the user-specified

migration goals.

Validating these two aspects holds several

challenges. For evaluating the functional correctness

of the software after the migration, it is necessary to

verify whether the business logic of the software

after the migration corresponds to the software’s

business logics before the migration. Especially

when an insufficient number of test cases is

available for the software, ensuring the correct

behaviour of the migrated software with respect to

the behaviour before the migration is a challenging

task—from a theoretical and a practical perspective.

Concerning the validation of the user-specified

migration goals, we have to evaluate a variety of

different types of potentially competing migration

goals, ranging from goals, for instance, regarding

performance efficiency to goals concerning

operating costs. These goals may often not be

evaluated by measuring the respective metrics

directly in the software deployed in the cloud

environment used in production, because, for

instance, benchmarking the deployed software in the

cloud environment may lead to high costs or the

information required for the evaluation may not be

available directly due to restrictions and

virtualization levels of the cloud environment.

For assessing the functional correctness of the

migrated software, we follow three different

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

742

approaches. First, we adapt the migration techniques

of ARTIST in order to migrate not only the software

itself but also potentially existing test cases. If no

test cases are available or if their test coverage of is

insufficient, we follow a second approach to assess

the functional correctness. In particular, we provide

techniques to generate test cases automatically from

the PIM, corresponding to the overall spirit in

ARTIST to apply techniques from model-driven

engineering. Therefore, not only structural but also

behavioural models are reverse-engineered from the

legacy software and represented in the PIM. These

behavioural models are then used in a model-based

test generator tool developed in the course of

ARTIST to derive test inputs until the execution of

the software with these test inputs leads to a certain

test coverage. For this task, we adapt differential

symbolic execution techniques to be applied solely

on model-level (Person et al., 2008). Of course, this

step has to be guided by the user, who may indicate

which parts and to which degree the migrated

software shall be tested. If the behavioural models

are detailed enough, we may also use them to derive

test oracles for the generated test inputs. First

experiments show that FUML (OMG, 2012), a

recent standard of the OMG providing a concise

semantics definition for a subset of UML Classes

and Activities, may serve as an adequate modelling

language to represent the expected behaviour of the

software accurately and independently of any

platform or technology. In fact, the semantics of

FUML is precise enough to enable the unambiguous

simulation of FUML models. Therefore, we

developed an extended FUML virtual machine

(Mayerhofer et al., 2012), which enables the

simulation of FUML models, while providing

detailed information about the simulation, such as

inputs and outputs of each step and detailed

simulation traces. Based on this information, we

simulate the models for each test input and obtain

test oracles covering the expected outputs, as well as

the expected traces. The third approach to assess the

functional correctness of the migrated software is

based on running the legacy software and the

migrated software in parallel, forward each request

to both of software versions, and compare their

responses.

To provide the means for evaluating whether the

migration goals, such as performance efficiency and

operation costs, are fulfilled, we have to address the

challenge that certain information for computing the

verdict about the migration goal may not be

available in the cloud environment used for

production. Thus, simply benchmarking the

deployed software may sometimes be insufficient.

Therefore, we provide a dedicated tool that enables

model-simulation and analysis techniques to

estimate certain property measures that are related to

the respective quality characteristics mentioned in

the migration goals. These measures are then

combined and analyzed to validate whether the

defined goals are fulfilled. Our current work shows

promising first results indicating that several metrics

can be obtained by model-level simulation

leveraging the level of details in the PSMs

(representing the migrated software on model level)

without requiring a translation of the PSMs into

dedicated performance models (Berardinelli et al.,

2013); (Fleck et al., 2013) which is however the case

for existing work in software performance analysis

(Balsamo et al., 2004). These techniques come with

the additional benefit that they can be performed

also when the actual migrated code has not been

derived yet and hence may be used to guide the

optimization already in early phases of the migration

as well as in the forward engineering phase (cf.

Subsection 3.1.3.3). However, since the model-level

simulations and analyses are only estimations, we

further aim at validating the migration goals on

code-level as a final step. We run and benchmark the

actual migrated software, as far as possible (van

Hoorn, 2012) providing dedicated forward-

engineering modes that, besides generating the

production code, also instrument the generated code,

where necessary, to obtain the measures needed to

validate the migration goals.

2.1.4.3 Certification Model

One of the shortcomings for the final implantation of

SaaS and cloud computing in the software industry

is the reluctance of the users to this new service

offering.

The purpose of the certification phase in

ARTIST is to obtain an independent and impartial

judgment of SaaS providers, focusing on businesses,

processes and technology aspects (ARTIST D11.4.1,

2013) in order to create consumer confidence in

software applications offered as services considering

reliability parameters (categories) that will be

evaluated.

The certification model proposed by ARTIST,

Service based Software Provider (SbSp) focus on

organisations that develop and offer software based

services using methodologies and business models

that are connected to the Future Internet and cloud

computing schemes. It is structured into three areas

i) The business area aims to analyse the financial

CloudifyingApplicationswithARTIST-AGlobalModernizationApproachtoMoveApplicationsontotheCloud

743

stability and soundness of the business in order to

assess the potential for continuity and sustainability,

ii) the process area aims to ensure the quality of the

process of delivering the IT service to the end

customer, and iii) the technology area aims to

establish a high level of security and transparency

for both customers and providers of dedicated SaaS.

To support the certification process, three

questionnaires (corresponding to the three areas)

have been developed to be used in the certification

method. This method is the procedure through which

a third independent part evaluates the practices of a

company providing a cloud application to assure by

a label that the system fulfils a specified level (Gold,

Silver or Bronze). It is a way to ensure that

"standard-based" products are implemented: quality

products, competitive markets with more choices,

commodity pricing, and less opportunity to become

"locked in" to a particular vendor.

3 CONCLUSIONS

In this paper we present a novel cloudification

approach, supporting software vendors paving the

path to a smoother transition to the cloud computing

paradigm. The presented ARTIST methodology and

framework considers both technical and business

aspects of the legacy applications and covers not

only the core migration phase but also the pre-

migration phase, where based on the assessment of

the initial and target situations added to the results of

a technical and business feasibility analysis, the

various steps and tasks of the methodology are

customized, as well as the post-migration phase

where the outcomes are validated and certified.

ARTIST proposes a set of tools supporting each

methodology phase based on model-driven

engineering approaches, allowing when possible the

reuse of artefacts. The first version of the ARTIST

approach has been applied to the PetStore example

as the preliminary test case for validation. Currently,

the solution is applied to 4 real-world business

scenarios for validation and refinement of the overall

approach, improving its impact and standardization

on real-world industrial environments.

ACKNOWLEDGEMENTS

This work has been supported by the ARTIST

Project and has been partly funded by the European

Commission under the Seventh (FP7 - 2007-2013)

Framework Programme for Research and

Technological Development, grant no. 317859.

REFERENCES

OMG, 2011. OMG Unified Modeling Language (OMG

UML), Superstructure 2.4.1. Object Management

Group, http://www.omg.org/spec/UML.

Kusel, A., Schönböck, J., Wimmer, M., Kappel, G.,

Retschitzegger, W., Schwinger, W., 2013. Reuse in

Model-to-Model Transformation Languages: Are we

there yet?. SoSym, Springer online first, pp. 1-31.

ARTIST D6.2.1, Menychtas, A., Orue-Echevarria, L.,

2013. D6.2.1 ARTIST Migration Methodology.

http://www.artist-

project.eu/sites/default/files/D6.2.1_ARTIST%20Meth

odology_M12_30092013.pdf

ARTIST D6.3.1, Menychtas, A., 2013. D6.3.1 ARTIST

Methodology Process Framework. http://www.artist-

project.eu/sites/default/files/D6.3.1%20ARTIST%20

Methodology%20process%20framework_M12_30092

013.pdf

ARTIST D5.1.1, Alonso, J., D5.1.1. Specification of the

Business and Technical Modernization assessment in

ARTIST.

Tran, V.T.K., Lee, K., Fekete, K., Liu, A., Keung, J.,

2011. Size Estimation of Cloud Migration Projects

with Cloud Migration Point (CMP). Int. Symposium

on Empirical Software Engineering and Measurement

(ESEM'11), pp 265-274.

Twomey P., Cadman, R., 2002. Agent-Based Modelling of

Customer Behavior in the Telecoms and Media

Markets, Info, Vol. 4(1), pp. 56-63.

Tesfatsion, L., 2006. Agent-Based Computational

Economics: A Constructive Approach to Economic

Theory. Handbook of Computational Economics, Vol.

2, North-Holland/Elsevier.

Datar, M.M., 2000. Enterprise Simulations: Framework

for a strategic application. Winter Simulation

Conference.

Menychtas, A., Santzaridou, C., Kousiouris, G.,

Varvarigou, T., Gorronogoitia, J., Strauss, O.,

Senkova, T., Orue-Echevarria, L., Alonso J.,

Bruneliere, H. Pellens, B., Stuer, P., 2013. ARTIST

Methodology and Framework: A novel approach for

the migration of legacy software on the Cloud.

MICAS 2013.

ARTIST DOW, 2013. DOW: Advanced software-based

service provisioning and migration of legacy software.

ARTIST D11.4.1, Vergara, M., 2013. ARTIST SbSp

Certification Model.

Berardinelli, L., Langer, P., Mayerhofer, T., 2013.

Combining fUML and Profiles for Non-Functional

Analysis Based on Model Execution Traces. Qosa’13,

ACM Sigsoft Conference on the Quality of Software

Architectures. ACM, pp. 79-88.

Fleck, M., Berardinelli, L., Langer, P., Mayerhofer, T.,

Cortellessa, V., 2013. Resource Contention Analysis of

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

744

Service-Based Systems through fUML-Driven Model

Execution. Int’l Workshop Non-functional Properties

in Modeling, CEUR, Vol-1074 pp. 6-15.

Mayerhofer, T., Langer, P., Kappel, G., 2012. A runtime

model for fUML. Int’l Workshop on

models@run.time, ACM, pp. 53-58.

Person, Suzette, et al. "Differential symbolic execution.".

16th ACM SIGSOFT International Symposium on

Foundations of software engineering. ACM, 2008.

Balsamo, Simonetta, et al. "Model-based performance

prediction in software development: A survey."

Software Engineering, IEEE Transactions on 30.5

(2004): 295-310.

Van Hoorn, André, Jan Waller, and Wilhelm Hasselbring.

"Kieker: A framework for application performance

monitoring and dynamic software analysis." Joint

WOSP/SIPEW international conference on

Performance Engineering.

ACM, 2012.OMG, 2012. Semantics of a Foundational

Subset for Executable UML Models (FUML). Object

Management Group http://www.omg.org/spec/FUML

SPIKES, Spikes is member of ARTIST consortium

G. Canfora, M. Di Penta, L. Cerulo, Achievements and

Challenges in Software Reverse Engineering. ACM 54

(2011) 142-151

S. Rugaber, K. Stirewalt, Model Driven Reverse

Engineering, IEEE Software 21 (2004) 45-53.

CCRA, Cloud Computing Reference Architecture CT-

CCA-o-016-Edit-Draft-RA ITU-T SG13/WP6.

Troya, J., Cubo, J., Martín, J.A., Pimentel, E., Vallecillo,

A., 2013: Automated Throughput Optimization of

Cloud Services via Model-driven Adaptation.

MODELSWARD, pp. 356-362

ARTIST 2012, www.artist-project.eu

ModaClouds 2012 http://www.modaclouds.eu

PaaSage 2012 http://www.paasage.eu

CloudifyingApplicationswithARTIST-AGlobalModernizationApproachtoMoveApplicationsontotheCloud

745
