Increasing Privacy and Trust in Cooperative Social

Platforms for Vehicular Applications

F. Mart

ın-Fern

andez, P. Caballero-Gil, C. Caballero-Gil and J. Molina-Gil

Department of Statistics, Operations Research and Computing,

University of La Laguna, San Crist

obal de La Laguna, Spain

Abstract. New research challenges have arisen from the increasing number of

vehicles and consequent permanent trafﬁc jams in urban environments. The main

problem is that just one passenger occupies most cars, so a natural solution should

involve a more optimized use of resources, which may be carried out through

carpooling. However, carpooling is not seen as an acceptable solution by many

users mainly due to the lack of trust in strangers. Nowadays, mobile technology

can be combined with social media to create a trust-based system that allows

sharing cars in a comfortable, fast and safe way, taking advantage of the comfort

of travelling in a car. The main aim of this work is the design of an improvement

for existing carpooling systems that introduces a security layer to provide privacy

and trust through the measurement of user reputation. The proposal has been

implemented as an Android application whose results are promising.

1 Introduction

The increase in the number of vehicles has raised the price of fuel and the pollution in

big cities. These facts have led governments to take steps to try to decrease pollution

mainly in urban centres. The use of public transport might signiﬁcantly reduce these

problems, but public transport is not always convenient and/or affordable for all users.

A convenient solution involves sharing cars so that empty seats could be used in

most trips. This modality is known with the term carpooling and has been proposed as

an effective way to reduce both pollution and spending. Another related but different

proposal, known as carsharing, is based on collective ﬂeets of cars with multiple users,

but such a solution does not solve as many problems as carpooling. Ridesharing is the

general term used to refer to solutions for sharing the use of a car with other people in

order to travel to a given destination. Apart from carsharing and carpooling (also known

as real-time or instant or dynamic or ad-hoc ridesharing), ridesharing also includes other

versions known as slugging, lift sharing and covoiturage. However, ridesharing propos-

als that are different from carpooling are out of the scope of this work.

The use of both types of collaborative solutions has increased since the onset of the

economic crisis thanks to technology 2.0. They are applicable in almost any environ-

ment, but are especially useful in places like universities, holidays, long journeys and

even urban centres. This is because in these situations both vehicle owners and passen-

gers agree on the same motivations to consider carpooling. Usually their main goal is

Martín-Fernández F., Caballero-Gil P., Caballero-Gil C. and Molina-Gil J..

Increasing Privacy and Trust in Cooperative Social Platforms for Vehicular Applications.

DOI: 10.5220/0004976800030013

In Proceedings of the 11th International Workshop on Security in Information Systems (WOSIS-2014), pages 3-13

ISBN: 978-989-758-031-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

to share fuel cost, but there may be other reasons such as solving the parking problem,

wanting to talk with others or to take care of the environment, etc.

This work proposes an improvement for existing carpooling solutions that make use

of recent technological advances of smartphones and social networks. The described

solution allows the establishment of trust and reputation accountability between drivers

and passengers, while taking care of their privacy at the same time.

This paper is organized as follows. Section 2 mentions several related works. Sec-

tion 3 introduces the general design of the proposal, which is mainly based on the

reputation algorithm sketched in Section 4. The security of the proposal is brieﬂy an-

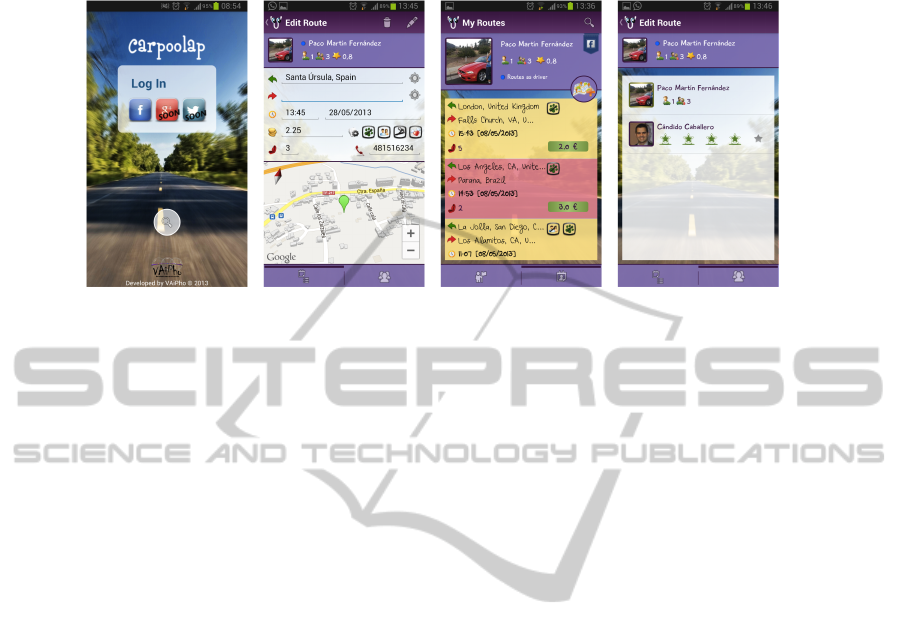

alyzed in Section 5. Section 6 describes the developed Android application. Finally,

some conclusions and open problems can be found in Section 7.

2 Related Work

The ﬁrst carpooling projects emerged in the late 1980s [22], but in those days, without

the technology available today, many difﬁcult obstacles such as the need to develop a

user network and of a convenient communication medium had to be faced.

Gradually, the media used to organize the trips was changing from telephone to

more ﬂexible means such as the Internet, email and smartphones. Nowadays, many dif-

ferent carpooling platforms and services exist, but even today, they may be considered

in their early stages because none has reached a critical mass of users.

Table I shows several features of different existing carpooling systems, including

the most relevant security-related ones. In particular, we have chosen for this compar-

ative analysis the representative systems: CarPooling [7], Blablacar [5], Amovens [4],

ZimRide [28], compartir.org [8].

The main trust enforcing system in all these platforms is based on points given by

users. However, bypassing this security system is quite easy because users who obtain

a negative score, can create a new proﬁle with new credentials and no points.

Apart from these practical platforms already in operation, there are several papers

that propose different solutions. The work [23] shows an integrated system for the or-

ganization of carpooling service by using different technologies such as web, GIS and

SMS. The authors of [3] propose a web platform to carpool. The paper [12] presents a

carpooling architecture that uses a credit mechanism to encourage cooperation between

users.

Table 1. Carpooling Platforms.

Platform Social network Privacy Points system Phone cert Trust algorithm

CarPooling [7] yes no yes no no

Blablacar [5] yes yes yes yes no

Amovens [4] yes yes yes no no

ZimRide [28] yes yes no no no

Compartir.org [8] no yes no no no

Our system yes yes yes no yes

A more recent work is [17], where an algorithm to encourage carpooling is pro-

posed based on assigning priority to users with positive feedbacks through a fuzzy

logic scheme. Another paper, [1], deﬁnes a push service to promote carpooling through

instant processing. Finally, another interesting proposal is [6], based on a secure multi-

agent platform that focuses on the security services allowing both the mutual authenti-

cation between the users and the application components with the system.

The main aspect of our work is different from the aforementioned because it deals

with the trust aspect of carpooling services through a combination of reputation mea-

surement with privacy protection.

3 Carpooling Platform

The main objective of the proposed design is the increase of both usability and security.

Thus, its key factors are user-friendliness and privacy. One of the main features is that

users who publish their trips have their privacy fully protected. Unlike other carpooling

platforms, in the described system, no user is allowed to access data such as email,

phone or full name of others, unless he/she is authenticated on the platform and the

algorithm for checking mutual trust returns a valid permission for him/her. In this case,

the interested user can see all the data in detail. Otherwise, he/she can only send a

request so that the receiver can decide whether the applicant is to be trusted or not.

The algorithm is based on trust relationships so that people who want to use the

platform ﬁrst need to authenticate in the platform through social networks such as Face-

book, Twitter or Google+. In this way, the algorithm checks the existence of some chain

of trust between the applicant and other users, based on the so-called rule of six degrees

of separation [9]. Besides, the reputation gained through the use of the application is

an inﬂuent factor, which is considered in the decision on whether carpooling with an-

other person. To do this, at the end of every shared travel, the application asks both

drivers and passengers to score the other users. Such scores are used in future trips so

that seats offered by car drivers with good scores appear in better positions than others

with lower scores. Also well-scored passengers have higher probability to have access

to more details of drivers.

Our overall system architecture used as an application model known as client-server.

The client-server architecture of our system is showed in Figure 1. Its different elements

are the following:

– Client. Mobile device used for the system.

– Server. Hosted in the cloud, and divided into two parts. On the one hand, the GCM

server is the Google Cloud Messaging server that handles all the notiﬁcations and

is responsible for sending the notiﬁcation when the receiver clients are alive. On

the other hand, the DB dedicated server is the server that stores in its DataBase

all the data related to the users and system. It also serves as a gateway for sending

notiﬁcations between the client and the GCM server.

The life cycle of the application is shown in Figure 2, and explained below step by step:

– Step 1. The user logs on the application through any of its social networks (Face-

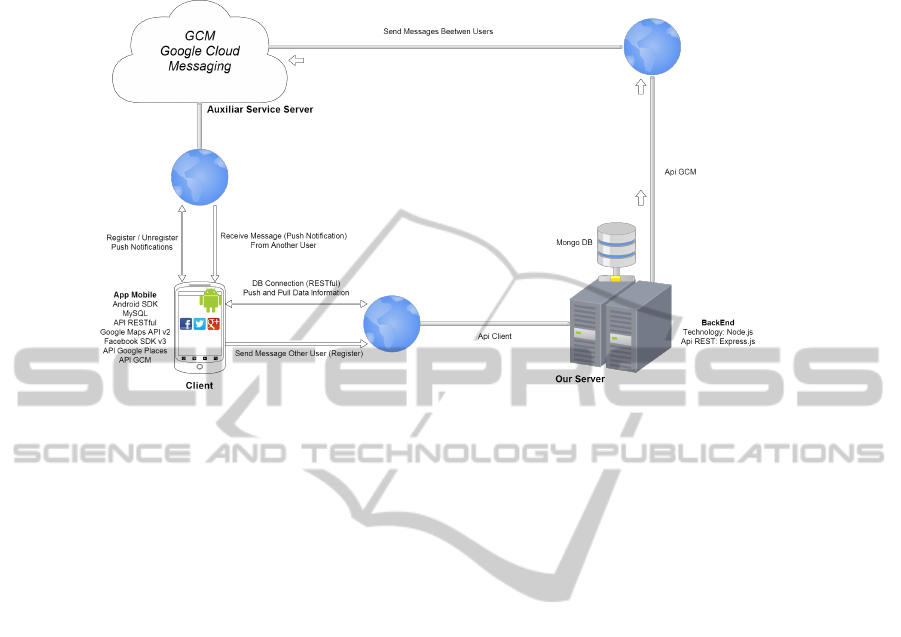

Fig. 1. Carpooling System Architecture.

book, Twitter, Google+). Then, its data are saved in the DB server and the device is

registered in the GCM server for notiﬁcations.

– Step 2. Once logged in, the user has two possibilities:

1. The user can play the role of driver, and create new routes or manage existing

routes. On the one hand, if a new route is created, all related information is

stored in real time on the DB server. On the other hand, if the user is managing

some old routes, ﬁrst, the client informs the dedicated server to store the shares

in the DB. Then, it also indicates to notify possible affected users about route

changes in order to ask for acceptance/ rejection to participate in the route,

etc. The DB server sends the necessary information to the GCM server, so that

this sends such notiﬁcation to the involved clients when they are turned on and

connected to the network.

2. The user can play the role of a passenger who tries to ﬁnd some trip. Once a trip

is found, the user sends a request to be a passenger on that route. This request

must be answered positively or negatively by the creator of the route, through

a notiﬁcation sent within a period of time. Such a notiﬁcation will go from the

dedicated server to the GCM server because this is the responsible server for

sending notiﬁcations to the clients.

The proposed scheme protects user privacy through limited and controlled access

to user data, according to the trust level stated for the relationship between each pair of

users. This trust level is got through the combination of direct scores and trust networks

so that it provides the system with enough data to deduce whether people can trust each

other or not. In this way, privacy is dealt with as one of the most important aspects of

the proposed carpooling system.

A ﬁrst approach to the development of a trust measurement algorithm that provides

a value to each pair of users is based on the use of the PageRank algorithm to predict

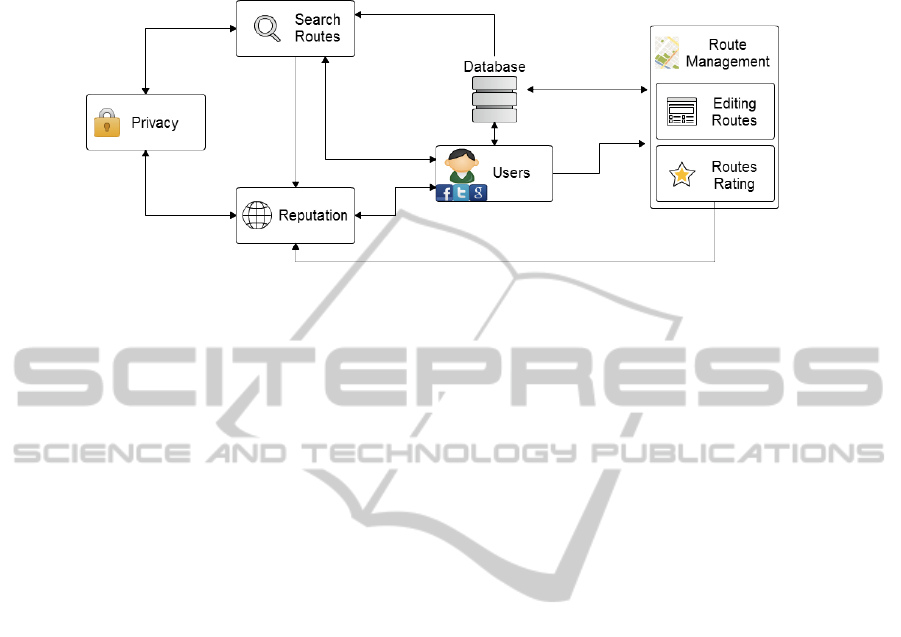

Fig. 2. Use Model.

whether two people can rely each other . However, since this algorithm does not con-

form totally to the morphology of the speciﬁc problem, a second approach is also being

used to complement it, based on Bayesian networks to know whether people can trust

others. The reﬁned trust measurement algorithm is available in the Android Application.

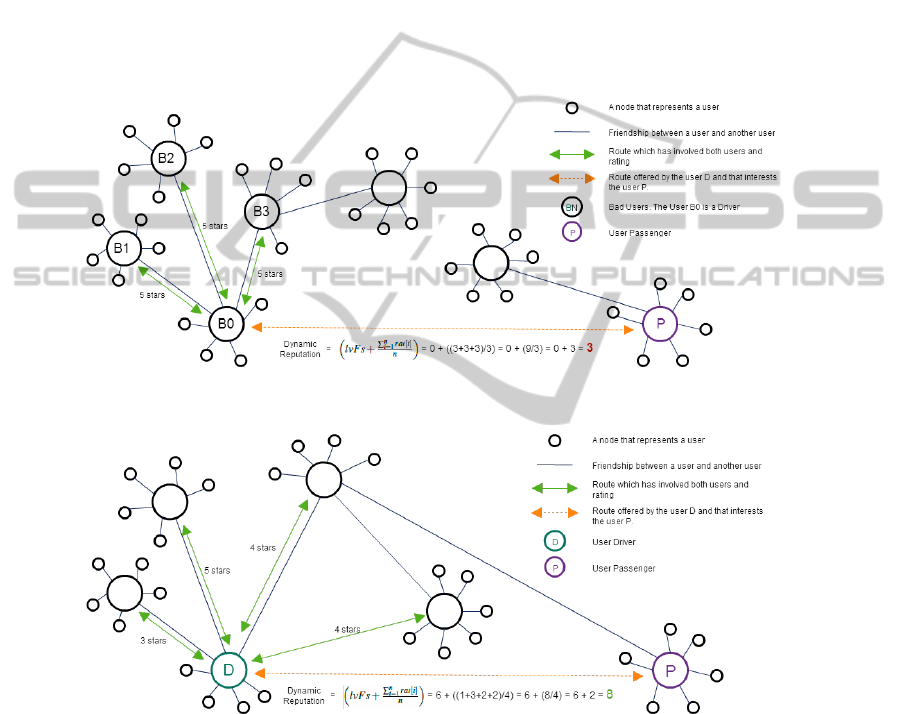

4 The Reputation Algorithm

No existing carpooling proposal offers the user a quantitative method, based on the

theory of six degrees of separation, that can be used to decide whether another user is

trustful to share a vehicle. Some of them even do not allow users to decide who may or

may not apply your route. There are some proposed that the quantitative method based

on the similarities among users [24] [20], having to collect this information about the

attributes and characteristics of each user. Our proposal aims to be simple for the user,

without the user ﬁlls out some information about its attributes. With a simple click (that

enables social login on the network that is previously registered) may be entered in

our system and start using the platform. The main difference with our proposal is the

proposed reputation algorithm. By using it, the user can use a quantitative measure to

decide whether trusting another user. The algorithm is based on the theory of six de-

grees of separation and individual scores within our platform. Six degrees of separation

is the theory that everyone is six or fewer steps away from each other in the world, so

that a chain of ’a friend of a friend’ statements can be made to connect any two peo-

ple in a maximum of six steps. This number of steps may be reduced signiﬁcantly by

introducing the concept of social networks. Our application uses social networks when

logging into the application to create network users to be used to interconnect with each

other and provide a reliable measure of conﬁdence. Through the use of social networks

we can ensure that the six degrees of separation are reduced to only four. In particular,

according to several researches on Facebook [10] [14] [16], the obtained average dis-

tance was 3.9 ,corresponding to intermediaries or ’degrees of separation’, what shows

that the world is even smaller than expected.

The reputation measurement is expressed as a number between 0 and 10, and is

computed from the values given by each pair of users to inform about the reliability in

each other. This measure is calculated by taking into account the two parameters men-

tioned above: degree of friendship and appreciation of other users on our platform. If

the Facebook social network is used, the score given by the system with the degrees of

friendship is broken down as follows:

– 7 points if a user has only one degree of separation (i.e. it is direct friend).

– 6 points if both users have a mutual friend.

– 4 points if among those users there is a chain of friendship of more than two friends.

– 0 points for the case that there is no chain friendliness.

Other users obtain the remaining scores from the assessments after sharing routes.

When a route is completed, users who participated in it, can vote between 1 and 5 stars.

Each passenger individually assesses the driver, and the driver individually assesses

passengers. The weight is higher from driver to passengers than from passengers to

driver, as the driver puts his/her vehicle available to the users. In order to account for

the different ratings on a user, we use a simple arithmetic average. The metric taken into

account for these ratings is as follows:

– 1 star will impact the score in -3 points if that assessment was given to the driver

by the passenger. -1 point if it was the driver who voted to the passenger.

– 2 stars will impact the score in -1 points if that assessment was given to the driver

by the passenger. 0.1 point f it was the driver who voted to the passenger.

– 3 stars will impact the score in 1 points if that assessment was given to the driver

by the passenger. 0.2 point if it was the driver who voted to the passenger.

– 4 stars will impact the score in 2 points if that assessment was given to the driver

by the passenger. 1 point if it was the driver who voted to the passenger.

– 5 stars will impact the score in 3 points if that assessment was given to the driver

by the passenger. 2 point if it was the driver who voted to the passenger.

The maximum reputation score that a user can get is 10 points, which corresponds

to the situation when the user’s direct friends have rated him/her with the highest scores.

A user can have total null valuation if he/she is starting to be known, does not have any

degree of friendship, and/or has negative reviews. In this case, the system does not use a

score below 0, so that 0 is the minimum score for any user. This valuation is dynamically

calculated as a function of the friendship degree that a user has. It helps users to have

a reliability measure about whether to trust another user of the platform. Besides, only

users who have a valuation higher than 7.5 points and/or users who have been accepted

by the driver to make the route can see certain route data, such as the phone number or

any other conﬁdential data.

So the mathematical expression applied to the calculation of the reputation score in

the algorithm is:



lvF s +

i=1

rat[i]



where:

– lvFs. Friendship level measured in points between 0 and 7, depending on the level

of friendship each user has with other user, as explained above.

– rat[]. Each of the ratings a user has received both as driver and passenger, on the

routes that has used. The points at which the rating of 1-5 stars are mapped.

– n. Total number of ratings that the user has received.

5 Security of the Scheme

Regarding the safety of the platform, Sybil attack is one of notorious attacks in tra-

ditional carpooling systems. This type of attacks are hacking attacks on peer-to-peer

networks where a malicious device illegitimately takes multiple identities by forging

them. Due to the privacy-preserving environment of carpooling schemes, sybil vulner-

ability is generally hard to defend against.

Fig. 3. Insufﬁcient dynamic reputation rating between an bad user and a possible passenger.

Fig. 4. Reliable dynamic reputation rating between a possible passenger and a driver.

In a Sybil attack the attacker subverts the reputation system of a peer-to-peer net-

work by creating a large number of pseudonymous identities, using them to gain a

disproportionately large inﬂuence. A reputation system’s vulnerability to a Sybil attack

depends on how cheaply identities can be generated, the degree to which the reputation

system accepts inputs from entities that do not have a chain of trust linking them to a

trusted entity, and whether the reputation system treats all entities identically.

An entity on the analyzed peer-to-peer network is a piece of software which has

access to local resources. It advertises itself on the peer-to-peer network by presenting

an identity. More than one identity can correspond to a single entity. In other words

the mapping of identities to entities is many to one. Entities in peer-to-peer networks

use multiple identities for purposes of redundancy, resource sharing, reliability and in-

tegrity. In peer-to-peer networks the identity is used as an abstraction so that a remote

entity can be aware of identities without necessarily knowing the correspondence of

identities to local entities. By default, each distinct identity is usually assumed to cor-

respond to a distinct local entity. In reality many identities may correspond to the same

local entity.

A faulty node or an adversary may present multiple identities to a peer-to-peer net-

work in order to appear and function as multiple distinct nodes. After becoming part of

the peer-to-peer network, the adversary may then overhear communications or act mali-

ciously. By masquerading and presenting multiple identities, the adversary can control

the network substantially.

In our case, for example, considering the following scenario:

A ’bad’ user (B0) sets up several bogus accounts in social media and the proposed

system (B1, B2, B3, etc). He/she then advertises a possible trip from X 7→ Y 7→ Z.

For the ﬁrst leg (X 7→ Y ) he/she uses the bogus accounts to claim that his/her vehicle is

full and all these ’passengers’ state that they get off at Y . He/she can then get excellent

scores and increase his/her reputation. At some point, this will be so high that other

normal users will be able trust him/her from leg Y 7→ Z.

The proposed algorithm is protected against the attack described above because

most of the score of our algorithm is preceded by conﬁdence in degrees of friendship

that binds each user to another user. Thus, if a user does not know (at all) another user,

very high ratings of the latter in the system are not reliable enough for the fomer. It is

remarkable that in our system the minimum reliability to trust another user is 7.5 points.

At most, a user can have up to 3 points in relation to ratings for the routes that has done

(see Figure 3) , far from the 7.5 points that are needed at least for that user to be reliable

(see Figure 4).

6 The Android Application

The proposed design has been embodied in an Android application that is already pub-

lished in the Android Play Store under the name ’Carpoolap’ (see Figure 5).

The Android application is developed for the versions 3.0 or higher of the operating

system. APIs like Google Maps v3.0, Google Places, Google Cloud Messaging, etc.,

and Facebook SDKs 3.0 and libraries like Action Bar Sherlock used to use the func-

tionality of the new versions of Android on older versions, were used. Autocomplete in

address searches, Google Maps 3D Technology (see second image of Figure 5), design

based on the latest versions of Android, push notiﬁcations with requests or responses of

passengers or drivers, etc. are among the features of the Android Application.

Each user can see the routes he/she proposes as driver (see third image of Figure

5), and whether potential passengers exist for those routes. Besides, with colour codes,

he/she can know the routes that each user has already made and the routes that have

Fig. 5. Carpoolap Screens: Login / Edition Route / Routes List / Rating Passengers.

been conﬁrmed by users. For the assessment of users participating in a route, after ﬁn-

ishing it, each one can give a score through the screen shown in the fourth image of

Figure 5. In order to deploy the carpooling platform, a server is also needed, so we de-

veloped one using javascript technologies by frameworks like ’node.js’ and ’express.js’.

As a database for all the data centralized on this server, we decided to adopt a No SQL

database, such as MongoDB [18]. We deployed our server on a micro instance of Ama-

zon Web Services, speciﬁcally under Ubuntu machine with Amazon EC2 account.

7 Conclusions

This work proposes an improvement scheme for existing carpooling solutions, whose

objective is to increase their safety and reliability. In order to reach this aim, a few

existing platforms and some related research work have been reviewed. Also, research

on how to assess the social component of a carpooling system in order to build trust

between users has been done. From the obtained conclusions, a new proposal has been

developed based on gradual access to data according to trust levels got both from di-

rect scoring and social networks. This work includes the implementation of a published

Android application that makes use of this research to create a platform for safe car-

pooling. Many open questions exist, such as the improvement of the application, the

development for other platforms, and the merging with existing carpooling solutions.

Acknowledgement

Research supported by the Spanish MINECO and the European FEDER Funds under

projects TIN2011-25452 and IPT-2012-0585-370000, and the FPI scholarship BES-

2012-051817.

References

1. A. J. Fougeres, P. Canalda, T. Ecarot, A. Samaali, L. Guglielmetti, A Push Service for Car-

pooling. IEEE International Conference on Green Computing and Communications, pp. 685-

691, 2012.

2. A. Oram, Peer-to-peer: harnessing the beneﬁts of a disruptive technology, O’Reilly, 2001.

3. A. Roberts, H. Pimentel, S. Karayevm, CabFriendly: A Cloud-based Mobile Web App. Ama-

zon’s EC2, 2011.

4. Amovens: https://www.amovens.com, January 2014.

5. Blablacar: https://www.blablacar.es, January 2014.

6. C. Bonhomme, G. Arnould, D. Khadraoui, Dynamic carpooling mobility services based on

secure multi-agent platform, IEEE International Conference on Global Information Infras-

tructure and Networking Symposium, pp. 1-6, 2012.

7. Carpooling: www.carpooling.es, January 2014.

8. Compartir.org: http://compartir.org/, January 2014.

9. D. J. Watts, S. H. Strogatz, Collective dynamics of small-world networks, Nature, v. 393 pp.

440-442, 1998.

10. E. Y. Daraghmi, S. M. Yuan, We are so close, less than 4 degrees separating you and me!.

Computers in Human Behavior, pp. 273-285, 2014.

11. F.E. Prettenthaler, K.W. Steininger, From ownership to service use lifestyle: the potential of

car sharing, Ecological Economics 28, pp. 443-453, 1999.

12. J. Ferreira, P. Trigo, P. Filipe, Collaborative Car Pooling System, International Conference

on Sustainable Urban Transport and Environment, 2009.

13. J. R. Douceu, The Sybil Attack, Electronic Proceedings for the 1st International Workshop

on Peer-to-Peer Systems, March 2002.

14. J. Ugander, B. Karrer, L. Backstrom, C. Marlow, The Anatomy of the Facebook Social

Graph. Cornell University Library, November 2011.

15. K. Steininger, C. Vogl, R. Zettr, The size of the market segment and revealed change in

mobility behavior. Transport Policy 3, pp. 177-185, 1996.

16. L. Backstrom, P. Boldi, M. Rosa, J. Ugander, S. Vigna, Four Degrees of Separation, Cornell

University Library, November 2011.

17. M. Collotta, G. Pau, V.M. Salerno, G. Scata, A novel trust based algorithm for carpooling

transportation systems. IEEE International Conference on Energy Conference and Exhibi-

tion, pp. 1077-1082, 2012.

18. MongoDB: www.mongodb.org, January 2014.

19. N. T. Fellows, D. E. Pitﬁeld, An economic and operational evaluation of urban car-sharing,

Transportation Research Part D: Transport and Environment 5, pp. 1-10, 2000.

20. N.V. Pukhovskiy, R.E. Lepshokov, Real-Time Carpooling System. International Conference

on Collaboration Technologies and Systems, pp. 648-649, 2011.

21. R. Katzev, Car Sharing: A New Approach to Urban Transportation Problems. Analyses of

Social Issues and Public Policy 3, pp. 65-86, 2003.

22. R. Teal, Carpooling: Who, how and why, Transportation Research, v. 21A pp. 203-214, 1987.

23. R. W. Calvo, F. De Luigi, P. Haastrup, V. Maniezzoi, A distributed geographic system for the

daily car pooling problem, Computers and Operations Research 31, v. 13, 2004.

24. S. Cho, A. Yasar, L. Knapen, T. Bellemans, D. Janssens, G. Wets, A Conceptual Design

of an Agent-based Interaction Model for the Carpooling Application. The 1st International

Workshop on Agent-based Mobility, Trafﬁc and Transportation Models, Methodologies and

Applications, pp. 801-807, 2011.

25. T. Talele, G. Pandi, P. Deshmukh, Dynamic Ridesharing Using Social Media, International

Journal on AdHoc Networking Systems 2, pp. 29, 2012.

26. Transport For London: www.tﬂ.gov.uk/tﬂ/roadusers/congestioncharge, January 2014.

27. U. Kuter, J. Golbeck, SUNNY: A New Algorithm for Trust Inference in Social Networks

Using Probabilistic Conﬁdence Models. Proceedings of the Conference on Artiﬁcial intelli-

gence AAAI, pp. 1377-1382, 2007.

28. Zimride: http://www.zimride.com/, January 2014.
